Sold

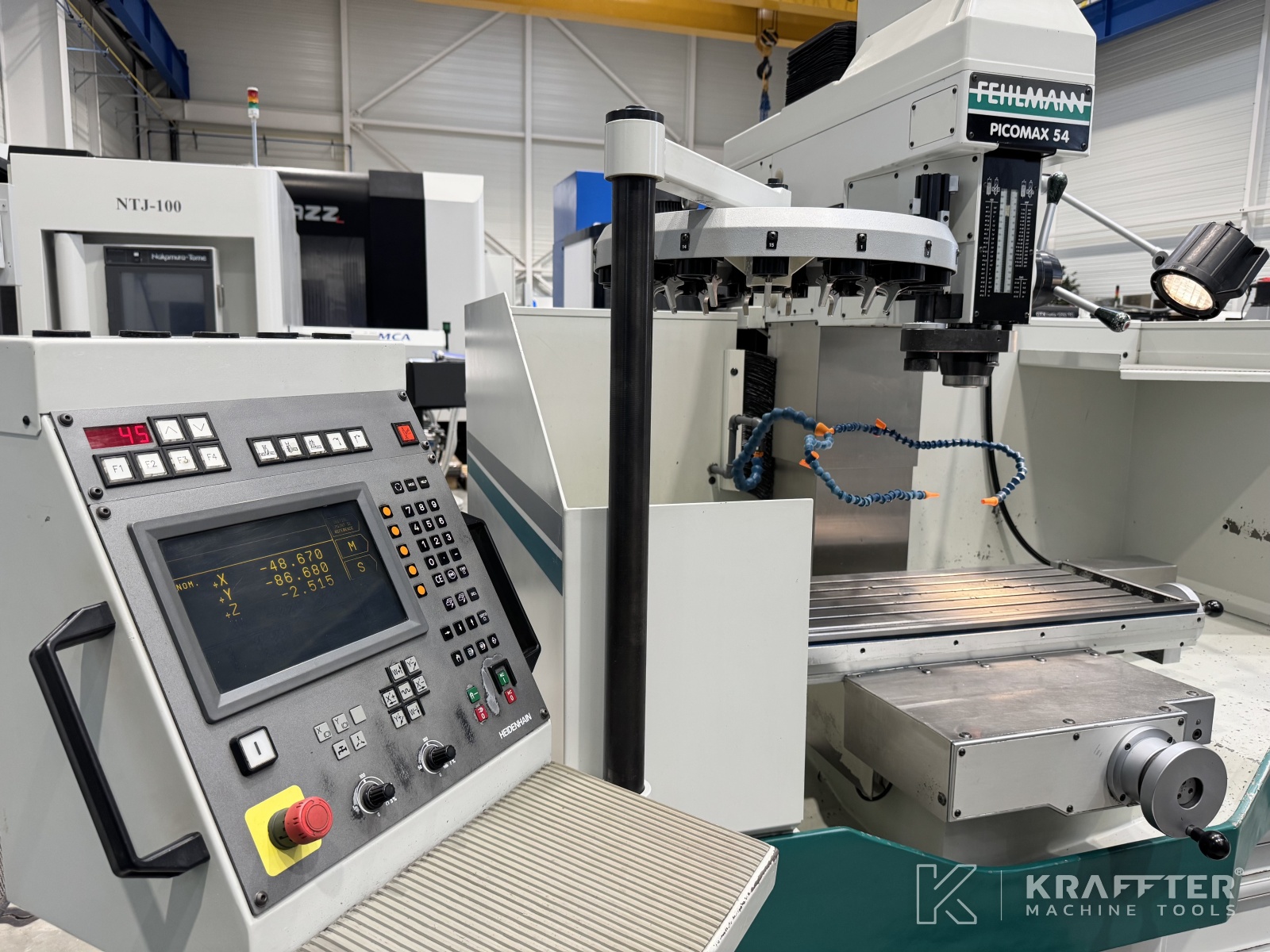

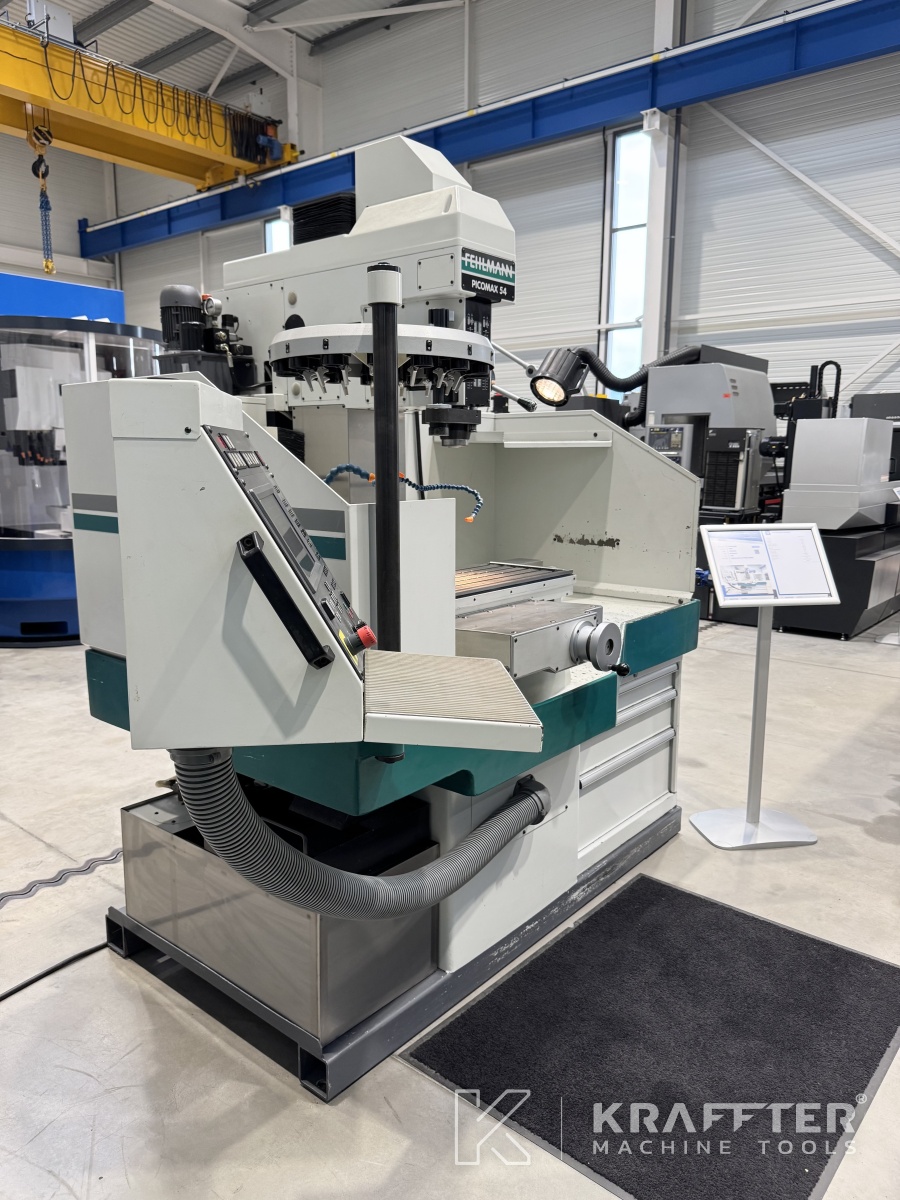

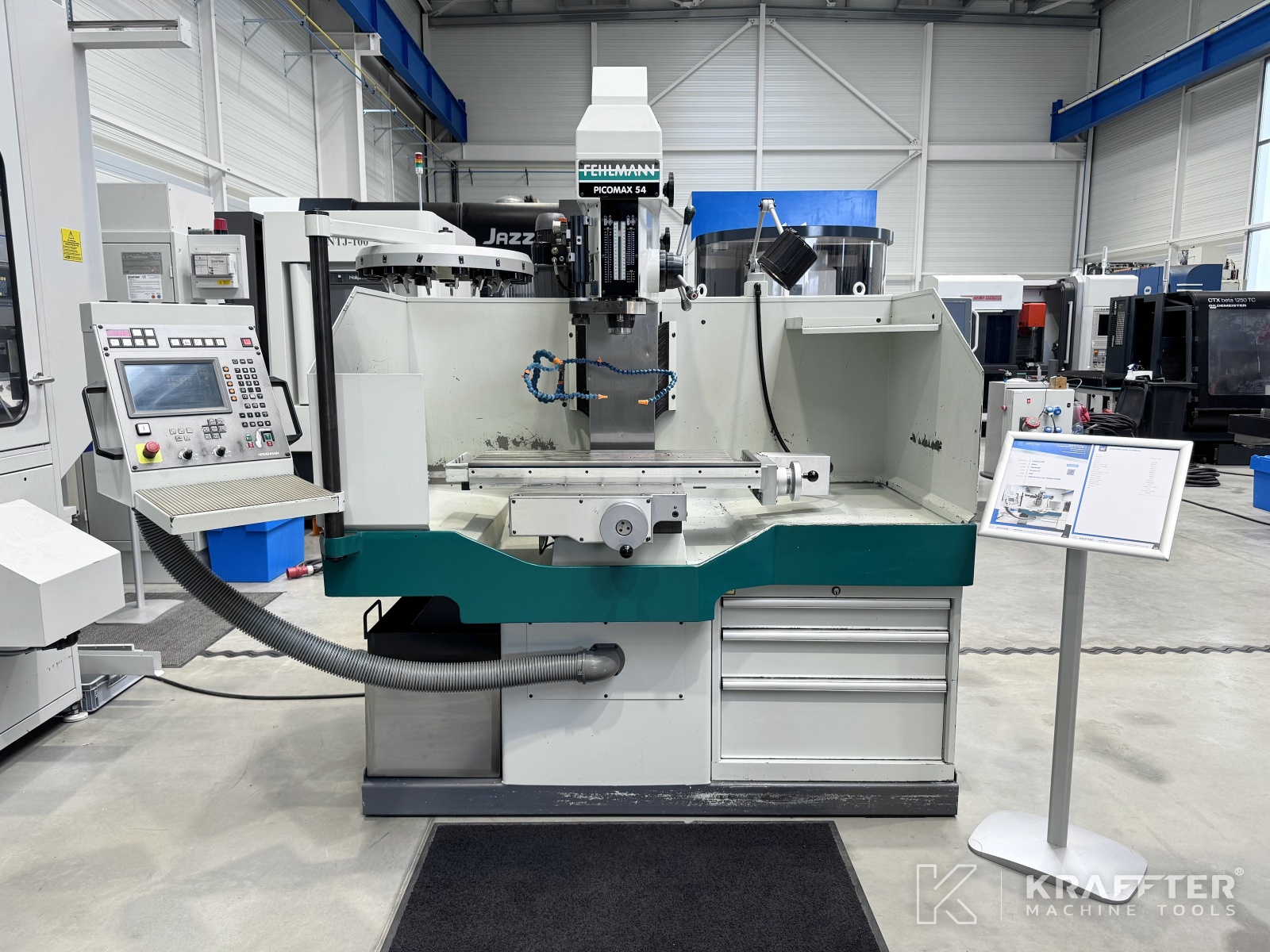

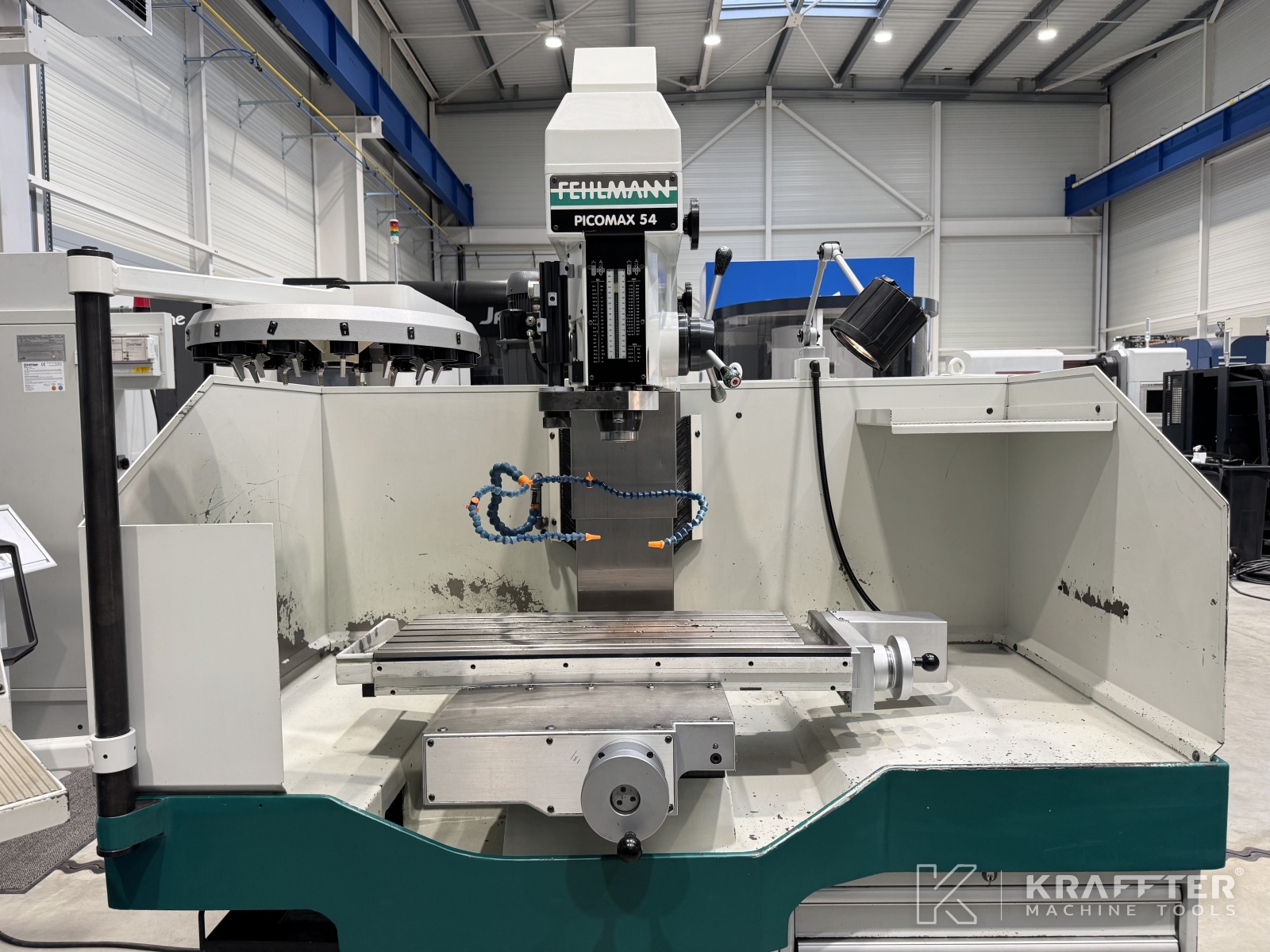

Type of machine : CNC milling machine
Brand : FEHLMANN
N° de stock: 90160

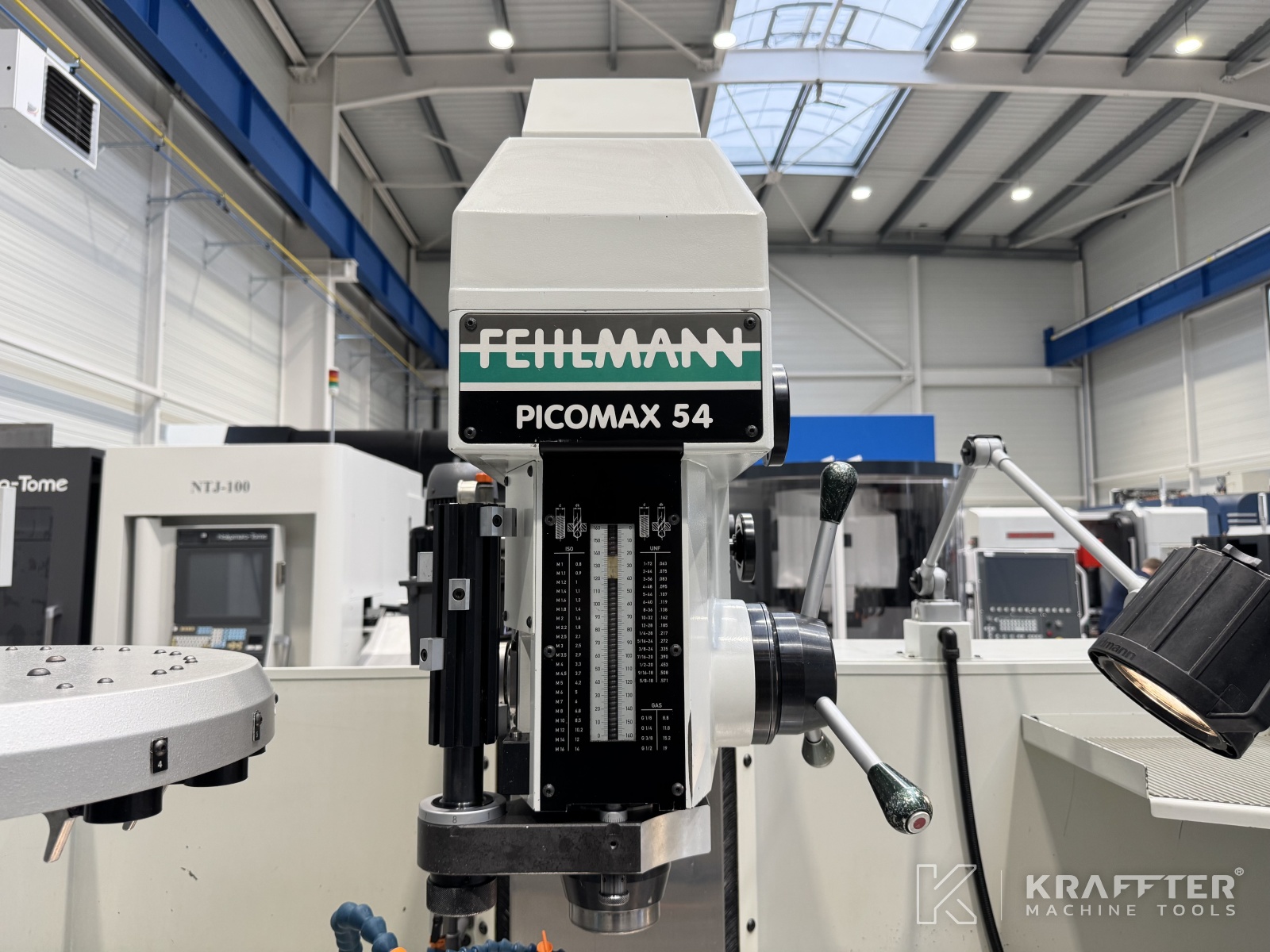

Model : Picomax 54
Year : 1999
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

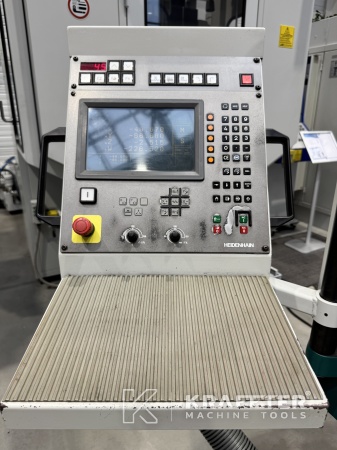

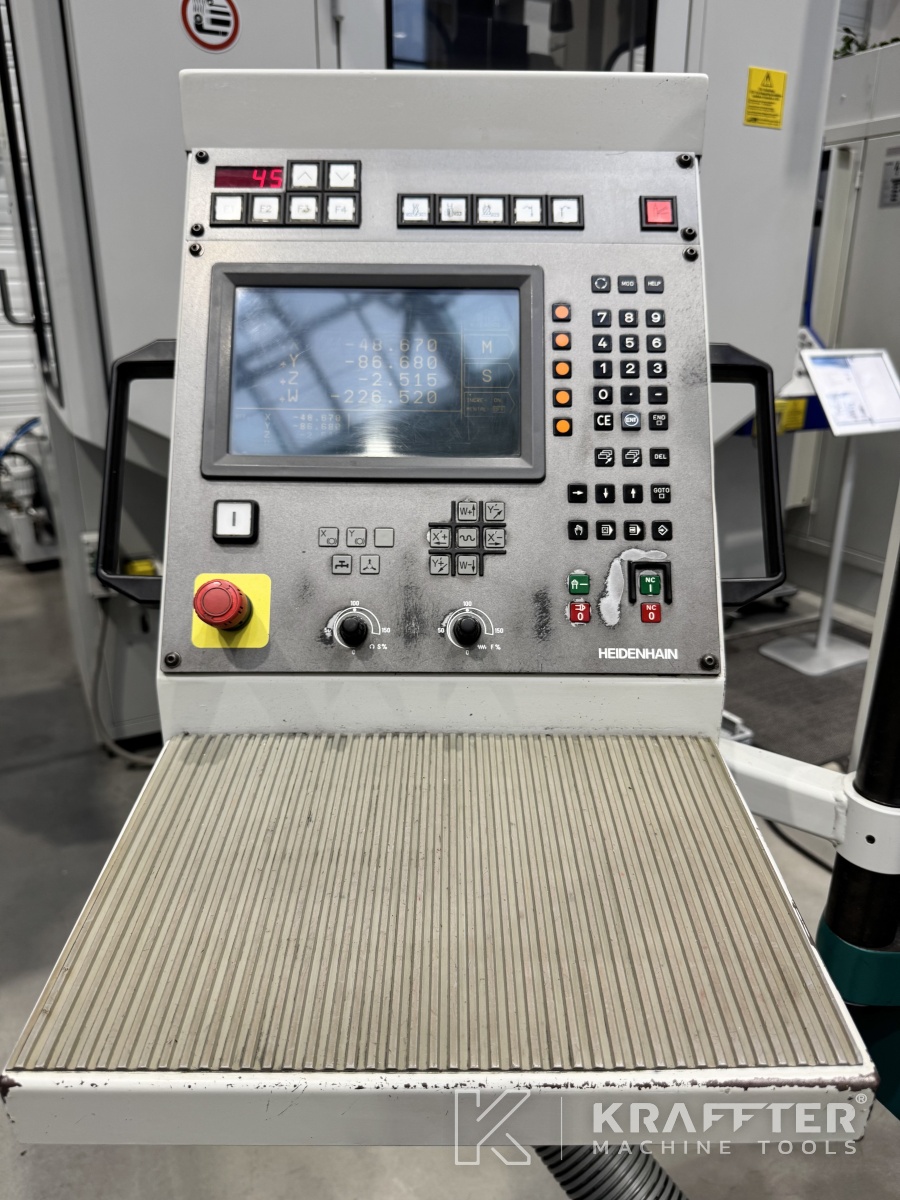

CNC control
HEIDENHAIN TNC 310
Number of axes
3
Stroke X axis
500 [mm]
Stroke Y axis
260 [mm]
Stroke Z axis
490 [mm]

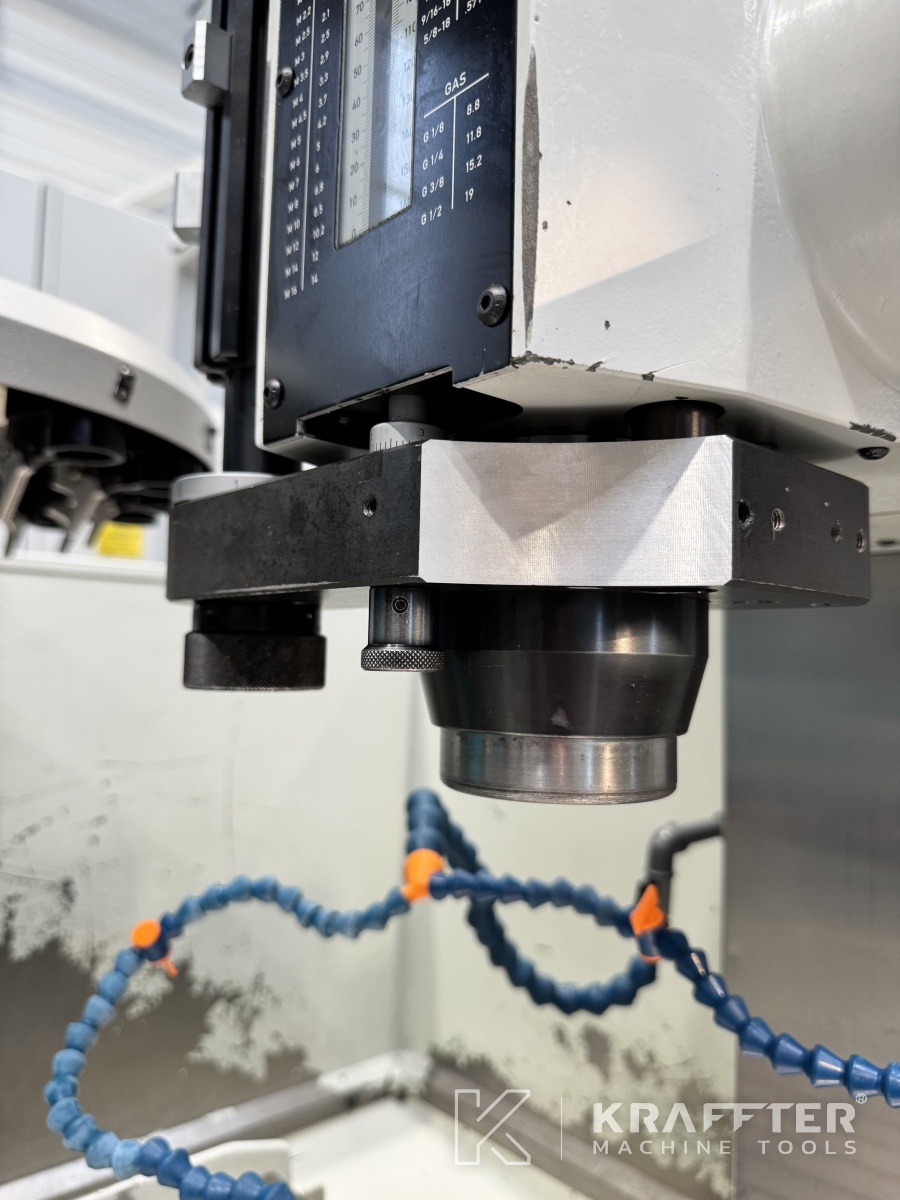

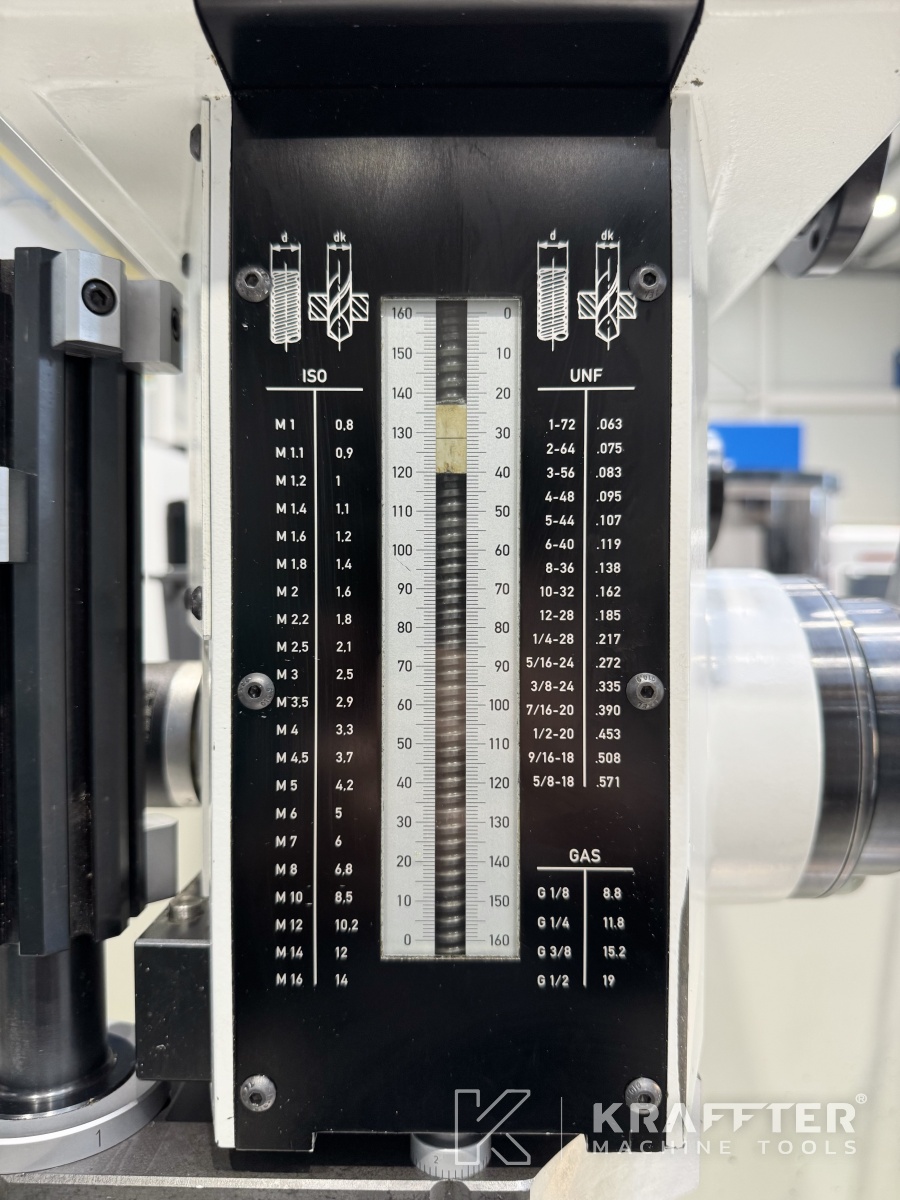

Quill stroke
160 [mm]
Max. distance spindle nose / table
610 [mm]

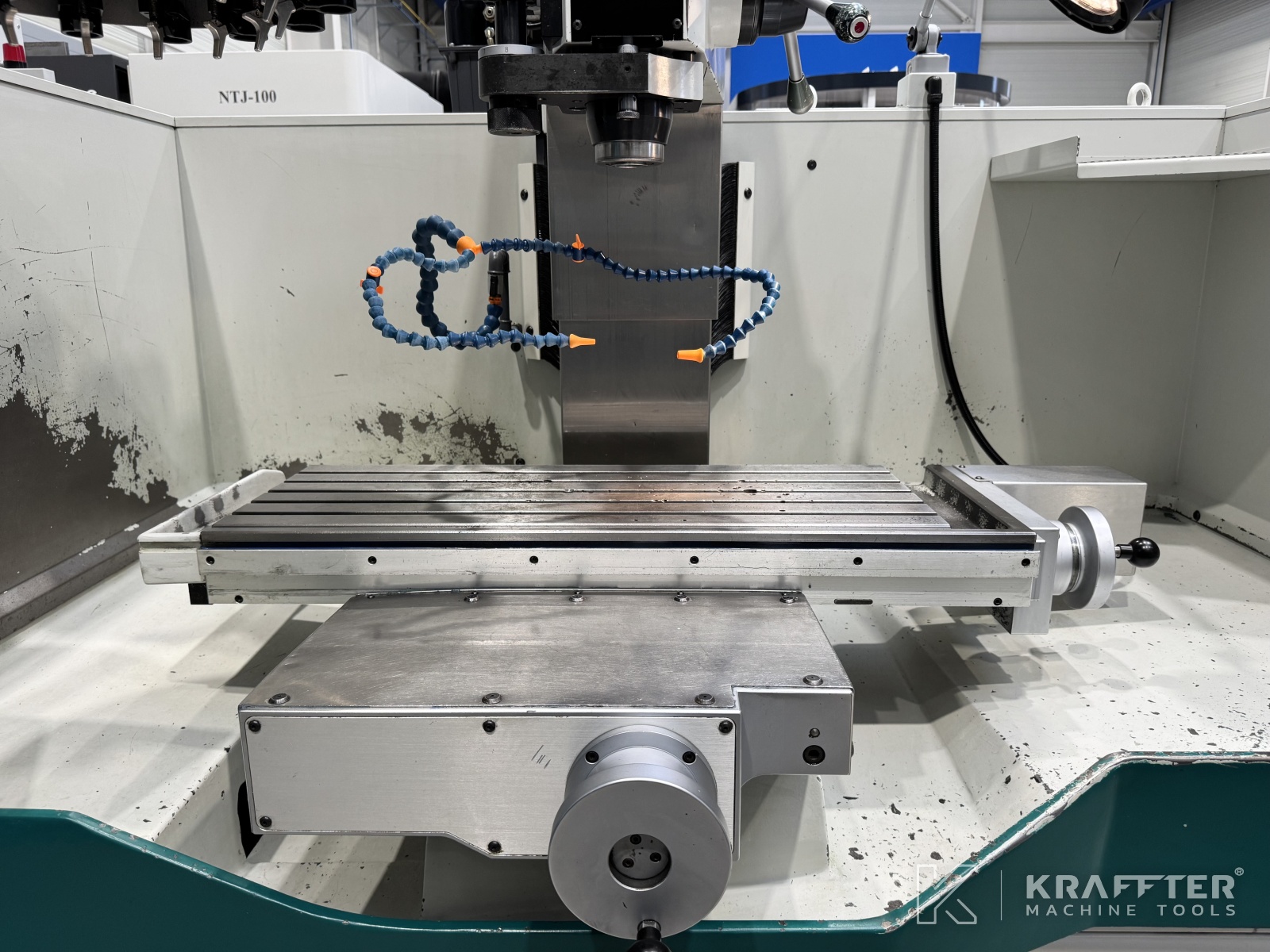

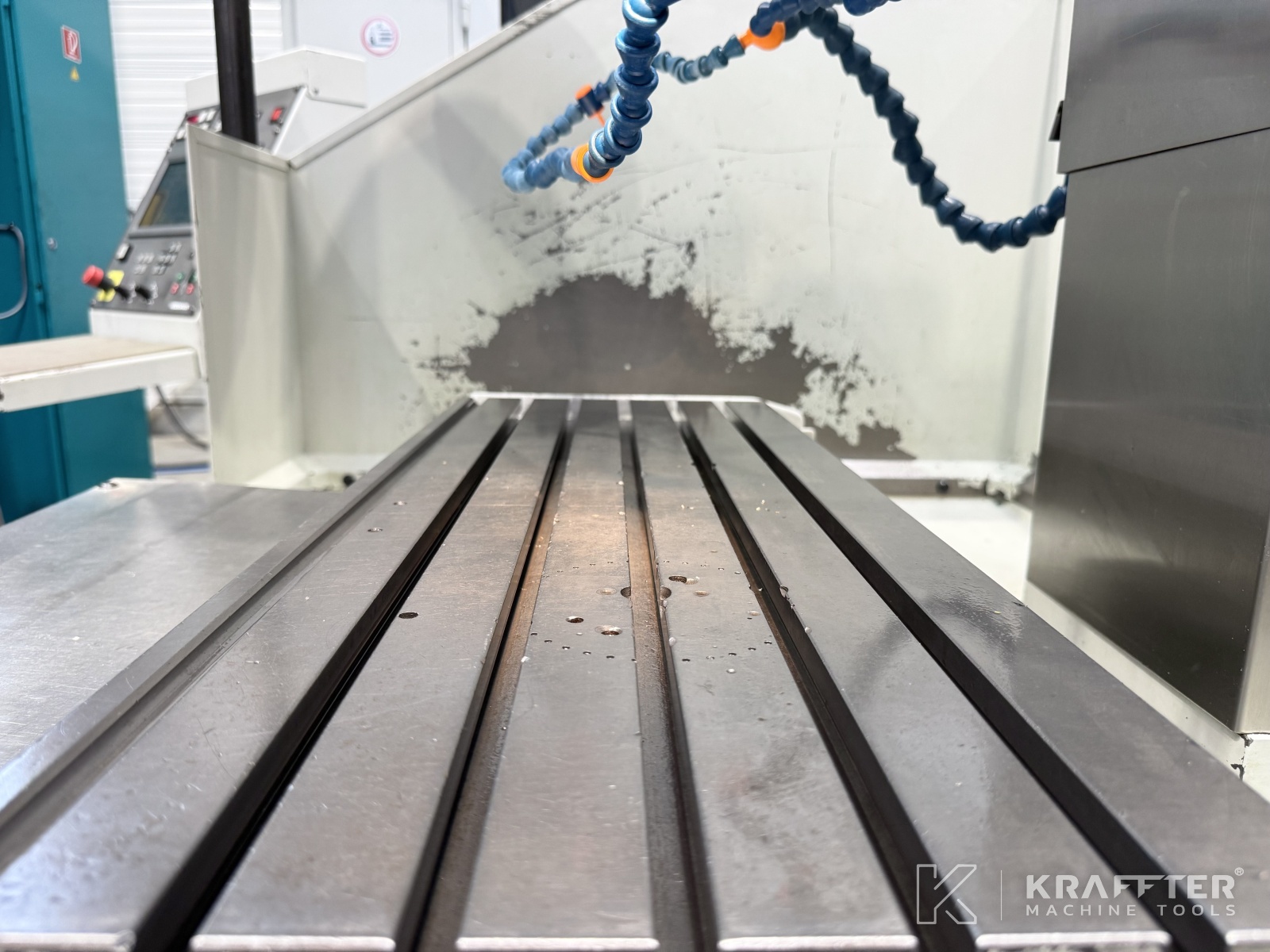

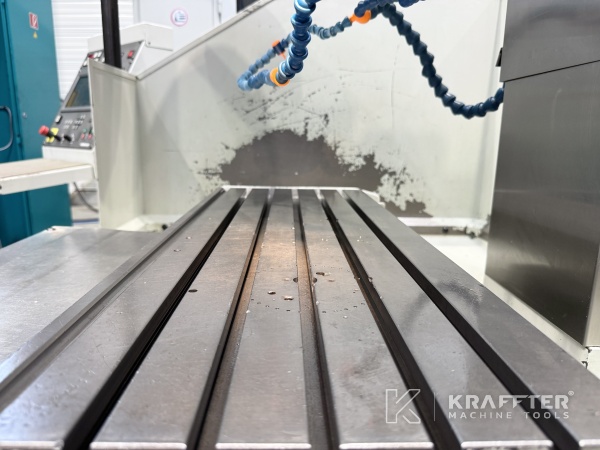

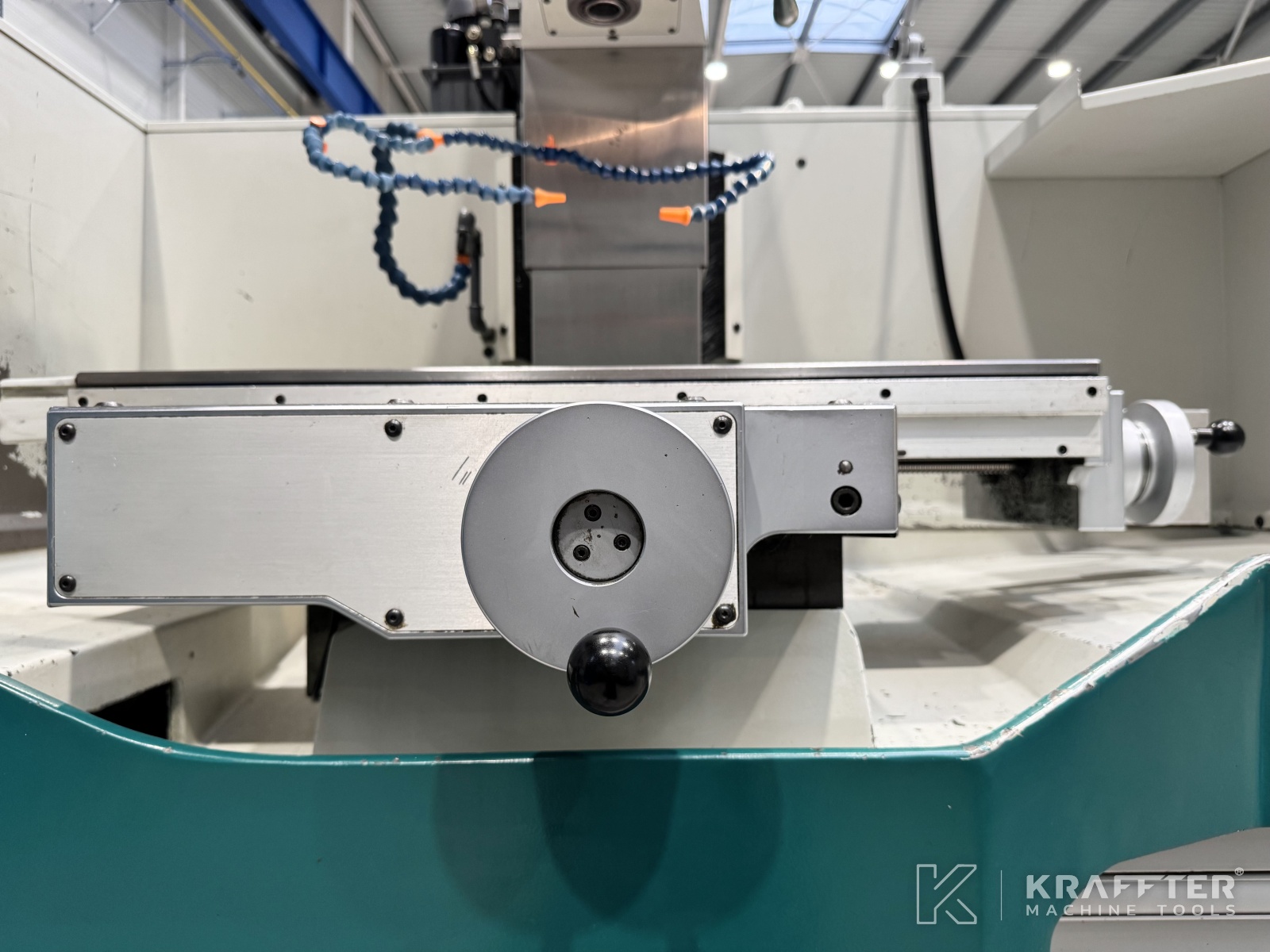

Table length
880 [mm]
Table width
320 [mm]
Max. load on table
300 [Kg]

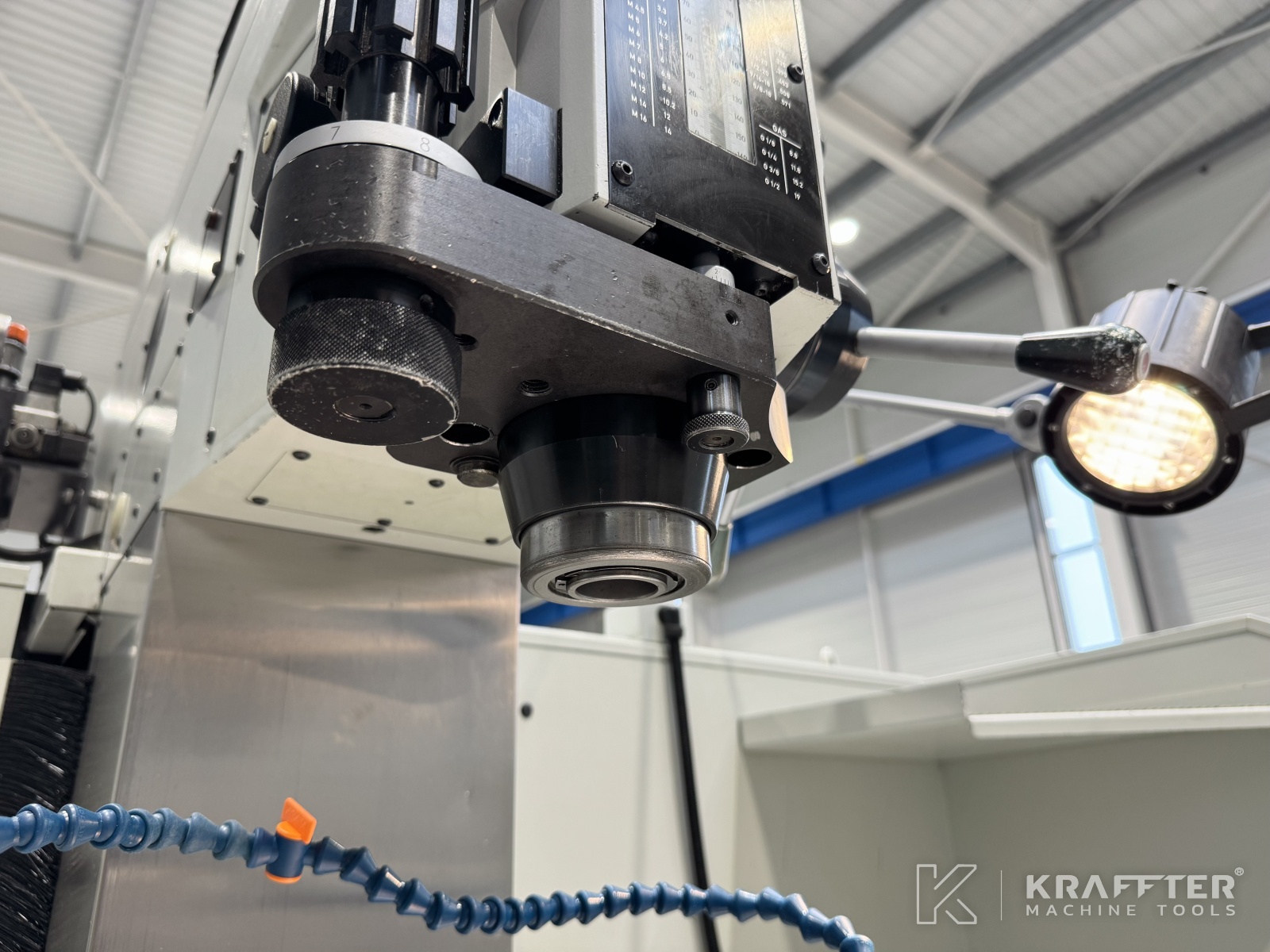

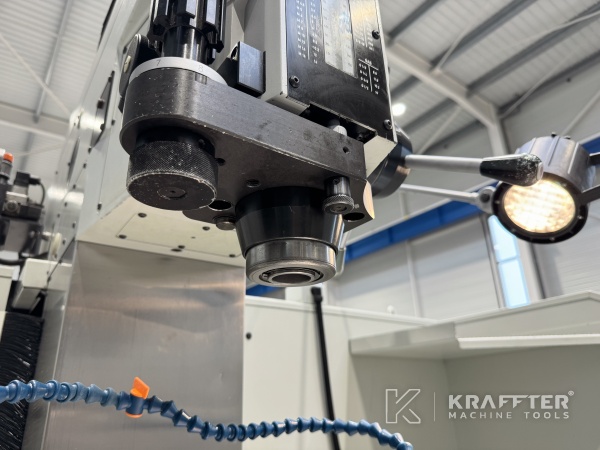

Spindle type
SF32
Min. spindle speed
100 [rpm]
Max. spindle speed
9000 [rpm]
Lubrication tank capacity
100 [l]

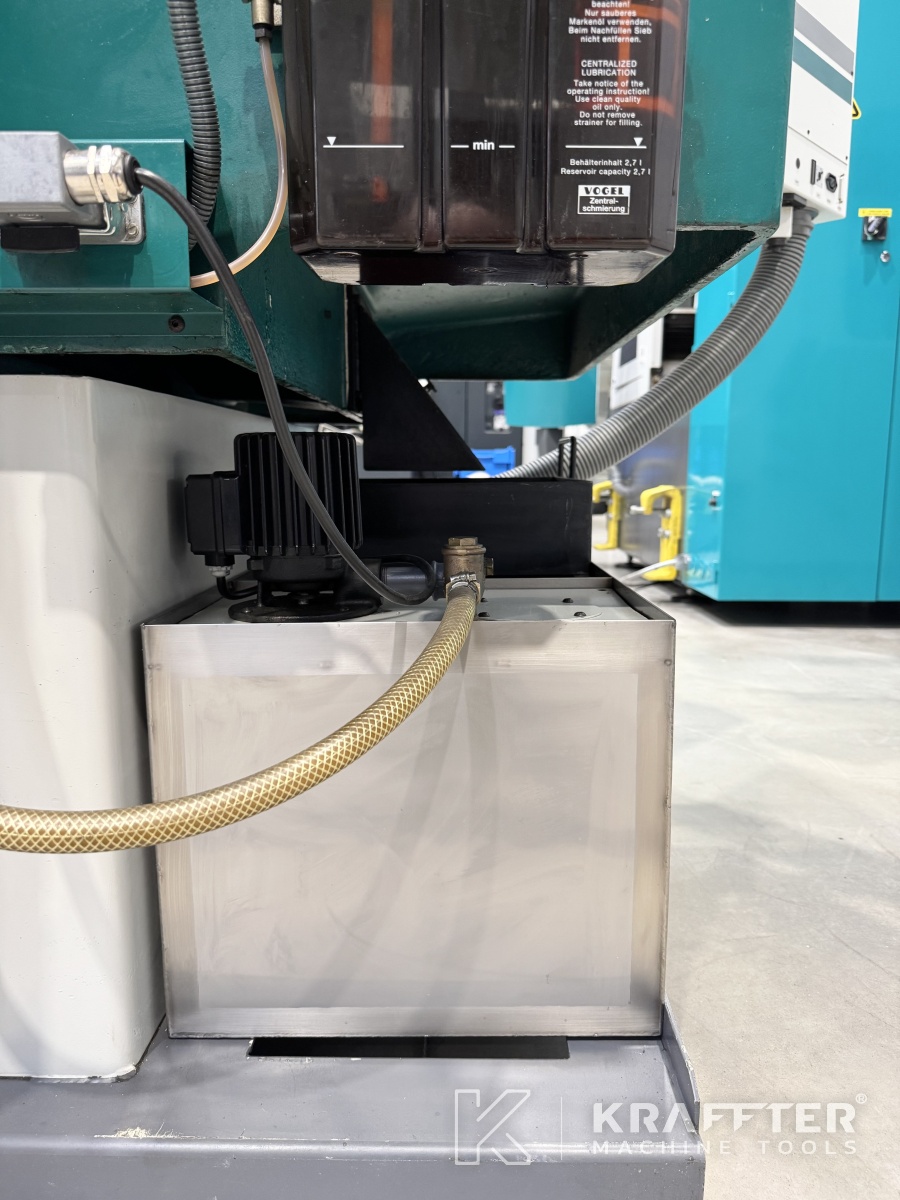

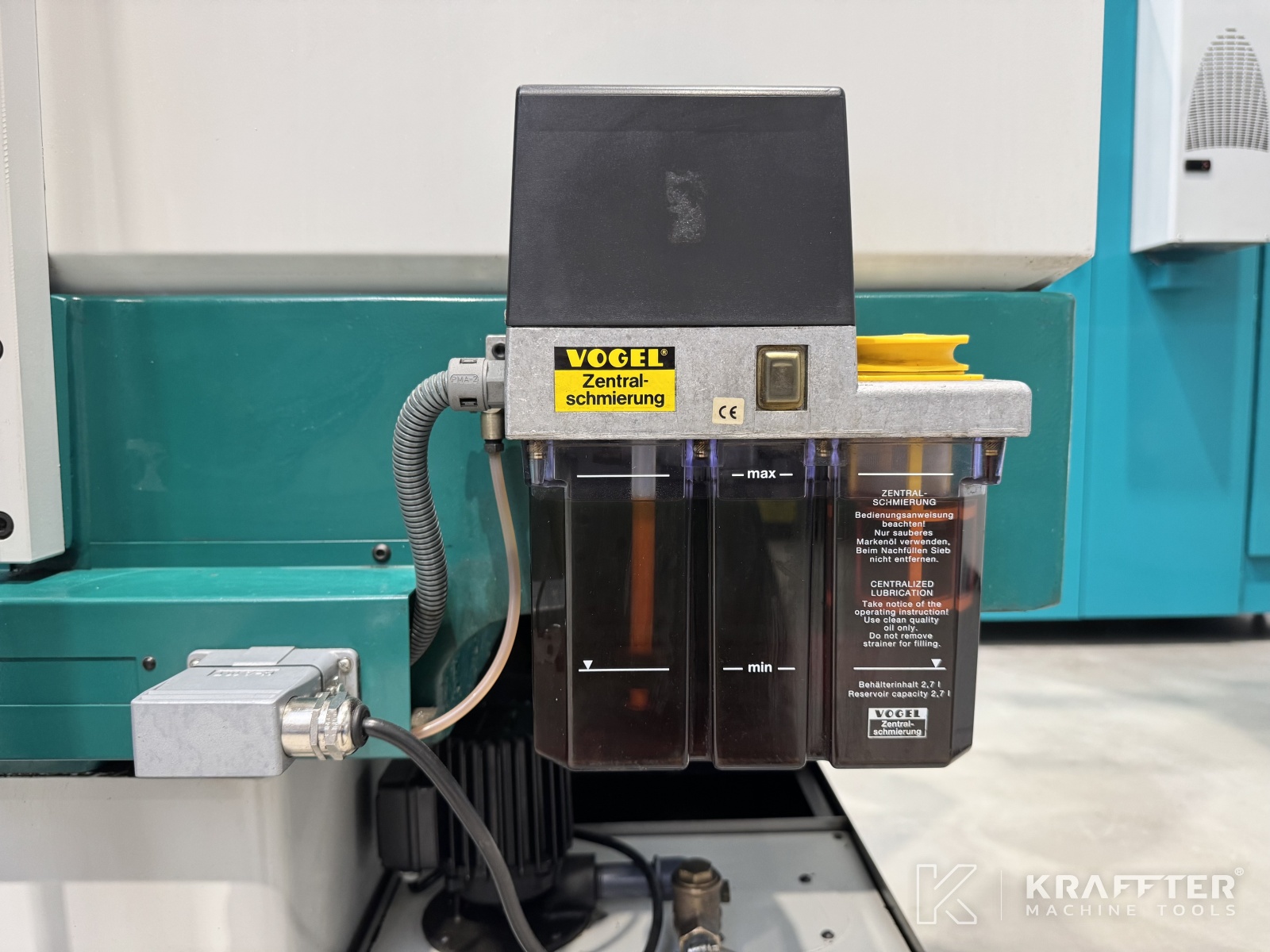

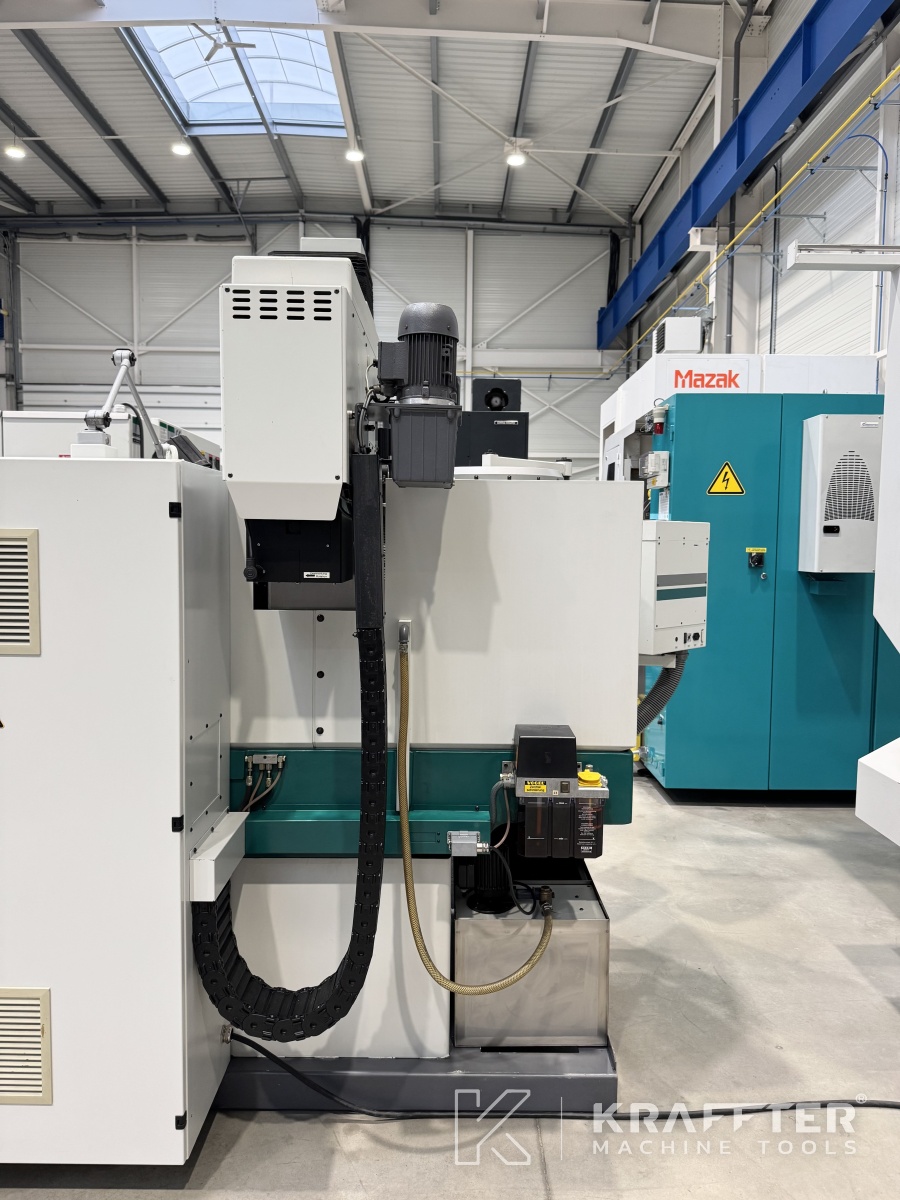

Centralized lubrication
Automatique - WILLY VOGEL
Supply voltage
400 [V]
Dimensions
2200 x 2100 x 2250 [mm]
Weight
2450 [Kg]
Additional information

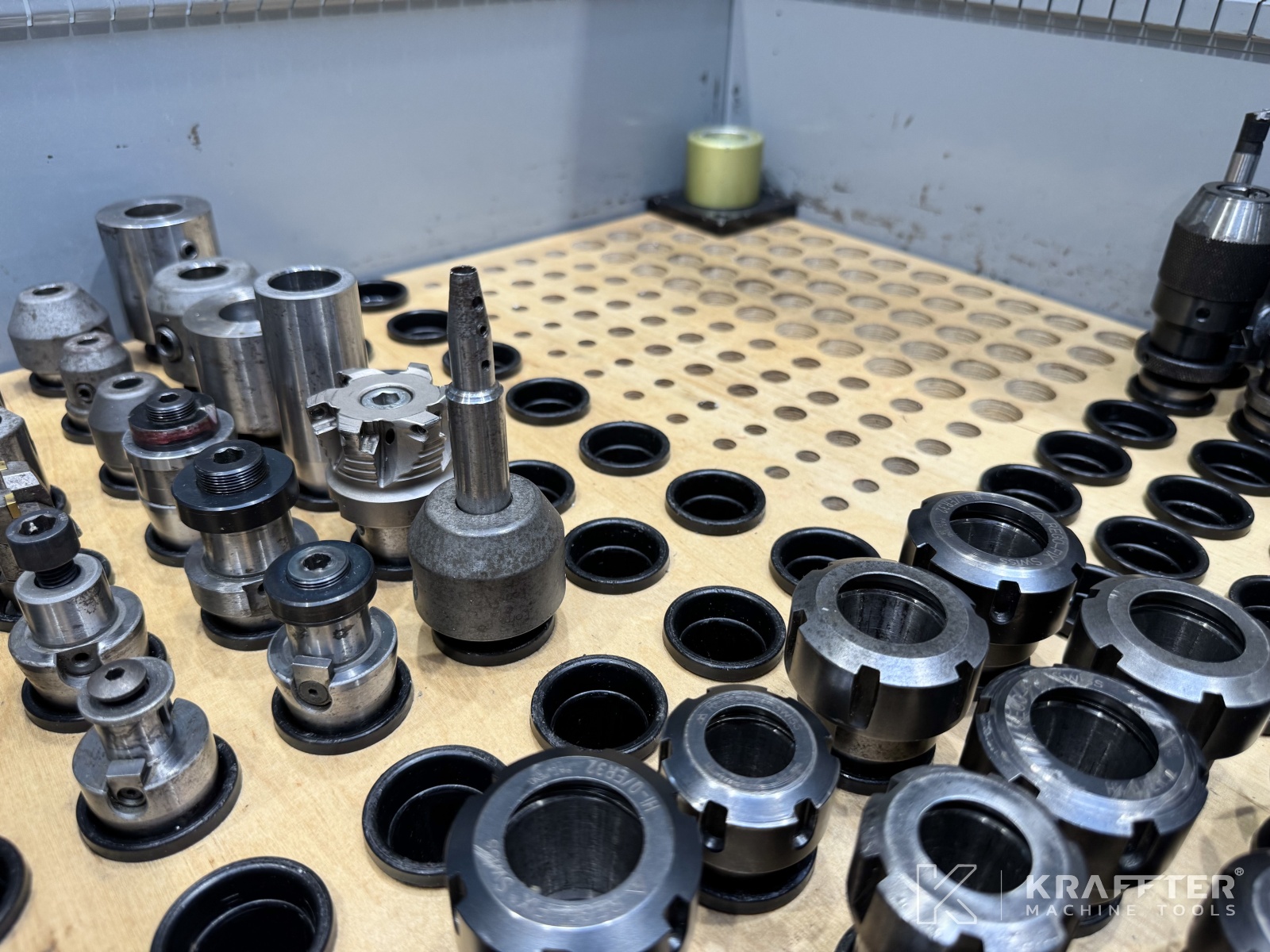

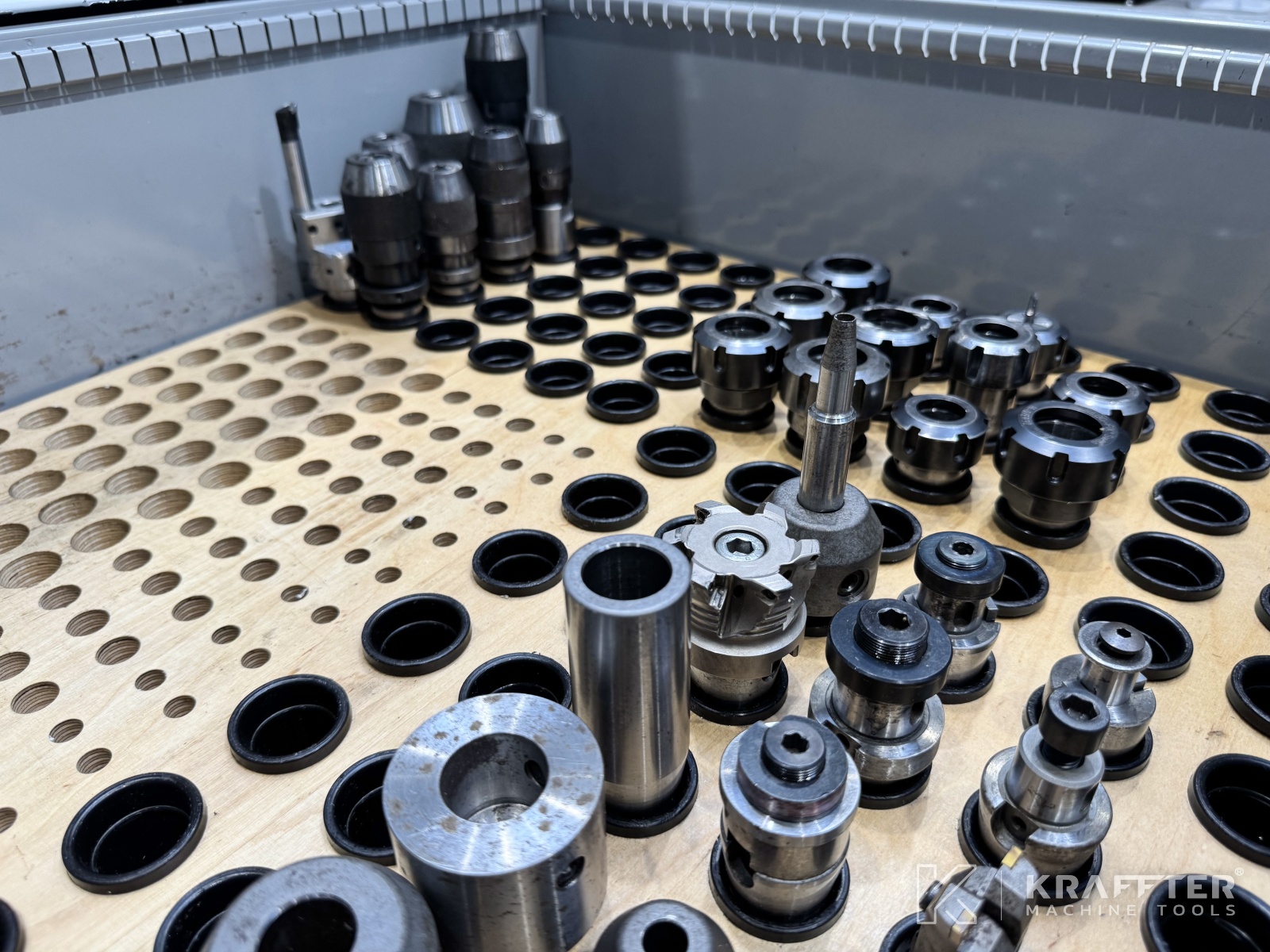

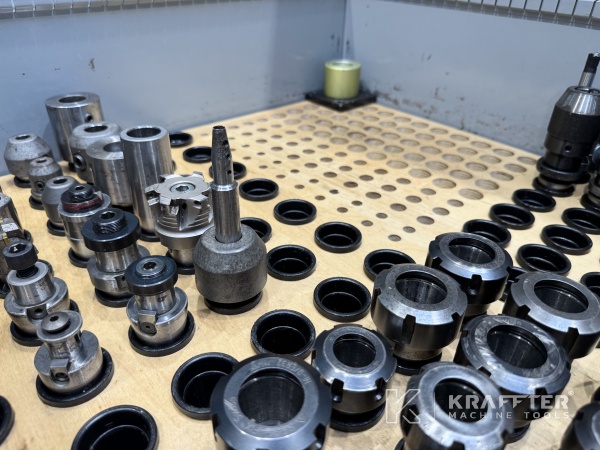

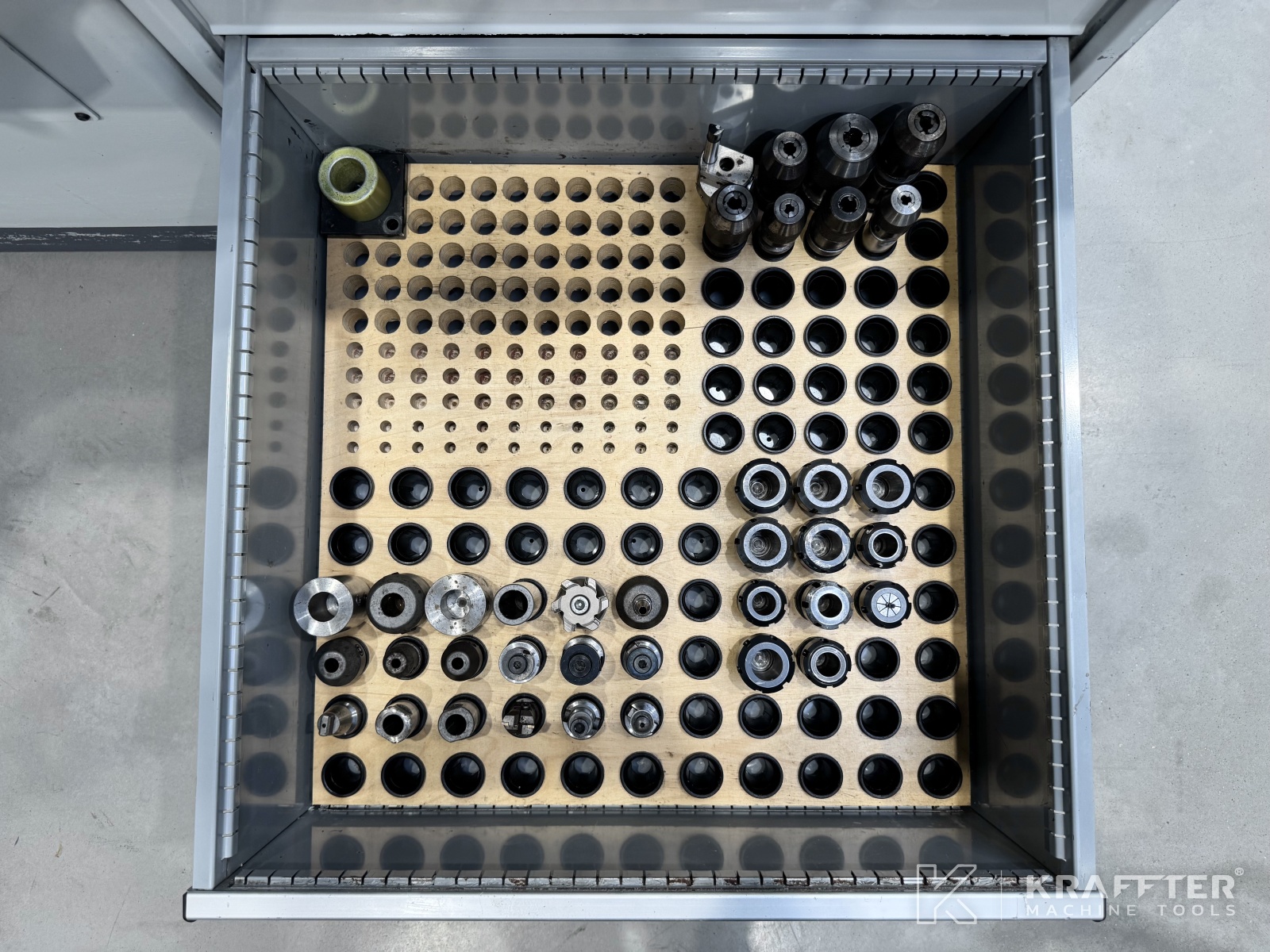

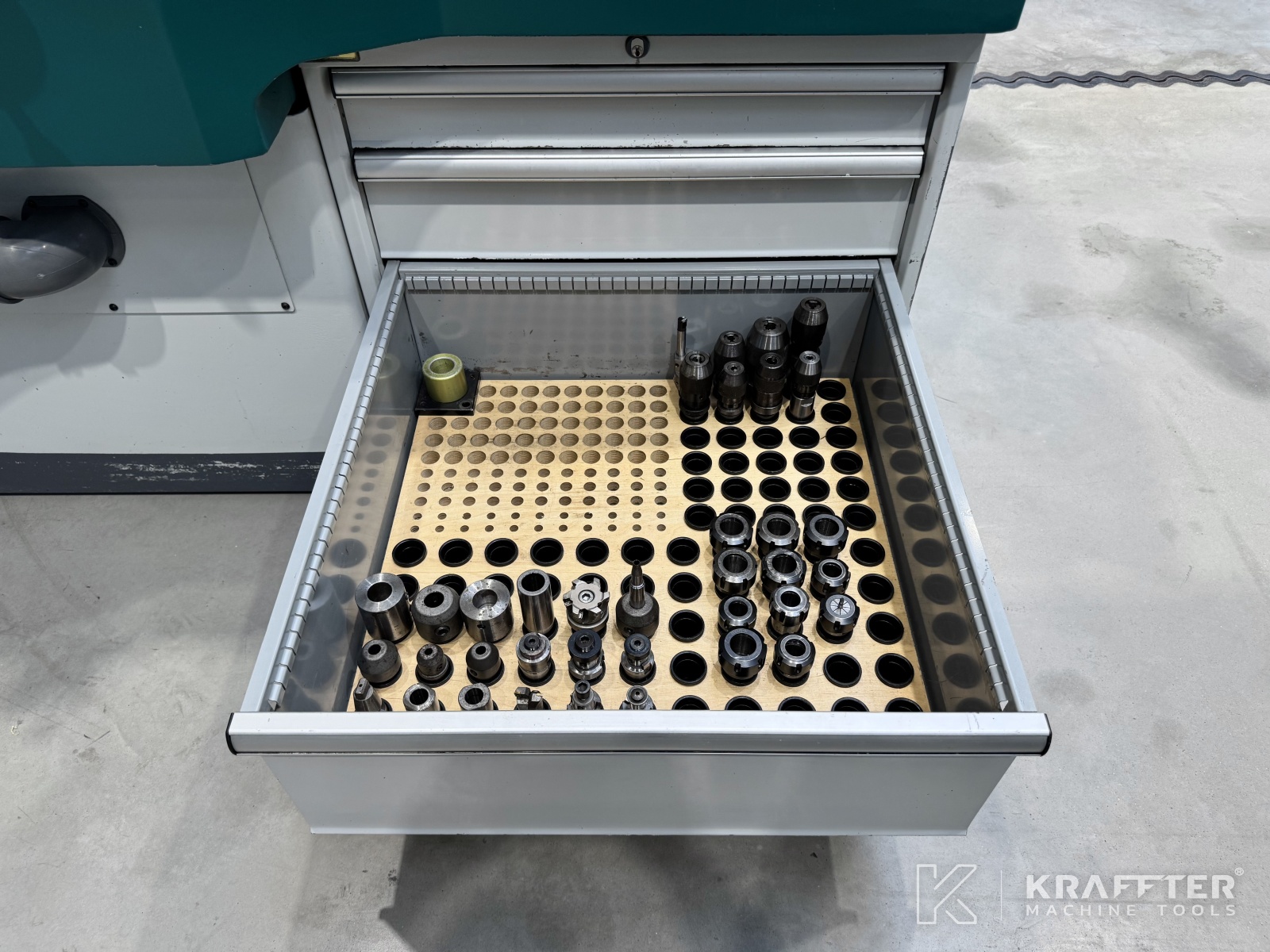

INCLUDED EQUIPMENT:
-
x7 SF32 Weldon-type attachments
-
x8 SF32 end mill attachments
-
x2 SF32 to Morse Taper 2 reducing sleeves
-
x1 SF32 to Morse Taper 3 reducing sleeve
-
x6 SF32 ER32 collet chuck attachments
-
x5 SF32 ER25 collet chuck attachments
-
x1 boring head
-
x7 drill chucks
