Sold

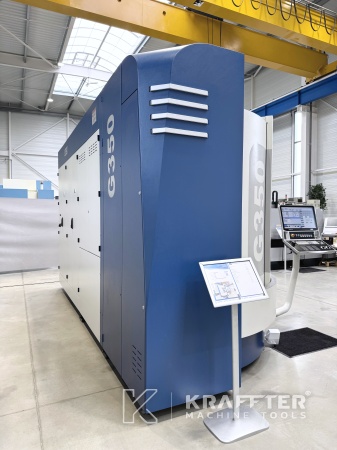

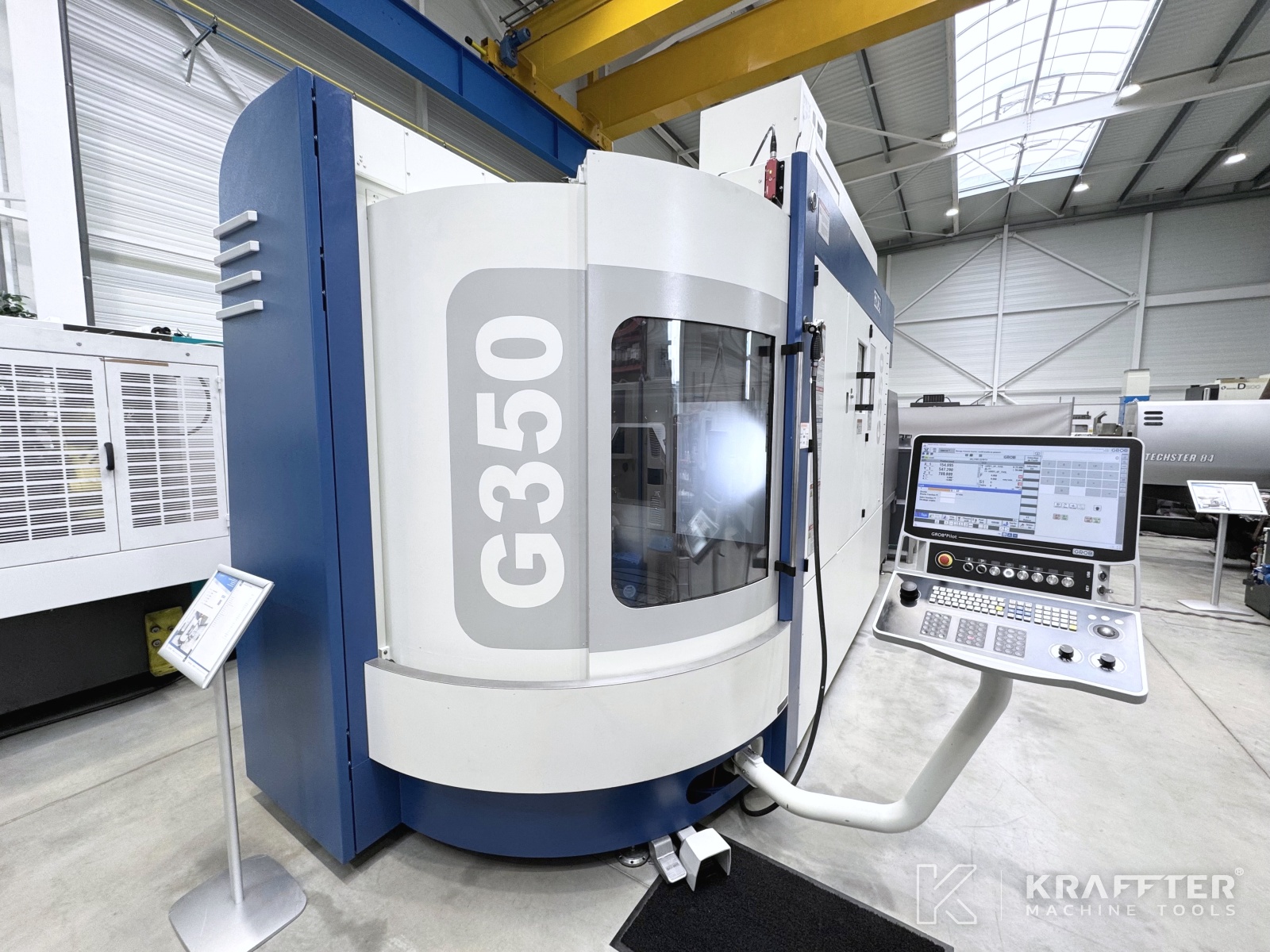

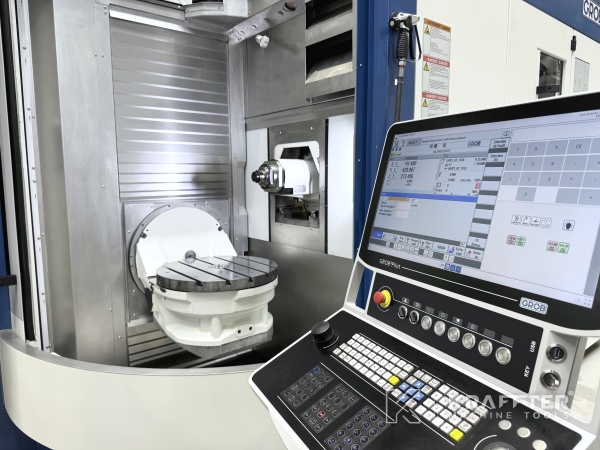

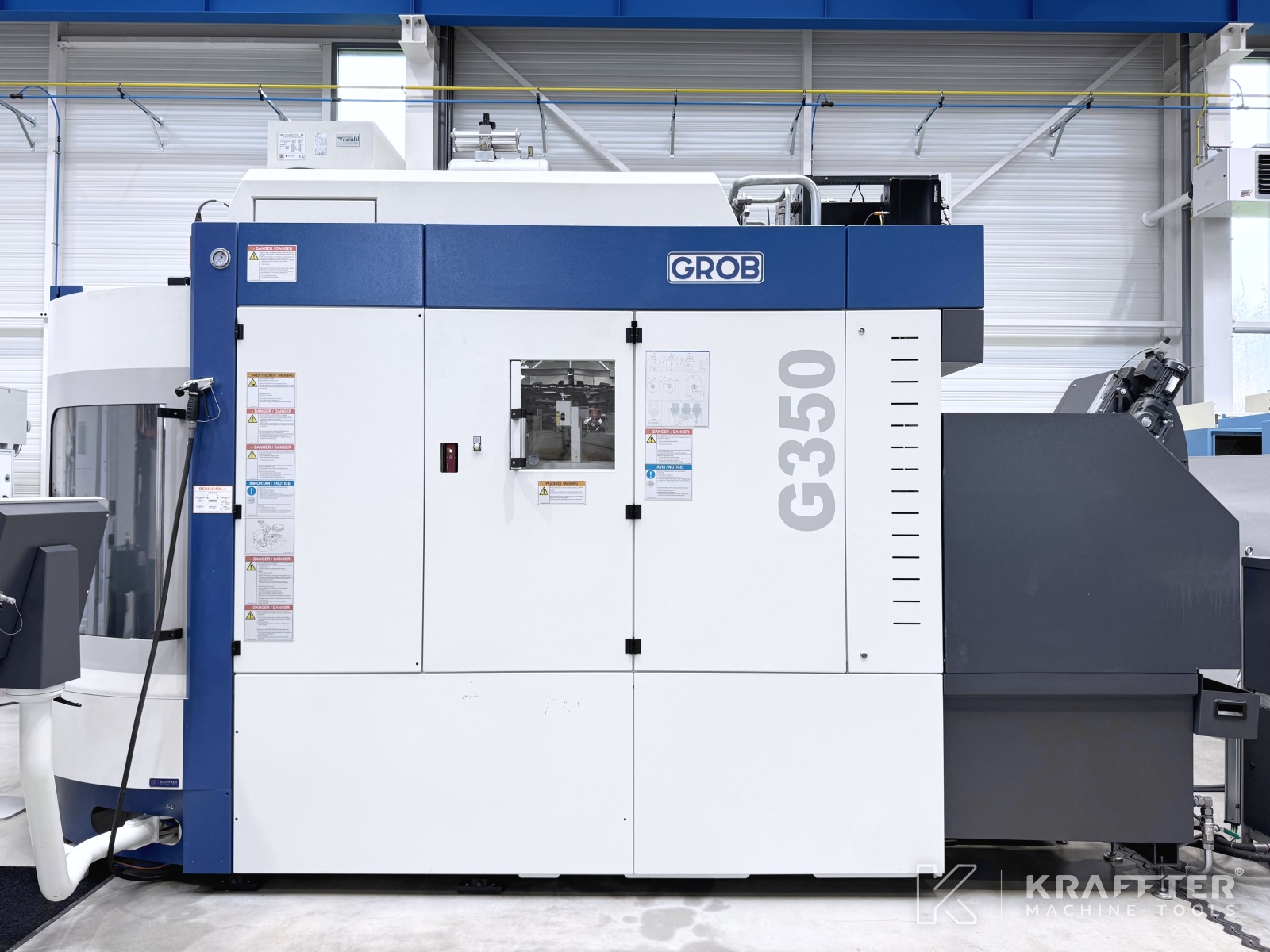

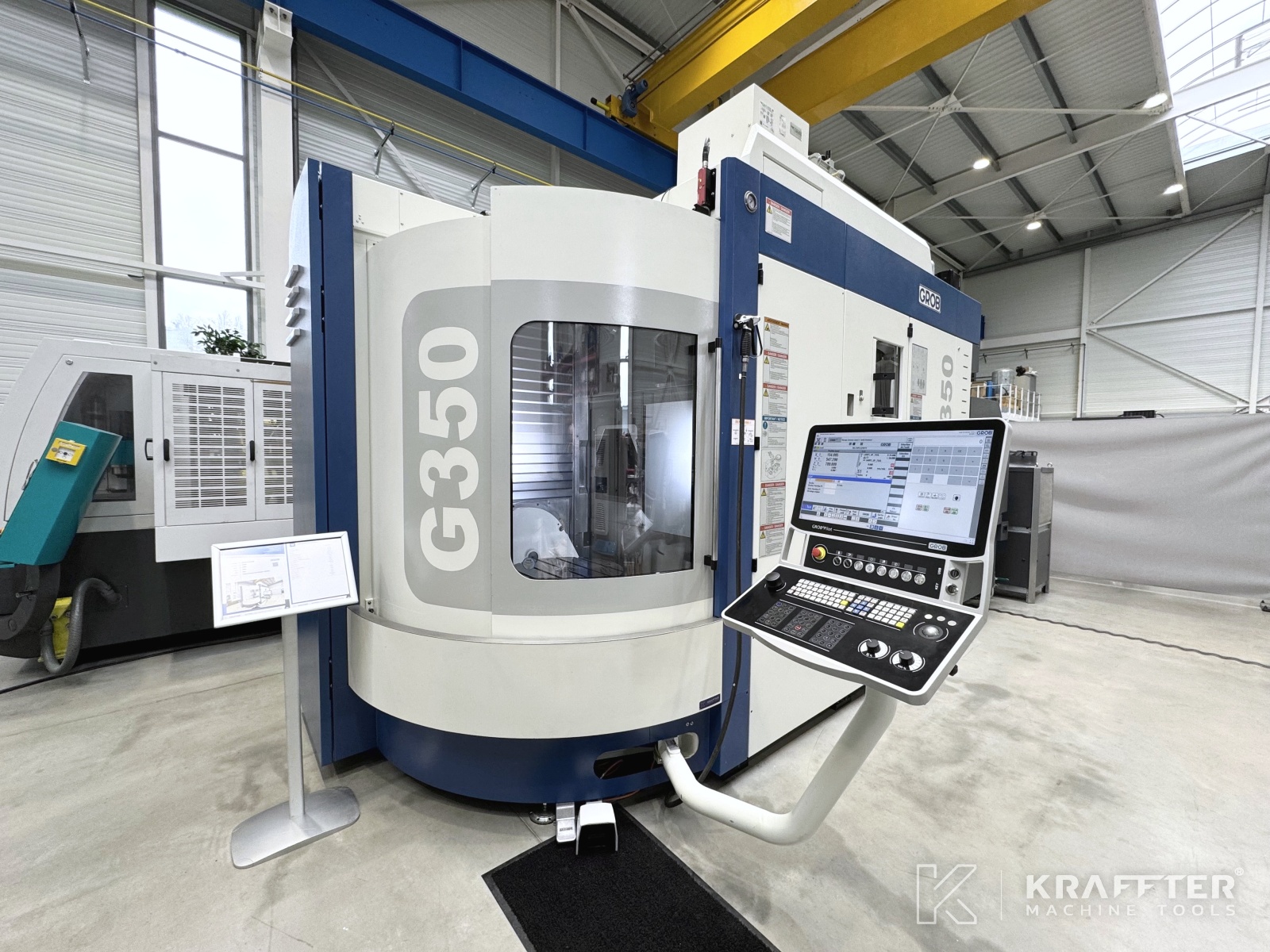

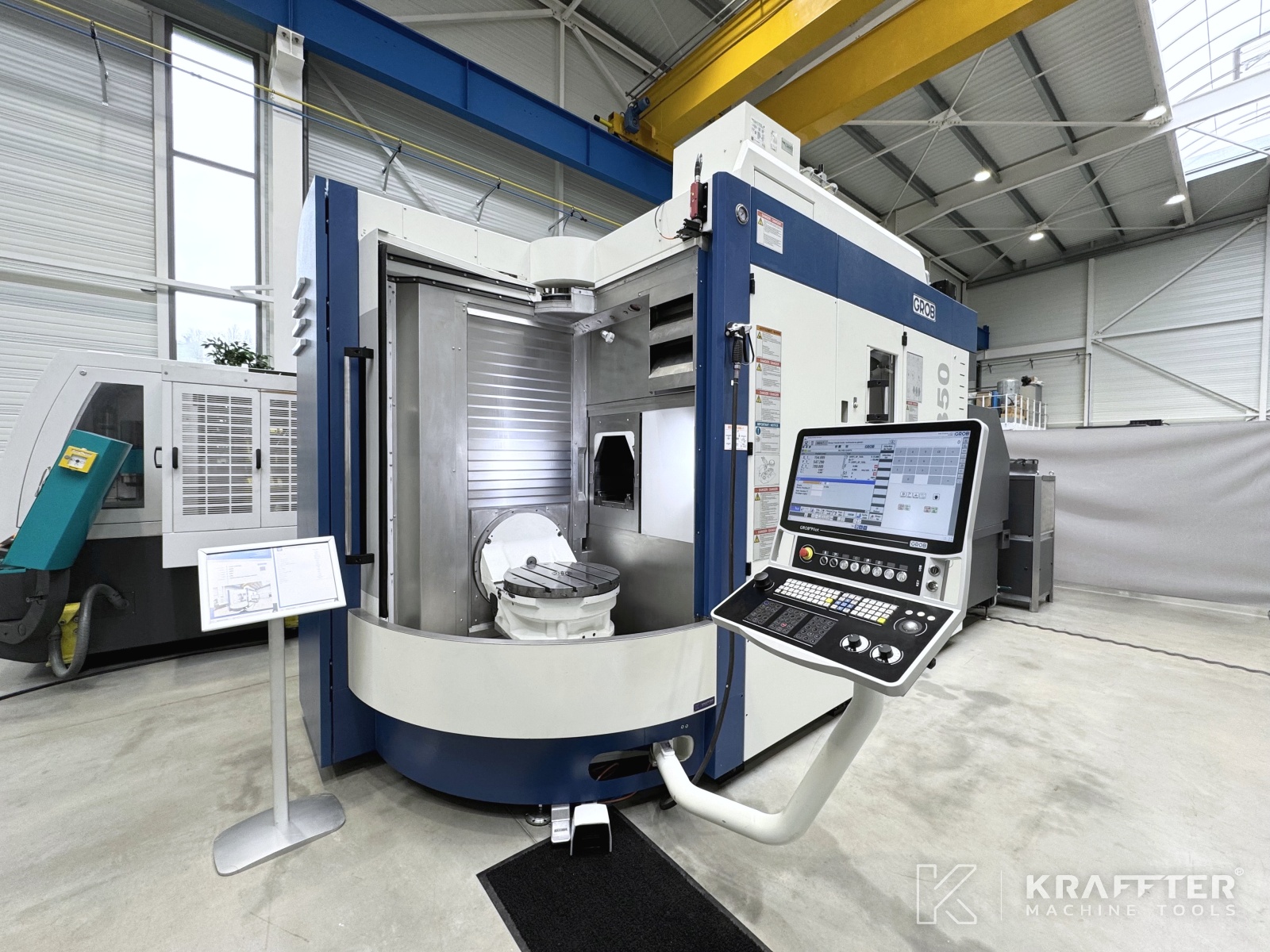

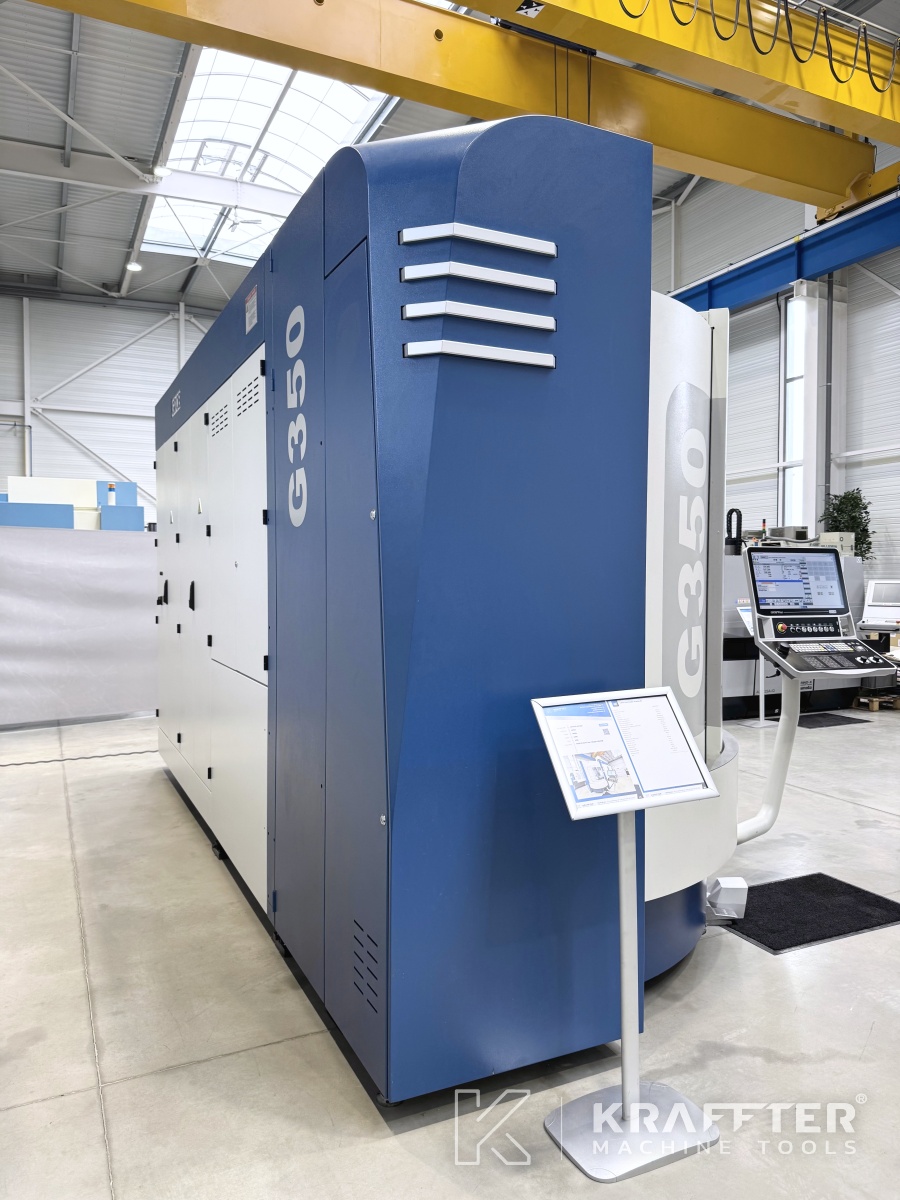

Type of machine : CNC machining centre

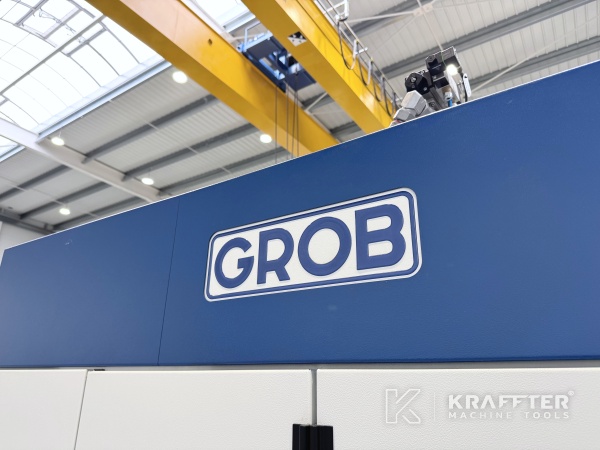

Brand : GROB
N° de stock: 90169
Model : G350
Year : 2018
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

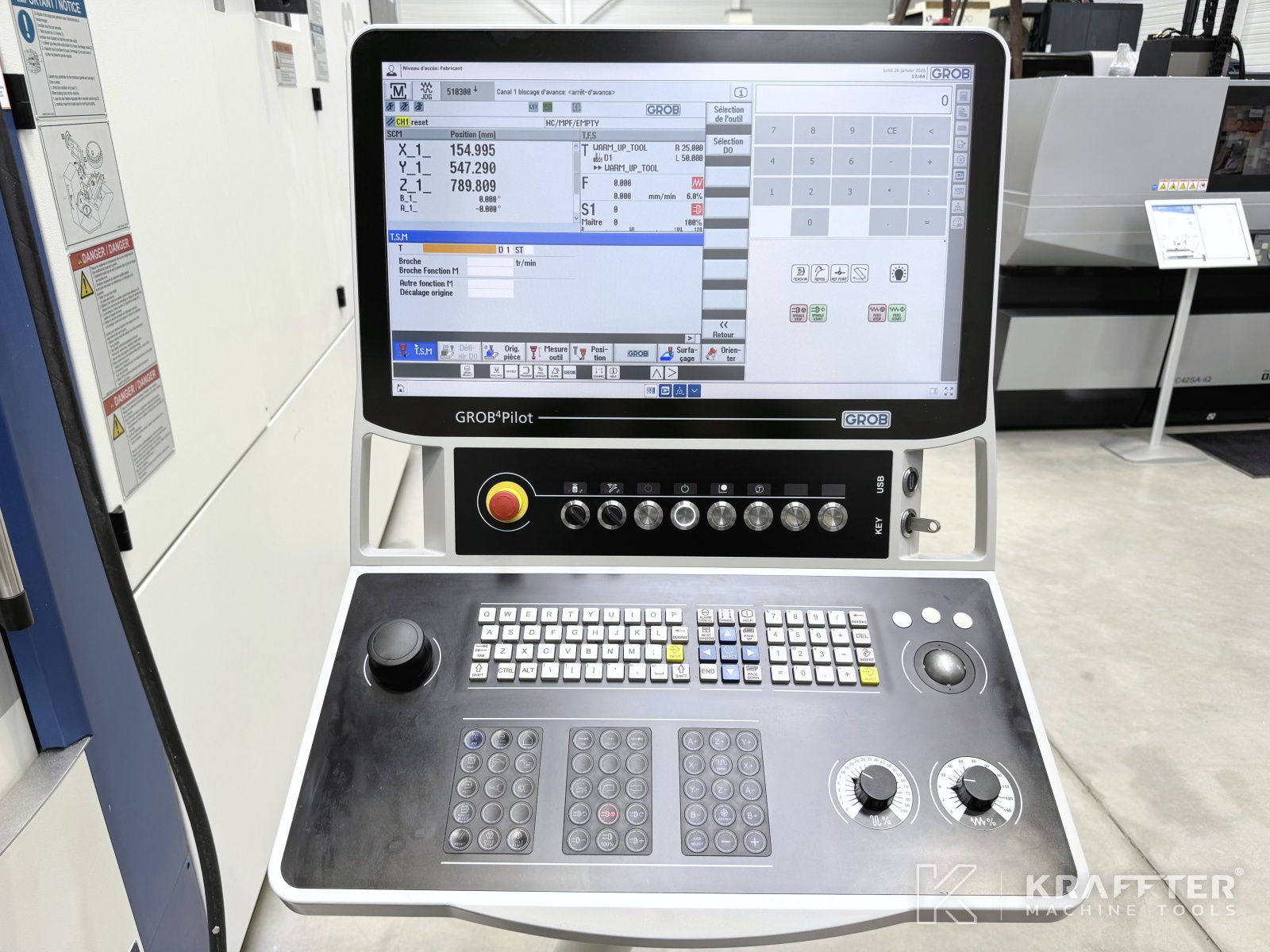

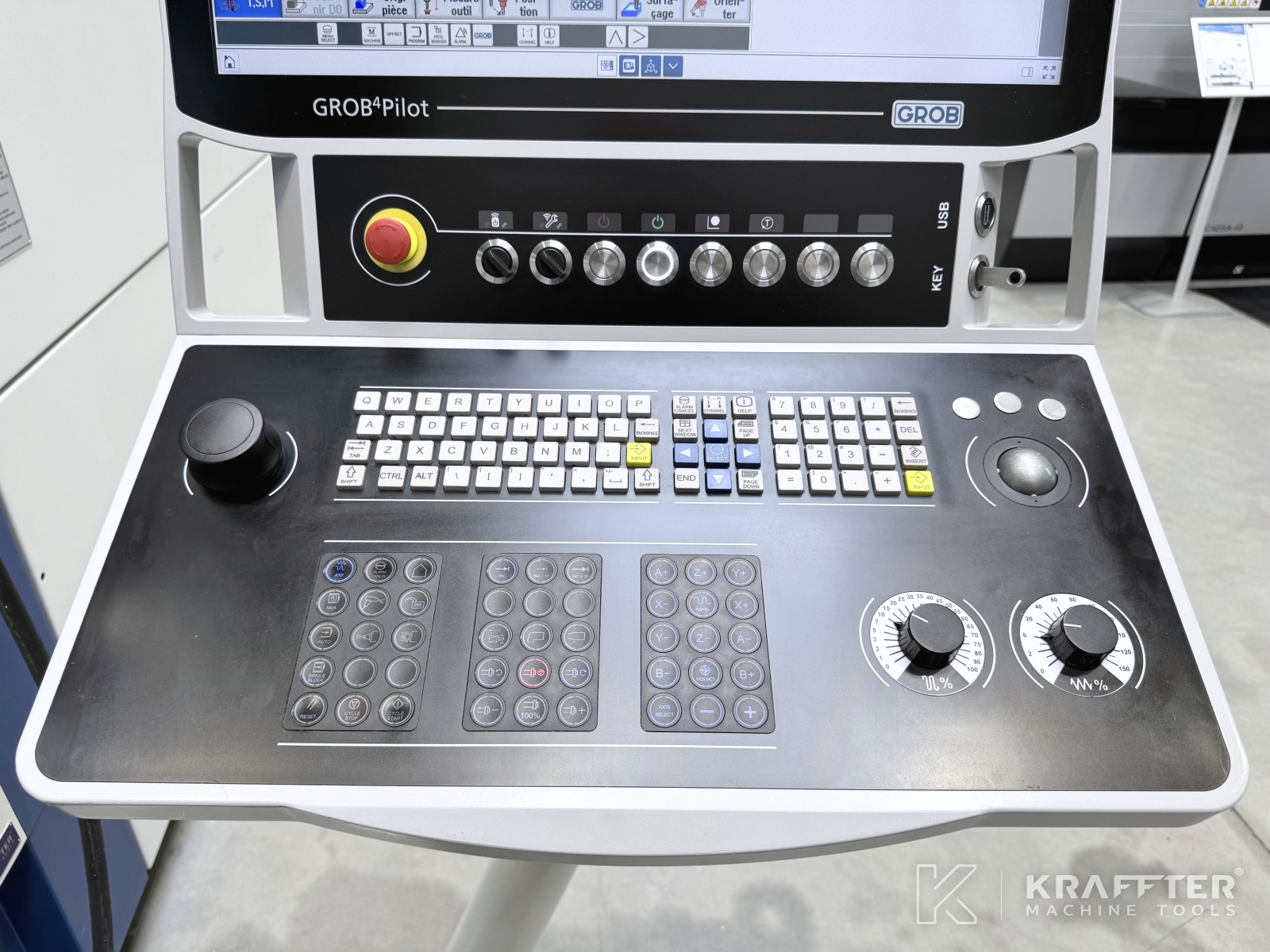

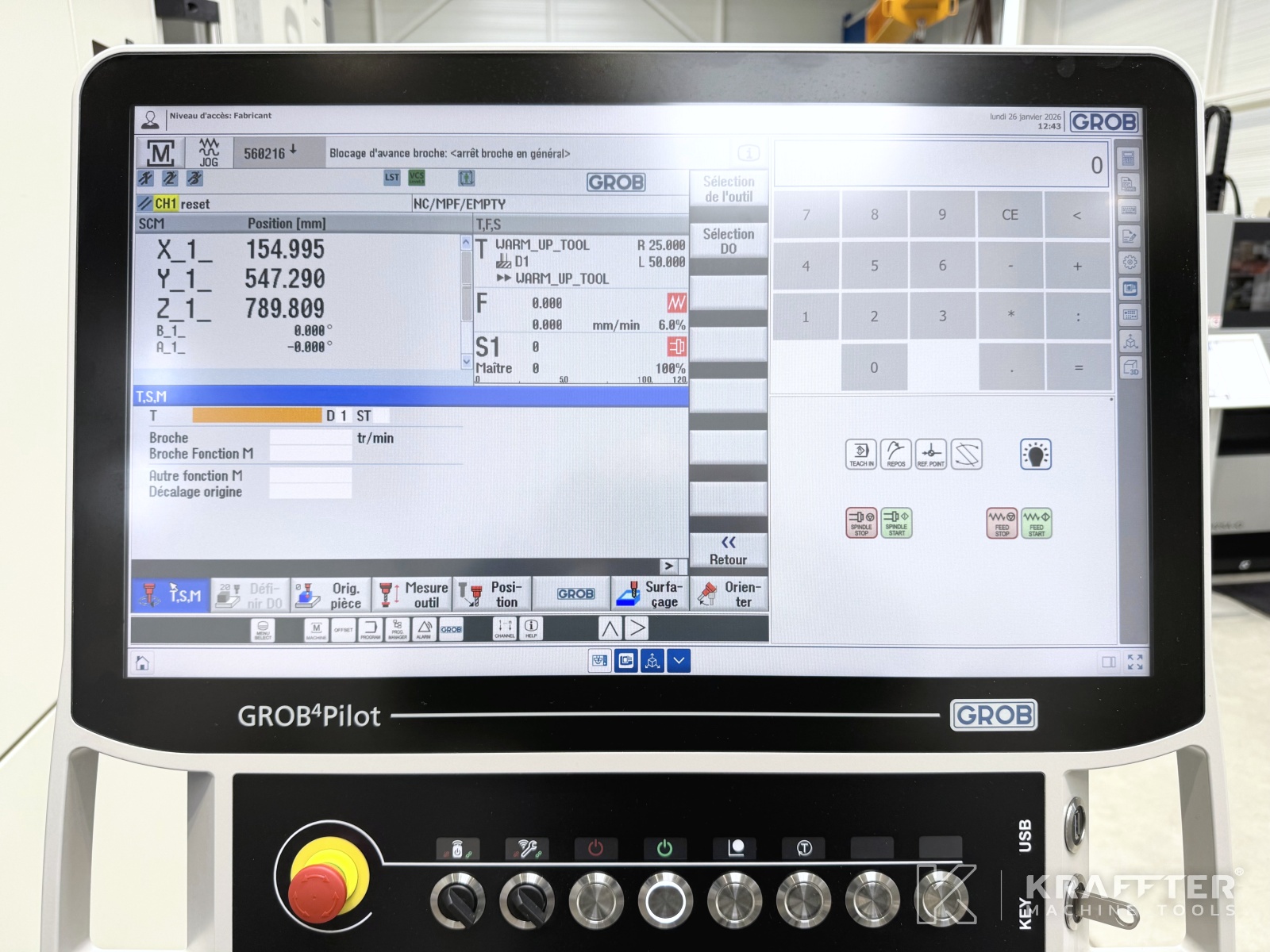

CNC control
SIEMENS 840D sl
Number of simultaneous axes
5
Stroke X axis
600 [mm]
Stroke Y axis
855 [mm]
Stroke Z axis
750 [mm]
Rapid traverse rate X axis
70000 [mm/min]
Rapid traverse rate Y axis
45000 [mm/min]
Rapid traverse rate Z axis
90000 [mm/min]
Max. load on table
400 [Kg]

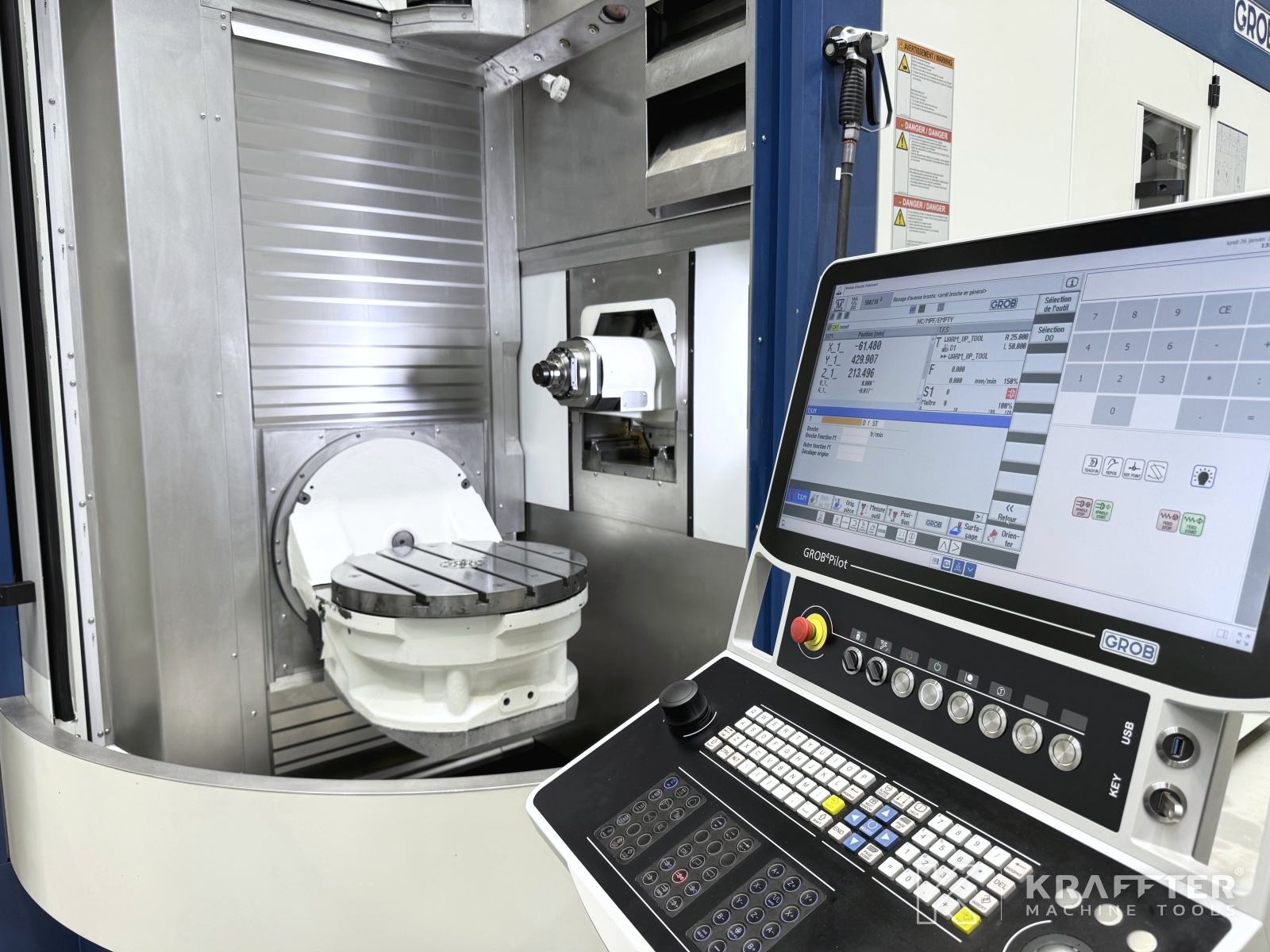

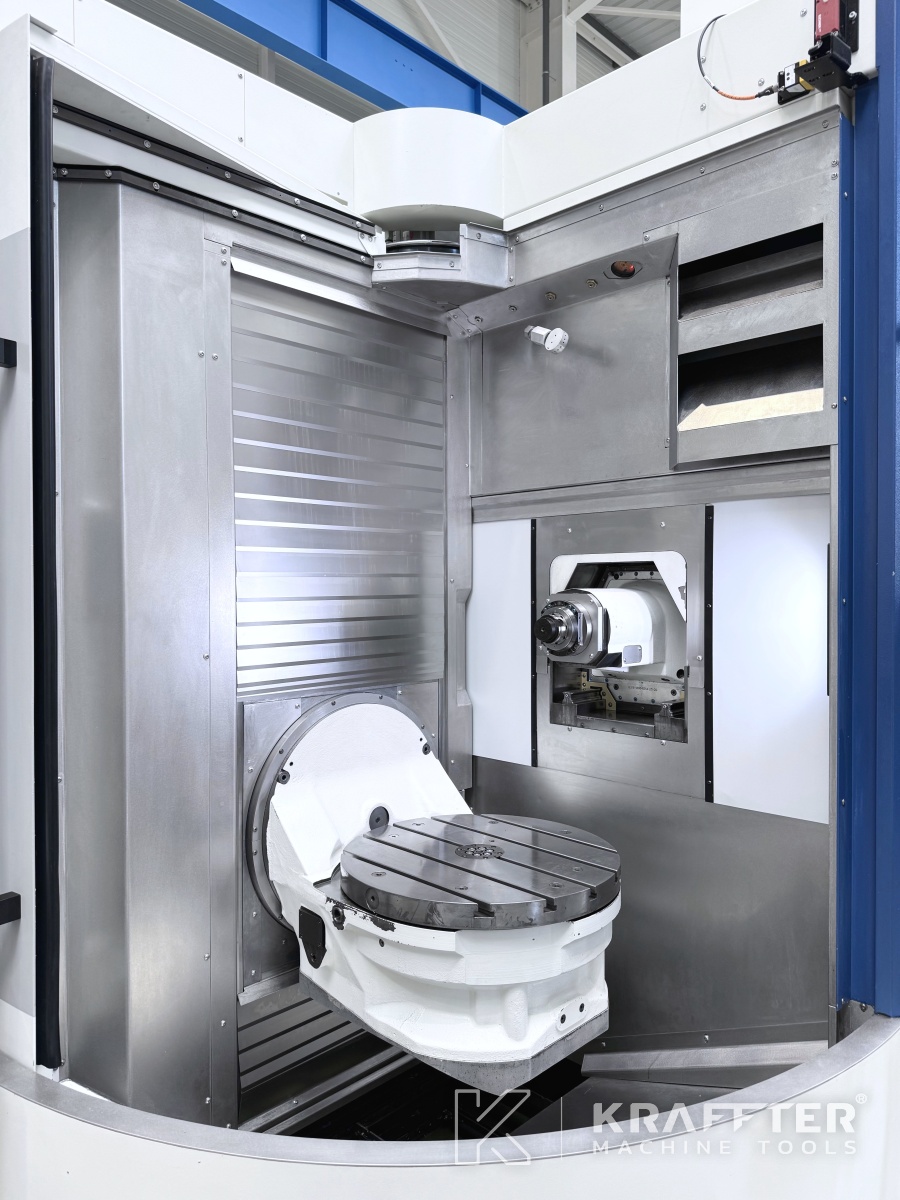

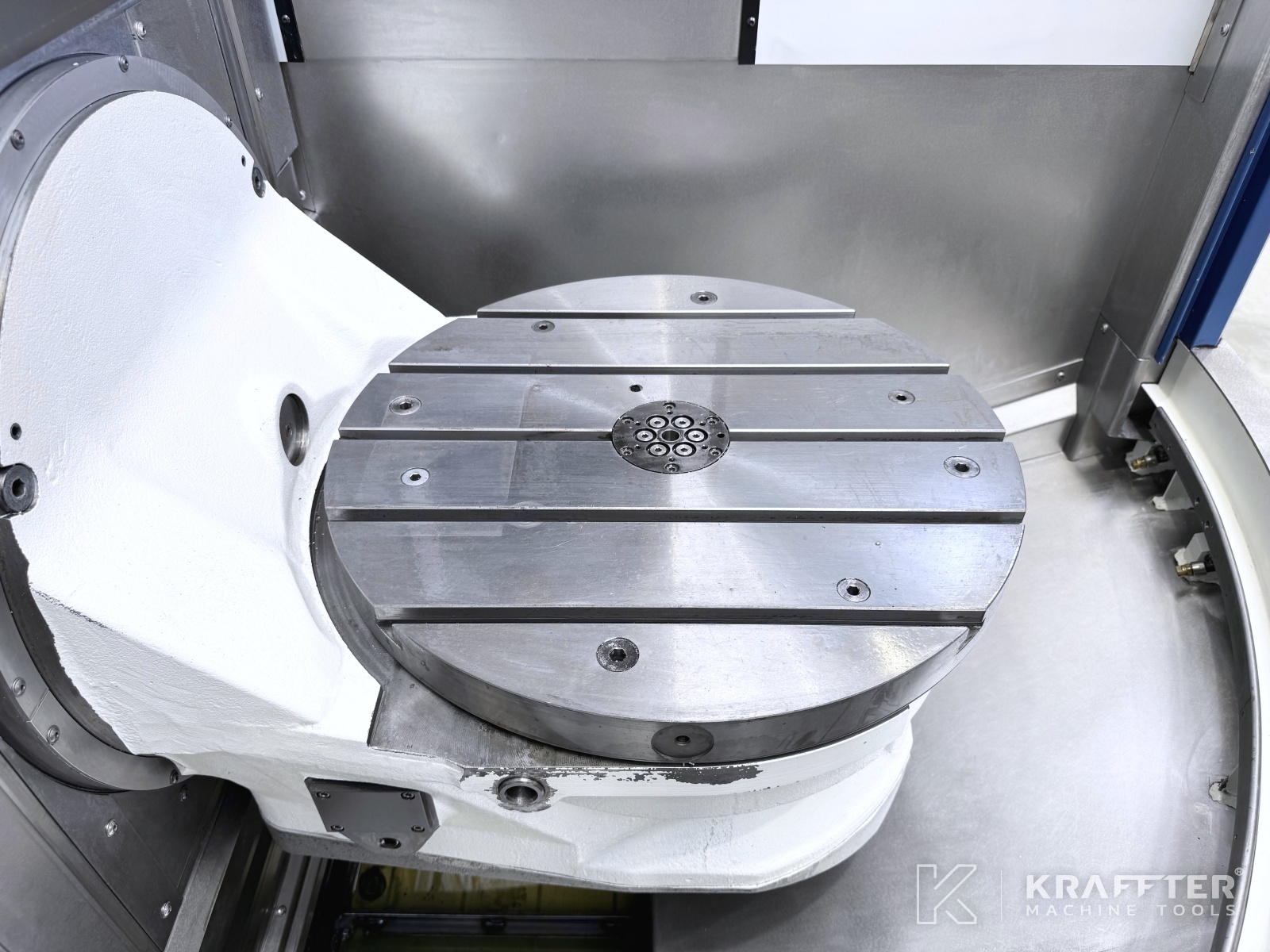

Stroke A axis : swiveling area of rotary table
-185 / +45 [°]
B axis swivelling stroke
360 [°]

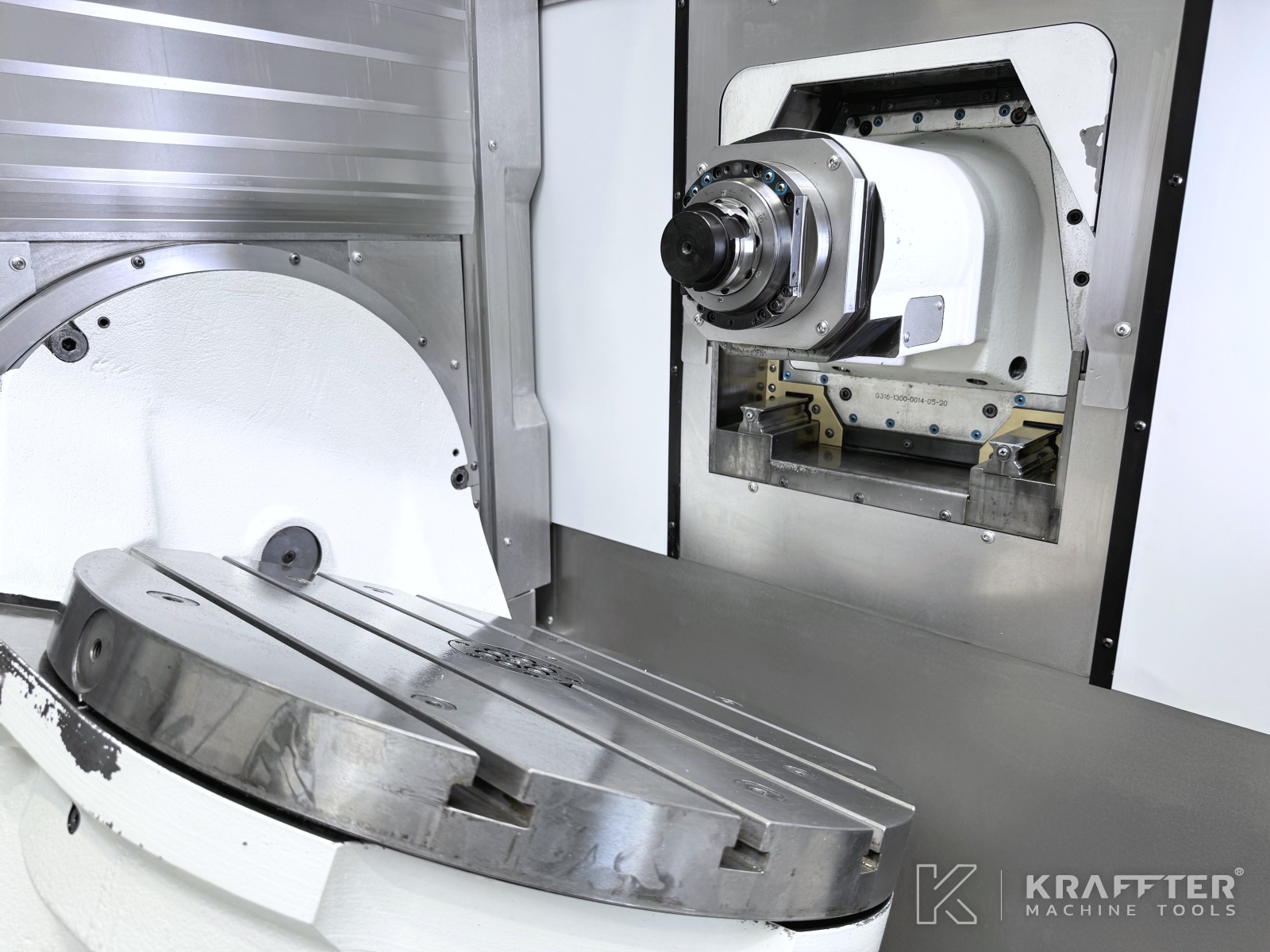

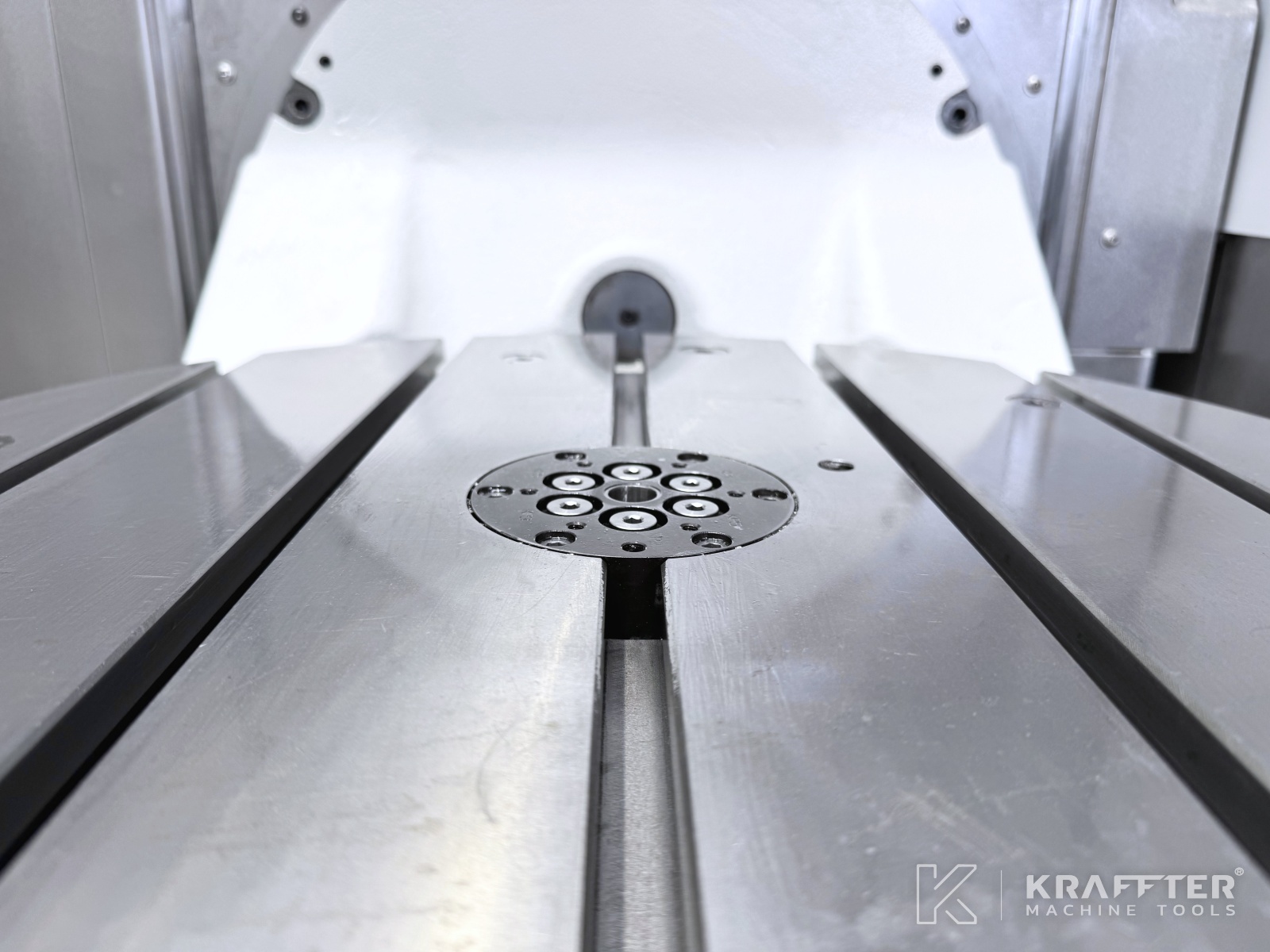

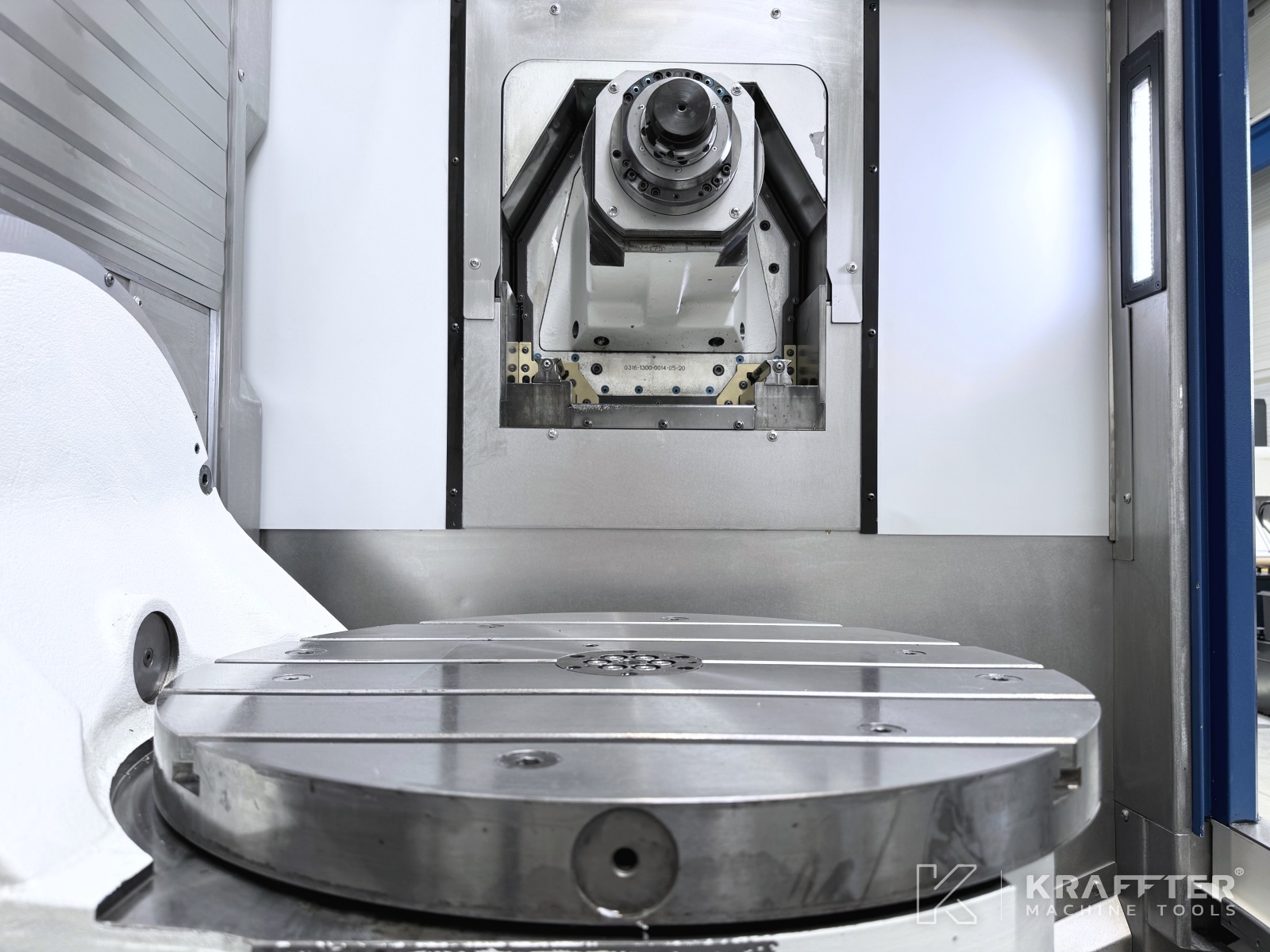

Table surface Ø
570 [mm]

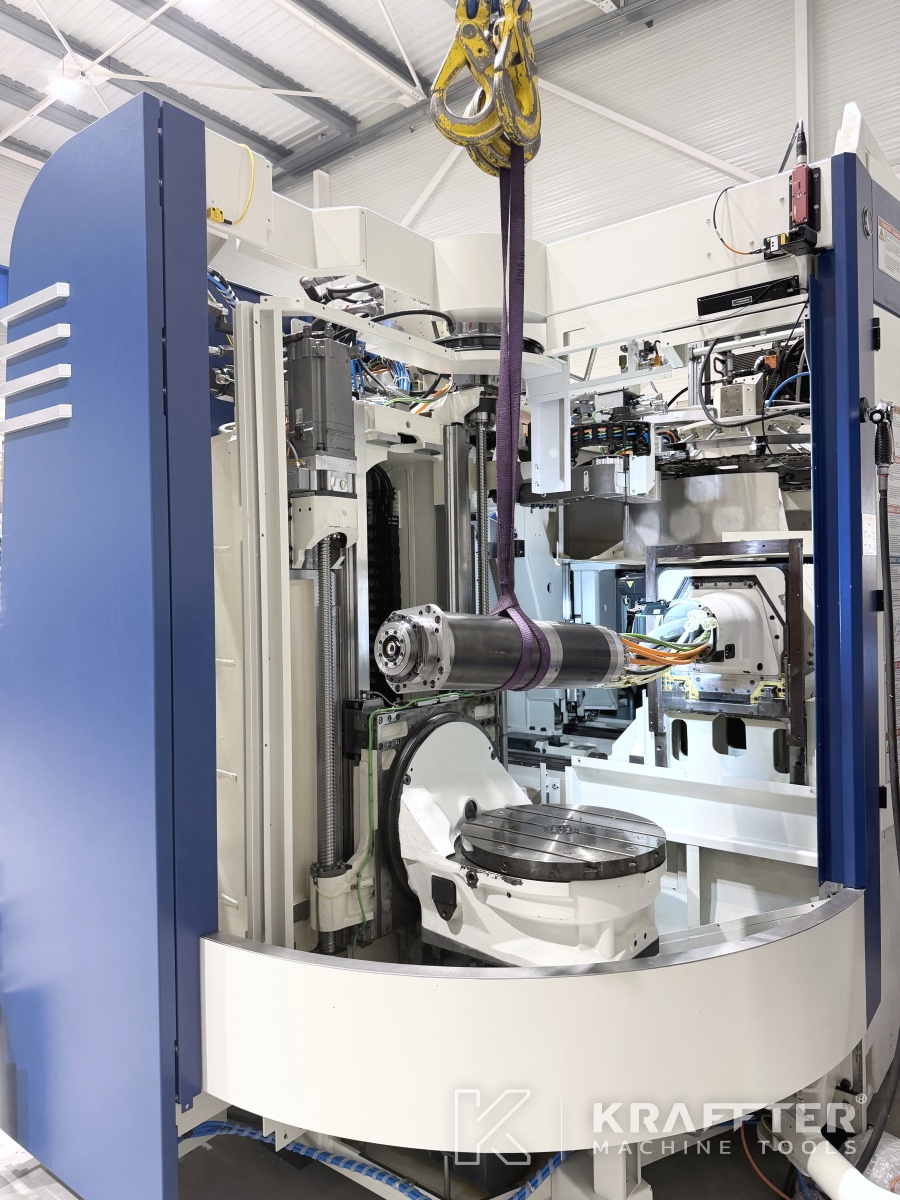

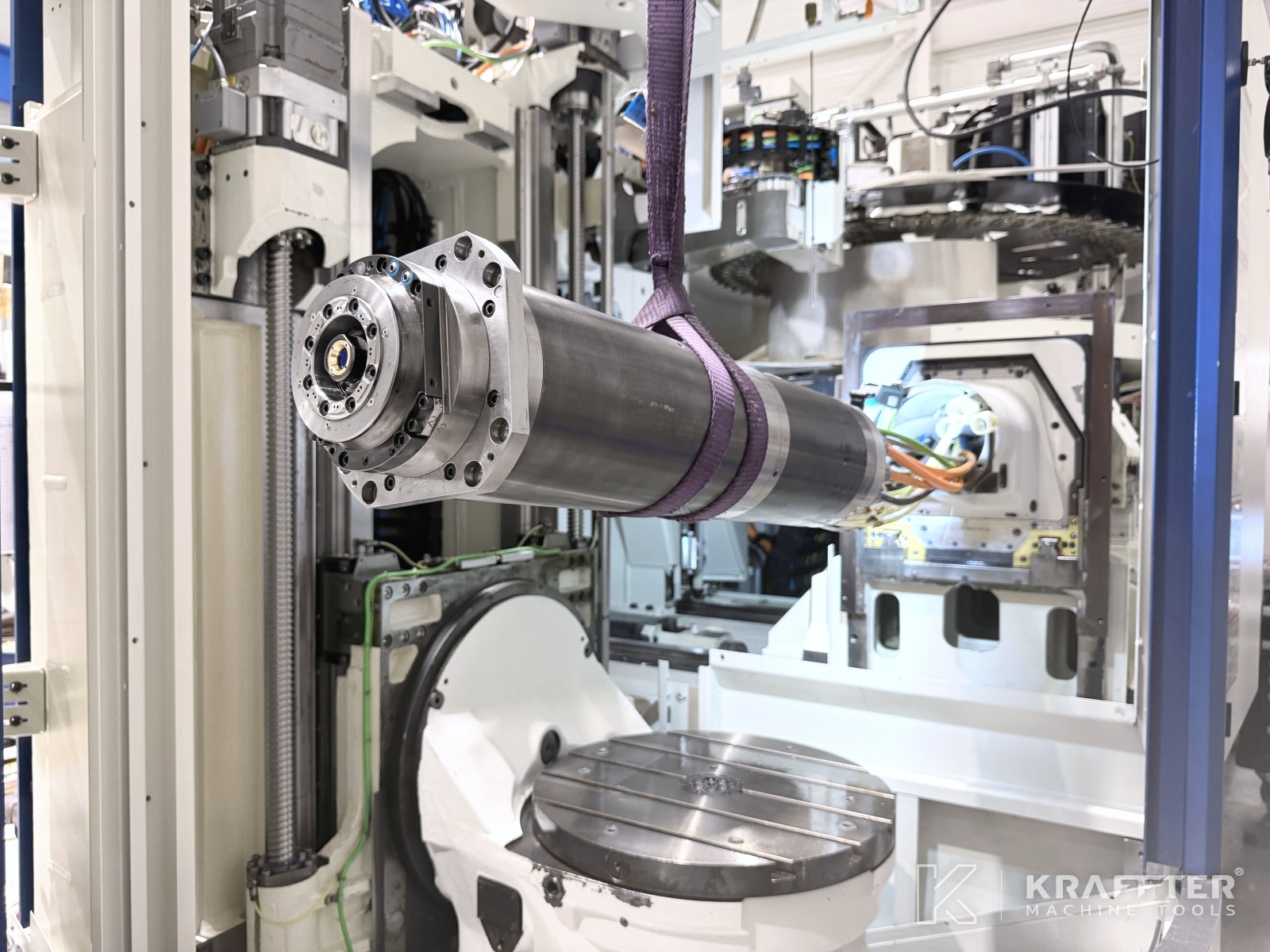

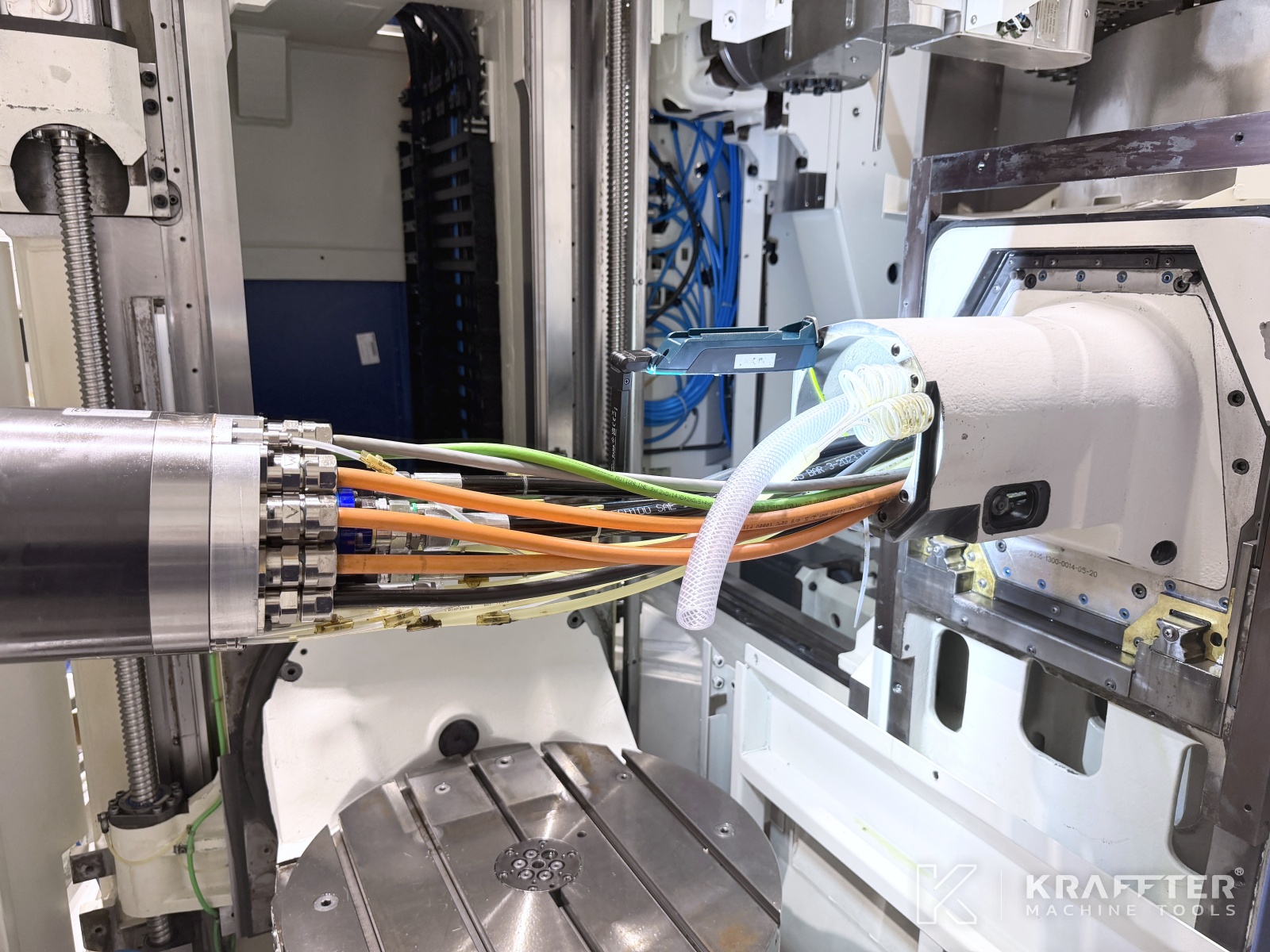

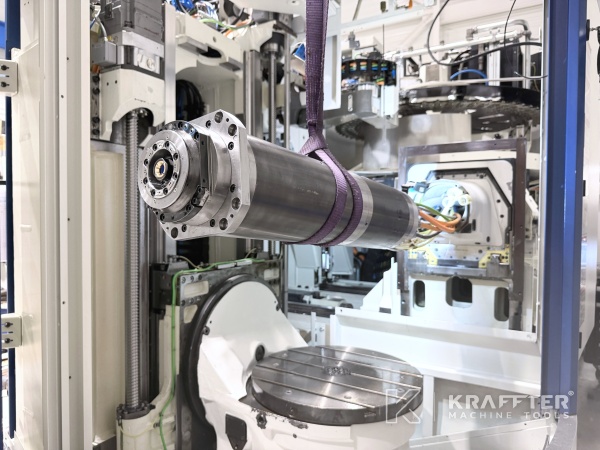

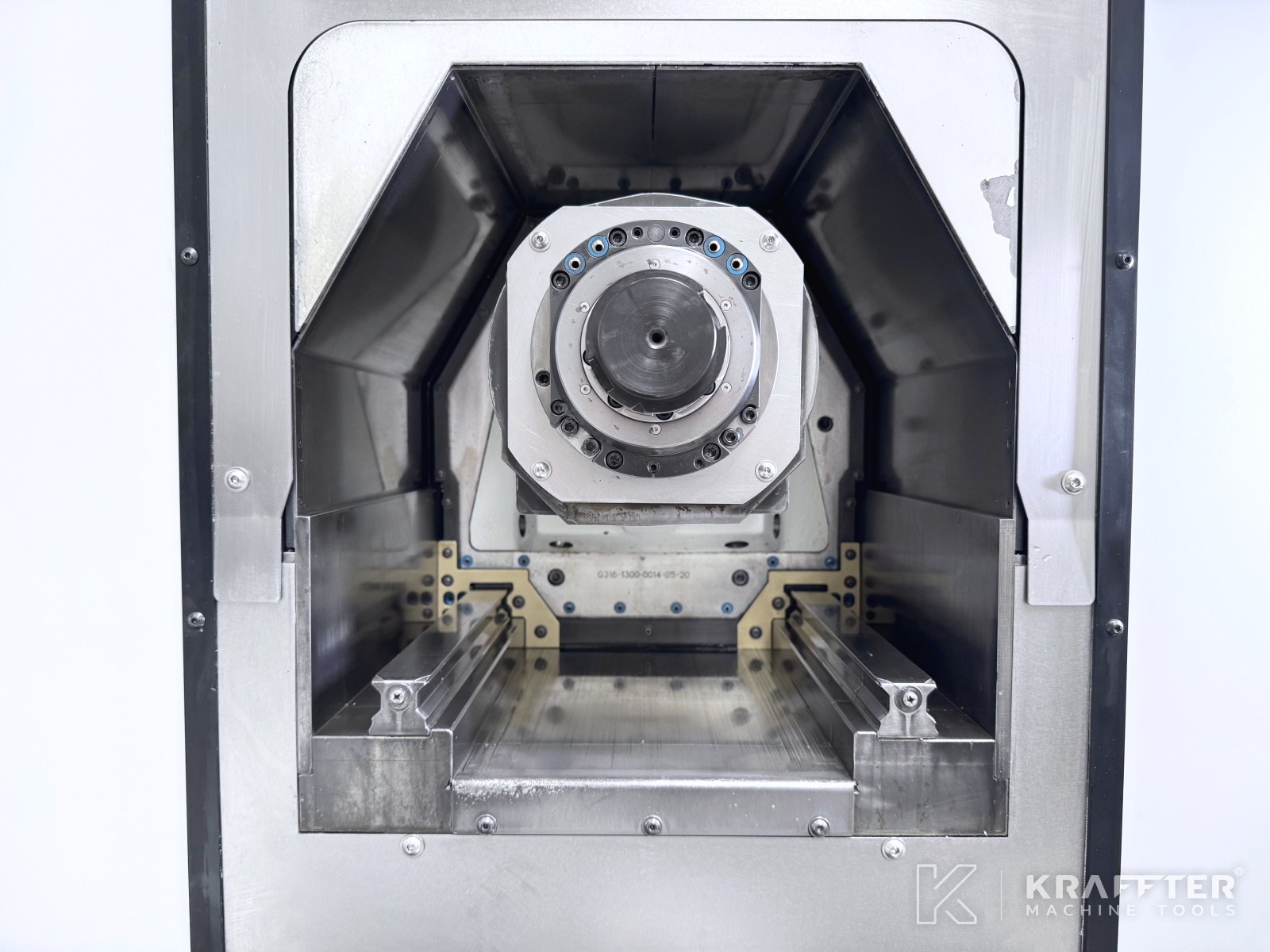

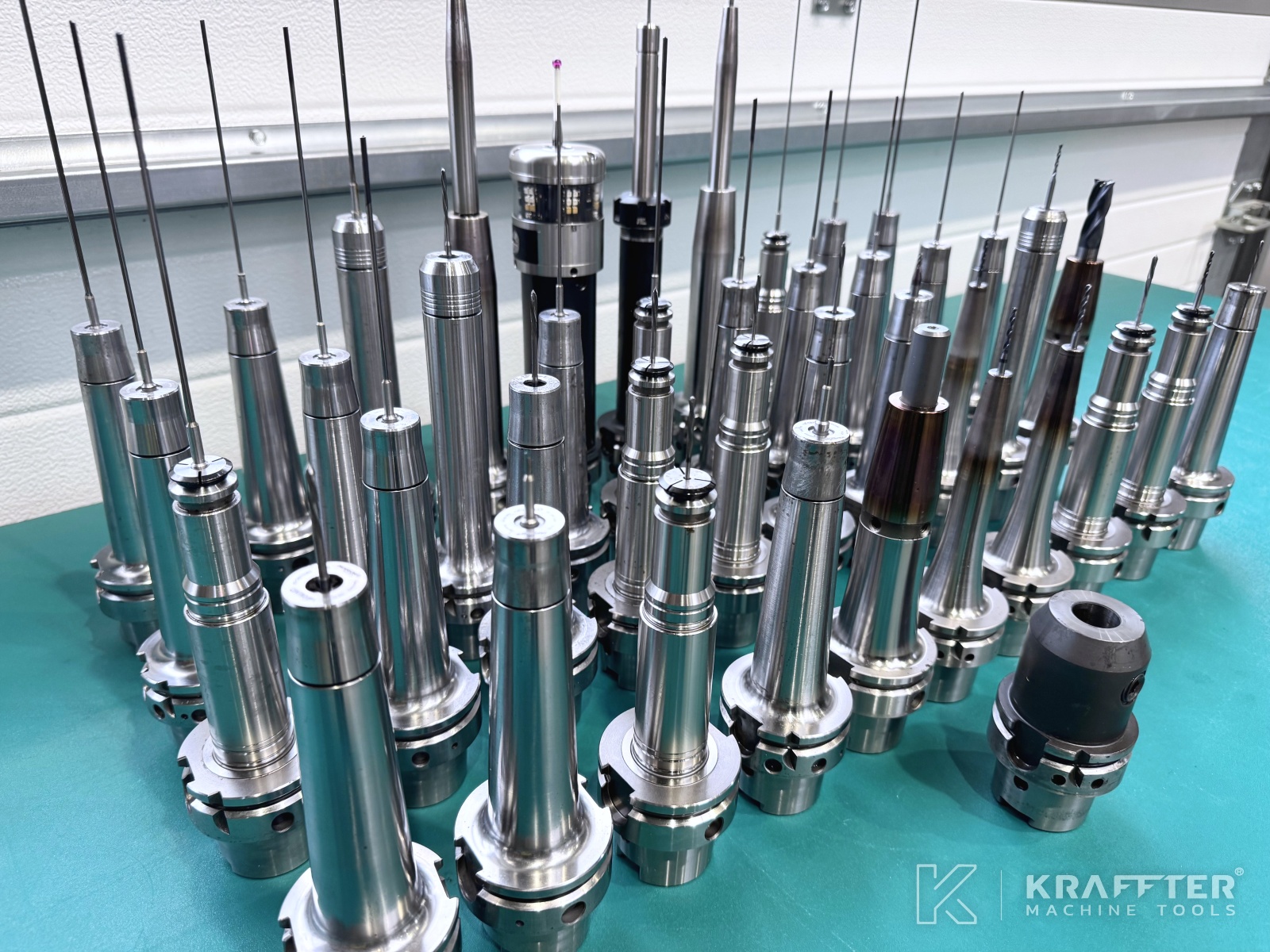

Spindle type
HSK-A63
Max. spindle speed
21000 [rpm]
Spindle power
39 [kW]

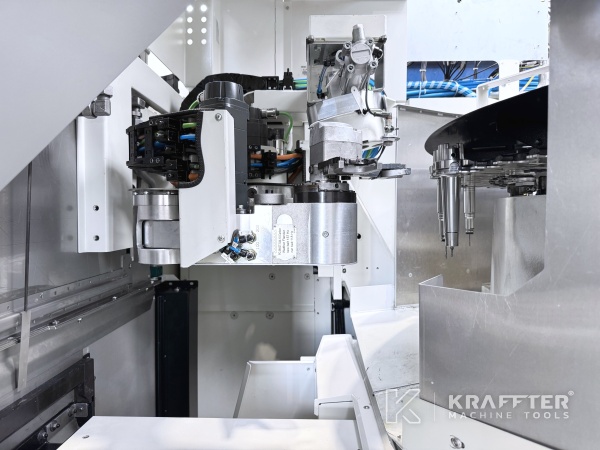

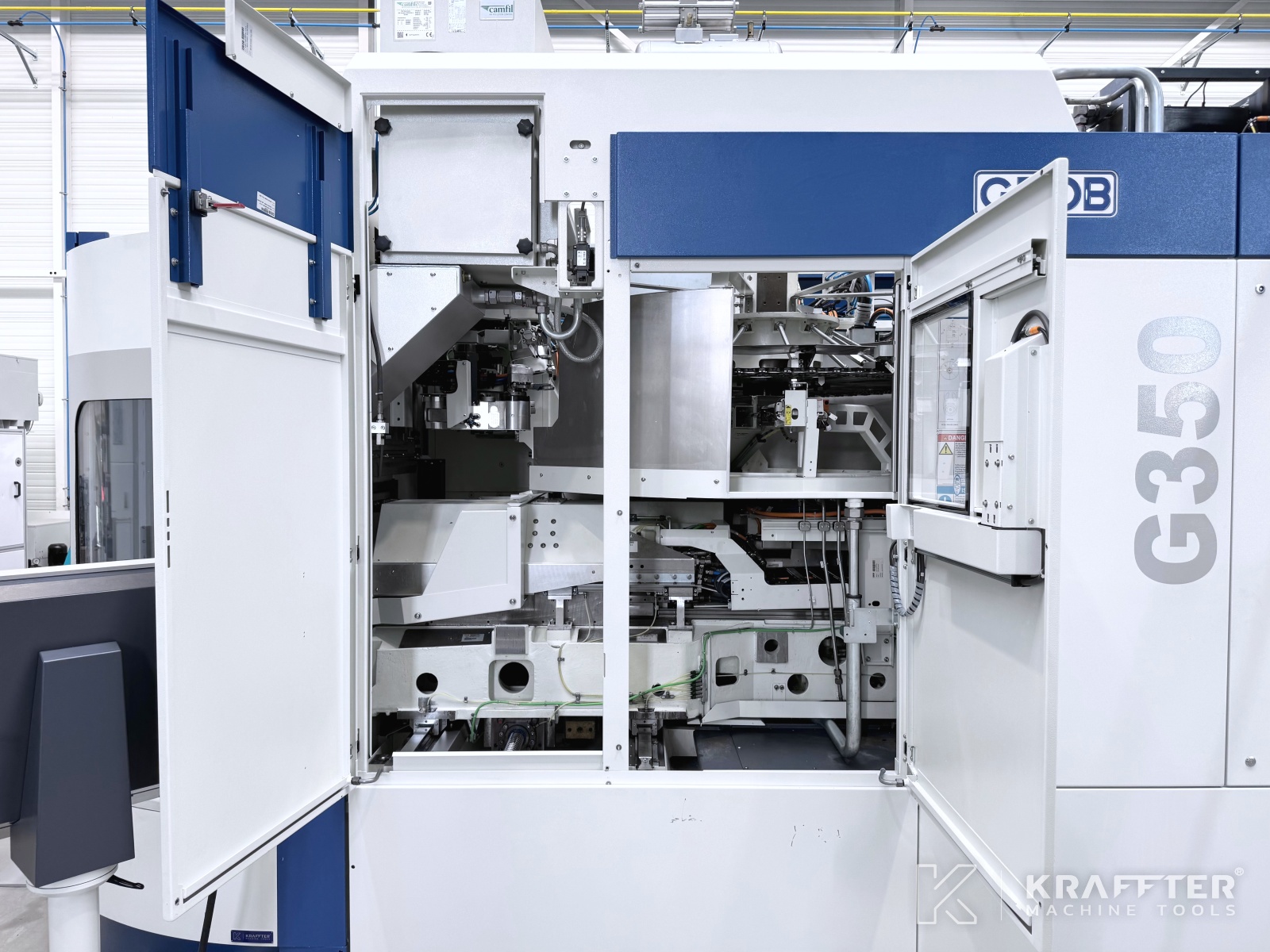

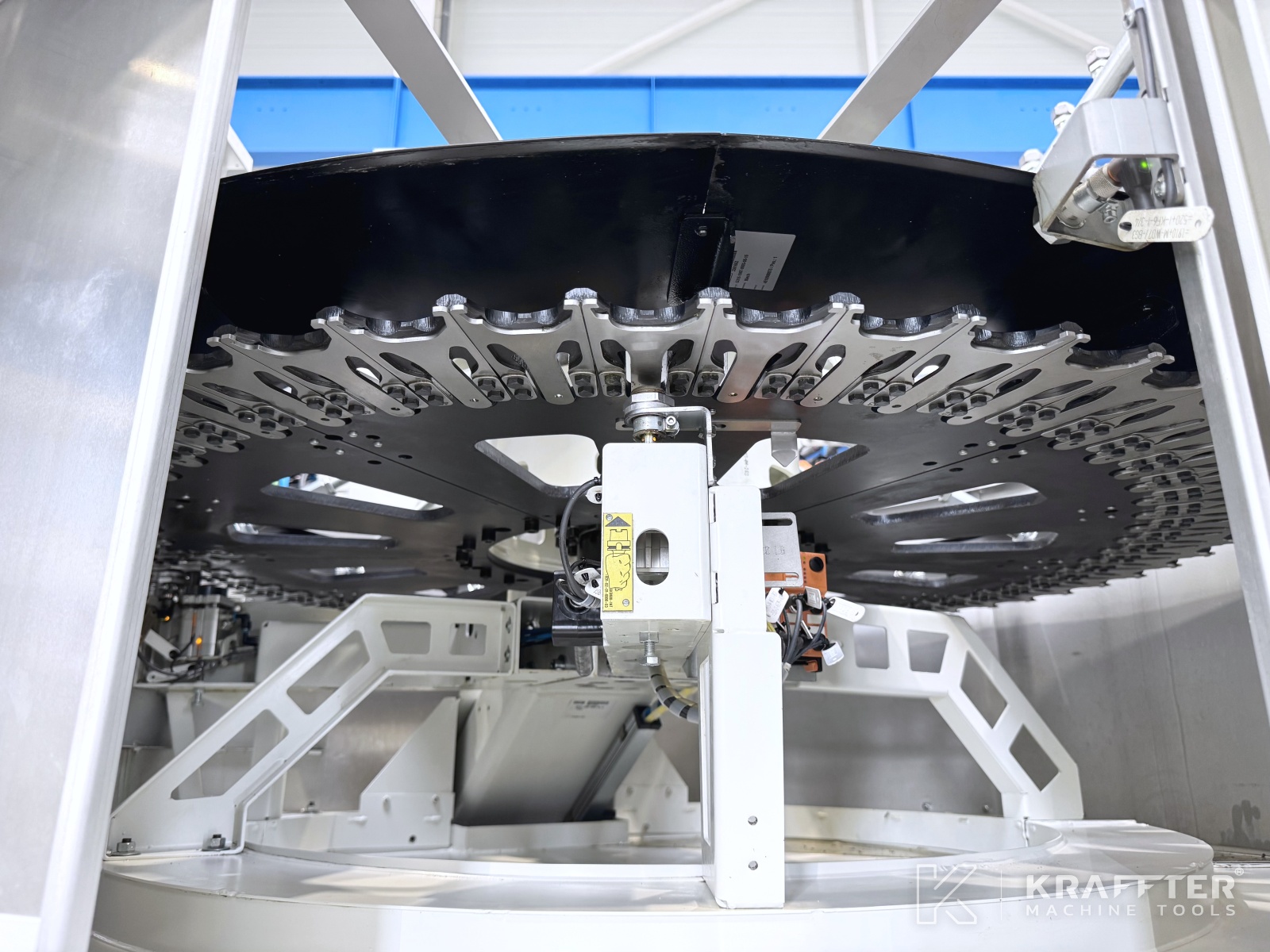

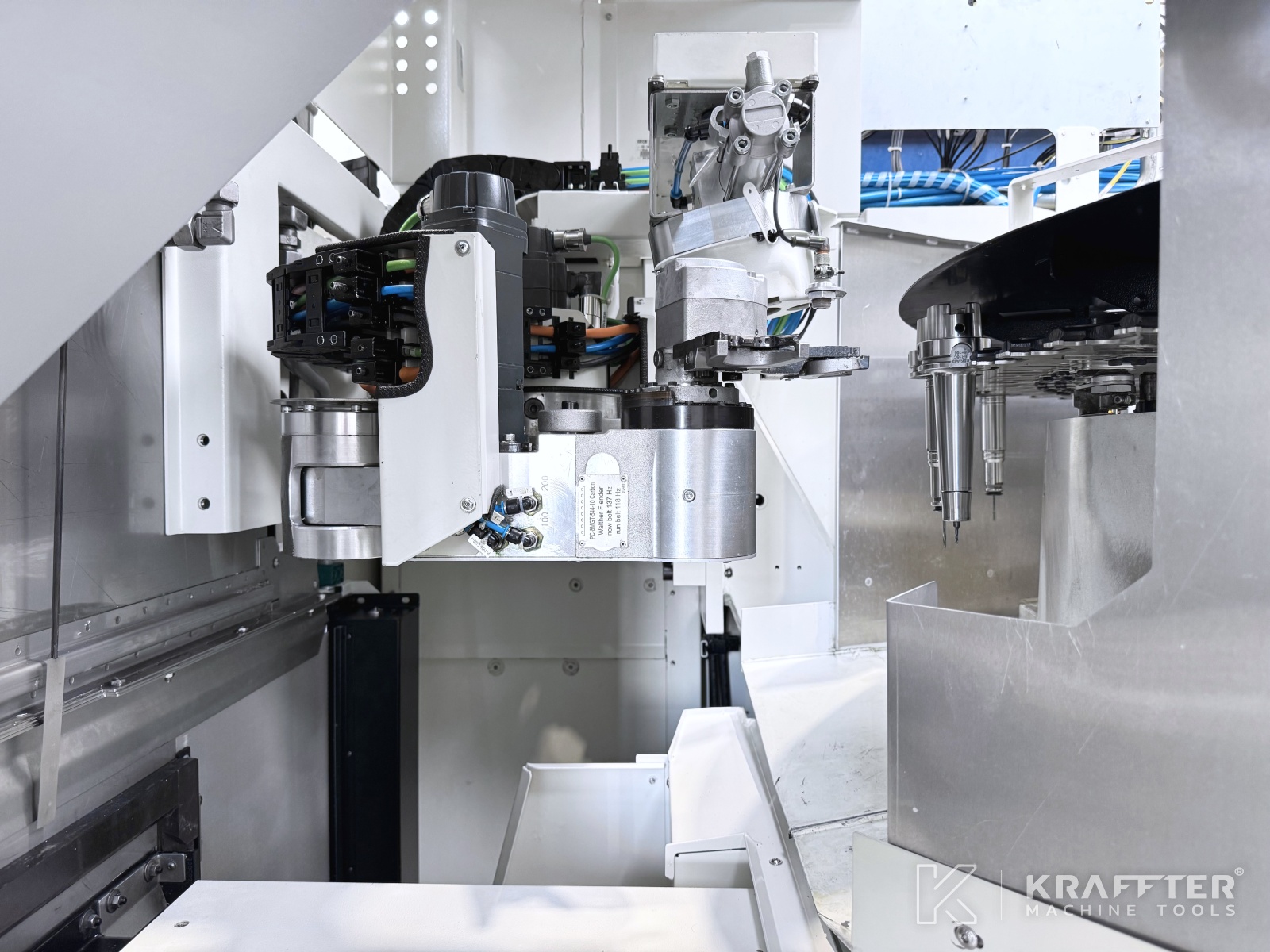

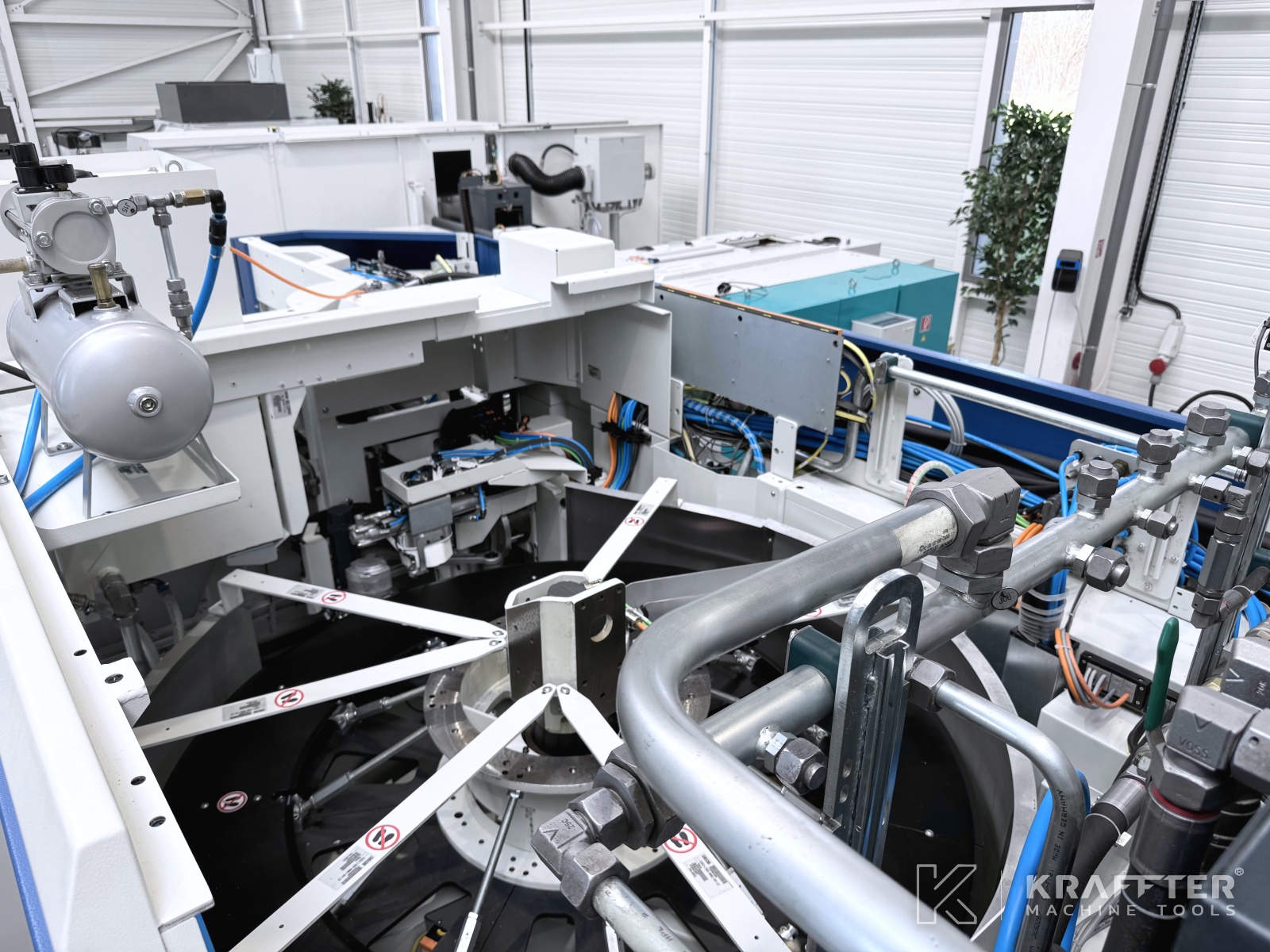

Tool changer magazin number of stations
60
Max. tool lenght
365 [mm]
Max. weight of single tool
8 [Kg]
Max. tool diameter
170 [mm]
Rated current
61 [A]
Total power required
42 [kVA]
Supply voltage
400 [V]
Machine dimensions
5680 x 3170 [mm]
Weight
15300 [Kg]
Additional information
EQUIPMENT INCLUDED:

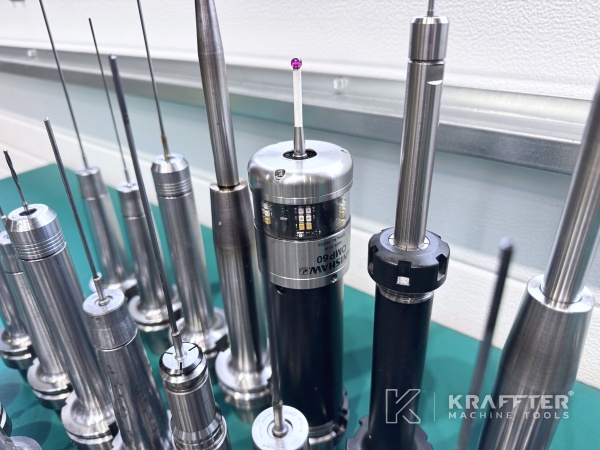

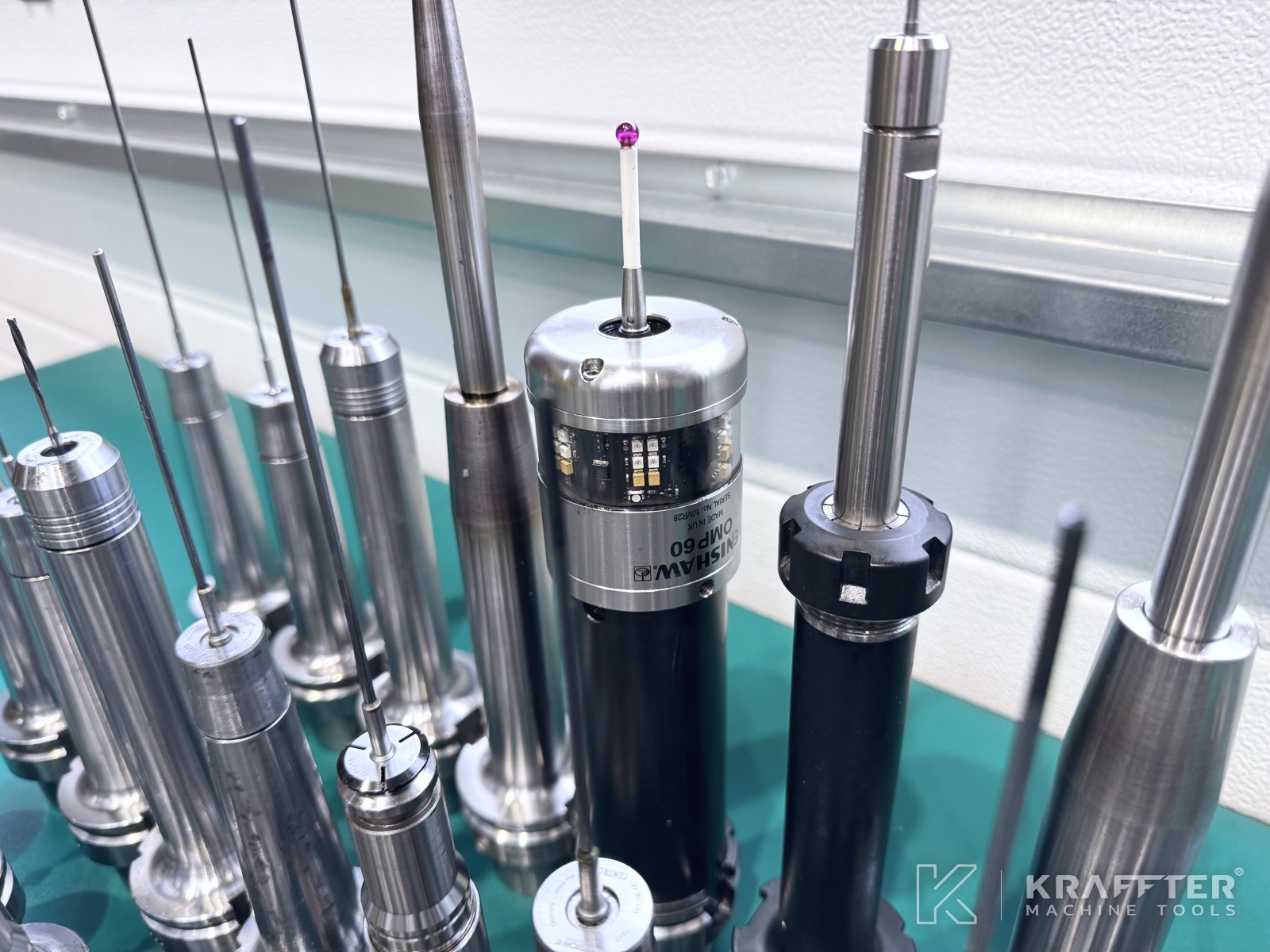

x1 Renishaw OMP60 part probe
x1 Electromechanical tool breakage detection device

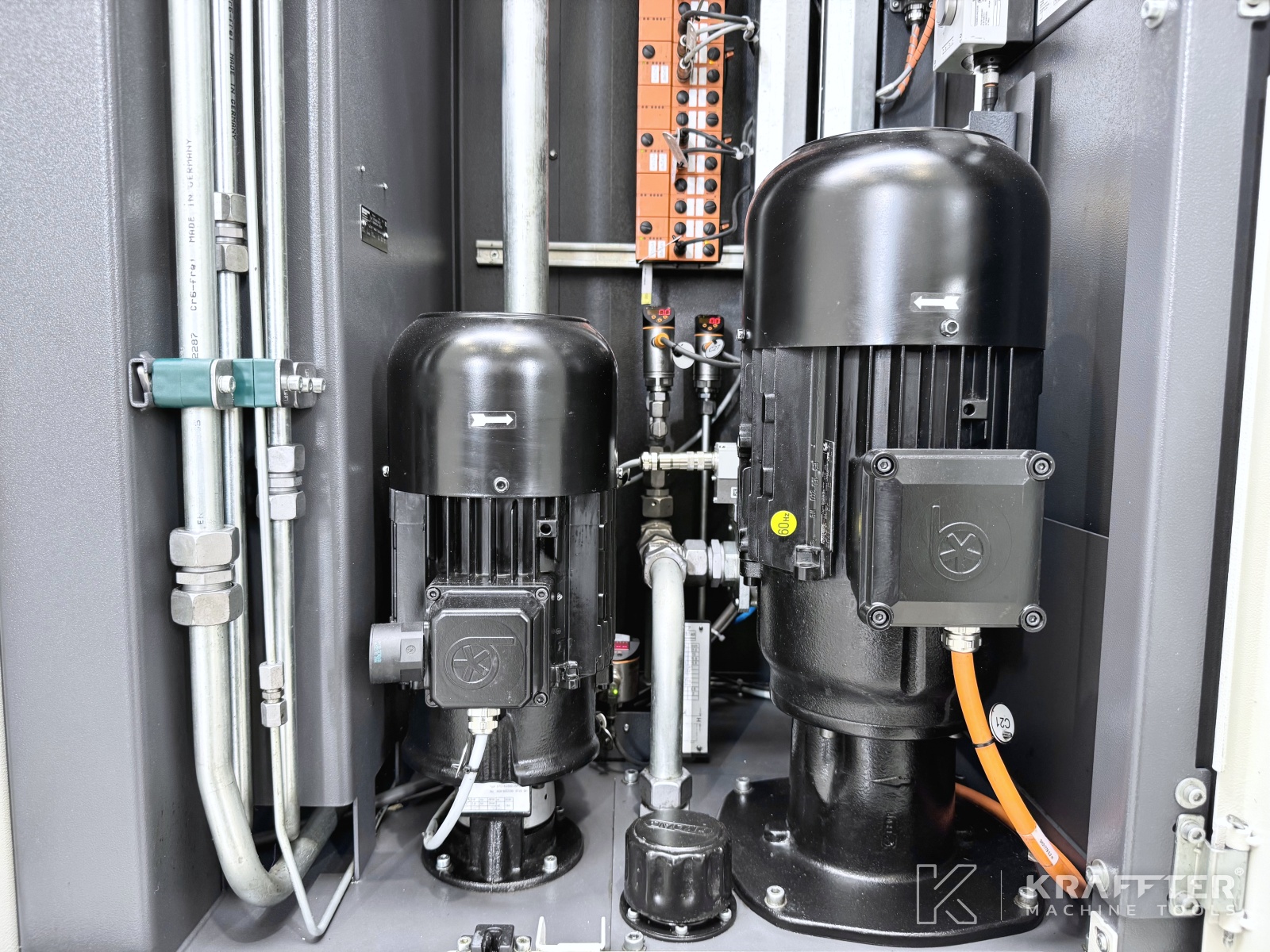

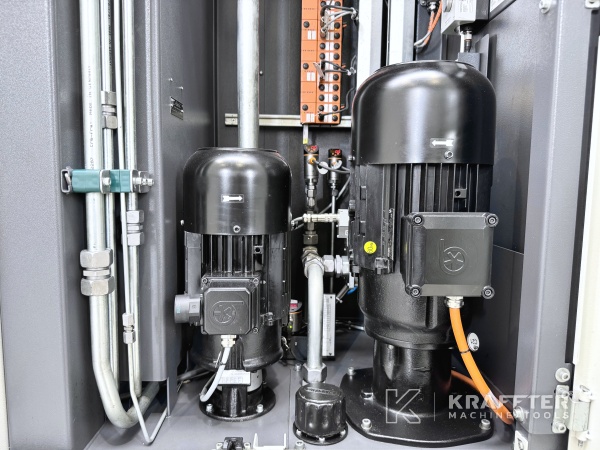

x1 High pressure coolant pump IKZ: 10–80 [bar]

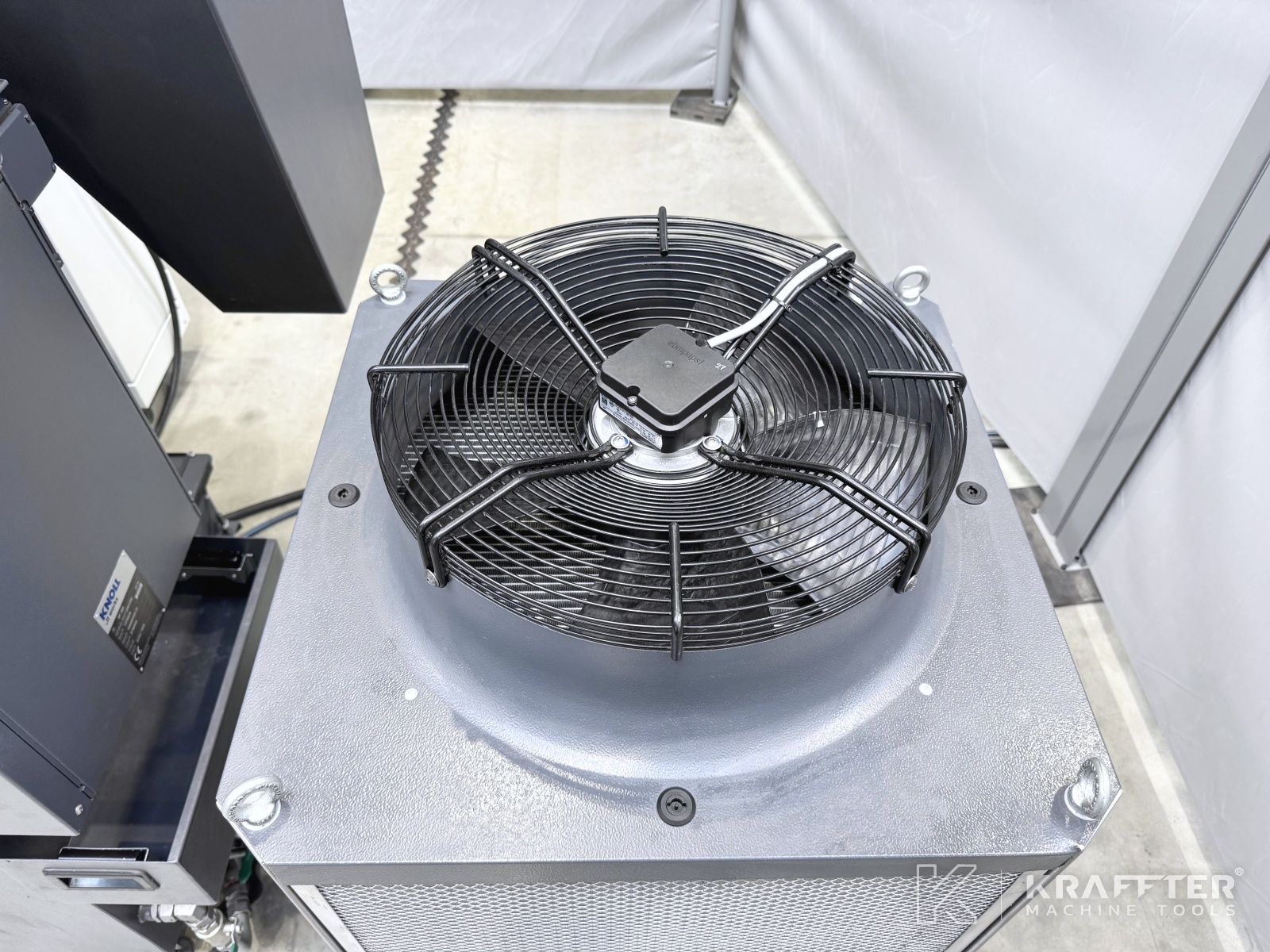

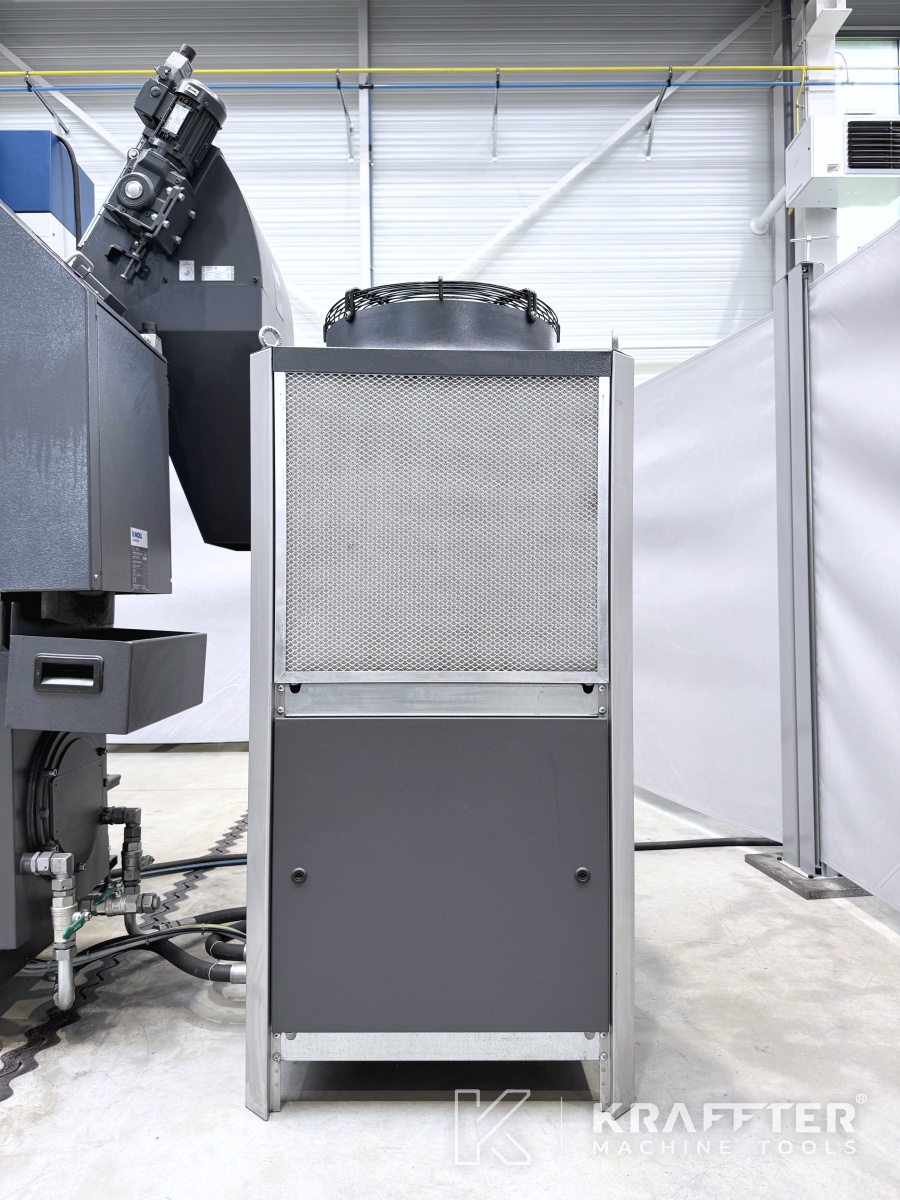

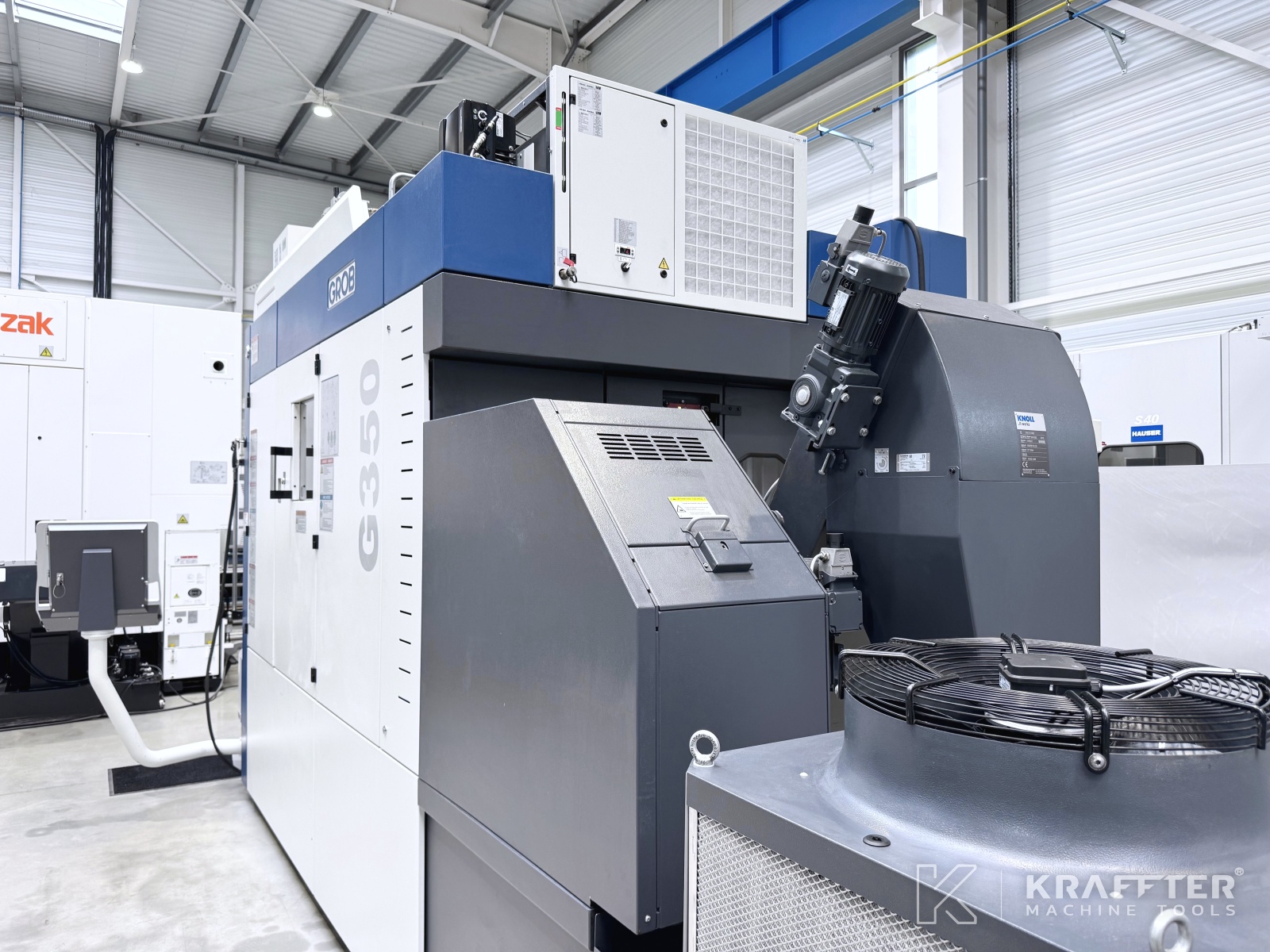

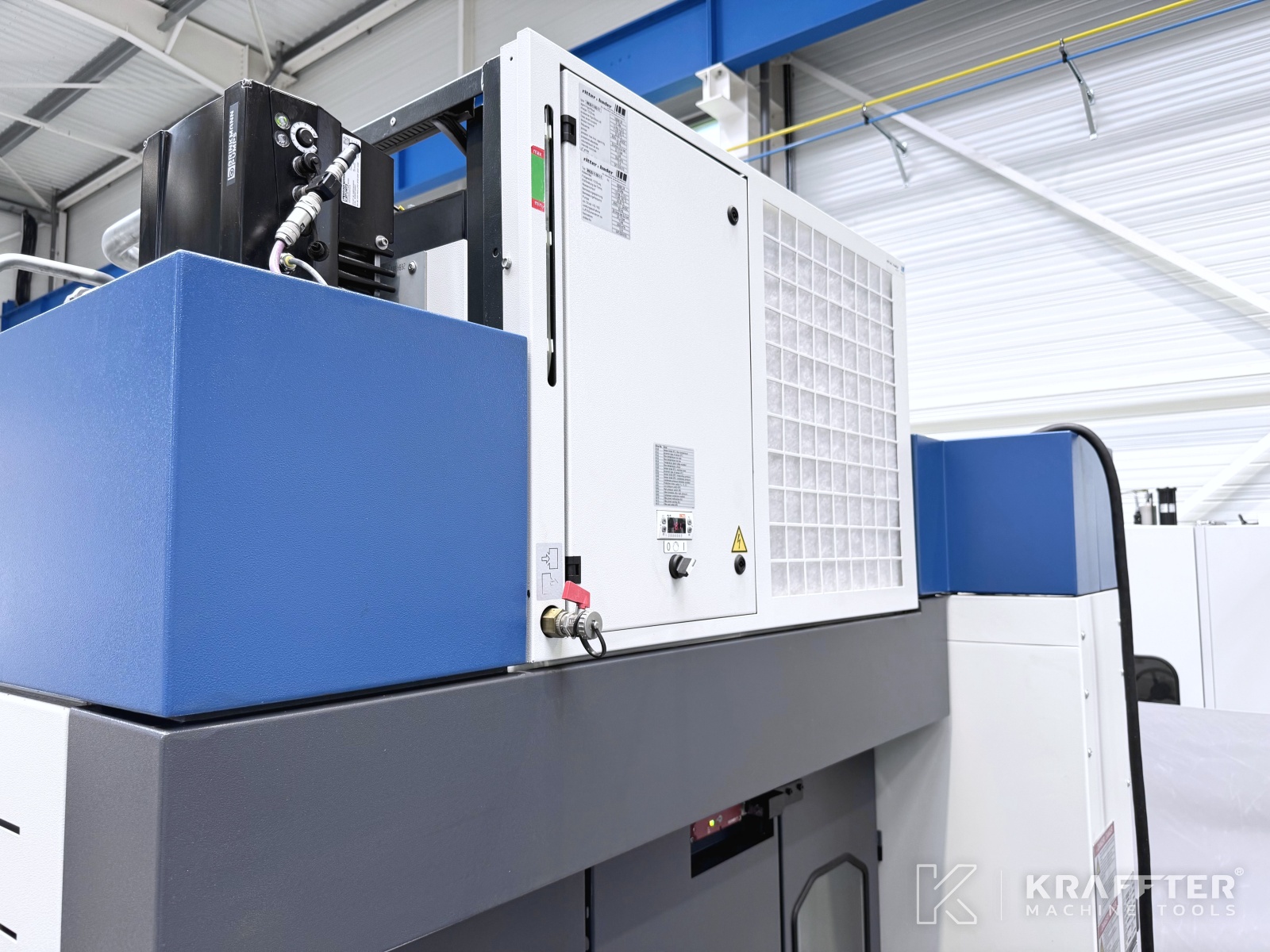

x1 Coolant chiller with air-cooled refrigeration unit: 13 [kW]
x1 GROB spindle diagnostics (GSD) software option
x1 Tool cleaning device
x1 Decentralized work area mist collecting system
x1 Automatic door setup

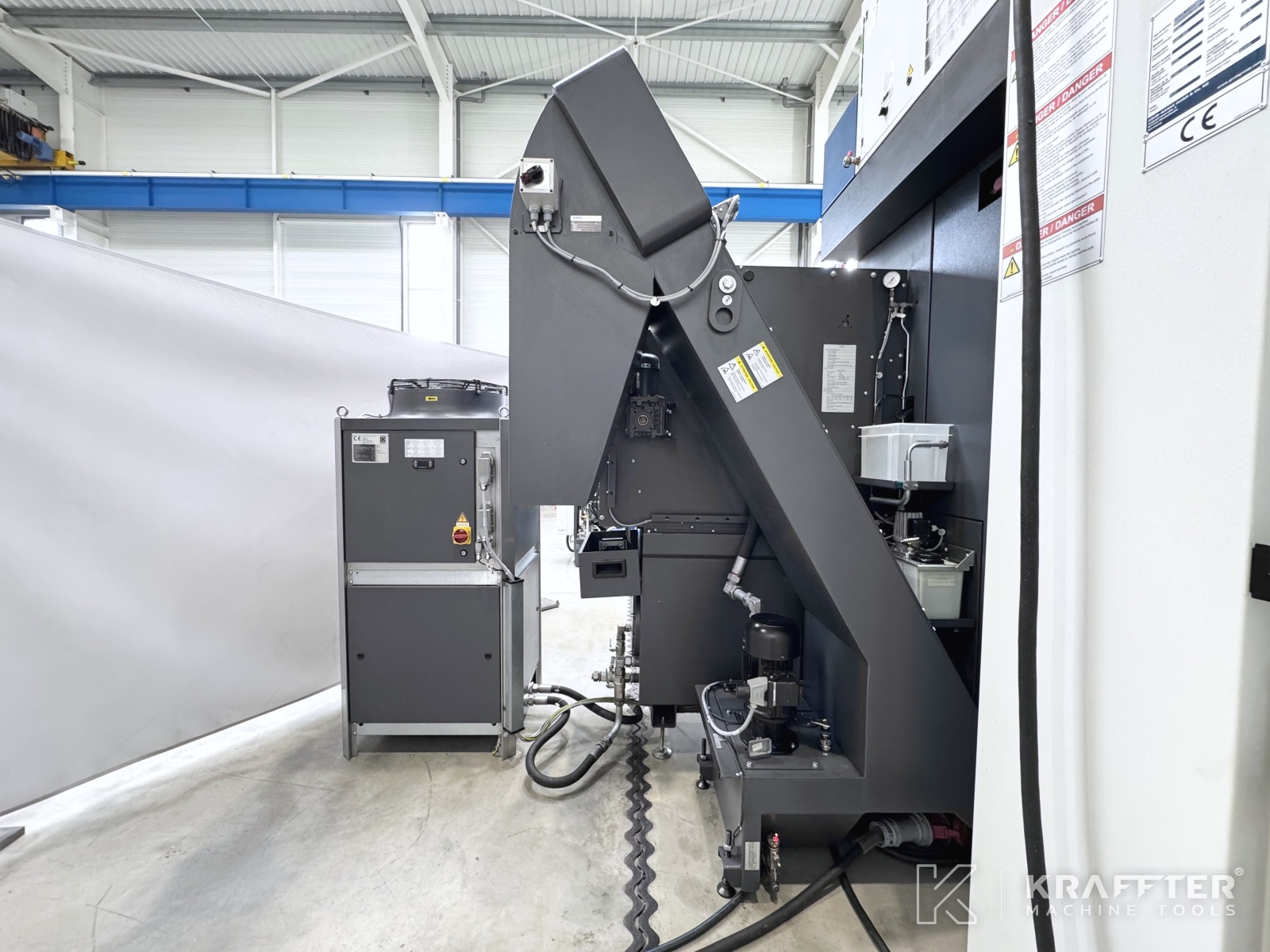

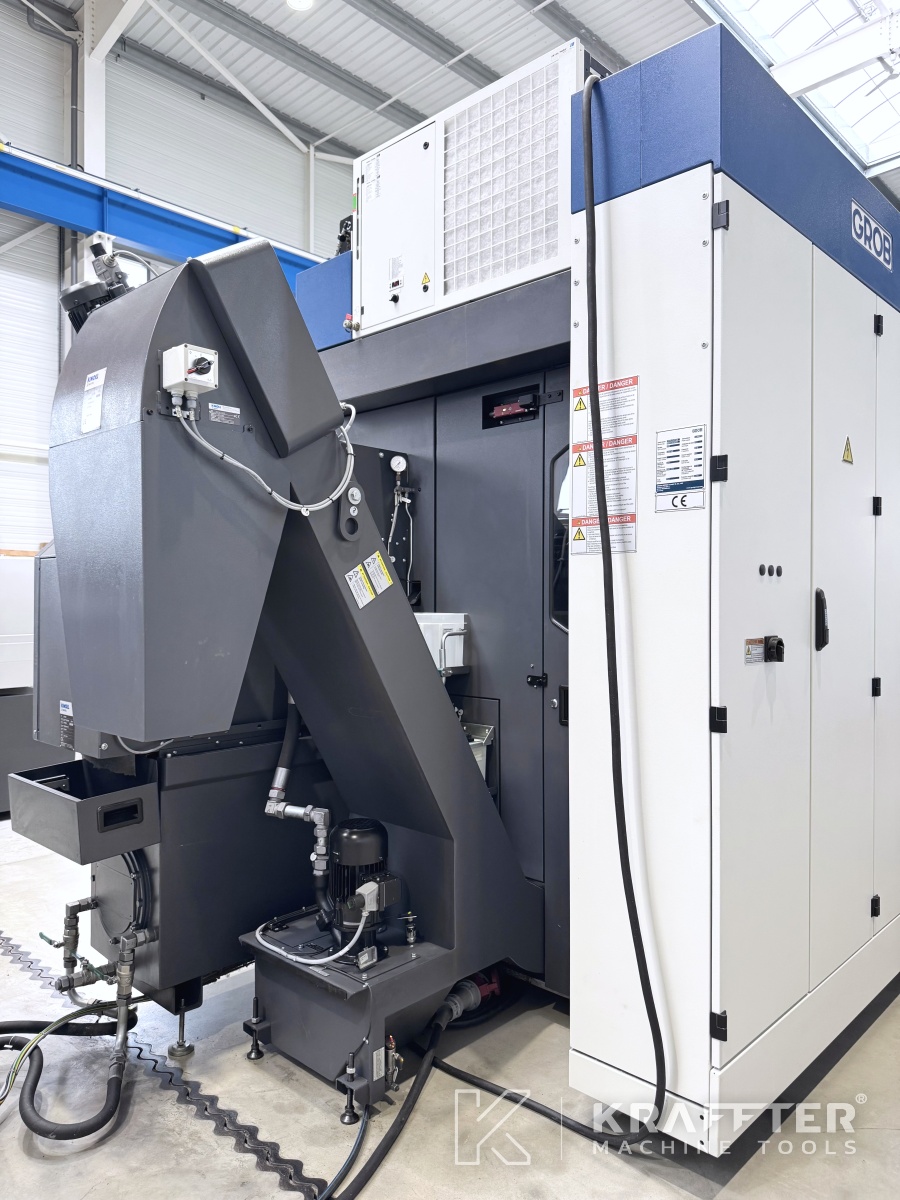

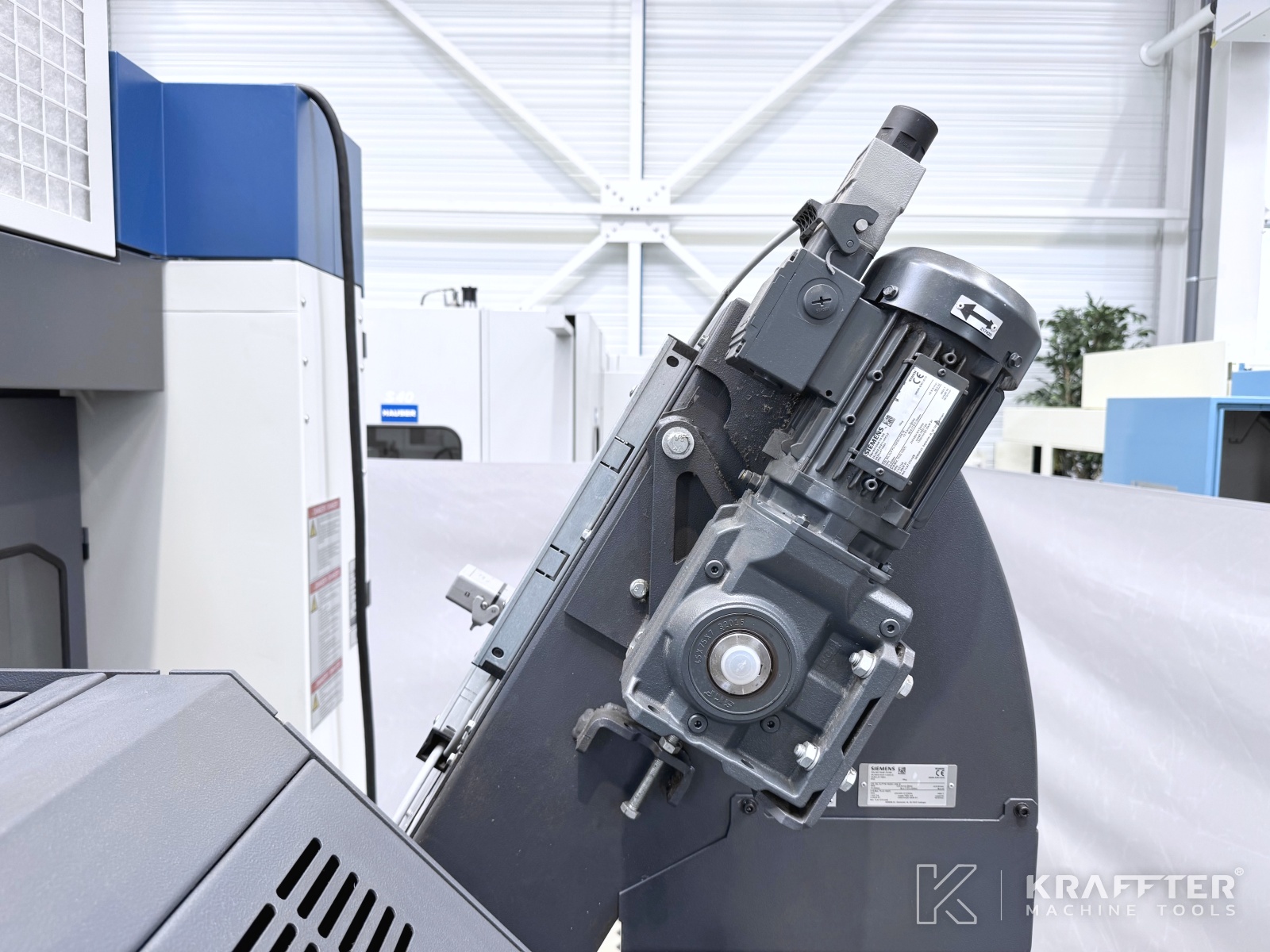

x1 Chip conveyor
x1 Interface for pallet changer
x1 Oil skimmer for waste oil collection
