Sold

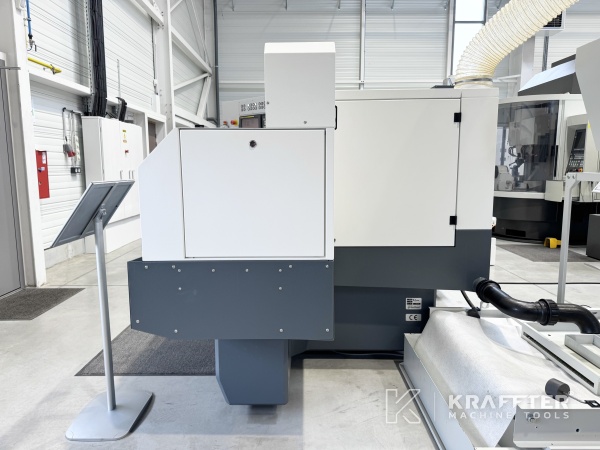

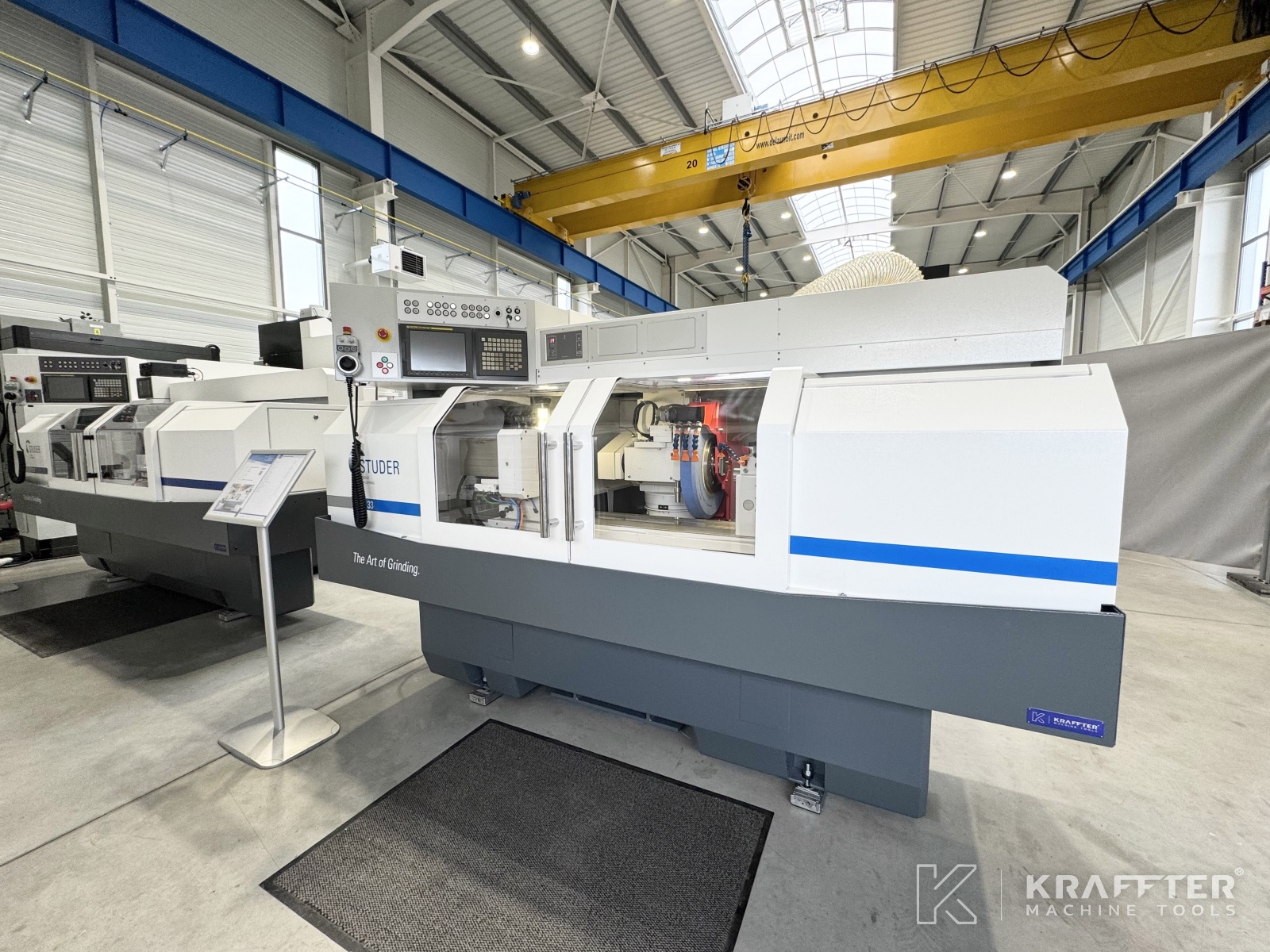

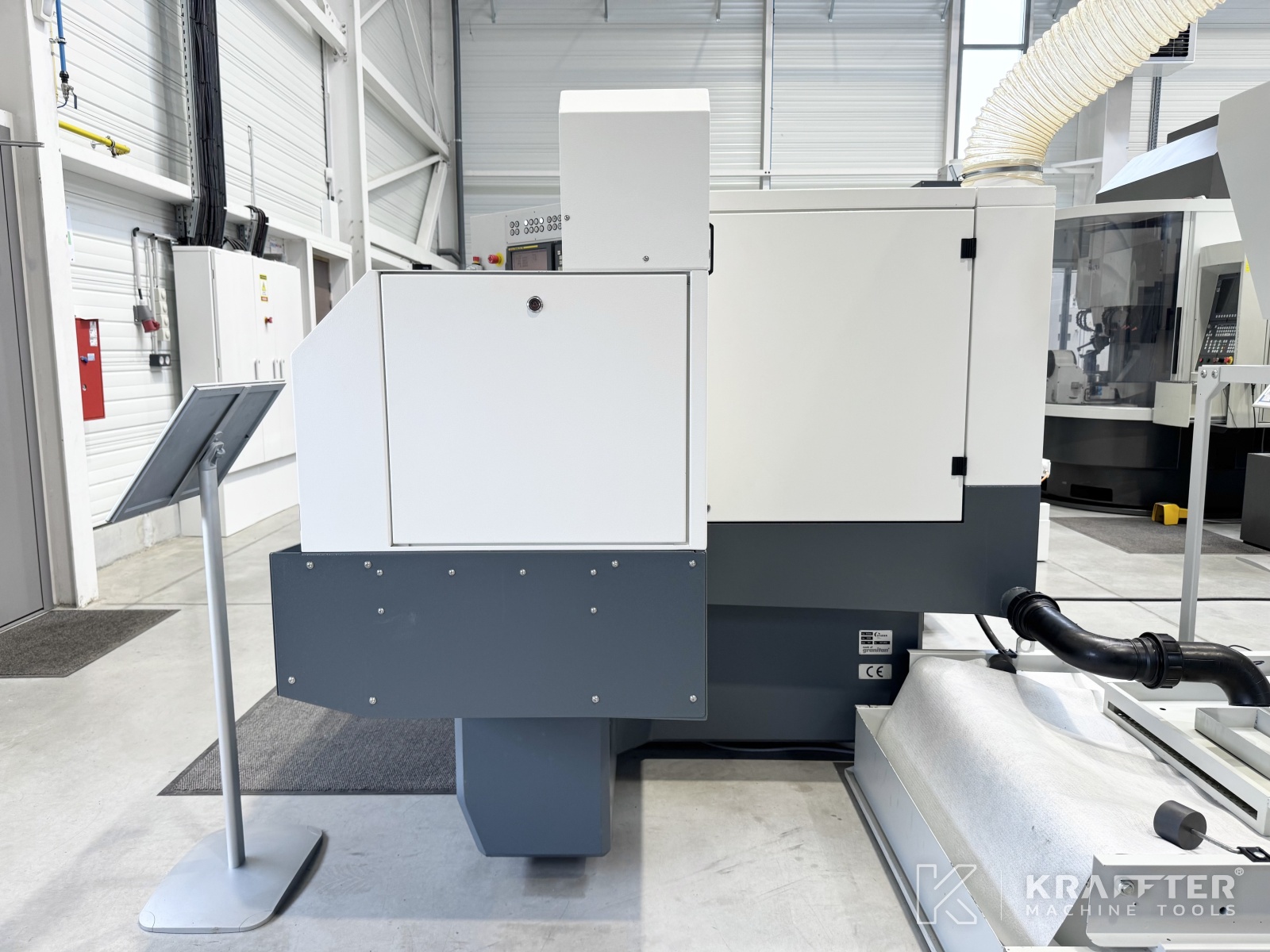

Type of machine : CNC cylindrical grinder
Brand : STUDER
N° de stock: 90177
Model : S33
Year : 2008
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

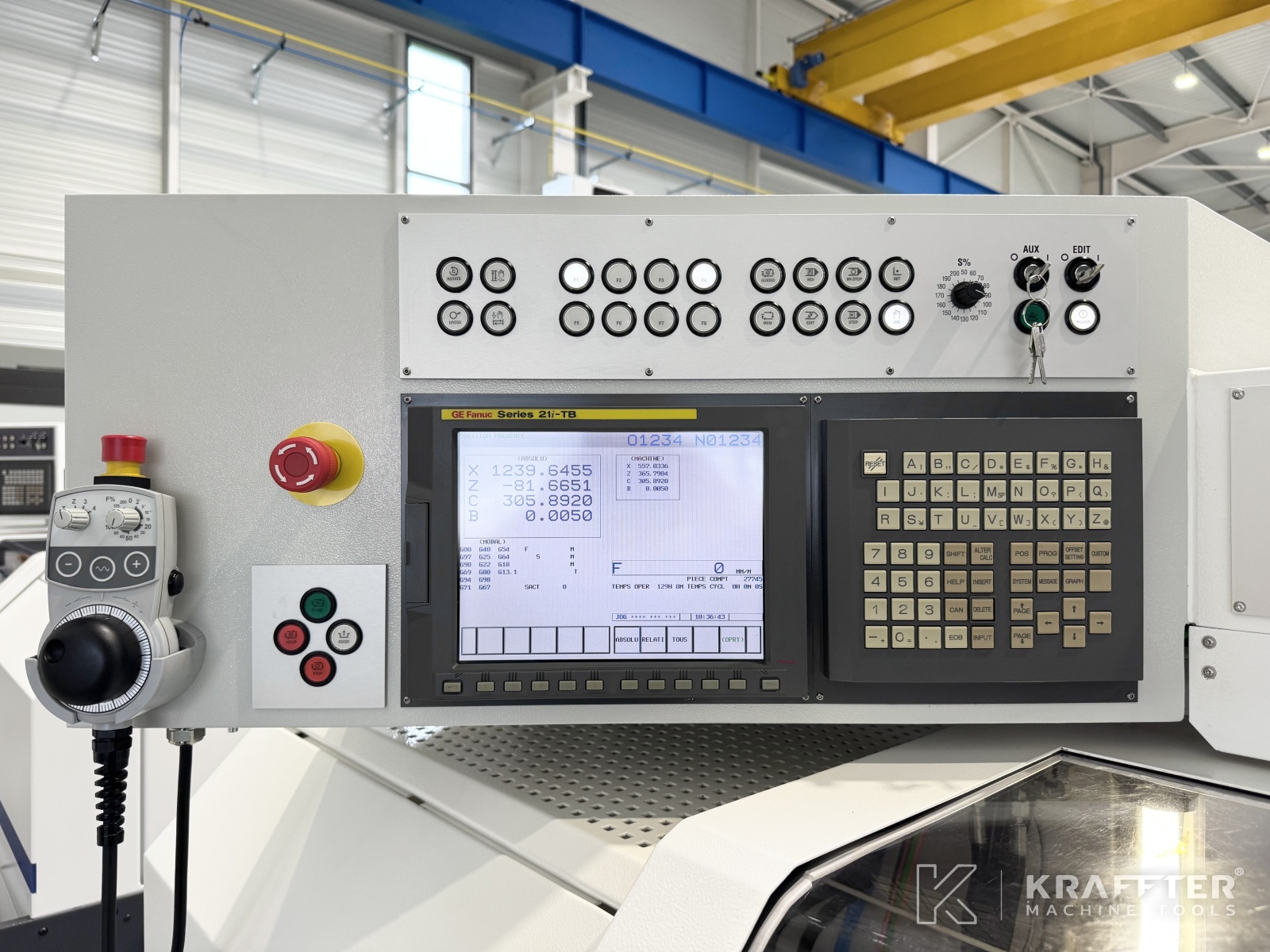

CNC control
FANUC 21i-TB
Software installed
StuderGrind
Centre distance
650 [mm]
Height of centers
175
Stroke X axis
285 [mm]
Min. Stroke speed X axis
0.001 [mm/min]
Max. Stroke speed X axis
5000 [mm/min]
Resolution X axis
0.0001 [mm]
Stroke Z axis
800 [mm]
Min. Stroke speed Z axis
0.001 [mm/min]
Max. Stroke speed Z axis
10000 [mm/min]
Resolution Z axis
0.0001 [mm]
B axis swivelling stroke
-15 [°] / +195 [°]
B axis indexing precision
Hirth 1 [°]

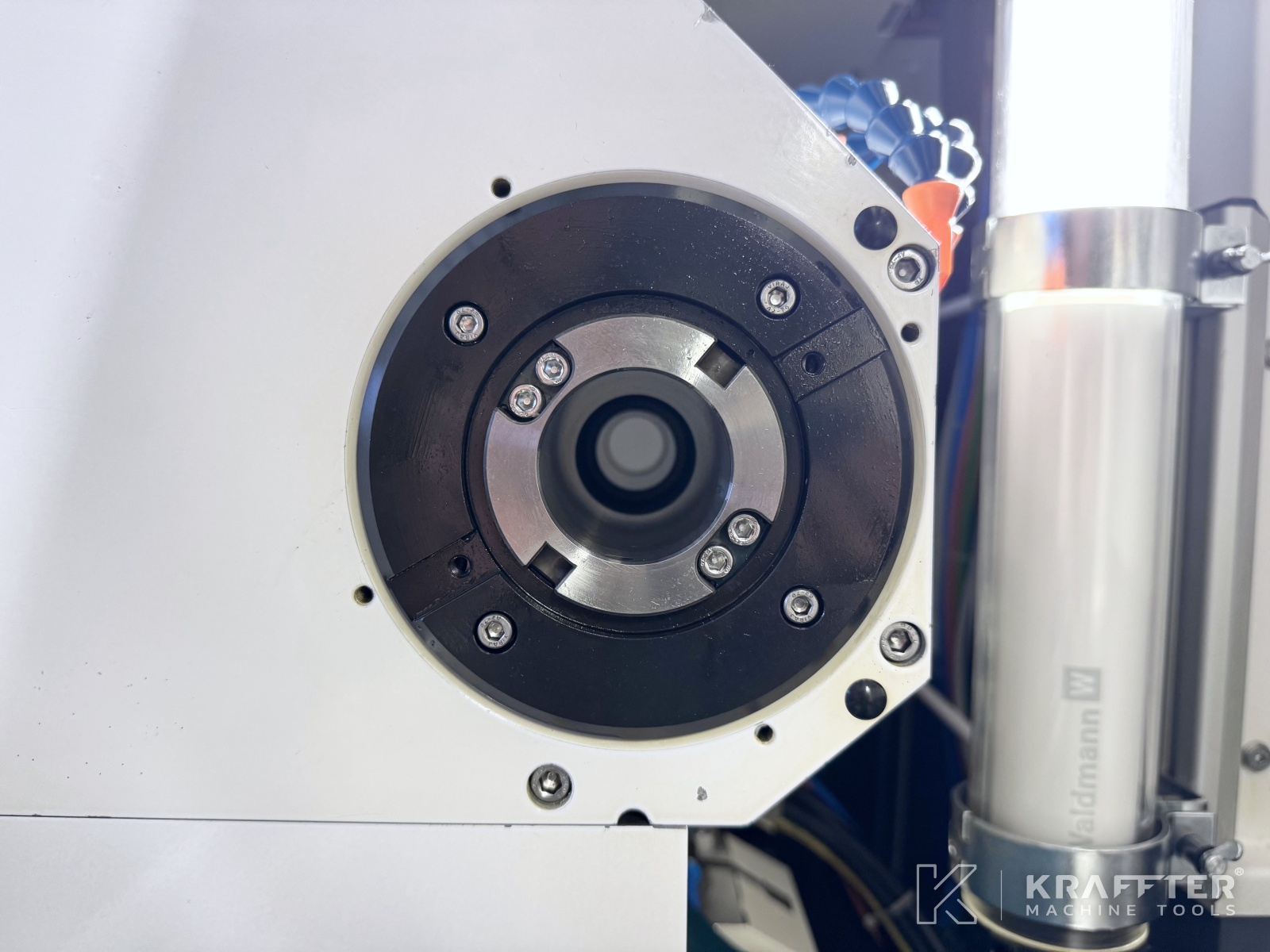

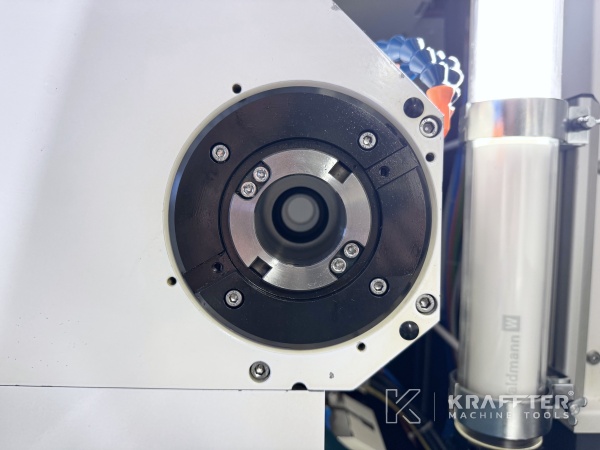

Workpiece spindle nose
MT5
Workpiece spindle min. speed
1 [rpm]
Workpiece spindle max. speed
1500 [rpm]
Max. part weight in part holder headstock between centres
80 [Kg]
Type of attachment tailstock
MT3
Tailstock quill stroke
35 [mm]
Tailstock quill diameter
50 [mm]

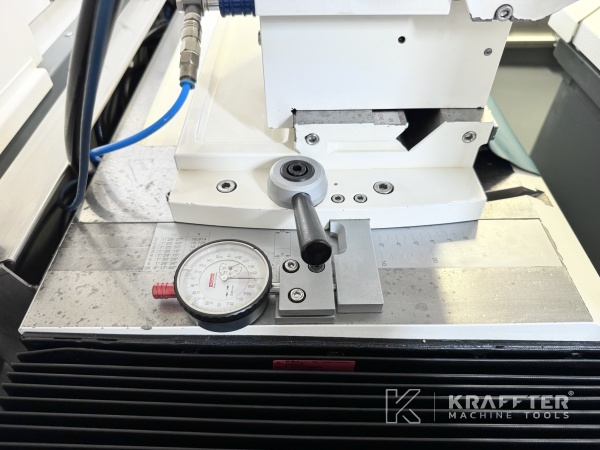

Tailstock fine adjustment
+/- 40 [mm]
Working hours
2452 [h]
Supply voltage
400 [V]
Total power required
20 [kVA]
Weight
4000 [Kg]
Additional information

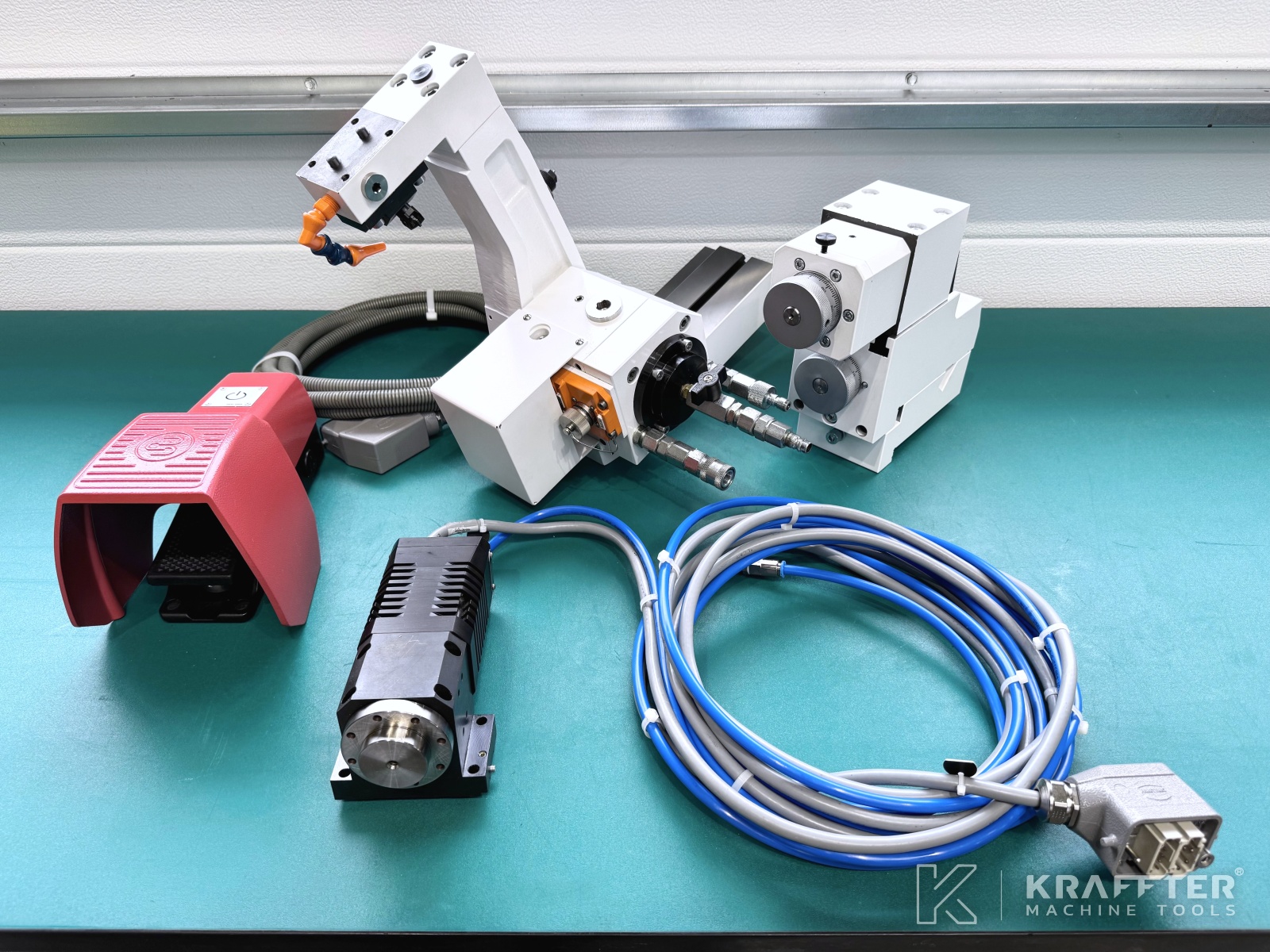

INCLUDED EQUIPMENT:
-
x1 CD-ROM with STUDER Grind software to be installed on a PC
-
x1 STUDER Thread license
-
x1 STUDER Profil license
-

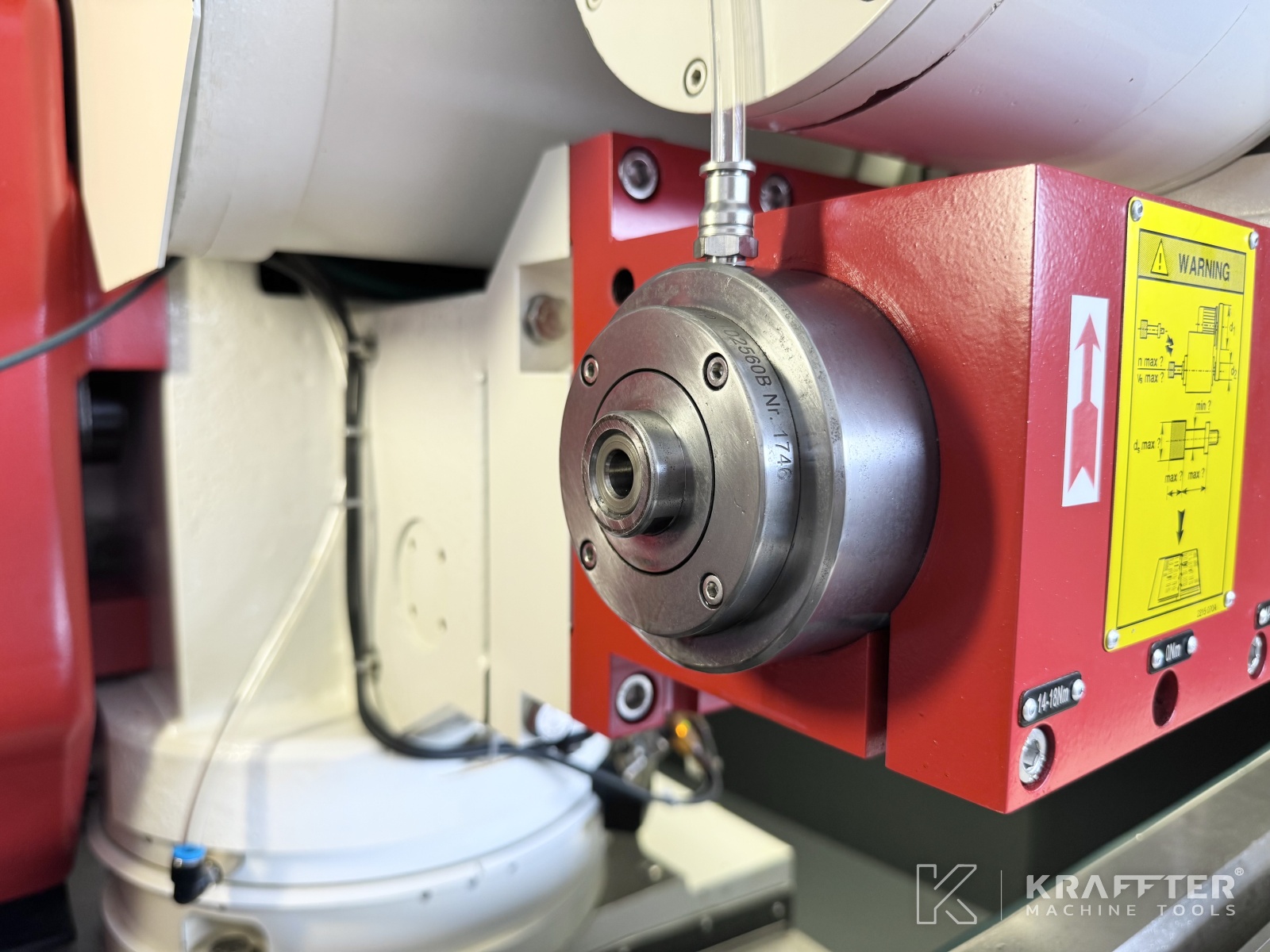

x1 internal grinding spindle type 102560B – speed: 60,000 [rpm]
-
x9 internal grinding wheel arbors
-

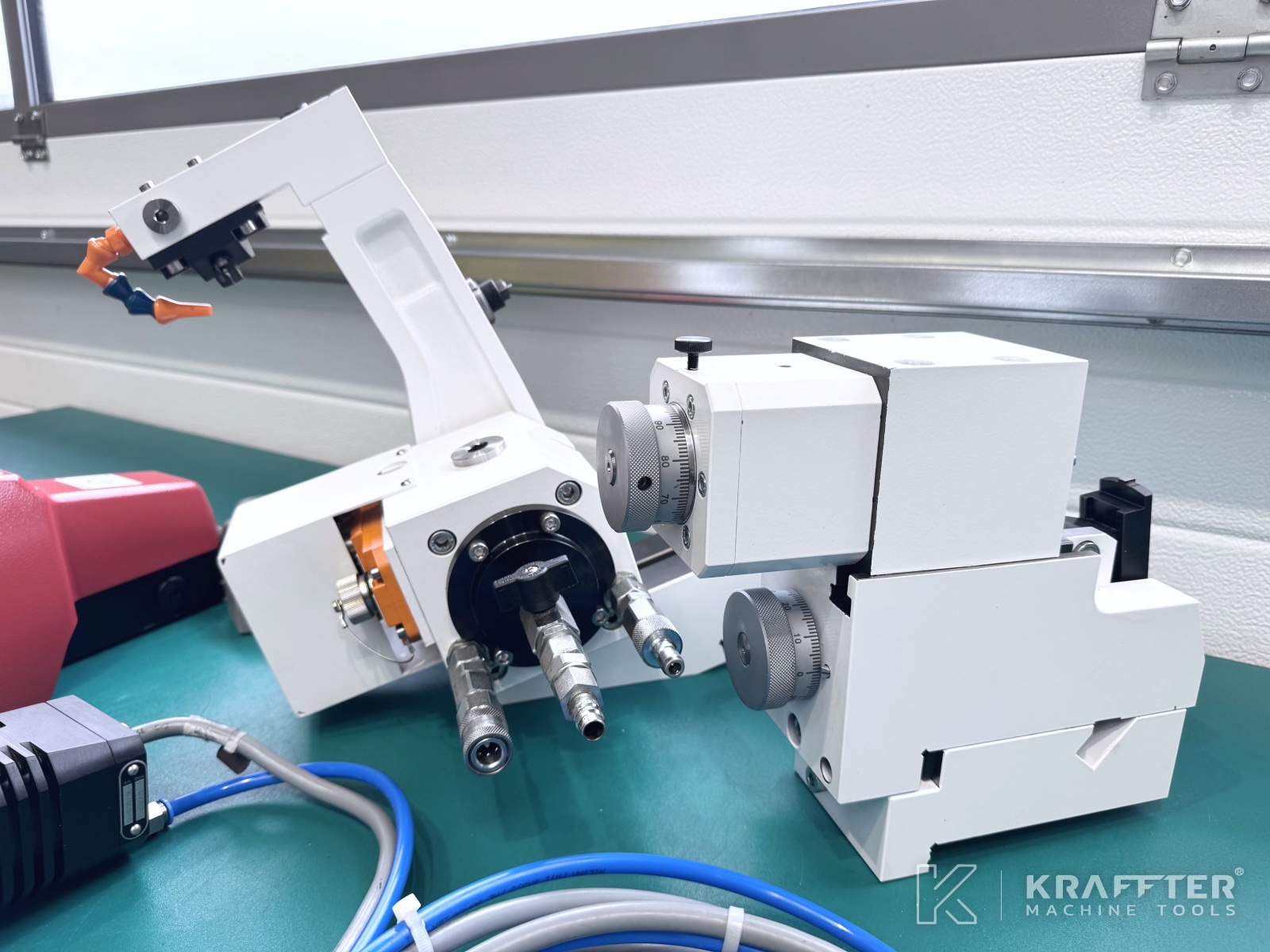

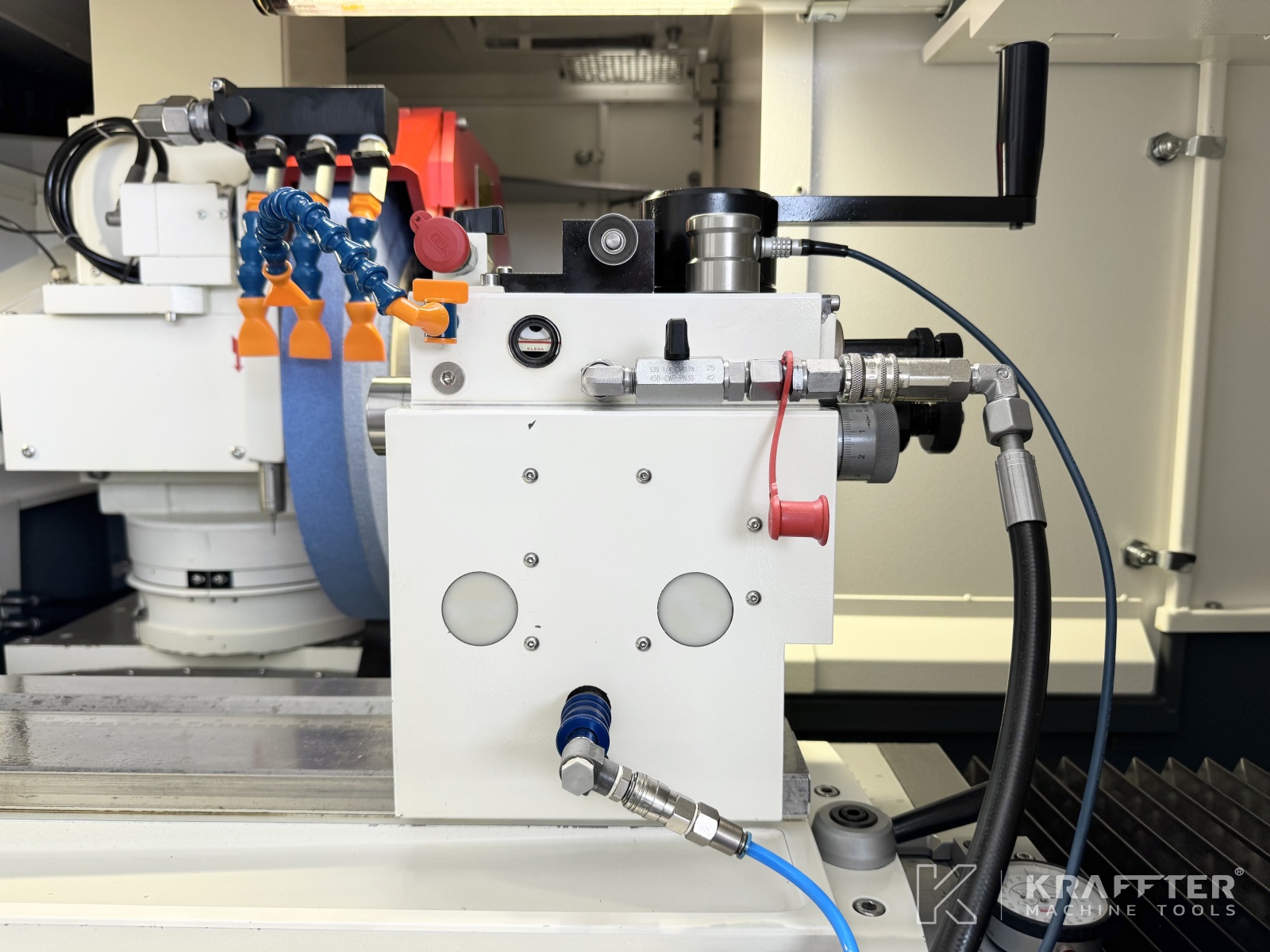

x1 hydraulic swiveling dressing attachment
-

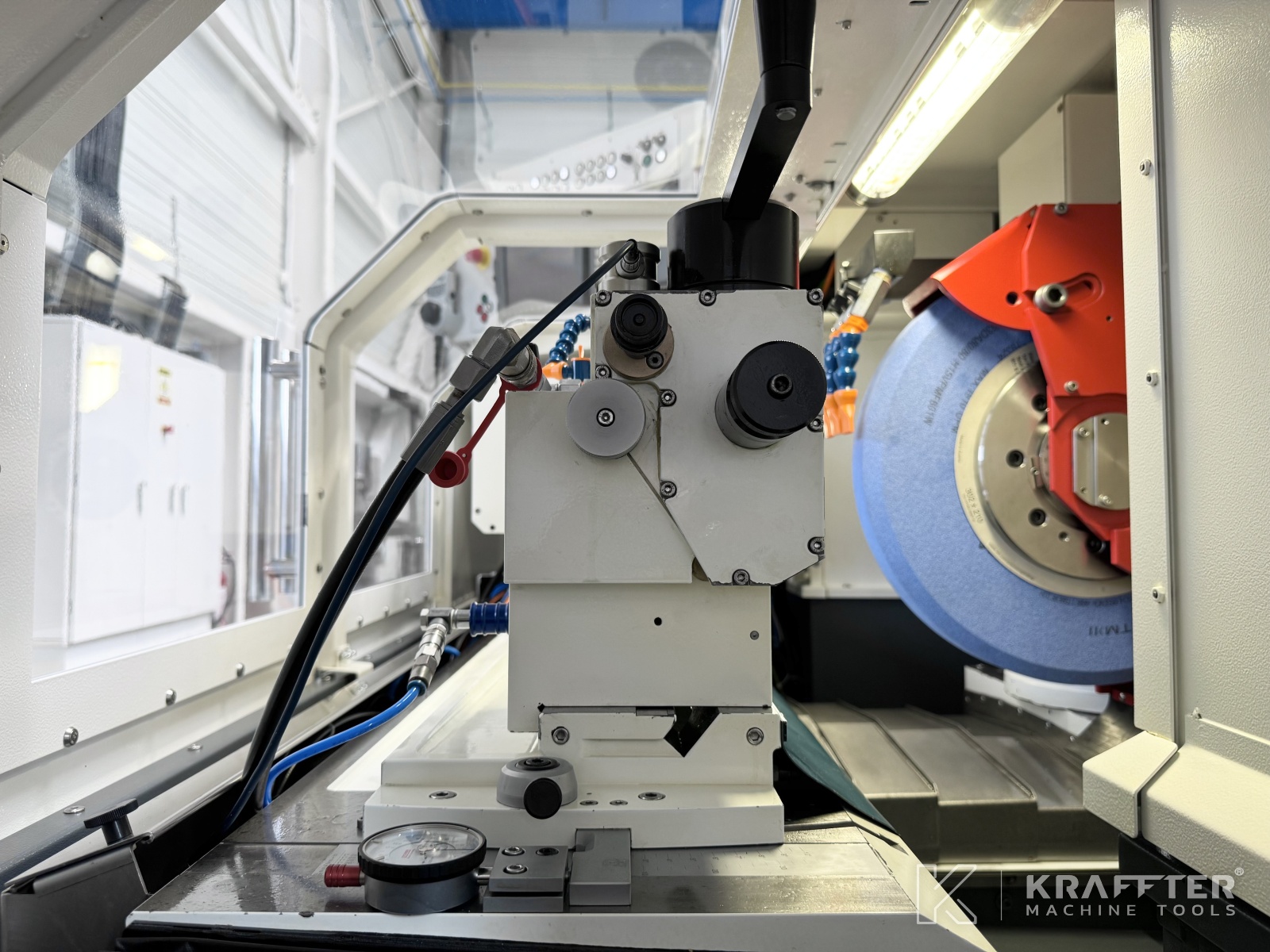

x1 fixed dressing unit mounted on the table
-
x1 rotating wheel dressing unit (electrical)
-

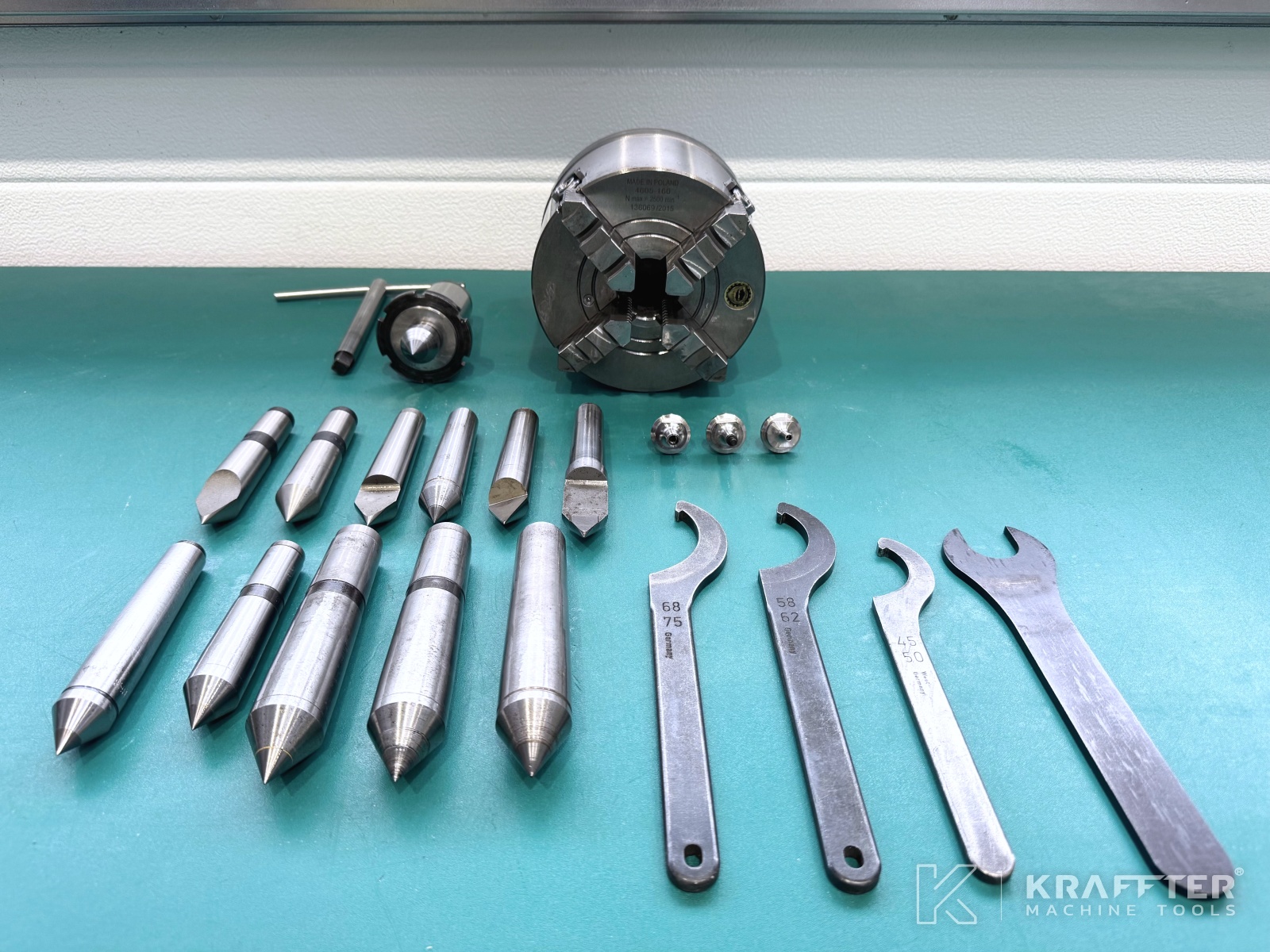

x1 4-jaw chuck Ø170 [mm] - MT5
-
x3 sets of hard jaws
-

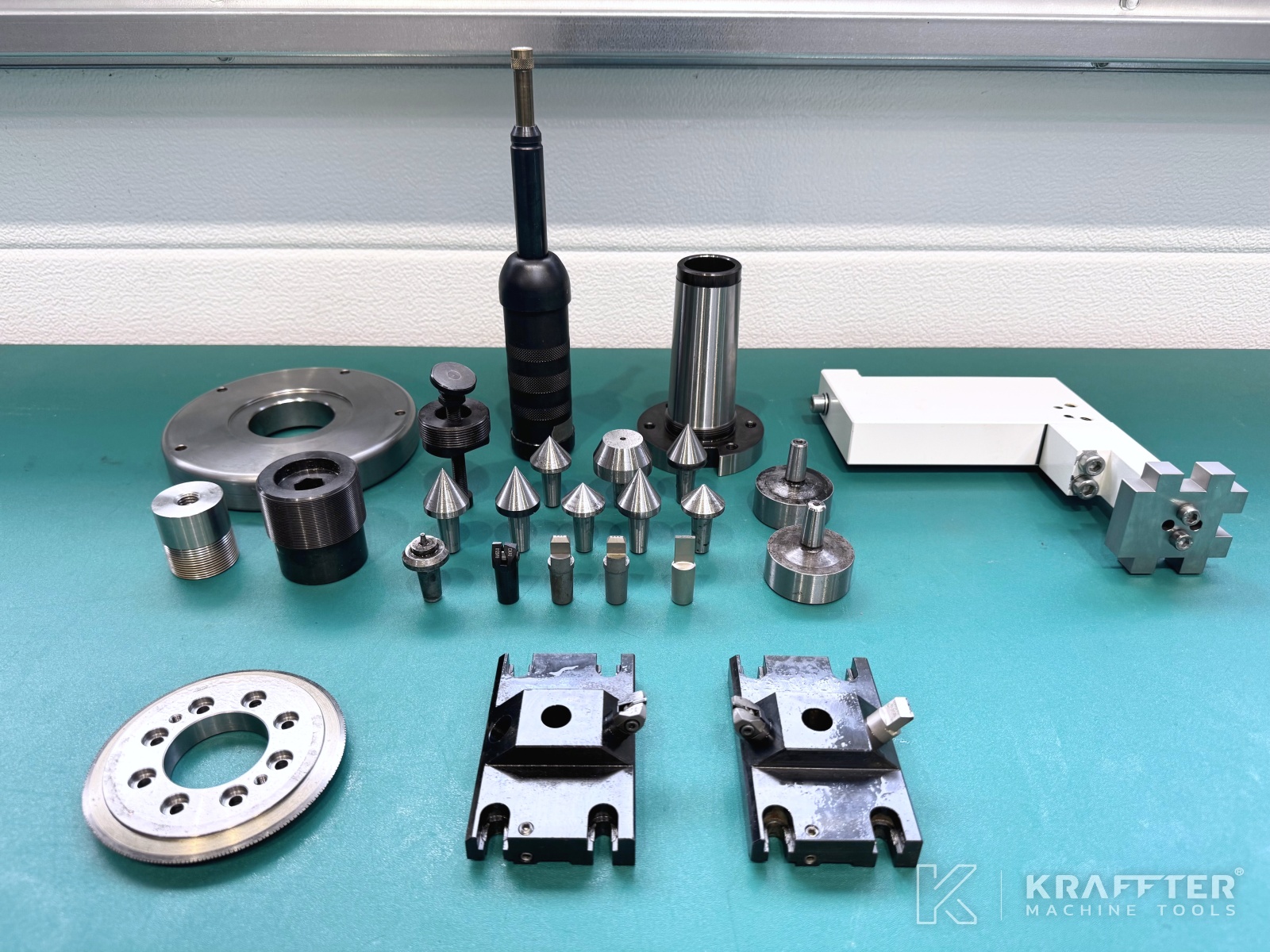

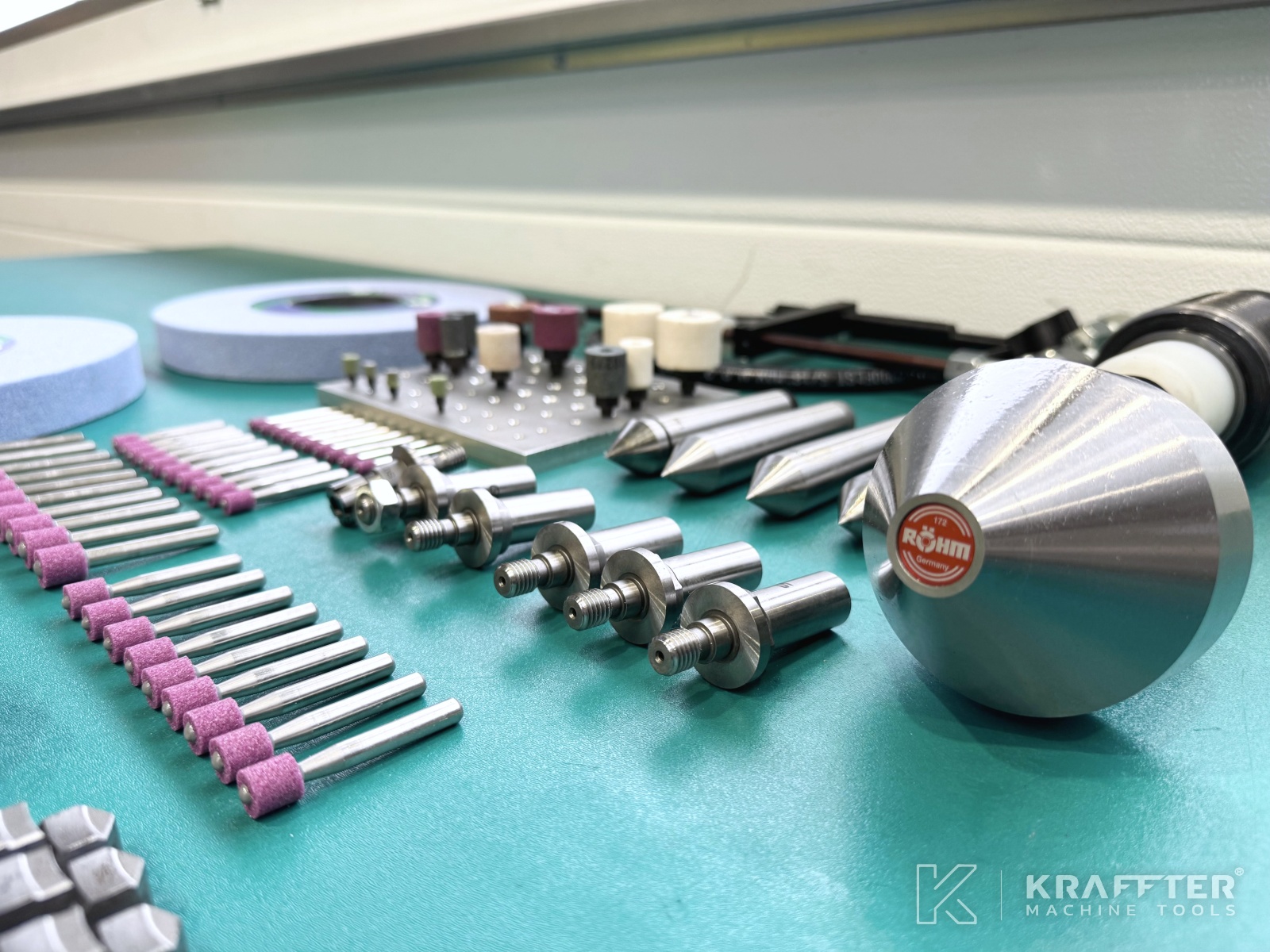

x11 full centres
-
x4 half-centres
-
x1 RÖHM blunt centre
-
x1 2-point steady rest
-

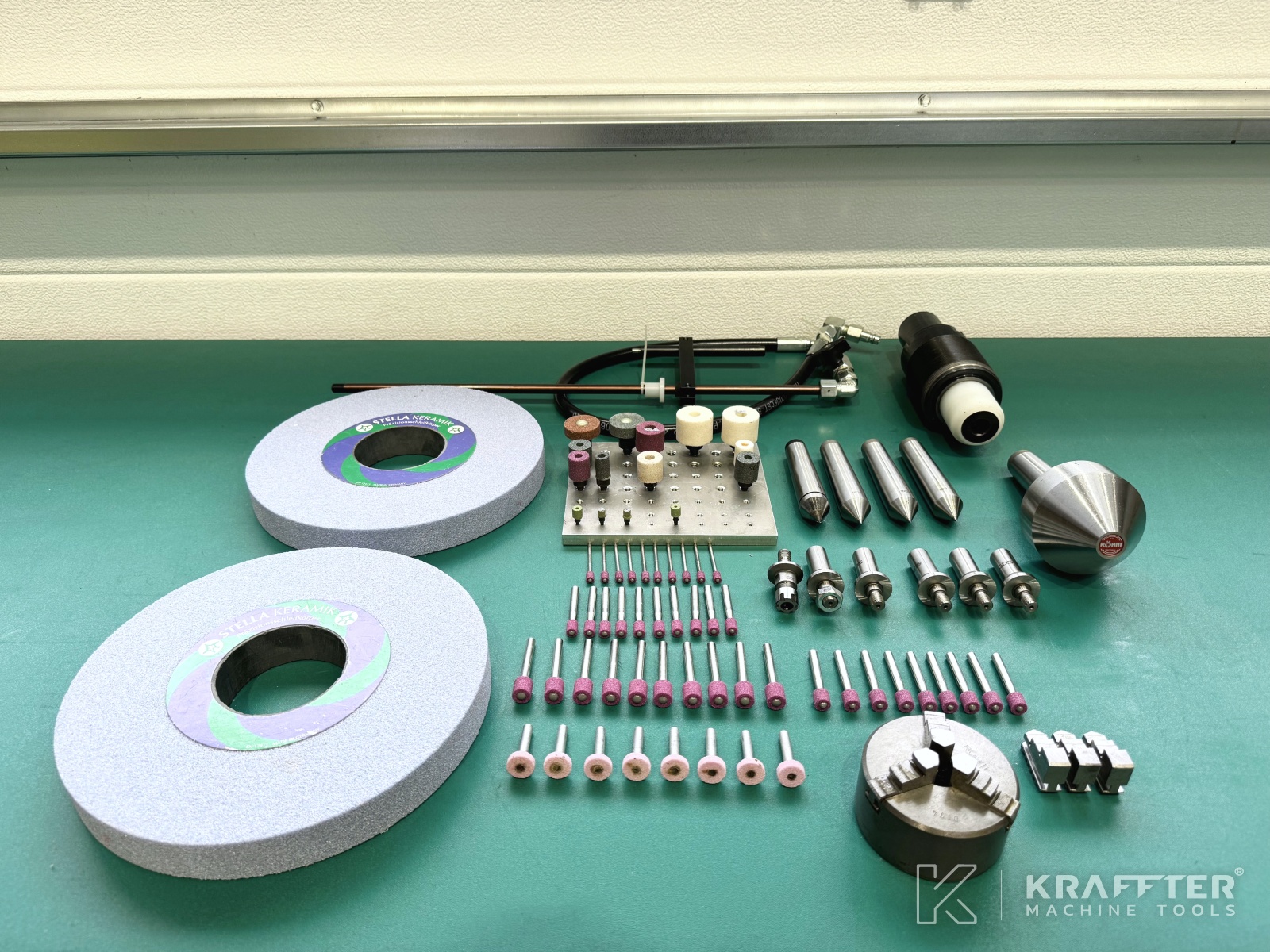

x62 internal grinding wheels
-

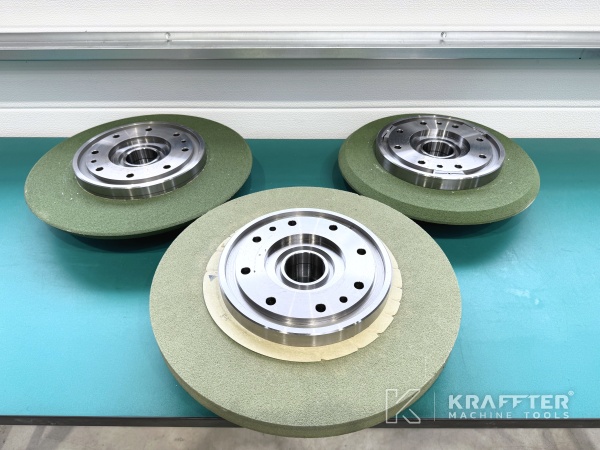

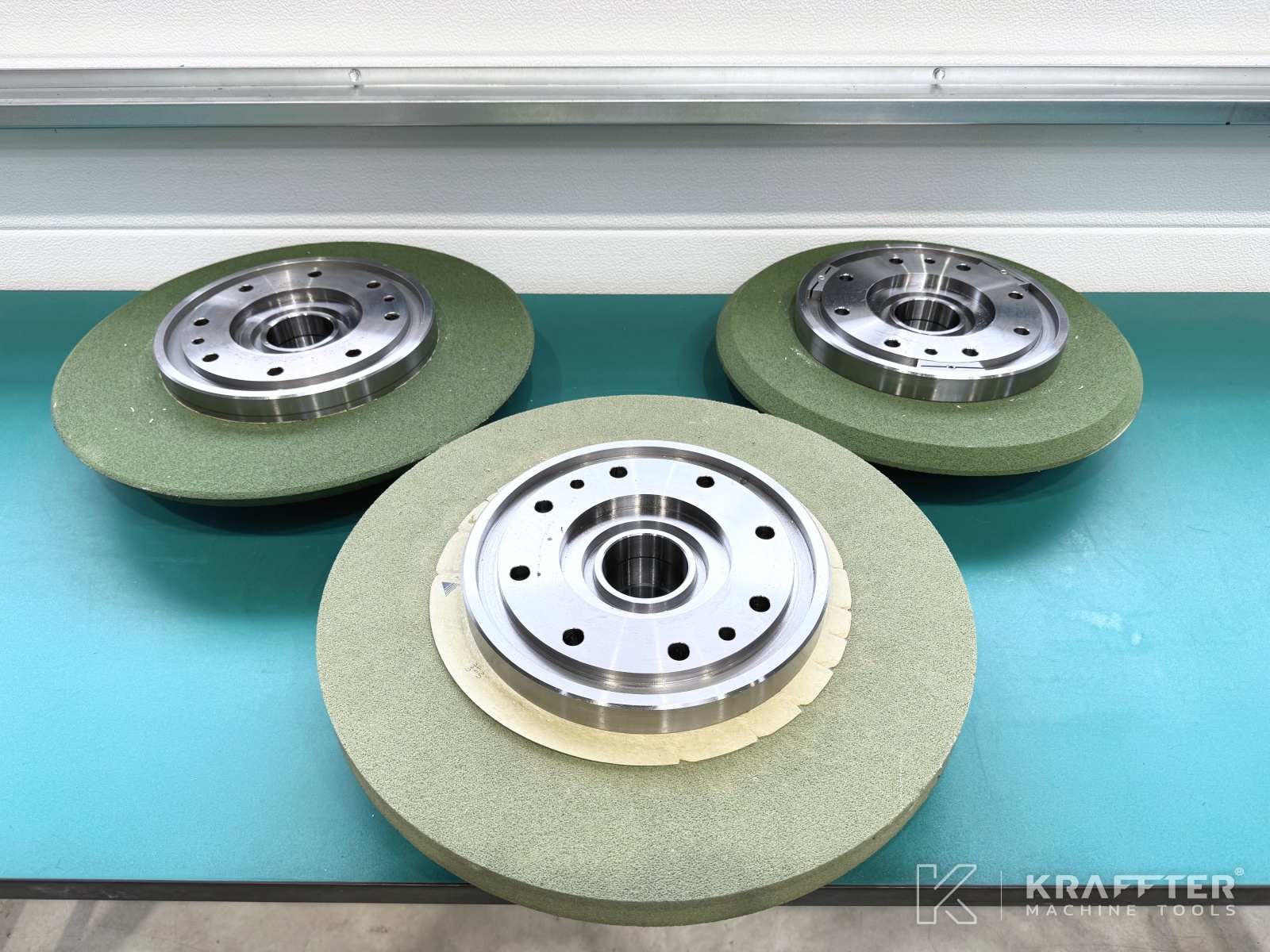

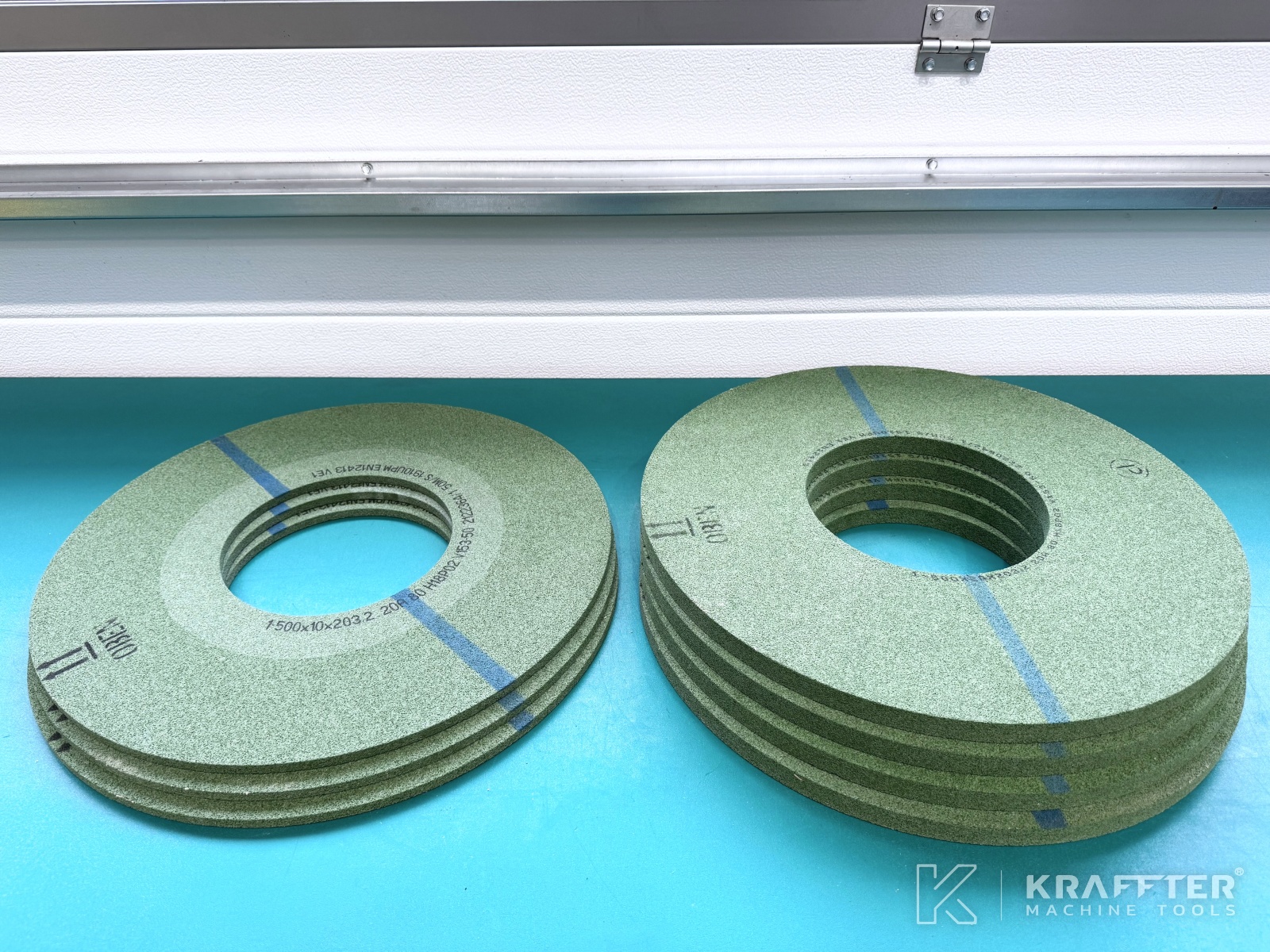

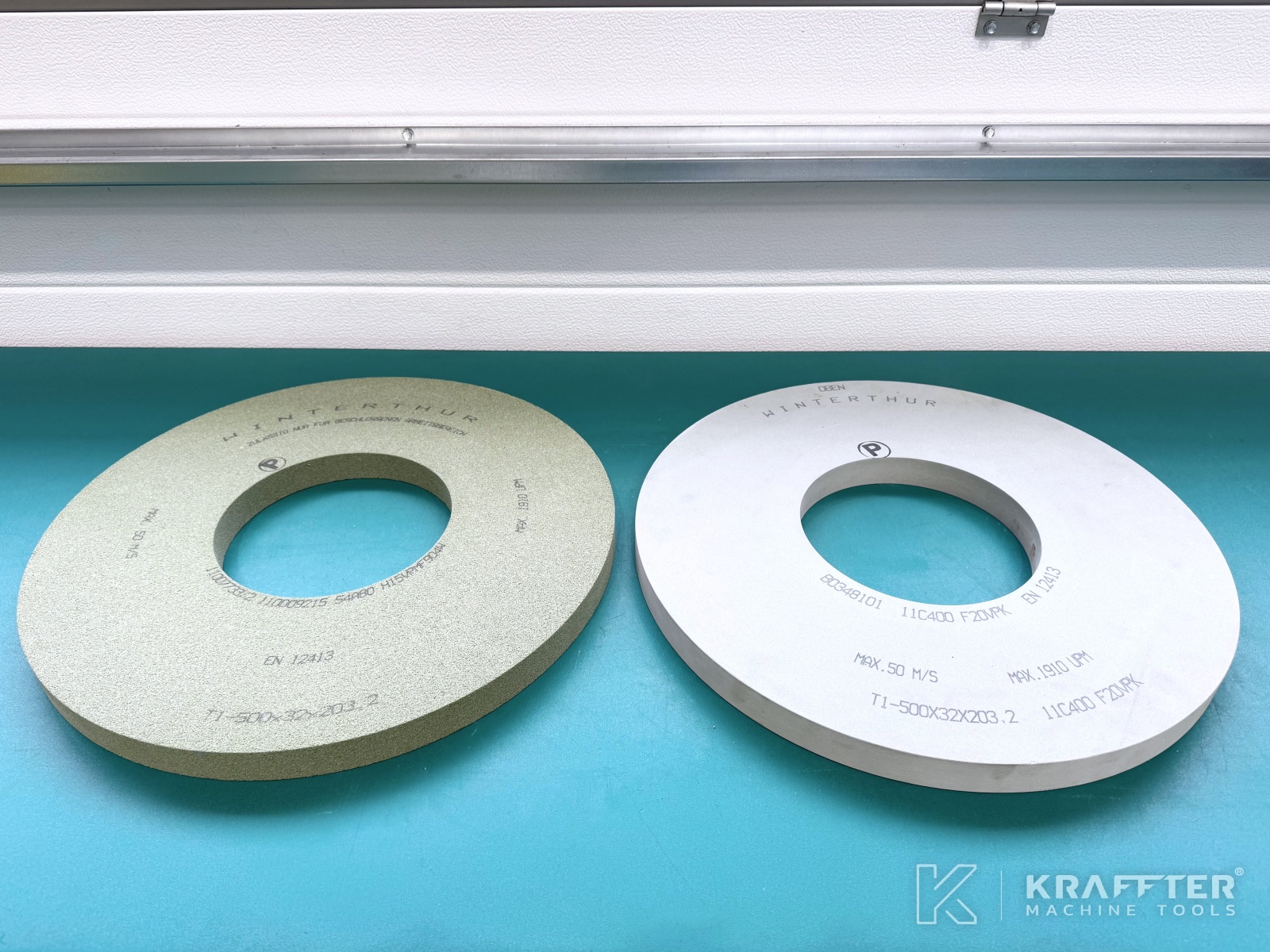

x10 external grinding wheels
-
x7 service keys
-
x1 pneumatic tailstock lift
-
x1 pneumatic upper-table lift
-
x1 longitudinal slide with rotary table - swiveling up to 8.5 [°]
-

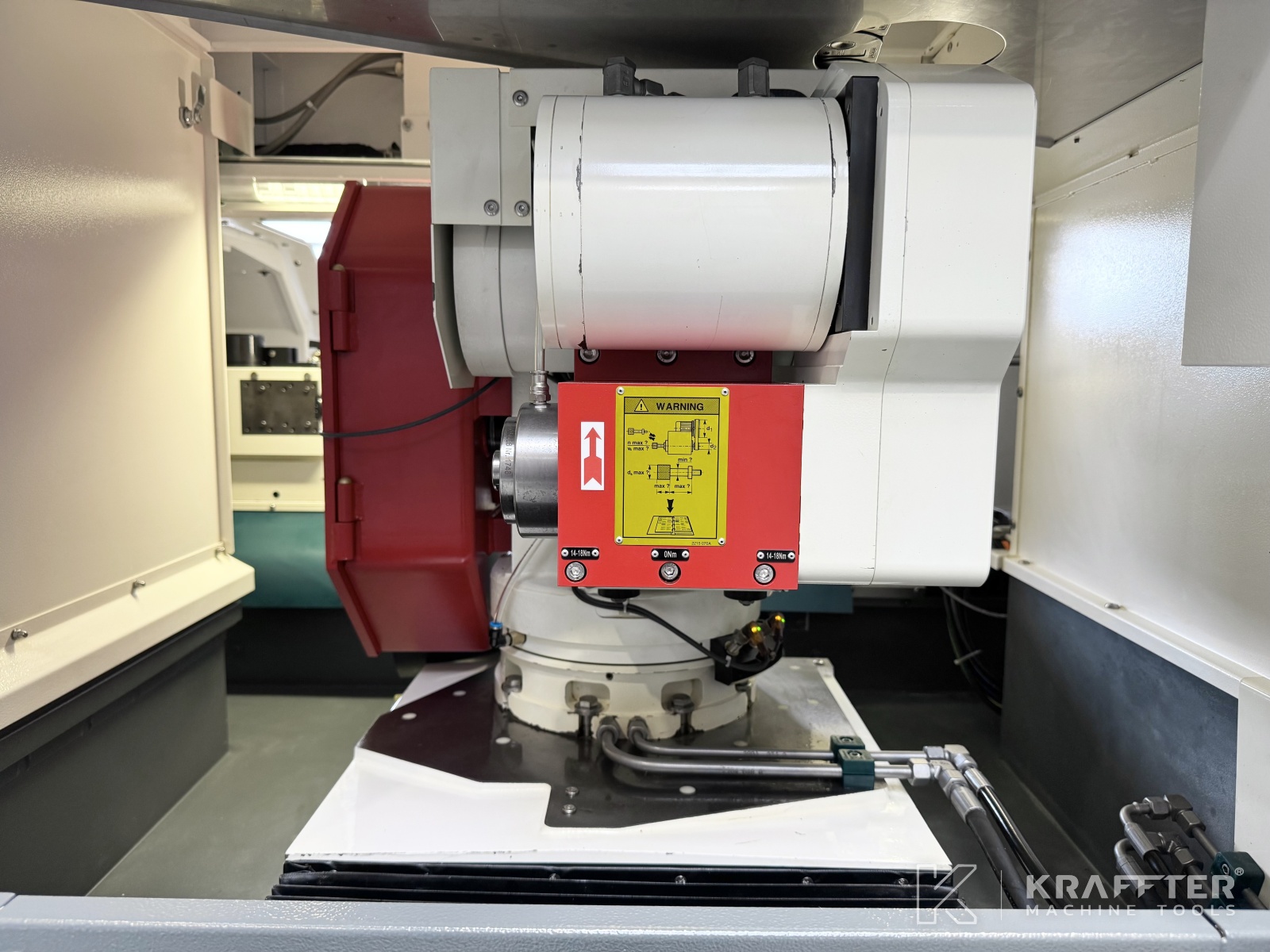

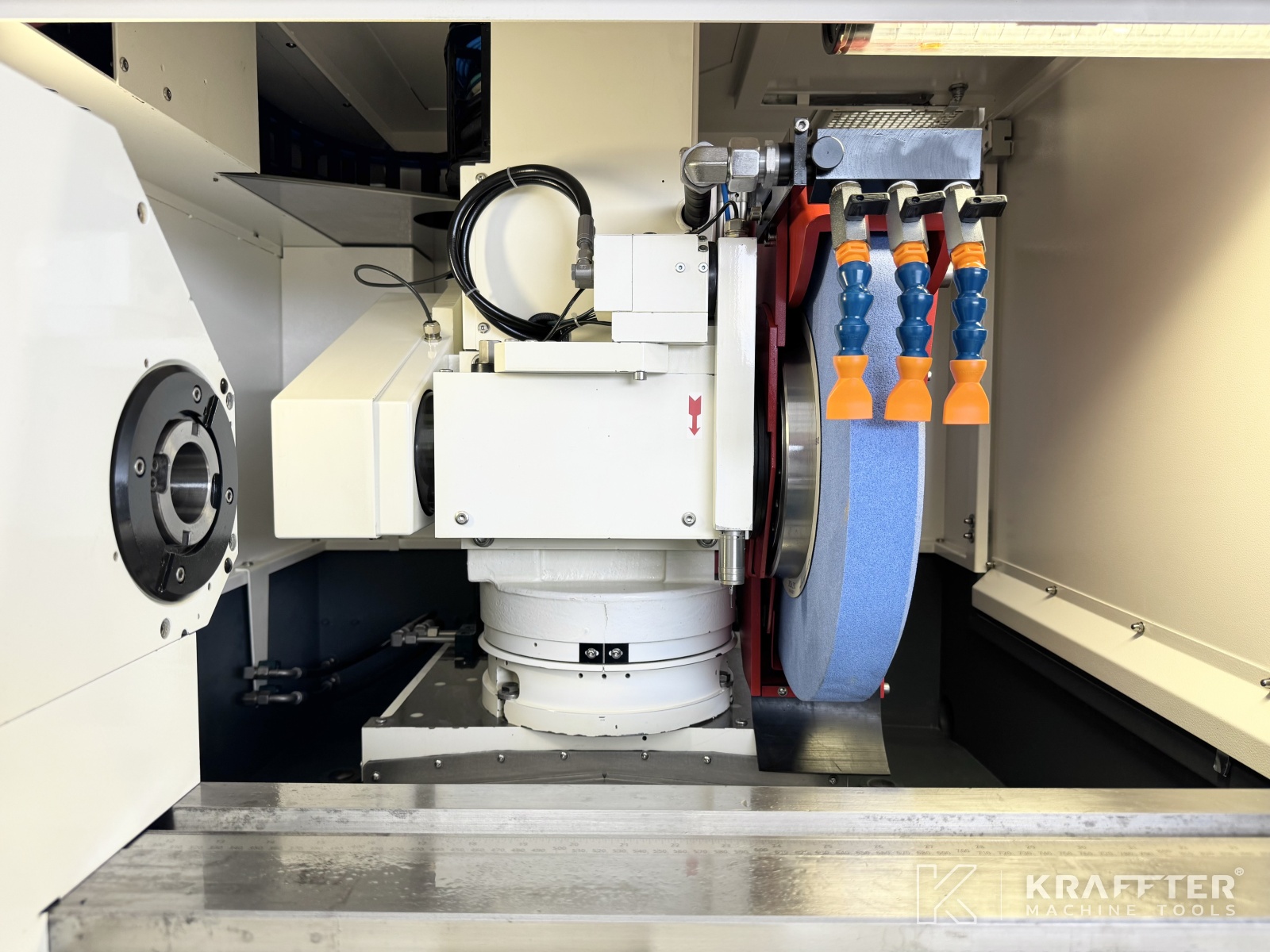

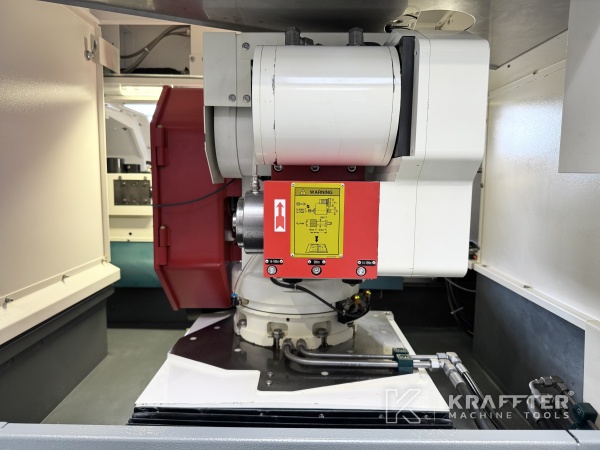

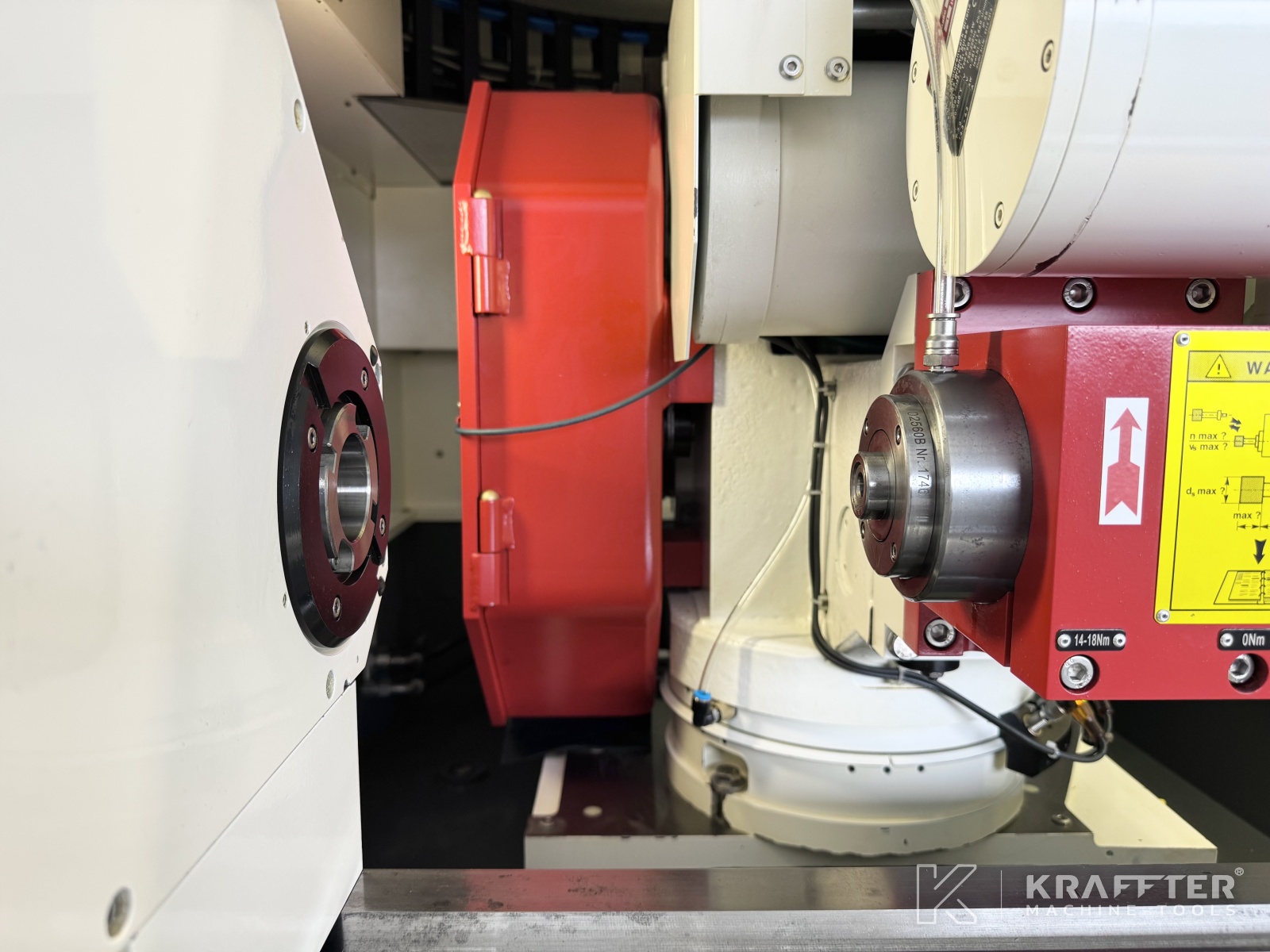

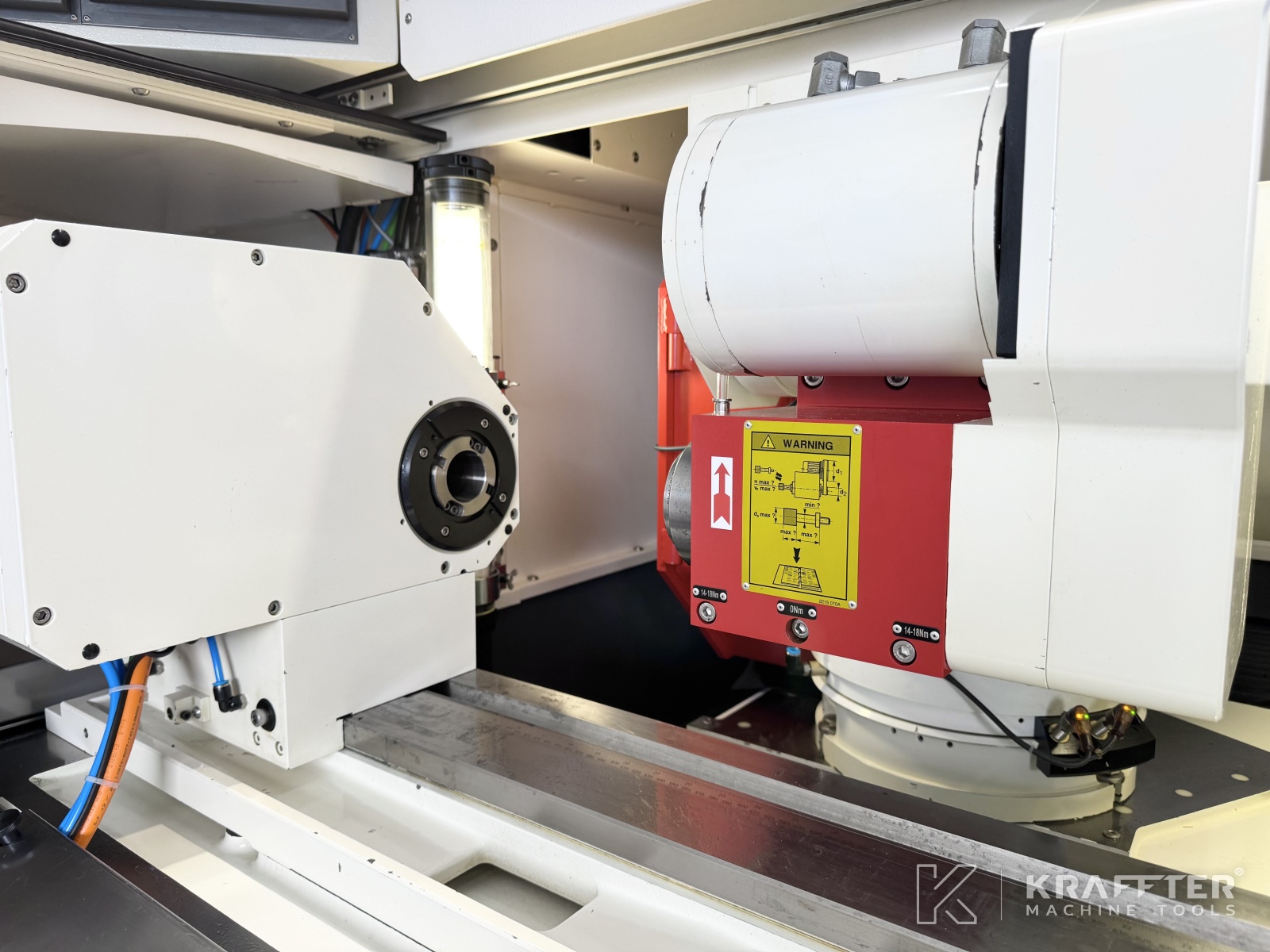

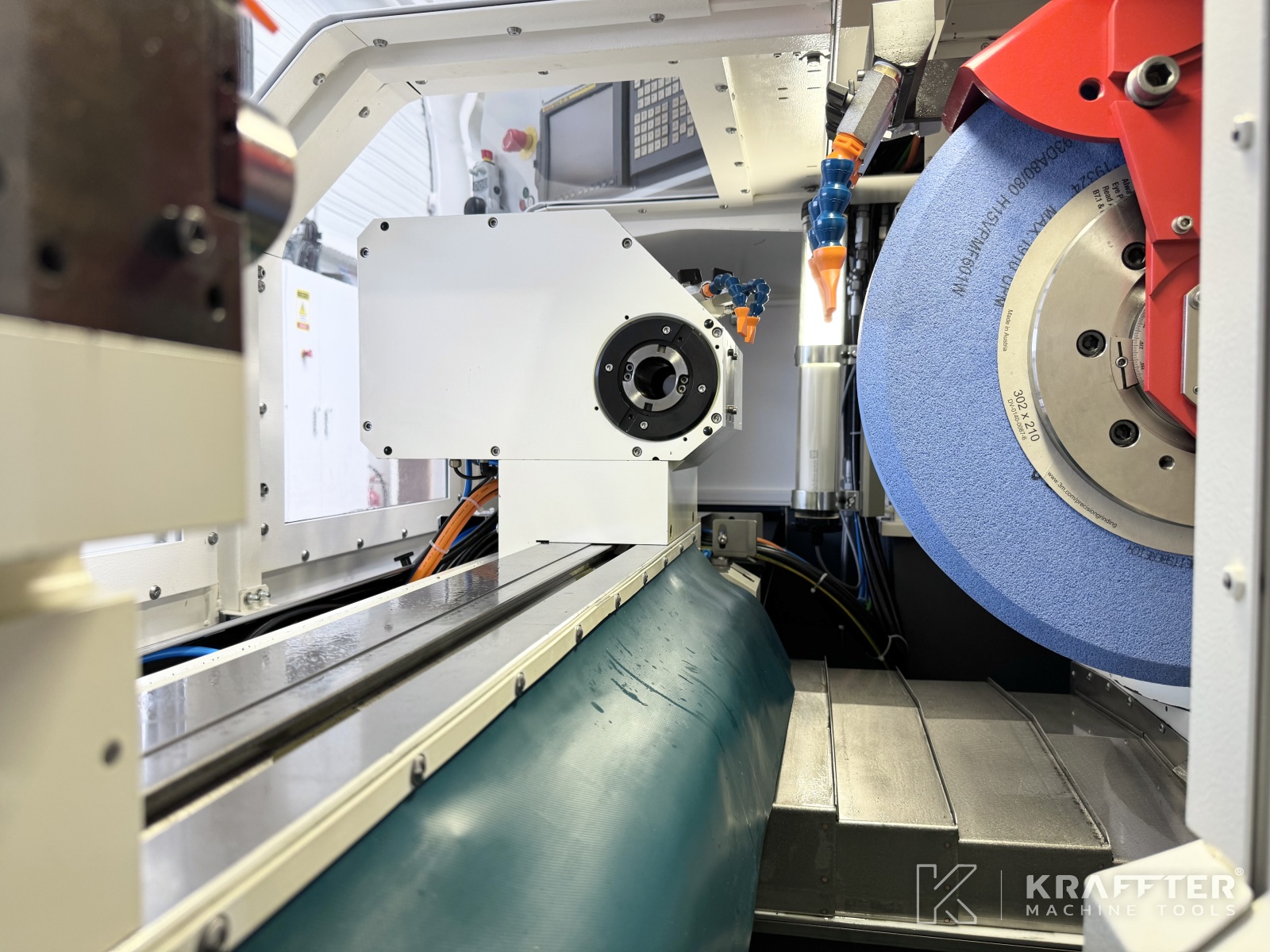

x1 automatic B-axis turret wheelhead – Hirth gearing 1 [°]
-

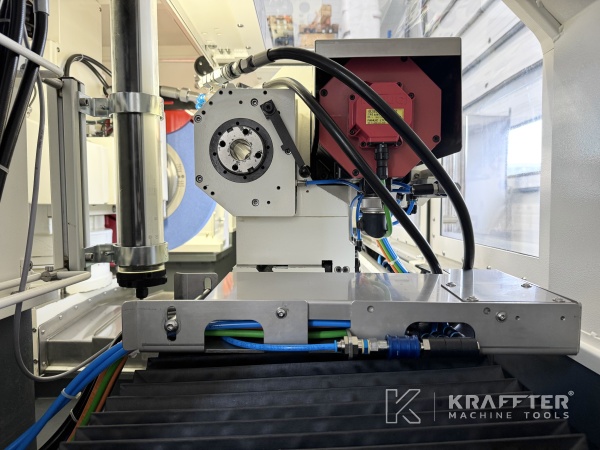

x1 C-axis for thread and form grinding
-

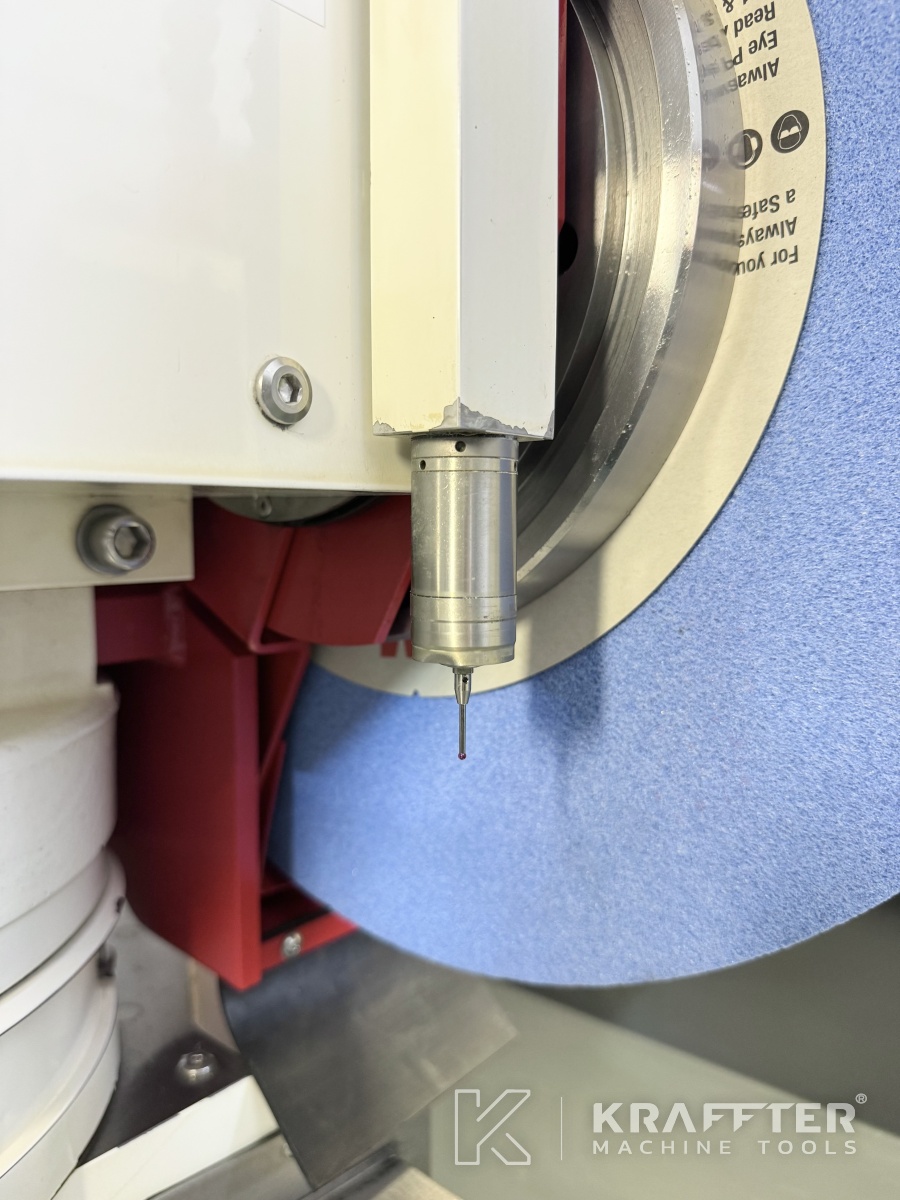

x1 workpiece probe MOVOMATIC C25
-

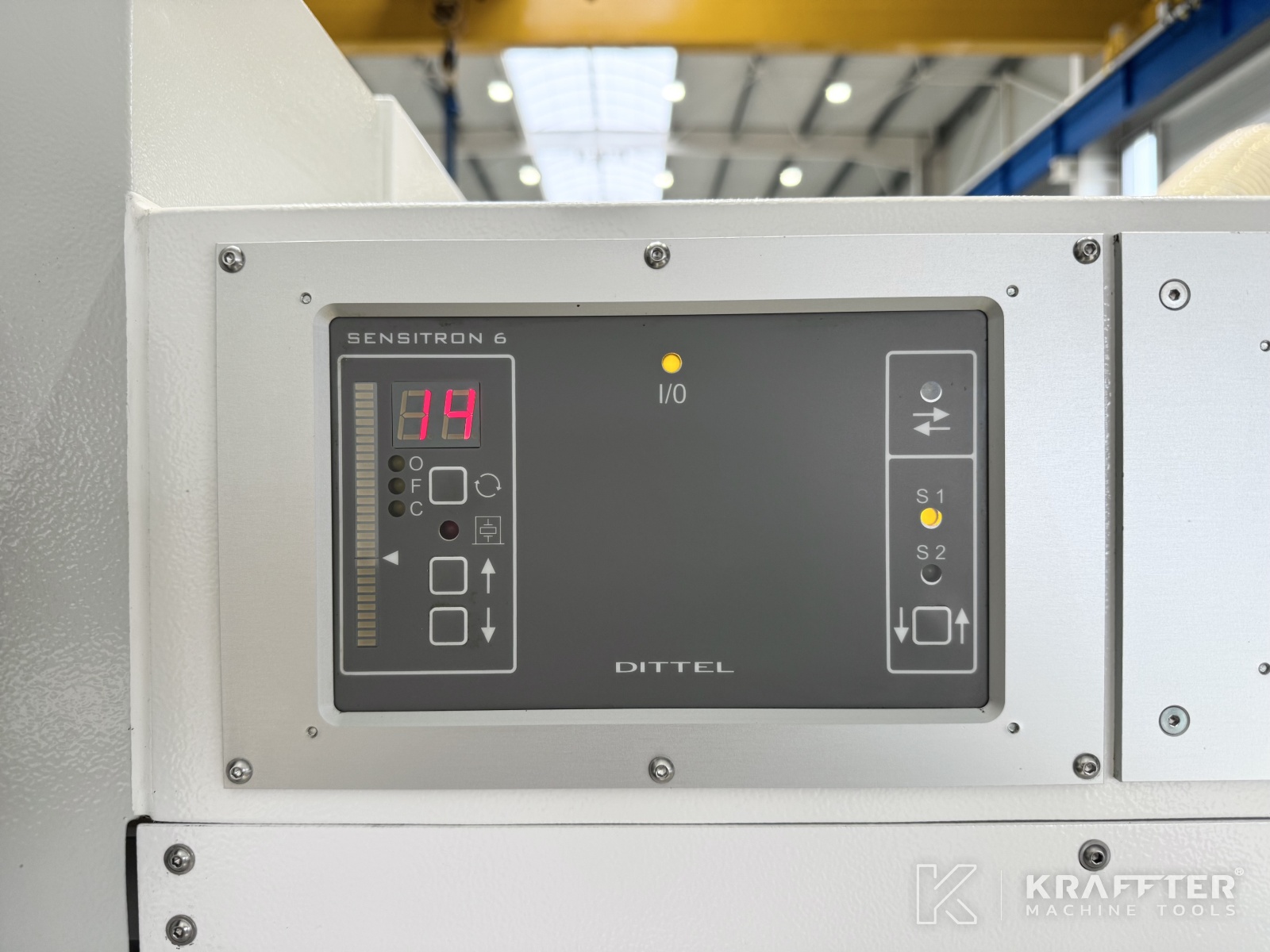

x1 contact control device DITTEL SENSITRON 6
-

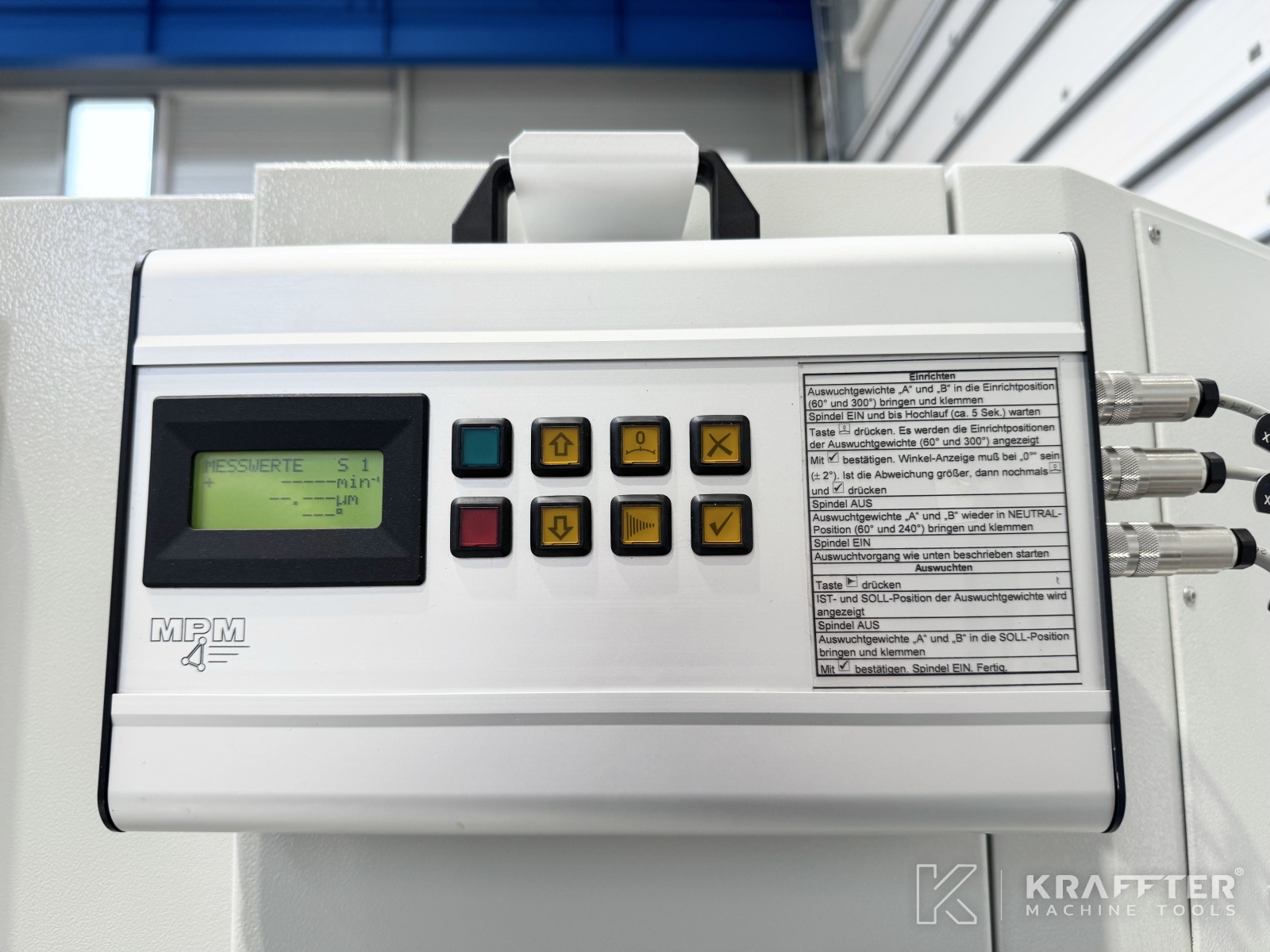

x1 semi-automatic wheel balancing device MPM type BMT100M
-

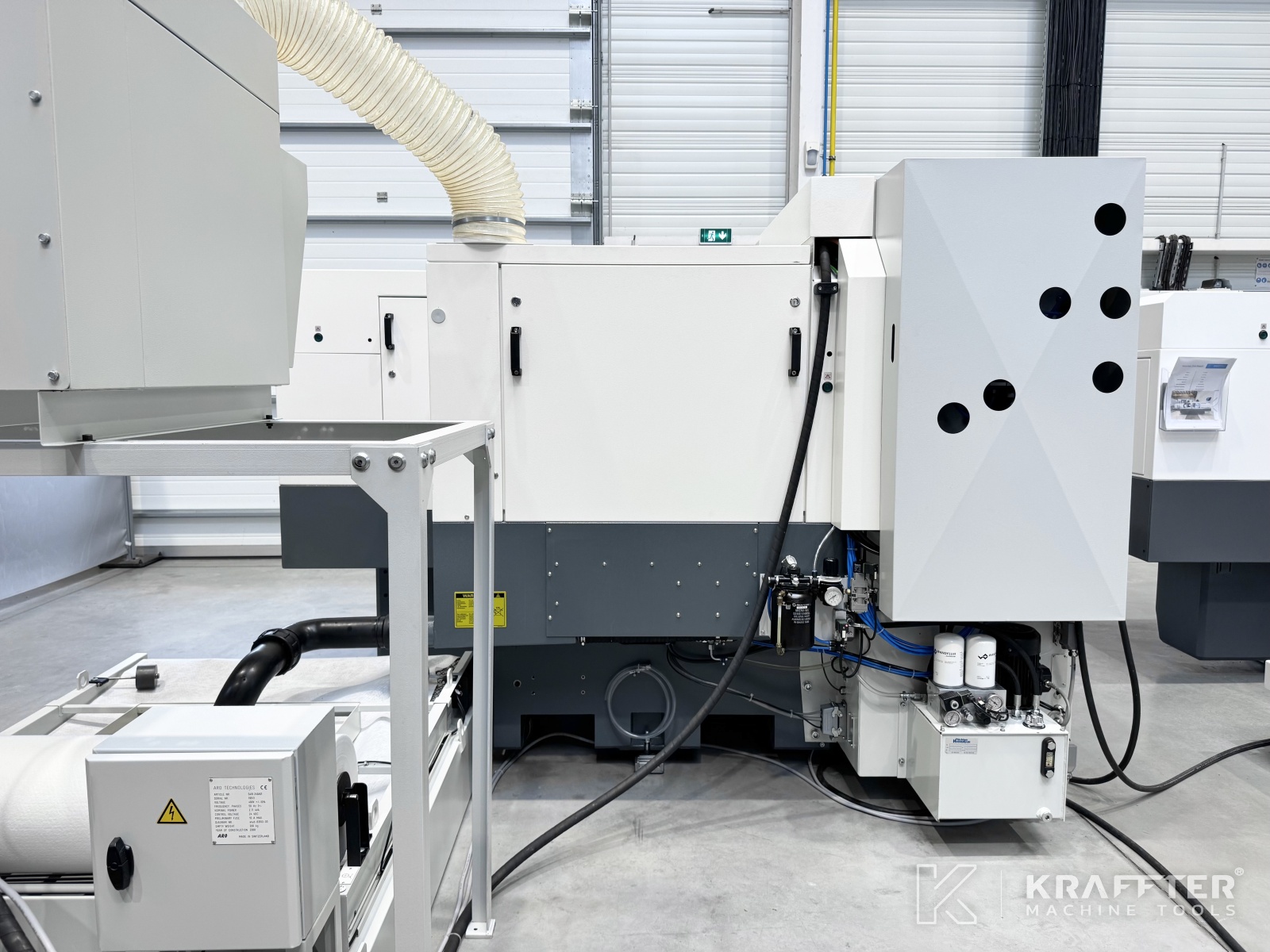

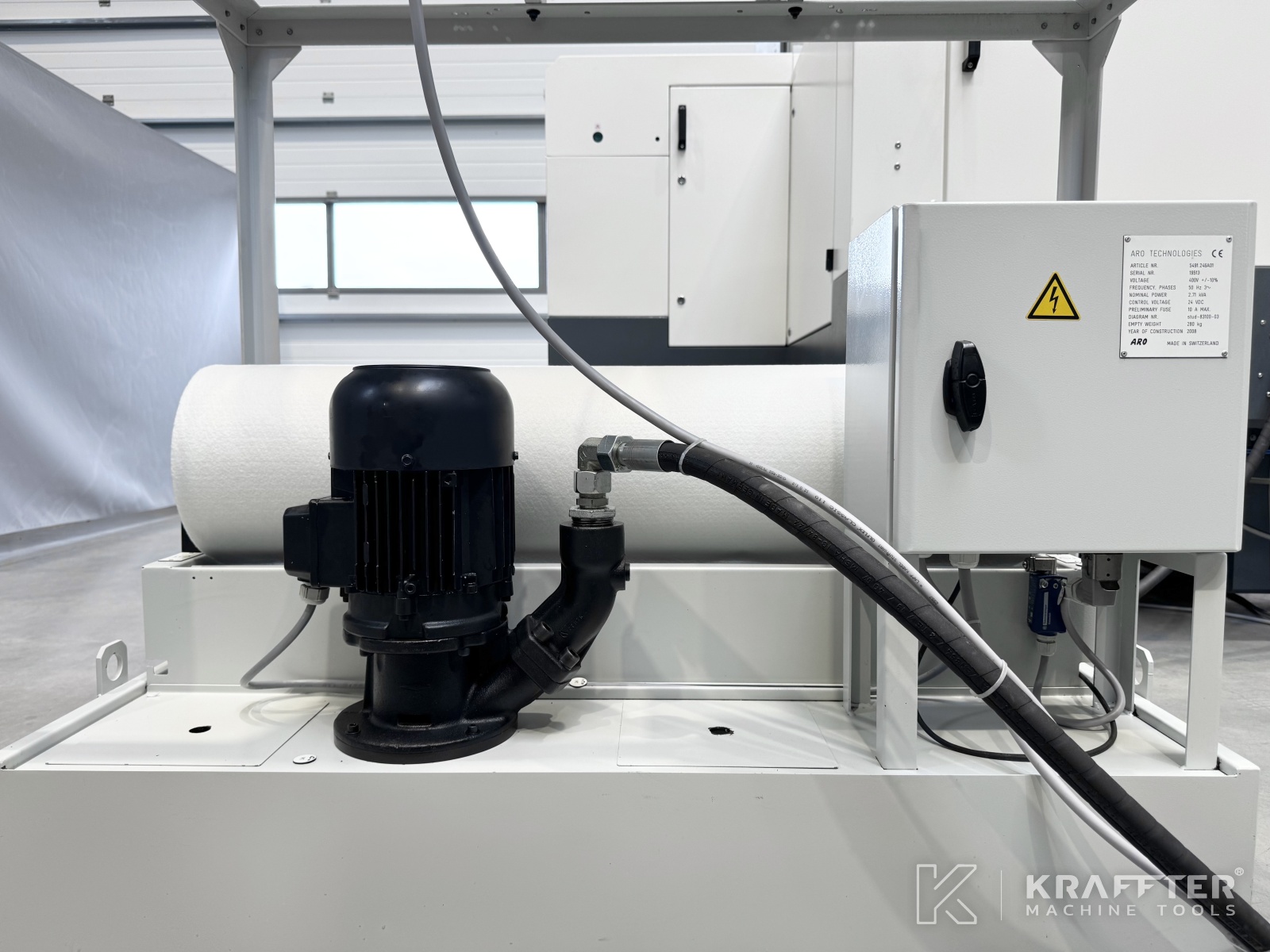

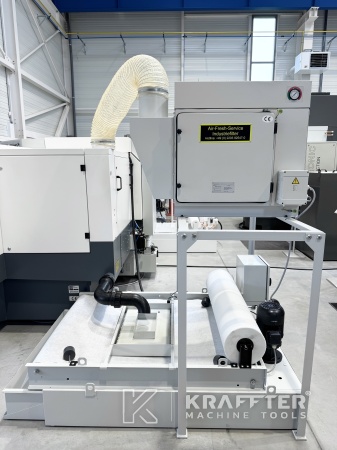

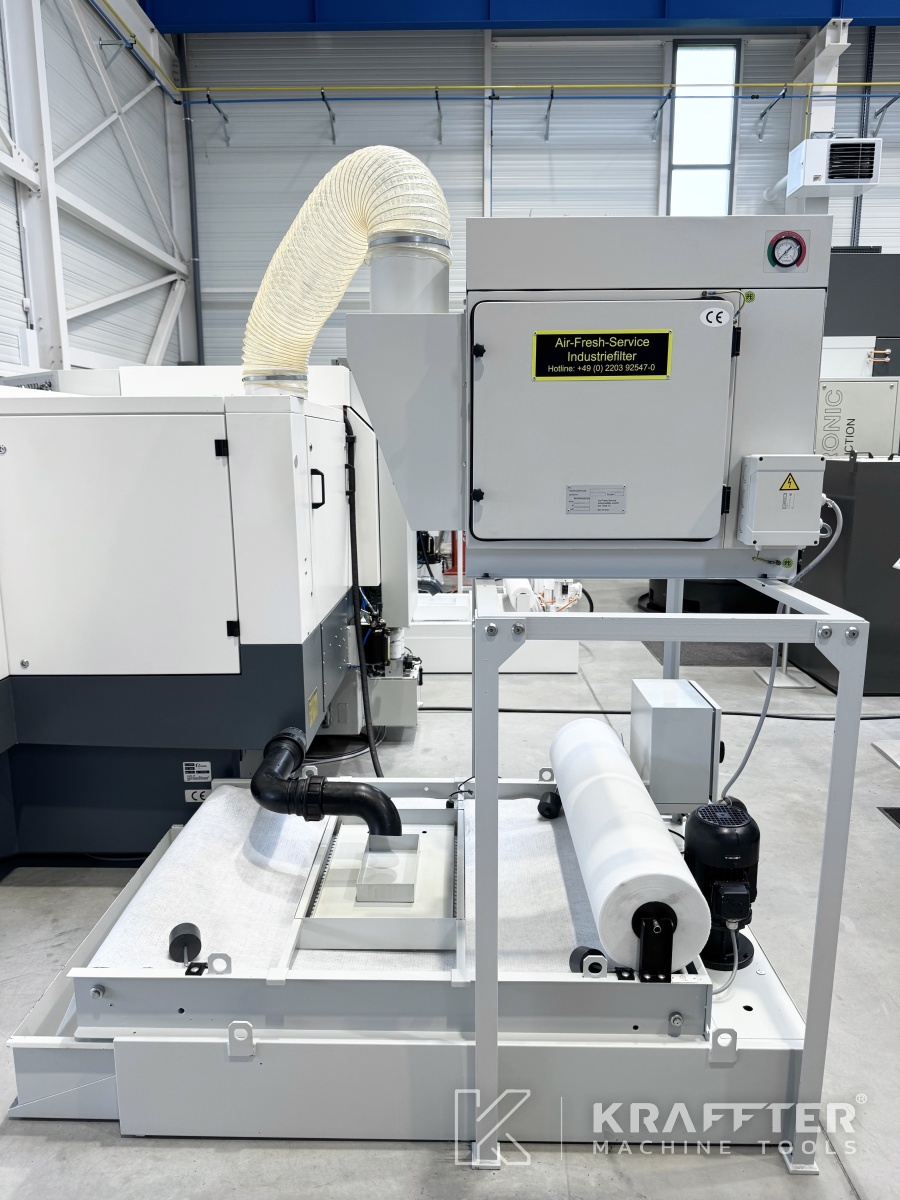

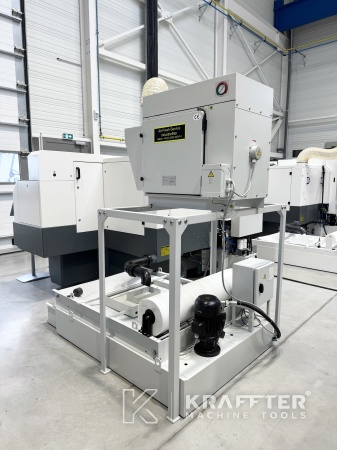

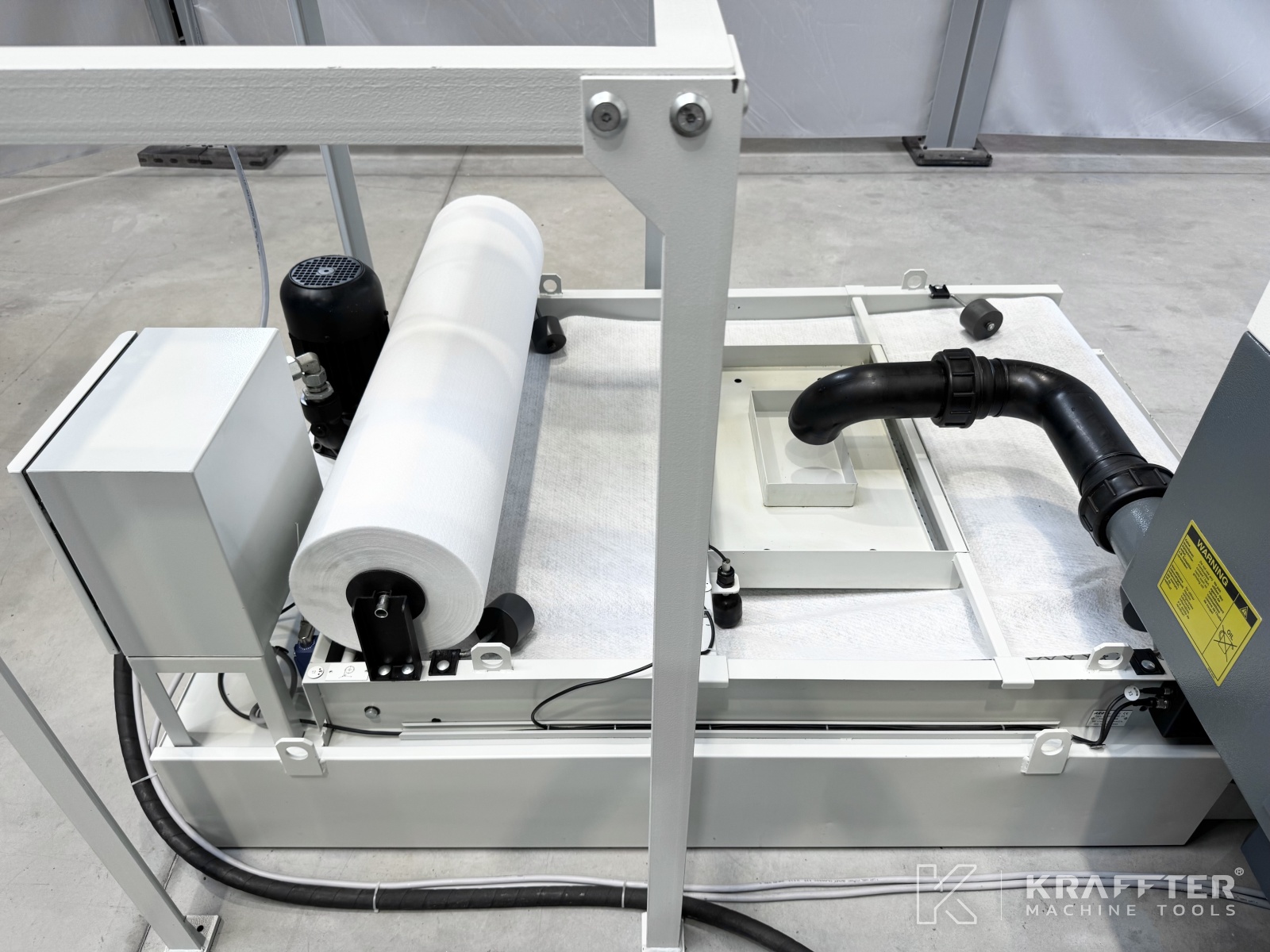

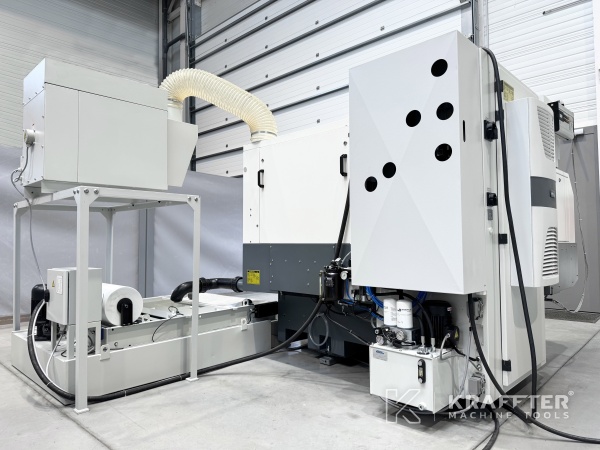

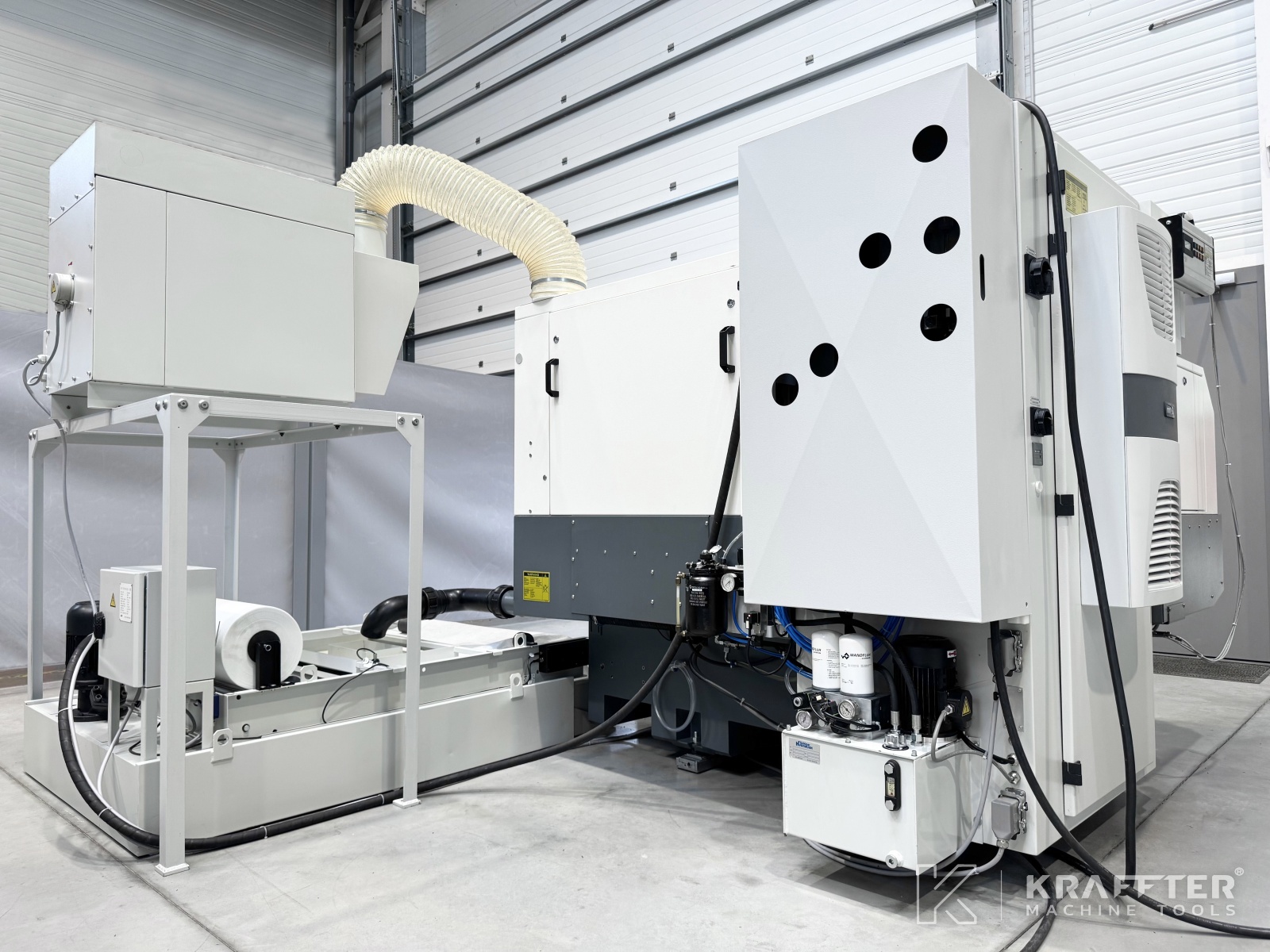

x1 paper filtration unit ARO TECHNOLOGIES type 5491.246A01
-

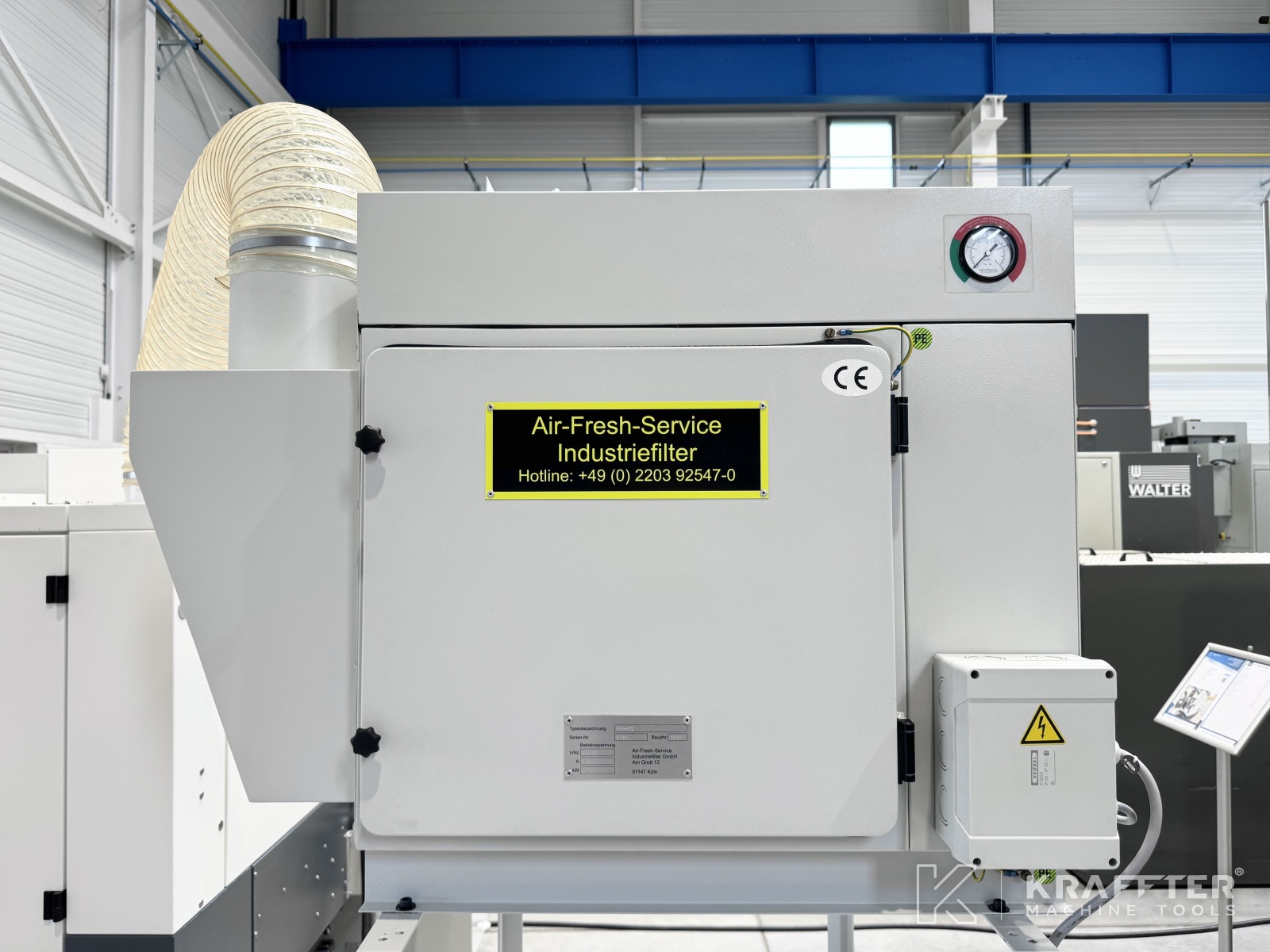

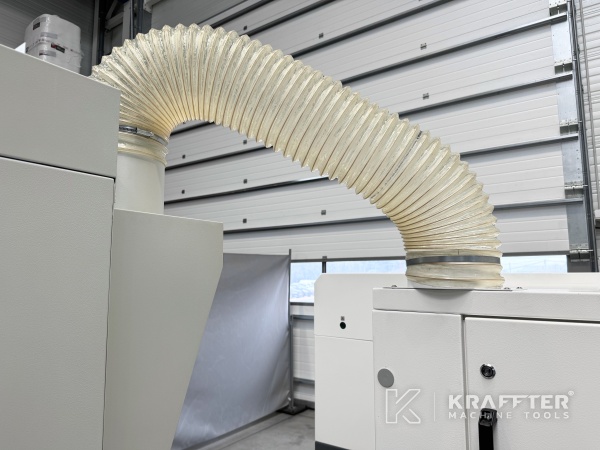

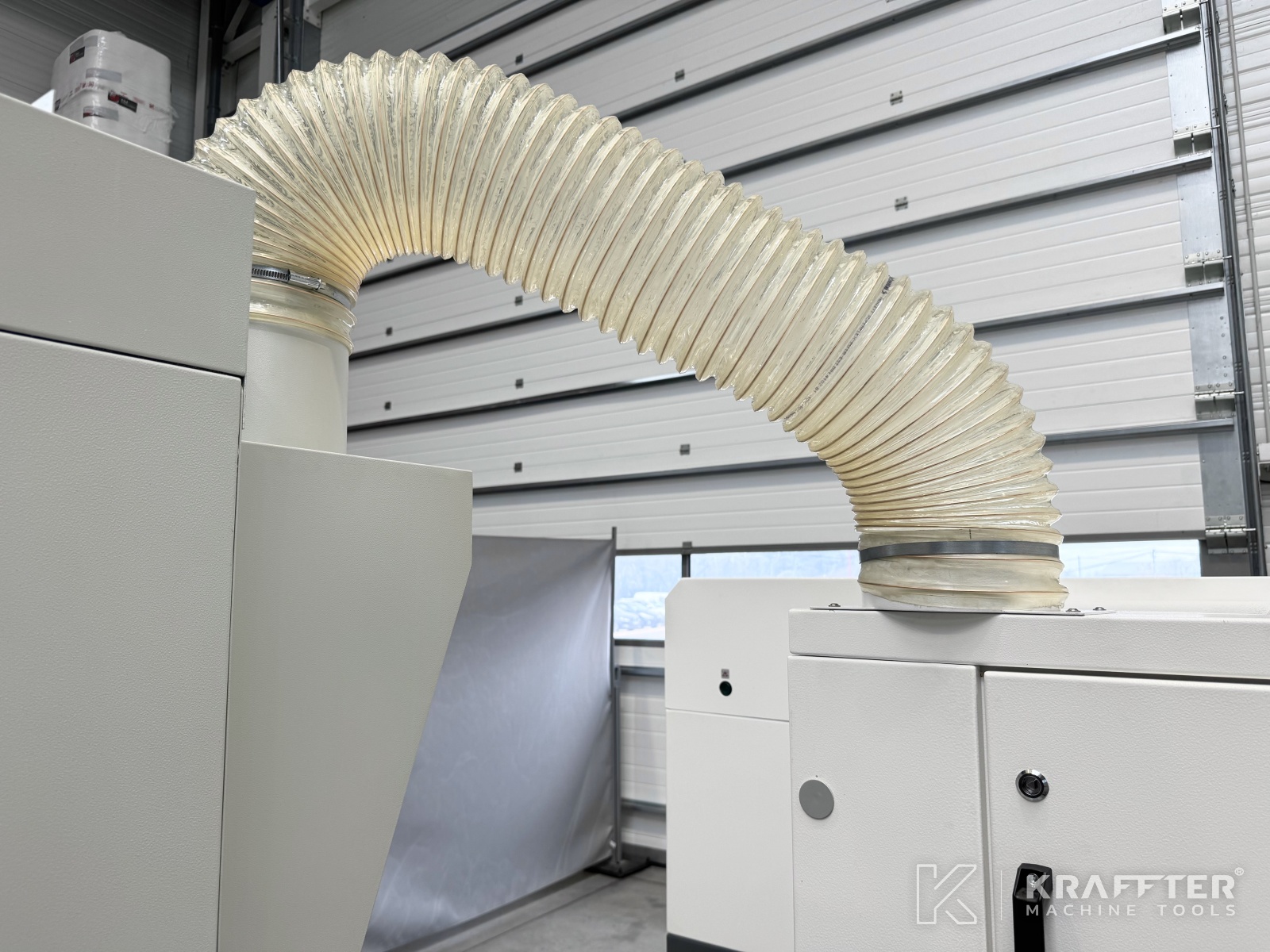

x1 mist extraction unit AIR-FRESH SERVICE type FMN-V12
-
x1 foot pedal
-

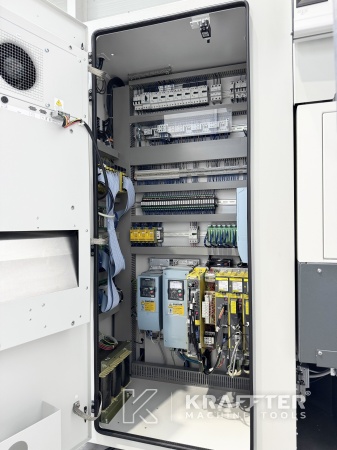

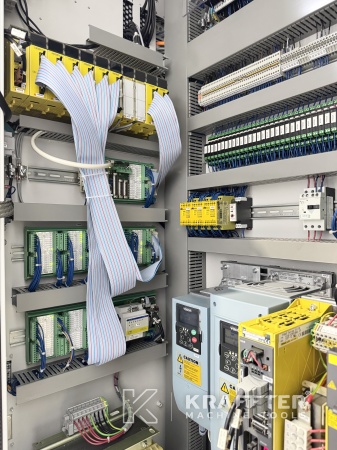

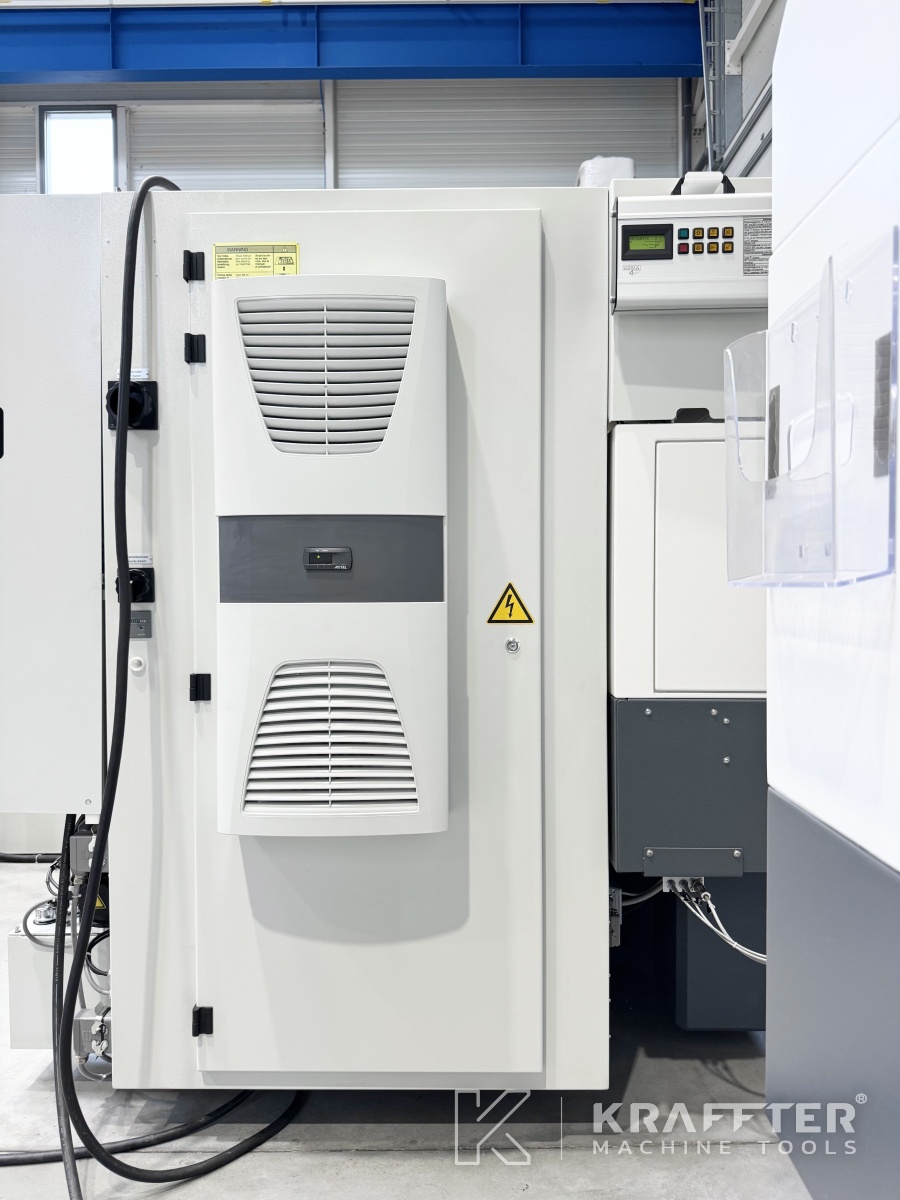

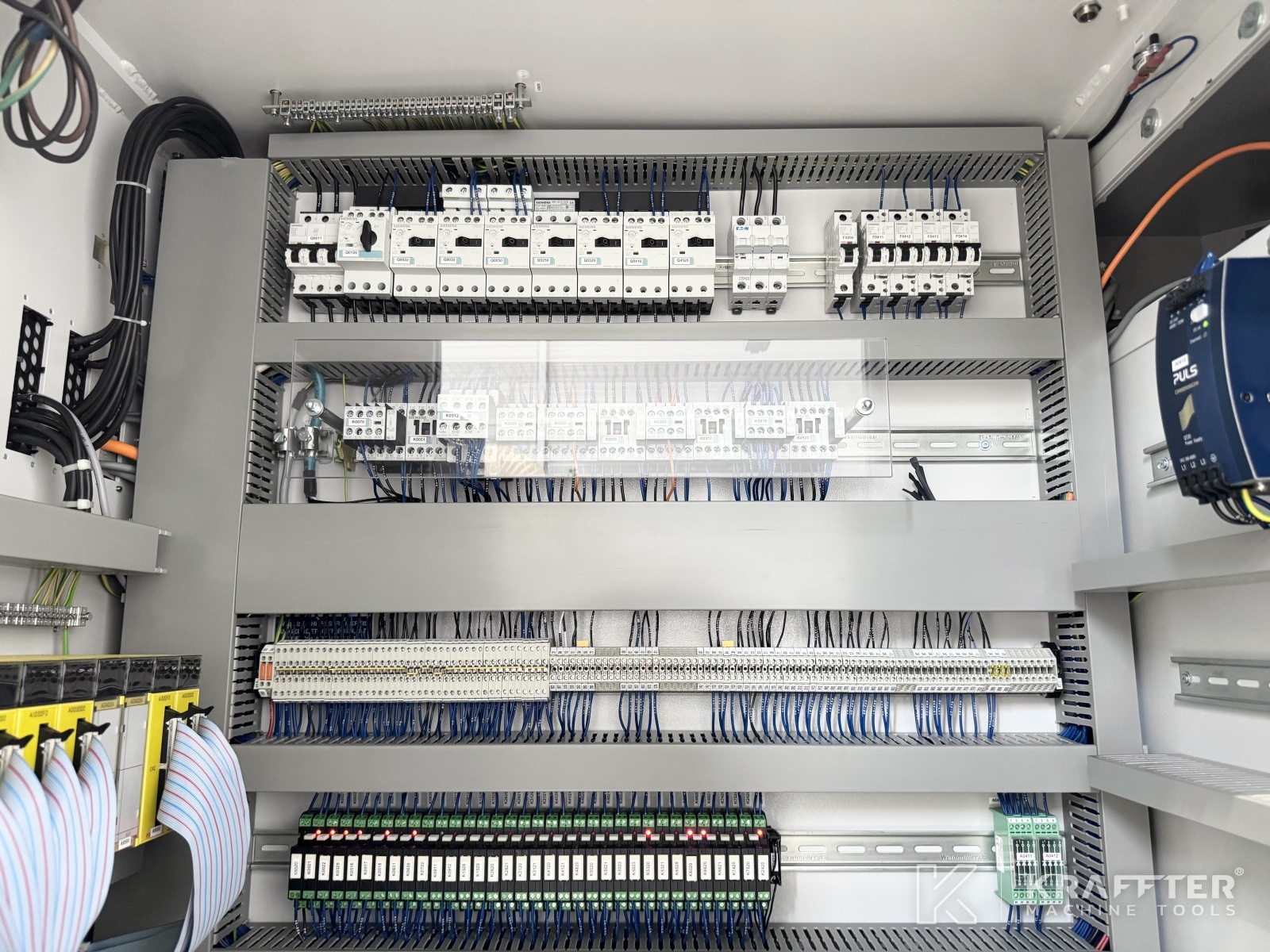

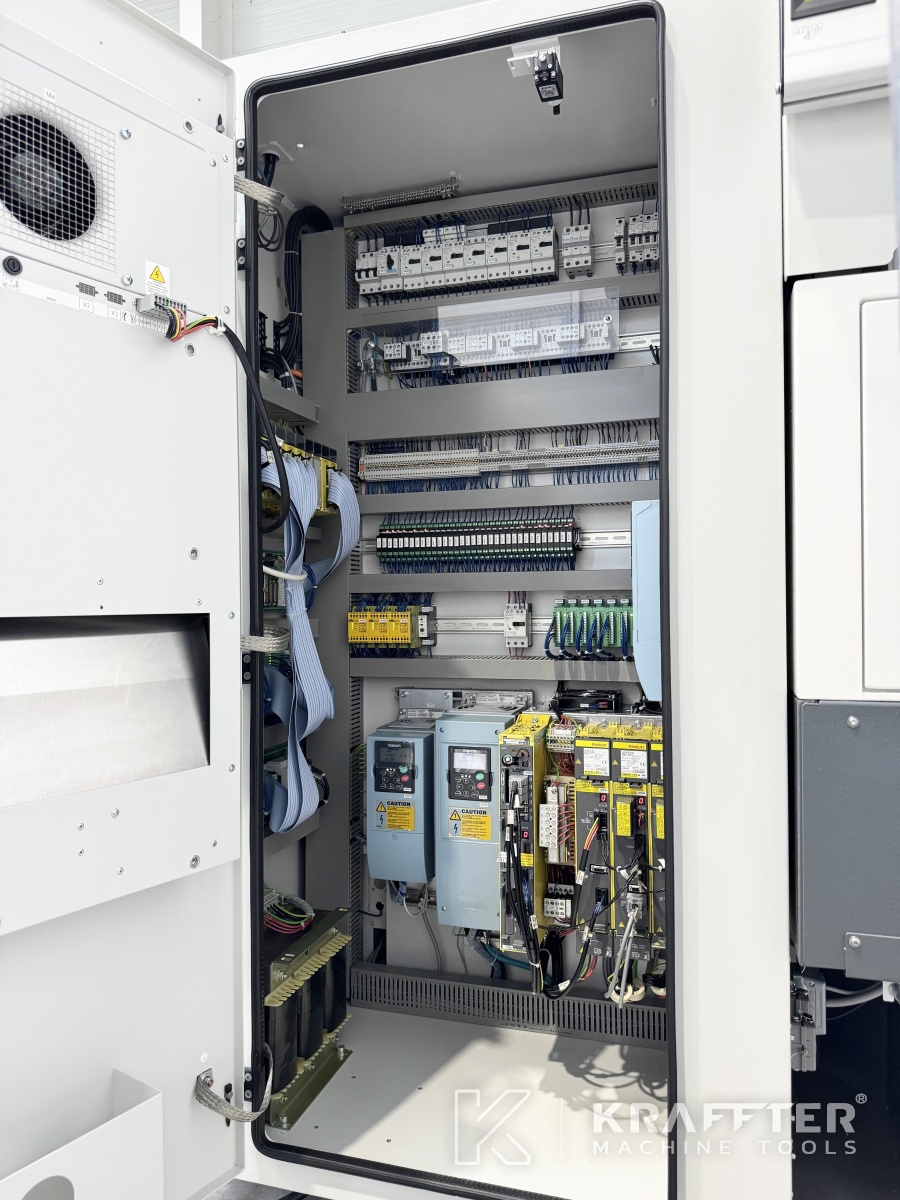

x1 electrical cabinet air conditioner
-
x4 external grinding wheel flanges
-

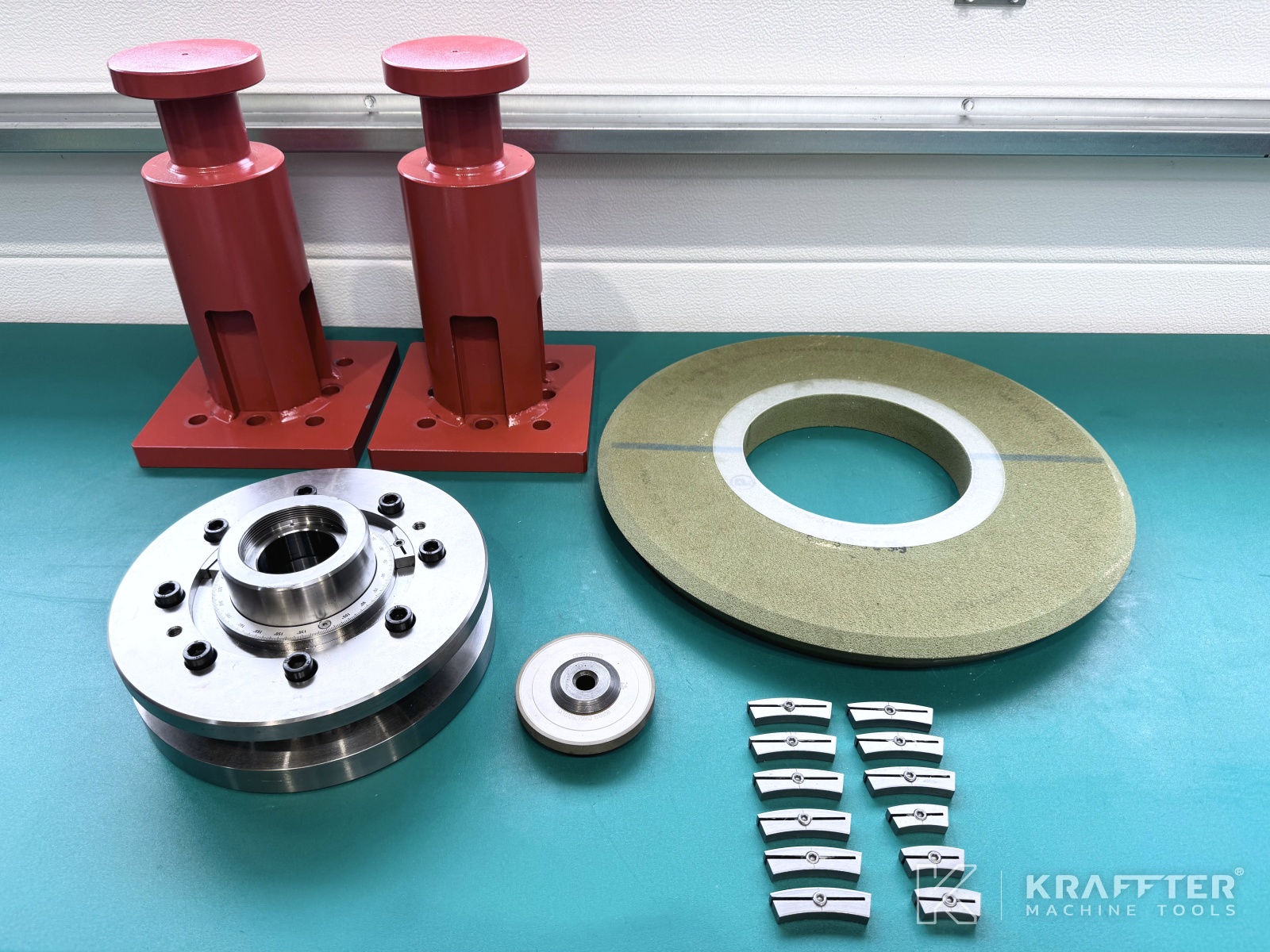

x1 set of lifting equipment
-
x1 axis bracket (for transportation of the machine)
-

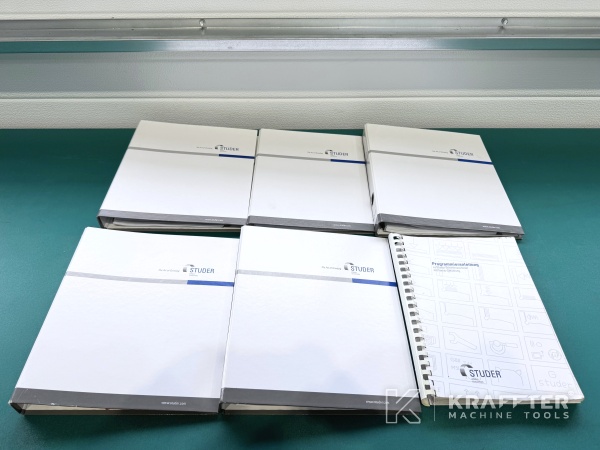

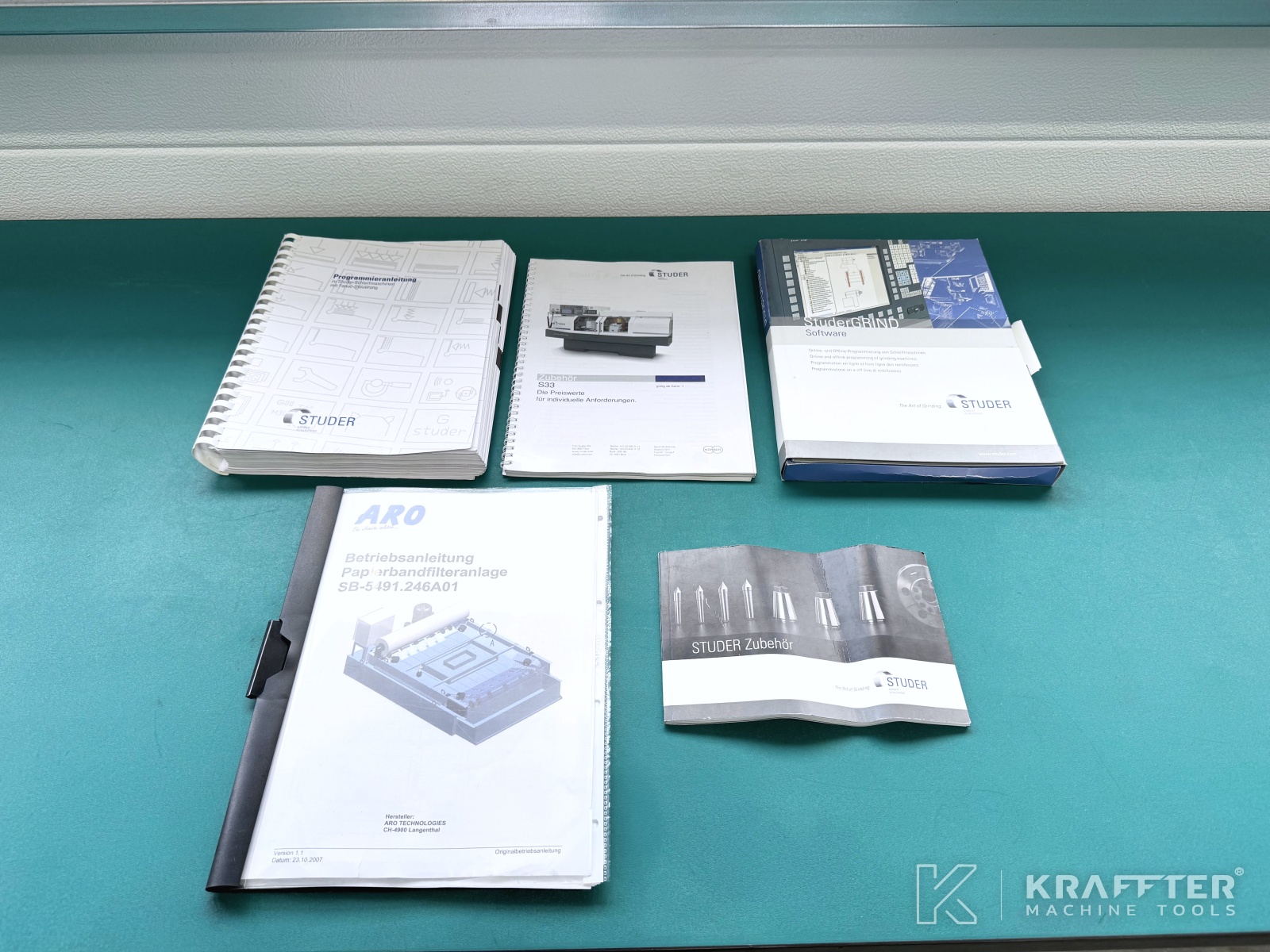

x1 set of operating manuals (French, English, and German)
