New in stock

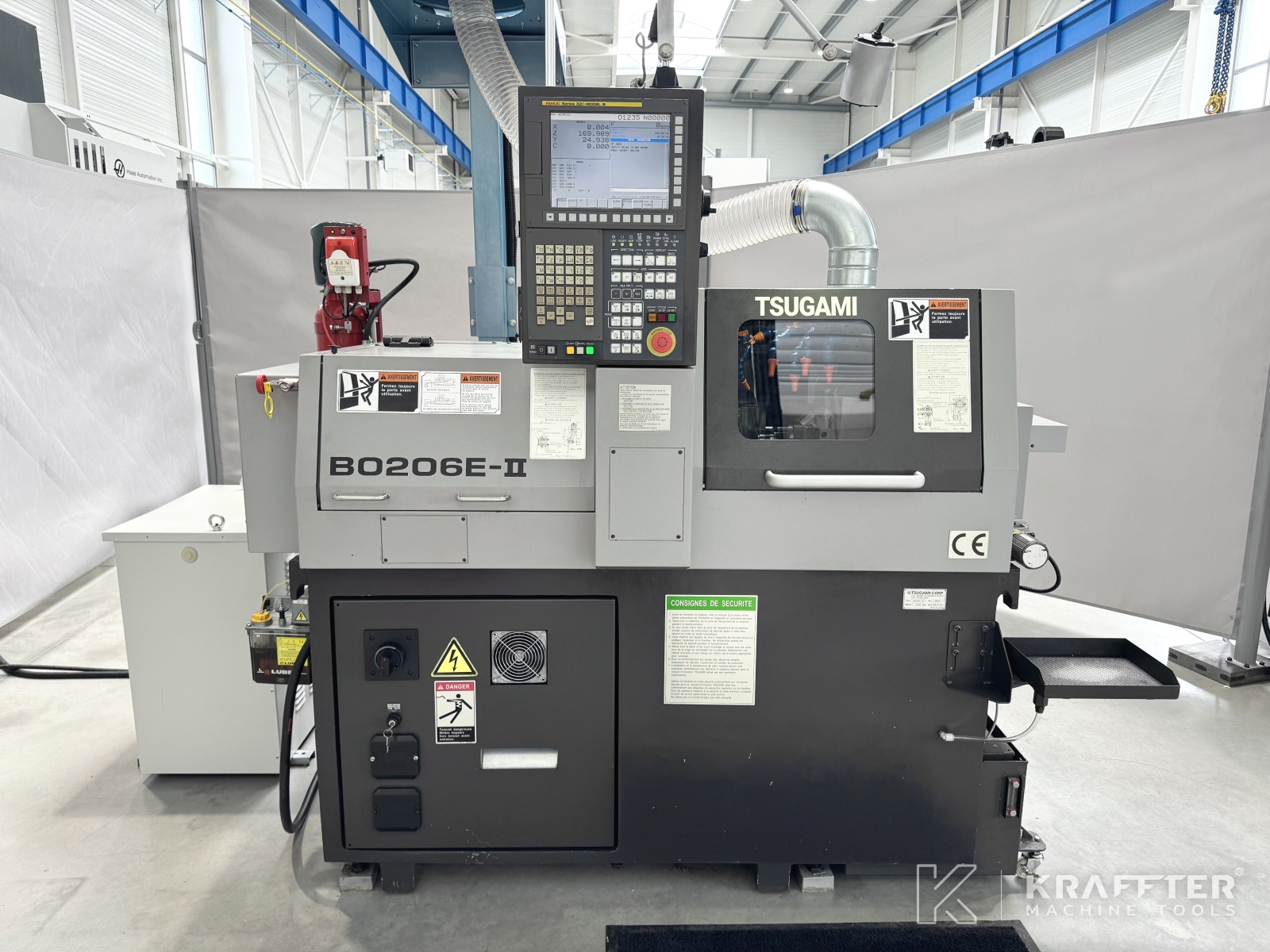

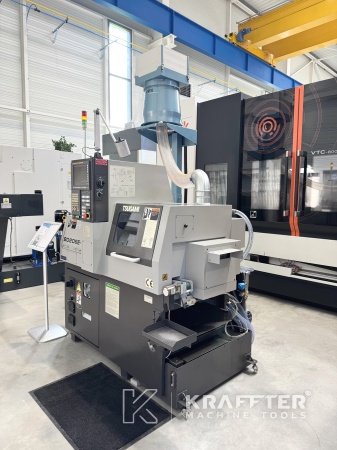

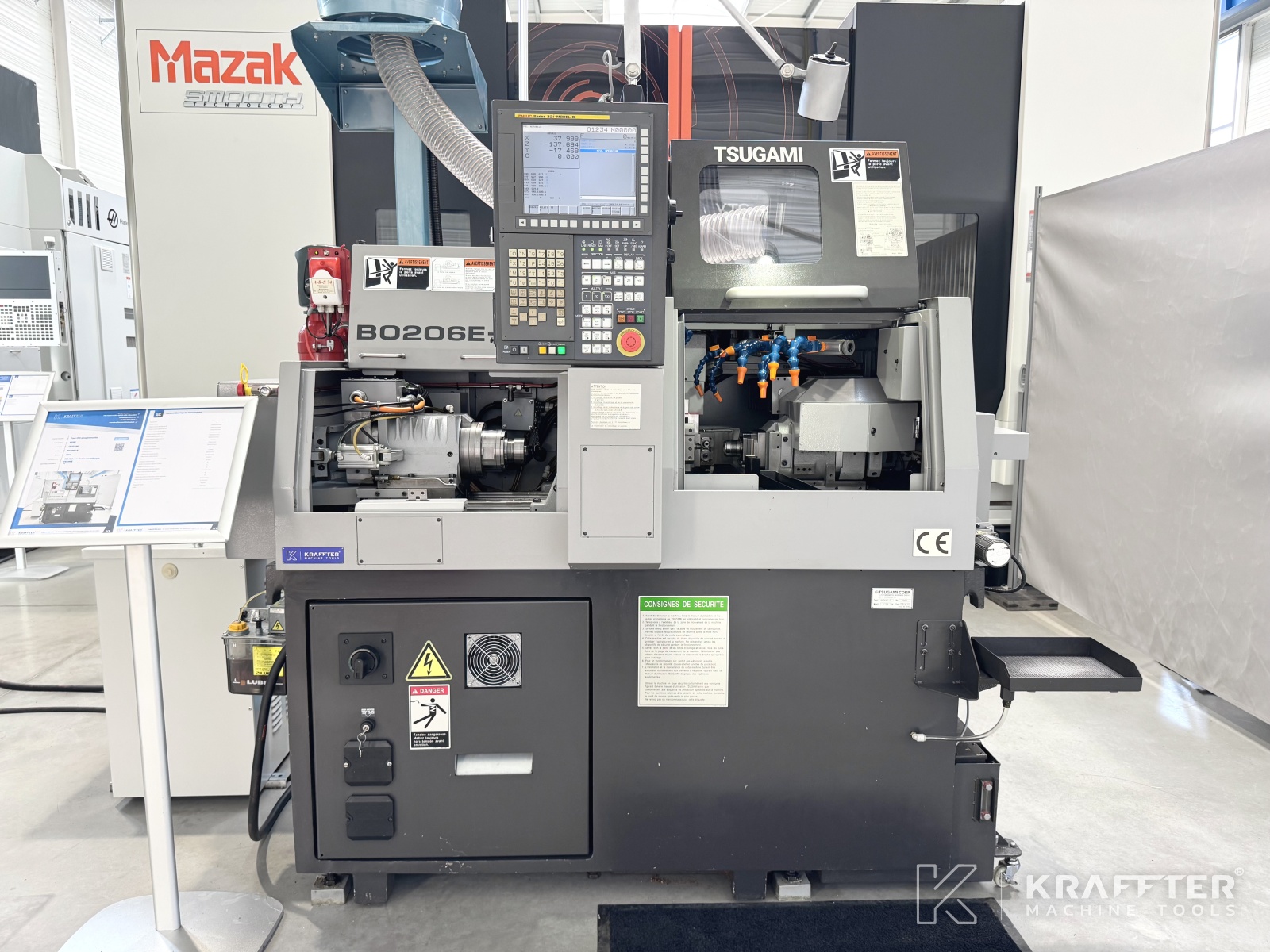

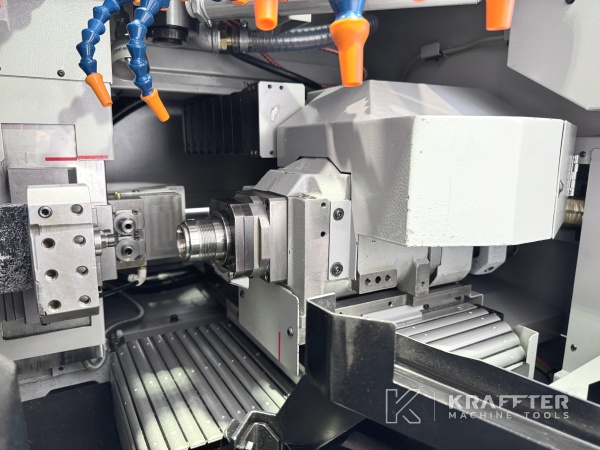

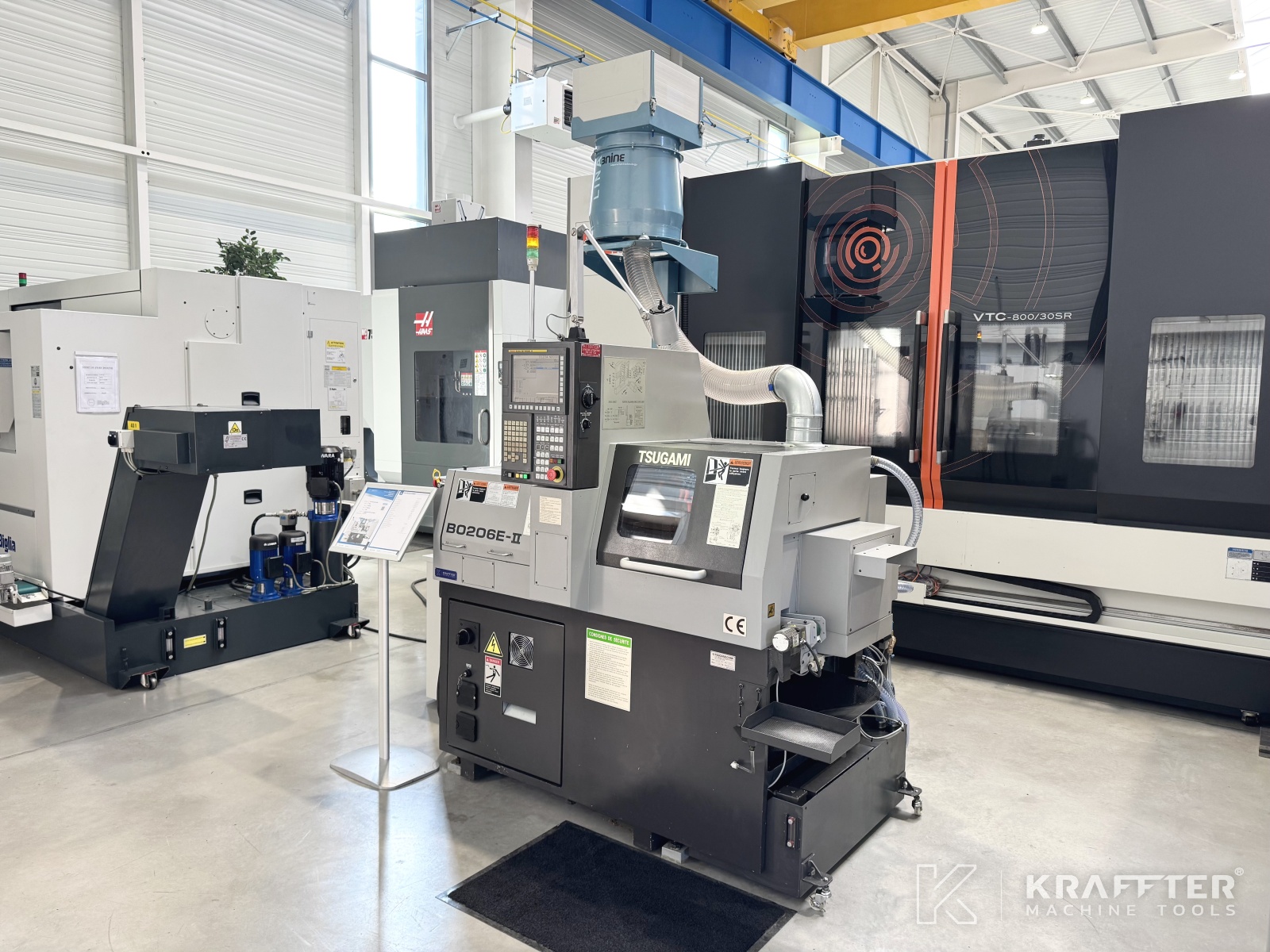

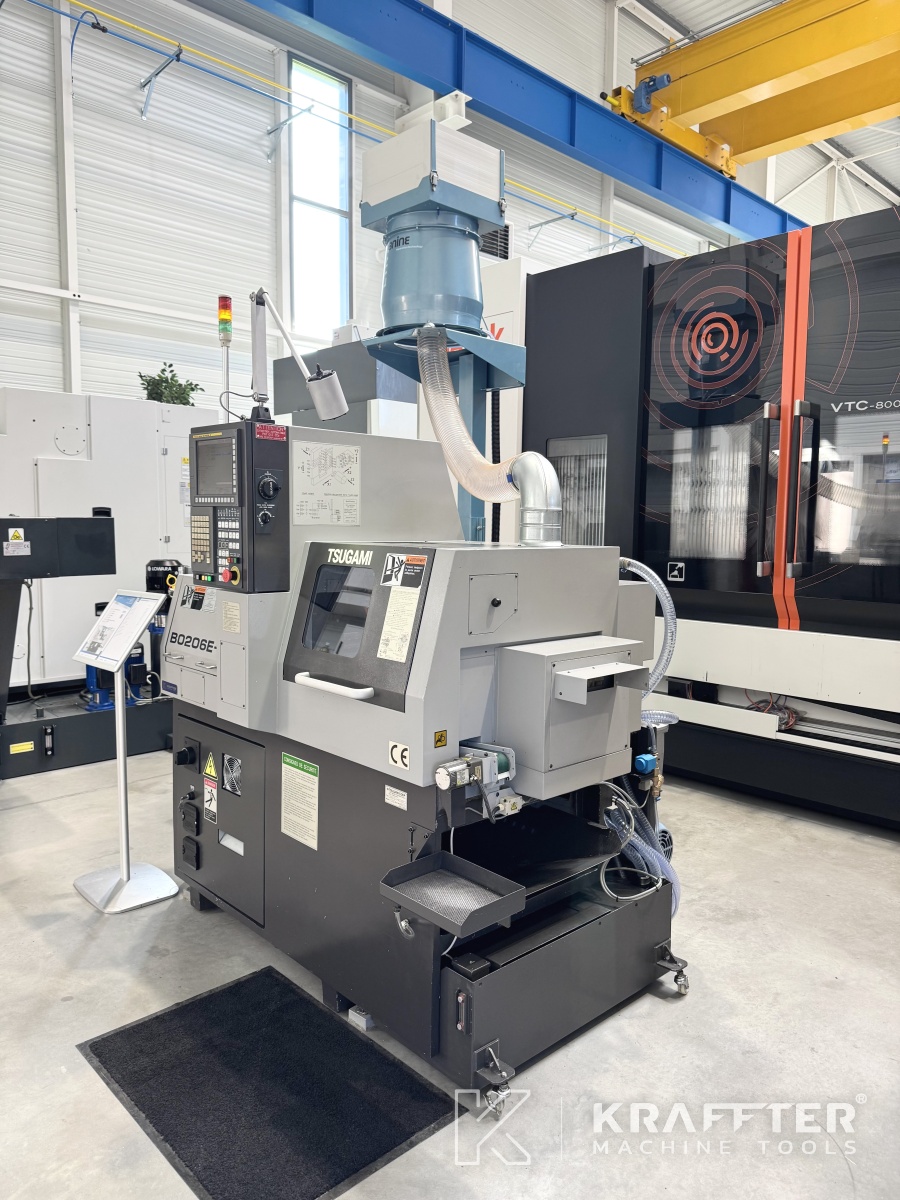

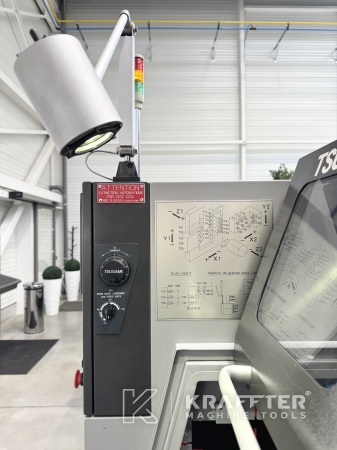

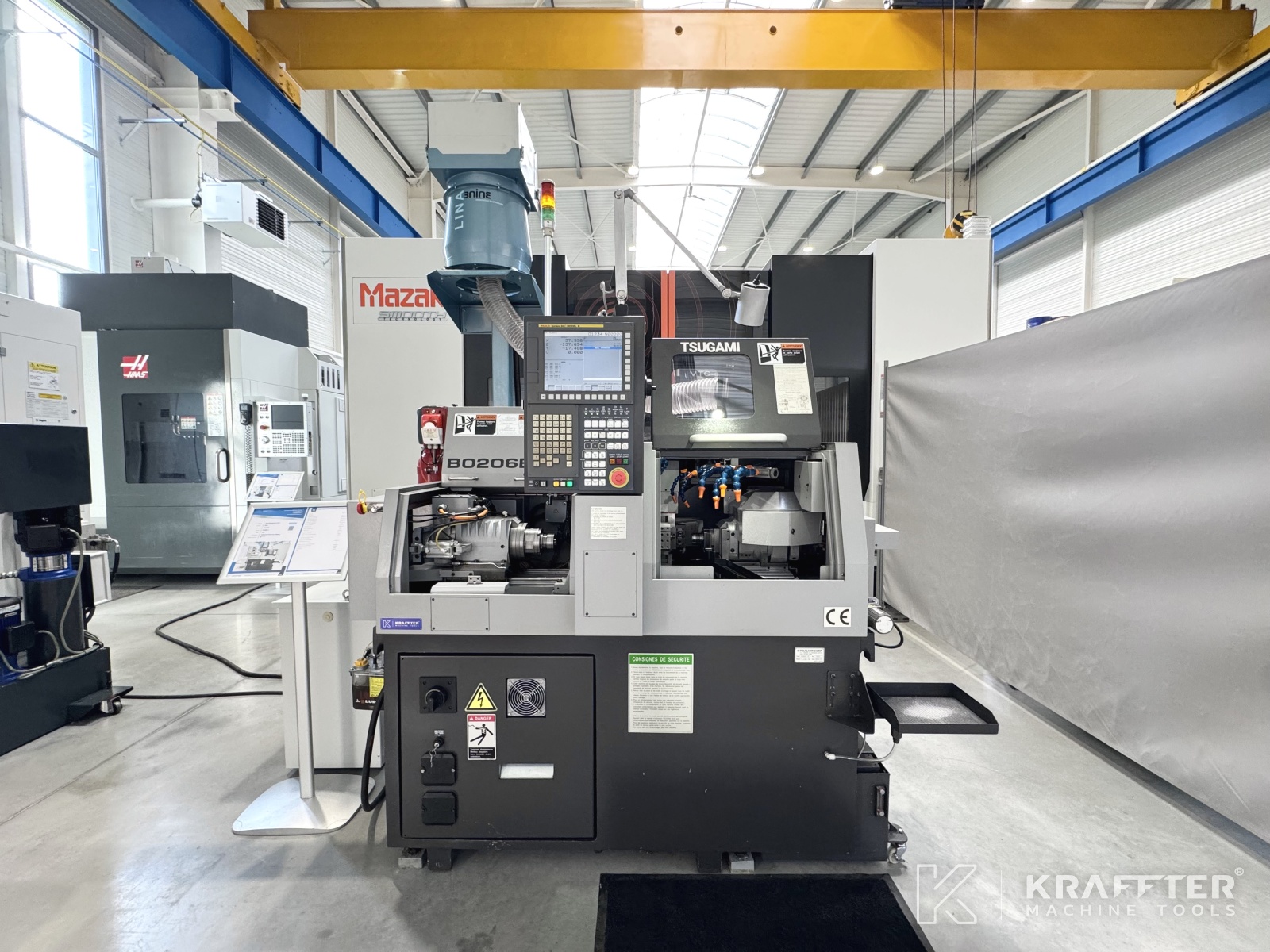

Type of machine : Swiss-type CNC lathe
Brand : TSUGAMI
N° de stock: 90181

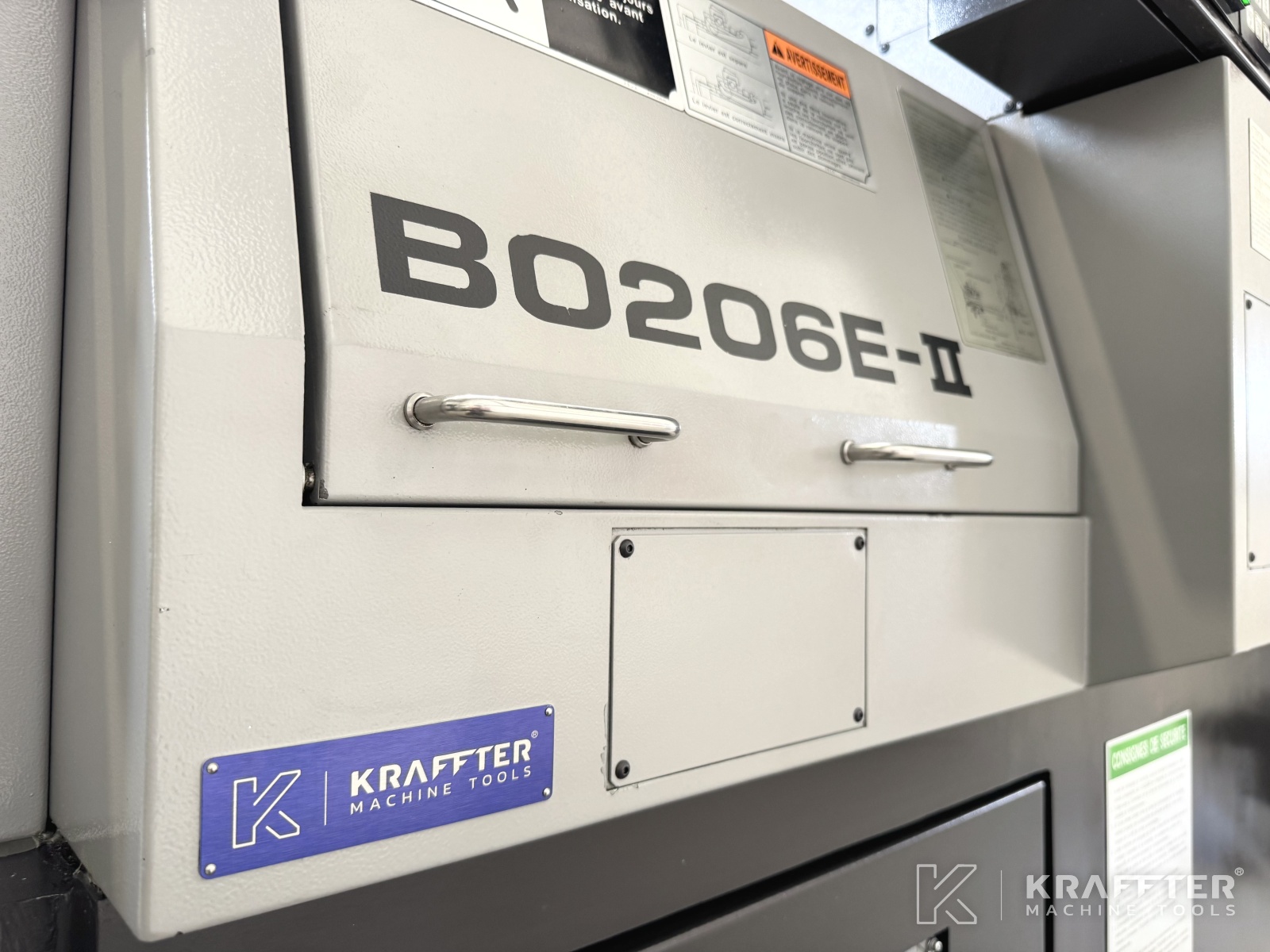

Model : B0206E-II
Year : 2014
Location : 73240 Saint-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Request a quotation
Technical characteristics

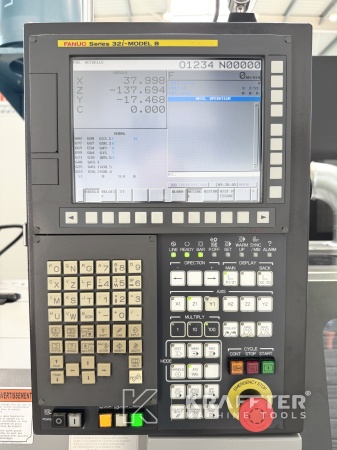

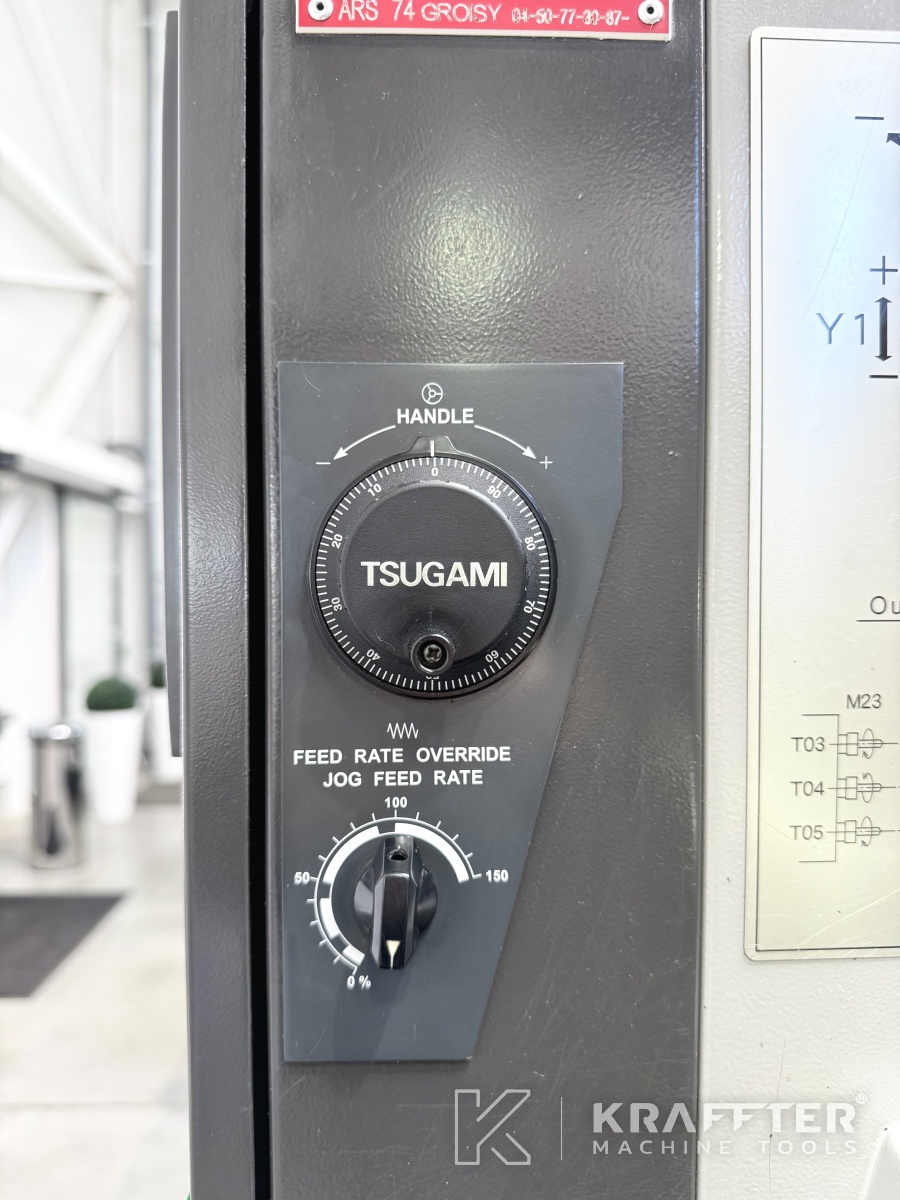

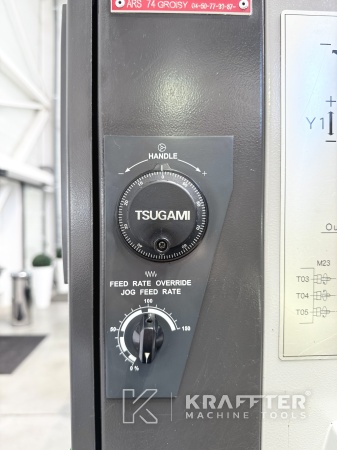

CNC control

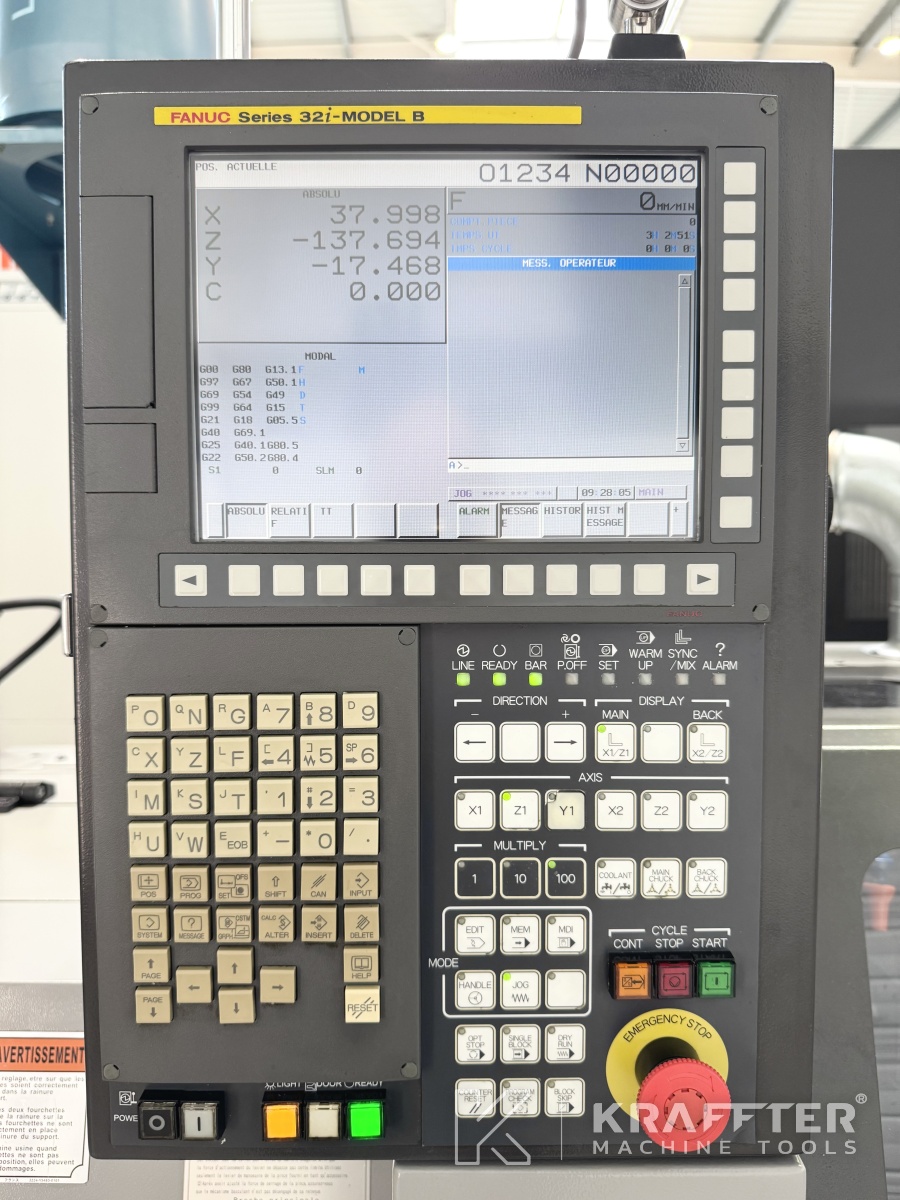

FANUC series 32i-B
Number of axes
6
Rapid traverse rate X1 axis
24000 [mm/min]
Rapid traverse rate X2 axis
24000 [mm/min]
Rapid traverse rate Z1 axis
32000 [mm/min]
Rapid traverse rate Z2 axis
32000 [mm/min]
Rapid traverse rate Y1 axis
15000 [mm/min]
Rapid traverse rate Y2 axis
15000 [mm/min]
Max. bar diameter
20 [mm]
Min. spindle speed
200 [rpm]
Max. spindle speed
10000 [rpm]
Increment C-axis
0.001 [°]
Spindle power
3.7 [kW]
Min. counter spindle spindle speed
200 [rpm]
Max. counter spindle speed
12000 [rpm]
Counter spindle increment C-axis
0.001 [°]
Counter spindle power
2.2 [kW]
Number of positions end attachment
8
Number of positions guide bush holder 1
5
Number of motorized positions guide bush holder 1
3
Live tools speed guide bush holder 1
8000 [rpm]
Number of positions secondary operation
8
Number of motorized positions secondary operation
4
Live tools speed secondary operation
8000 [rpm]
Max. tool holder cross-section
12 x 12 [mm]
Working hours
9132 [h]
Weight
1750 [Kg]
Additional information
INCLUDED EQUIPMENT:
-

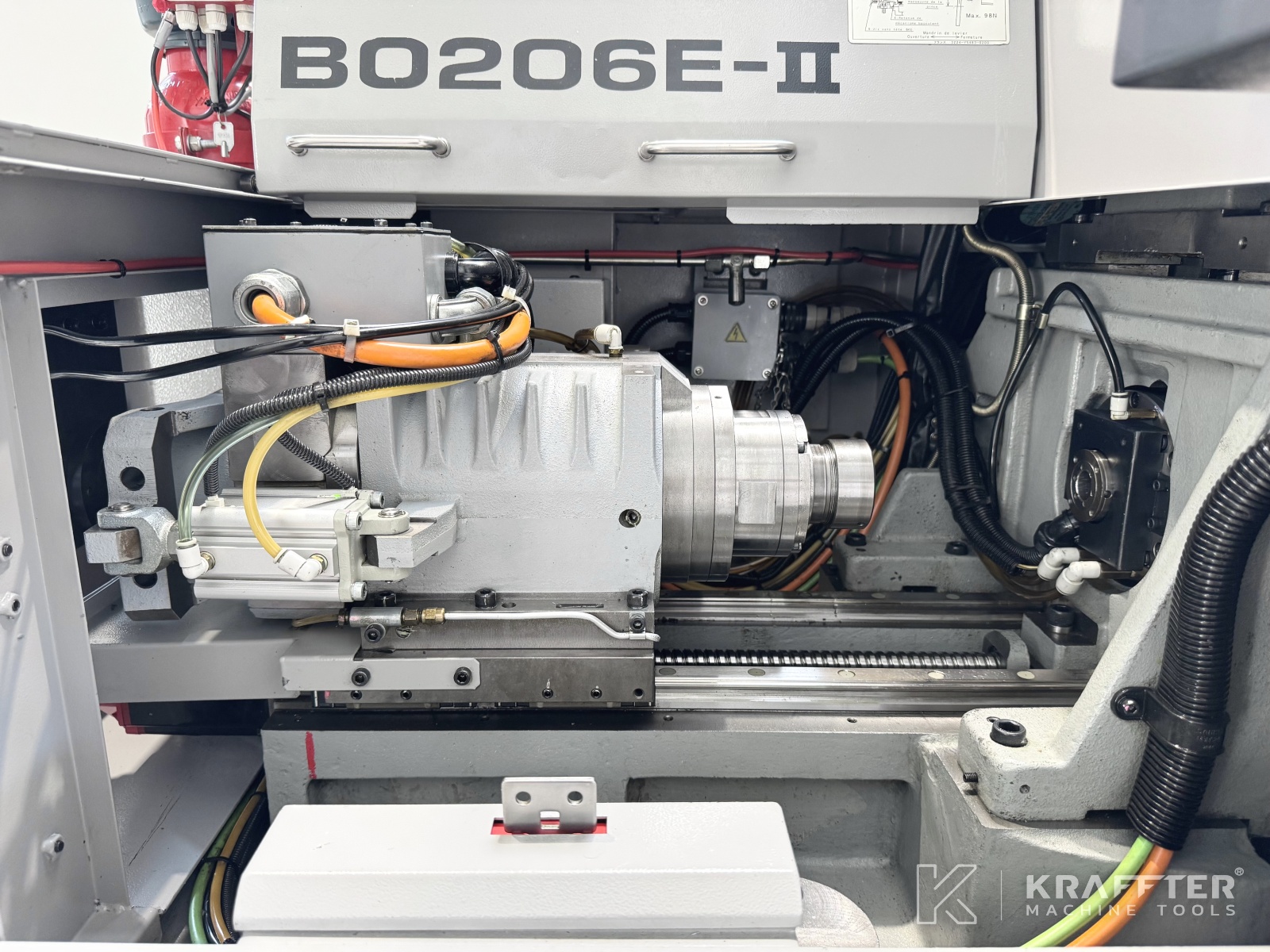

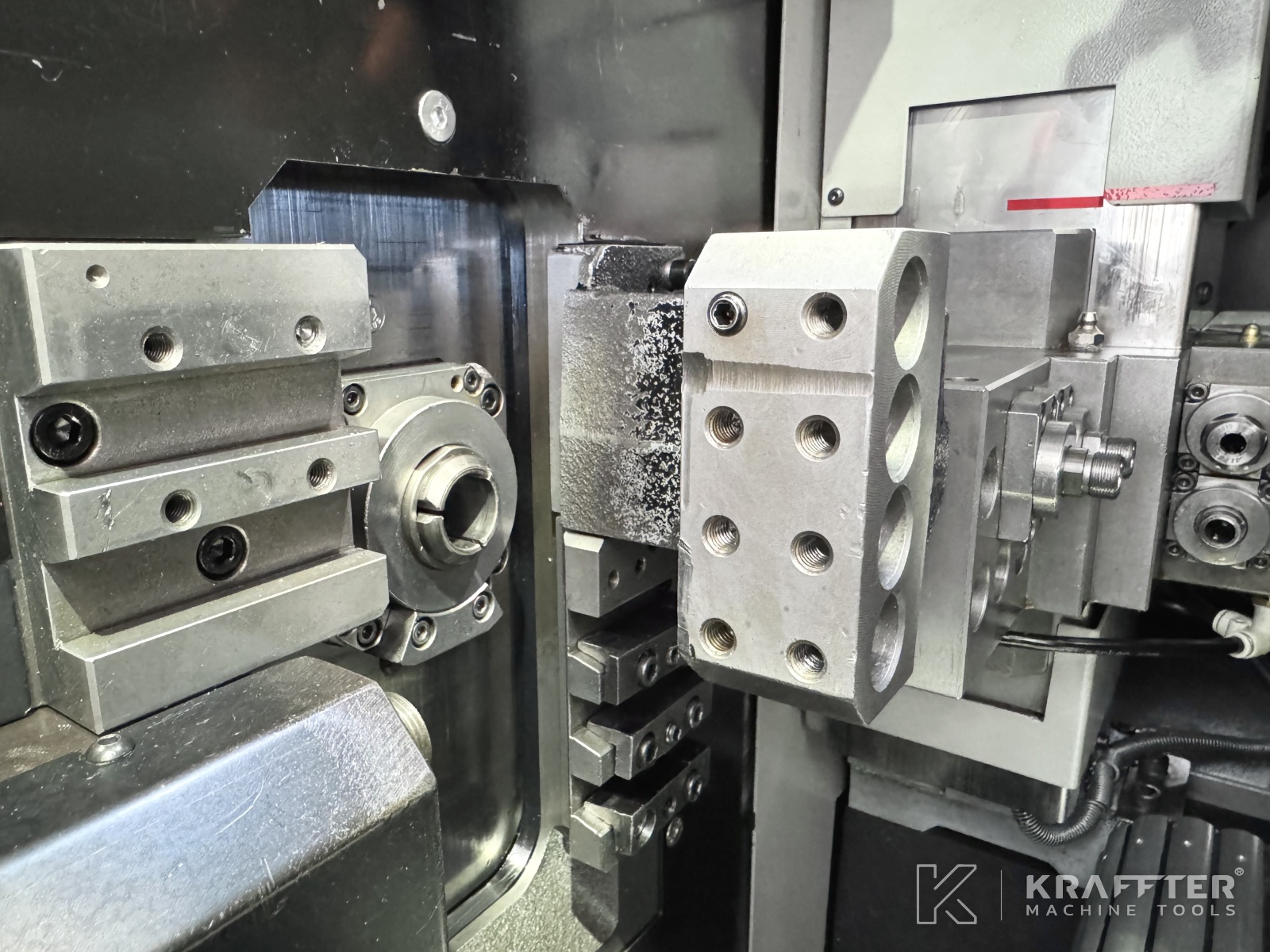

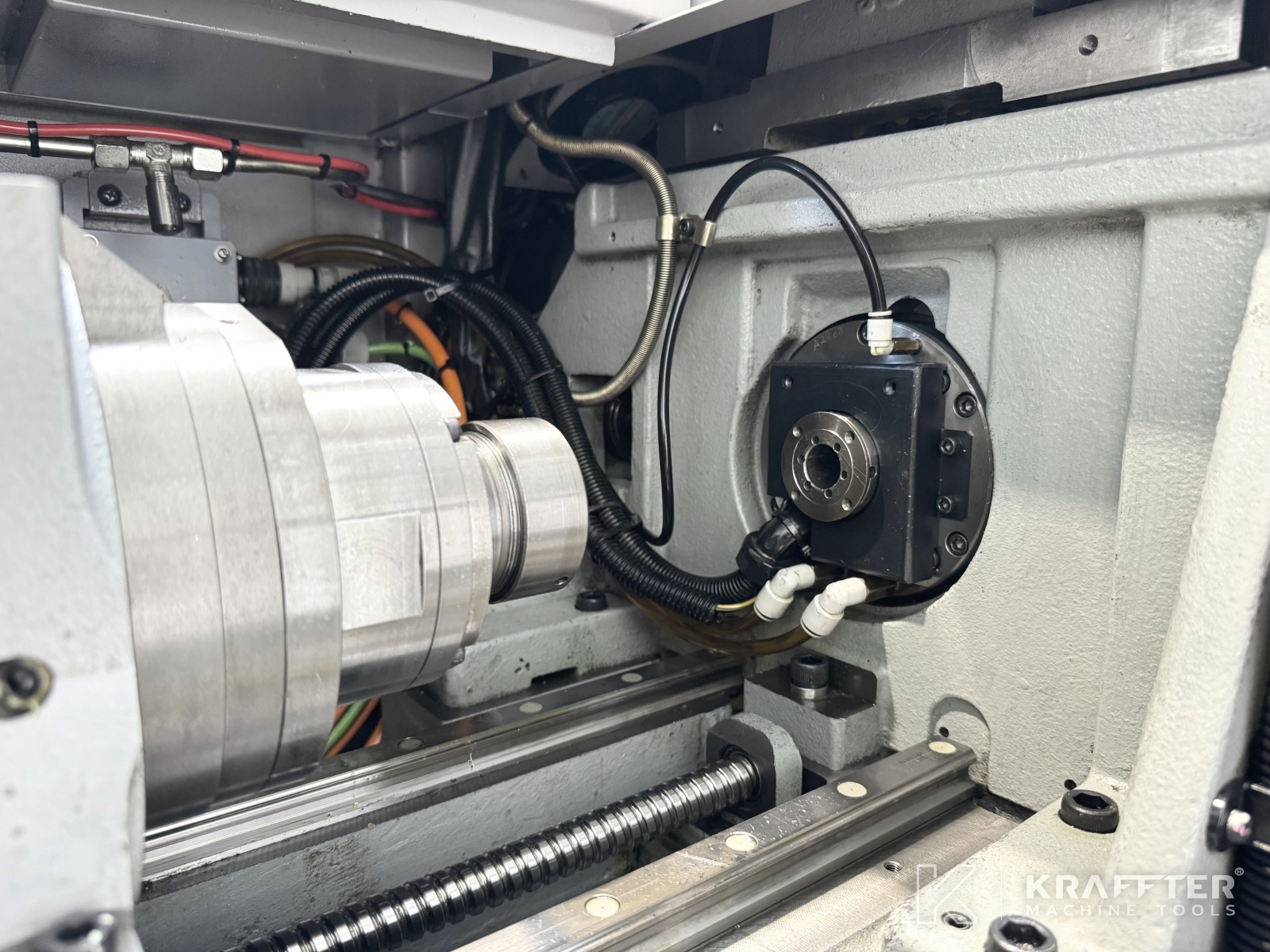

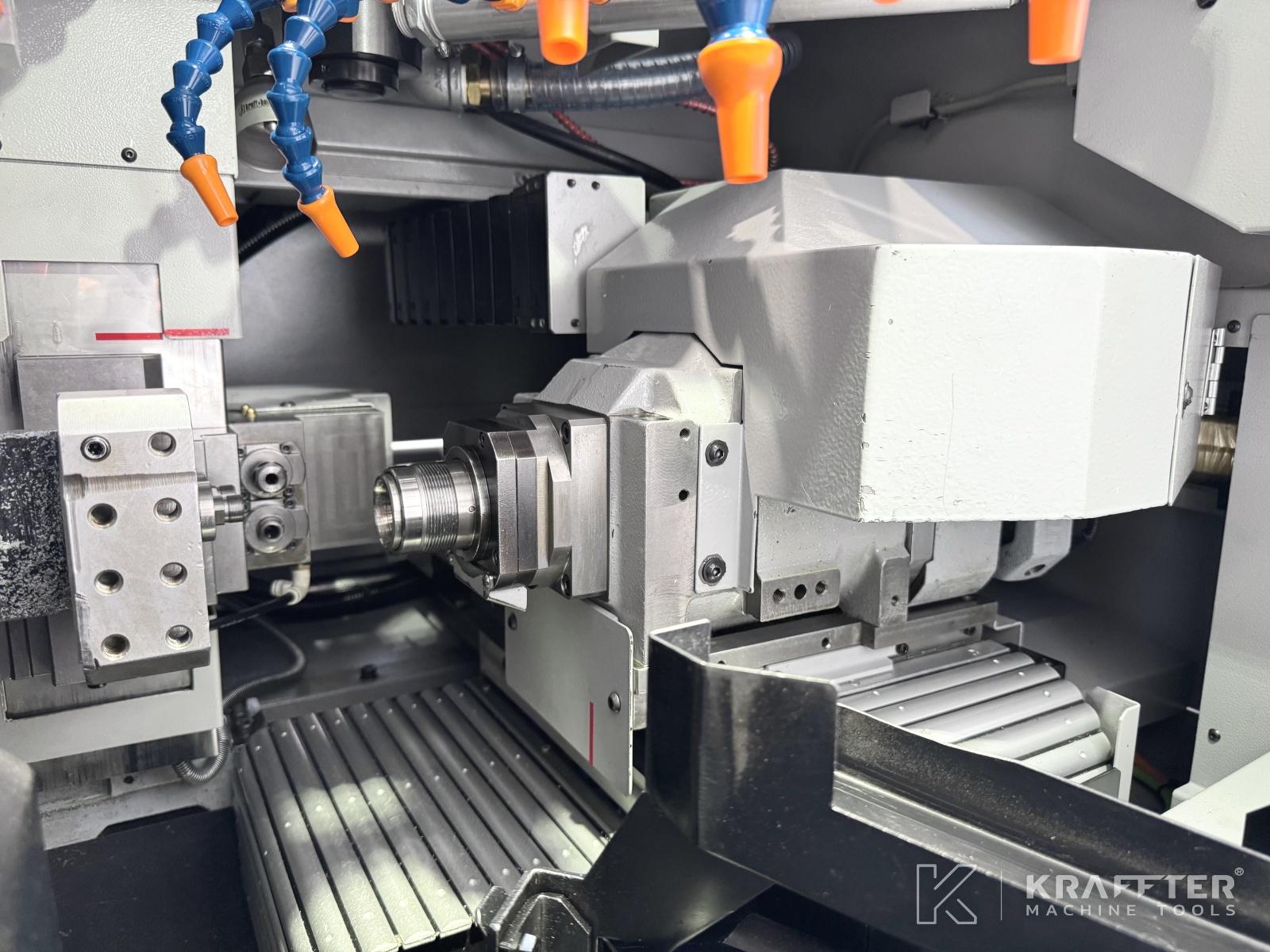

x1 sliding headstock (direct drive)
-

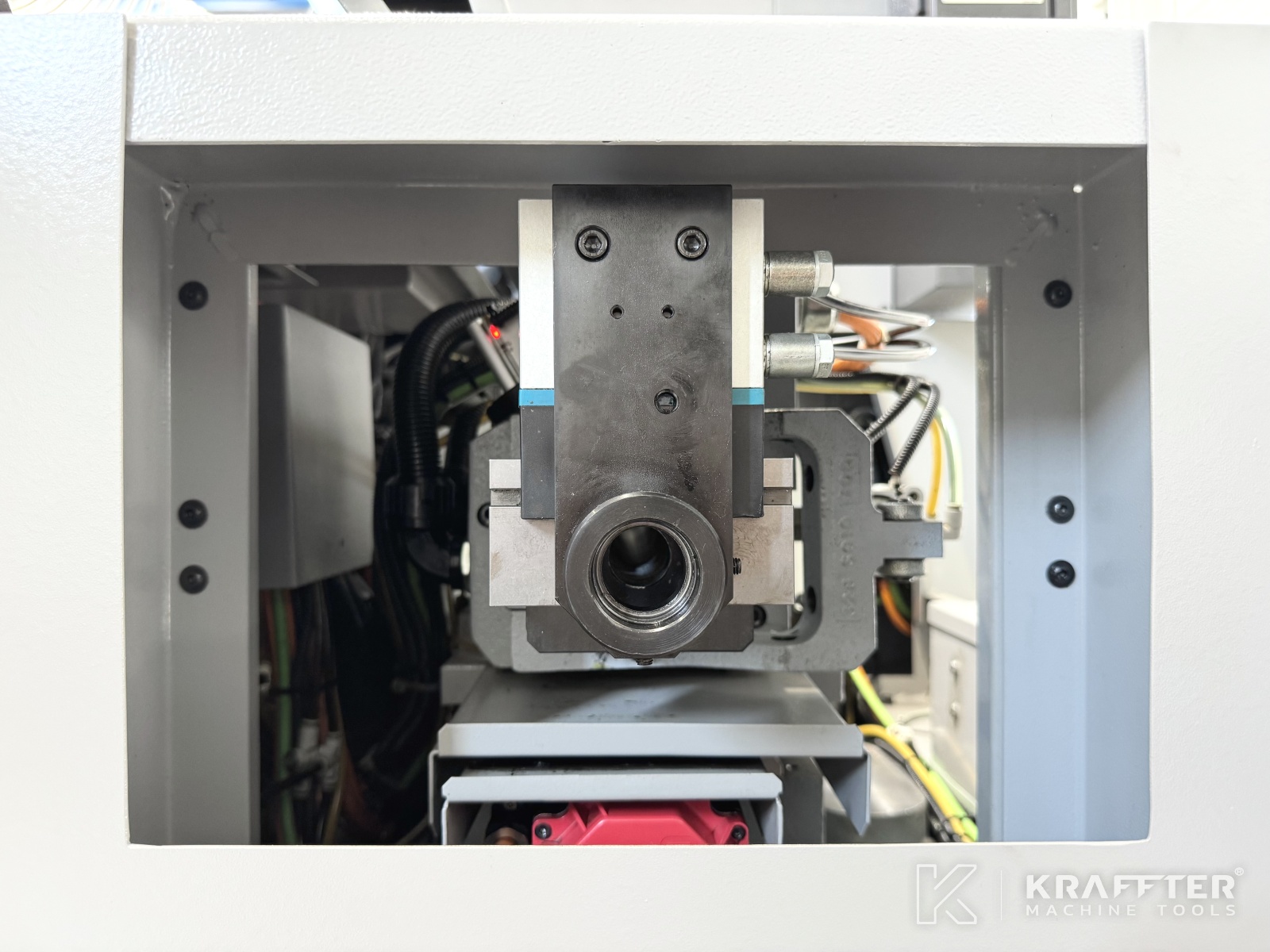

x1 counter spindle (direct drive)
-
x1 rotary guide bush (direct drive)
-

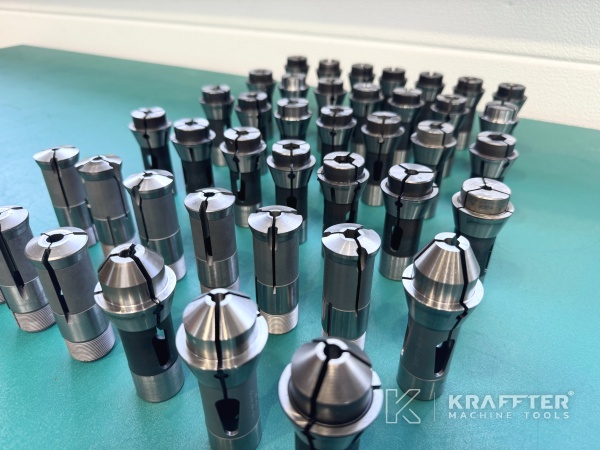

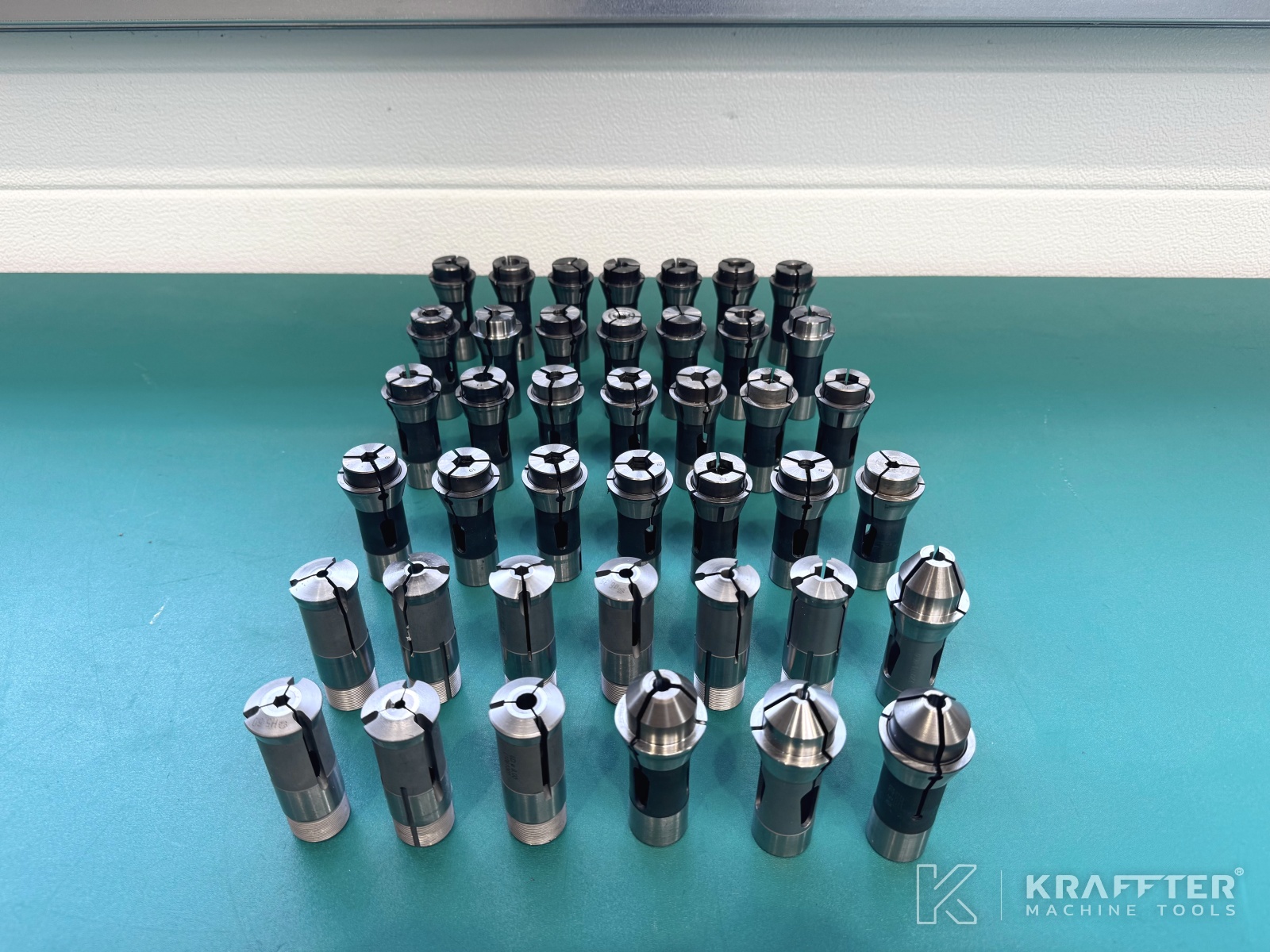

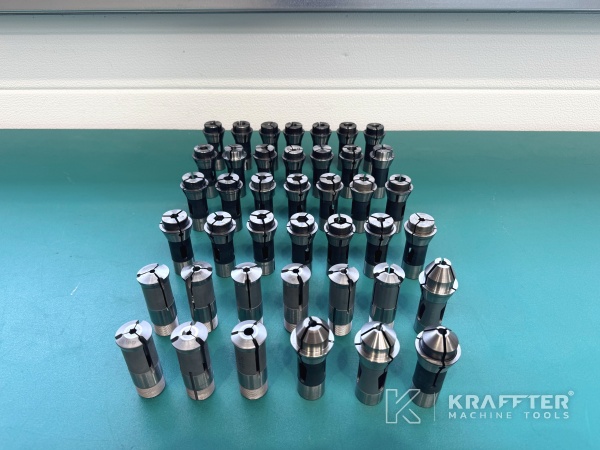

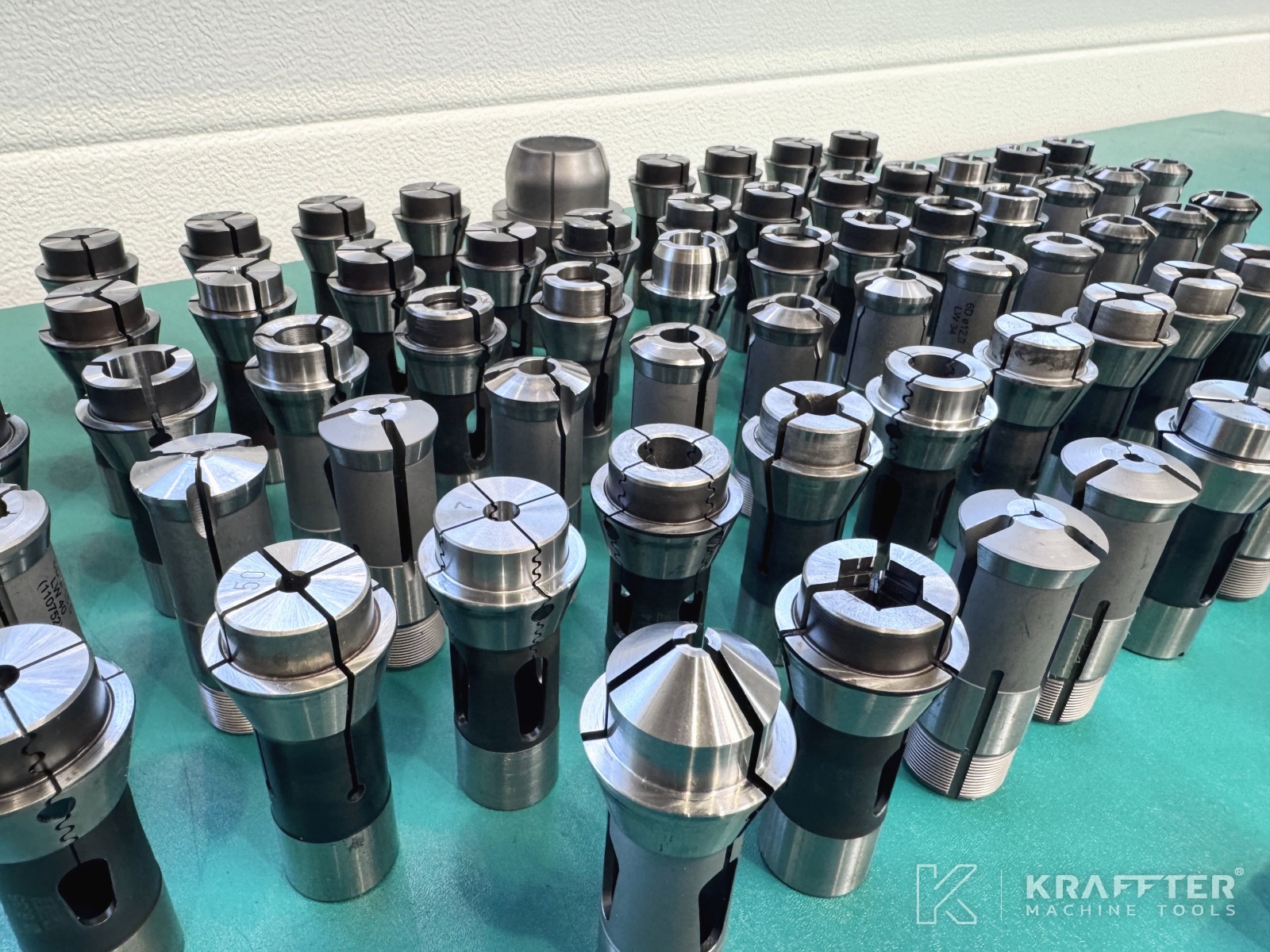

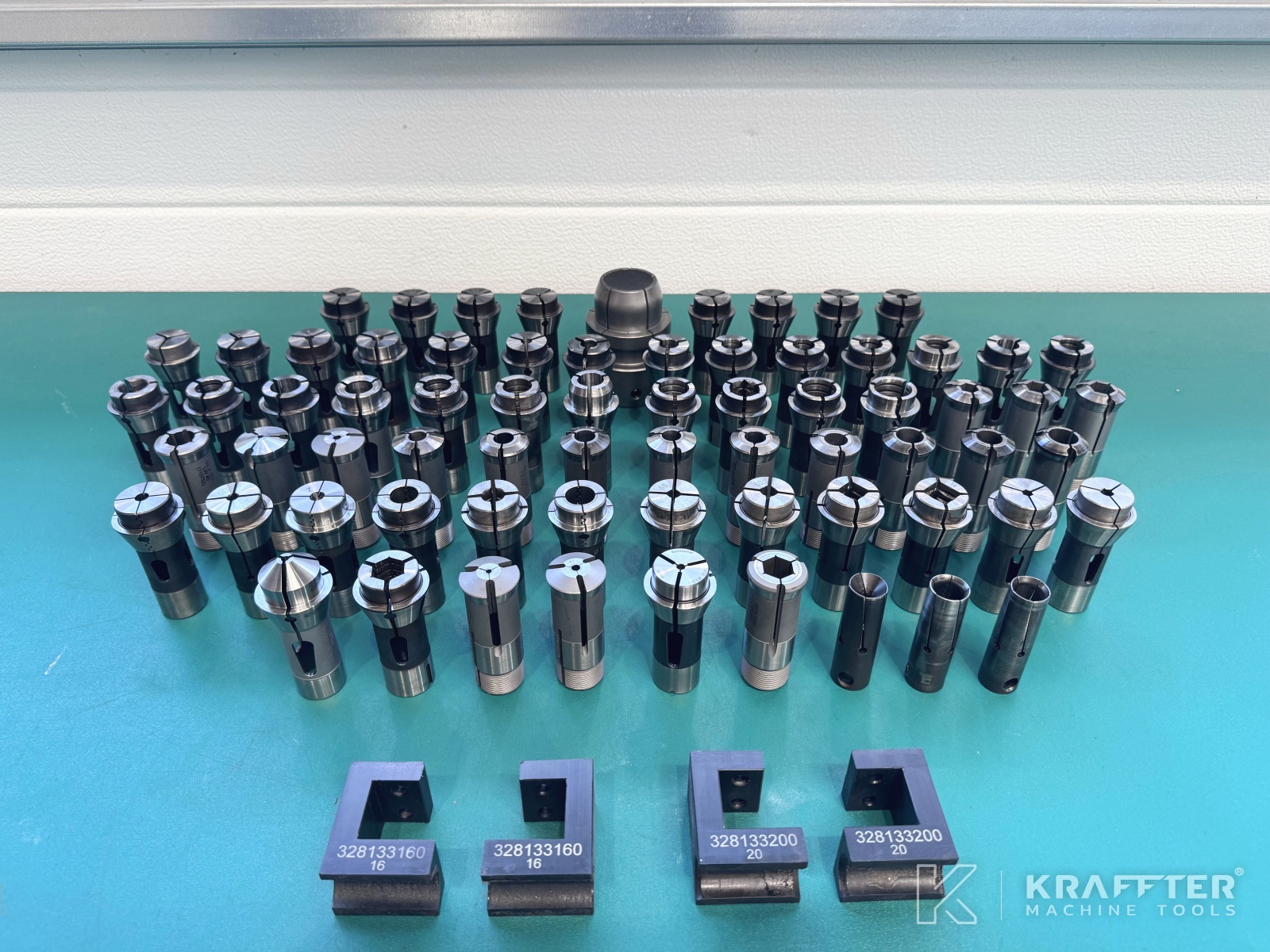

x108 collets
-
x7 live tool holders
-

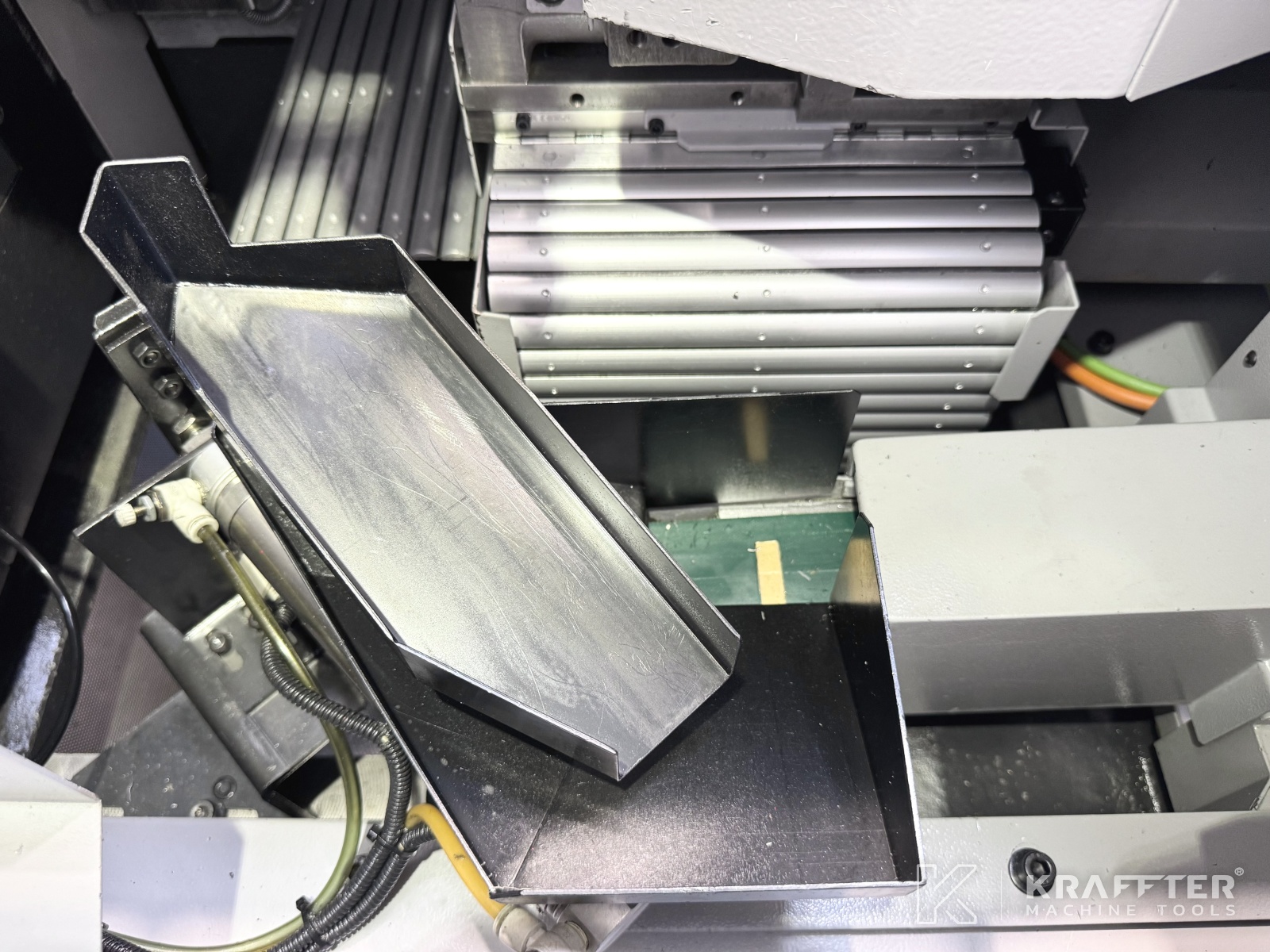

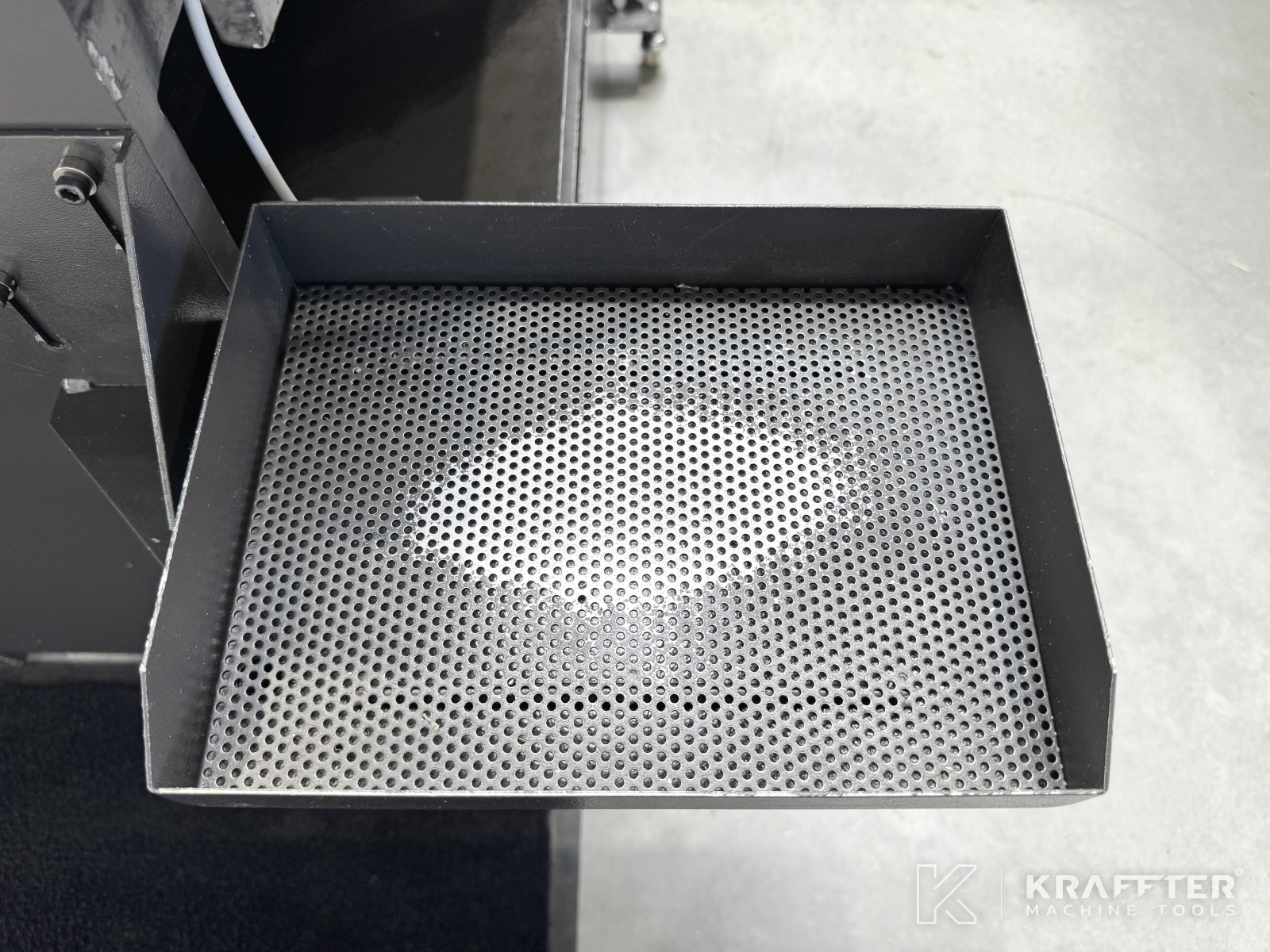

x1 parts catcher
-

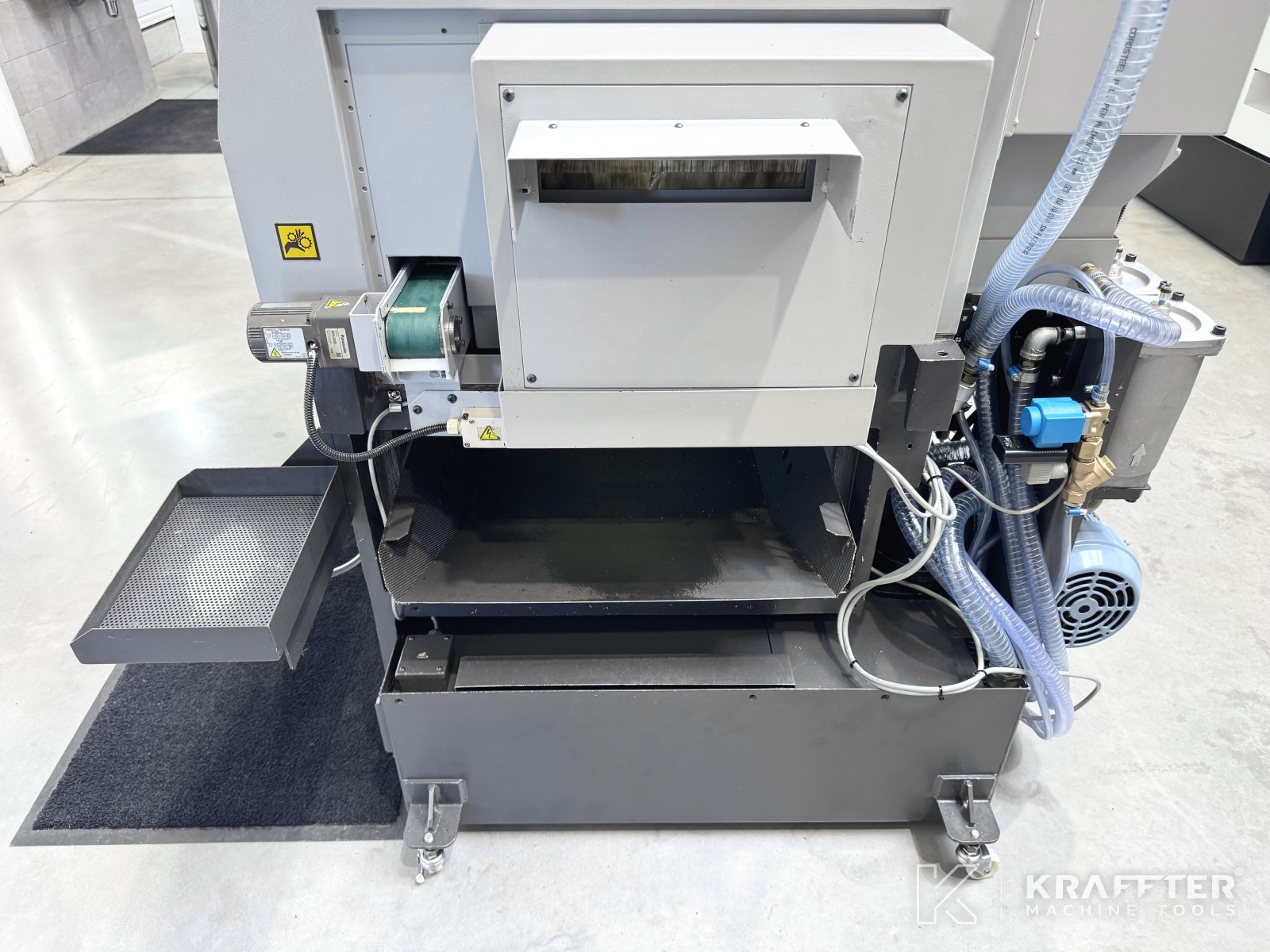

x1 parts conveyor belt
-
x1 parts ejection device
-

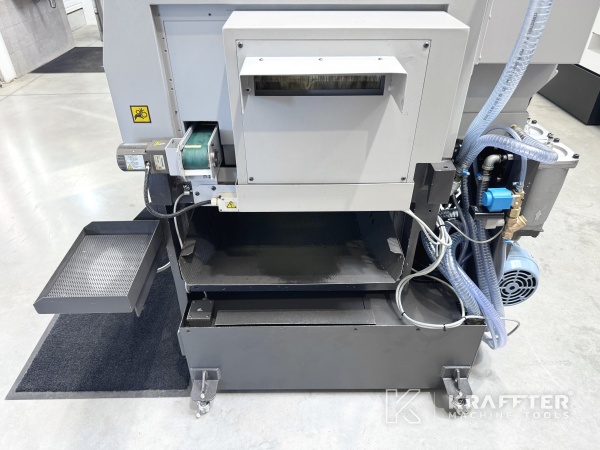

x1 chip conveyor
-
x1 coolant tank
-

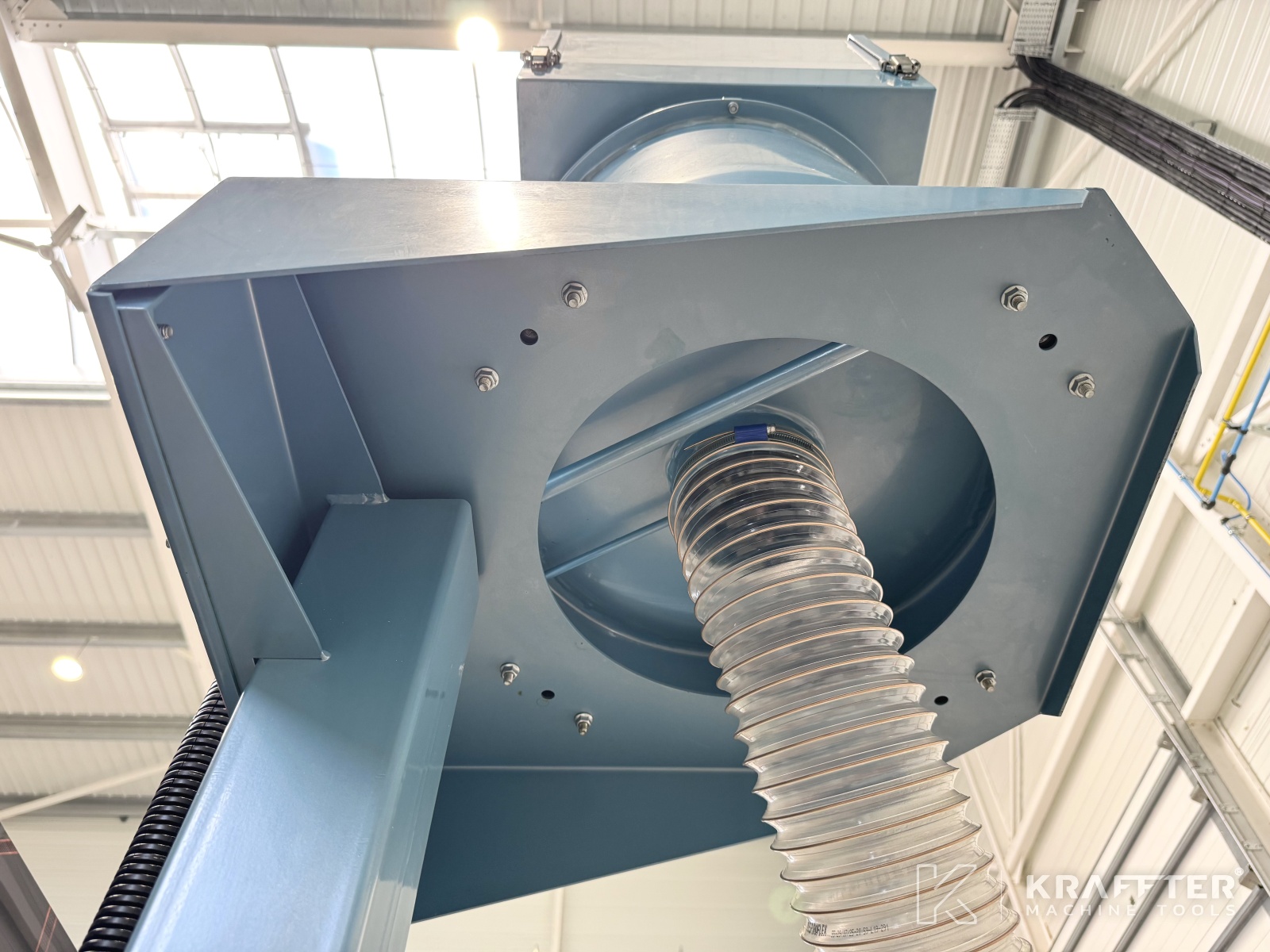

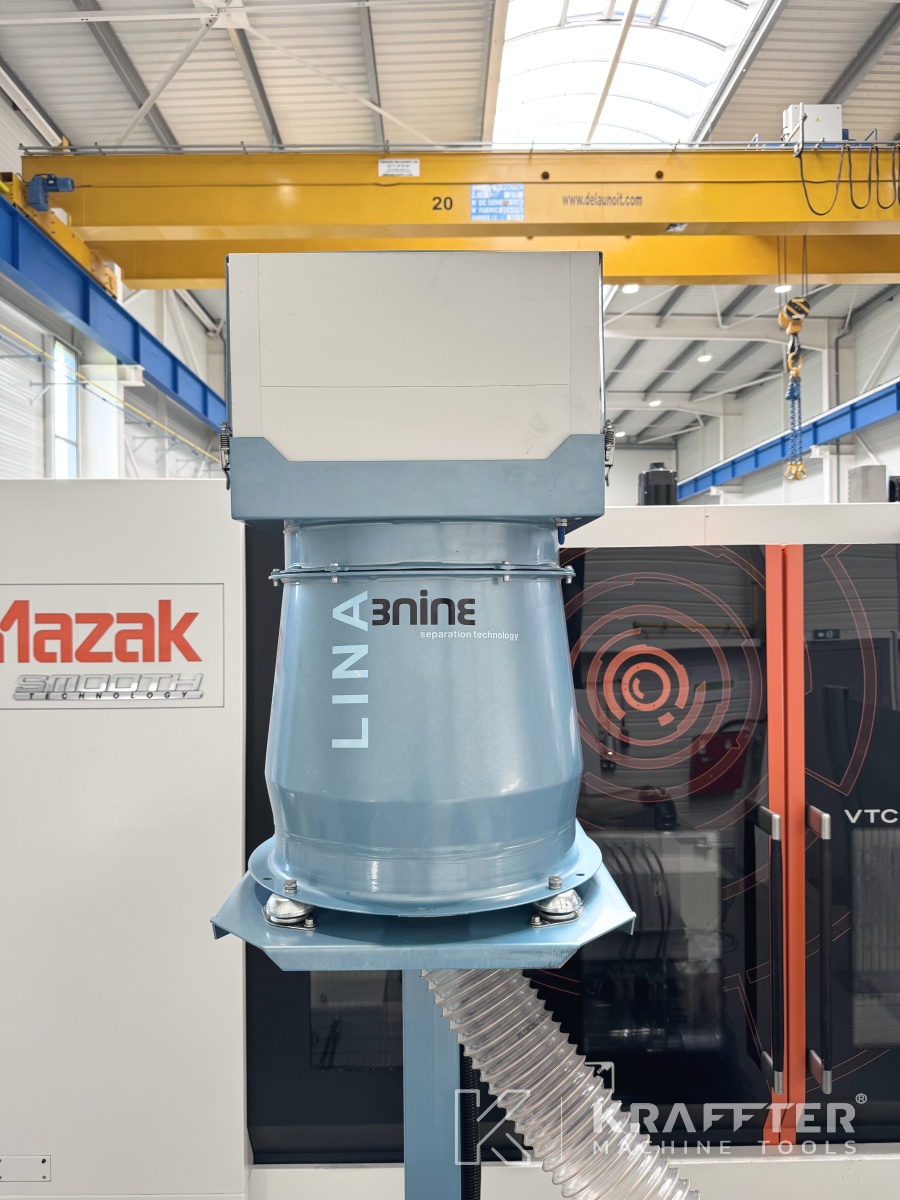

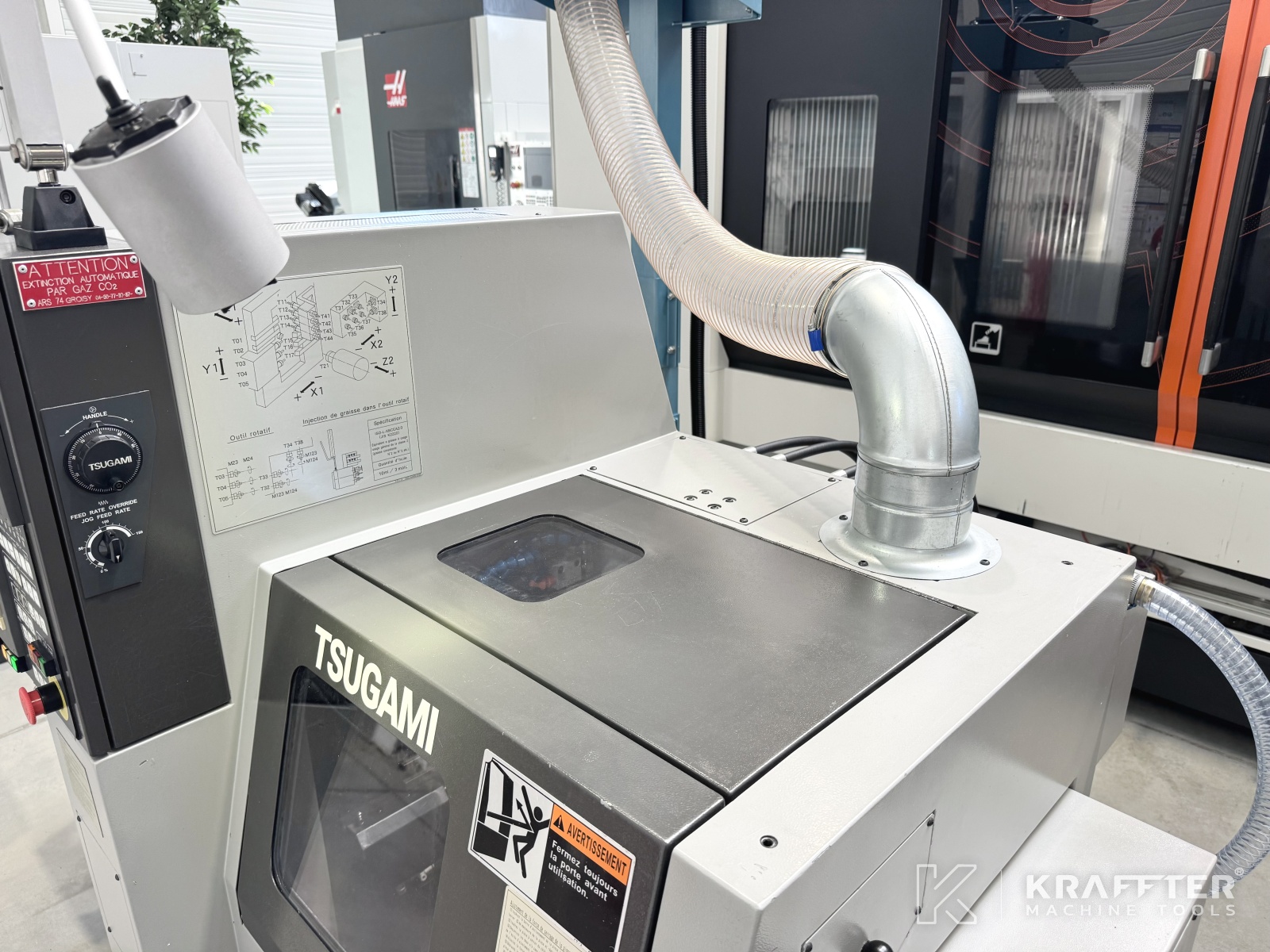

x1 oil mist extraction unit, 3nine LINA type
-

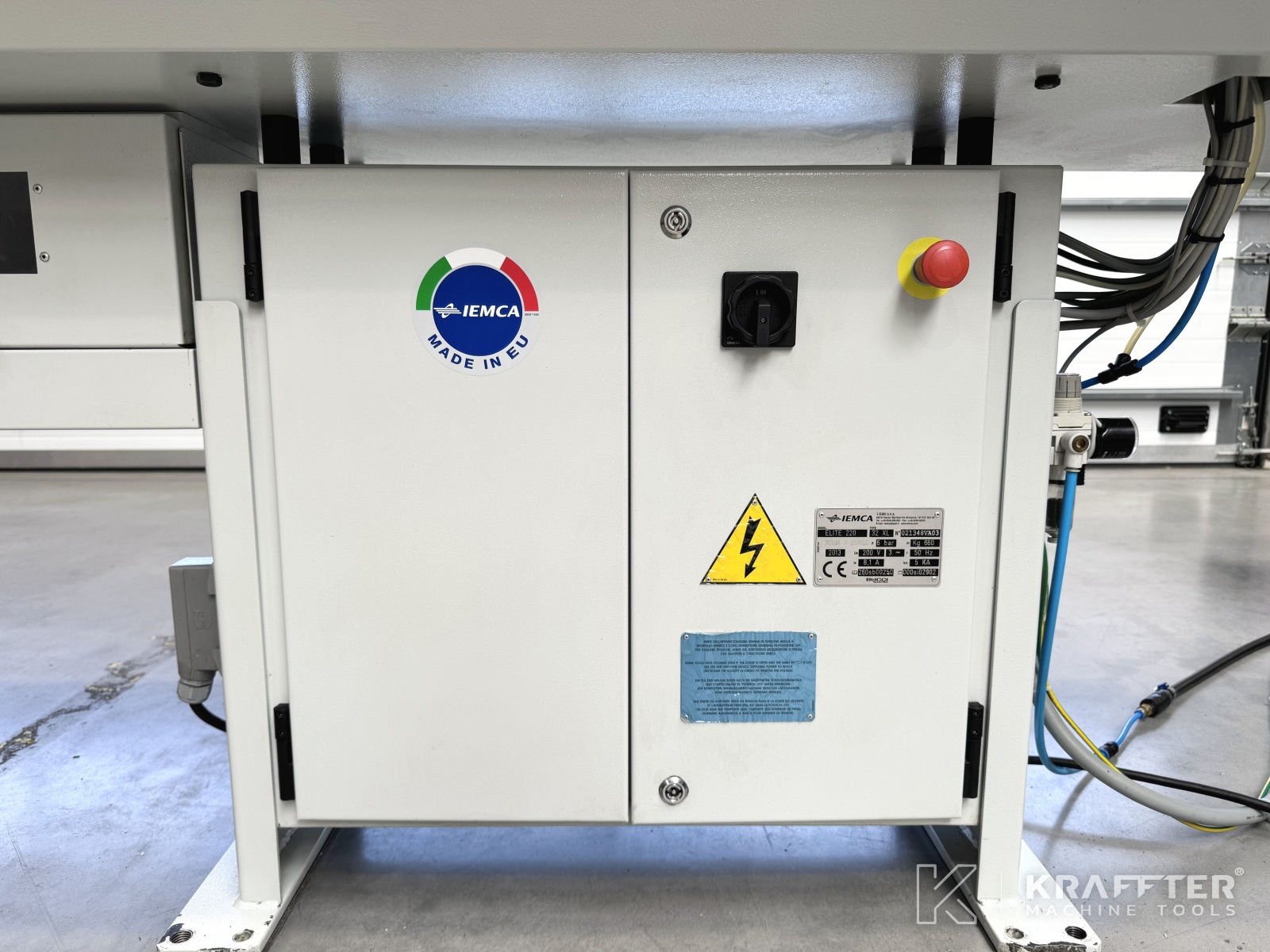

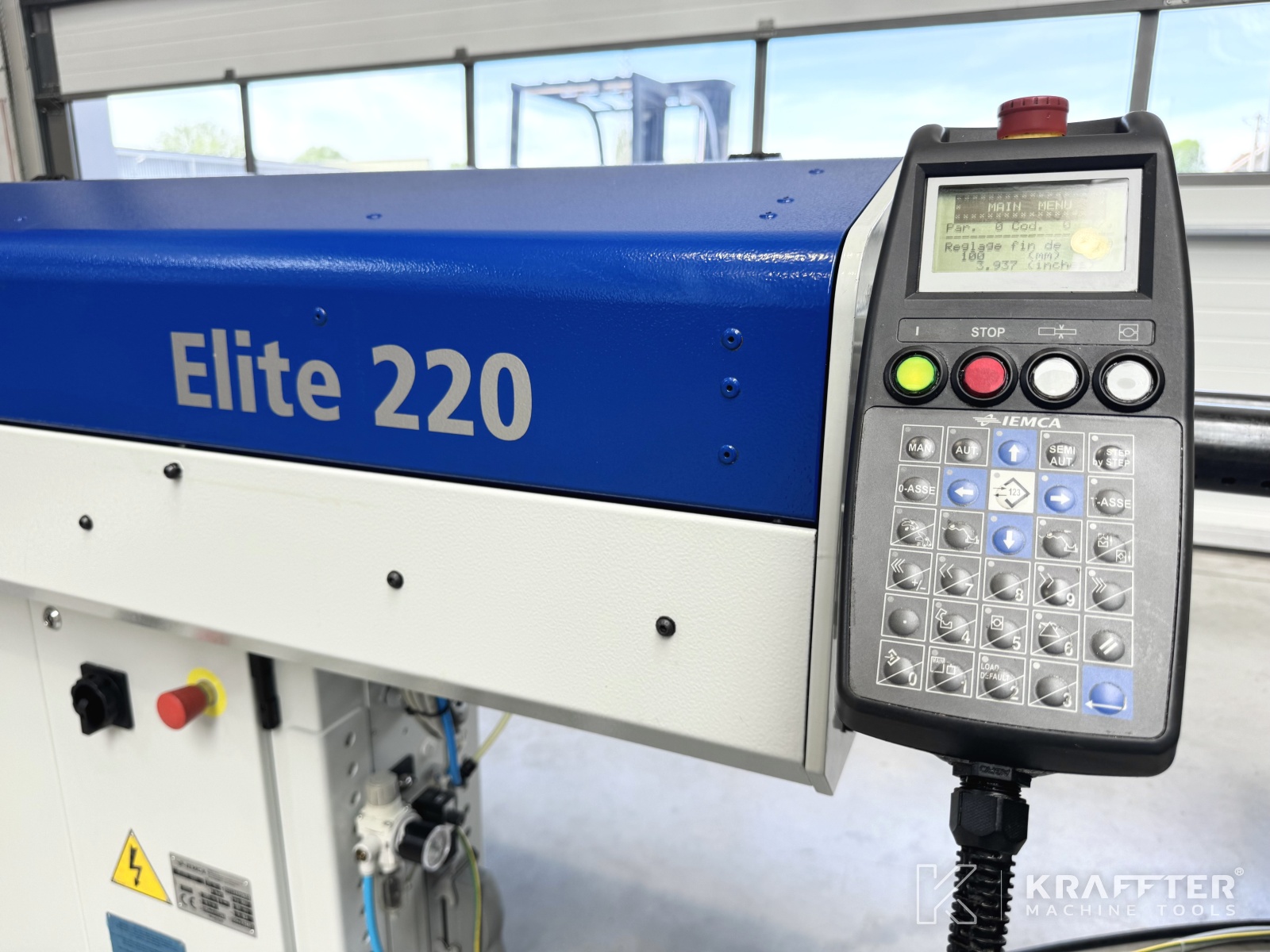

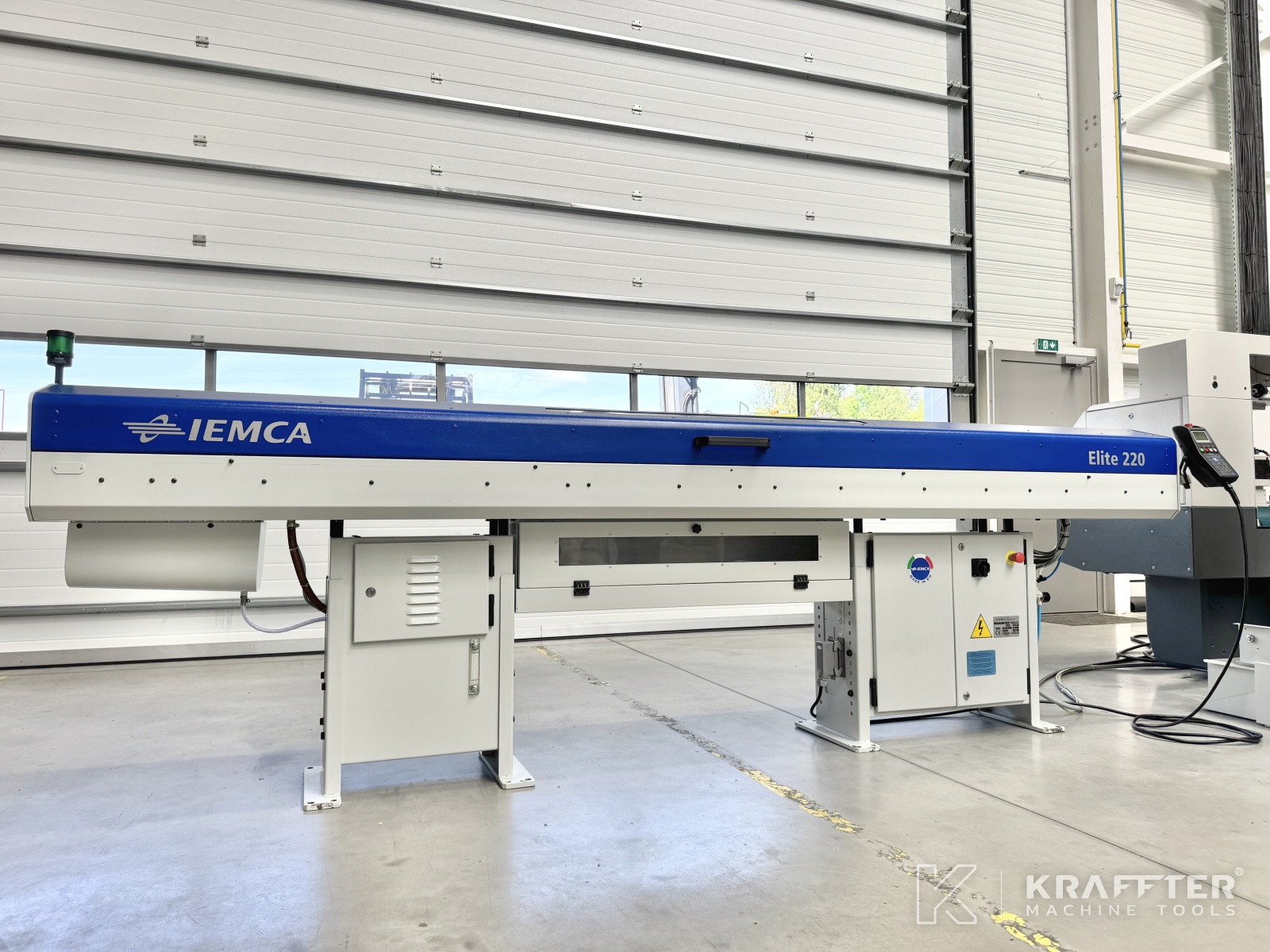

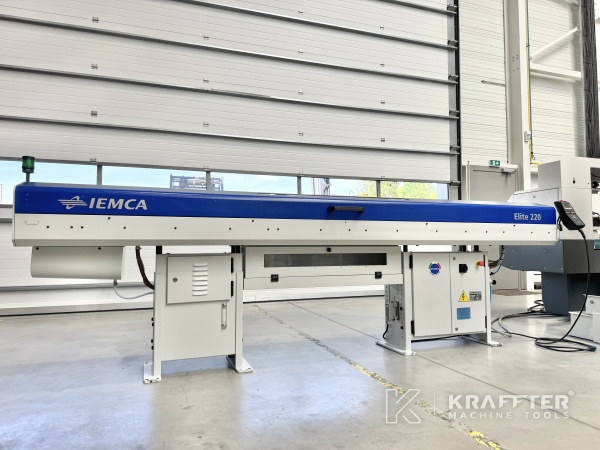

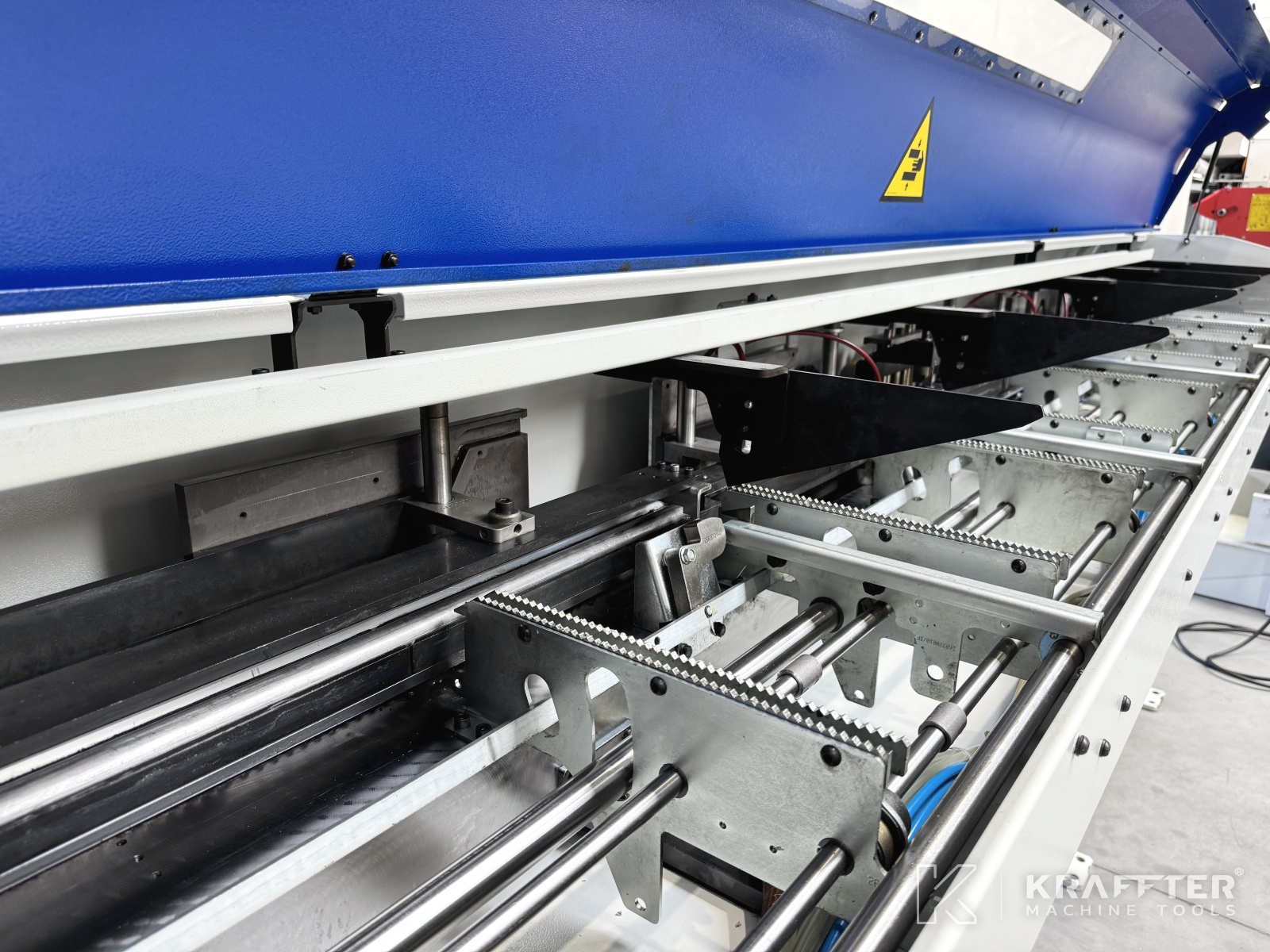

x1 IEMCA ELITE 220 E / 32 XL bar feeder
-

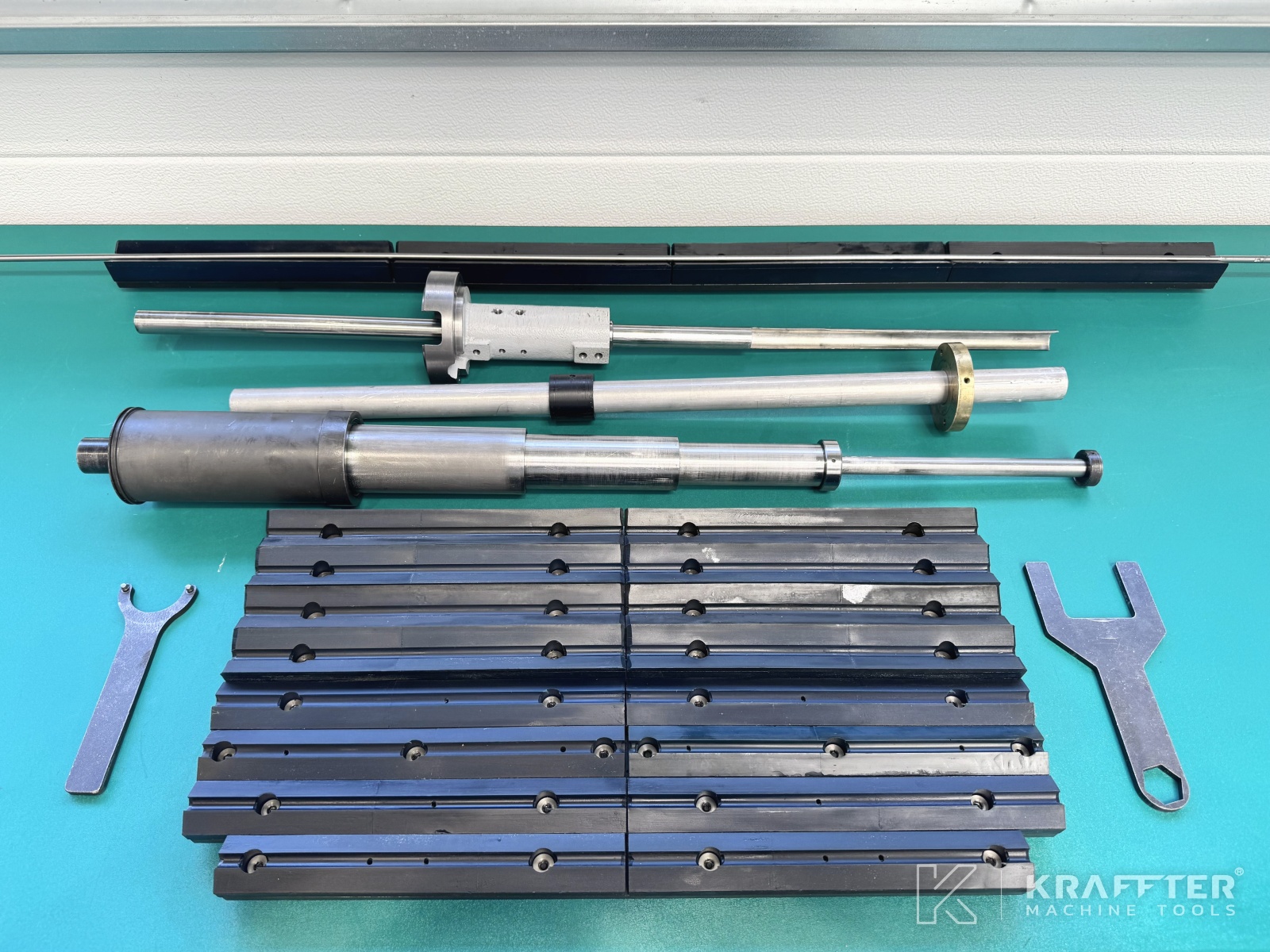

x1 set of accessories for IEMCA ELITE 220 E / 32 XL bar feeder
-

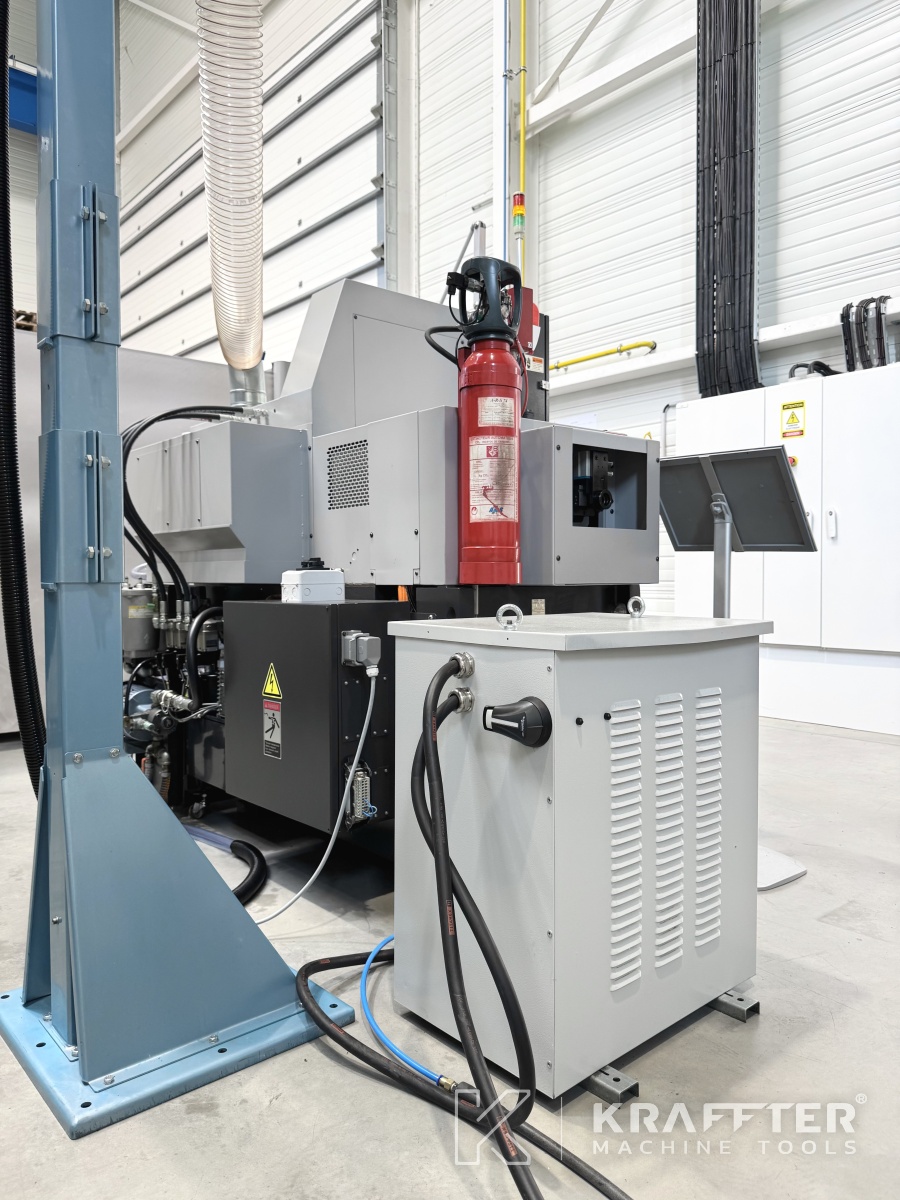

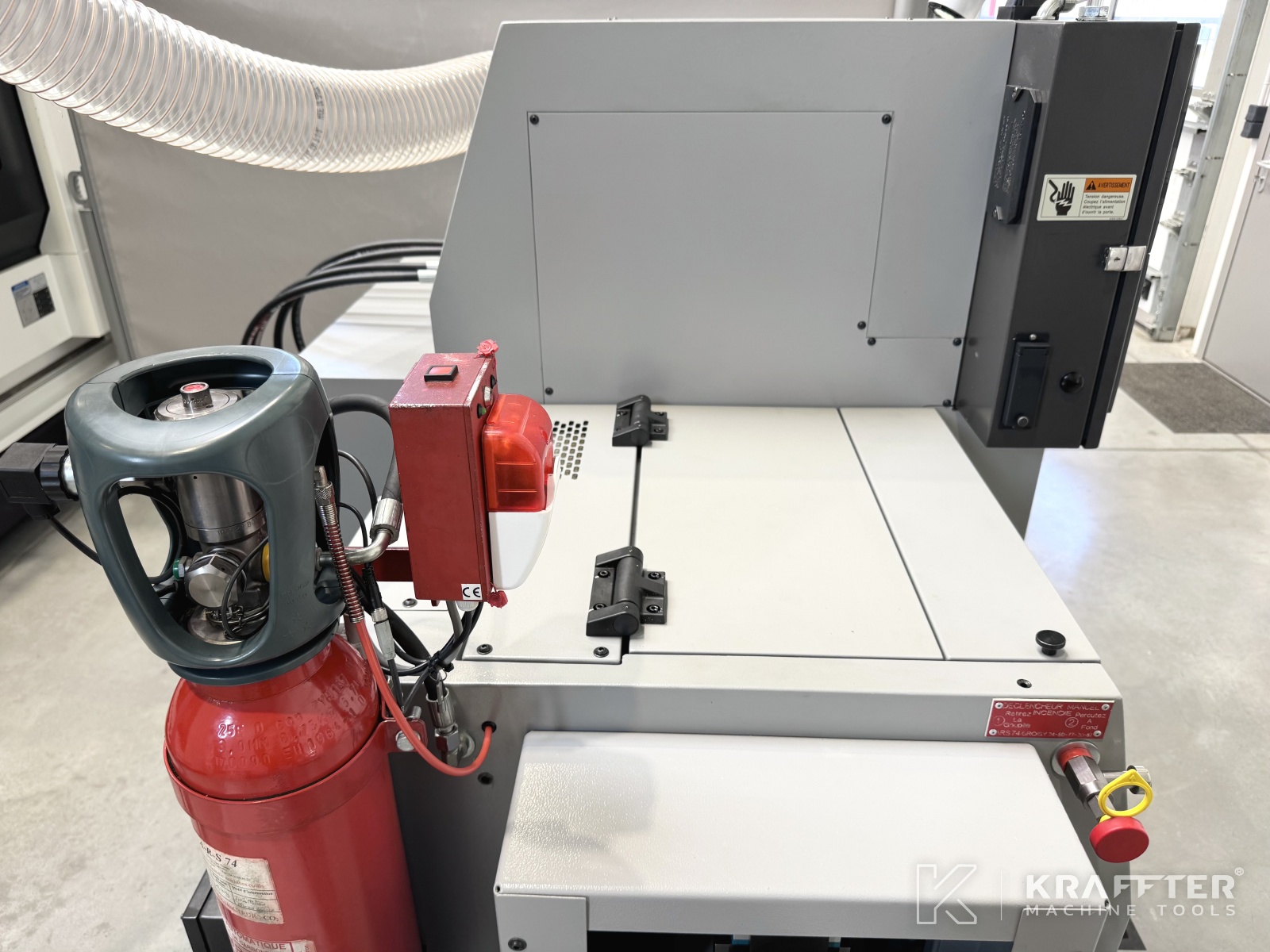

x1 fire protection system - to be inspected by the buyer through a certified organization
-

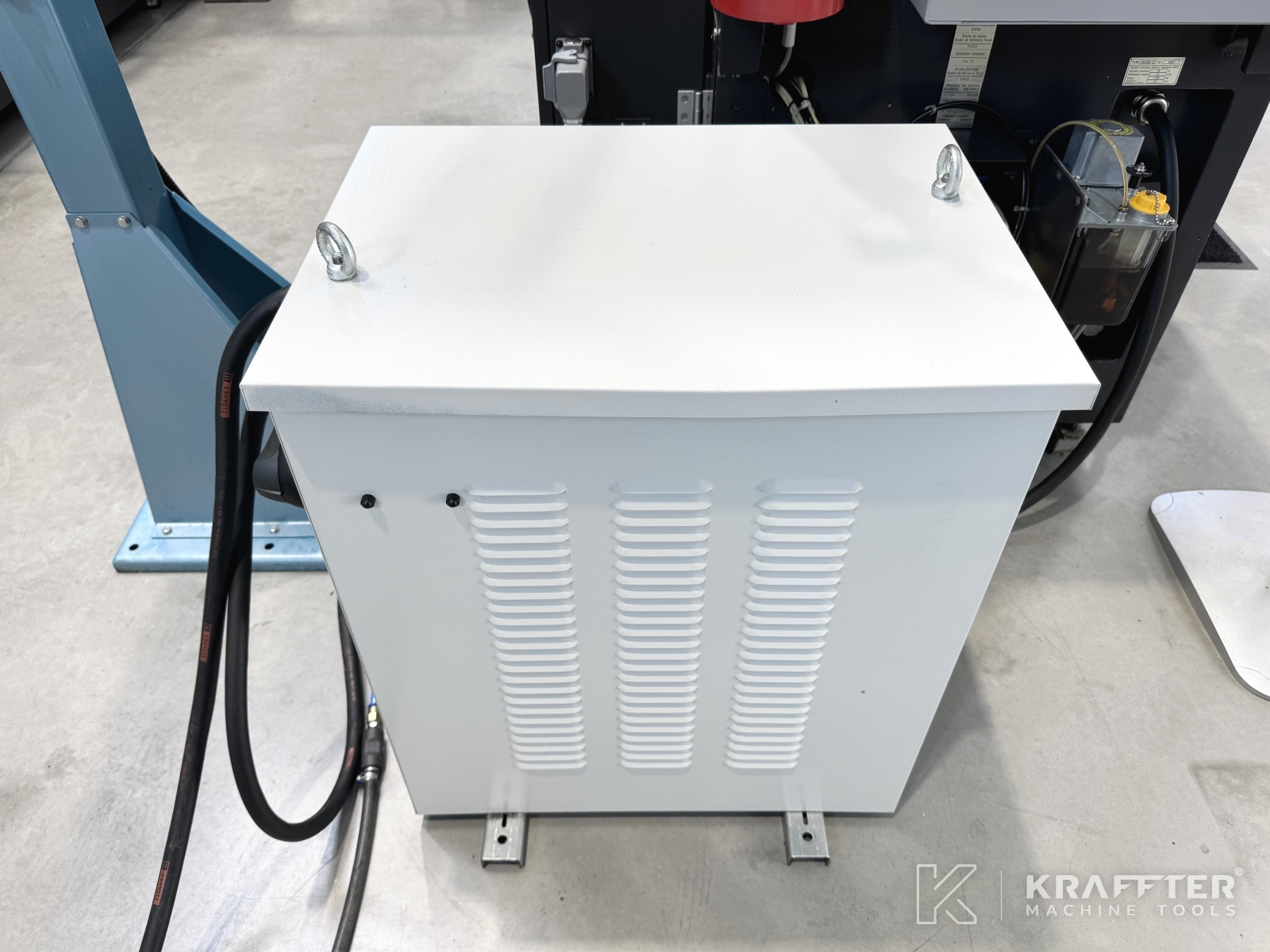

x1 electrical transformer
-
x1 3-color status light
-
x1 set of IEMCA manuals
-
x1 set of FANUC manuals
