New in stock

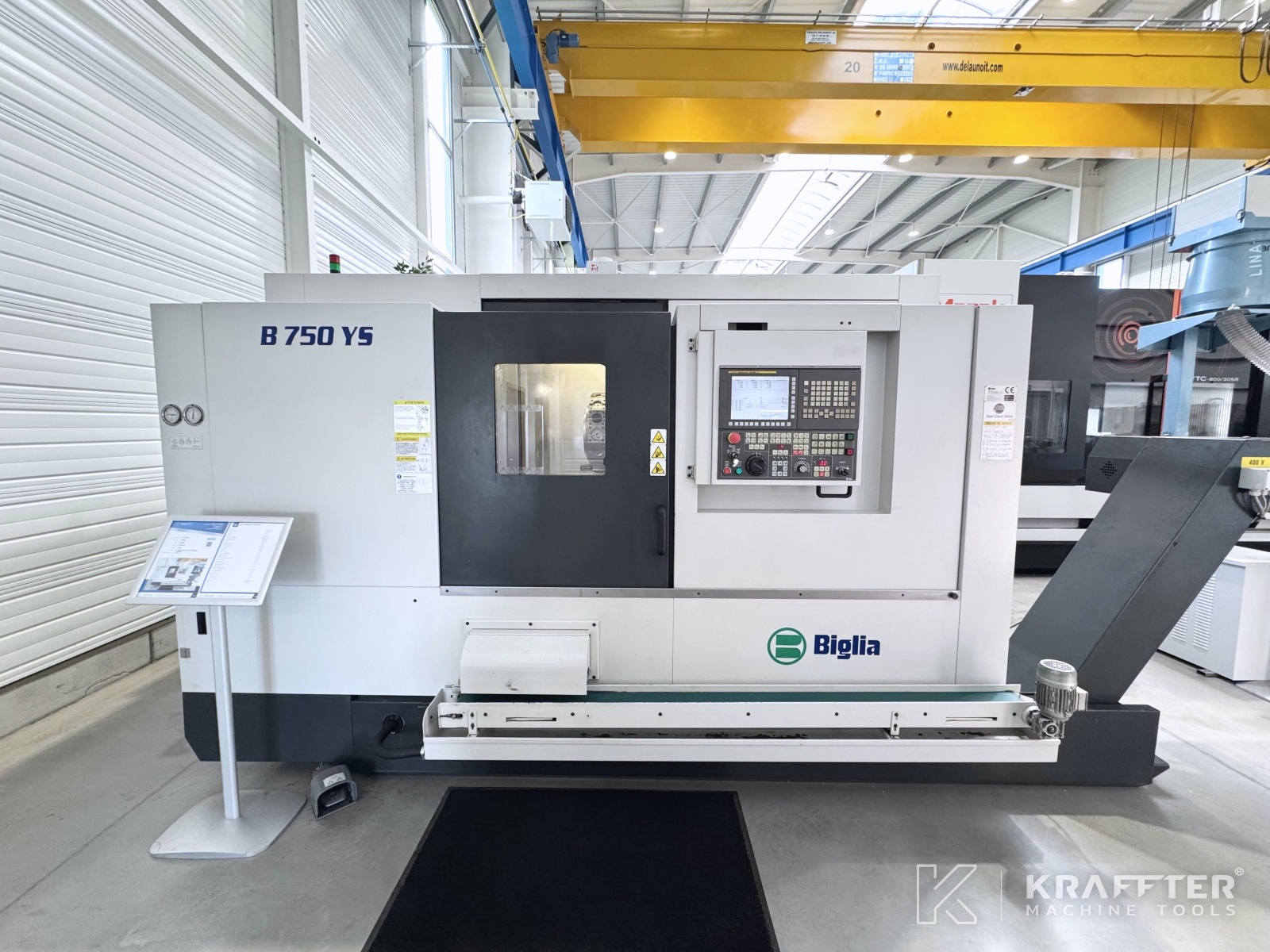

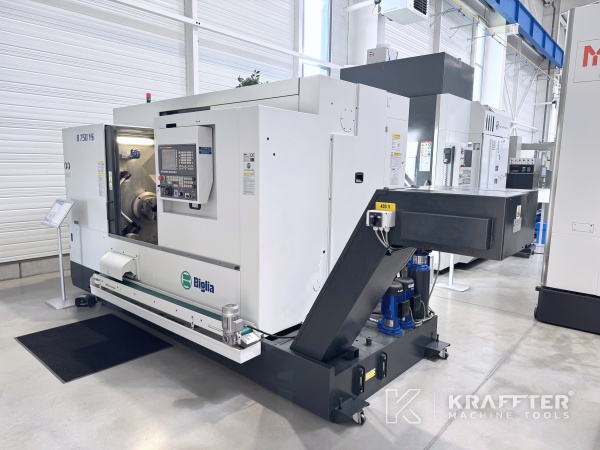

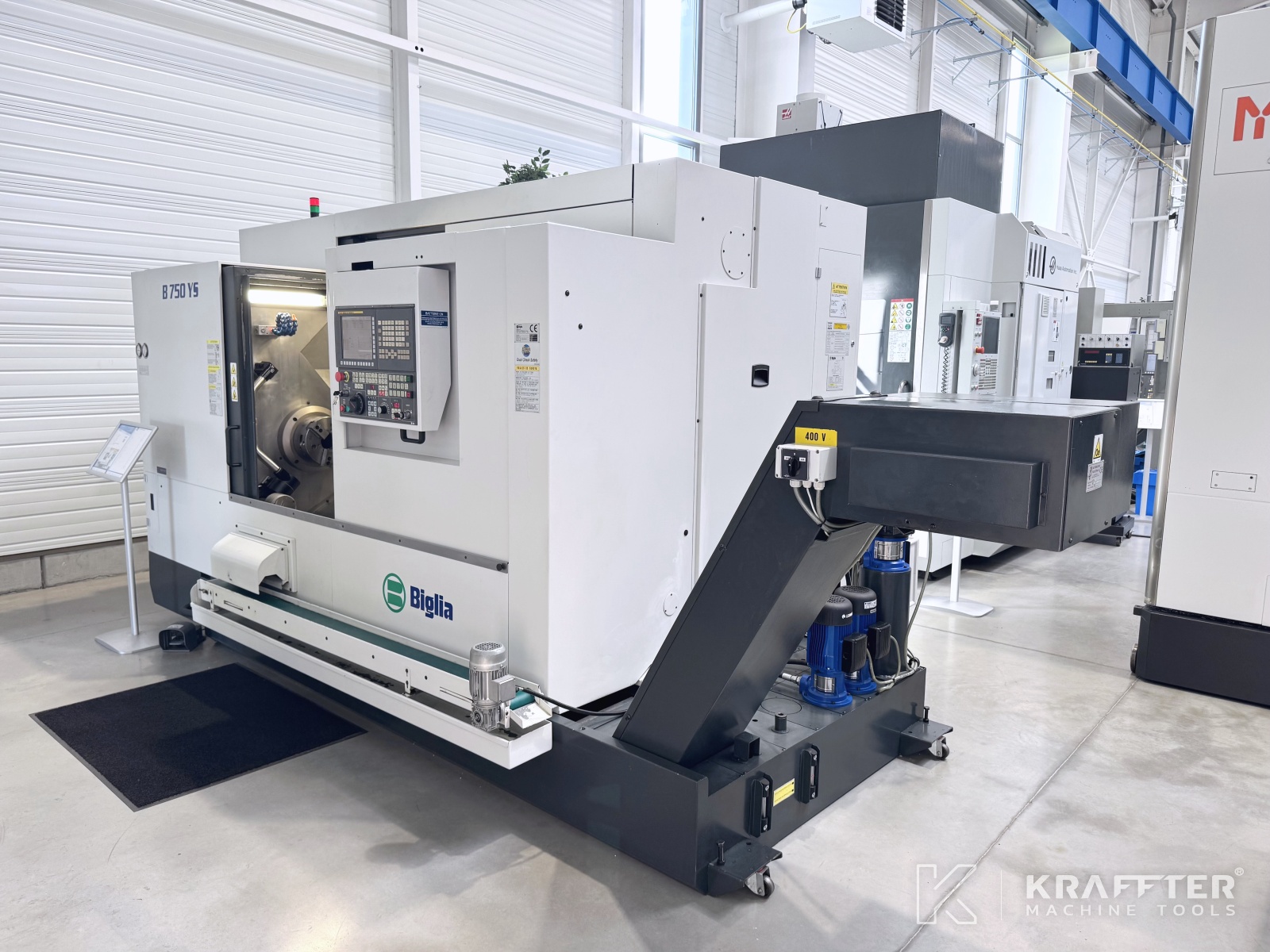

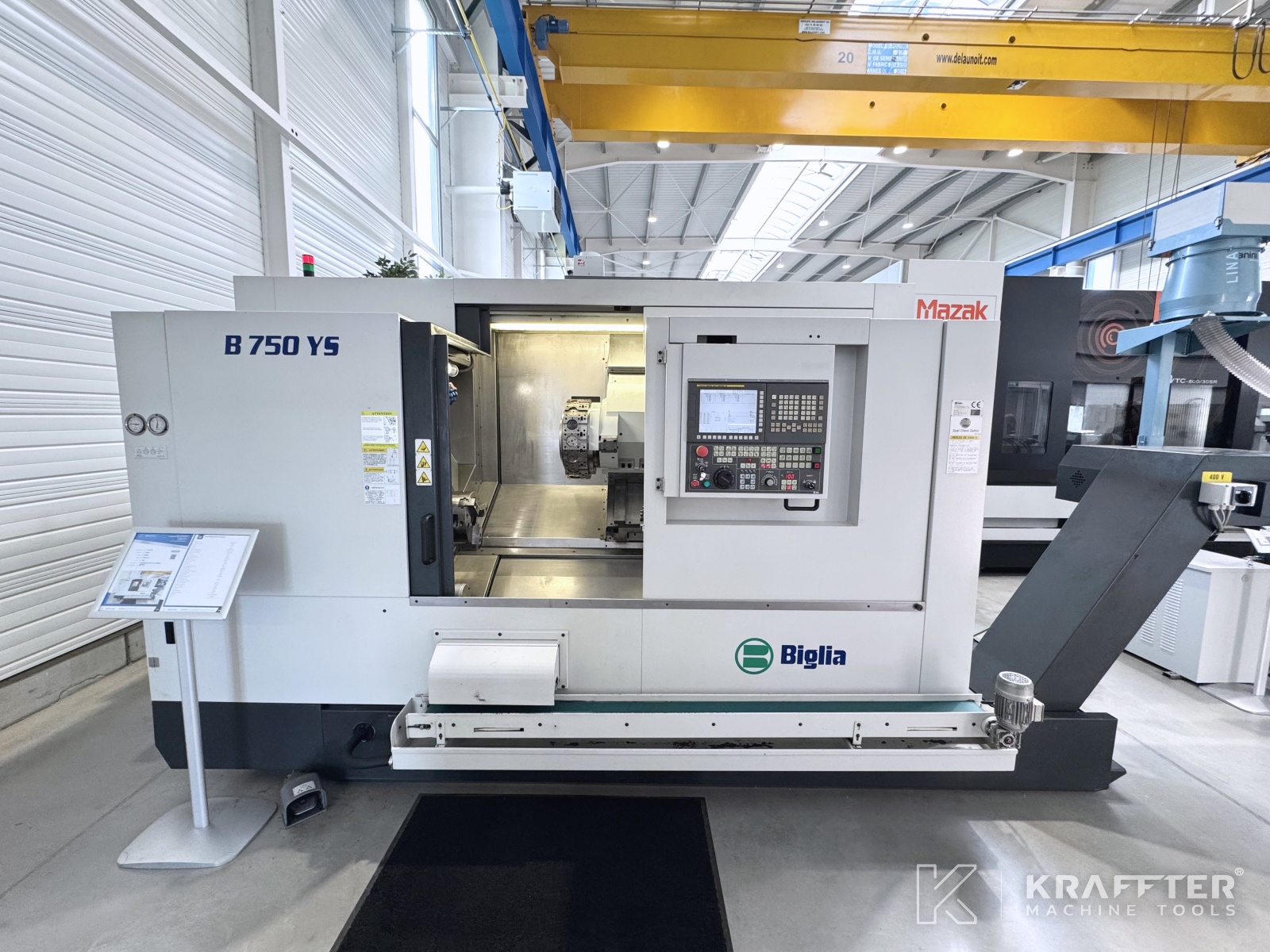

Type of machine : CNC lathe
Brand : BIGLIA
N° de stock: 90183

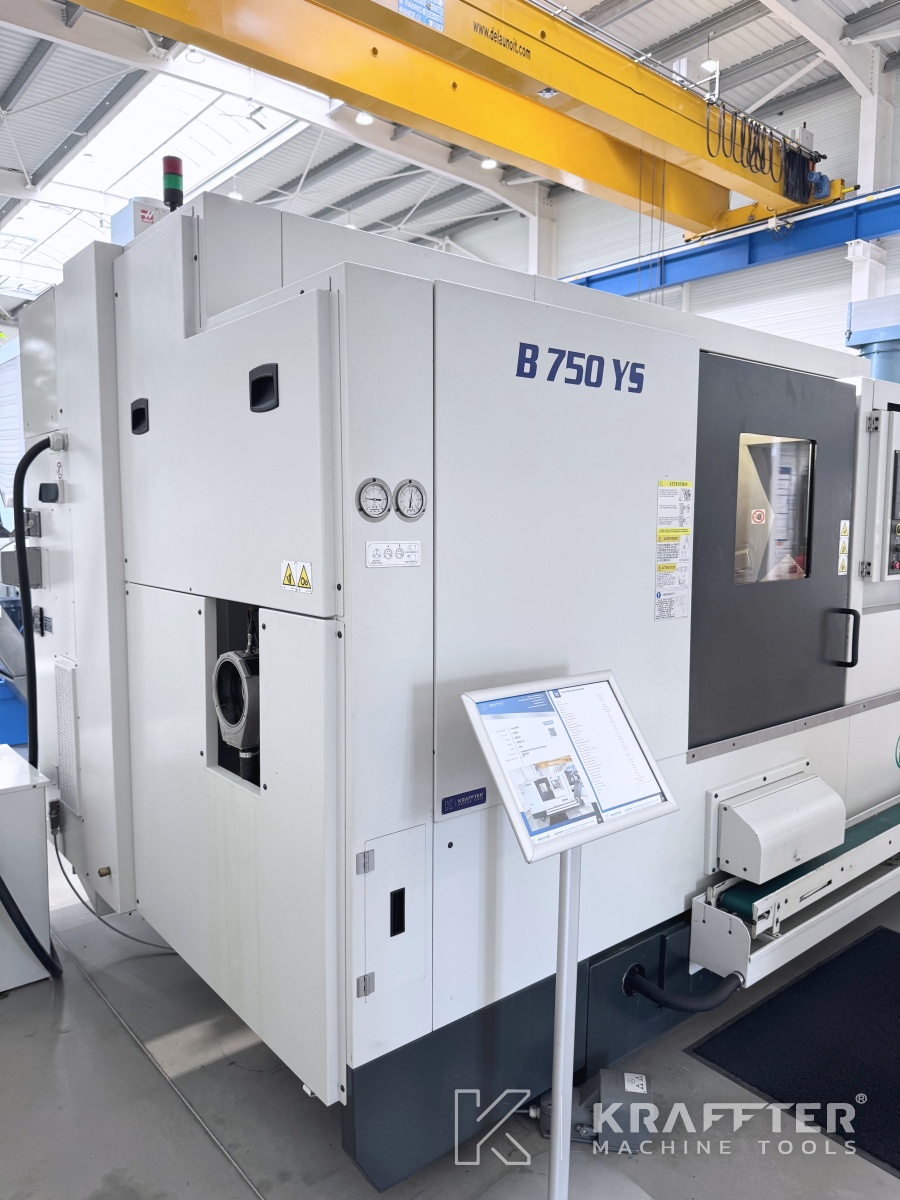

Model : B750-YS
Year : 2015
Location : 73240 Saint-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Request a quotation
Technical characteristics

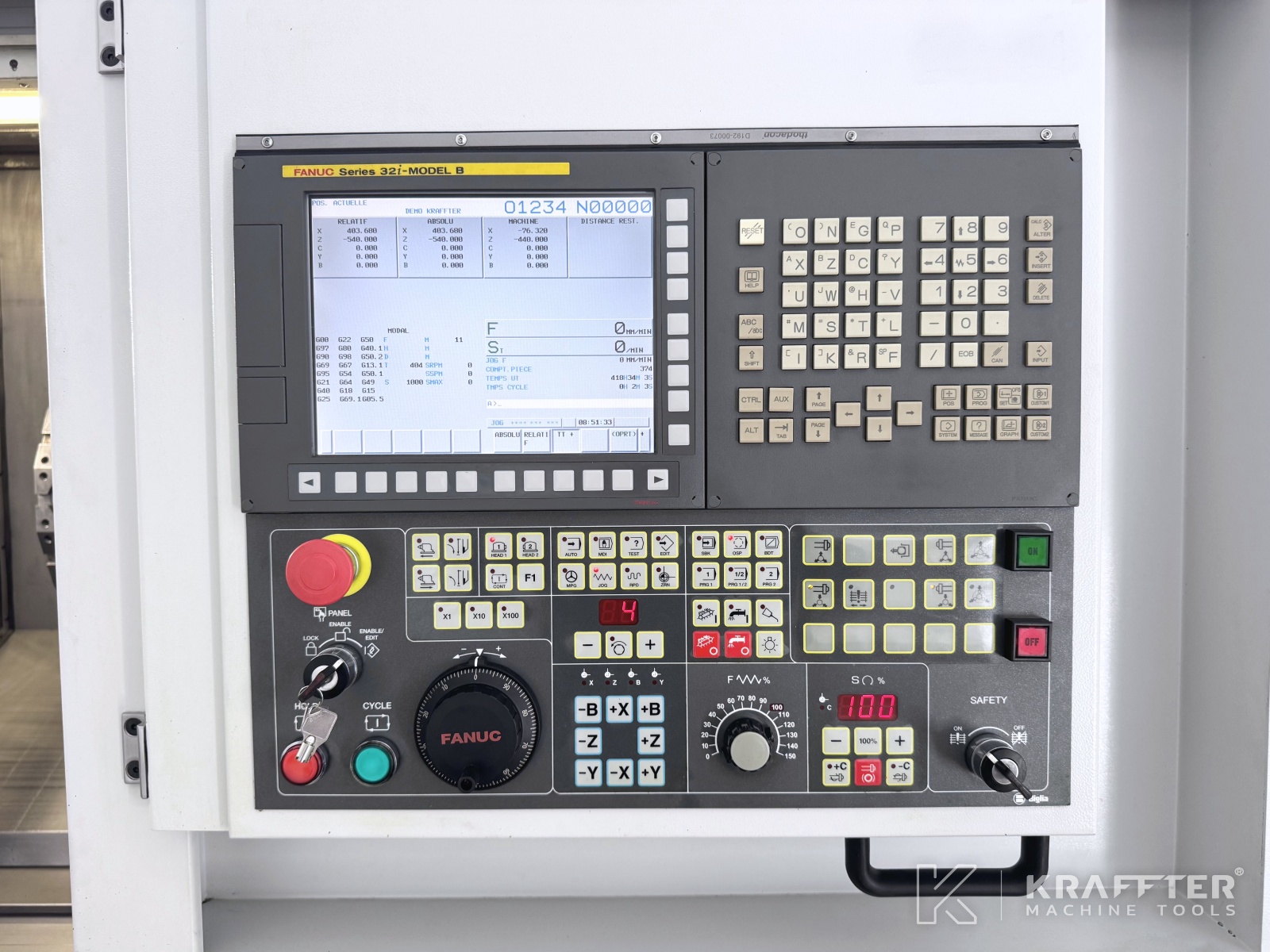

CNC control
FANUC series 32i-B
Max. turning diameter in rotation
680 [mm]
Stroke X axis
305 [mm]
Stroke Y axis
140
Stroke Z axis
860 [mm]
Rapid traverse rate X axis
18000 [mm/min]
Rapid traverse rate Z axis
24000 [mm/min]
Rapid traverse rate Y axis
7500 [mm/min]
Spindle nose
ASA 8"
Max. bar diameter
80 [mm]
Spindle throughbore
91 [mm]
Max. spindle speed
3500 [rpm]
Increment C-axis
0.001 [°]
Spindle power
22 [kW]
Spindle torque
700 [Nm]
Counter spindle nose
ASA 5"
Counter spindle throughbore
55 [mm]
Counter spindle stroke
895 [mm]
Max. counter spindle speed
5000 [rpm]
Counter spindle increment C-axis
0.001 [°]
Counter spindle power
25 [kW]
Counter spindle torque
159 [Nm]
Max. tool holder cross-section
25 x 25 [mm]

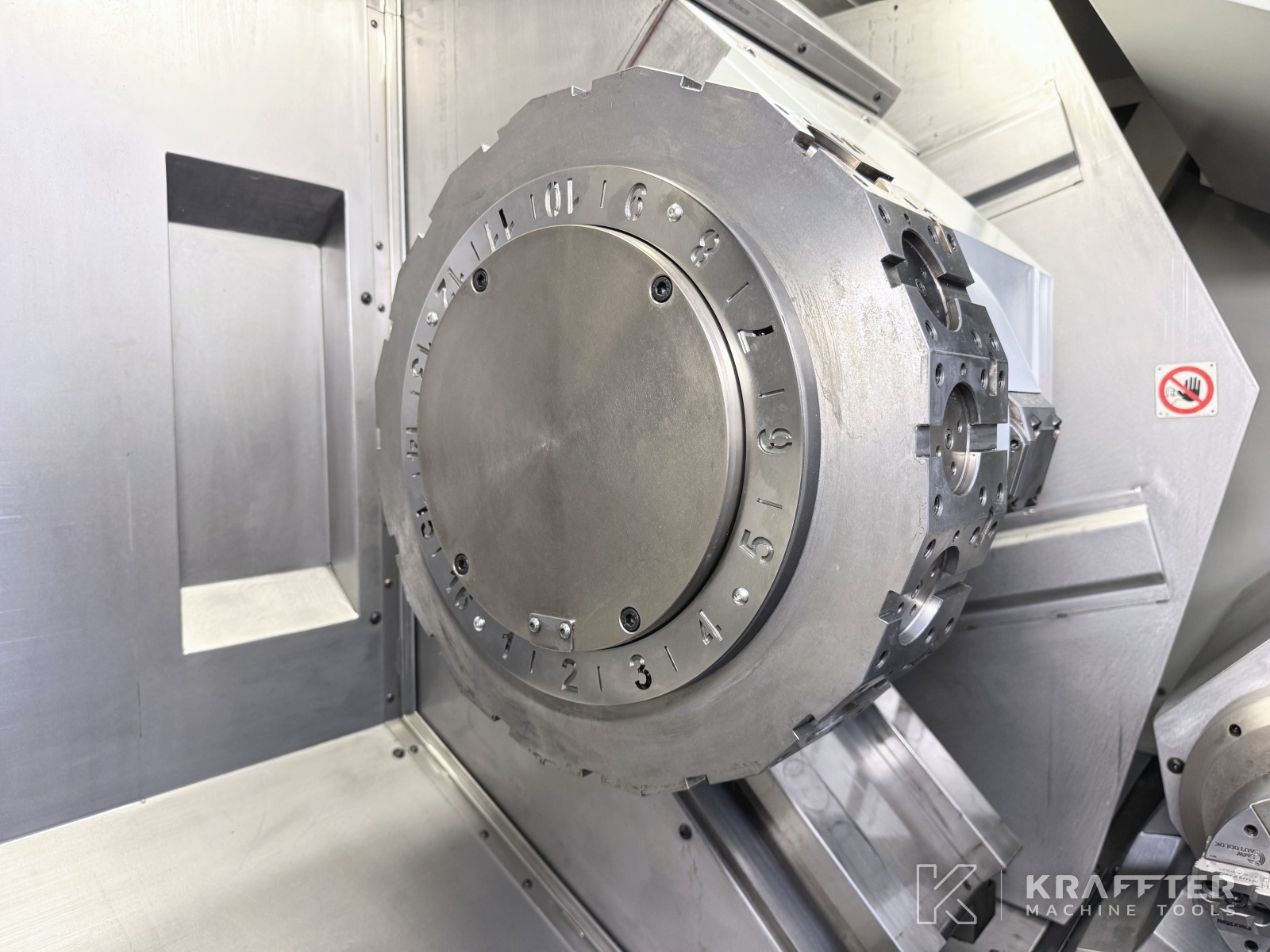

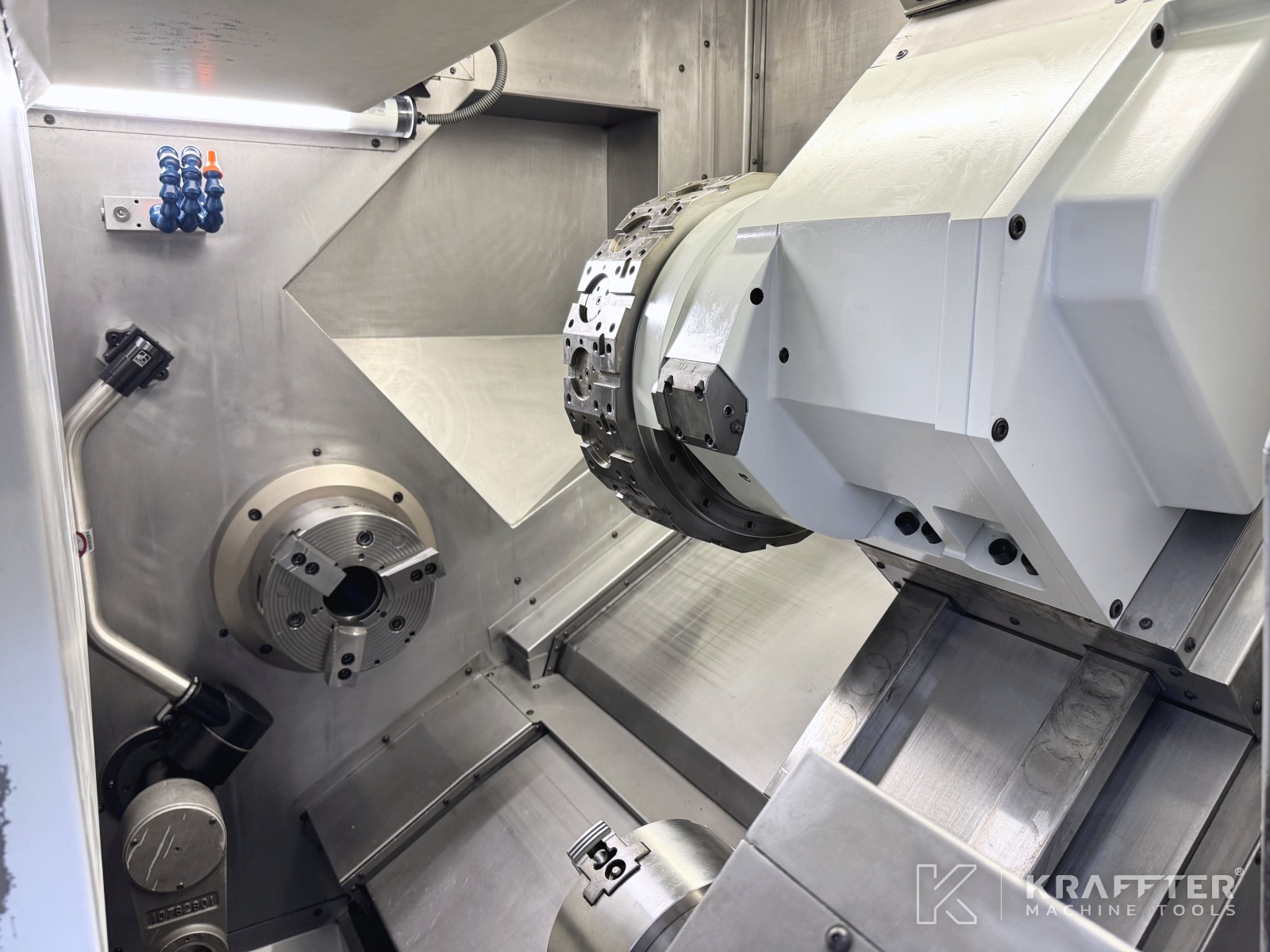

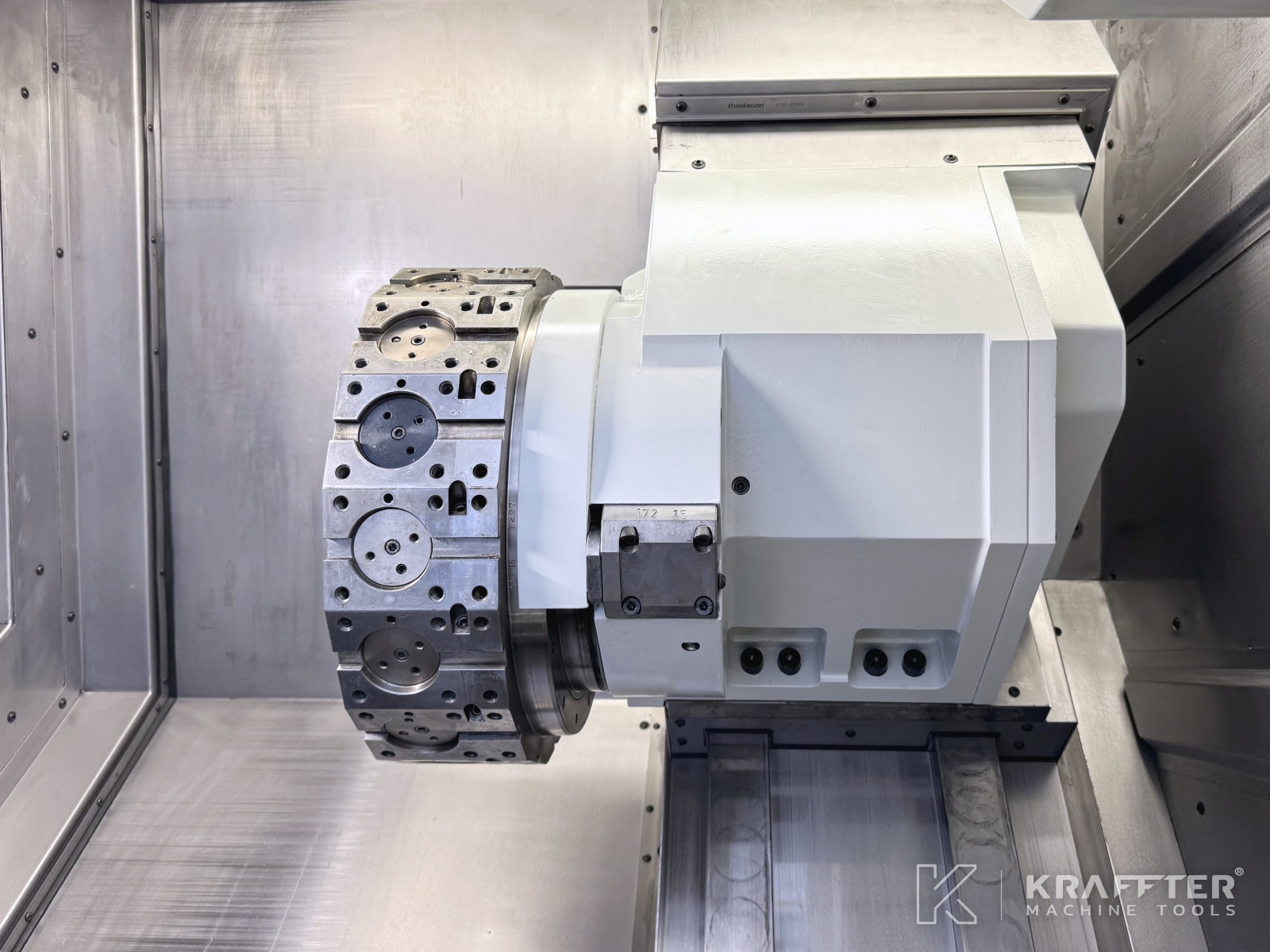

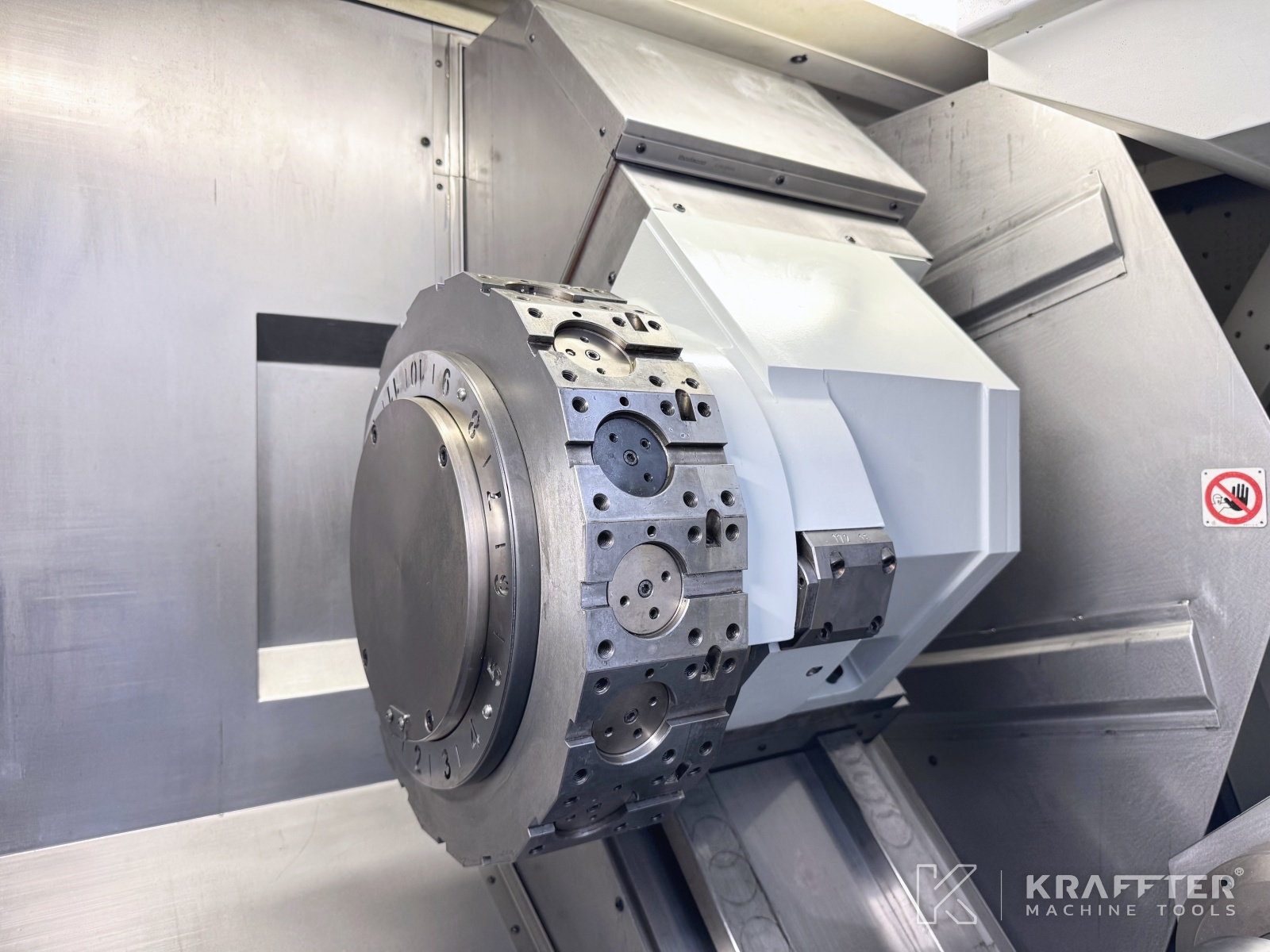

Number of tool stations
16
Turret indexing time
0.3 [s/pos]
Number of tool stations driven
16
Max. speed driven tools
6000 [rpm]
Live tools power
17.5 [kW]
Lubrication tank capacity
300 [l]
Collant pump flow rate
60 [l/min]
Rated current
60 [A]

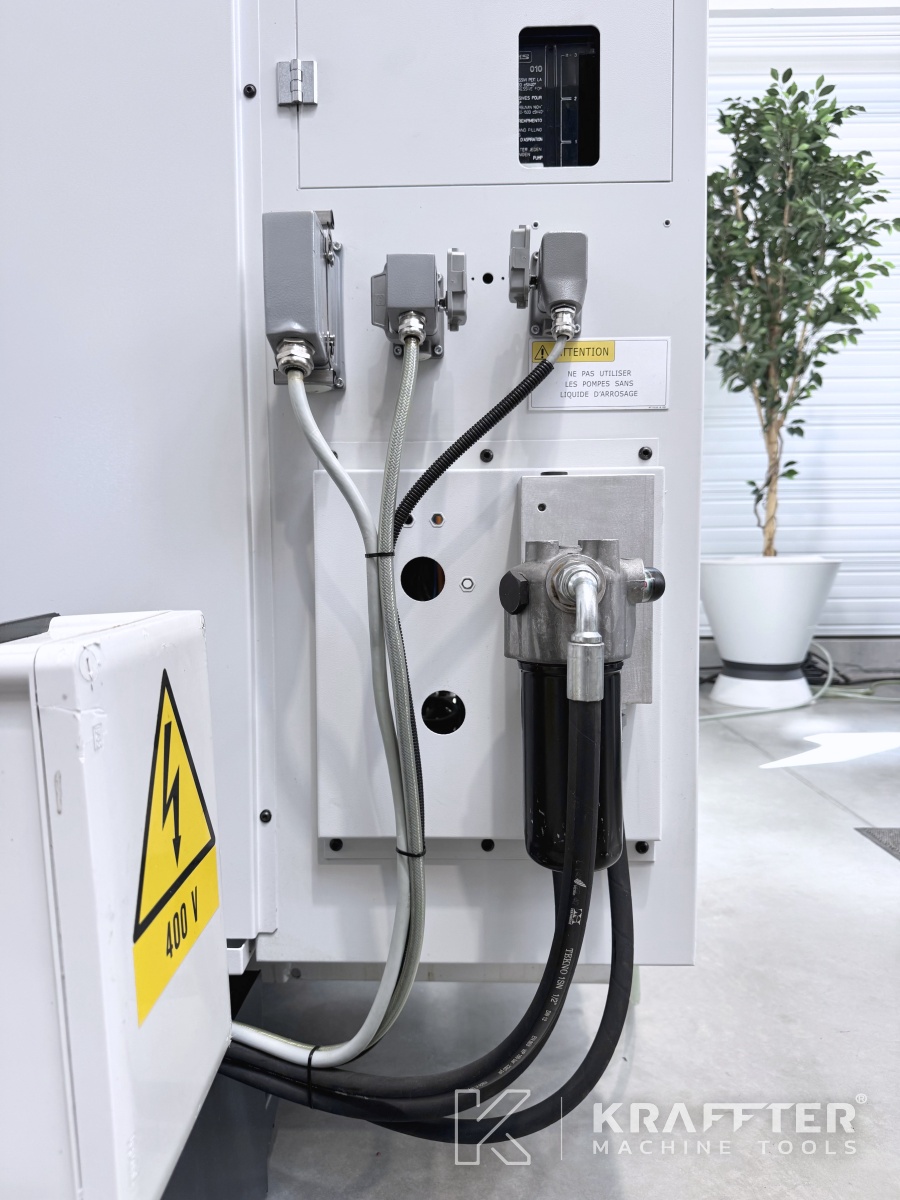

Supply voltage
400 [V]
Number of cutting hours
5674 [h]
Dimensions
5070 x 2030 x 2220 [mm]
Weight
7600 [Kg]
Additional information

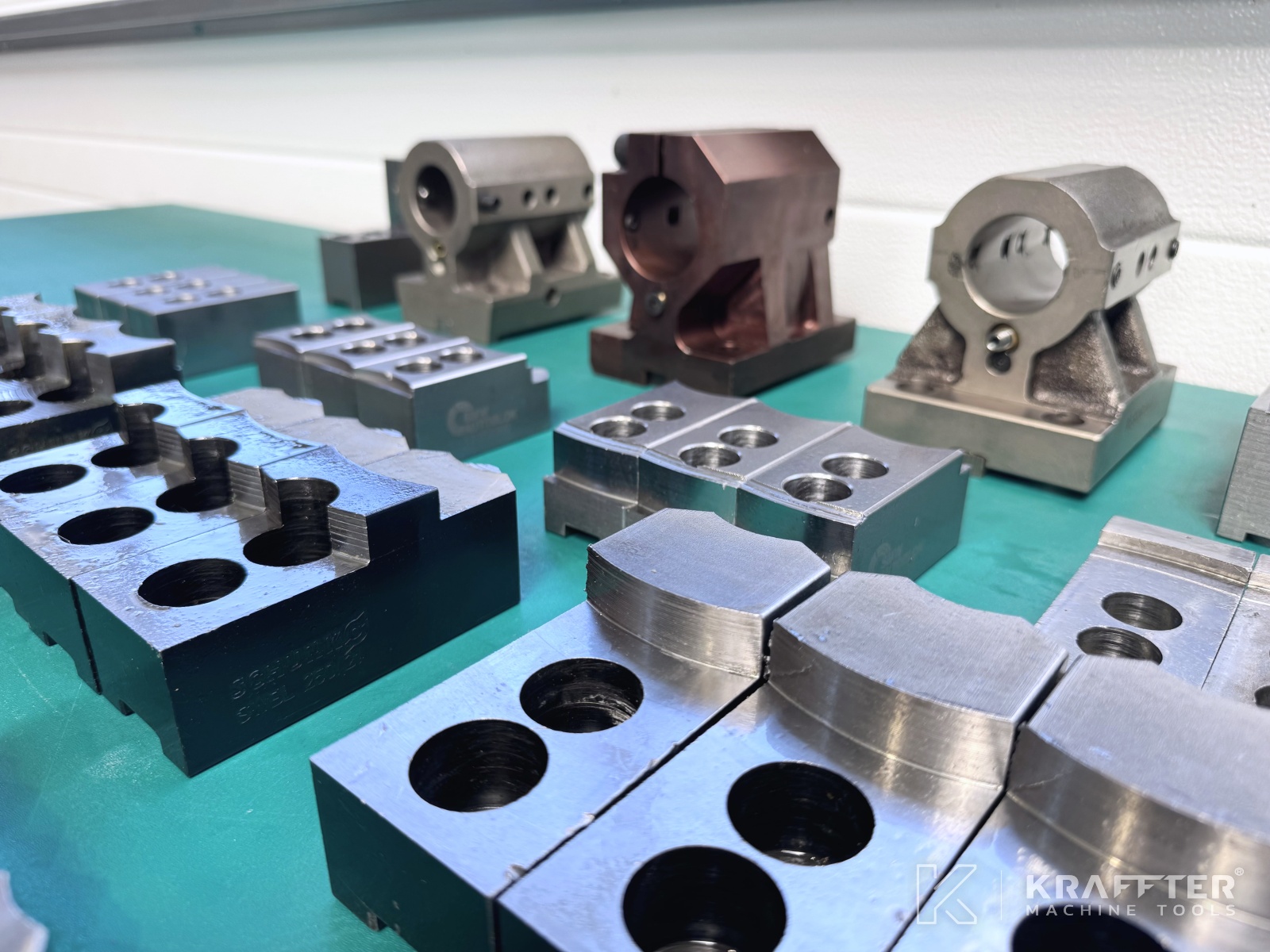

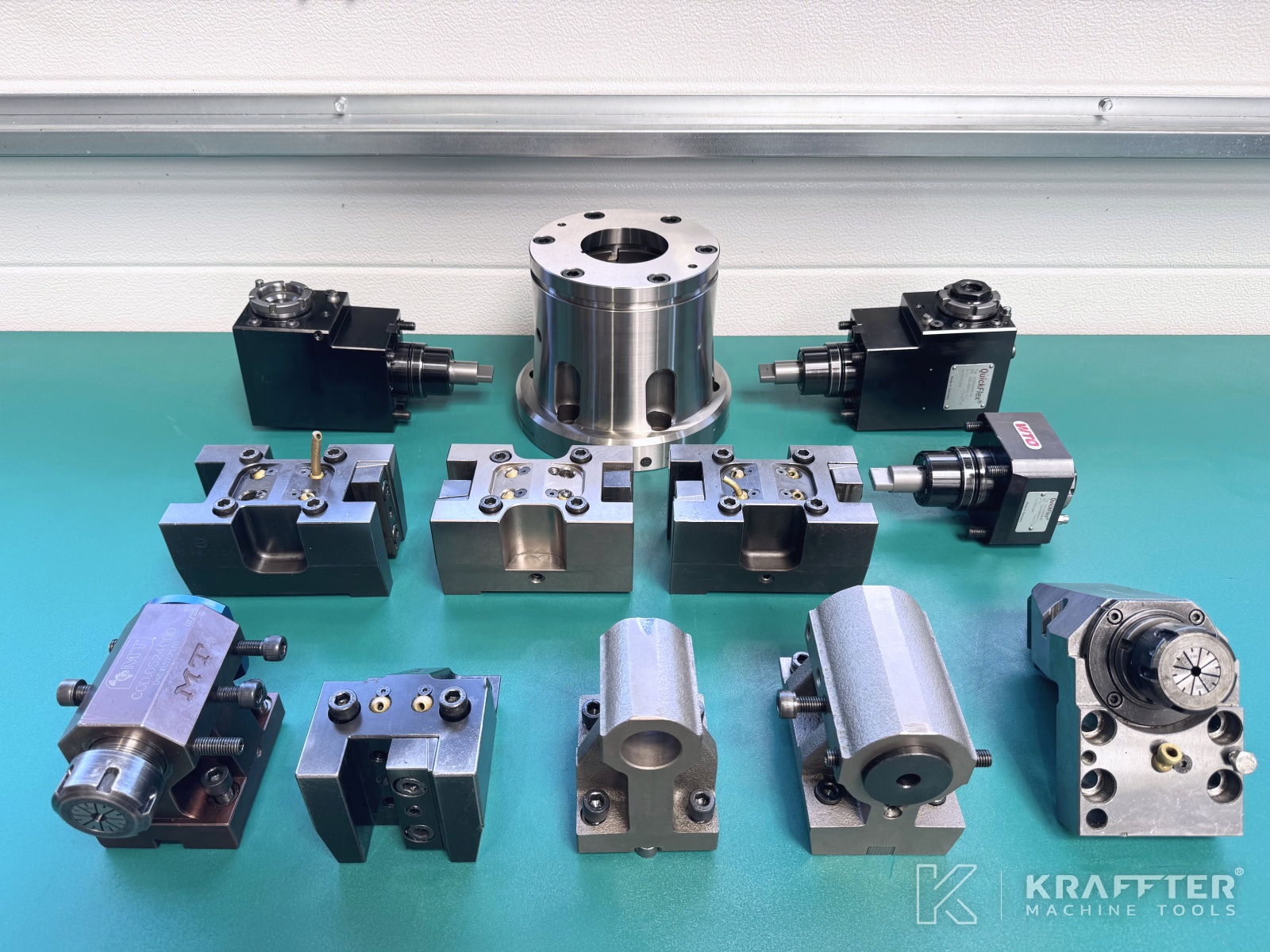

INCLUDED EQUIPMENT:

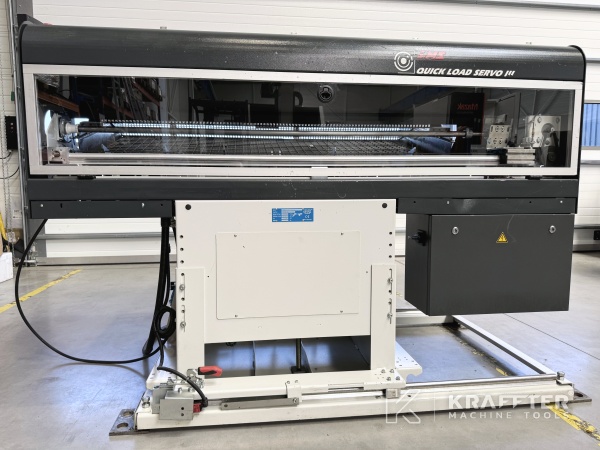

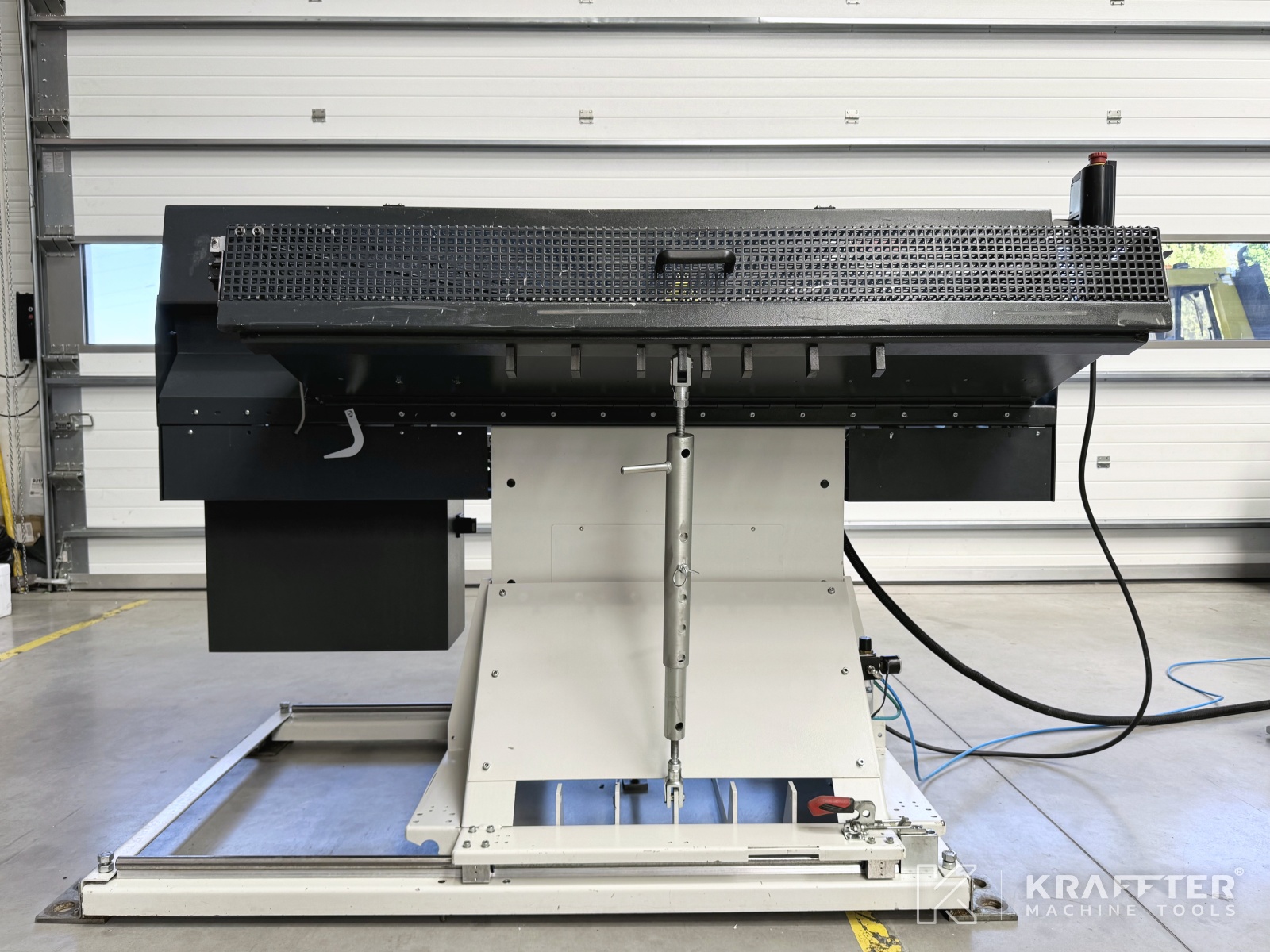

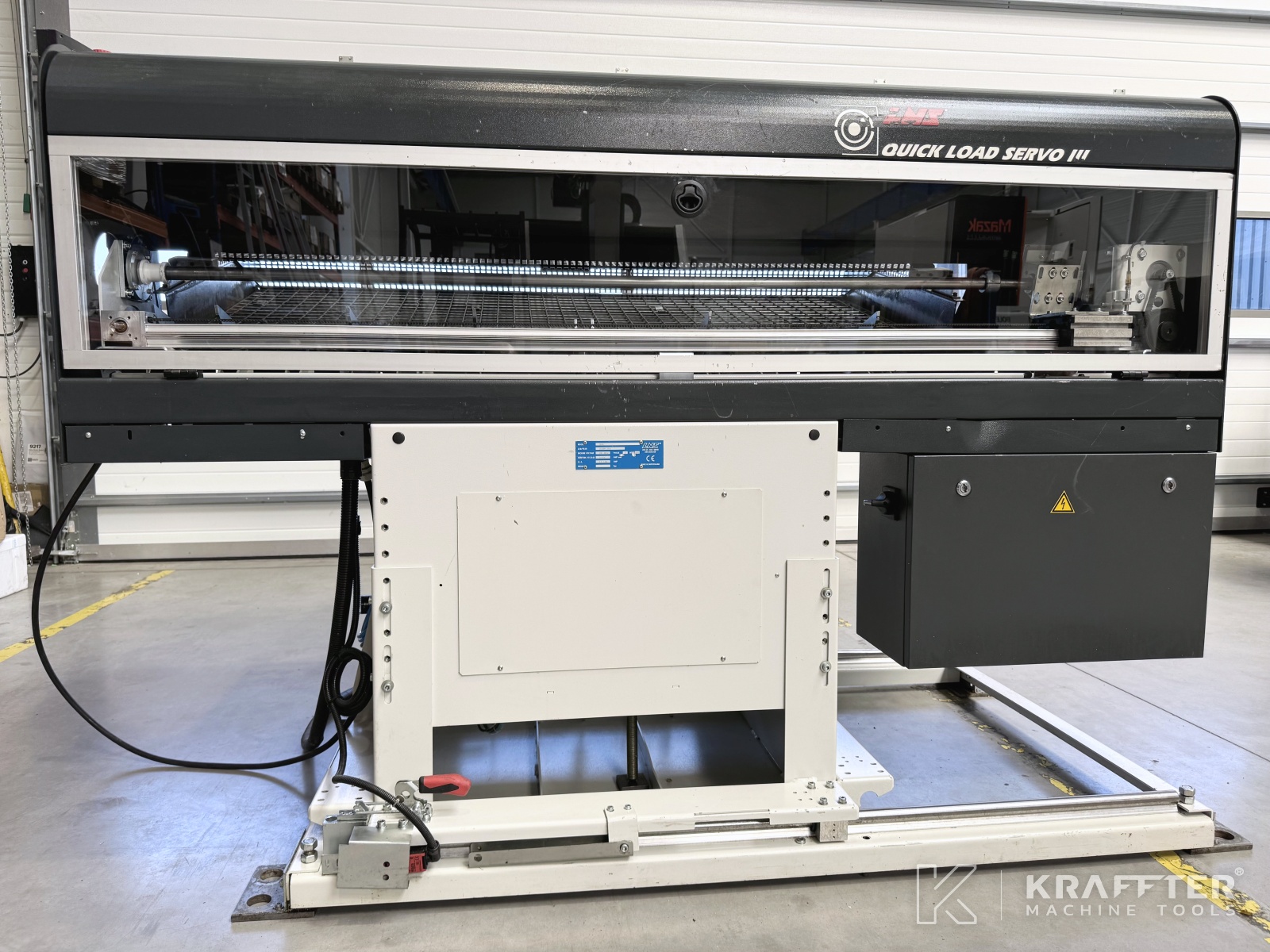

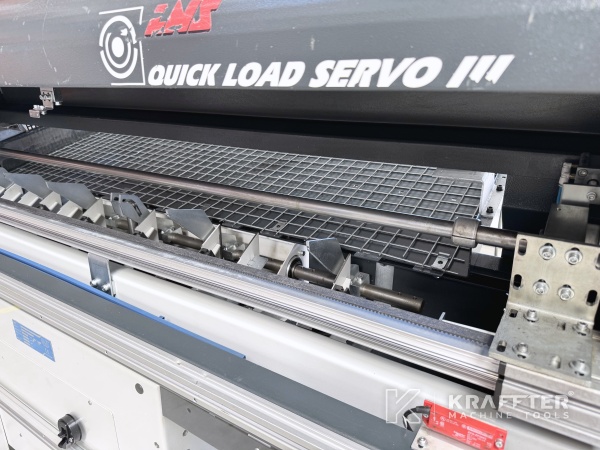

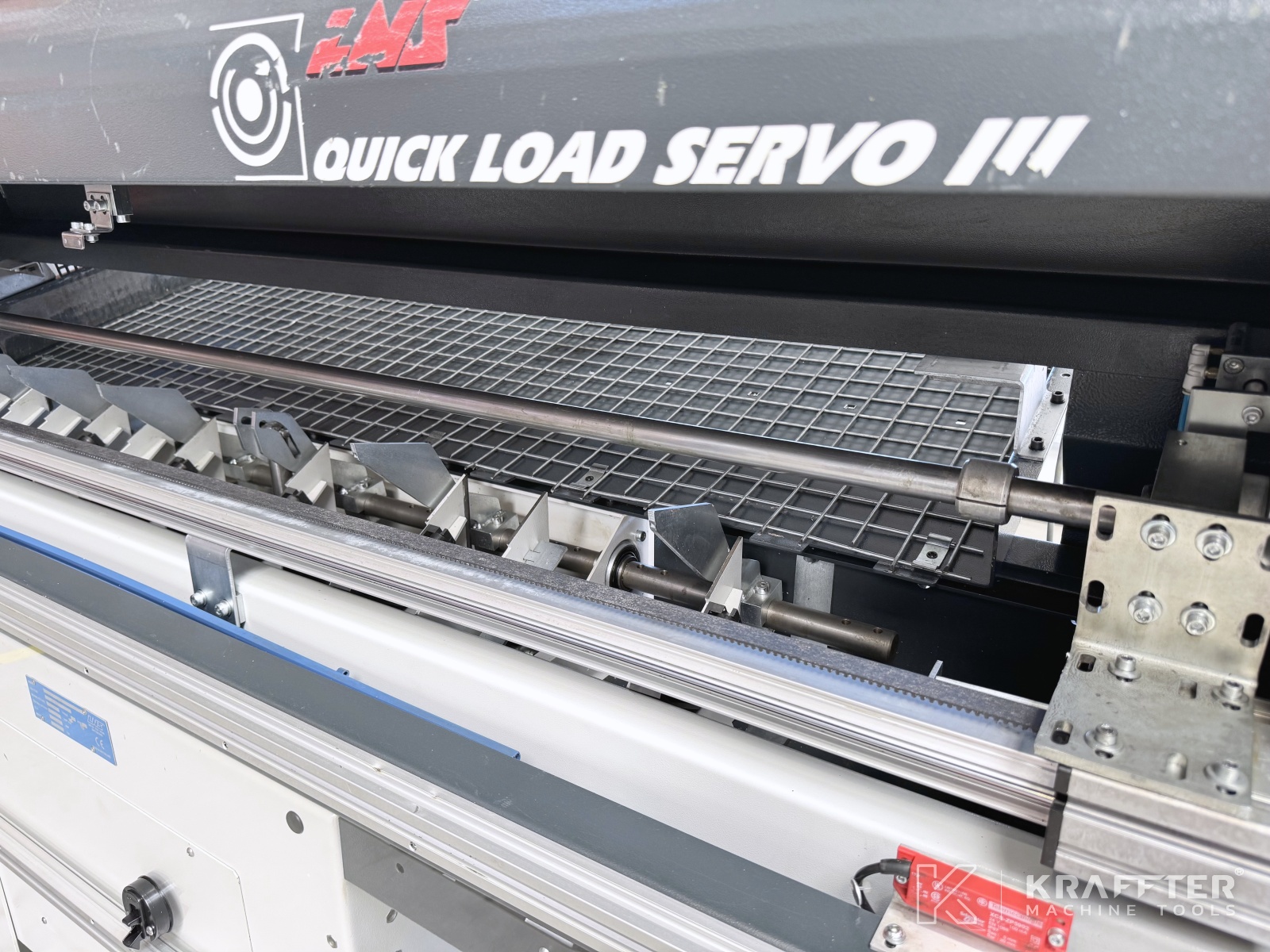

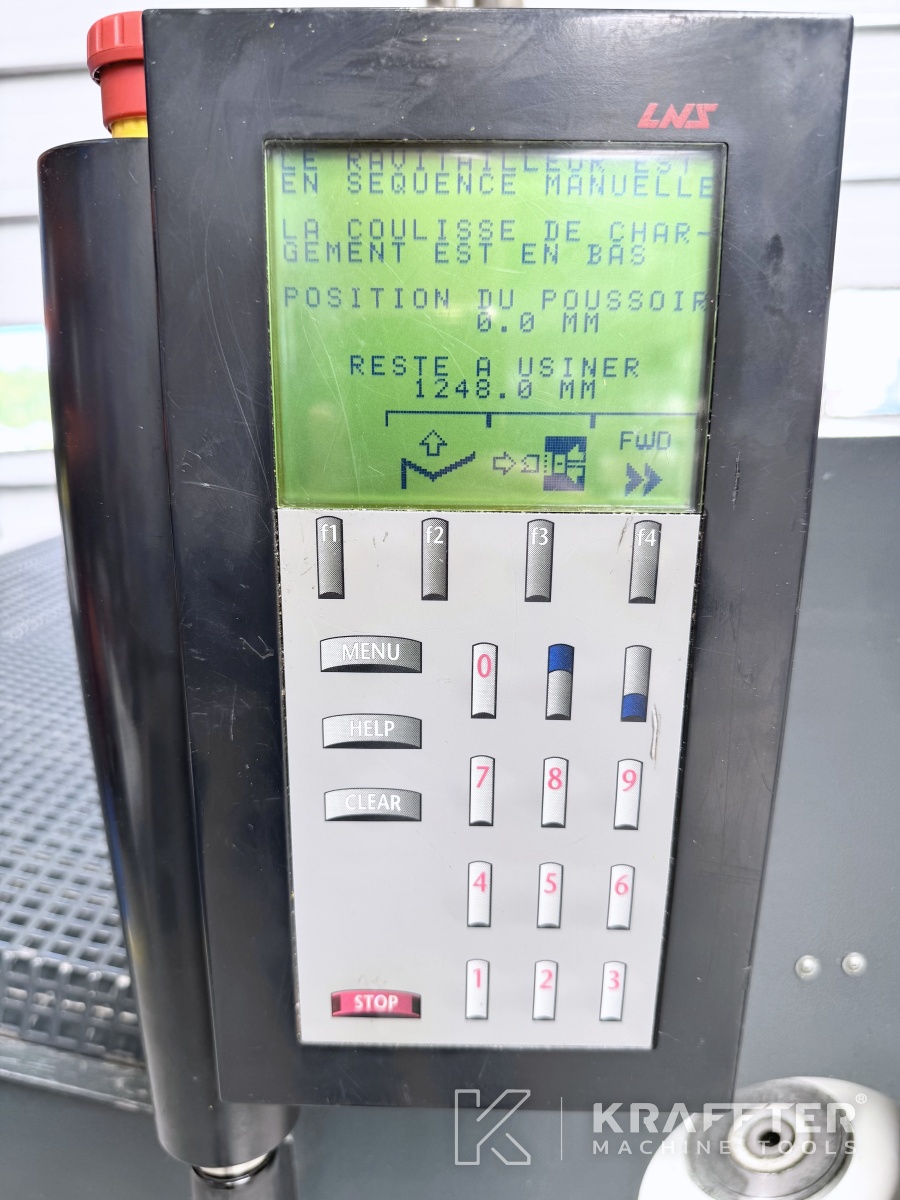

- 1 LNS bar feeder, Quick Load Servo III type

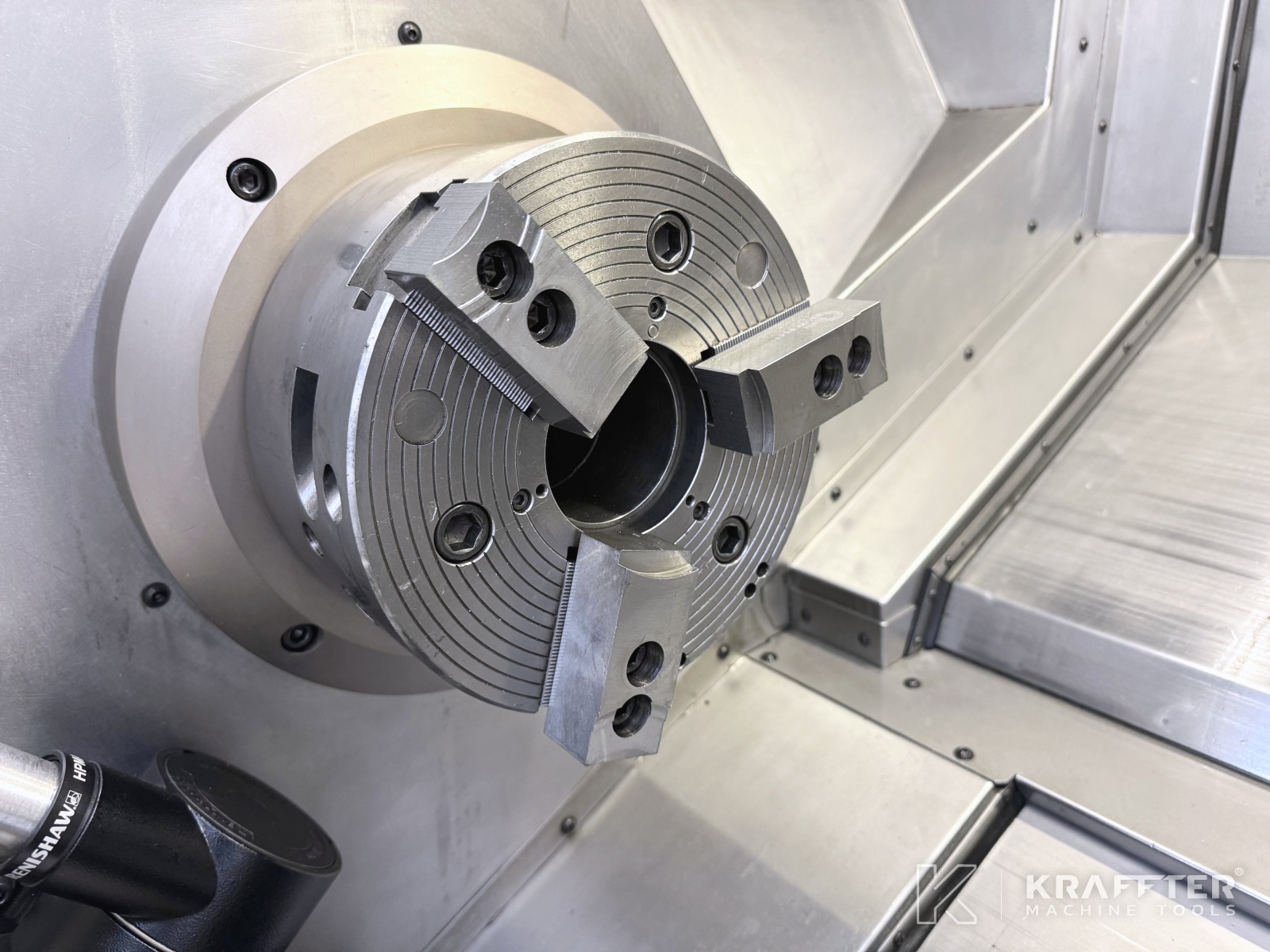

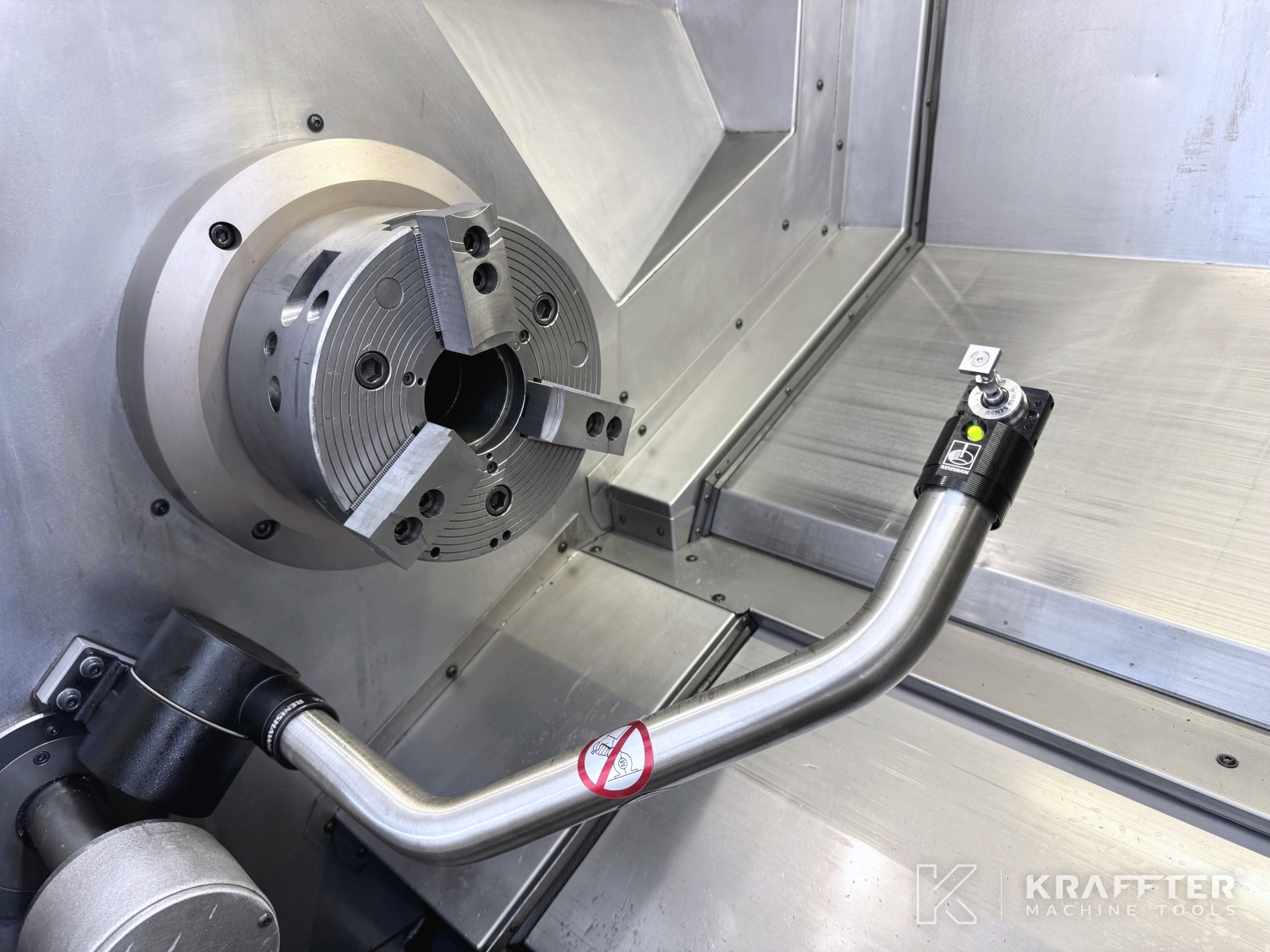

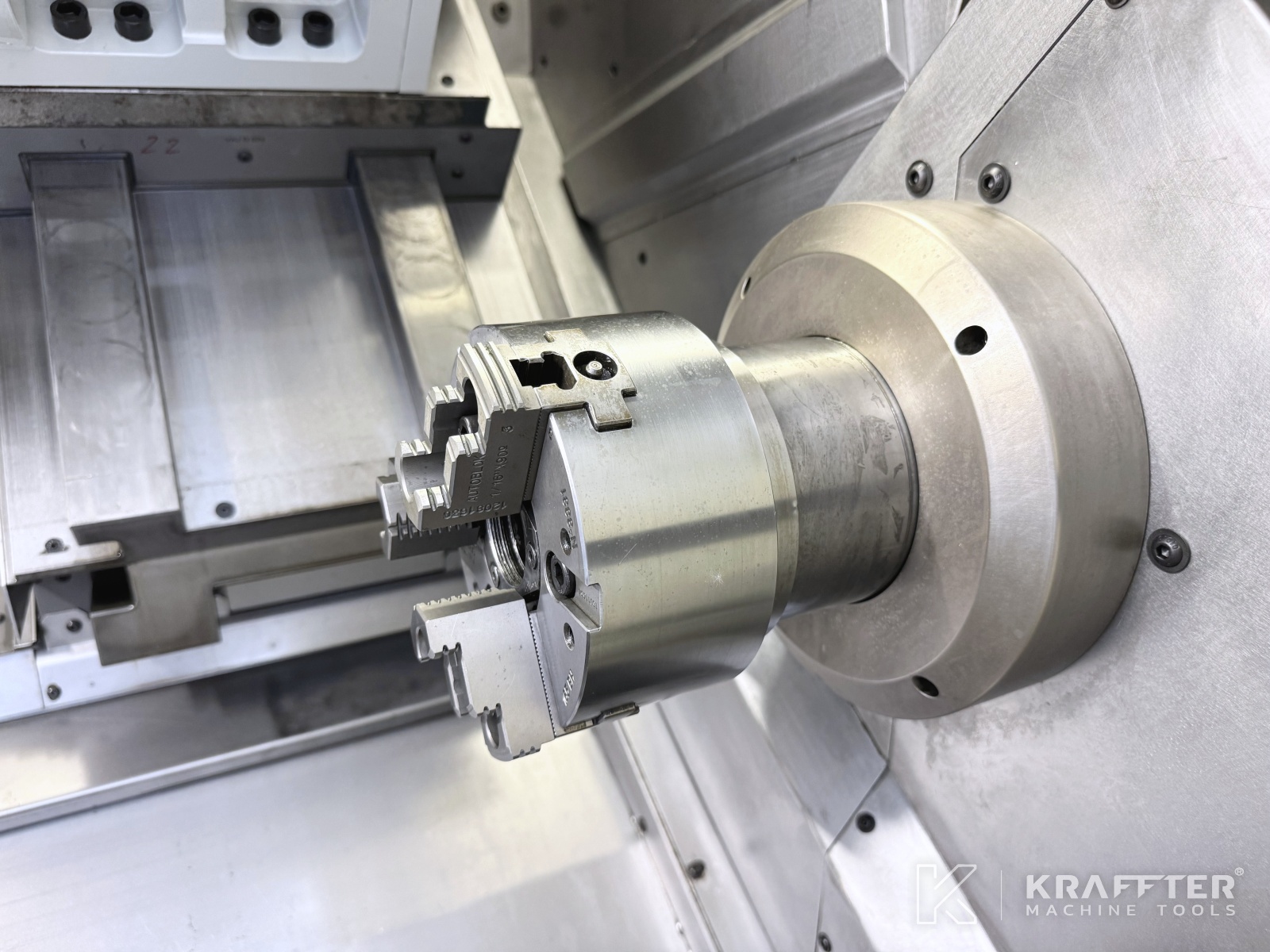

- 1 three-jaw chuck Ø250 mm
- 1 three-jaw chuck Ø165 mm

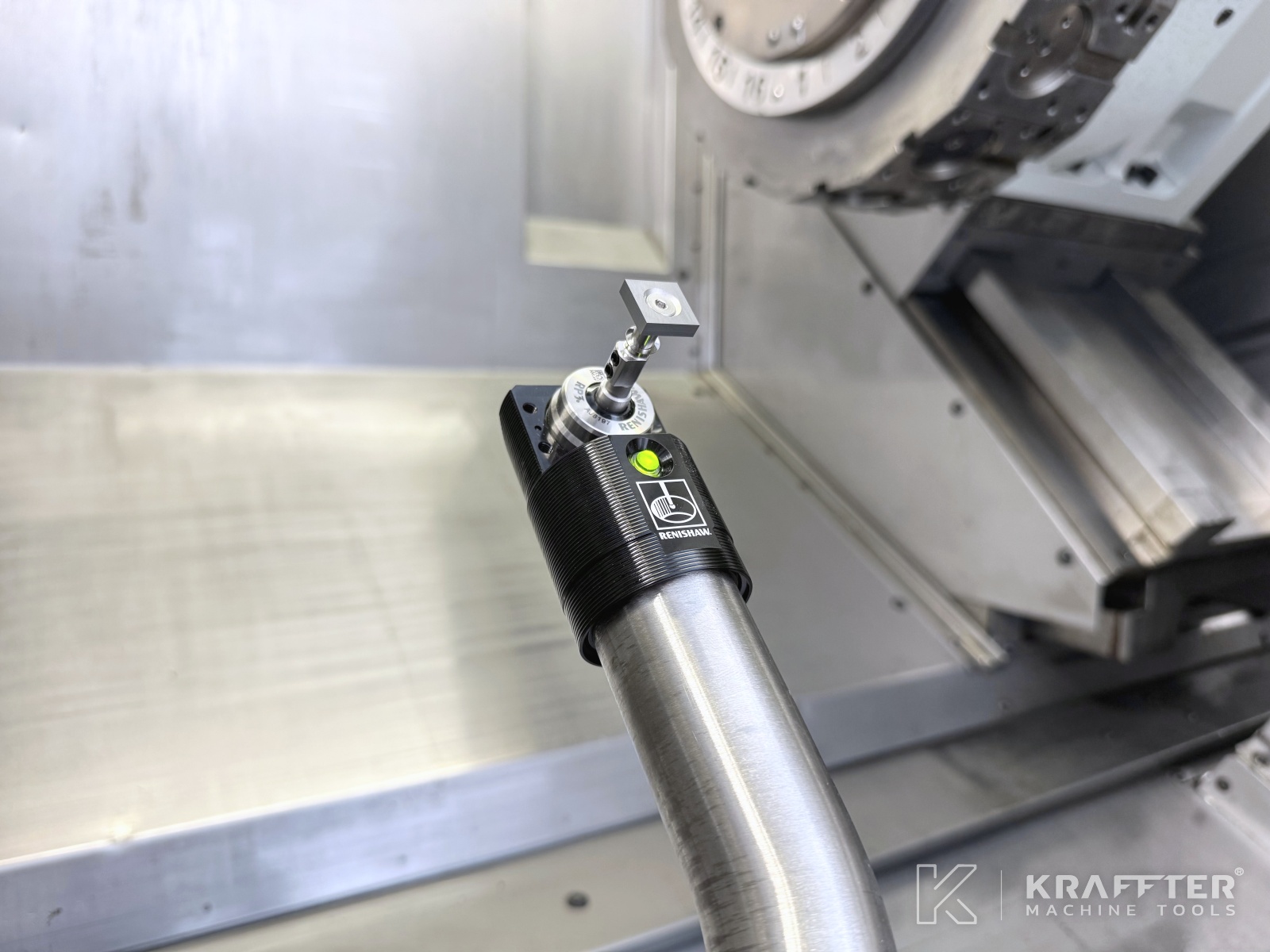

- 1 automatic RENISHAW tool probe

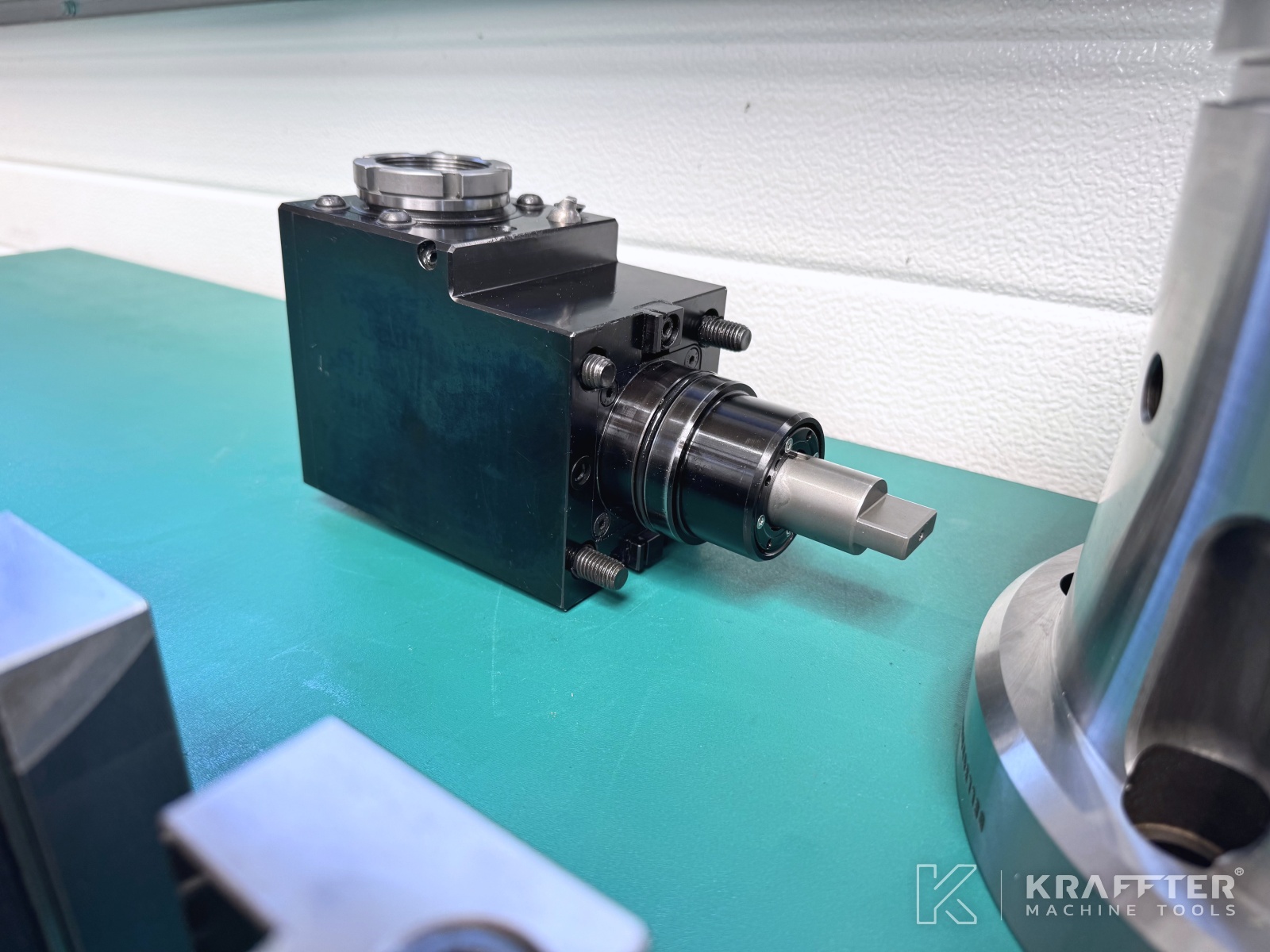

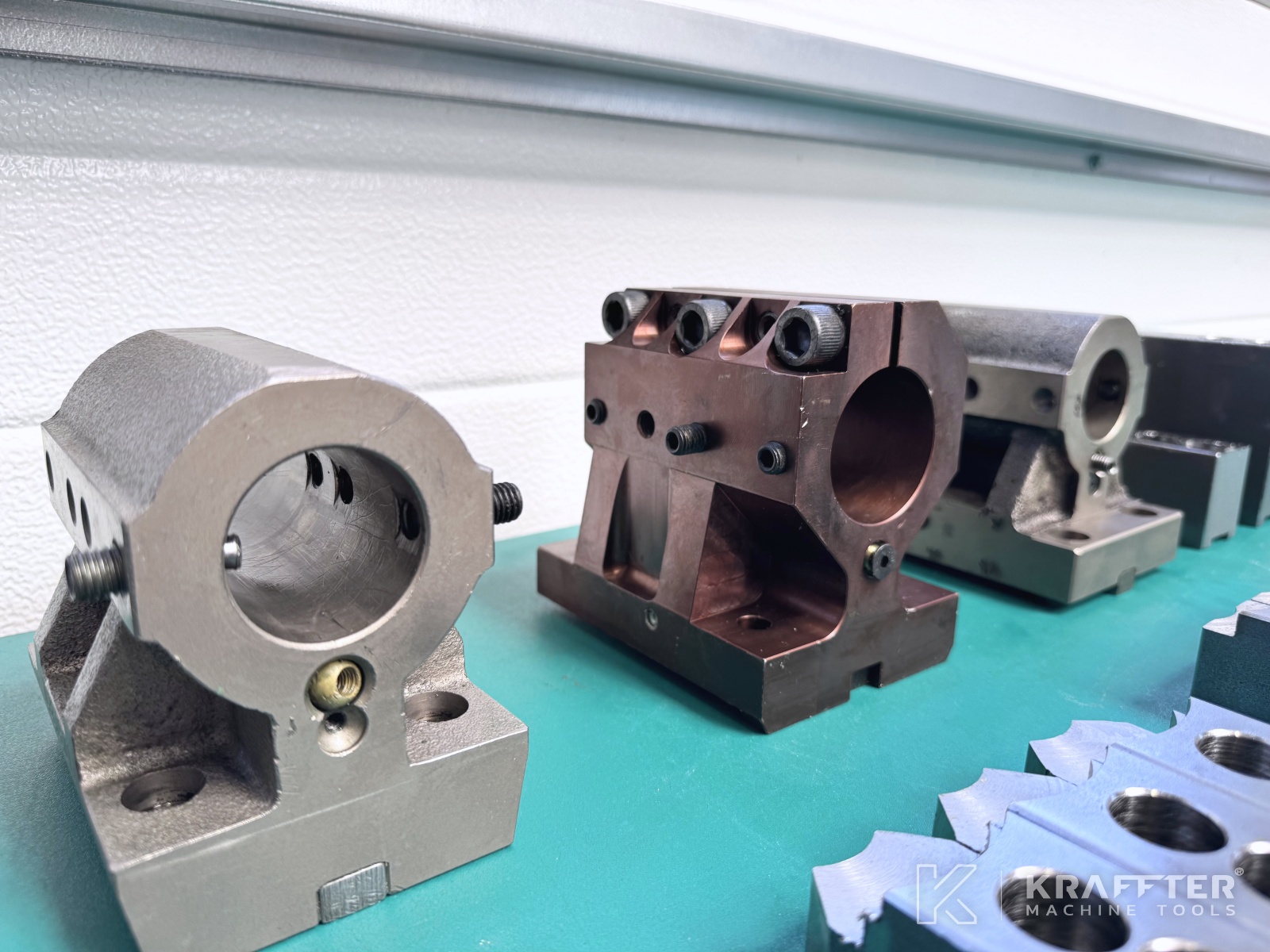

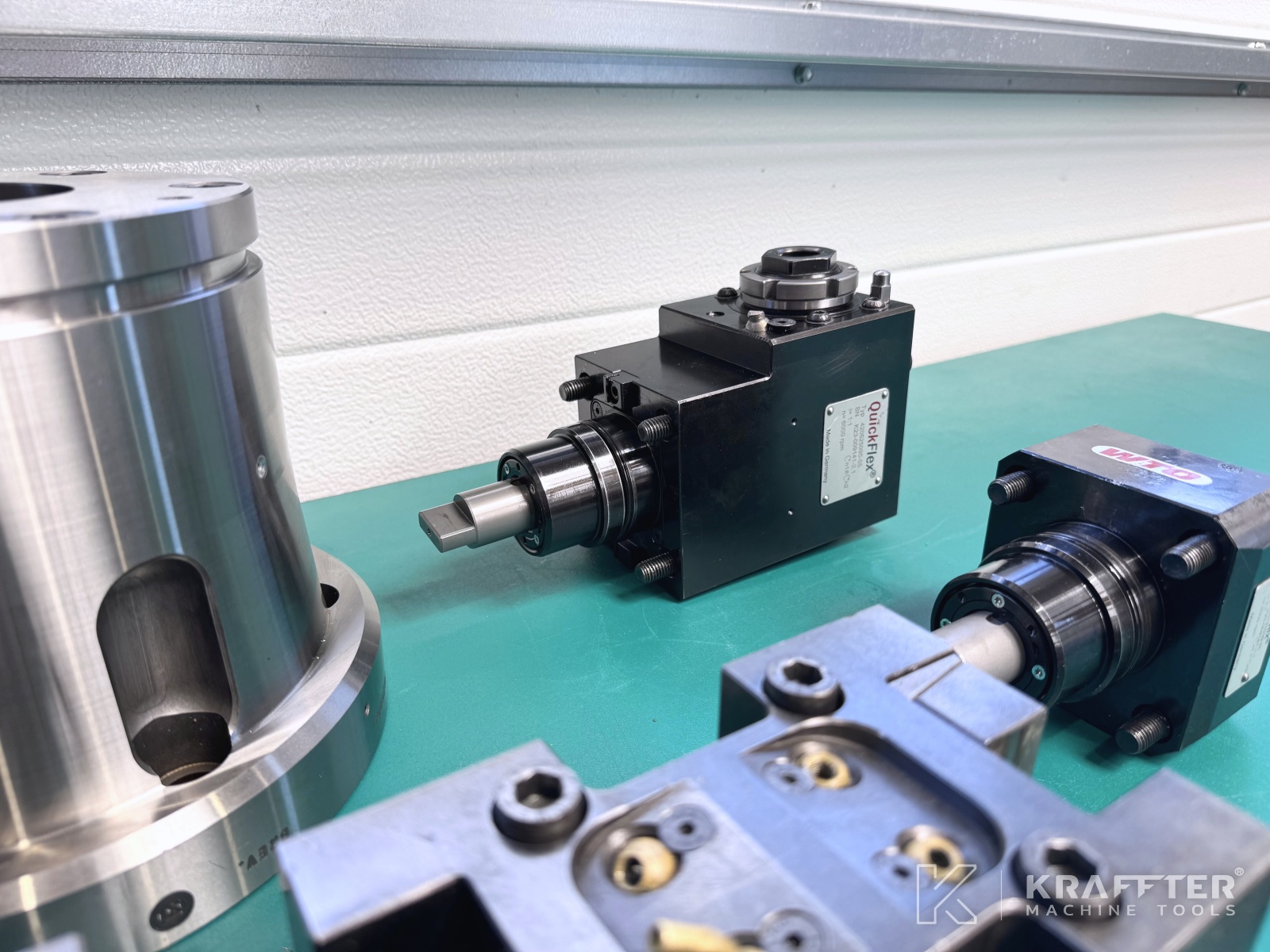

- 2 live axial tool holders
- 1 live radial tool holder
- 11 static tool holders

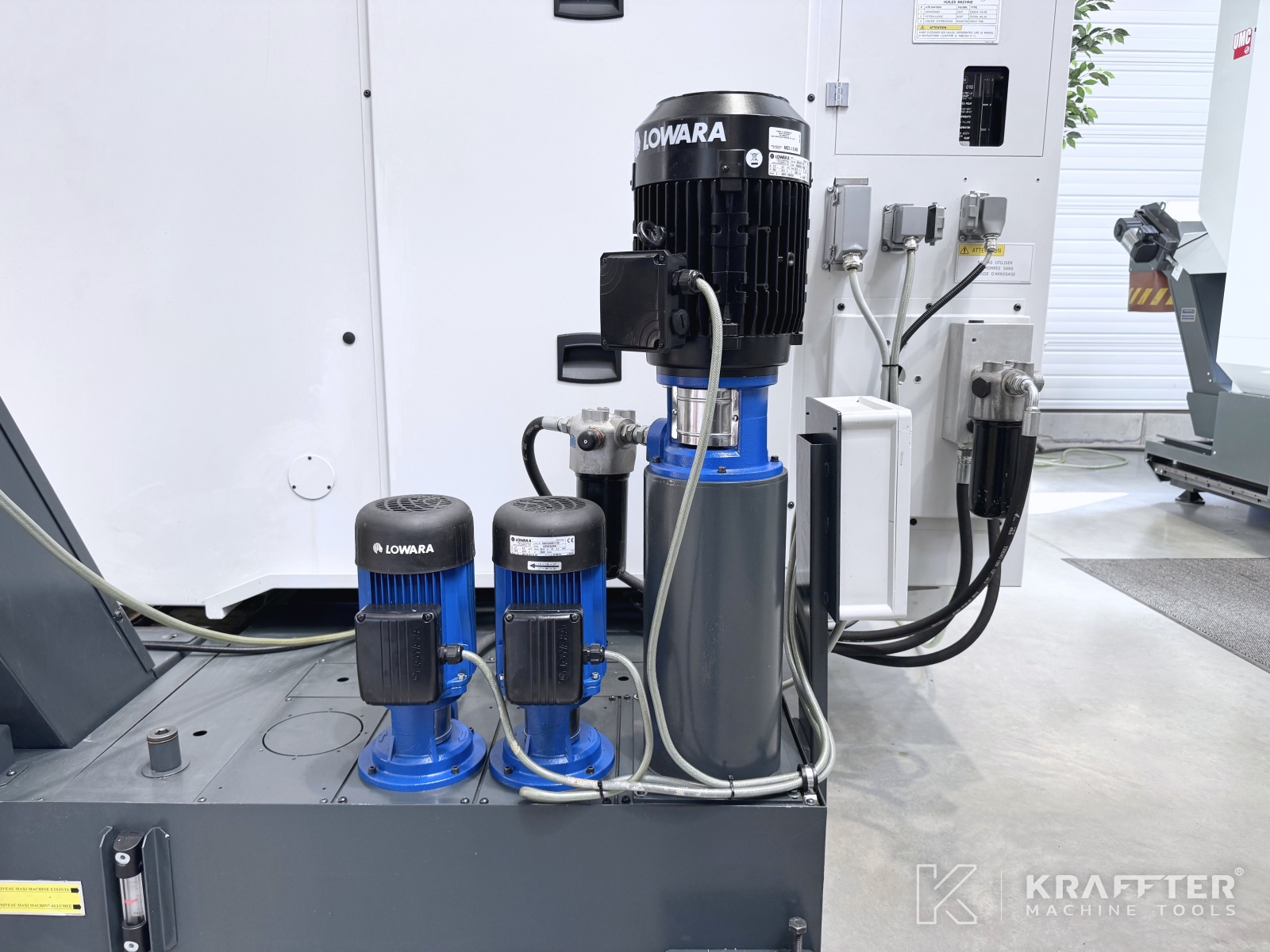

- 1 high-pressure coolant pump (20 bar)

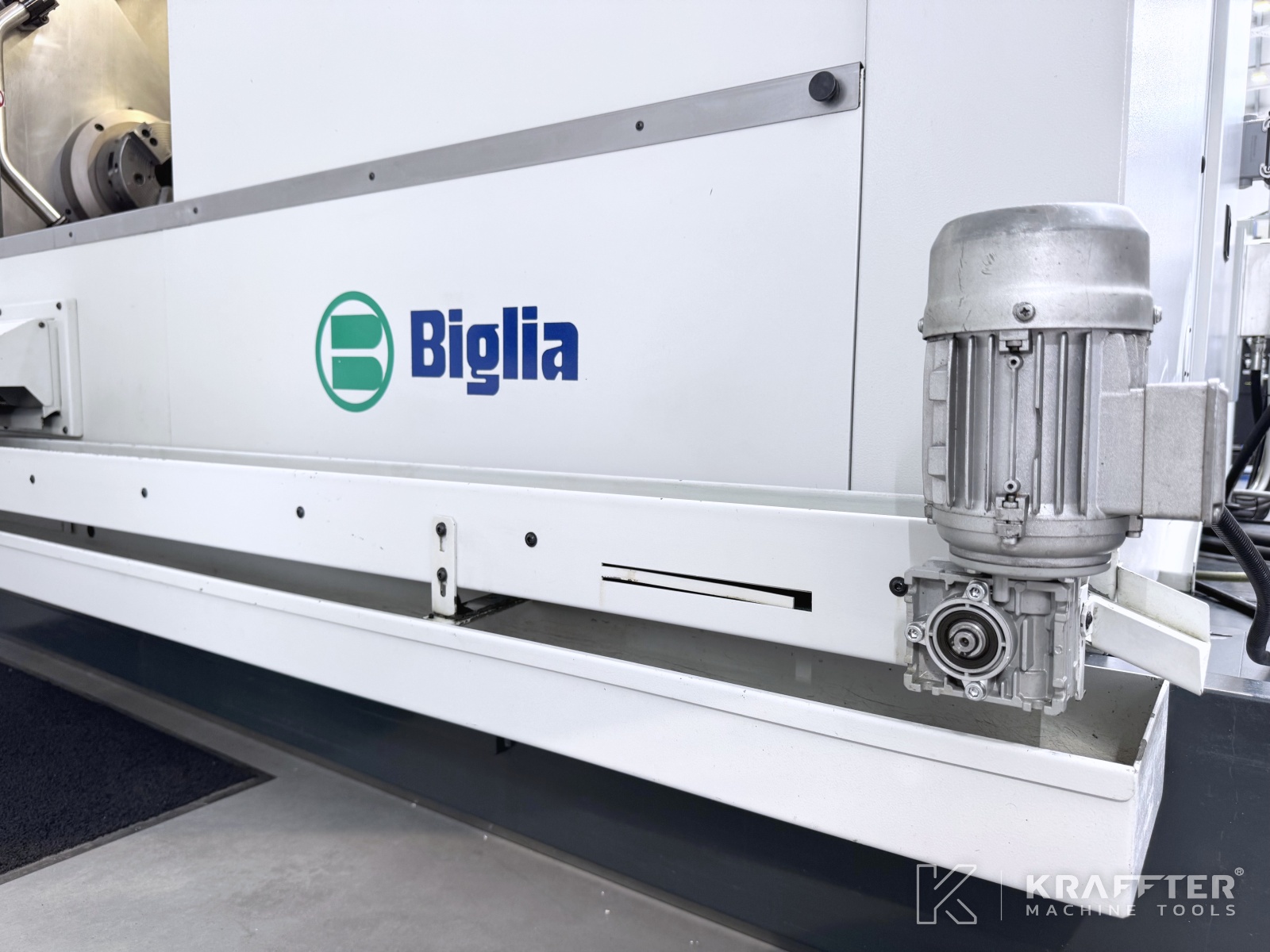

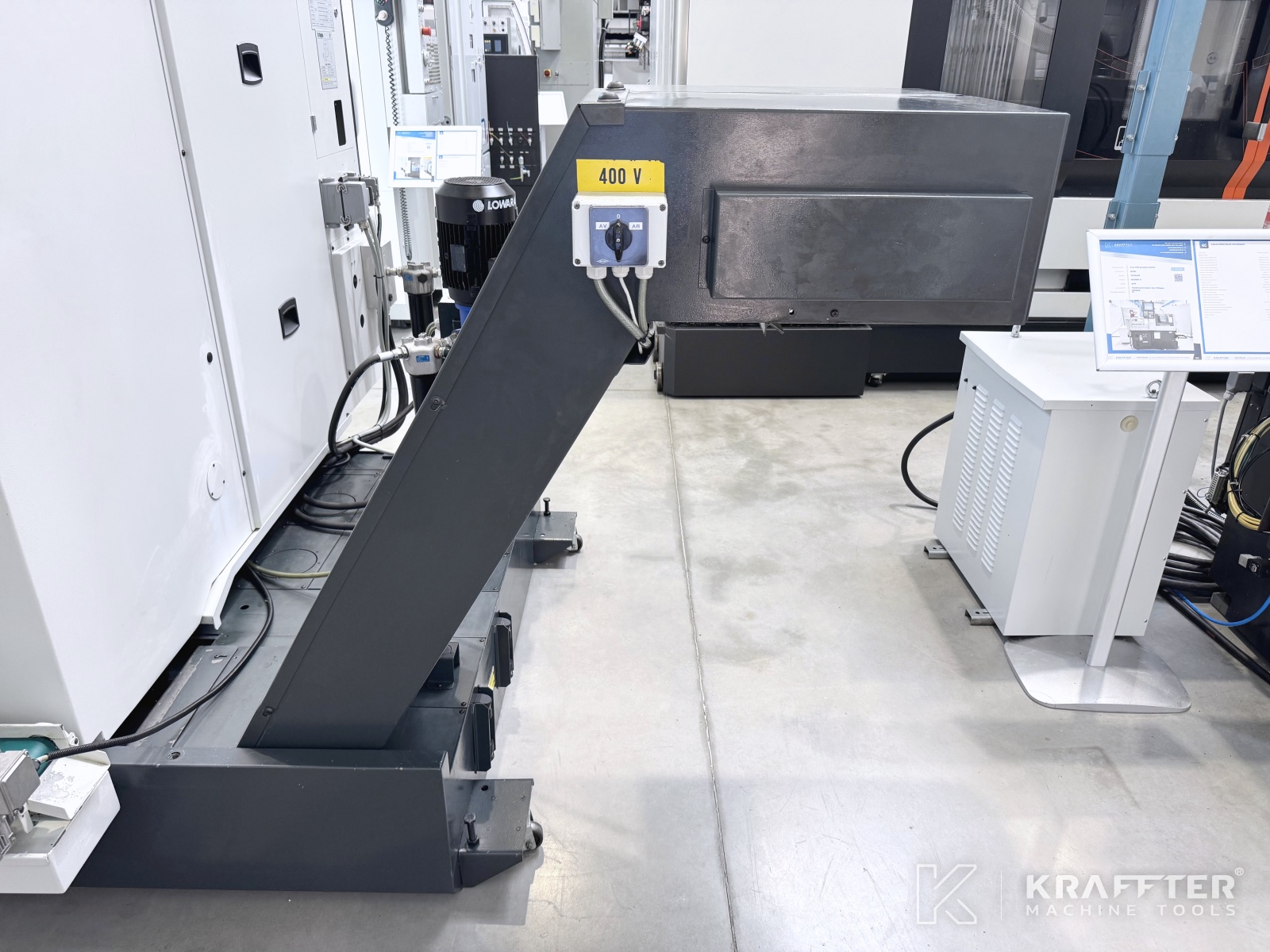

- 1 chip conveyor
- 1 parts catcher
- 1 parts conveyor belt
