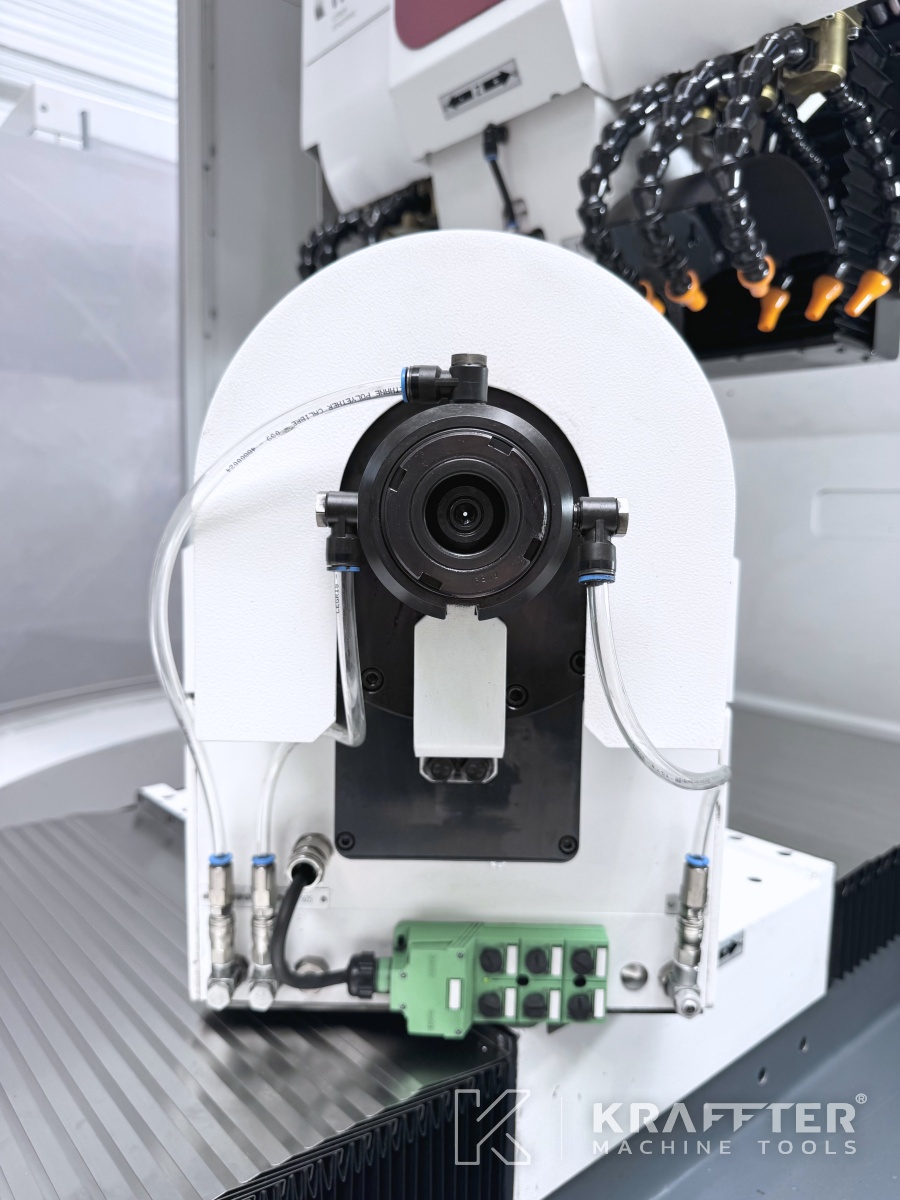

Machine tools for sharpening operations WALTER Helitronic Power 90186
Machine tools for CNC tool grinding machine WALTER Helitronic Power 5 axes 90186
WALTER Helitronic Power 90186
WALTER Helitronic Power 90186 - Second hand Machine Tools at Kraffter
WALTER Helitronic Power 90186 available at Kraffter Machine Tools dealer
Metal CNC tool grinding machine WALTER Helitronic Power 5 axes 90186 - dealer of used machinery
FANUC Series 31i-model A5 numerical control (cnc et cn) WALTER Helitronic Power 90186
FANUC Series 31i-model A5 numerical control on machine tools WALTER Helitronic Power 90186
Metal CNC tool grinding machine WALTER Helitronic Power 90186
Second hand CNC tool grinding machine WALTER Helitronic Power 90186 for sale
Used CNC tool grinding machine 5 axis WALTER Helitronic Power 90186 for sale
CNC tool grinding machine WALTER Helitronic Power 90186 - KRAFFTER Machine tools reseller
Industrial machines for sharpening operations CNC tool grinding machine WALTER Helitronic Power 90186
Industrial machines for CNC tool grinding machine WALTER Helitronic Power 90186
Precision mechanics CNC tool grinding machine WALTER Helitronic Power 90186 , Used machinery
Precision Manufacturing CNC tool grinding machine WALTER Helitronic Power 90186
Metal CNC tool grinding machine for precision machining WALTER Helitronic Power 90186
WALTER Helitronic Power 90186 Second hand Machine Tools at Kraffter
Worldwide purchase and resale of CNC tool grinding machine WALTER Helitronic Power 90186
Grinding tools to sharpen drills milling cutters blades cutting inserts WALTER Helitronic Power 90186
Grinding wheels CNC tool grinding machine
Universal tool grinding machine WALTER Helitronic Power 90186
Machine for grinding drills, milling cutters, blades and cutting inserts WALTER Helitronic Power 90186
Numerically Controlled CNC tool grinding machine WALTER Helitronic Power 90186
International buying and reselling CNC tool grinding machine WALTER Helitronic Power 90186
Buying and selling used CNC tool grinding machine WALTER Helitronic Power 90186 Europe, United Kingdom, worldwide

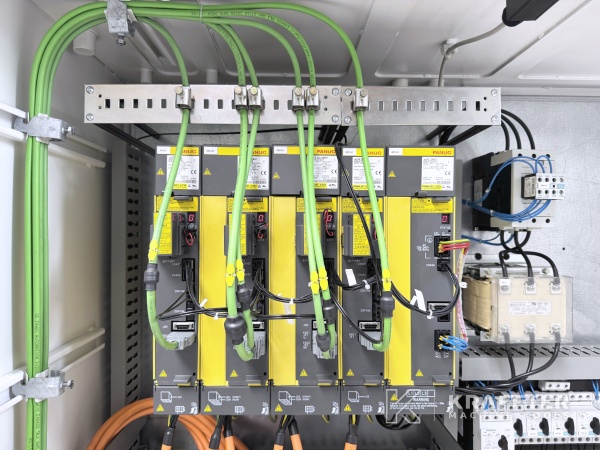

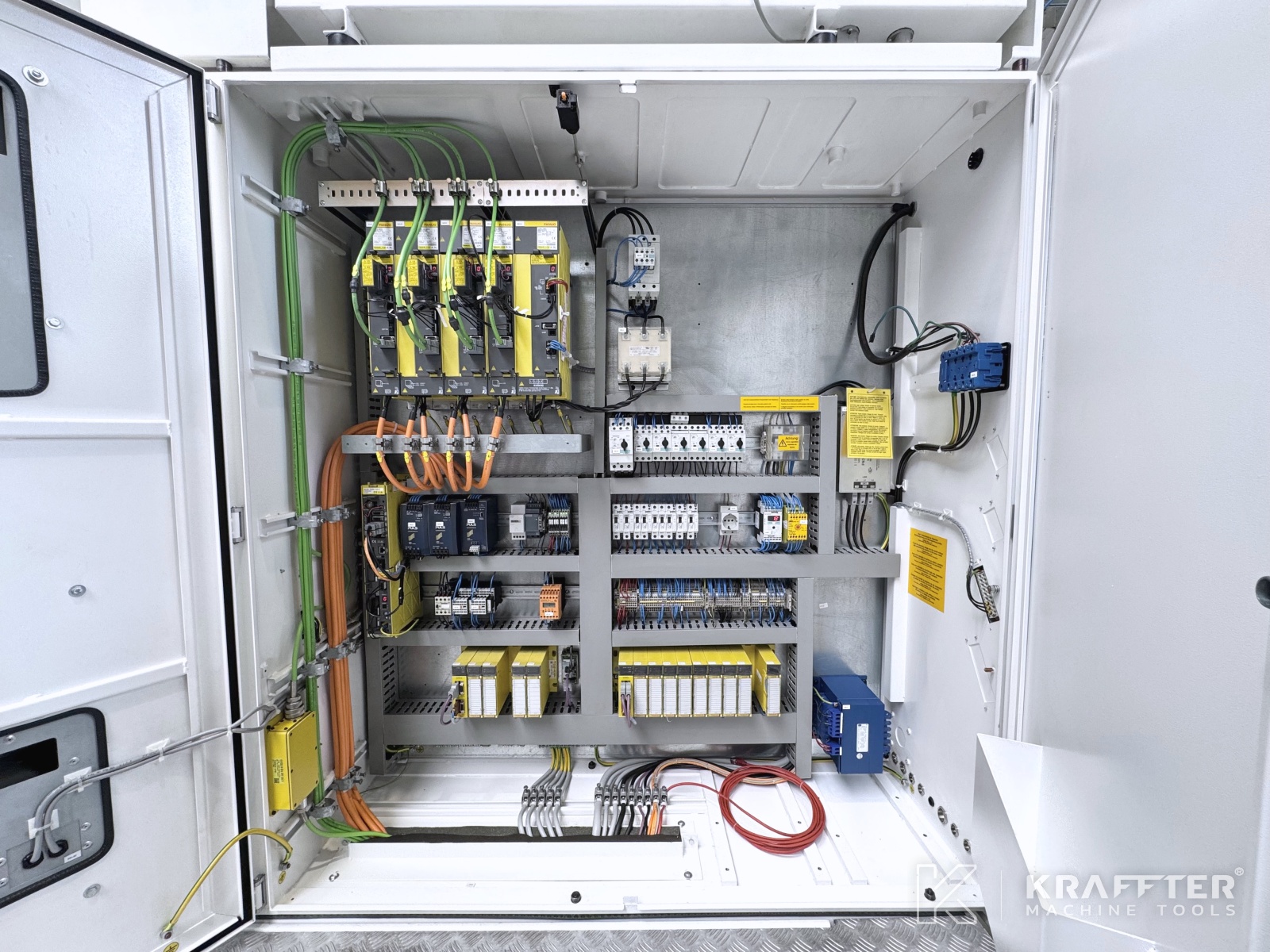

Industrial electrical cabinet on WALTER Helitronic Power 90186
Electrical cabinet for industrial machines WALTER Helitronic Power 90186
Electrical cabinet on CNC tool grinding machine WALTER Helitronic Power 90186
Accessories from WALTER Helitronic Power 90186
Accessories for CNC tool grinding machine WALTER Helitronic Power 90186
Accessories, equipment and tooling CNC tool grinding machine WALTER Helitronic Power 90186
Accessories, tooling for machine tools WALTER Helitronic Power 90186
Equipment for CNC tool grinding machine WALTER Helitronic Power 90186 - Used machinery
KRAFFTER your dealer of Second-hand machine tools , WALTER Helitronic Power 90186
Machine Tools for sale 5 axis WALTER Helitronic Power 90186 , Used machinery at Kraffter
Sale of CNC tool grinding machine WALTER Helitronic Power 90186 - Dealer of used machinery
WALTER Helitronic Power 90186 reselling and worldwide shipping at Kraffter Machine Tools
CNC tool grinding machine for sale WALTER Helitronic Power 90186 , Second hand Machine Tools
Used CNC tool grinding machine WALTER Helitronic Power 90186 destocking Europe, Turkey, India
Accessories, equipment and user manual of WALTER Helitronic Power 90186
User manual of CNC tool grinding machine WALTER Helitronic Power 90186

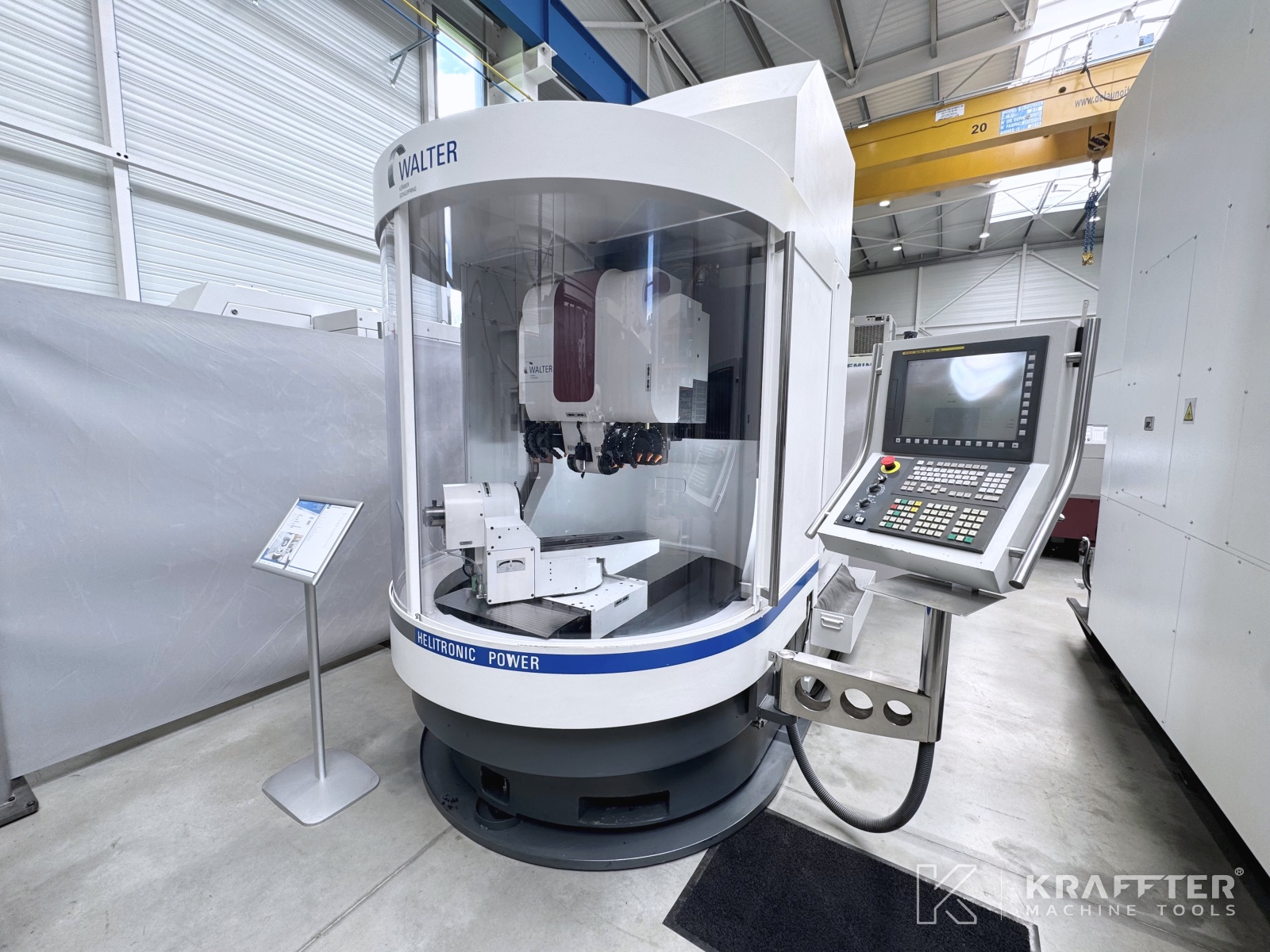

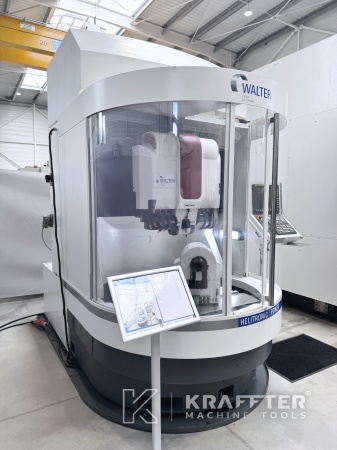

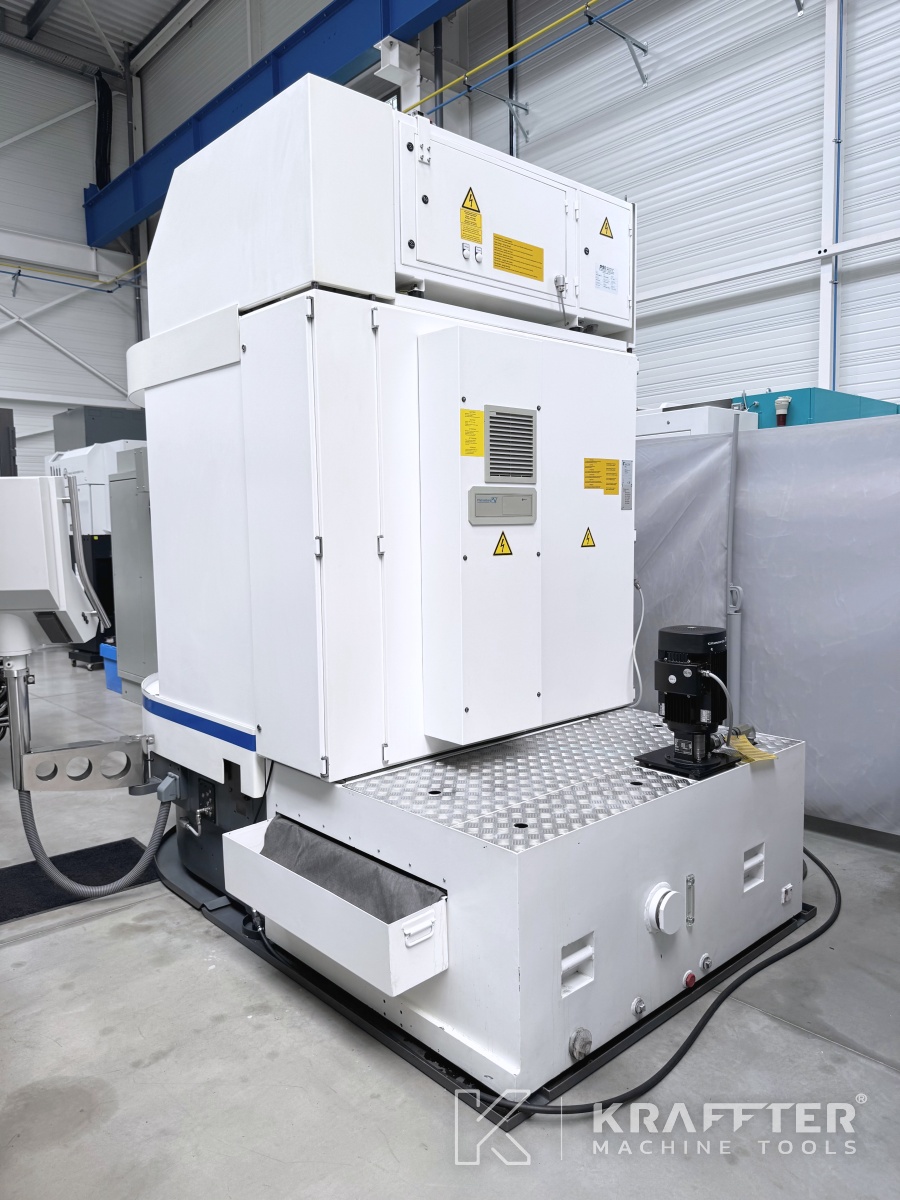

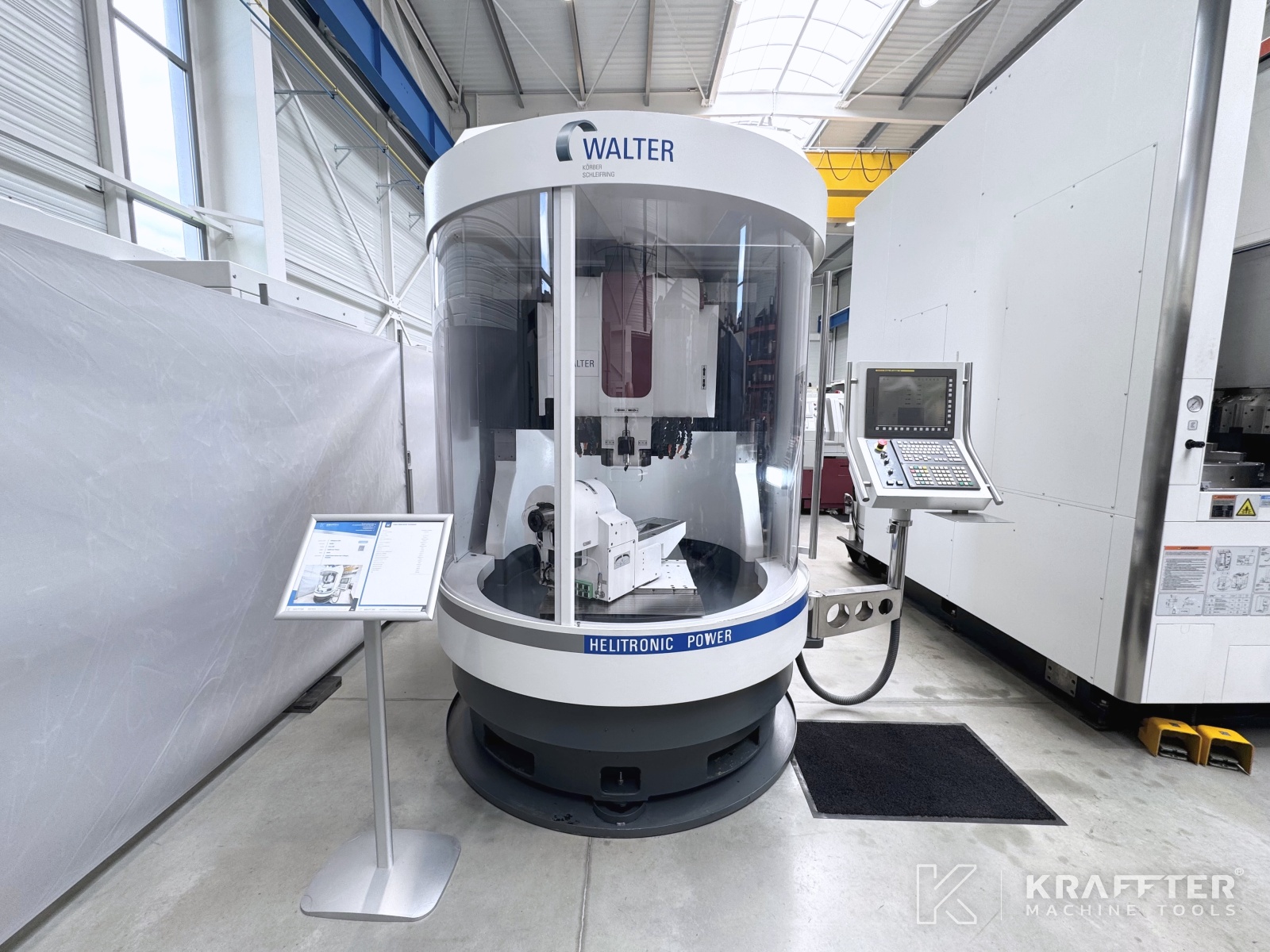

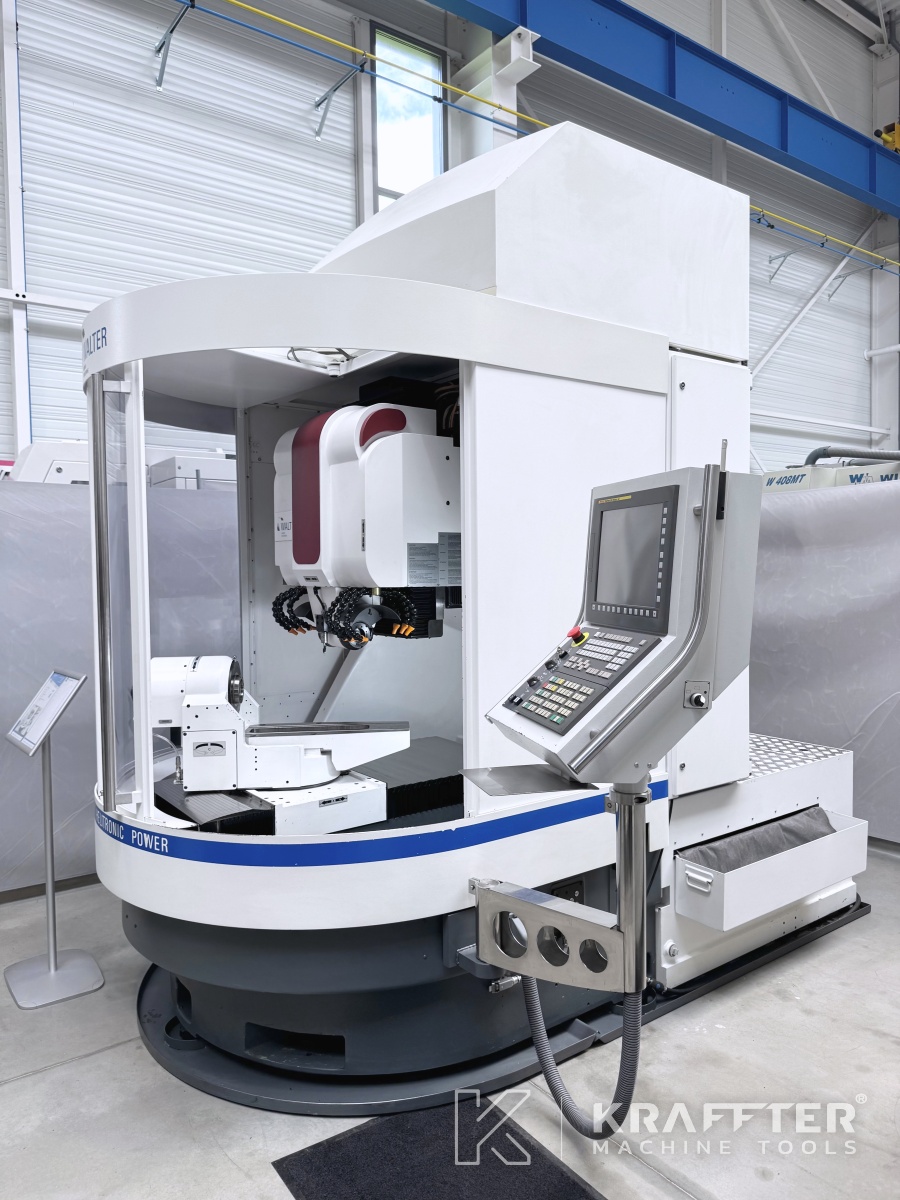

Type of machine : CNC tool grinding machine

Brand : WALTER

N° de stock: 90186

Model : Helitronic Power

Year : 2008

Location : 73240 Saint-Genix-les-Villages, FRANCE

please wait Please wait a moment...
Email alert

Request a quotation

In accordance with articles 39 and following the French law n°78-17 of January 6, 1978 modified in 2004 relating to data processing, files and freedoms, any person can obtain communication and, if necessary, rectification or deletion of information concerning him, by addressing a letter to Kraffter Machine Tools®. - 137, ZA Le Jasmin Nord – 73240 SAINT-GENIX-LES-VILLAGES
Review our privacy policy for full details

Technical characteristics

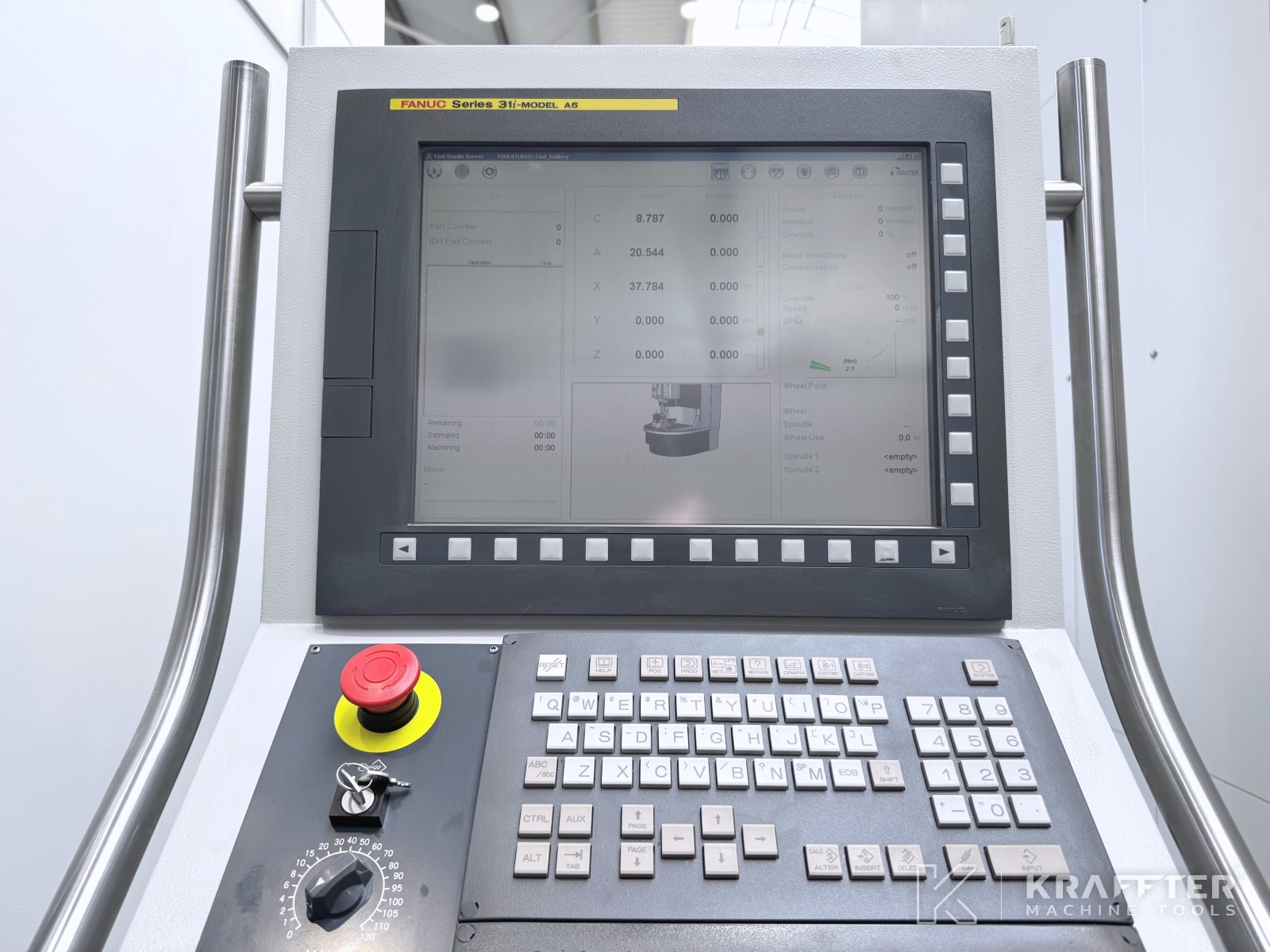

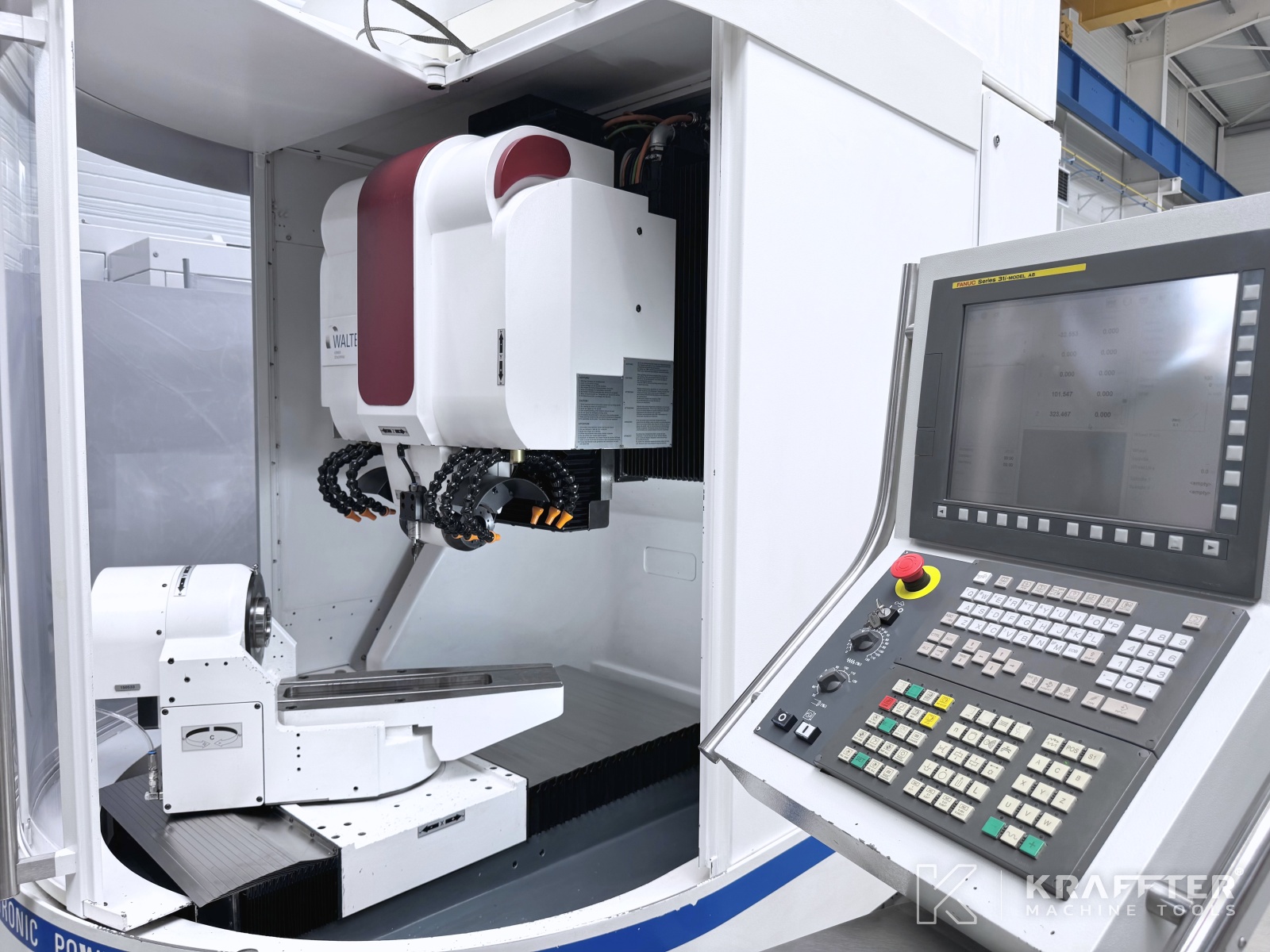

CNC control
FANUC Series 31i-model A5
Software installed
Tool Studio 3
Number of axes
5
Height of centers
145 / 190 [mm]
Stroke X axis
470 [mm]
Rapid traverse rate X axis
15000 [mm/min]
Stroke Y axis
330 [mm]
Rapid traverse rate Y axis
15000 [mm/min]
Stroke Z axis
660 [mm]
Rapid traverse rate Z axis
15000 [mm/min]
Stroke A axis
360 [°]
Stroke C axis
+/- 200 [°]
Max. workpiece lenght : end face grinding
280 [mm]
Max. grinding lenght
350 [mm]
Max. grinding diameter
320 [mm]
Max. grinding wheel speed
9500 [rpm]
Grinding spindle motor power
11.5 [kW]
Max. diameter grinding wheel
200 [mm]
Number of hours under power
8948 [h]
Coolant pump pressure
7 [bar]
Collant pump flow rate
120 [l/min]
Lubrication tank capacity
400 [l]
Supply voltage
400 [V]
Total power required
25 [kVA]
Weight
4500 [Kg]

Additional information

INCLUDED EQUIPMENT:

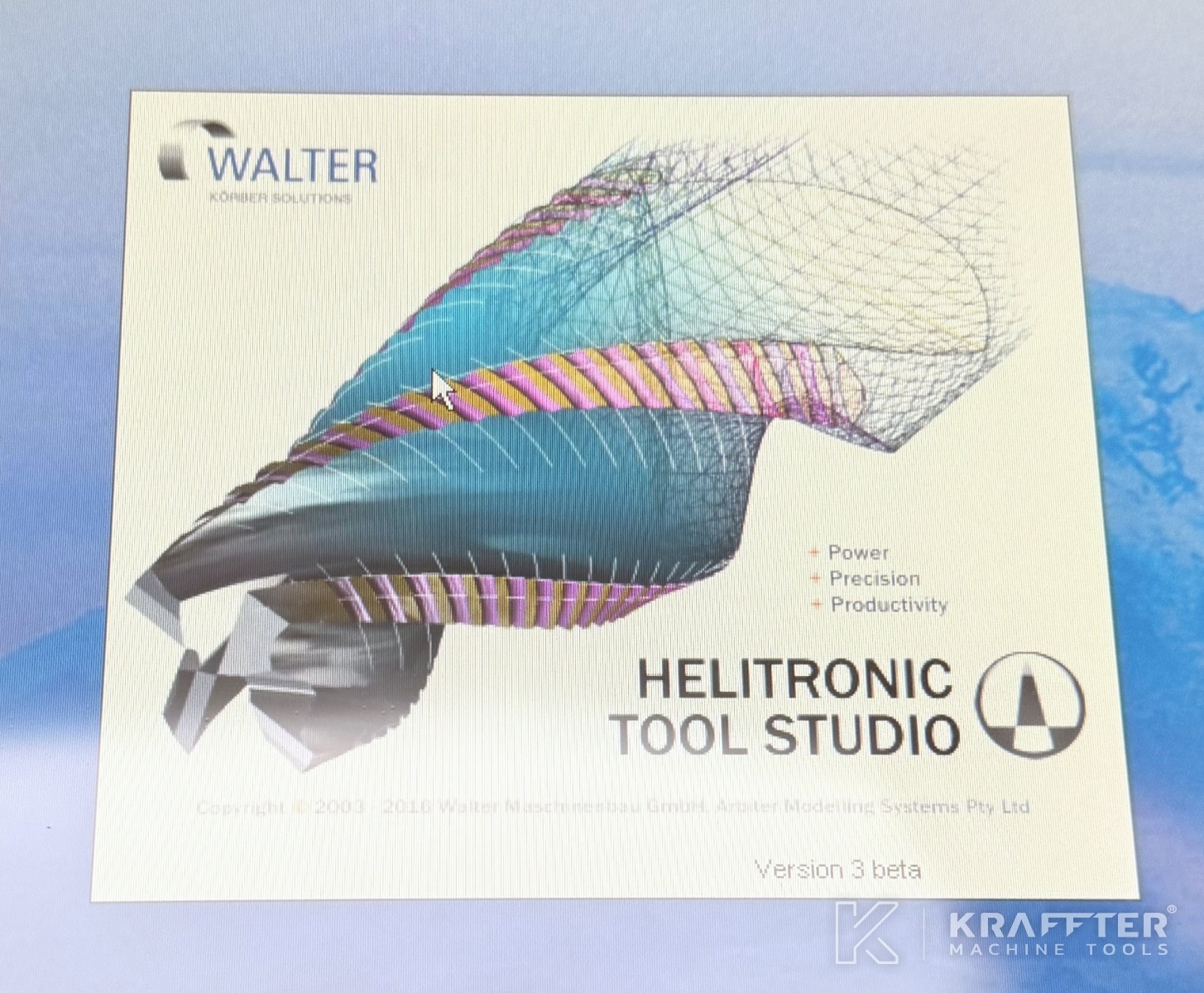

x1 TOOLSTUDIO 3 software

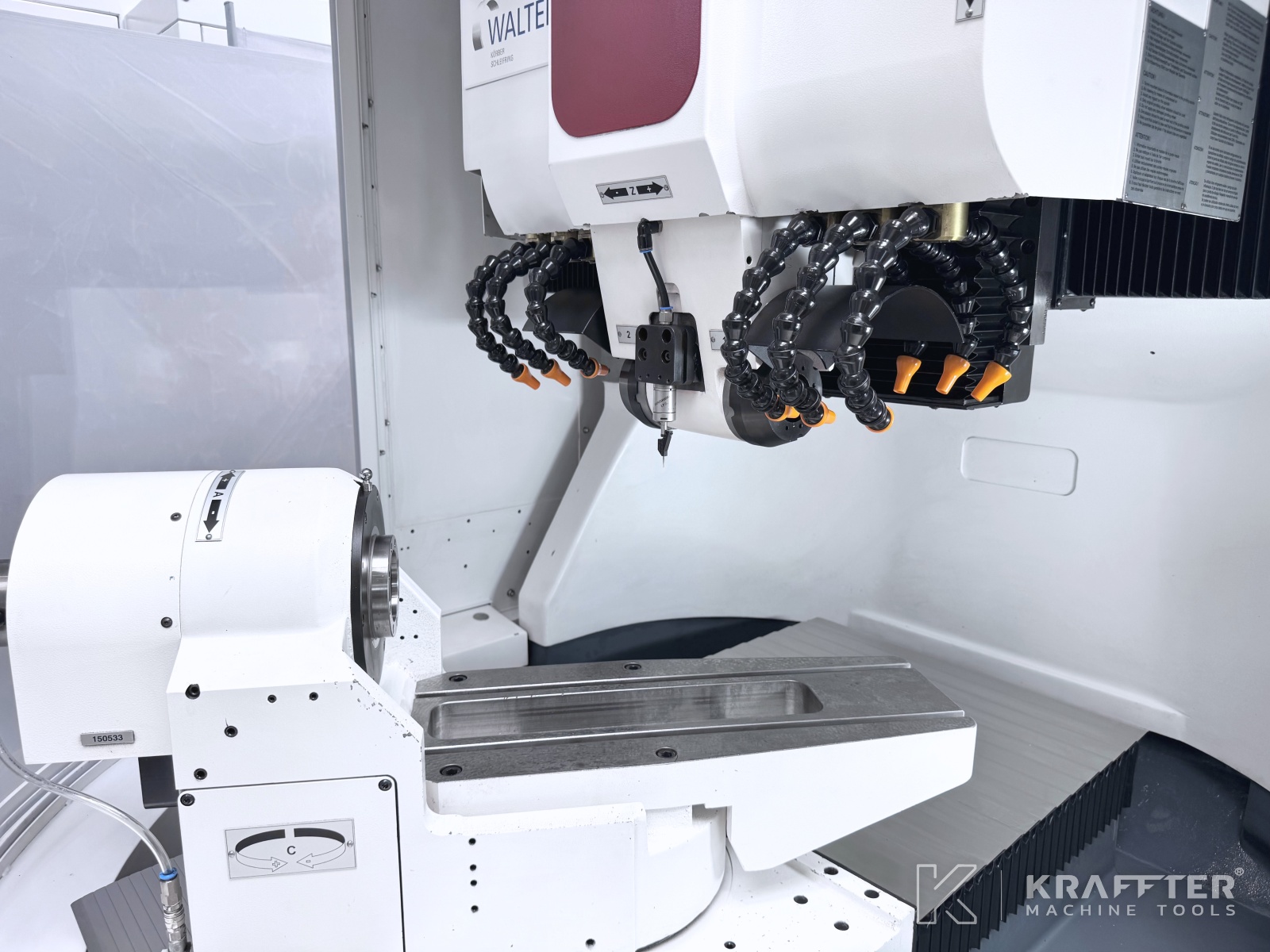

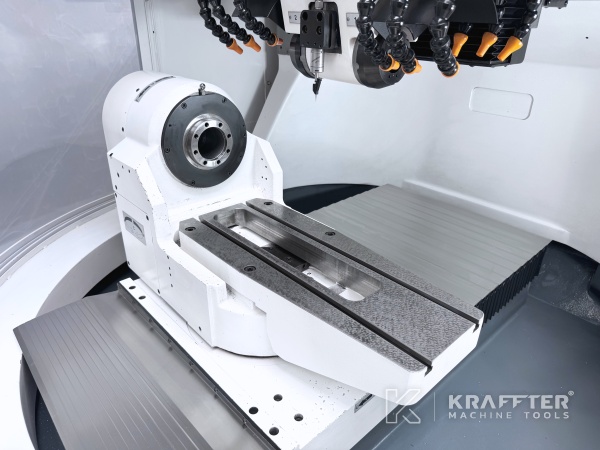

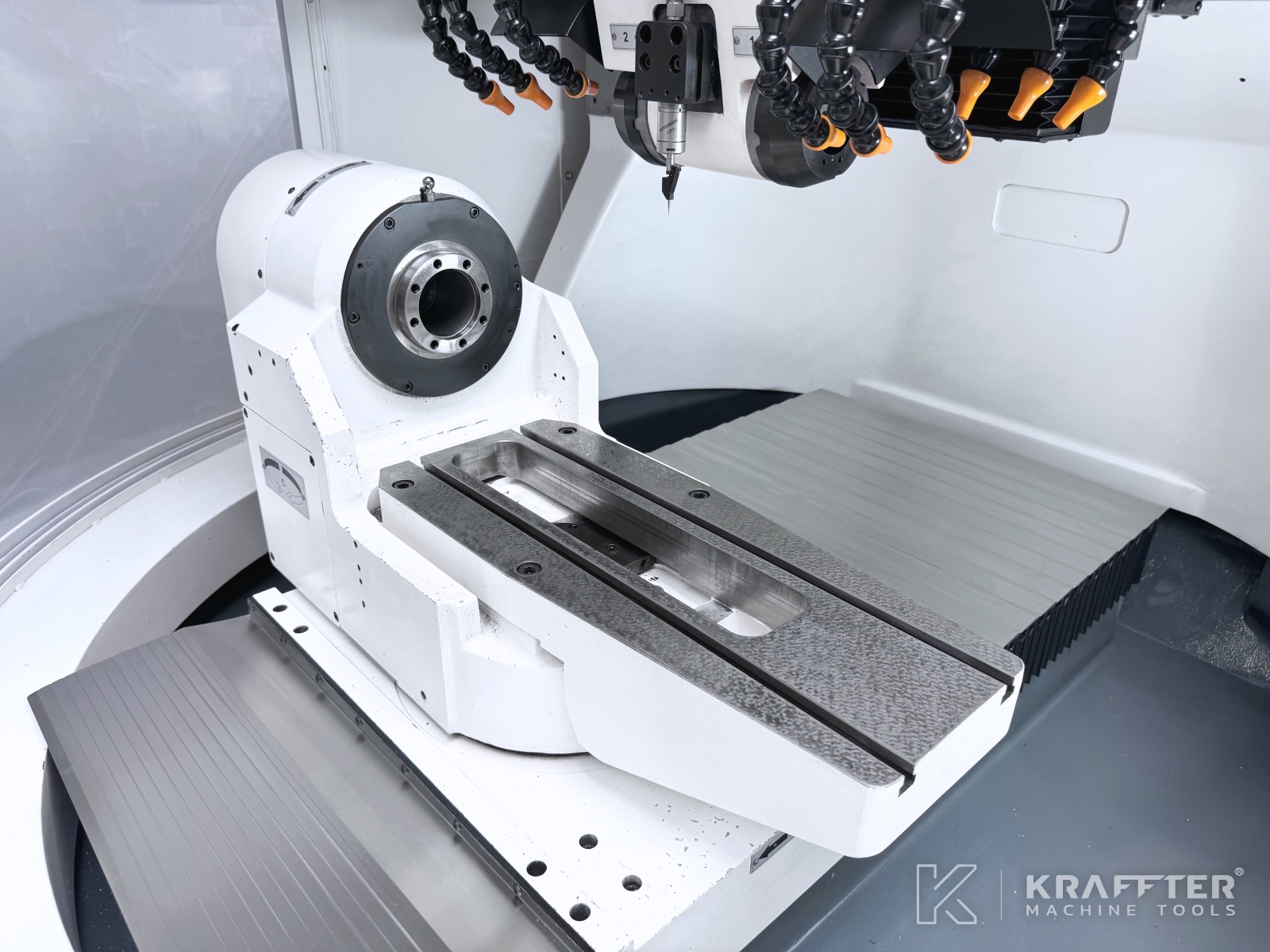

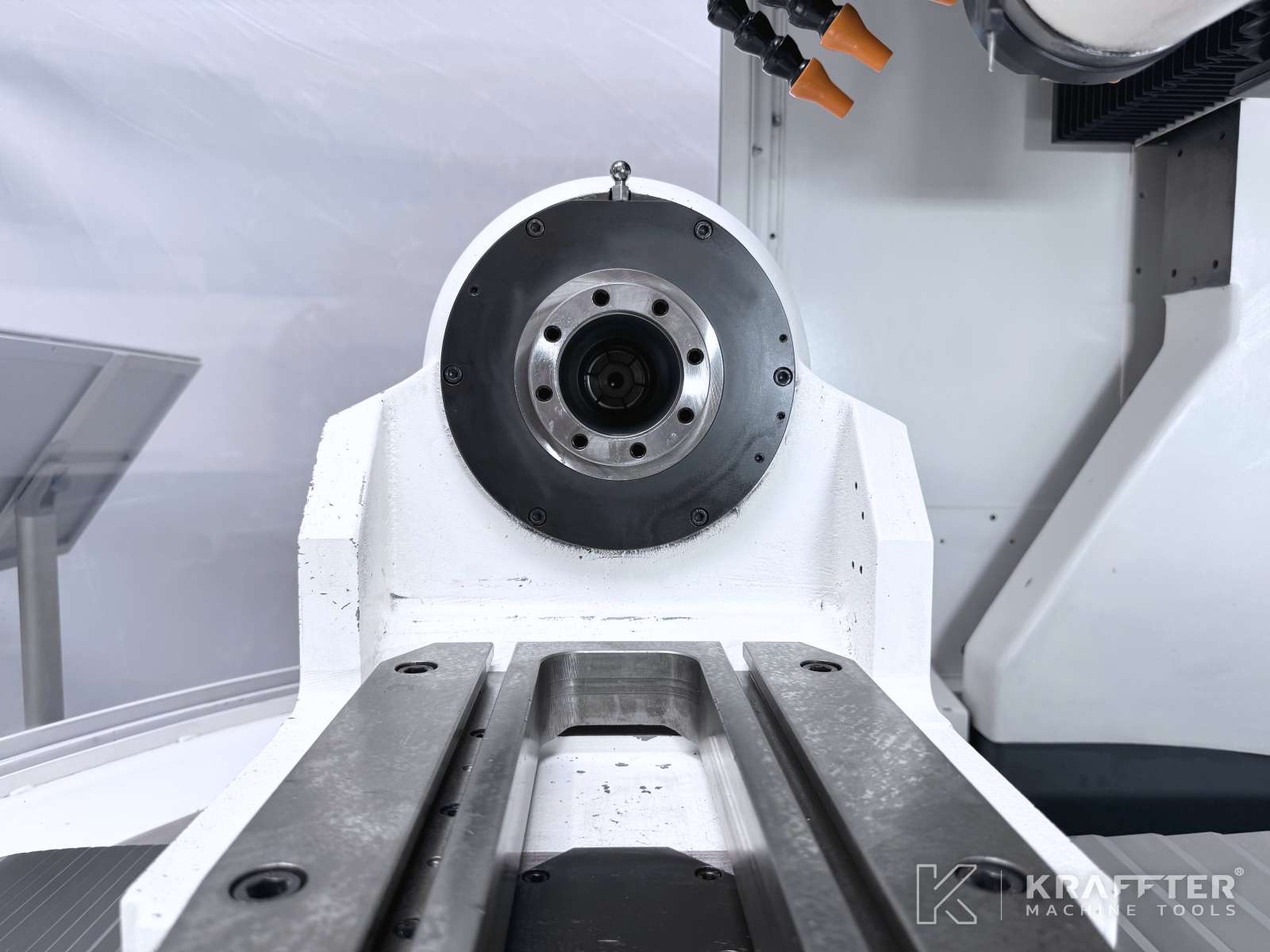

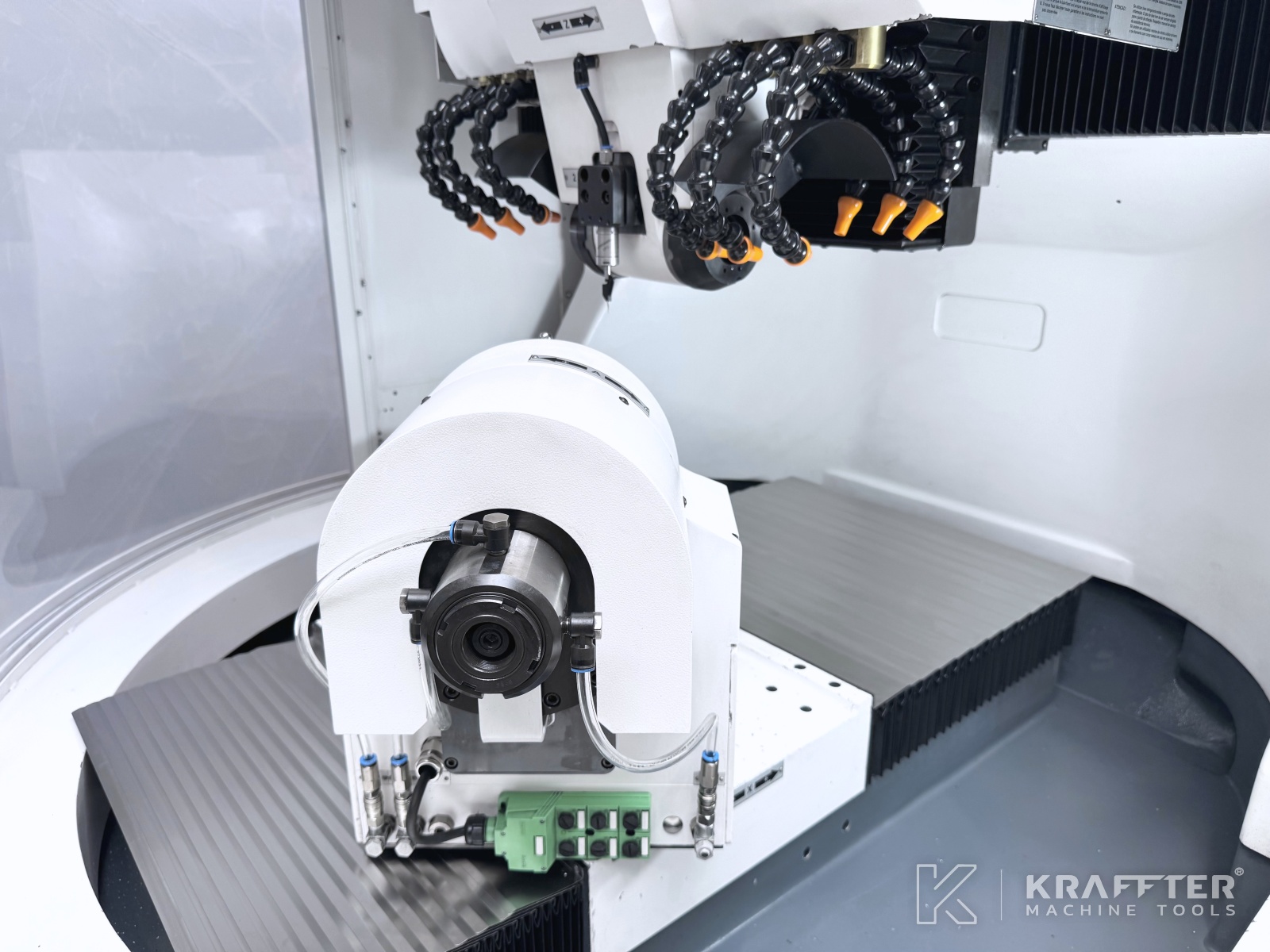

x1 direct-drive A axis (Hollow Shaft)
x1 automatic tool clamping system

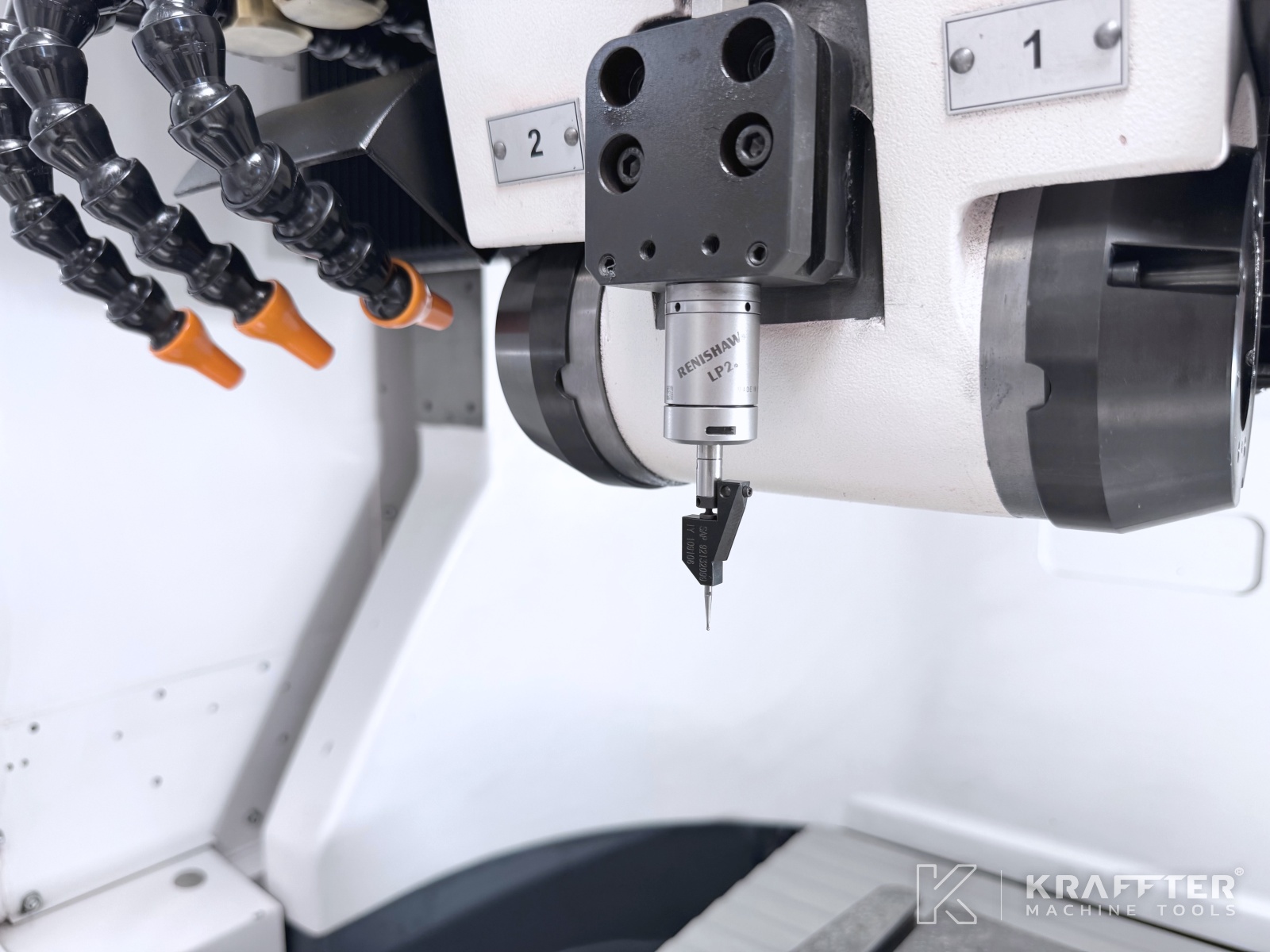

x1 RENISHAW LP2 part probe

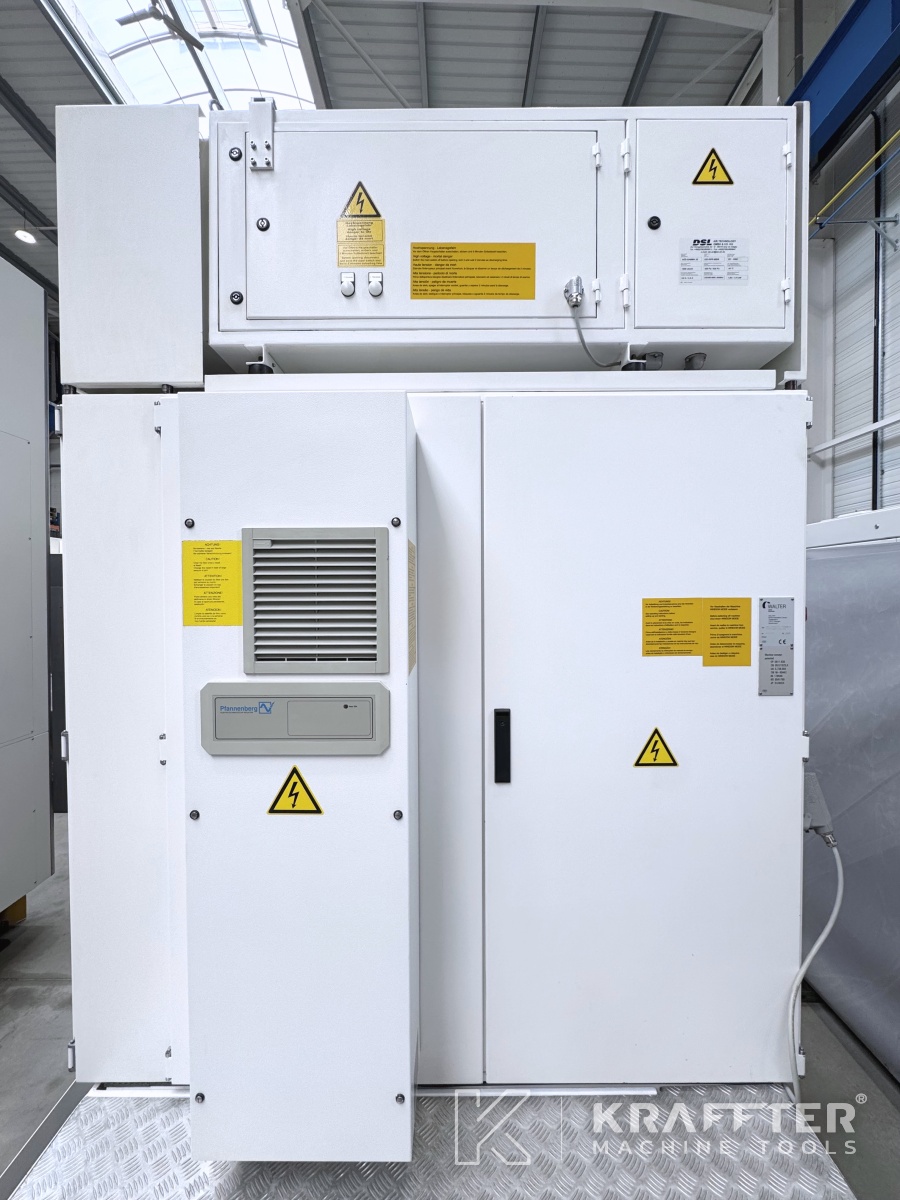

x1 DSL Air Technology type AES-GAMMA 30 mist extractor

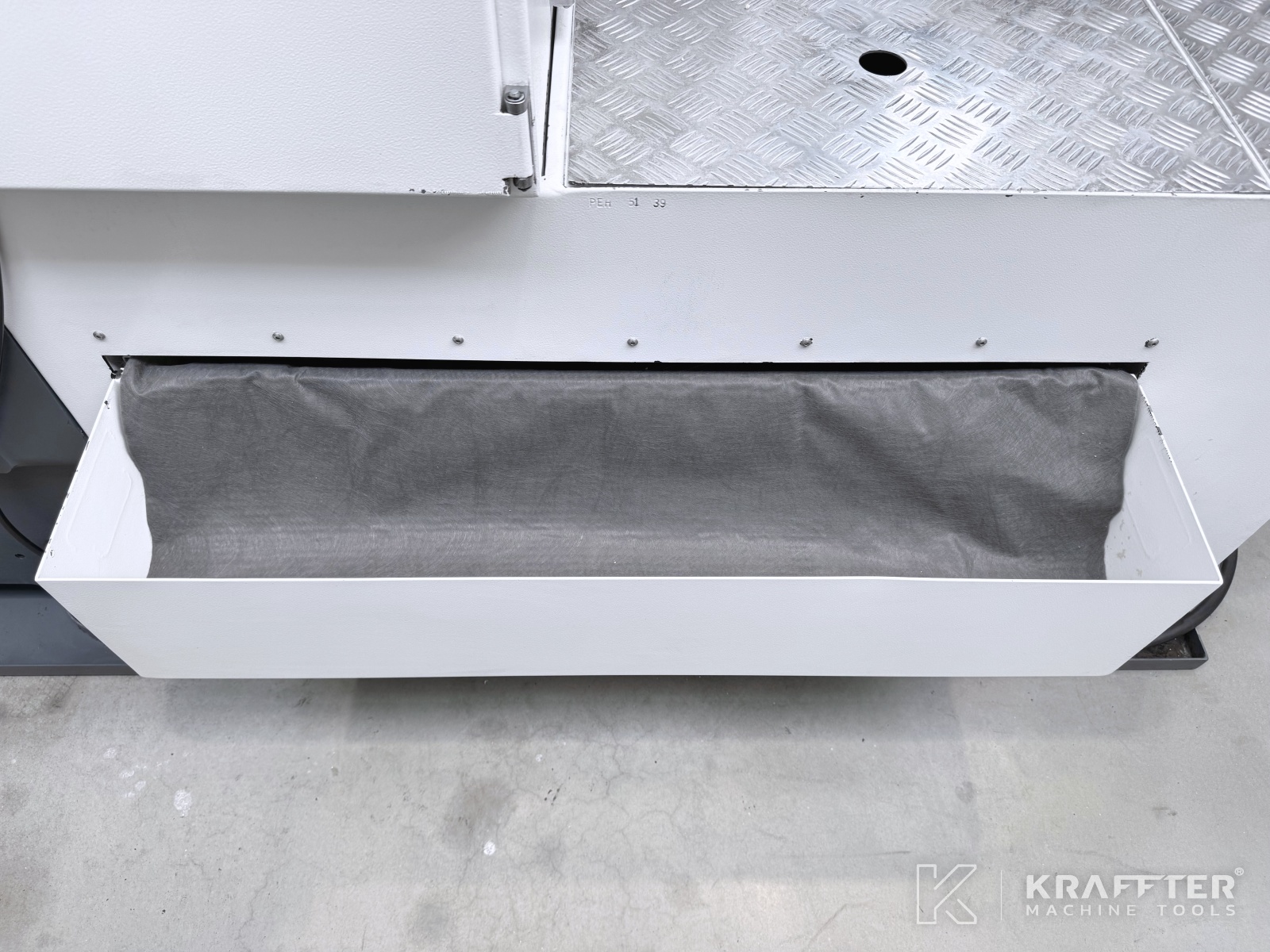

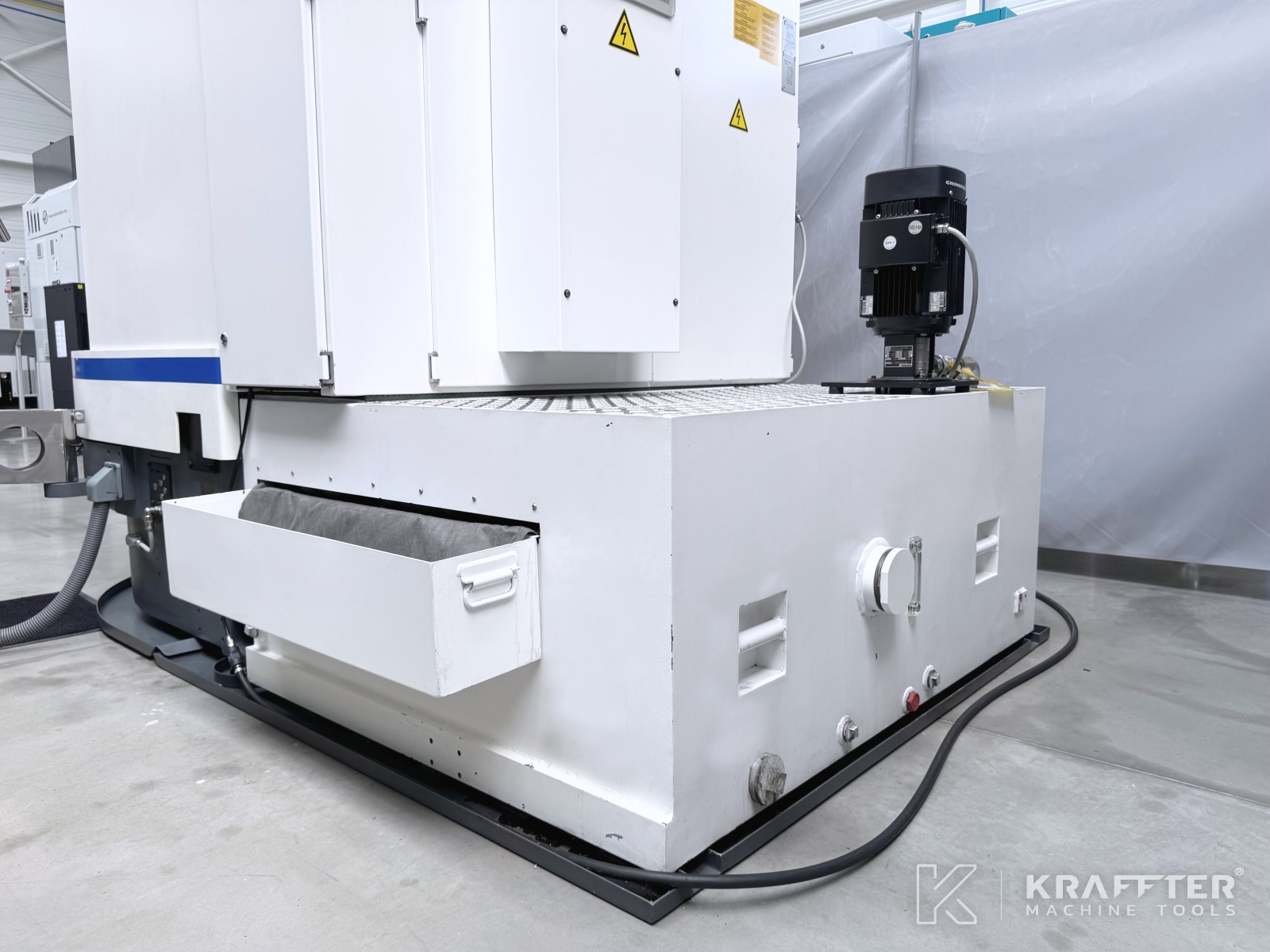

x1 lubrication tank + paper filtration system

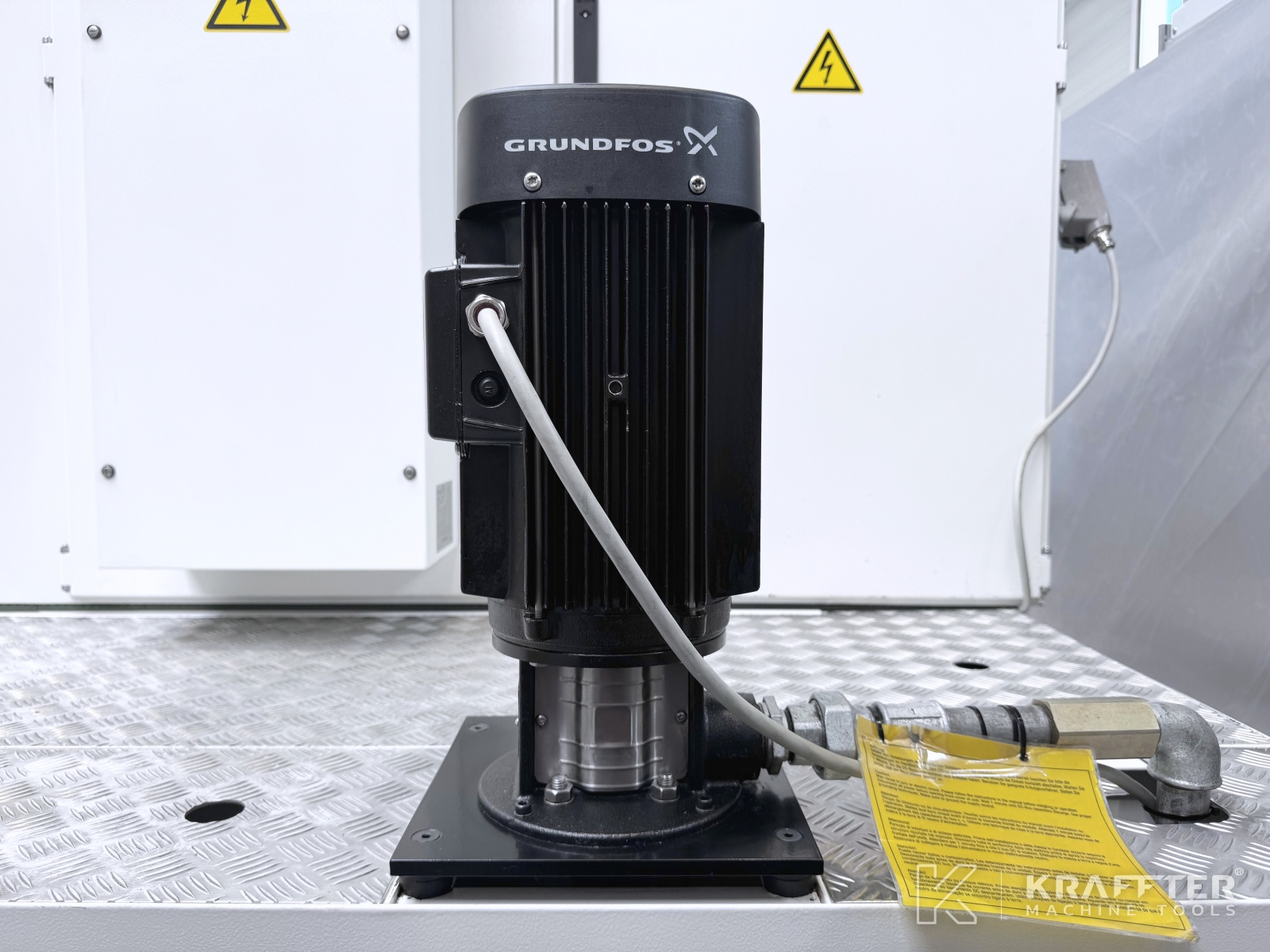

x1 GRUNDFOS coolant pump

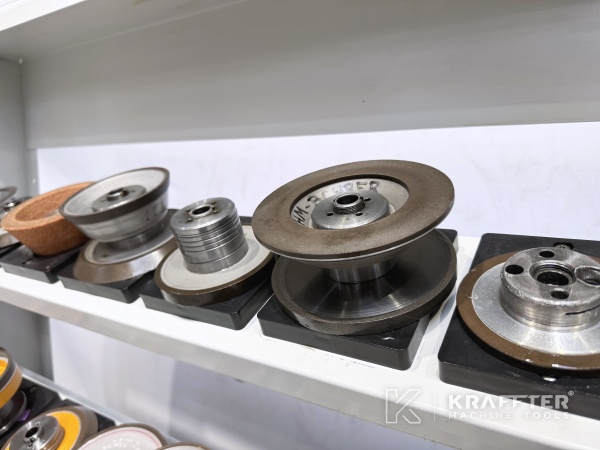

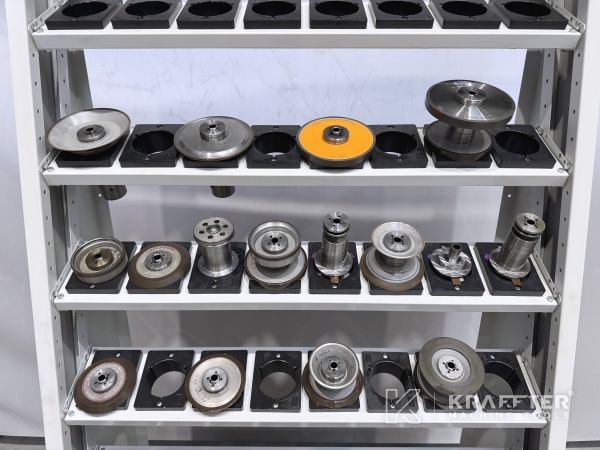

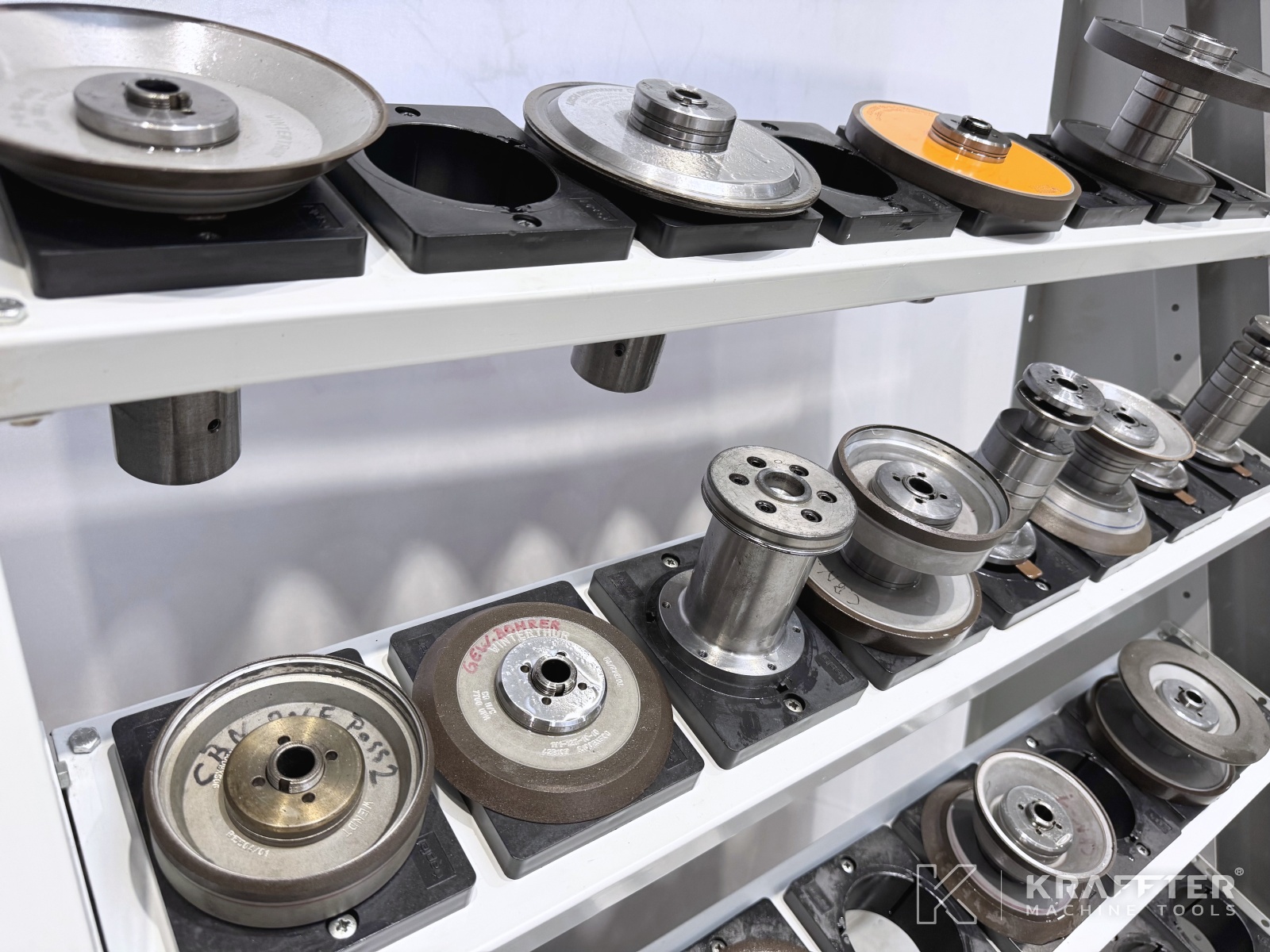

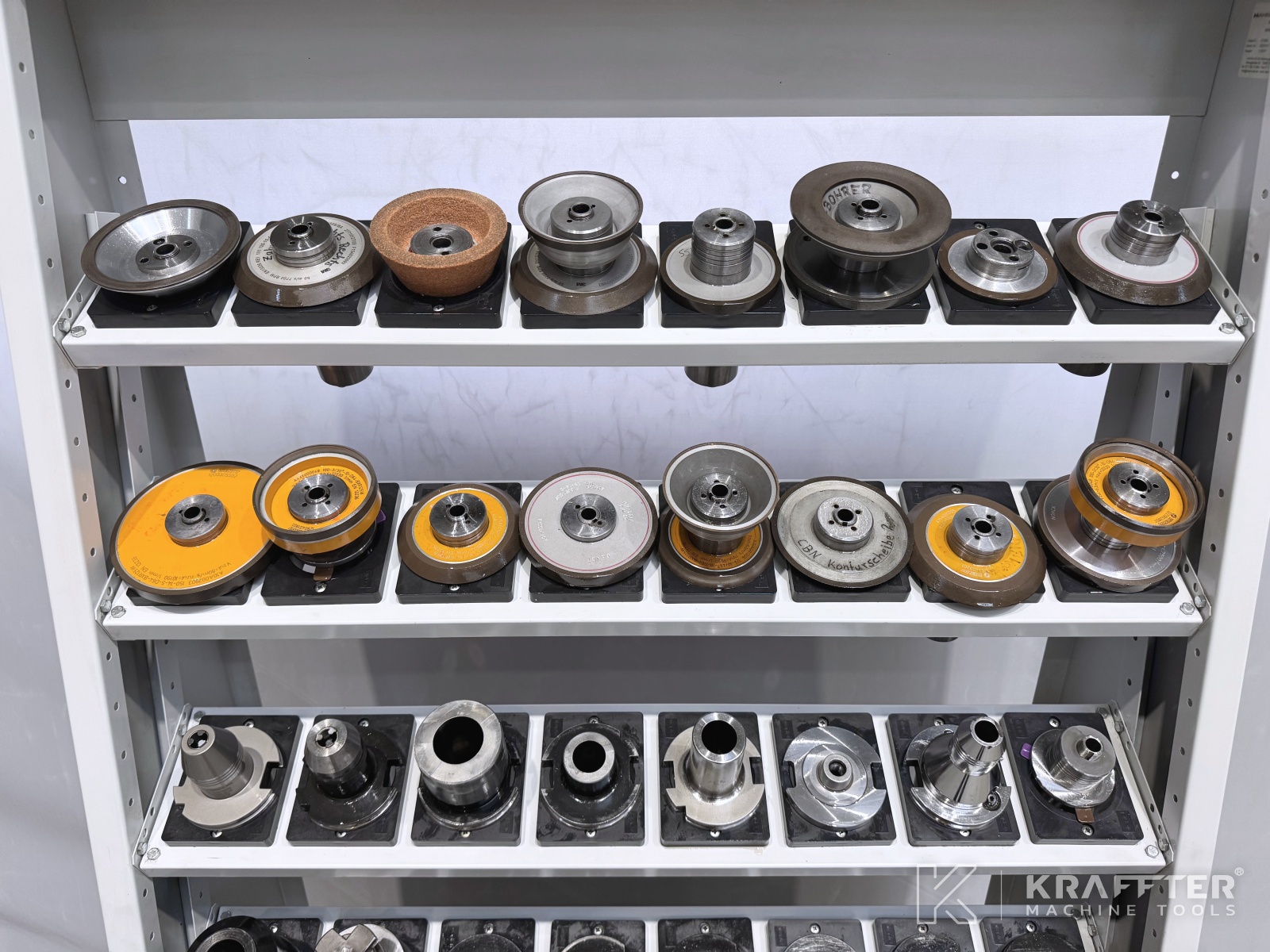

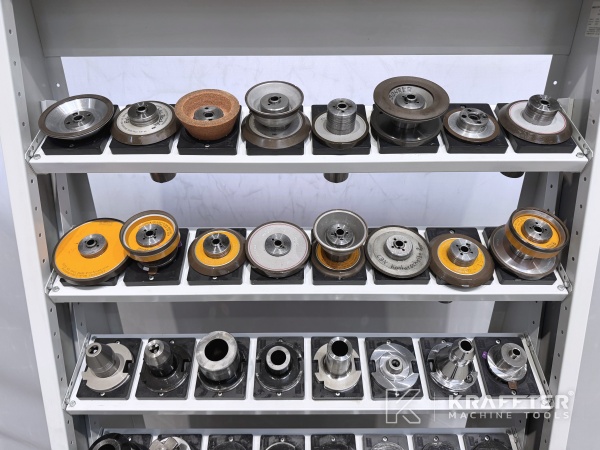

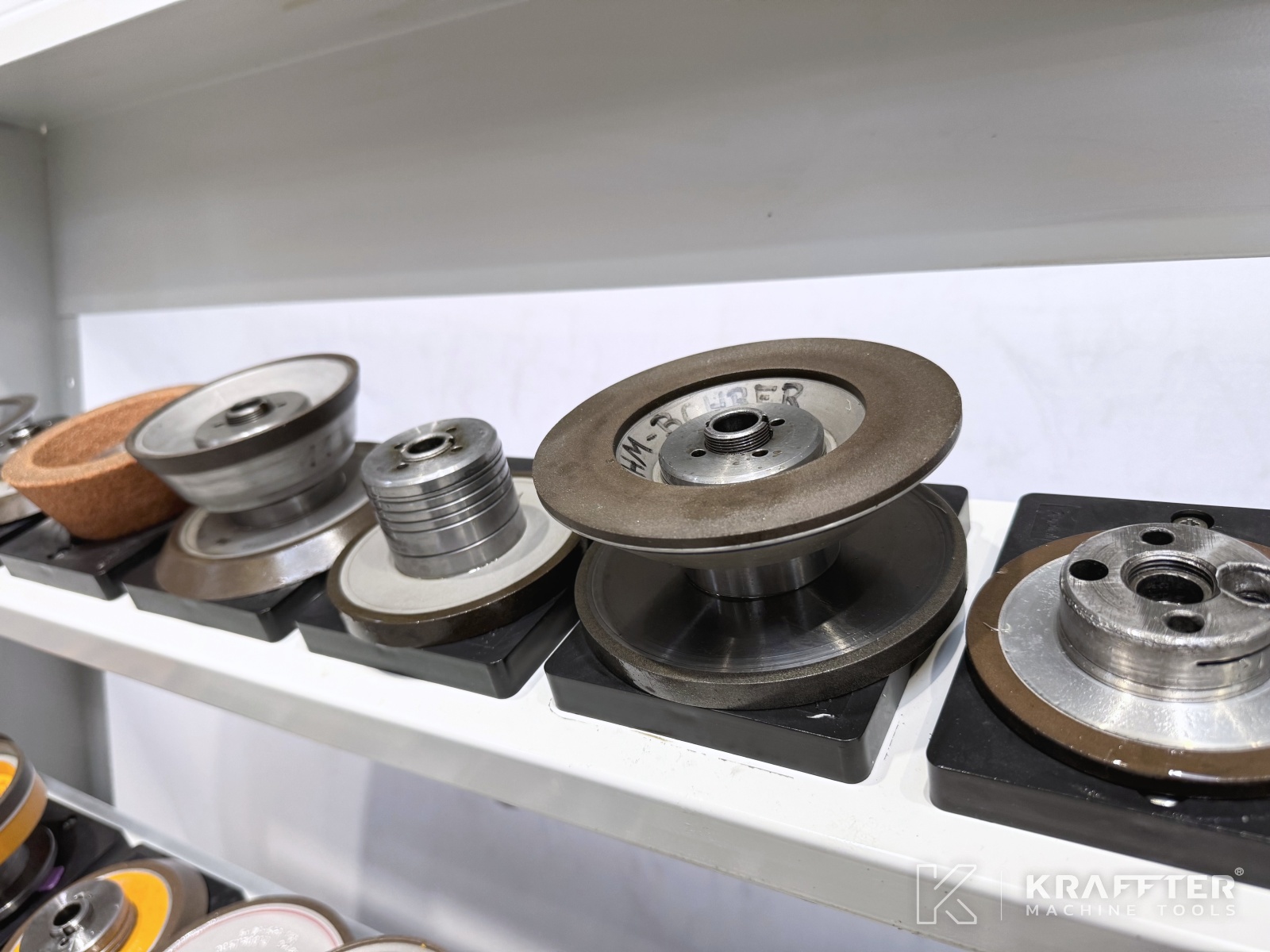

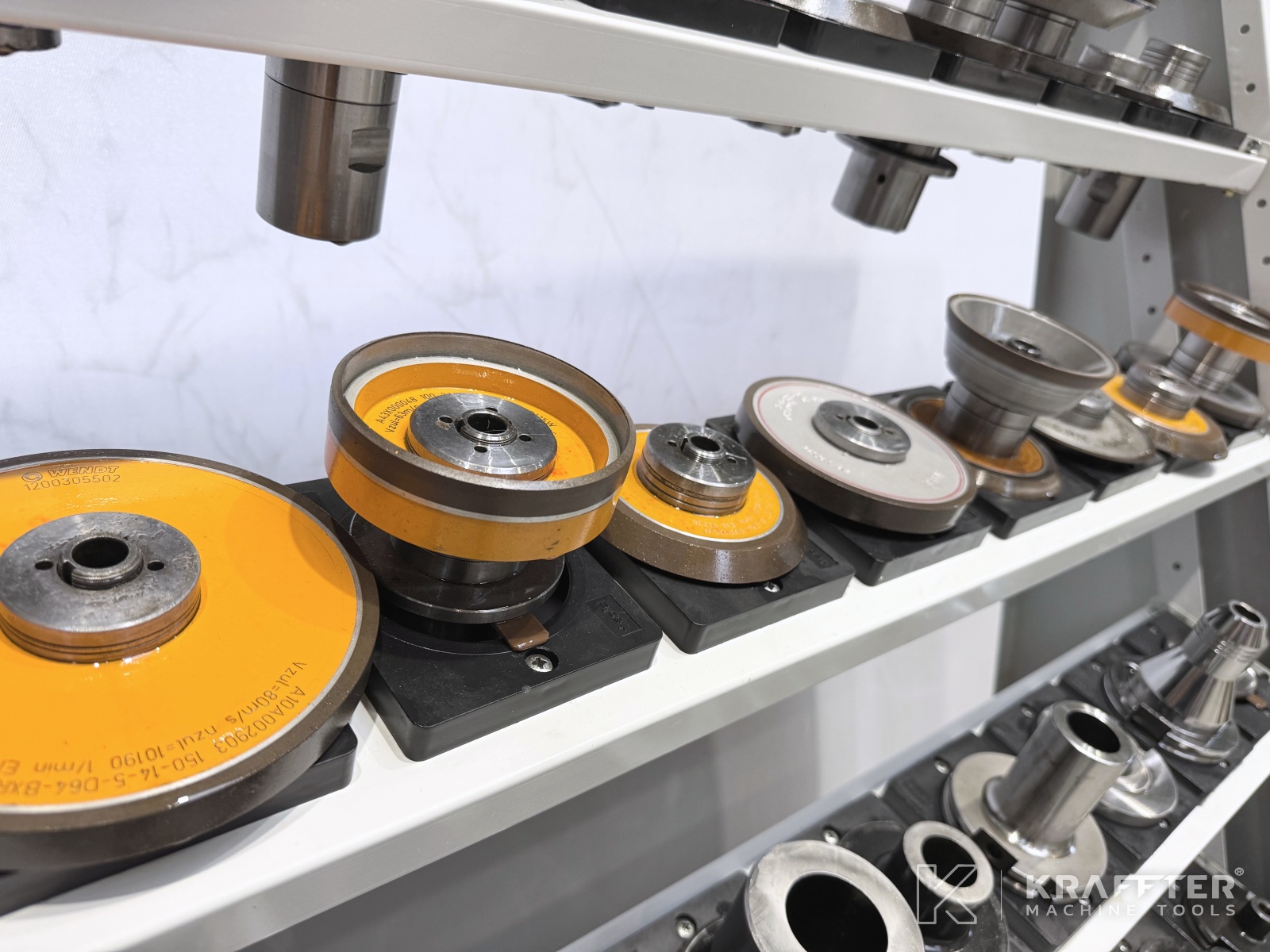

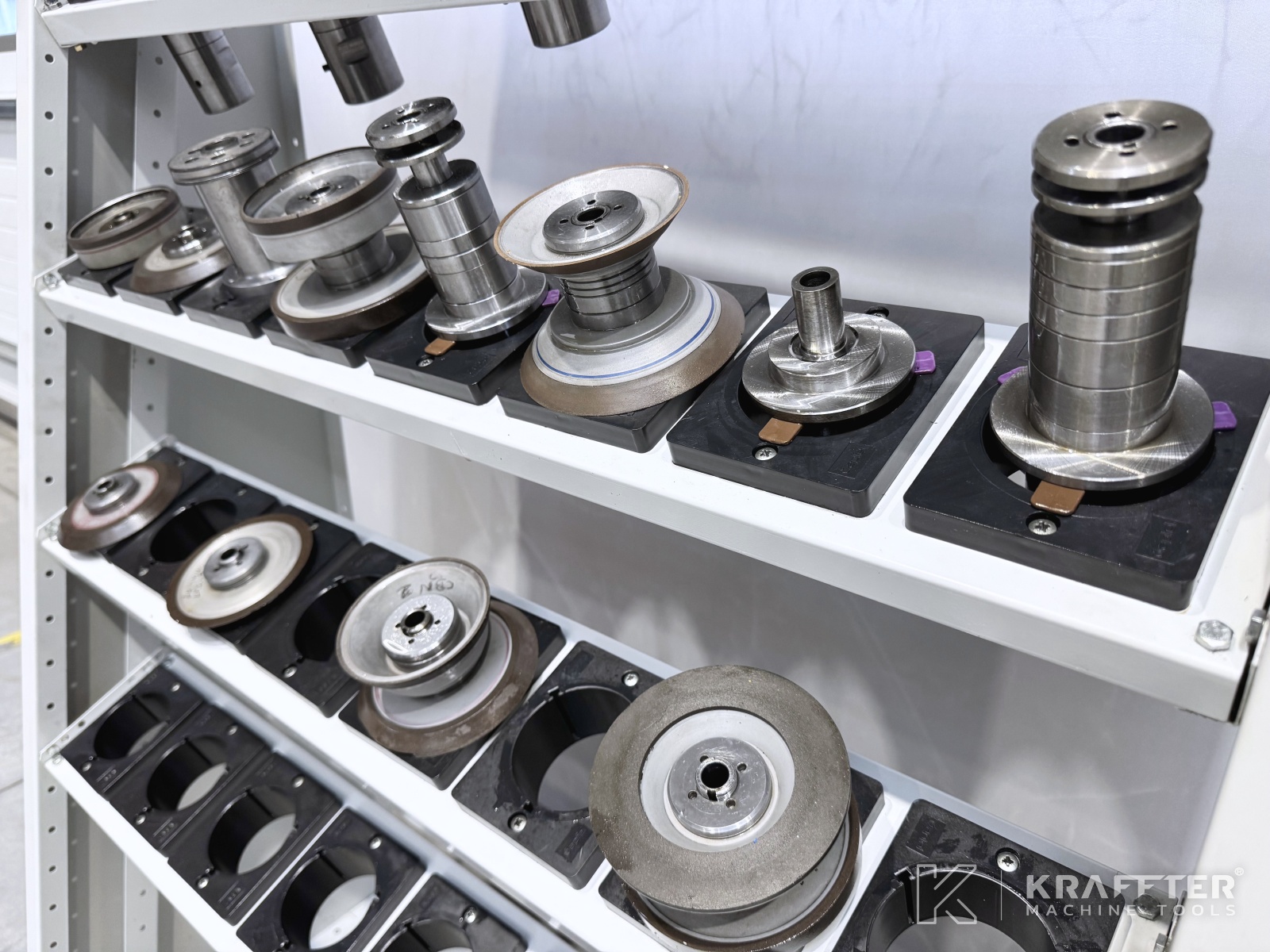

x35 grinding wheel holders (equipped with CBN wheels)

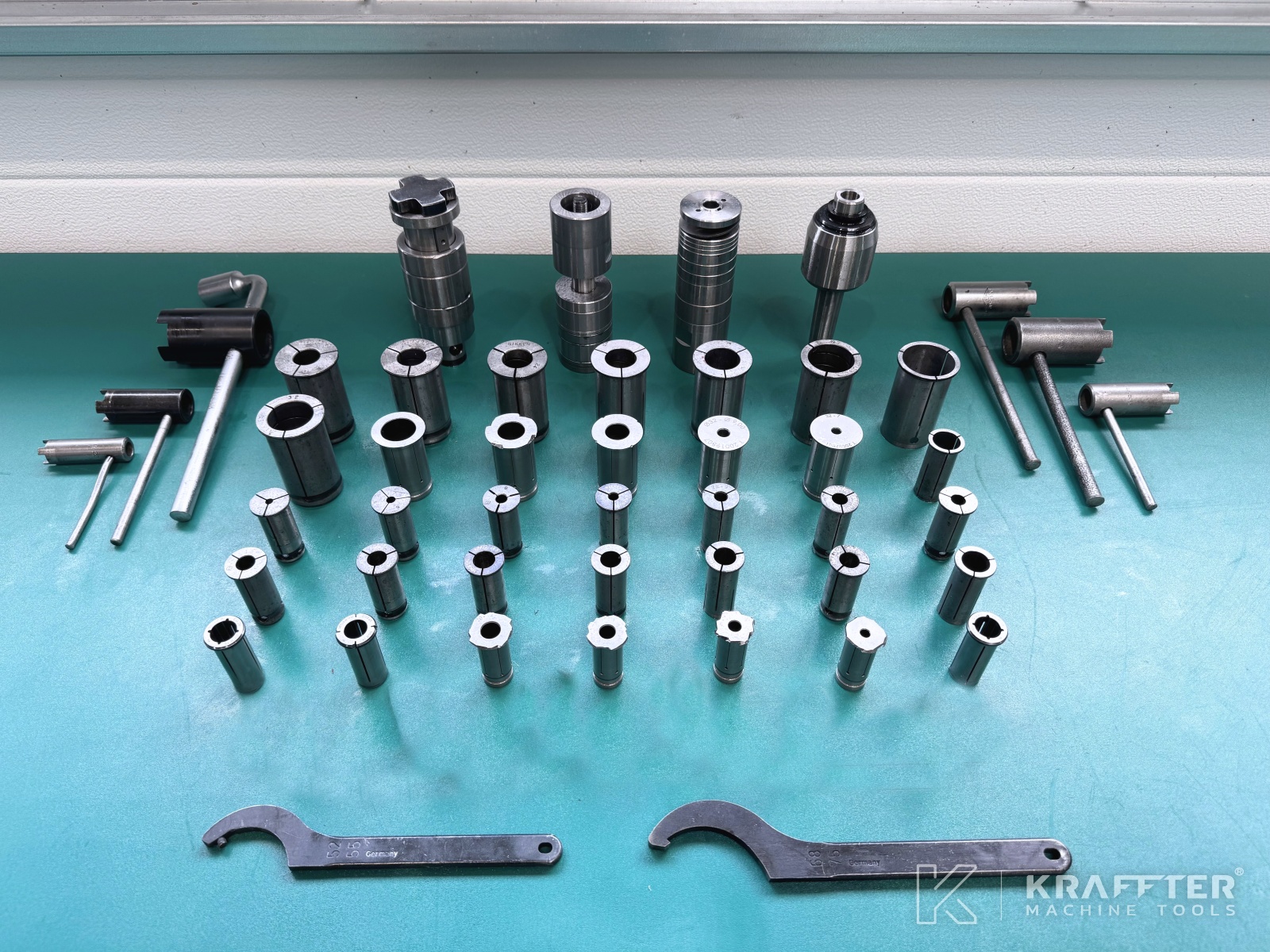

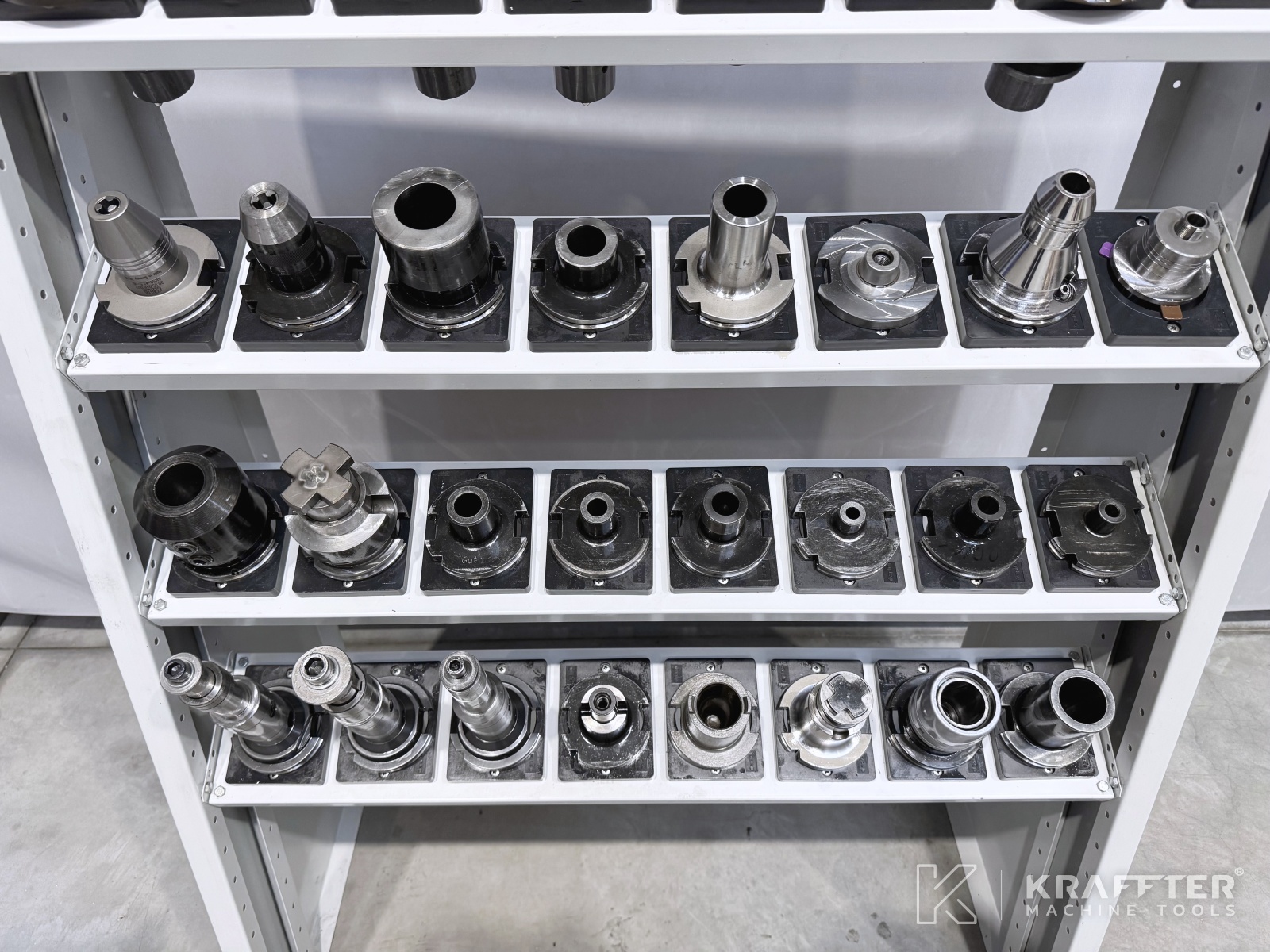

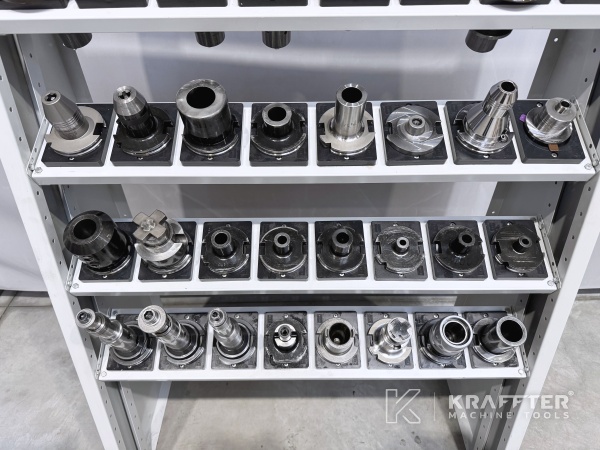

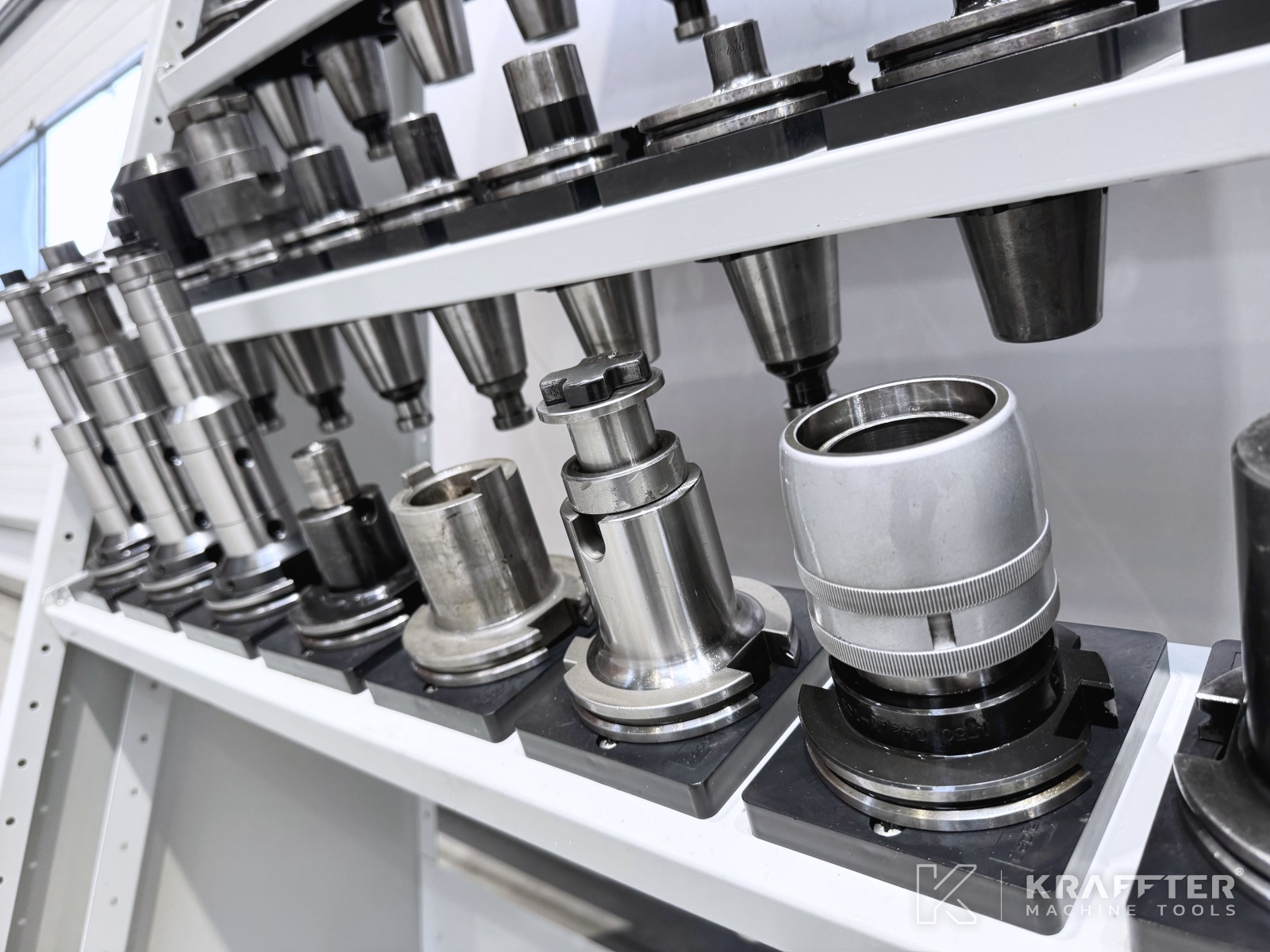

x22 ISO50 attachments
x1 SCHUNK collet holder

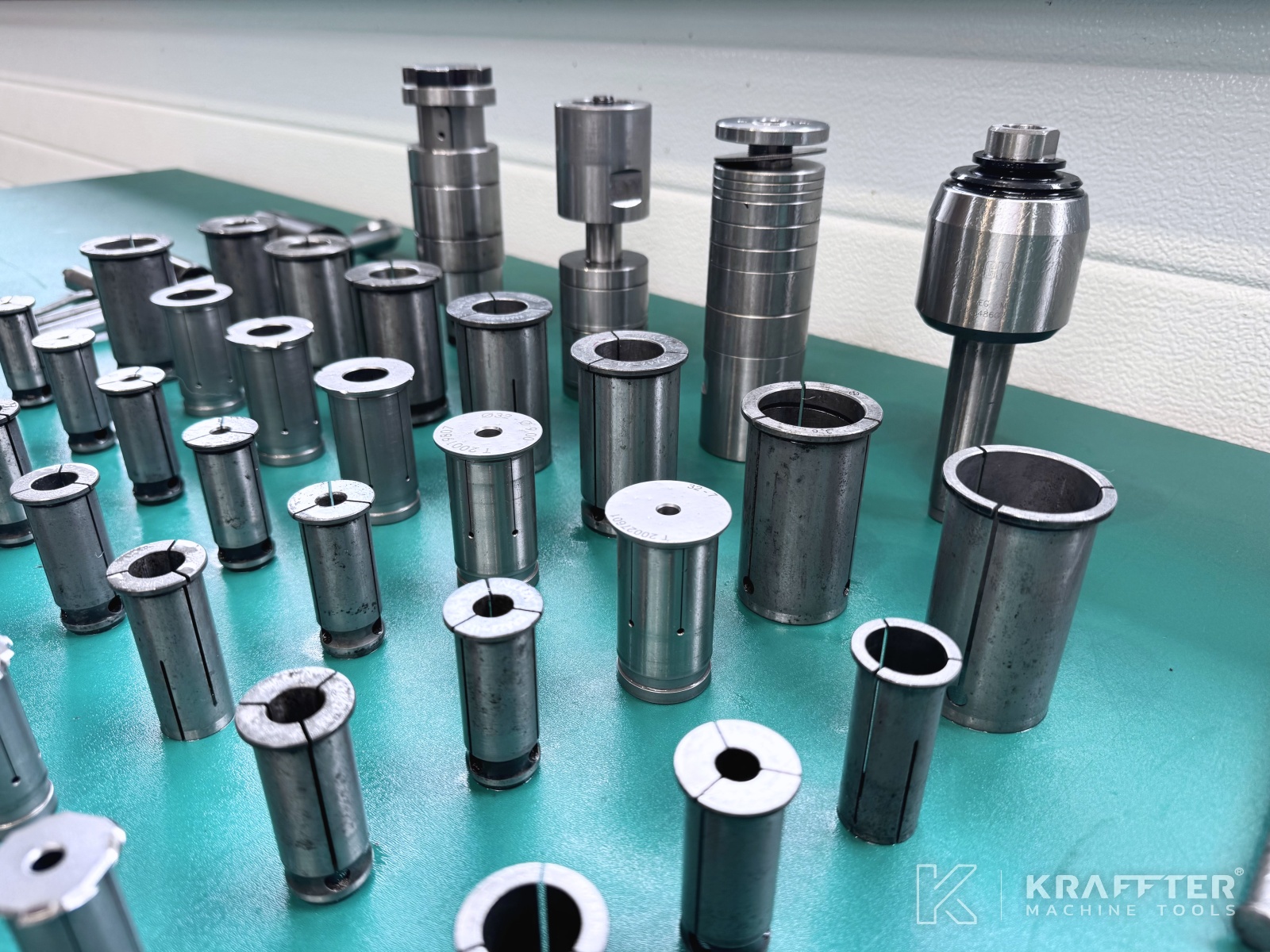

x22 collets
x1 NIKKEN collet holder
x13 NIKKEN collets

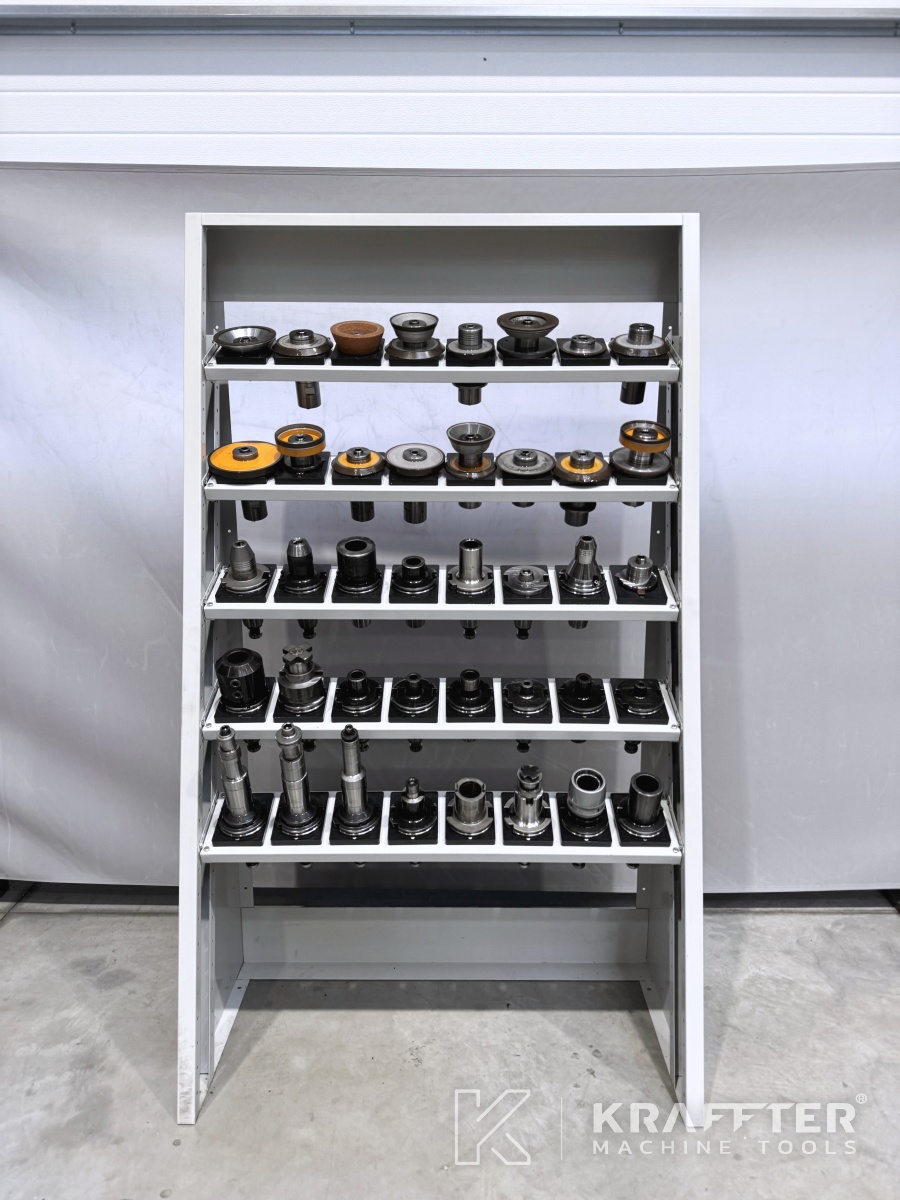

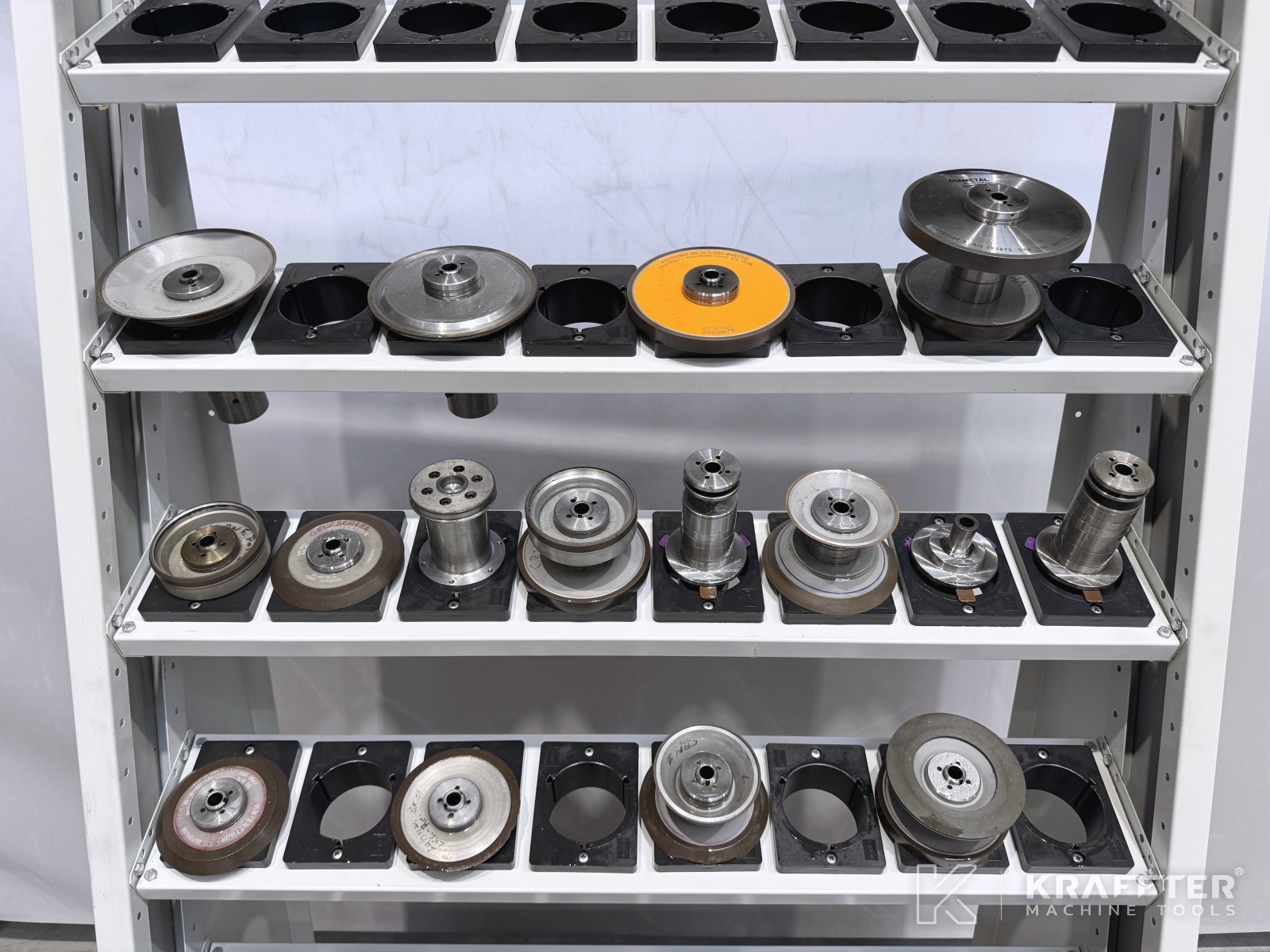

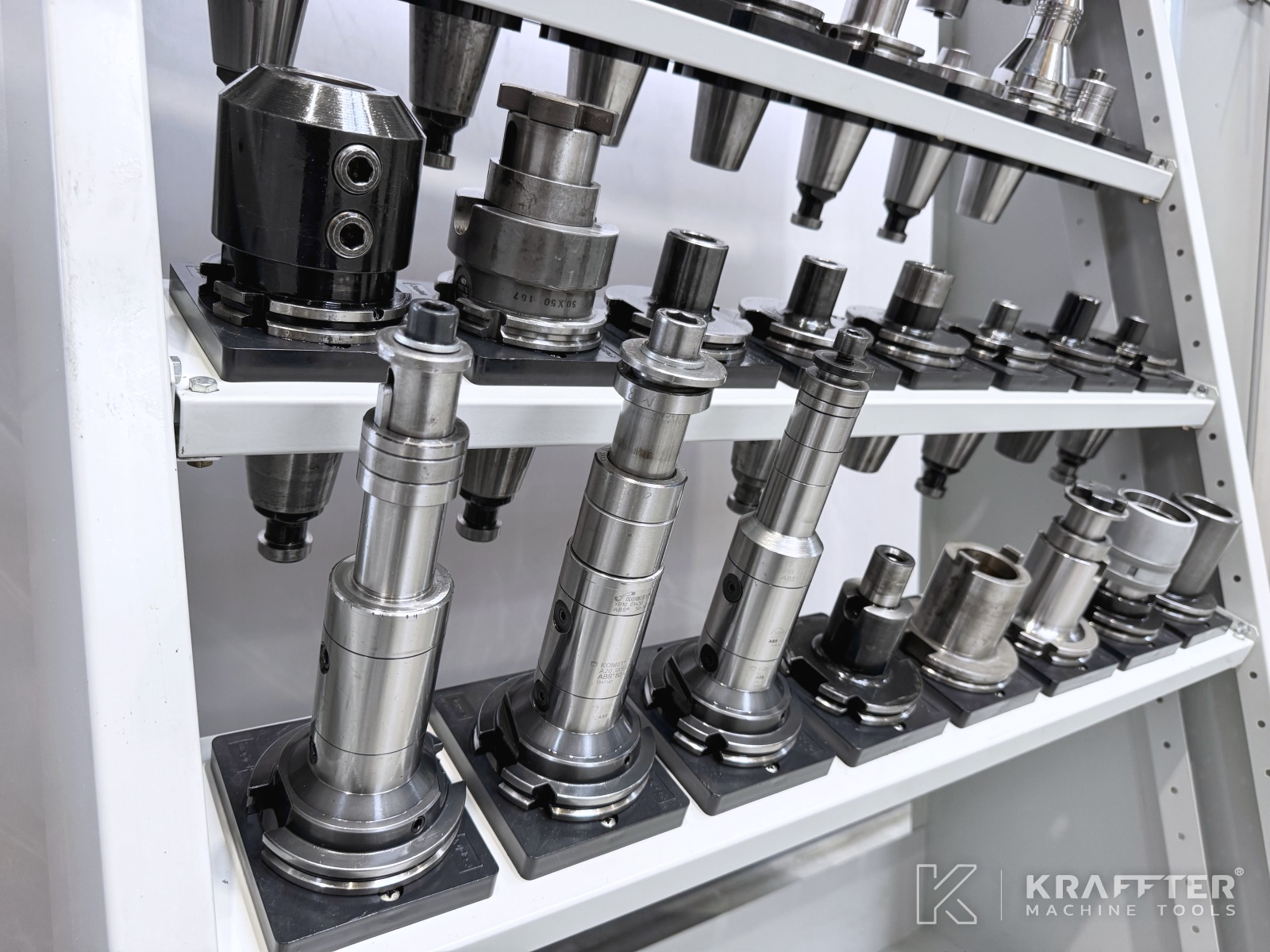

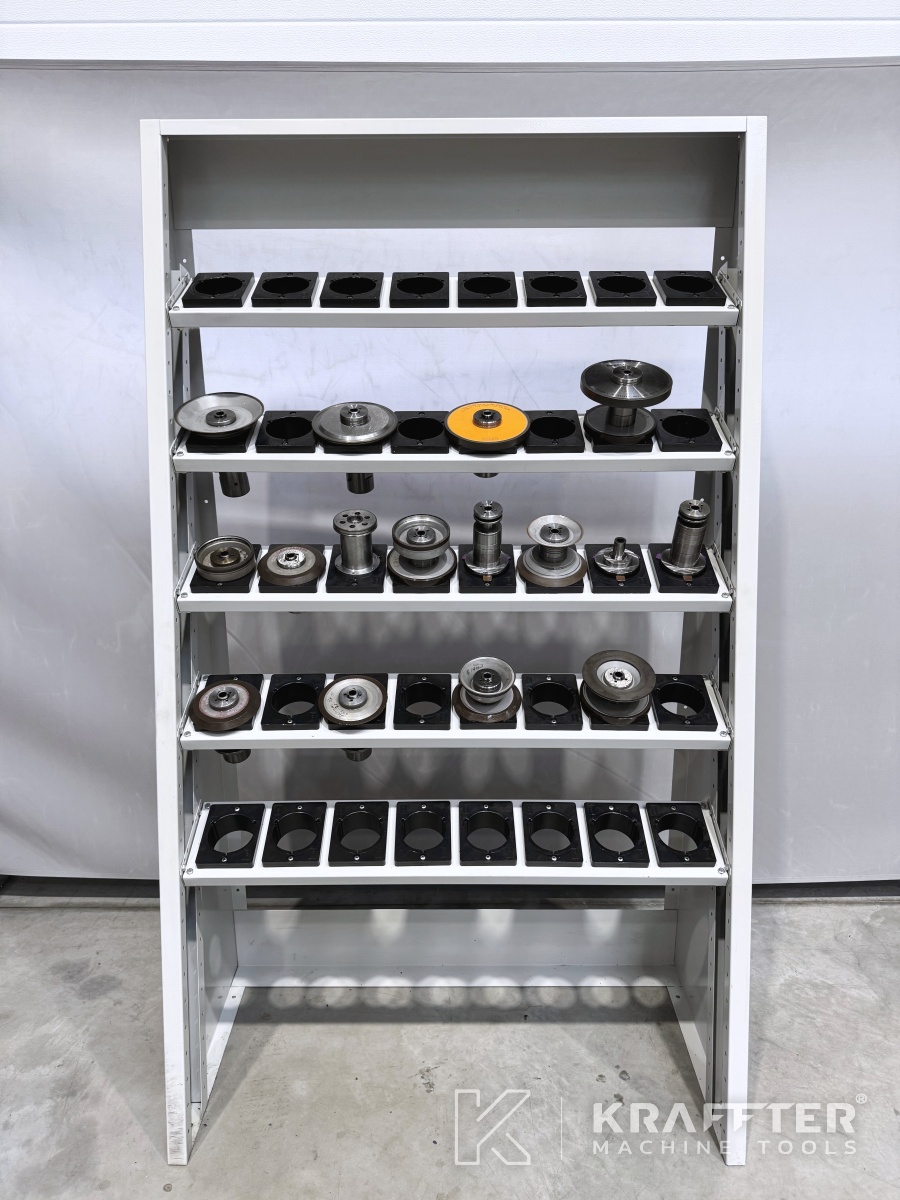

x1 metal rack for grinding wheel holders and ISO50 attachments

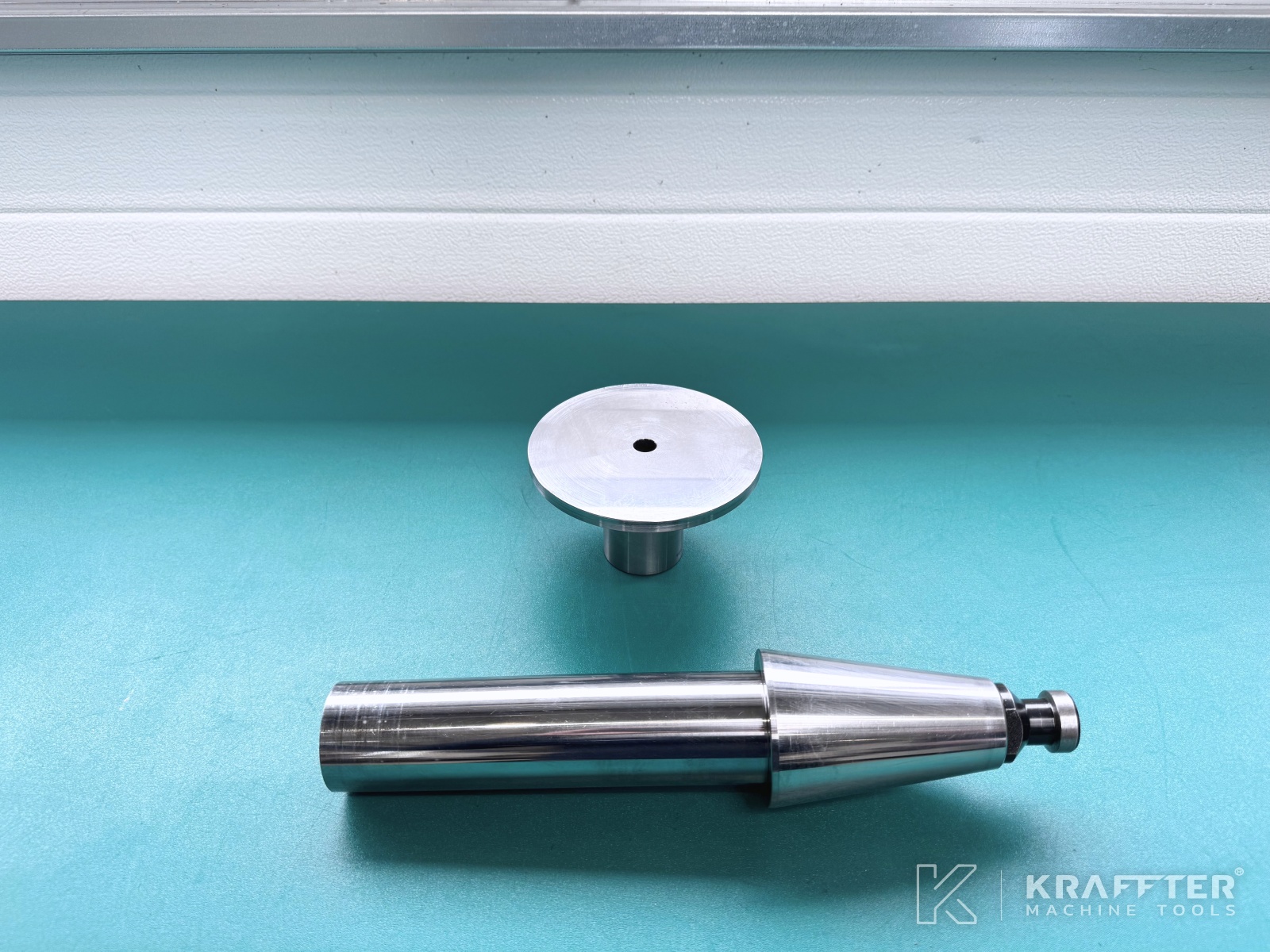

1x ISO50 calibration mandrel intended for axis calibration
1x calibration disc intended for axis calibration
x1 set of service wrenches
Various technical manuals
