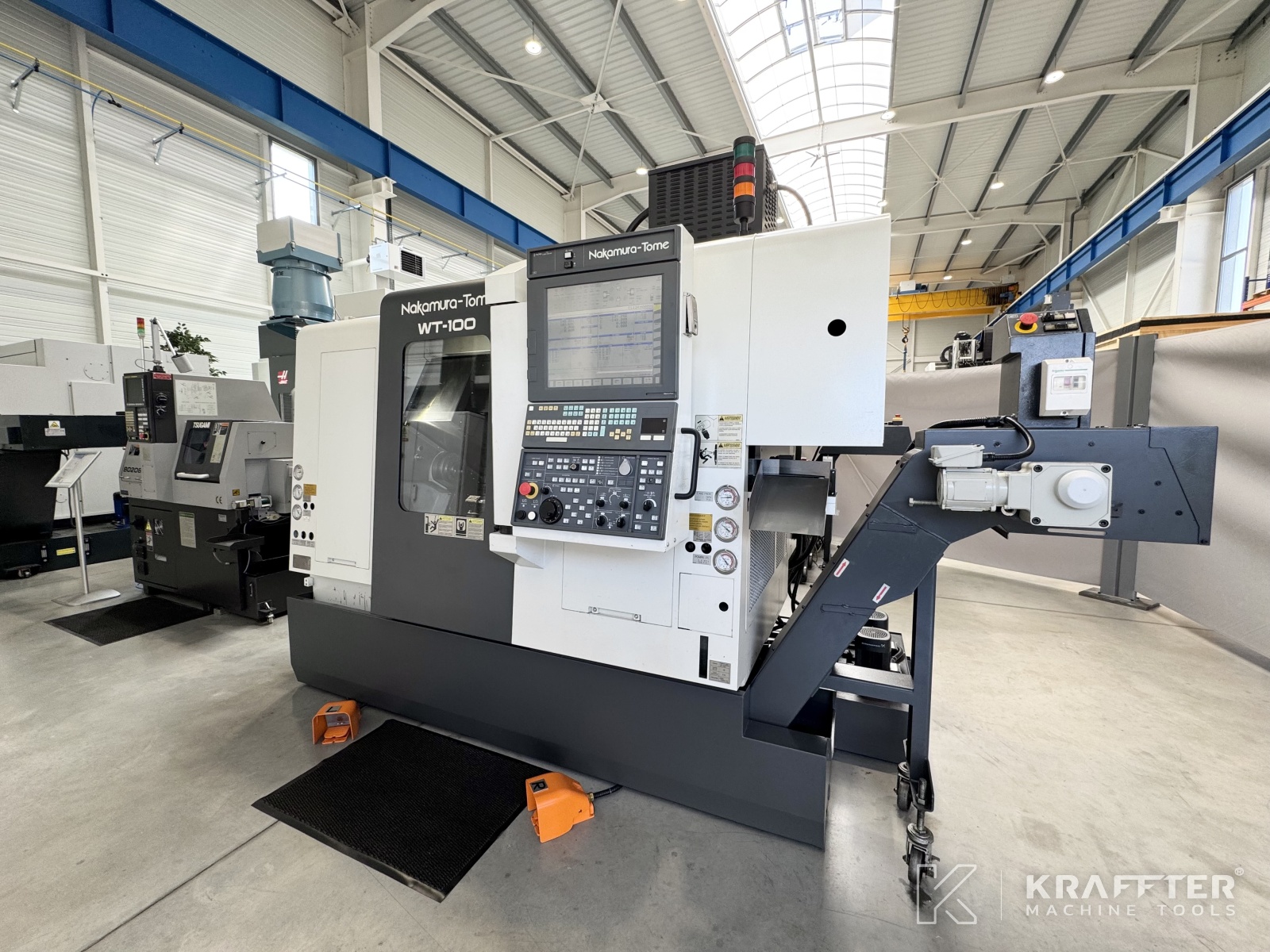

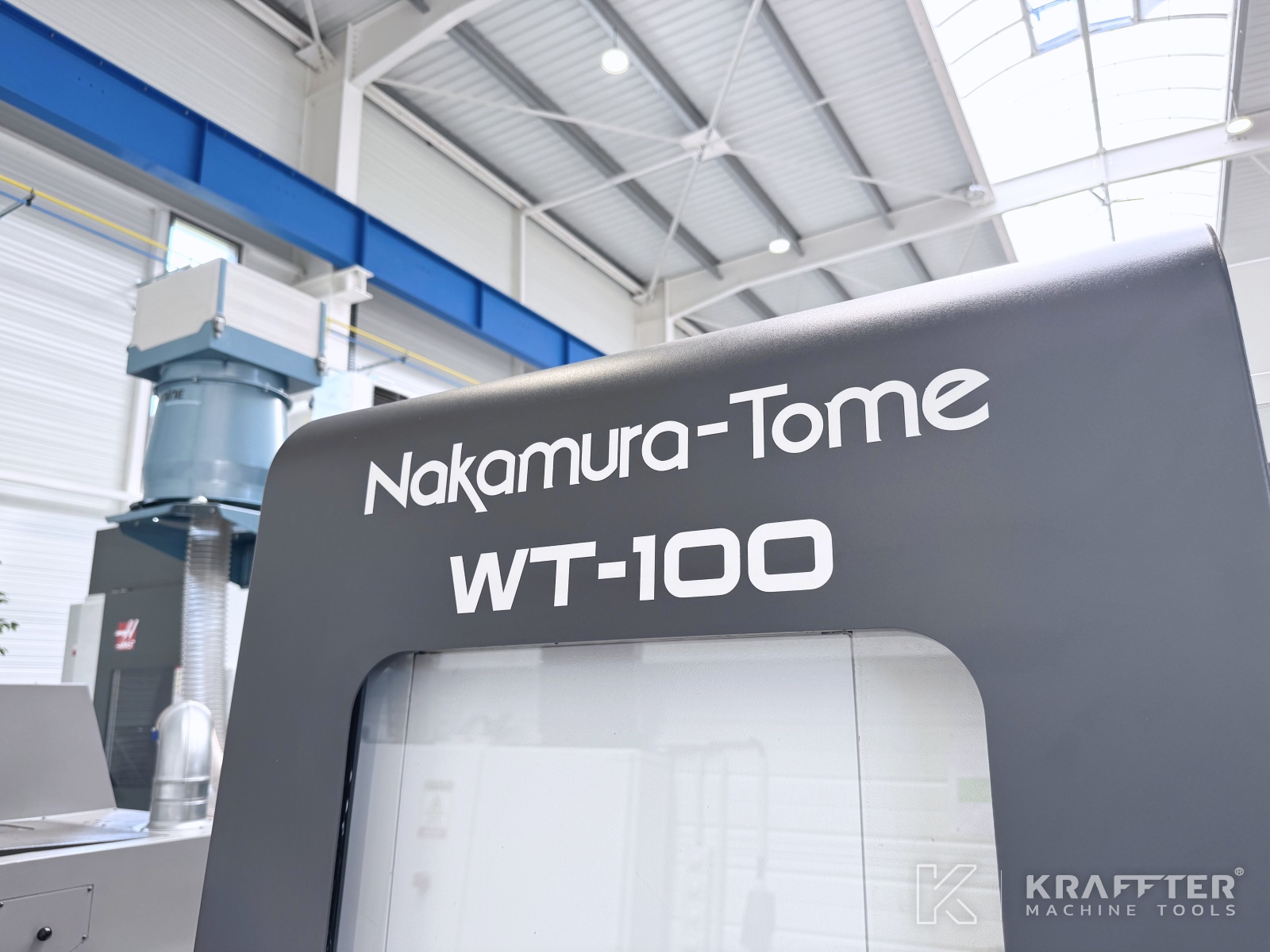

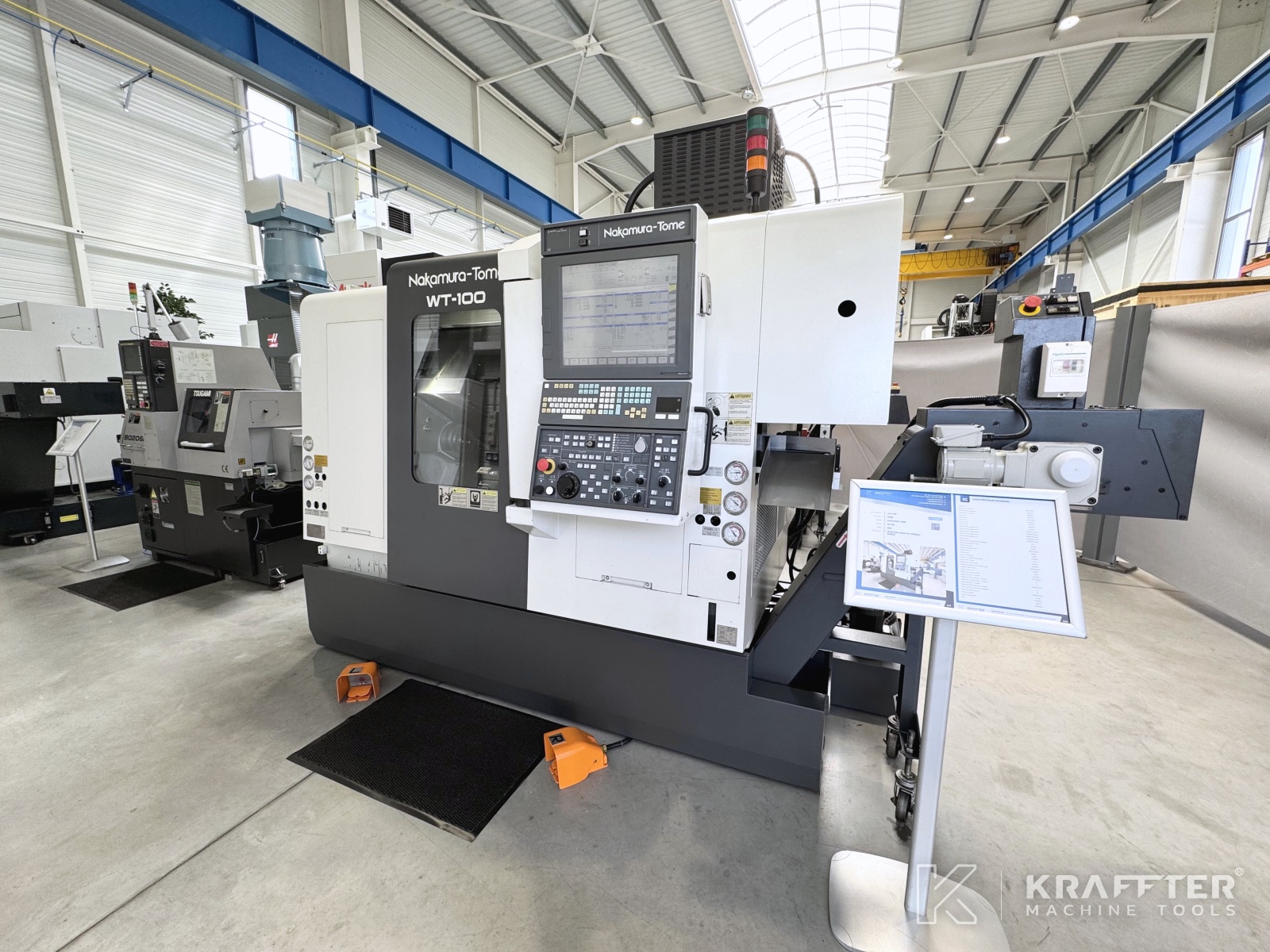

NAKAMURA TOME WT-100

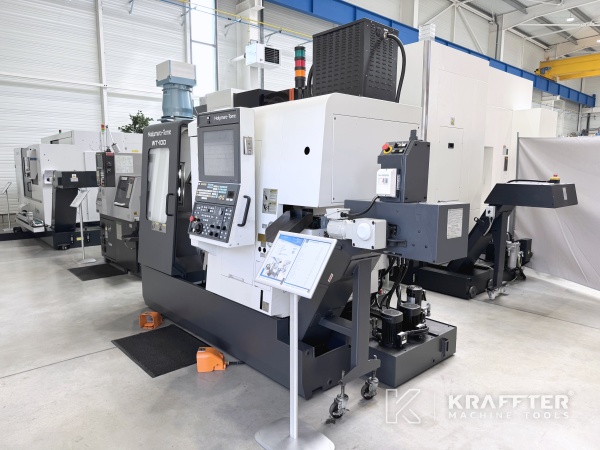

Machine tools for turning operations NAKAMURA TOME WT 100 90182

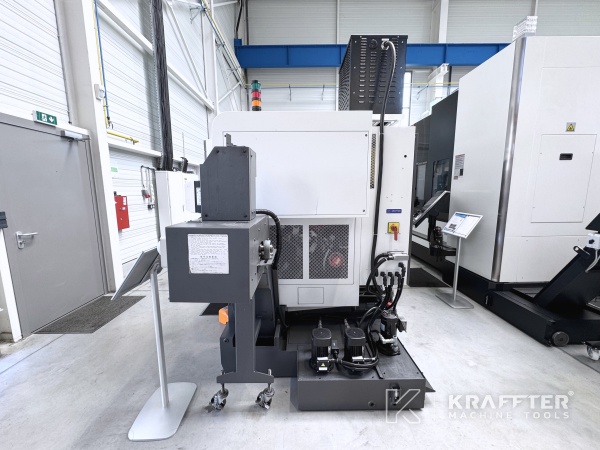

Machine tools for CNC lathe NAKAMURA TOME WT 100 axes 90182
NAKAMURA TOME WT 100 90182

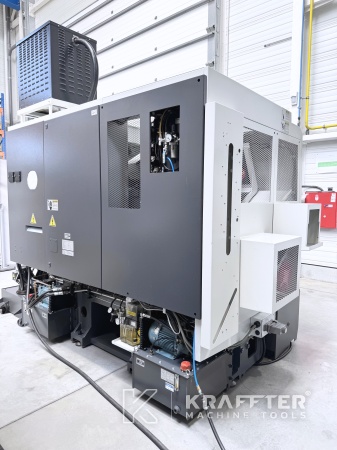

NAKAMURA TOME WT 100 90182 - Second hand Machine Tools at Kraffter

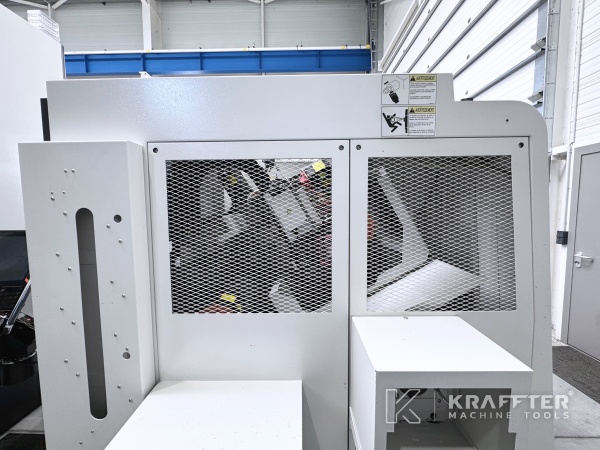

NAKAMURA TOME WT 100 90182 available at Kraffter Machine Tools dealer

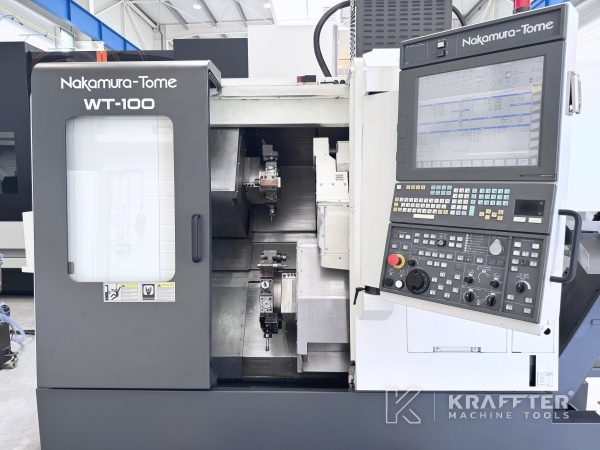

Metal CNC lathe NAKAMURA TOME WT 100 axes 90182 - dealer of used machinery

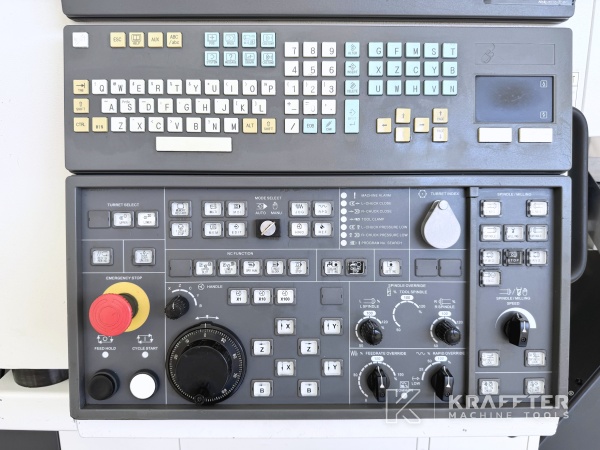

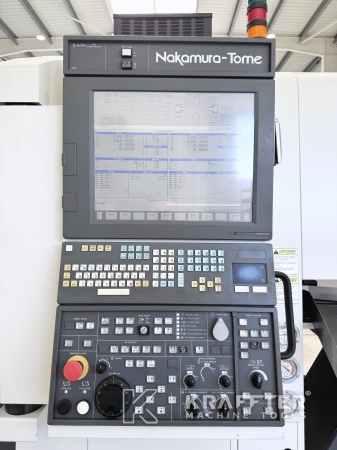

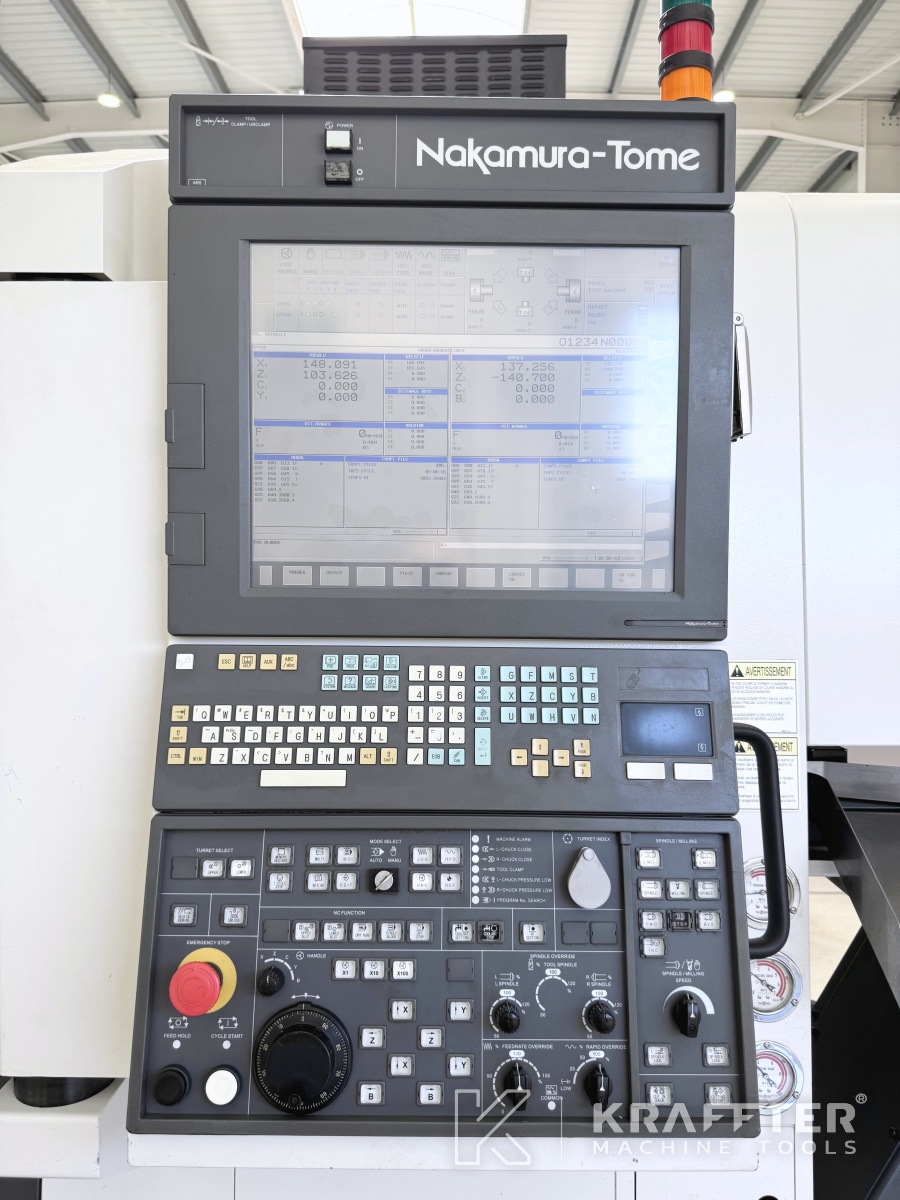

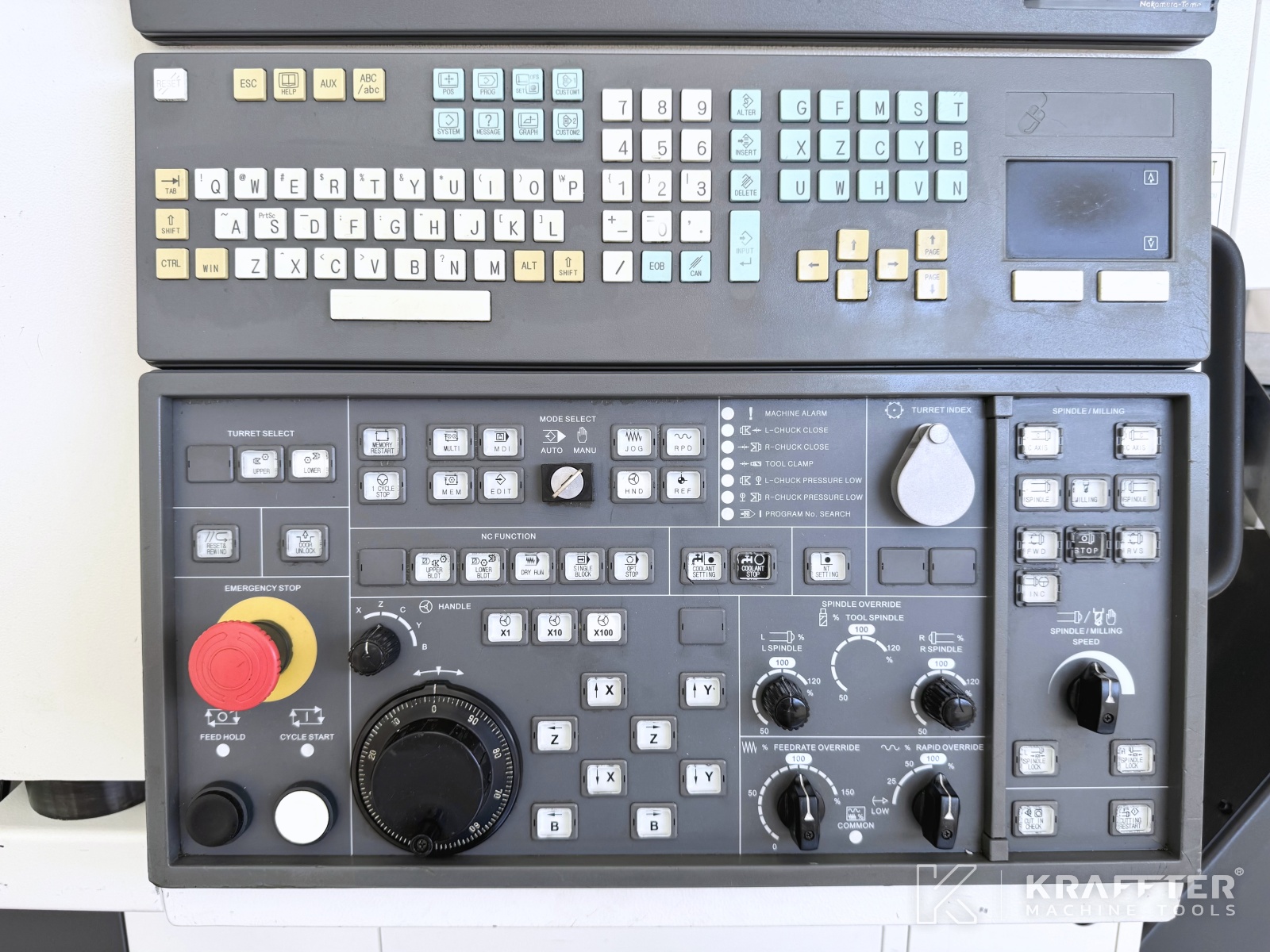

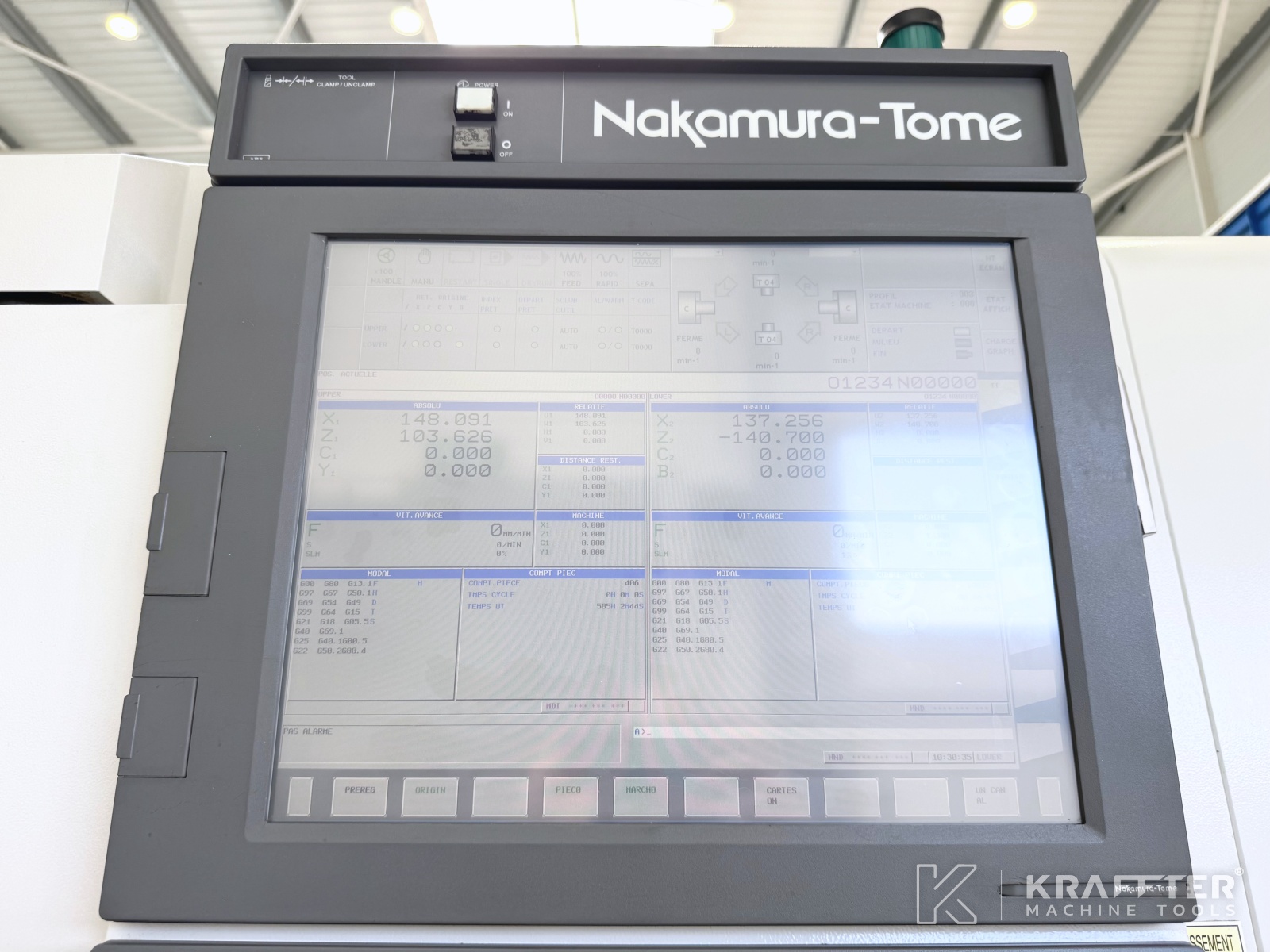

FANUC 31i-B numerical control (cnc et cn) NAKAMURA TOME WT 100 90182
FANUC 31i-B numerical control on machine tools NAKAMURA TOME WT 100 90182

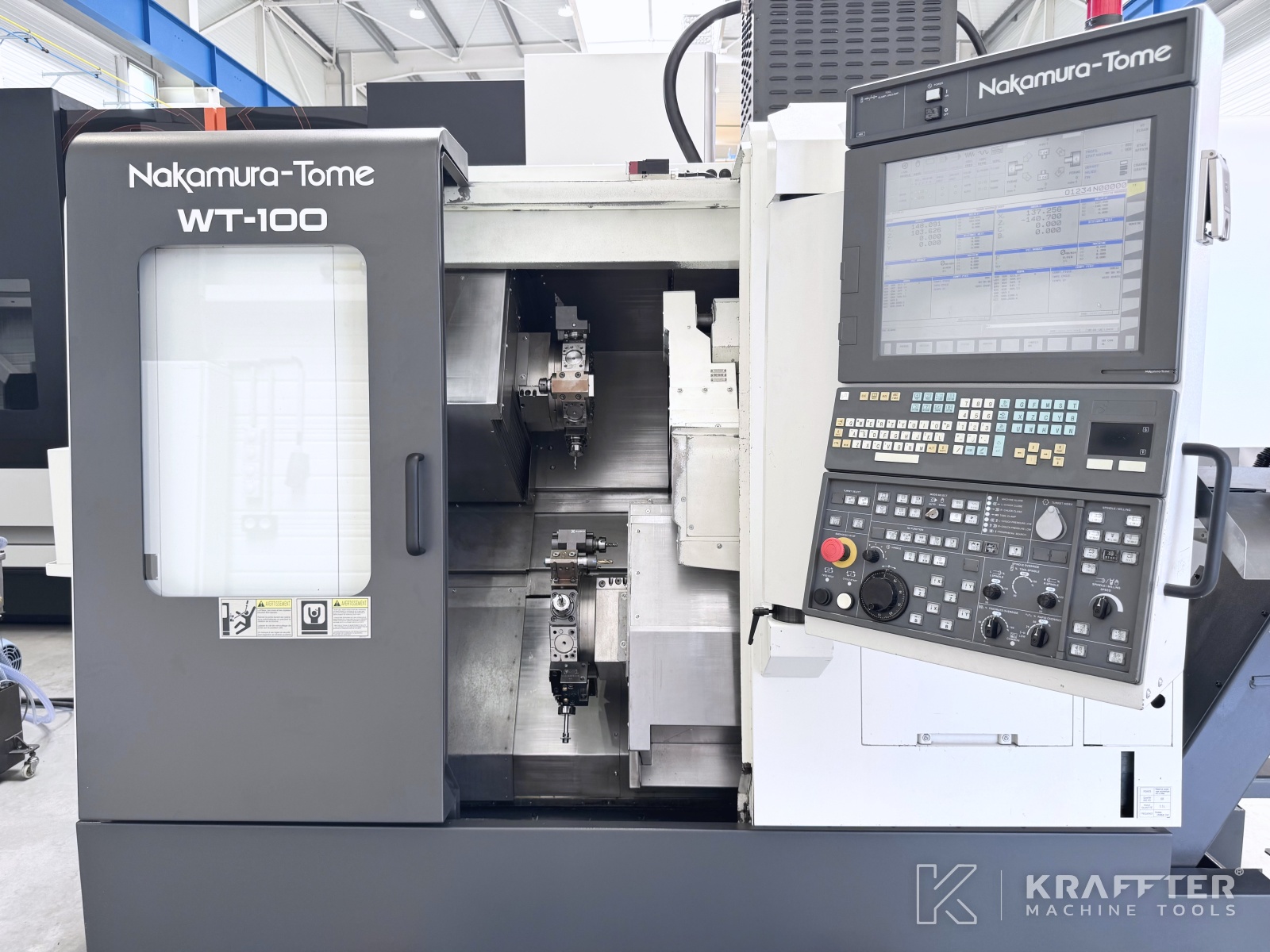

Metal CNC lathe NAKAMURA TOME WT 100 90182
Second hand CNC lathe NAKAMURA TOME WT 100 90182 for sale

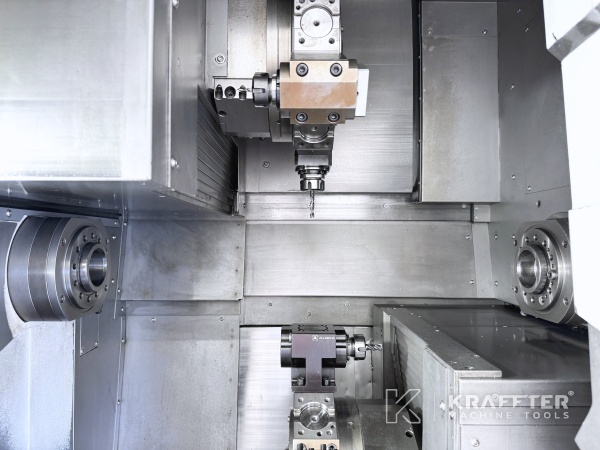

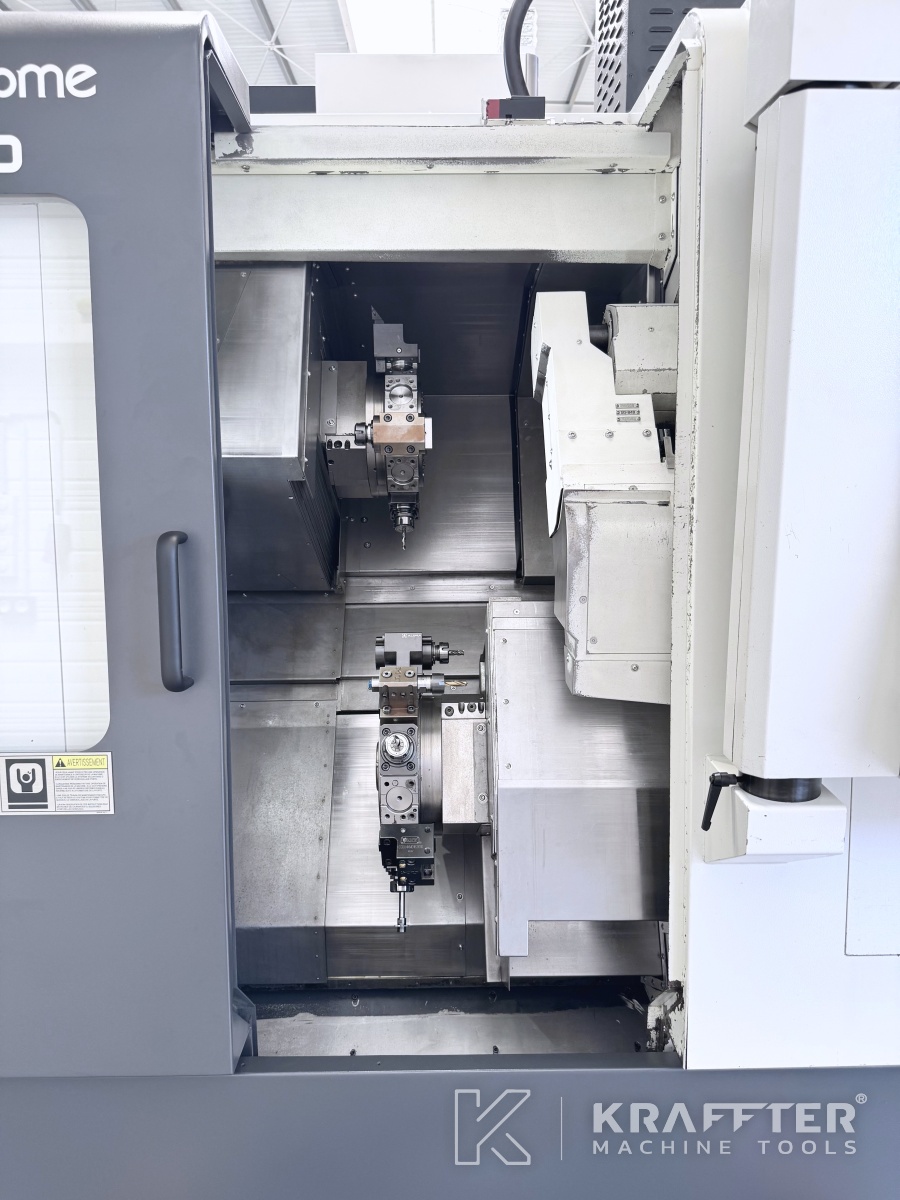

Used CNC lathe axis NAKAMURA TOME WT 100 90182 for sale

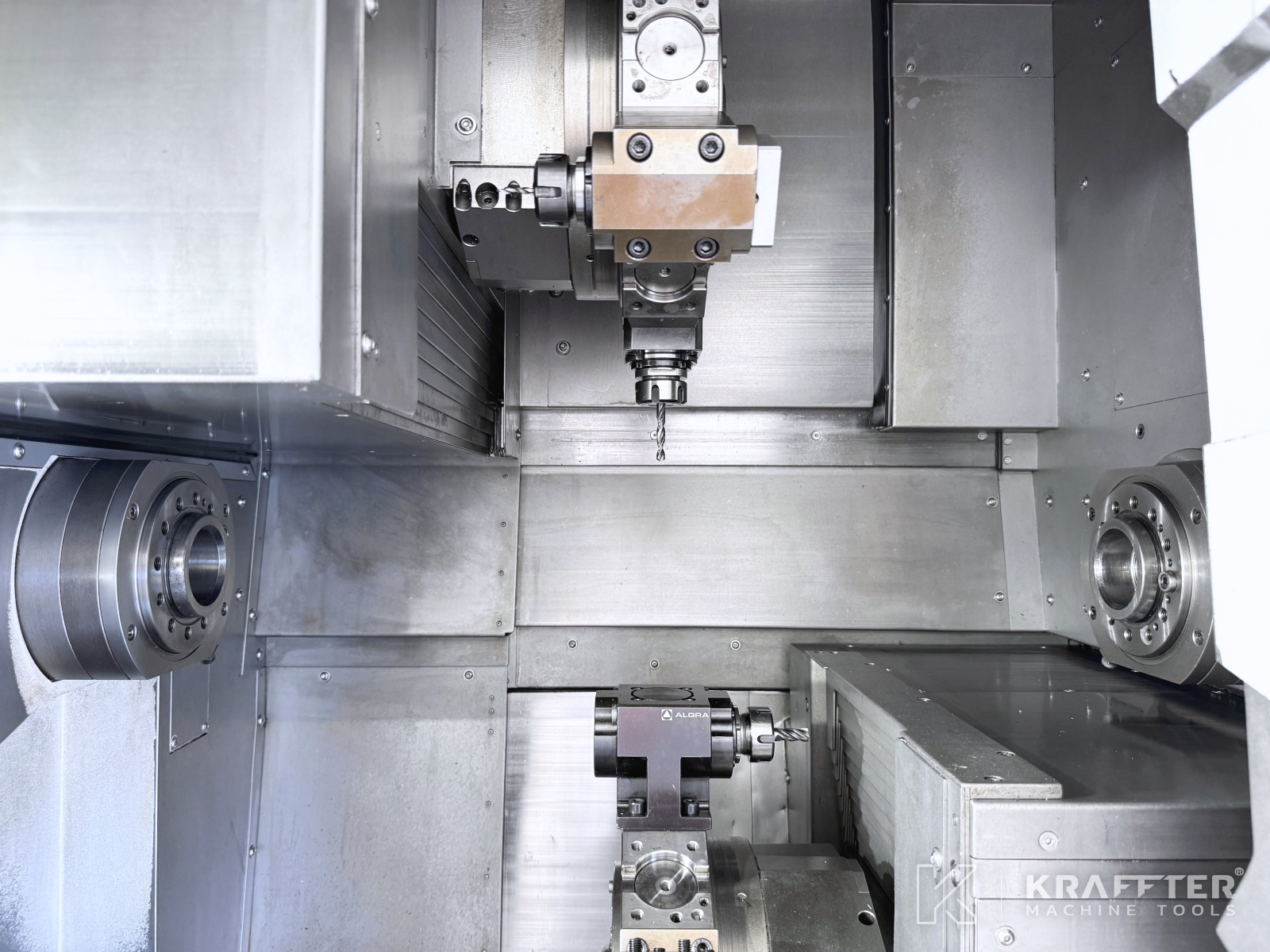

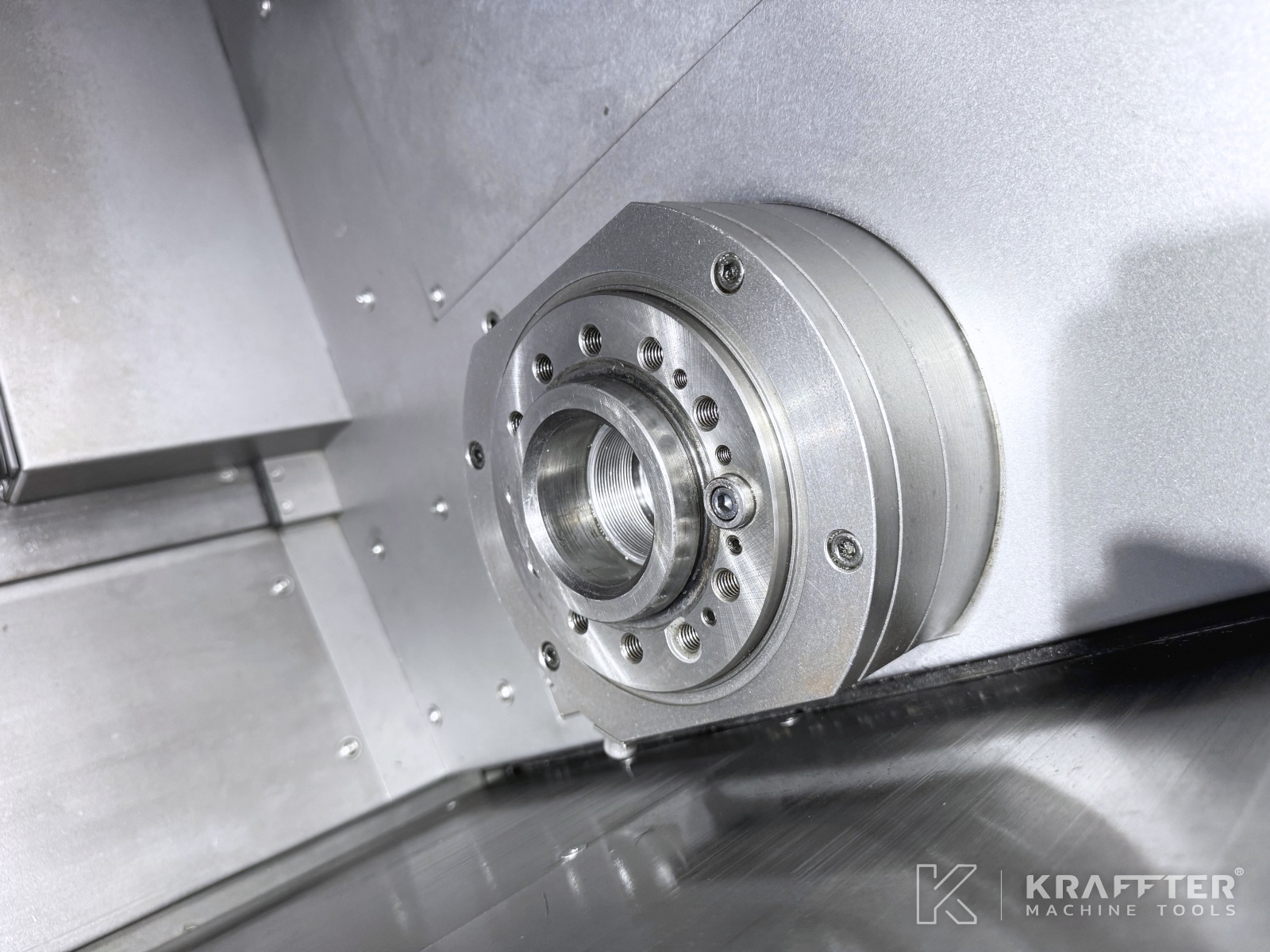

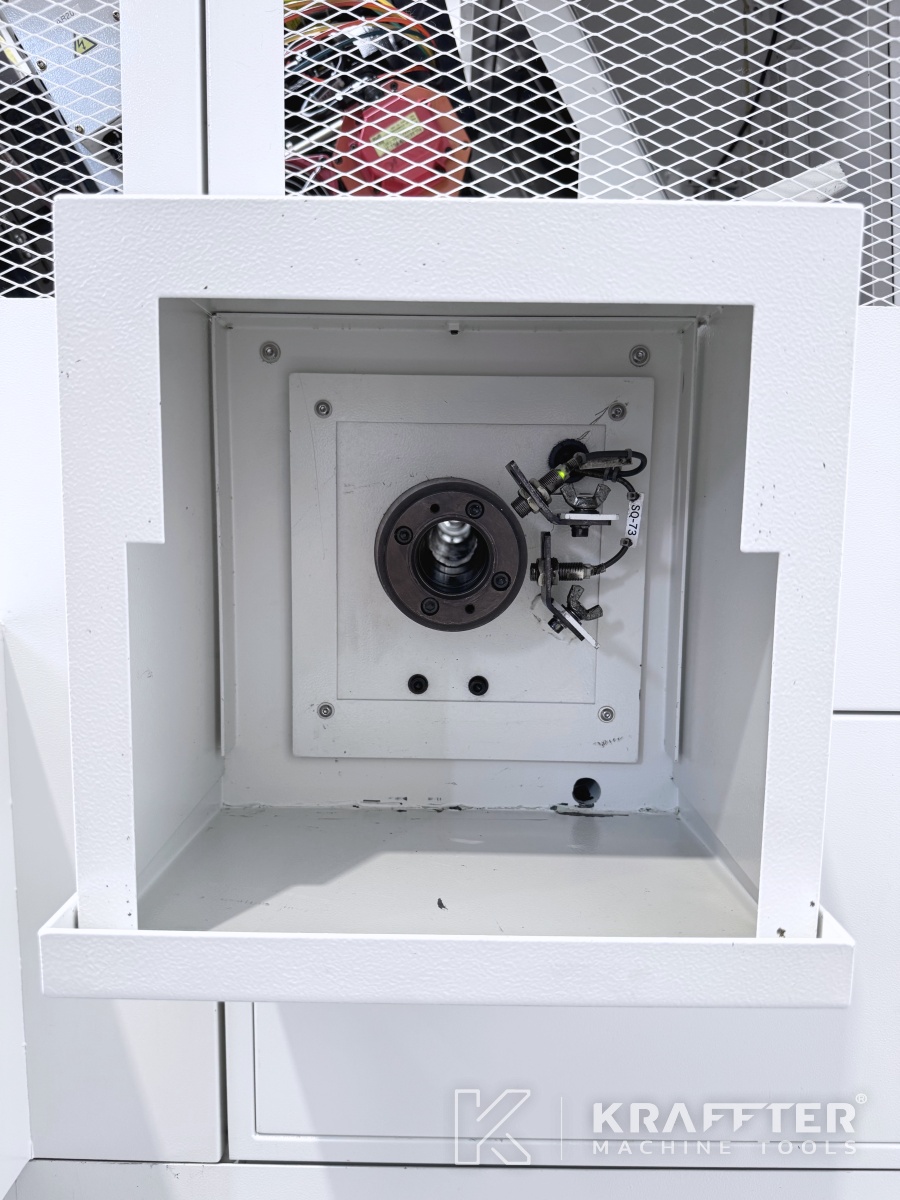

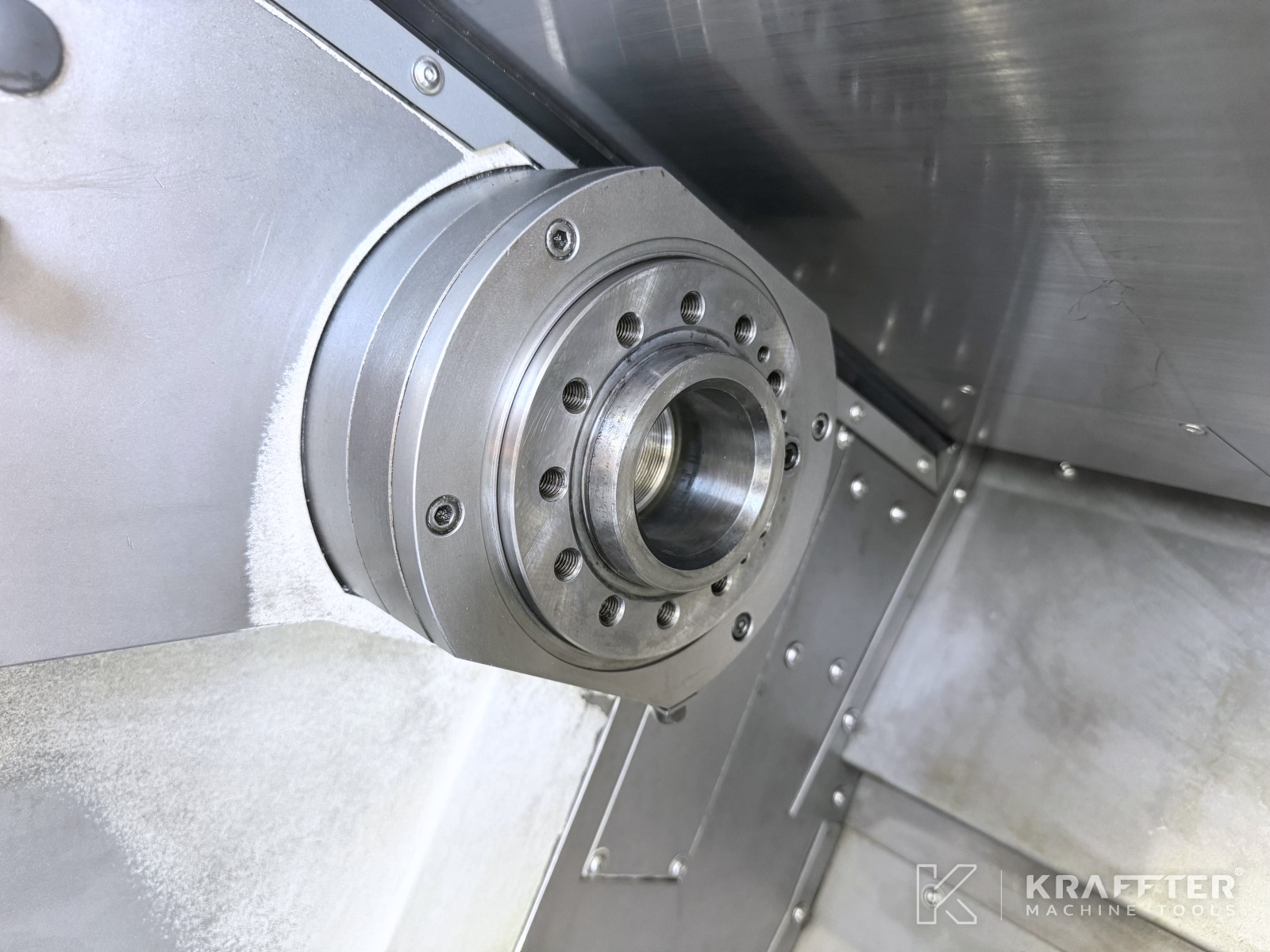

Workpiece spindle on NAKAMURA TOME WT 100 90182
KRAFFTER your dealer of Second-hand machine tools , NAKAMURA TOME WT 100 90182
CNC lathe NAKAMURA TOME WT 100 90182 - KRAFFTER Machine tools reseller
Industrial machines for turning operations CNC lathe NAKAMURA TOME WT 100 90182
Industrial machines for CNC lathe NAKAMURA TOME WT 100 90182
Precision mechanics CNC lathe NAKAMURA TOME WT 100 90182 , Used machinery
Precision Manufacturing CNC lathe NAKAMURA TOME WT 100 90182

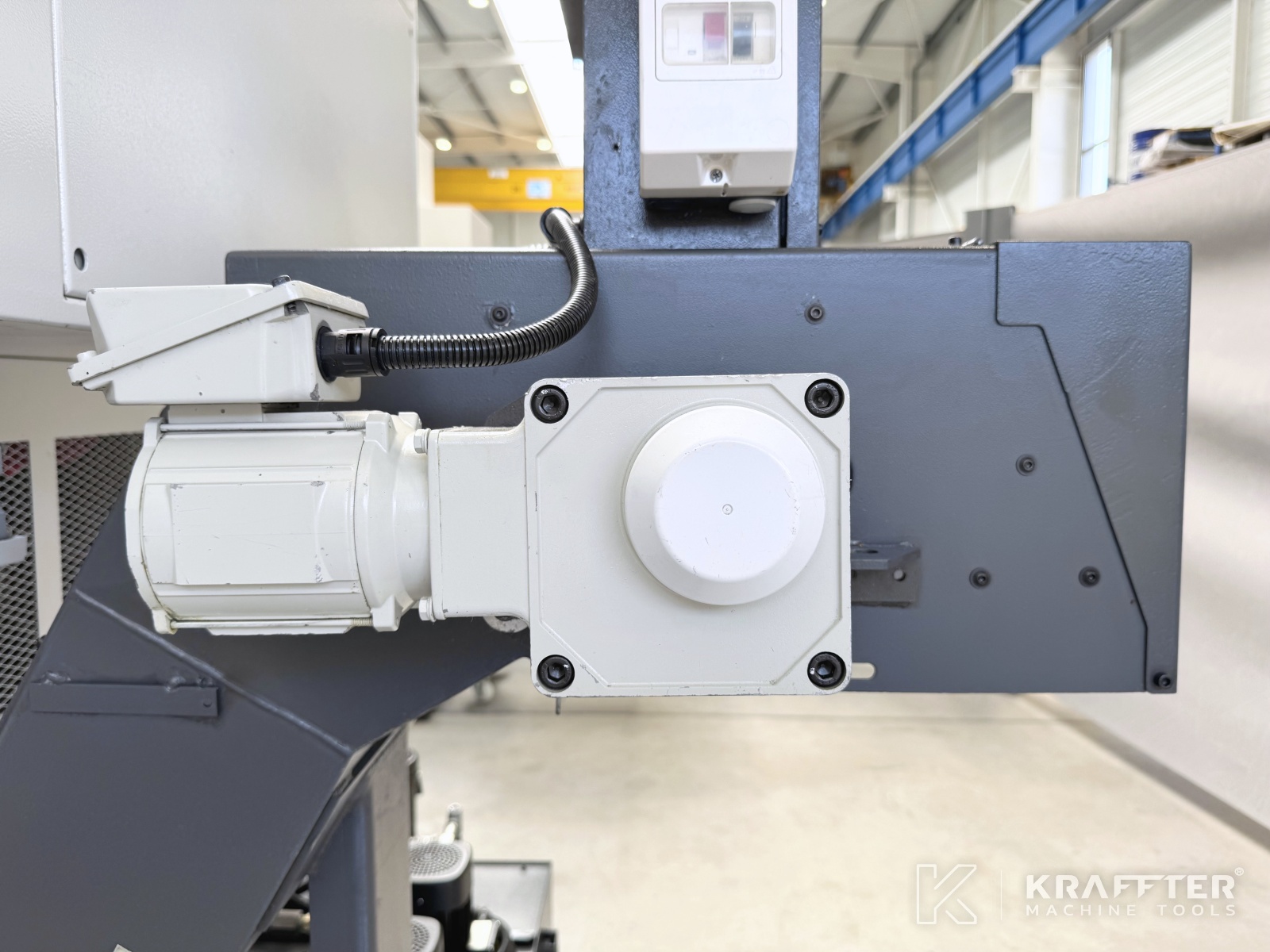

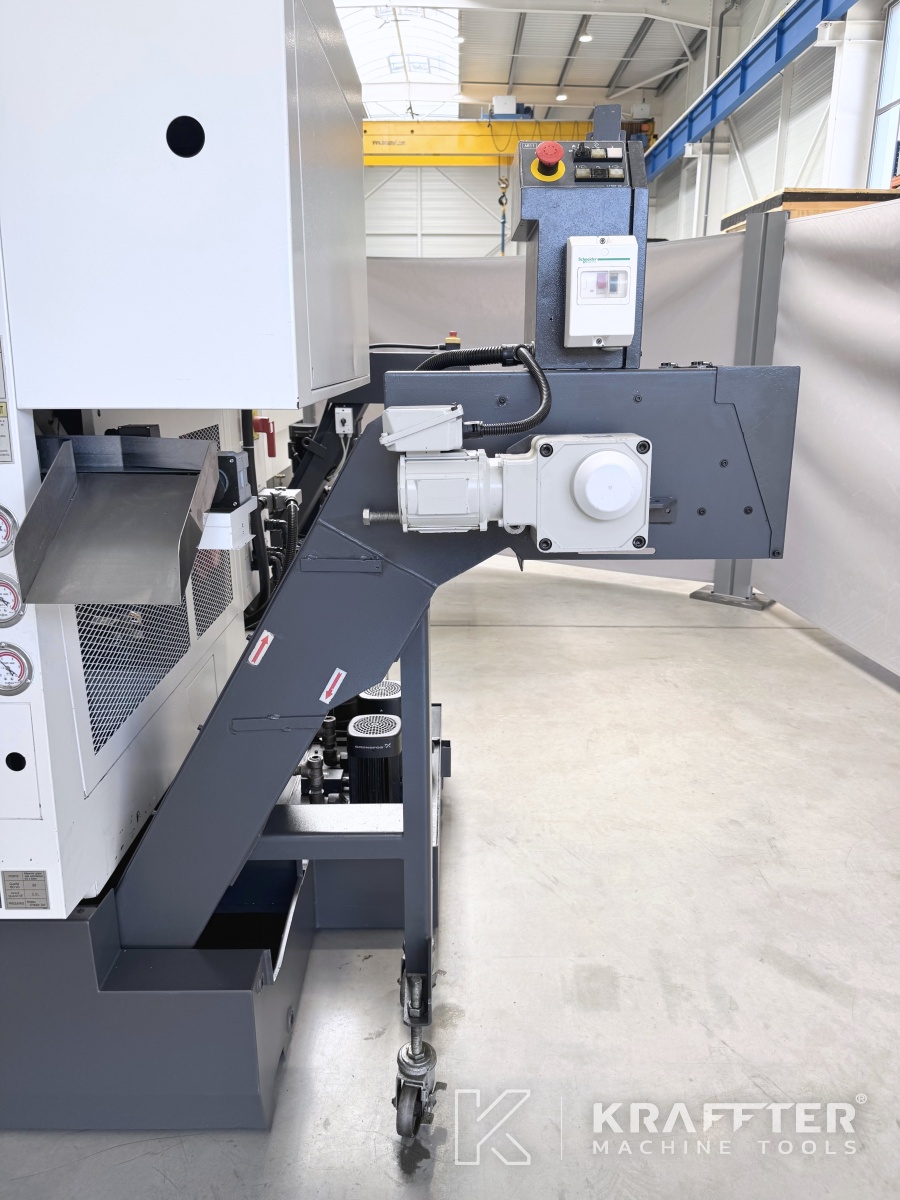

Chip conveyor on NAKAMURA TOME WT 100 90182
Automatic chip evacuation NAKAMURA TOME WT 100 90182

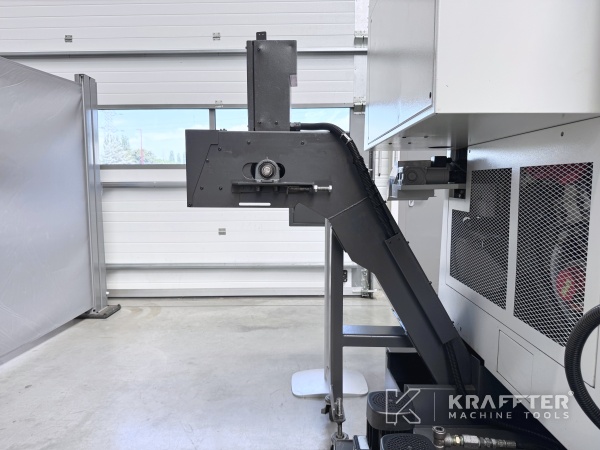

Chip conveyor for Turning NAKAMURA TOME WT 100 90182
Metal CNC lathe for precision machining NAKAMURA TOME WT 100 90182
NAKAMURA TOME WT 100 90182 Second hand Machine Tools at Kraffter
Worldwide purchase and resale of CNC lathe NAKAMURA TOME WT 100 90182
International buying and reselling CNC lathe NAKAMURA TOME WT 100 90182
Buying and selling used CNC lathe NAKAMURA TOME WT 100 90182 Europe, United Kingdom, worldwide
Machine Tools for sale axis NAKAMURA TOME WT 100 90182 , Used machinery at Kraffter
Sale of CNC lathe NAKAMURA TOME WT 100 90182 - Dealer of used machinery
NAKAMURA TOME WT 100 90182 reselling and worldwide shipping at Kraffter Machine Tools
CNC lathe for sale NAKAMURA TOME WT 100 90182 , Second hand Machine Tools
Numerical lathe NAKAMURA TOME WT 100 90182 at KRAFFTER your dealer of used machinery
Used CNC lathe NAKAMURA TOME WT 100 90182 destocking Europe, Turkey, India

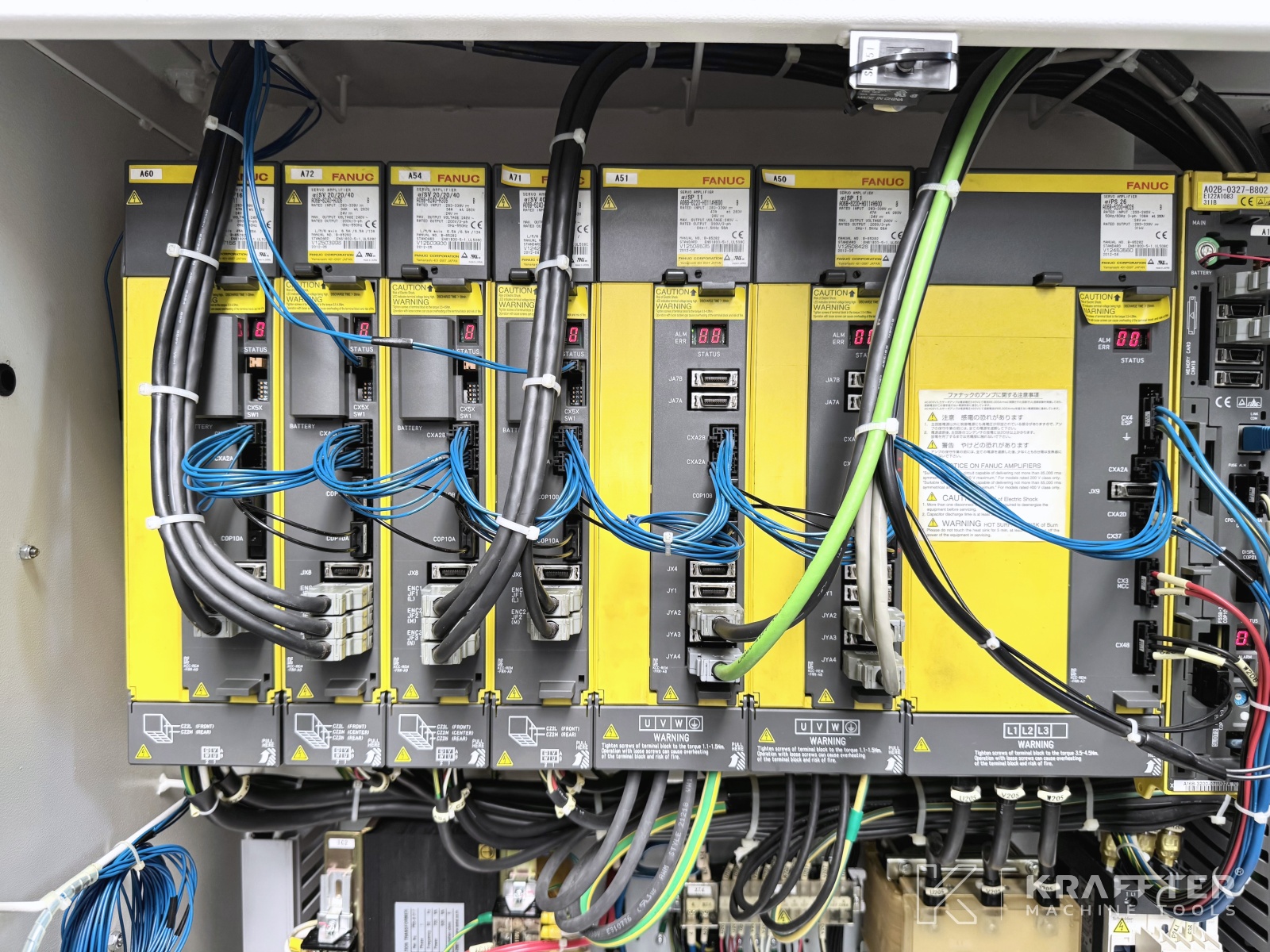

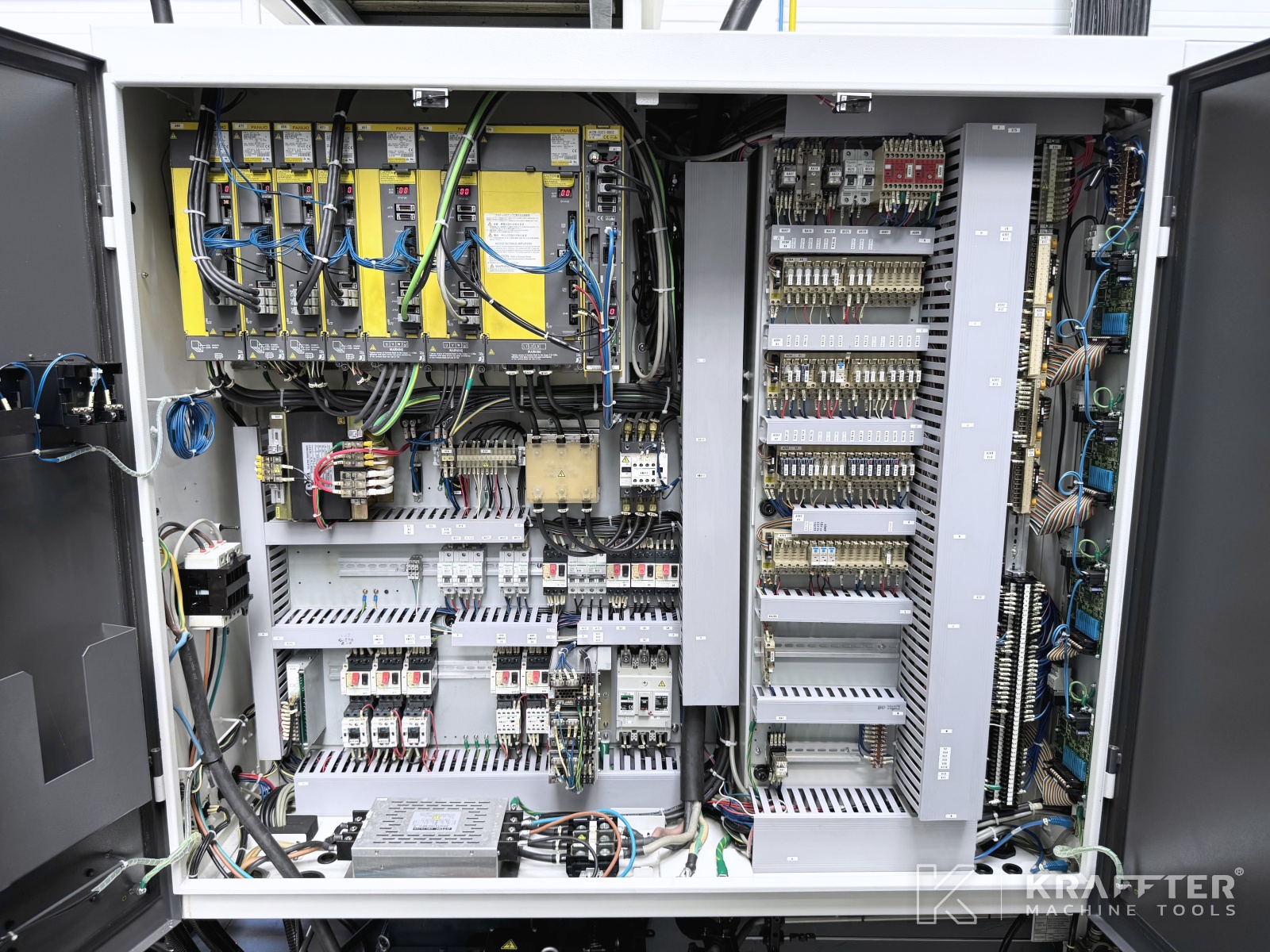

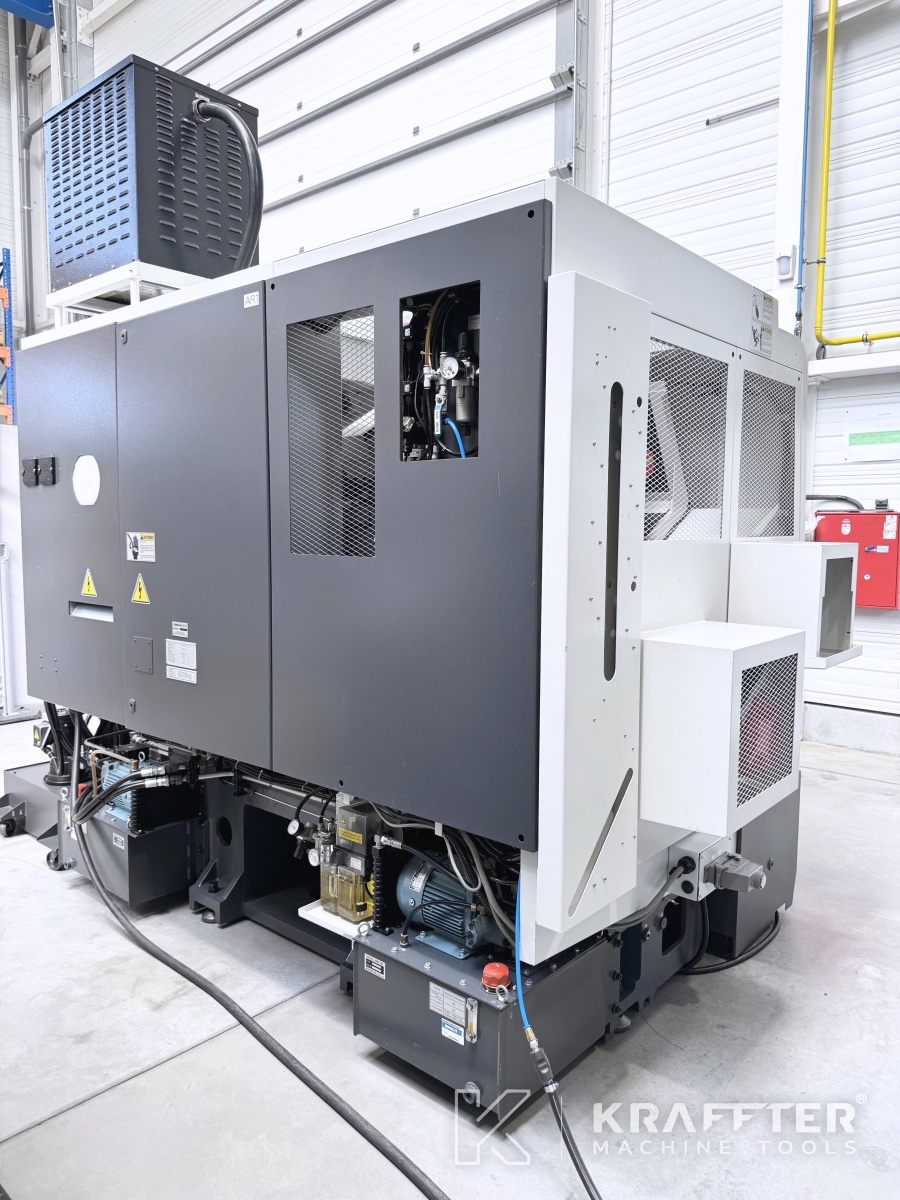

Industrial electrical cabinet on NAKAMURA TOME WT 100 90182

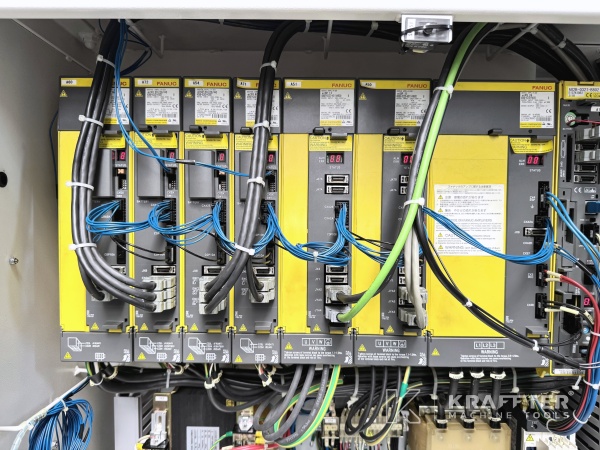

Electrical cabinet for industrial machines NAKAMURA TOME WT 100 90182
Automatic barfeeder for NAKAMURA TOME WT 100 90182
Machine tool barfeeder for NAKAMURA TOME WT 100 90182
Barfeeding system for machine tools NAKAMURA TOME WT 100 90182
NAKAMURA TOME WT 100 with barfeeder 90182
Accessories, tooling for machine tools NAKAMURA TOME WT 100 90182
Equipment for CNC lathe NAKAMURA TOME WT 100 90182 - Used machinery

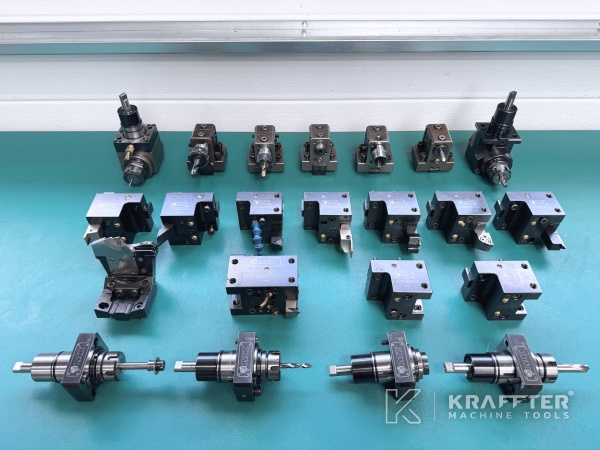

Accessories from NAKAMURA TOME WT 100 90182

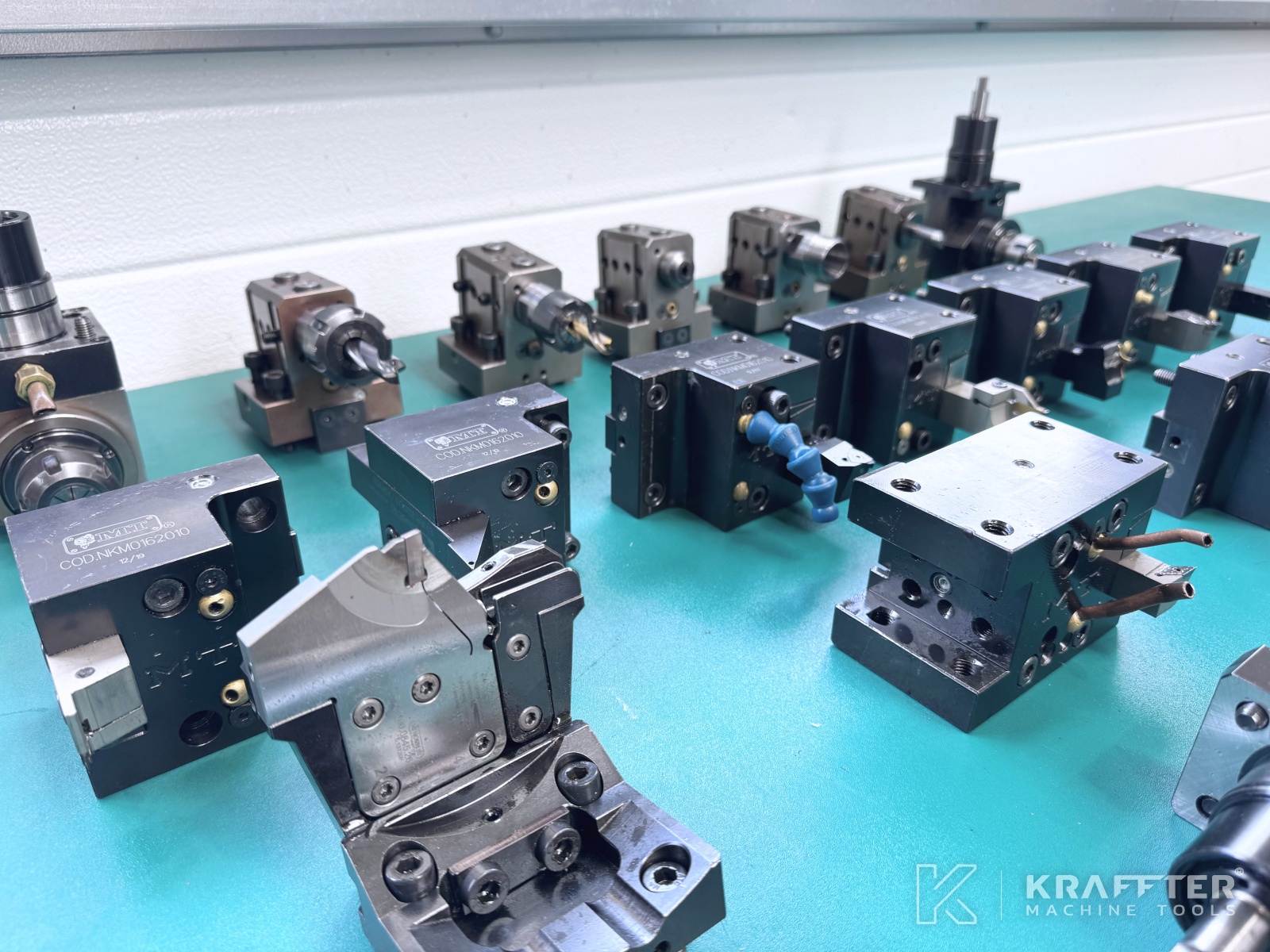

Accessories for CNC lathe NAKAMURA TOME WT 100 90182
Accessories, equipment and tooling CNC lathe NAKAMURA TOME WT 100 90182

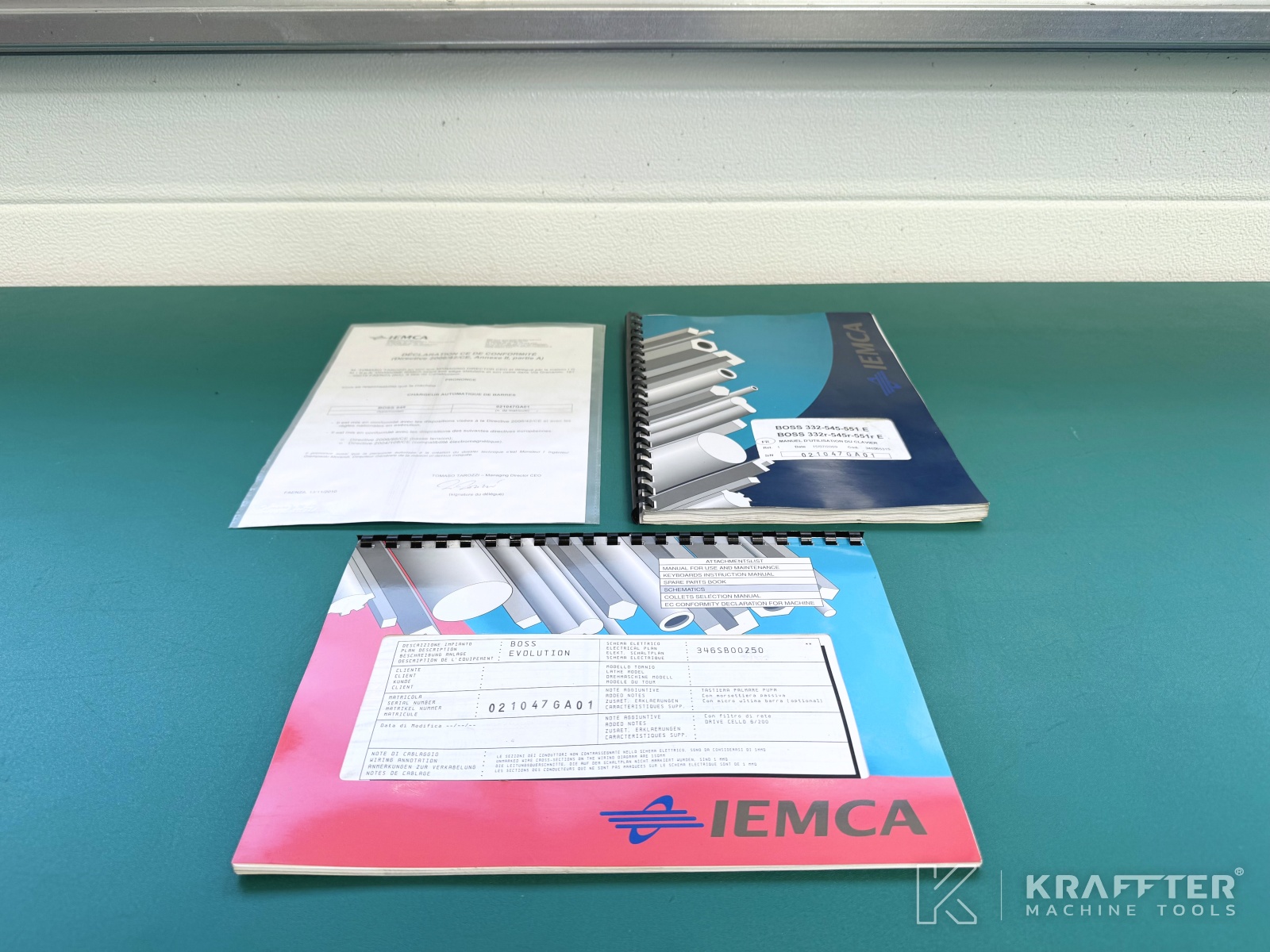

Accessories, equipment and user manual of NAKAMURA TOME WT 100 90182

Type of machine : CNC lathe

Brand : NAKAMURA TOME

N° de stock: 90182

Model : WT 100

Year : 2012

Location : 73240 Saint-Genix-les-Villages, FRANCE

please wait Please wait a moment...
Email alert

Request a quotation

In accordance with articles 39 and following the French law n°78-17 of January 6, 1978 modified in 2004 relating to data processing, files and freedoms, any person can obtain communication and, if necessary, rectification or deletion of information concerning him, by addressing a letter to Kraffter Machine Tools®. - 137, ZA Le Jasmin Nord – 73240 SAINT-GENIX-LES-VILLAGES
Review our privacy policy for full details

Technical characteristics

CNC control
FANUC 31i-B
Distance between spindles
735 [mm]
Max. cutting diameter
190 [mm]
Max. turning lenght
503 [mm]
Stroke Y axis
-31 / +31 [mm]
Stroke Z1 axis
503 [mm]
Stroke X1 axis
135 [mm]
Stroke Z2 axis
503 [mm]
Stroke X2 axis
135 [mm]
Rapid traverse rate X1 axis
16000 [mm/min]
Rapid traverse rate X2 axis
16000 [mm/min]
Rapid traverse rate Z1 axis
40000 [mm/min]
Rapid traverse rate Z2 axis
40000 [mm/min]
Rapid traverse rate Y axis
6000 [mm/min]
Spindle nose
A2-5"
Max. bar diameter in turning spindle
42 [mm]
Spindle throughbore
56 [mm]
Max. spindle speed
6000 [rpm]
Increment C-axis
0.001 [°]
Spindle power
11 [kW]
Spindle torque
75.4 [Nm]
Counter spindle nose
A2-5"
Counter spindle throughbore
56 [mm]
Counter spindle stroke
525 [mm]
Max. counter spindle speed
6000 [rpm]
Counter spindle increment C-axis
0.001 [°]
Counter spindle power
11 [kW]
Counter spindle torque
75.4 [Nm]
Max. tool holder cross-section
20 x 20 [mm]

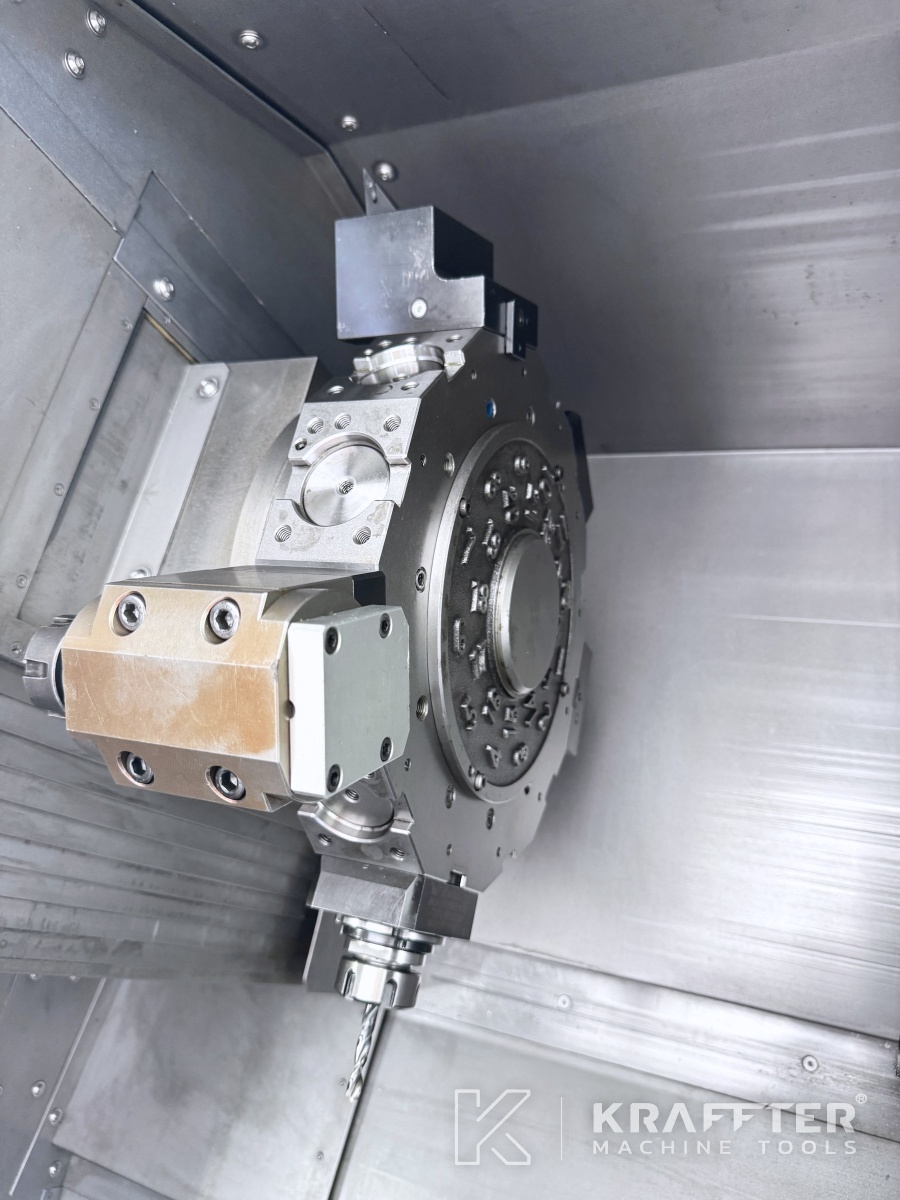

Number of tool stations - Turret 1
12

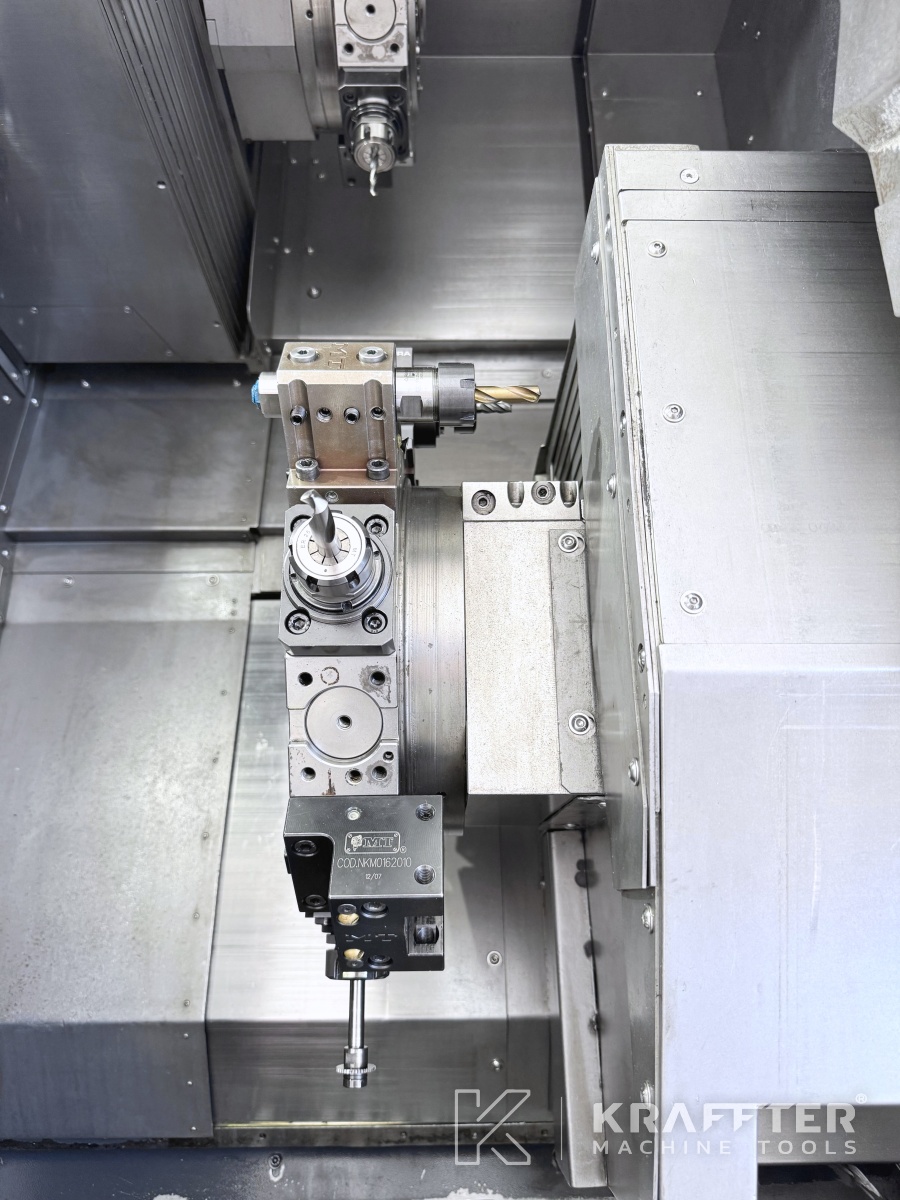

Number of tool stations driven - Turret 1
12
Max. speed driven tools - Turret 1
6000 [rpm]
Number of tool stations - Turret 2
12
Number of tool stations driven - Turret 2
12
Max. speed driven tools - Turret 2
6000 [rpm]
Live tools power
7.1 [kW]
Total power required
55.2 [kVA]
Supply voltage
400 [V]
Weight
6200 [Kg]
Technical specifications are provided for indicative purposes only. The description may have been automatically translated.

Additional information

INCLUDED EQUIPMENT:

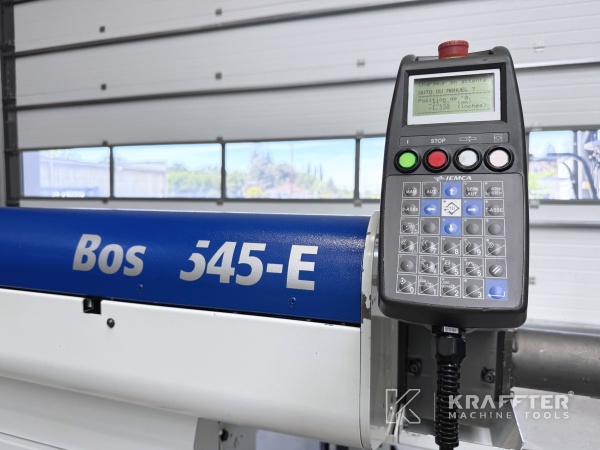

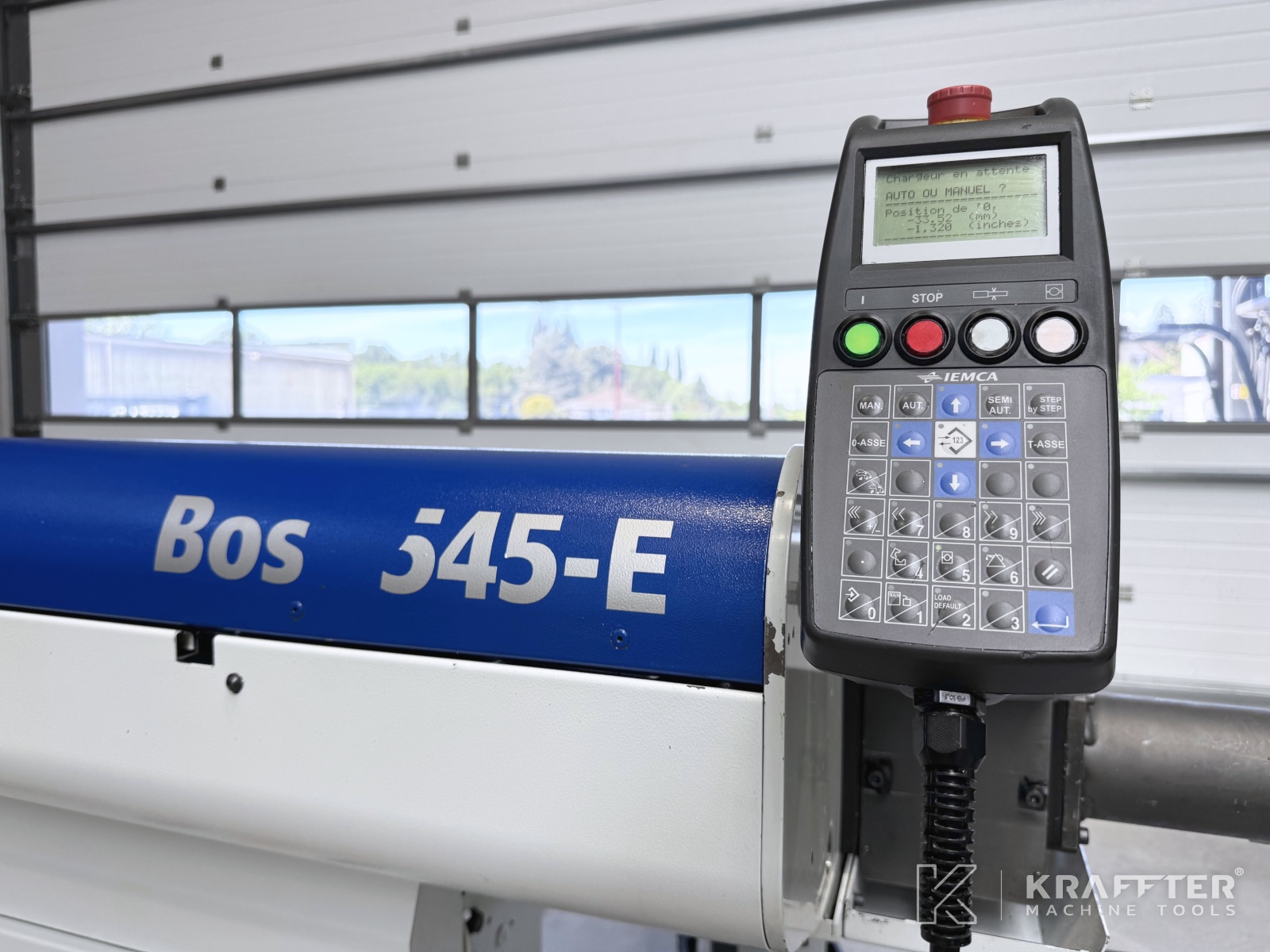

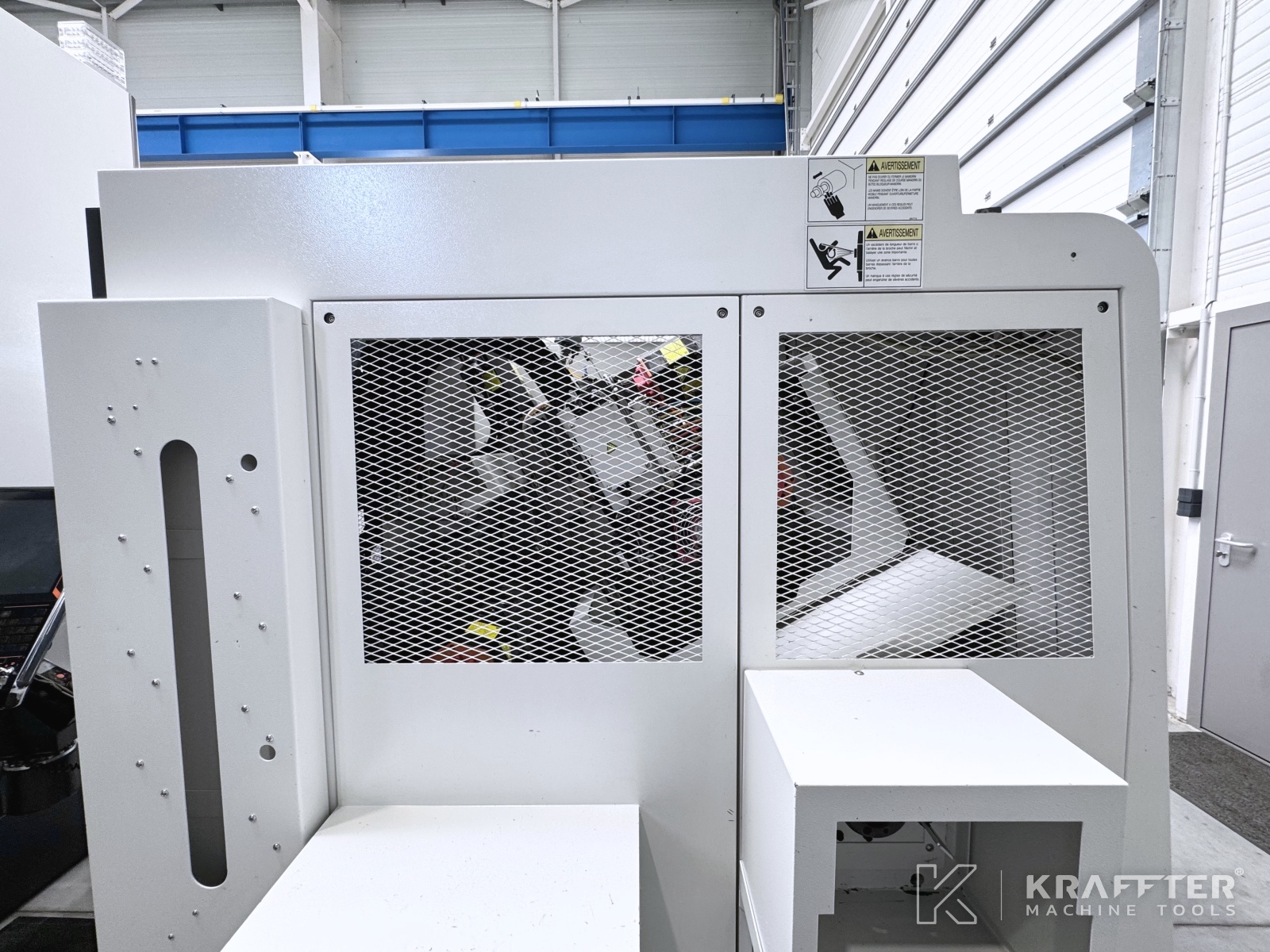

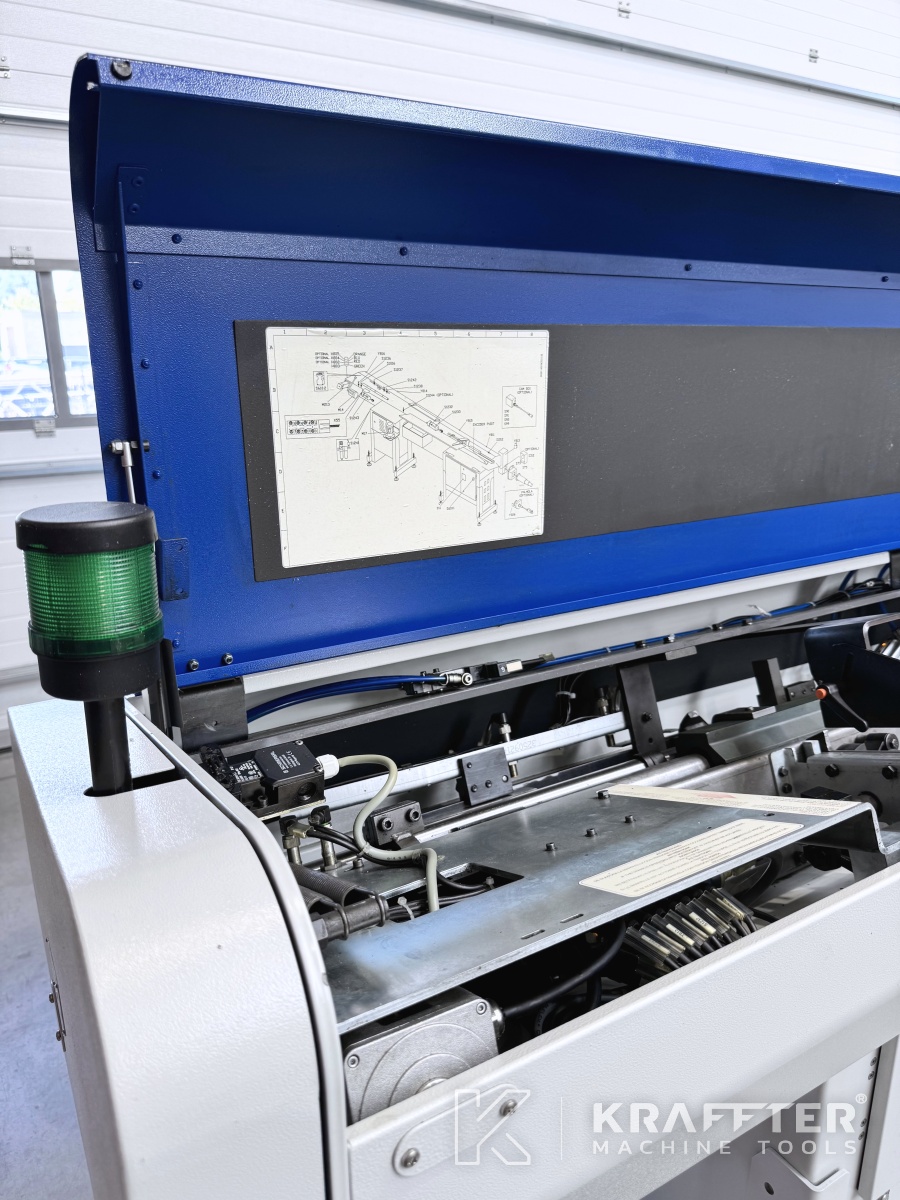

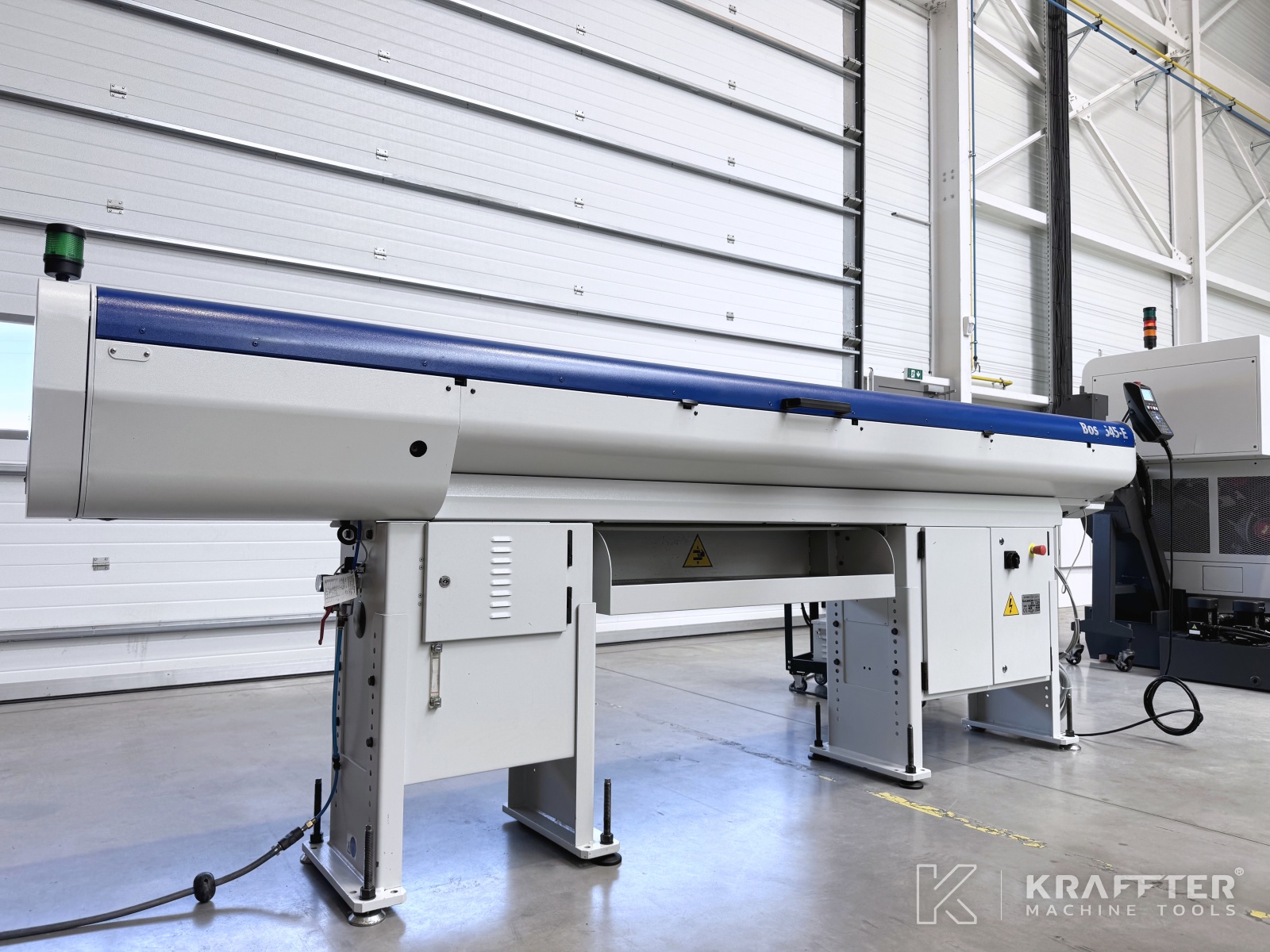

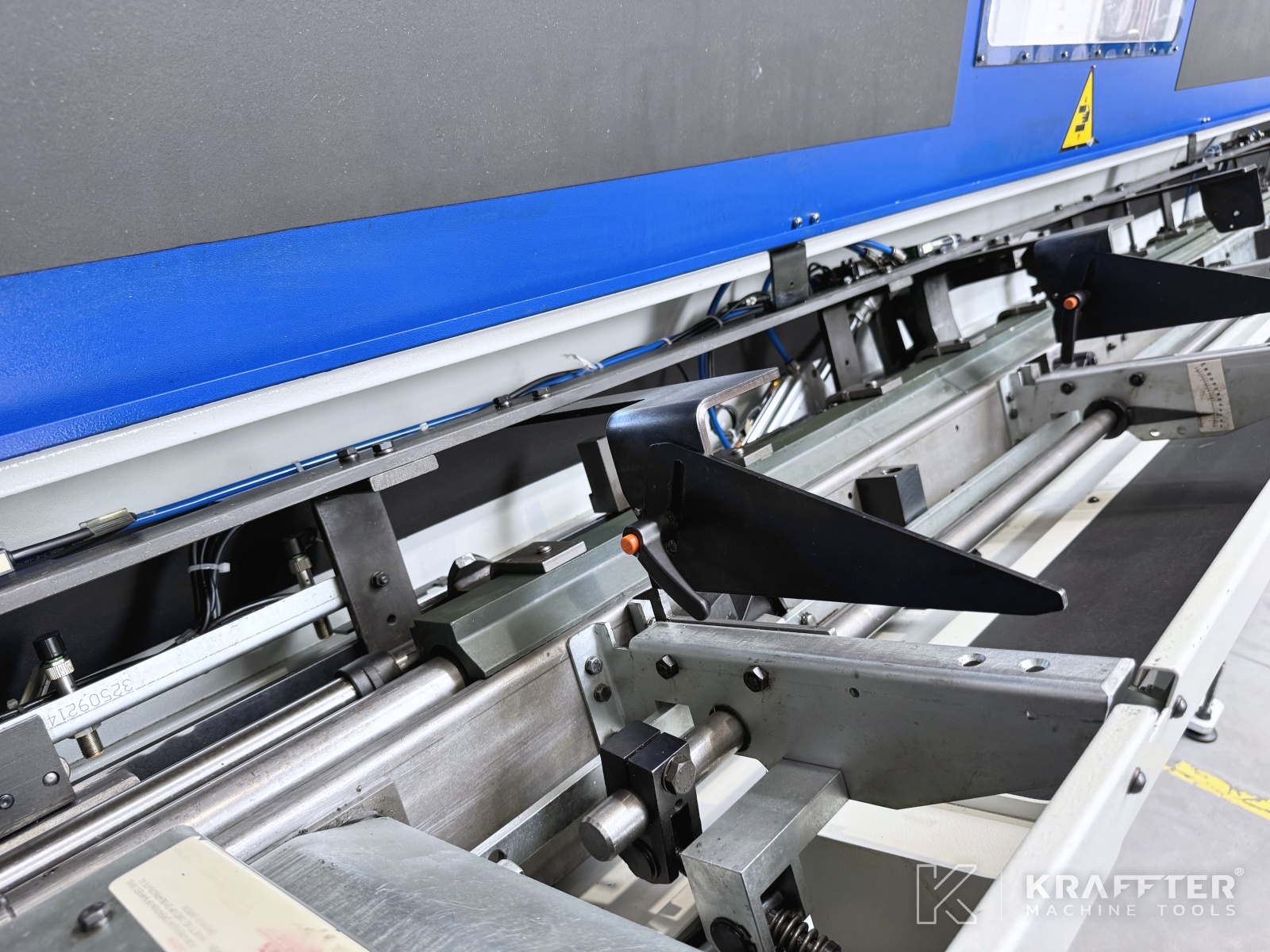

  • x1 IEMCA BOSS 545 E Type 32 L bar feeder (3 m bar capacity)

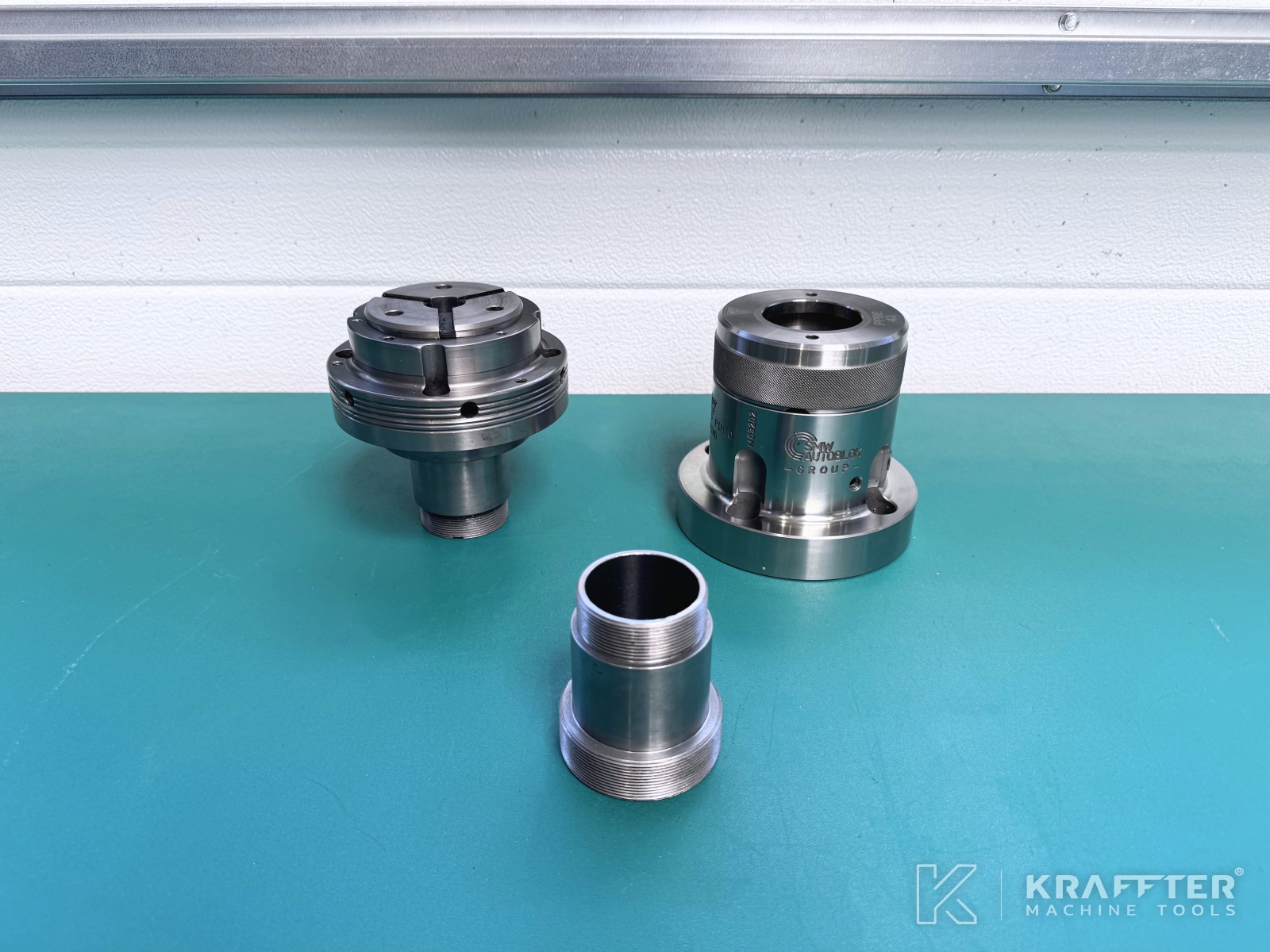

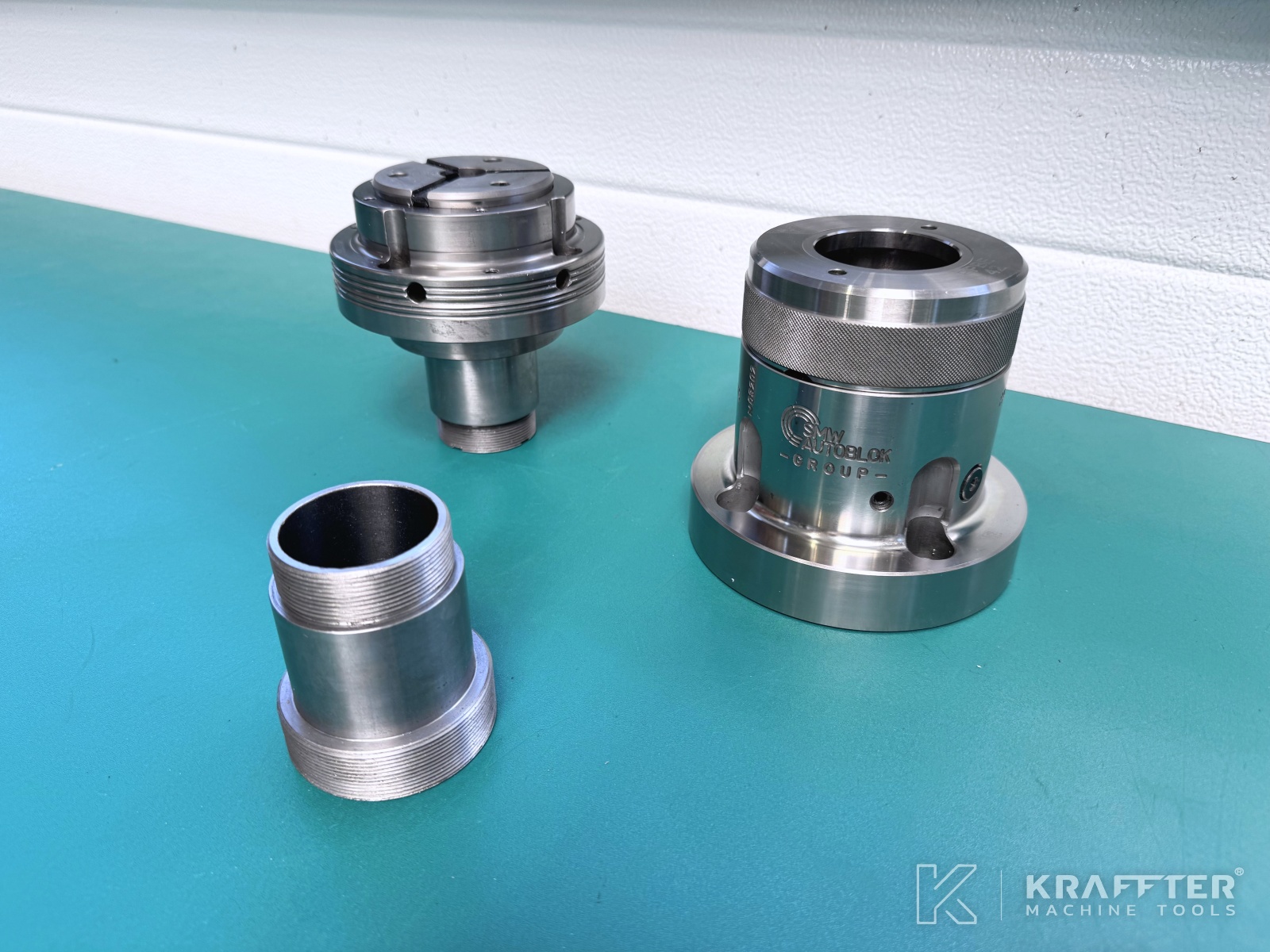

  • x1 SMW-AUTOBLOK Mario Pinto PPBE-42 A5 collet chuck (S1 spindle)
  • x1 Collet chuck (S2 spindle)

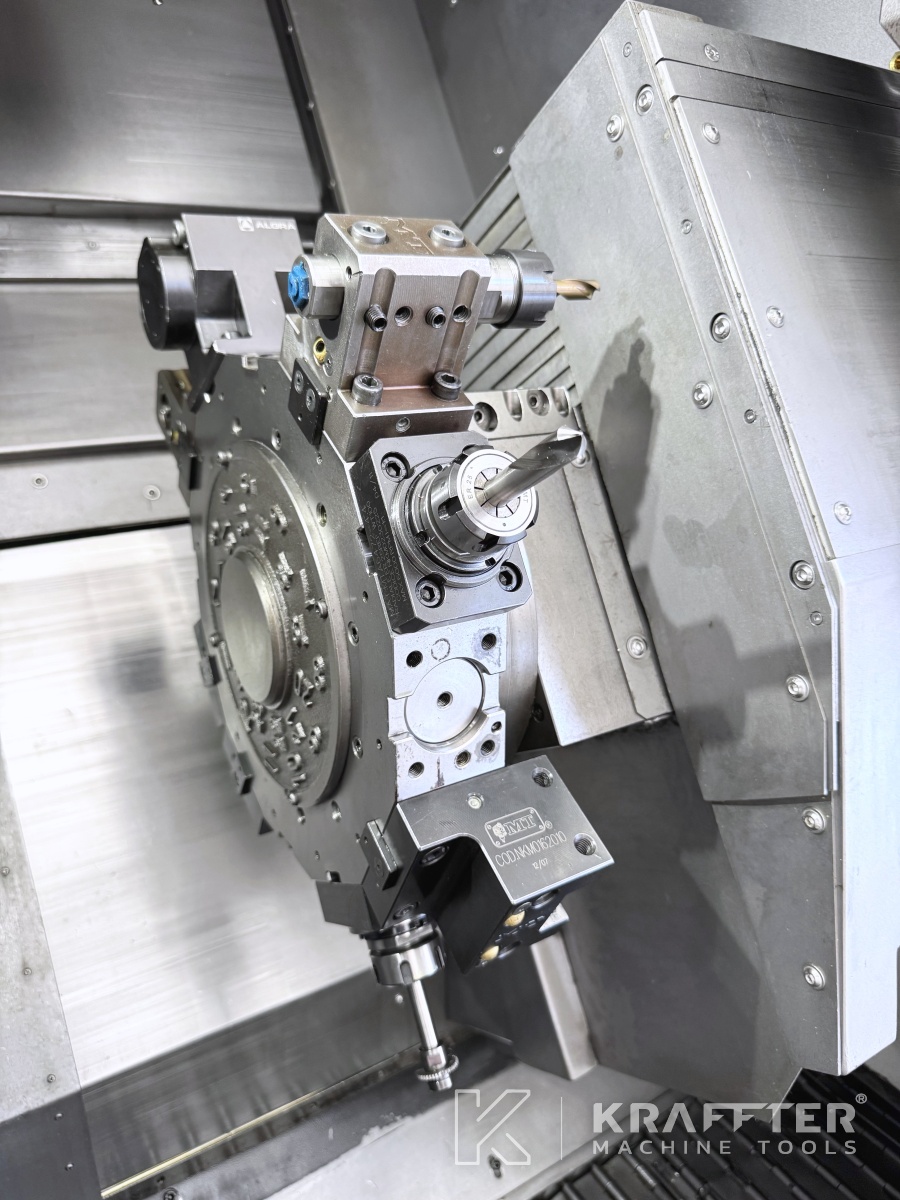

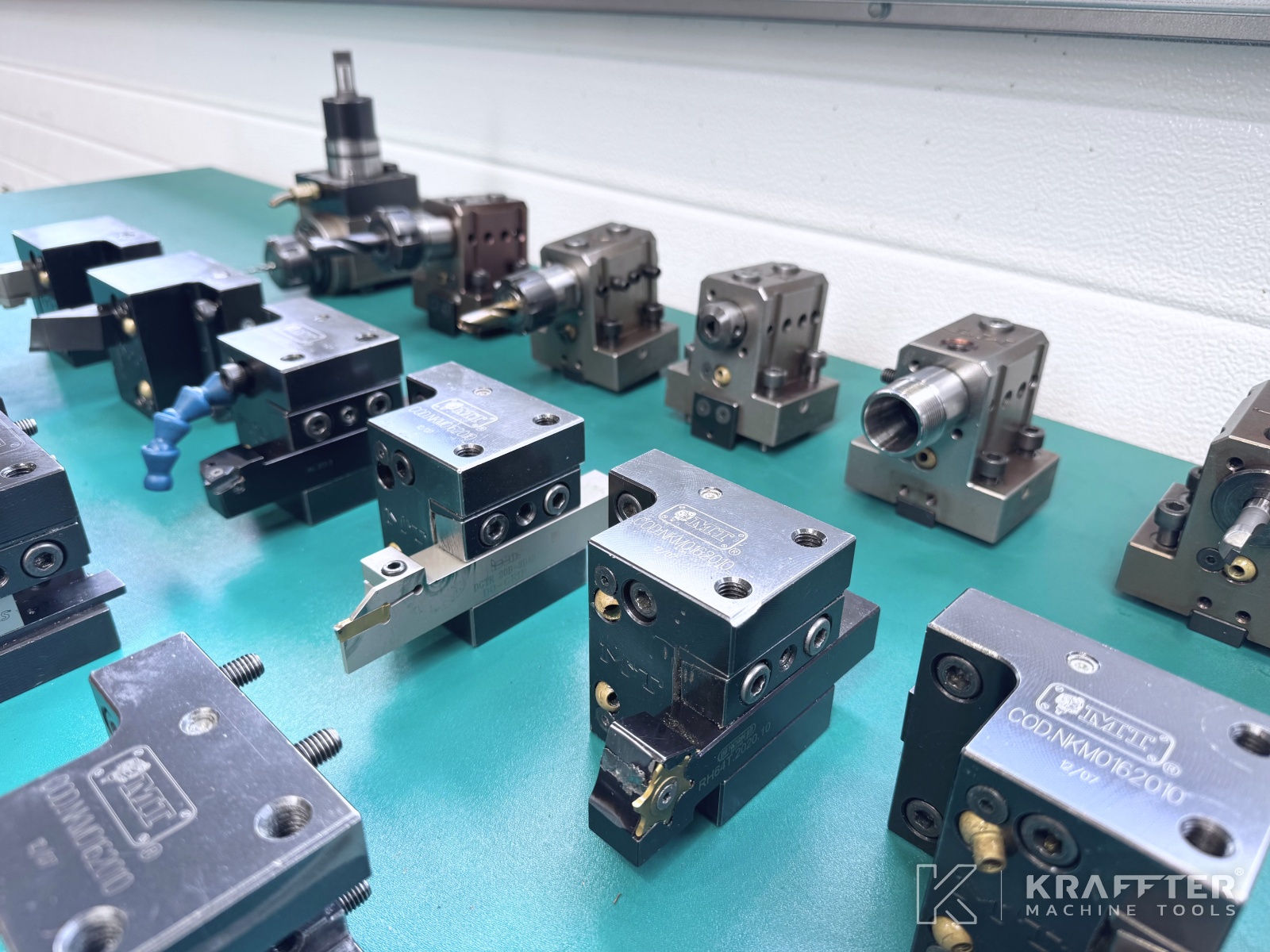

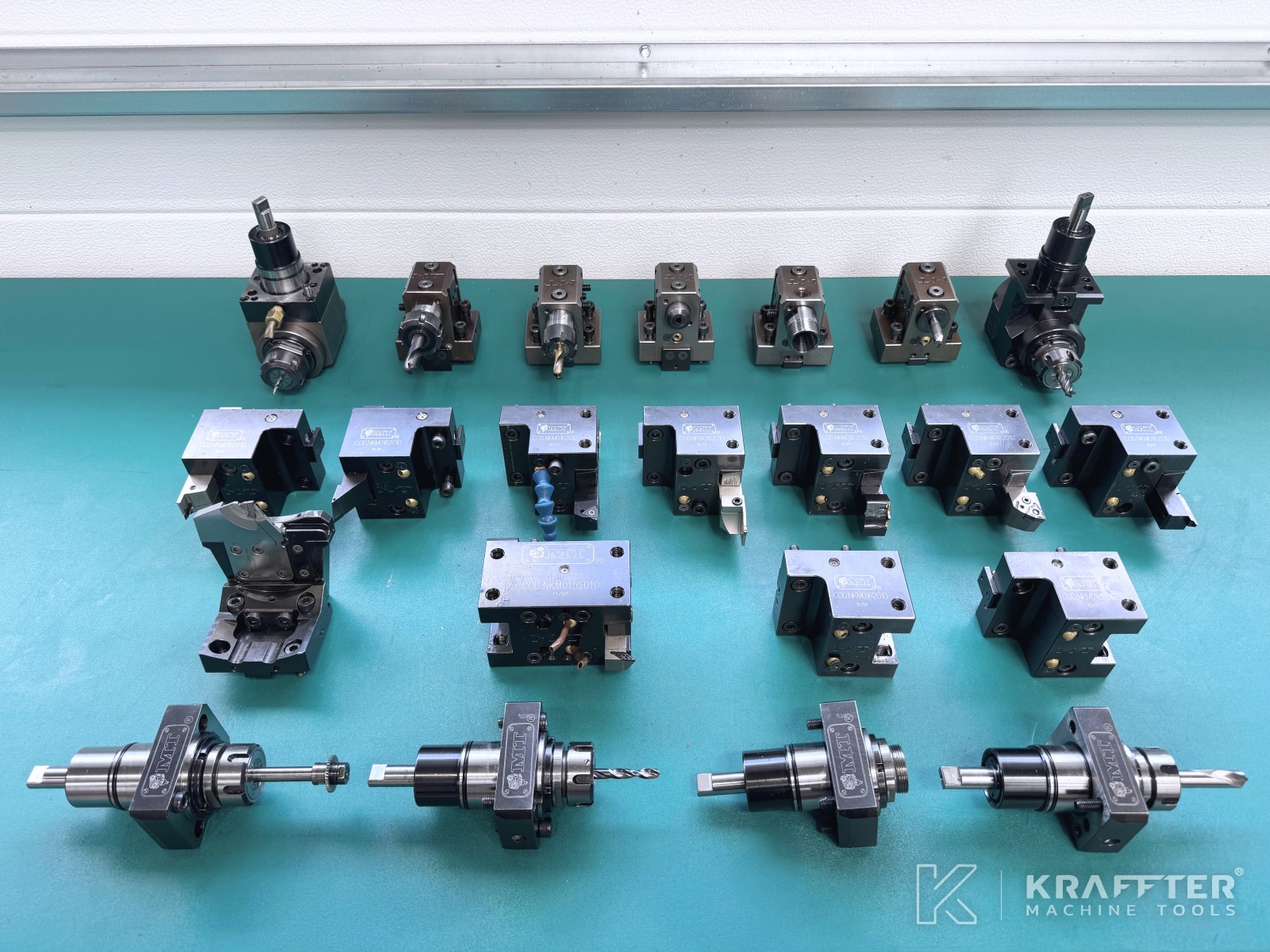

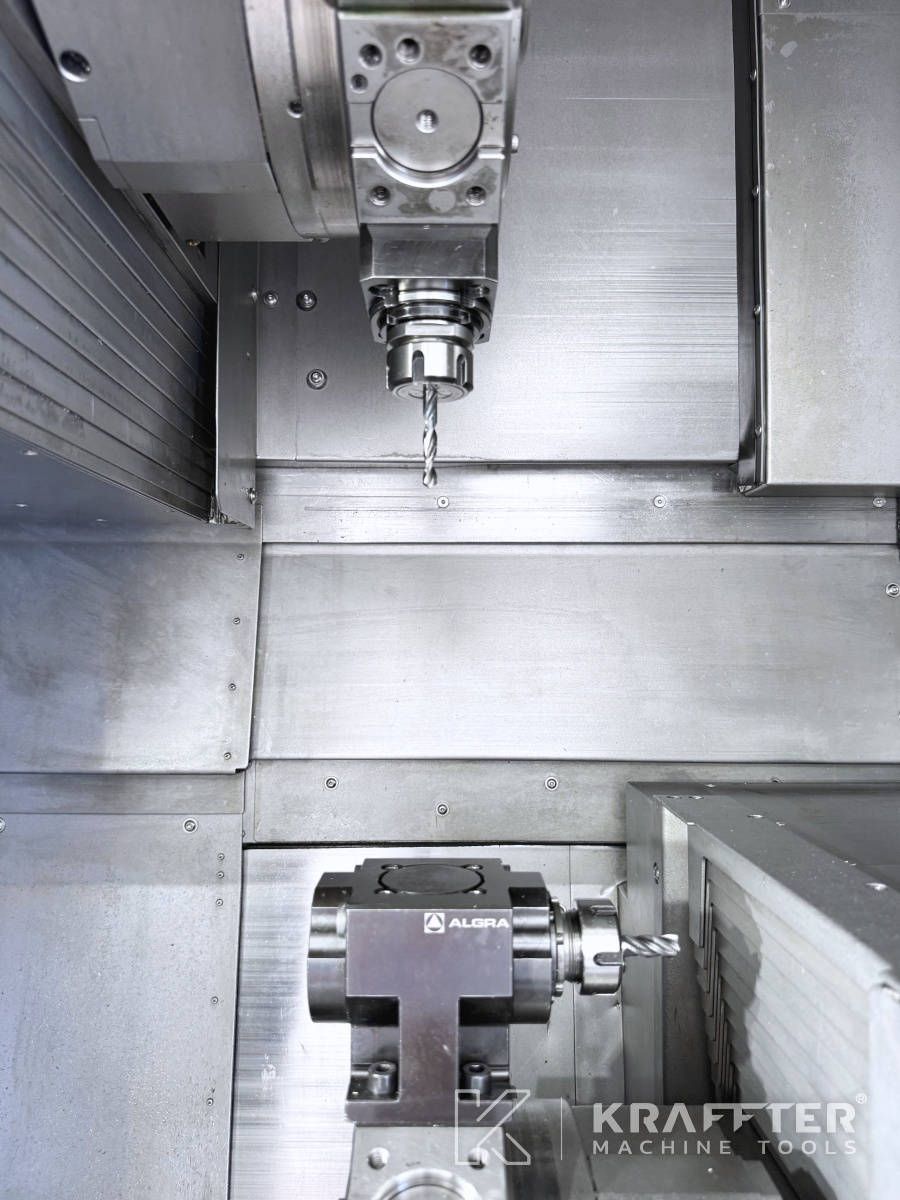

  • x4 Radial driven tool holders
  • x2 Axial driven tool holders
  • x16 Static tool holders

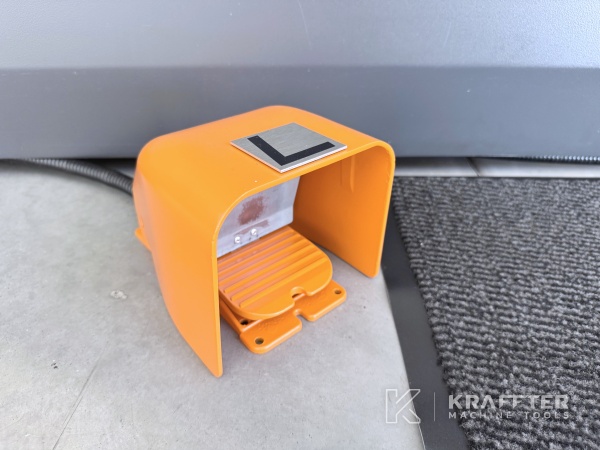

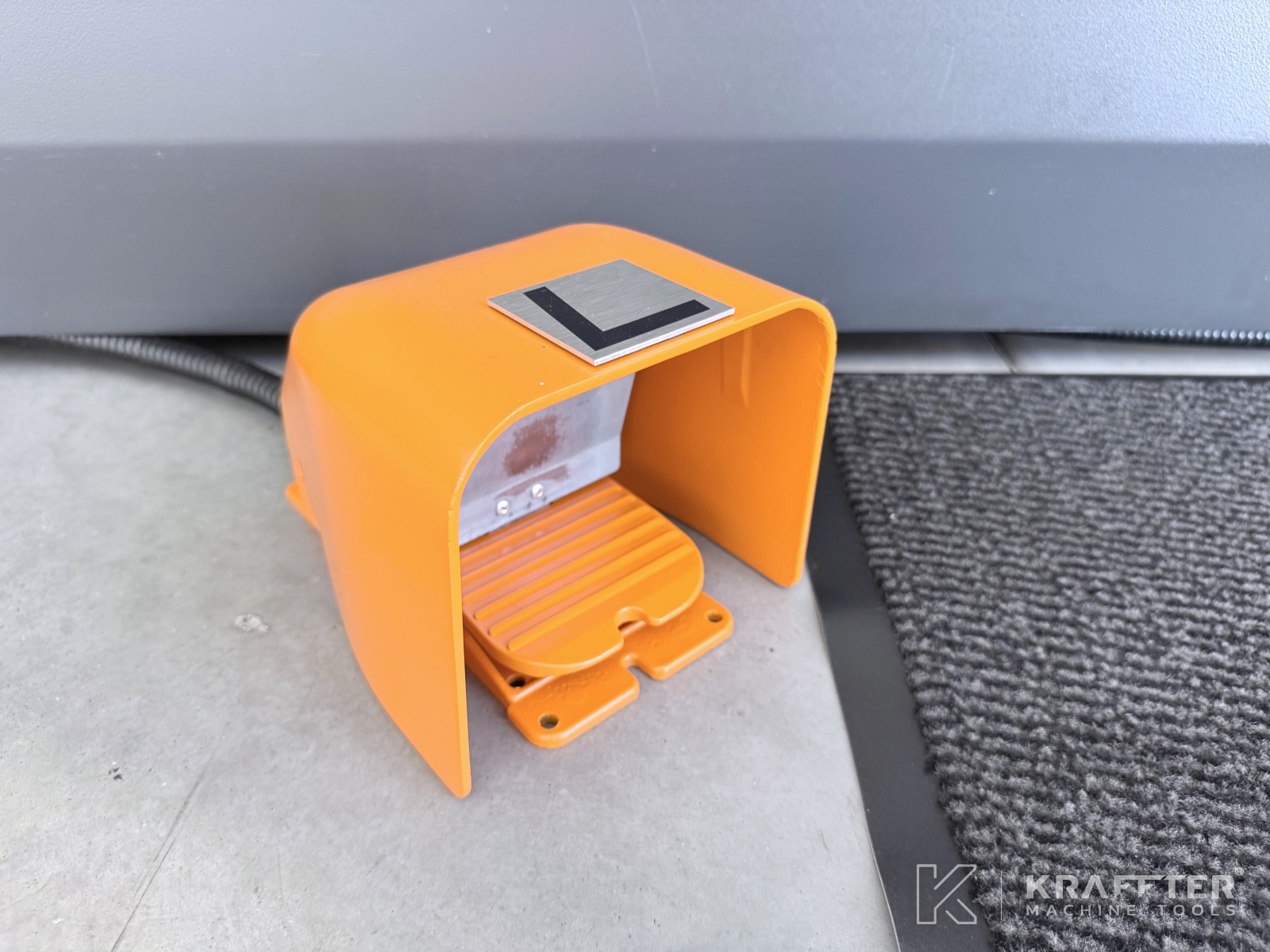

  • x1 Foot pedal control for chuck open/close

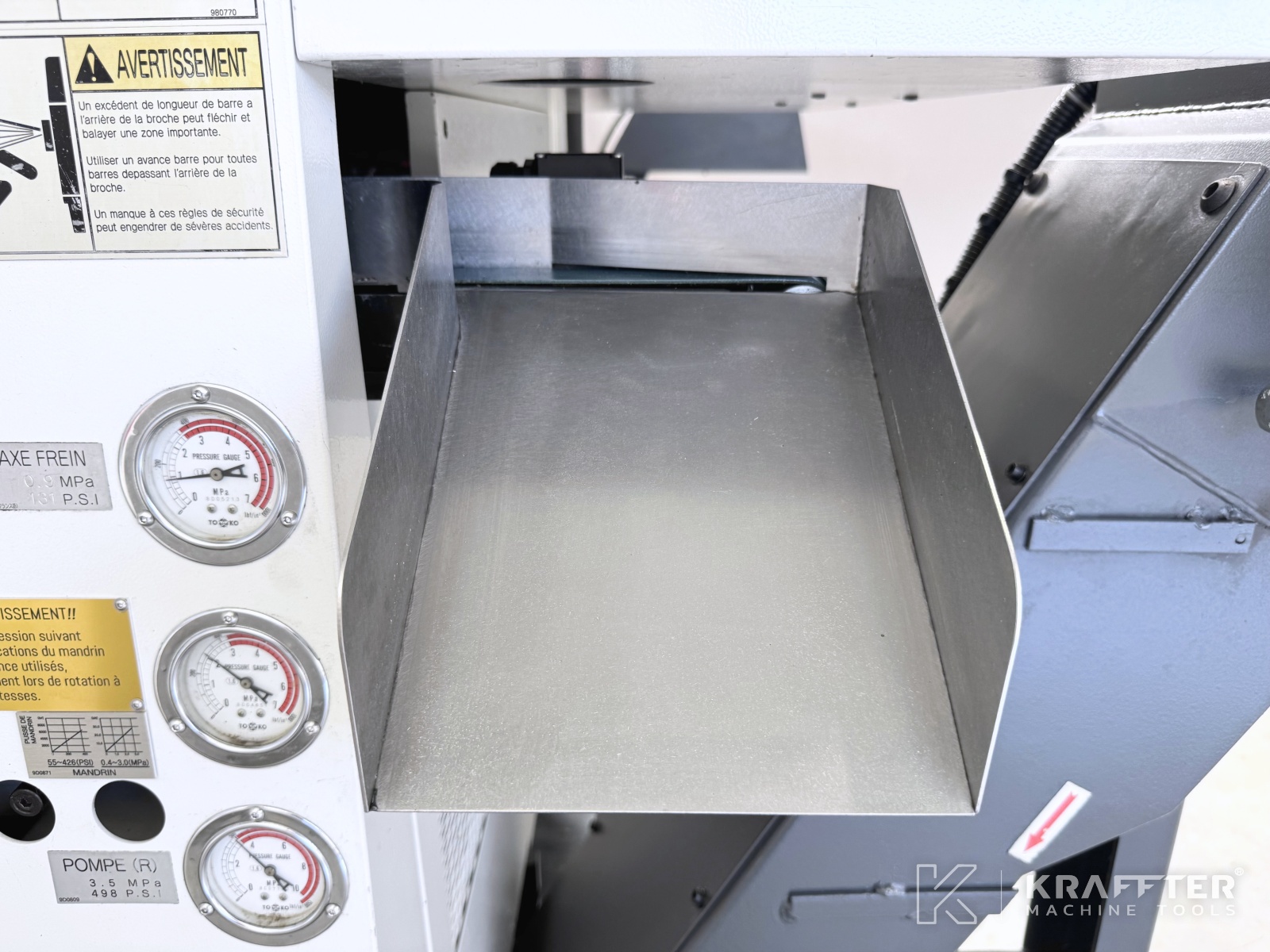

  • x1 Parts catcher on upper turret with conveyor belt

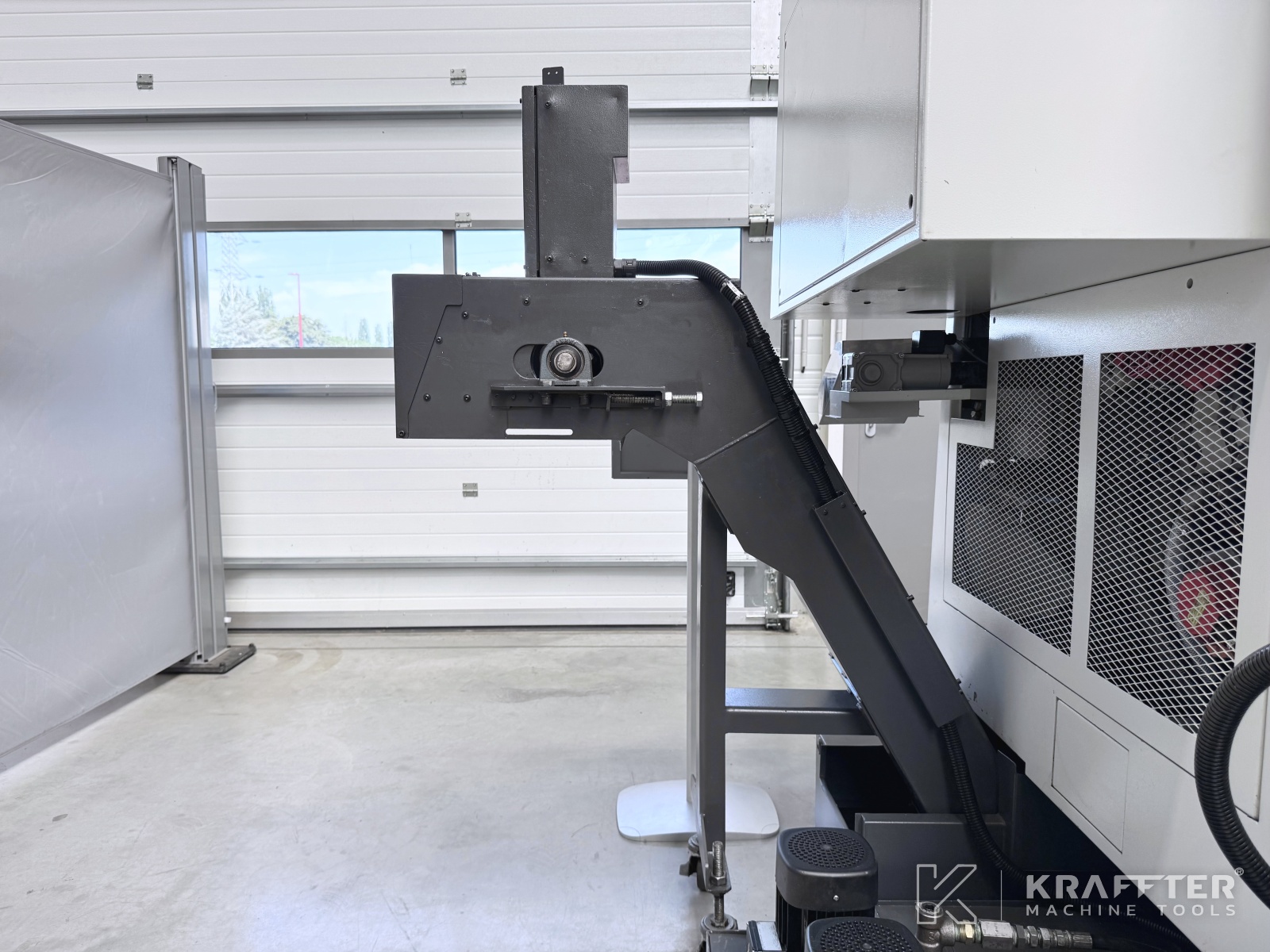

  • x1 Chip conveyor

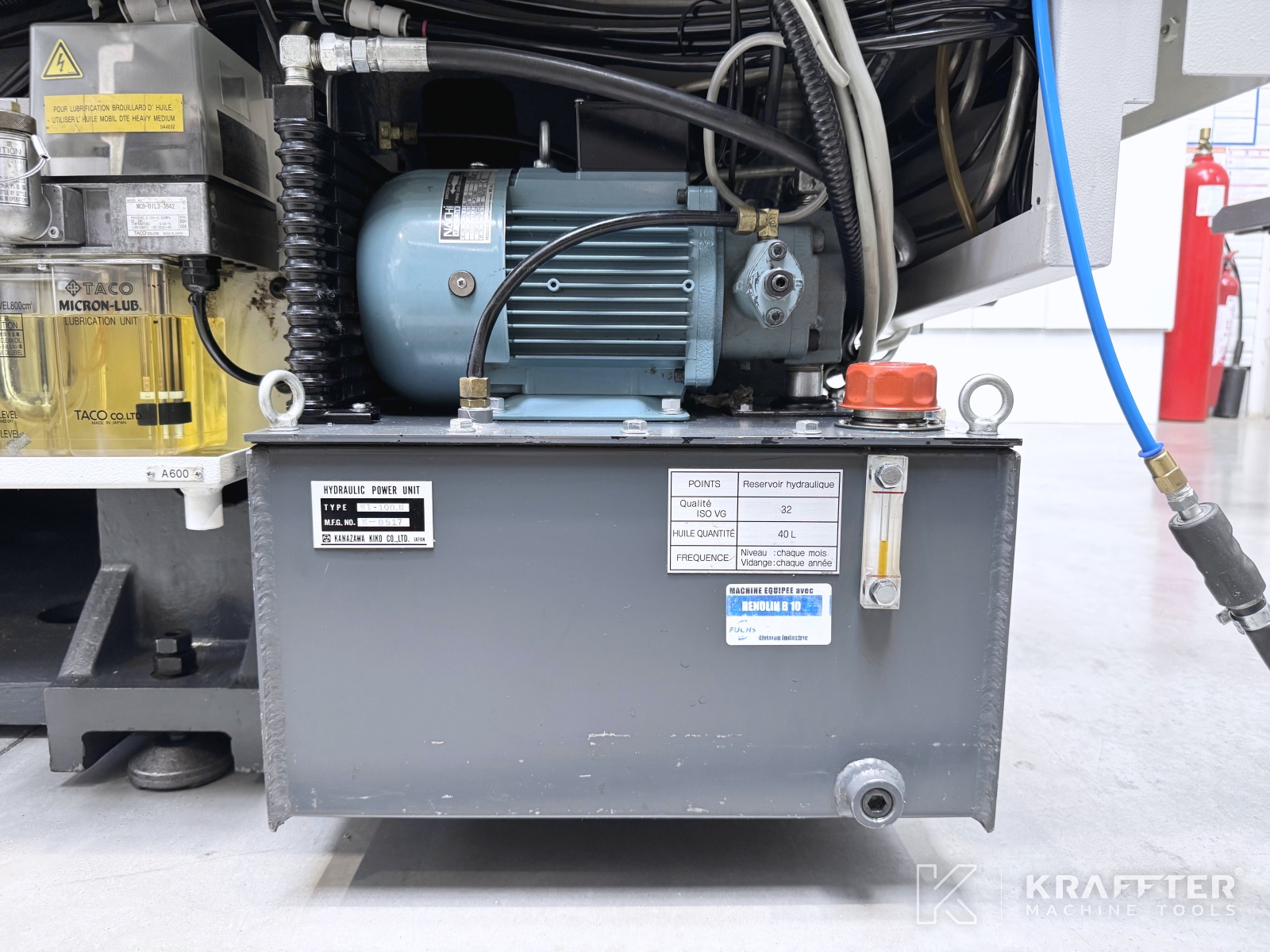

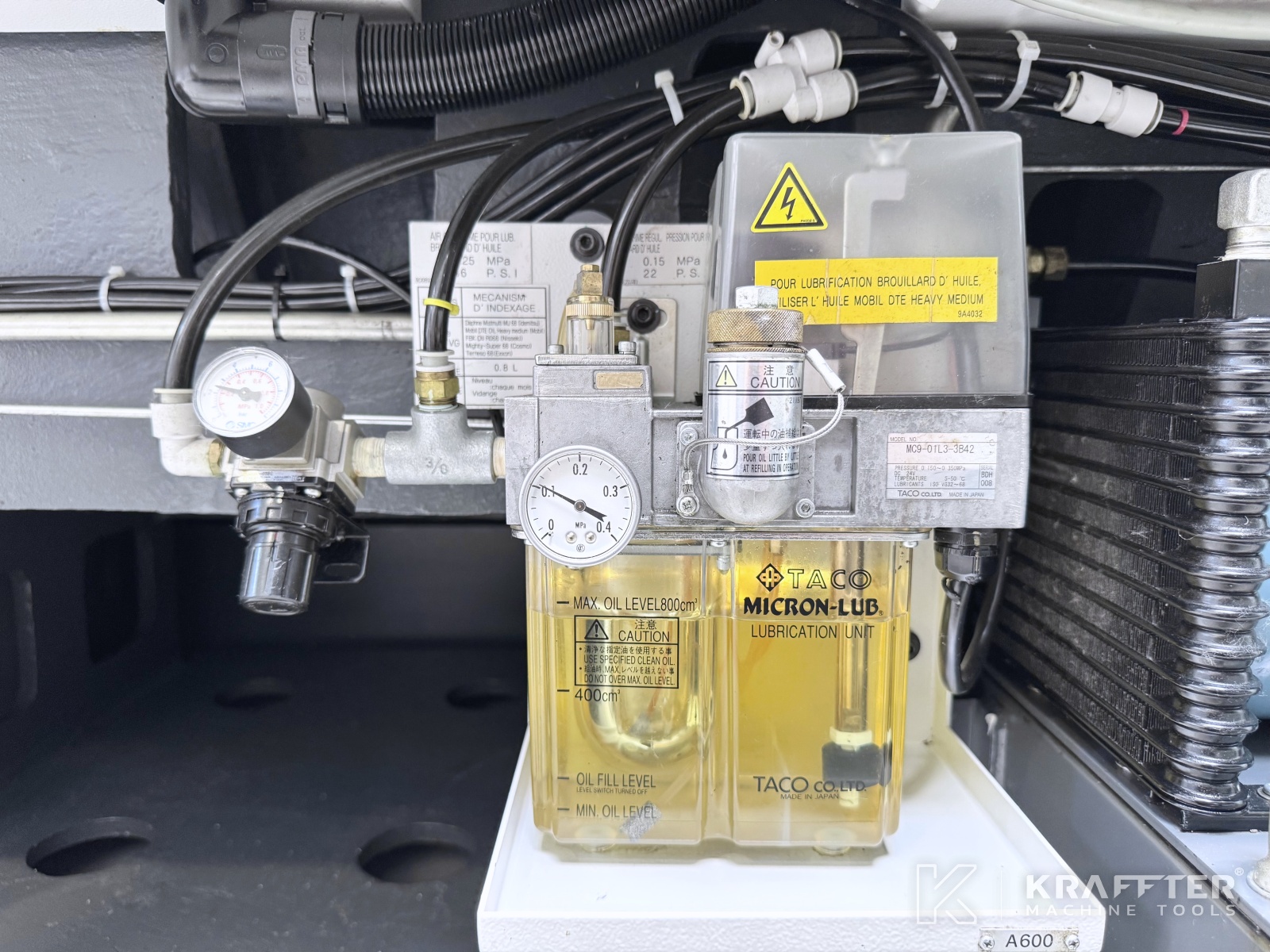

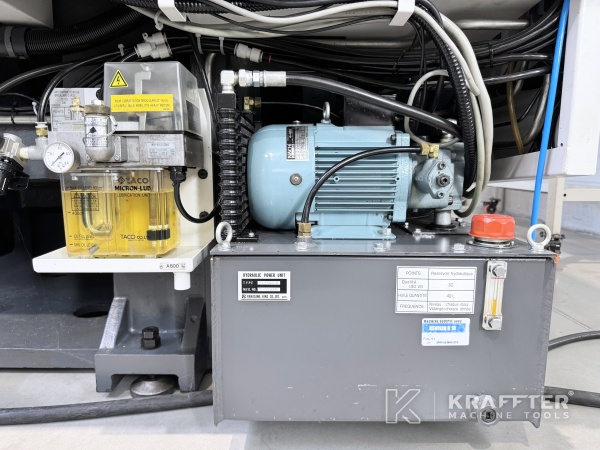

  • x1 Automatic lubrication system
  • x1 Three-color status indicator lamp
  • x1 Transformer
  • x1 USB memory stick for parameter backup
