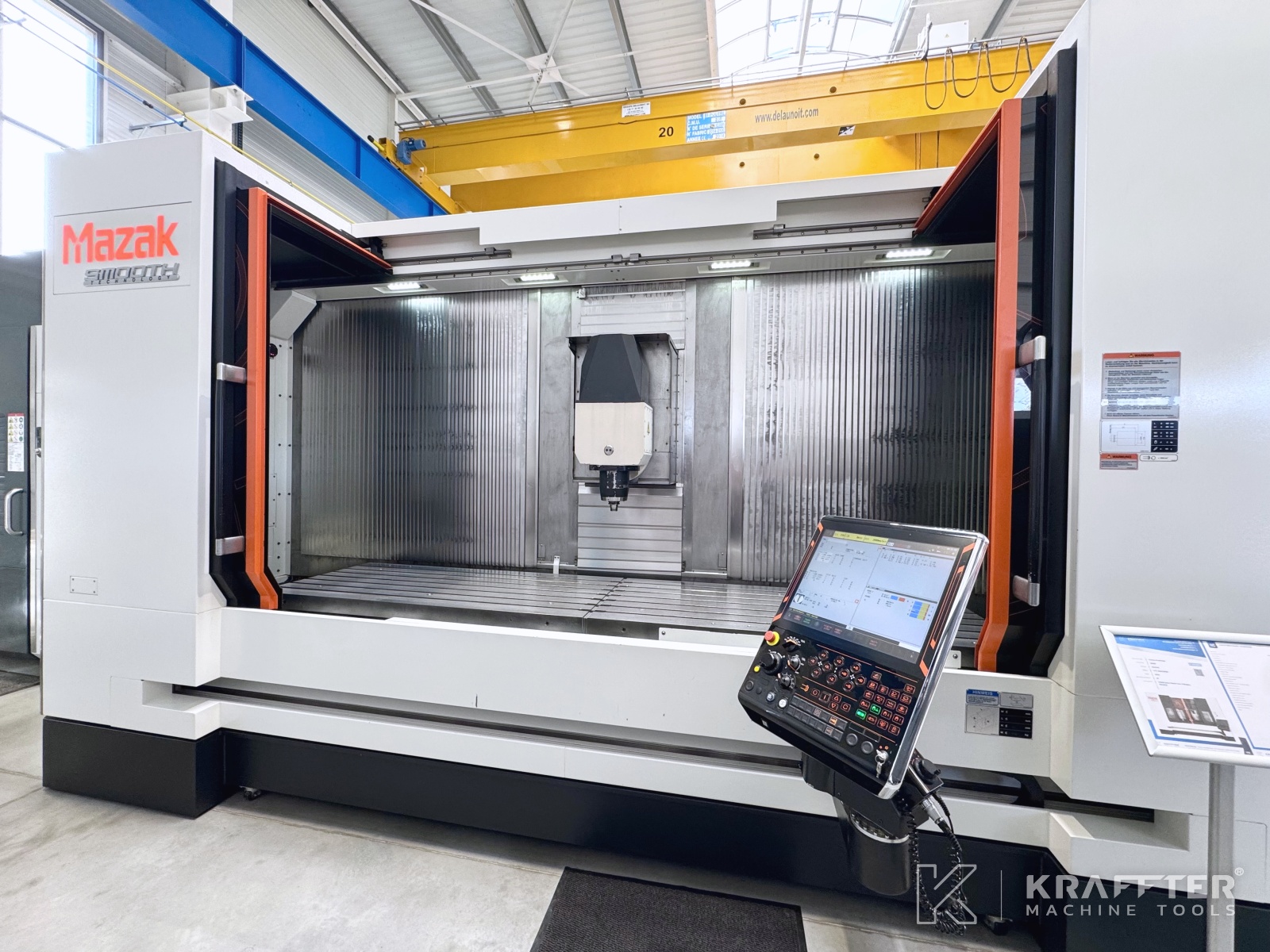

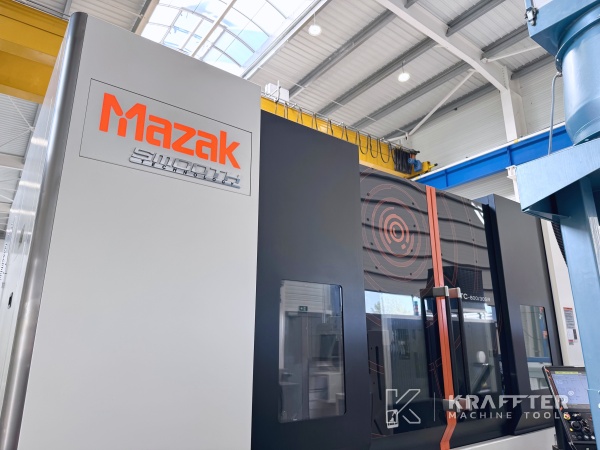

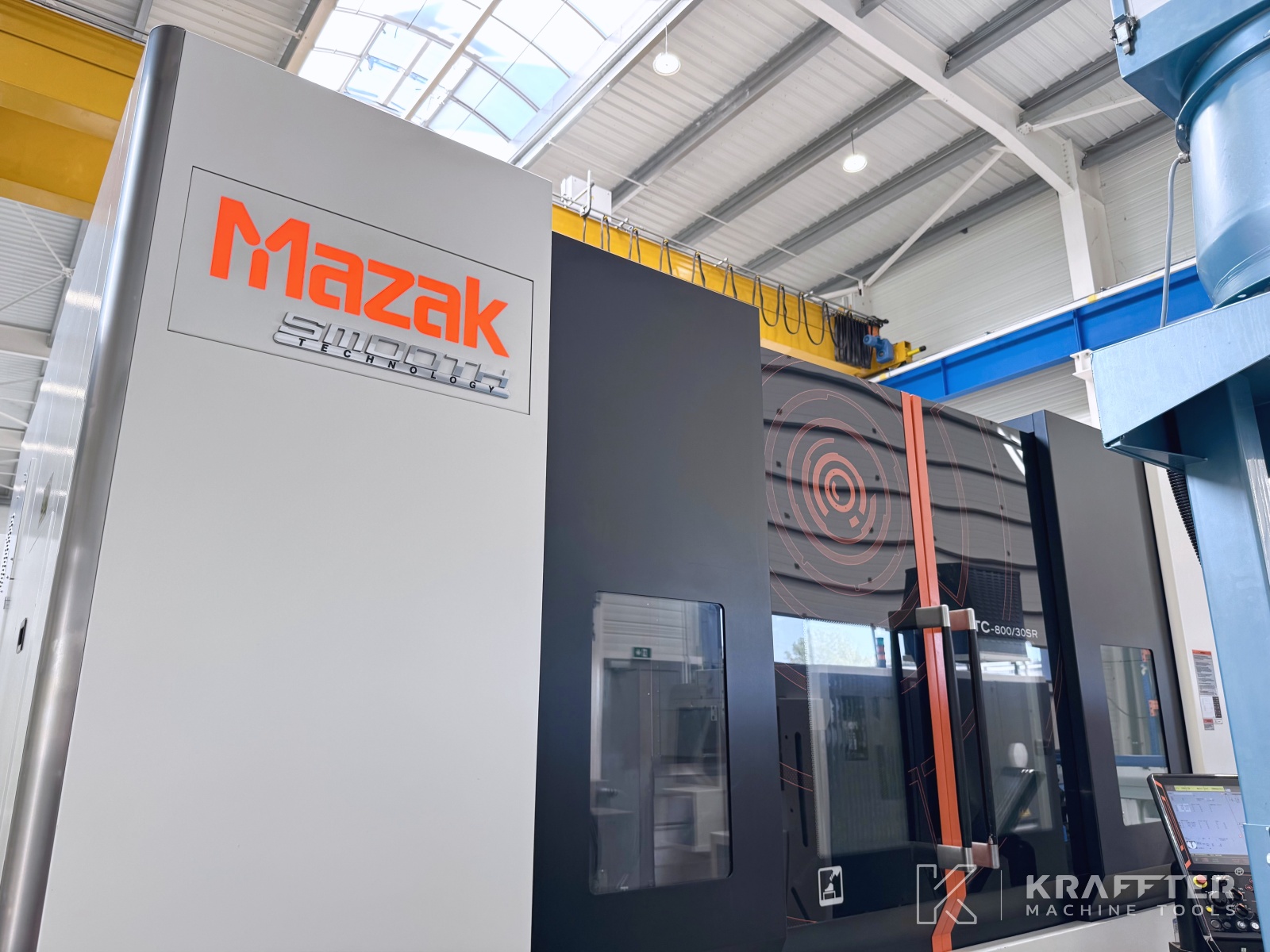

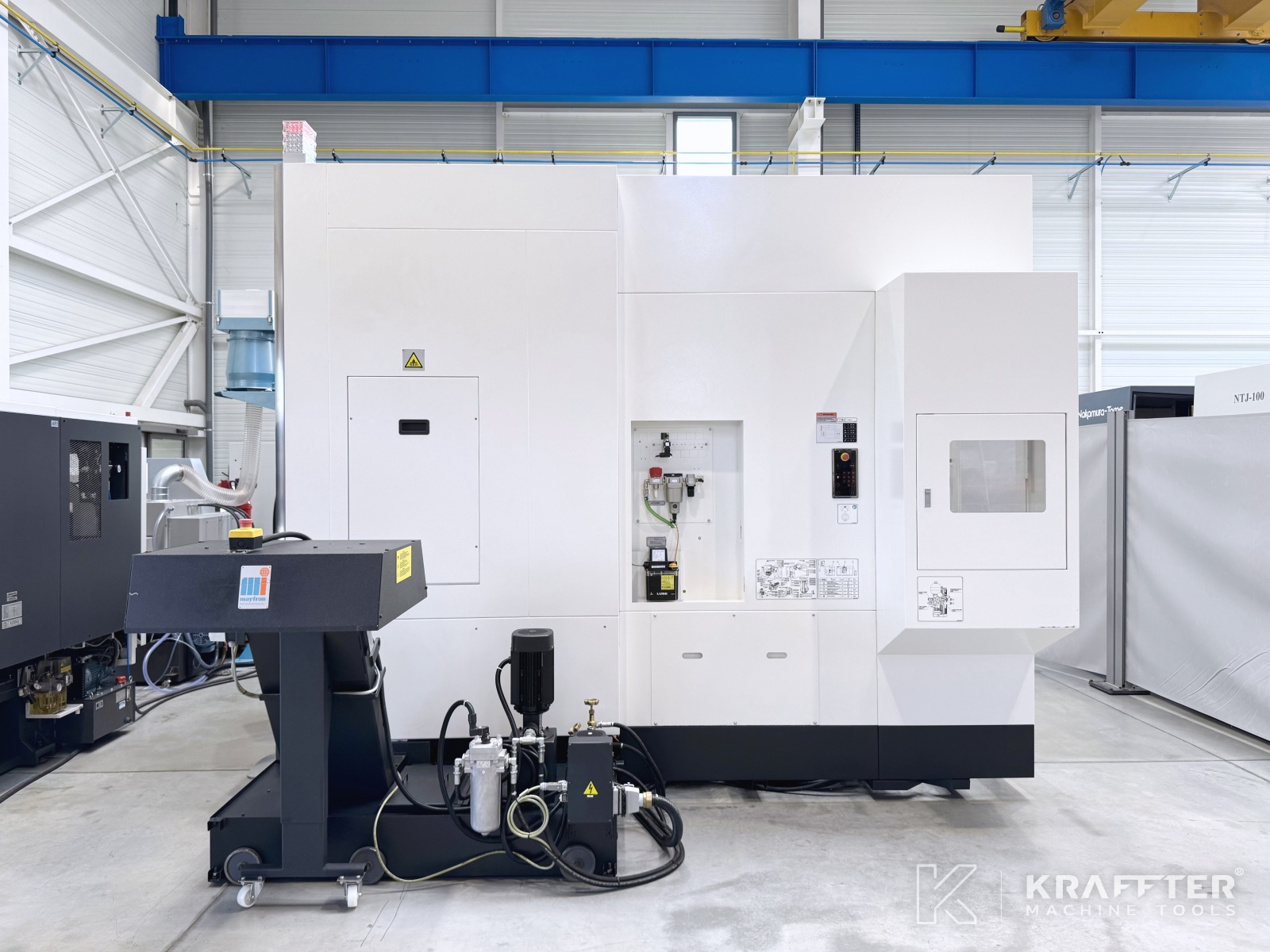

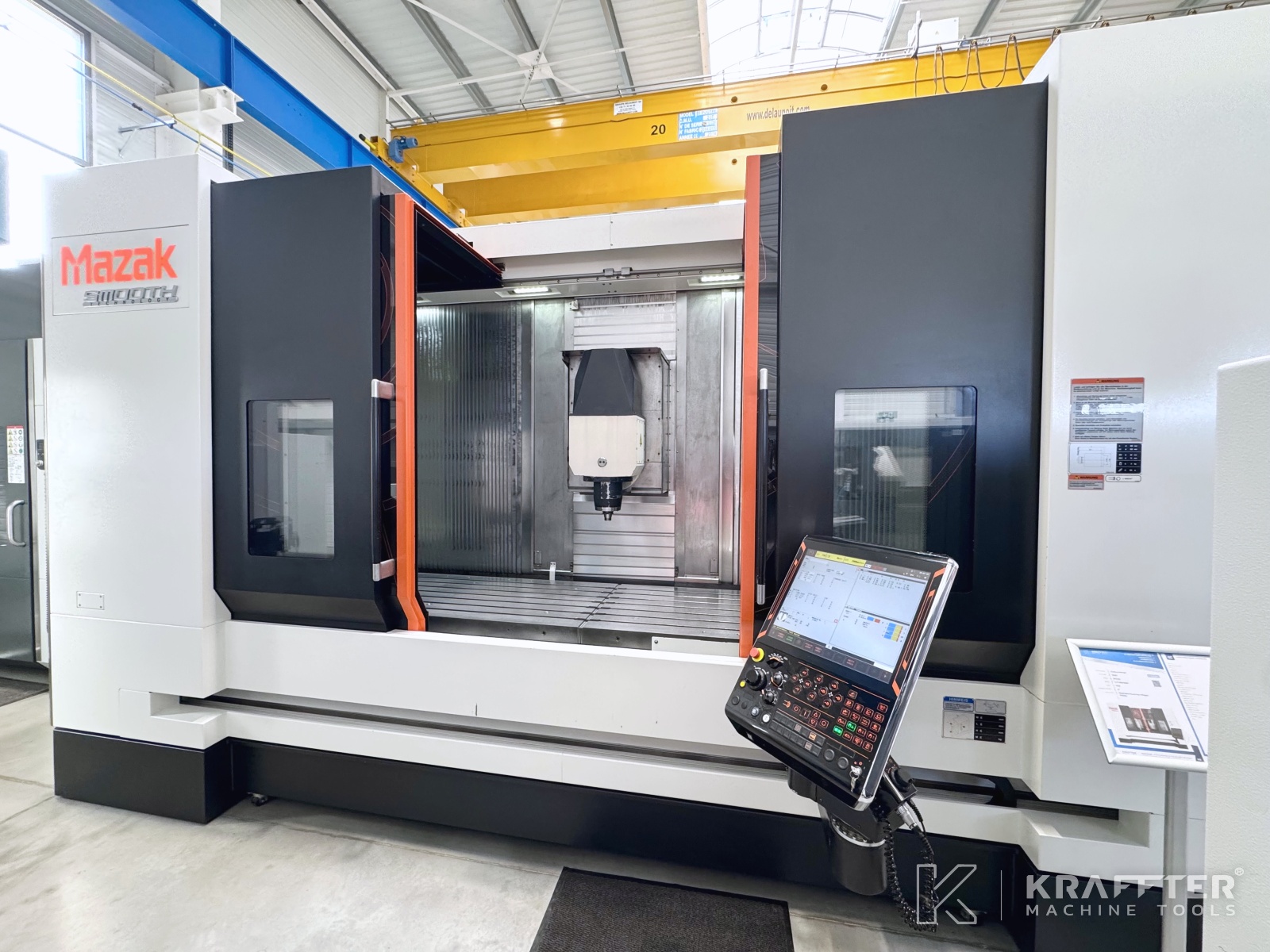

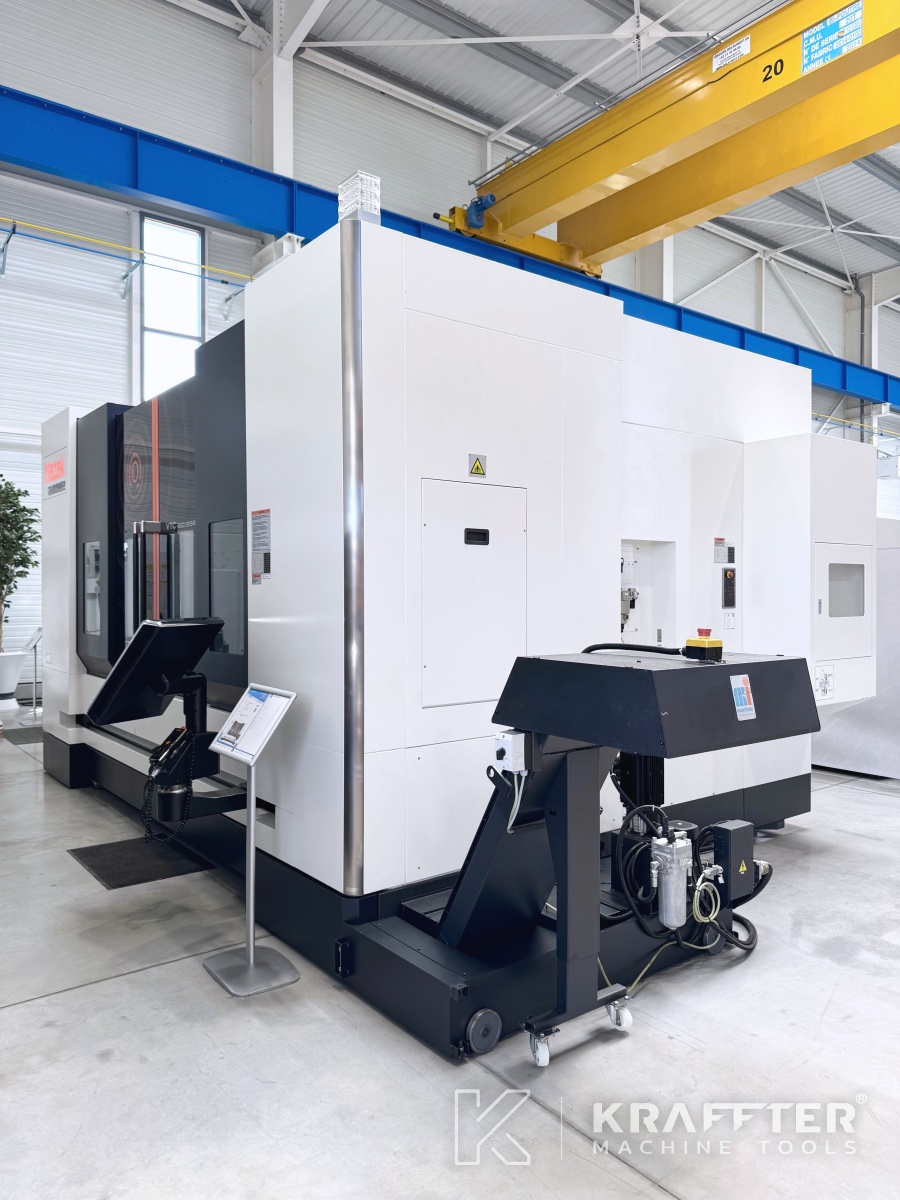

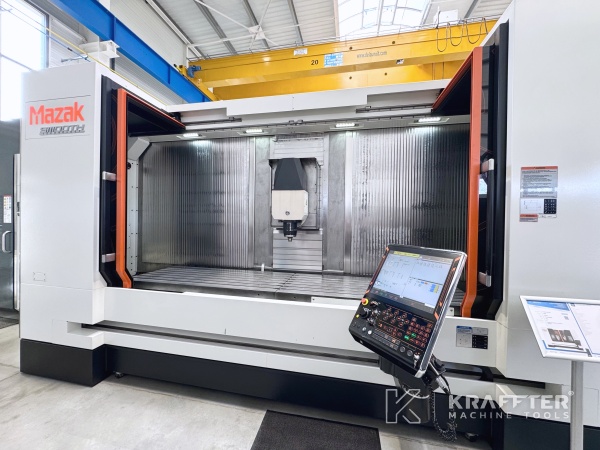

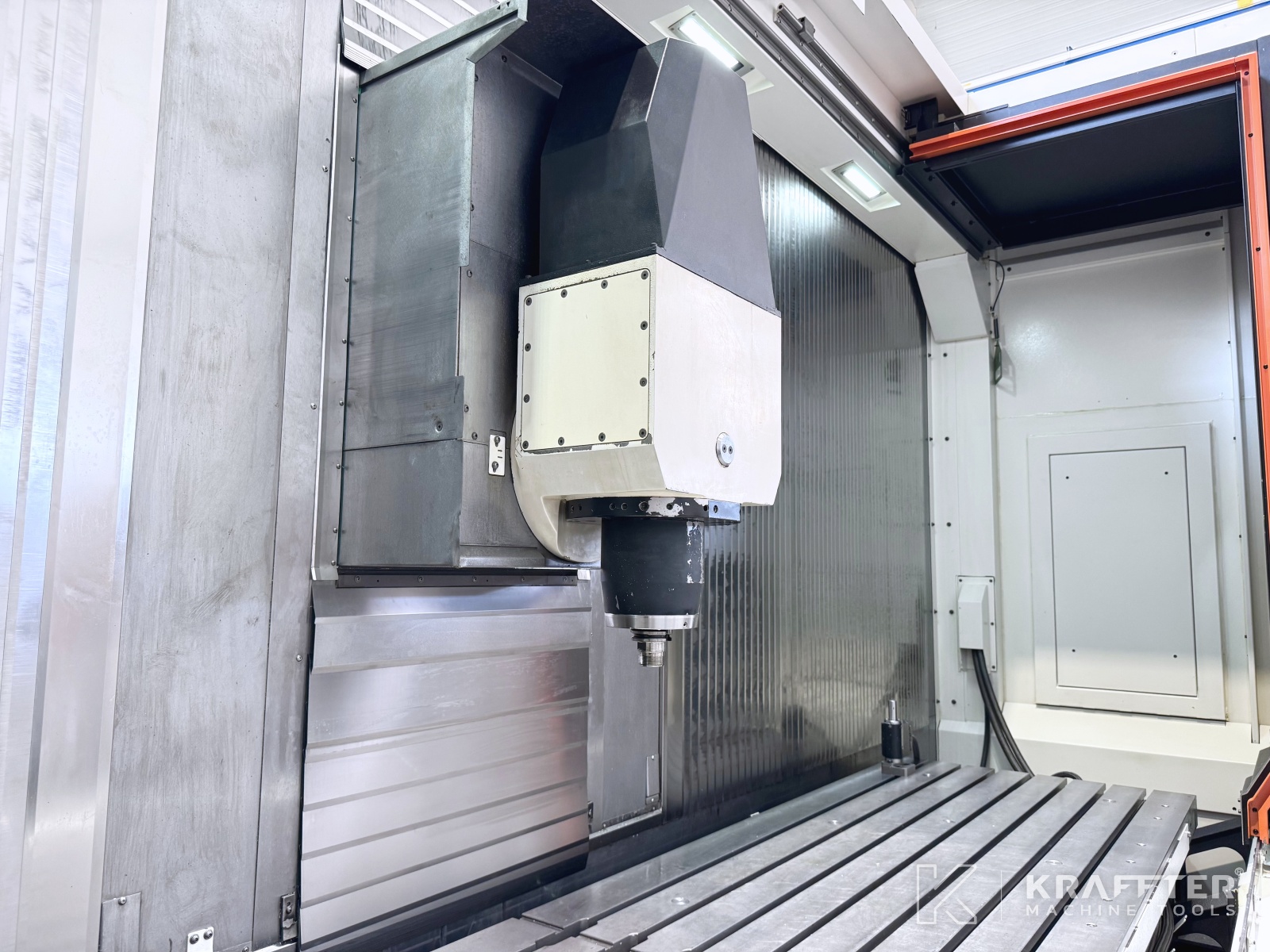

Type of machine : CNC machining centre
Brand : MAZAK
N° de stock: 90187

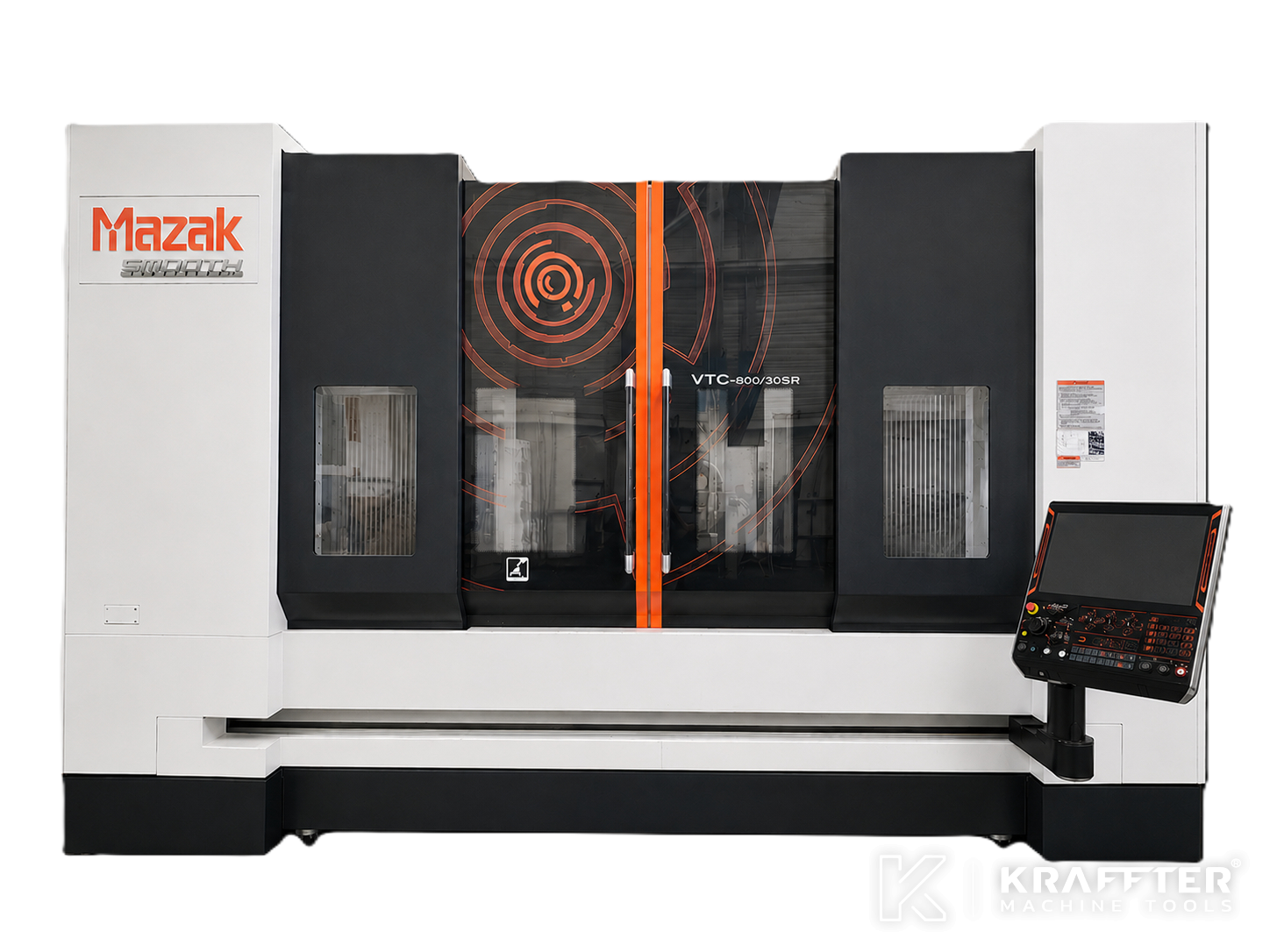

Model : VTC 800/30SR
Year : 2019
Location : 73240 Saint-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

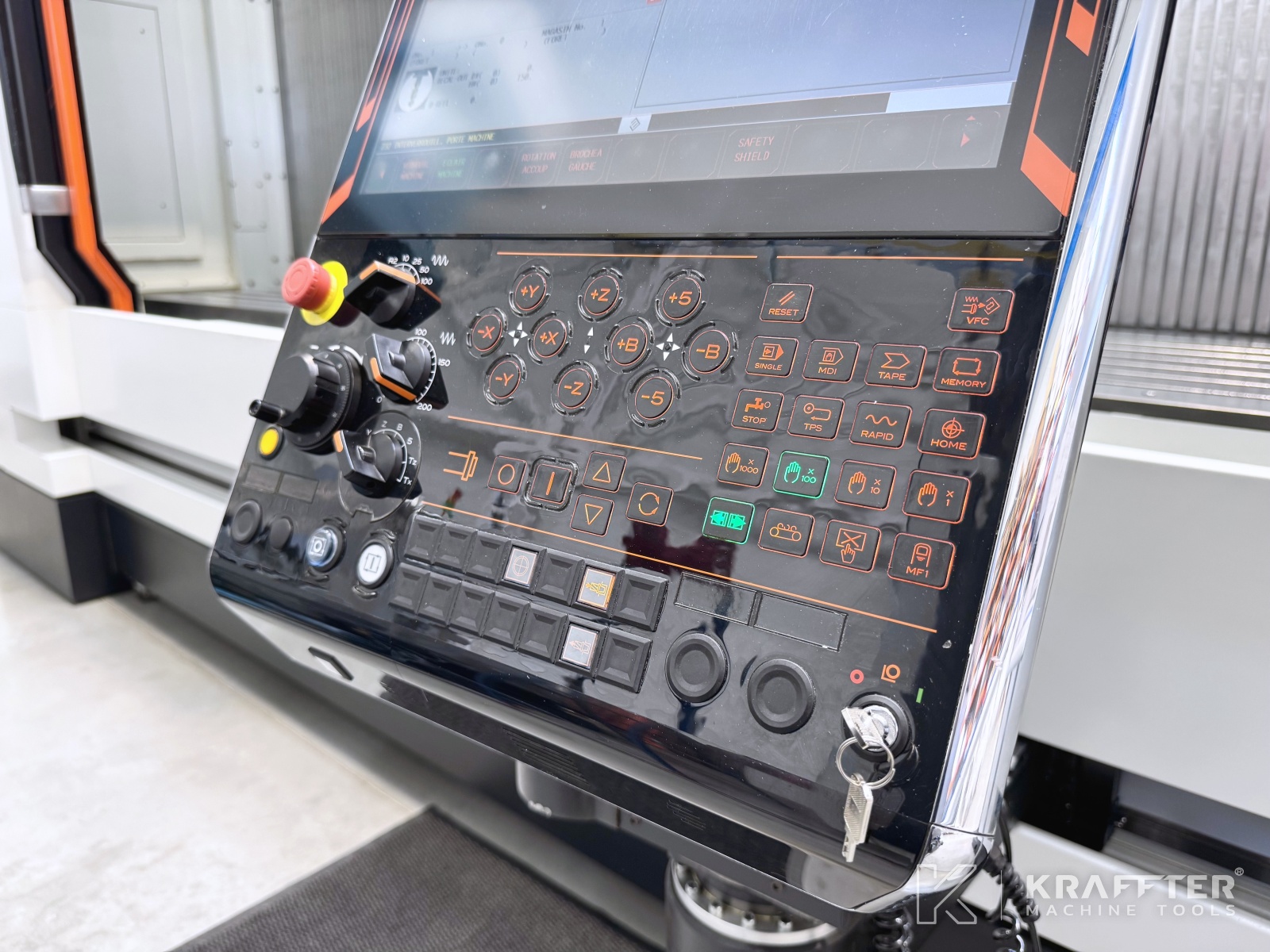

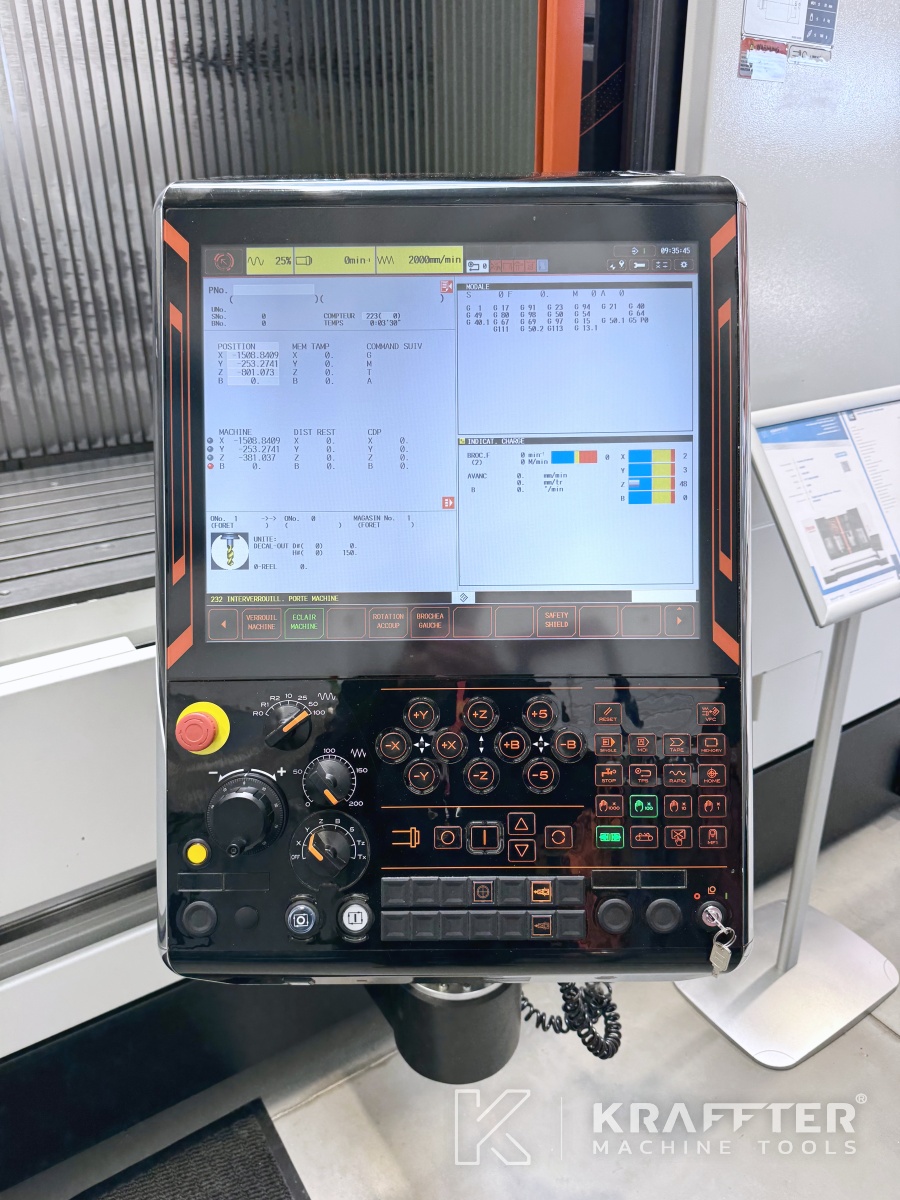

CNC control
MAZATROL Smooth
Number of simultaneous axes
5
Stroke X axis
3000 [mm]
Stroke Y axis
800 [mm]
Stroke Z axis
720 [mm]
Feed rate on X, Y and Z axes
50000 [mm/min]
Traversing feeds X, Y and Z axes
50000 [mm/min]
Min. distance spindle nose / table
140 [mm]
Max. distance spindle nose / table
860 [mm]

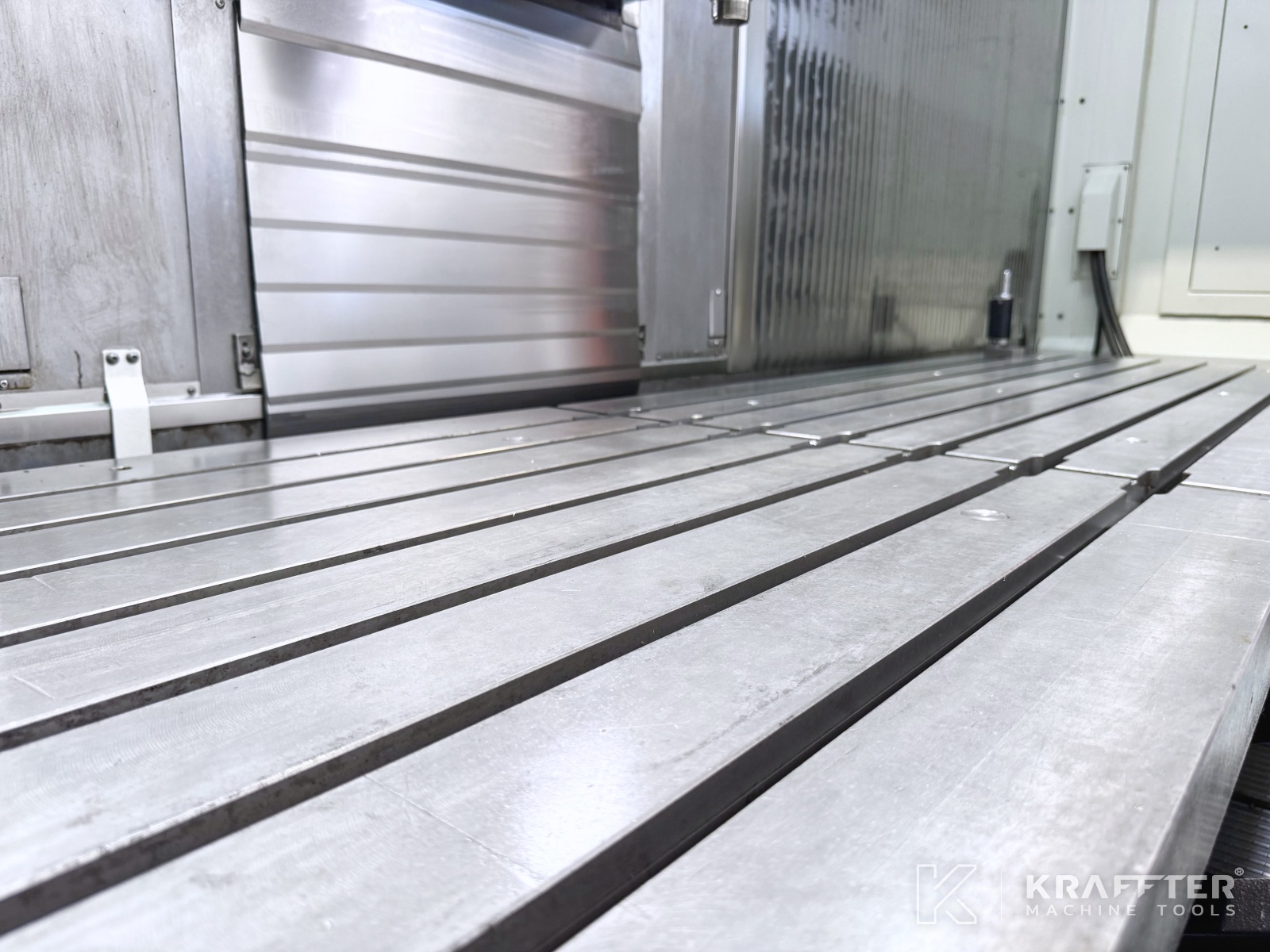

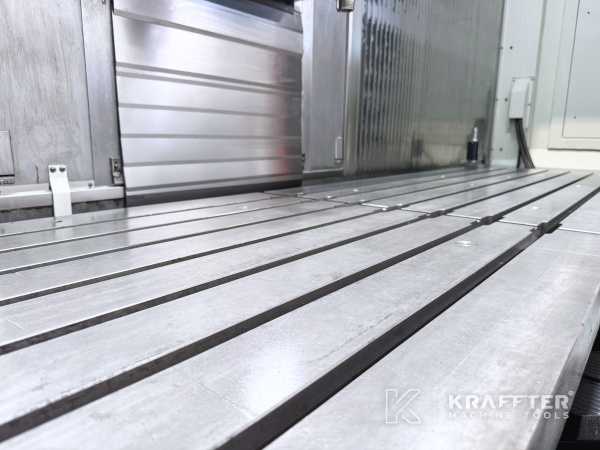

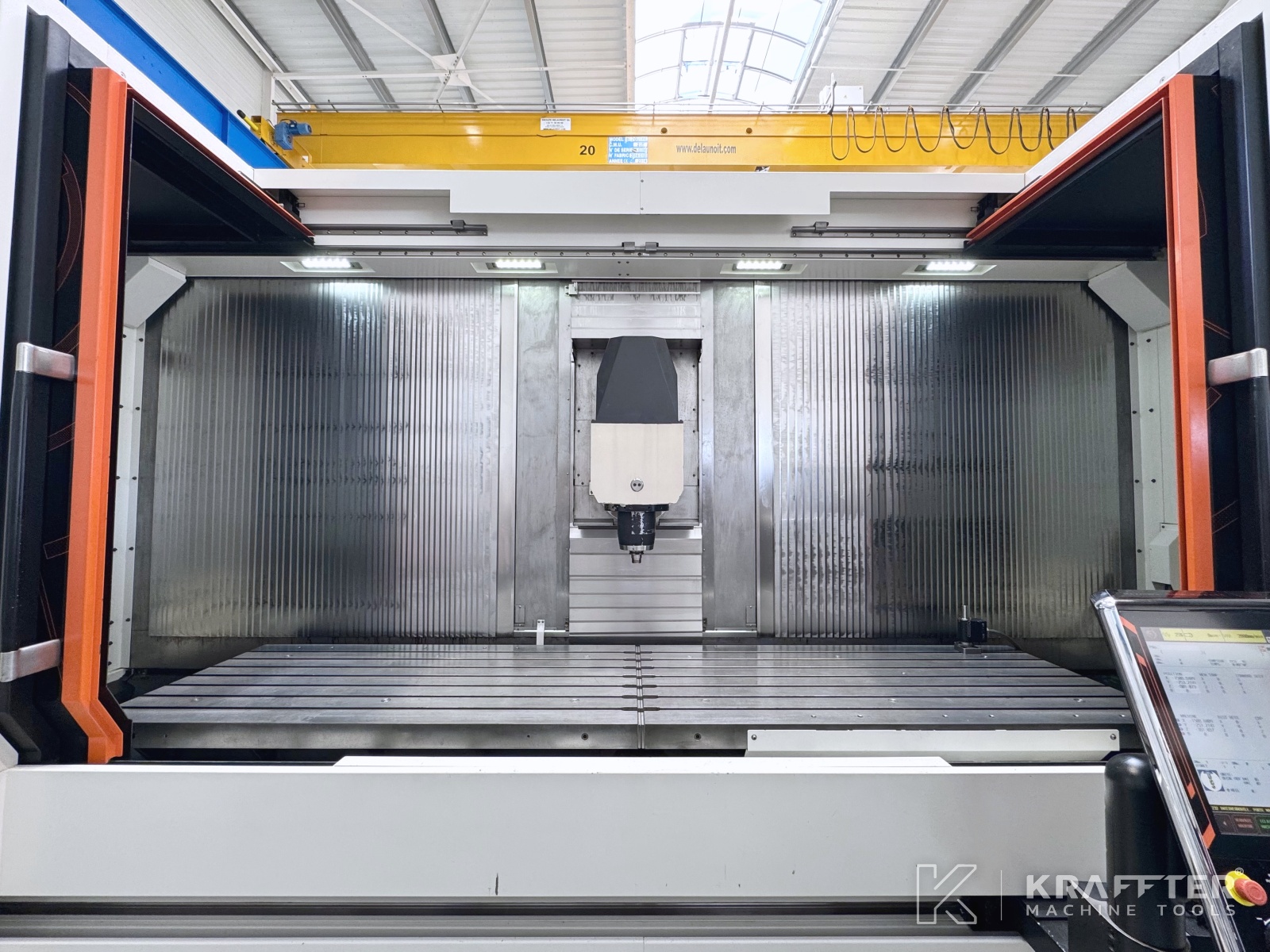

Table length
3500 [mm]
Table width
820 [mm]
Max. load on table
2500 [Kg]
B axis swivelling stroke
+110 [°] / -110 [°] [°]
Table surface Ø
500 [mm]
Stroke C axis : table revolution
360 [°]

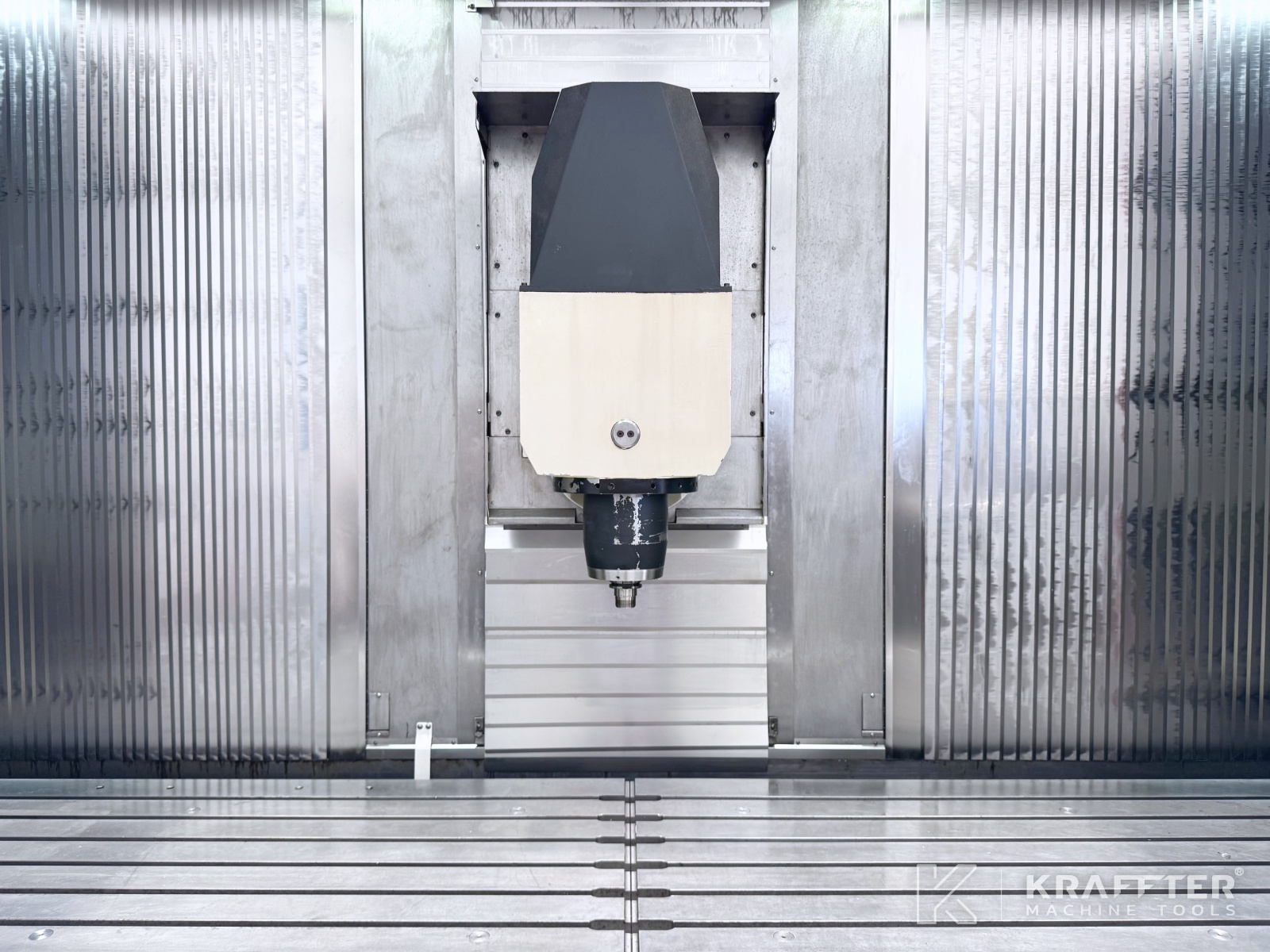

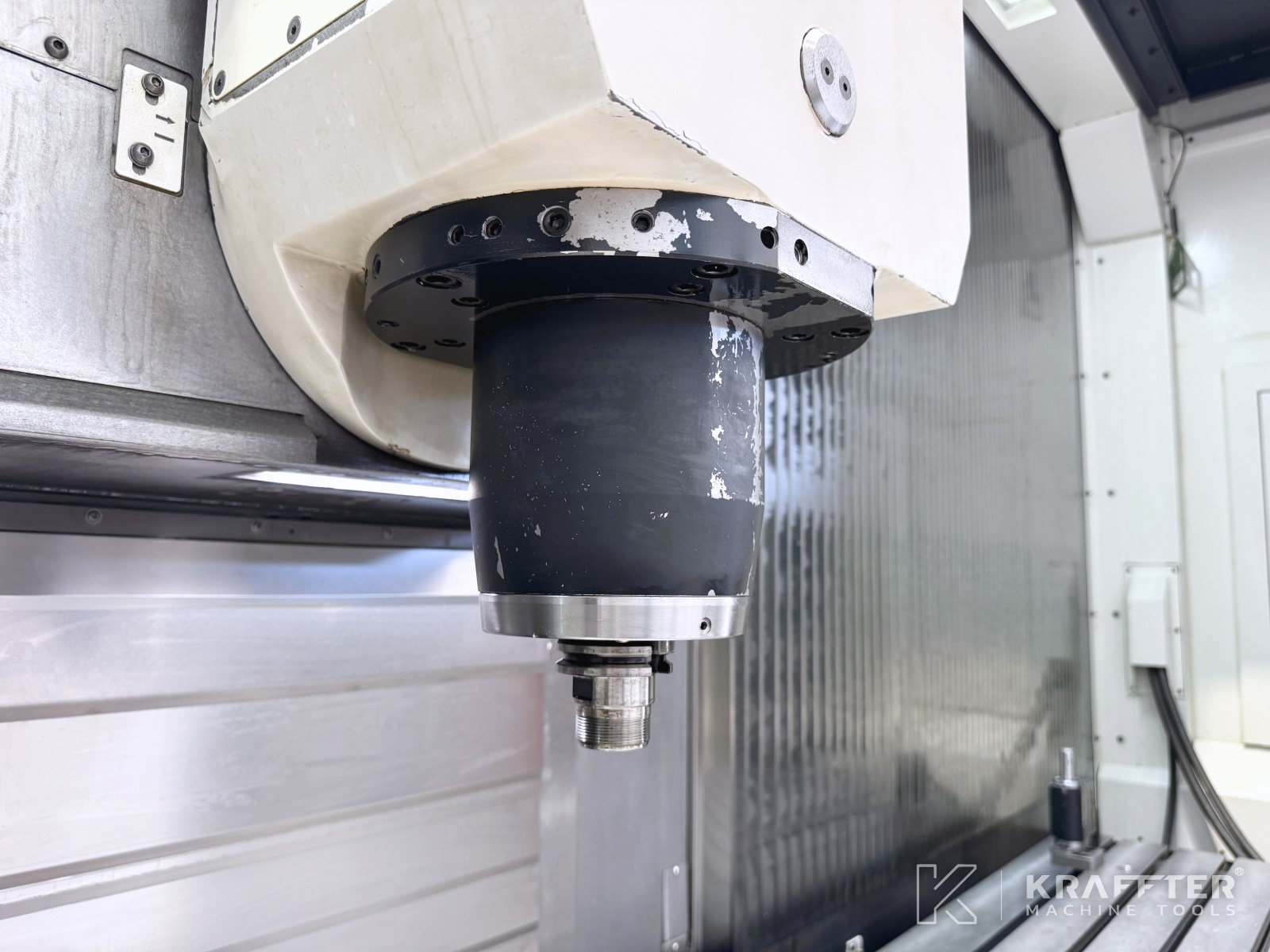

Spindle type
CAT No.40
Max. spindle speed
18000 [rpm]
Spindle power
35 [kW]

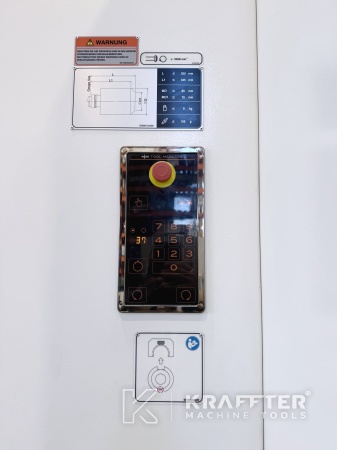

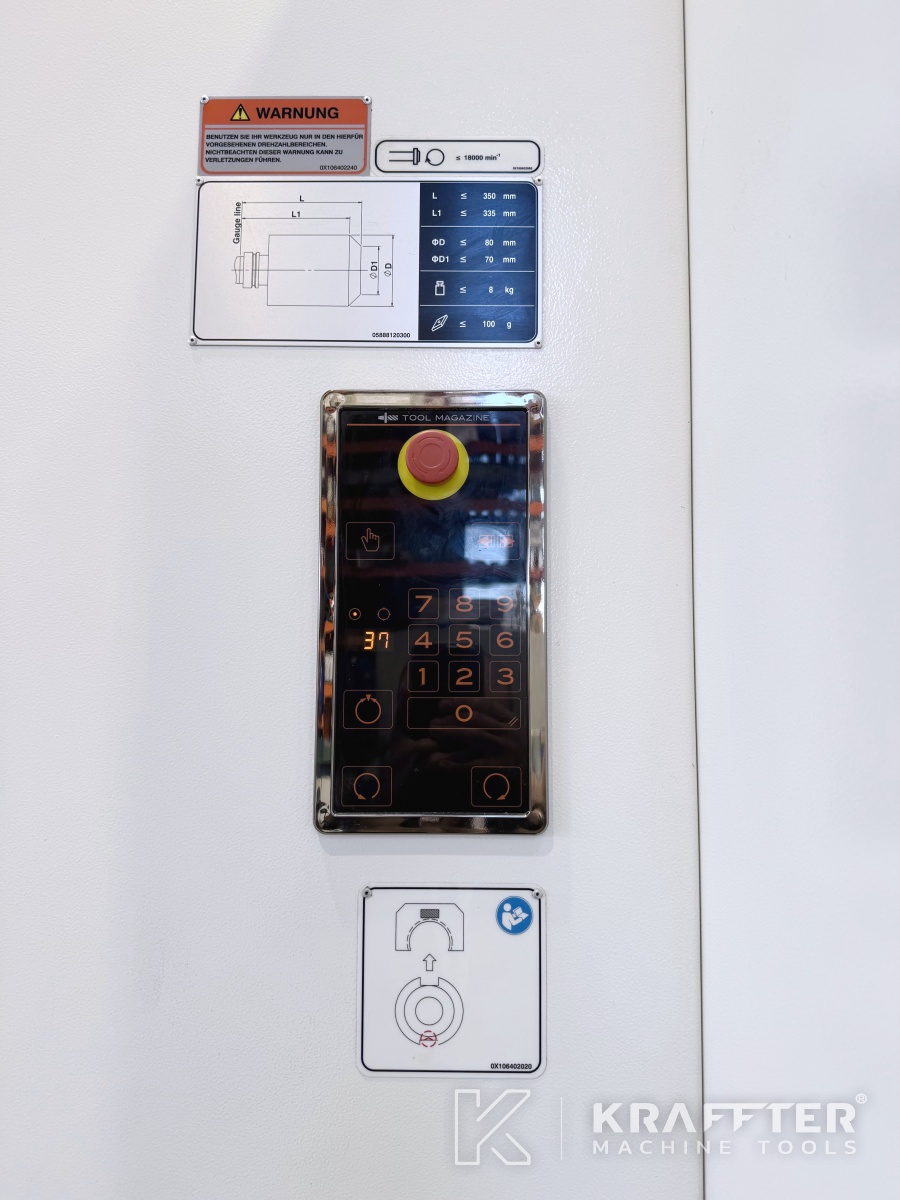

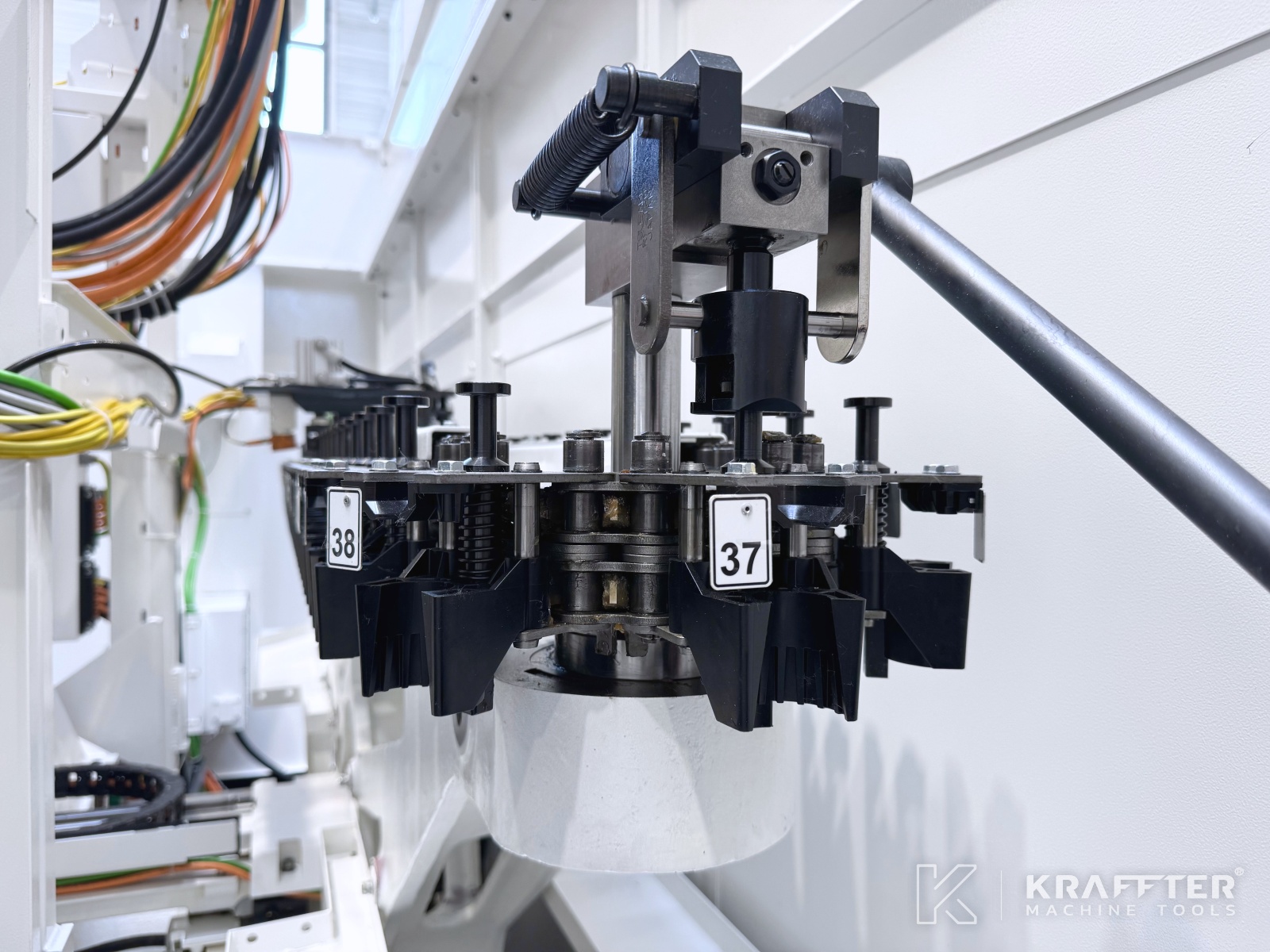

Tool changer magazin number of stations
48
Max. tool lenght
350 [mm]
Max. weight of single tool
8 [Kg]
Max. tool diameter
80 - 130 [mm]
Number of hours under power
8770 [h]
Spindle running hours
2354 [h]
Machine dimensions
5250 x 4300 x 3419 [mm]
Weight
16800 [Kg]
Technical specifications are provided for indicative purposes only. The description may have been automatically translated.
Additional information
INCLUDED EQUIPMENT:
- x1 MAZAK type DS50C-R1-Z5th-axis NC rotary table Ø500 [mm] – 360,000 positions

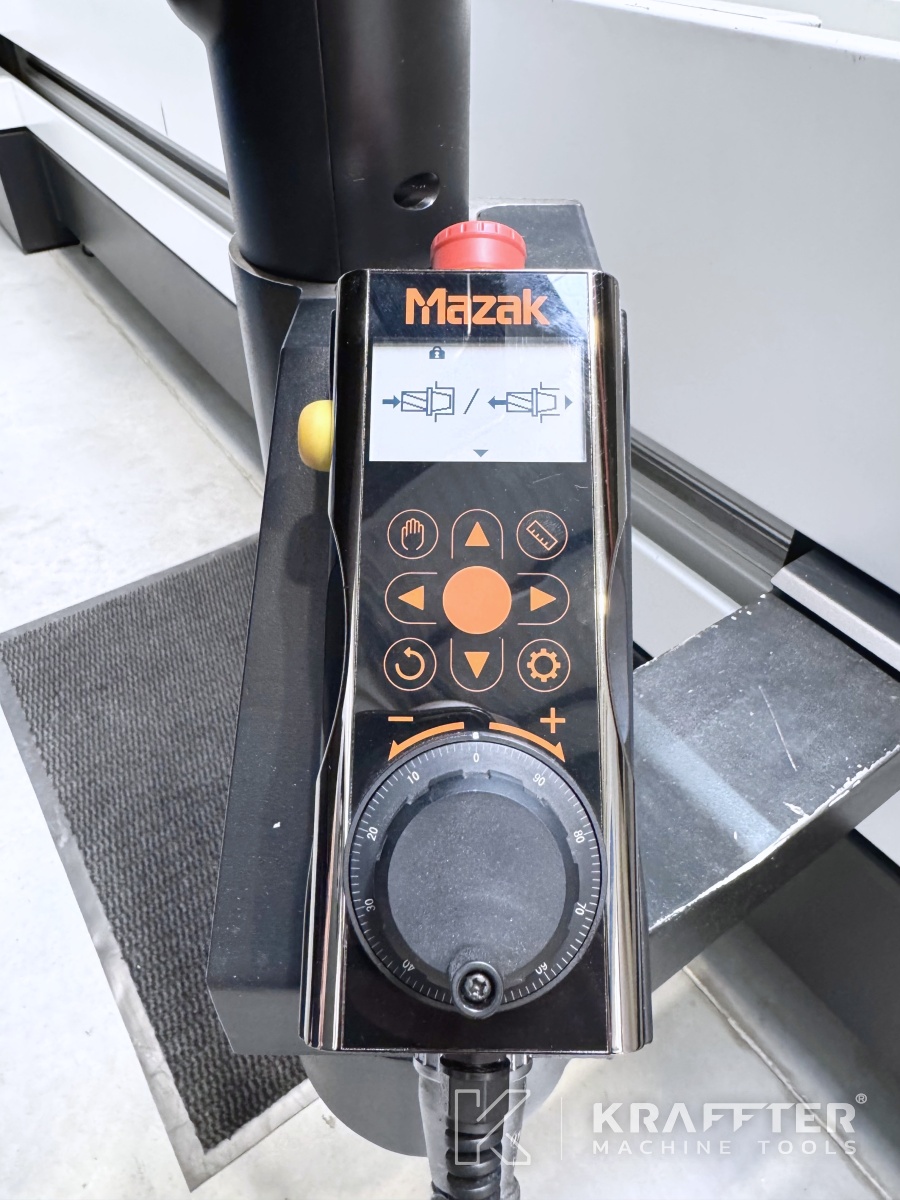

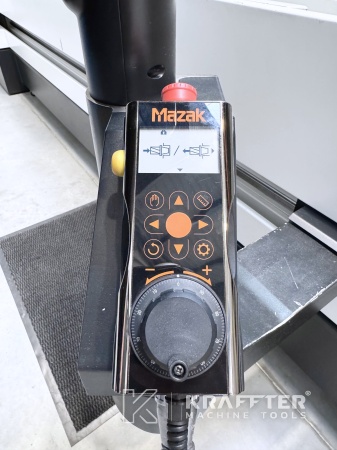

- x1 electronic handwheel

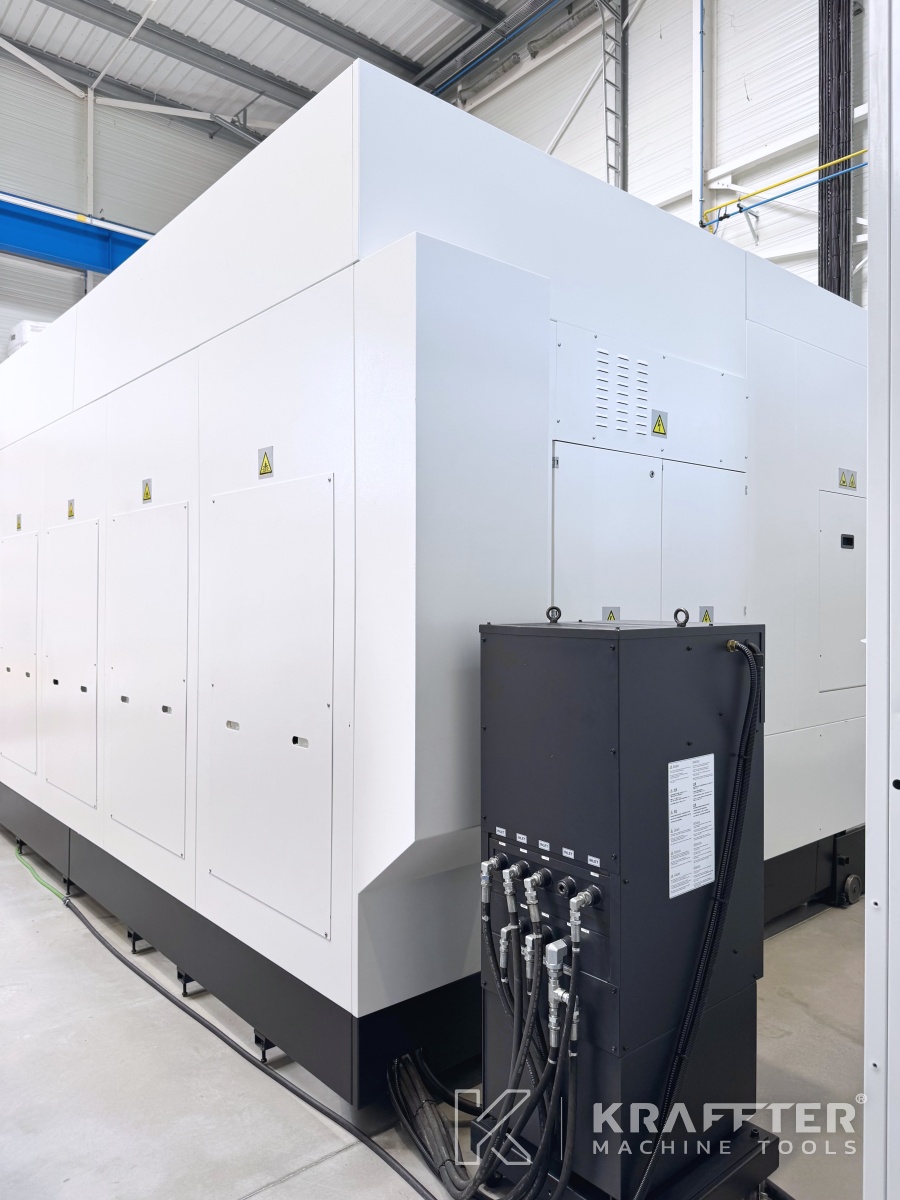

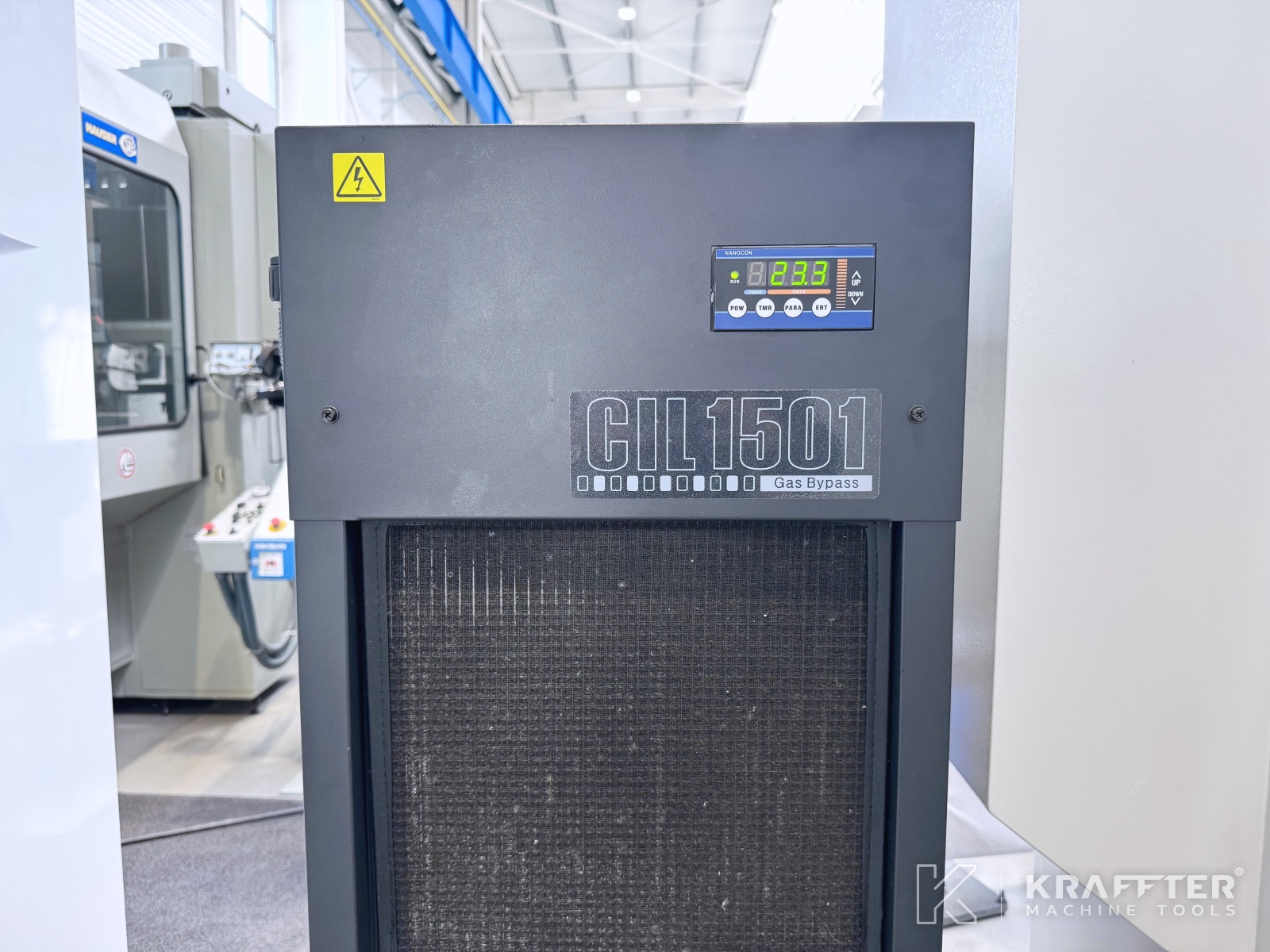

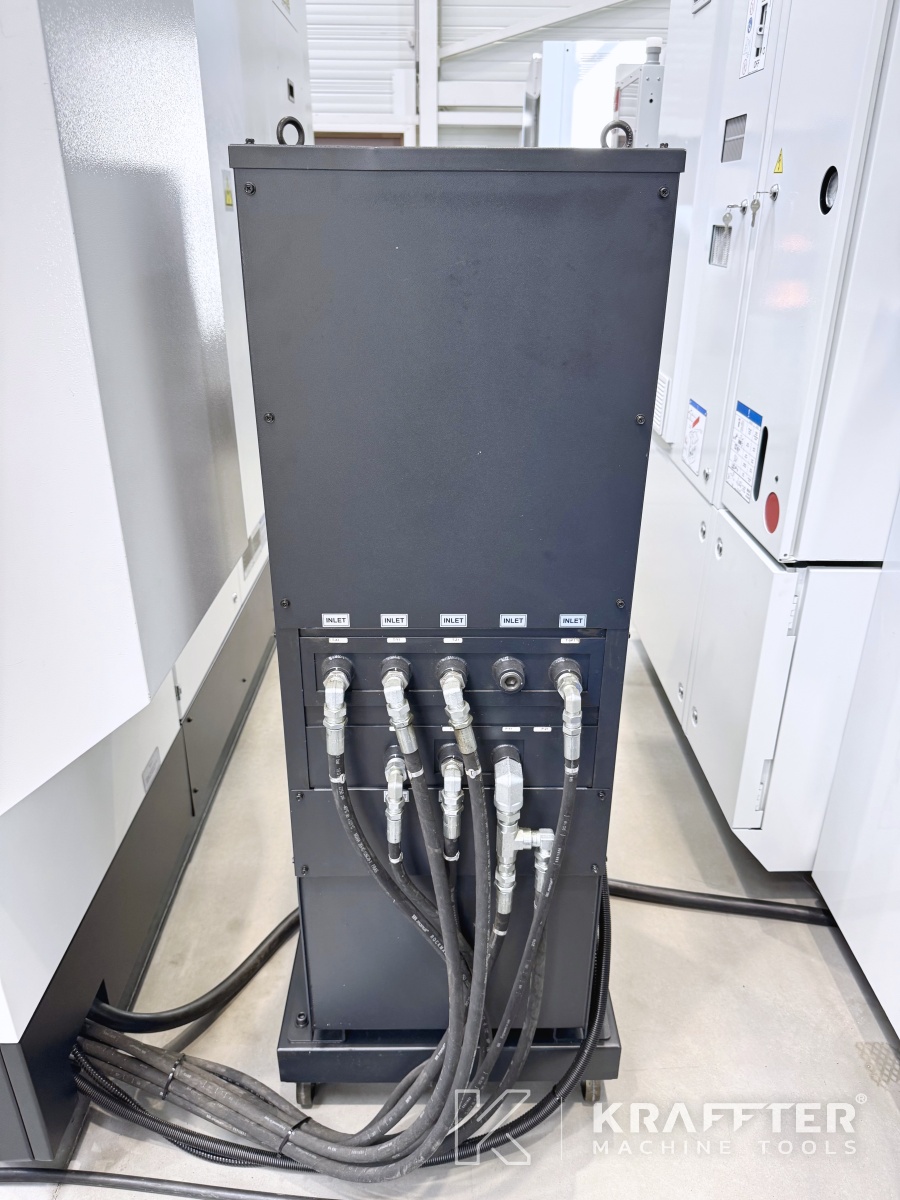

- x1 spindle chiller

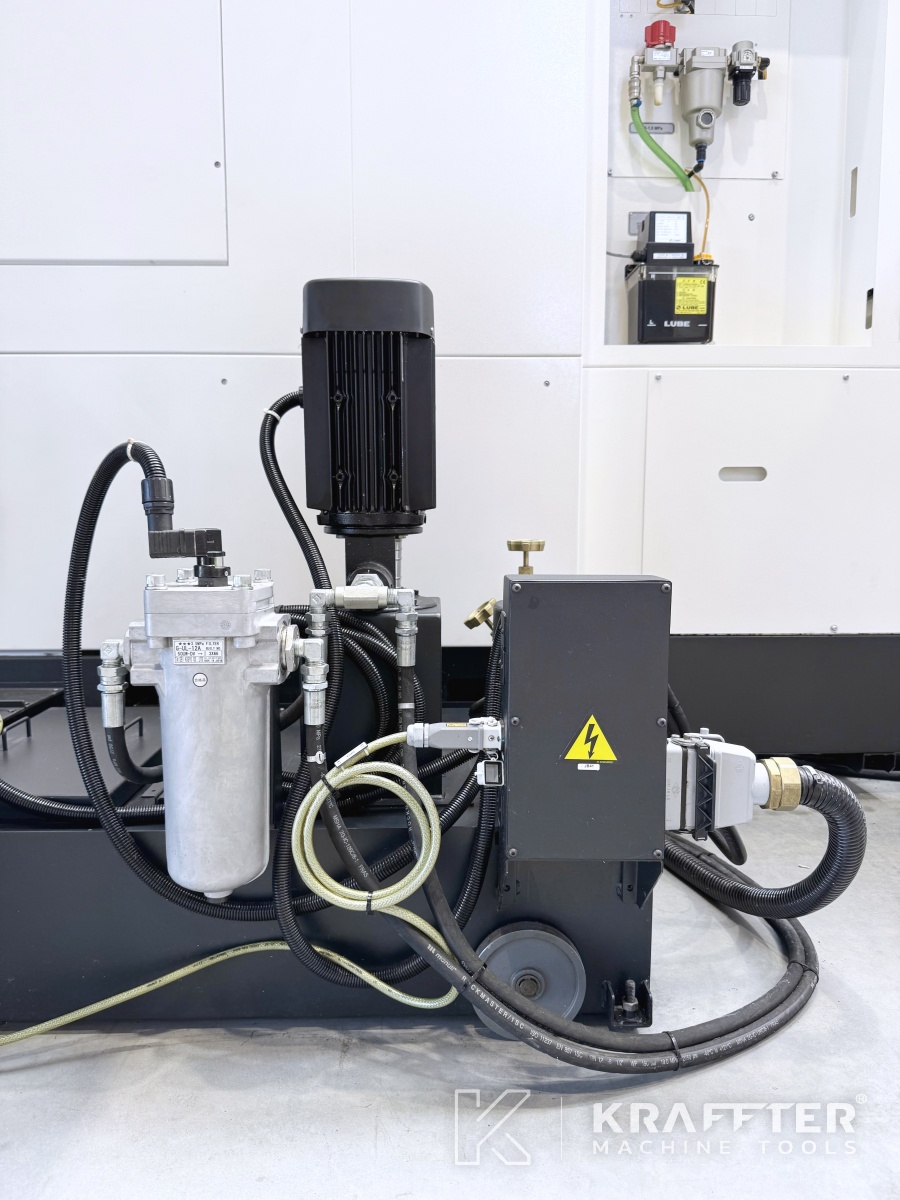

- x1 high-pressure coolant pump 15 [bar]

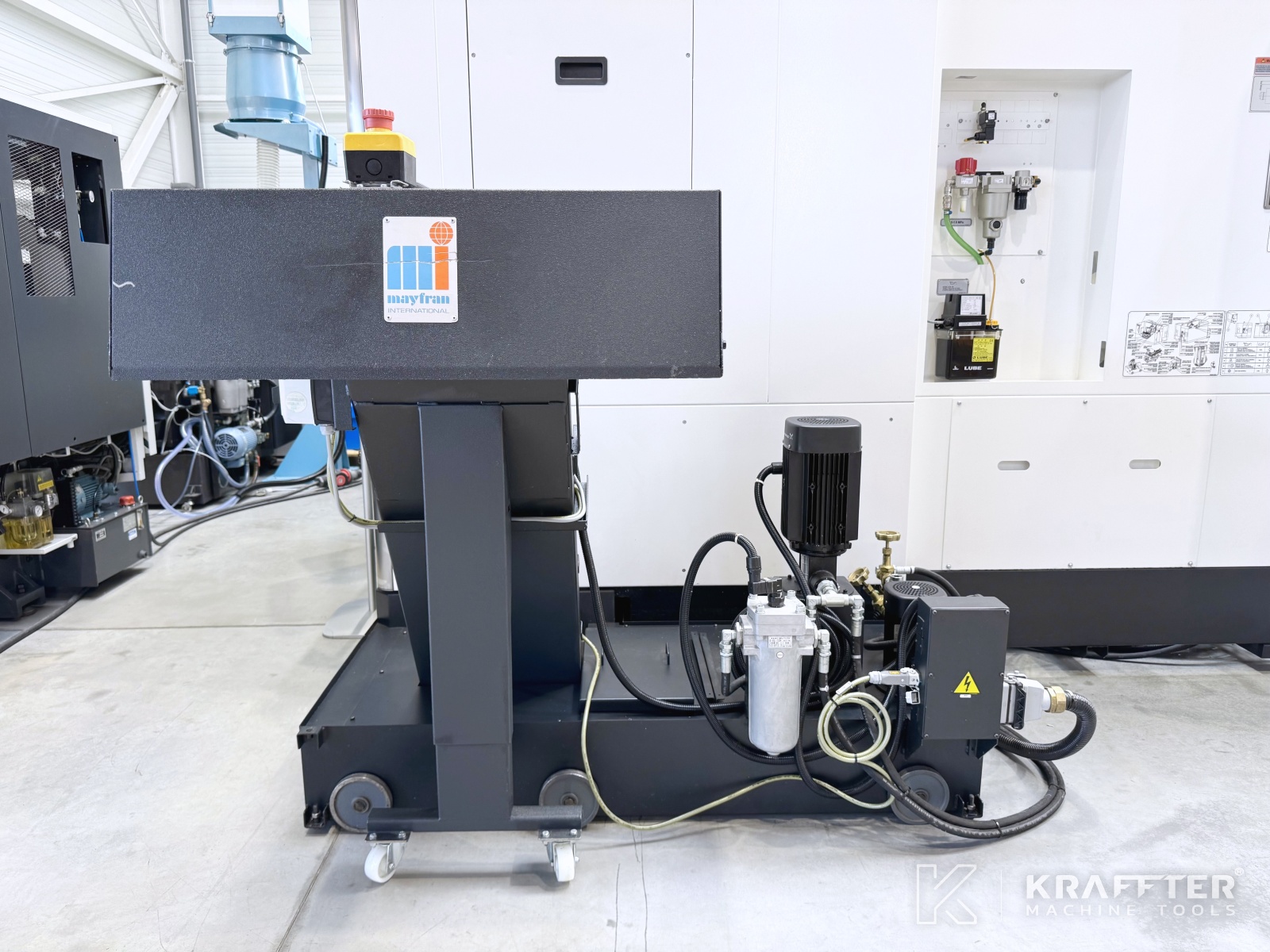

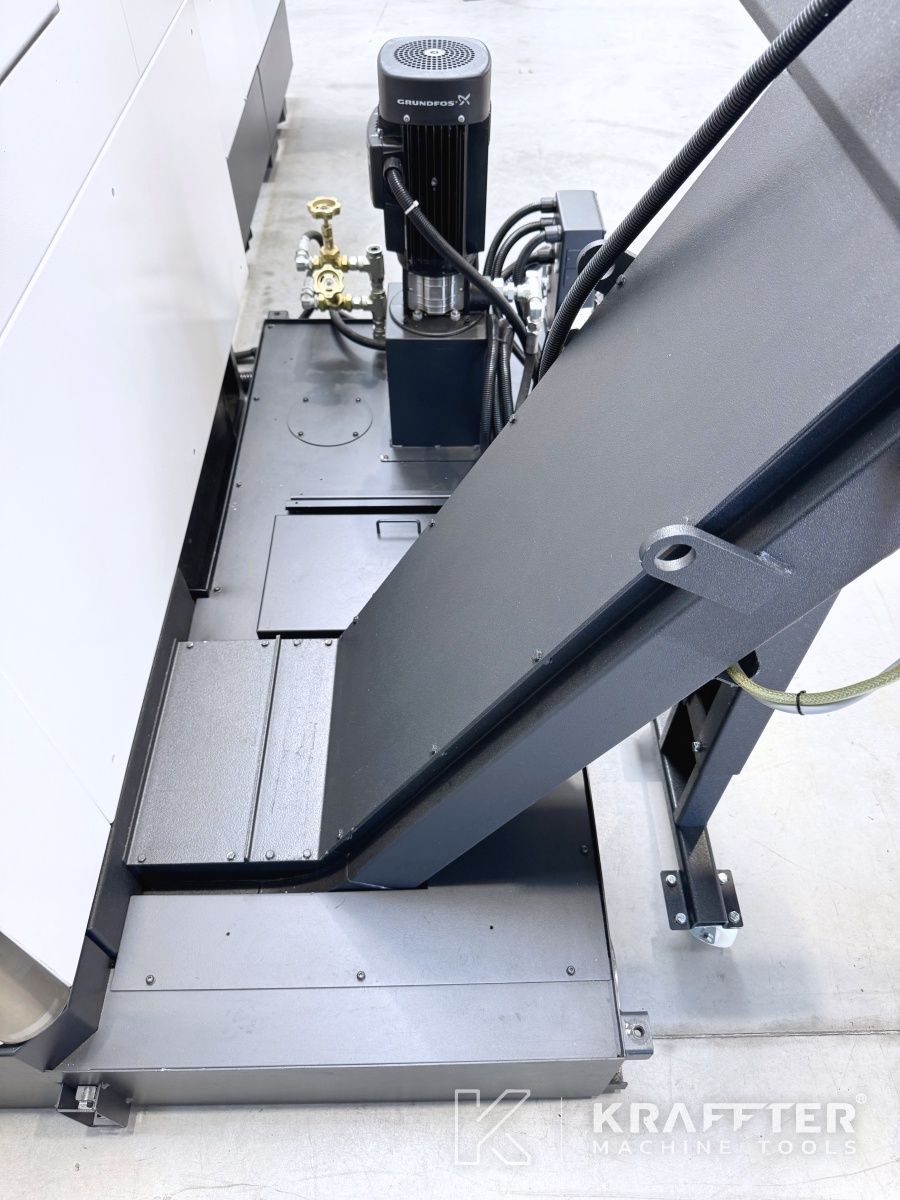

- x1 chip conveyor
