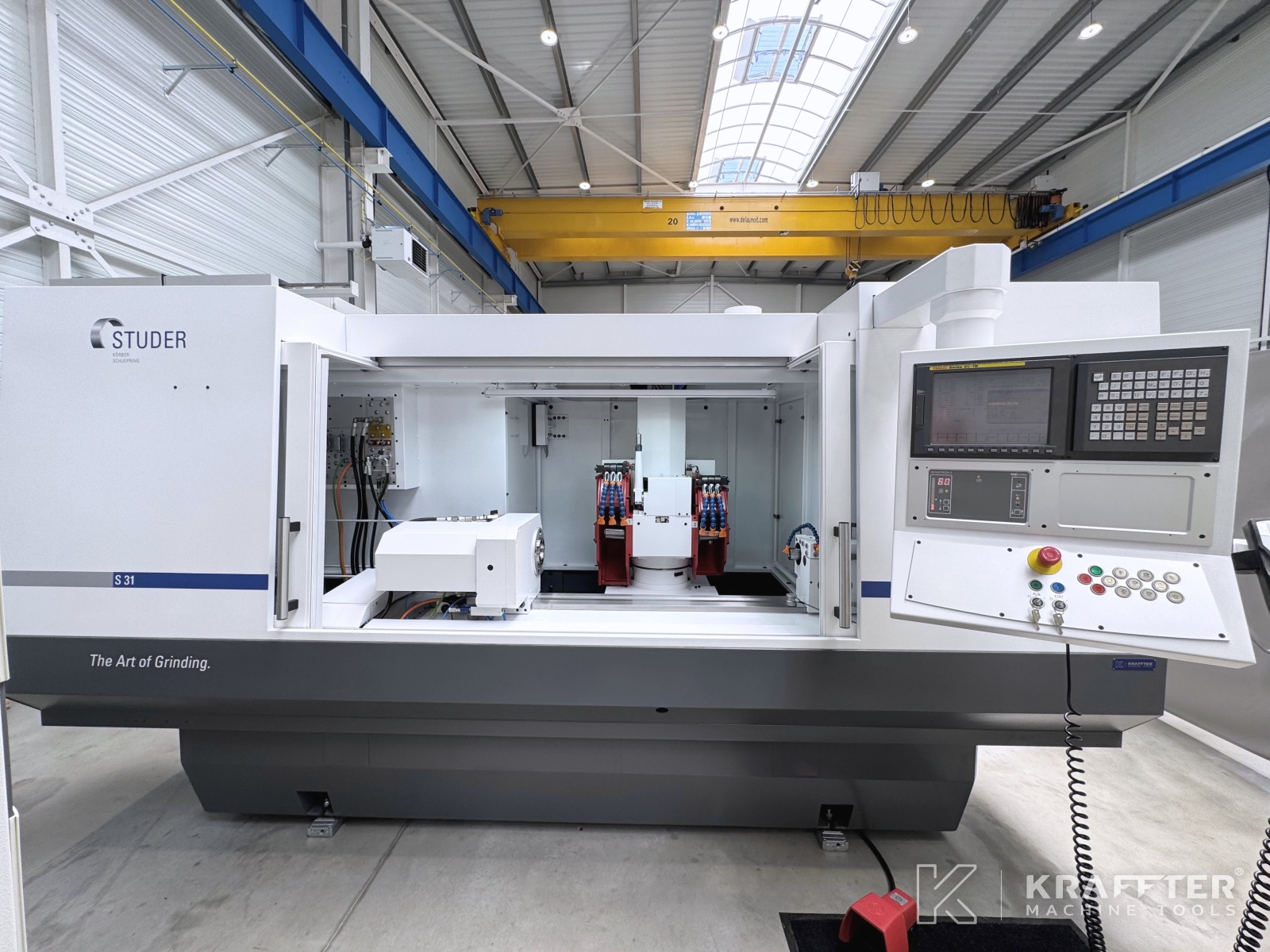

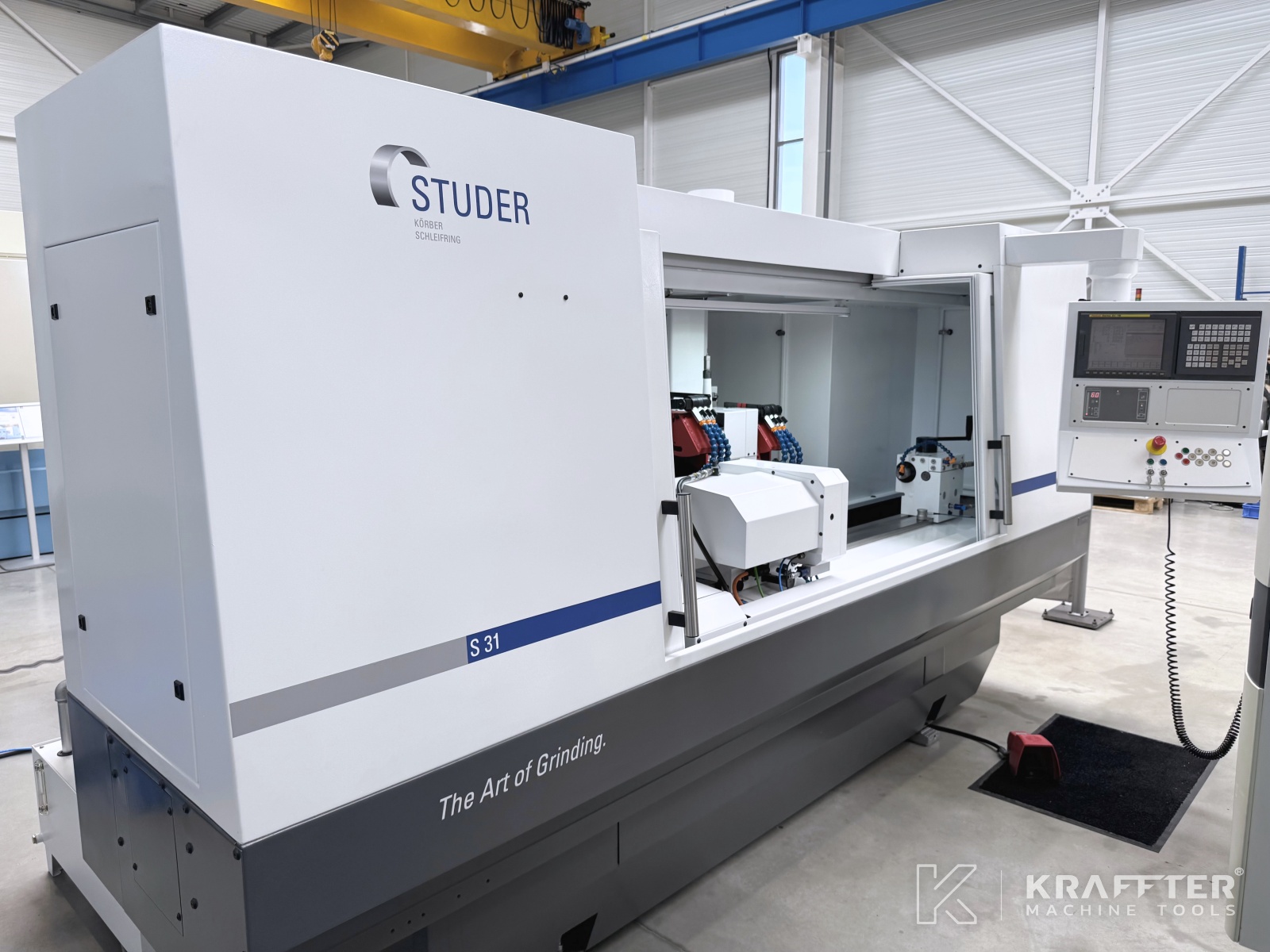

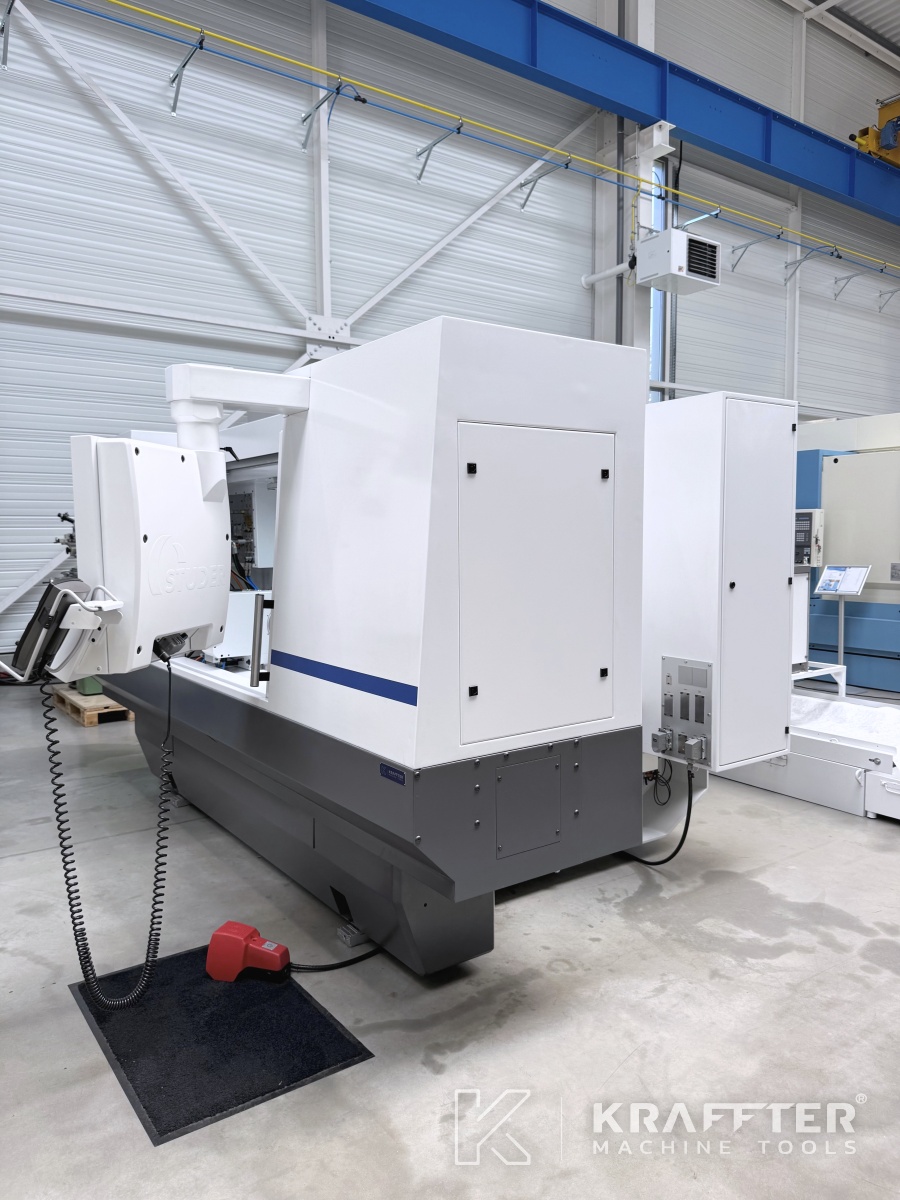

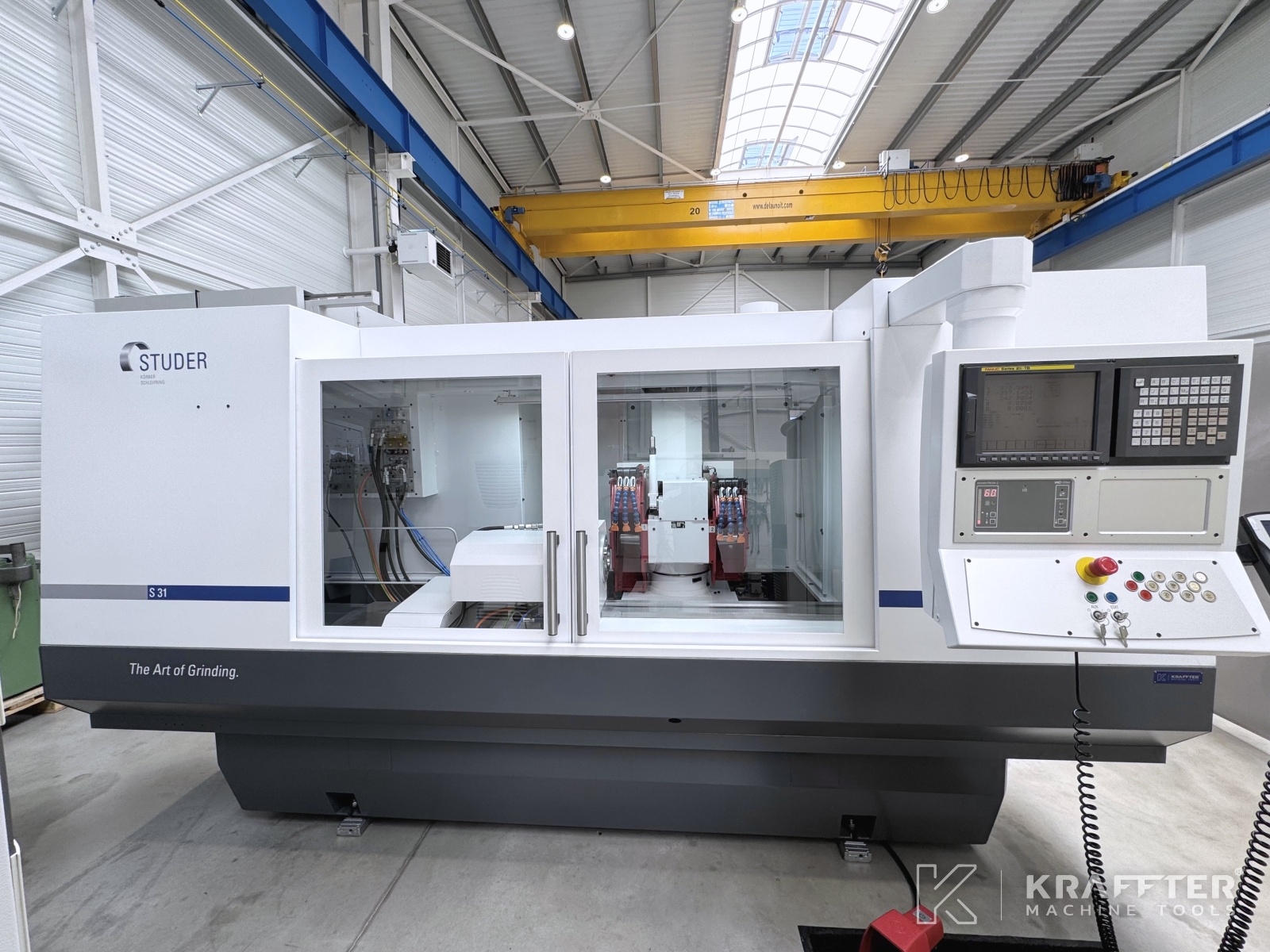

Type of machine : CNC cylindrical grinder

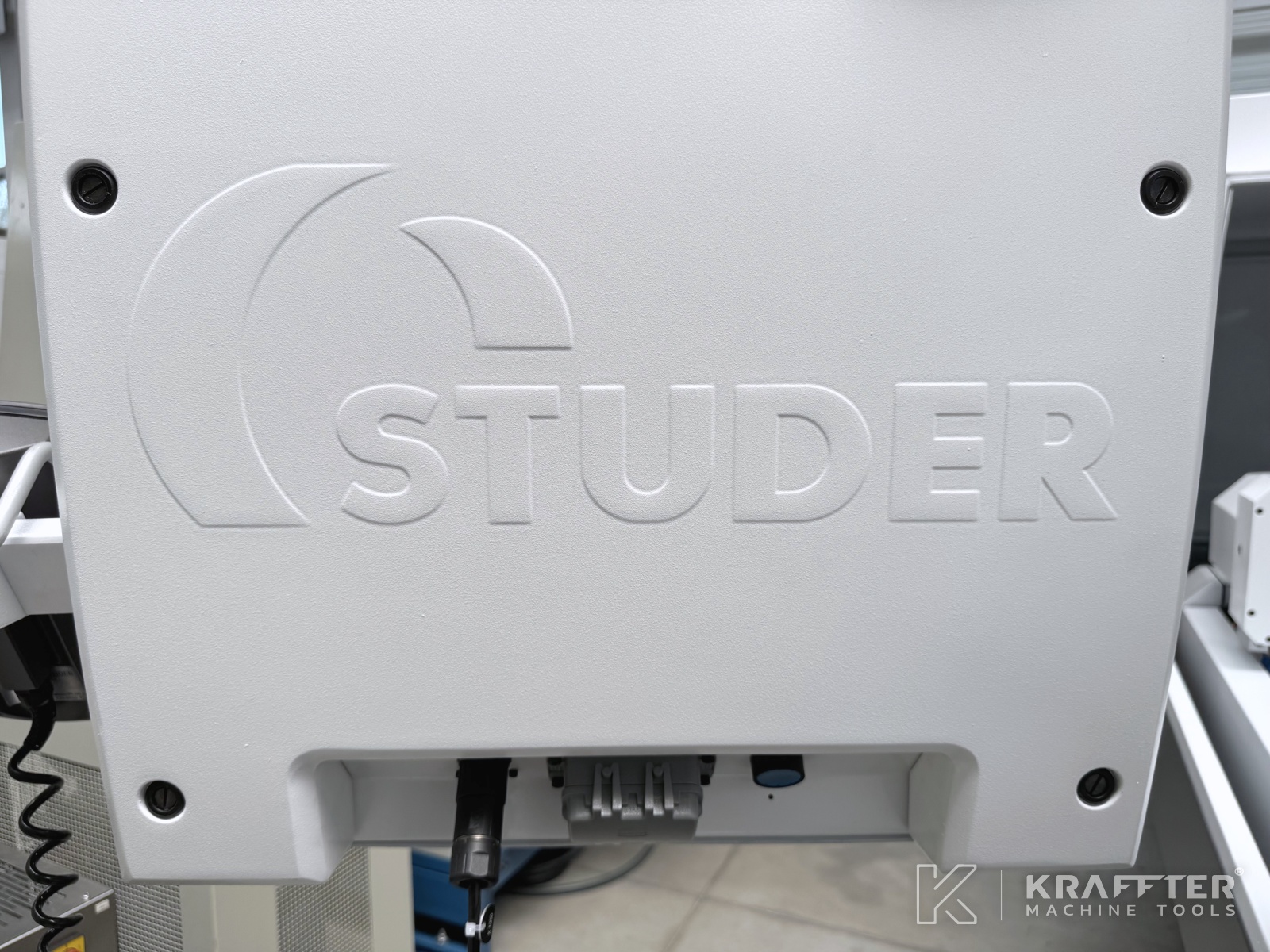

Brand : STUDER
N° de stock: 90178

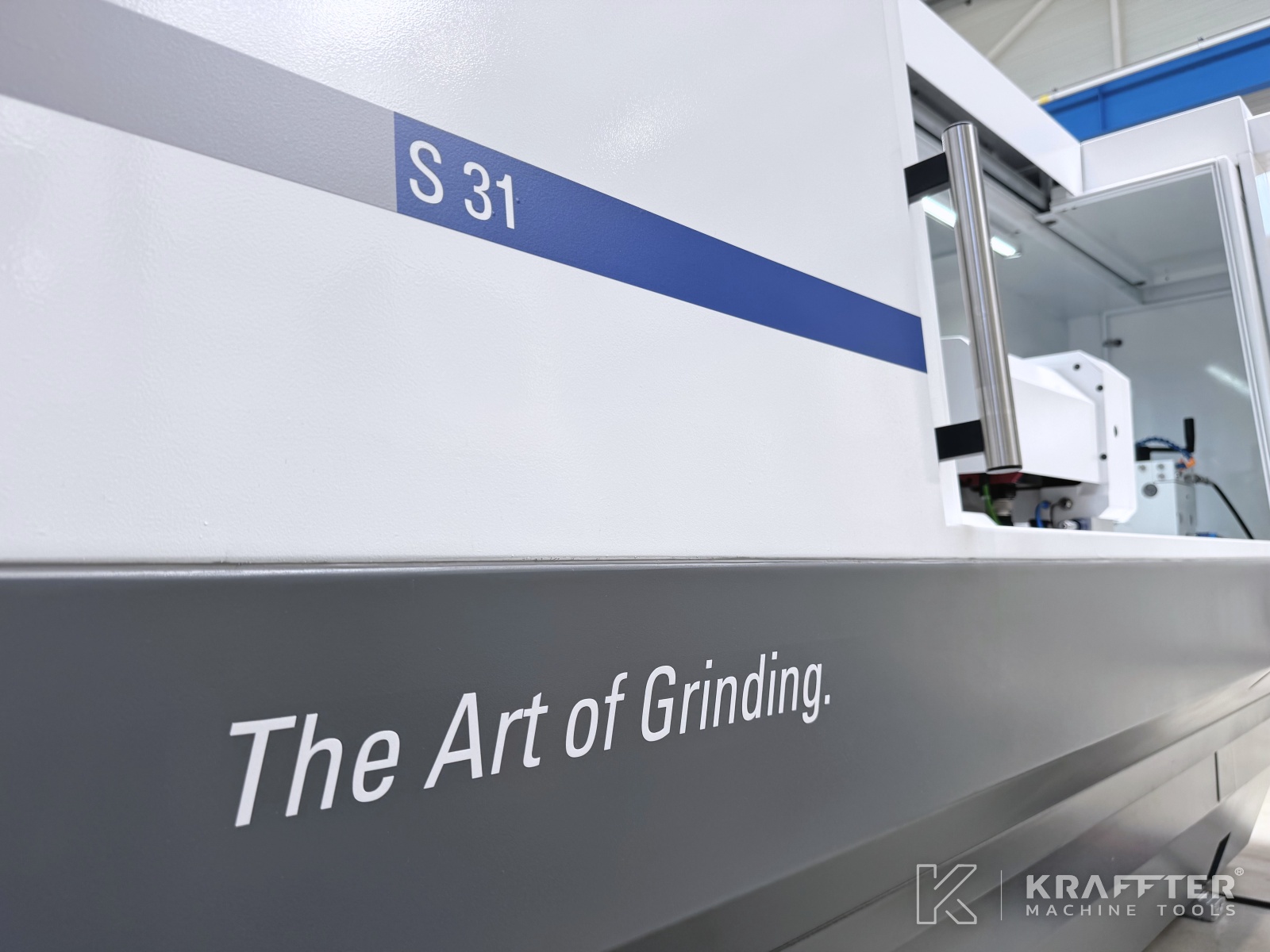

Model : S31
Year : 2005
Year of rebuild : 2026
Location : 73240 Saint-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

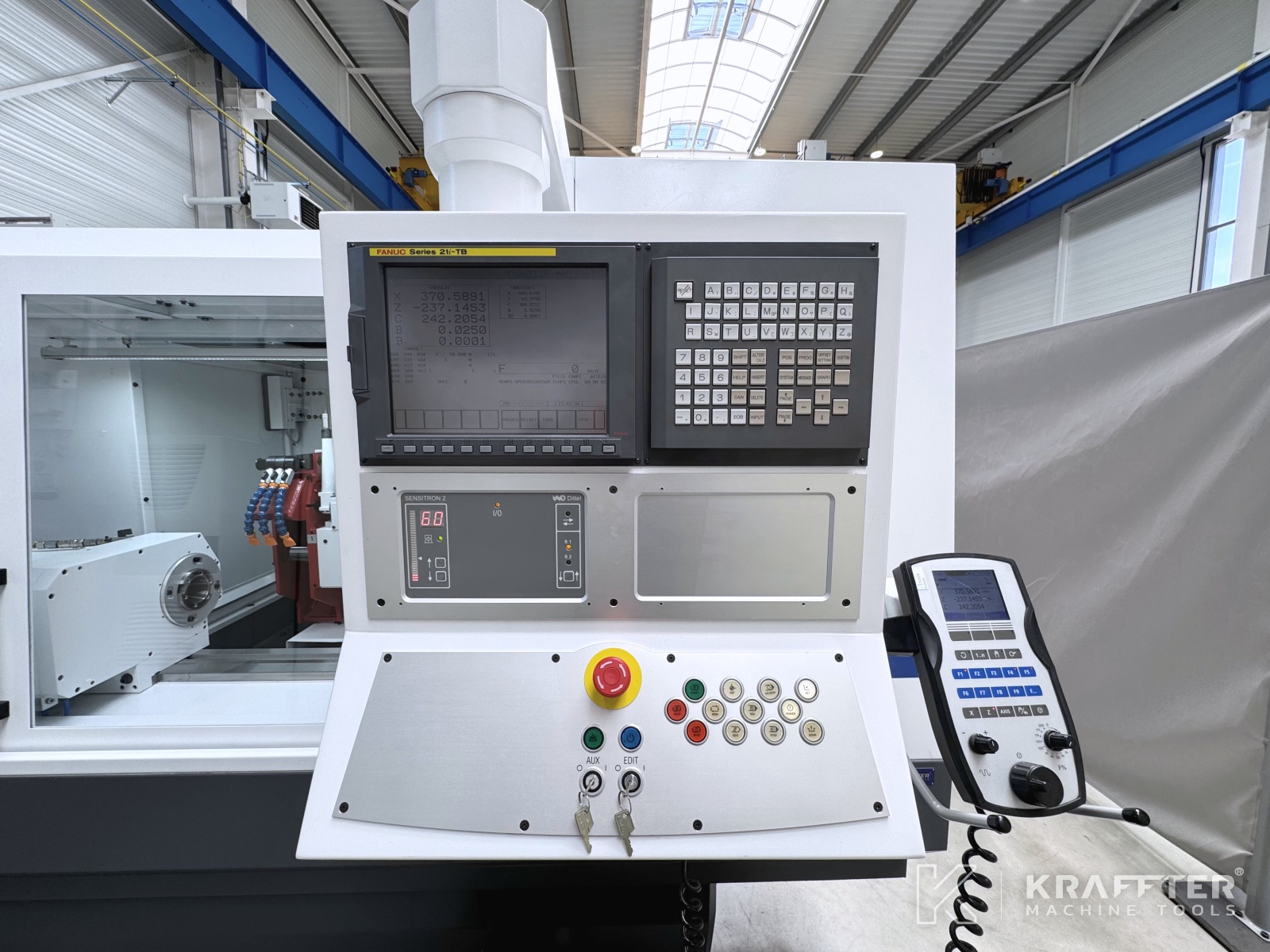

CNC control

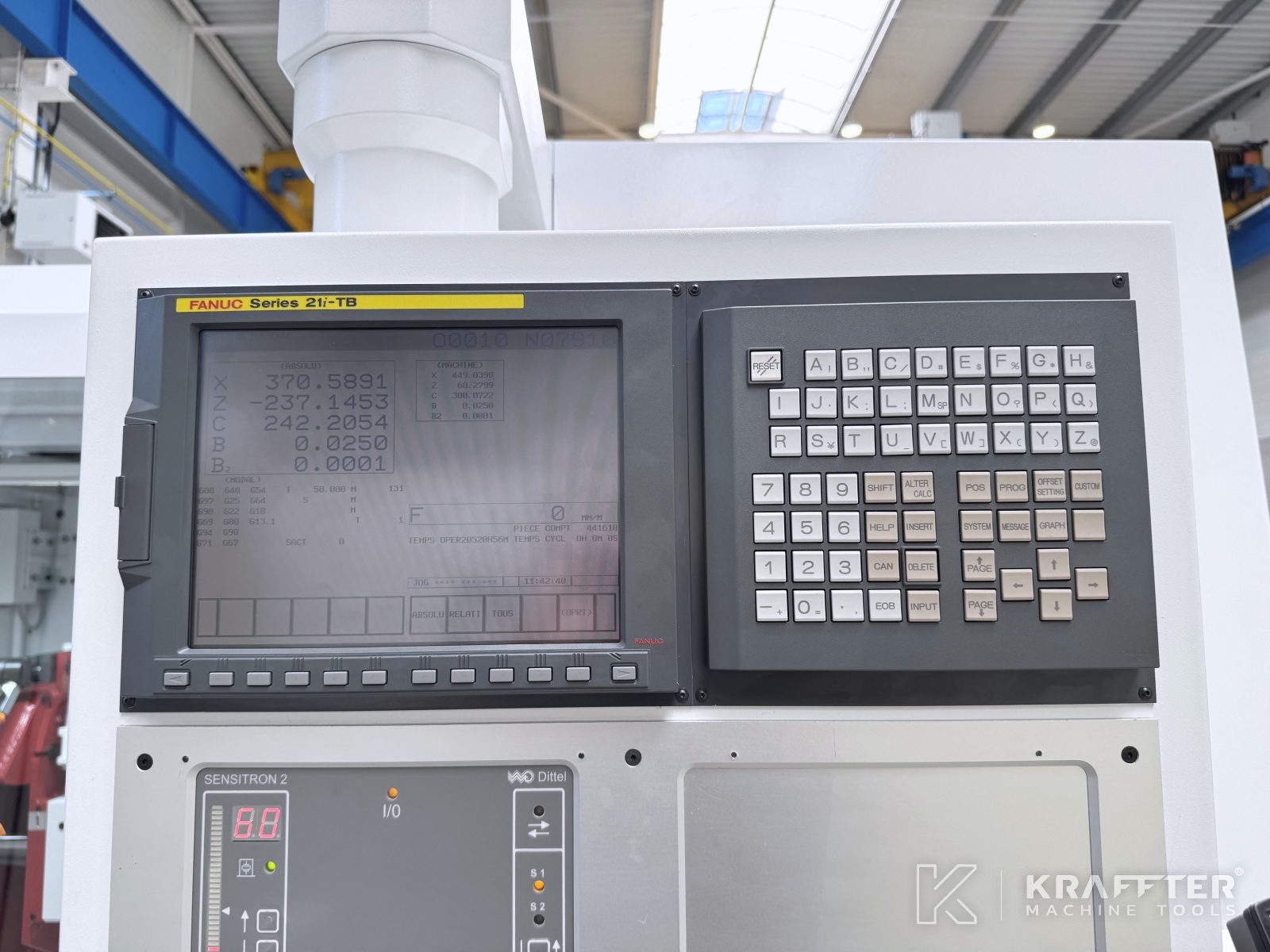

FANUC Series 21i-TB
Software installed
StuderGrind
Centre distance
1000 [mm]
Height of centers
175 [mm]
Stroke X axis
280 [mm]
Min. Stroke speed X axis
0.001 [mm/min]
Max. Stroke speed X axis
5000 [mm/min]
Resolution X axis
0.0001 [mm]
Stroke Z axis
1150 [mm]
Min. Stroke speed Z axis
0.001 [mm/min]
Max. Stroke speed Z axis
10000 [mm/min]
Resolution Z axis
0.0001 [mm]

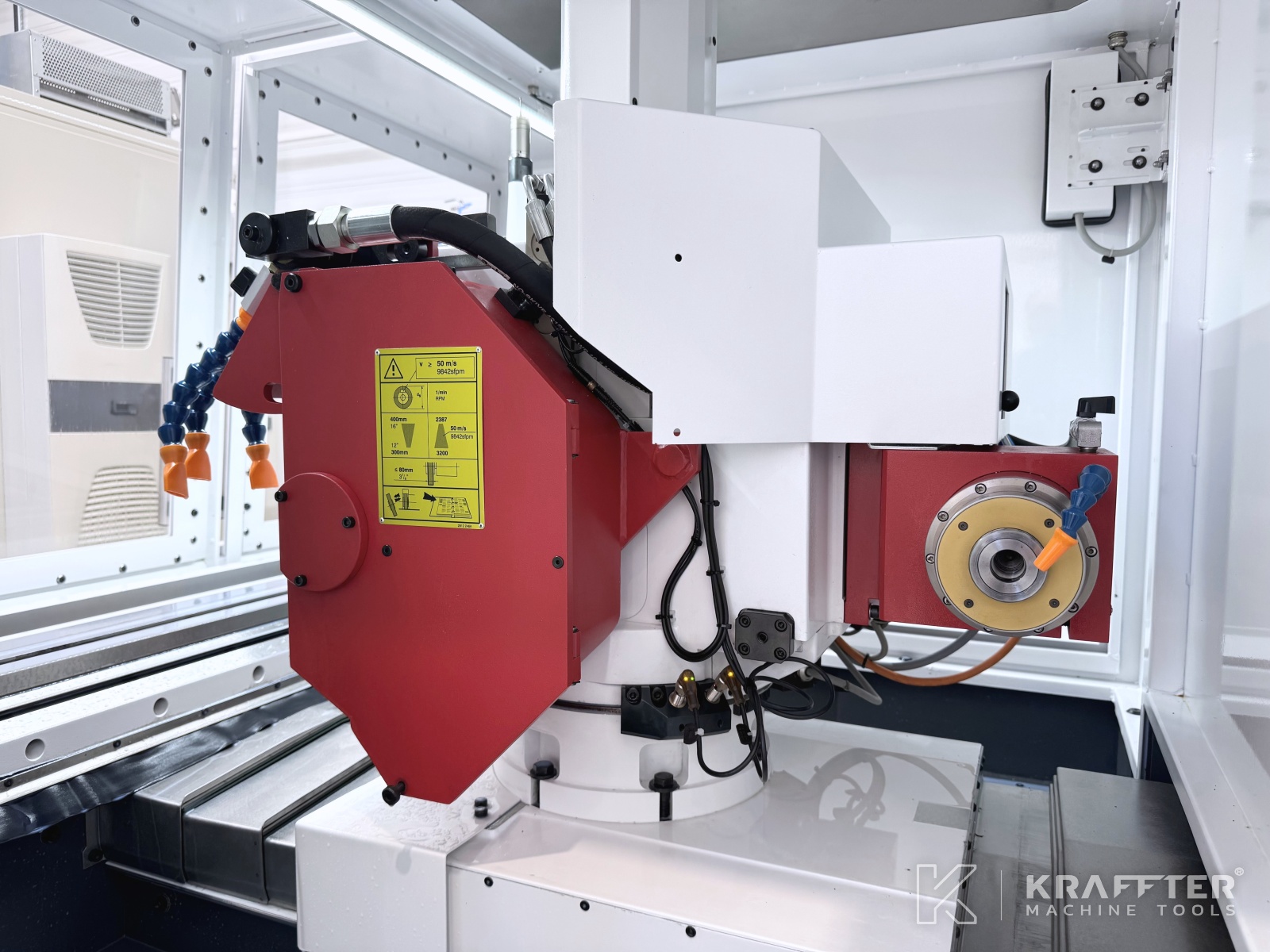

B axis swivelling stroke
-15 [°] / +195 [°]
B axis indexing precision
0.001 [°]

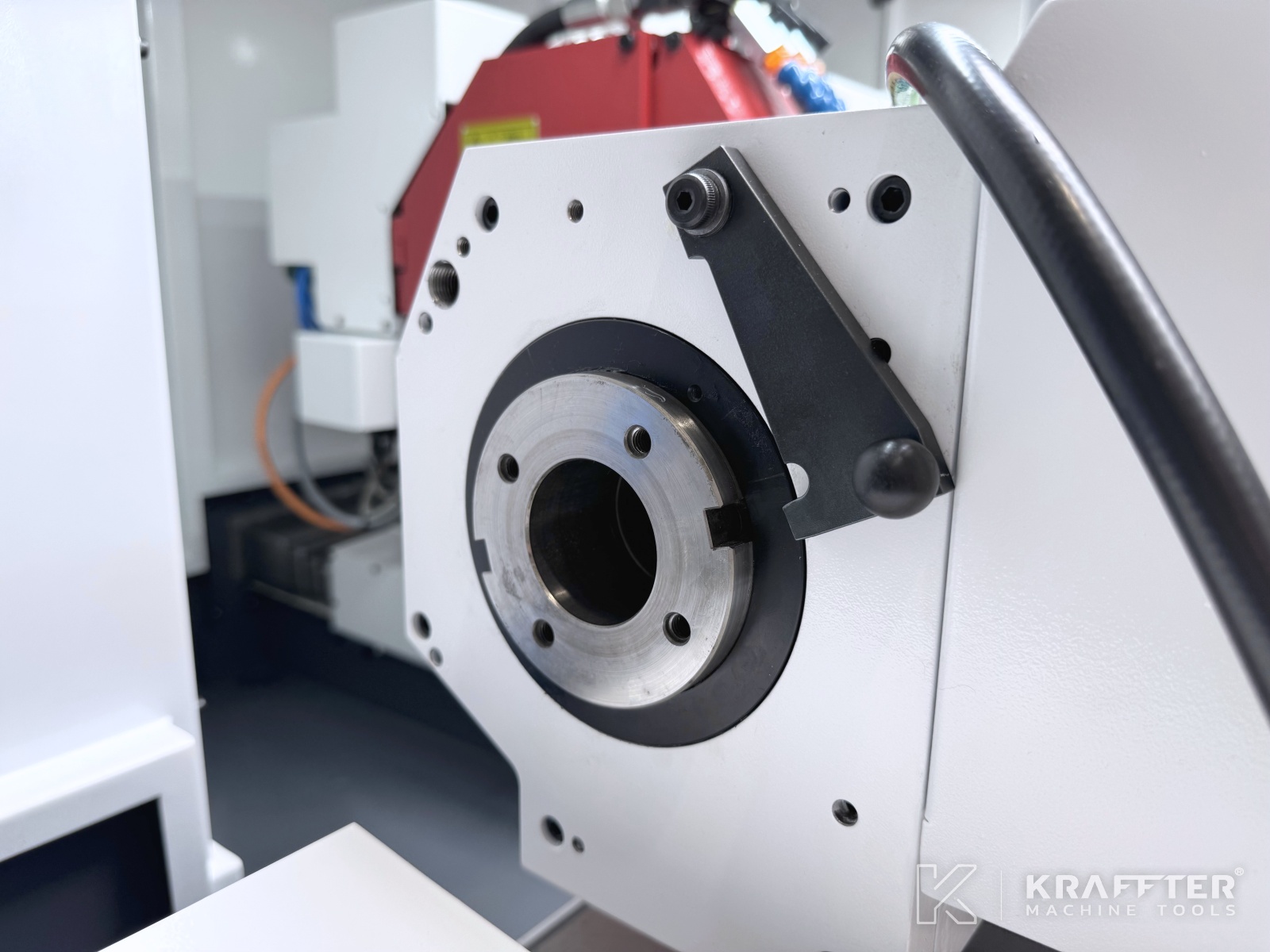

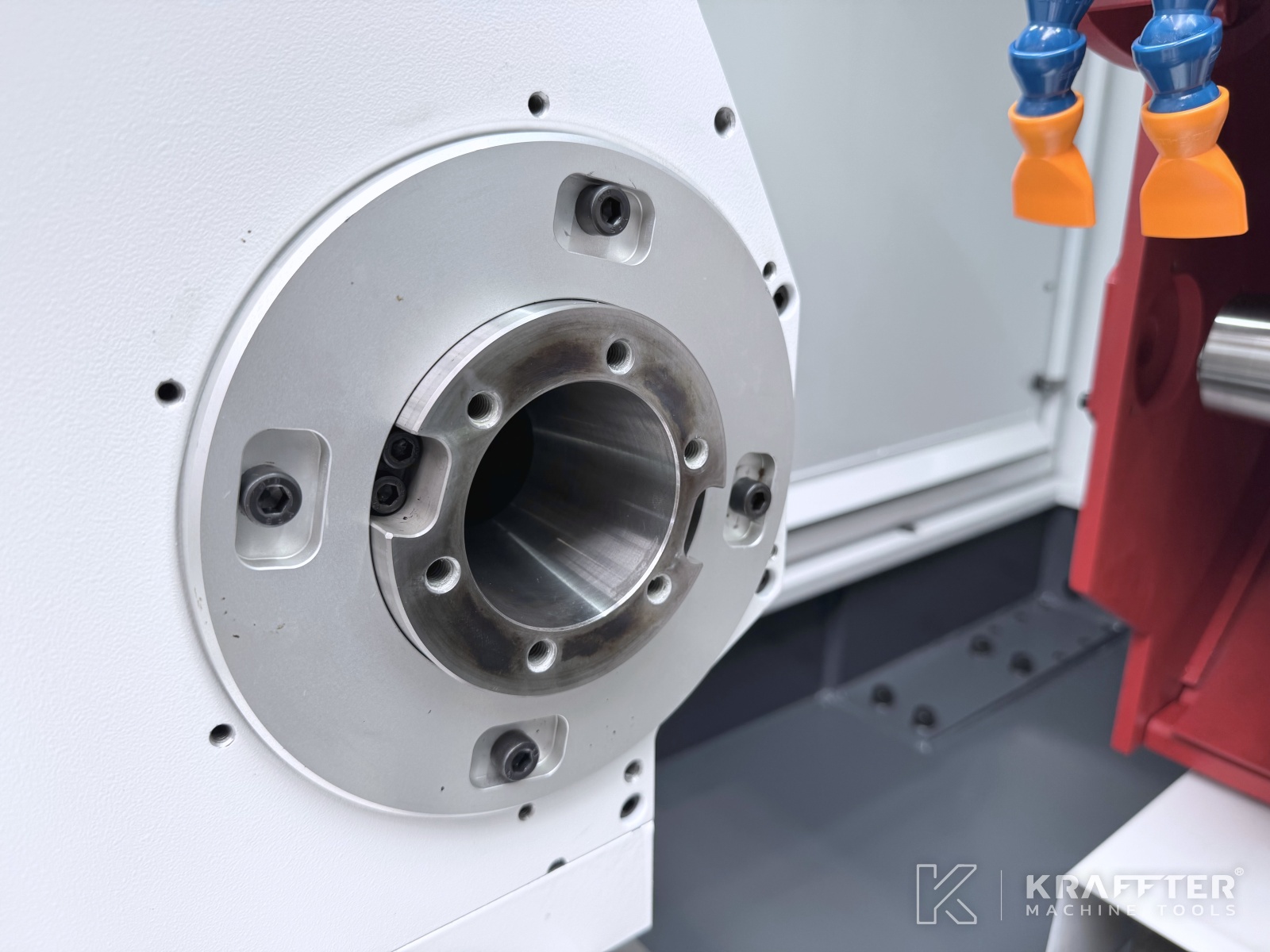

Workpiece spindle nose
ISO 50
Max. part weight in part holder headstock between centres
120 [Kg]

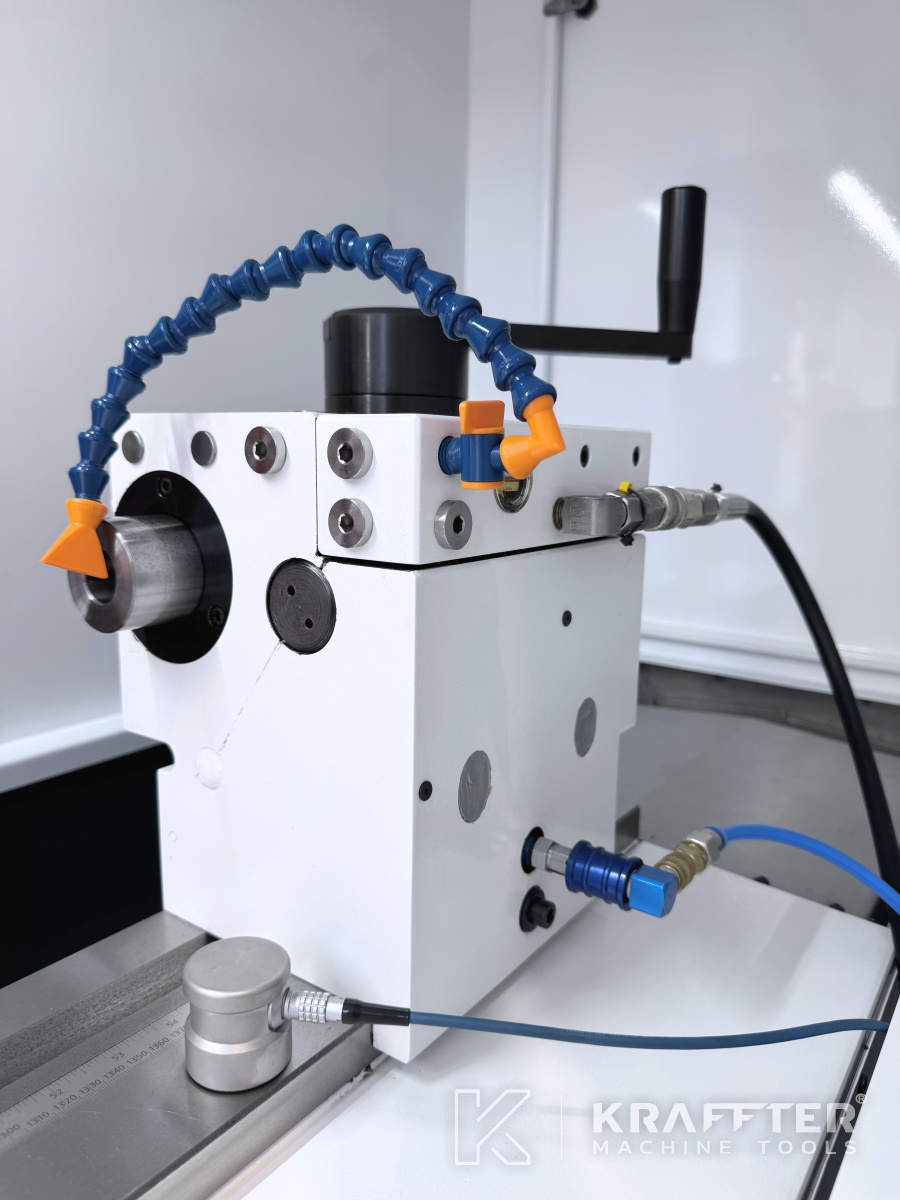

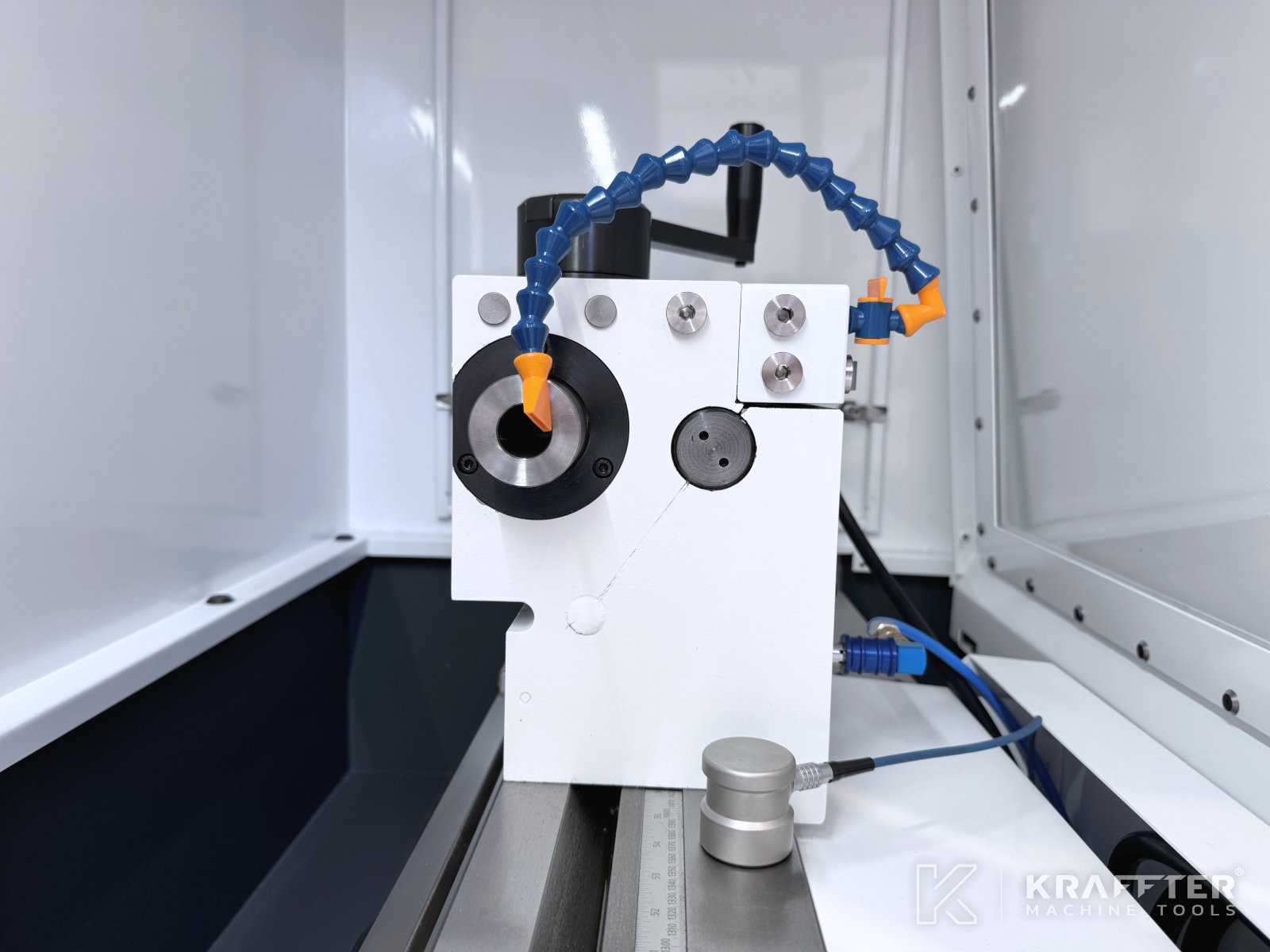

Type of attachment tailstock
MT3
Tailstock quill stroke
35 [mm]
Tailstock quill diameter
50 [mm]
Supply voltage
400 [V]
Technical specifications are provided for indicative purposes only. The description may have been automatically translated.
Additional information
INCLUDED EQUIPMENT:
- x1 HEIDENHAIN linear glass scale on the Z-axis
- x1 HEIDENHAIN linear glass scale on the X-axis

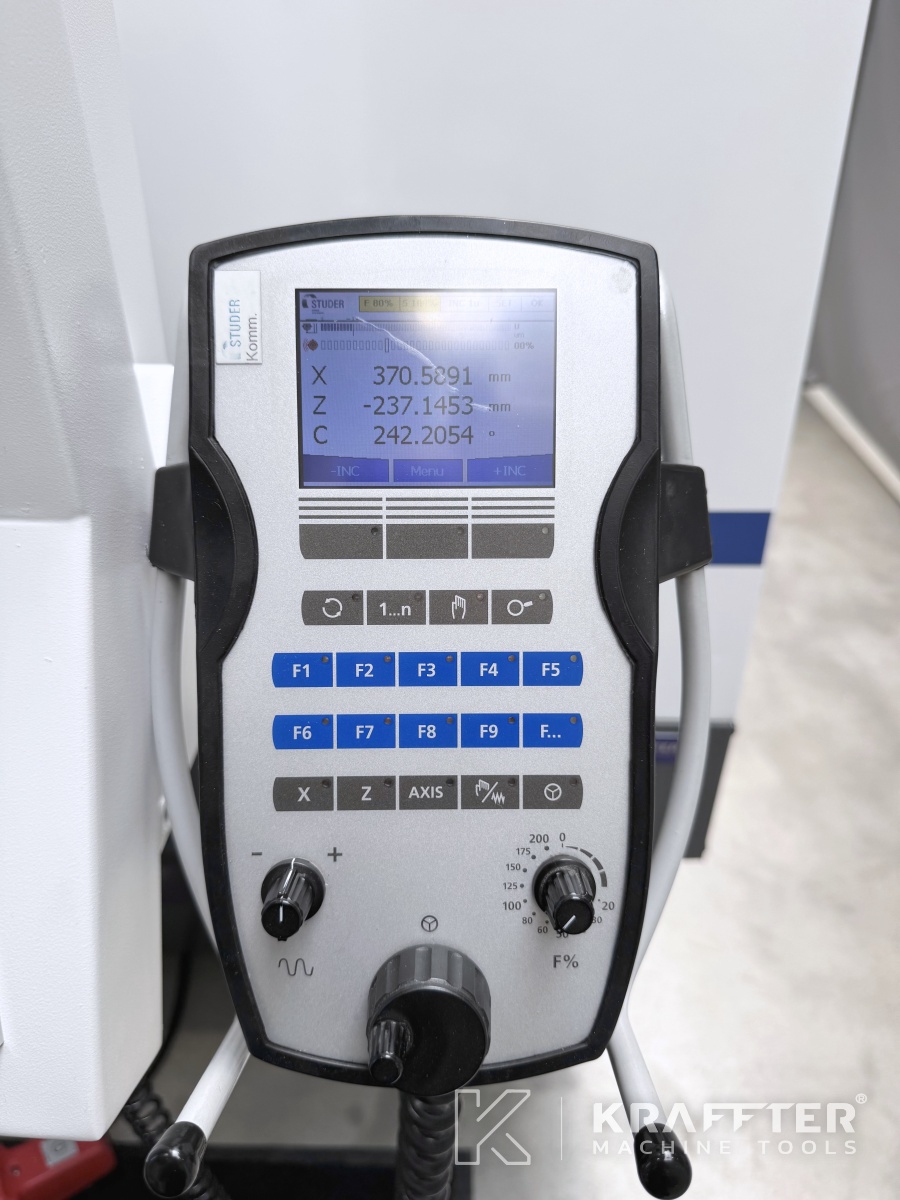

- x1 portable control unit (PCU) for machine setup and adjustment close to the grinding process

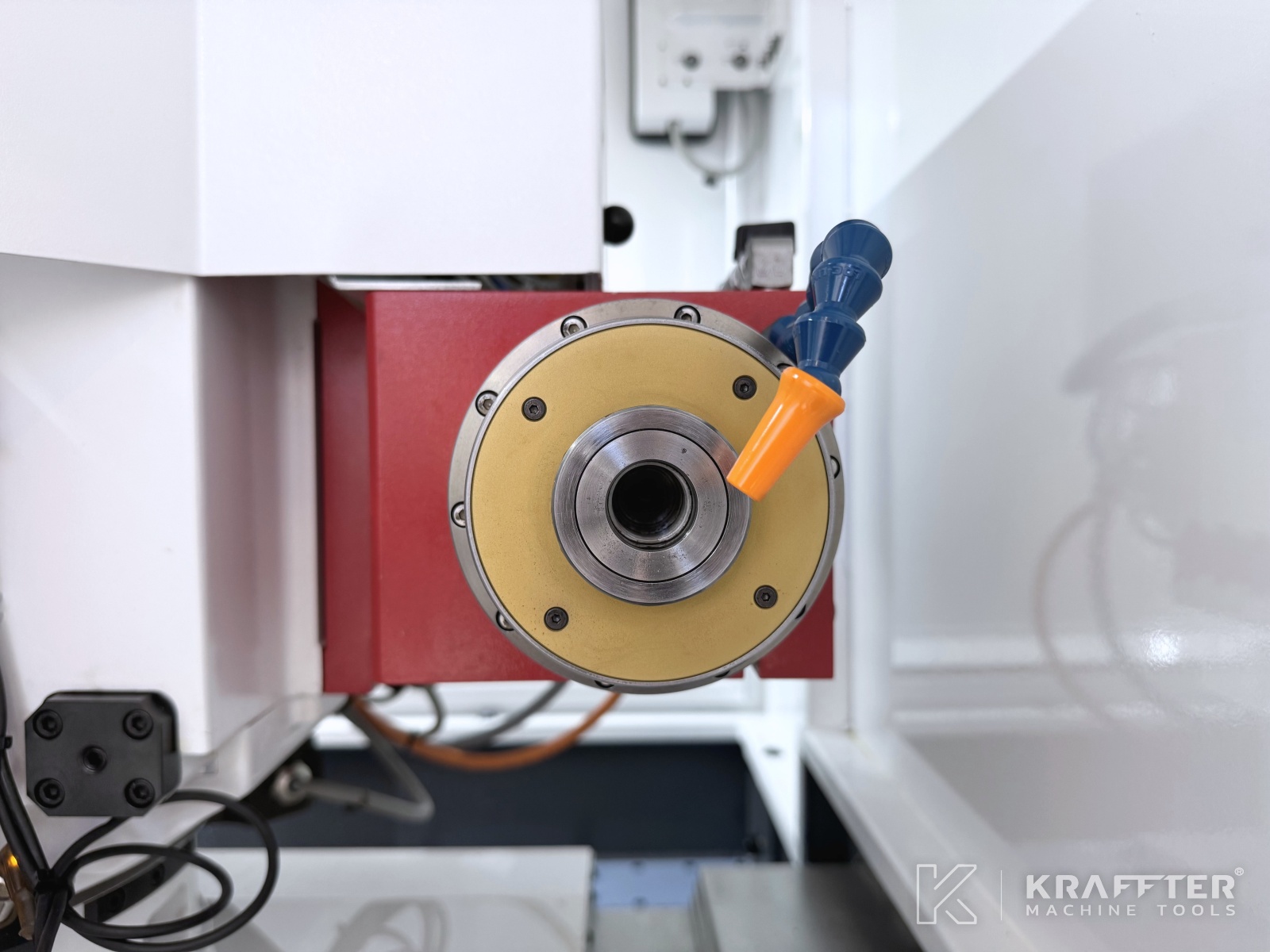

- x1 FISCHER MFM 1224/42 electrospindle for internal grinding operations (42,000 rpm – 15 kW)

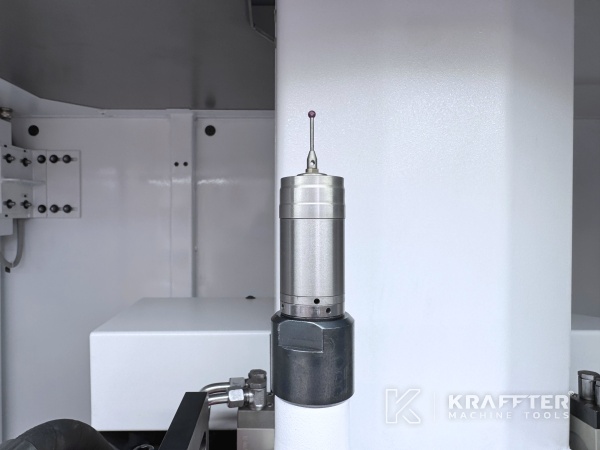

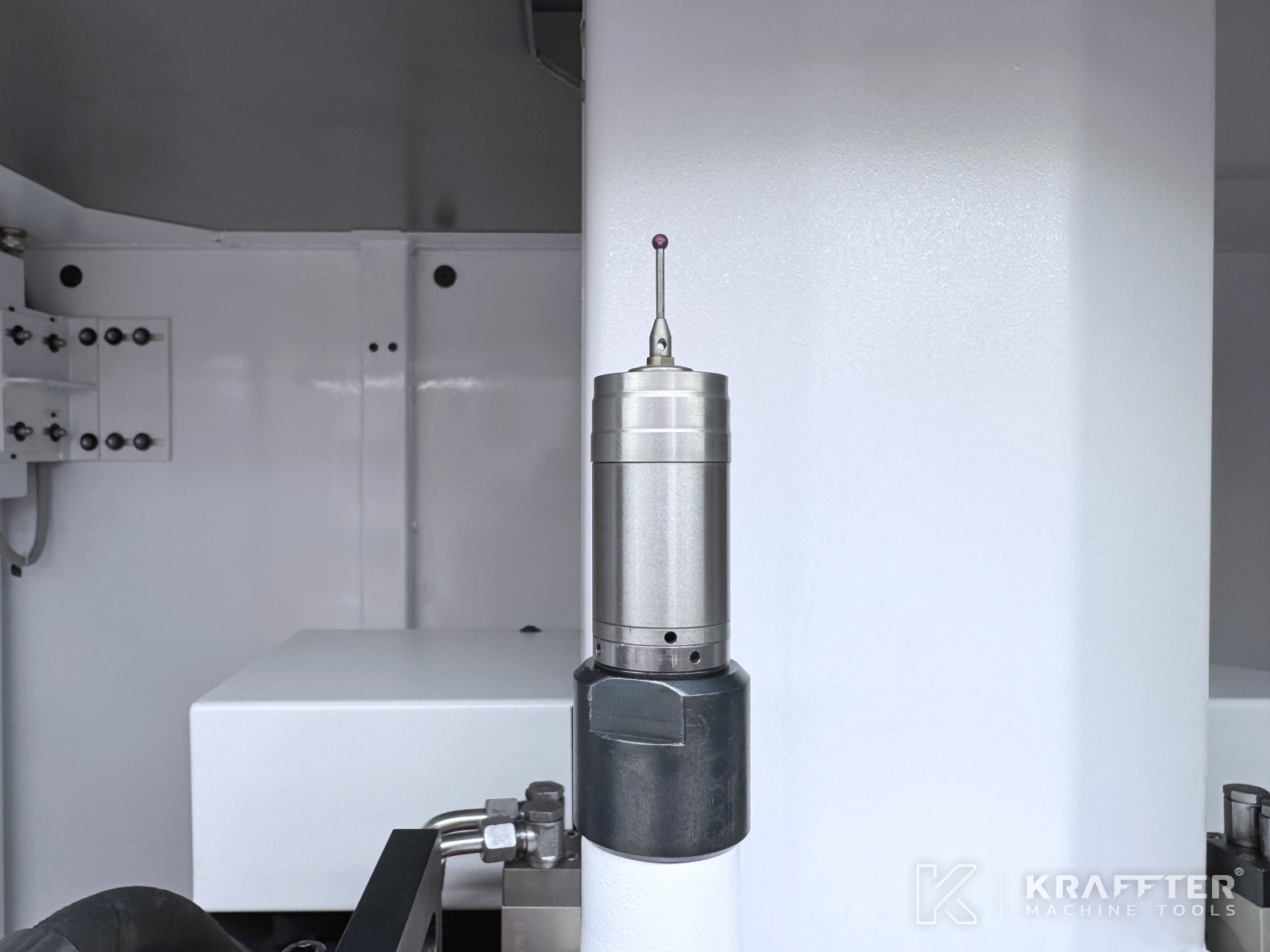

- x1 MOVOMATIC C25 workpiece probing system

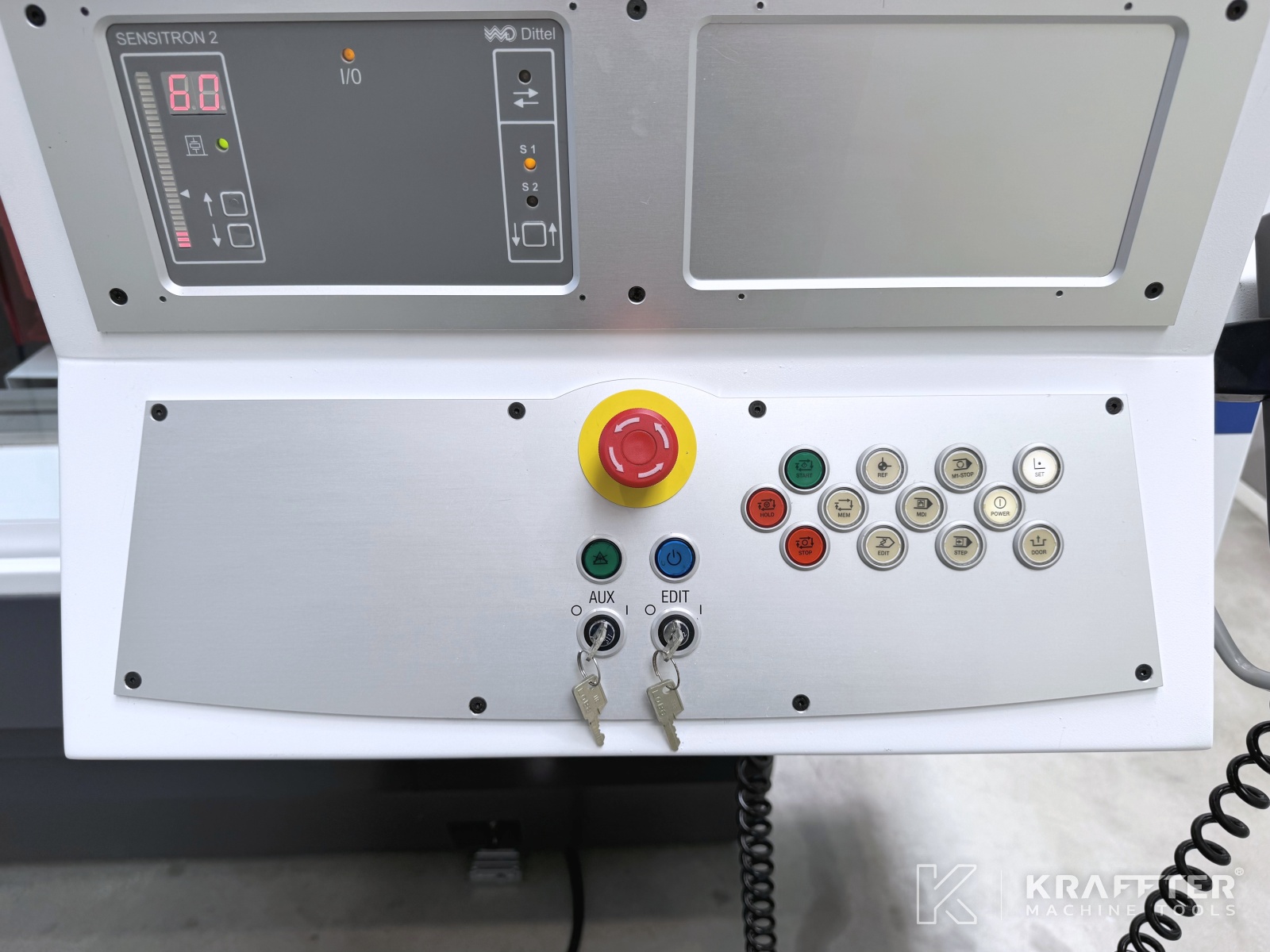

- x1 DITTEL SENSITRON 2 contact gauging device
- x1 hydraulically retractable dressing unit (for internal grinding applications)

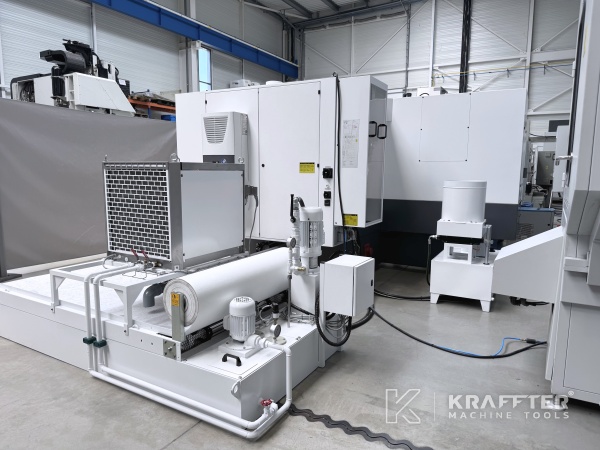

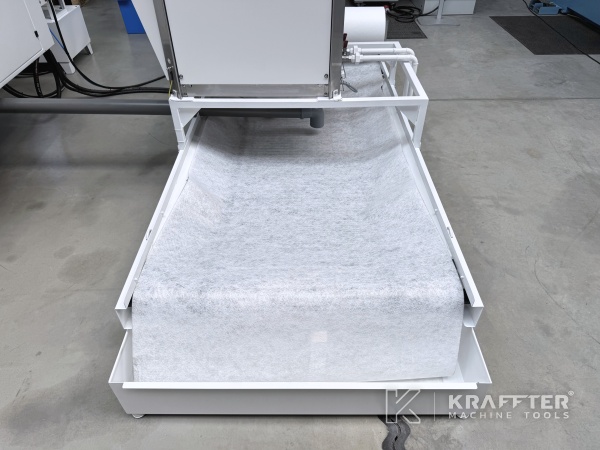

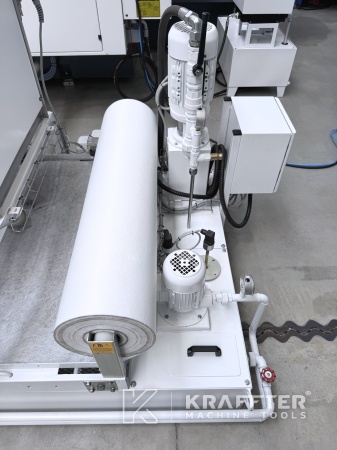

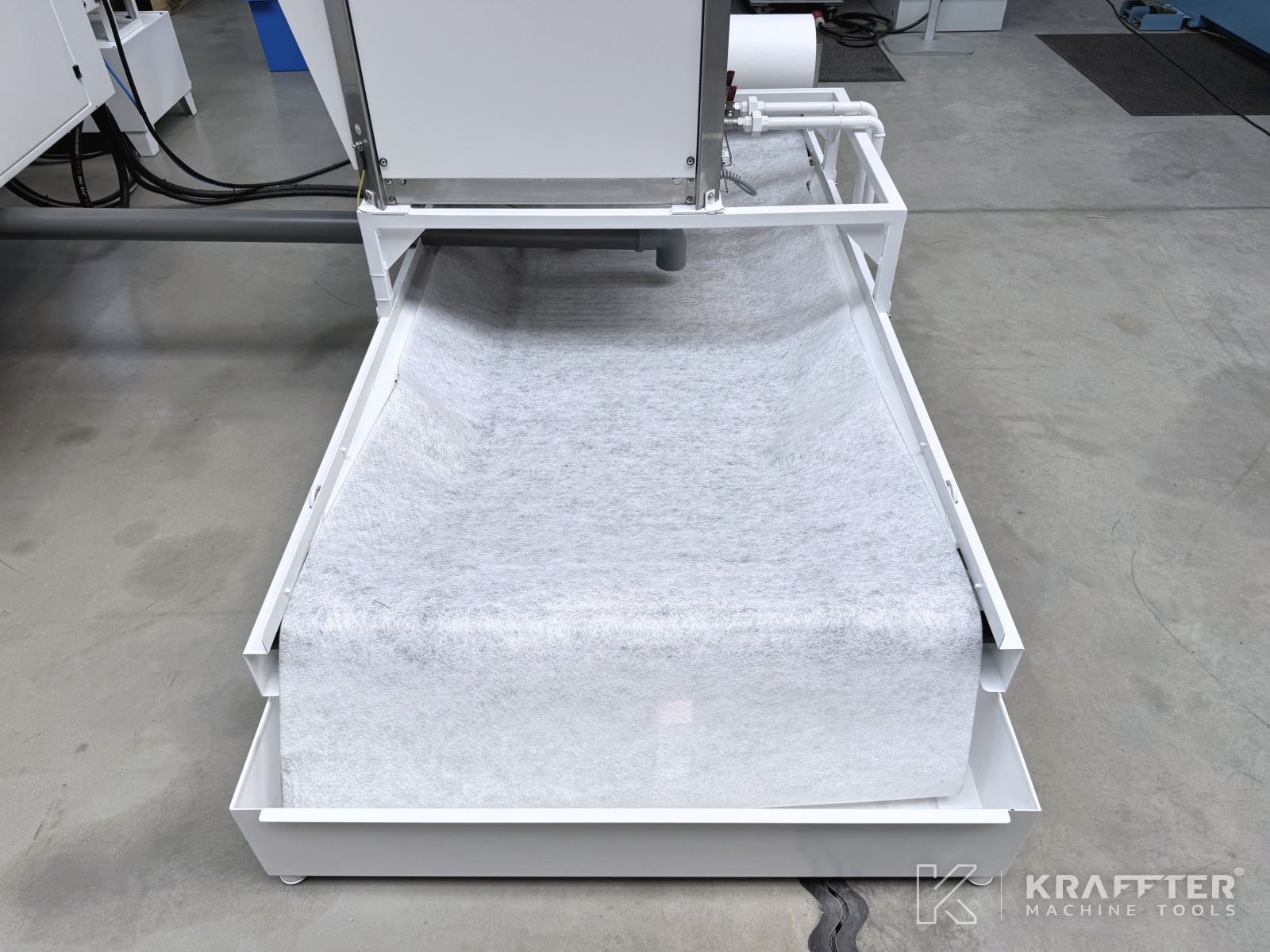

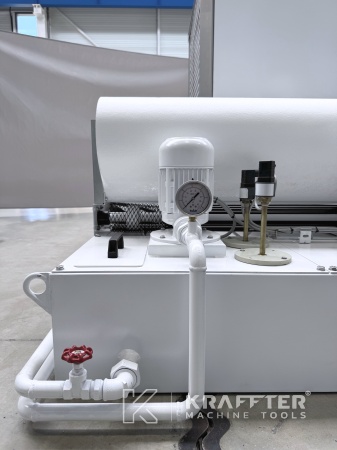

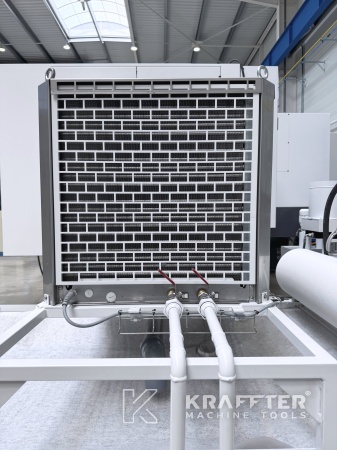

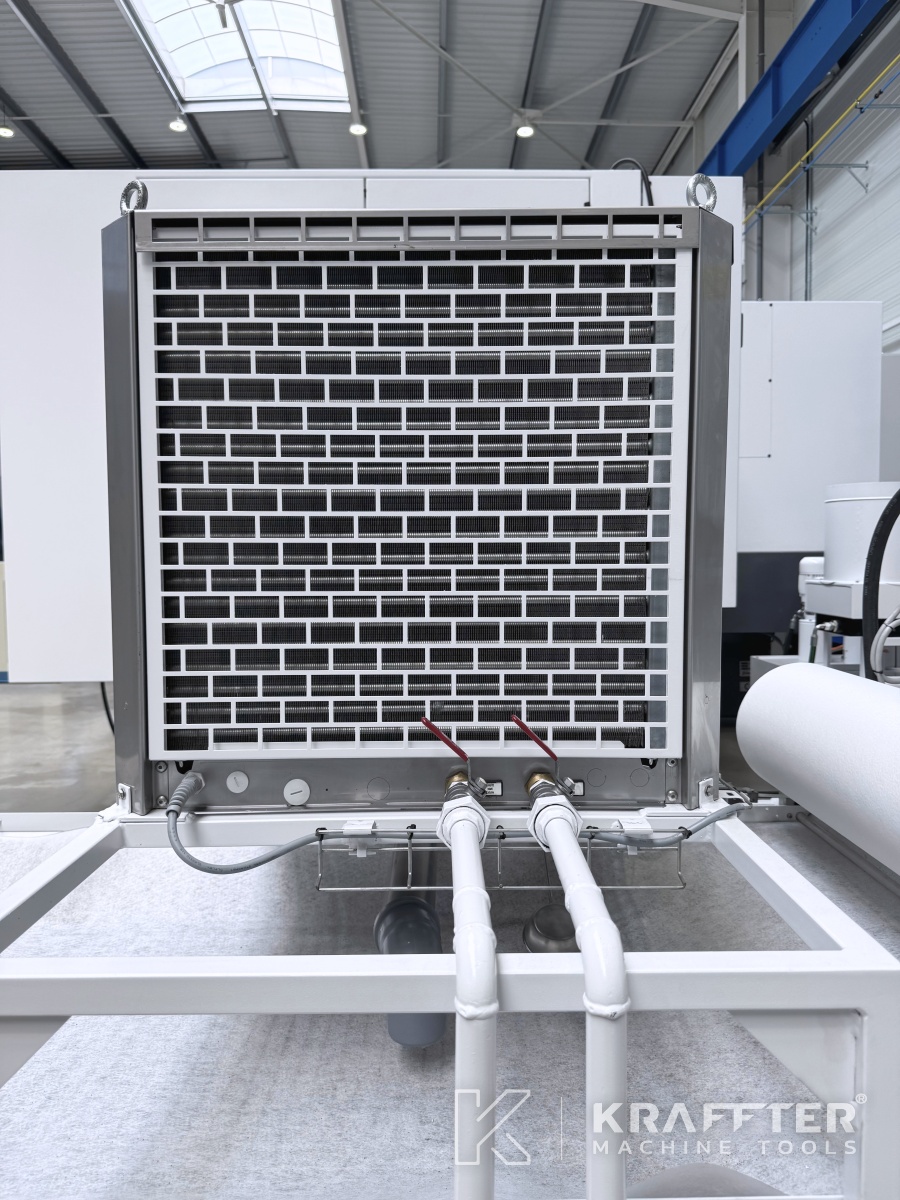

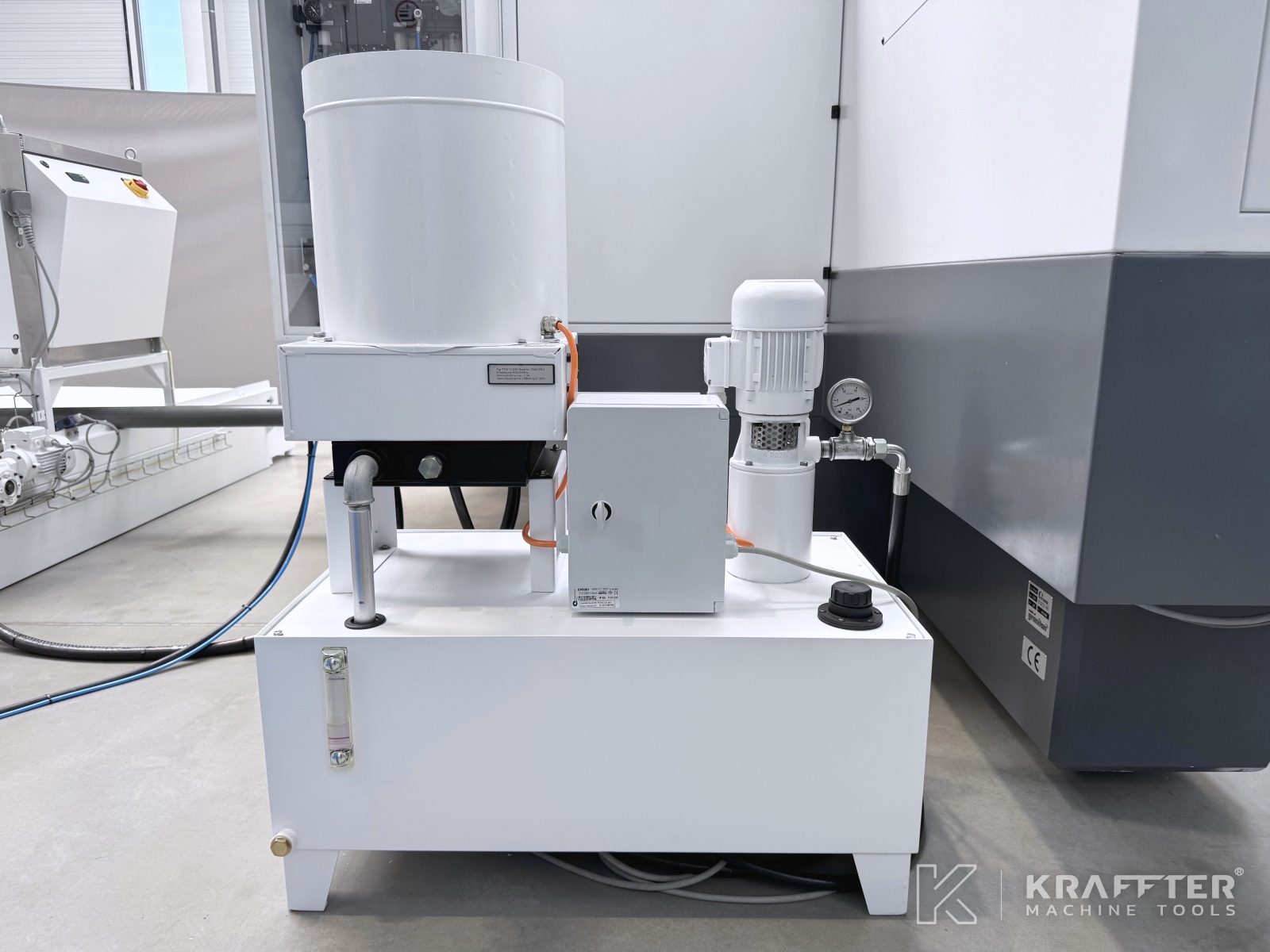

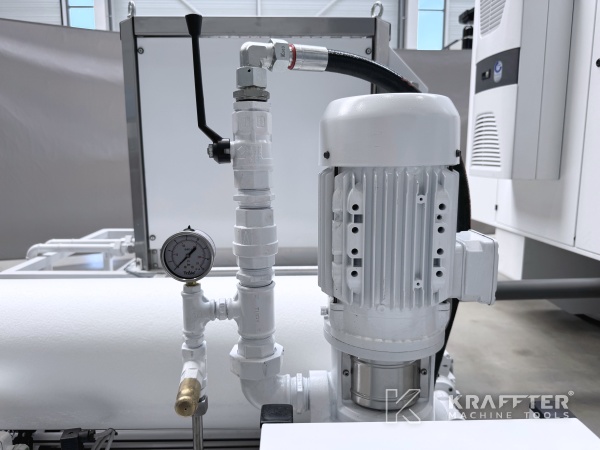

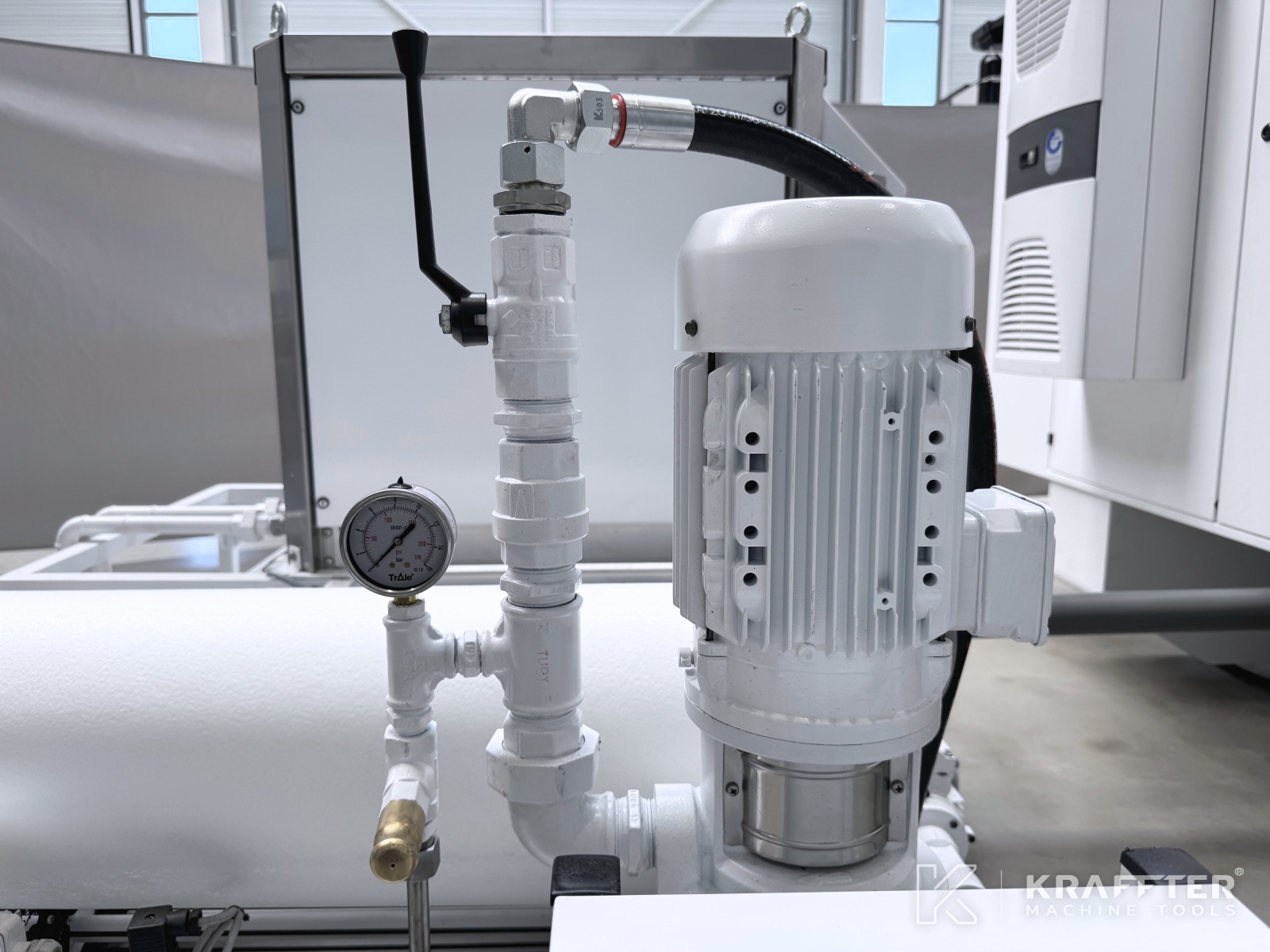

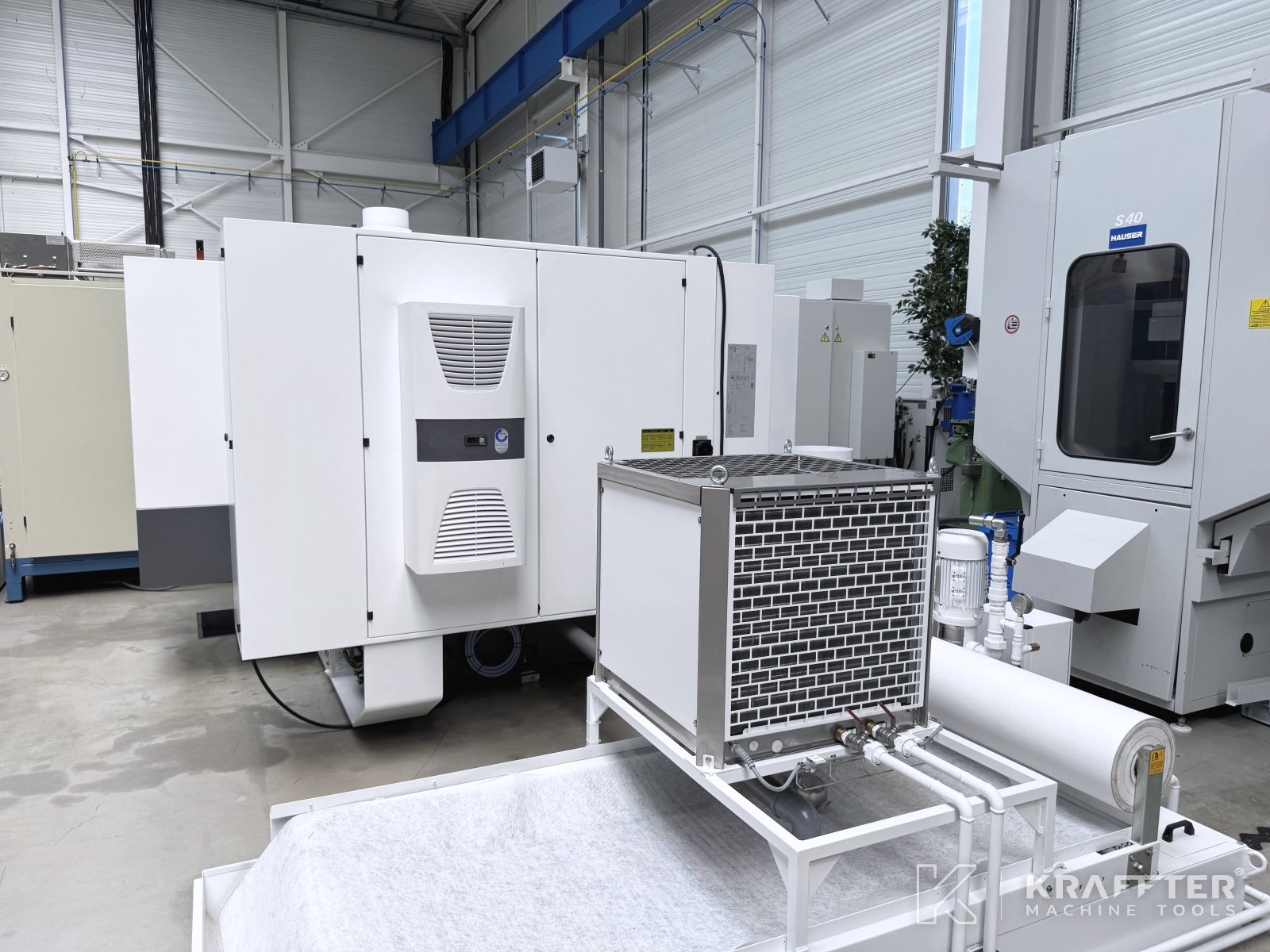

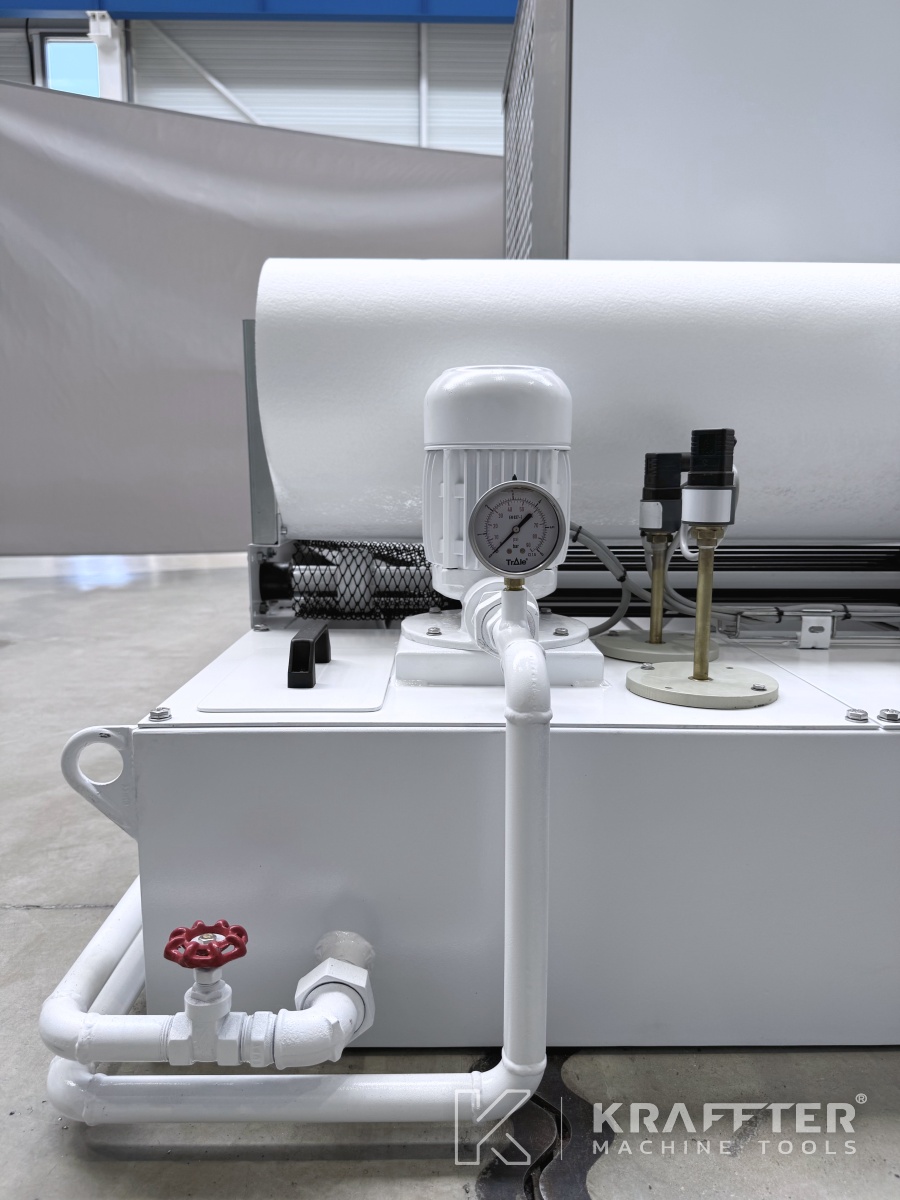

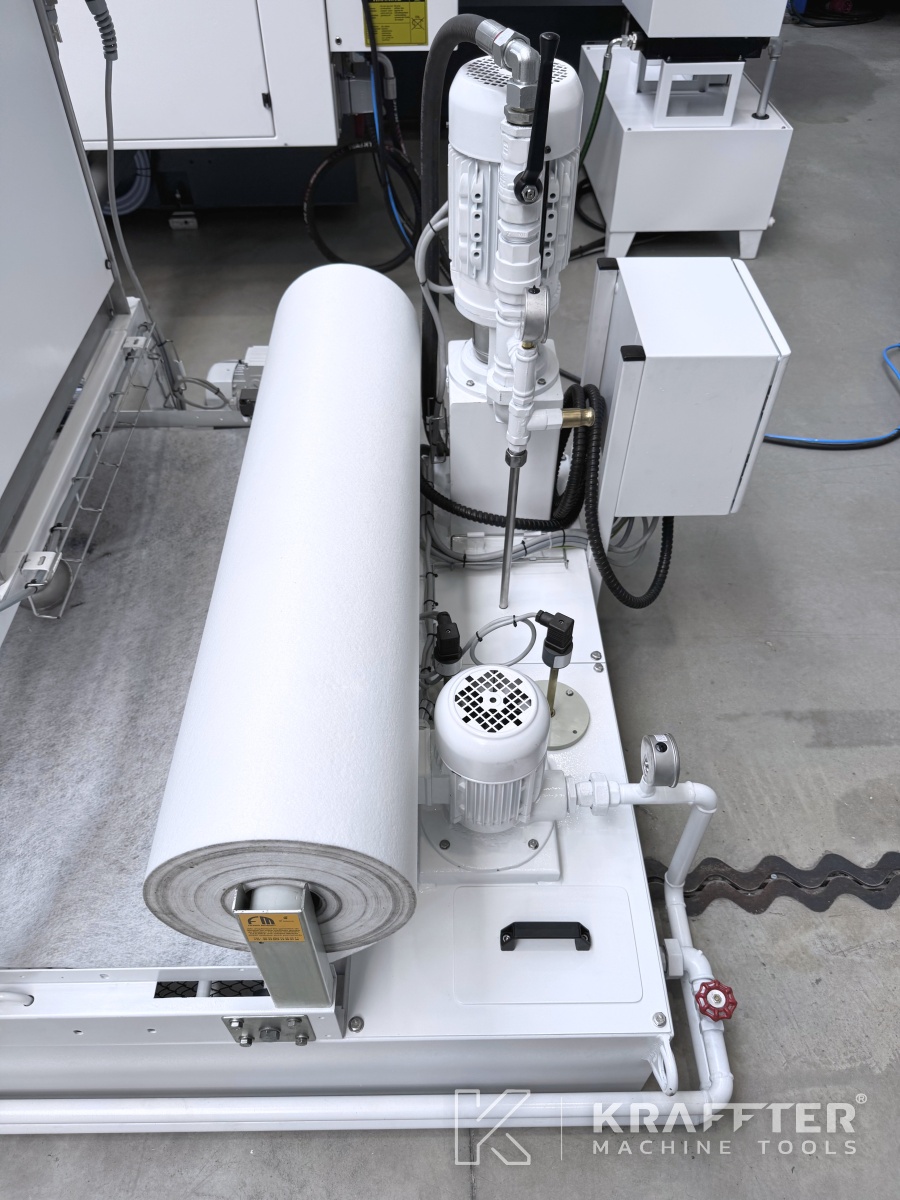

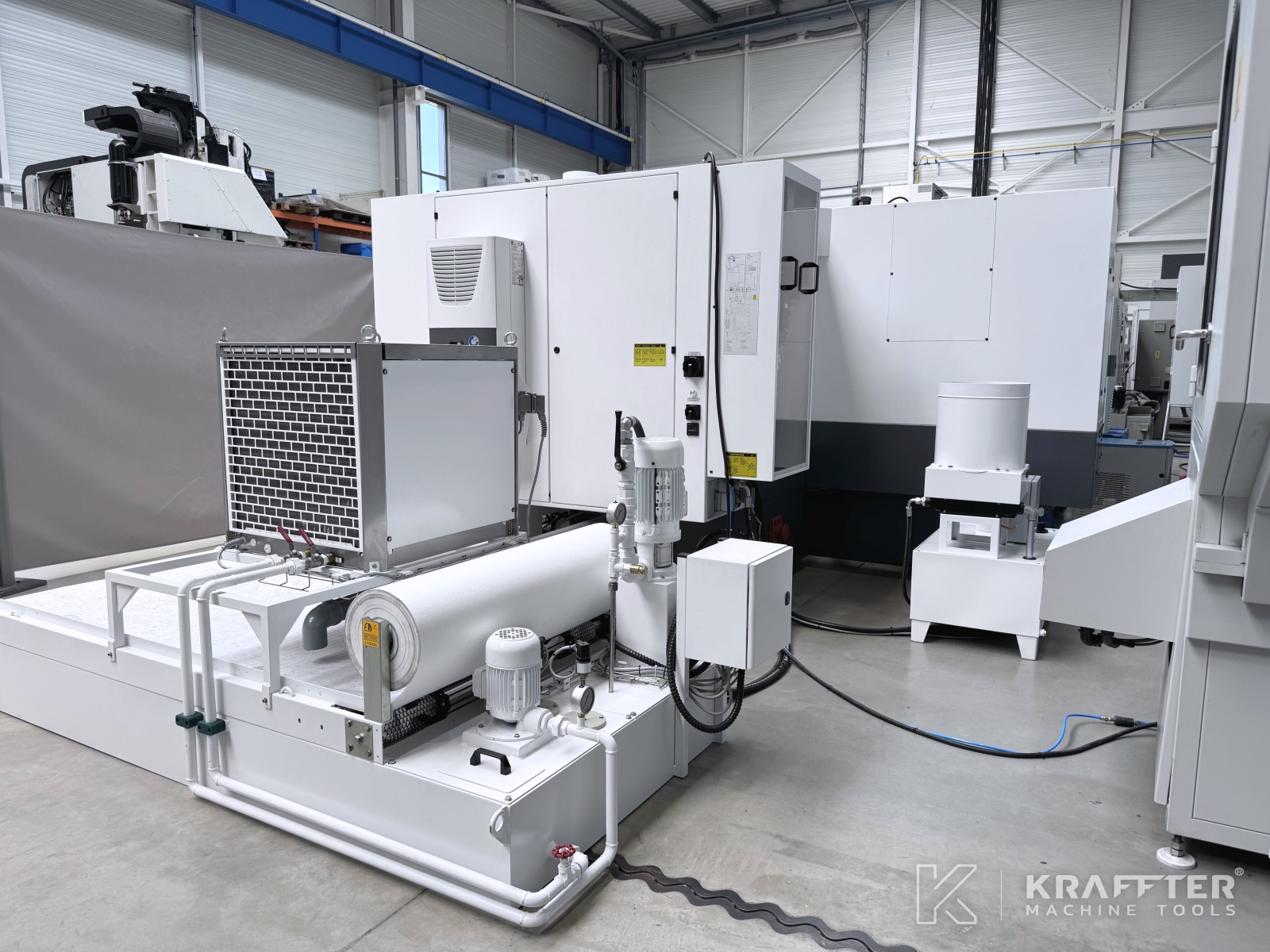

- x1 FILTRES MONNET paper-band filtration system with oil cooler
