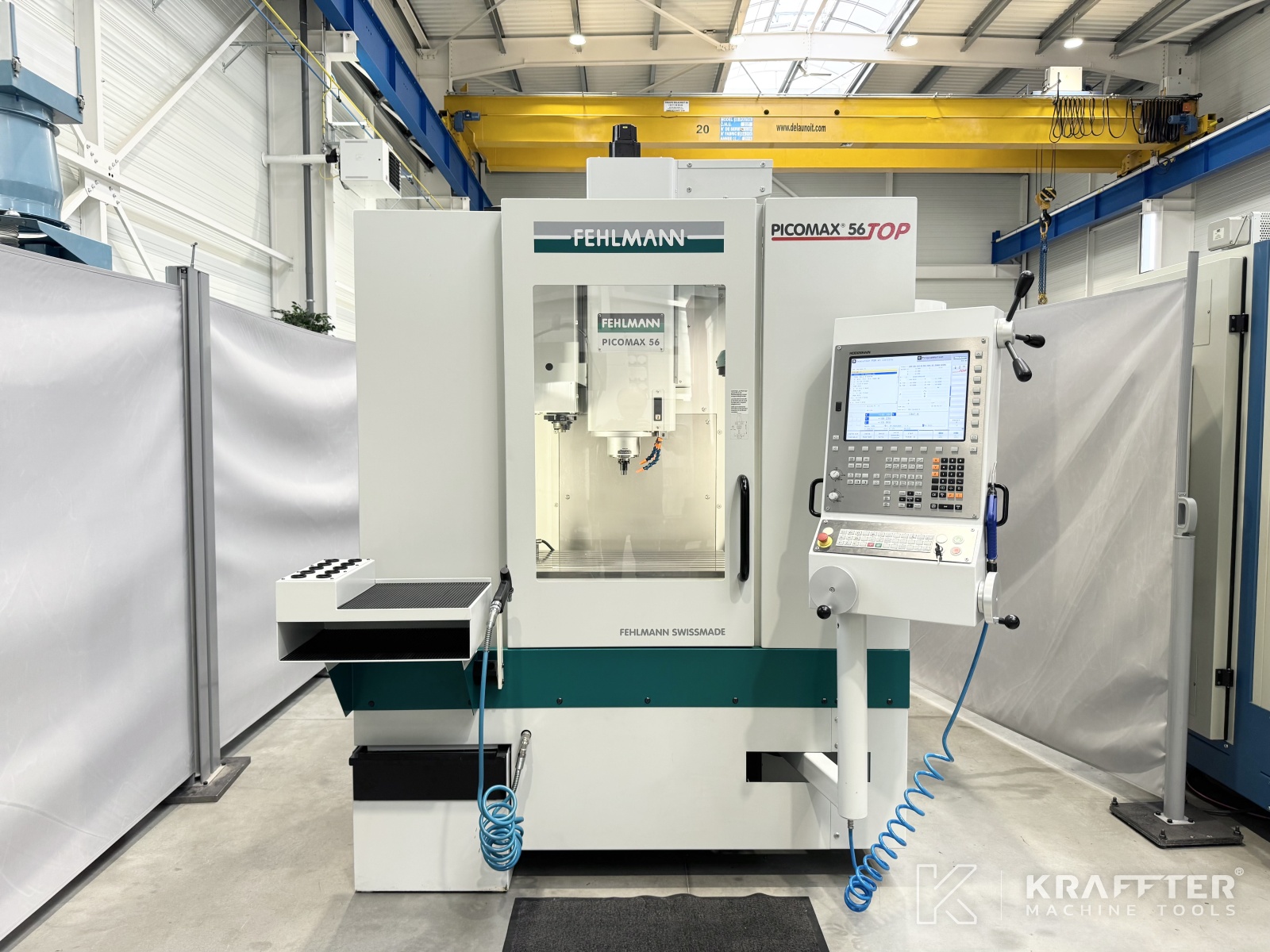

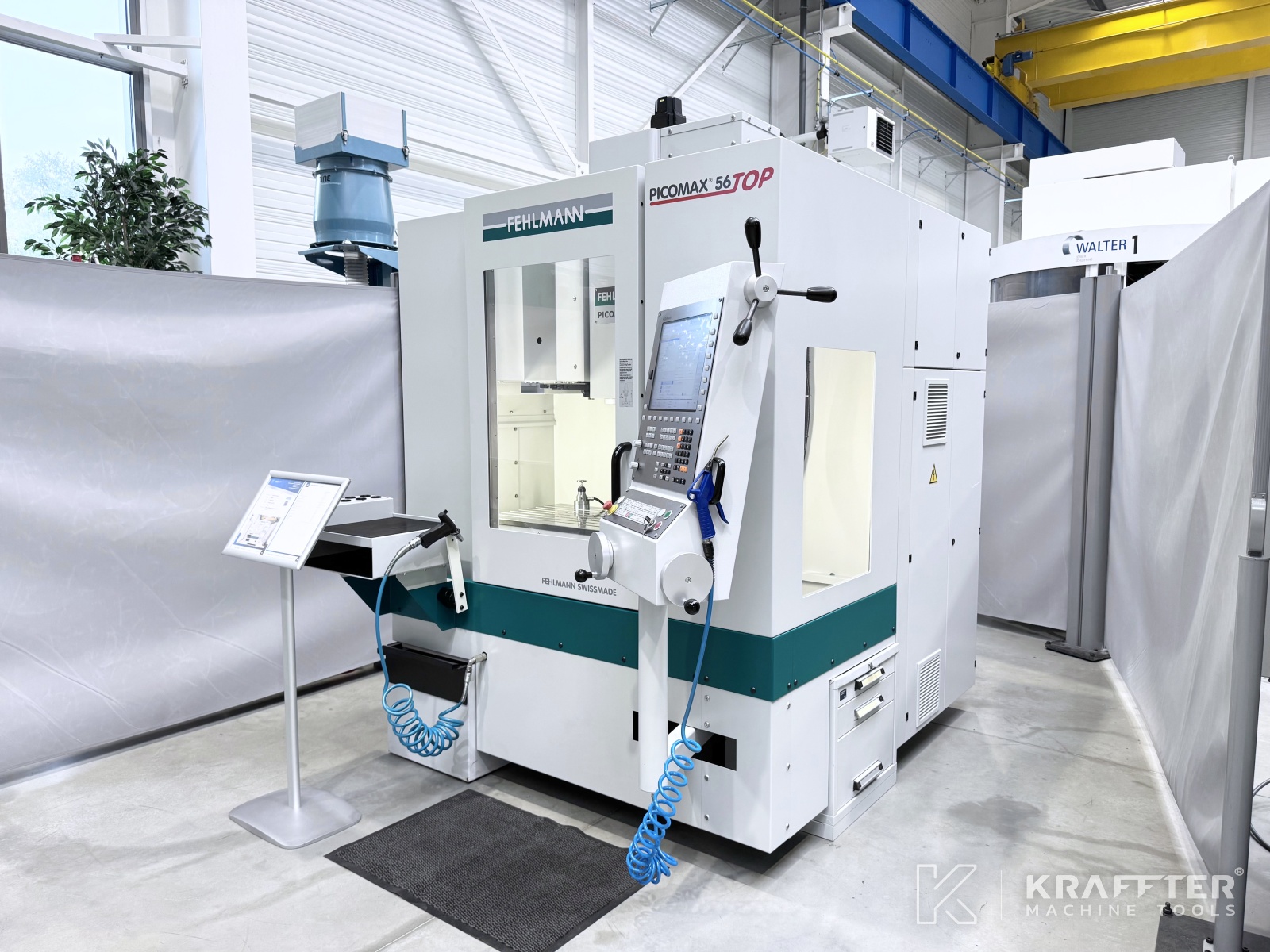

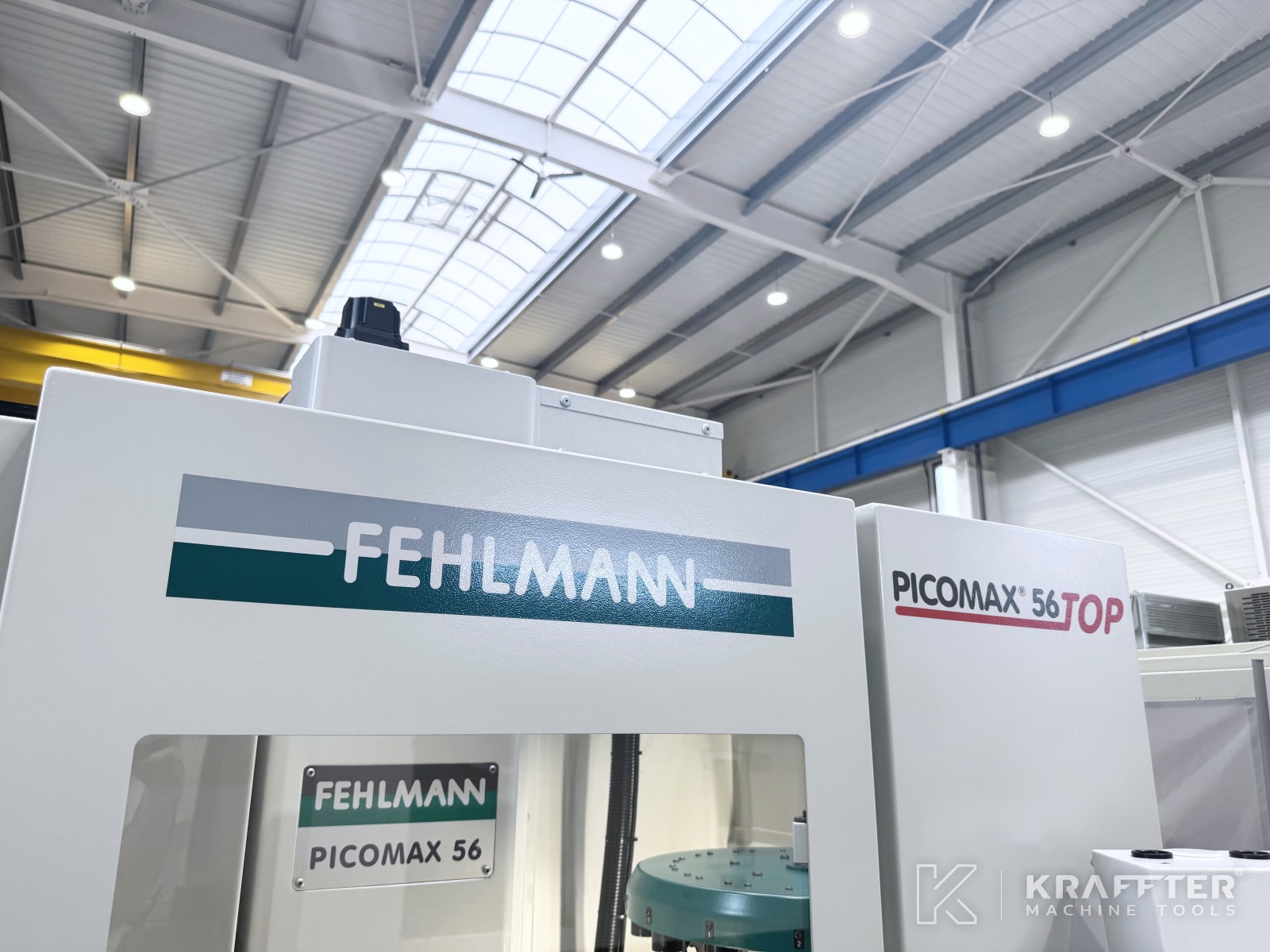

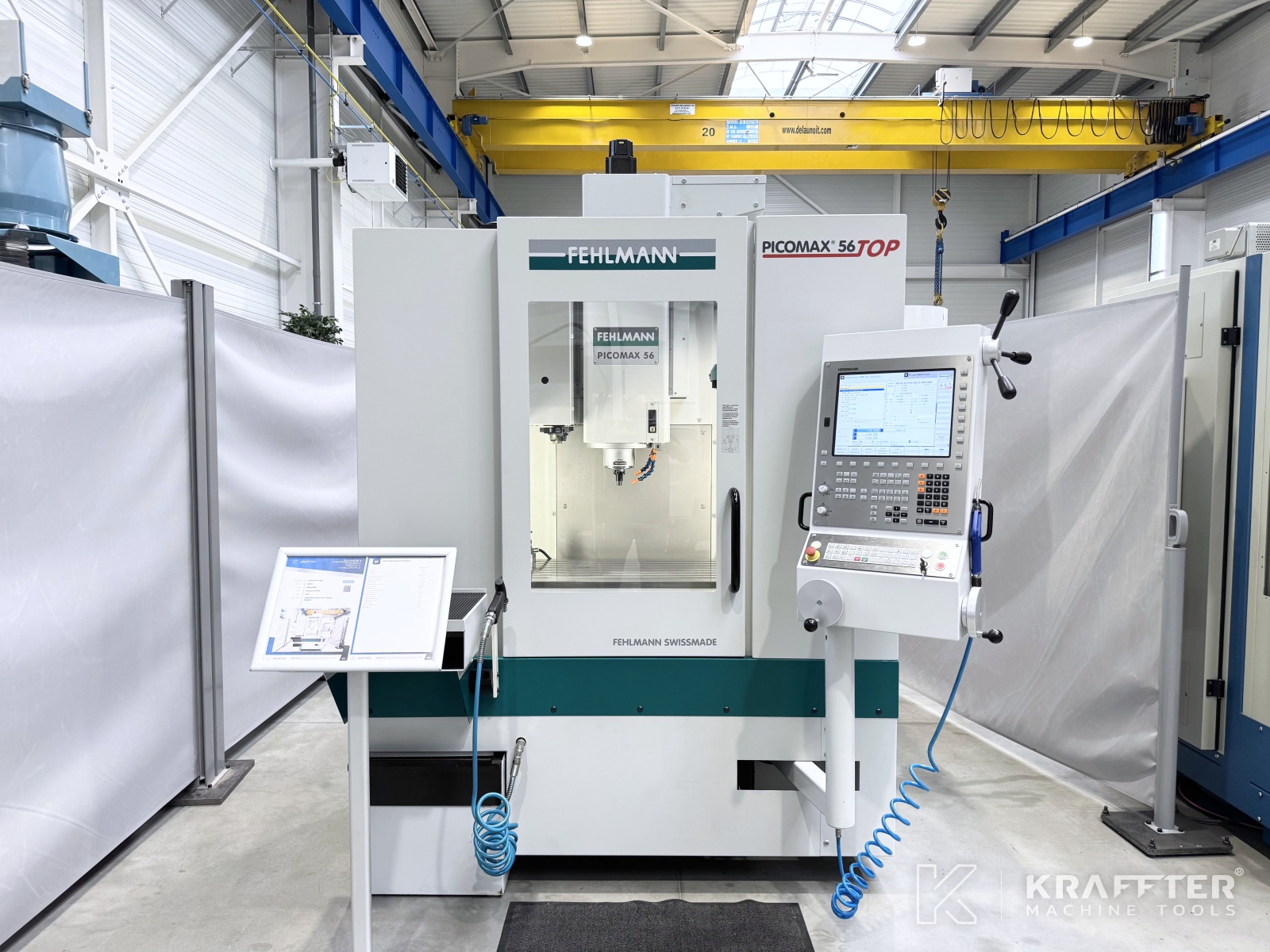

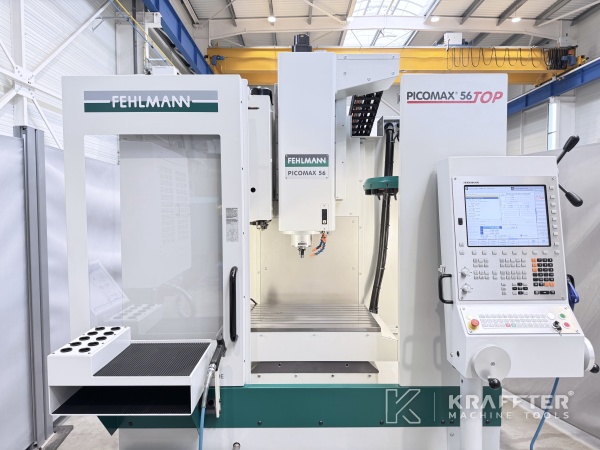

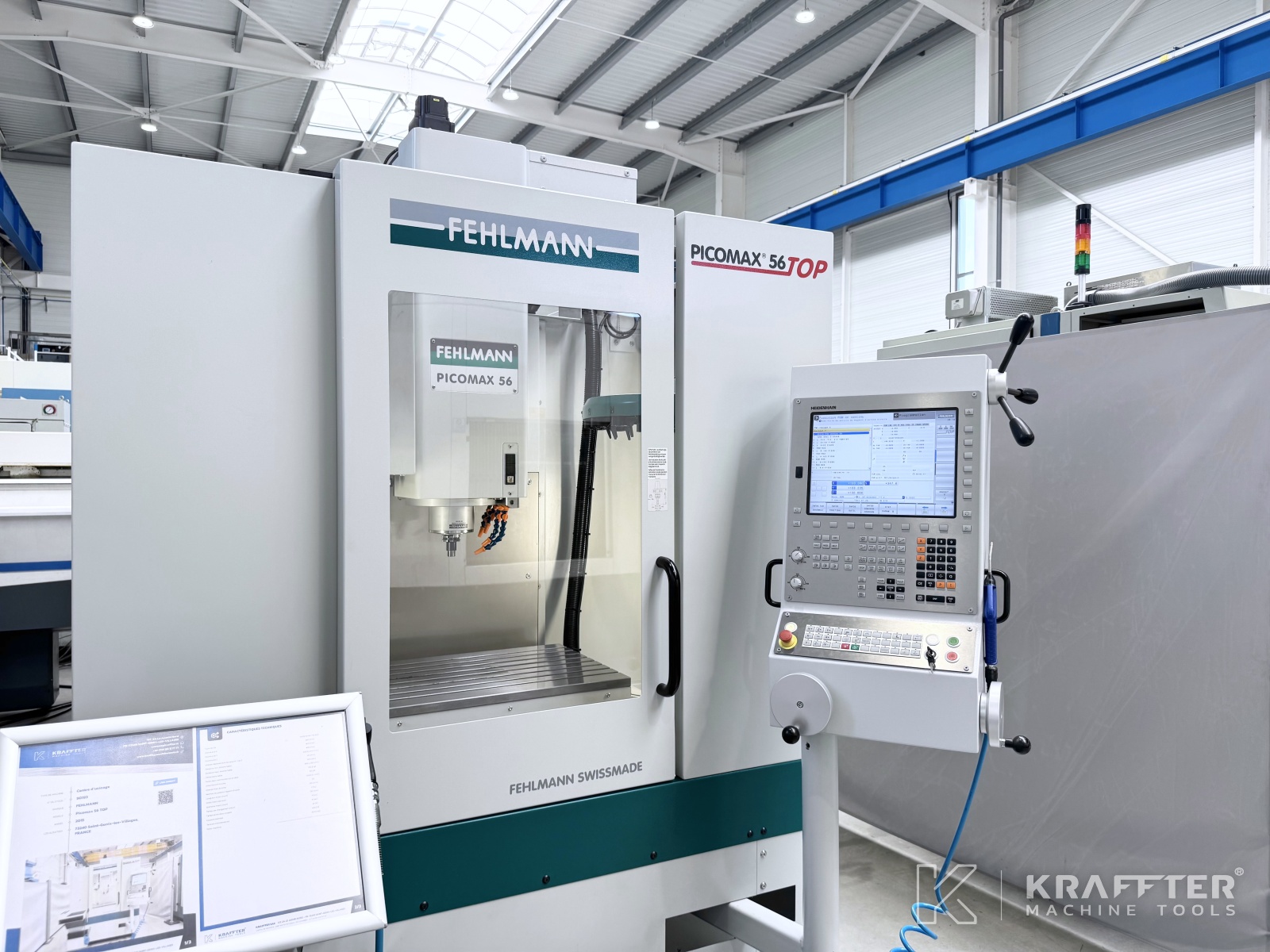

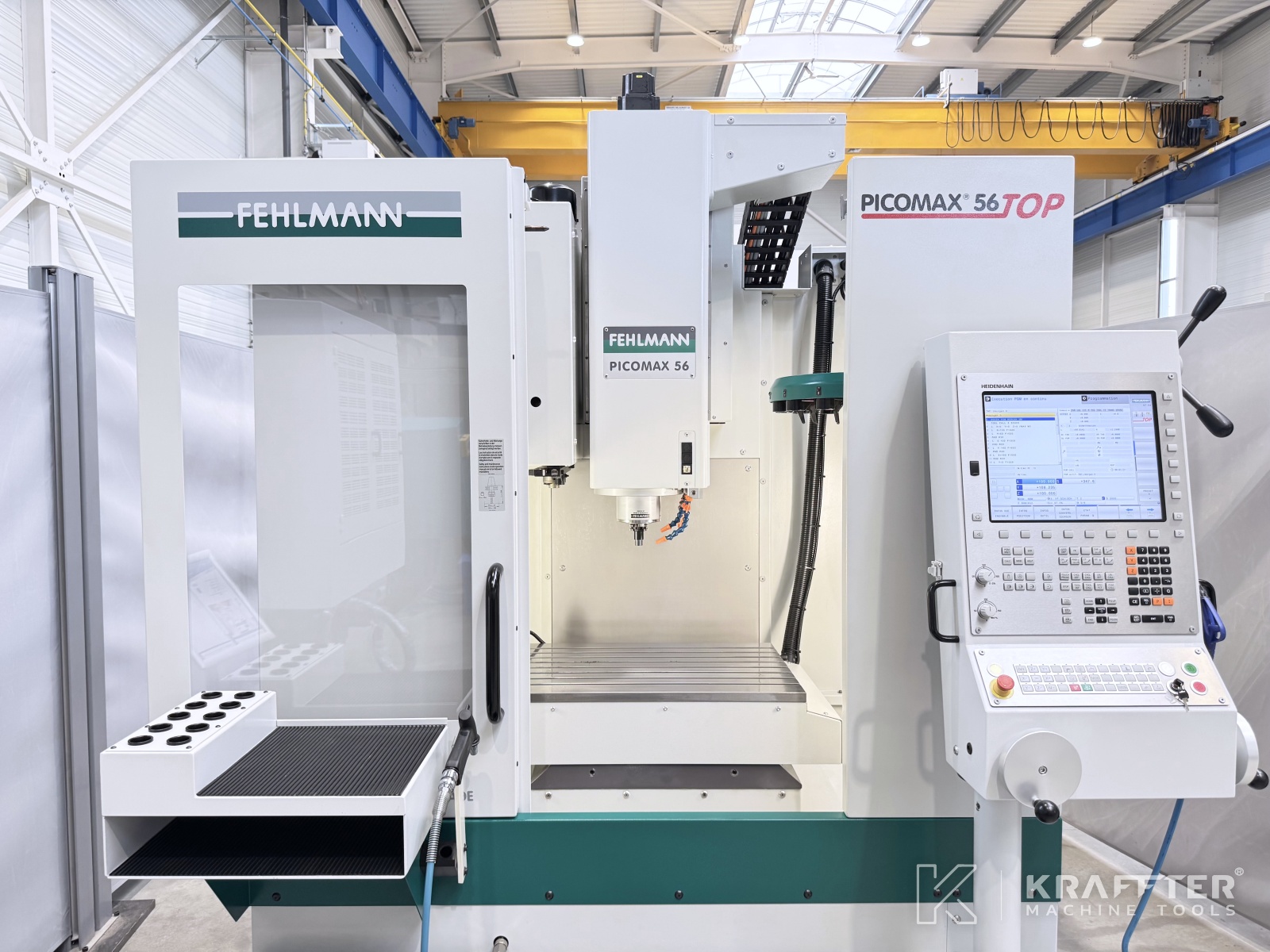

Type of machine : CNC machining centre
Brand : FEHLMANN
N° de stock: 90193
Model : Picomax 56 TOP
Year : 2015
Location : 73240 Saint-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Request a quotation
Technical characteristics

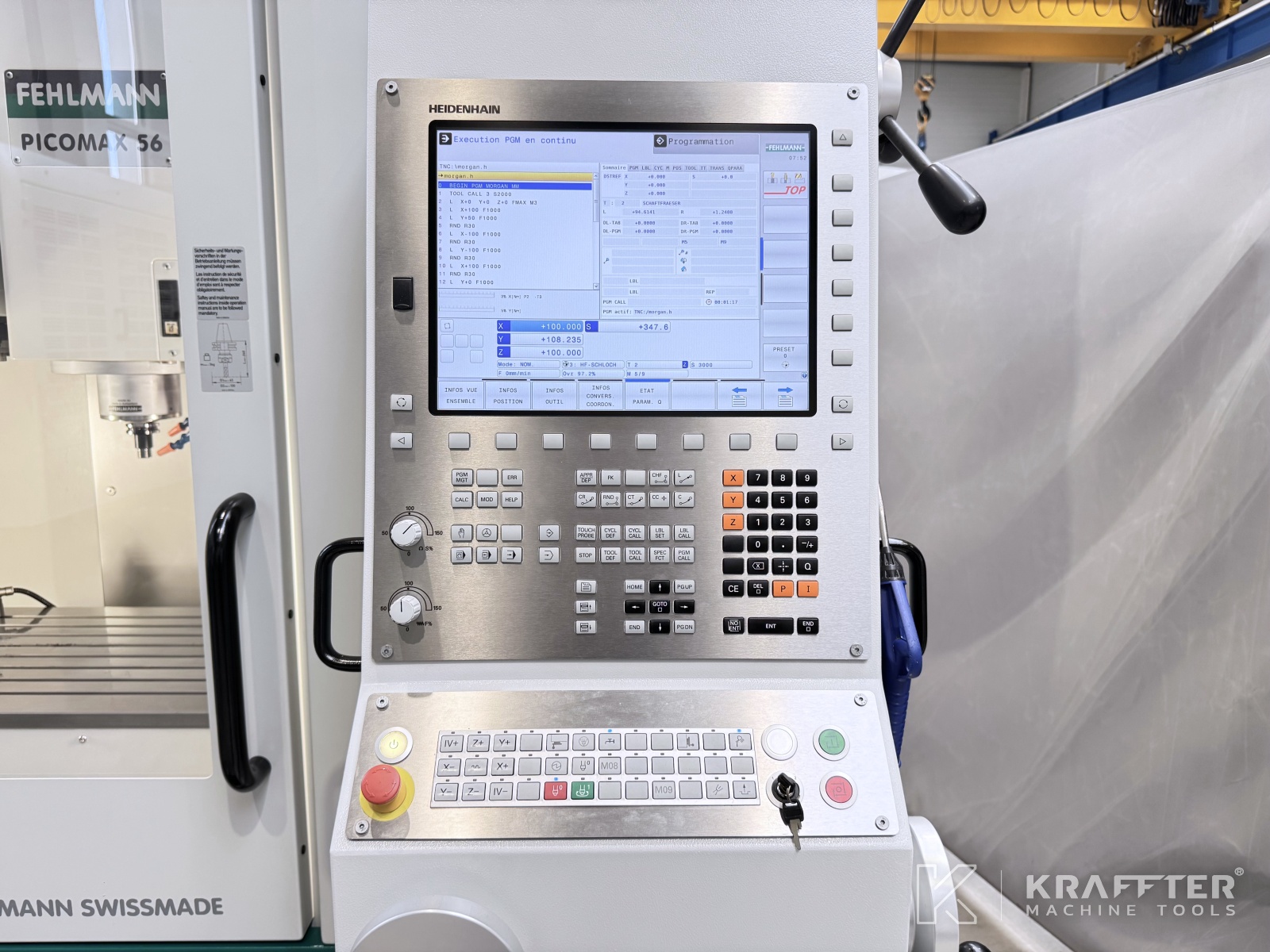

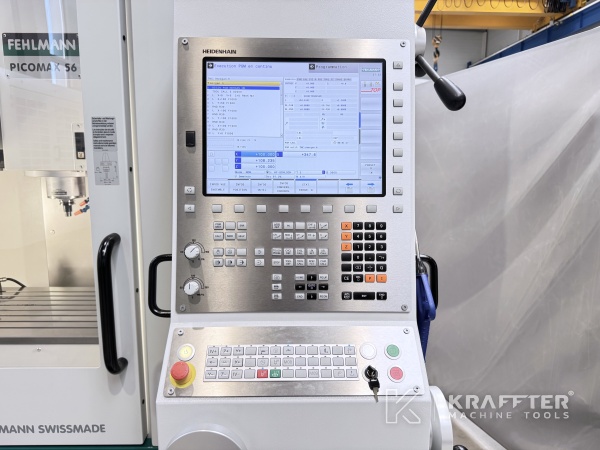

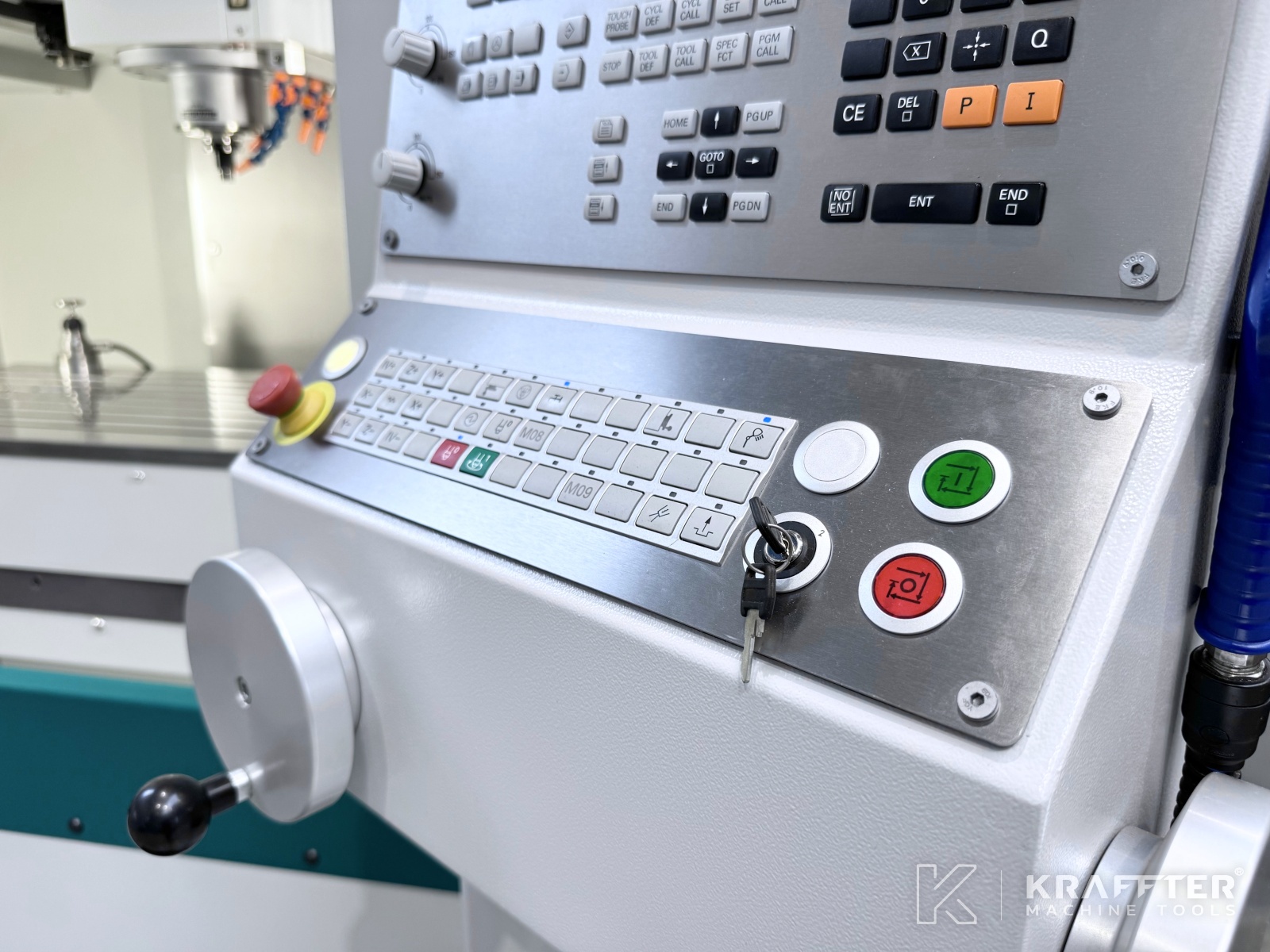

CNC control
HEIDENHAIN TNC 620
Stroke X axis
500 [mm]
Stroke Y axis
400 [mm]
Stroke Z axis
400 [mm]
Feed rate on X, Y and Z axes
20000 [mm/min]
Min. distance spindle nose / table
120 [mm]
Max. distance spindle nose / table
520 [mm]

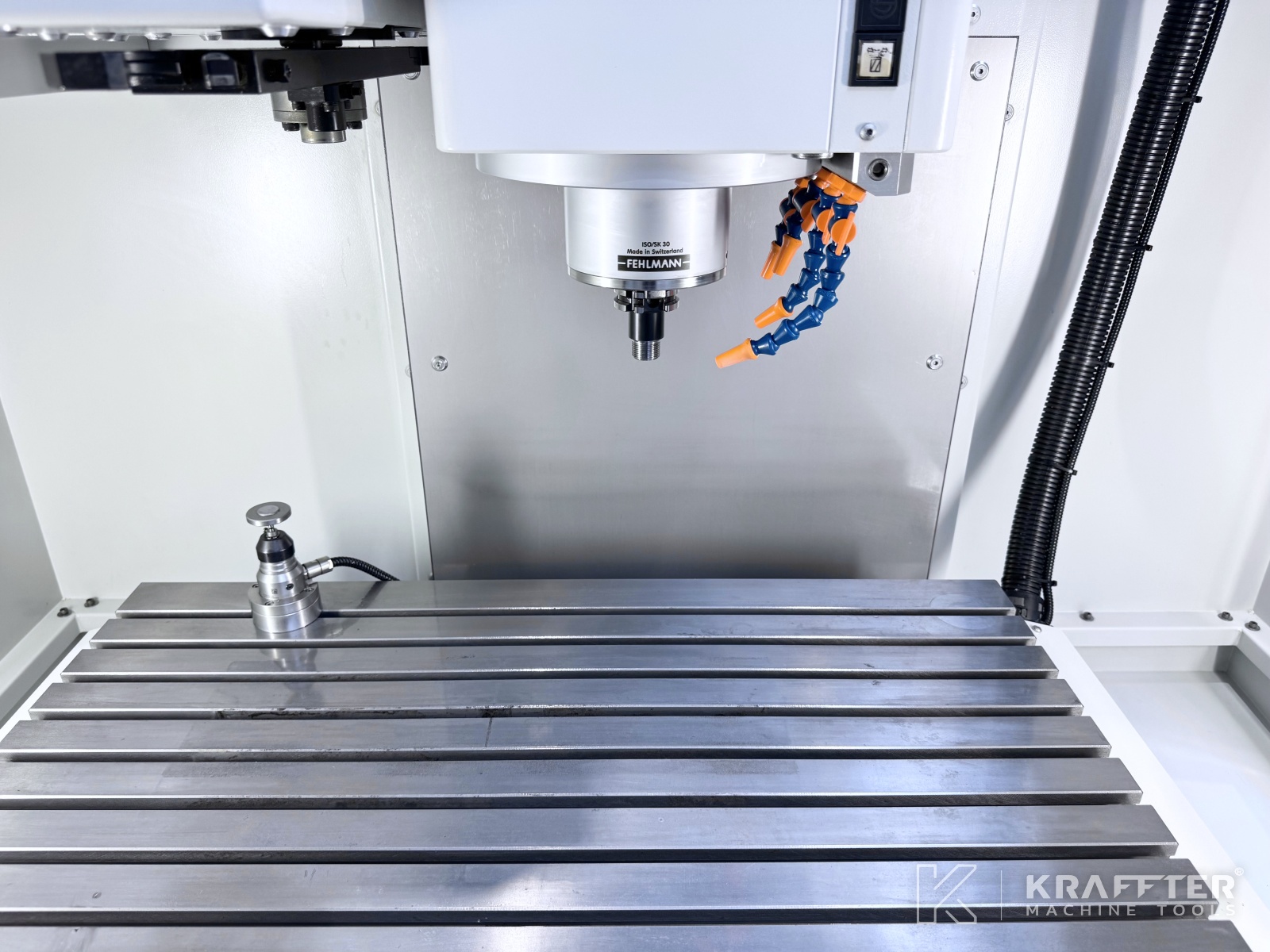

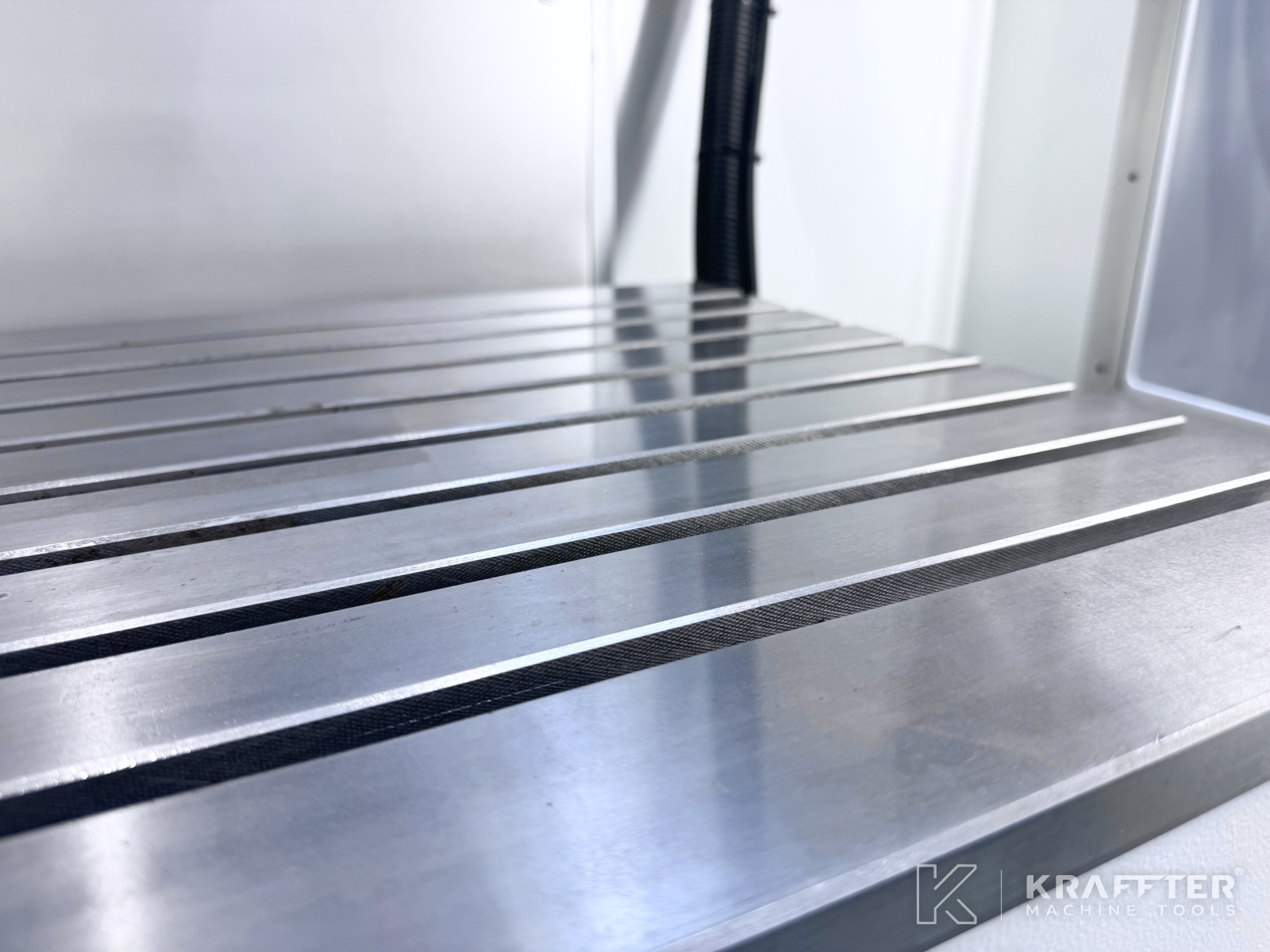

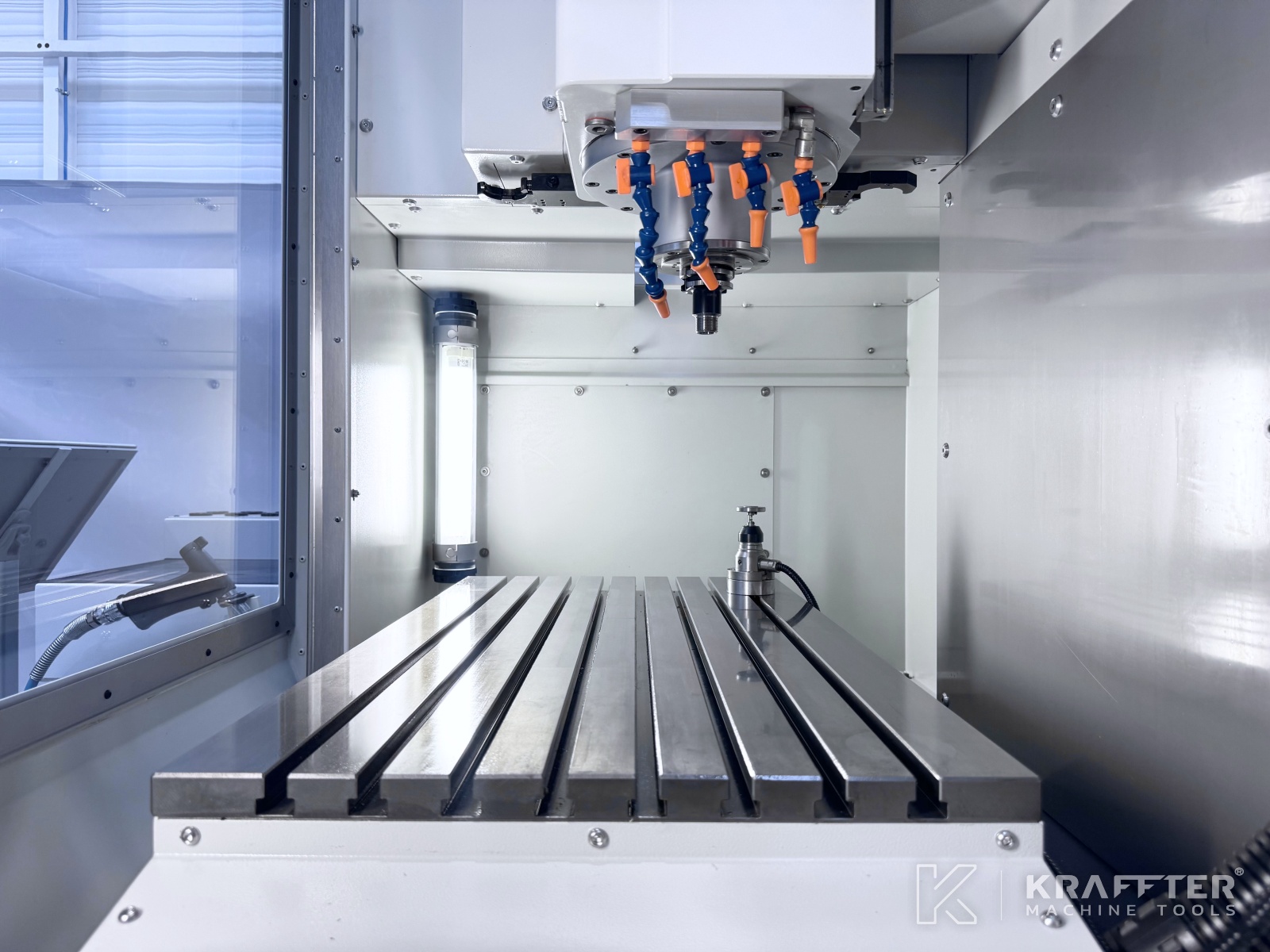

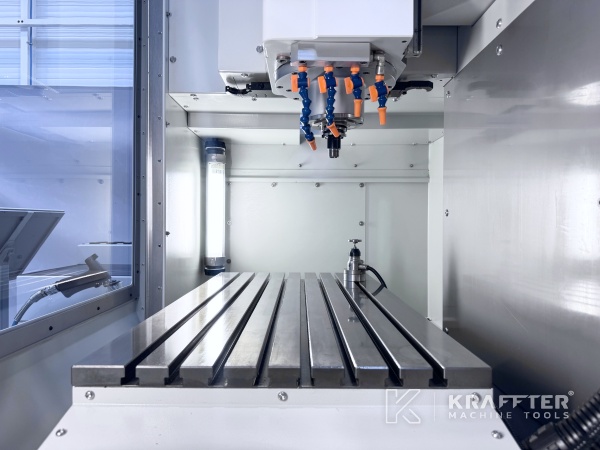

Table dimensions
908 x 480 [mm]
Max. load on table
250 [Kg]

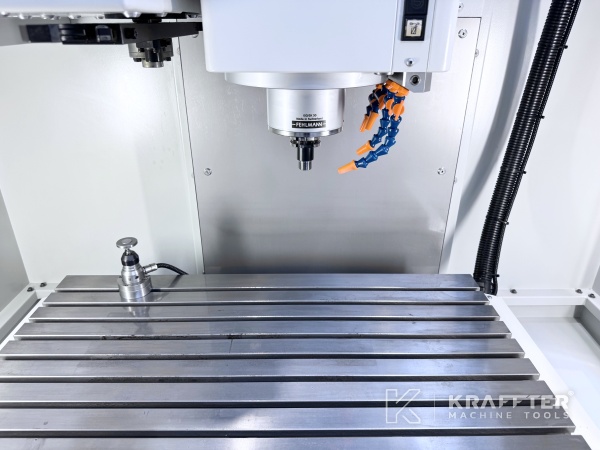

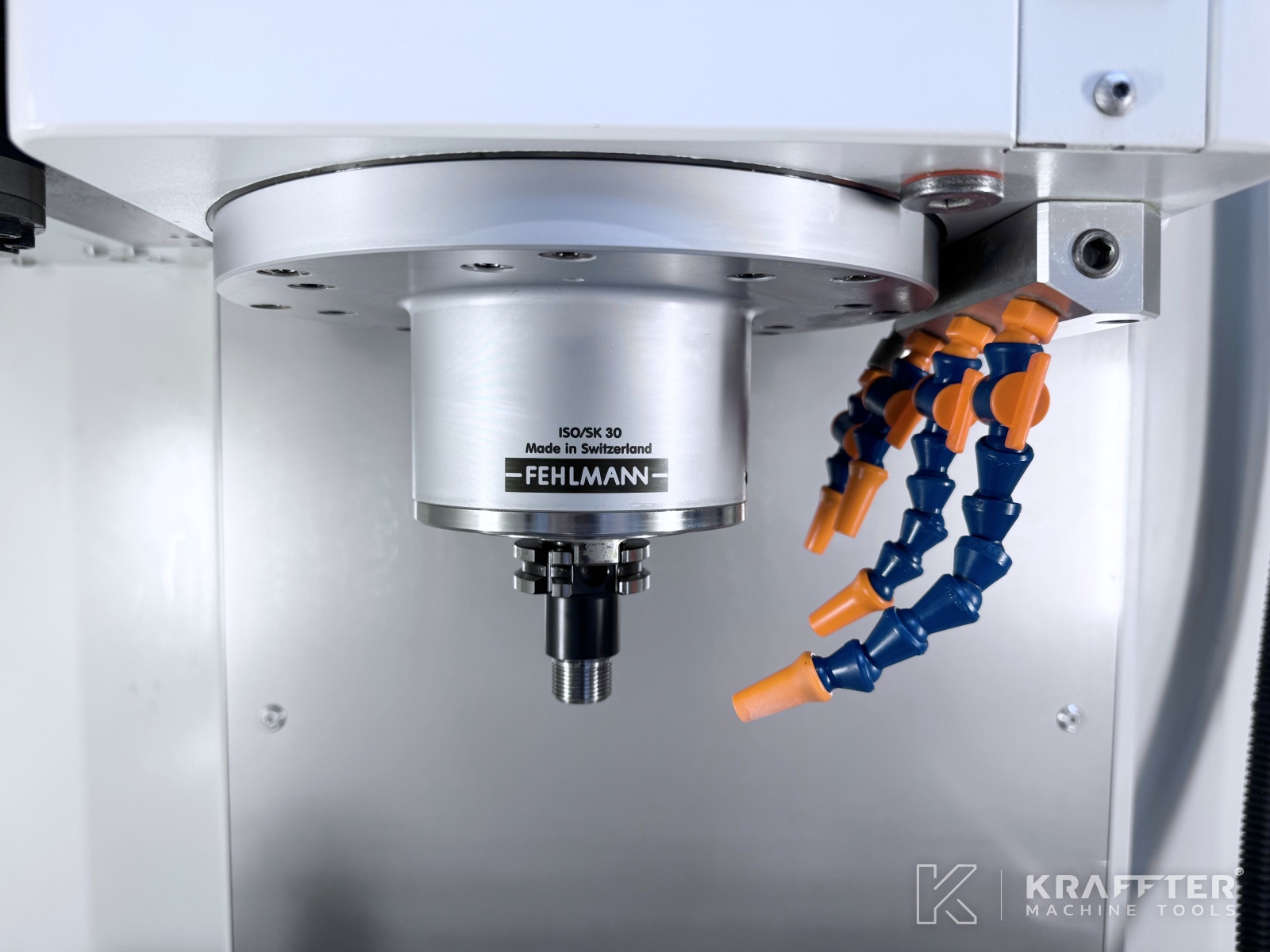

Spindle type
ISO 30
Max. spindle speed
12000 [rpm]

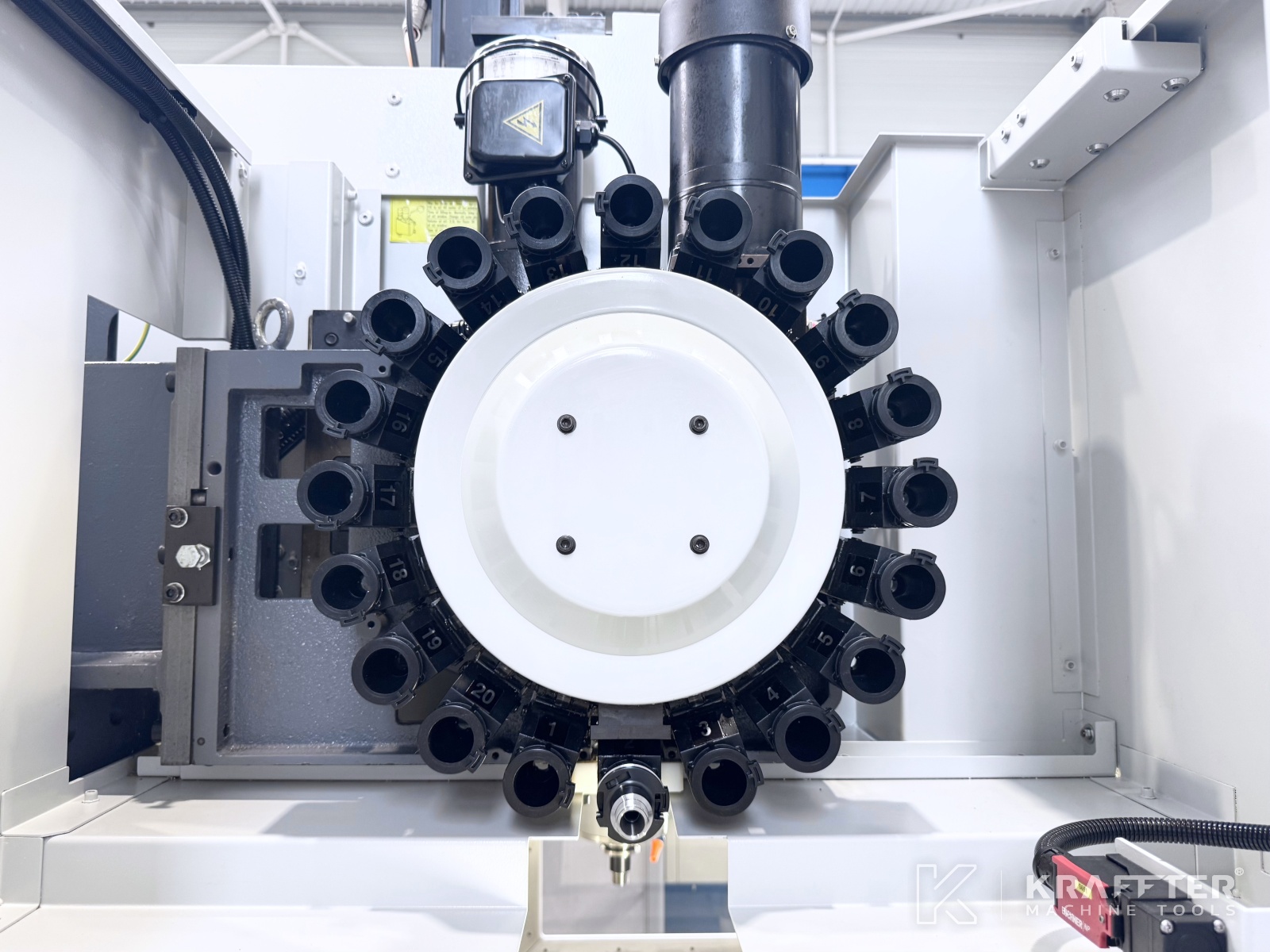

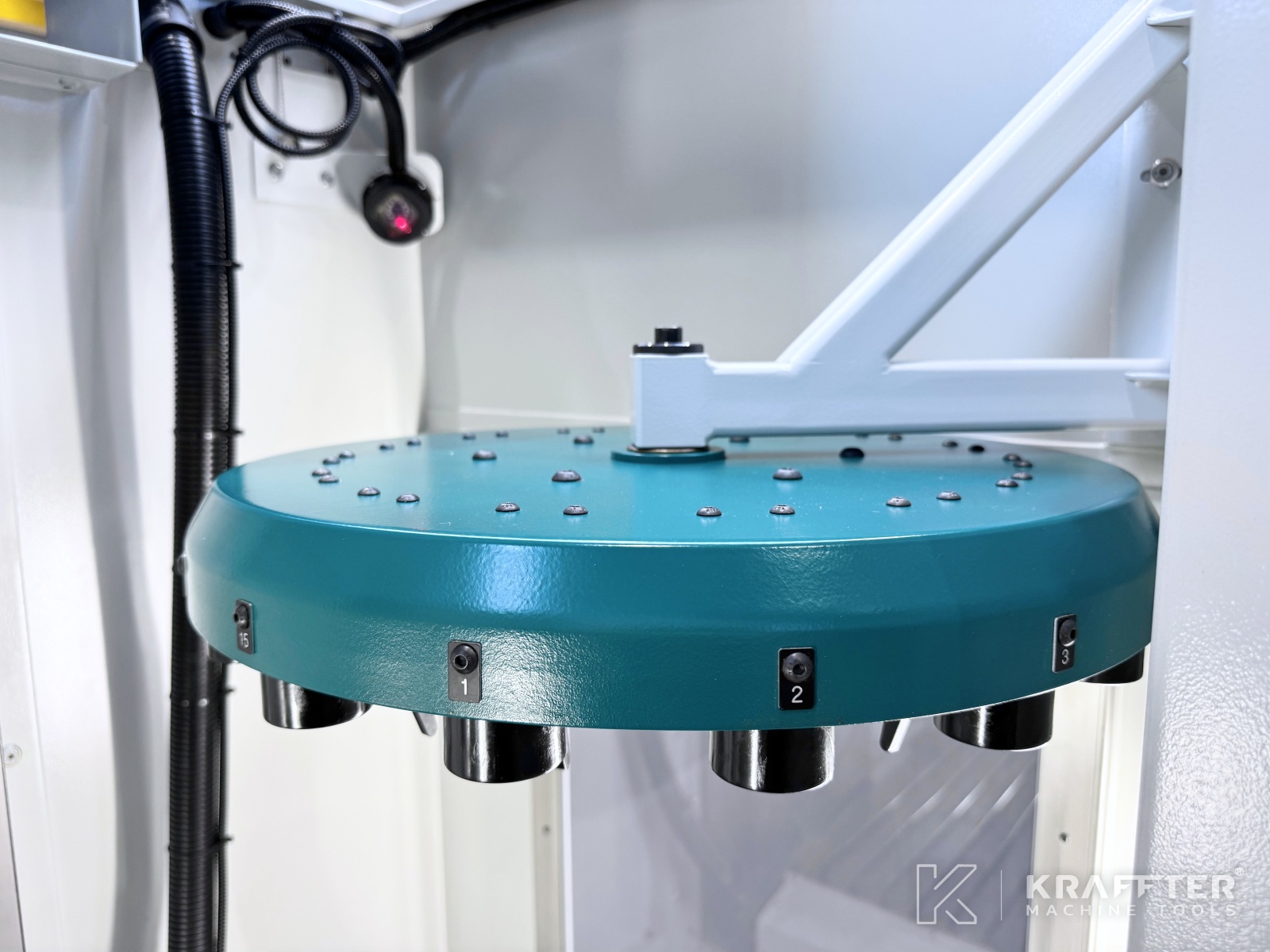

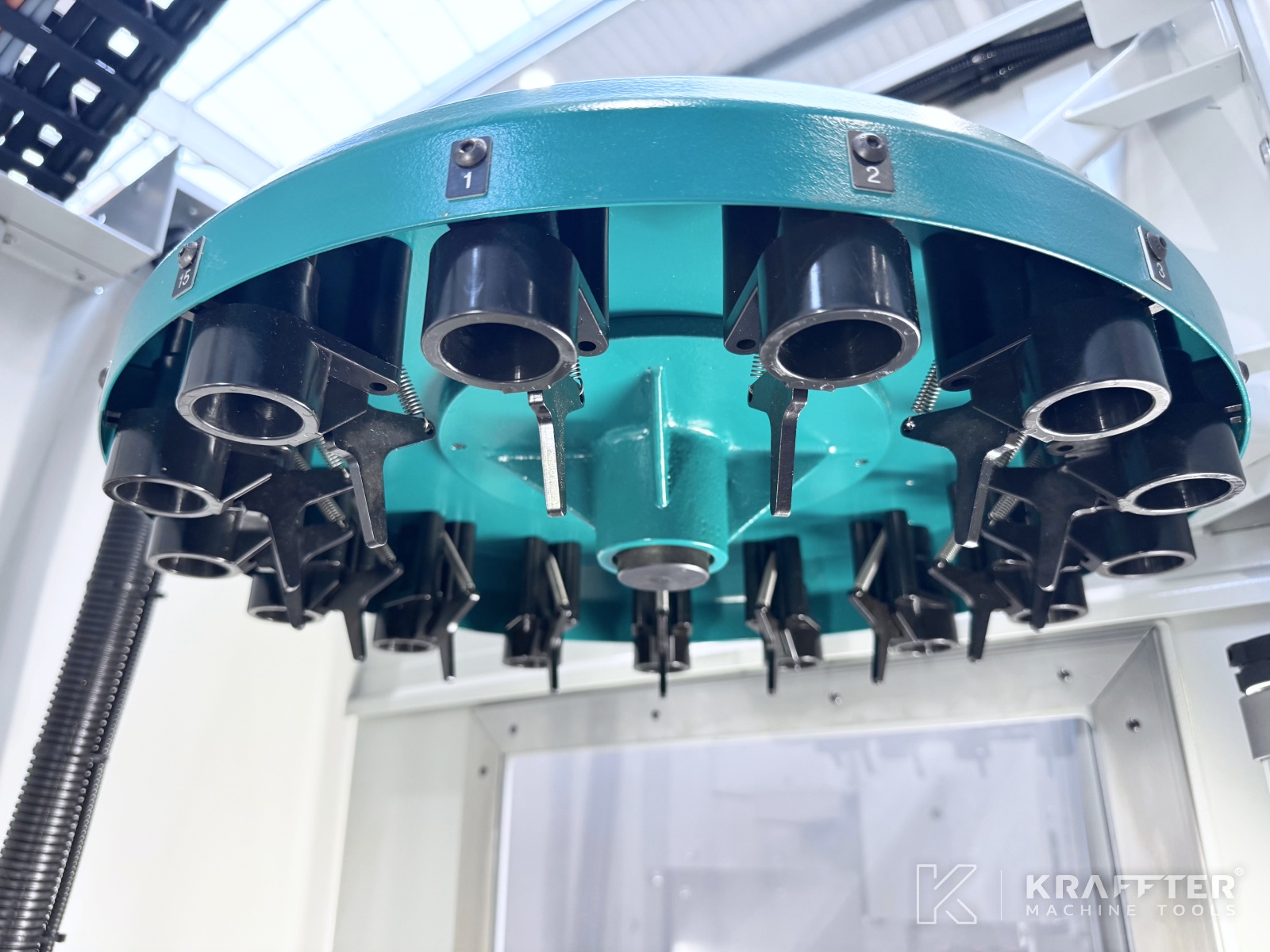

Tool changer magazin number of stations
20
Max. tool lenght
240 [mm]
Max. weight of single tool
3 [Kg]
Max. tool diameter
130 [mm]
Tool change time
3 [sec]
Chip to chip time
8 [sec]
Number of cutting hours
1463 [h]
Rated current
25 [A]
Supply voltage
400 [V]
Machine weight
3250 [Kg]
Technical specifications are provided for indicative purposes only. The description may have been automatically translated.

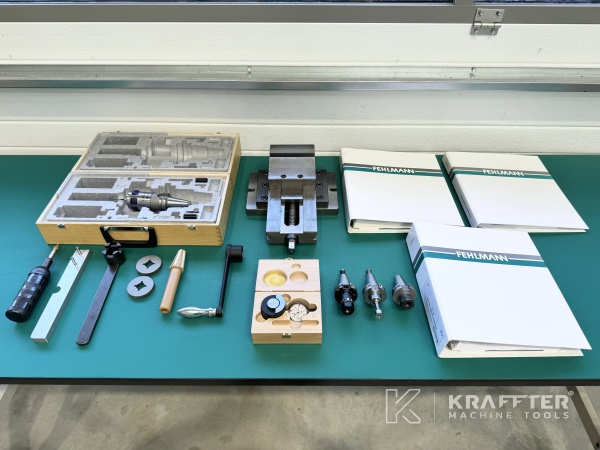

Additional information

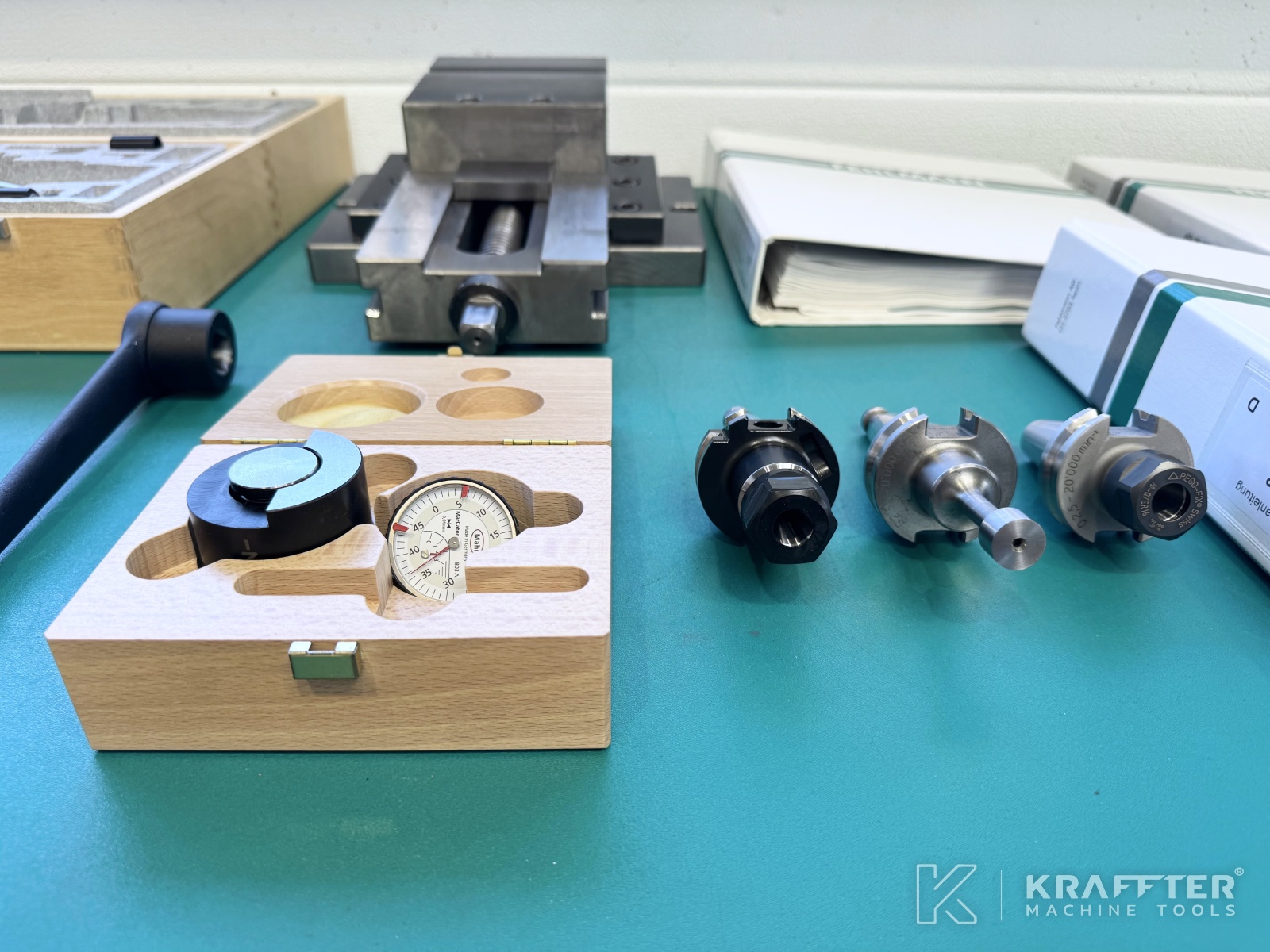

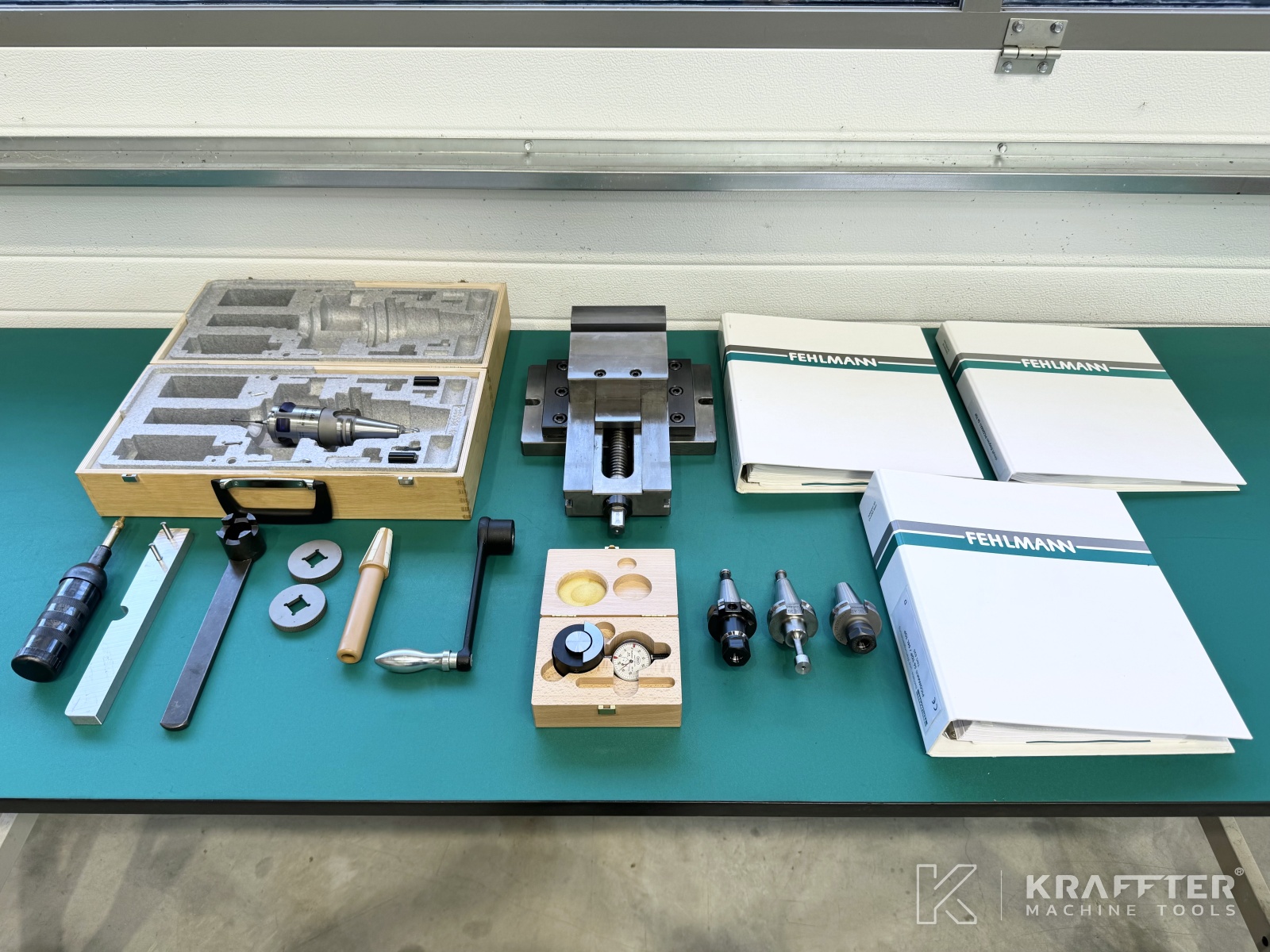

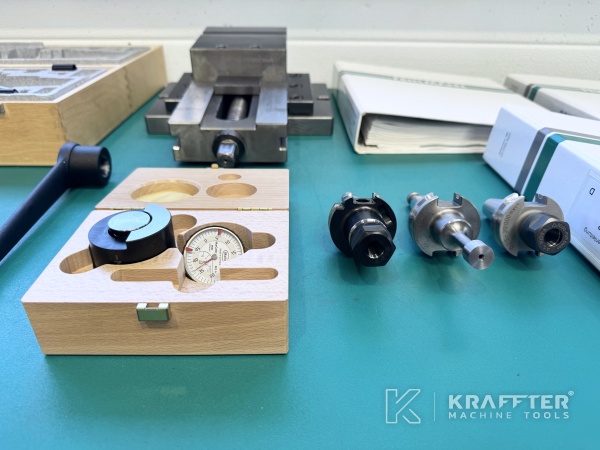

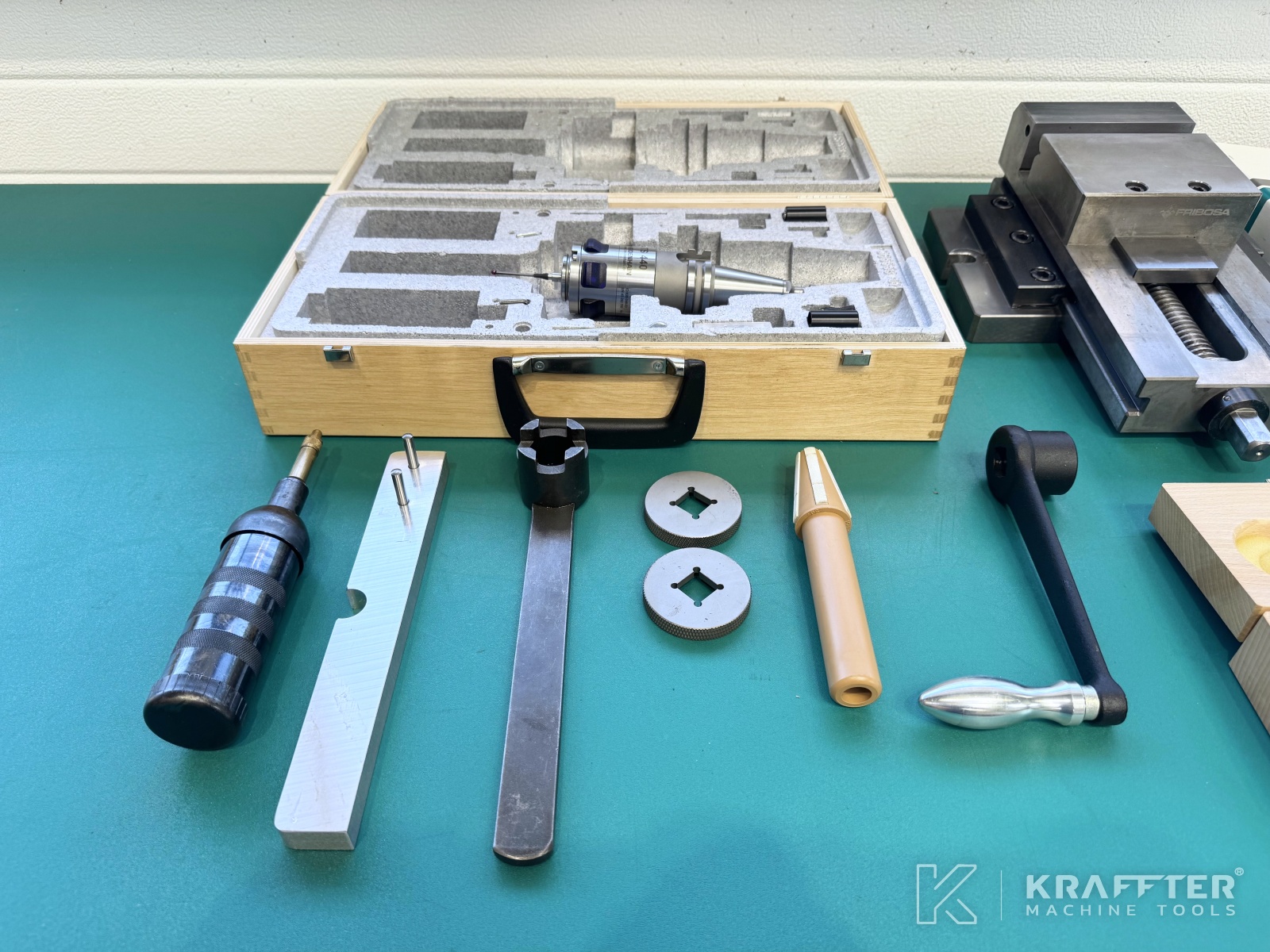

INCLUDED EQUIPMENT:
- HEIDENHAIN linear glass scales on the X, Y, and Z axes

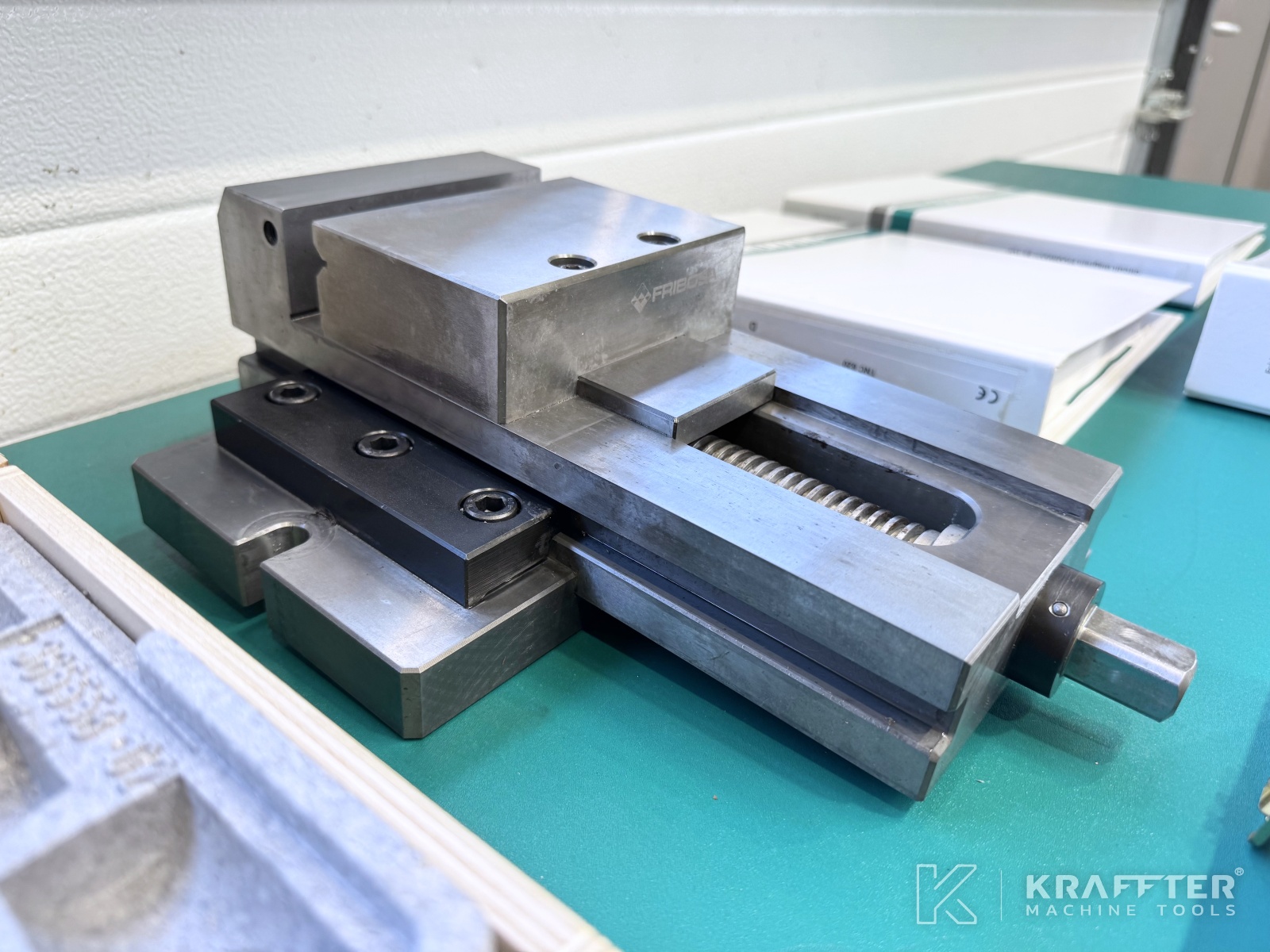

- 1 FRIBOSA Switzerland precision vise

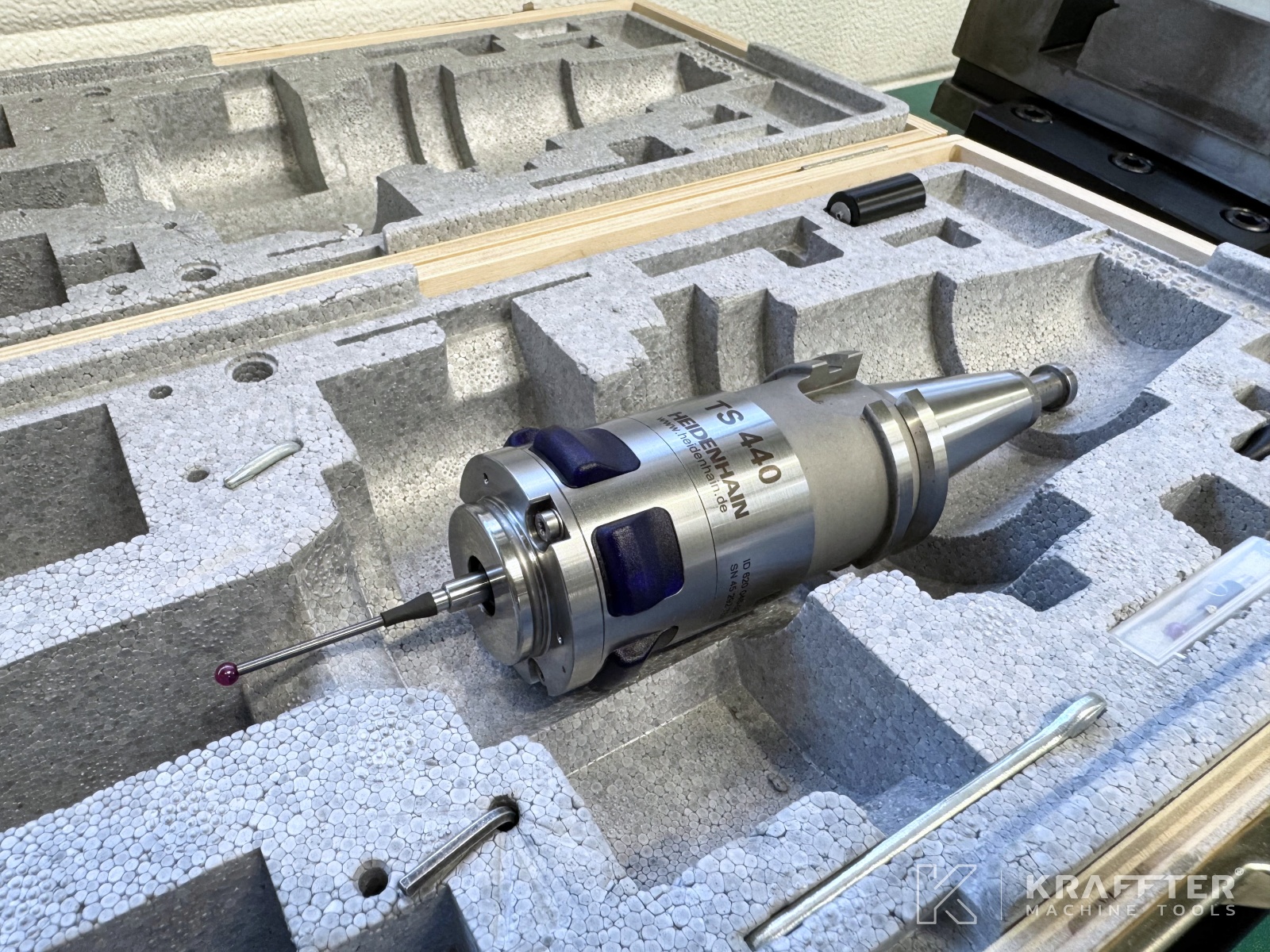

- 1 RENISHAW TS 440 part probe

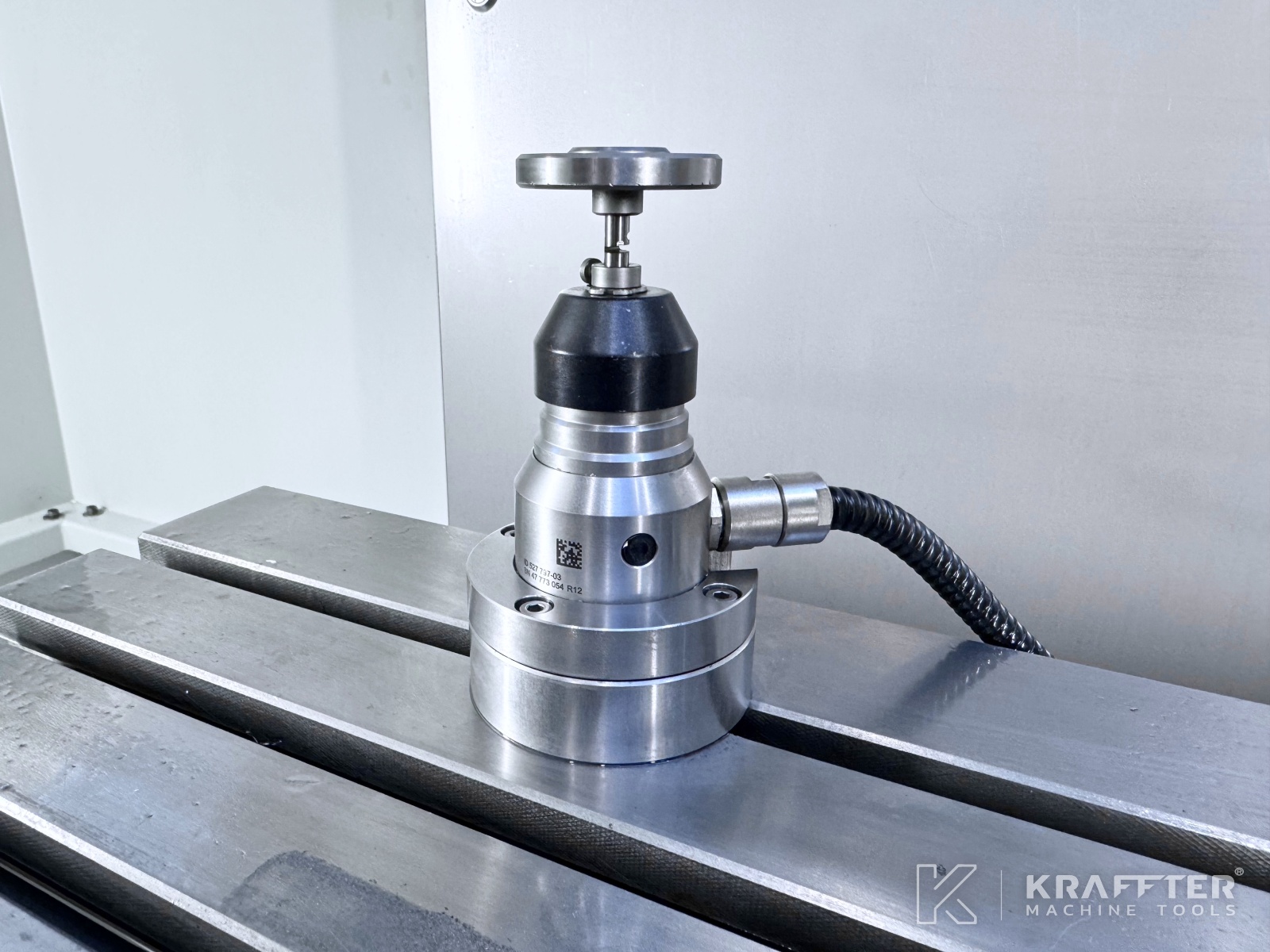

- 1 RENISHAW TT 140 tool probe
- 3 ISO30 tool holders

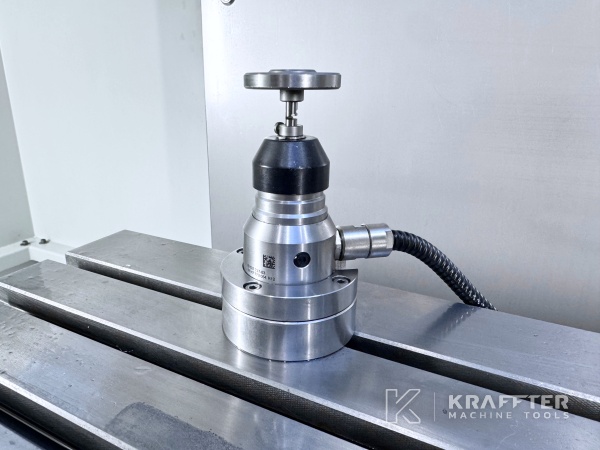

- 1 FEHLMANN GPRPLUS50 toolsetter

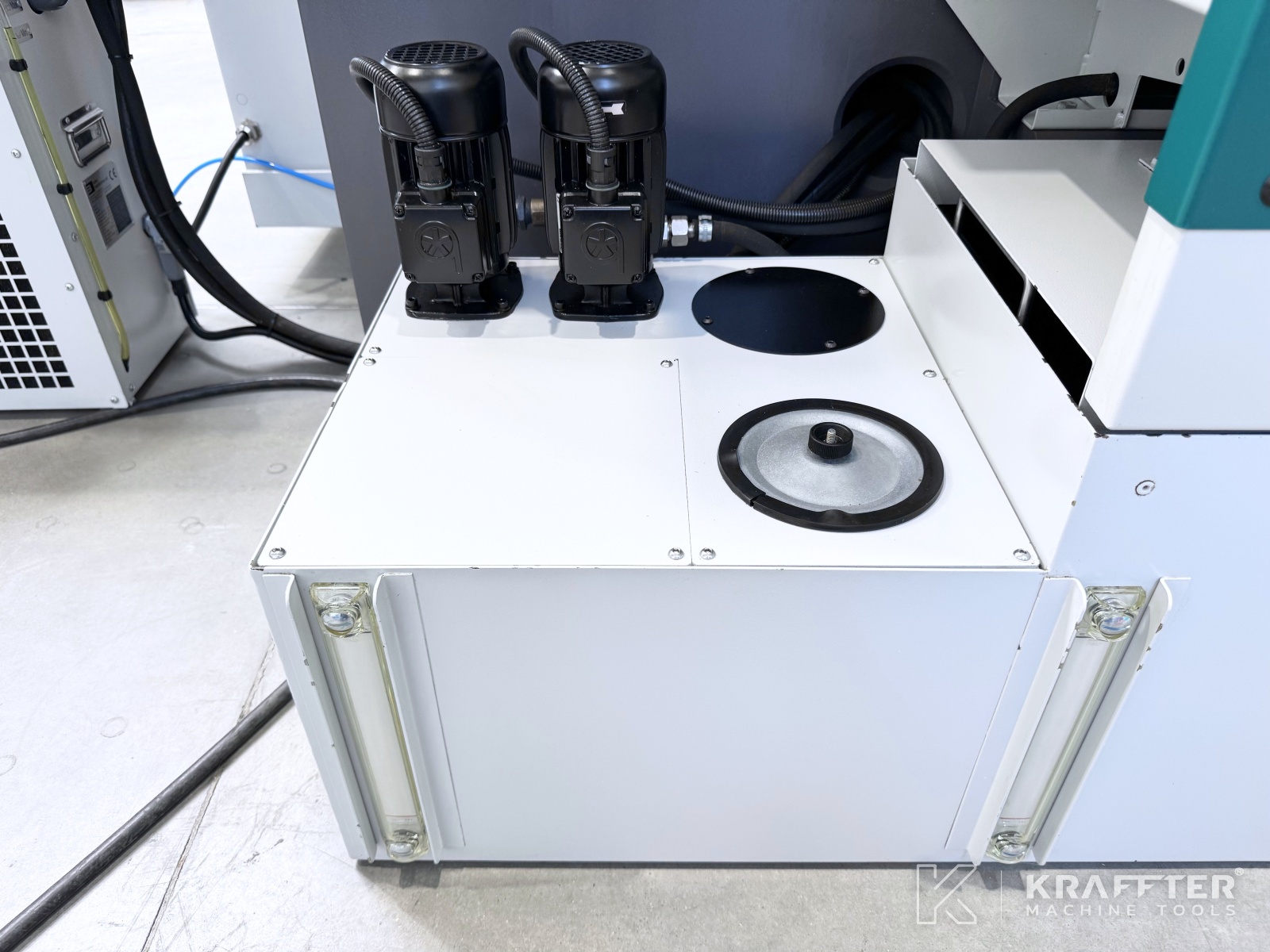

- 1 coolant tank with pumps

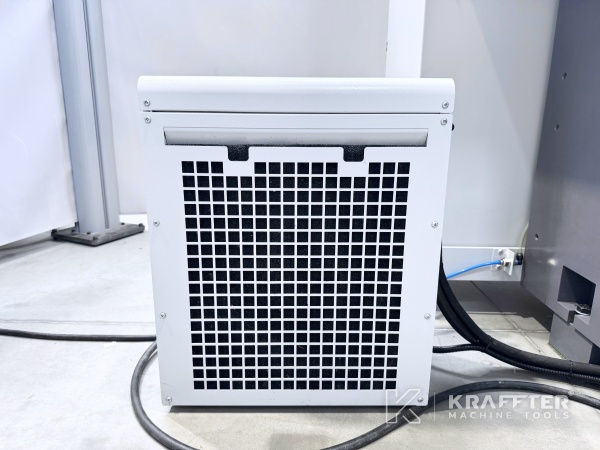

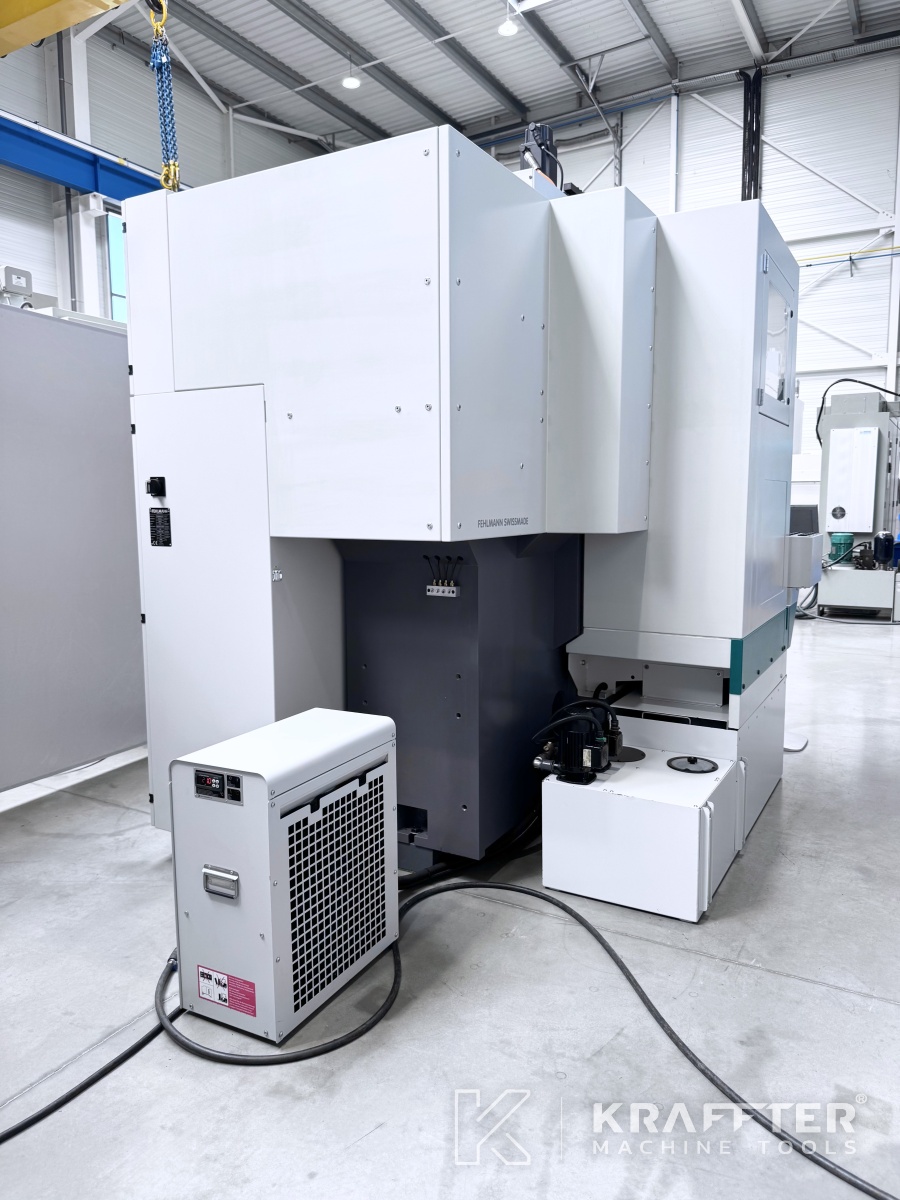

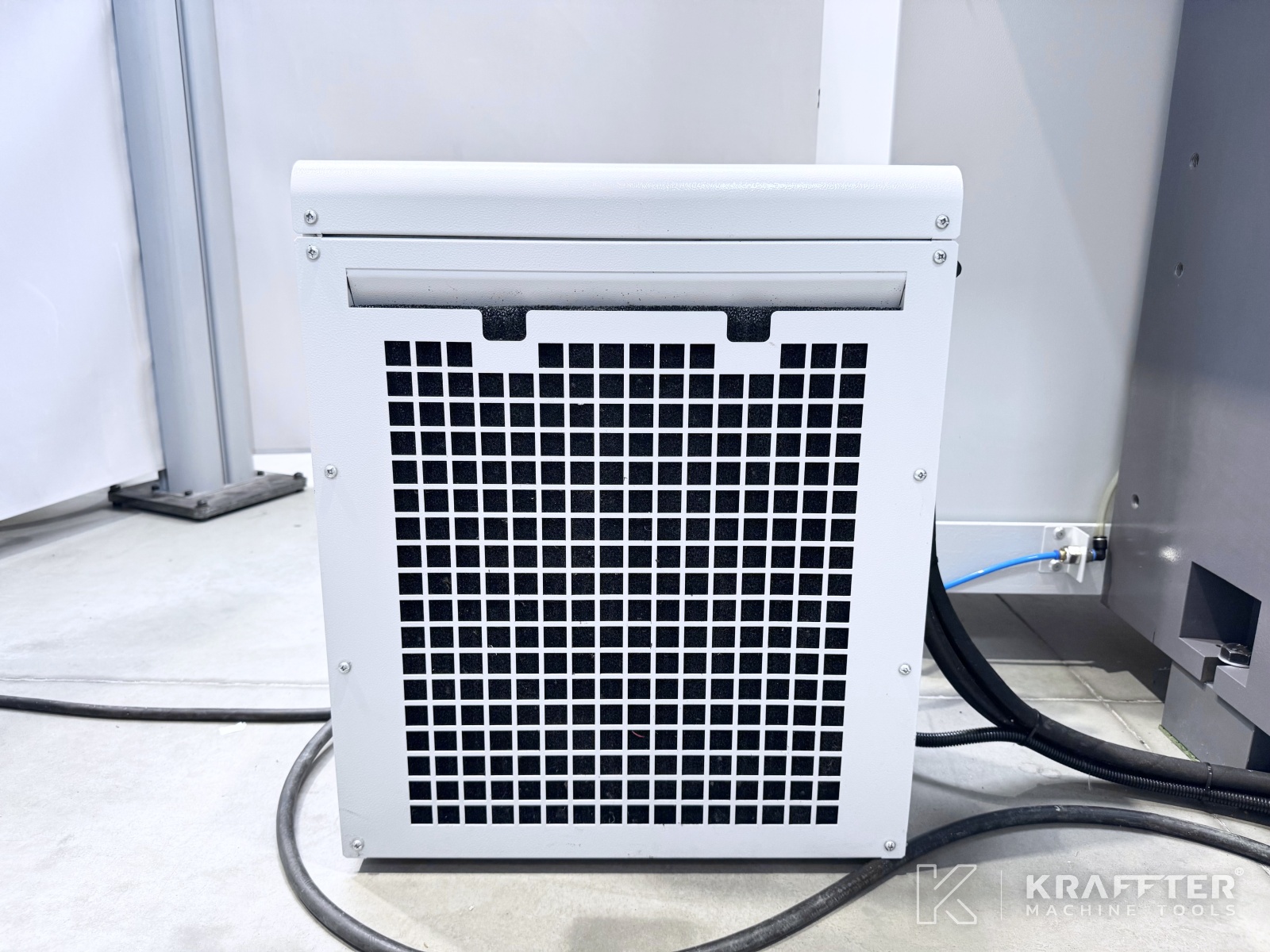

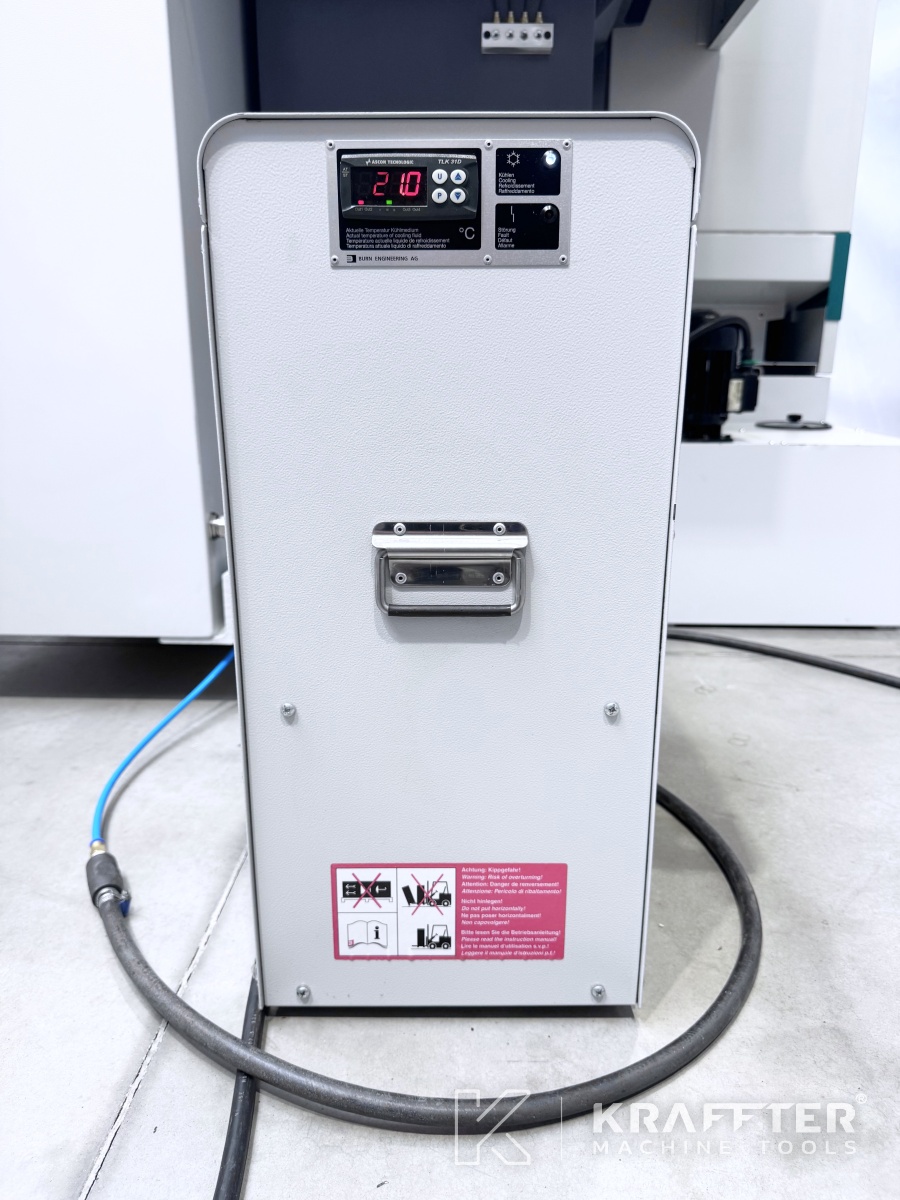

- 1 spindle chiller
- Various tightening wrenches
- Axis locking brackets for machine transport
- Technical and operating manuals
