Sold

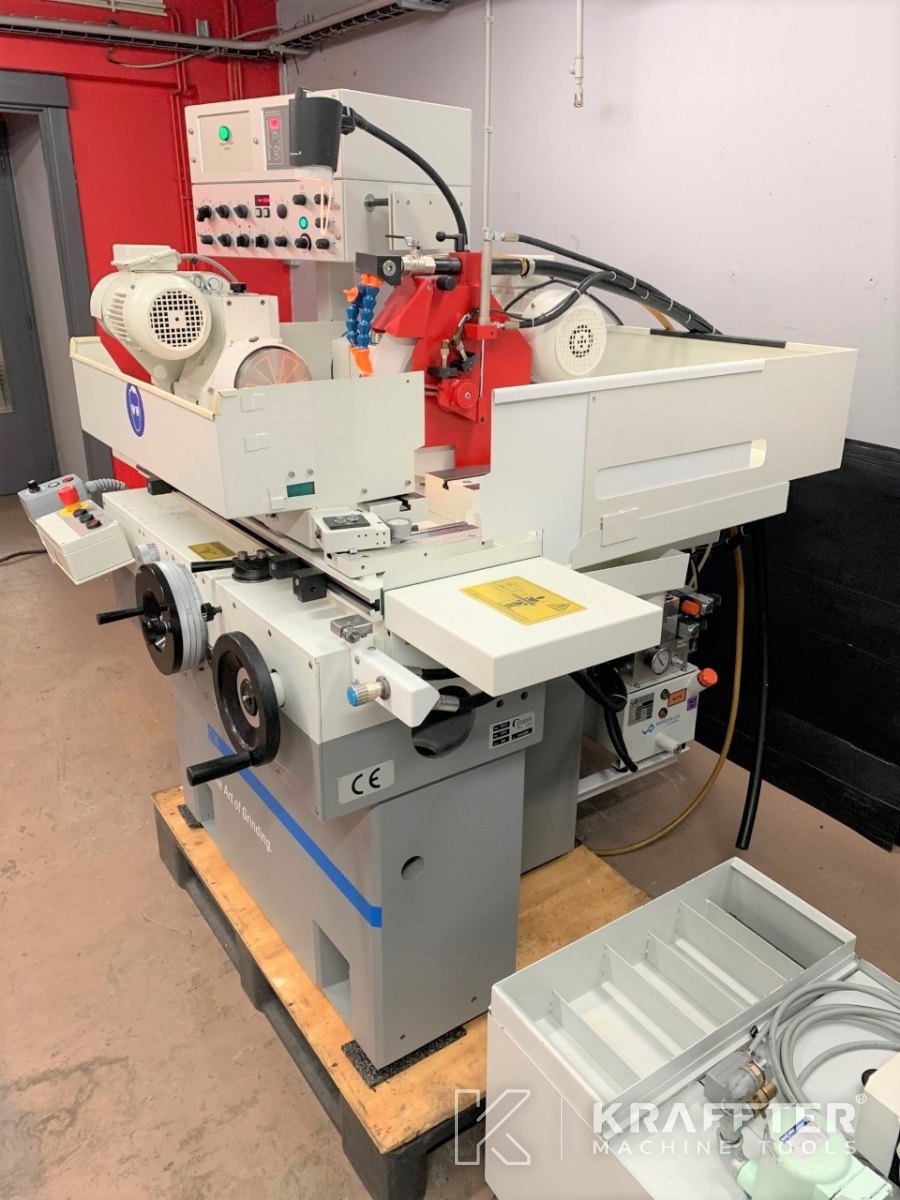

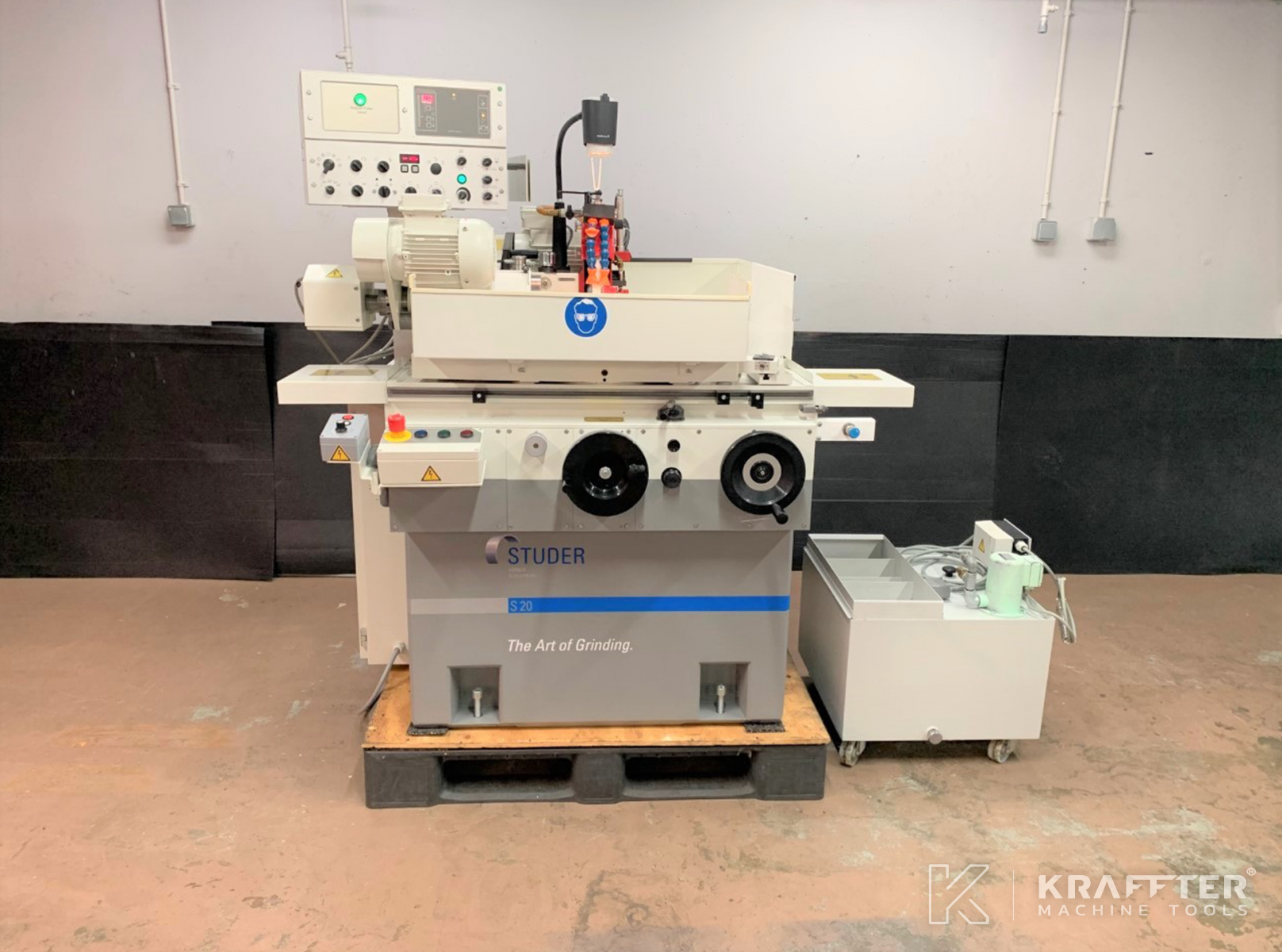

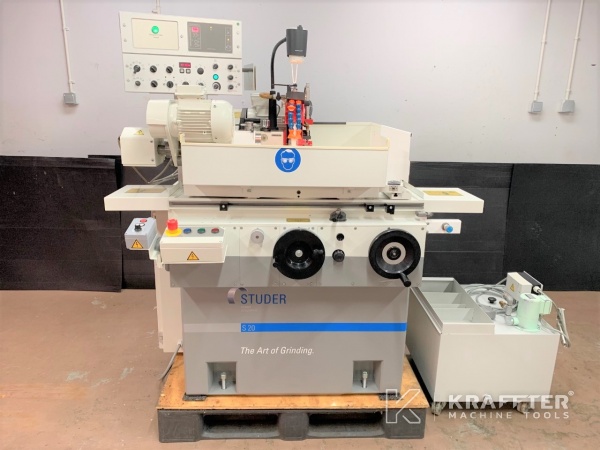

Type of machine : Cylindrical grinder
Brand : STUDER
Stock N° : 20689-954
Model : S20-2
Year : 2010
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Automatic
Yes
Height of centers
100 [mm]
Stroke X axis
25 [mm]
Stroke Z axis
420 [mm]
Grinding spindle motor power
3 [kW]
Workpiece spindle nose
CM4
Type of attachment tailstock
CM2
Tailstock quill diameter
32 [mm]
Orientable table
Yes
Max. load between centers
20 [Kg]
Magnet clamping plate
Yes
Supply voltage
400 [V]
Total power required
8 [kVA]

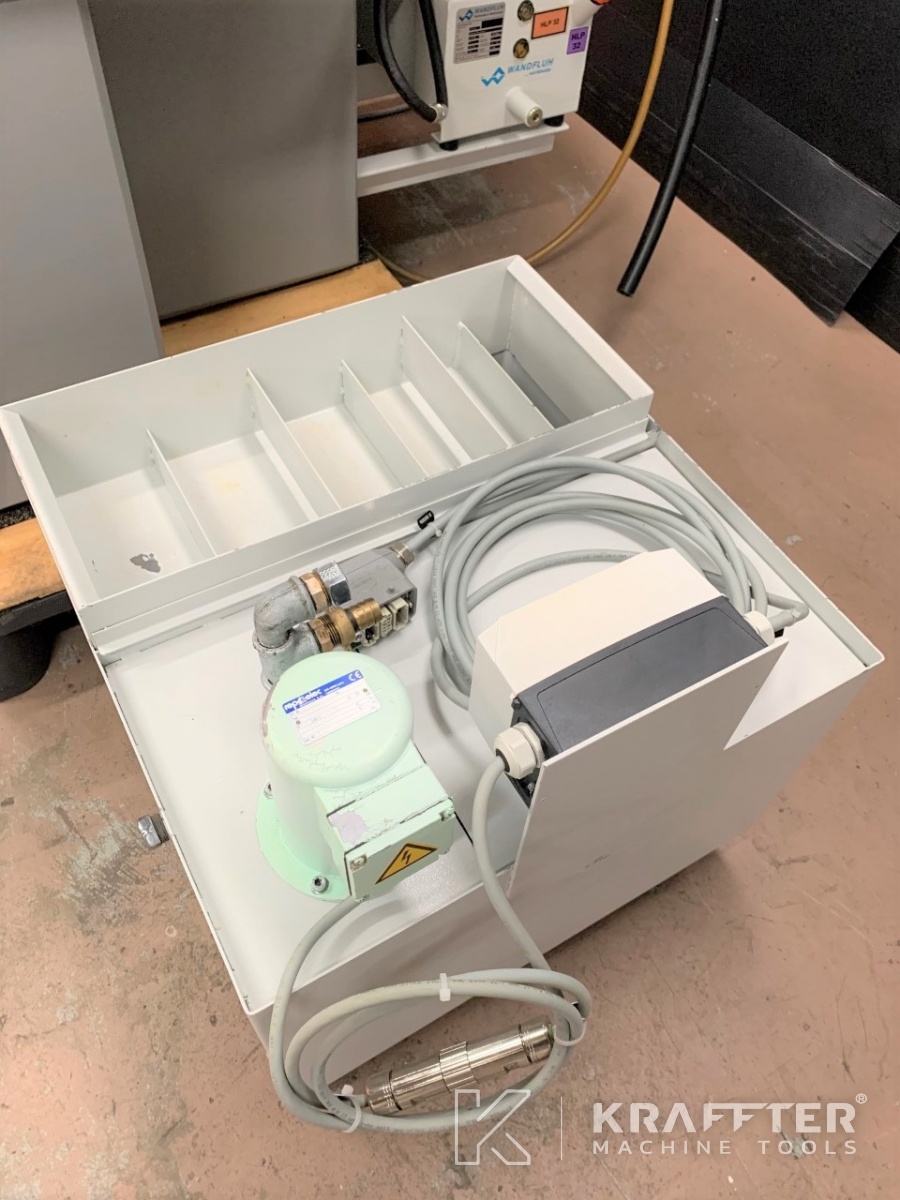

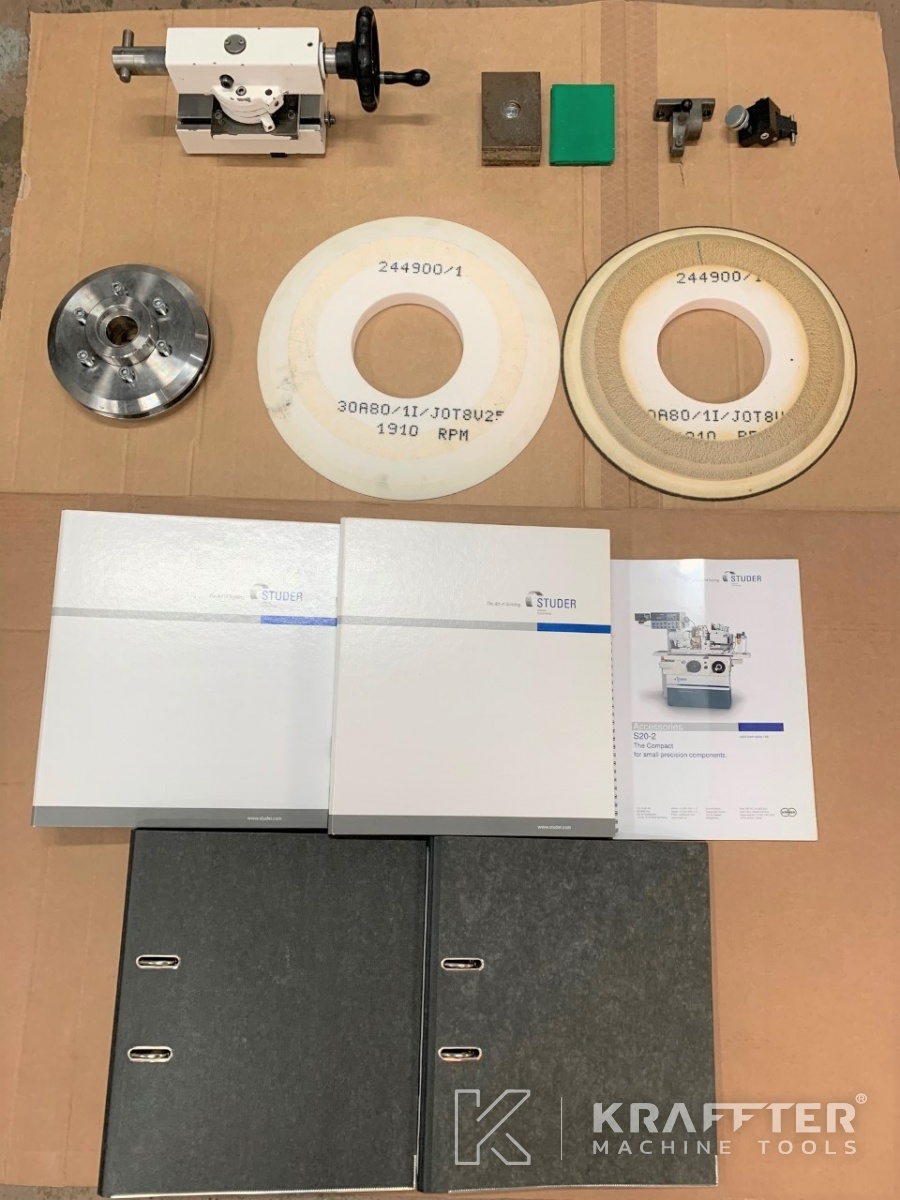

- 1 coolant pump + lubrication tank

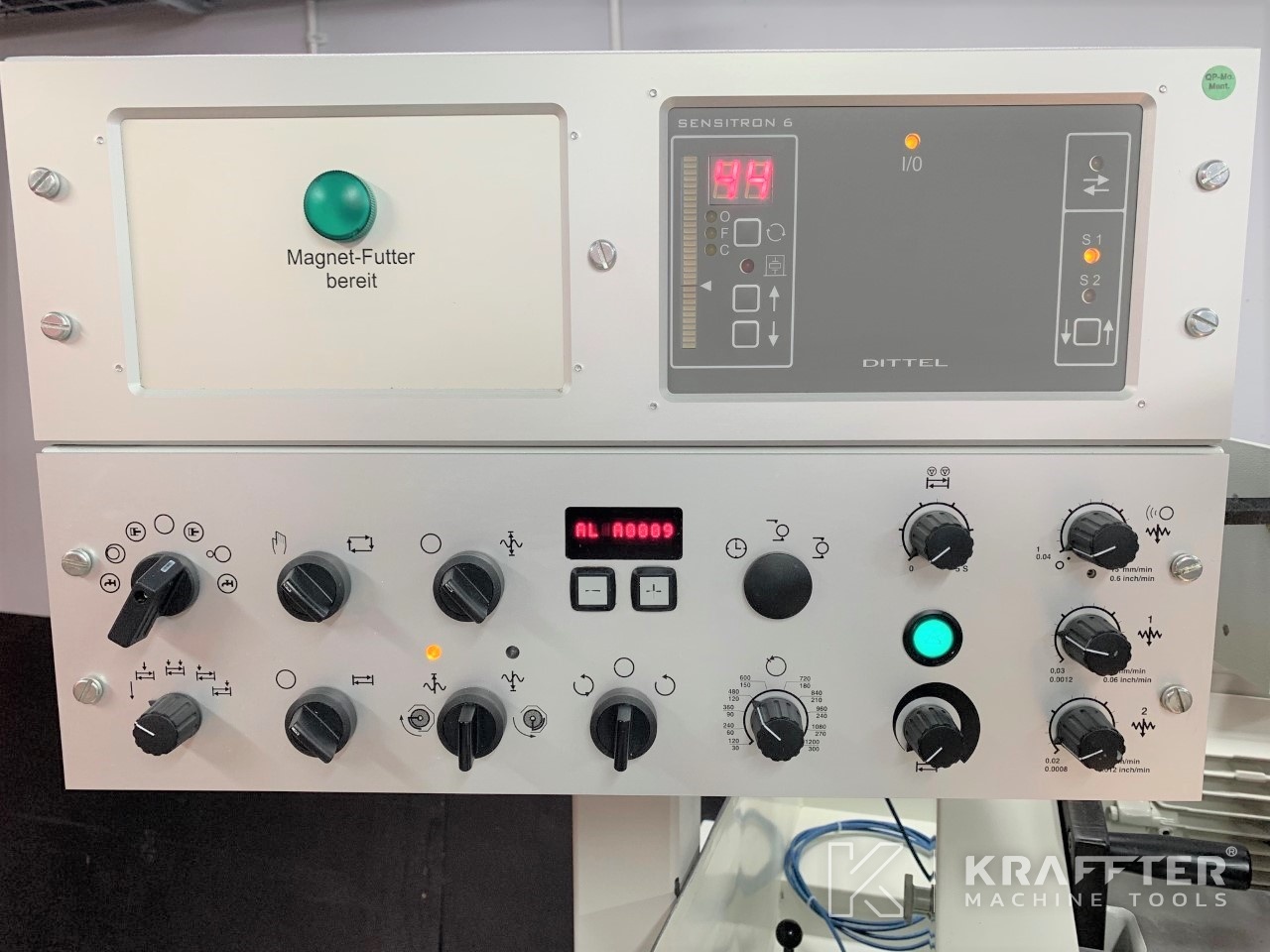

- Sensitron 2

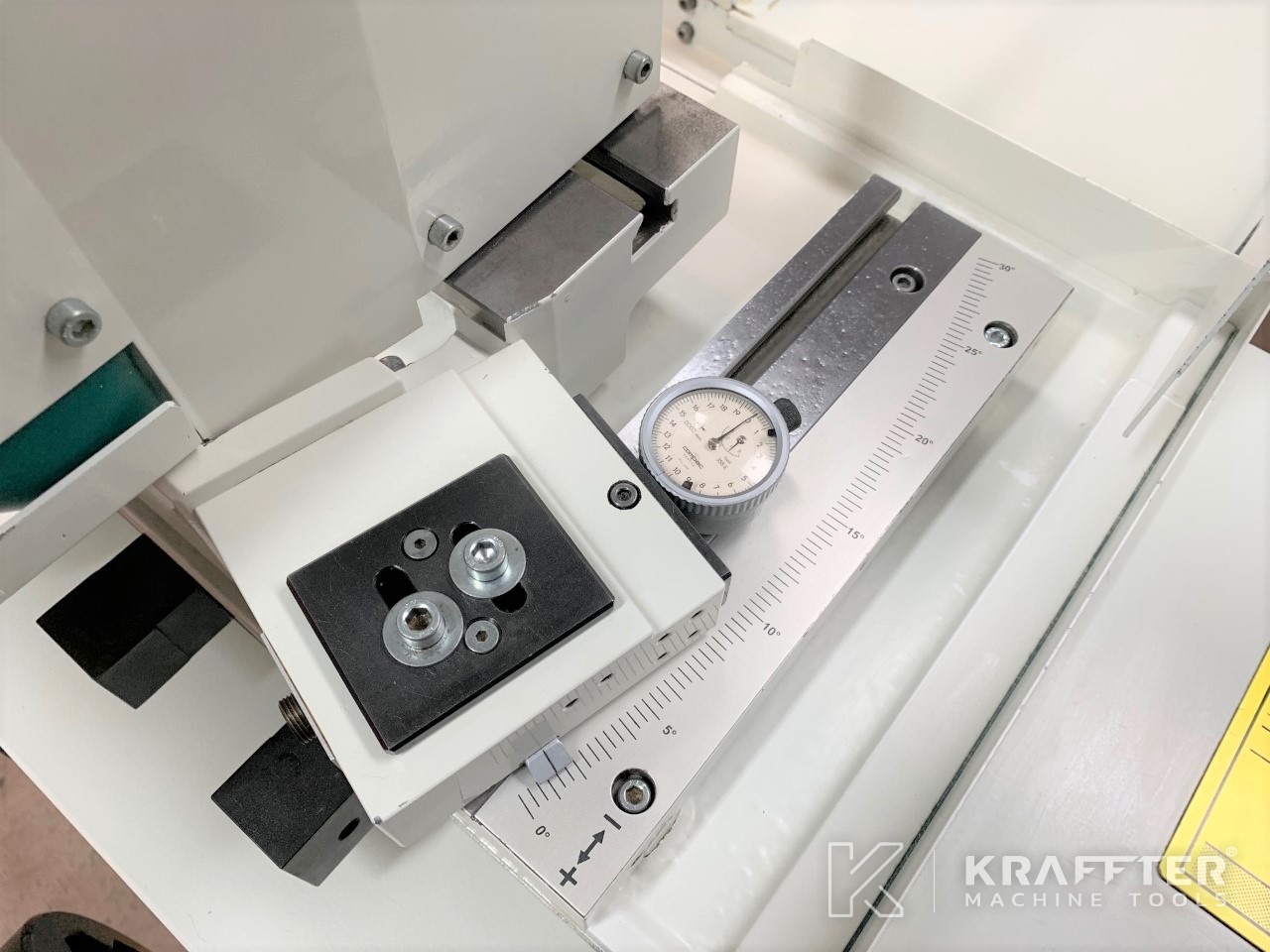

- Swivelling dressing attachment attachable to workpiece table
- Grinding wheel cover with automatic closing
- Thin adjustment orientation of fake table with micrometer
- Magnetic chuck
- Guard for chuck
- 3 external grinding wheels
- 2 grinding wheel holders
- Lighting (WALDMANN)
- 3 machine feet pads
- Technical and users original books

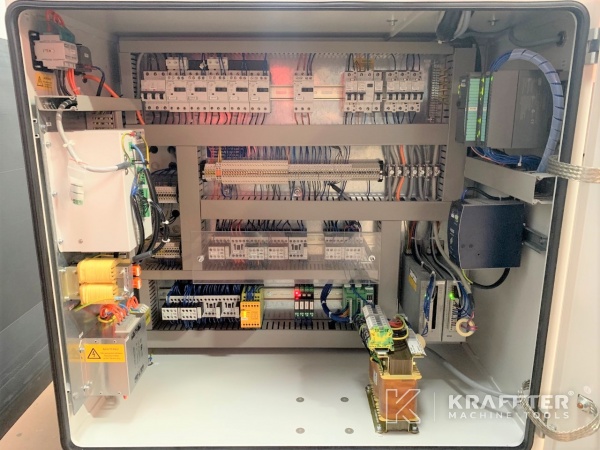

- Electrical manual
