Sold

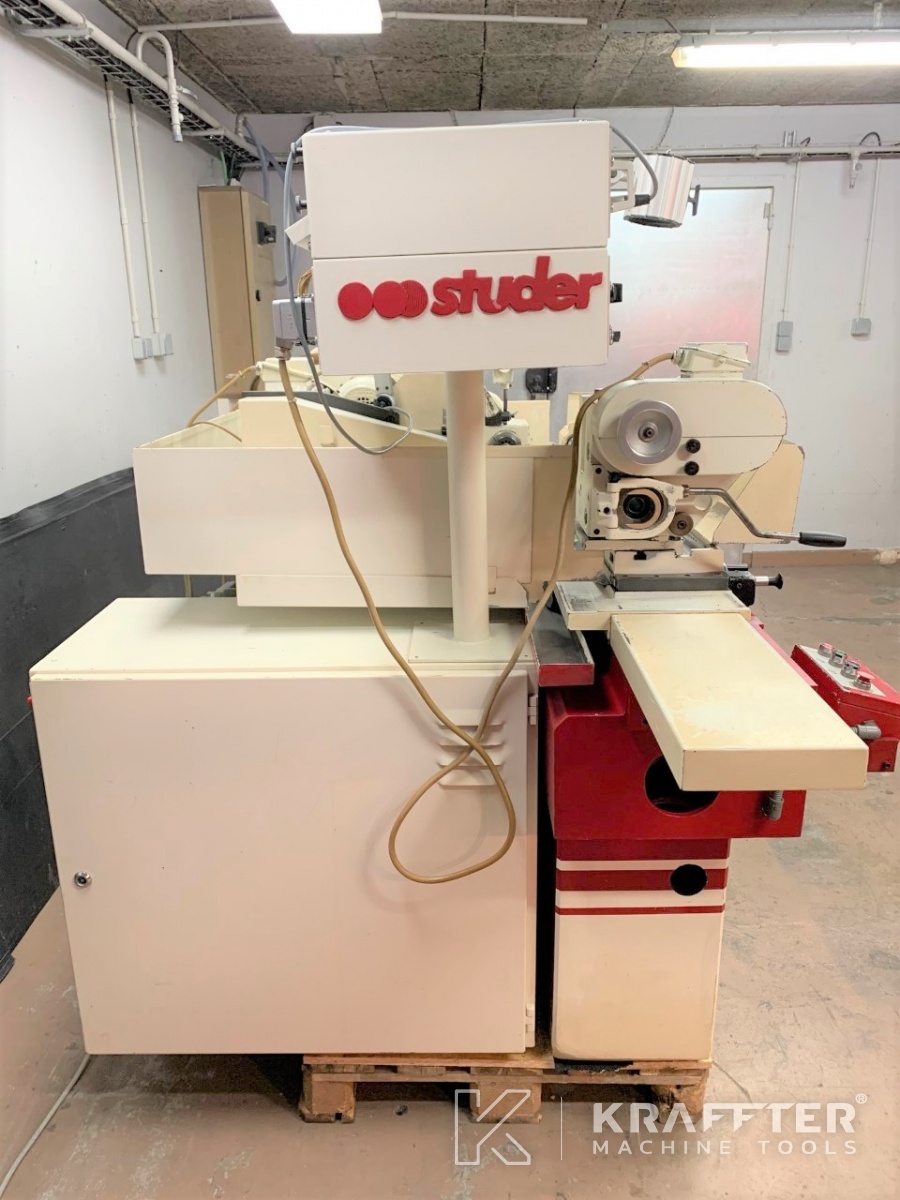

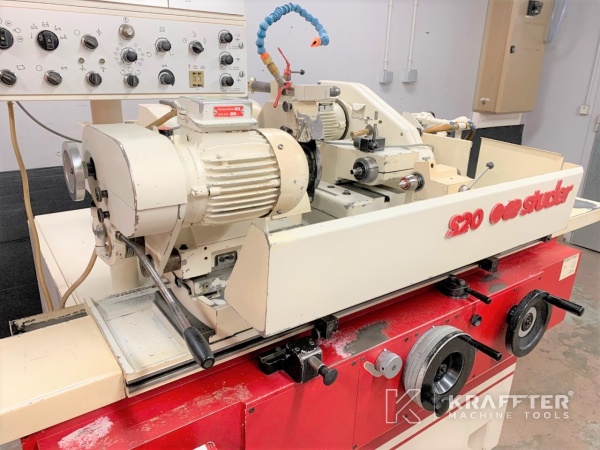

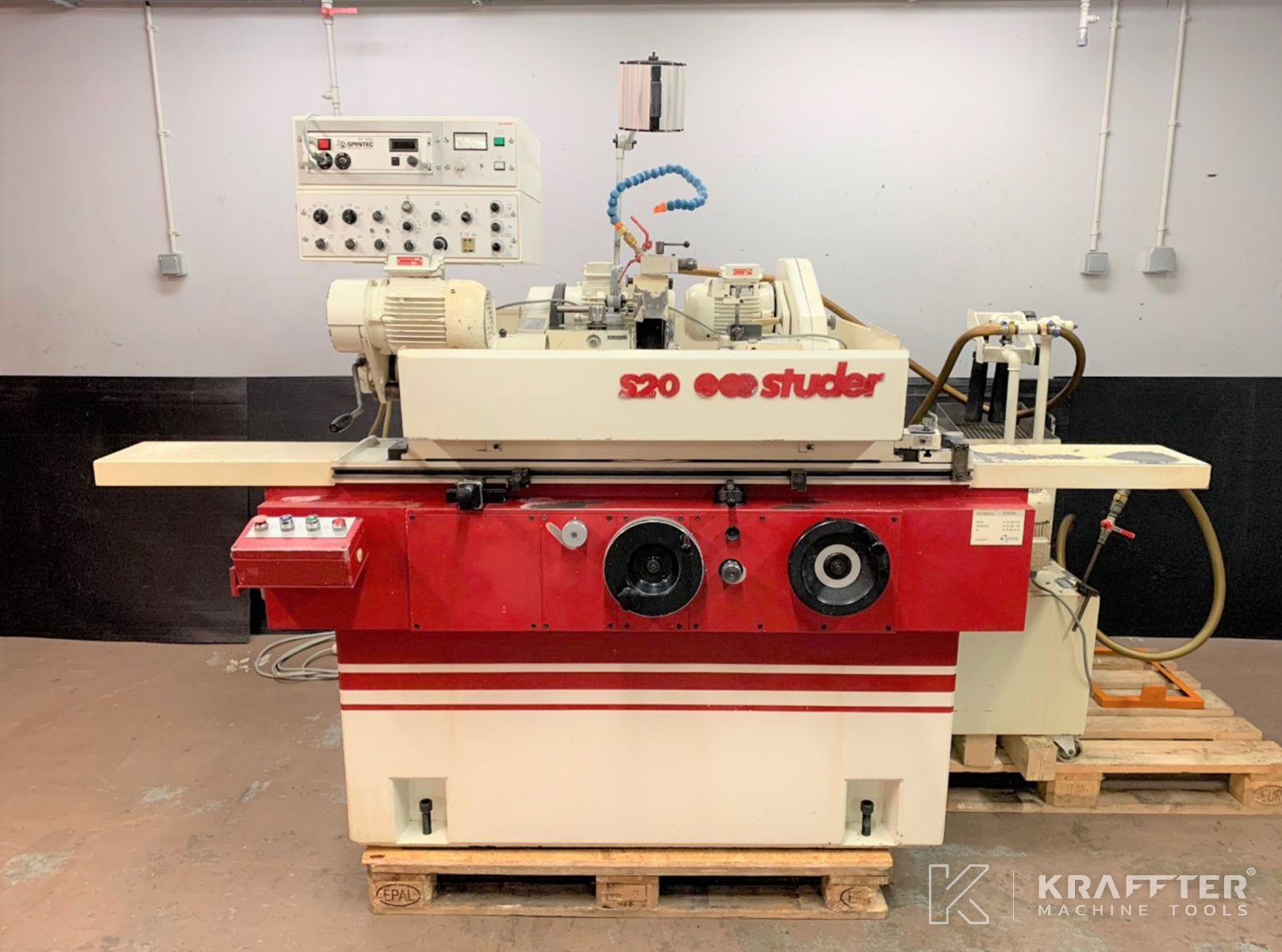

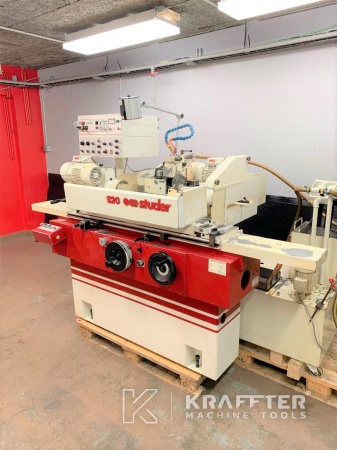

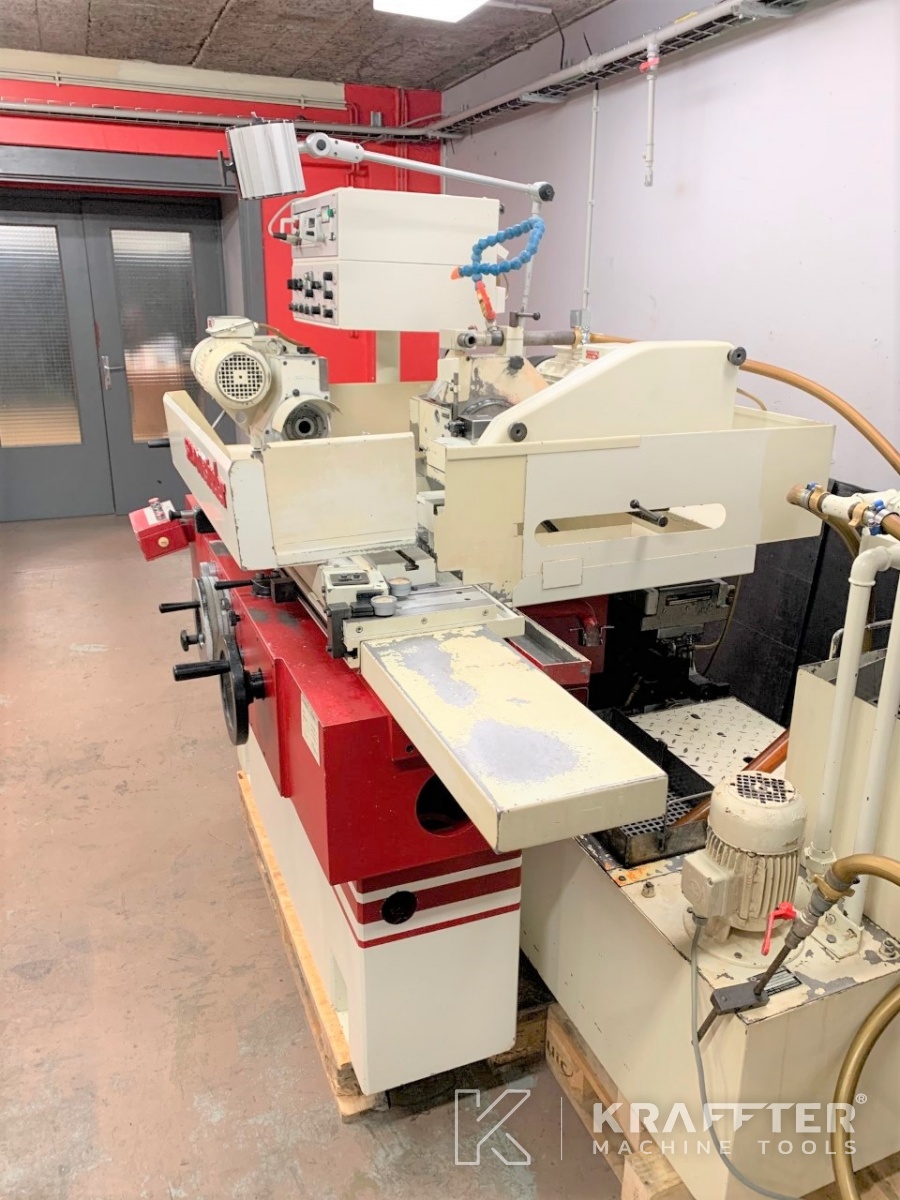

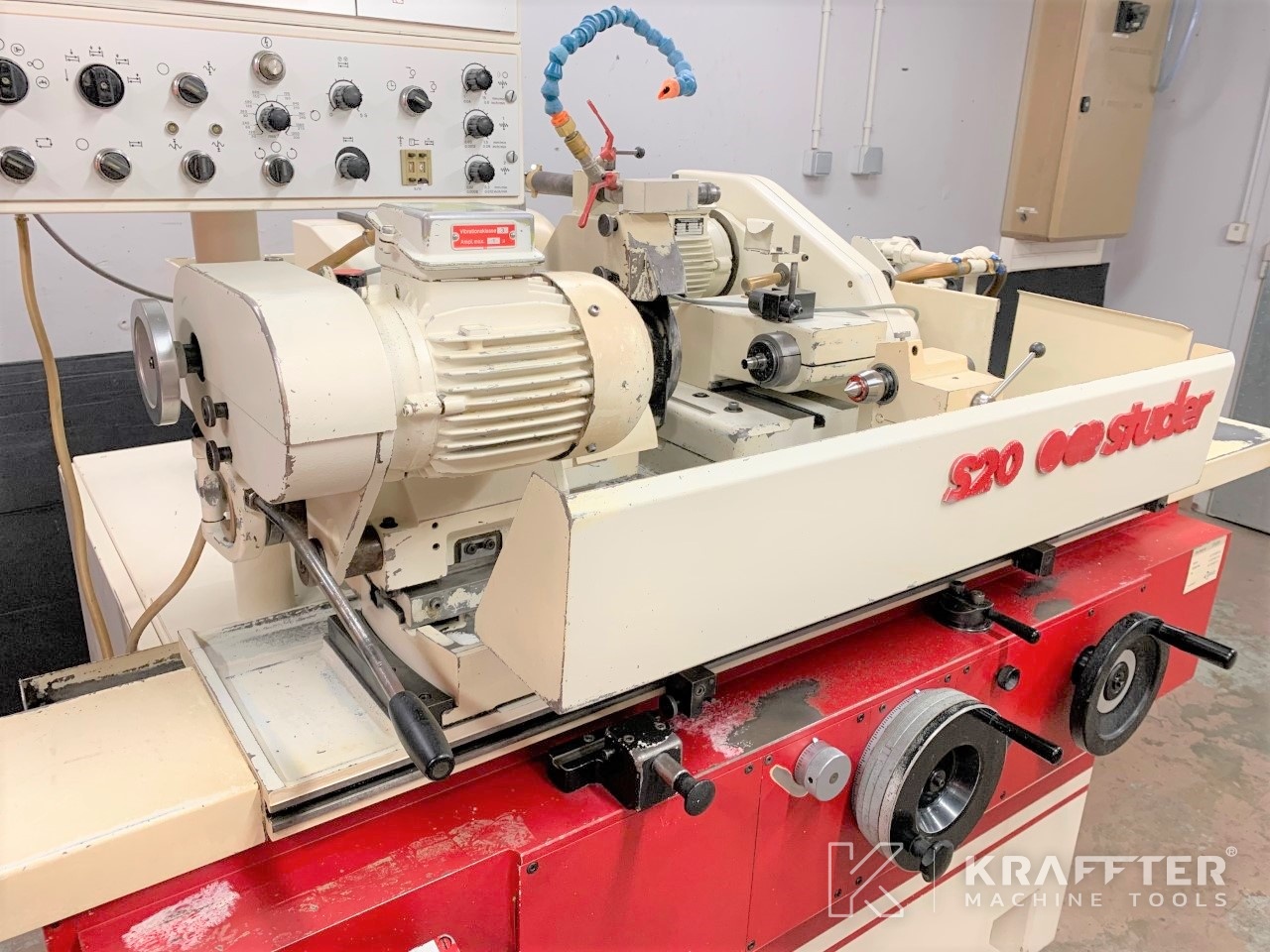

Type of machine : Cylindrical grinder
Brand : STUDER
Stock N° : 20689-960
Model : S20-2
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Automatic
Yes
Height of centers
100 [mm]
Stroke X axis
25 [mm]
Stroke Z axis
650 [mm]
Grinding spindle motor power
3 [kW]
Workpiece spindle nose
CM4
Type of attachment tailstock
CM2
Tailstock quill diameter
32 [mm]
Orientable table
Yes
Max. load between centers
20 [Kg]
Supply voltage
400 [V]
Total power required
8 [kVA]
Dimensions
2350 x 1500
Weight
1900 [Kg]

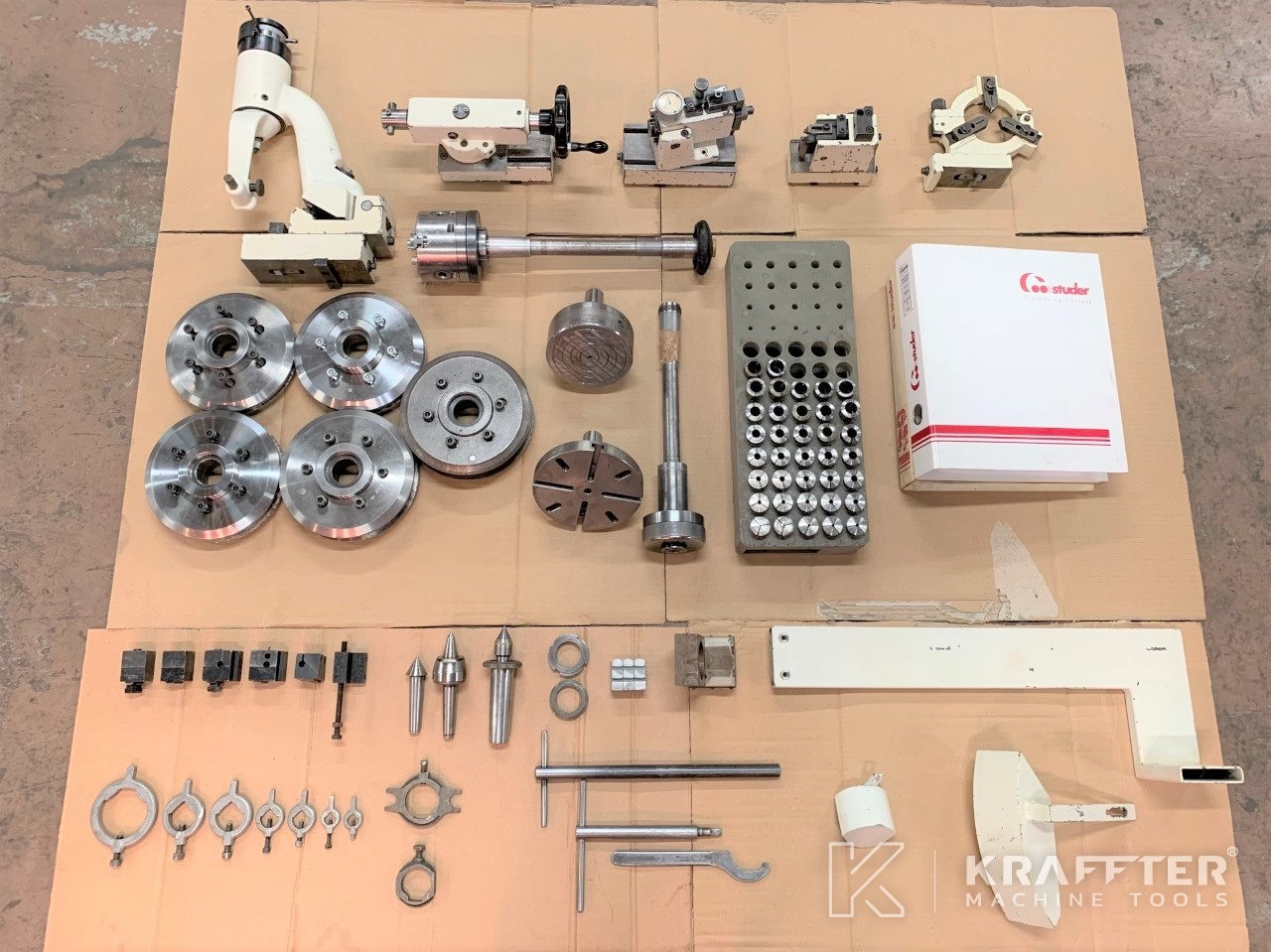

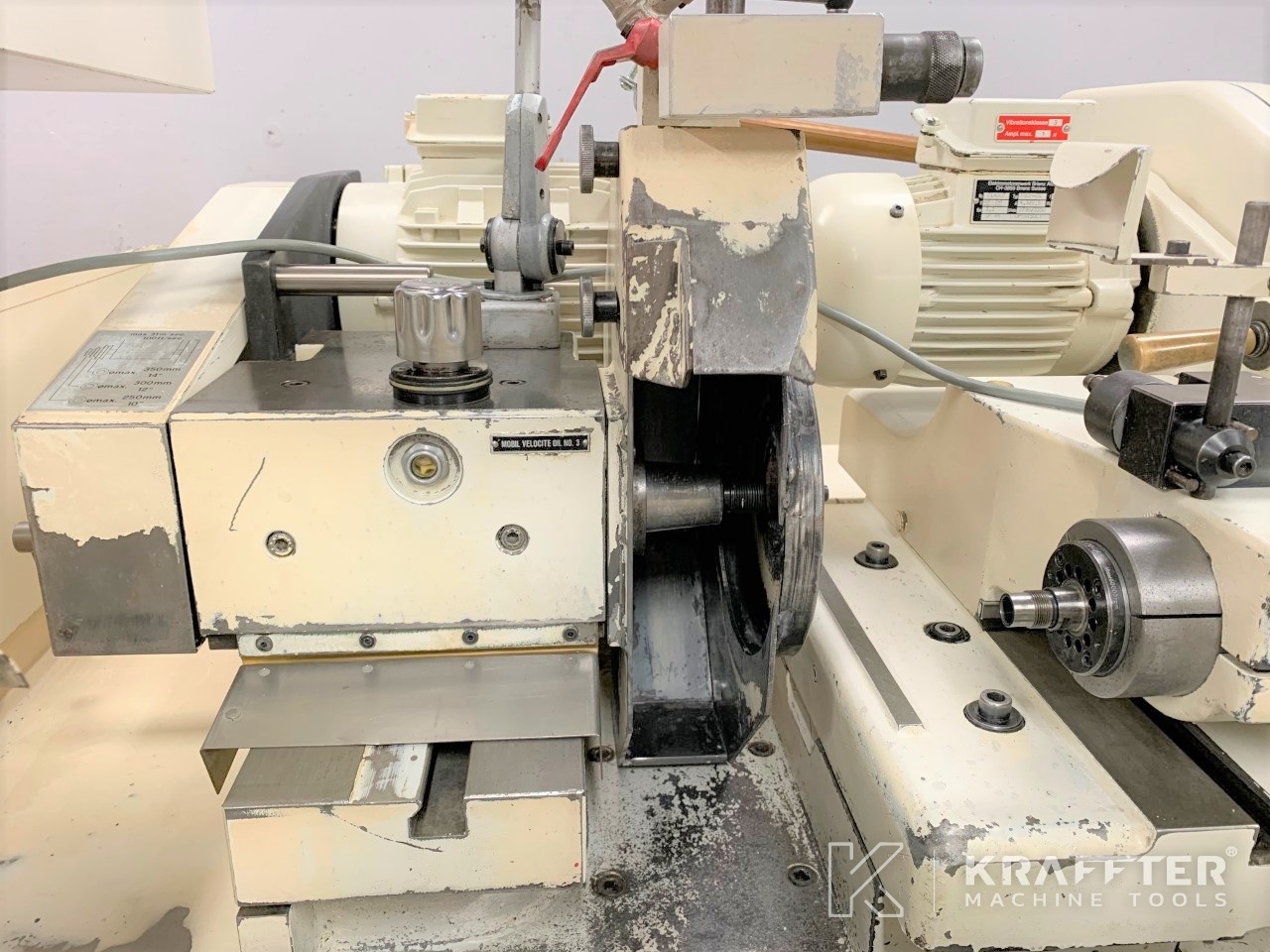

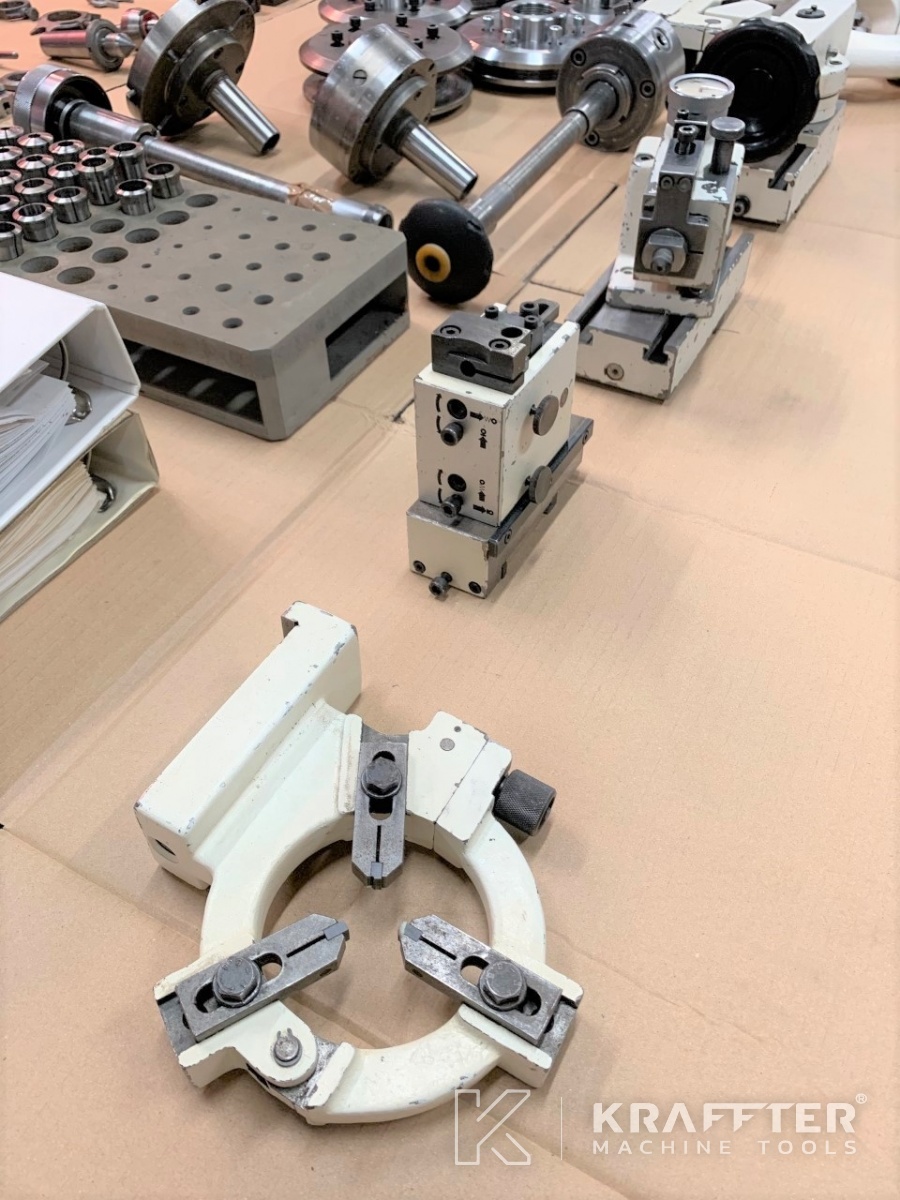

- 1 x internal grinding device

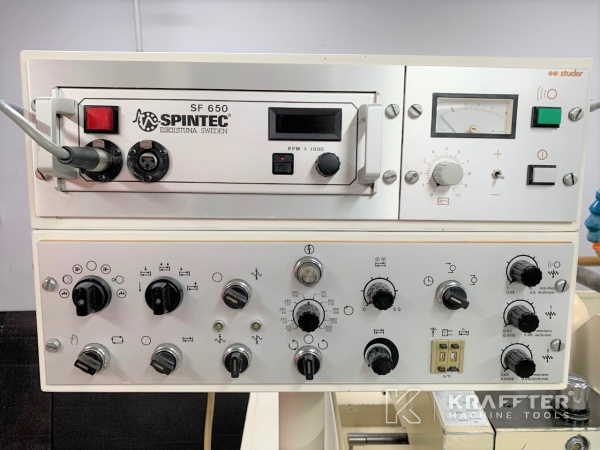

- 1 x high frequency digital internal spindle control unit SPINTEC SF 650
- 1 x inernal spindle 60 000 [rpm]

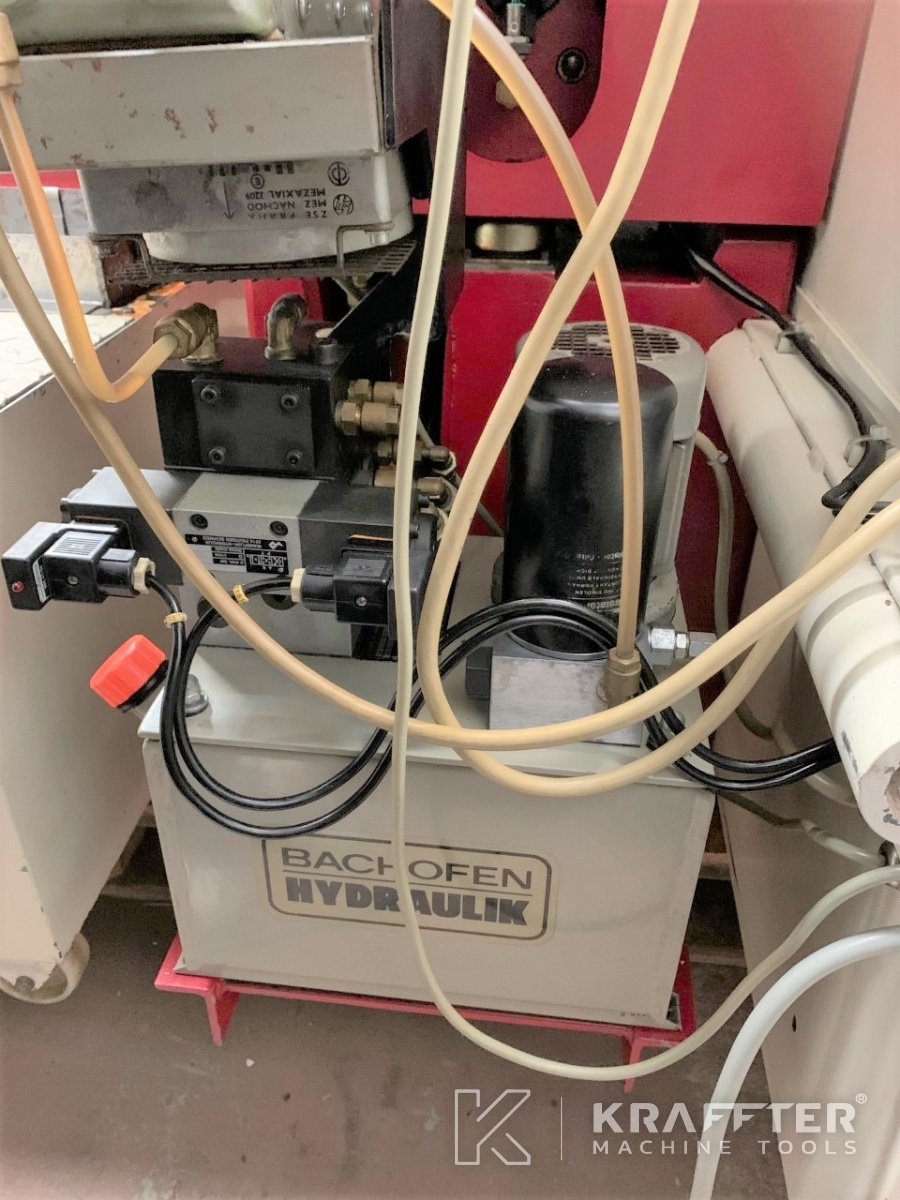

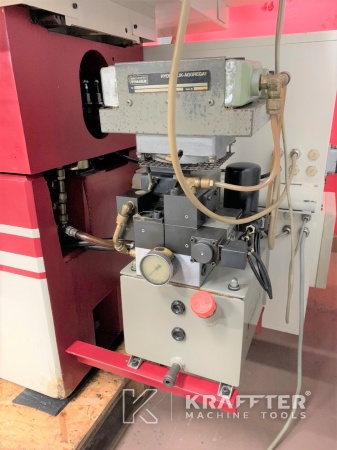

- 1 x lubrication tank + coolant pump
- 1 x tailstock with fine cone adjustment

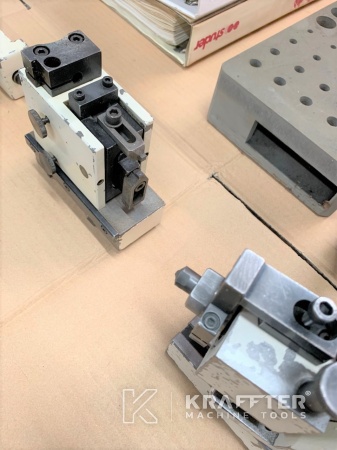

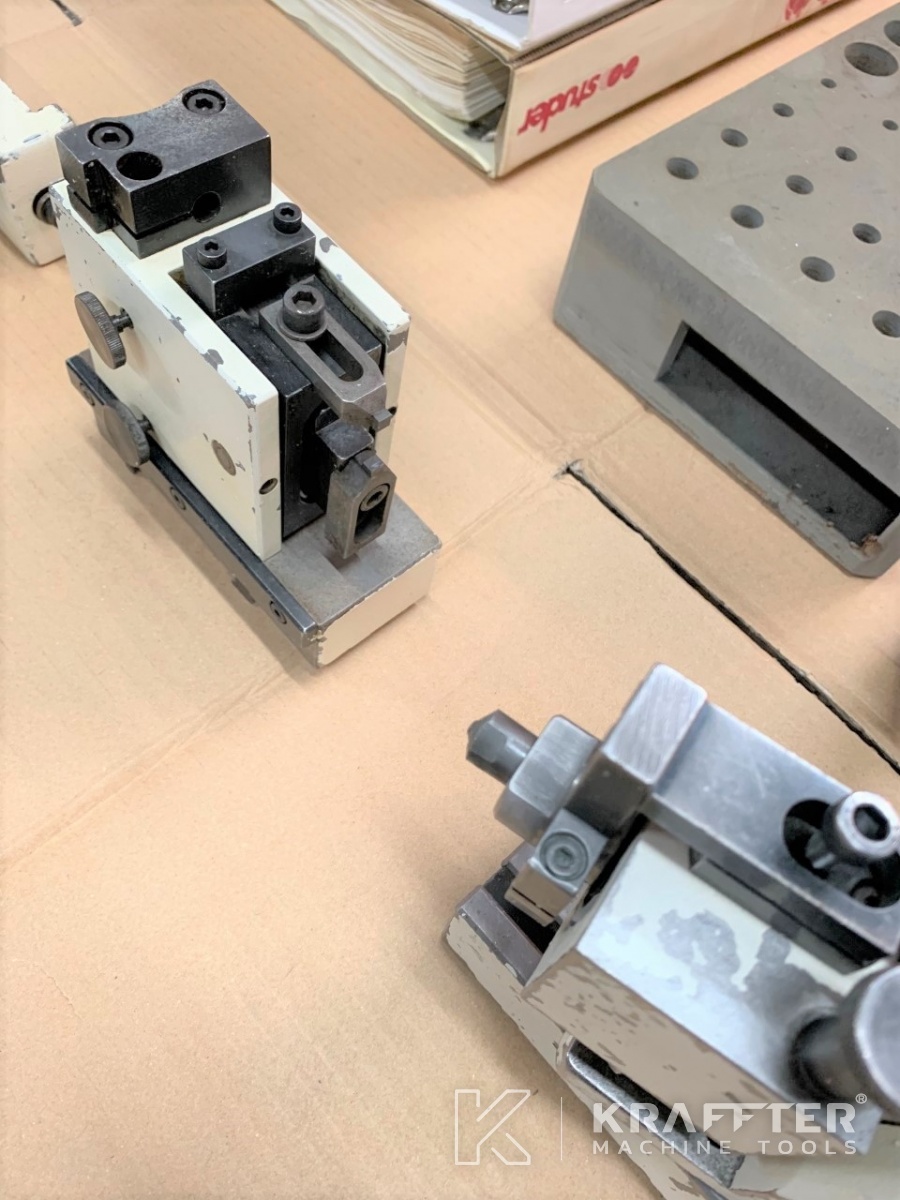

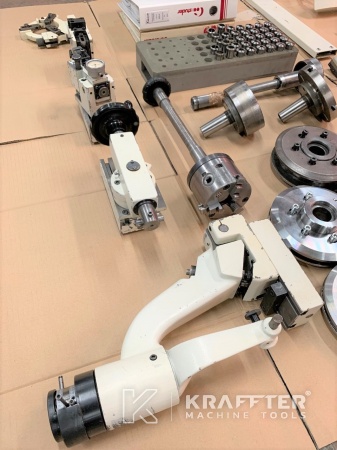

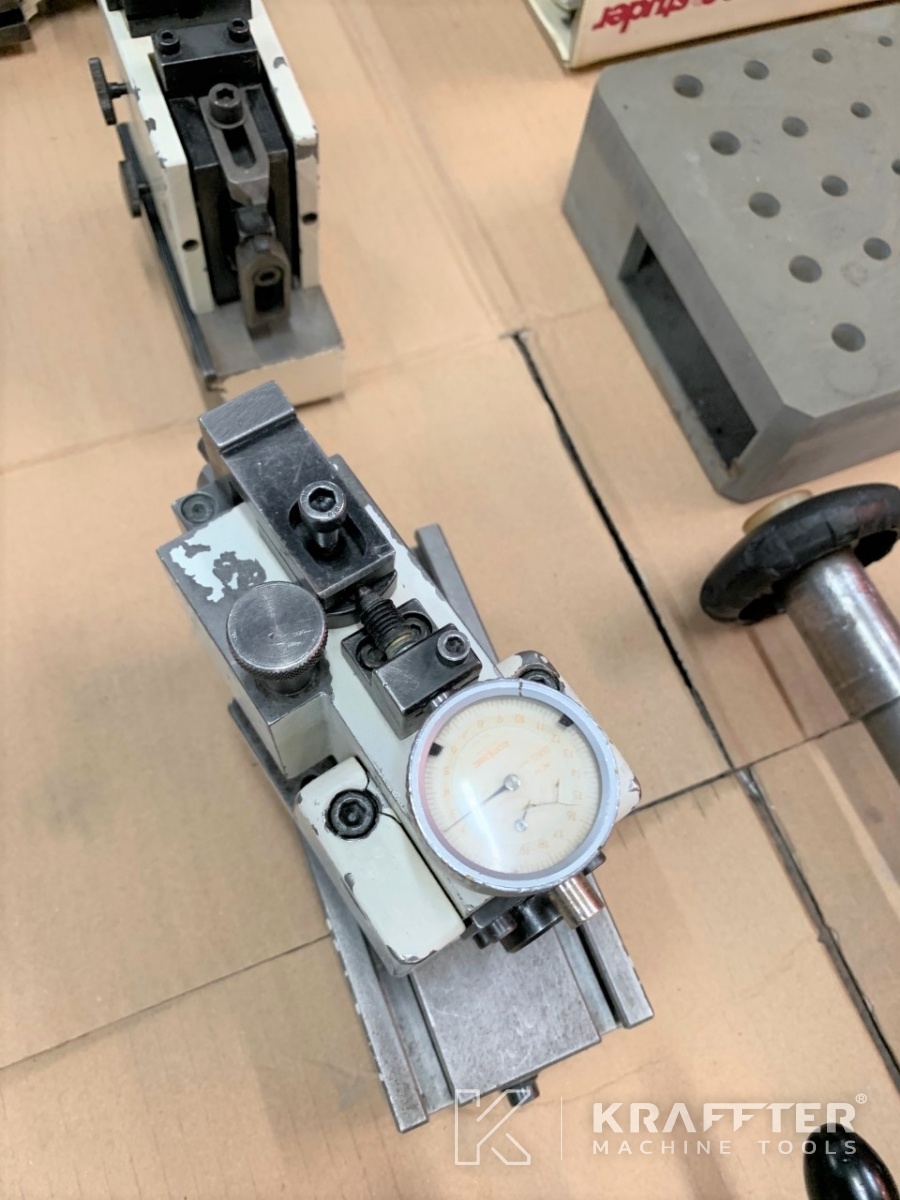

- 1 x swivelling dressing attachment attachable to workpiece table
- 1 x thin adjustment orientation of fake table with micrometer

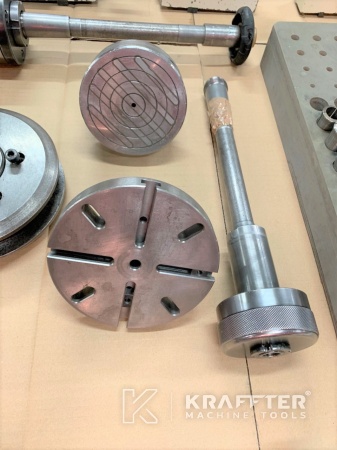

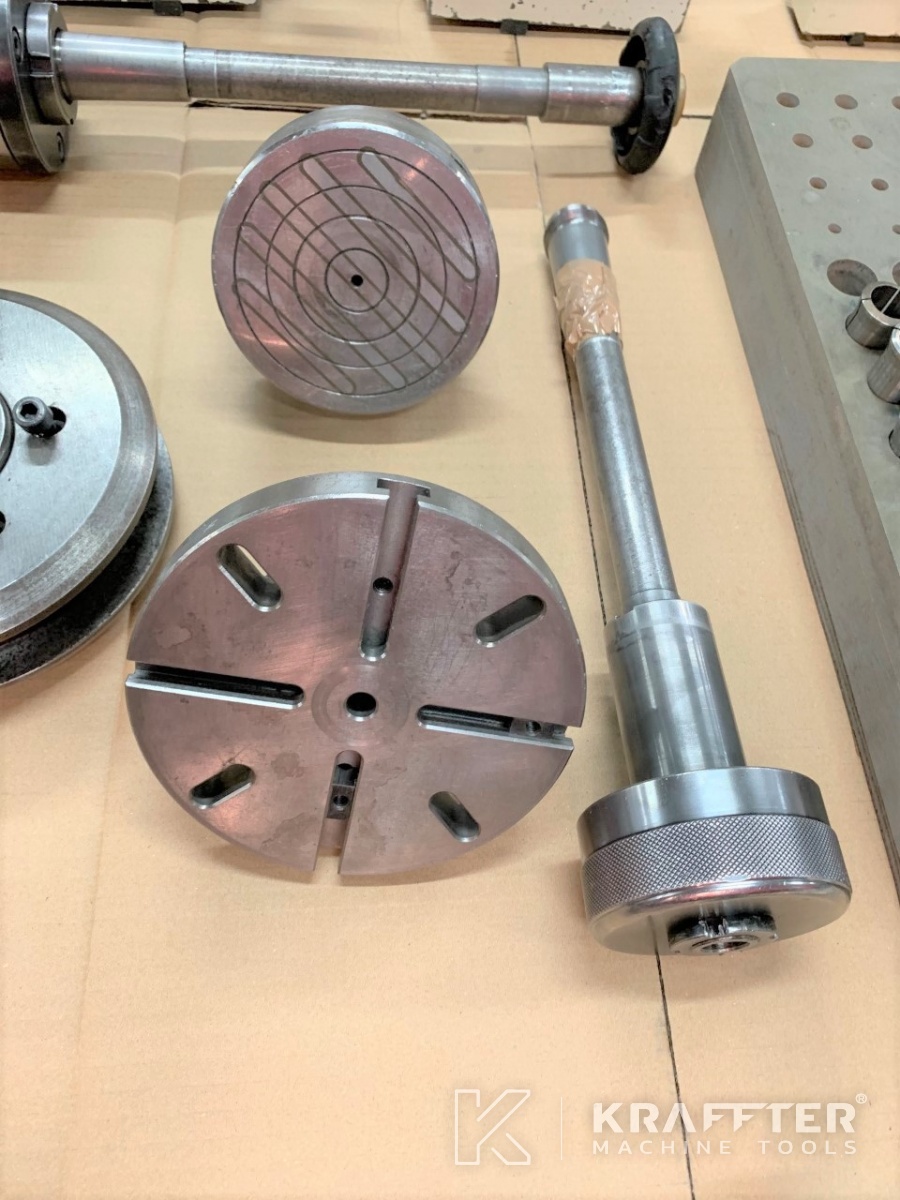

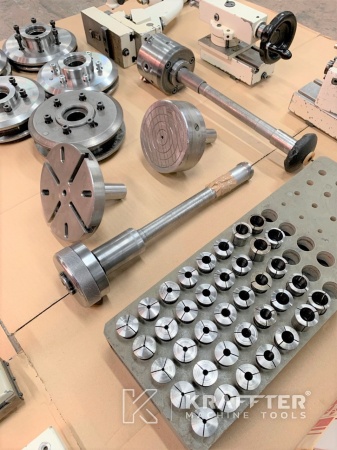

- 1 x magnetic chuck Ø120 [mm]

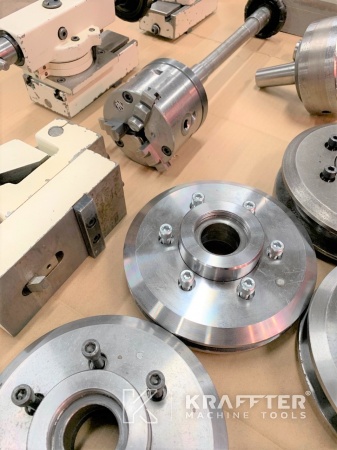

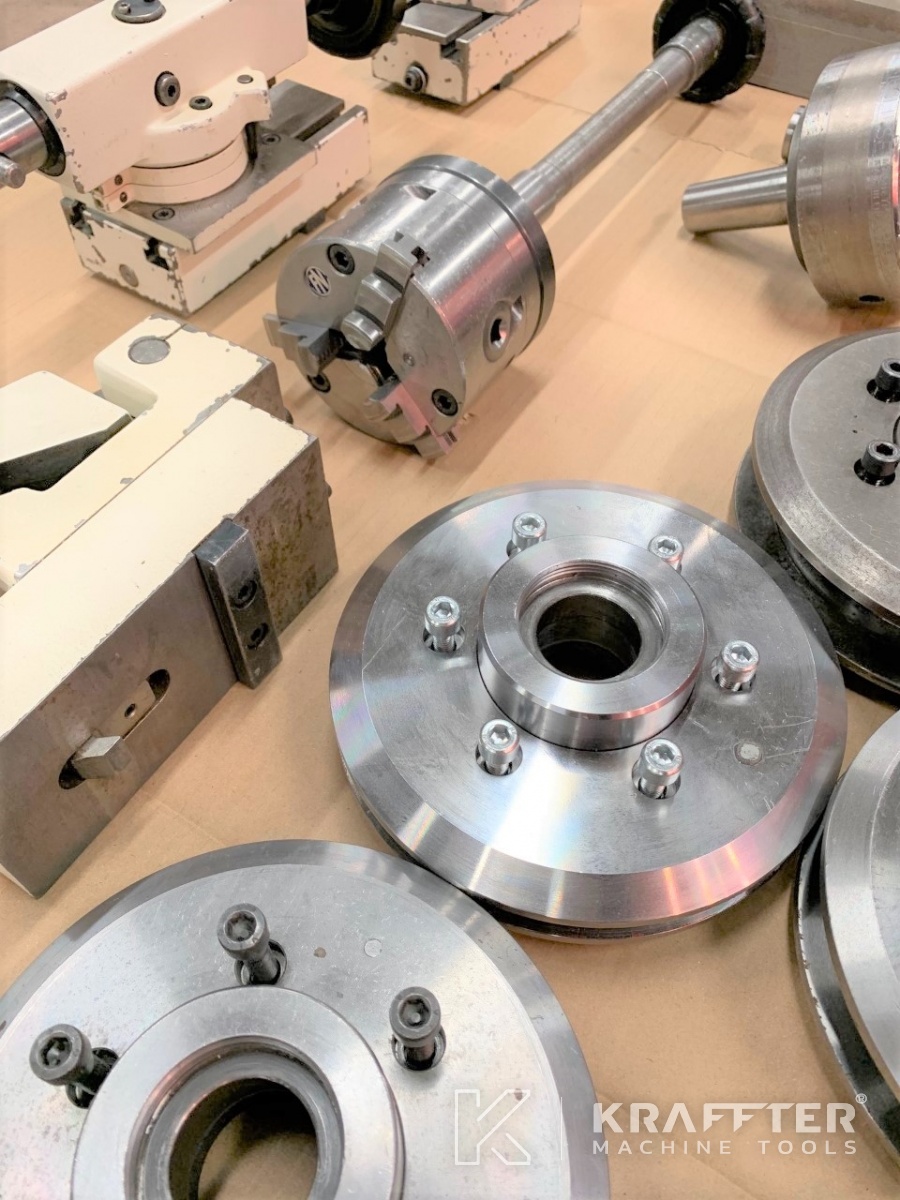

- 1 x manual 3 jaw chuck Ø 100 [mm]
- 1 x face plate Ø150 [mm]
- 1 x three point steady rest closed
- 1 x two point steady rest
- 1 x radius dressing attachment
- 37 x collets W20 type from Ø2.00 to 20.00 [mm]
- 11 x driving carriers
- 1 x guard for chuck
- 5 x grinding wheel holders
- 1 x lighting device
- 3 x machine feet pads

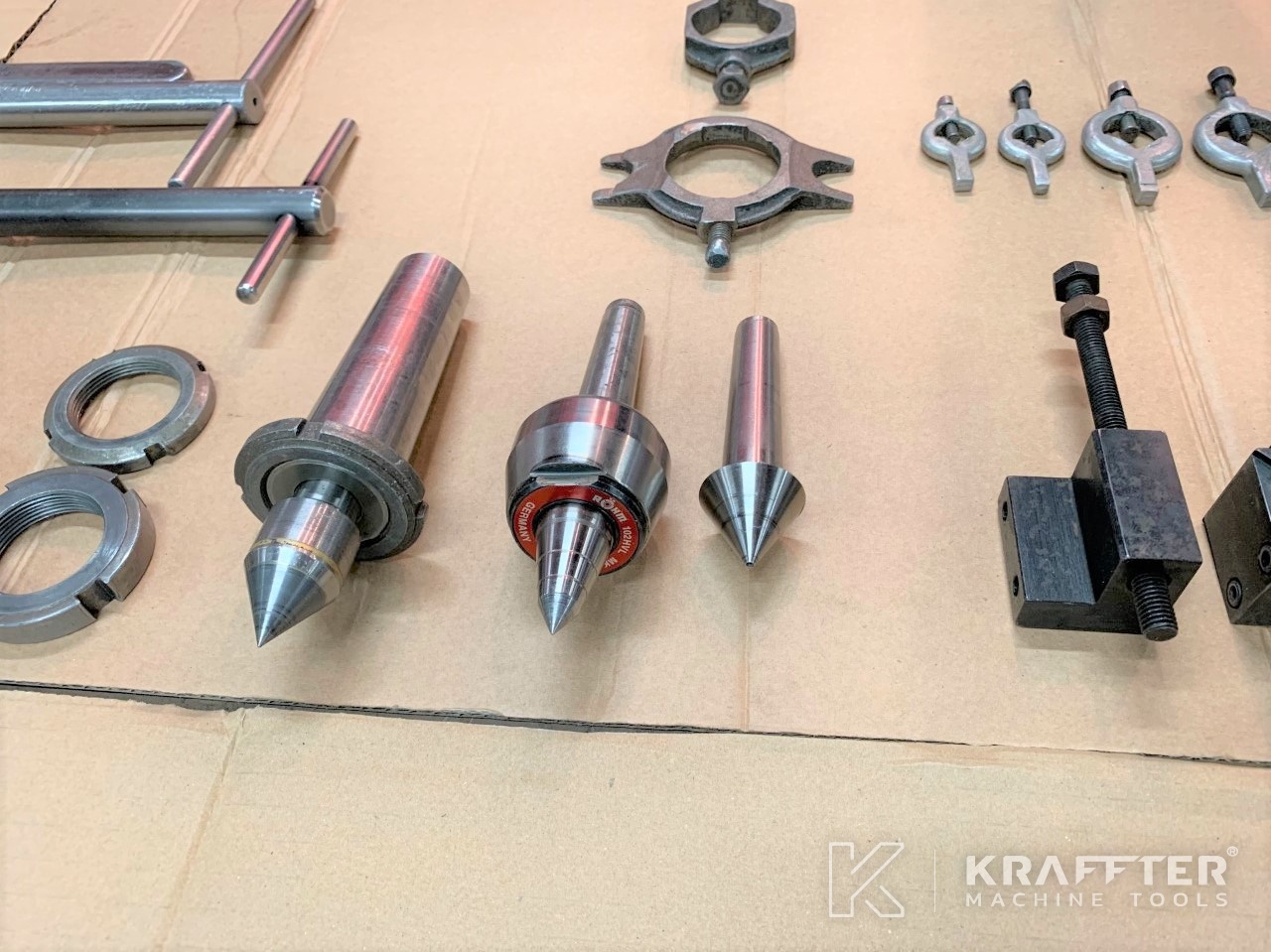

- Various accessories : blunt center, half center, full center, service keys …
- Technical and users original books (in Englsih, German and French)
- Electrical diagram book
