Sold

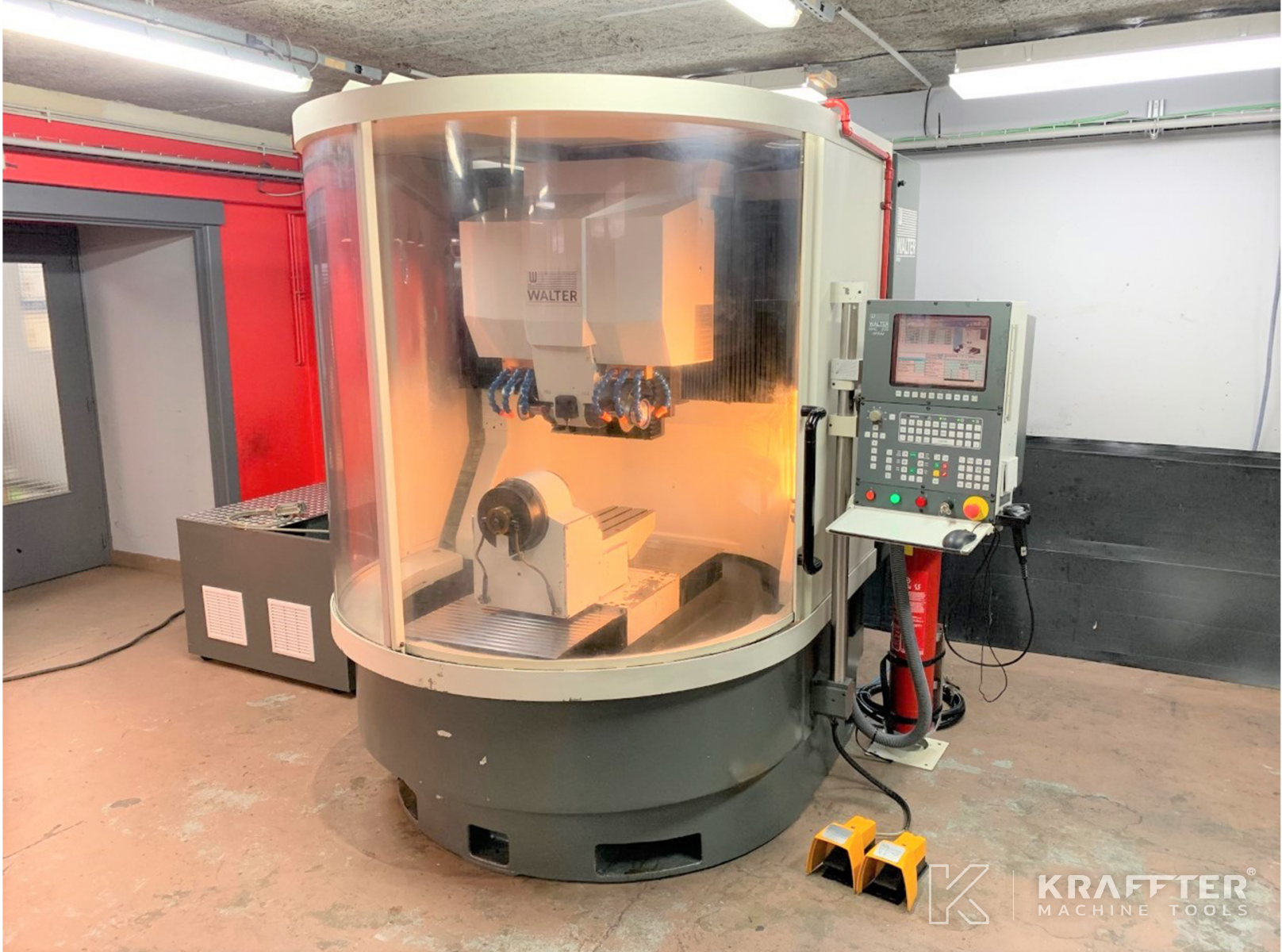

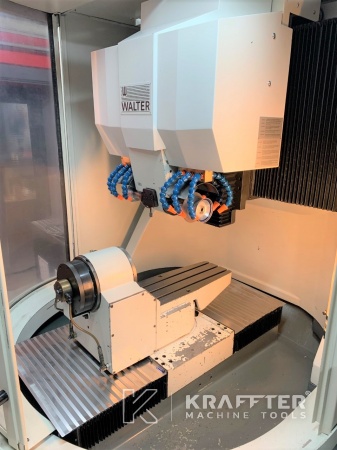

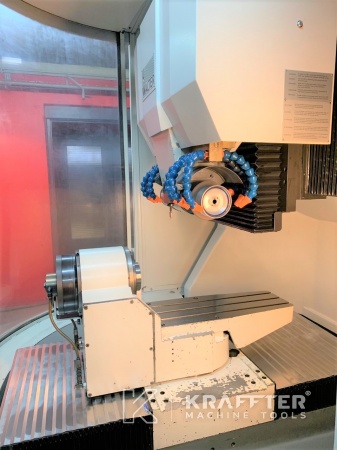

Type of machine : CNC tool grinding machine
Brand : WALTER
Stock N° : 20689-969

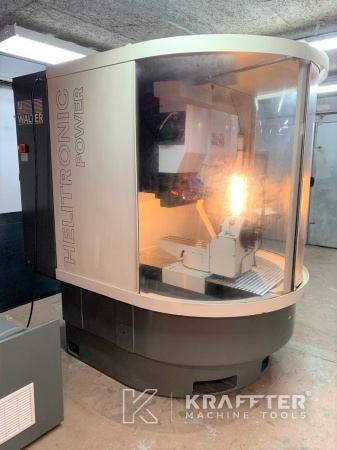

Model : Helitronic Power
Year : 1998
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

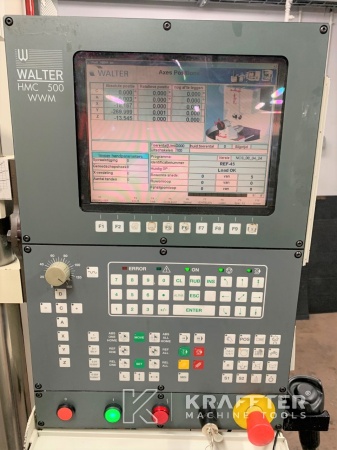

CNC control
HMC 500
Number of axes
5
Stroke X axis
490 [mm]
Stroke Y axis
320 [mm]
Stroke Z axis
660 [mm]

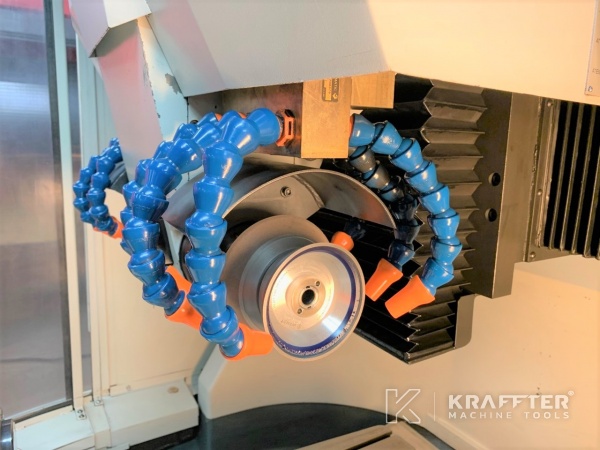

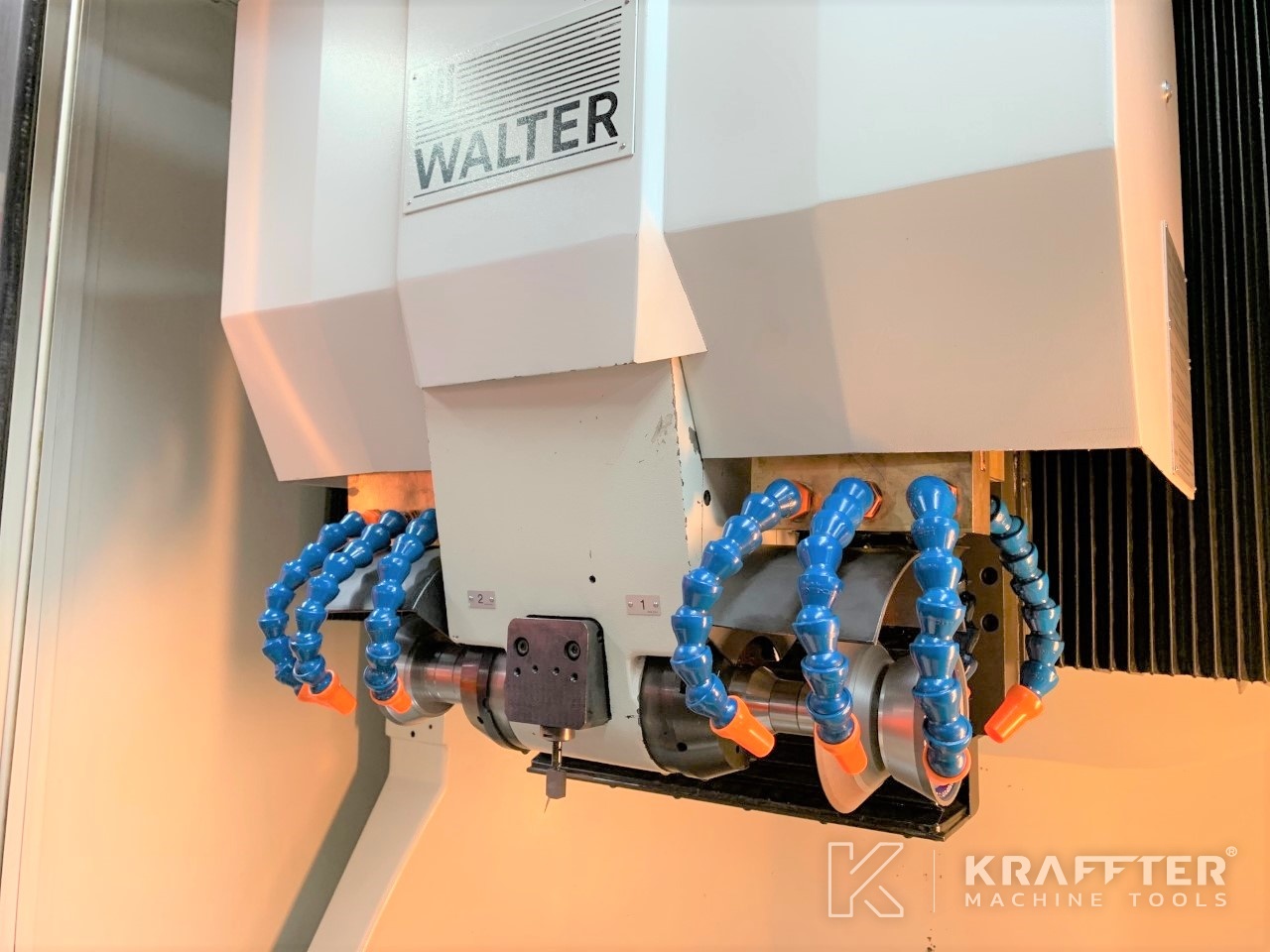

Grinding spindle motor power
7 [kW]
Grinding wheel diameter
150 [mm]

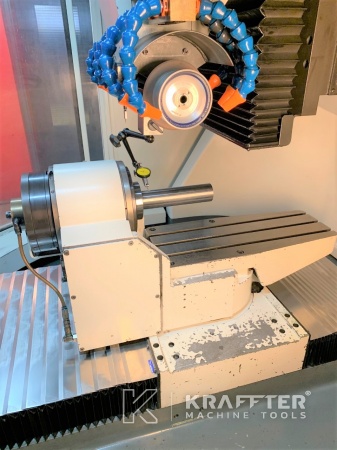

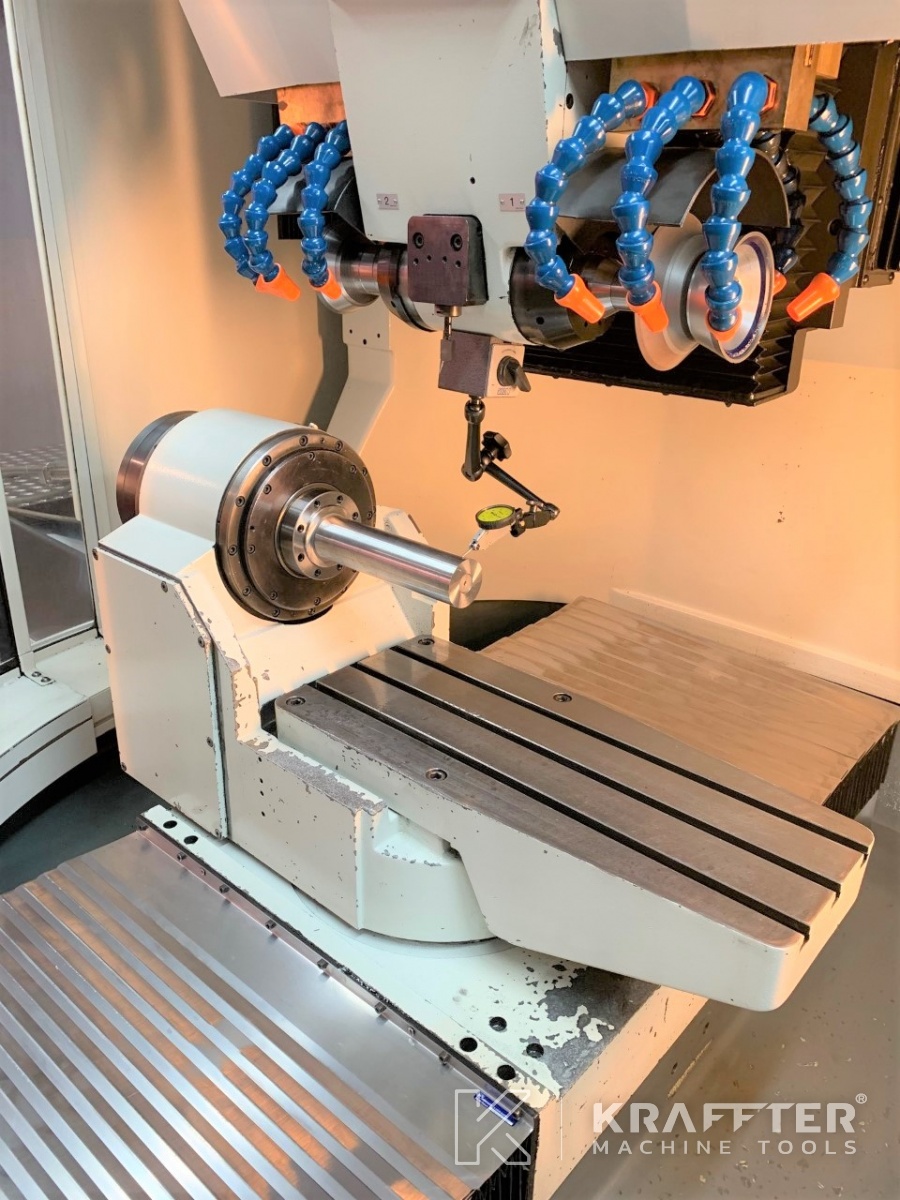

Workpiece spindle nose
ISO 50
Part probe
RENISHAW M18
Lubrication tank with pump
Yes
Lubrication tank capacity
350 [l]
Paper filtration unit
Yes
Centralized lubrication
Automatique

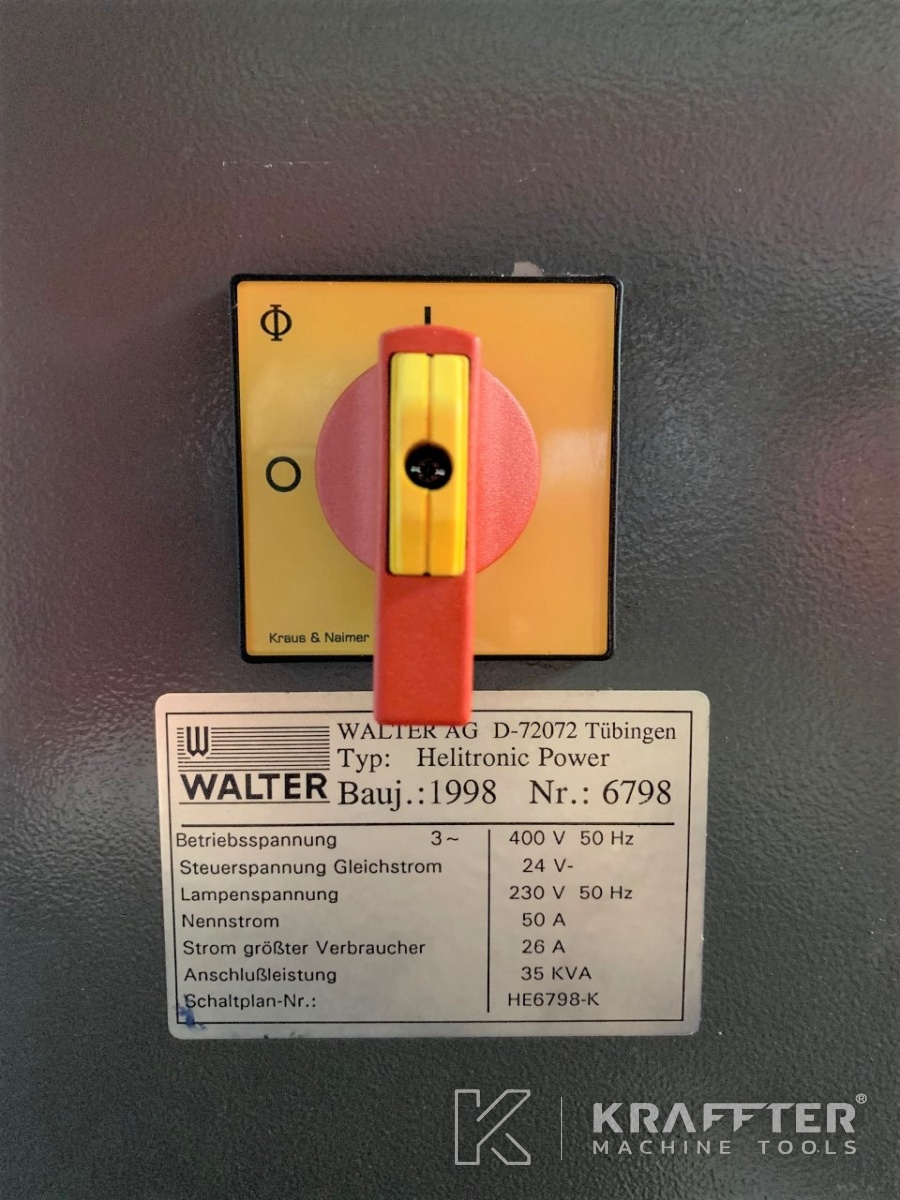

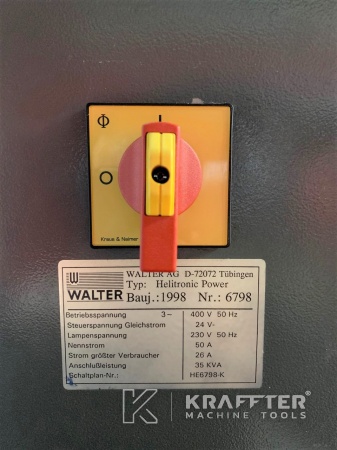

Supply voltage
400 [V]
Total power required
25 [kVA]
Dimensions
2600 x 2550 x 2300
Weight
4450 [Kg]

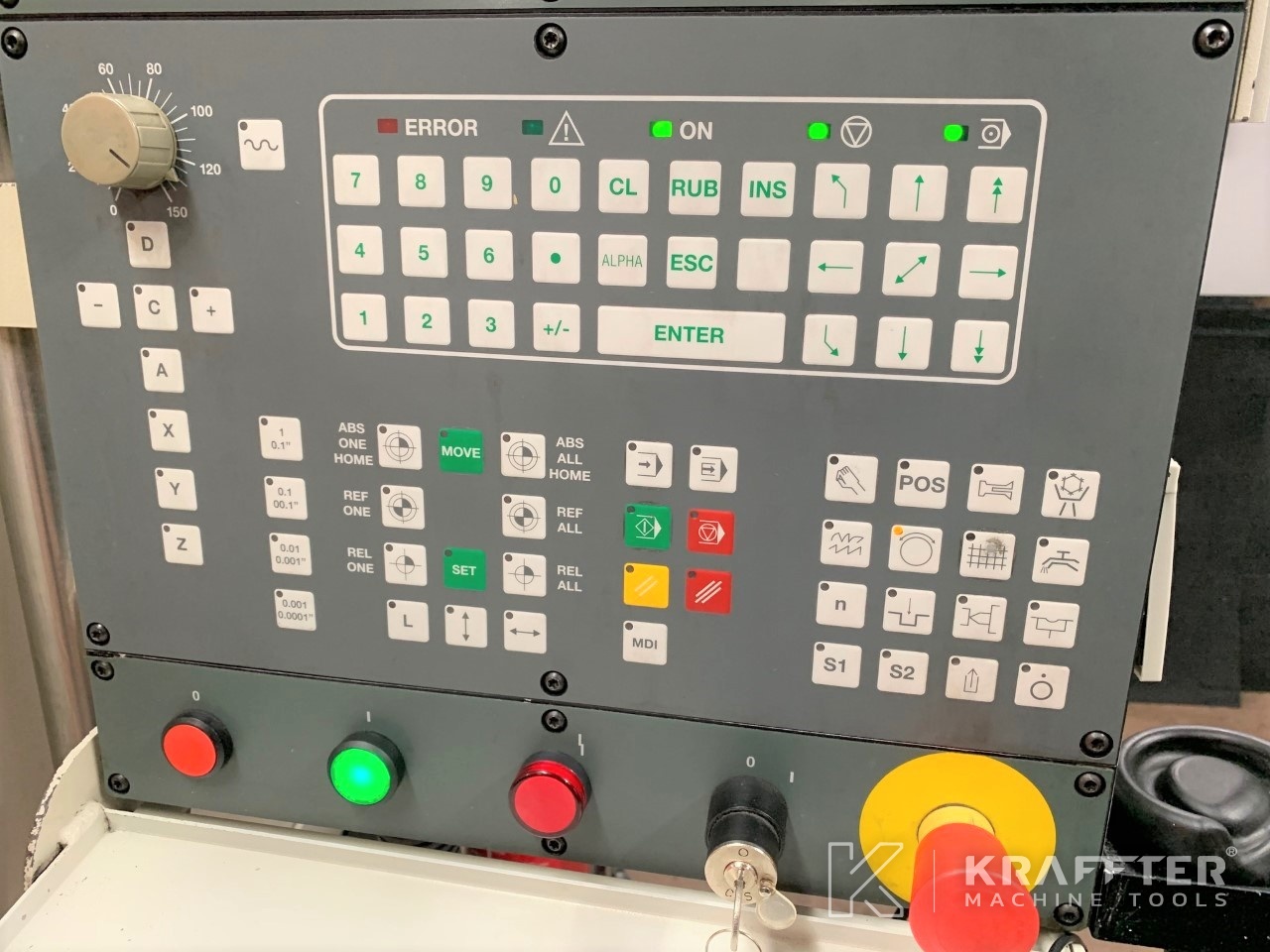

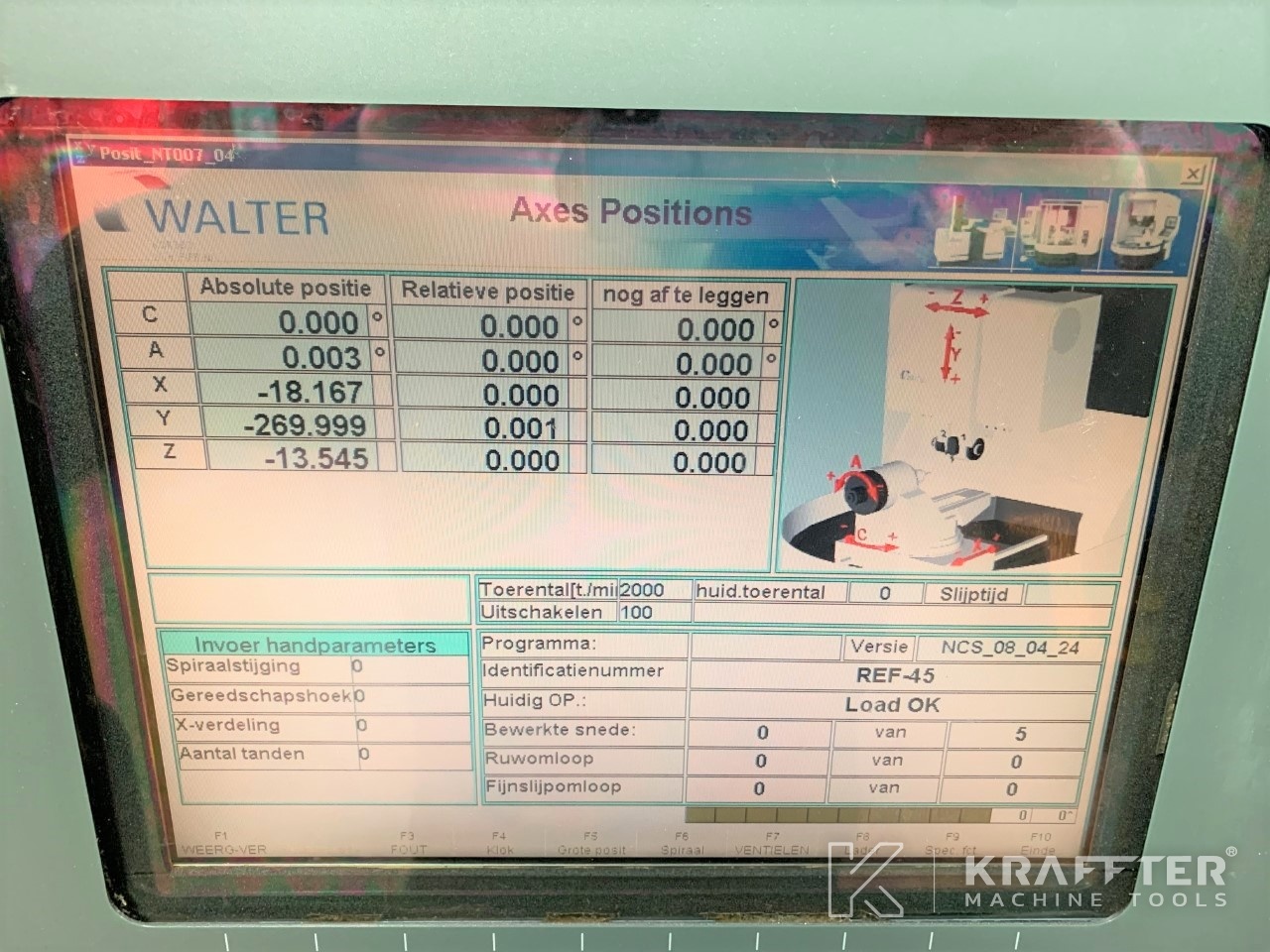

- Control HMC 500 XP – overhauled in 2017 by WALTER in WINDOWS XP
- Software package WALTER WINDOW MODE
- Software package 1 (cylindrical milling cutters),
- Software package 2 (conical spiral milling cutters),
- Software package 3 (drills and step drills),
- Software package 4 (step tools) ,
- Software package 6 (wood milling cutter),
- Software package 8 (thread tapper cutter),
- Software package 13 (reamer),
- Software package 16 (warm-up program),
- Software HeliDrill (flute calculation)

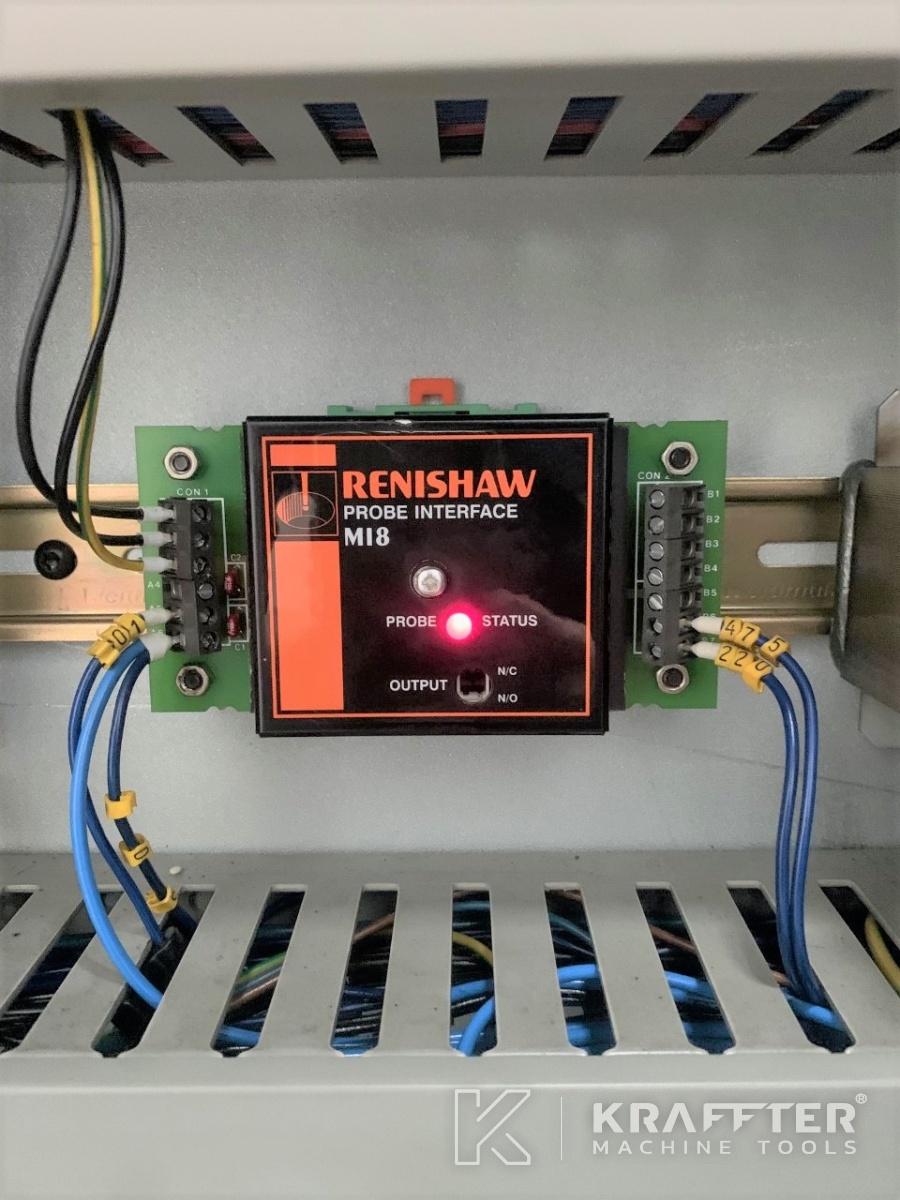

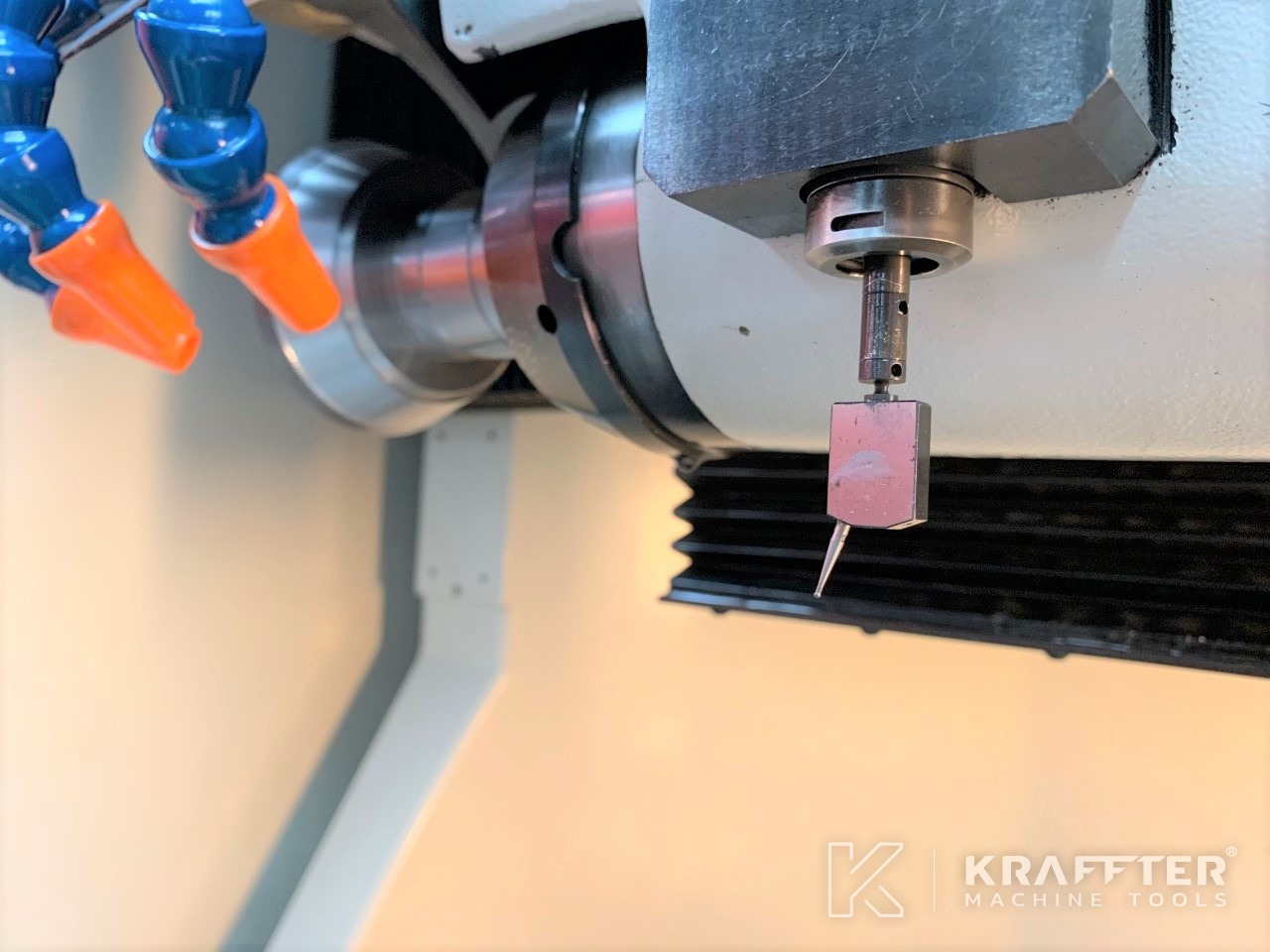

- RENISHAW M18 automatic pobe kit

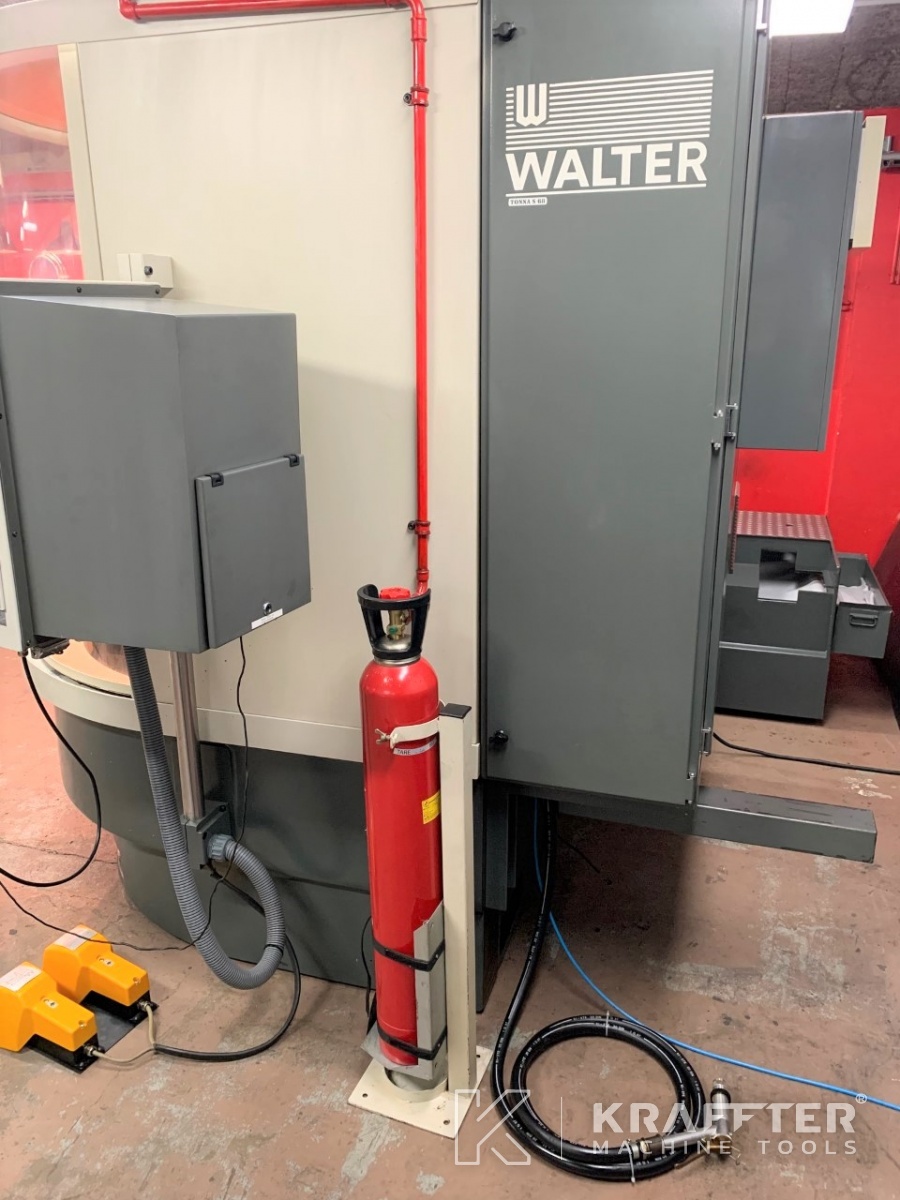

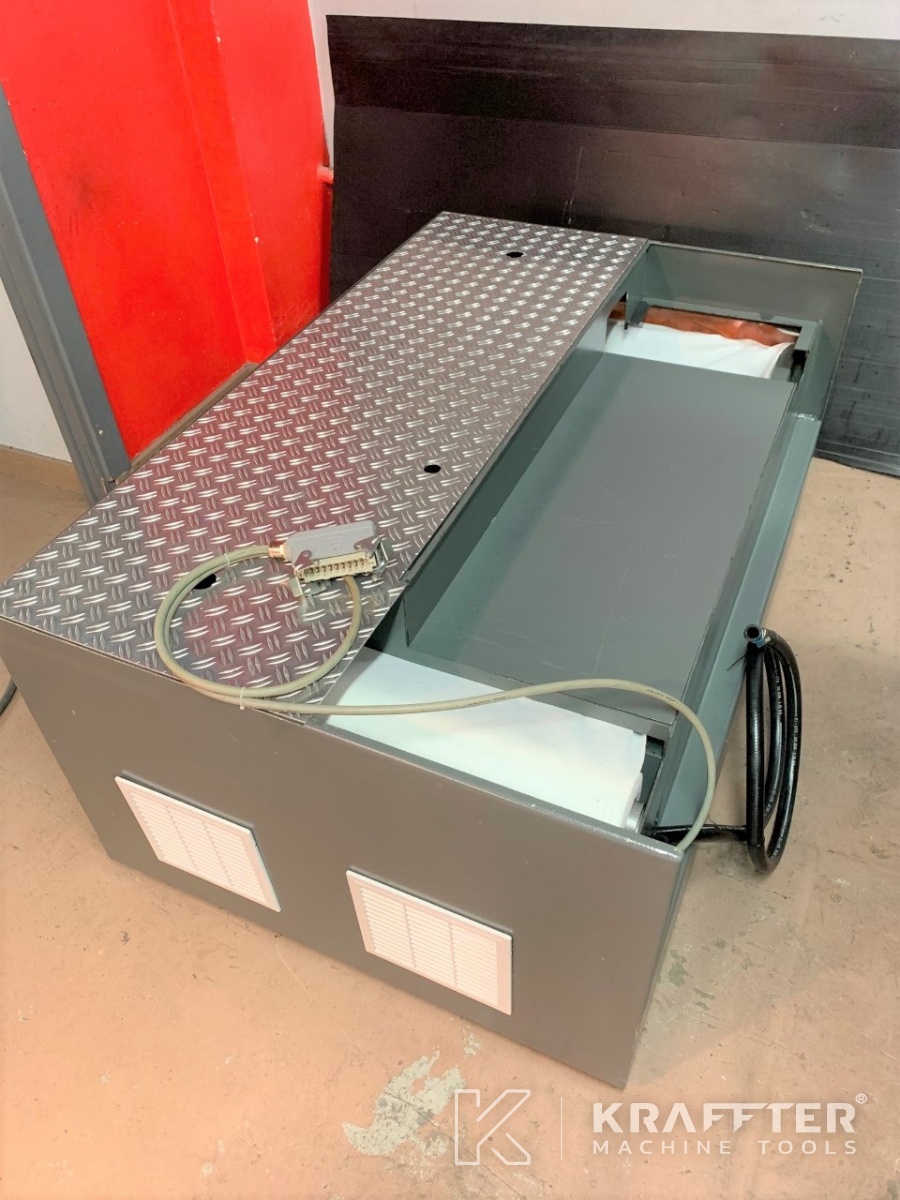

- Electrostatic extractor DSL AES Sigma 20

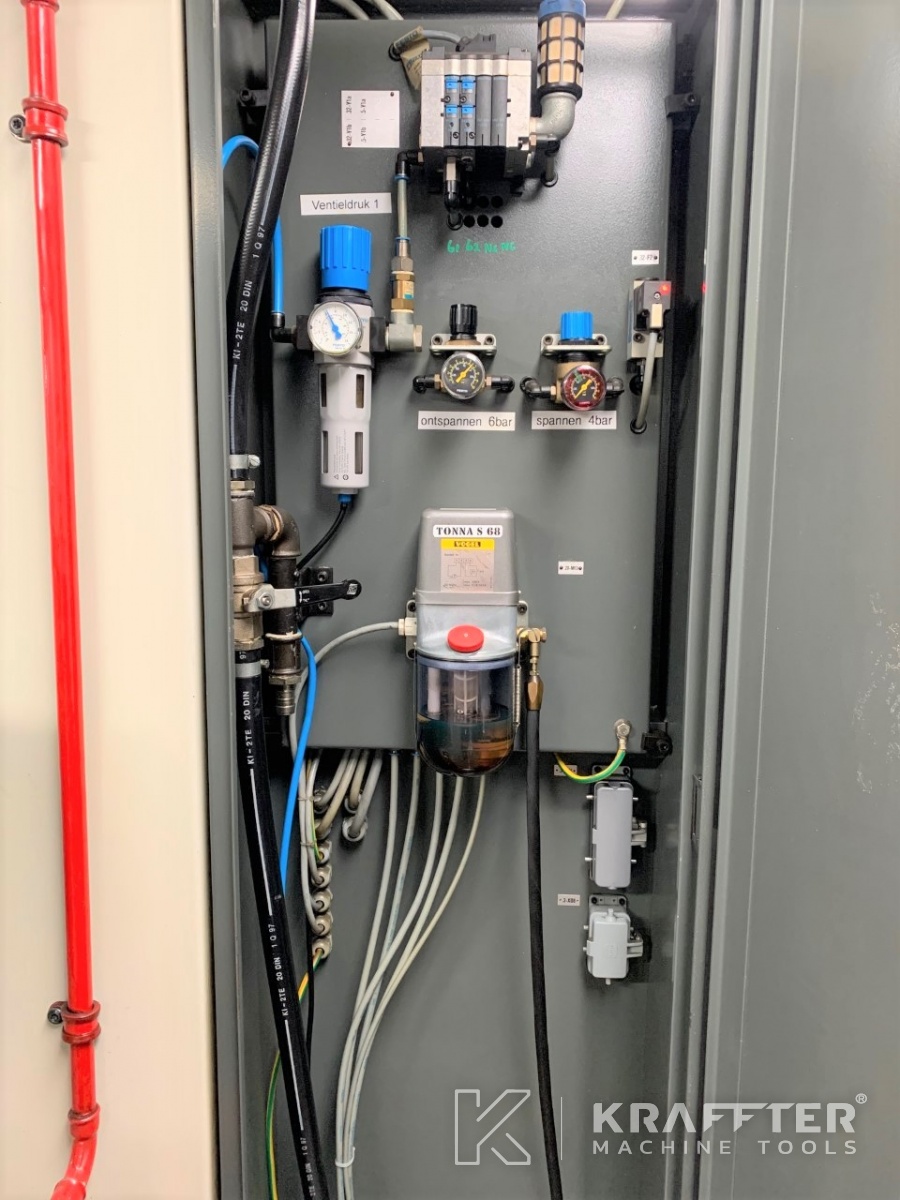

- Pneumatic workpiece clamping
- Automatic central lubrication
- Machine light

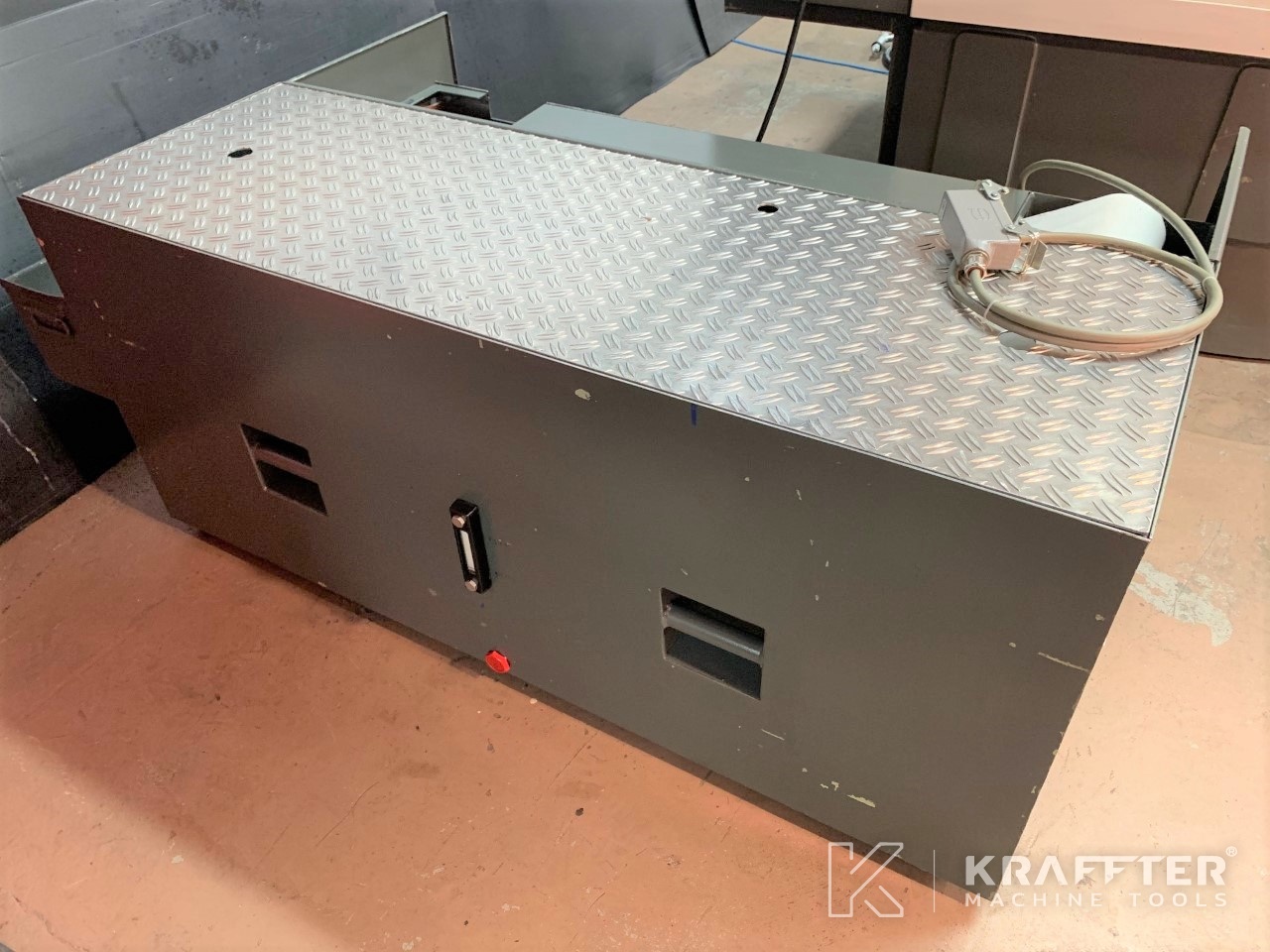

- Belt filter system 350 [l]
- Oil pump GRUNDFOS - pressure : 10 [bars]

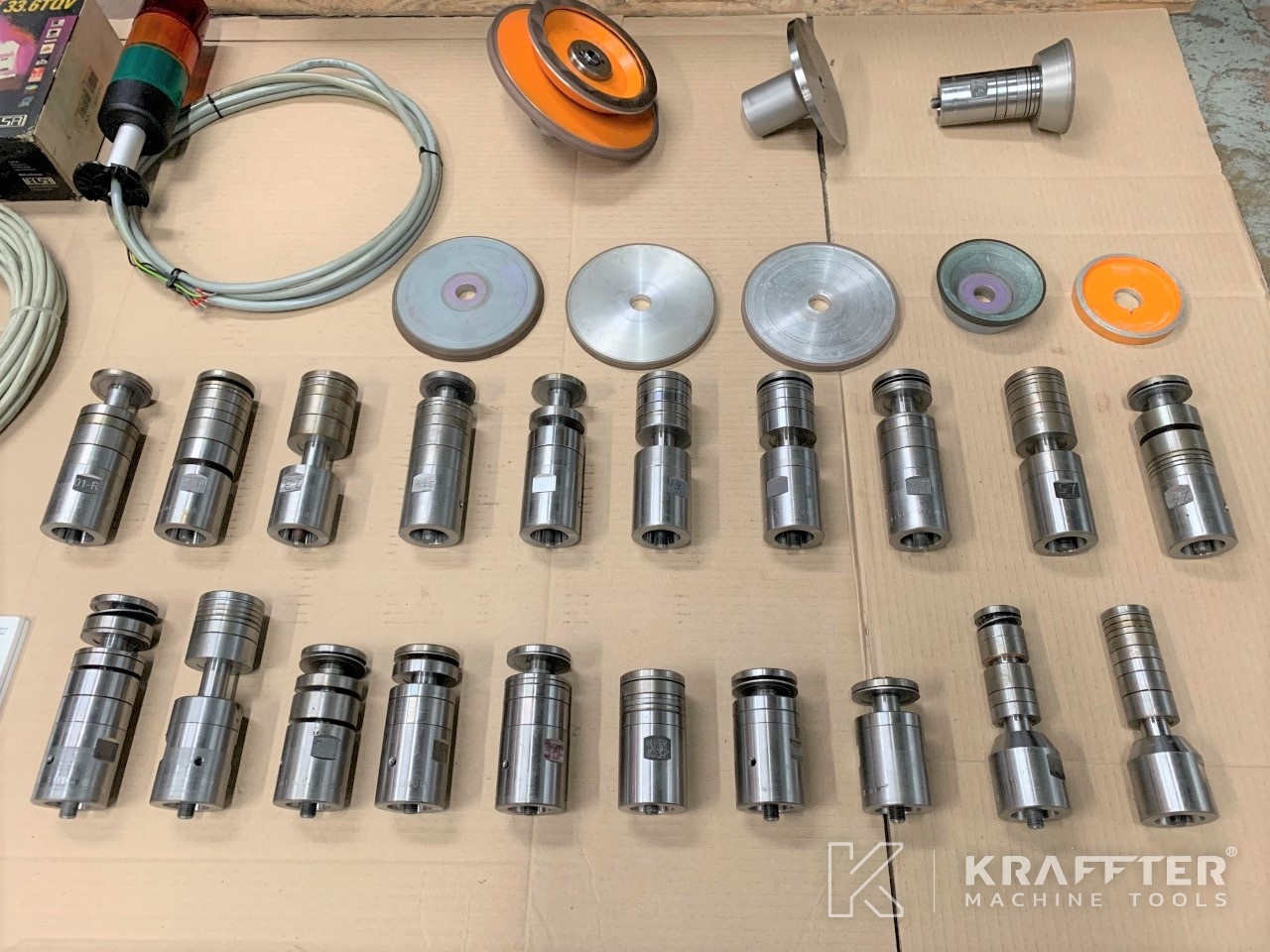

- x 24 grinding wheel holders

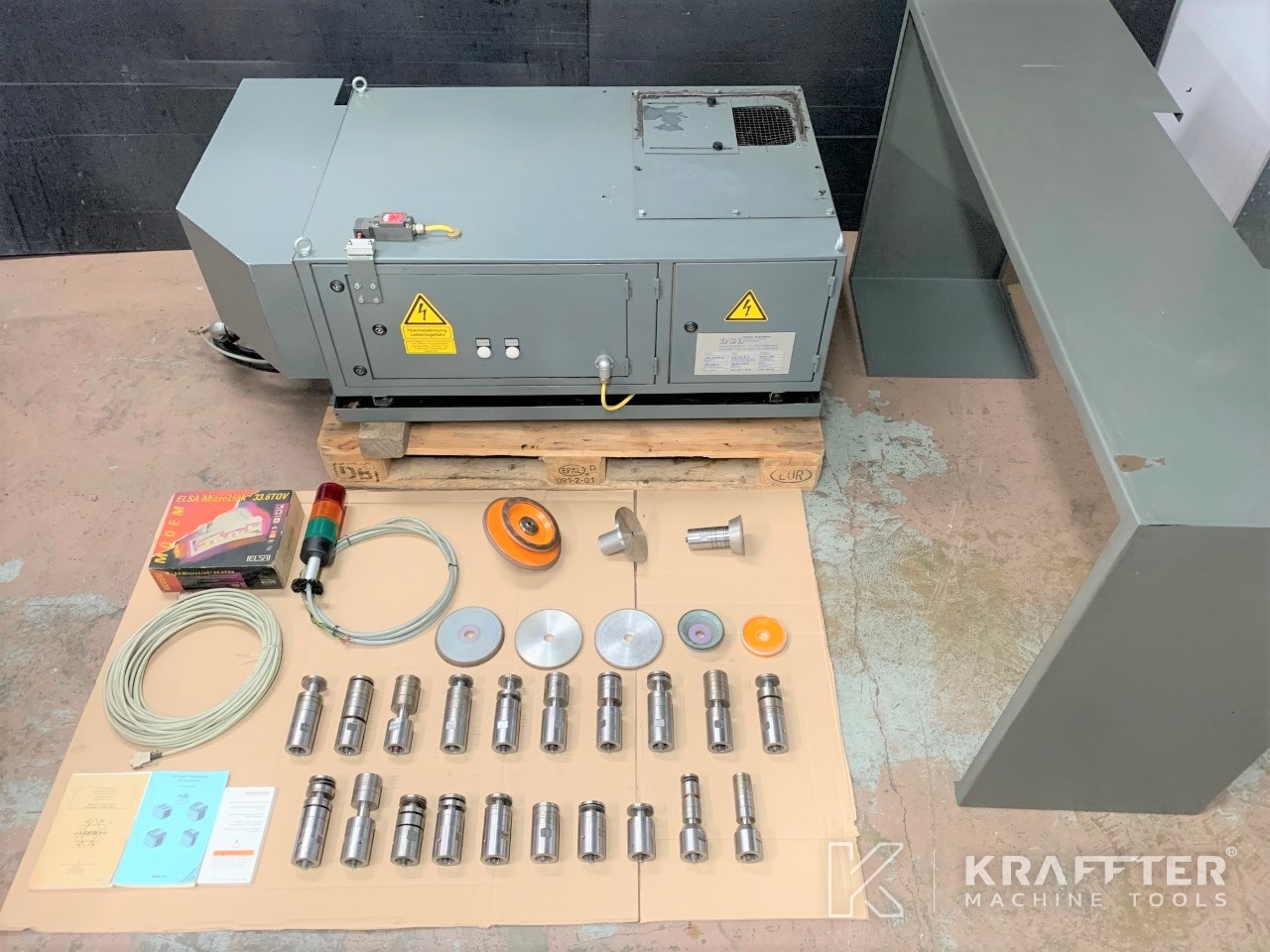

- Various equipment (present in pictures)
