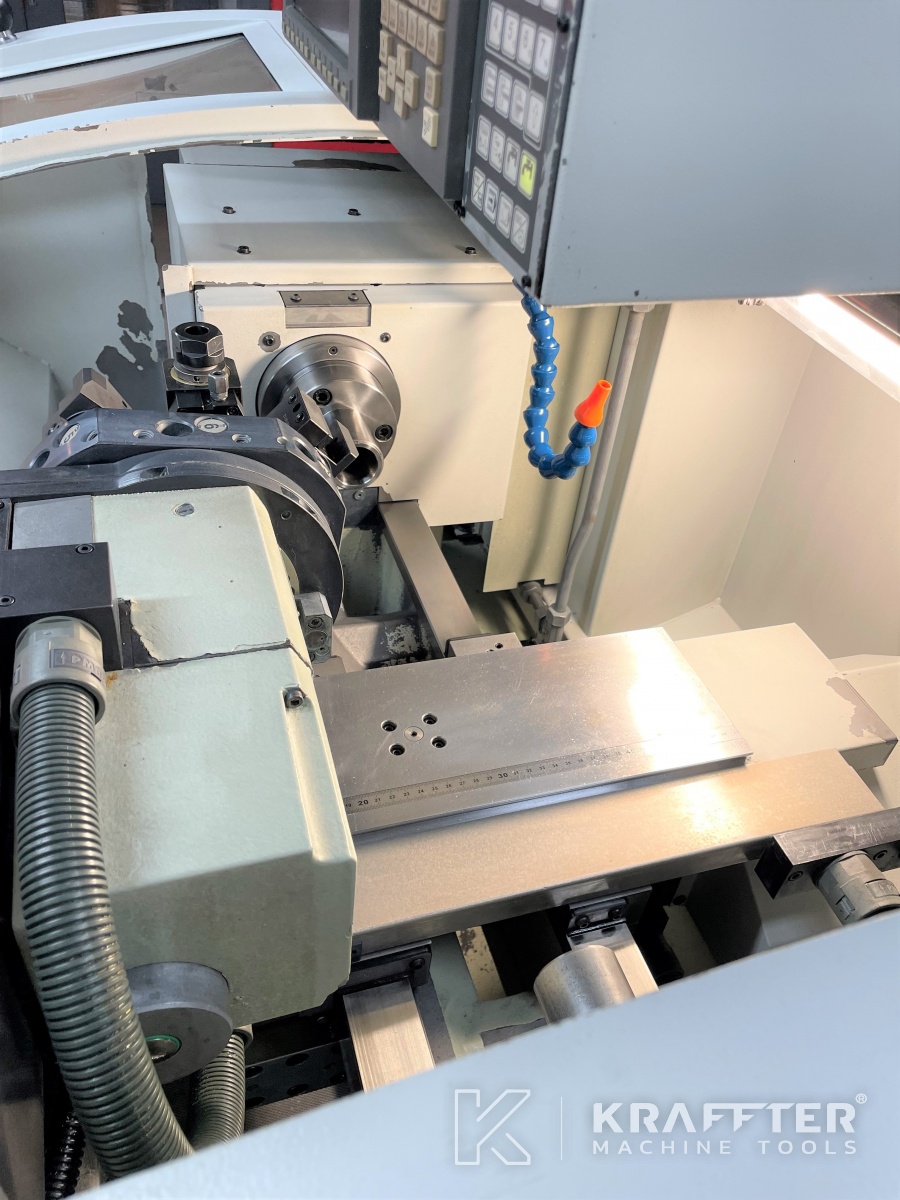

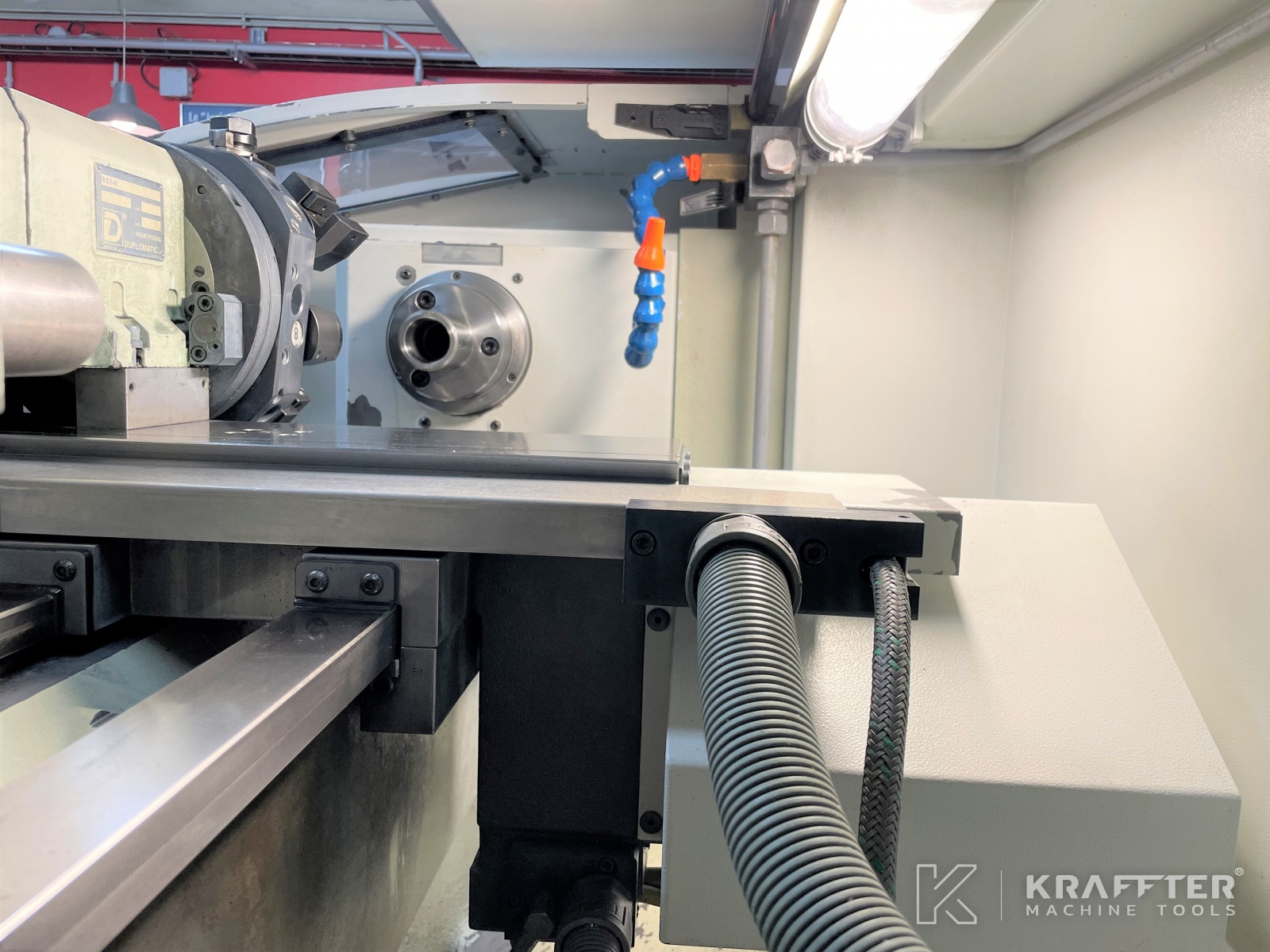

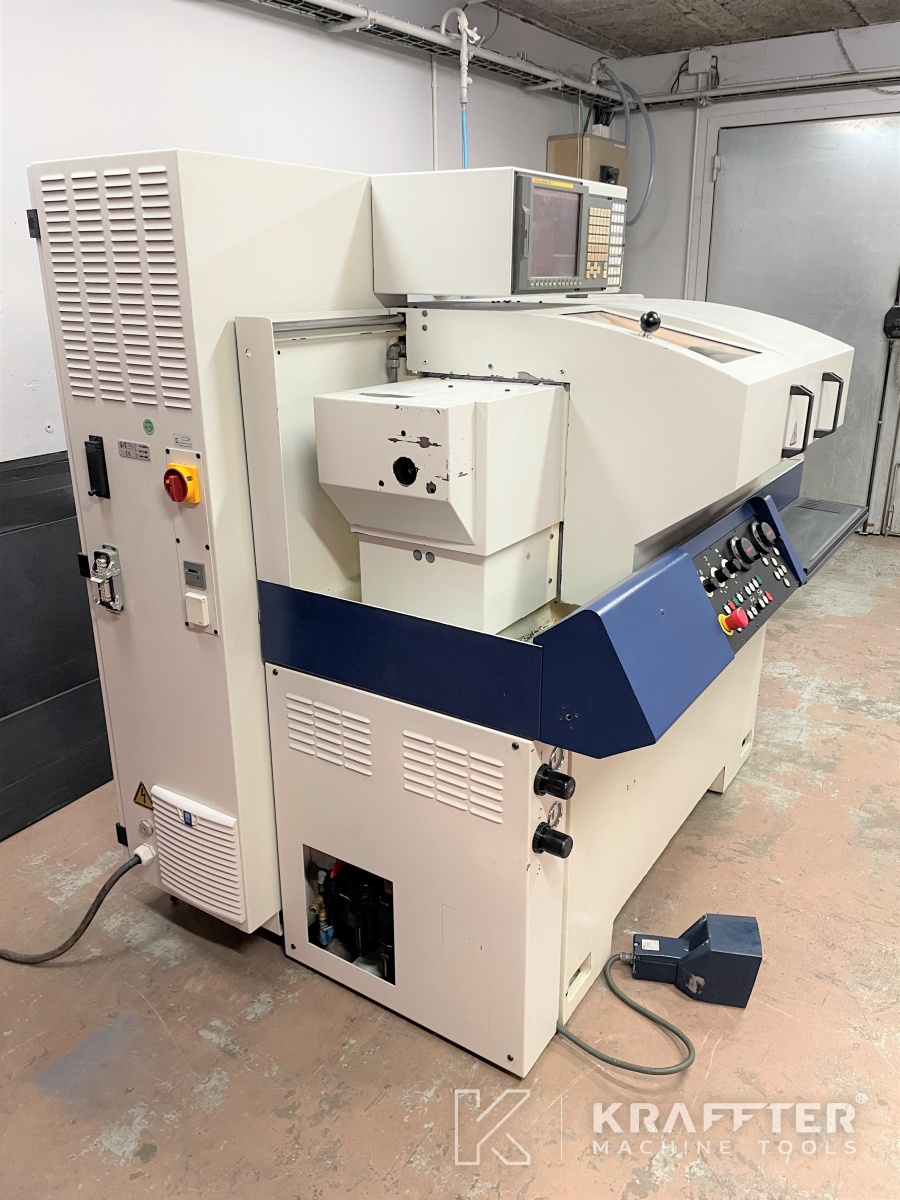

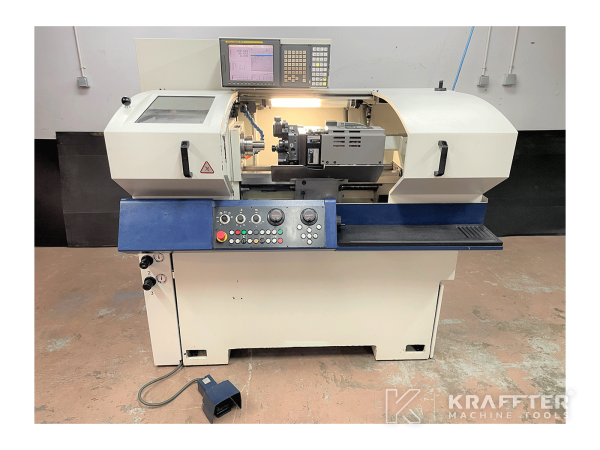

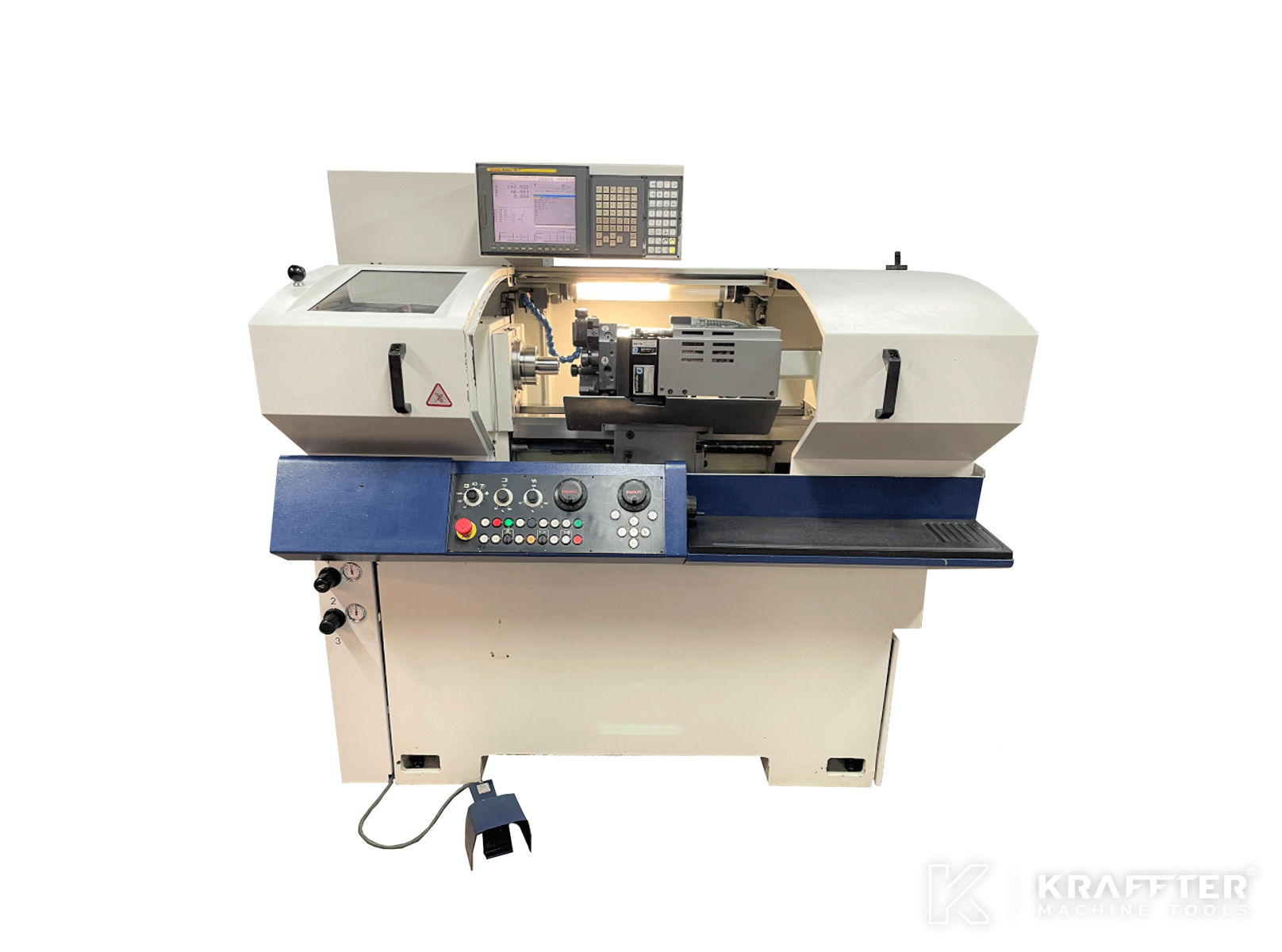

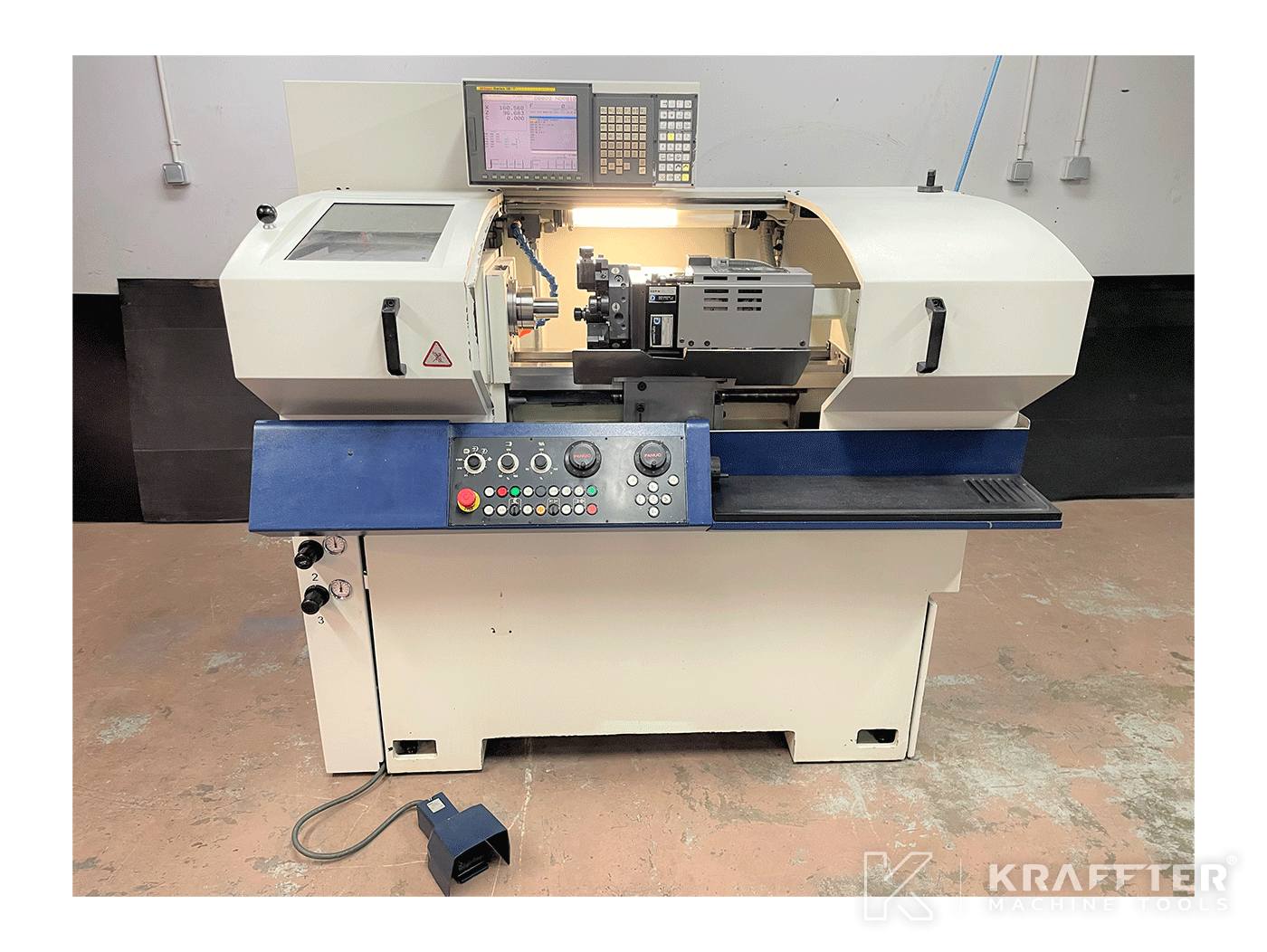

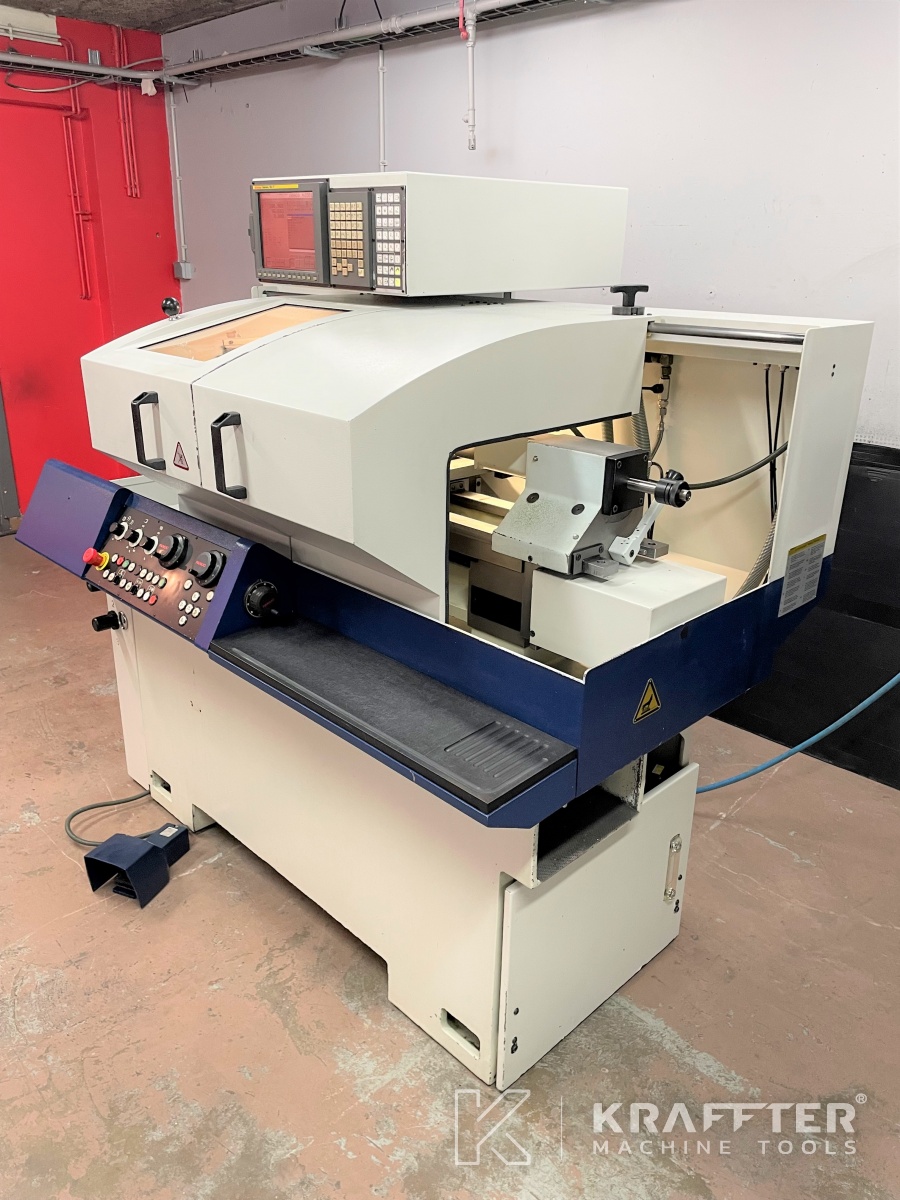

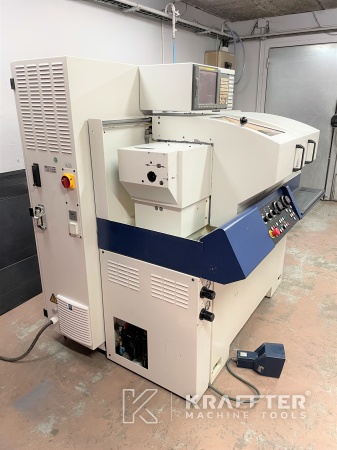

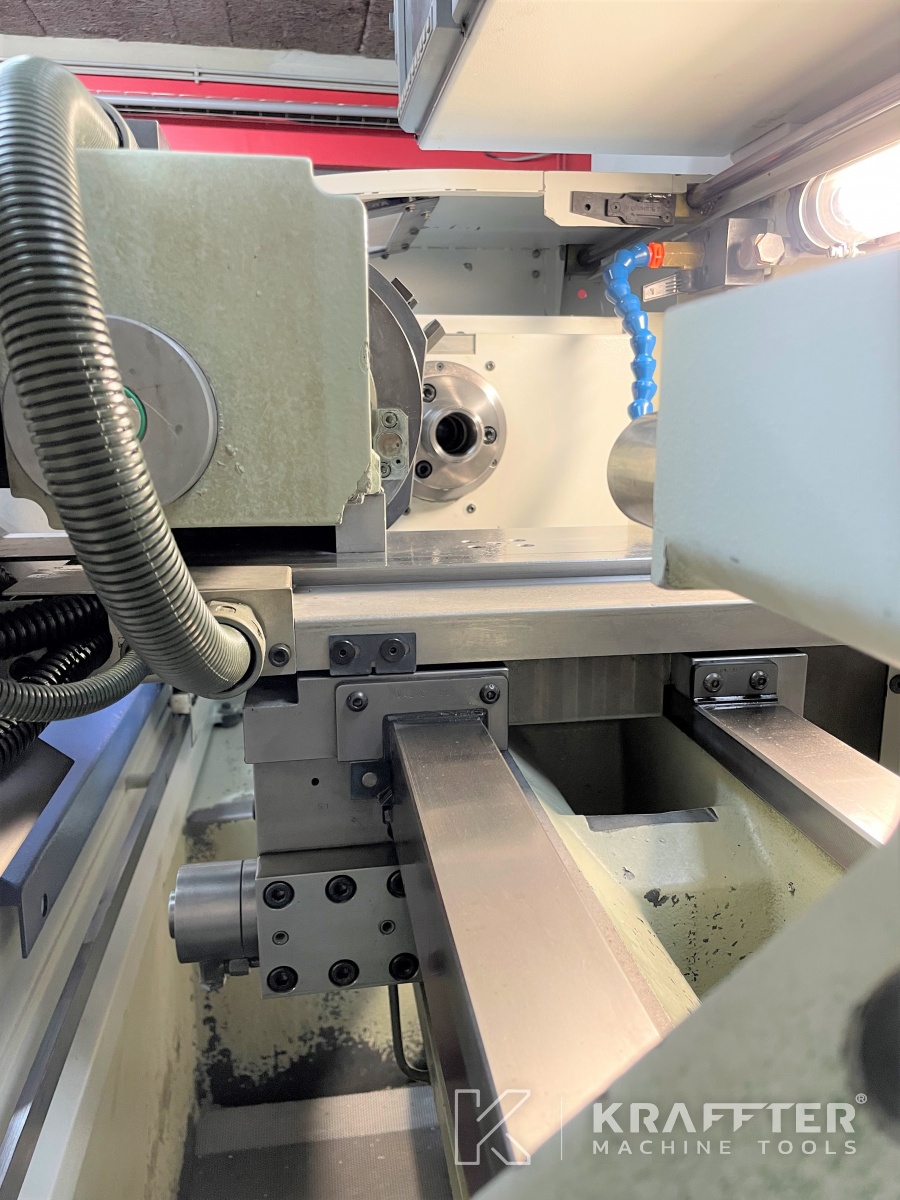

Type of machine : CNC teach-in lathe
Brand : SCHAUBLIN
Stock N° : 20689-981
Model : 125 R-TM
Serial N° : 350735
Year : 2004
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

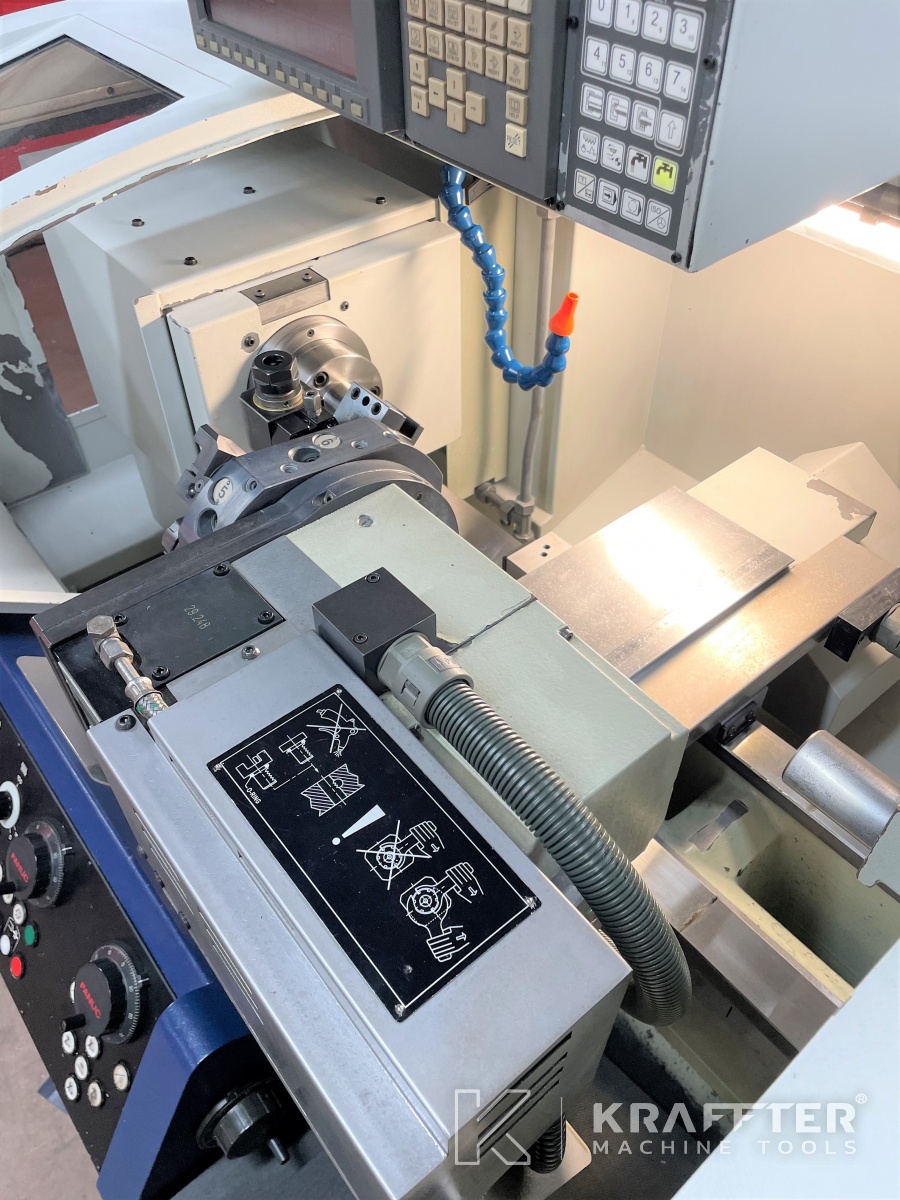

CNC control

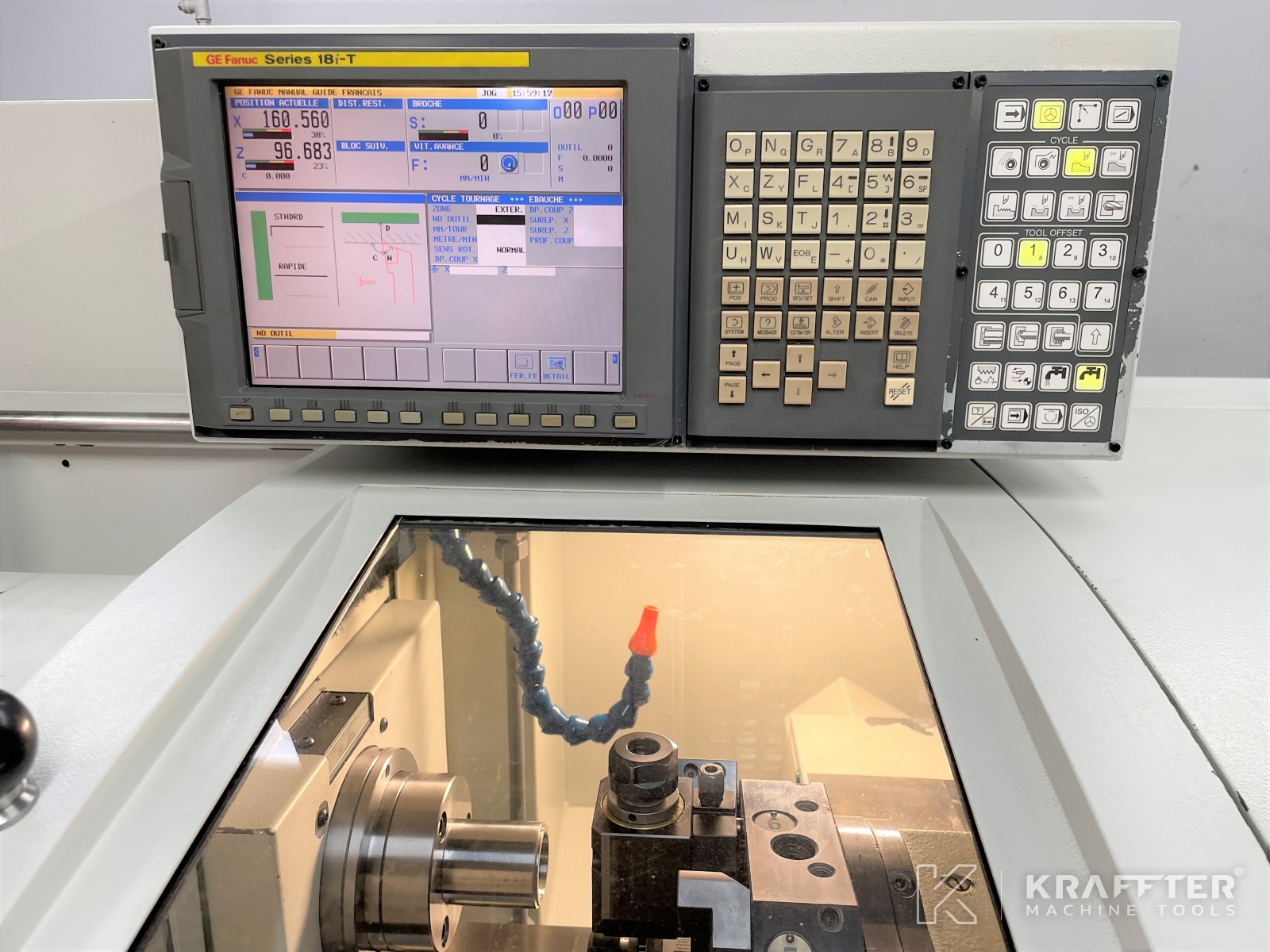

FANUC 18i
Number of axes
3
Height of centers
125 [mm]
Max. turning diameter
270 [mm]
Height of centers over cariage
115 [mm]
Stroke X axis
185 [mm]
Stroke Z axis
390 [mm]

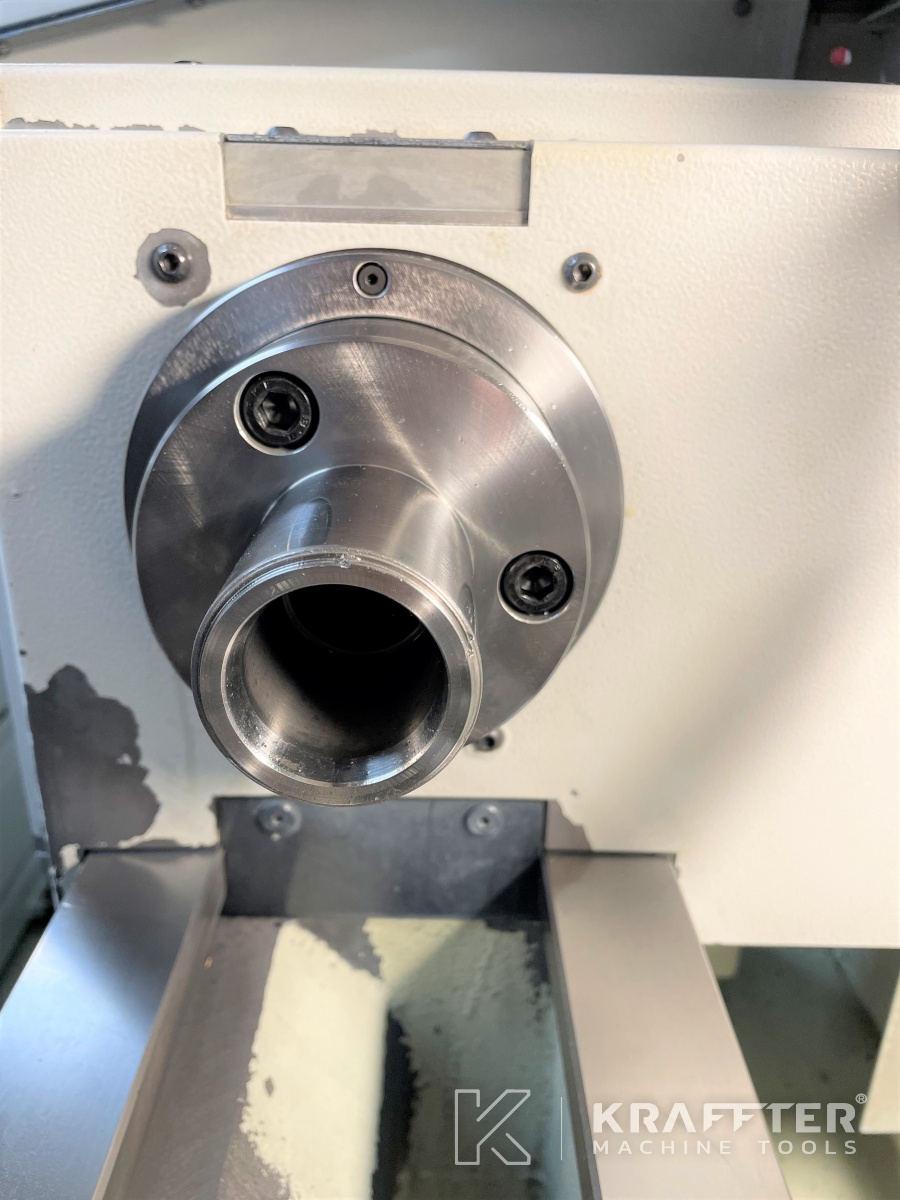

Spindle nose
A2-4’’
Spindle throughbore
39 [mm]
Increment C-axis
0.001 [°]

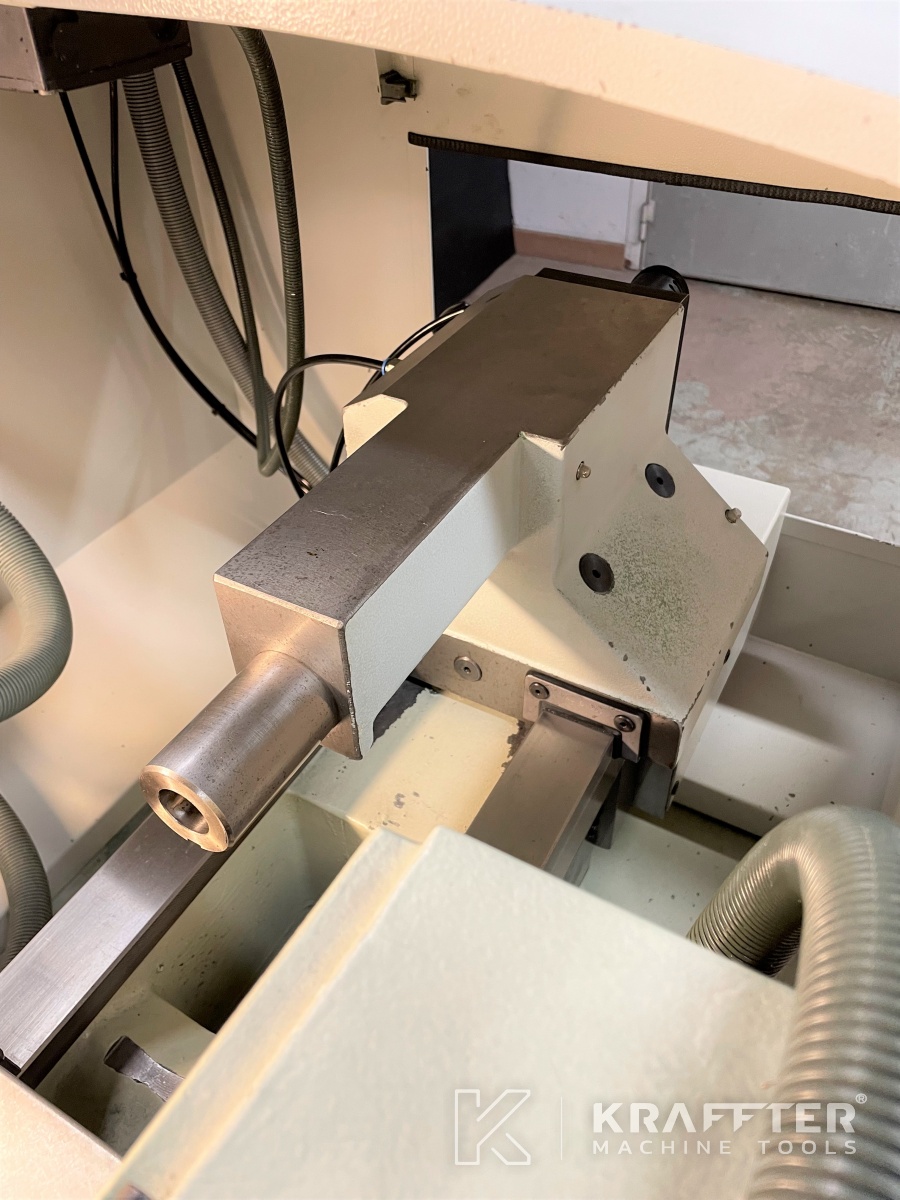

Tailstock type
pneumatique
Type of attachment tailstock
CM3

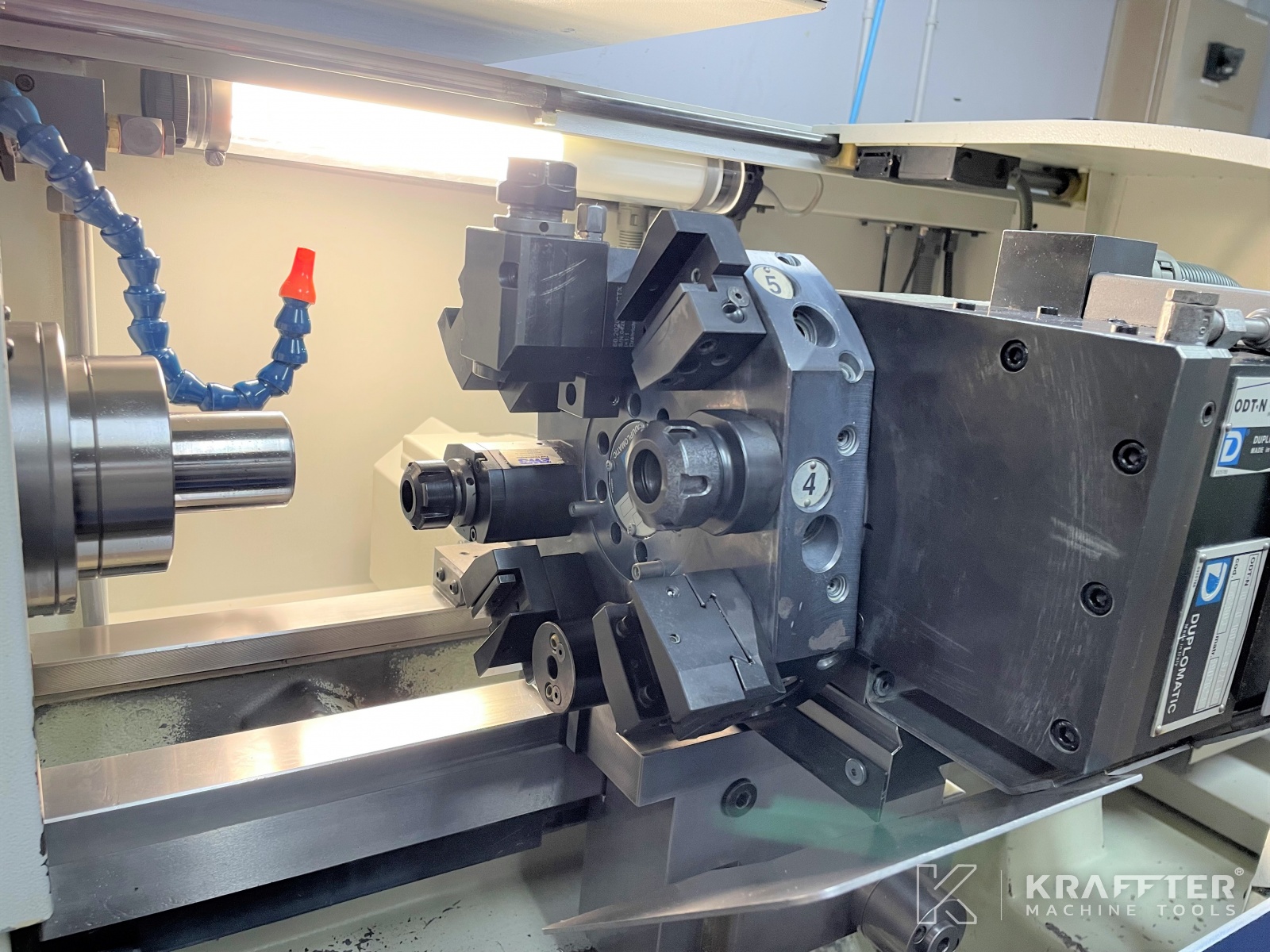

Turret

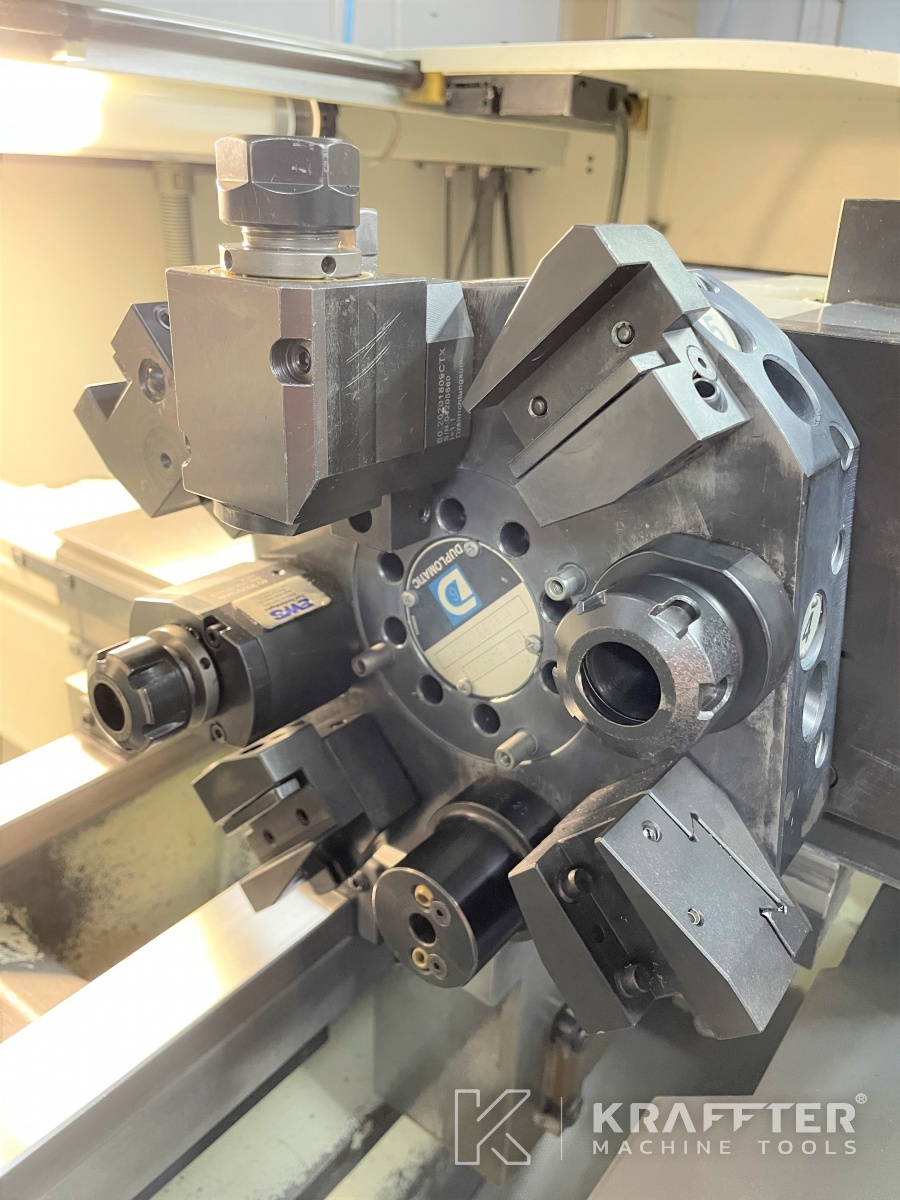

DUPLOMATIC BSV-N 100
Type of tool holders
VDI 20
Number of tool stations
8
Number of tool stations driven
4
Max. speed driven tools
5000 [rpm]

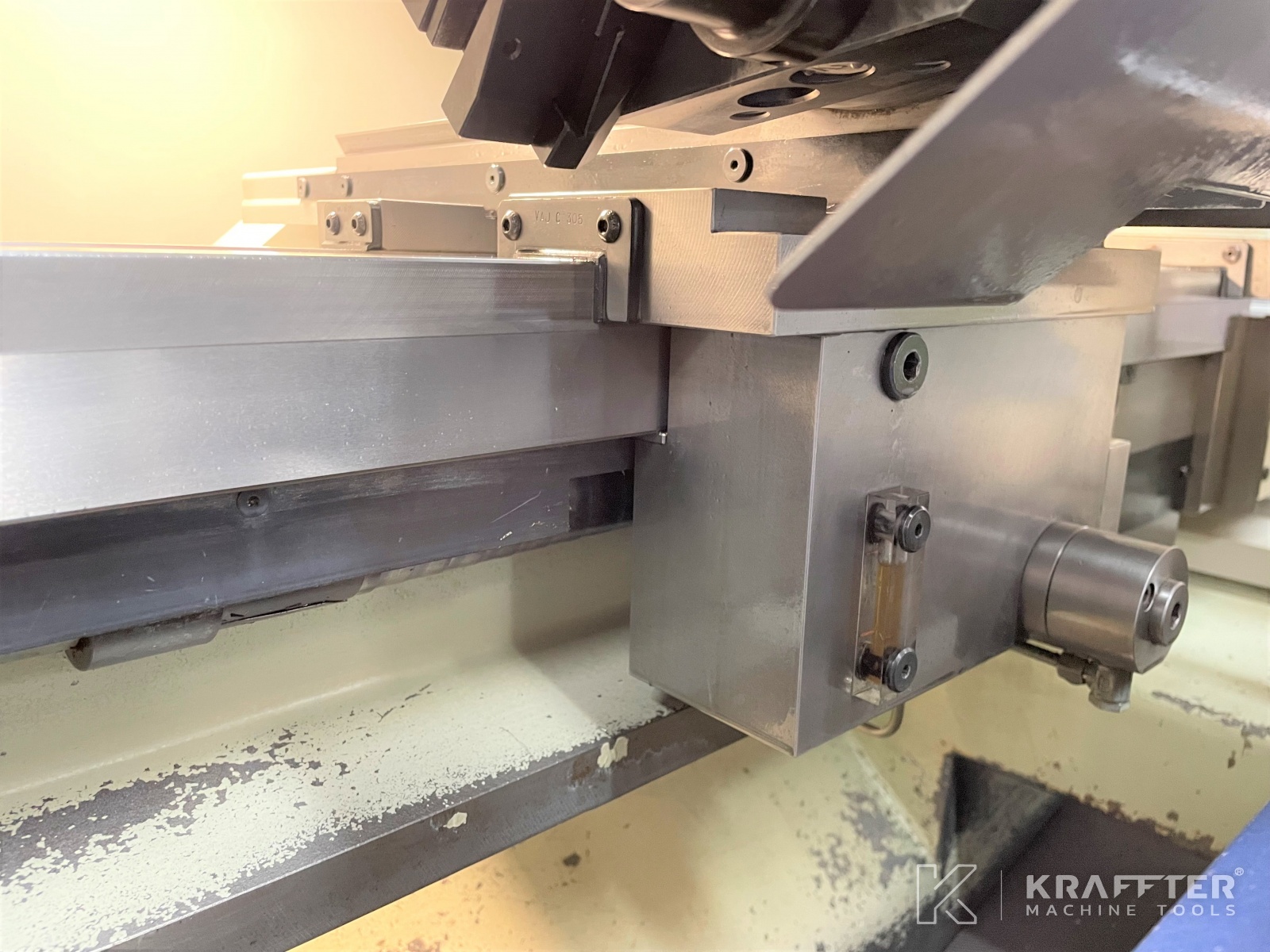

Centralized lubrication
Automatique
Lubrication tank with pump
Yes

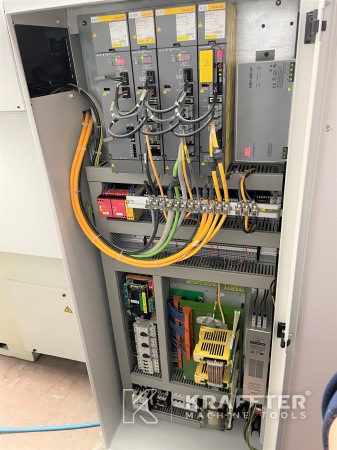

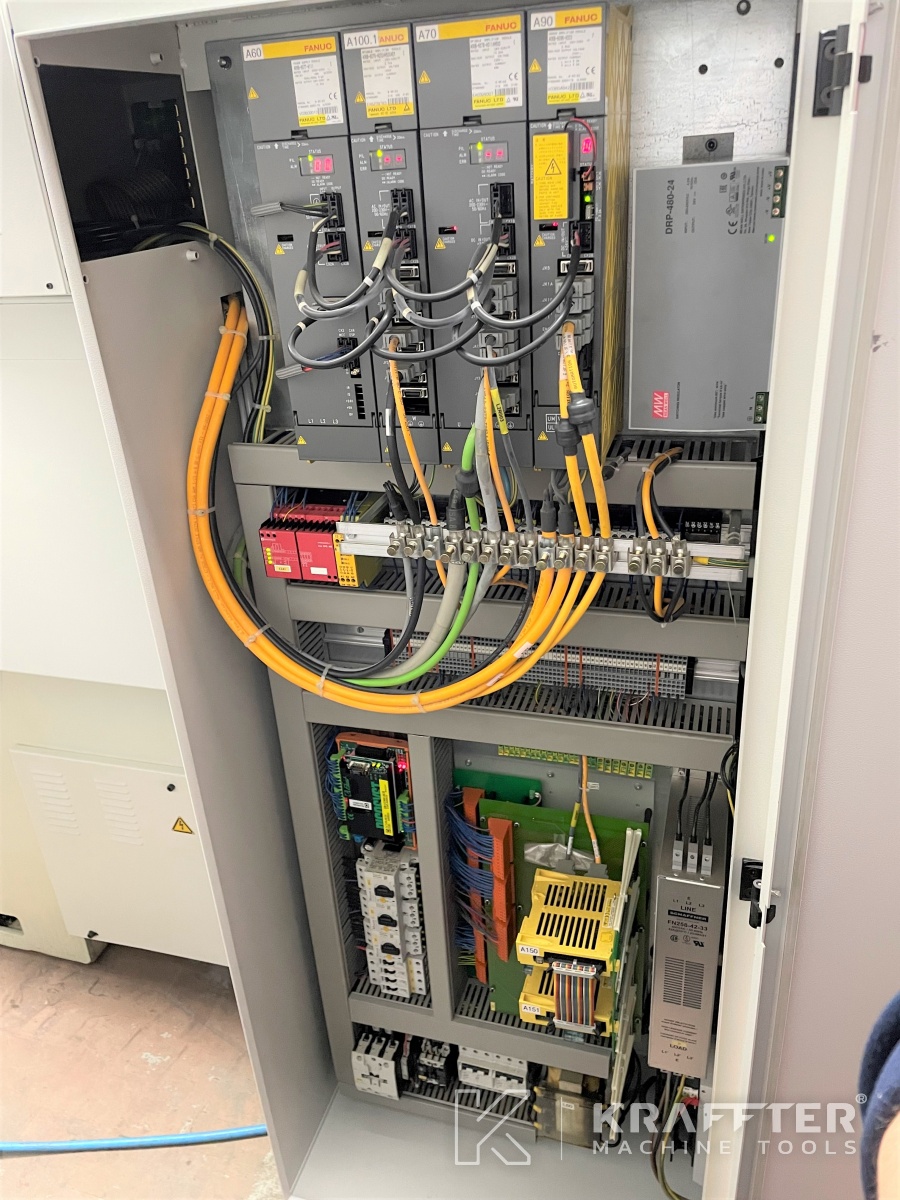

Supply voltage
400 [V]
Dimensions
1800 x 1275 x 1720
Weight
1570 [Kg]

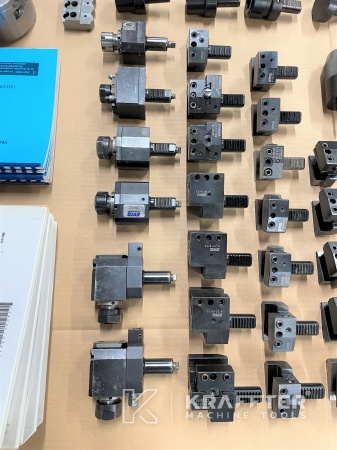

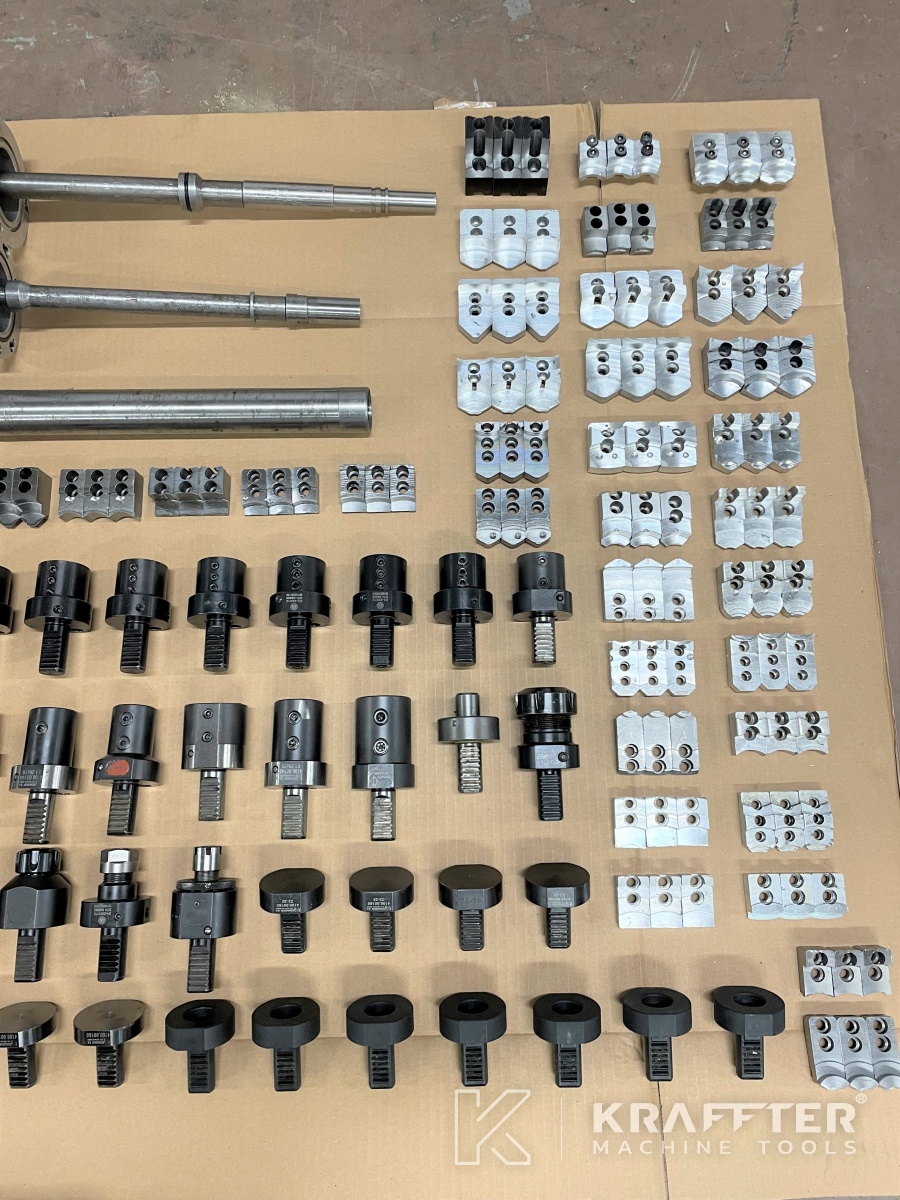

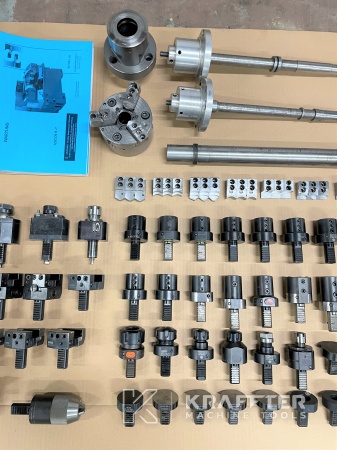

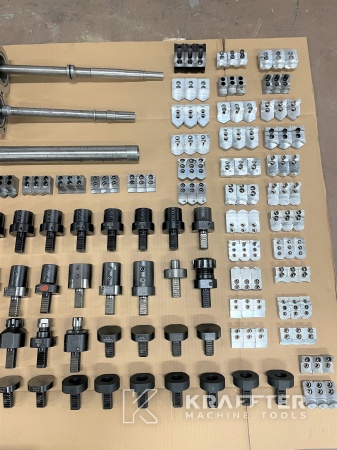

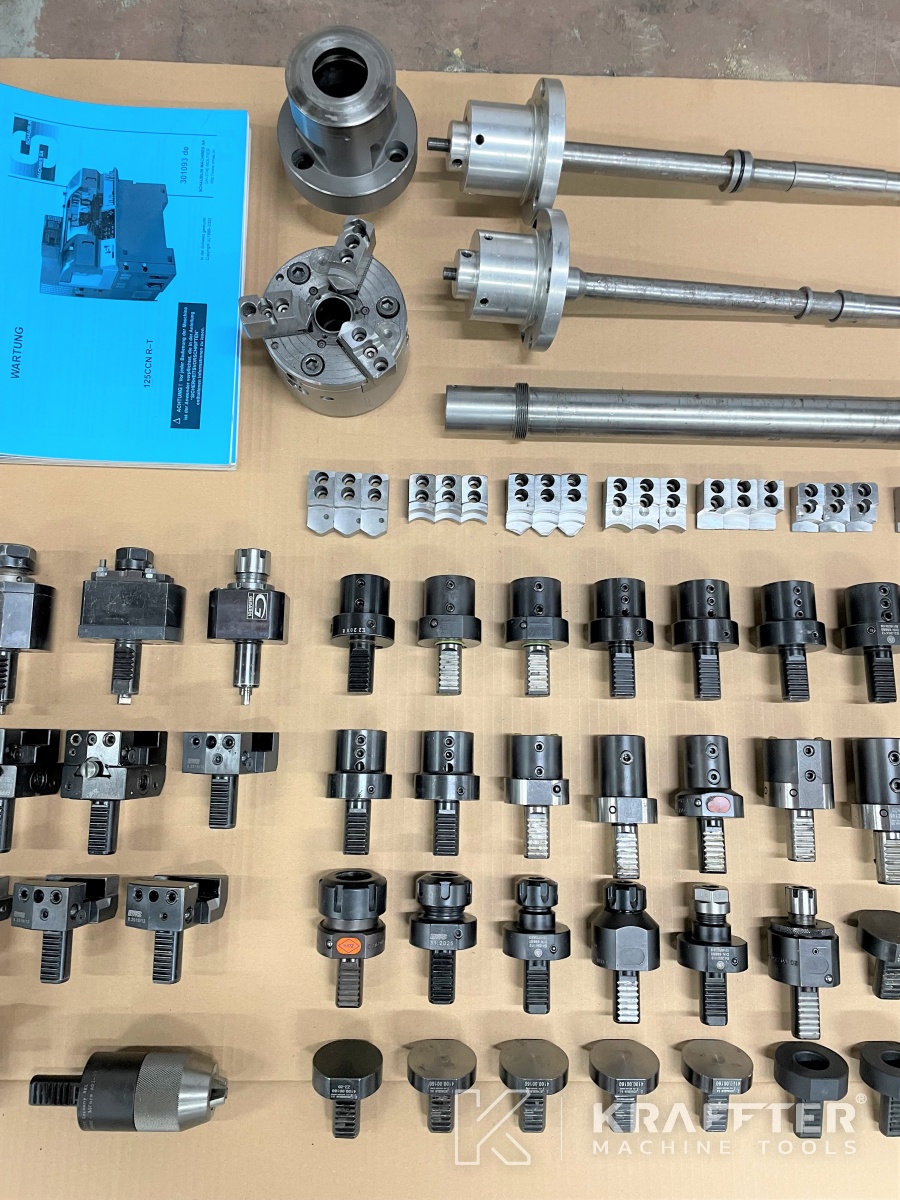

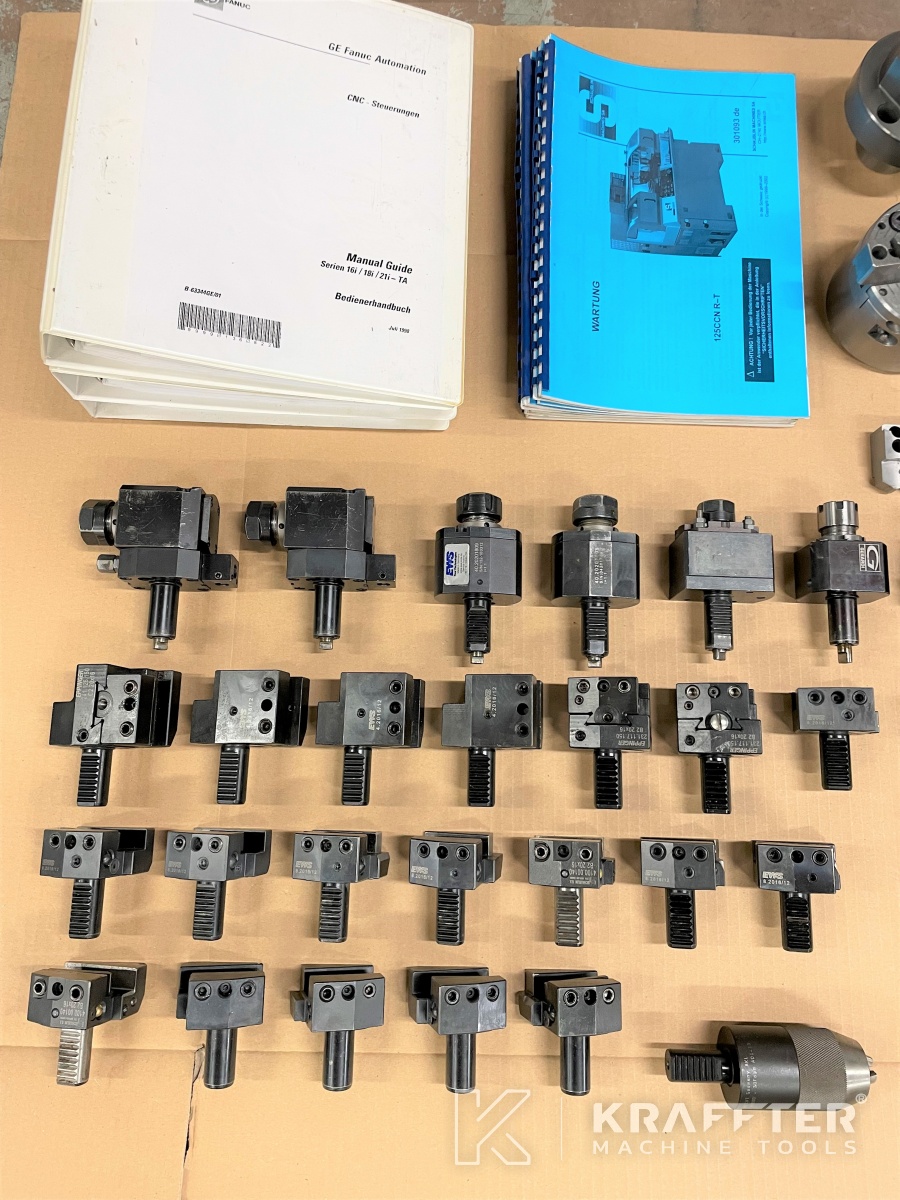

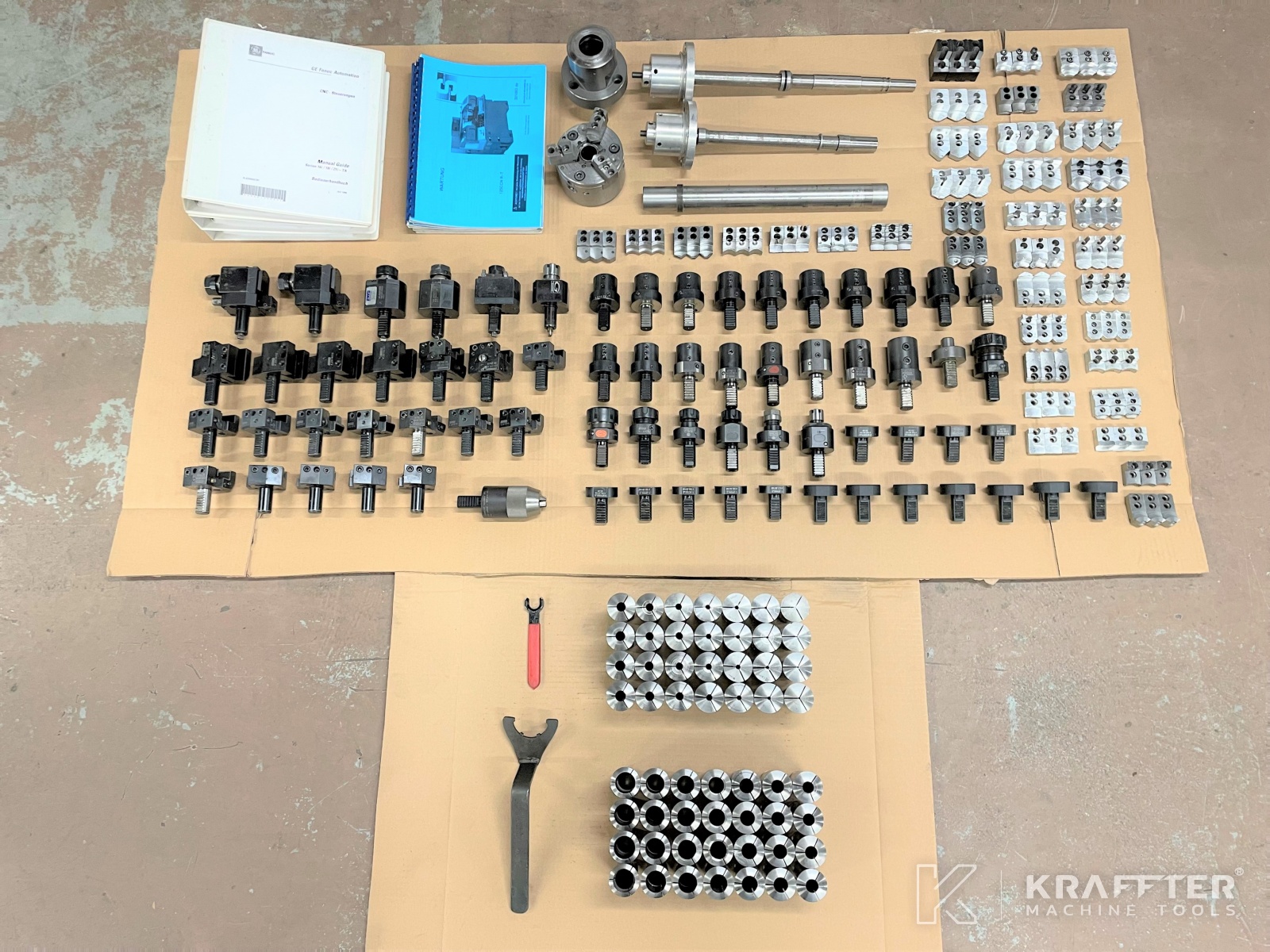

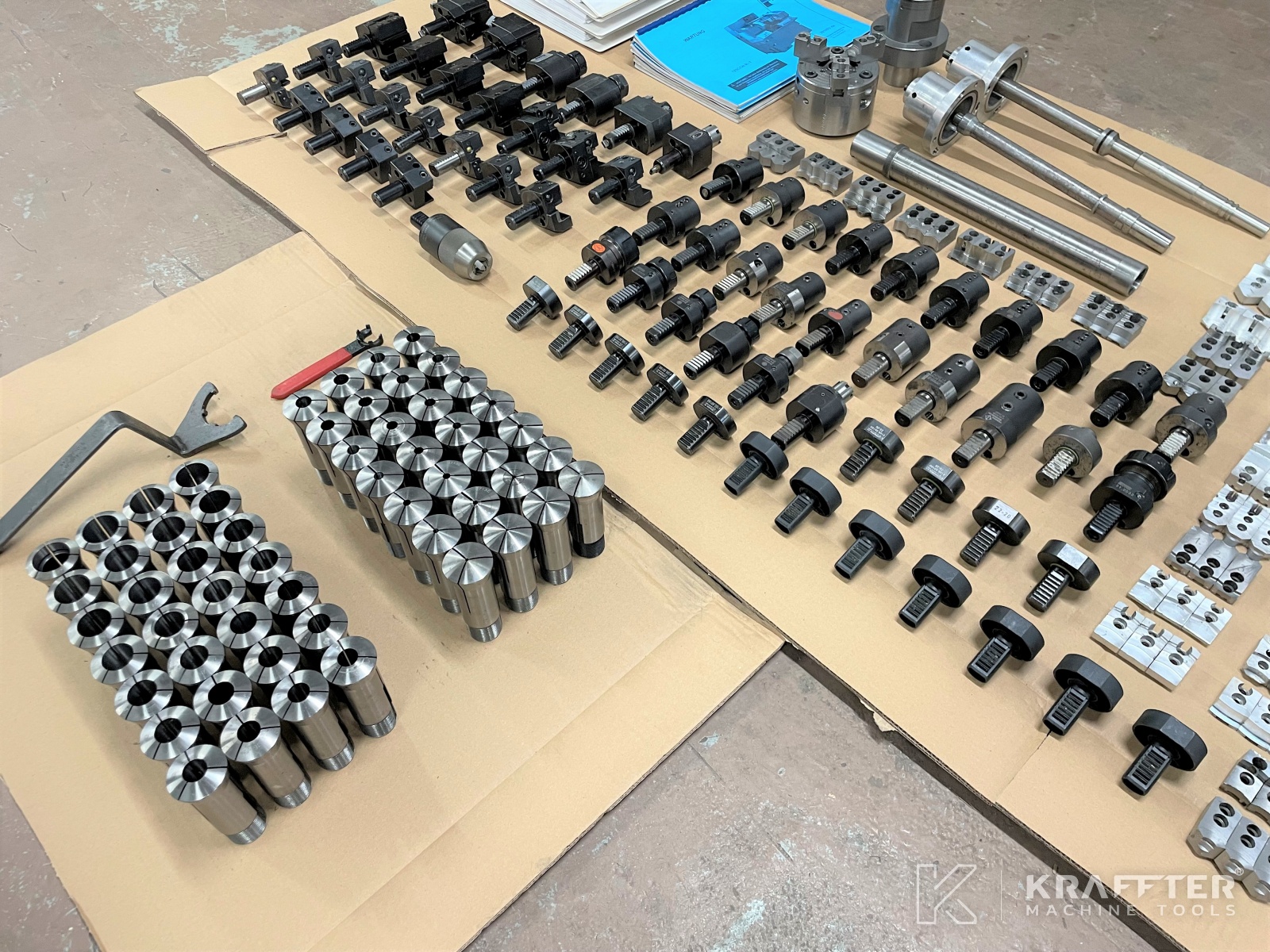

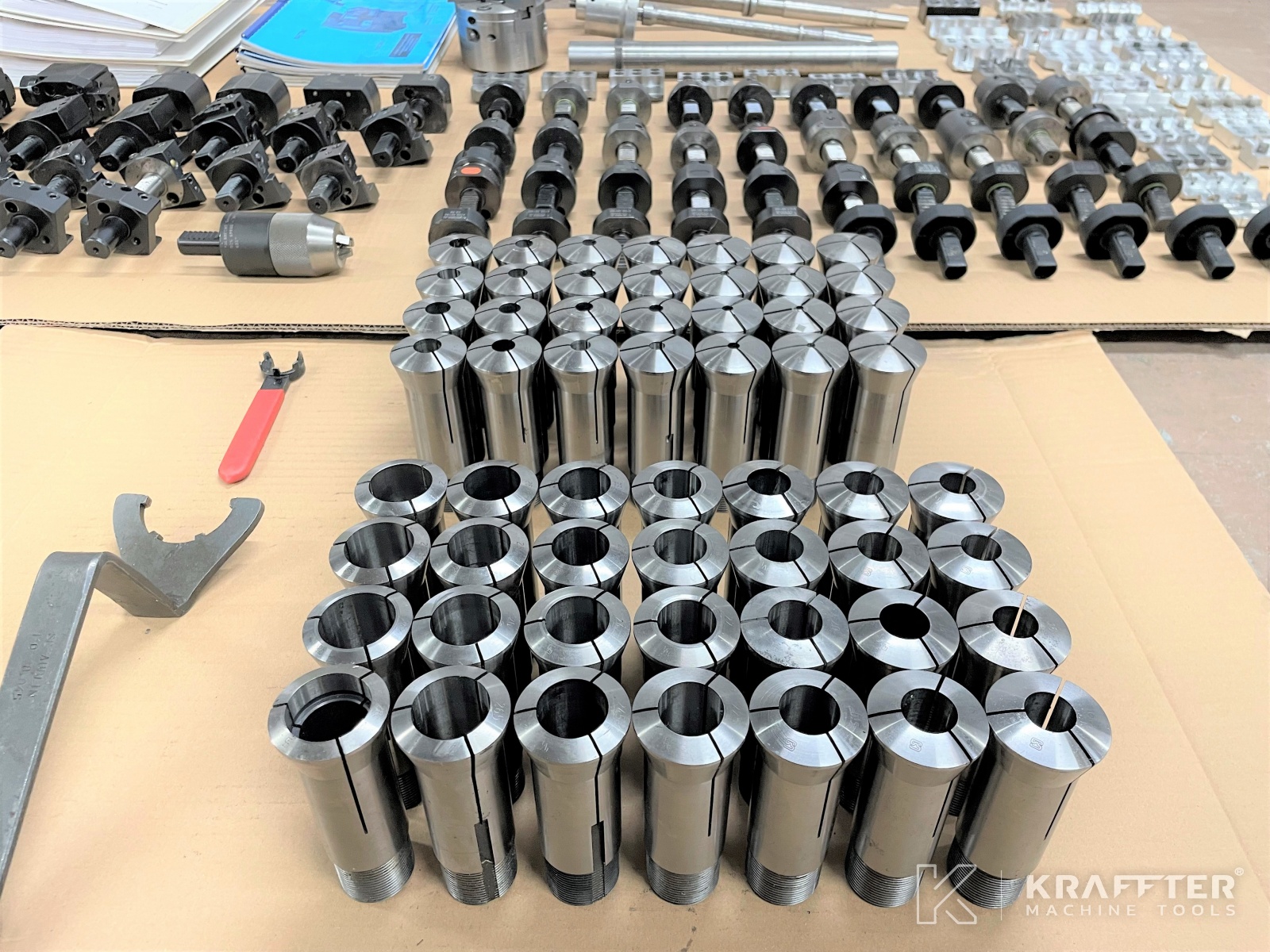

EQUIPMENT :
- x 1 pneumatic 3 jaw chuck 3 mors Ø110 [mm] A2-4
- x38 sets of soft jaws
- x 1 pneumatic tailstock CM3
- x 1 device F38 collets - A2-4
- x 1 device for B32 collets - A2-4
- x 1 operated pedal for chuck or collets clamping

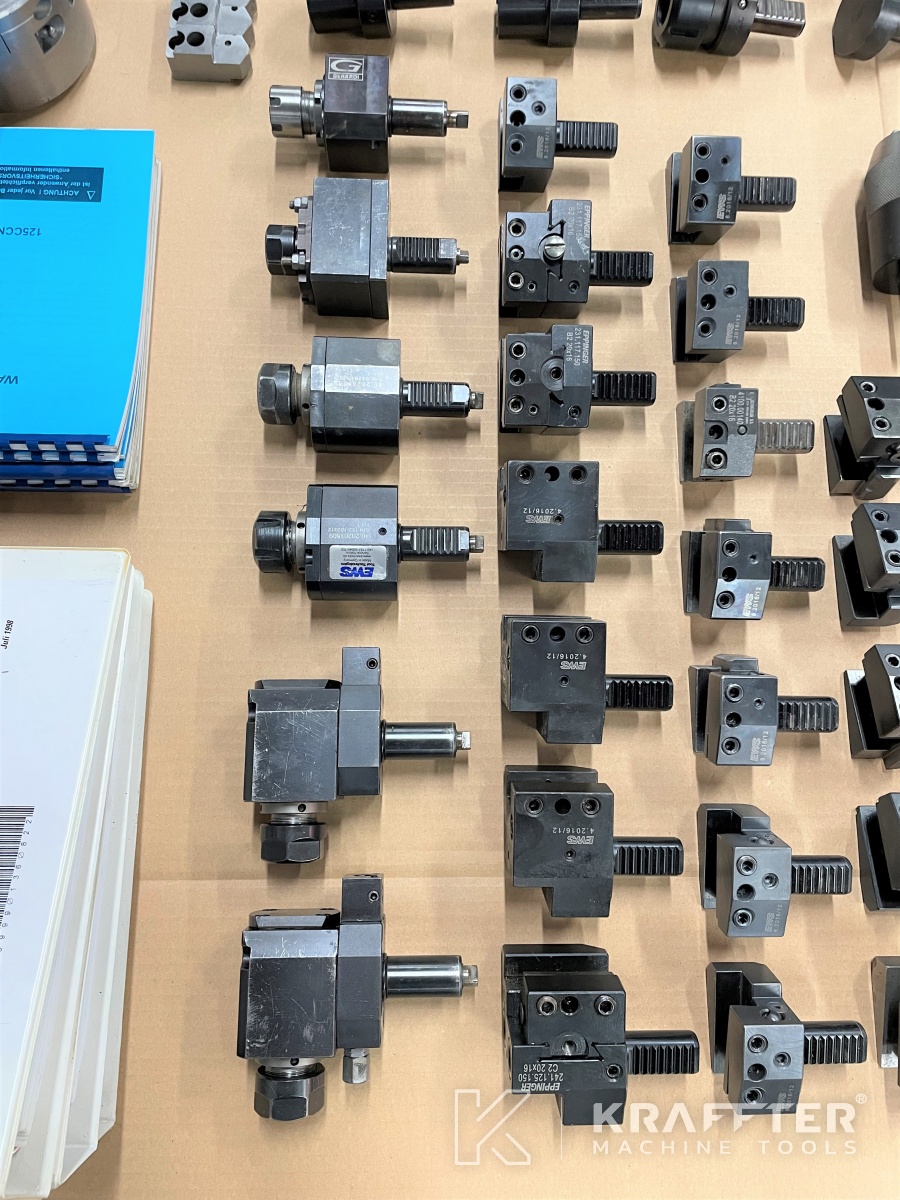

- x 2 live tool holders VDI 20 angle 90° (drilling-milling head) - ER20
- x 1 live tool holders VDI 20 axial (drilling-milling head) - ER20
- x 16 rectangular transverse tool holders VDI 20
- x 4 rectangular transverse tool holders VDI 20
- x 2 tool holders VDI 20 for carbide indexable drill with internal coolant supply, bore Ø16 mm
- x 1 tool holder for carbide indexable drill with internal coolant supply, bore Ø20 mm
- x 1 tool holder for carbide indexable drill with internal coolant supply, bore Ø225 mm
- x 2 boring bar holders, bore Ø8 mm
- x 4 boring bar holders, bore Ø10 mm
- x 4 boring bar holders, bore Ø12 mm
- x 3 boring bar holders, bore Ø16 mm
- x 1 boring bar holder, bore Ø20 mm
- x 1 Drill chuck for left and right rotation Ø1-13 [mm]
- x 4 collet-holders VDI 20 - ER16
- x 1 collet-holder VDI 20 - ER25
- x 2 collet-holders VDI 20 - ER32
- x 12 blanking plugs VDI 20
- x 56 collets B32 Ø1.00 to Ø28.5 [mm]
Service manual, user manual, electrical manual, FANUC 18i manual
