Type of machine : CNC milling machine
Brand : FEHLMANN
Stock N° : 20690-018
Model : Picomax 54 TNC 320
Year : 2008
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
CNC control

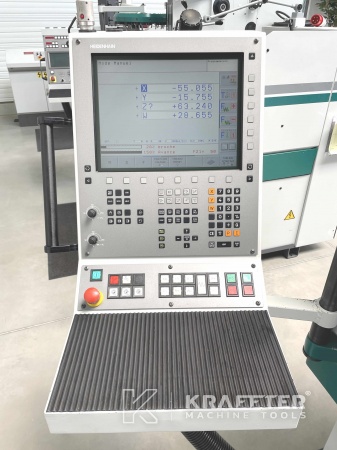

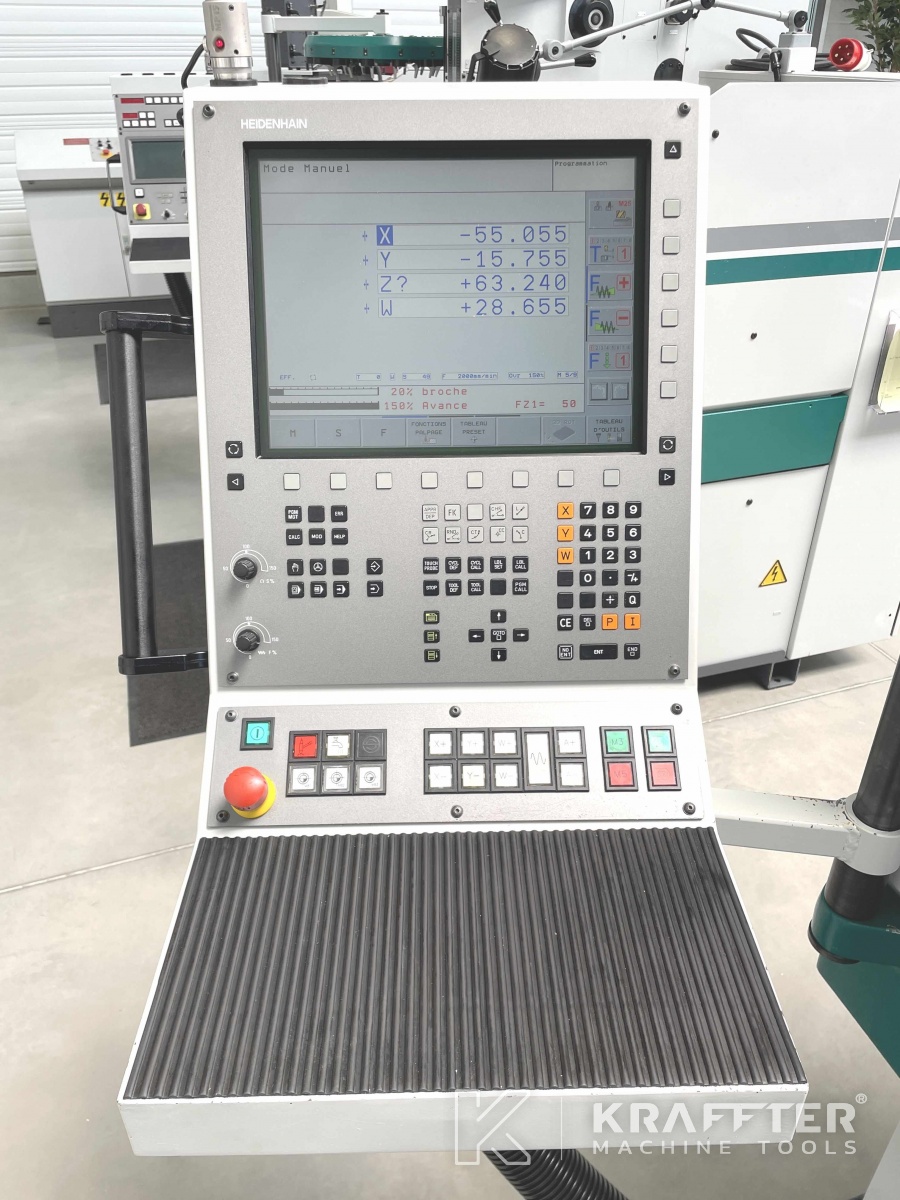

HEIDENHAIN TNC 320
Number of axes
3
Stroke X axis
500 [mm]
Stroke Y axis
260 [mm]
Stroke Z axis
490 [mm]
Quill stroke
160 [mm]
Max. distance spindle nose / table
610 [mm]
Table length
880 [mm]
Table width
320 [mm]
Max. load on table
300 [Kg]
Spindle type
SF32
Min. spindle speed
100 [rpm]
Max. spindle speed
9000 [rpm]
Part probe
RENISHAW MP15
Lubrication tank capacity
100 [l]

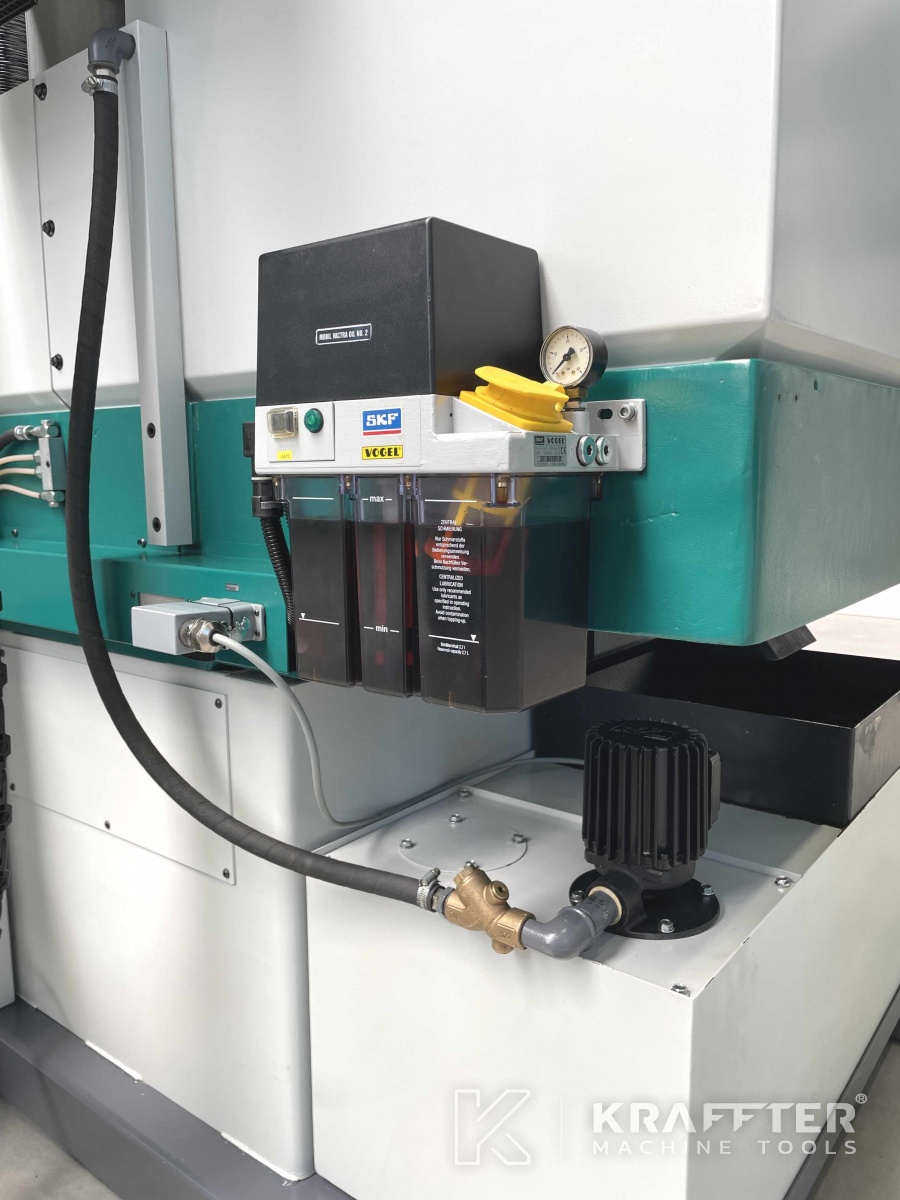

Centralized lubrication
Automatique - WILLY VOGEL
Supply voltage
400 [V]
Dimensions
2200 x 2100 x 2250 [mm]
Weight
2150 [Kg]

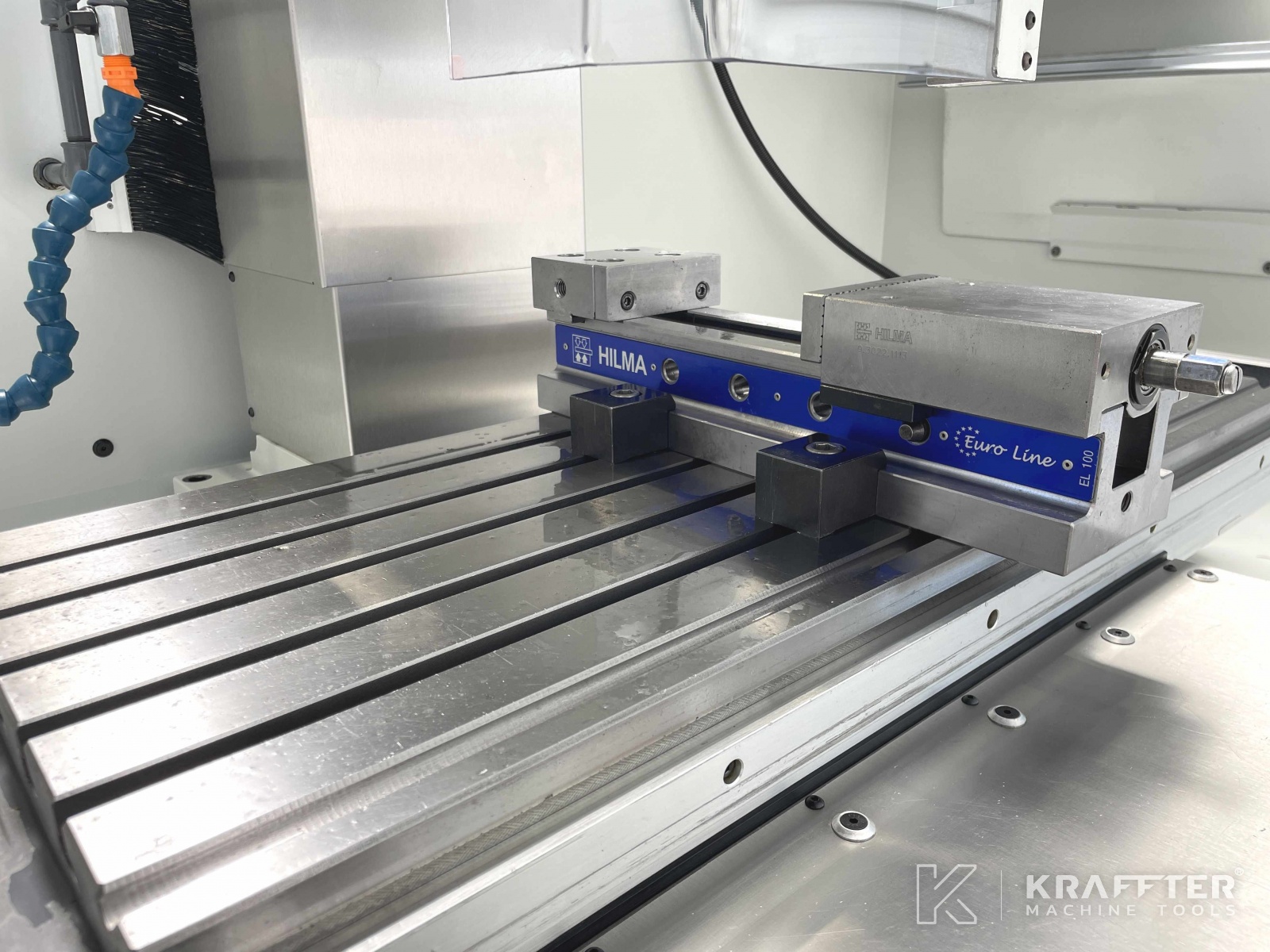

x1 precision milling vise HILMA type EL100 - jaws width : 100 [mm] / max. opening : 150 [mm]

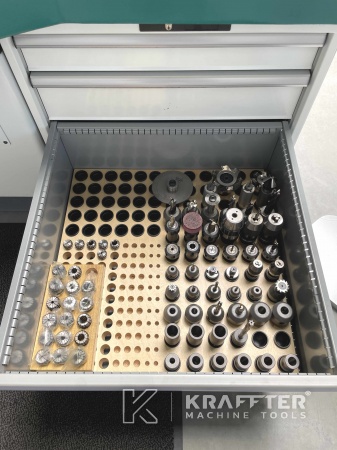

x2 reduction sleeve attachments SF32 to MT1 with tenon
x5 reduction sleeve attachments SF32 to MT2 with tenon
x4 reduction sleeve attachments SF32 to MT3 with tenon
x2 precision keyless drill chucks ALBRECHT 1-13 [mm]
x2 precision keyless drill chucks ALBRECHT 0-6.5 [mm]

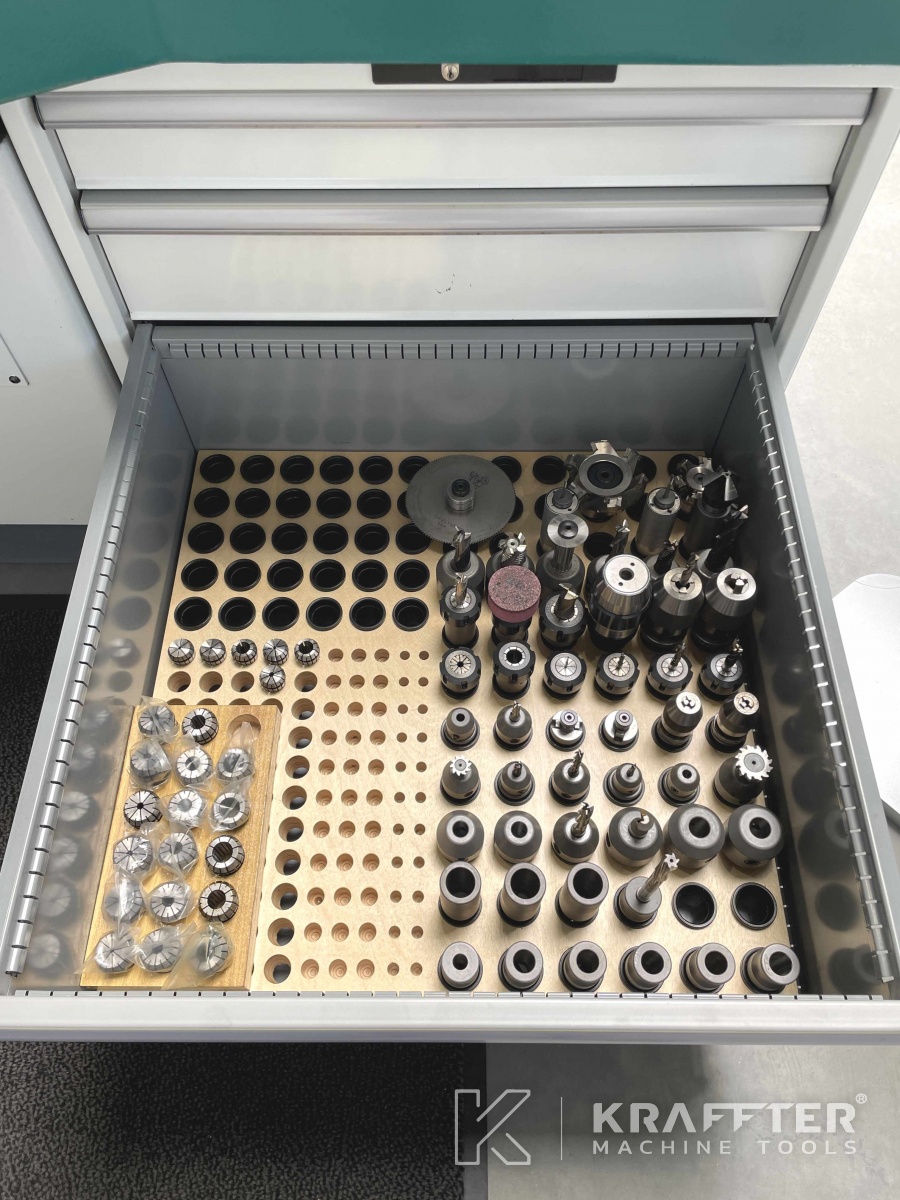

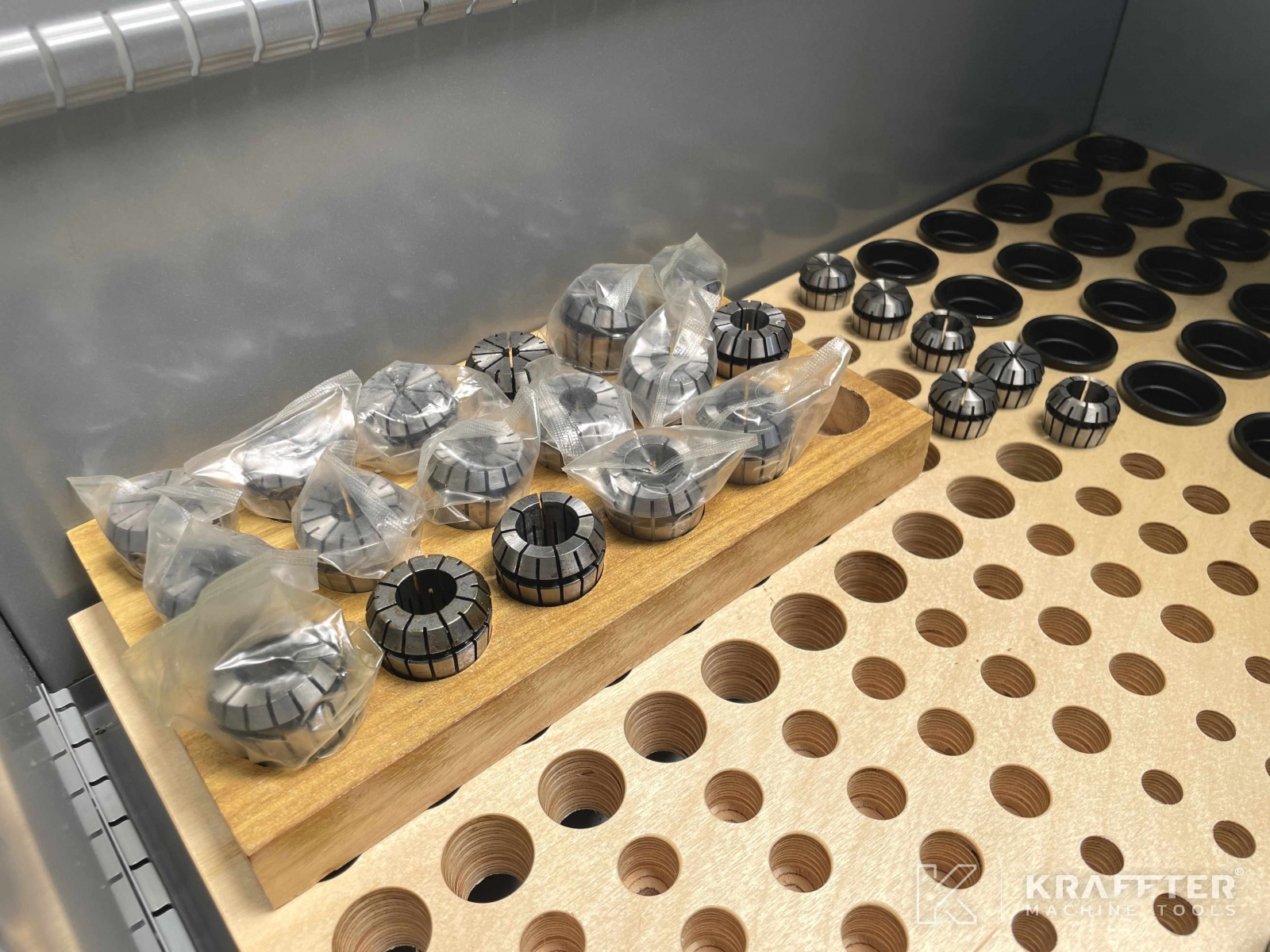

x5 collet chucks ER25 with locking nut
x3 collet chucks ER25 with locking nut - extended
x1 collet chucks ER32 with locking nut
x1 1 collet ER25 Ø2-1 [mm]
x1 collet ER25 Ø2.5 [mm]
x1 collet ER25 Ø3-2 [mm]
x1 collet ER25 Ø4-3 [mm]
x1 collet ER25 Ø5-4 [mm]
x1 collet ER25 Ø6-5 [mm]
x1 collet ER25 Ø7-6 [mm]
x1 collet ER25 Ø8-7 [mm]
x1 collet ER25 Ø9-8 [mm]
x1 collet ER25 Ø11-10 [mm]
x1 collet ER25 Ø13-12 [mm]
x1 pcollet ER25 Ø15-14 [mm]
x1 collet ER25 Ø16-15 [mm]
x1 collet ER32 Ø3-2 [mm]
x1 collet ER32 Ø4-3 [mm]
x1 collet ER32 Ø5-4 [mm]
x1 collet ER32 Ø6-5 [mm]
x1 collet ER32 Ø7-6 [mm]
x1 collet ER32 Ø8-7 [mm]
x1 collet ER32 Ø9-8 [mm]
x1 collet ER32 Ø10-9 [mm]
x1 collet ER32 Ø11-10 [mm]
x1 collet ER32 Ø12-11 [mm]
x1 collet ER32 Ø13-12 [mm]
x1 collet ER32 Ø14-13 [mm]
x1 collet ER32 Ø15-14 [mm]
x1 collet ER32 Ø16-15 [mm]
x1 collet ER32 Ø17-16 [mm]
x1 collet ER32 Ø18-17 [mm]
x1 collet ER32 Ø19-18 [mm]
x1 collet ER32 Ø20-19 [mm]
x1 tapping head with preset slipping clutch with axial float in one dircetion only M3
x1 tapping head with preset slipping clutch with axial float in one dircetion only M4

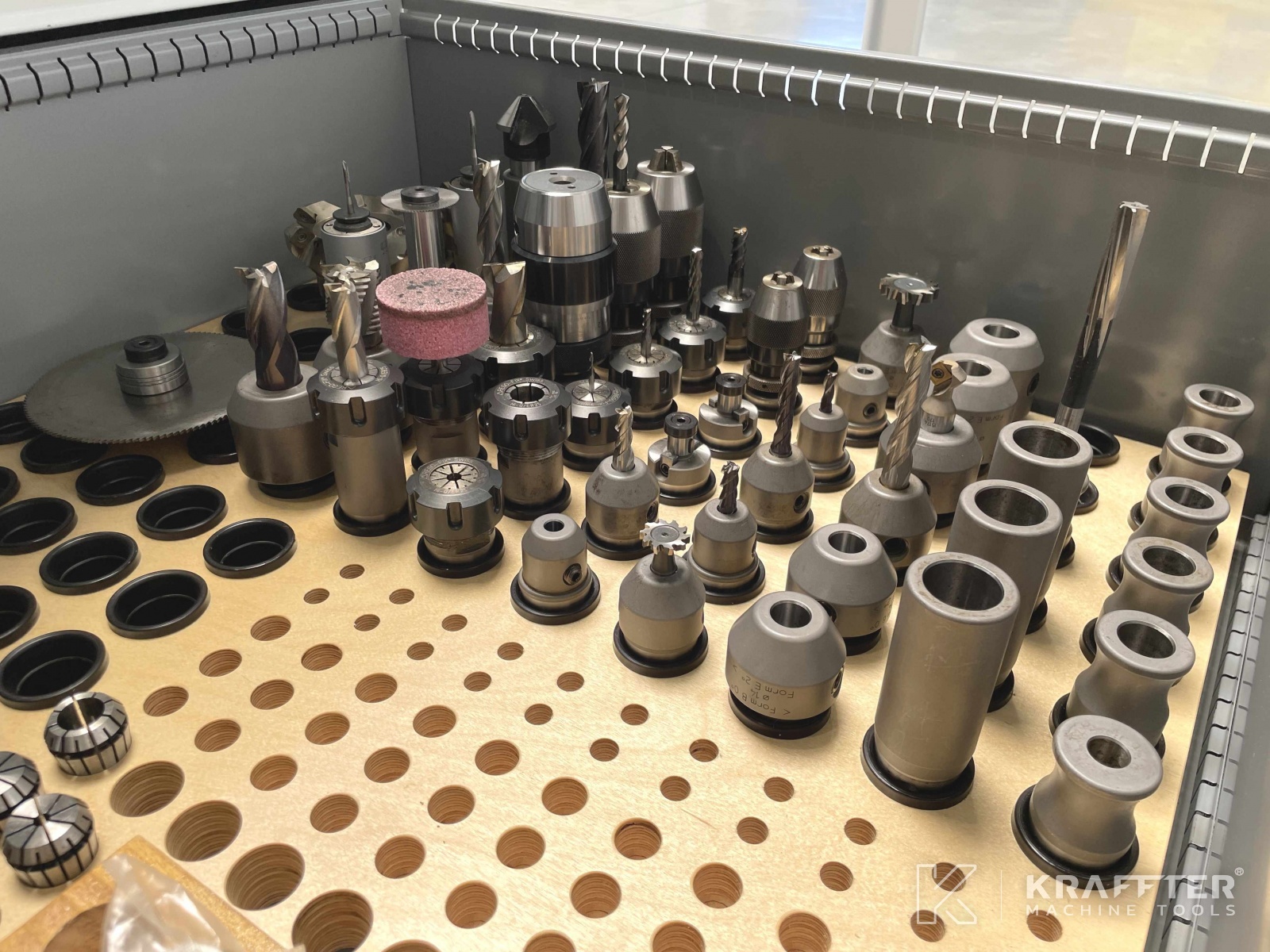

x1 milling chuck Ø6 [mm]
x3 milling chucks Ø8 [mm]
x3 milling chucks Ø10 [mm]
x2 milling chucks Ø12 [mm]
x2 milling chucks Ø14 [mm]
x3 milling chucks Ø16 [mm]
x2 milling chucks Ø18 [mm]
x4 milling chucks Ø20 [mm]
x2 milling arbors Ø13 [mm]
x1 milling arbor including SECO Ø80 [mm] milling cutter
x1 milling arbor including SECO Ø50 [mm] milling cutter
x1 users & maintenance manual (in German & French)
x1 programming manual FEHLMANN / HEIDENHAIN TNC 320
x1 electrical wiring diagram manual
