Sold
Type of machine : CNC lathe
Brand : OKUMA
Stock N° : 20690-021

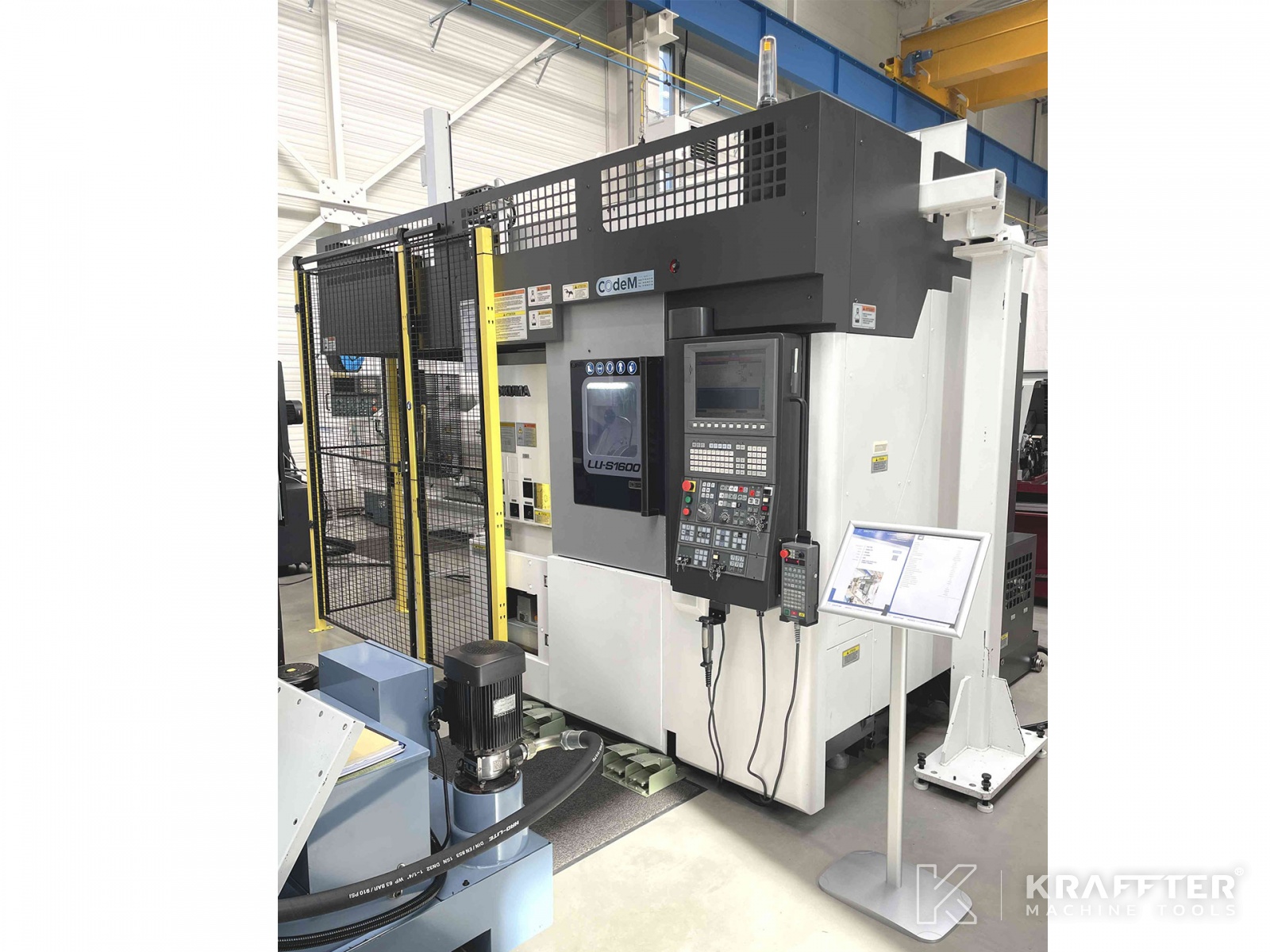

Model : LU-S1600
Year : 2013
Location : 73240 Saint-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

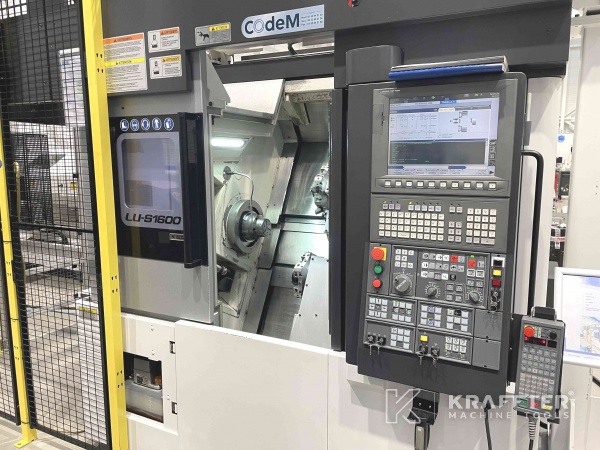

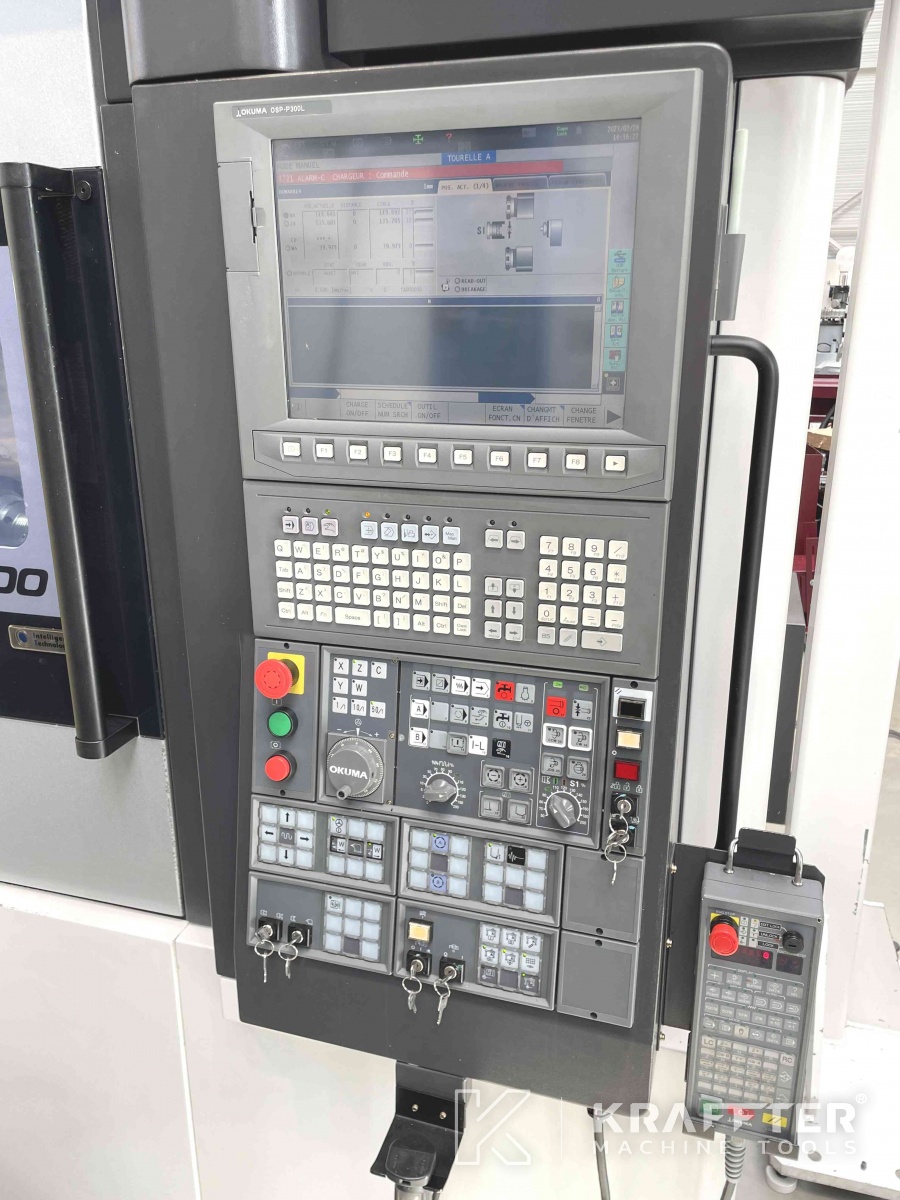

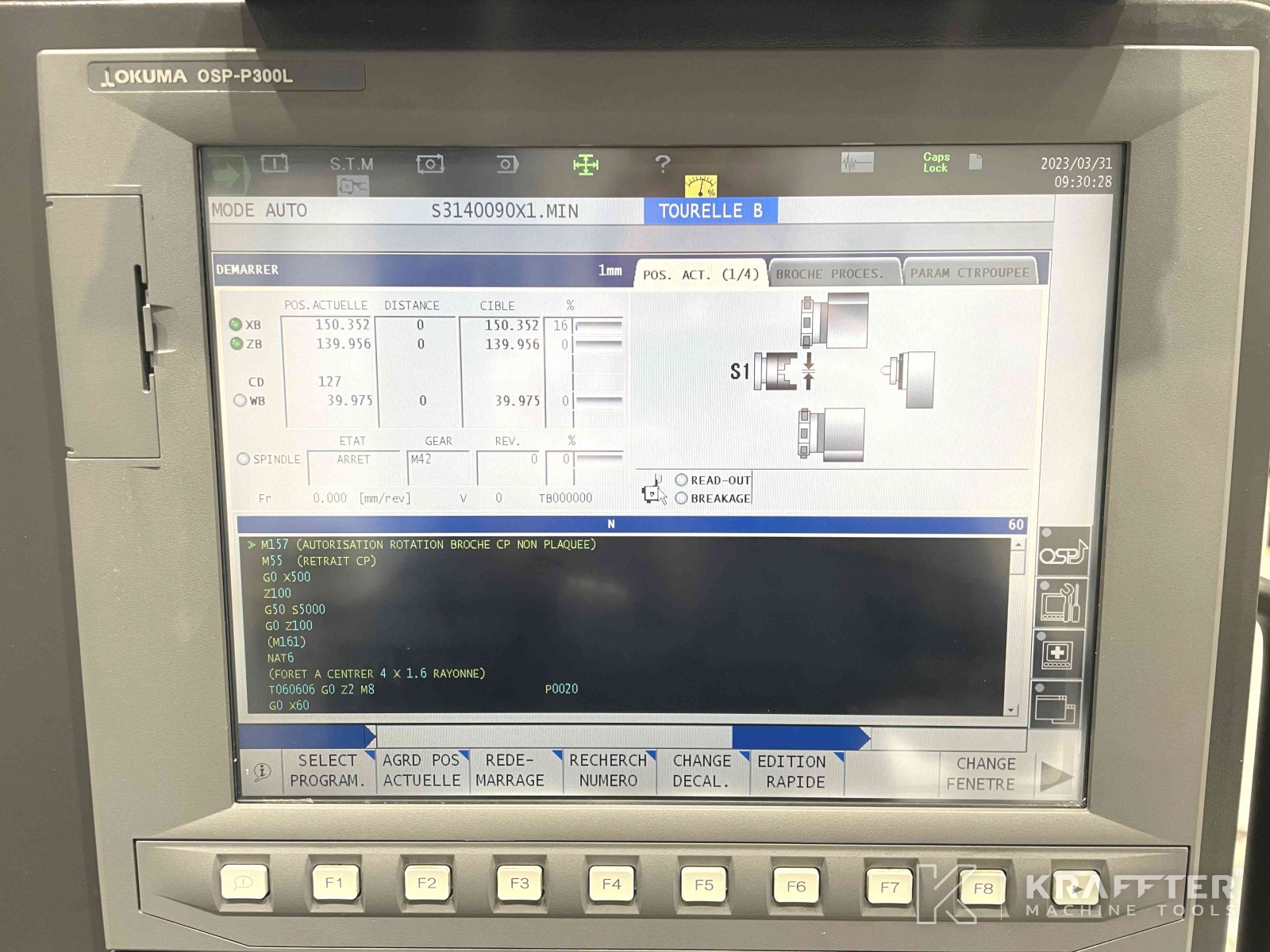

CNC control
OSP-P300LA
Number of axes
4
Max. turning diameter
160 [mm]
Height of centers over cariage
400 [mm]
Max. swing over bed
500 [mm]
Max. turning lenght
550 [mm]
Stroke Z1 axis
570 [mm]
Stroke X1 axis
100 [mm]
Stroke Z2 axis
570 [mm]
Stroke X2 axis
100 [mm]
Rapid traverse rate X axis
20000 [mm/min]
Rapid traverse rate Z axis
30000 [mm/min]

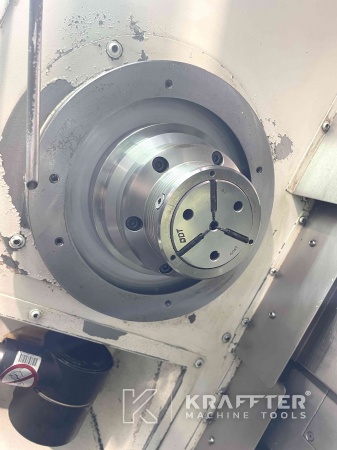

Spindle nose
JIS A2-6
Spindle throughbore
62 [mm]
Min. spindle speed
40 [rpm]
Max. spindle speed
4000 [rpm]
Spindle power
7.5 [kW]
Tailstock type
NC
Type of attachment tailstock
MT4
Tailstock quill stroke
120 [mm]
Tailstock quill diameter
90 [mm]

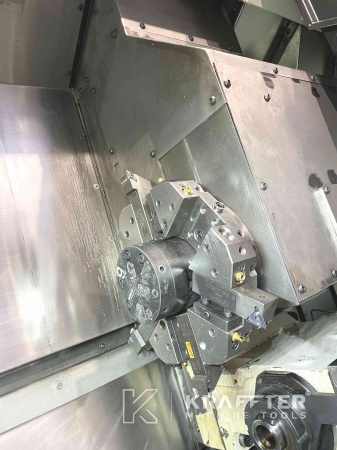

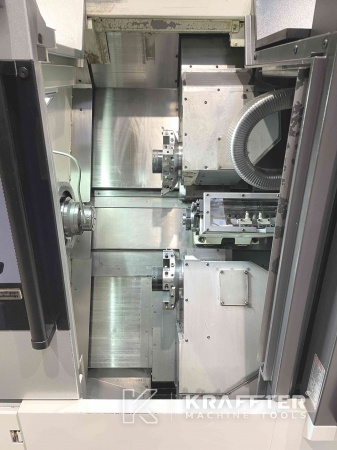

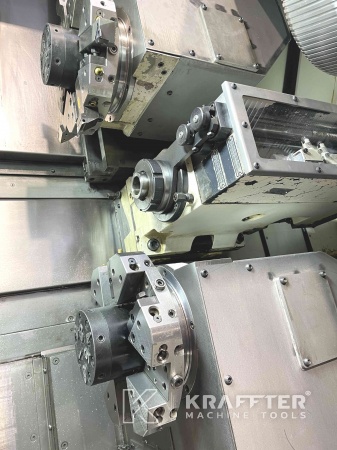

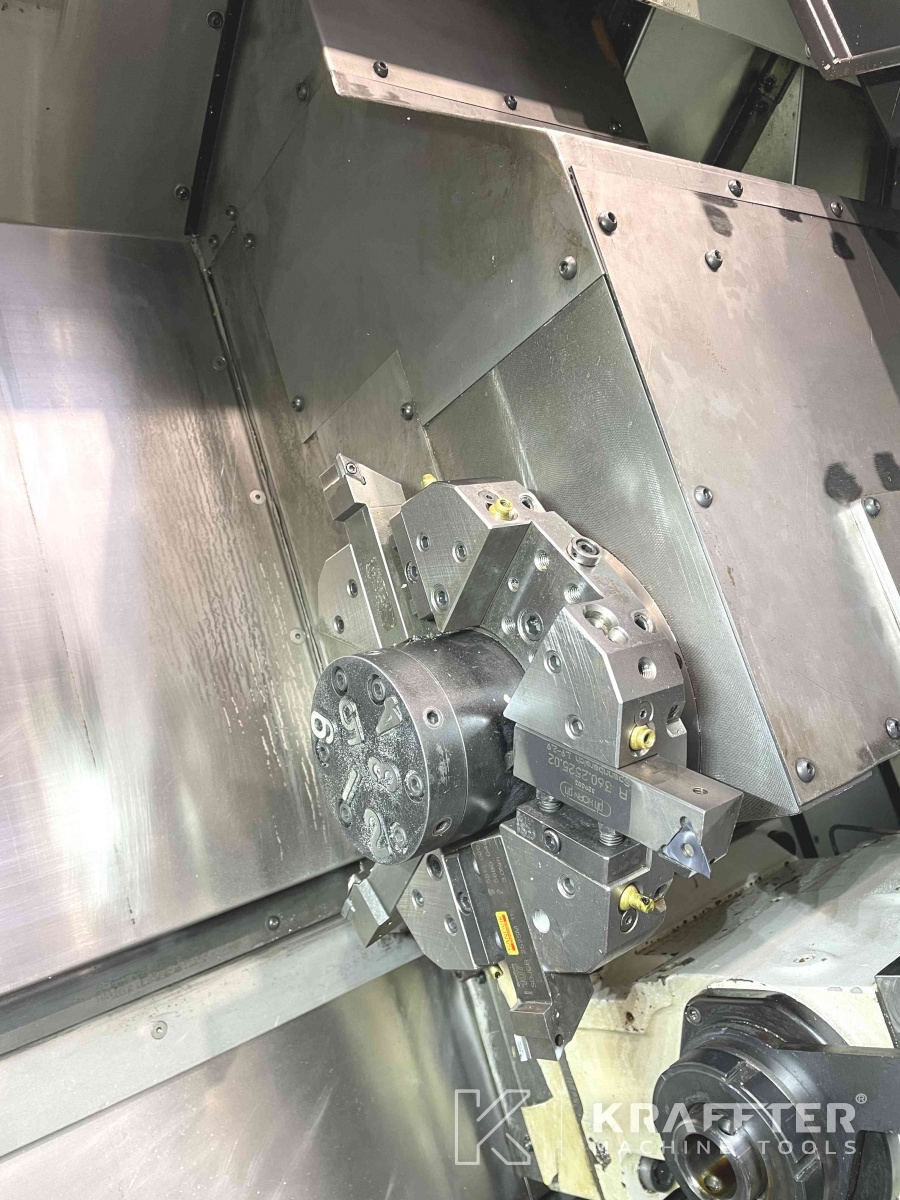

Number of tool stations - Turret 1
6
Number of tool stations - Turret 2
6
Max. load between centers
200 [Kg]
Total power required
22.6 [kVA]
Supply voltage
400 [V]
Weight
6500 [Kg]
Equipment included :
x1 tool probe

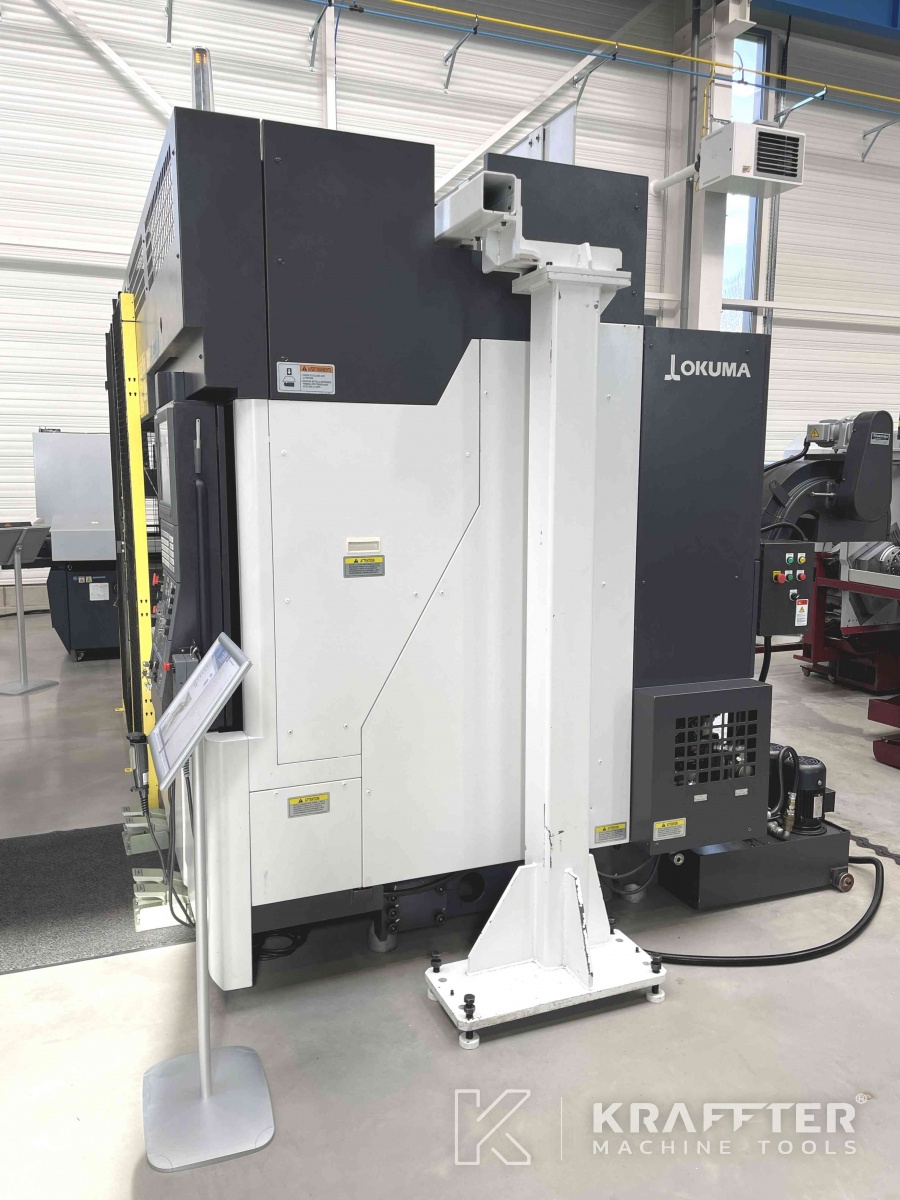

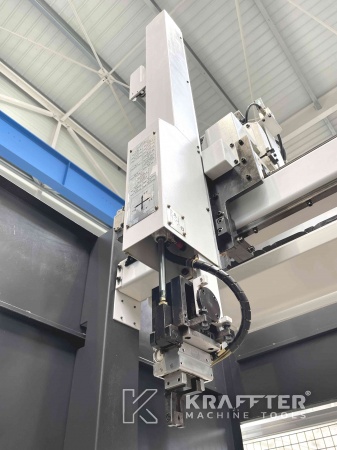

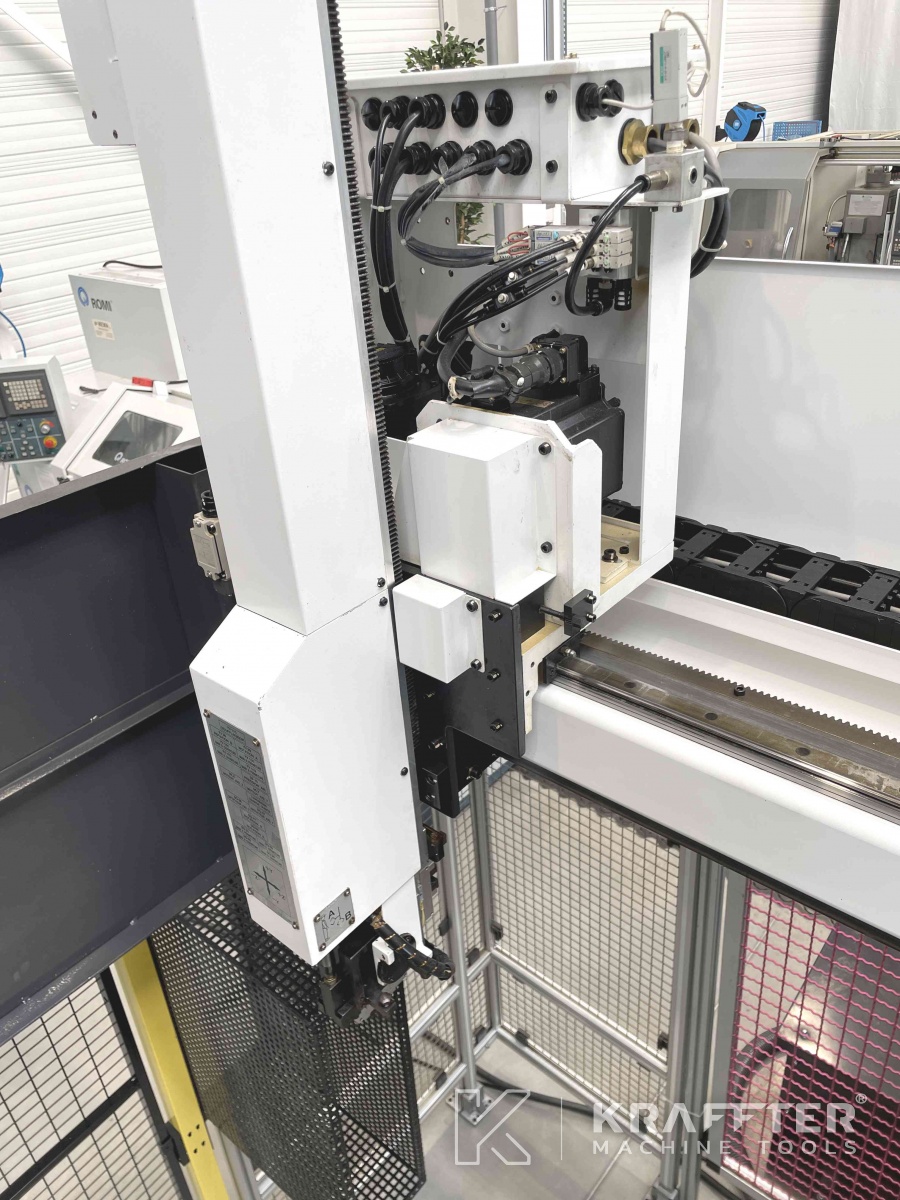

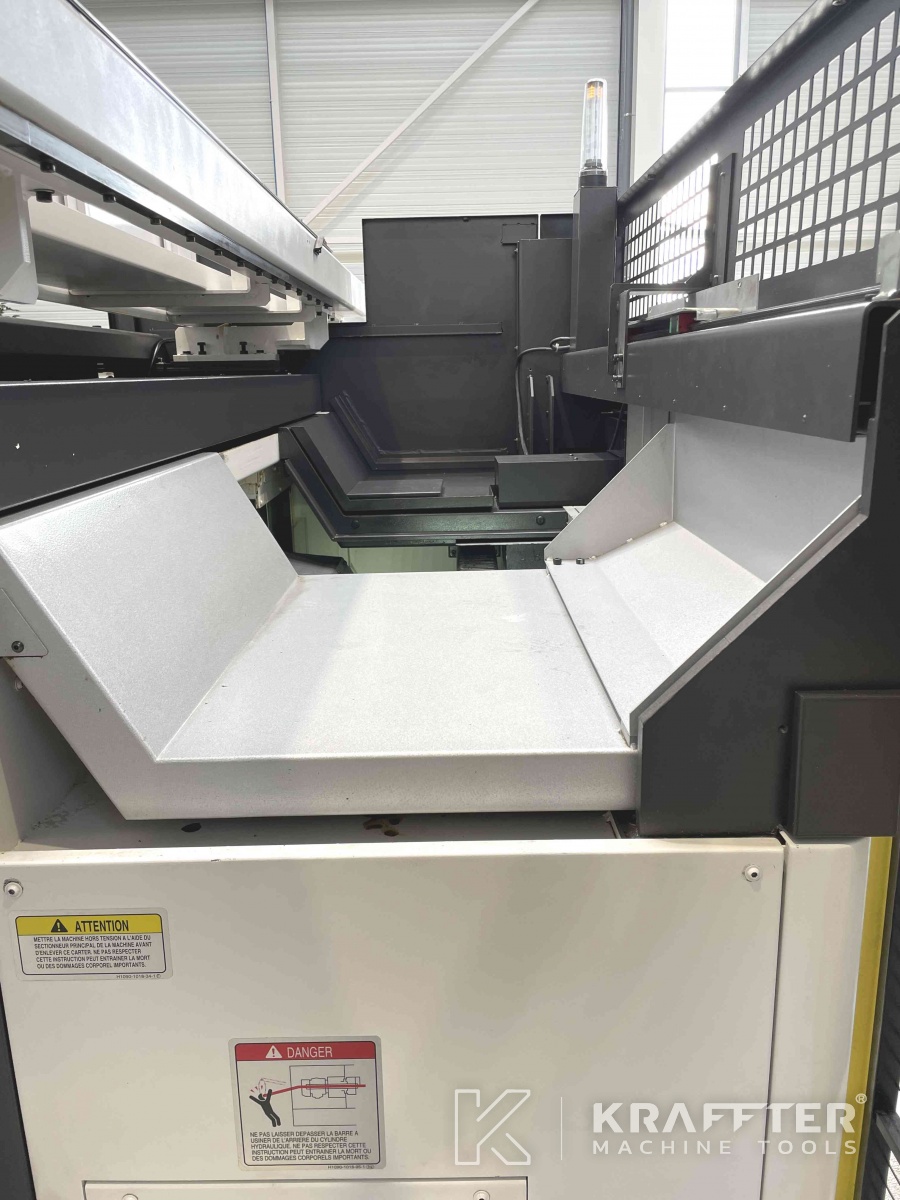

x1 gantry portal loader

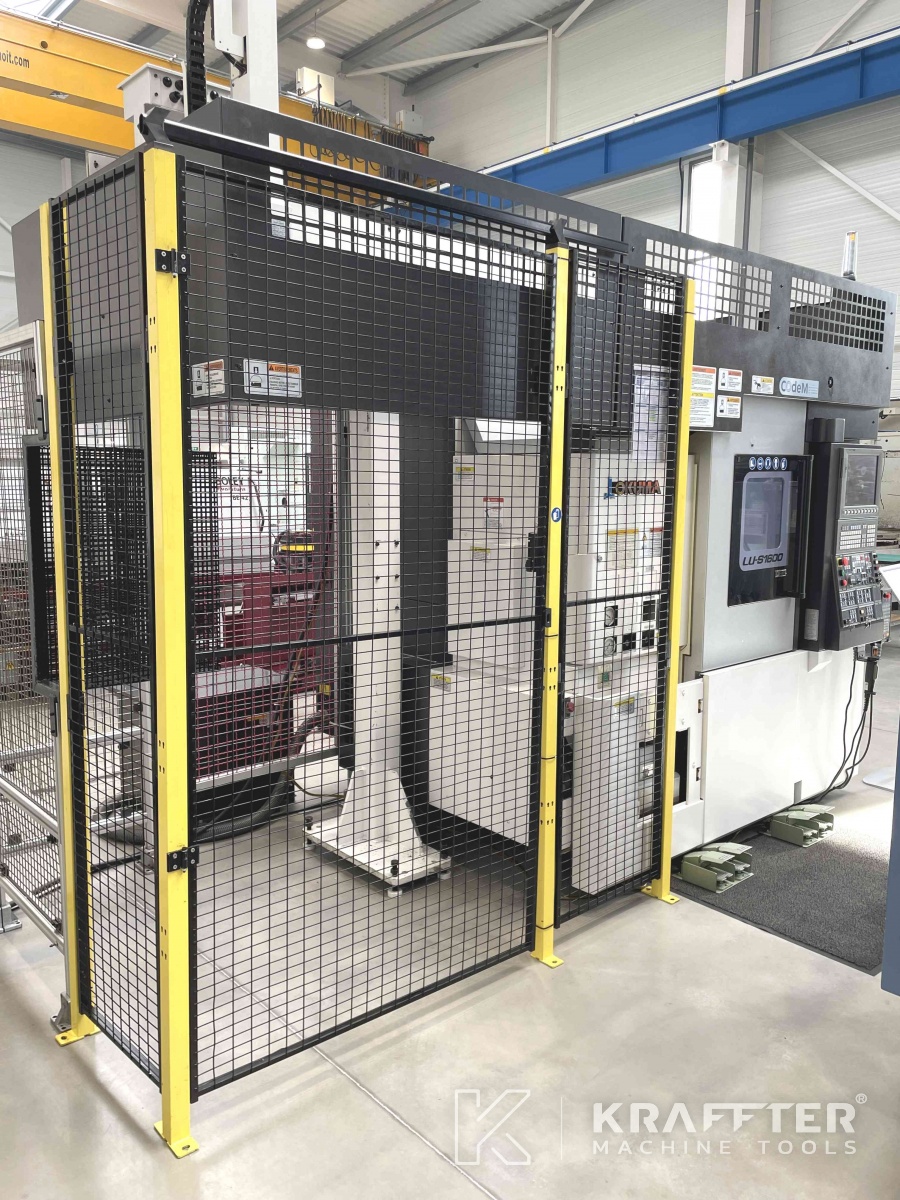

x1 metallic protection cell

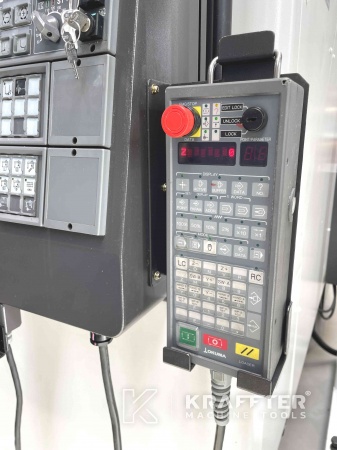

x1 electronic handwheel
x1 3 colours status lamp

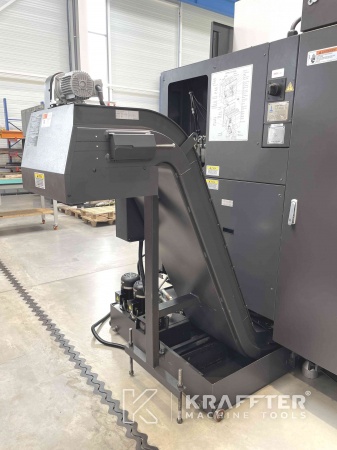

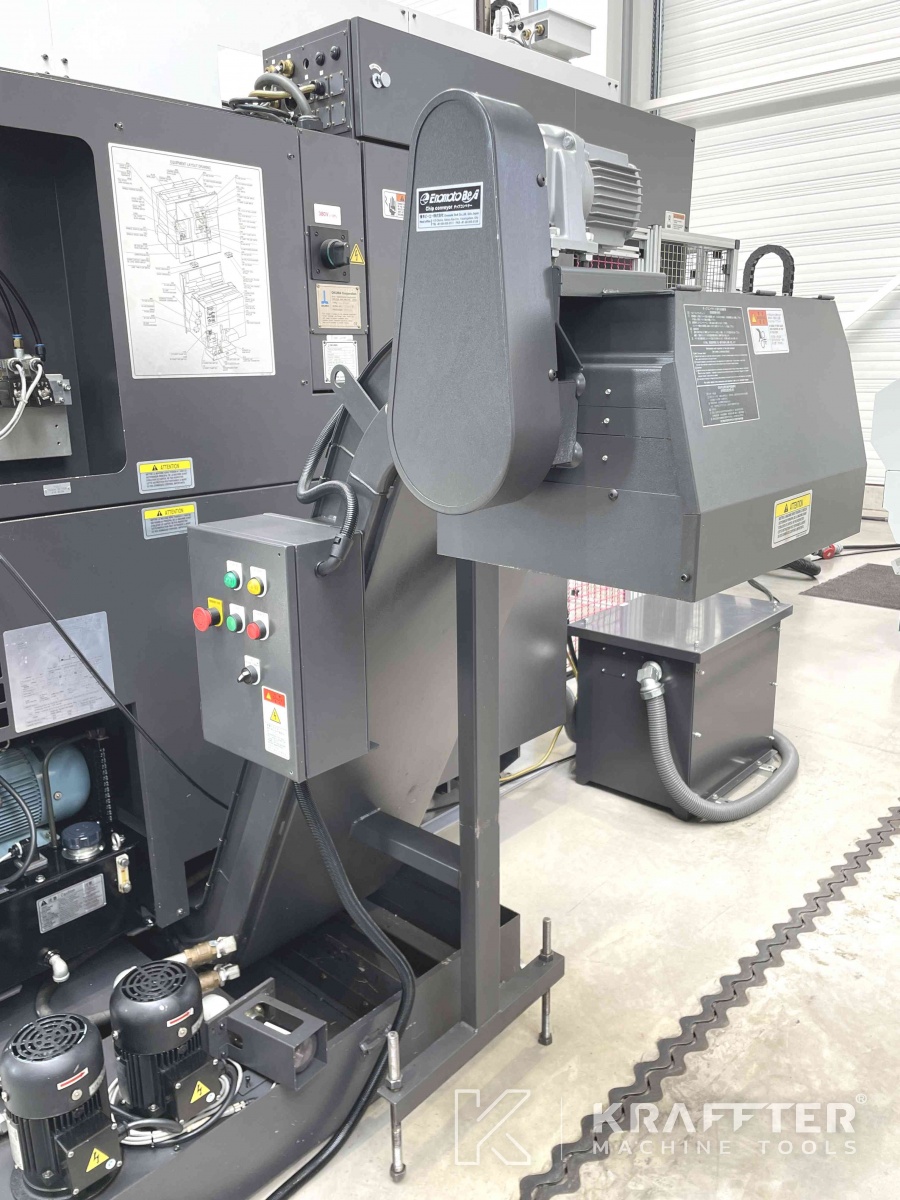

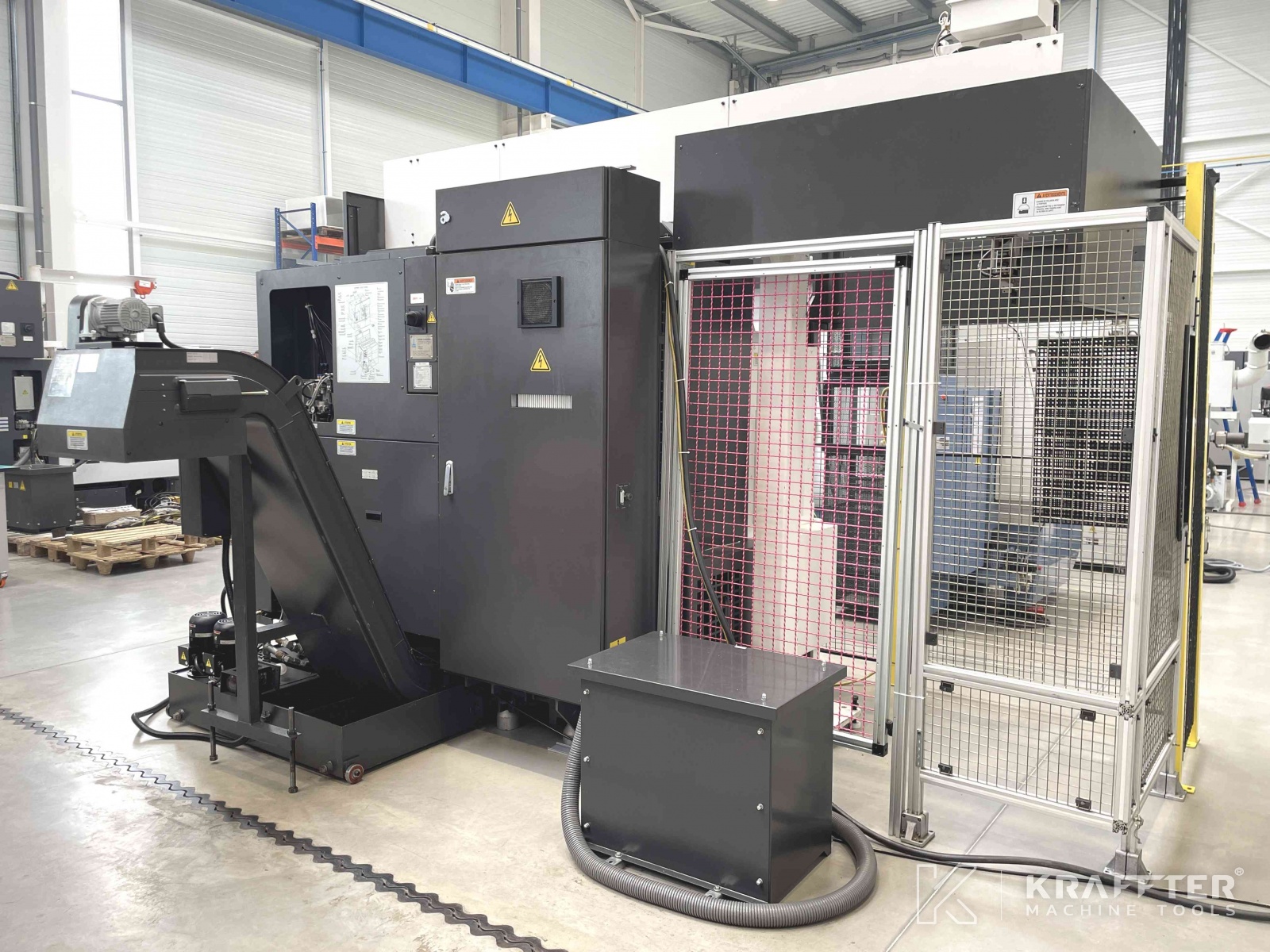

x1 chip conveyor
x1 operation manual
x1 electrical drawings manual
x1 operation and maintenance manual
x1 spare part manual
