Sold

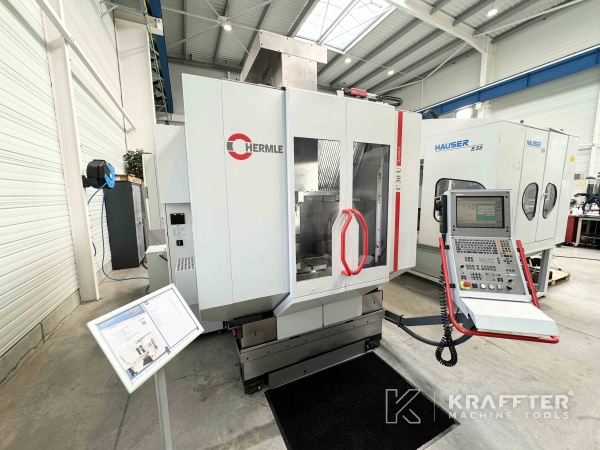

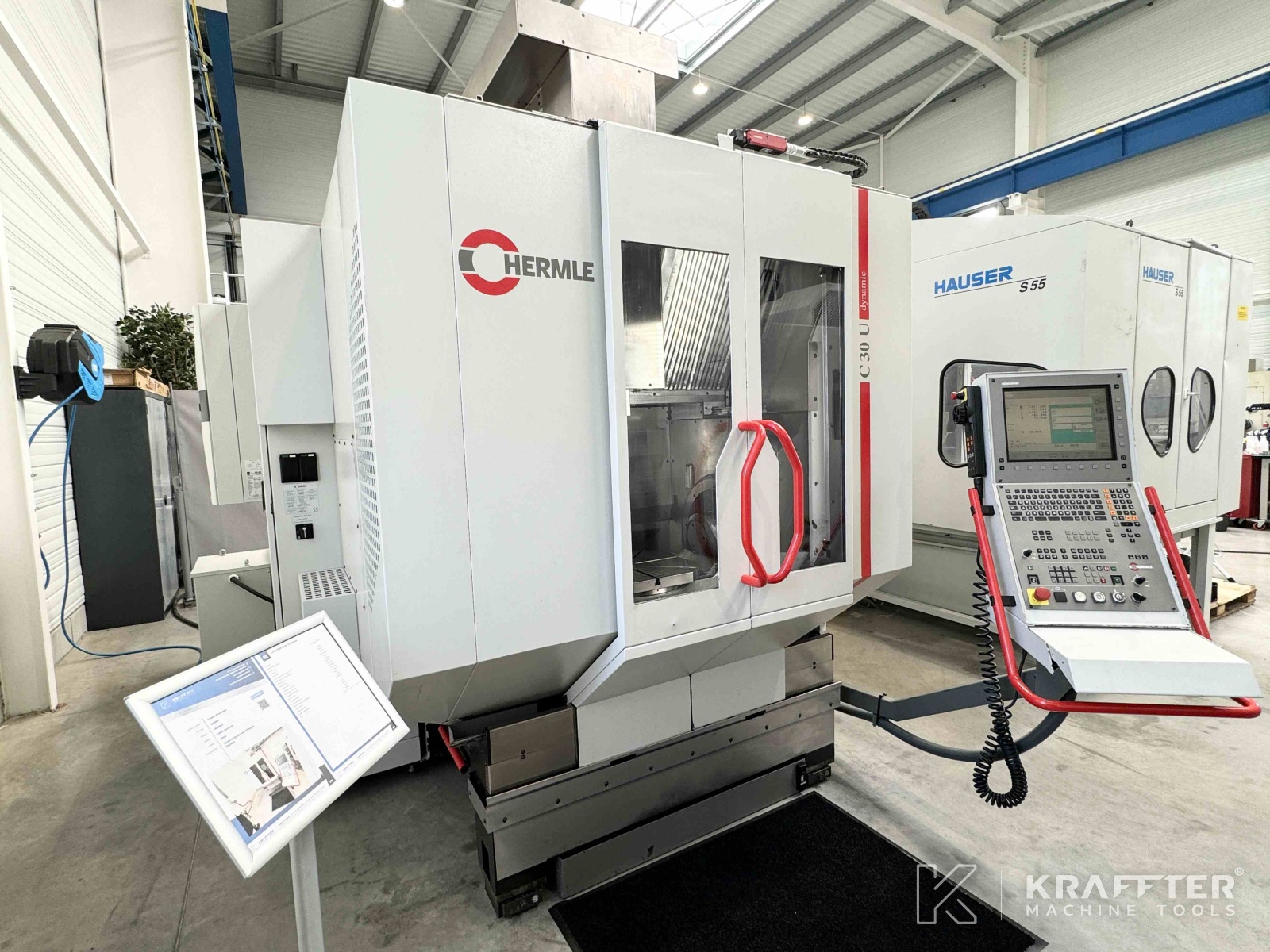

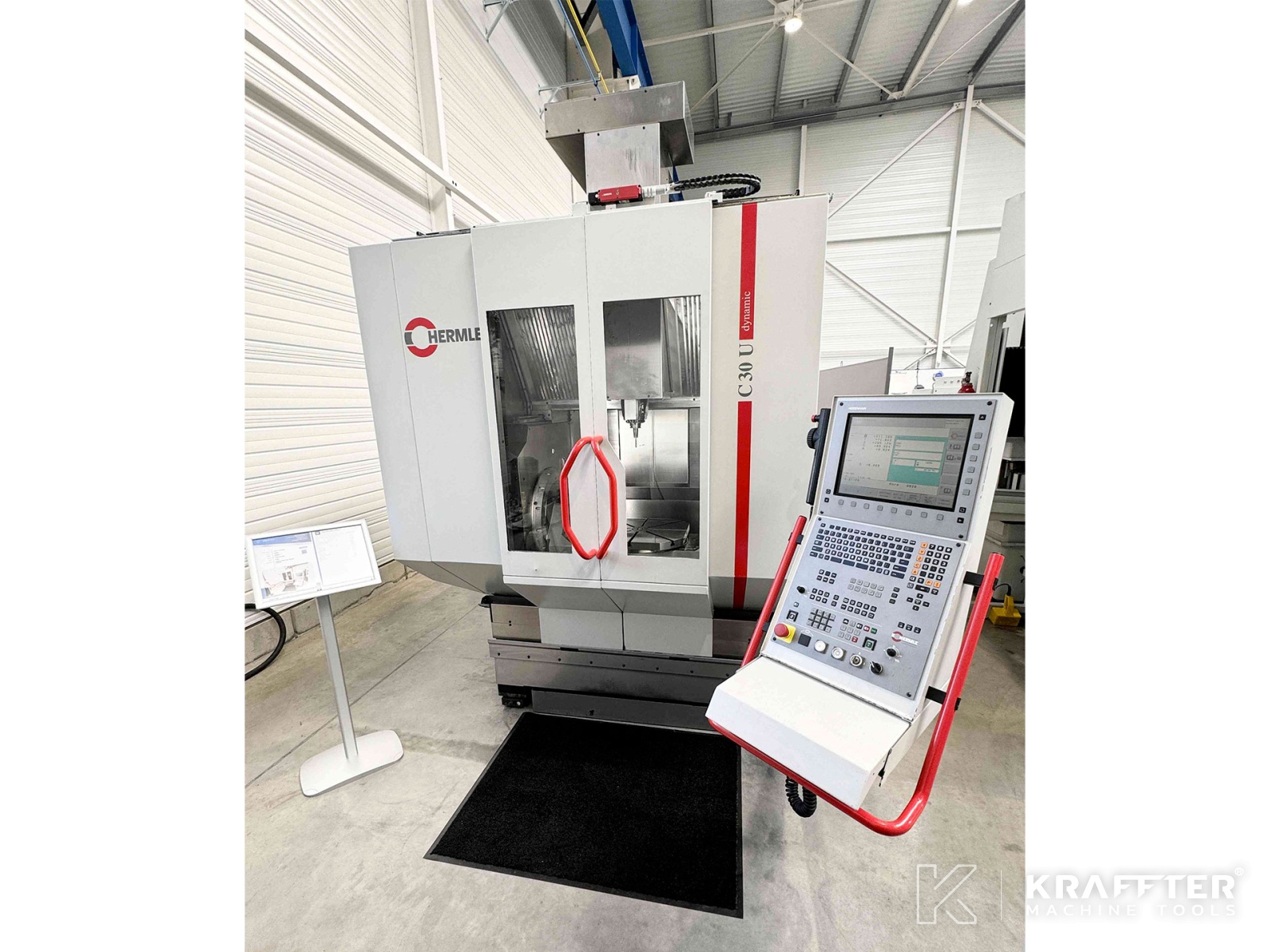

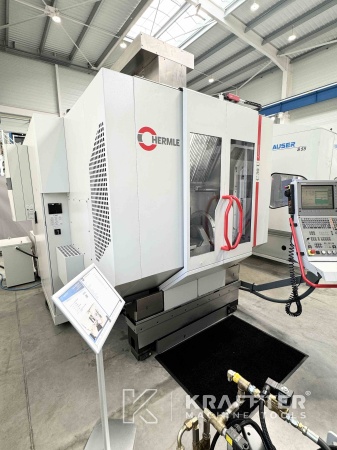

Type of machine : Vertical machining center
Brand : HERMLE
Stock N° : 90086
Model : C30U dynamic
Year : 2004
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation
CNC control

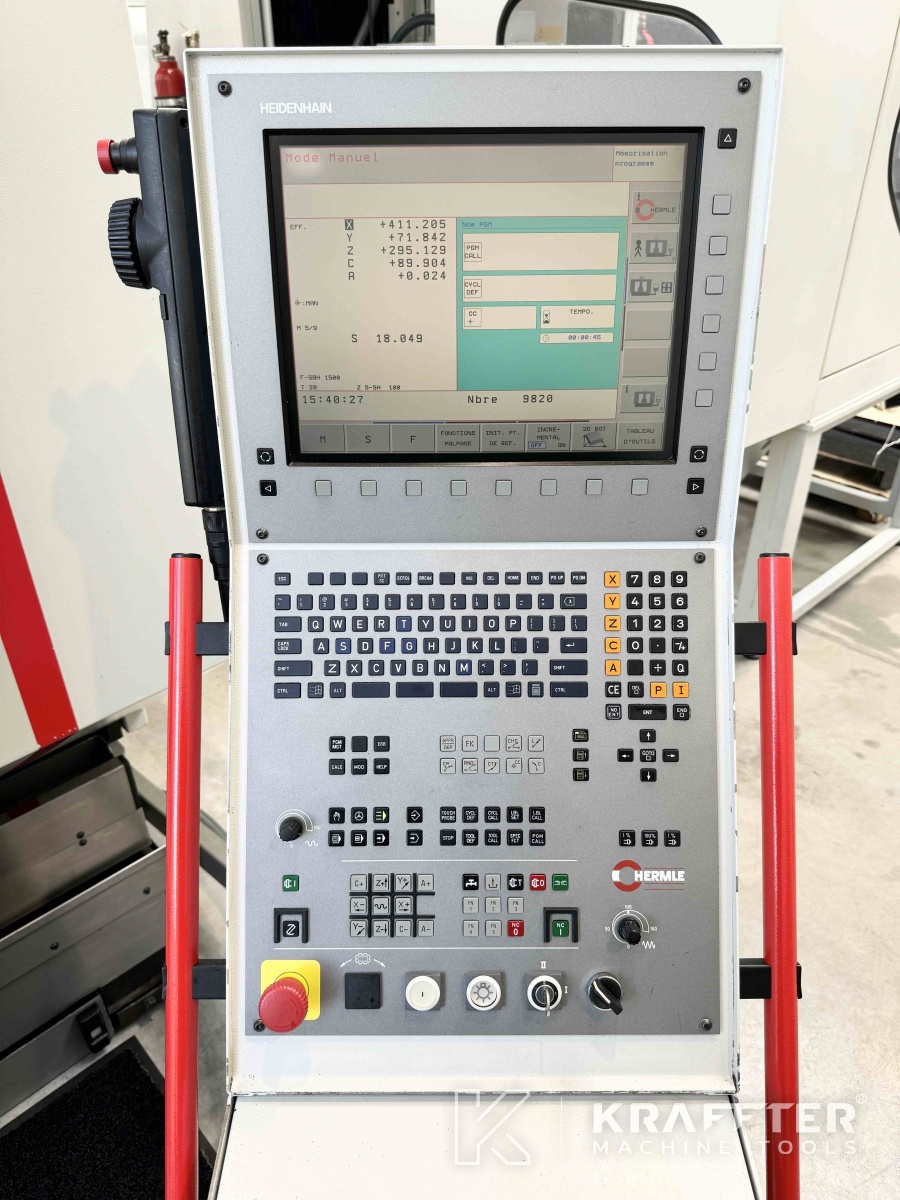

HEIDENHAIN iTNC 530
Number of simultaneous axes
5
Stroke X axis
650 [mm]
Stroke Y axis
600 [mm]
Stroke Z axis
500 [mm]
Feed rate on X, Y and Z axes
60000 [mm/min]
Axes acceleration
10 m/s²
Resolution X axis
0.0001 [mm]
Resolution Y axis
0.0001 [mm]
Resolution Z axis
0.0001 [mm]
X axis ball screw, Ø x pitch
40 x 20 [mm]
Y axis ball screw, Ø x pitch
50 x 40 [mm]
Z axis ball screw, Ø x pitch
40 x 30 [mm]
Table surface Ø
630 [mm]

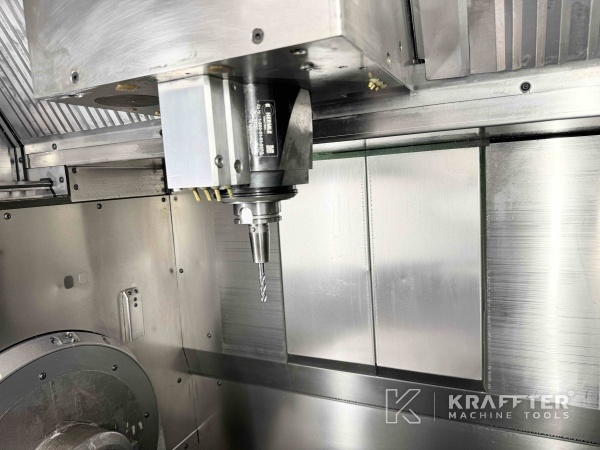

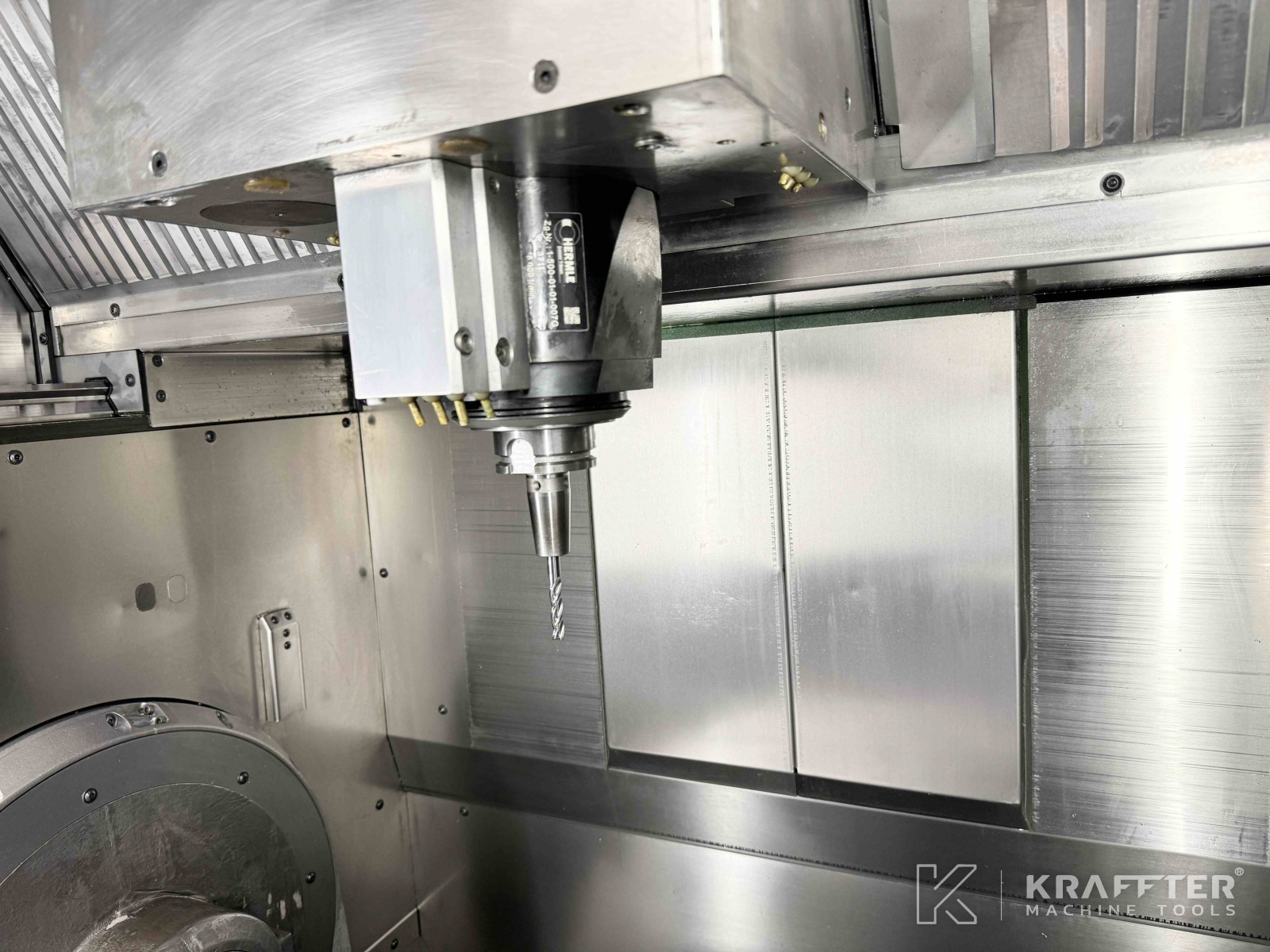

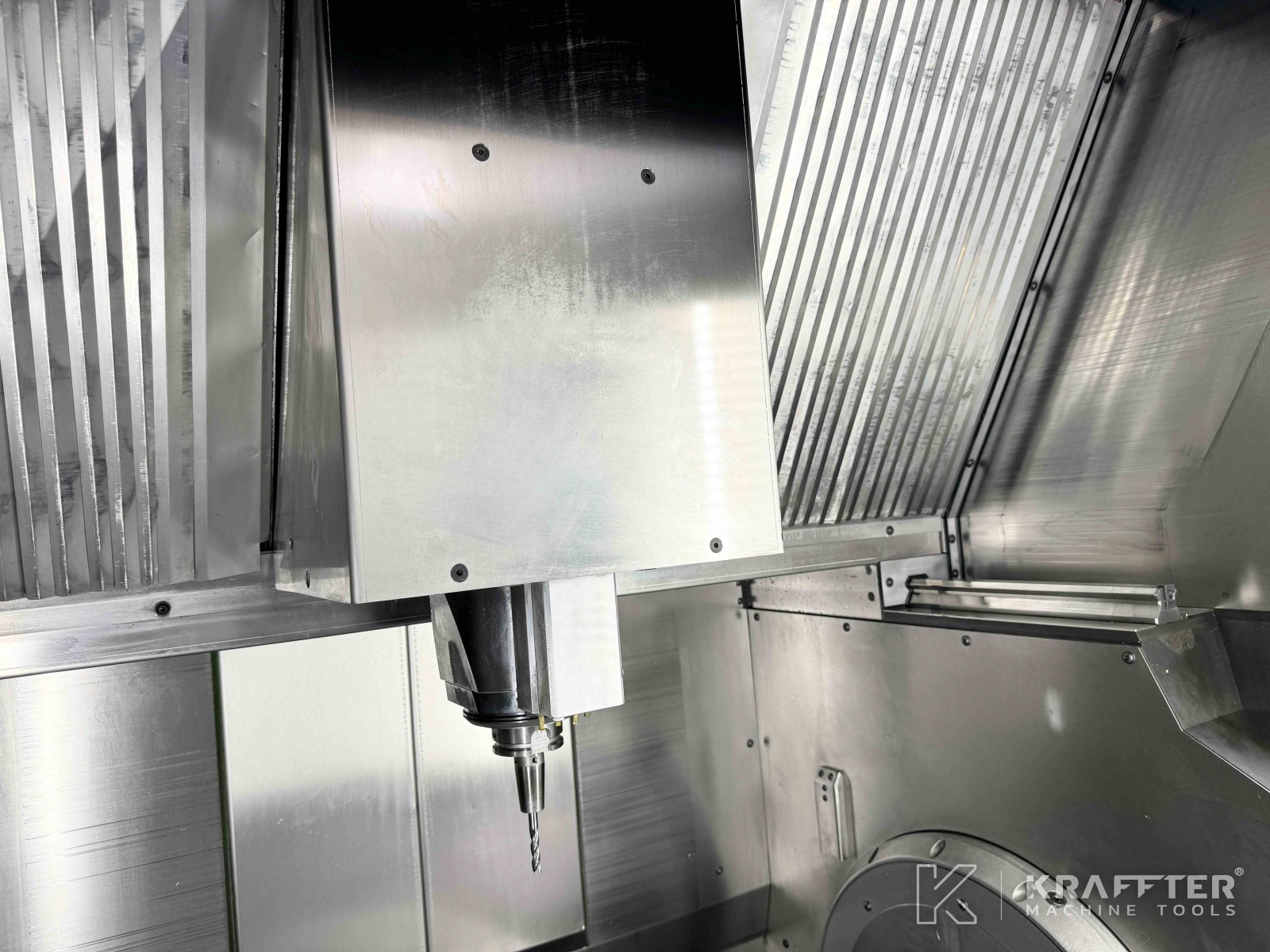

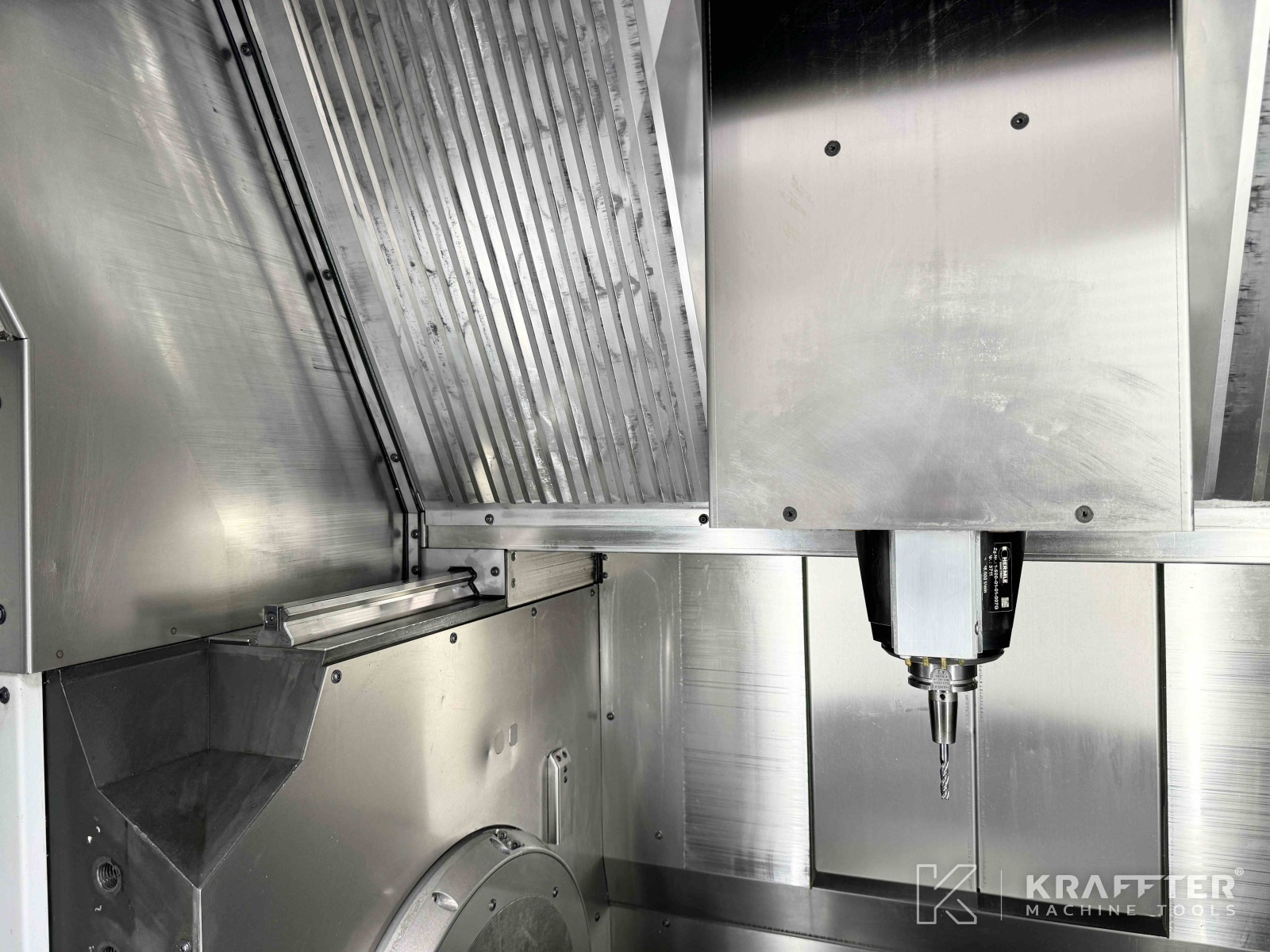

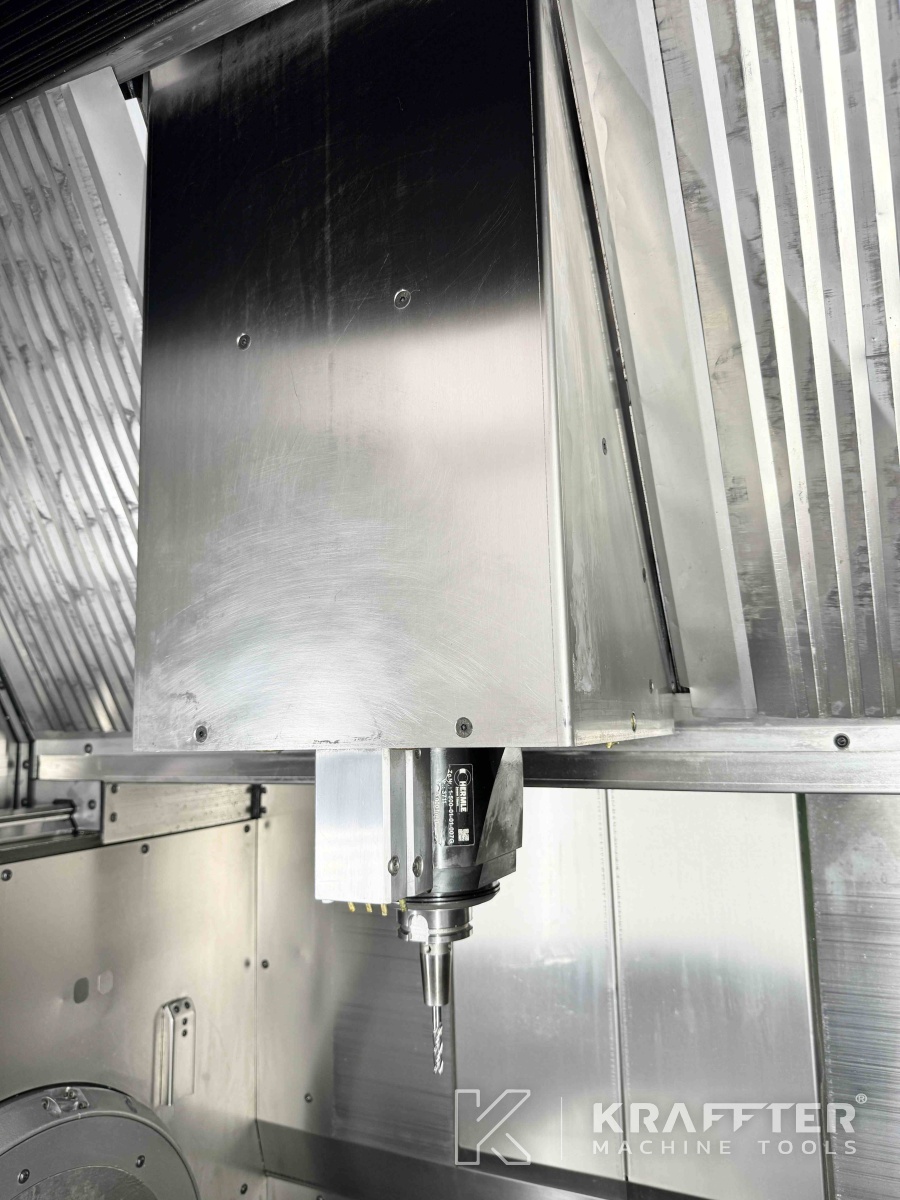

Spindle type
HSK-A 63
Max. spindle speed
18000 [rpm]
Tool changer magazin number of stations
38
Rated current
63 [A]
Total power required
43 [kVA]
Supply voltage
400 [V]
Number of running hours
19552 [h]
Weight
9500 [Kg]
Equipment included:

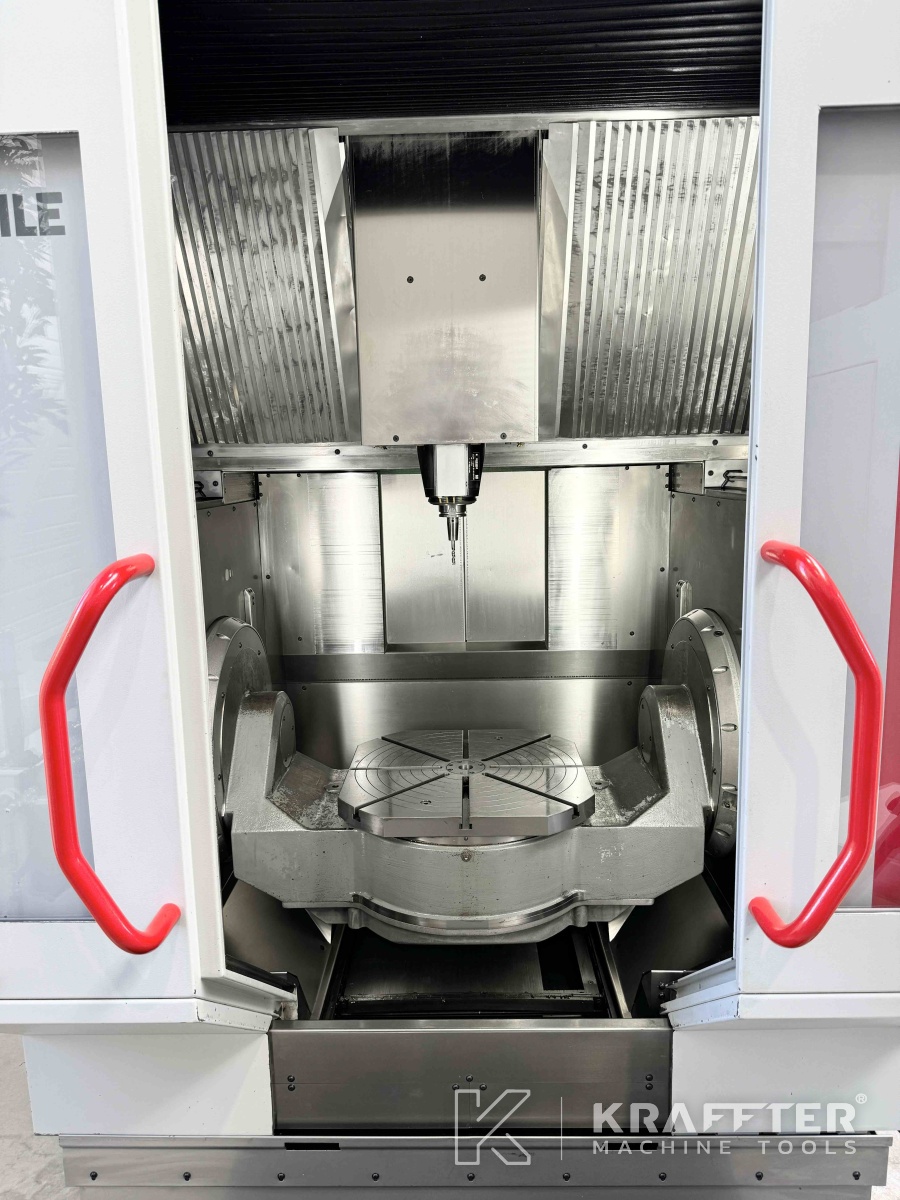

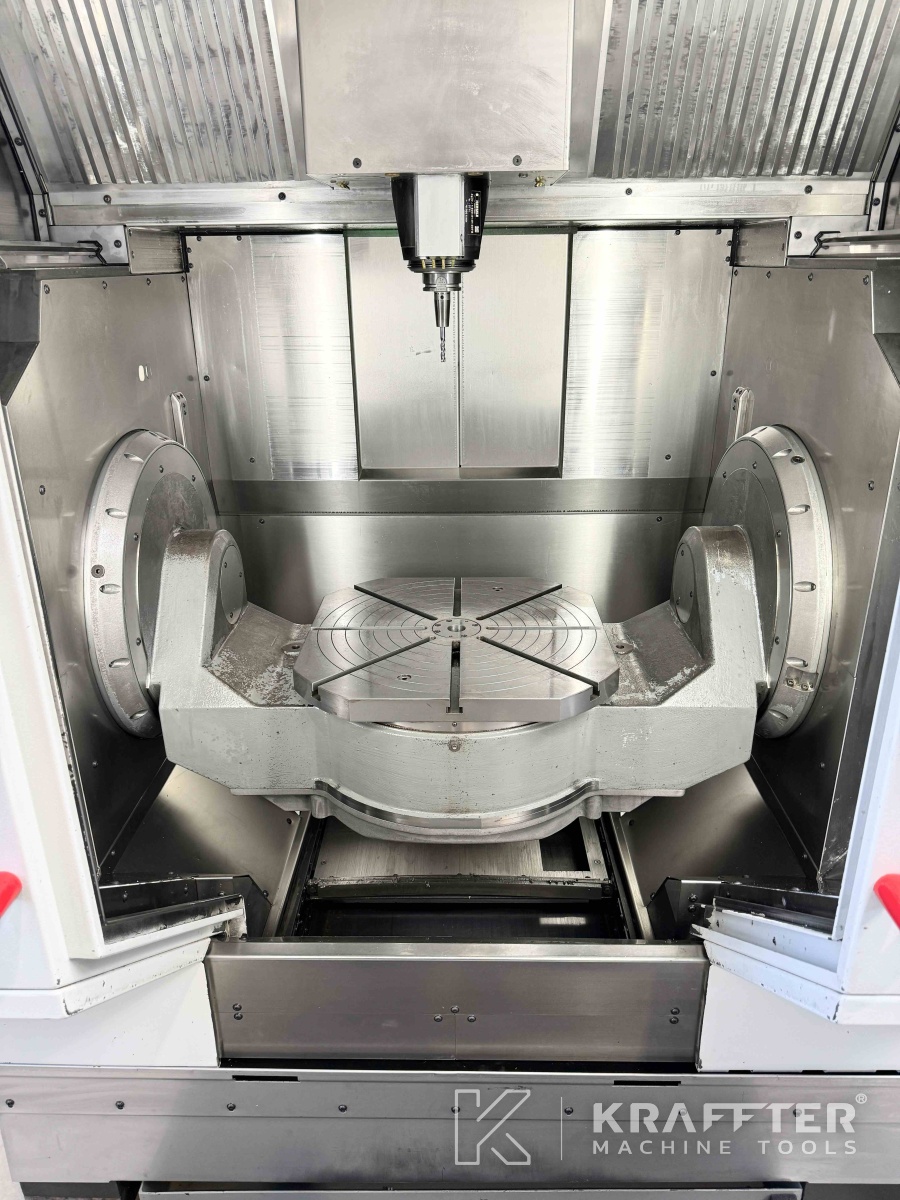

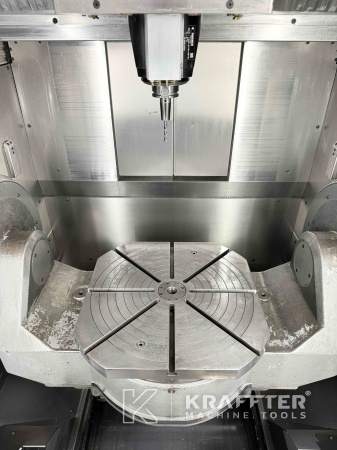

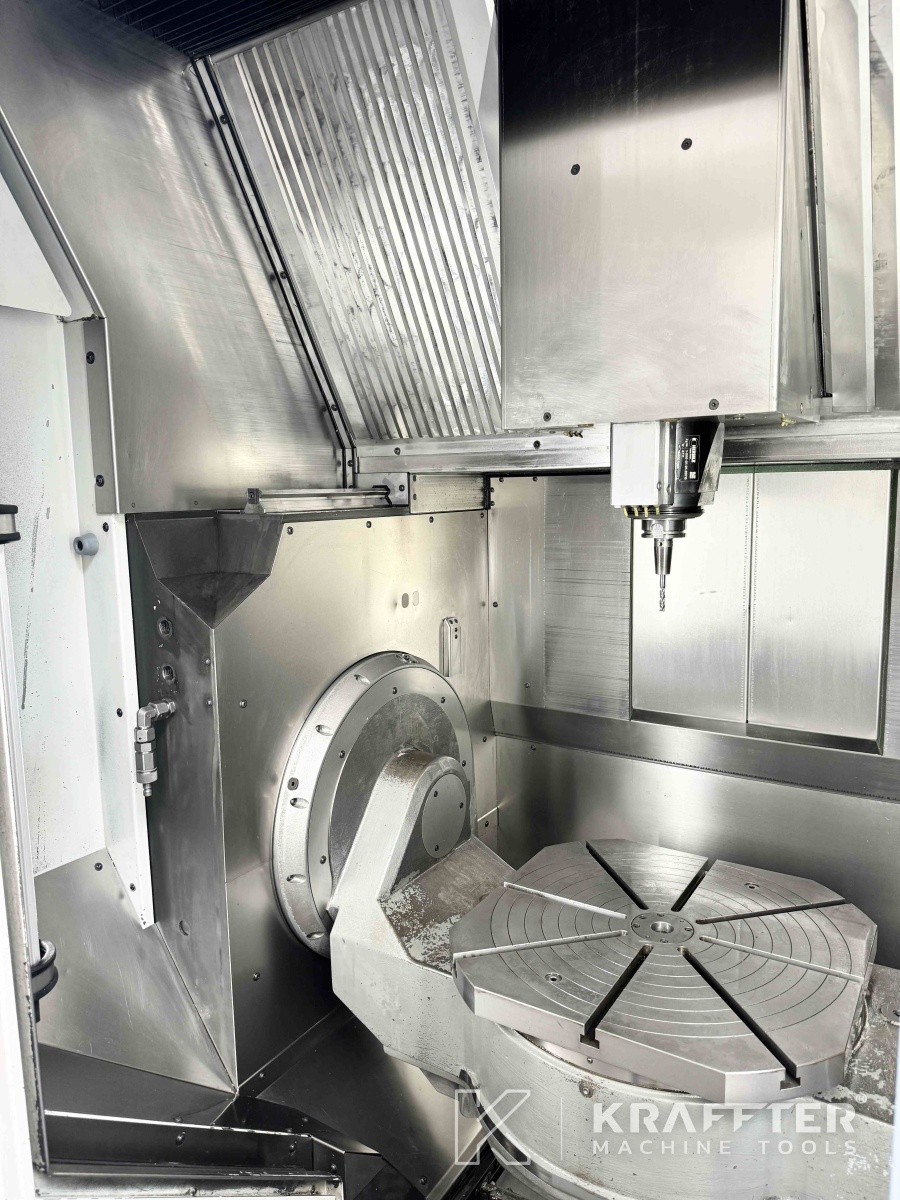

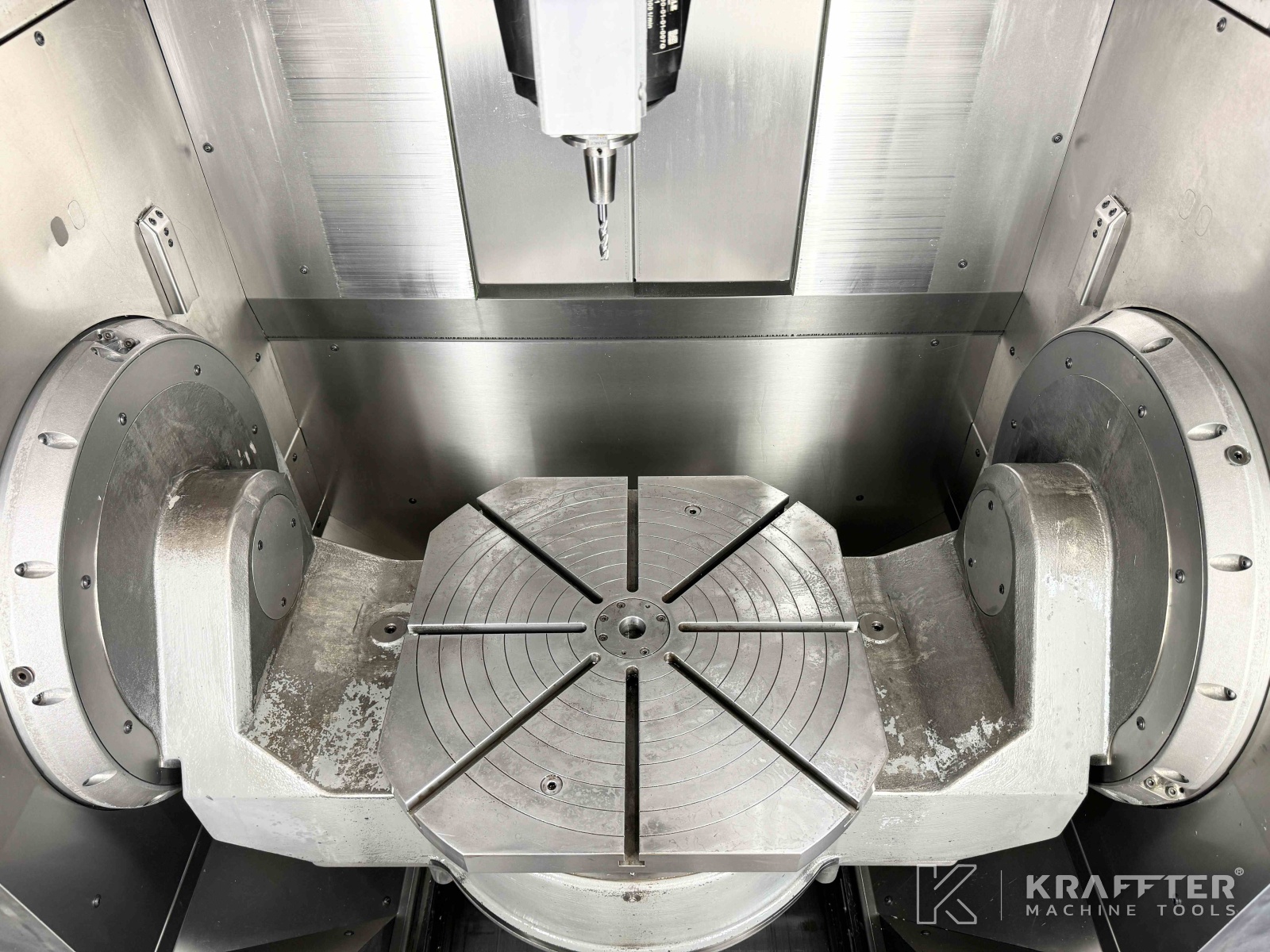

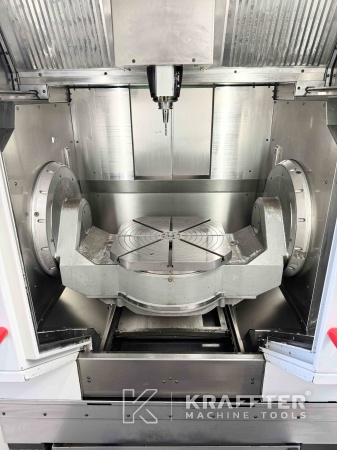

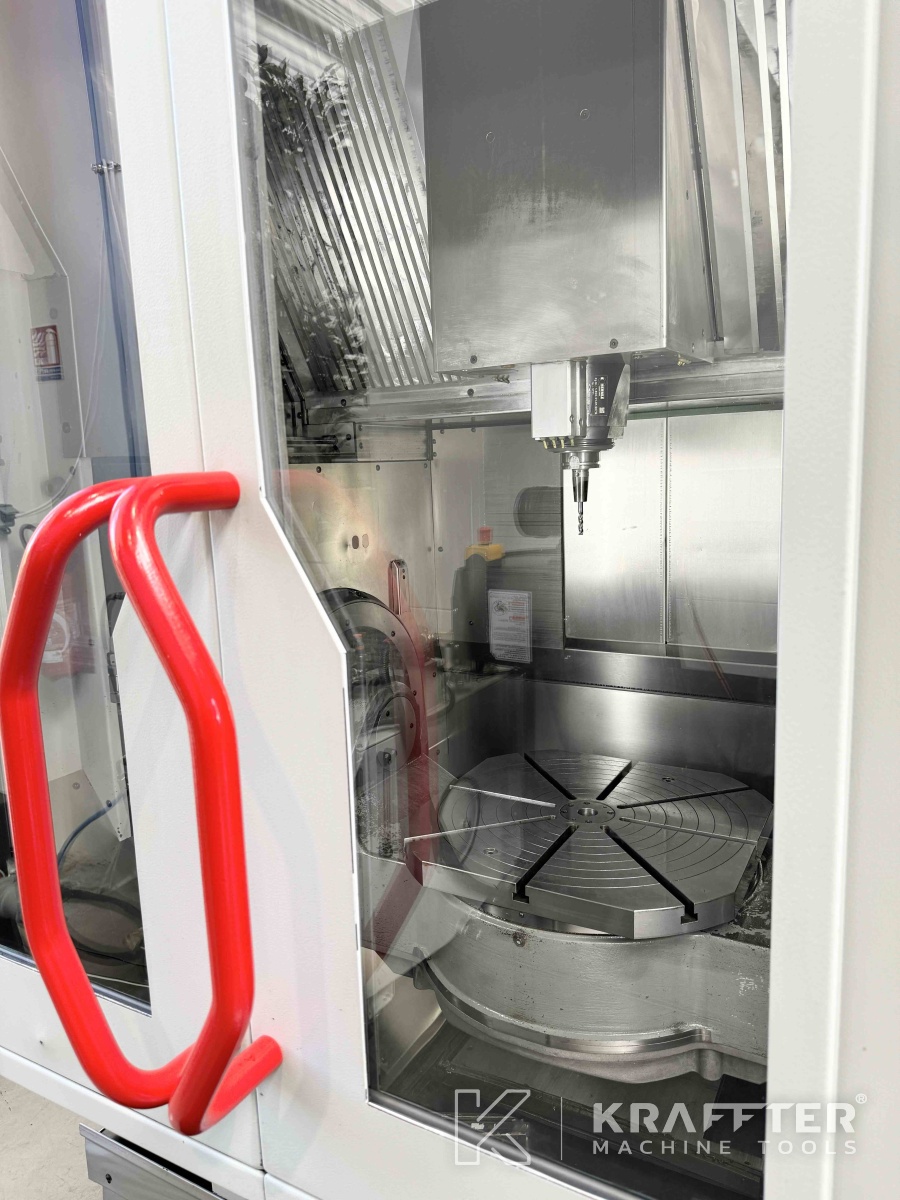

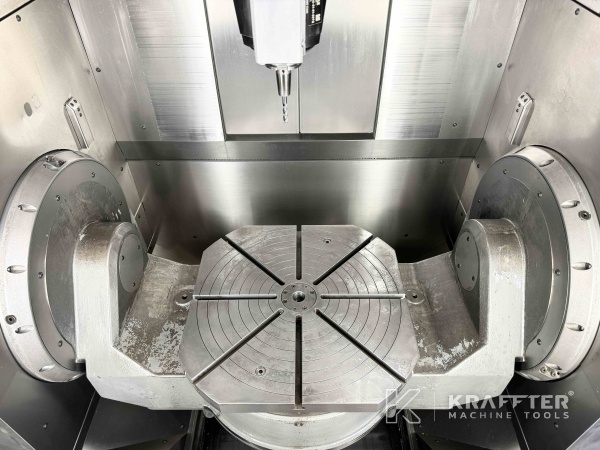

x1 swiveling table Ø630 [mm]

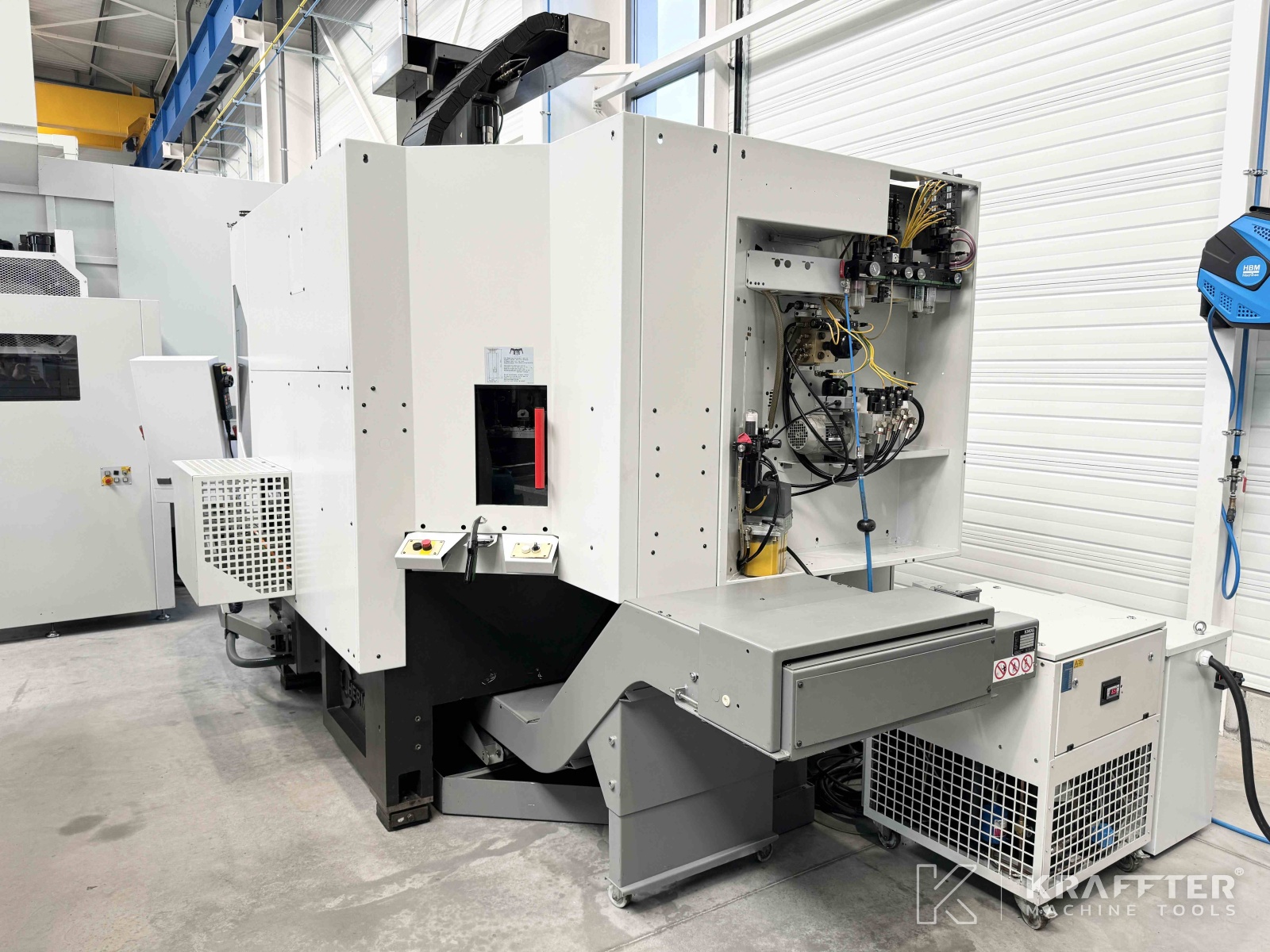

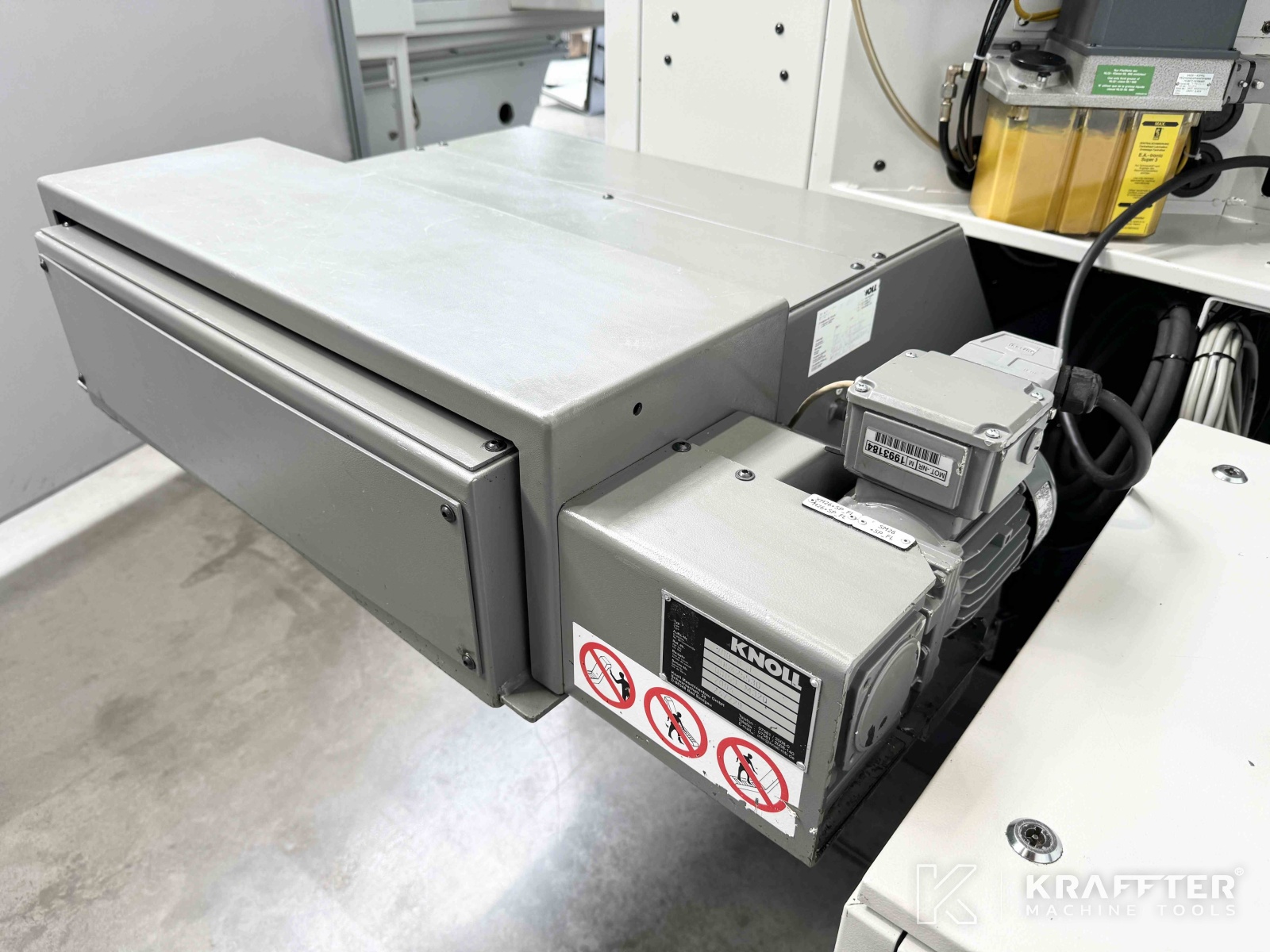

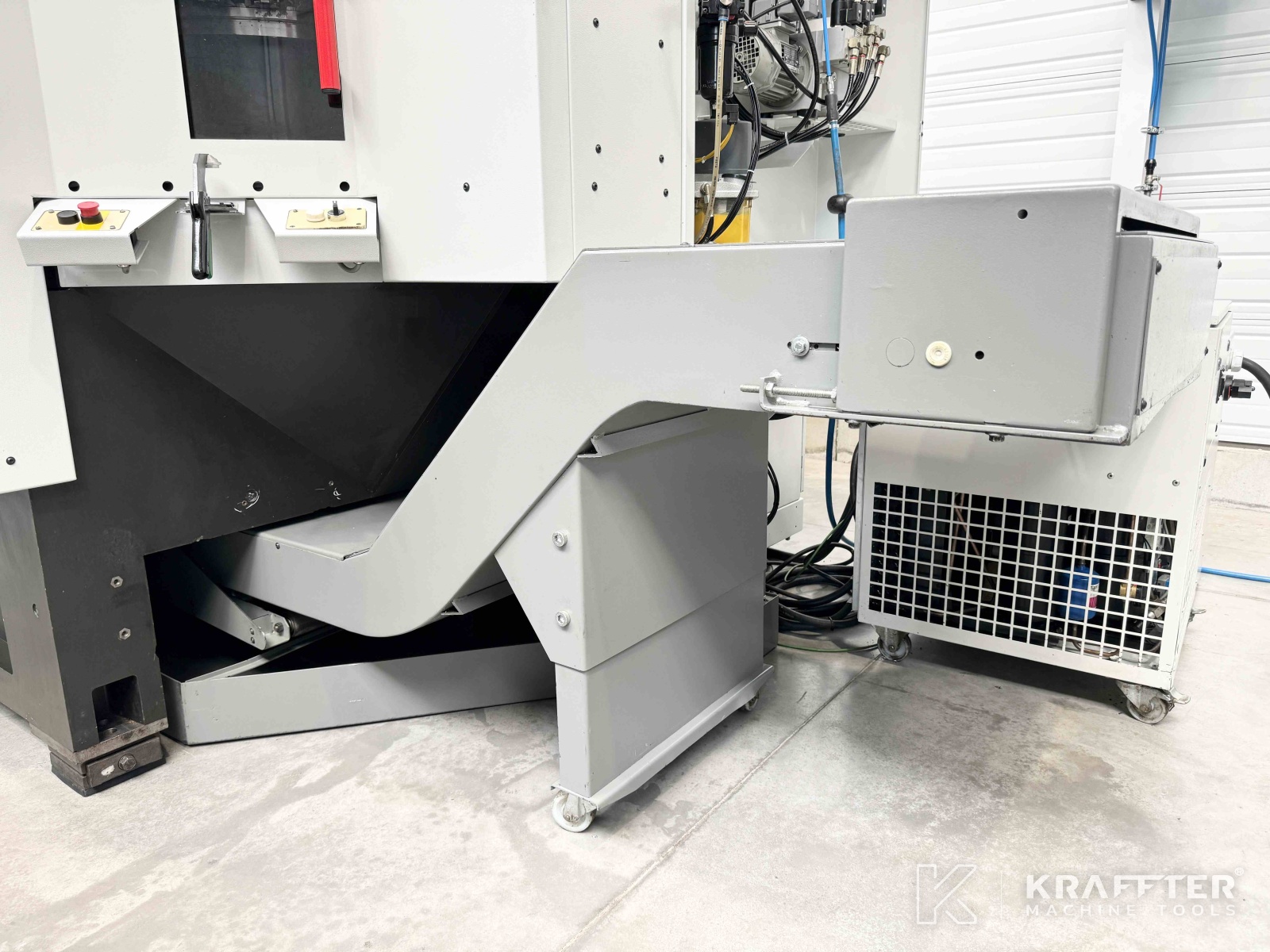

x1 chip conveyor

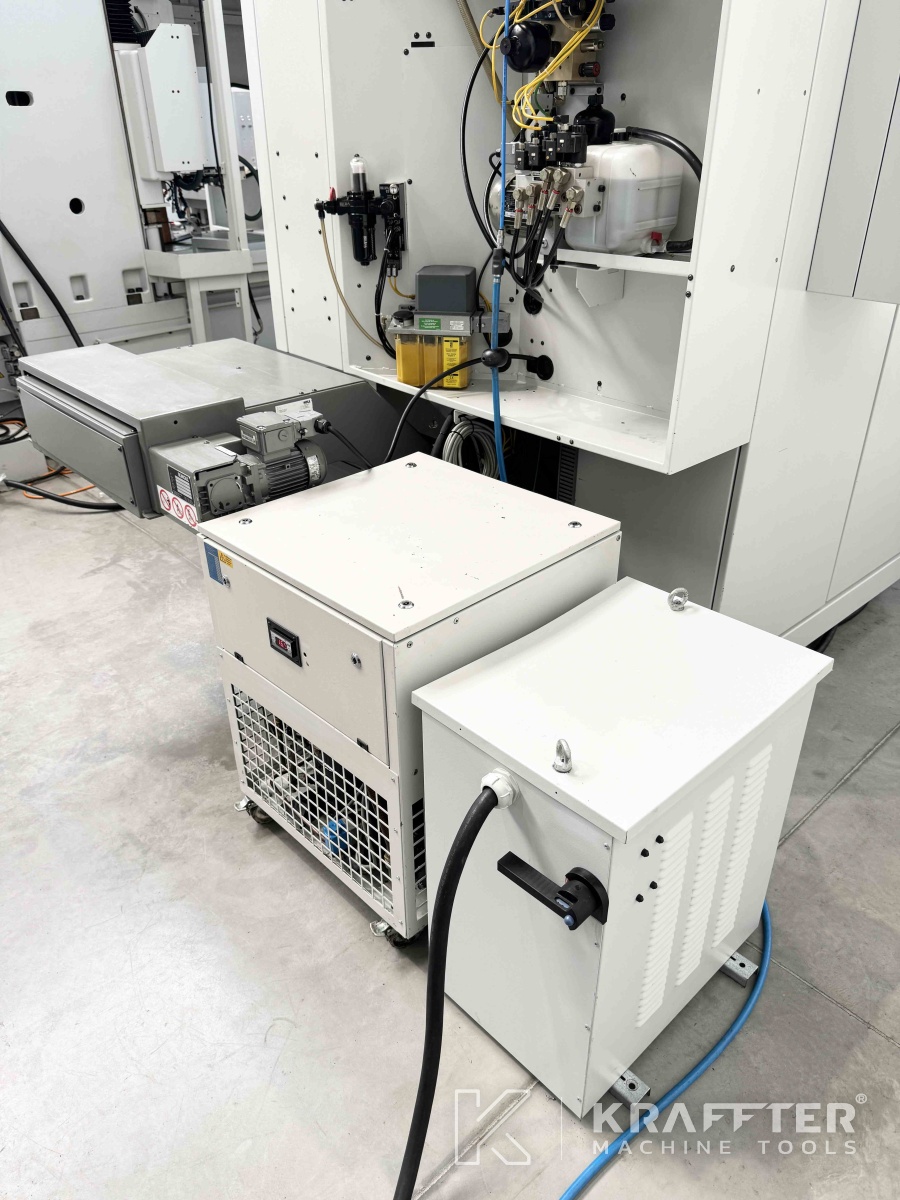

x1 spindle cooler unit
x1 cone attachment blowing device

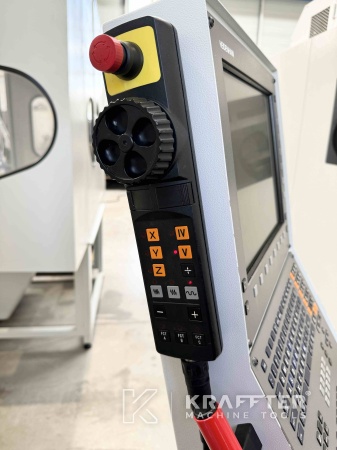

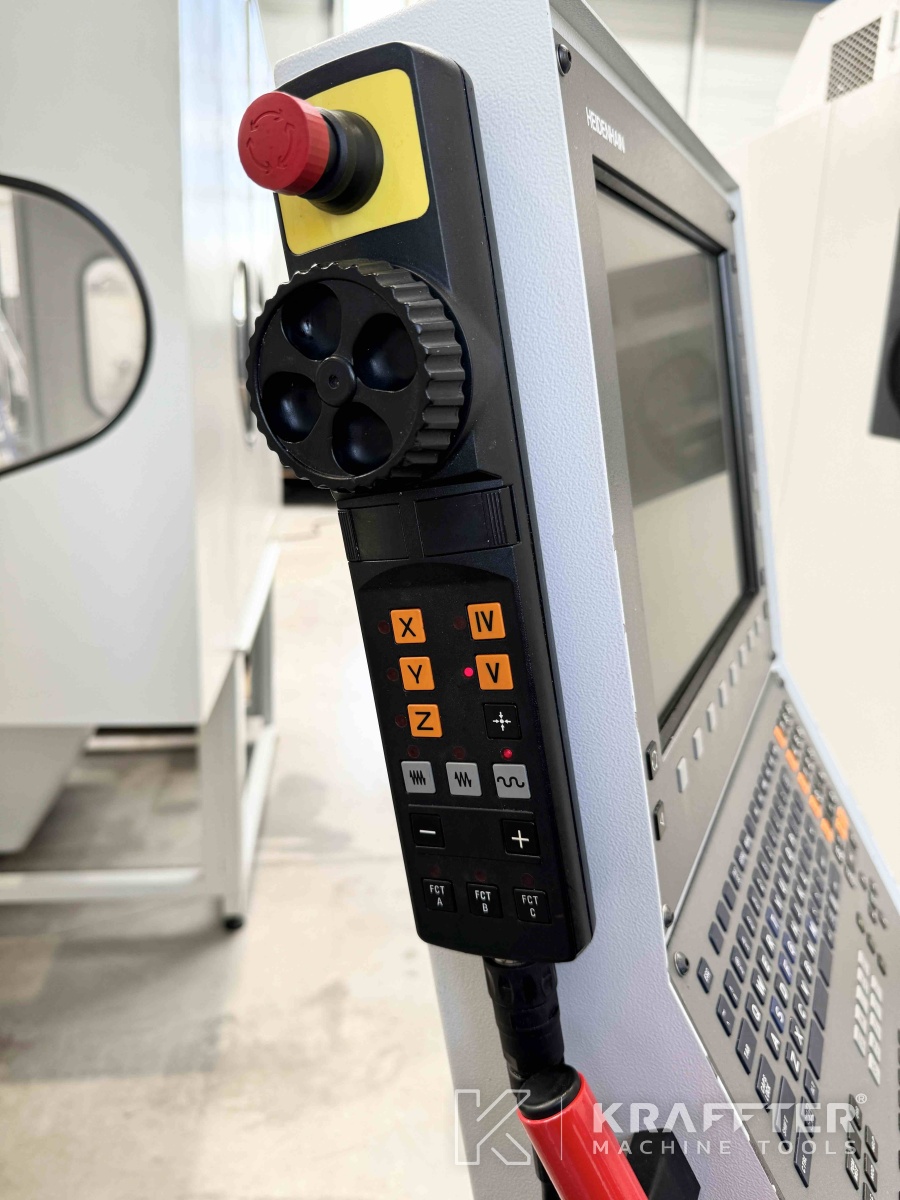

x1 HEIDENHAIN iTNC remote electronic handwheel

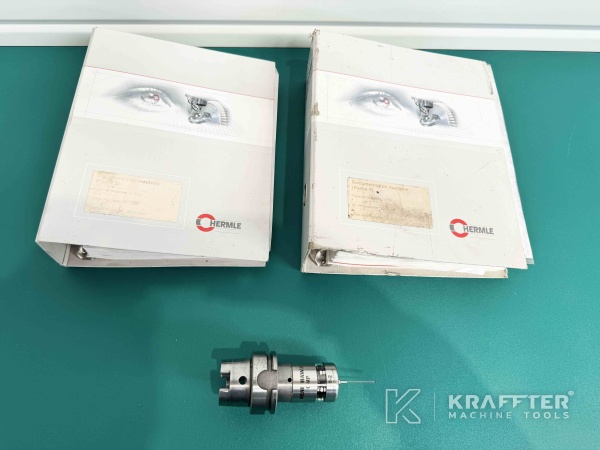

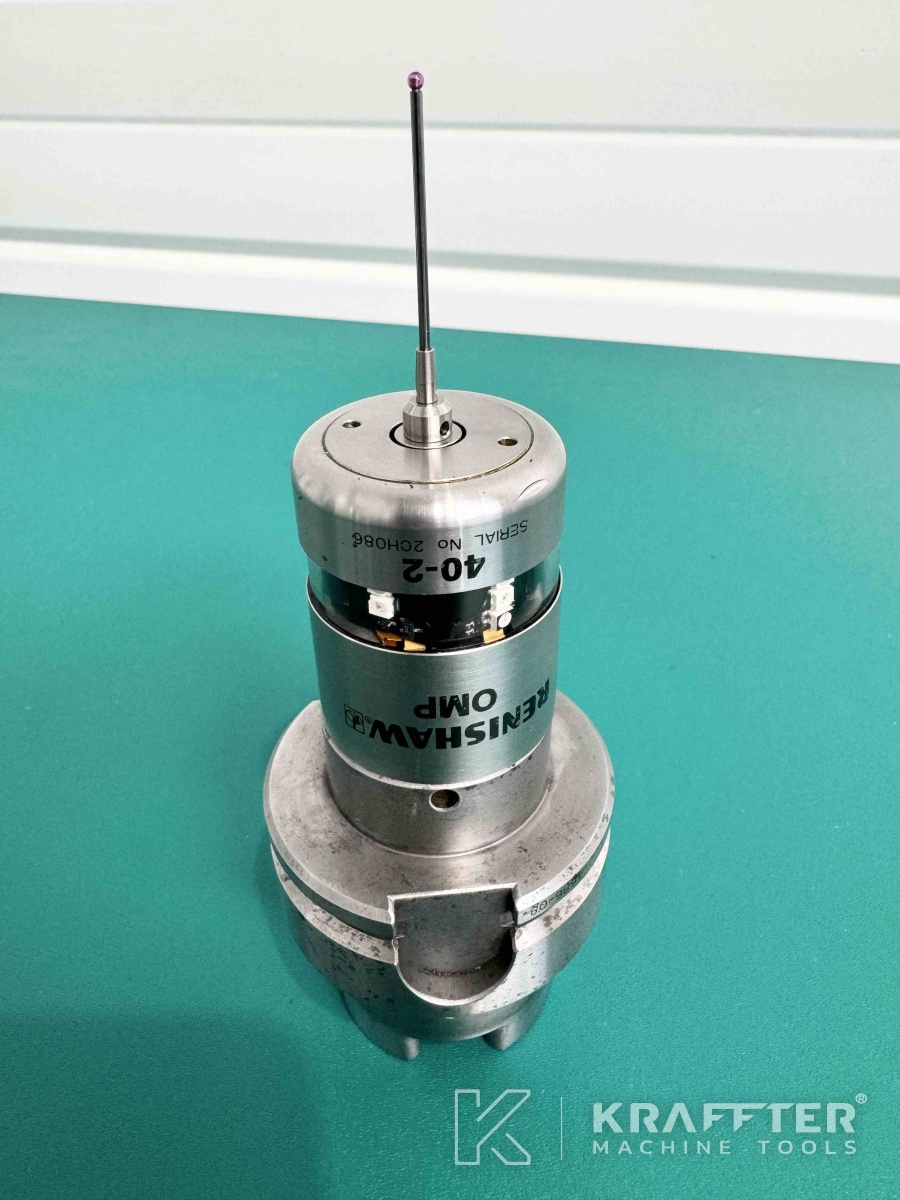

x1 RENISHAW OMP40-2 part probe
x1 air pressurisation for HEIDENHAIN glass scales in X, Y and Z axes
Spindle refurbishment in 2015: bearings, gaskets, anti-collision pad
