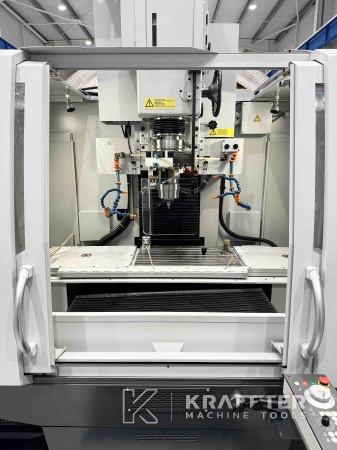

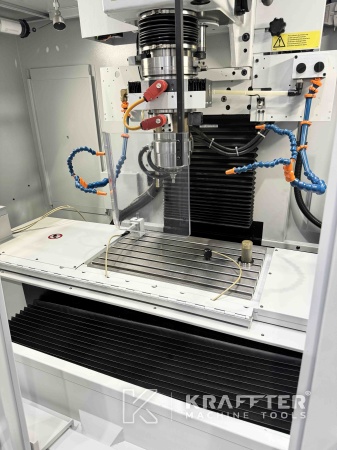

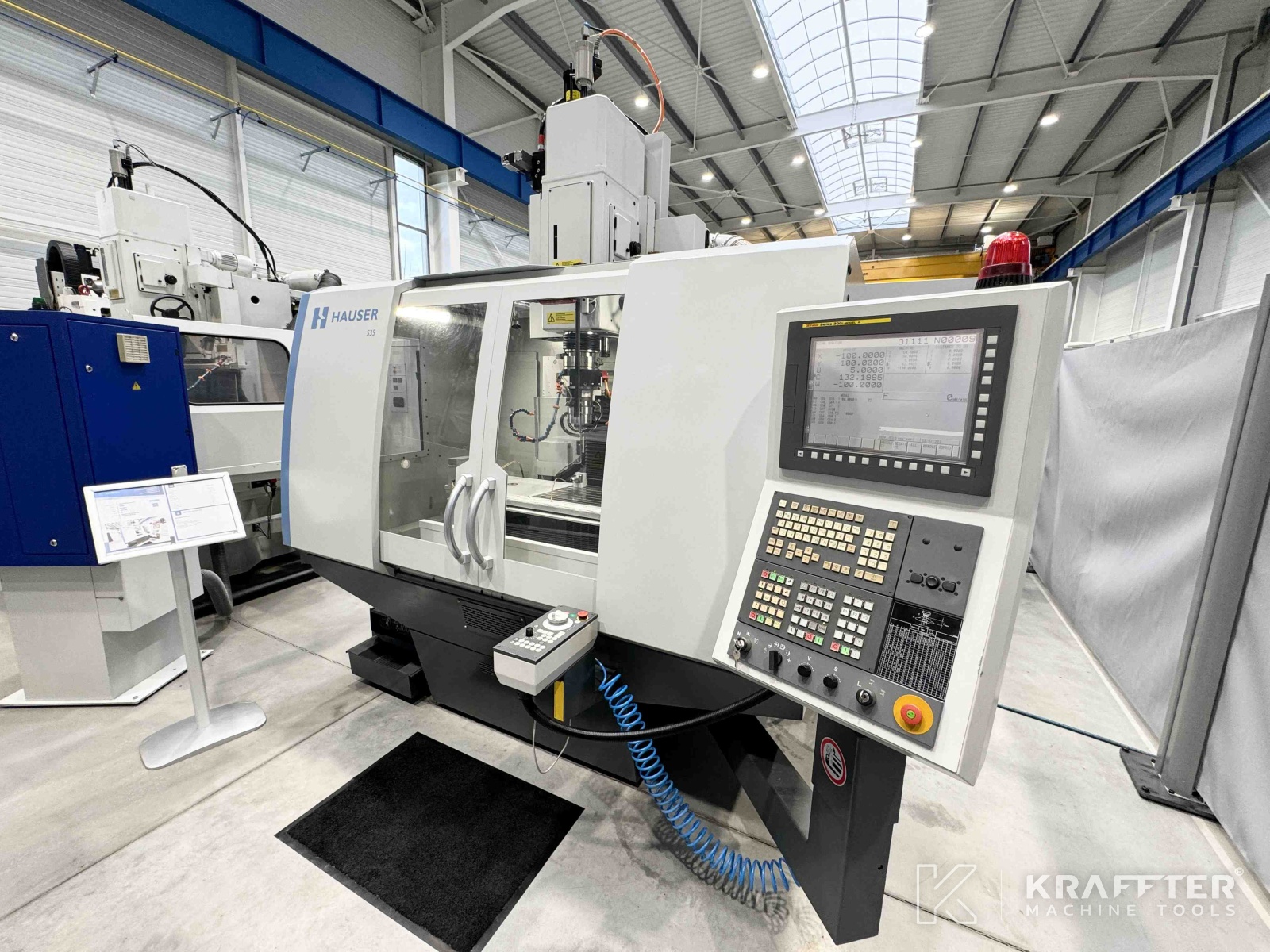

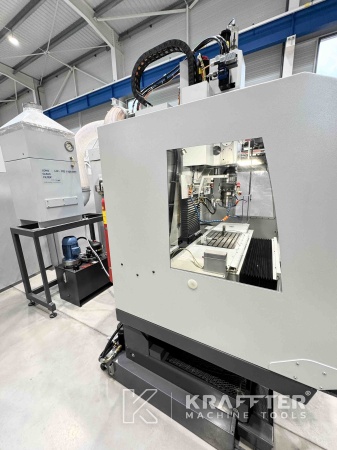

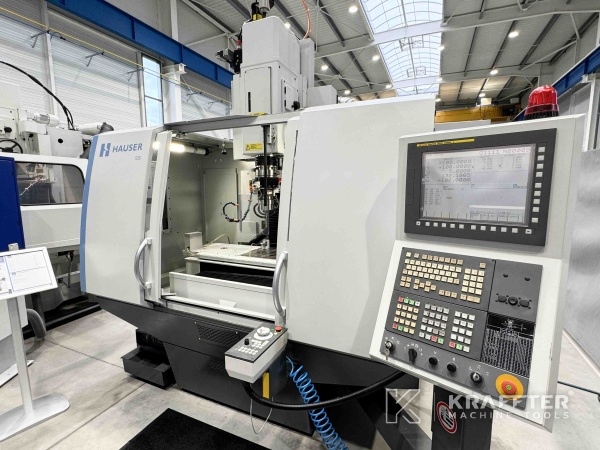

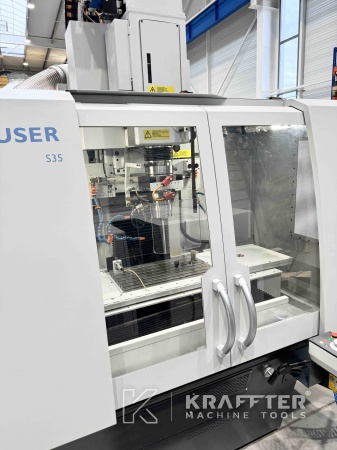

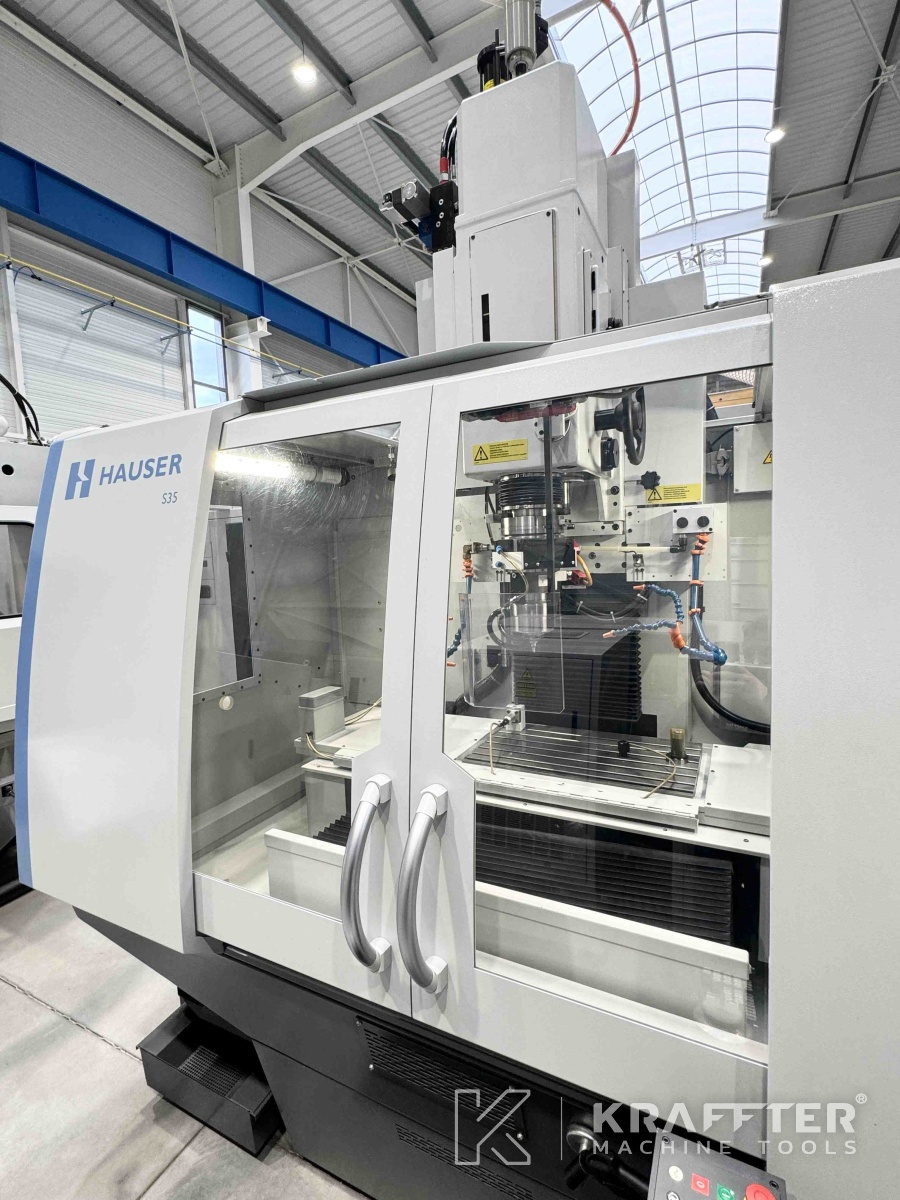

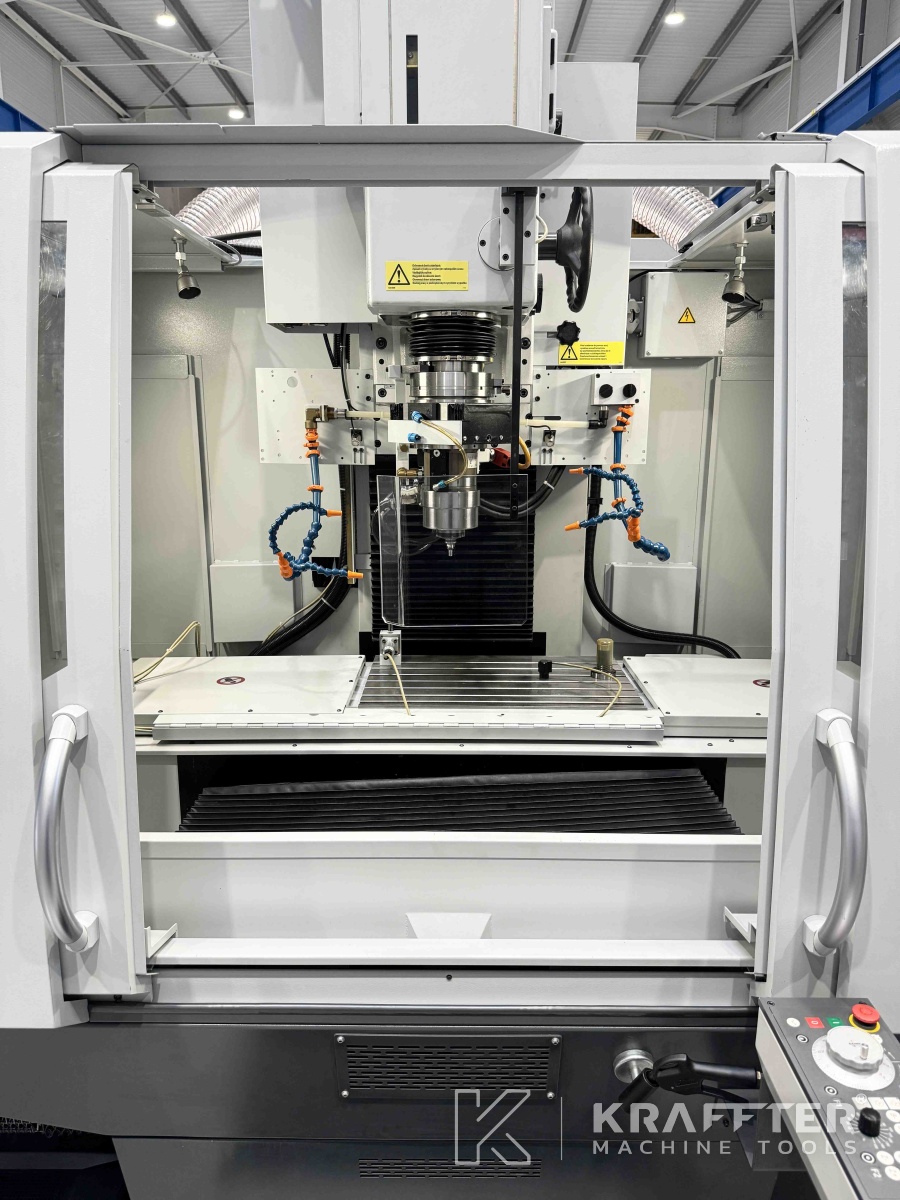

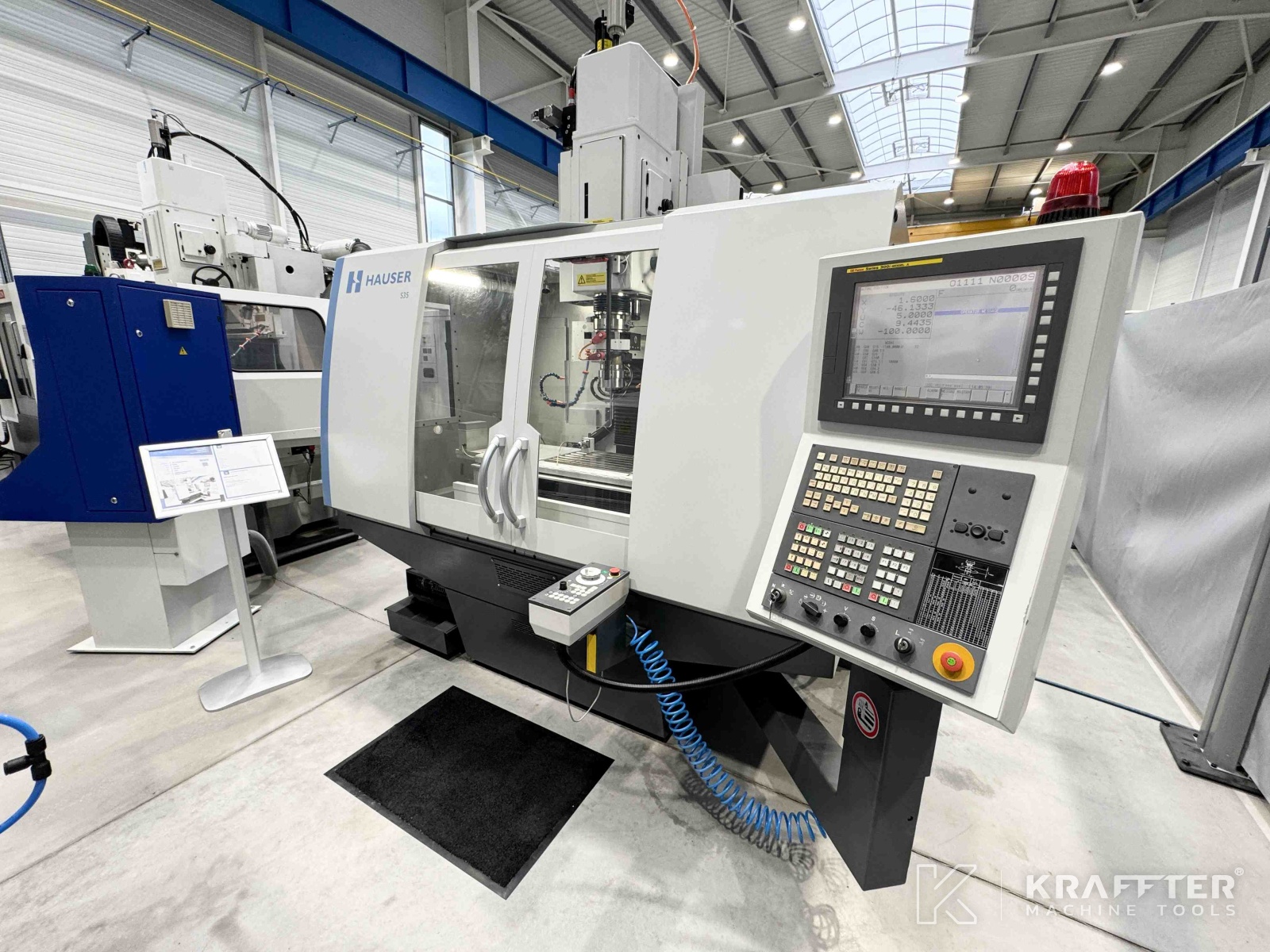

Type of machine : CNC jig grinding machine
Brand : HAUSER
N° de stock: 90095
Model : S35-400
Year : 2009
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Request a quotation
Technical characteristics

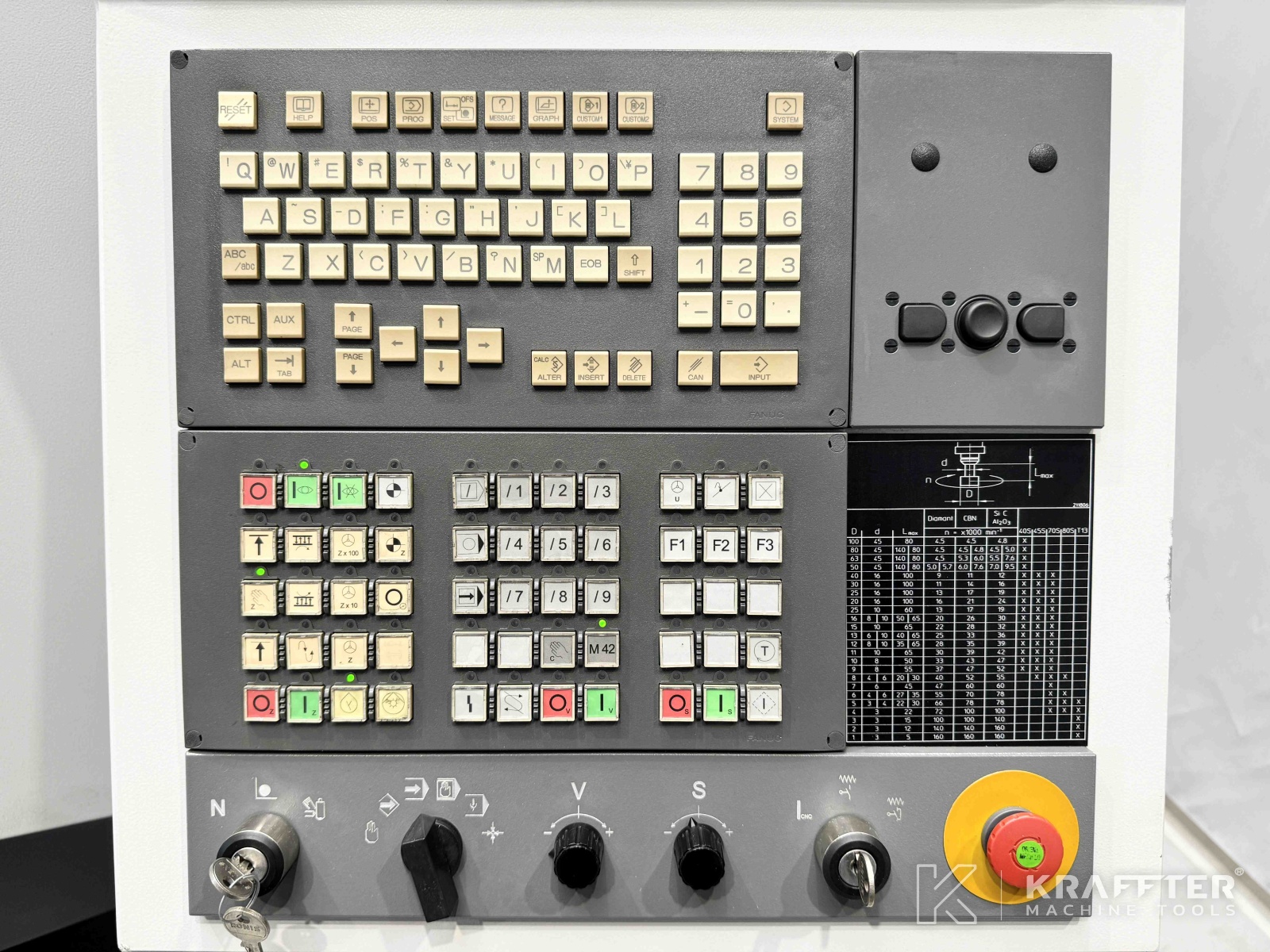

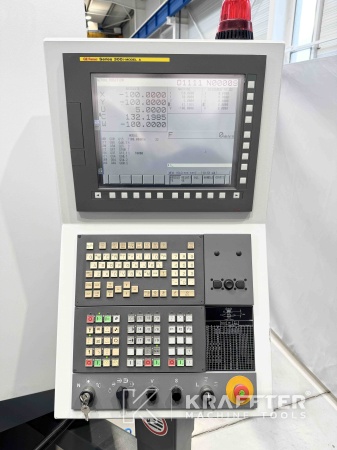

CNC control
FANUC 300i - MODEL A
Colour touchscreen
Yes

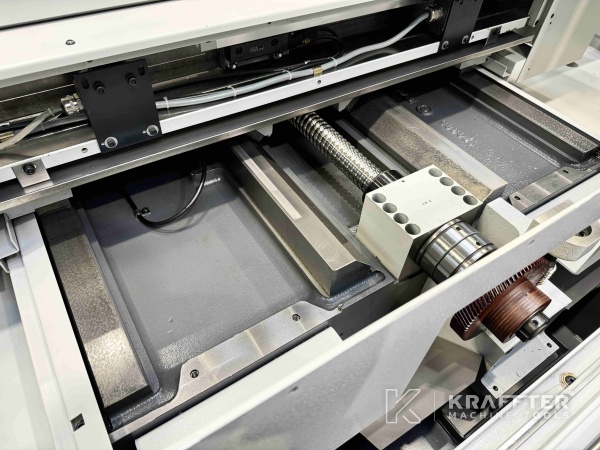

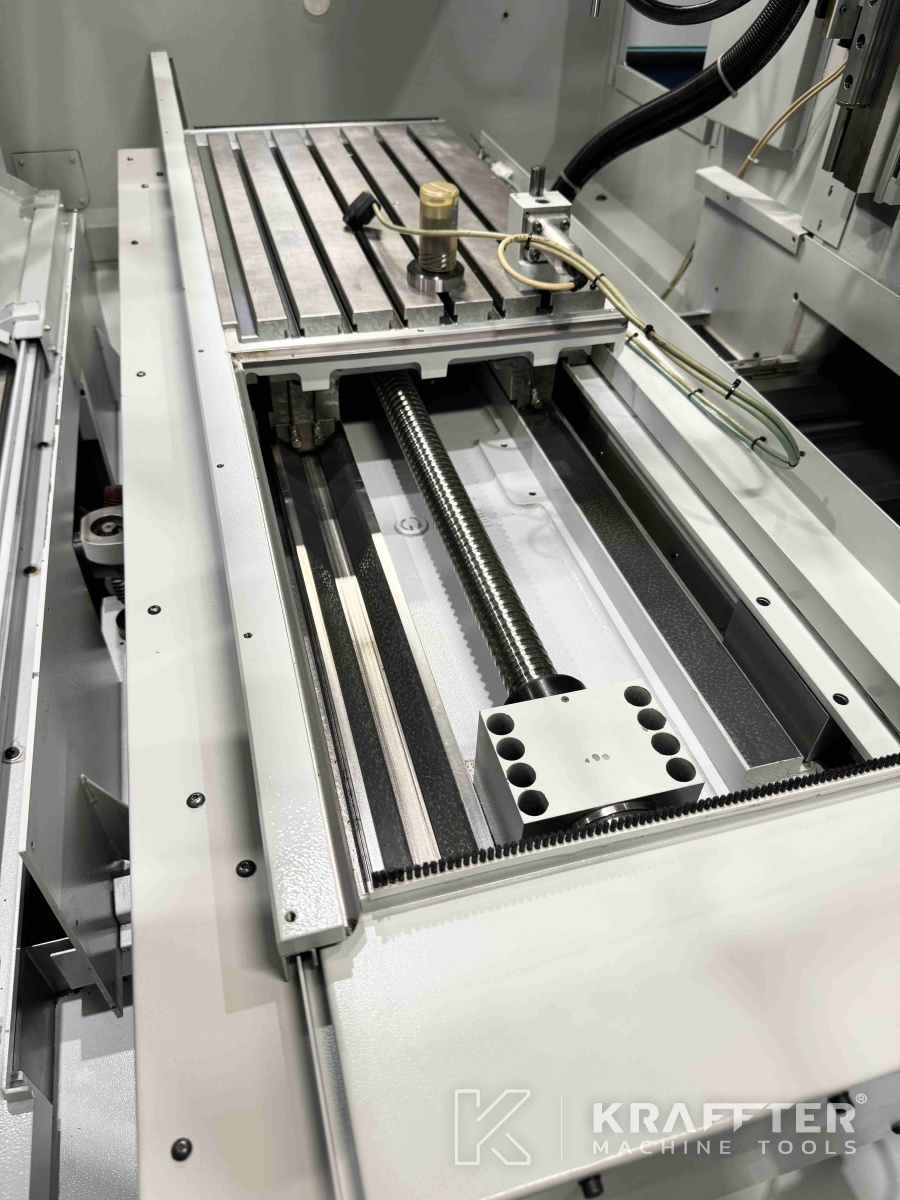

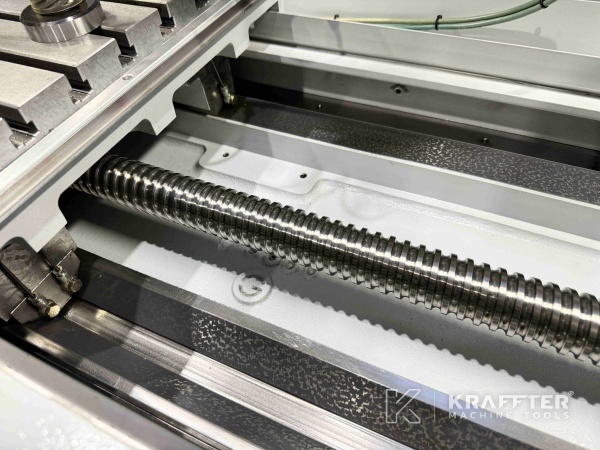

Stroke X axis
500 [mm]
Working feed X axis
1200 [mm/min]

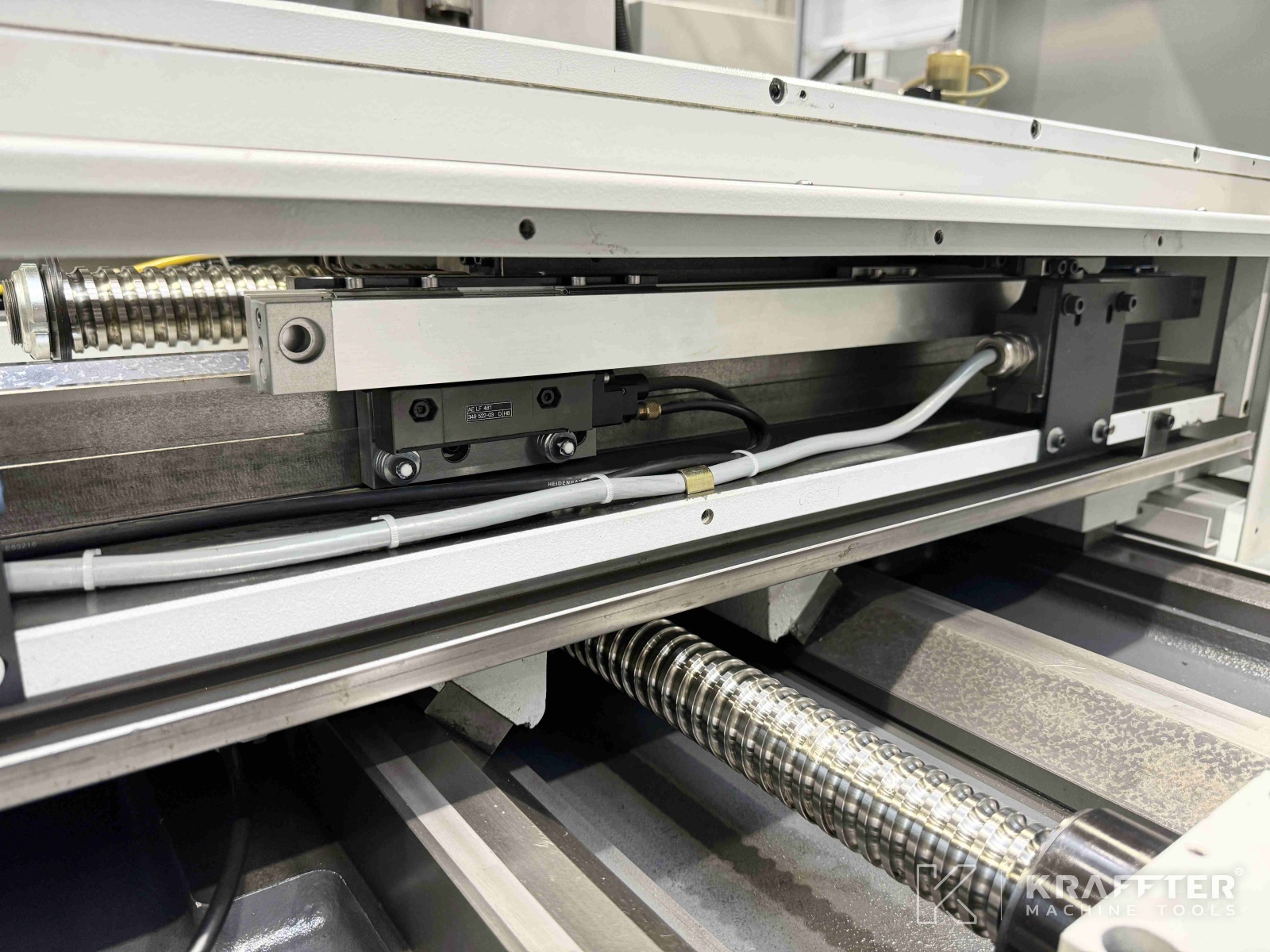

Stroke Y axis
300 [mm]
Working feed Y axis
1200 [mm/min]
Stroke Z axis
110 [mm]
Working feed Z axis
12000 [mm/min]
Stroke frequency Z axis
max. 4 [Hz]
Planetary speed C axis
5 - 250 [rpm]

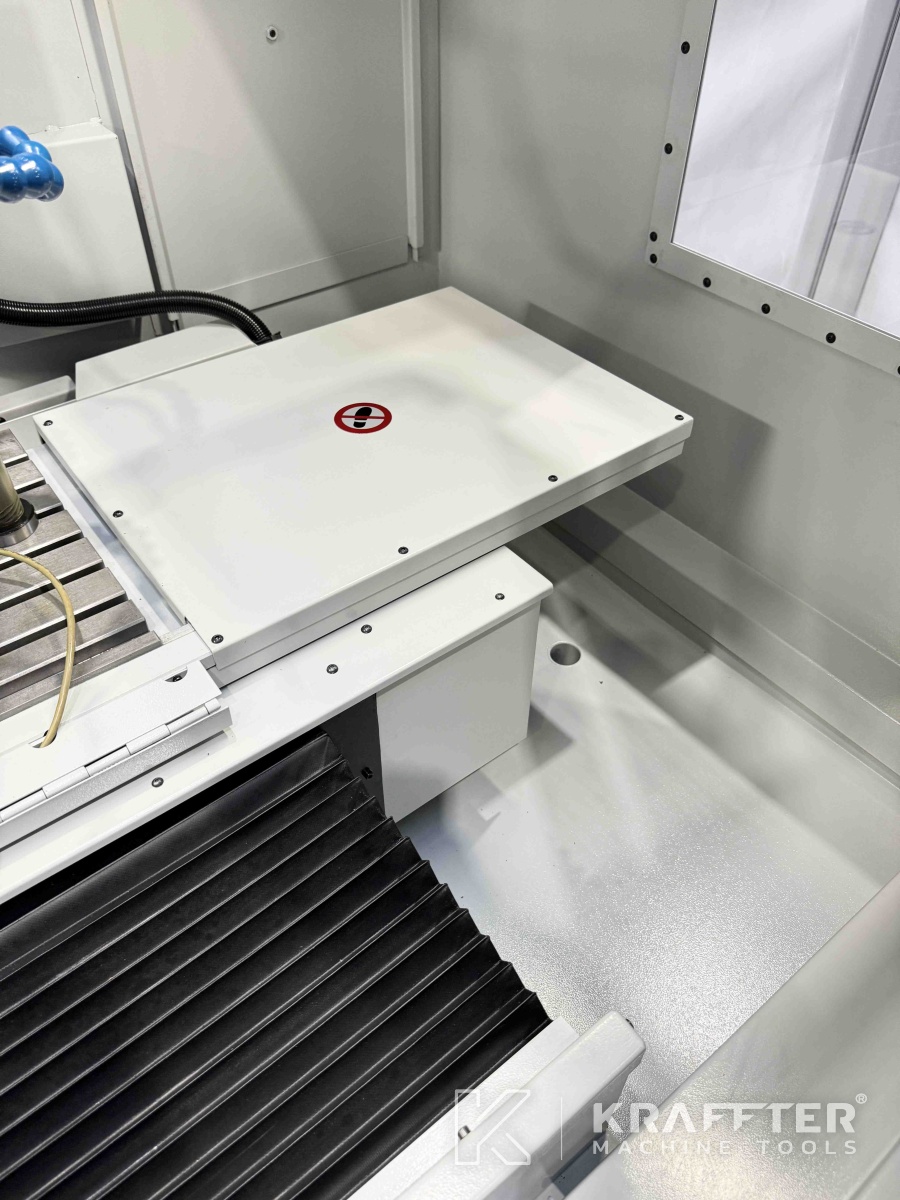

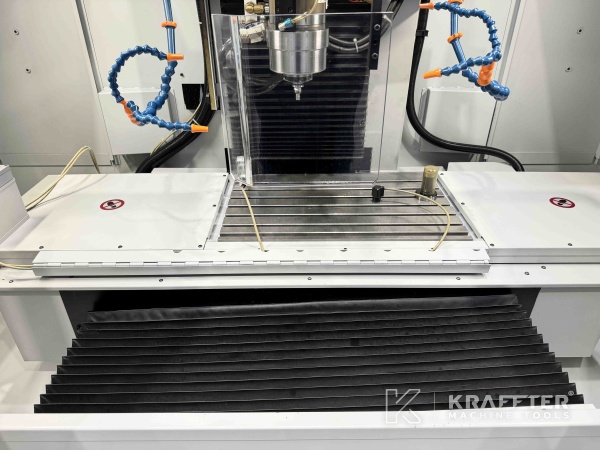

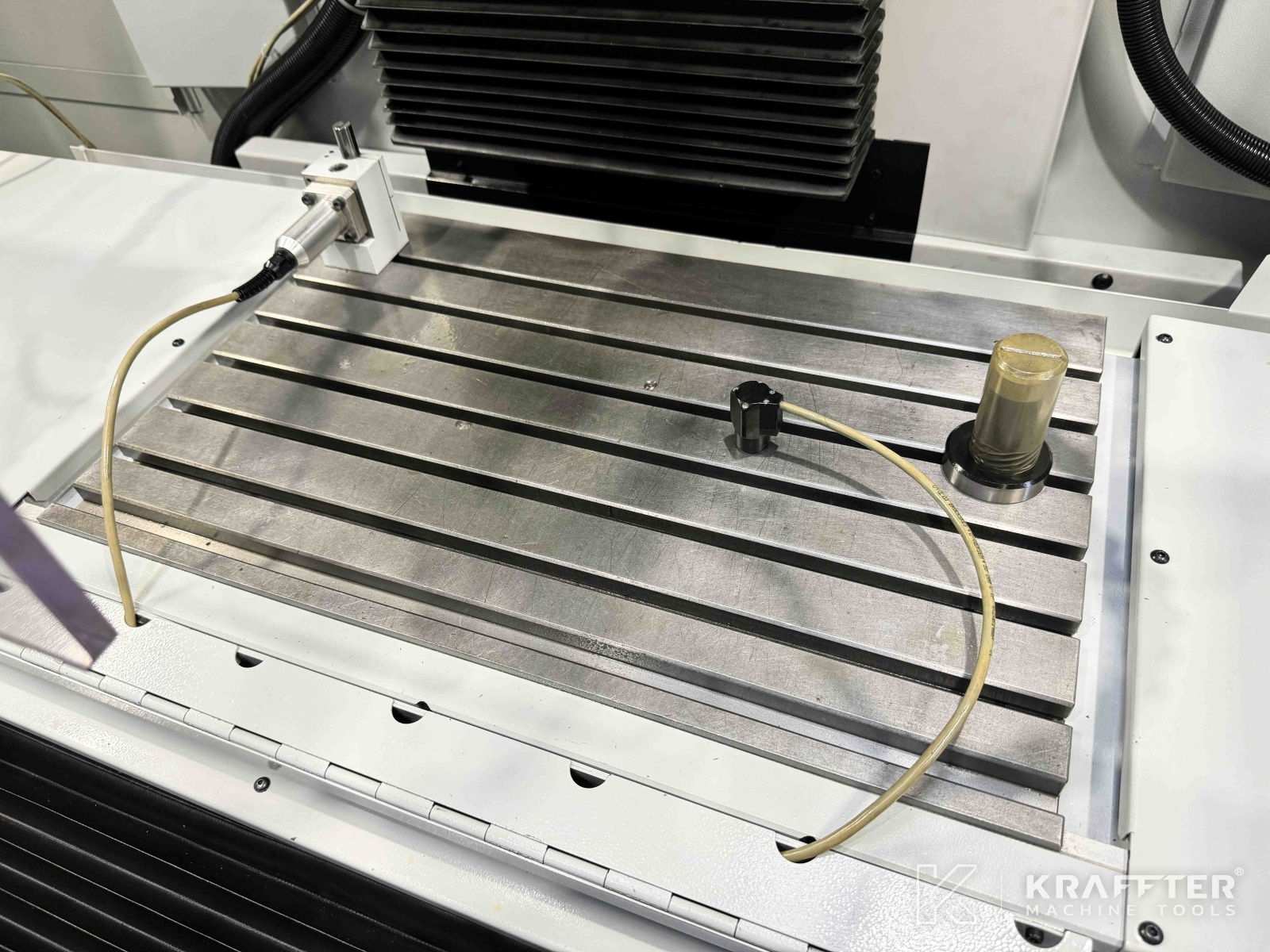

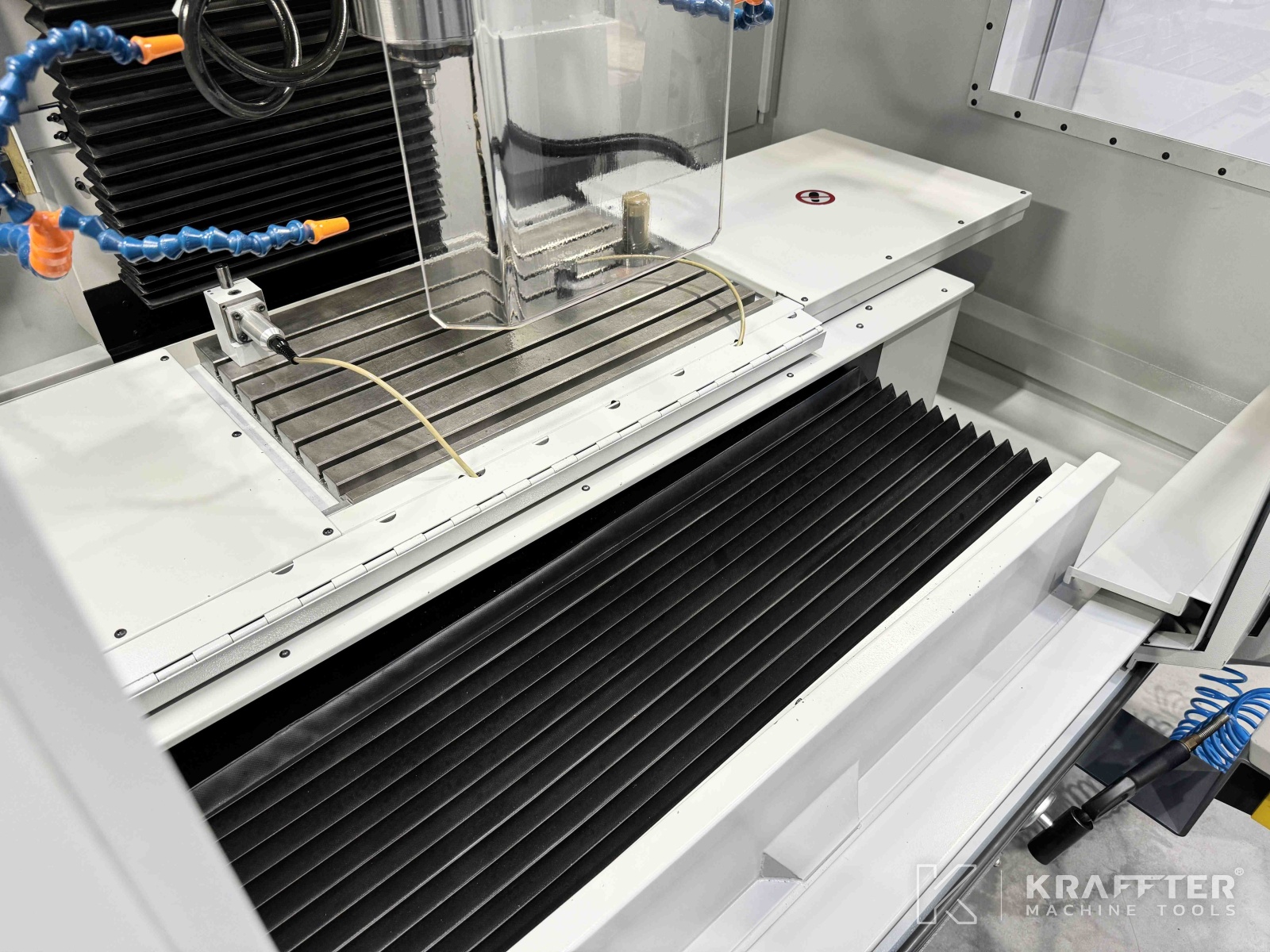

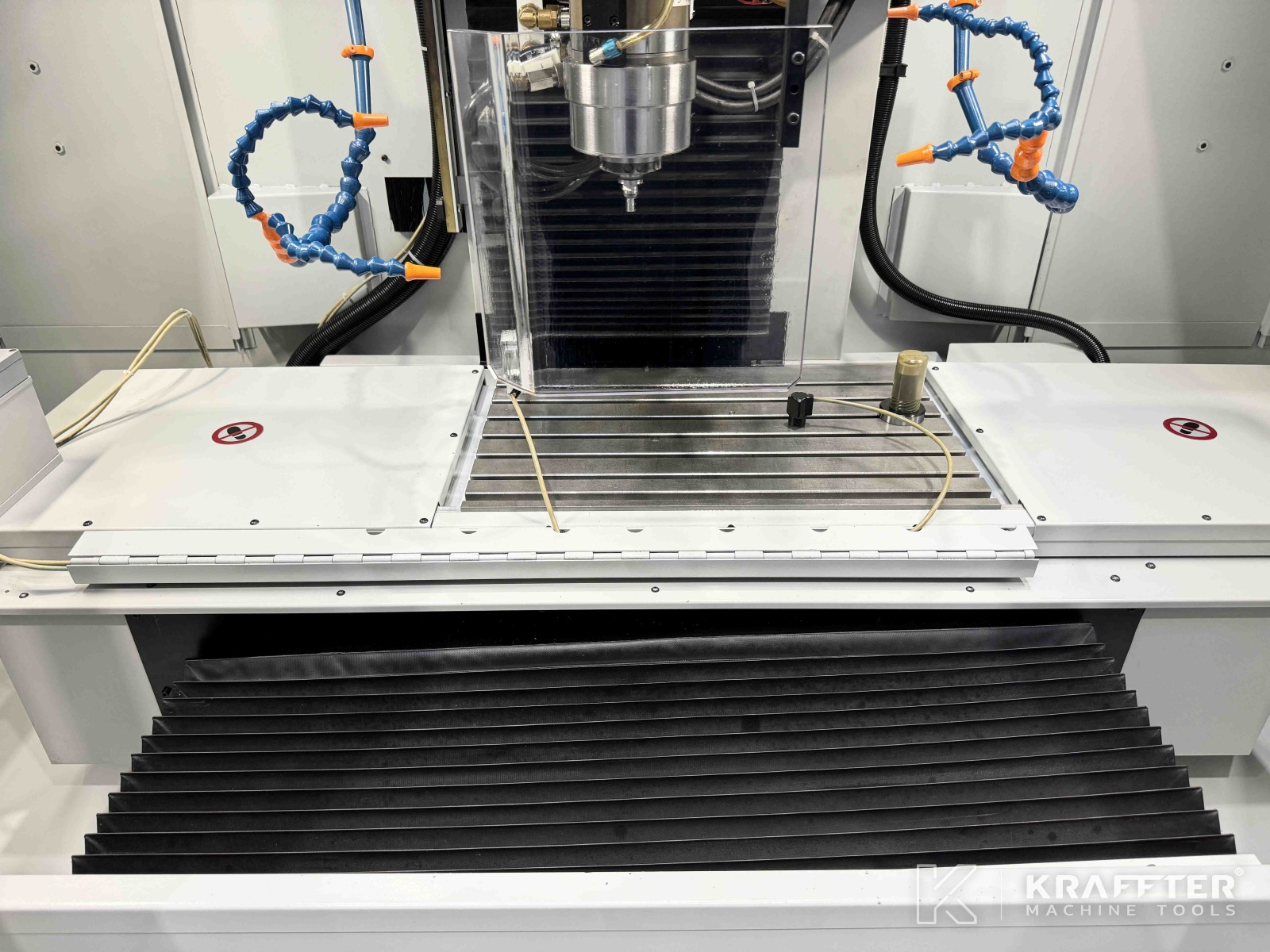

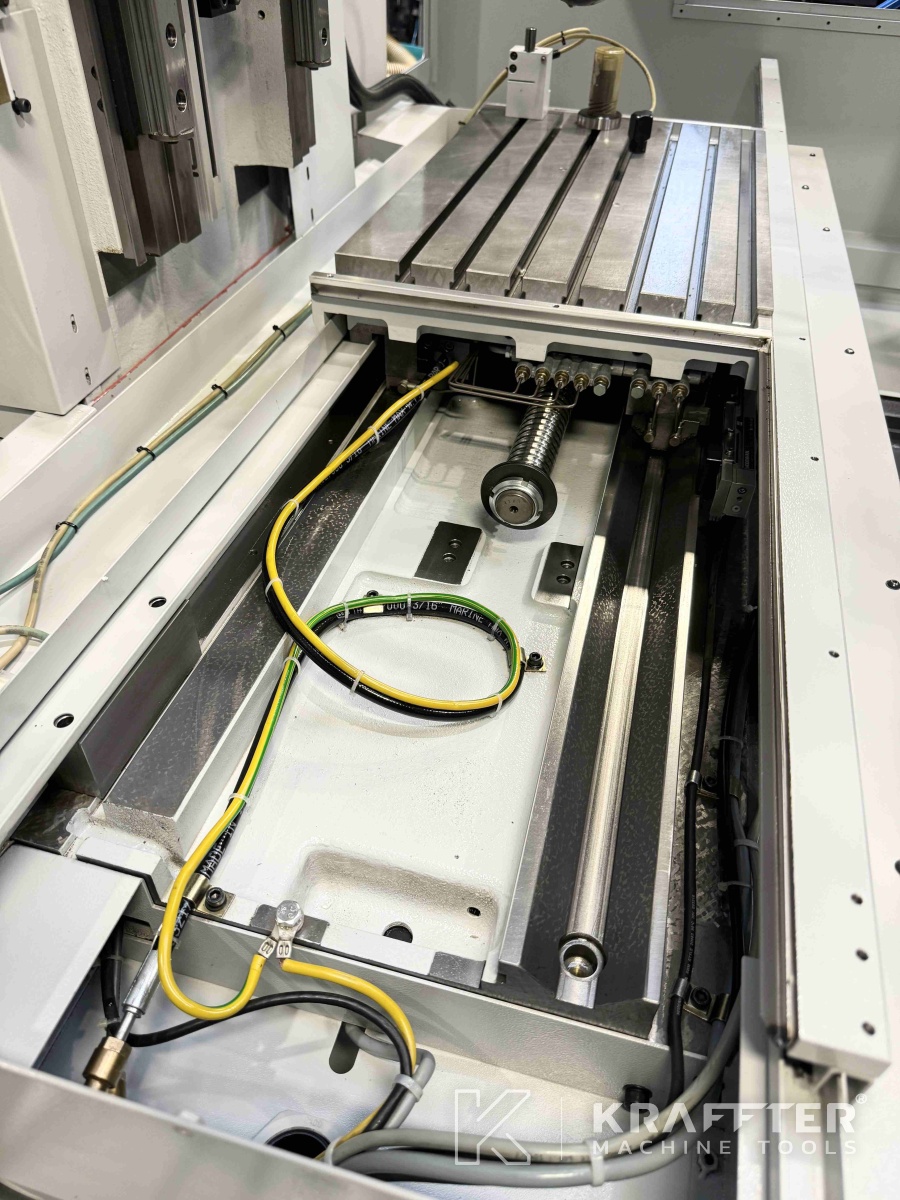

Table length
600 [mm]
Table width
380 [mm]
Max. load on table
250 [Kg]
Number of hours under power
558 [h]
Number of running hours
34 [h]

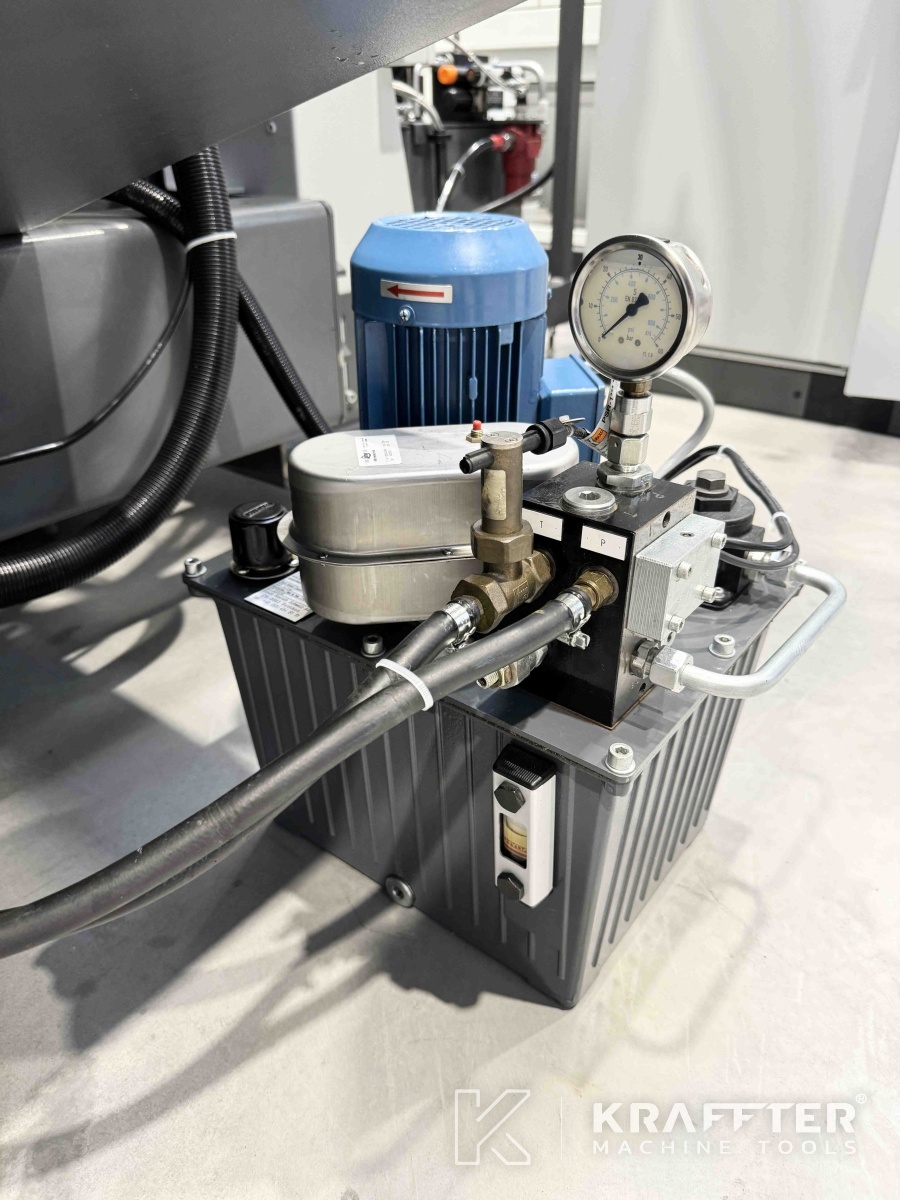

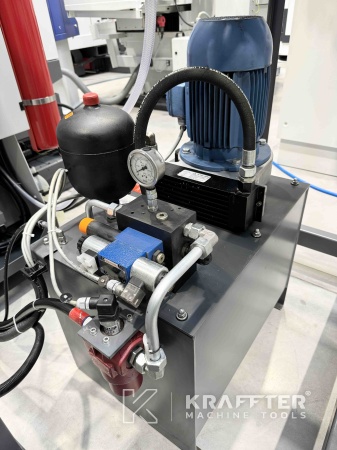

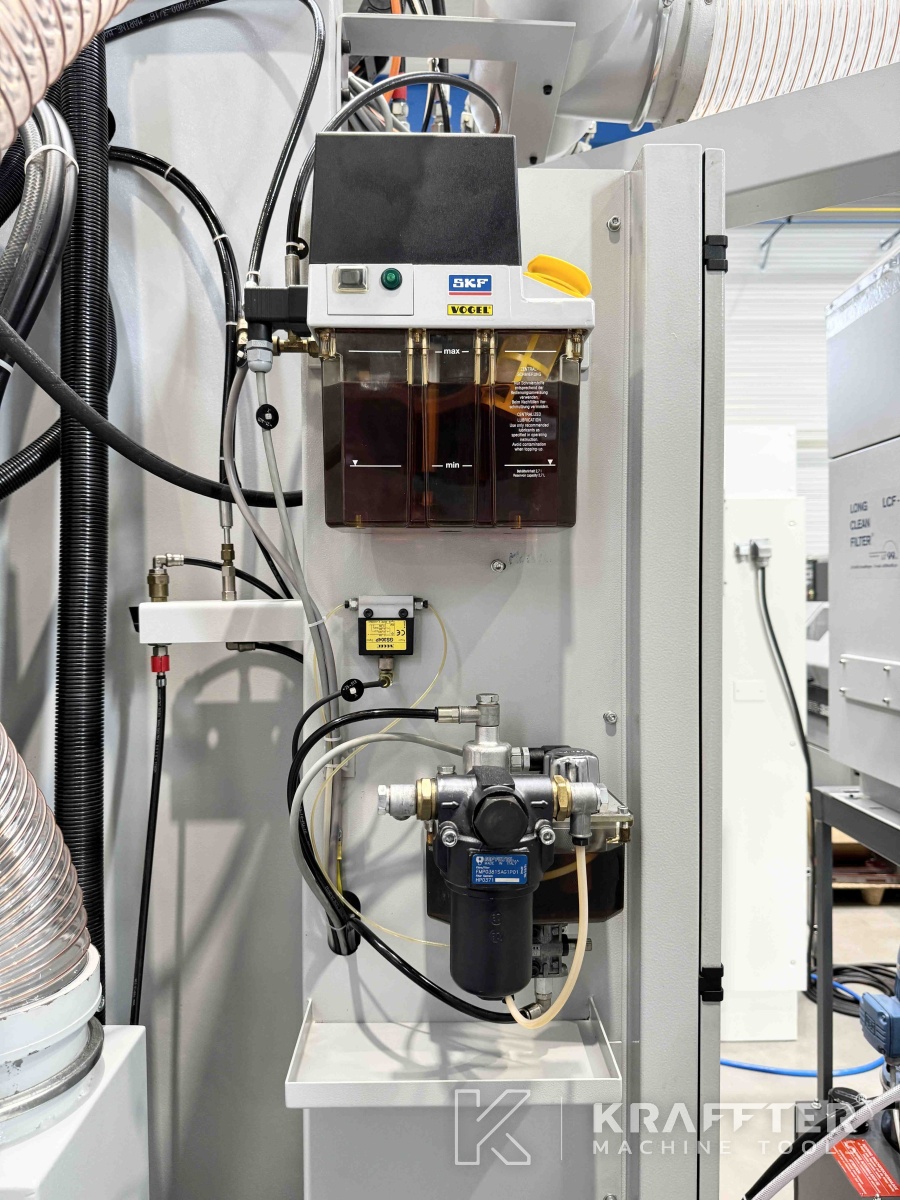

Lubrication tank capacity
125 [l]
Supply voltage
400 [V]
Technical specifications are provided for indicative purposes only. The description may have been automatically translated.
Additional information

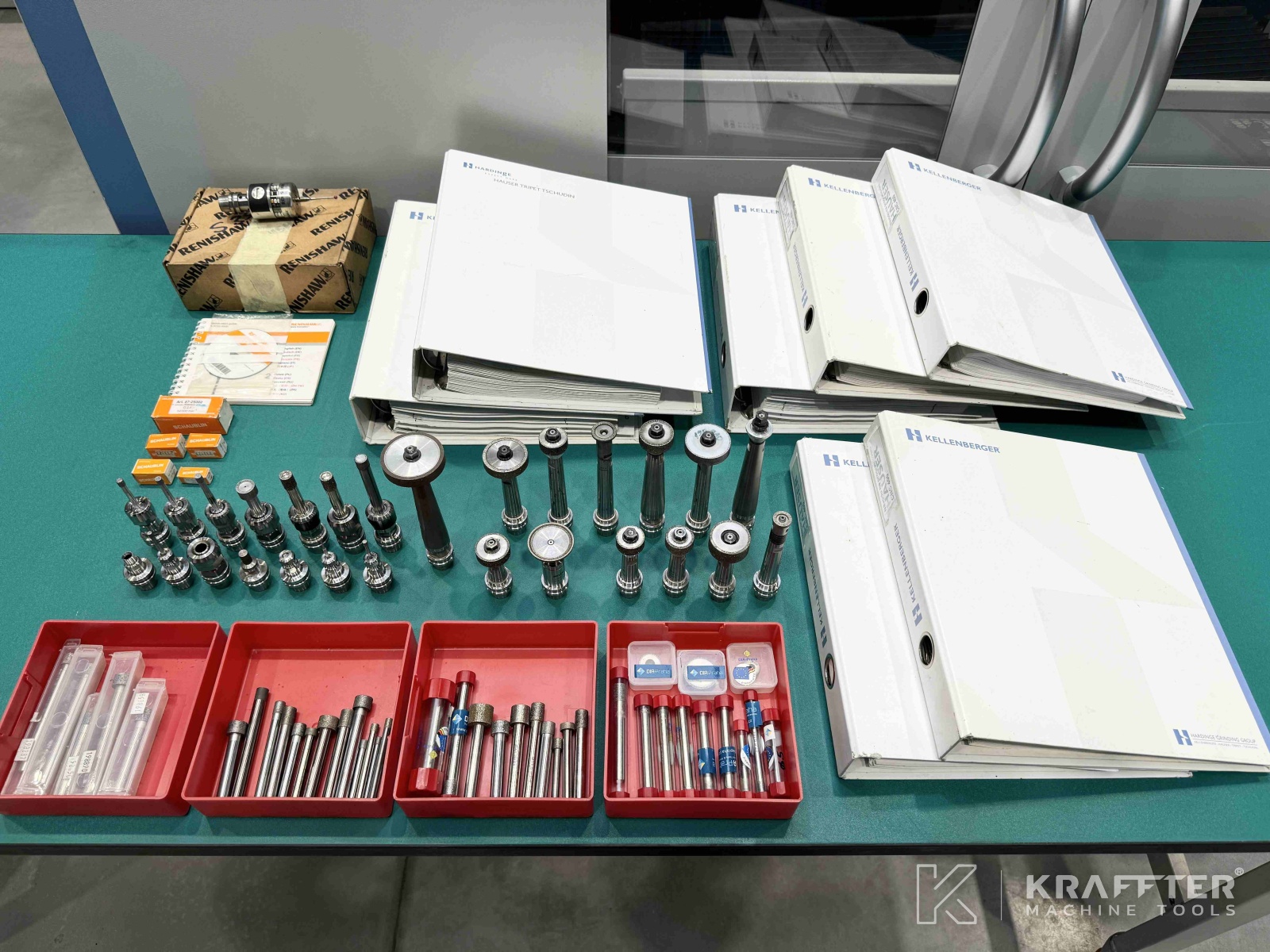

EQUIPMENT INCLUDED:
x1 HI-CUT pack including:
-protection of the work area

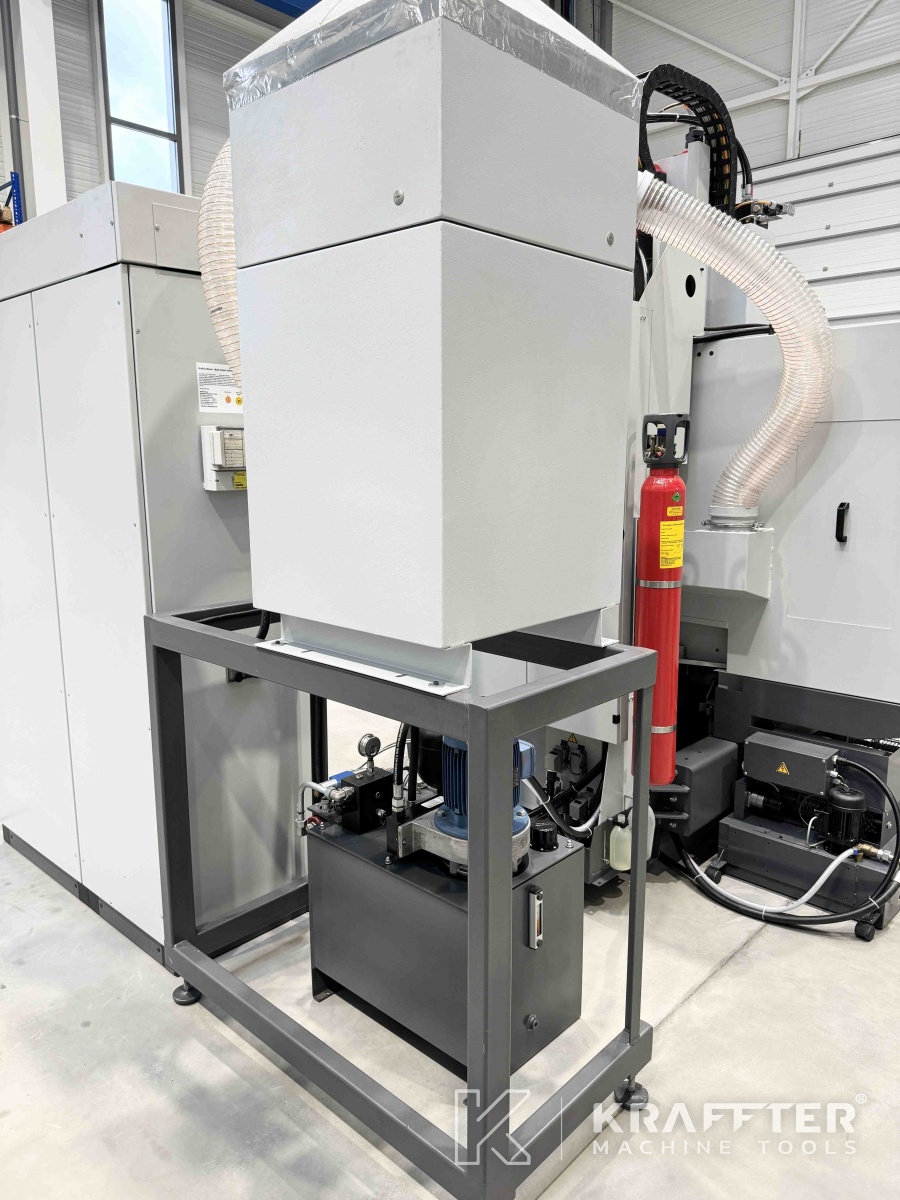

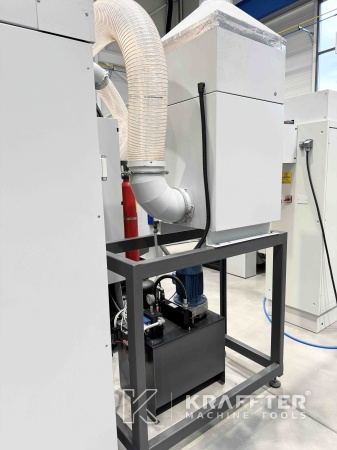

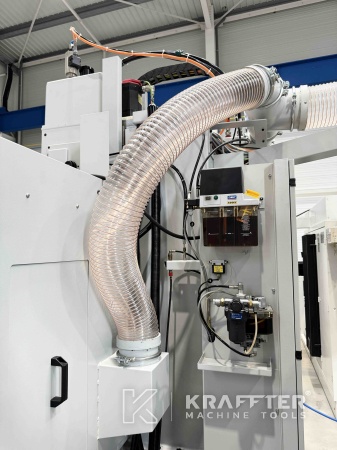

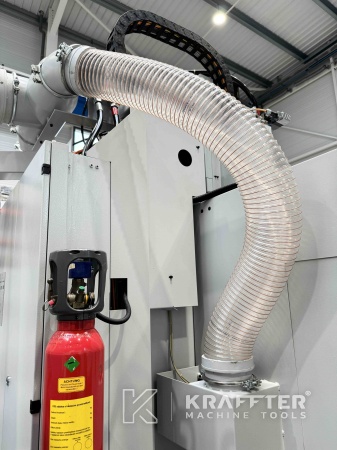

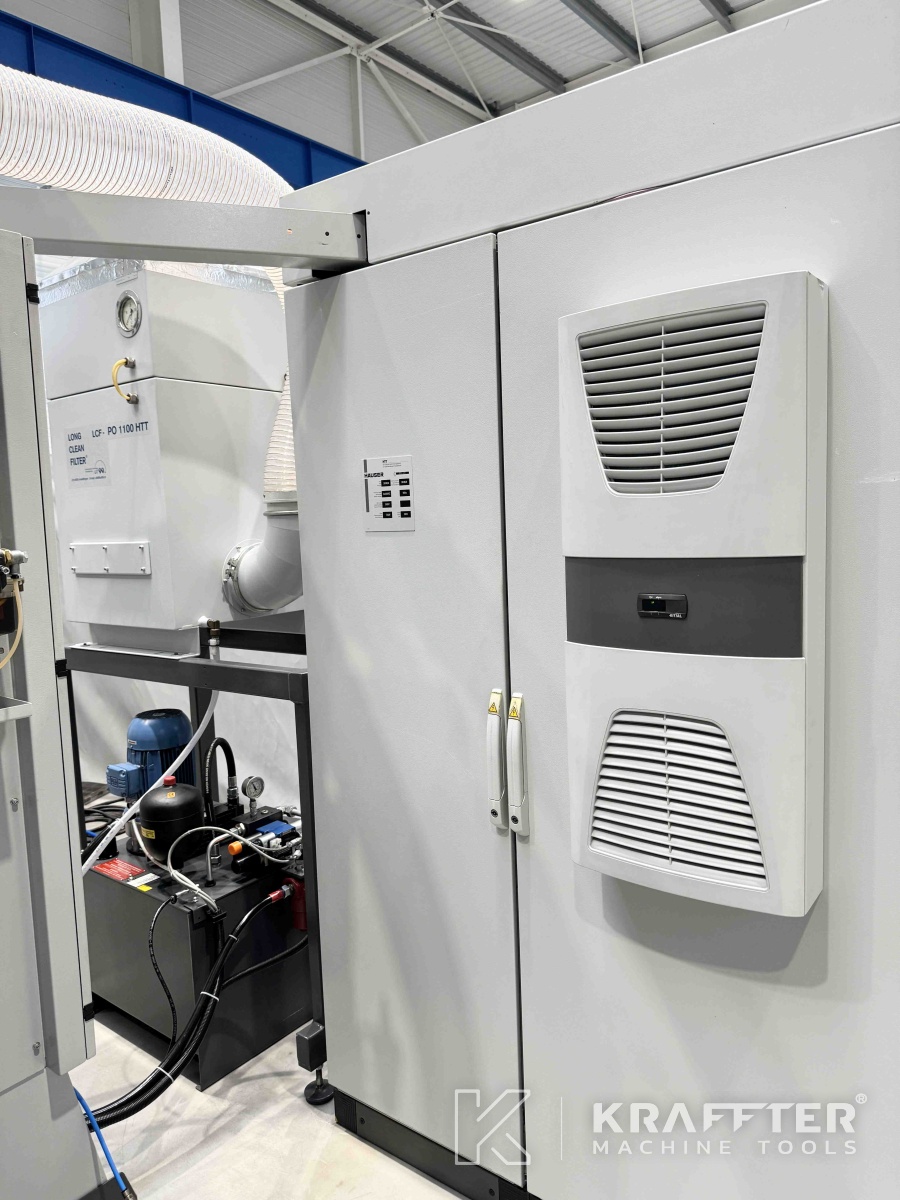

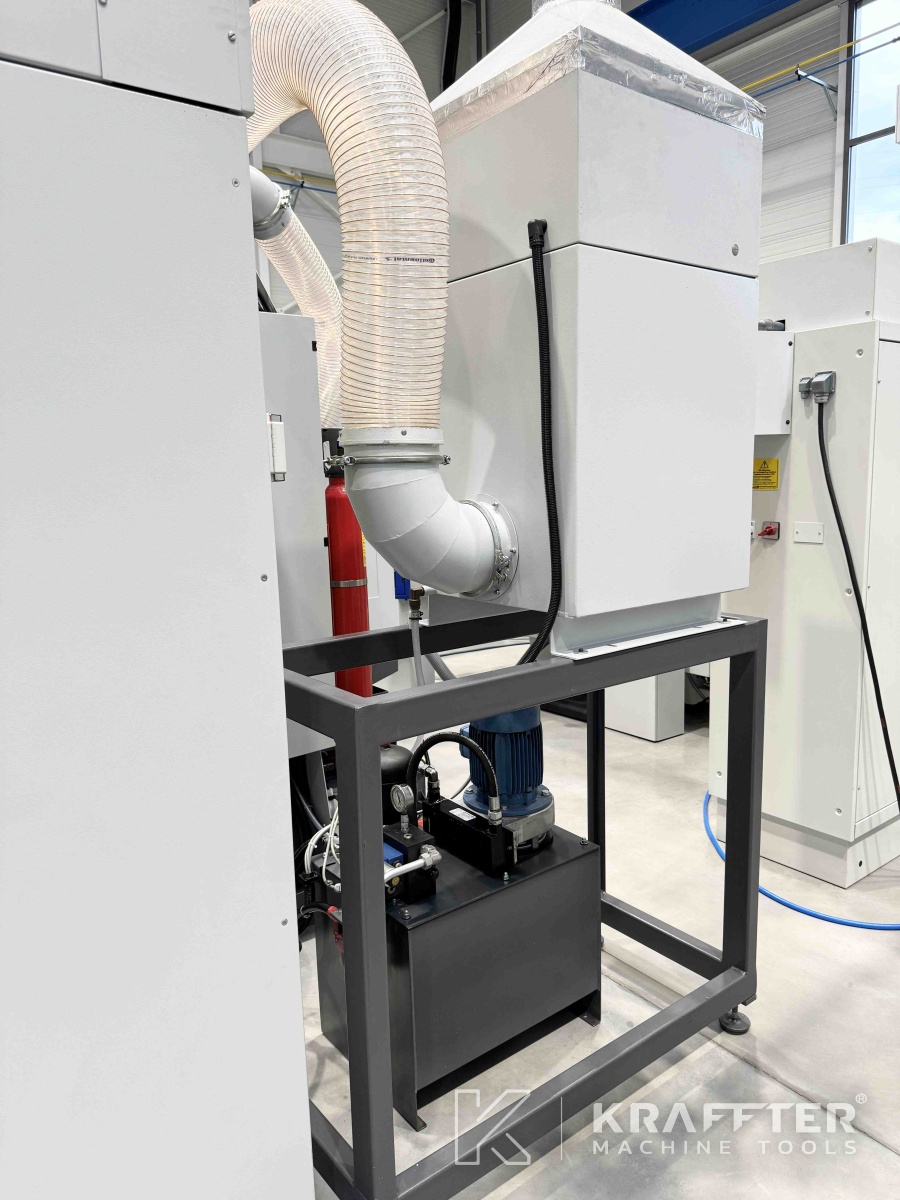

-mist extractor with electrostatic air filter

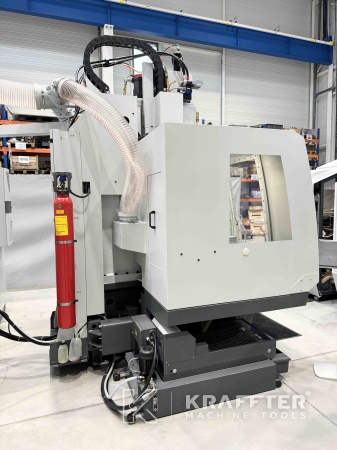

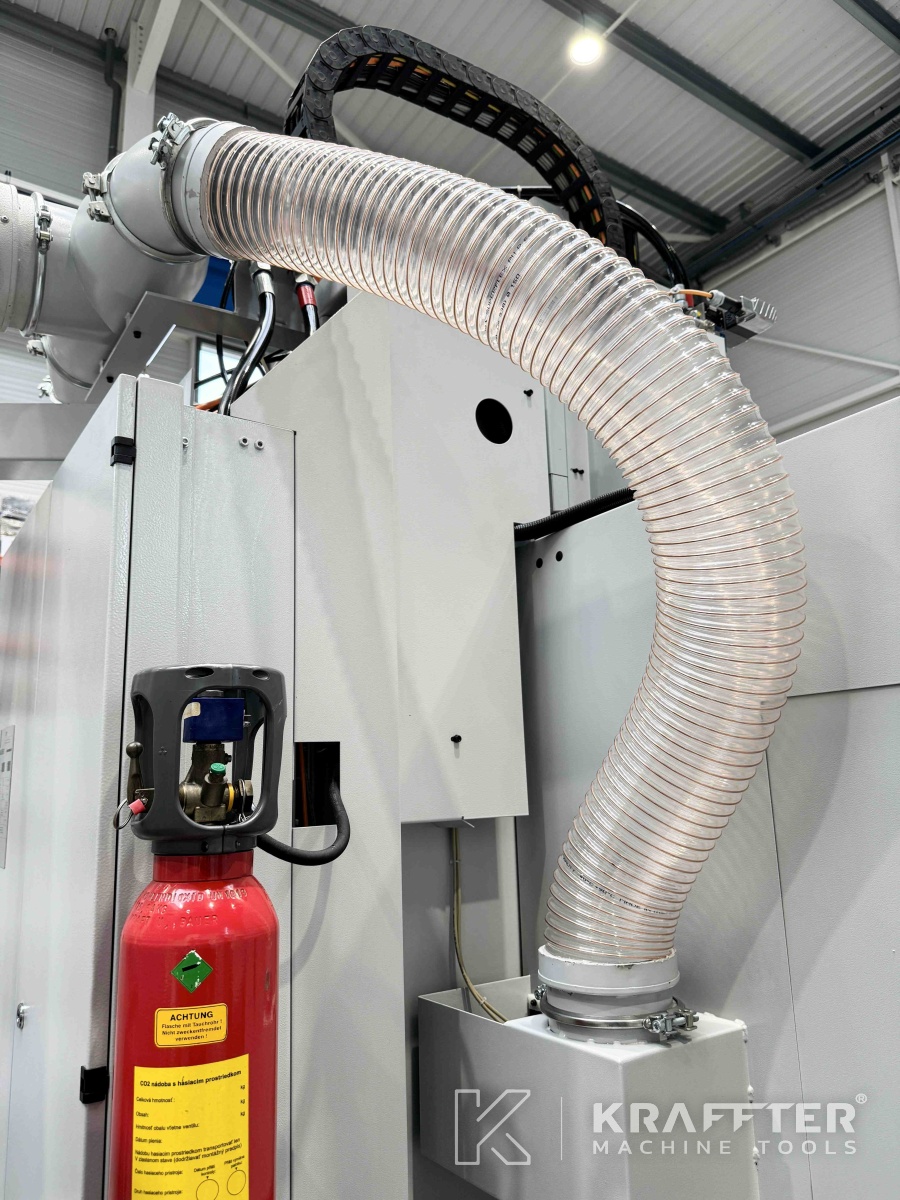

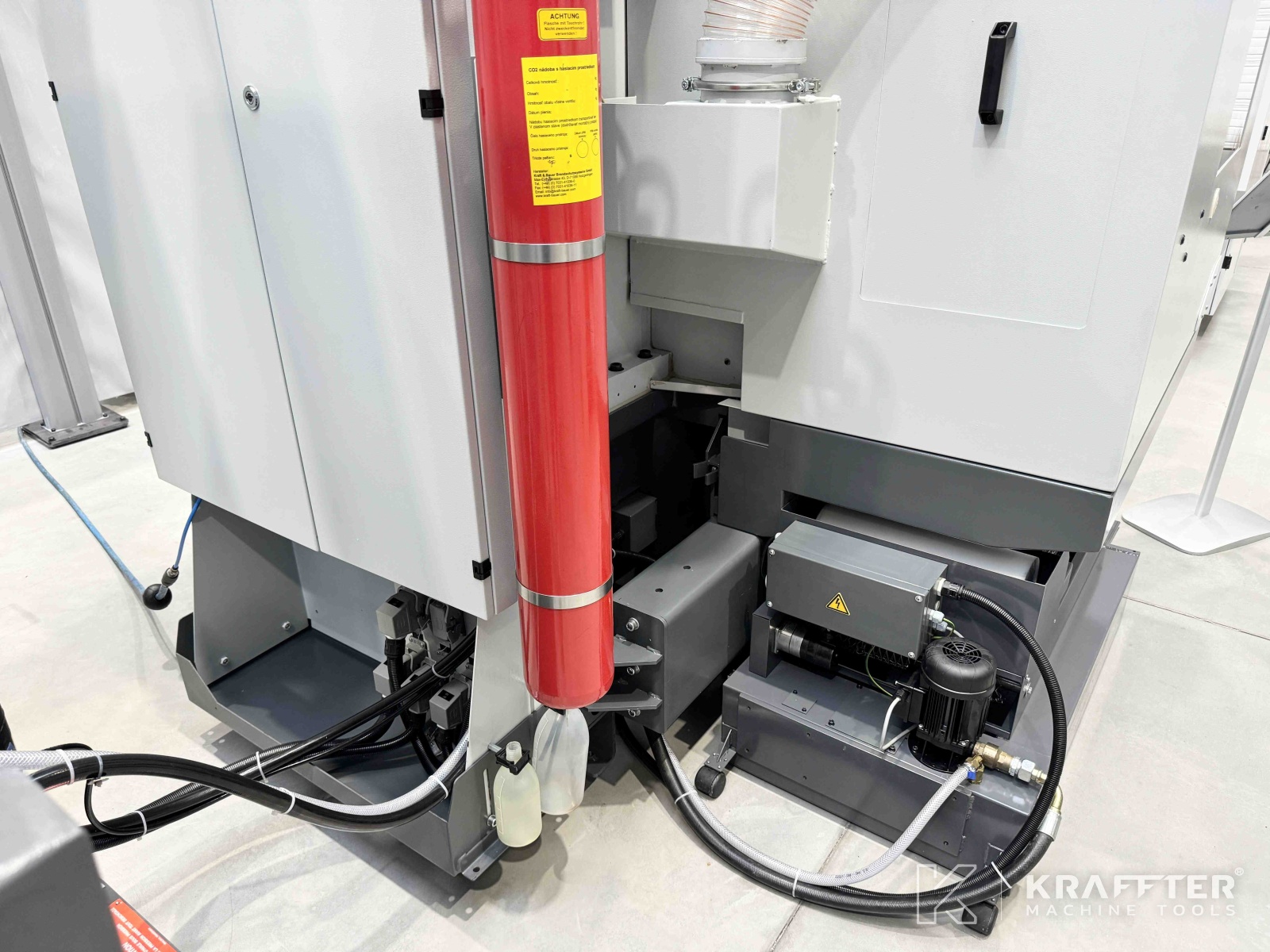

-fire protection system (to be inspected by a qualified organization)

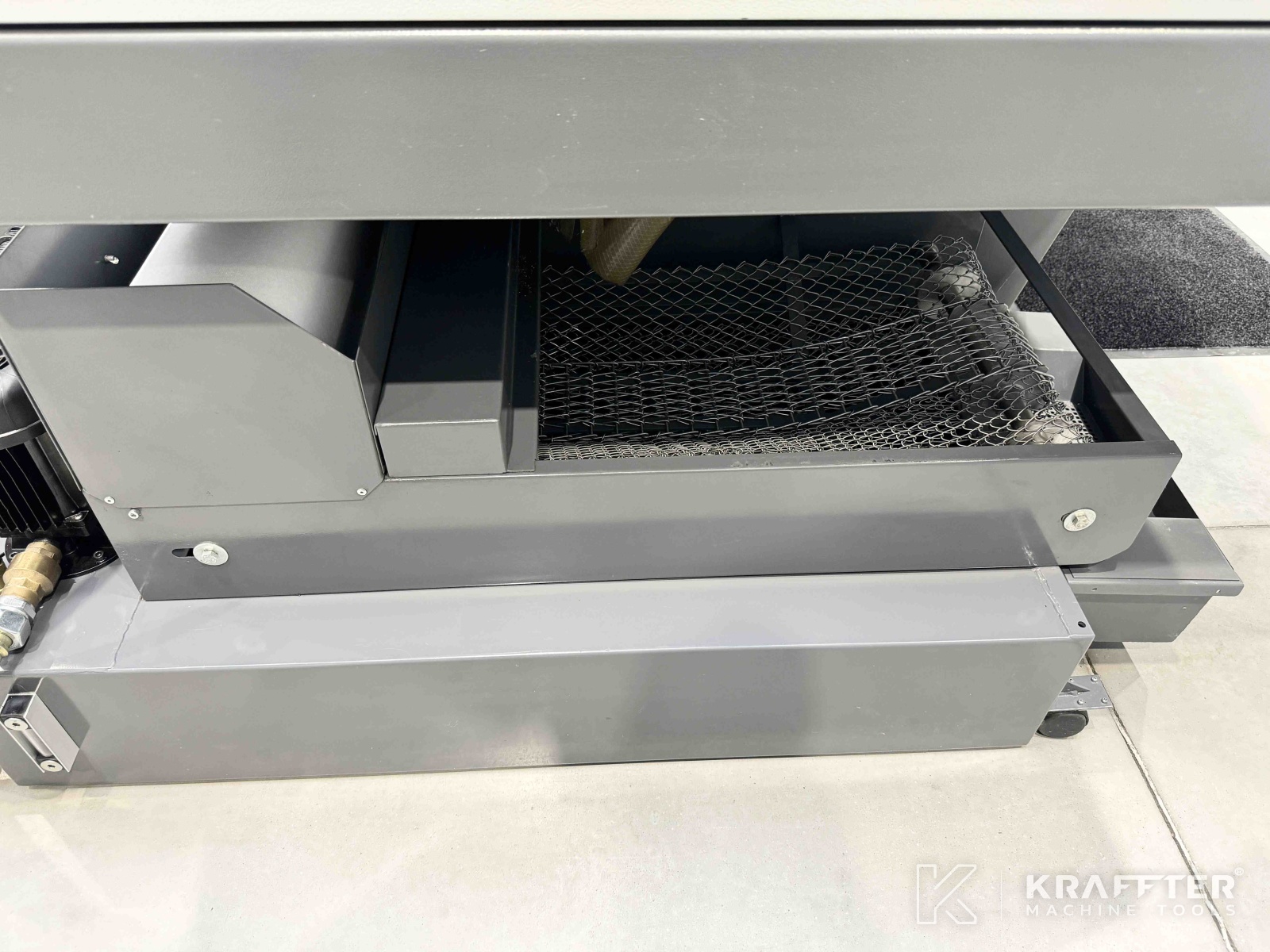

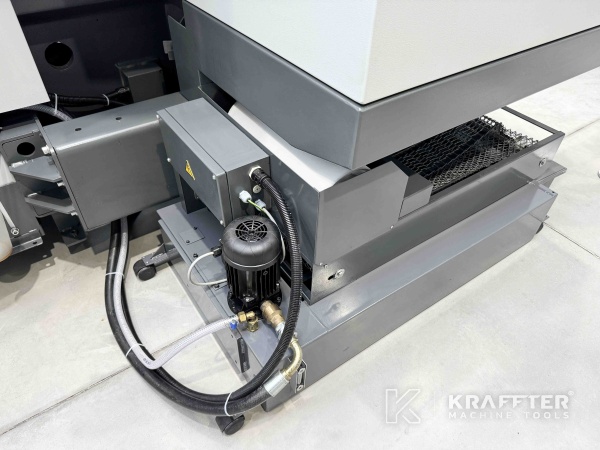

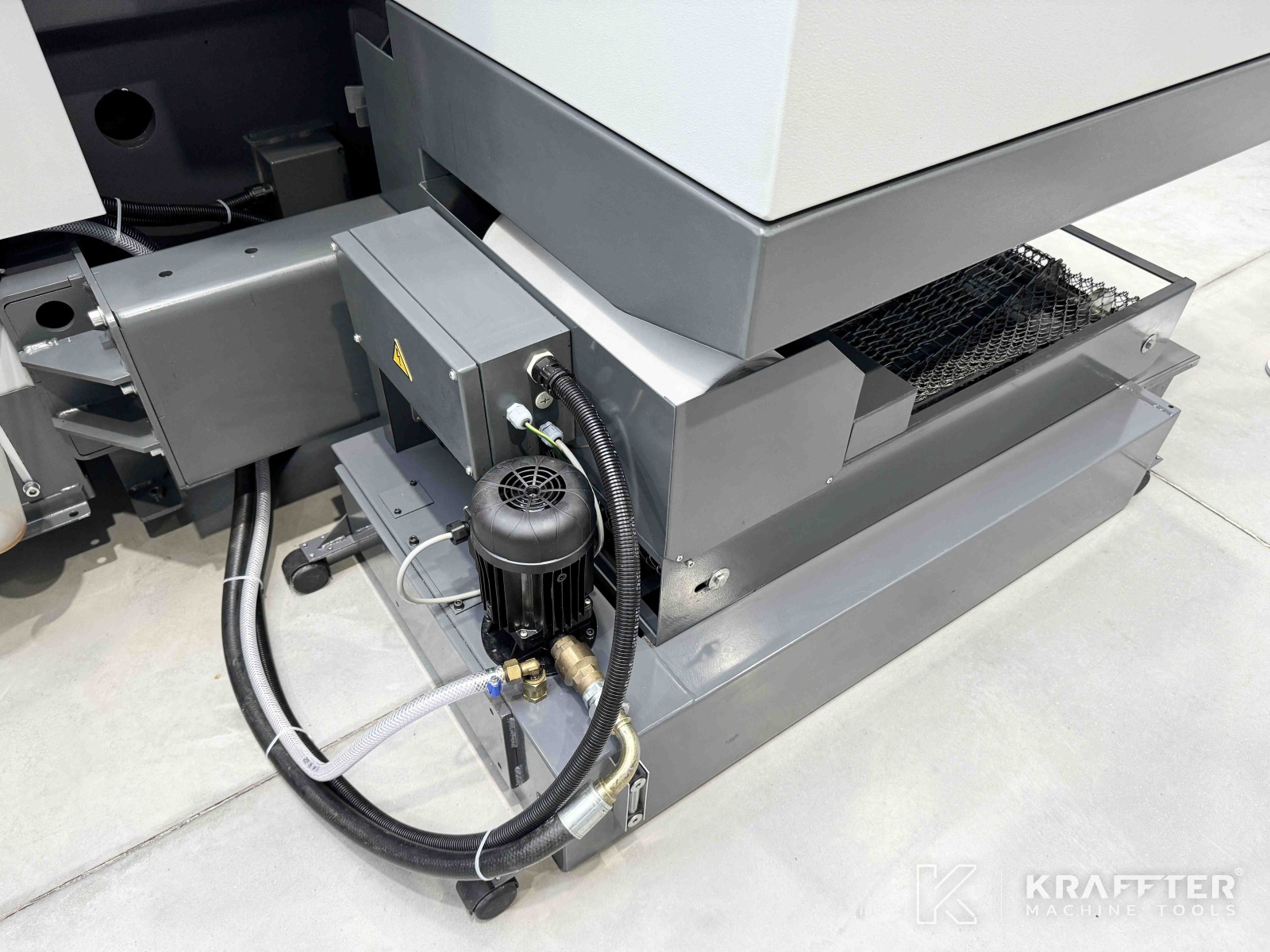

-Cooling unit (tank + pump) with automatic belt filter

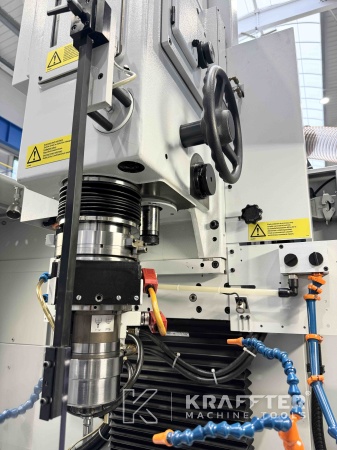

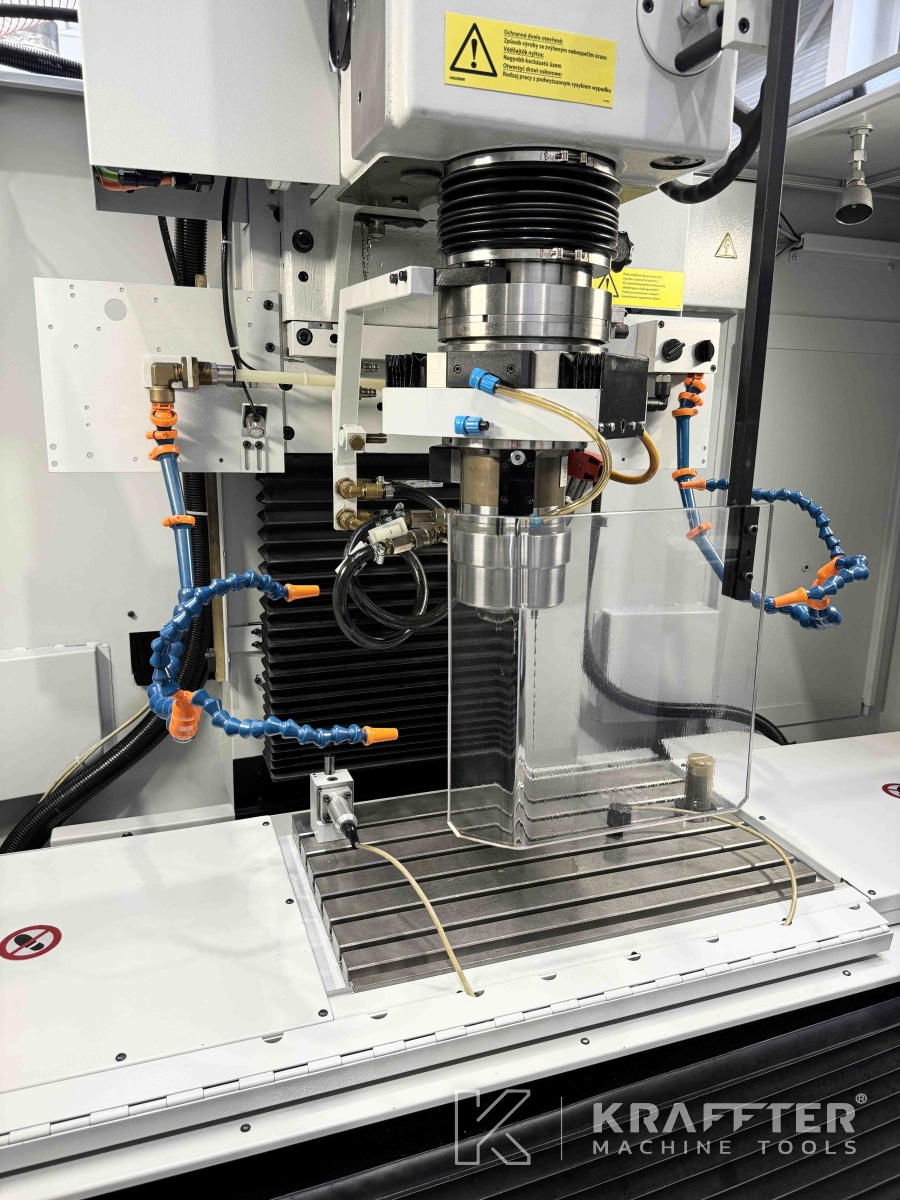

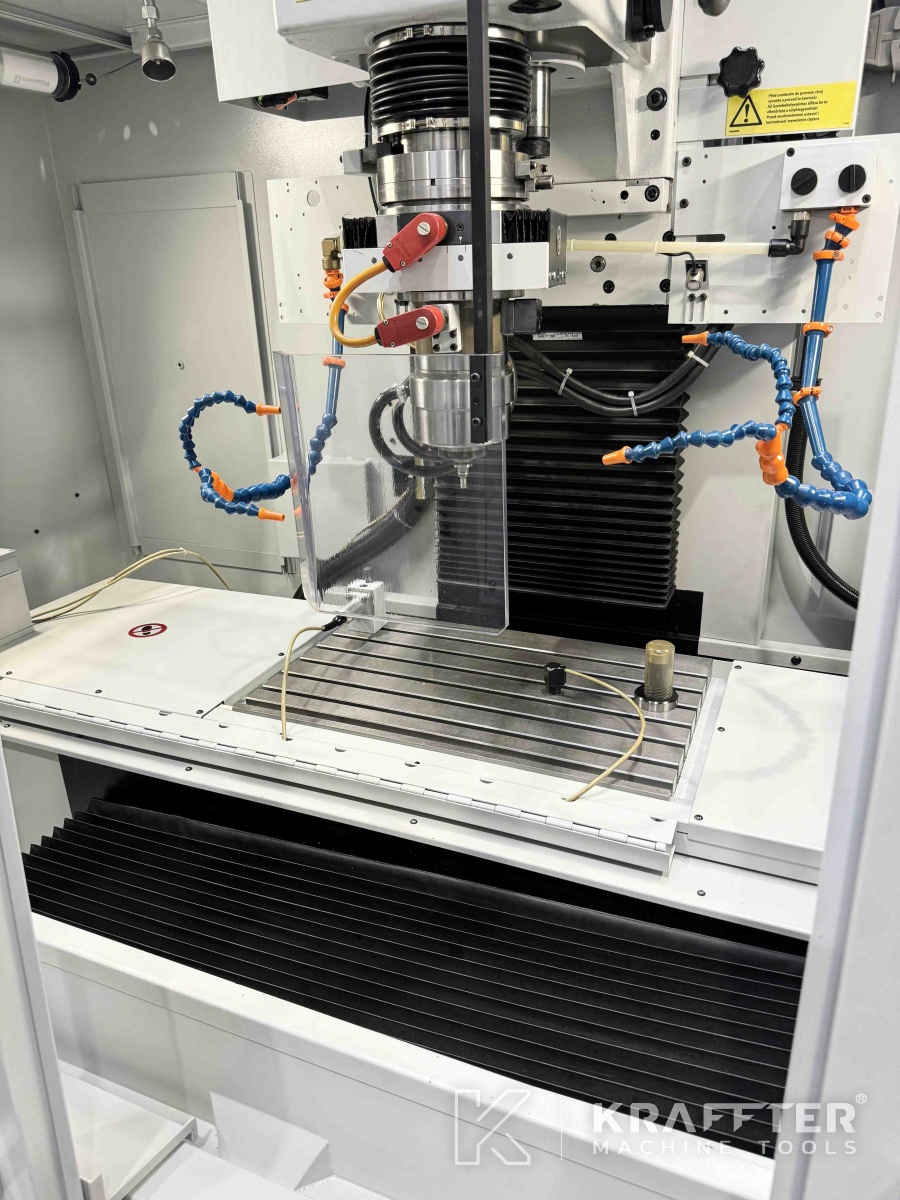

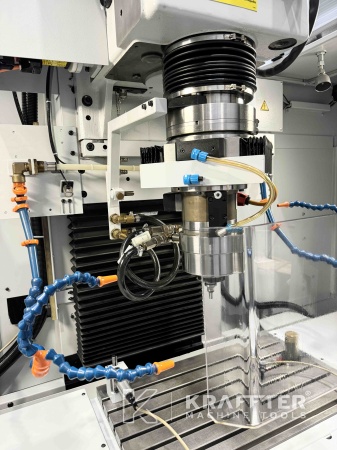

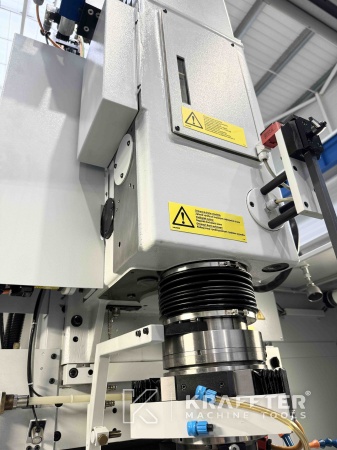

x1 45S grinding motor, speed 9000 - 45000 [rpm], for EX19 collets
x1 cable for grinding motor
x1 MSS (Multi-Sensoric System) tool detection device

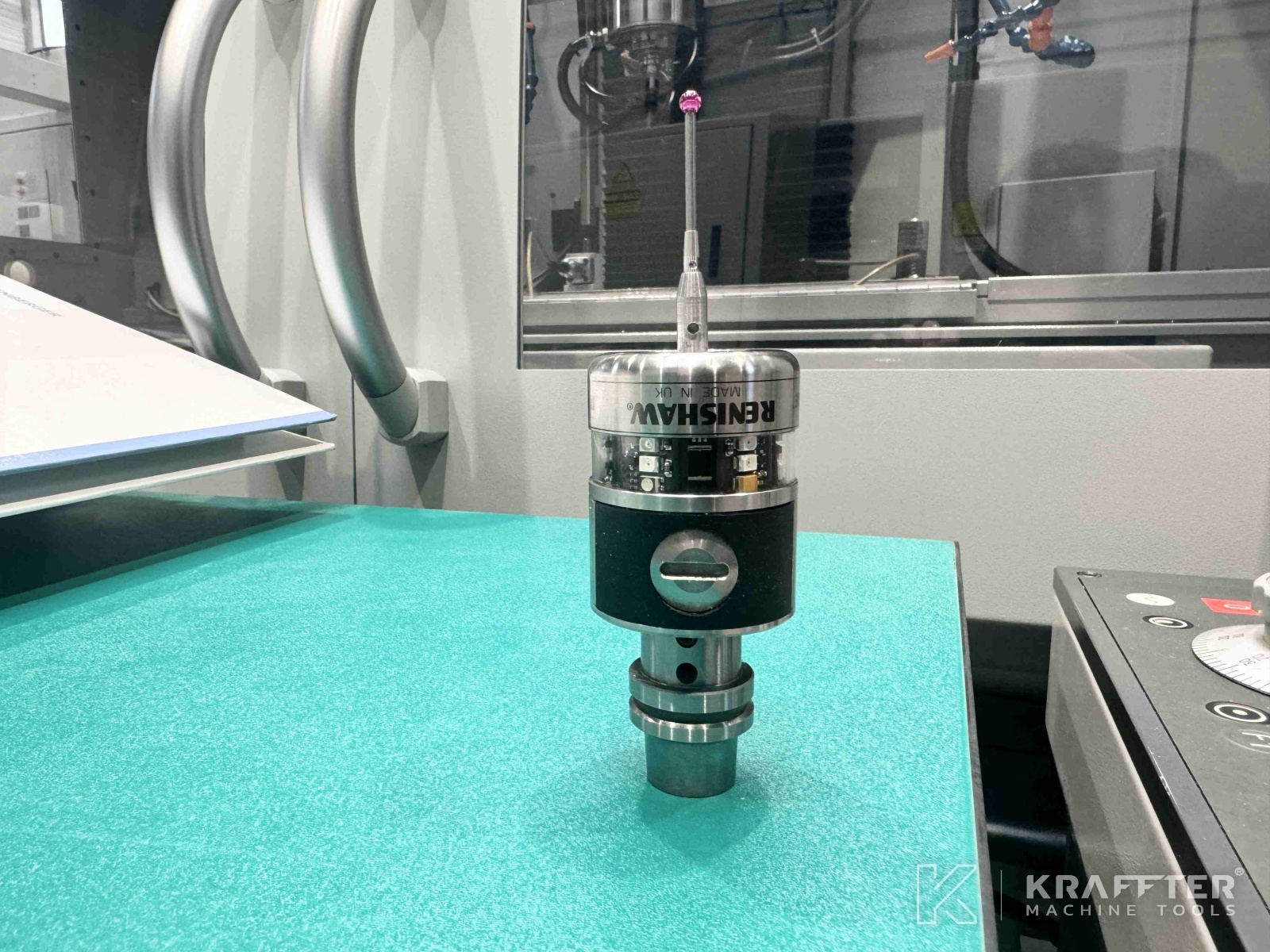

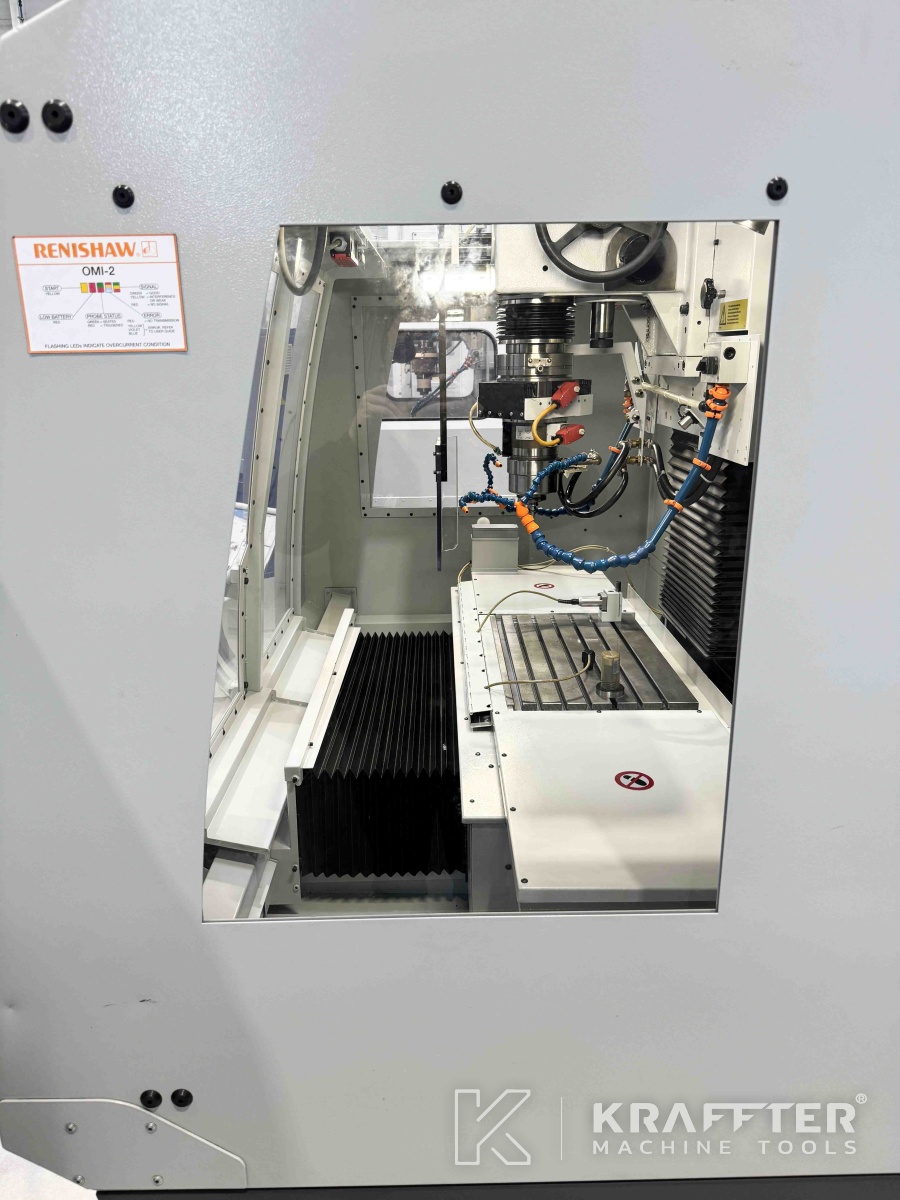

x1 RENISHAW OMP400 part probe
x27 grinding arbors
x1 set of diamond grinding wheels
Various manuals
