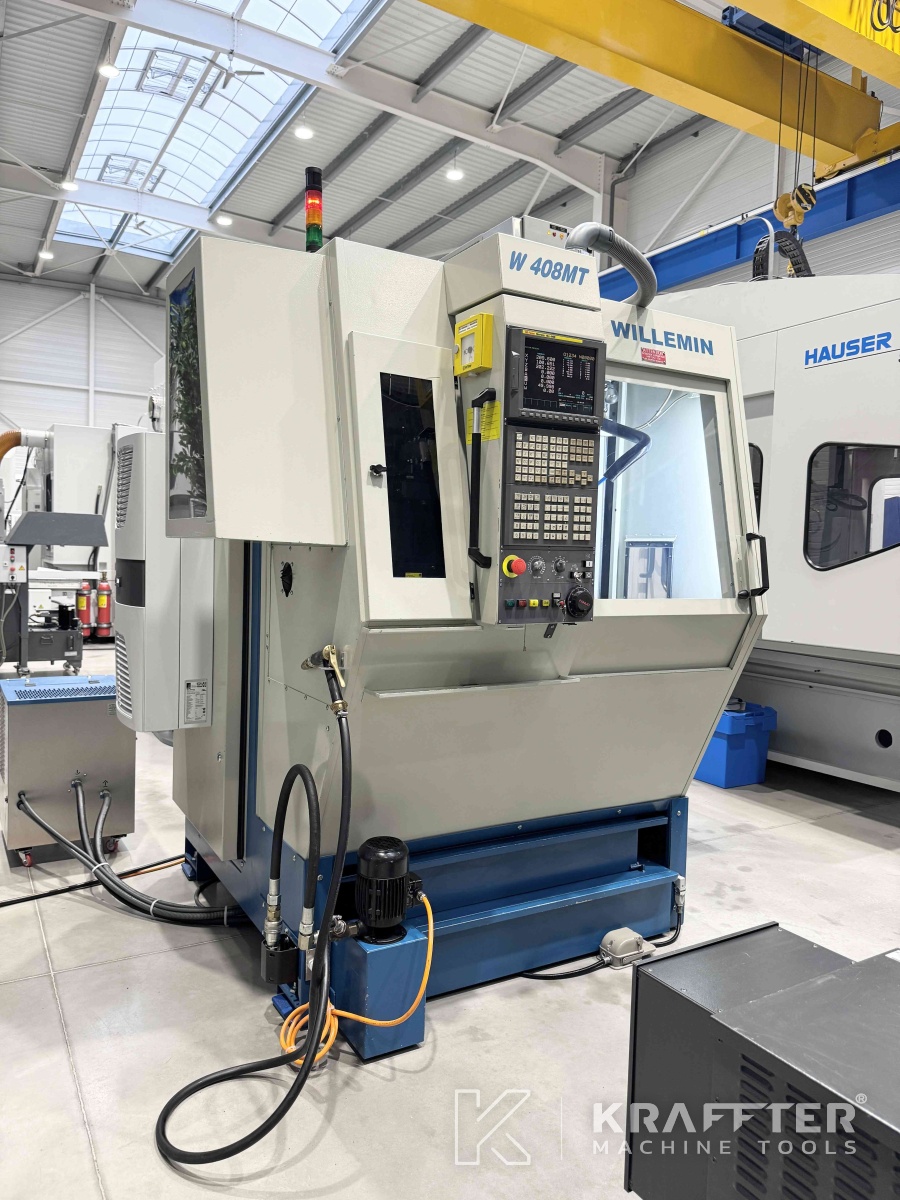

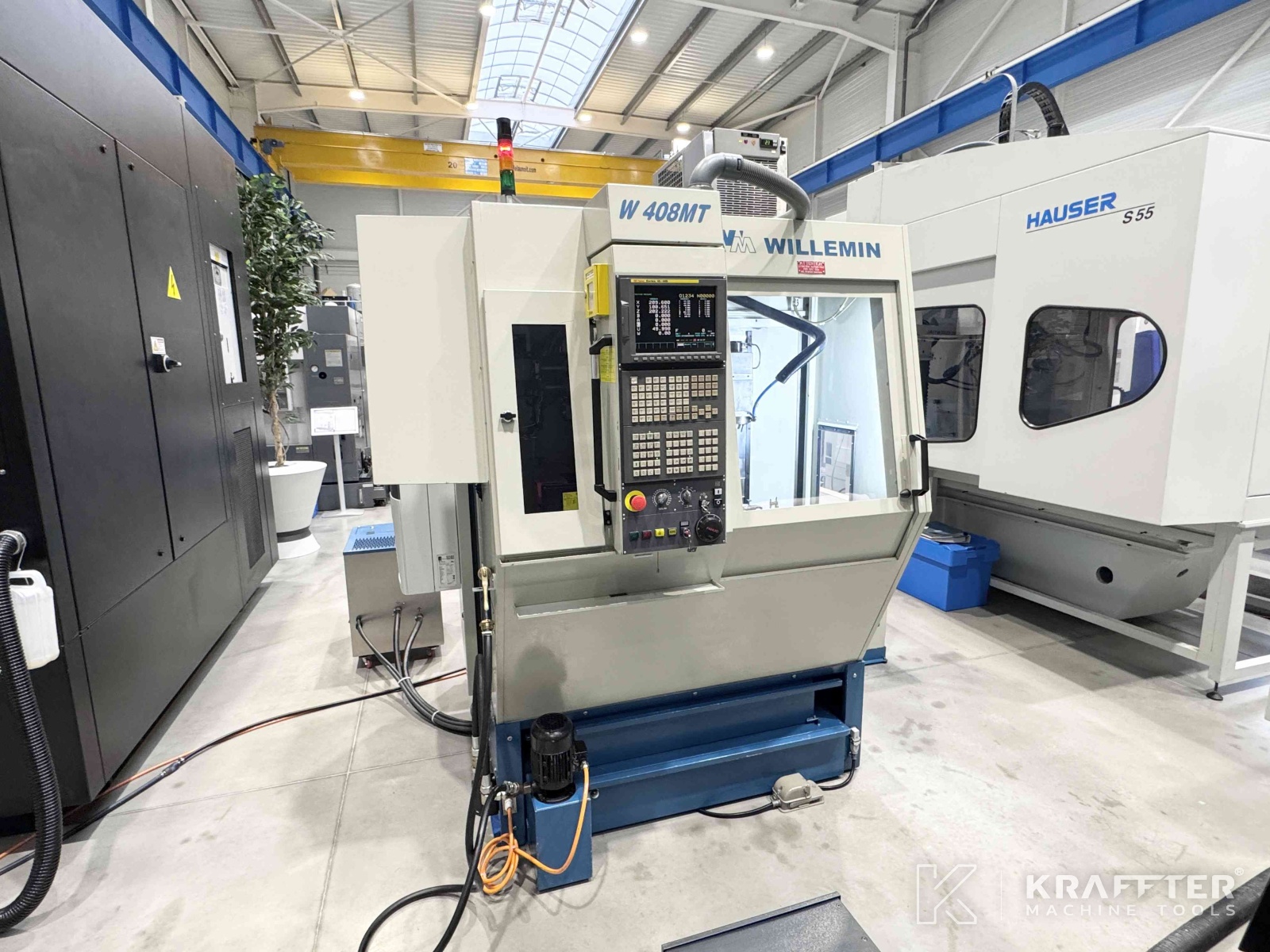

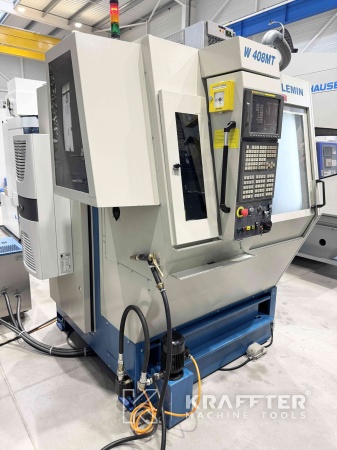

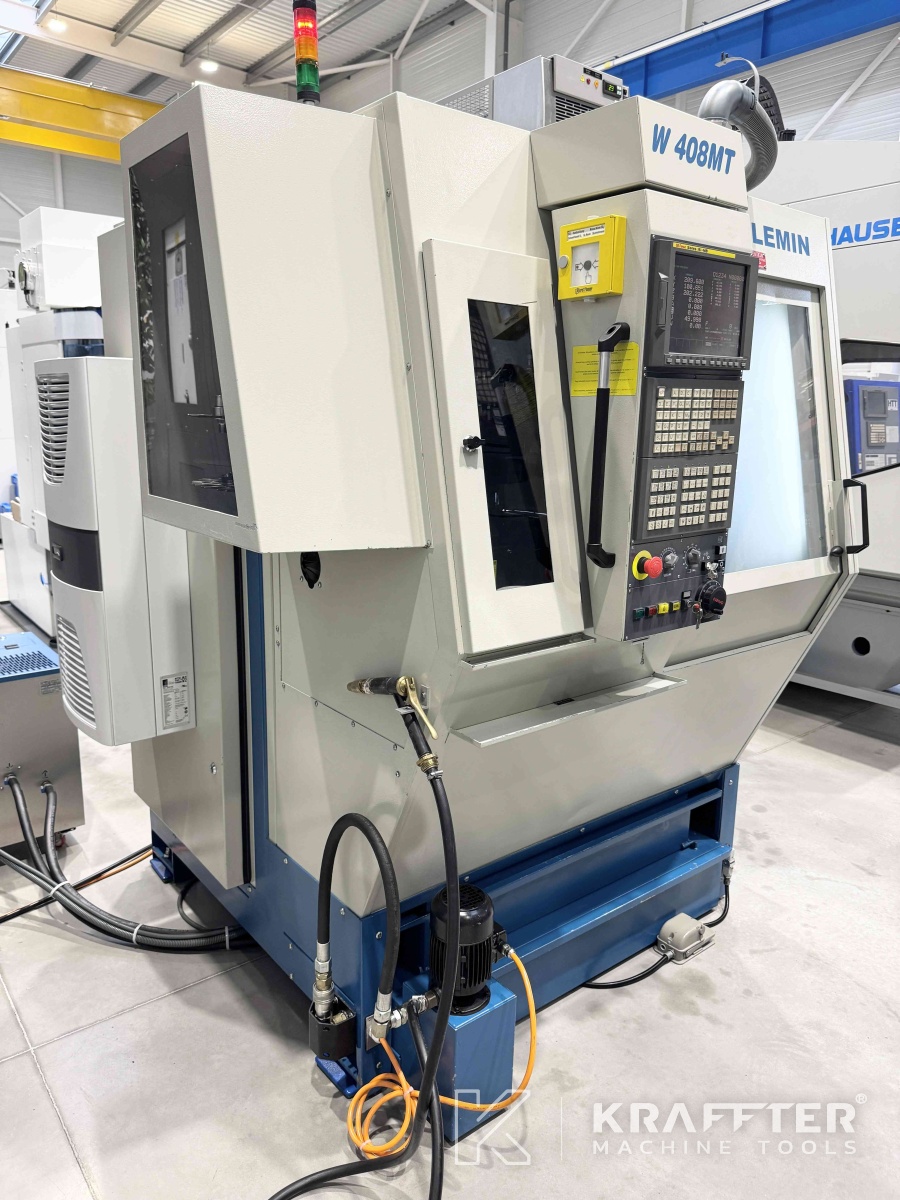

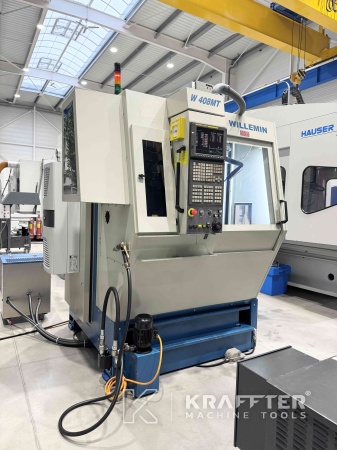

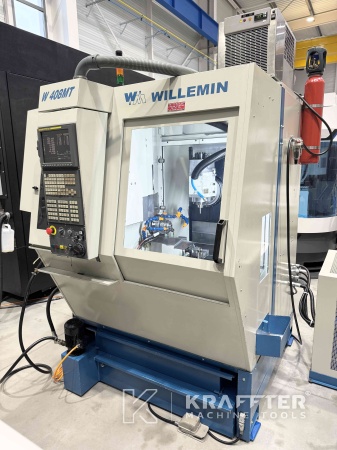

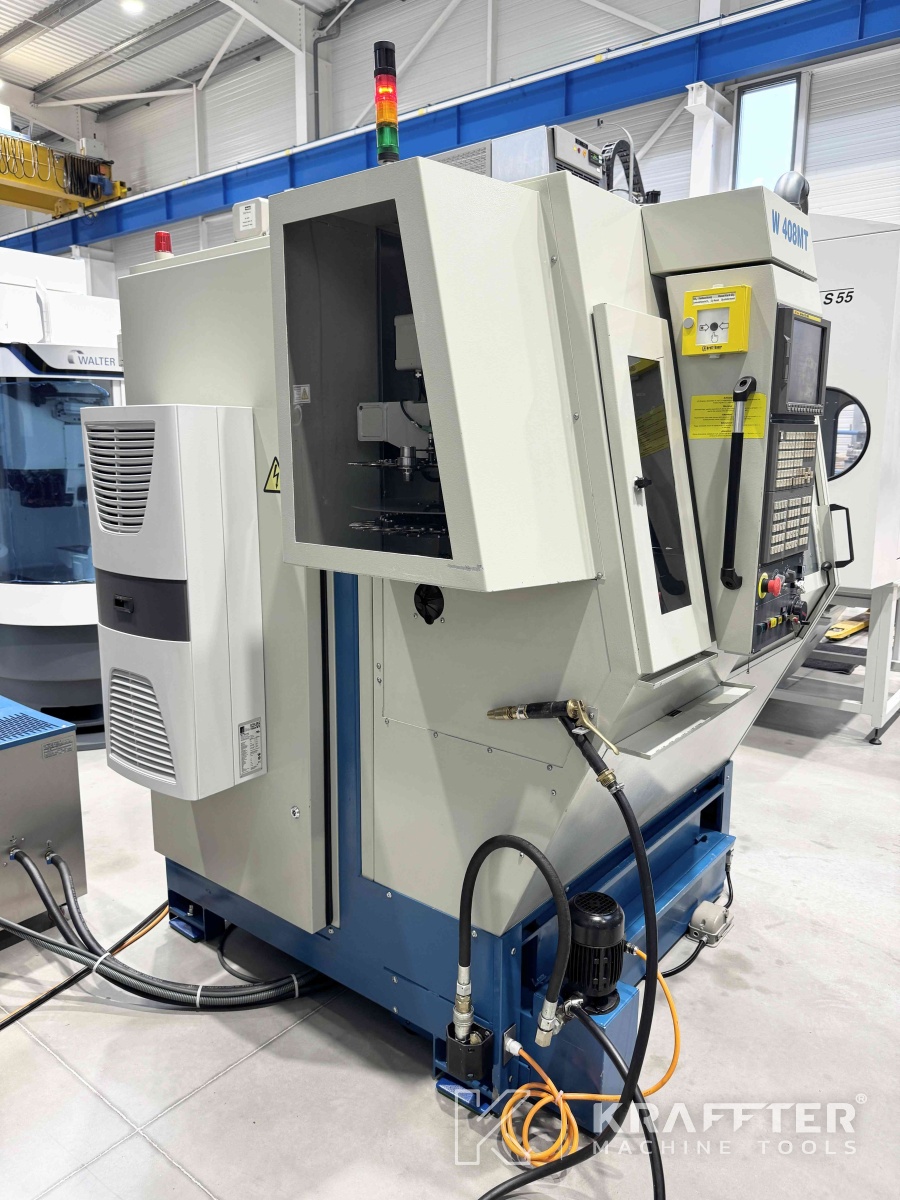

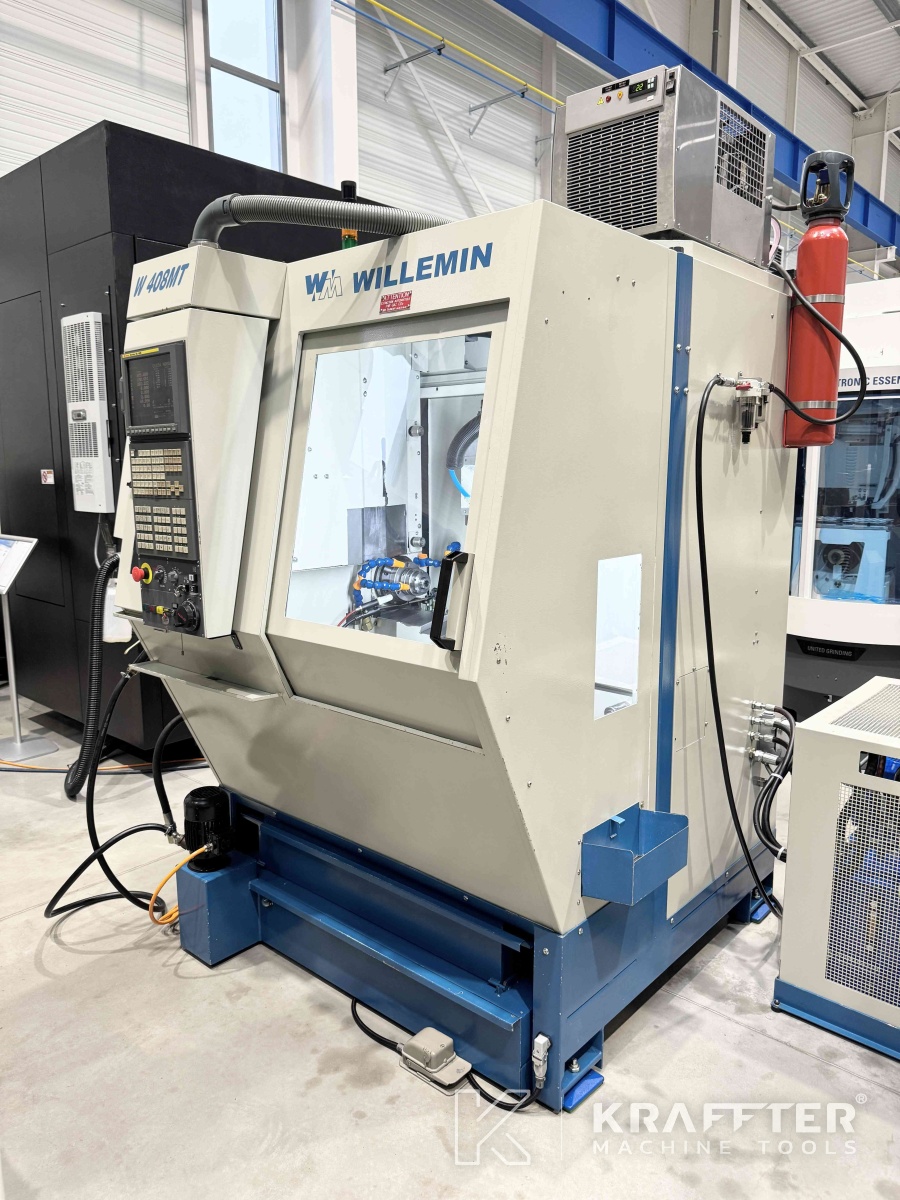

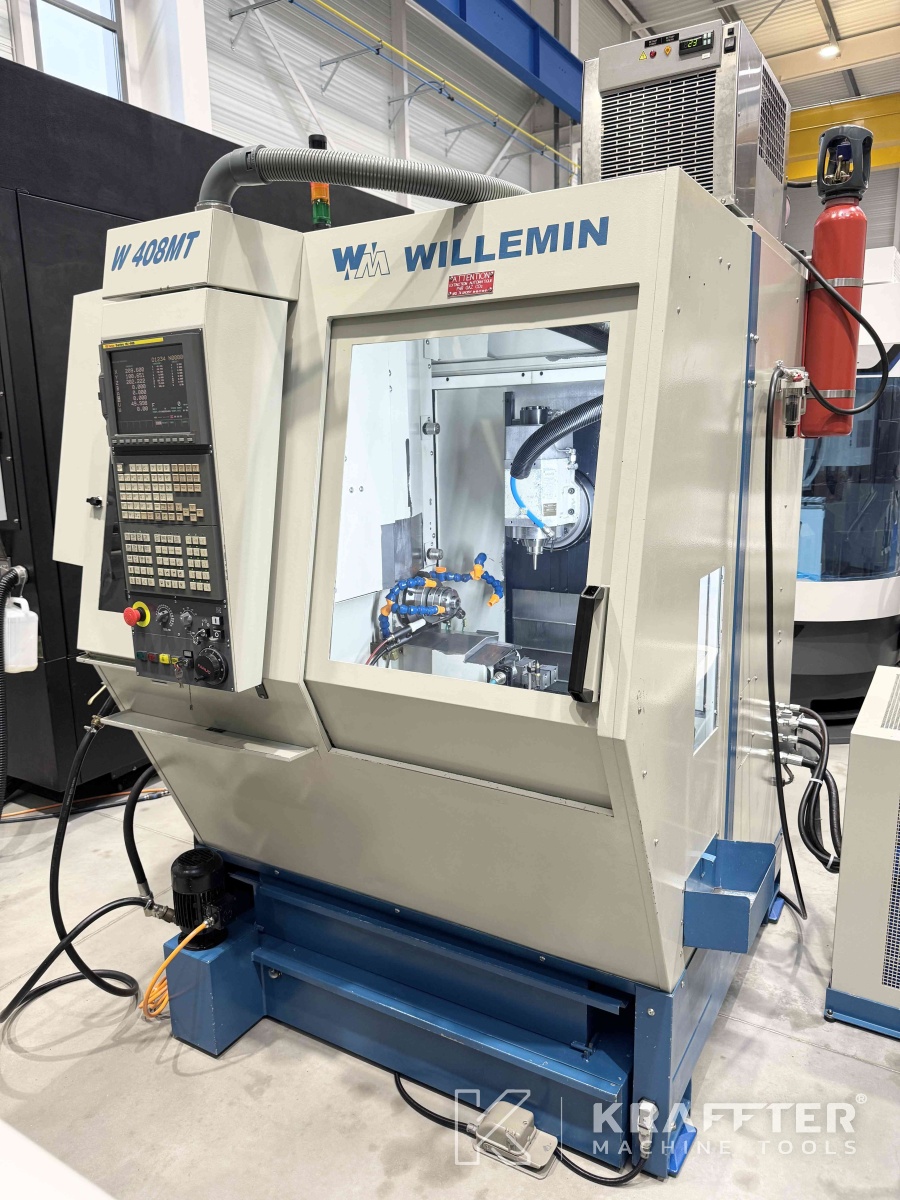

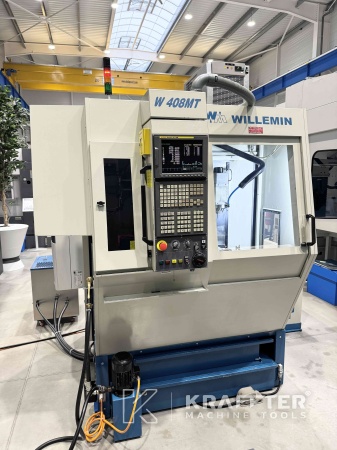

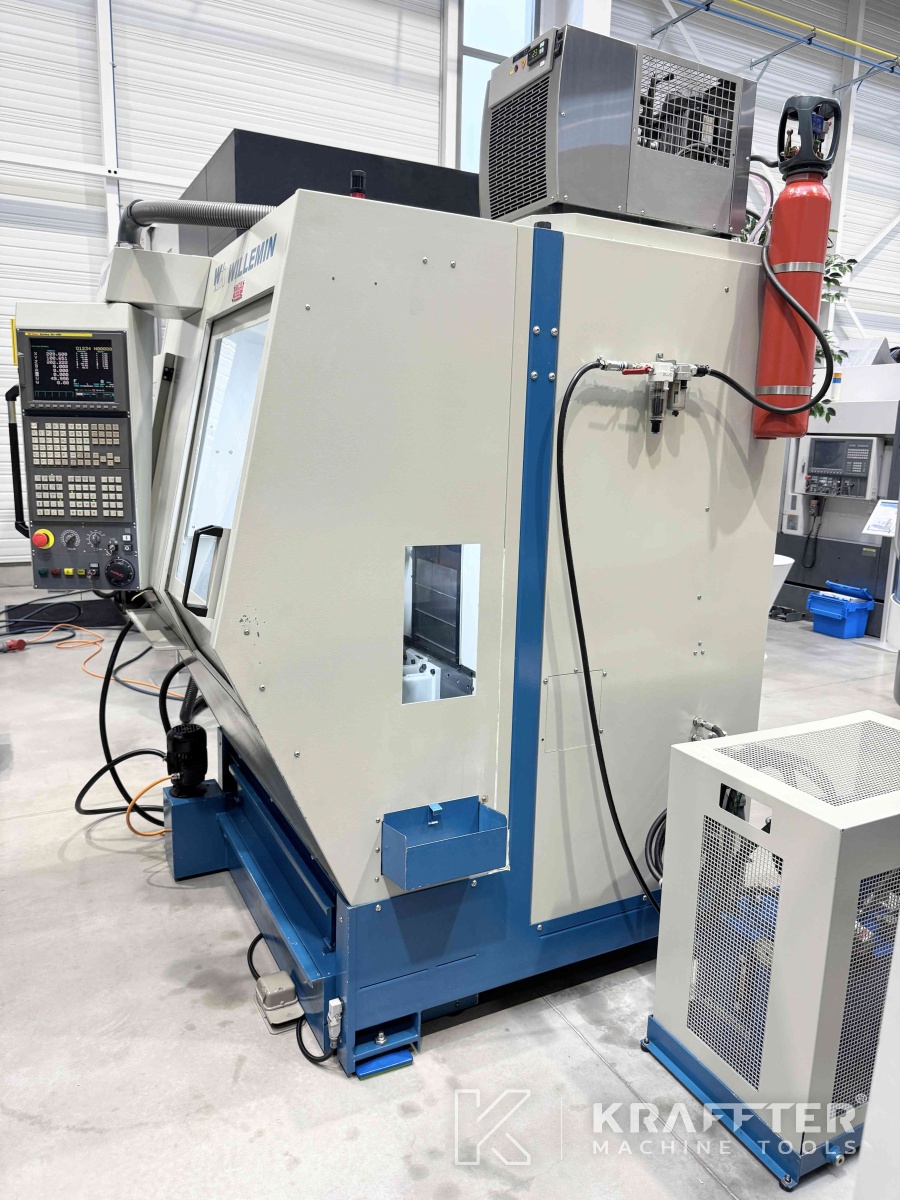

Type of machine : CNC machining centre
Brand : WILLEMIN MACODEL
N° de stock: 90131
Model : W 408 MT
Year : 2007
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

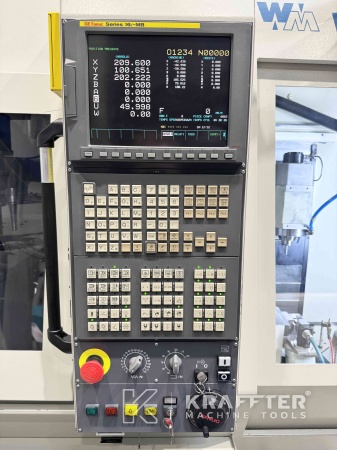

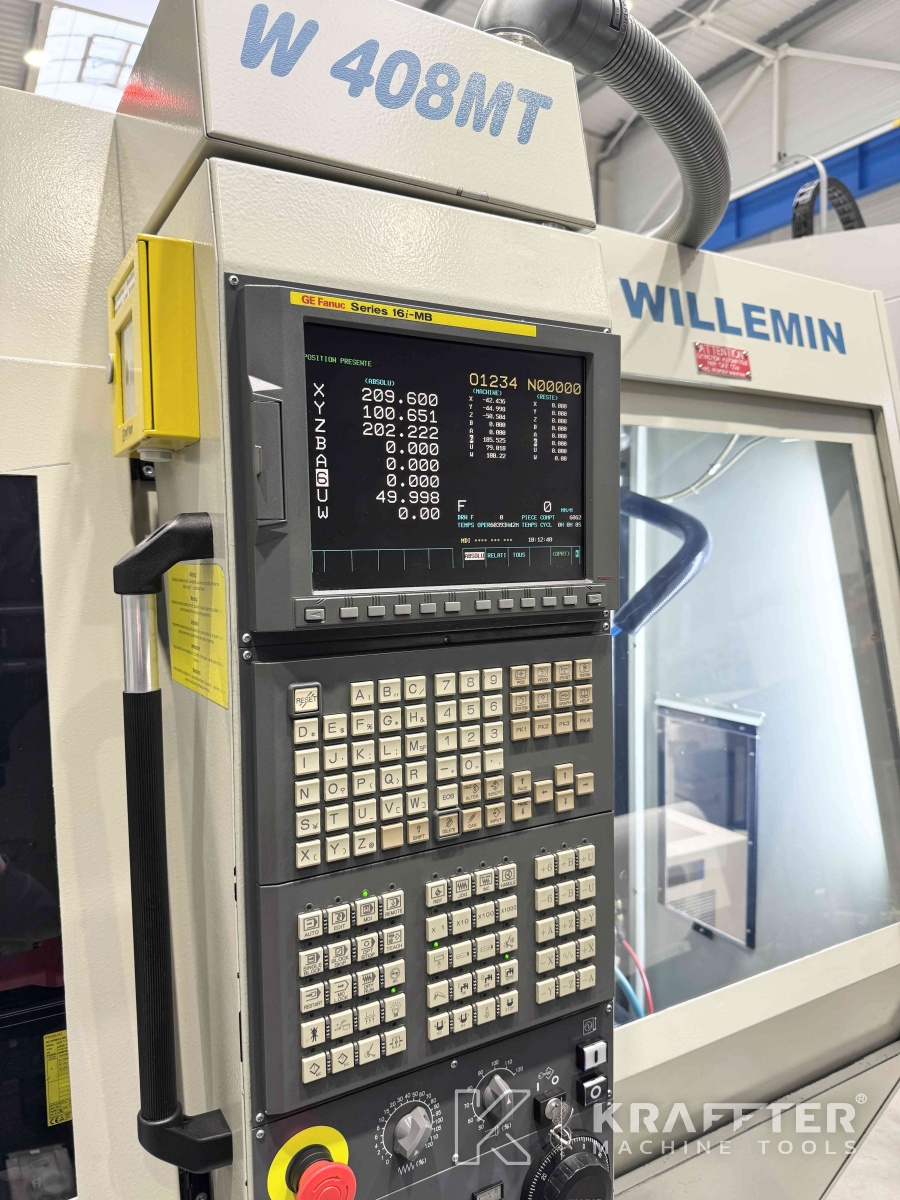

CNC control
FANUC 16i-MB
Number of axes
5
Stroke X axis
250 [mm]
Stroke Y axis
200 [mm]
Stroke Z axis
300 [mm]
Feed rate on X, Y and Z axes
30000 [mm/min]

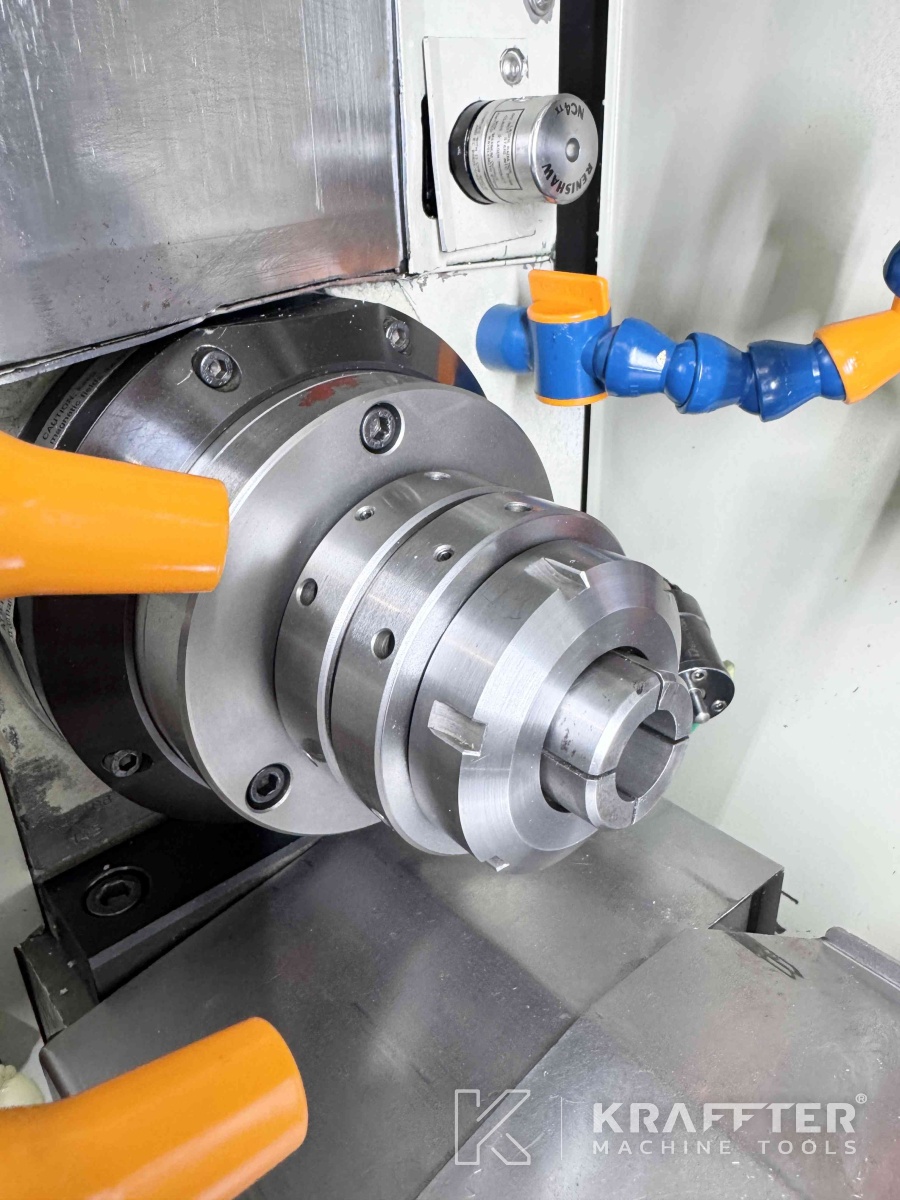

Max. bar diameter in turning spindle
32 [mm]
Main spindle max. speed
6000 [rpm]
Main spindle max. power
3.7 [kW]
Angular C axis stroke
360 [°]
B axis swivelling stroke
115 [°]

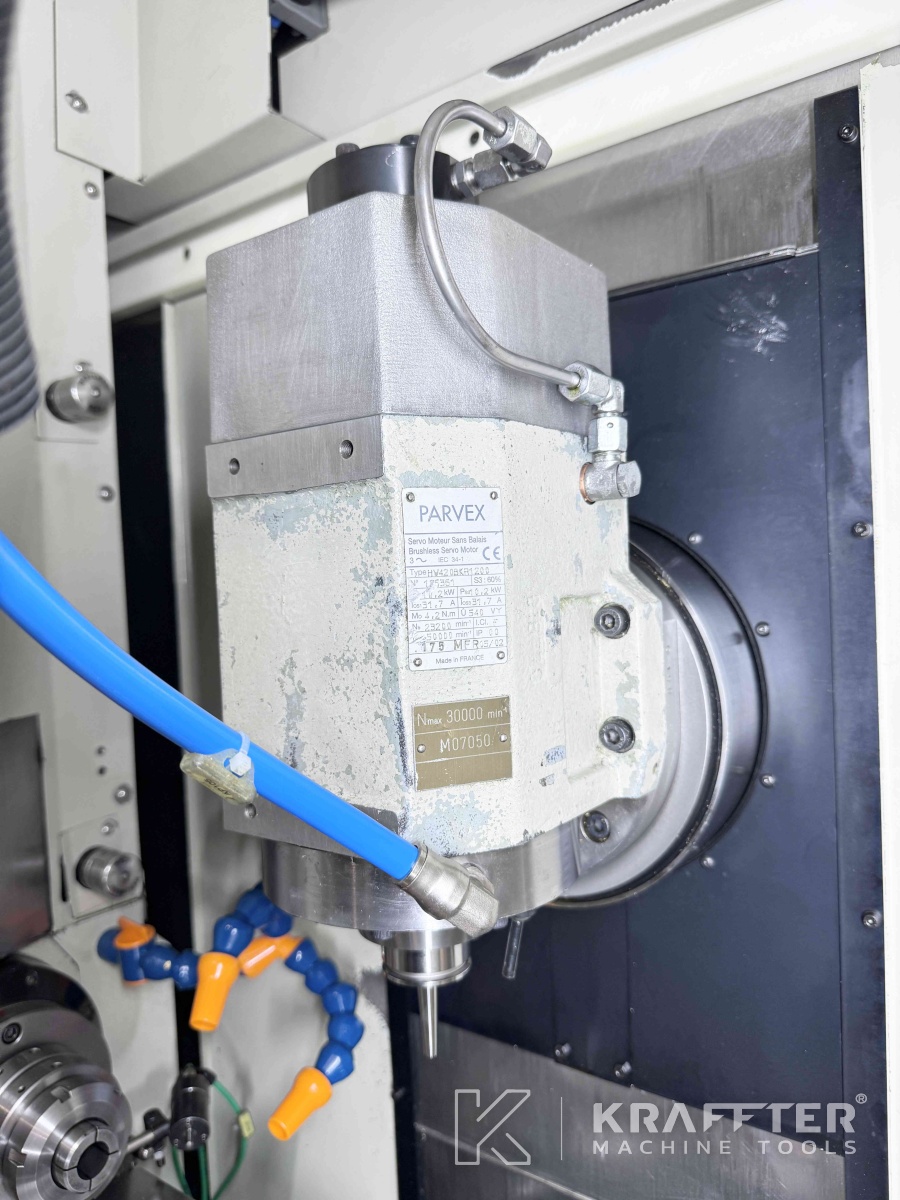

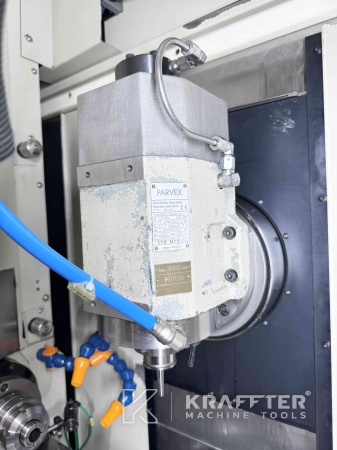

Spindle type
HSK-E40
Min. spindle speed
500 [rpm]
Max. spindle speed
30000 [rpm]
Spindle power
10 [kW]

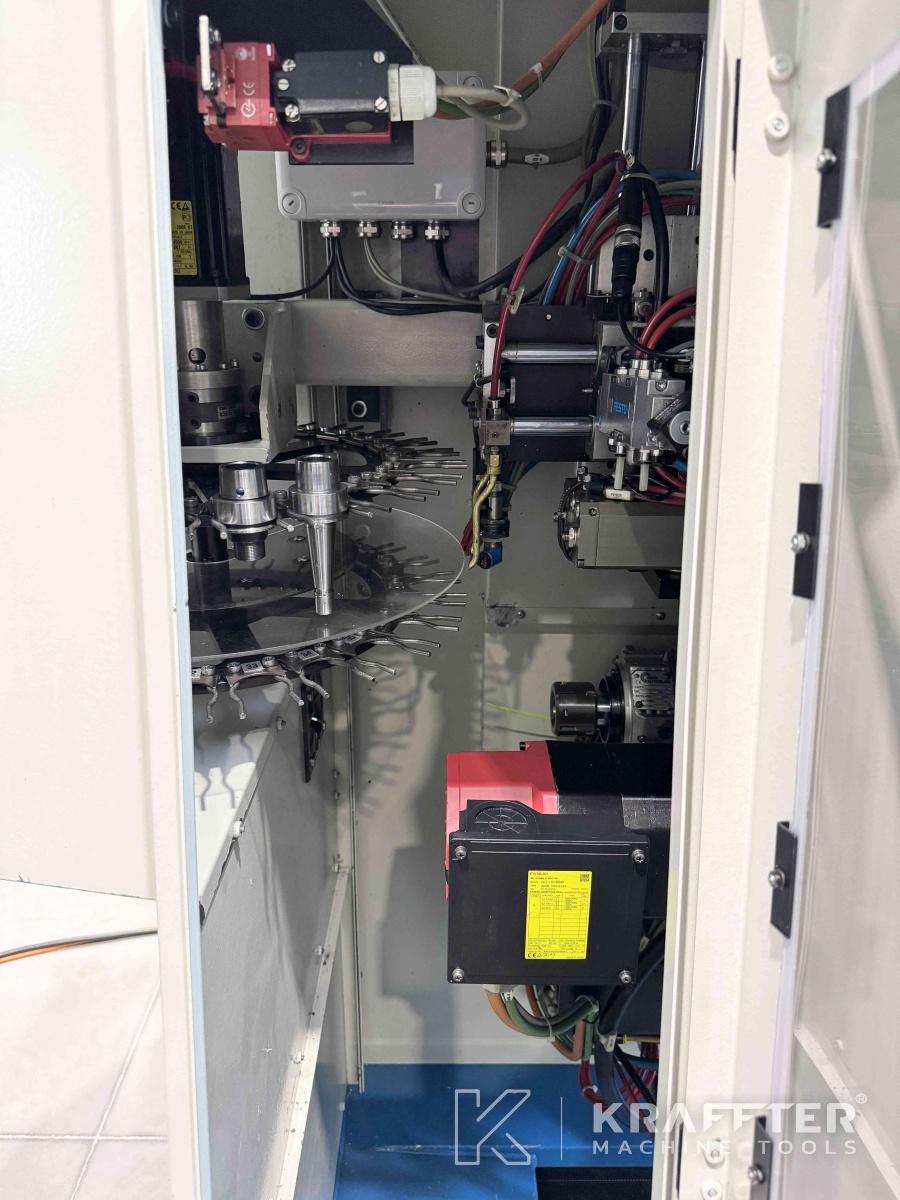

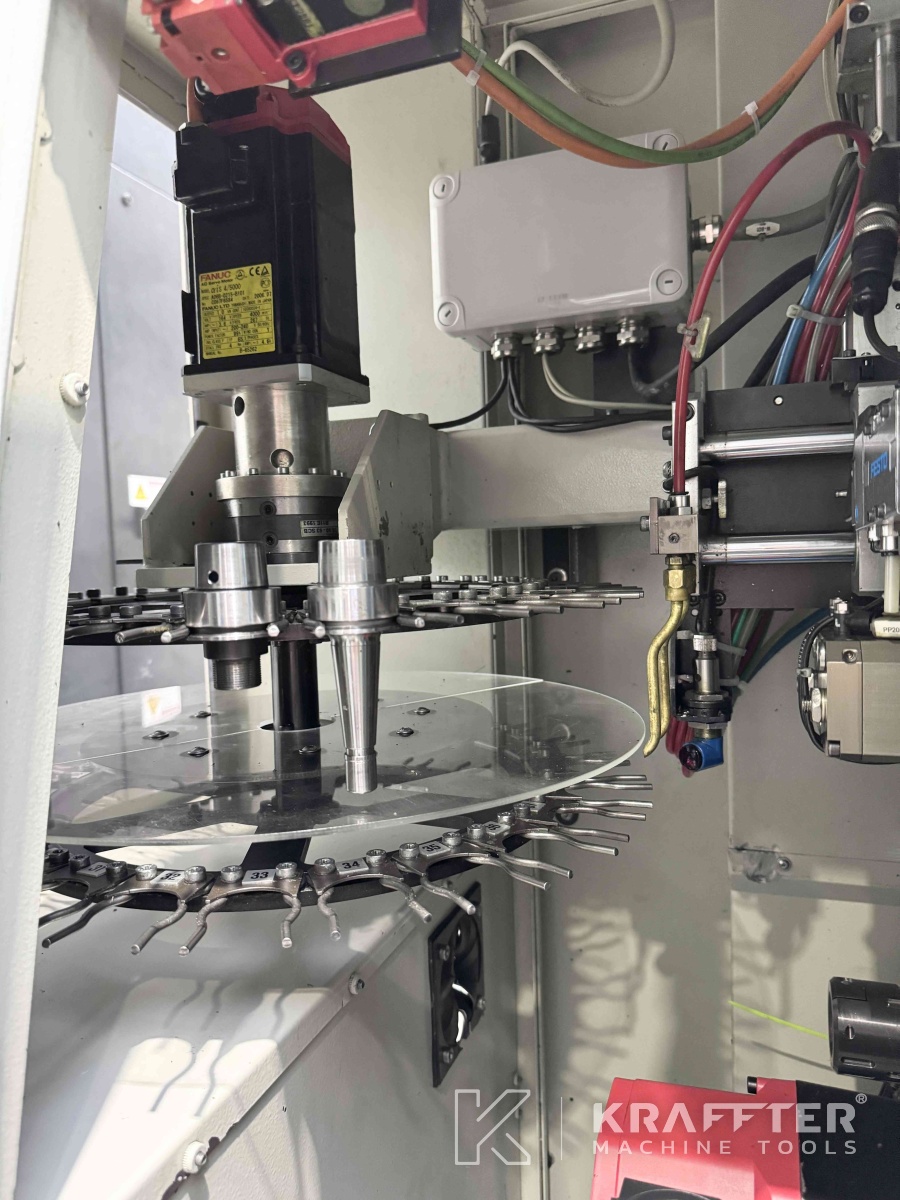

Tool changer magazin number of stations
48
Max. tool lenght
95 [mm]
Max. tool diameter
63 [mm]

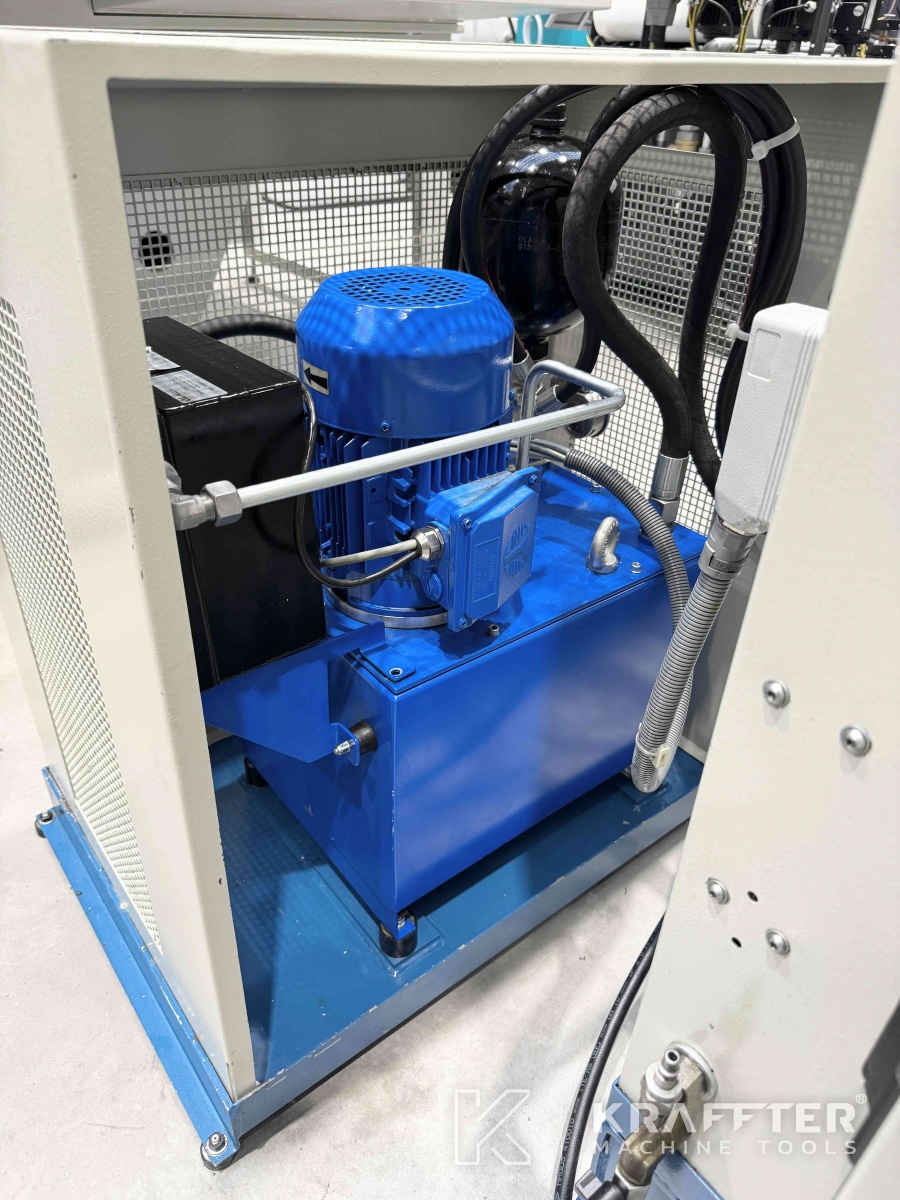

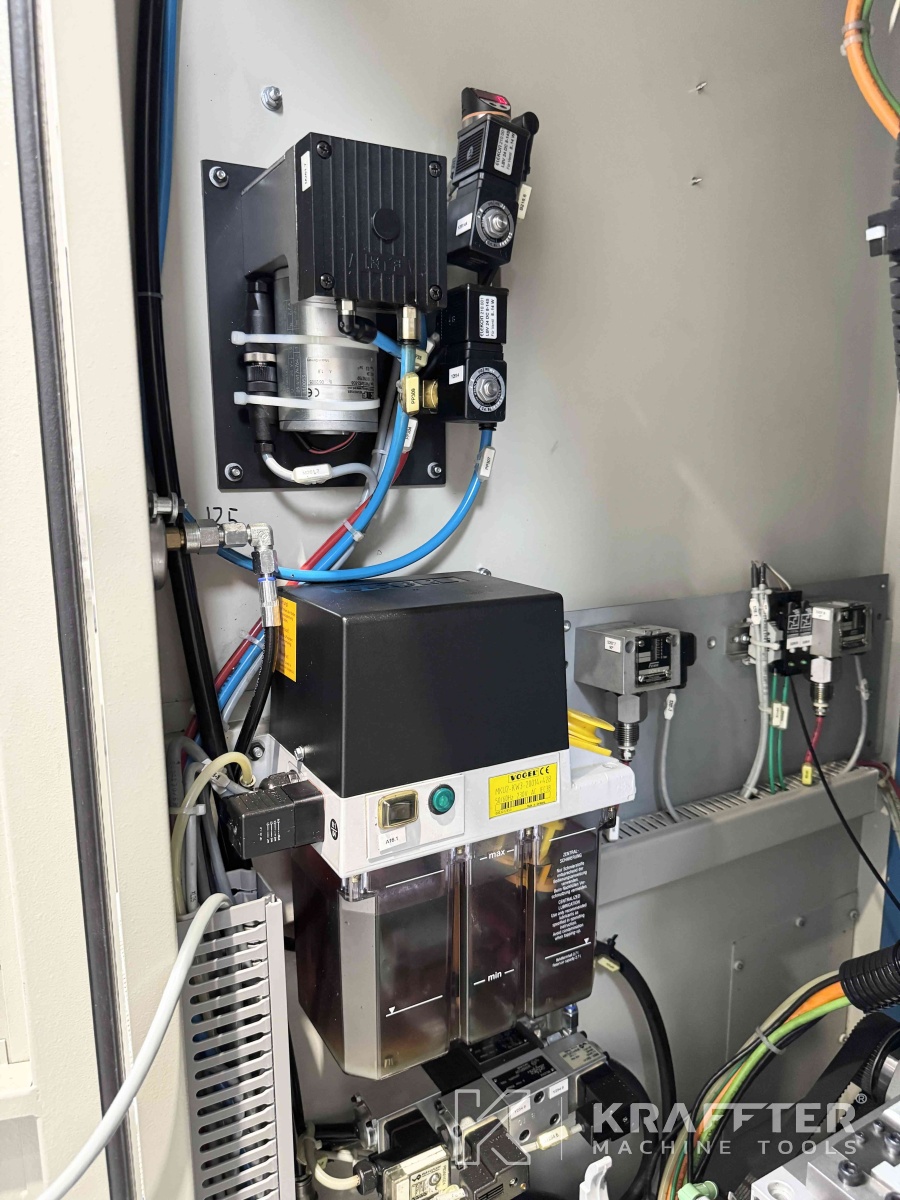

Lubrication tank capacity
80 [l]
Collant pump flow rate
40 [l/min]
Rated current
25 [A]
Supply voltage
400 [V]
Working hours
11003 [h]
Machine weight
1700 [Kg]
Technical specifications are provided for indicative purposes only. The description may have been automatically translated.
Additional information

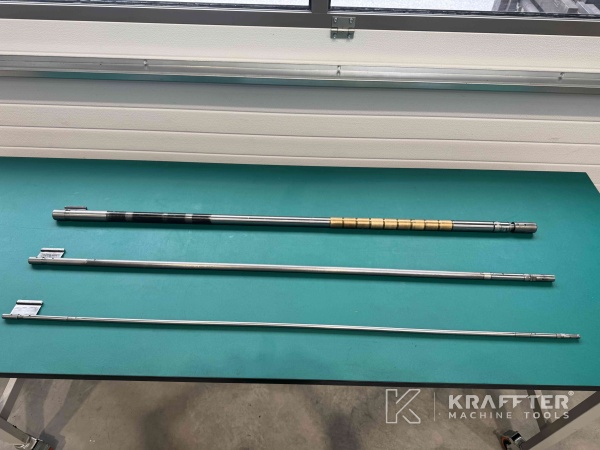

EQUIPMENT INCLUDED:

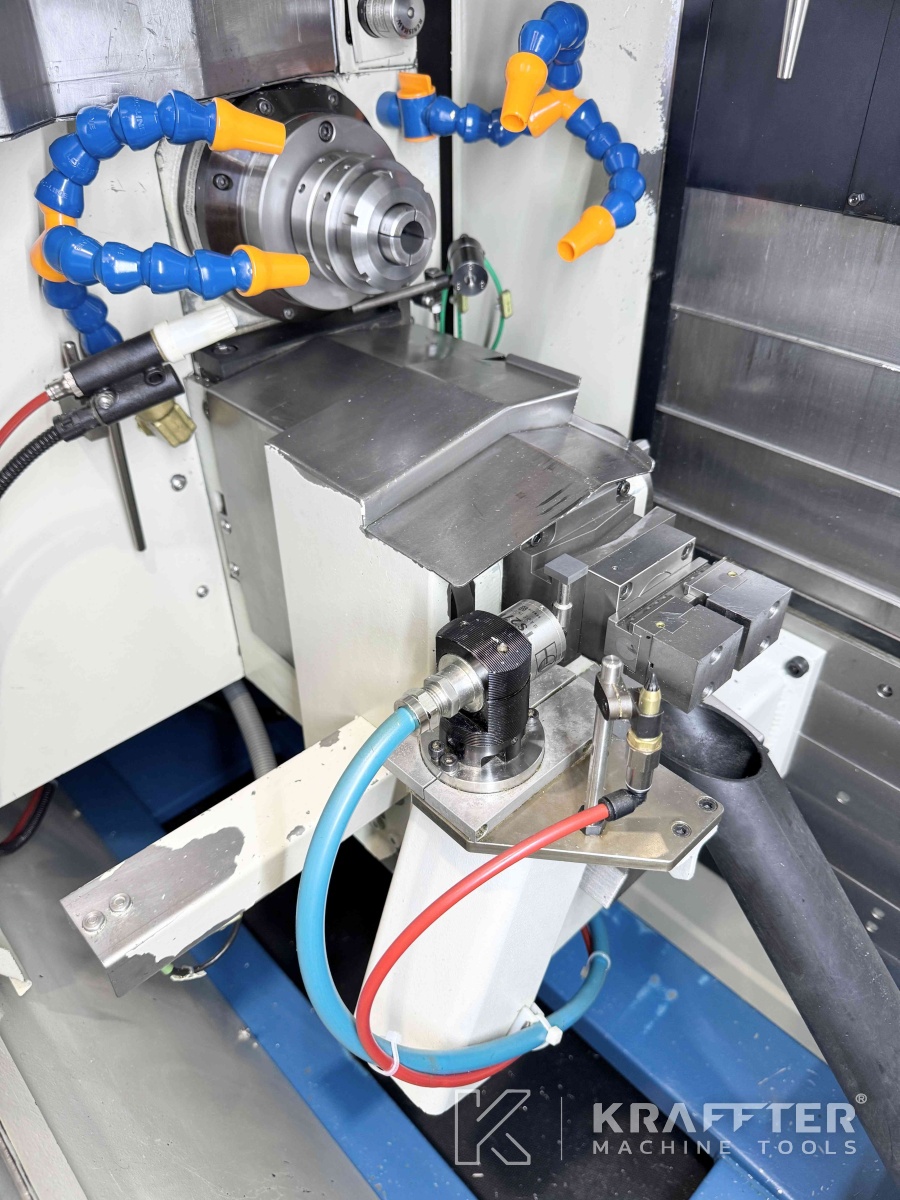

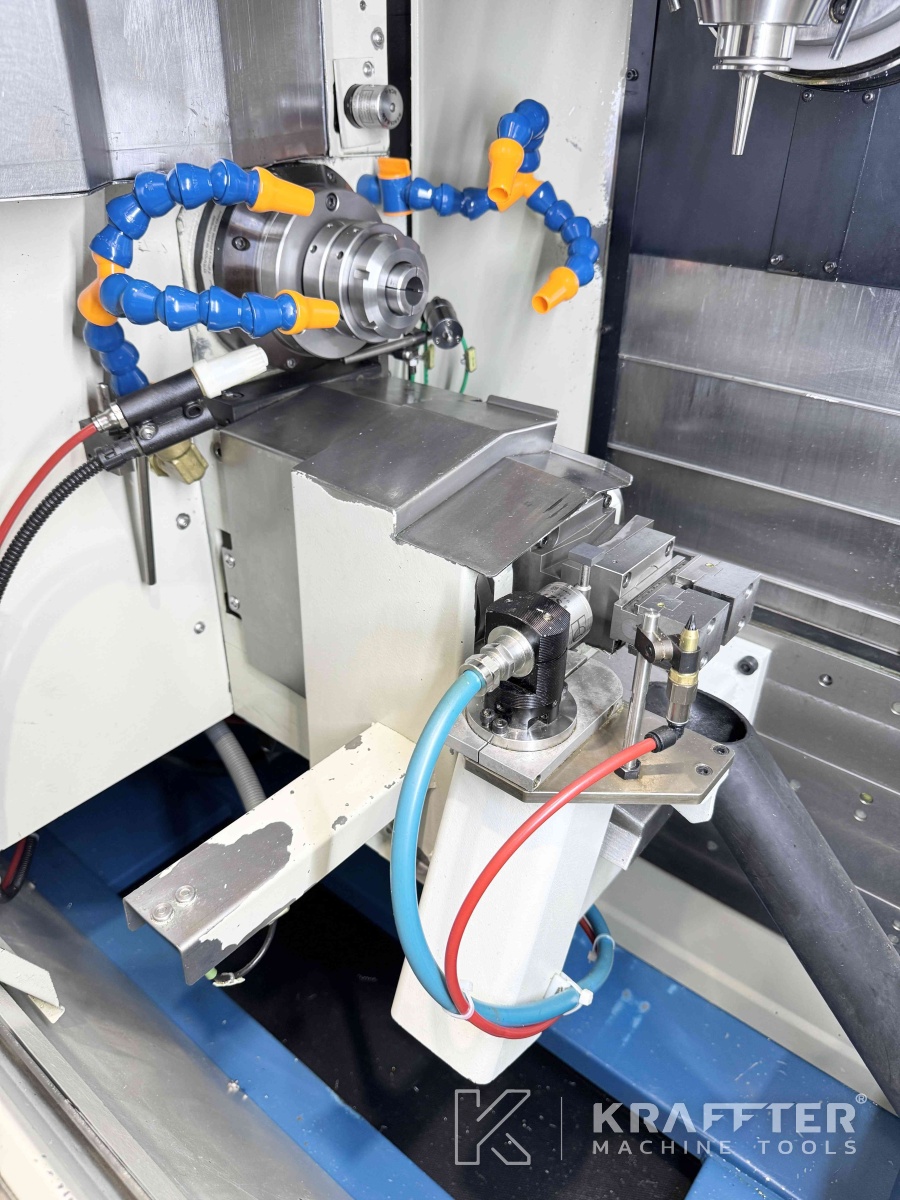

x1 0-90° pivoting backworking unit (6th side machining)
x1 backworking vice
x1 RENISHAW TS27R tool probe

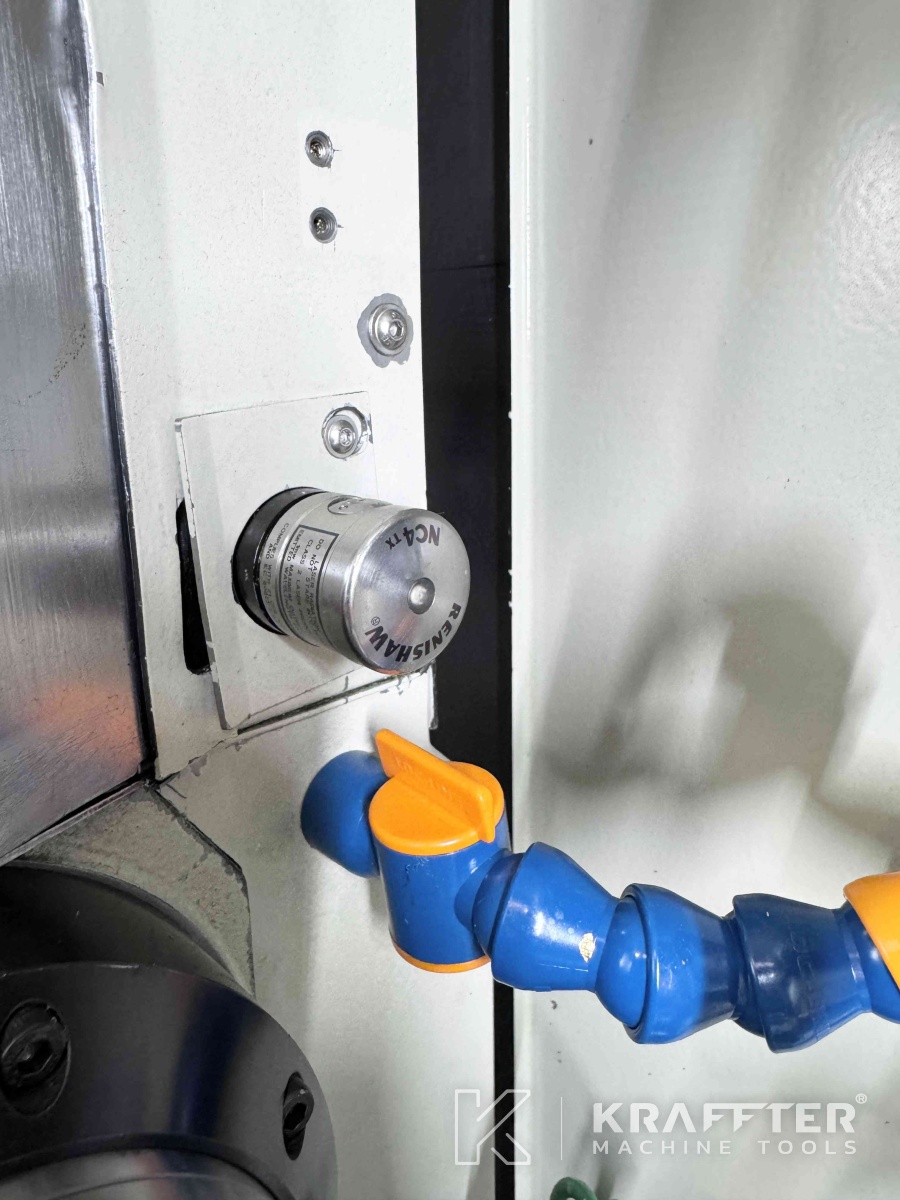

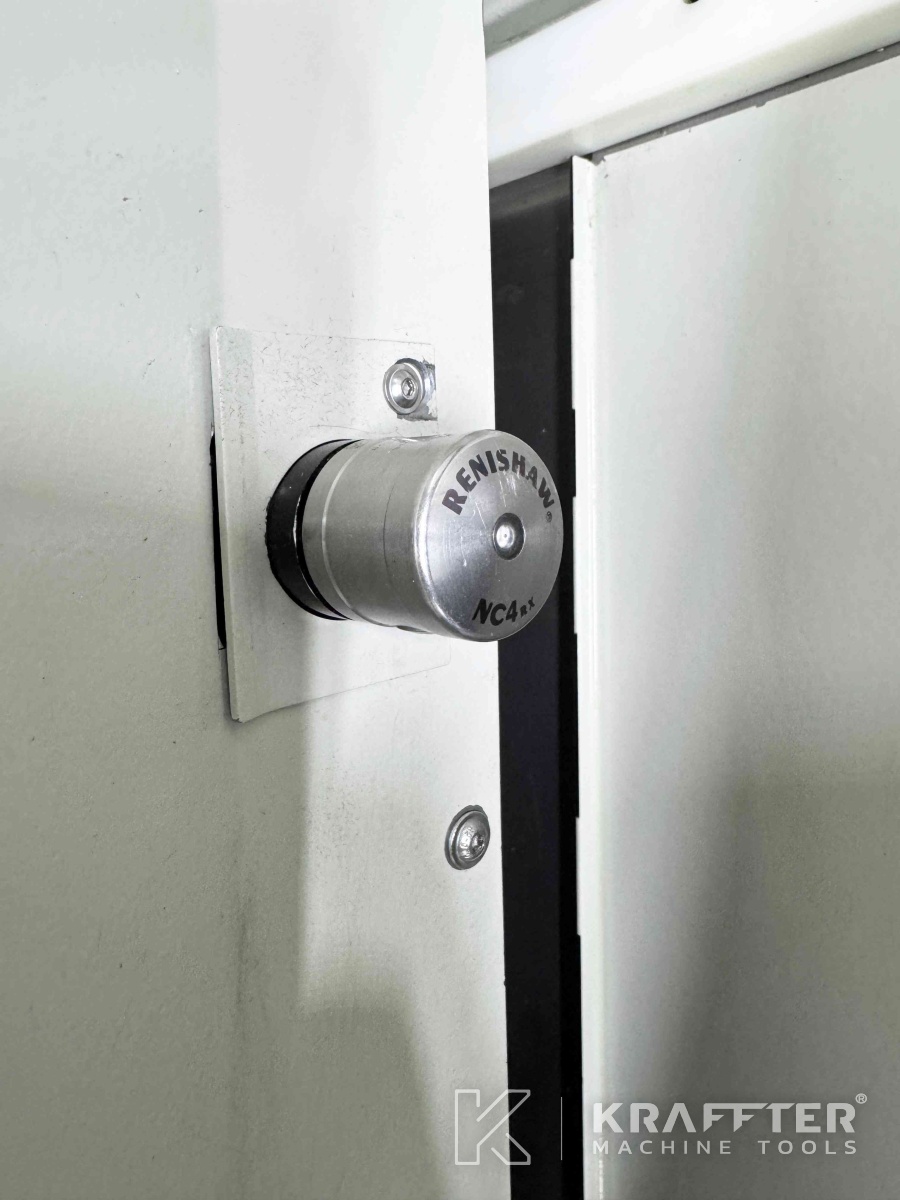

x1 RENISHAW NC4 TX laser system for tool setting and tool breakage detection

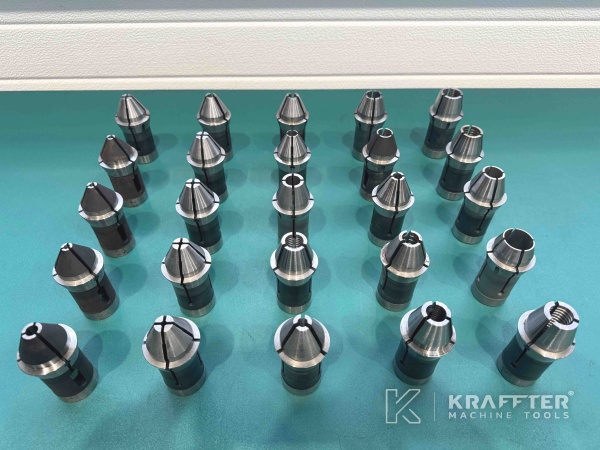

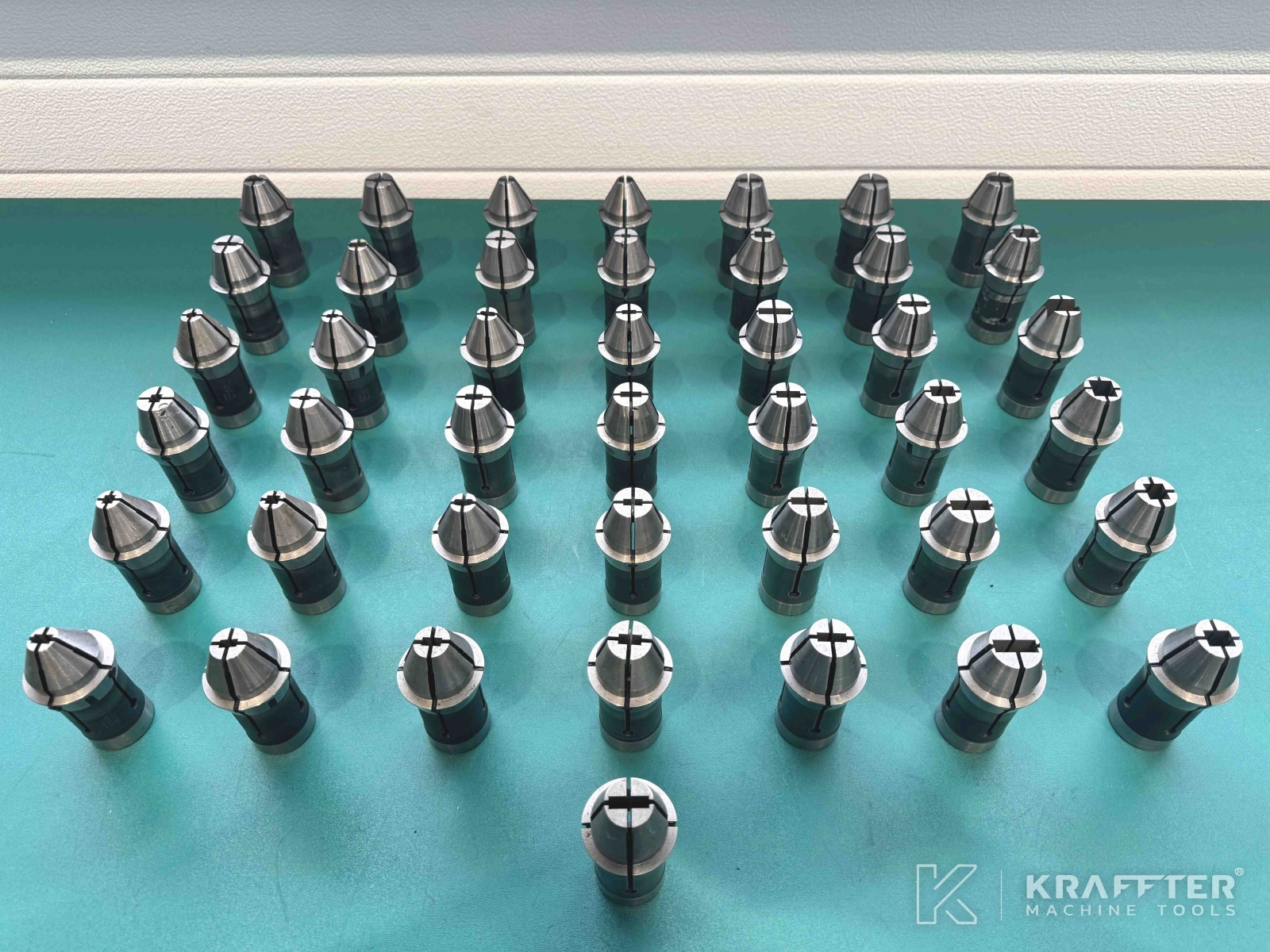

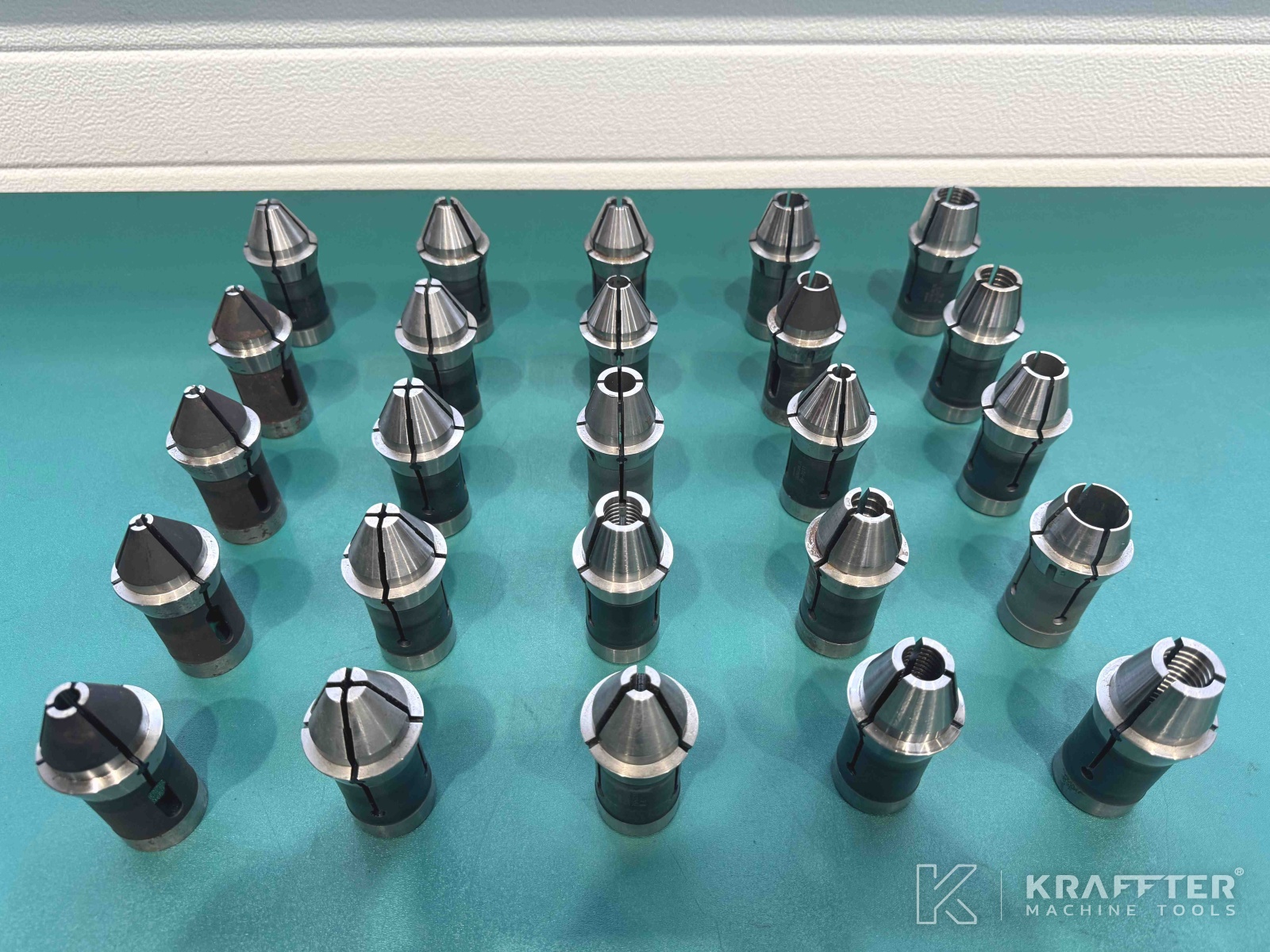

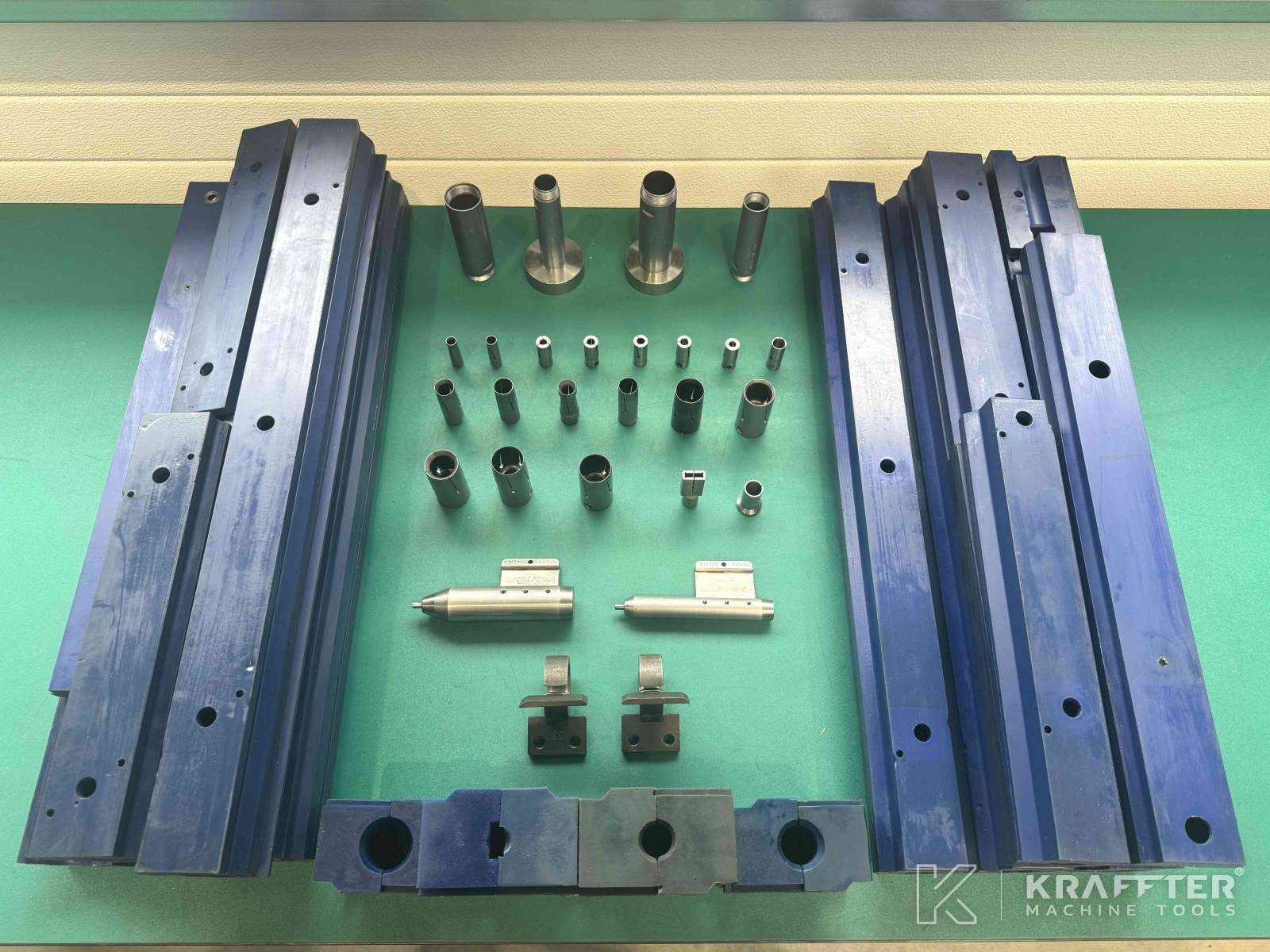

x68 type F35 turning collets

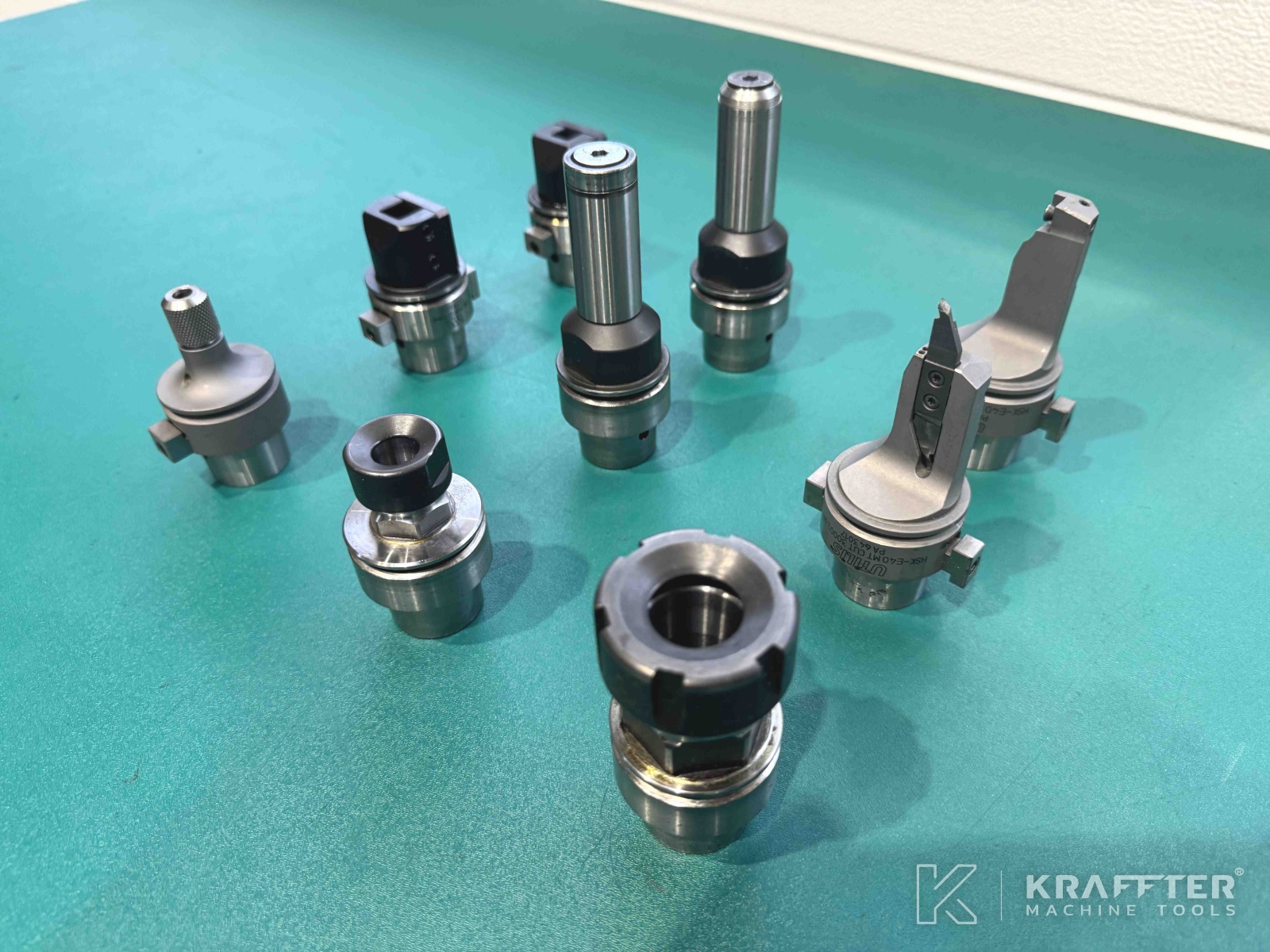

x9 HSK-40E milling/turning attachments

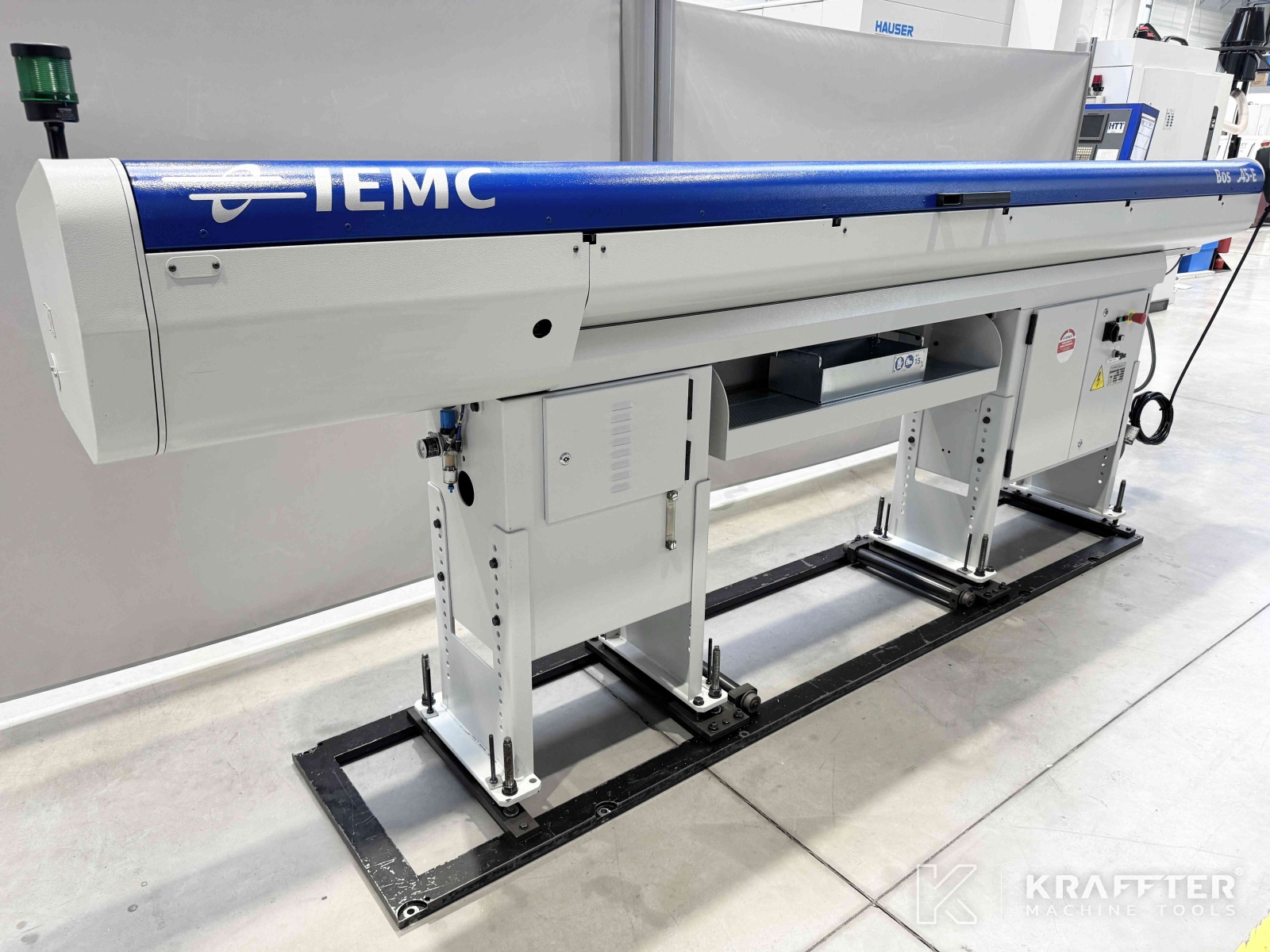

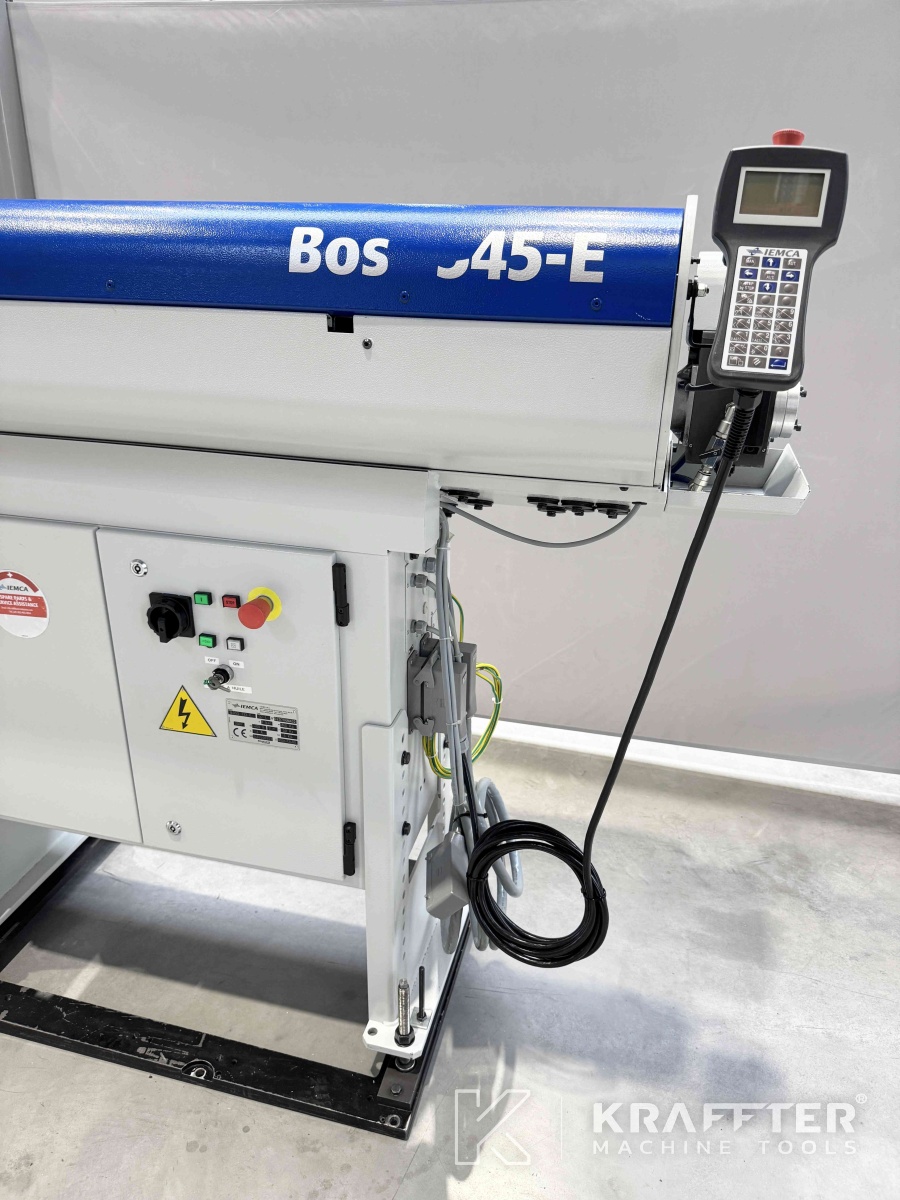

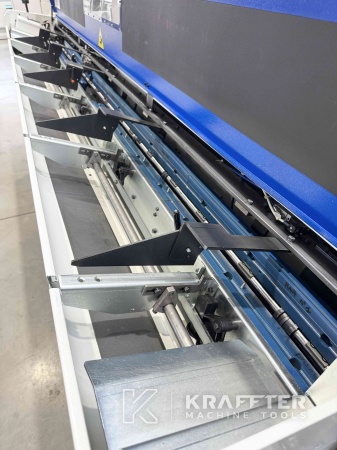

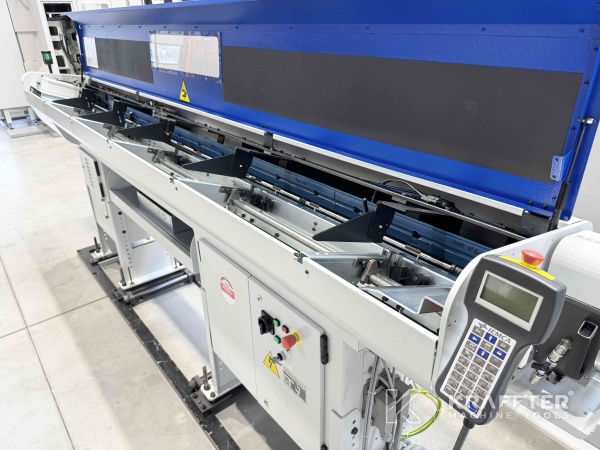

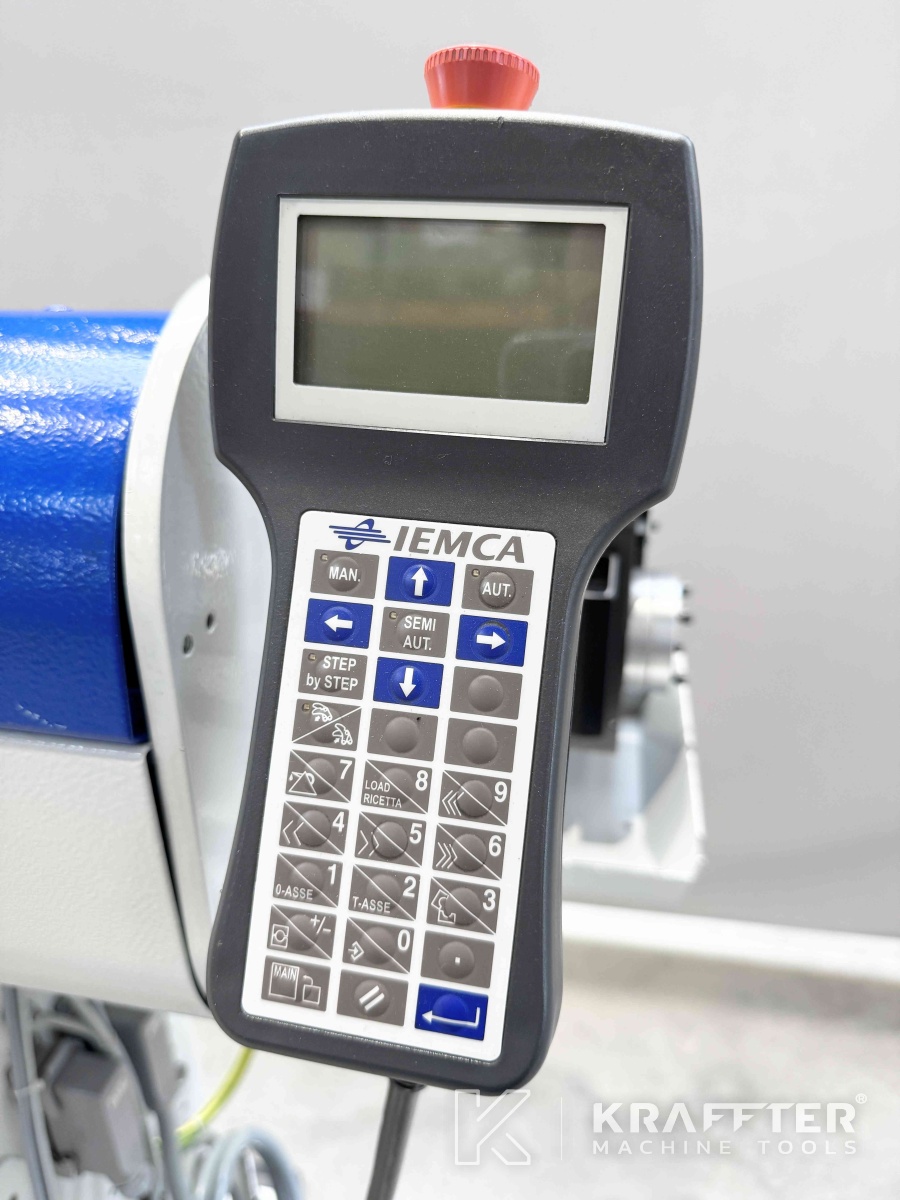

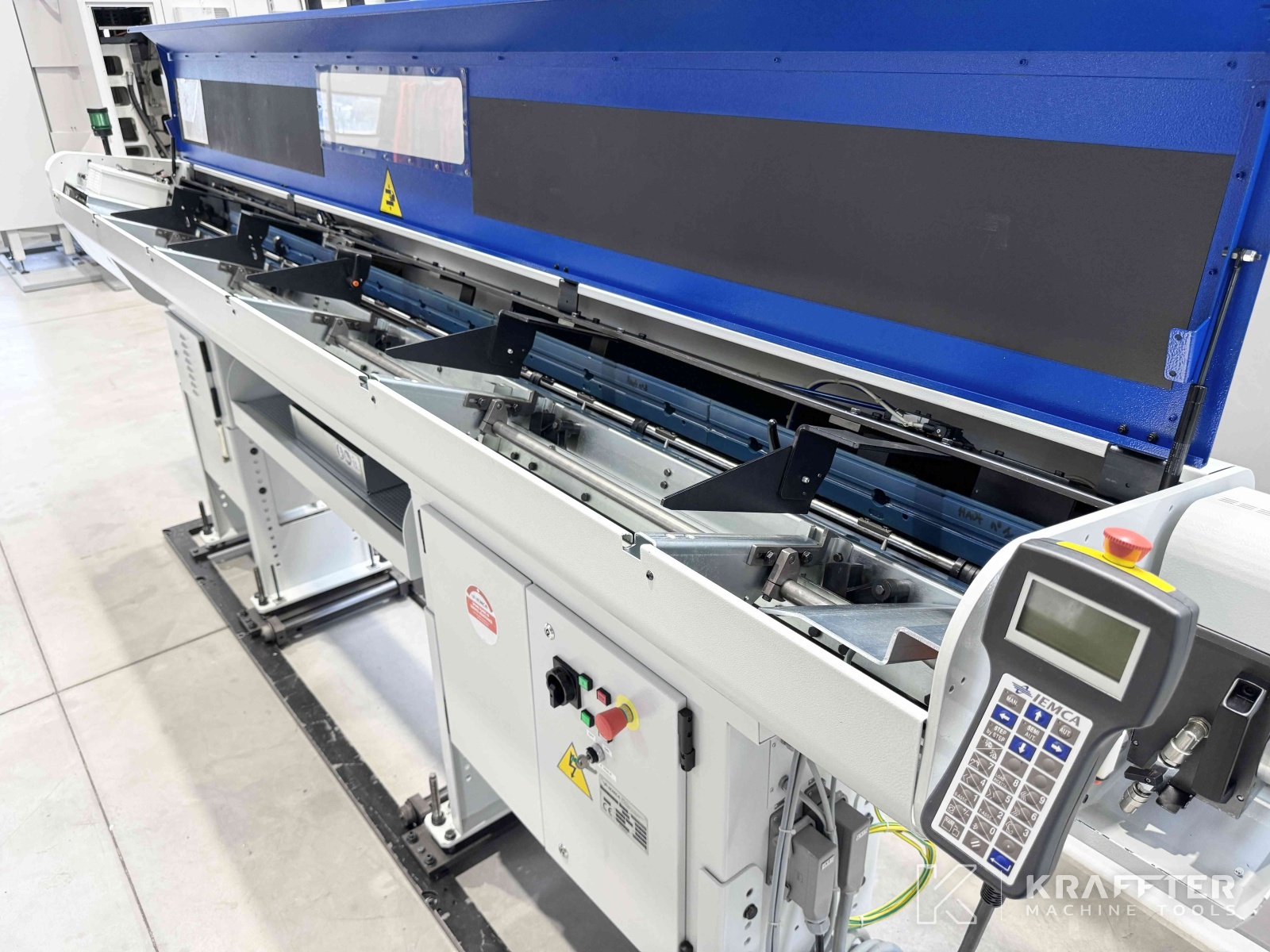

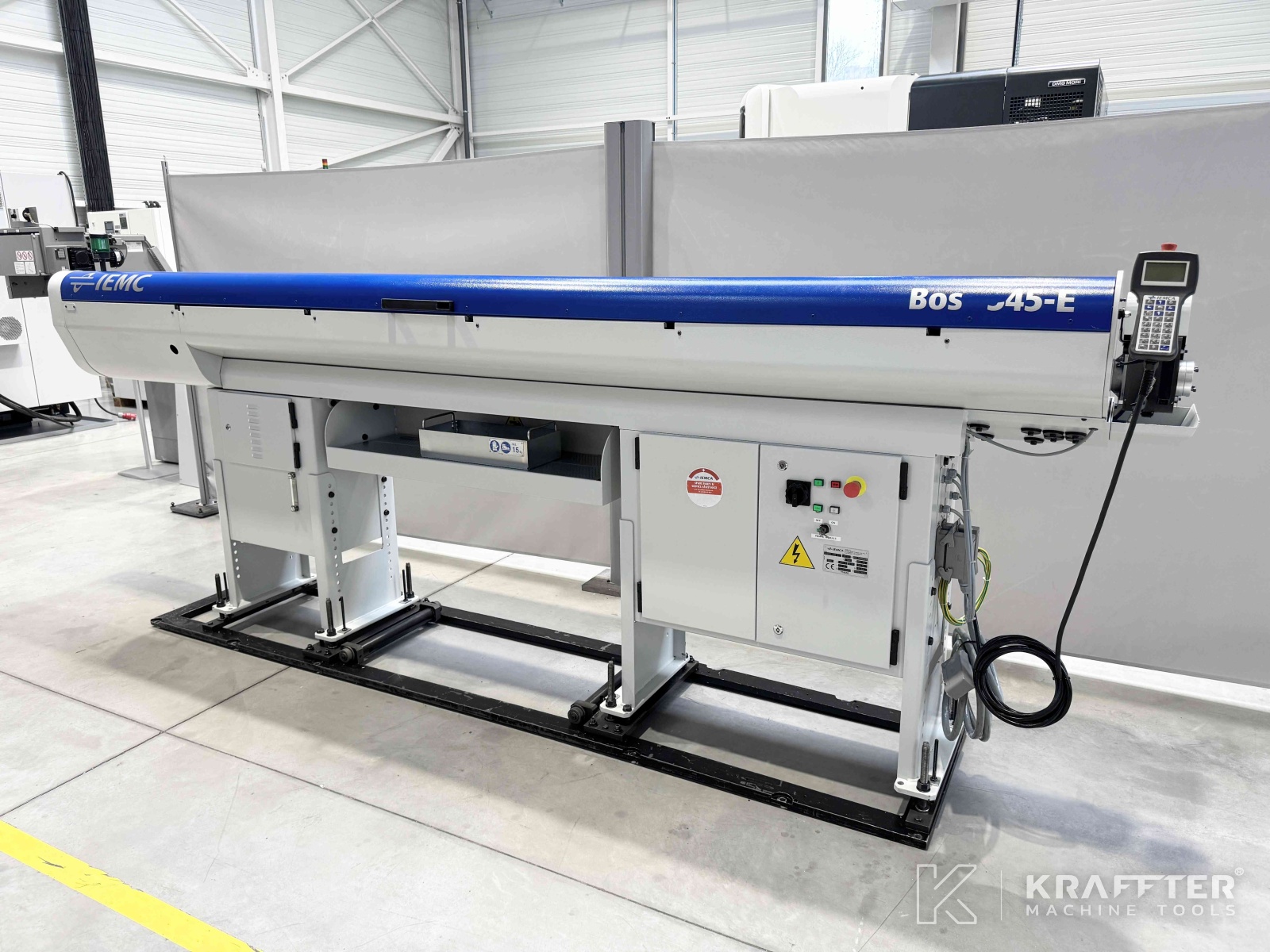

x1 IEMCA BOSS 332 E bar feeder

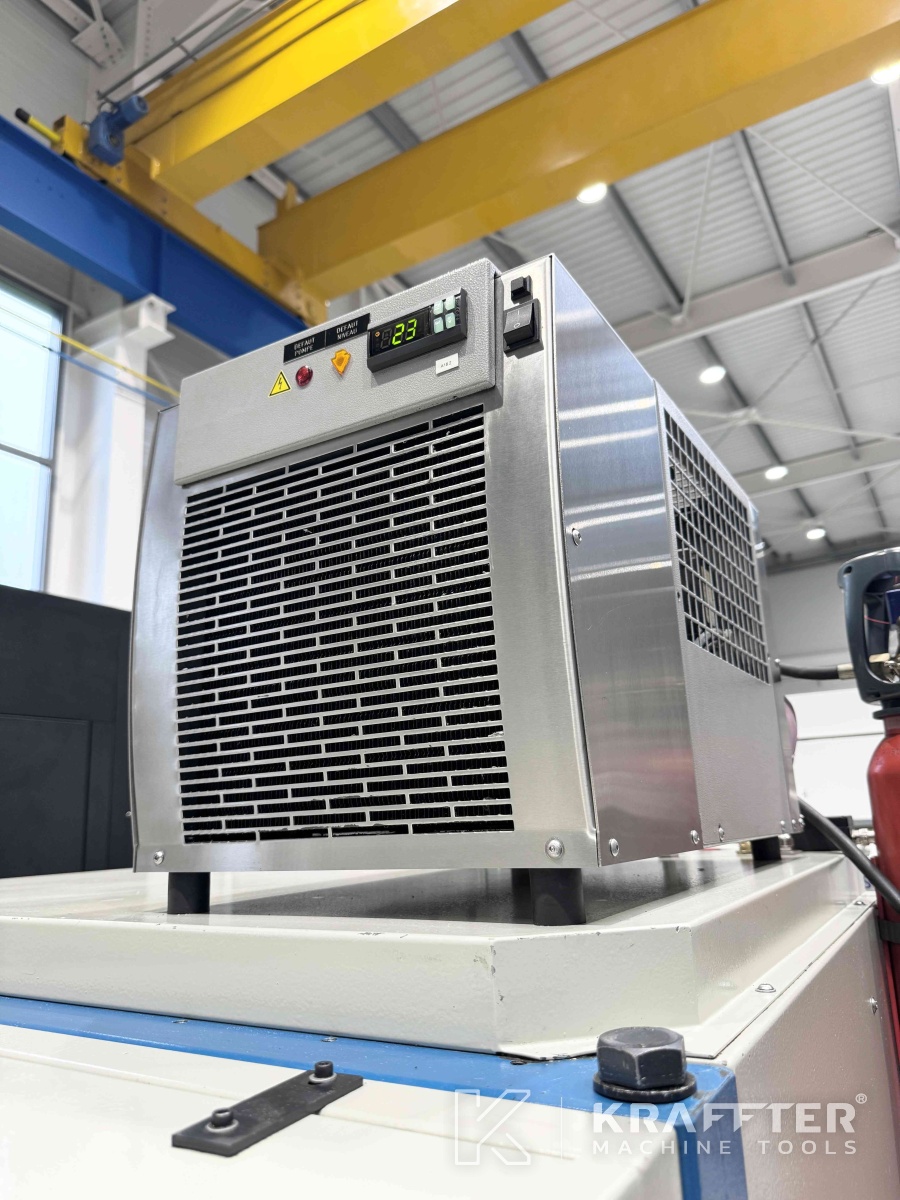

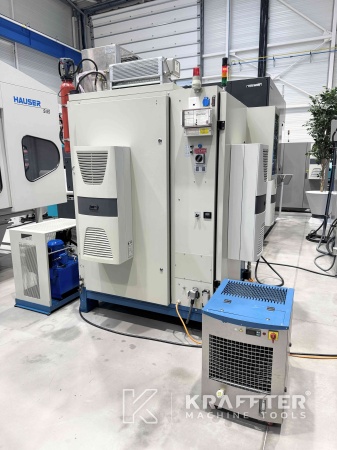

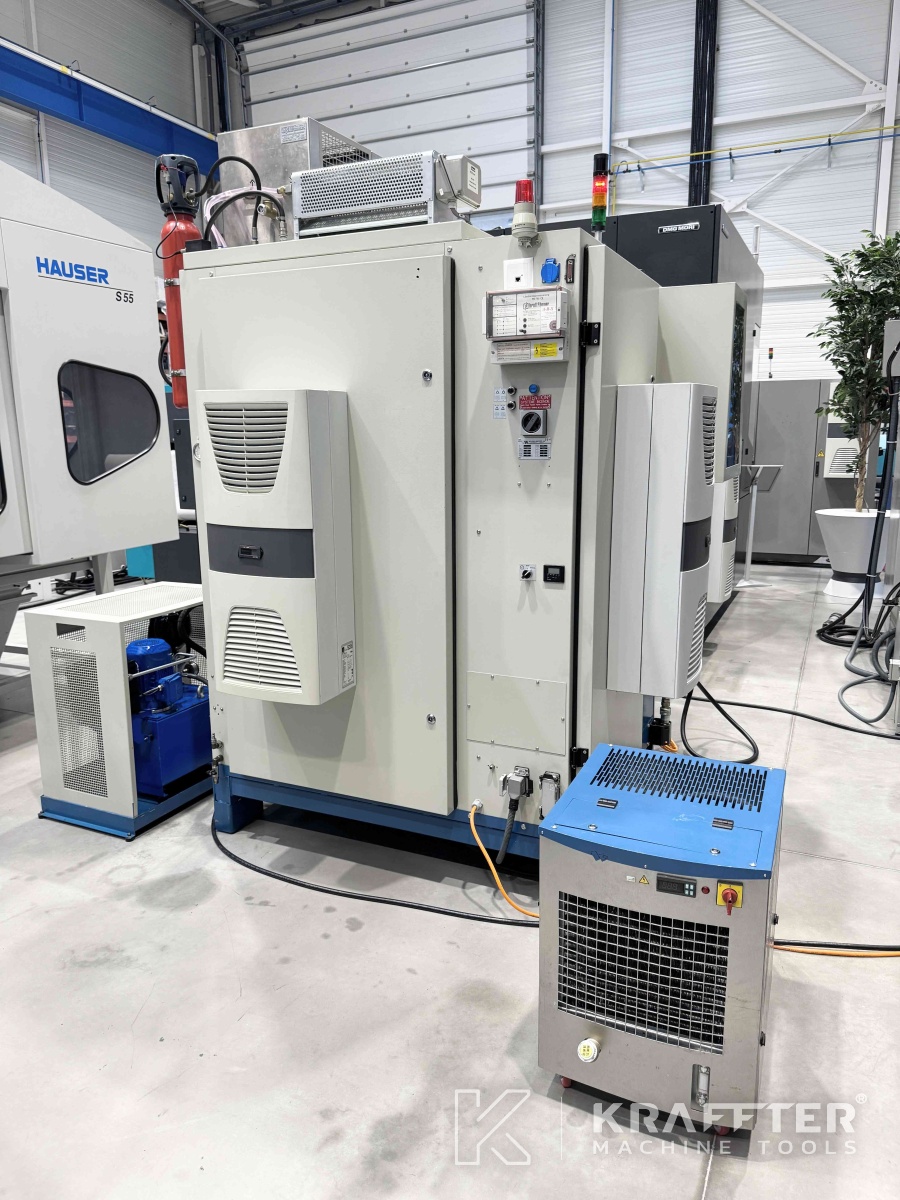

x1 spindle chiller
x1 cutting fluid chiller
x1 ELBARON mist extractor
x1 3-colour status lamp

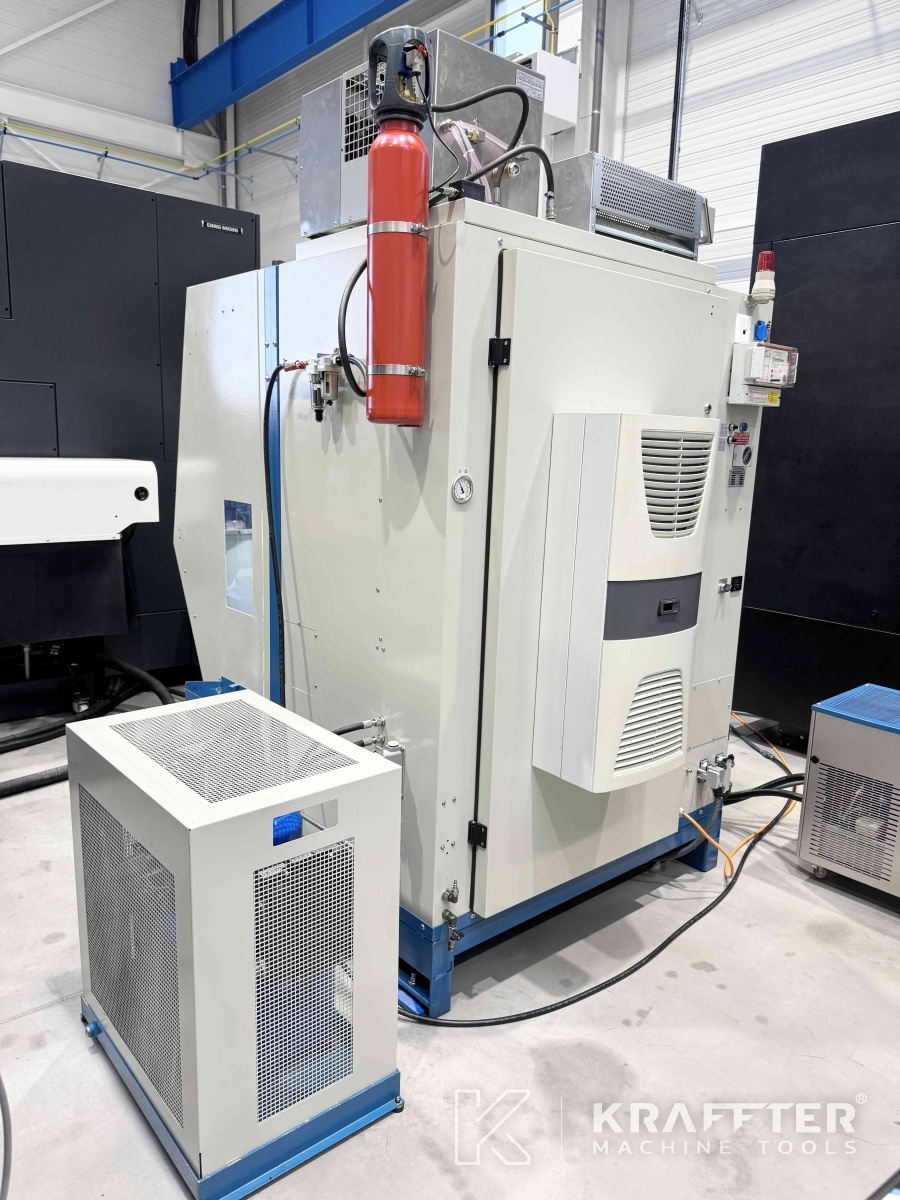

x1 CO2 automatic fire extinguishing system (to be checked by the purchaser with a competent body)
x1 set of technical manuals
