Sold

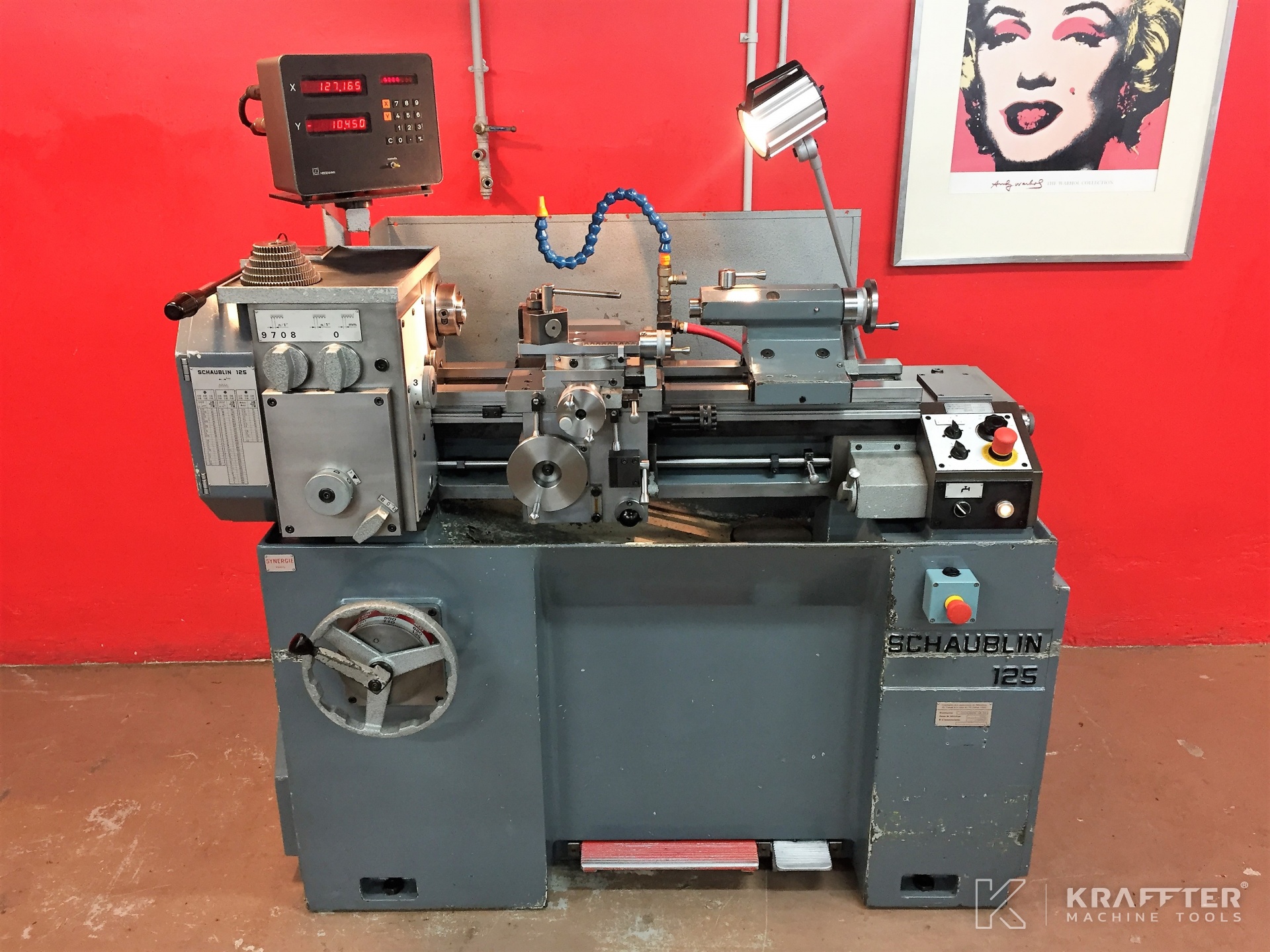

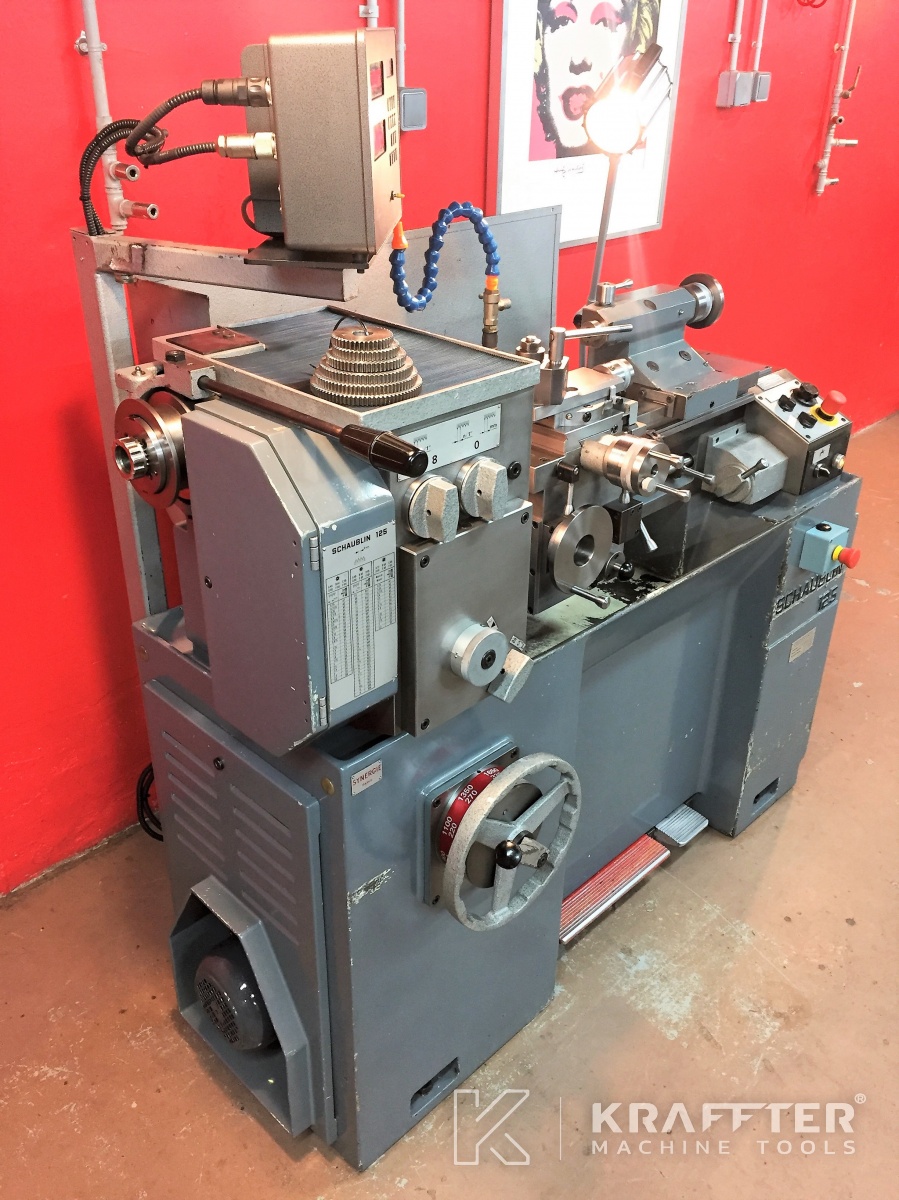

Type of machine : Manual lathe
Brand : SCHAUBLIN
Stock N° : 20689-895
Model : 125 C
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Distance between centers
500 [mm]
Height of centers
125 [mm]
Height of centers over cariage
130 [mm]
Max. swing over bed
270 [mm]

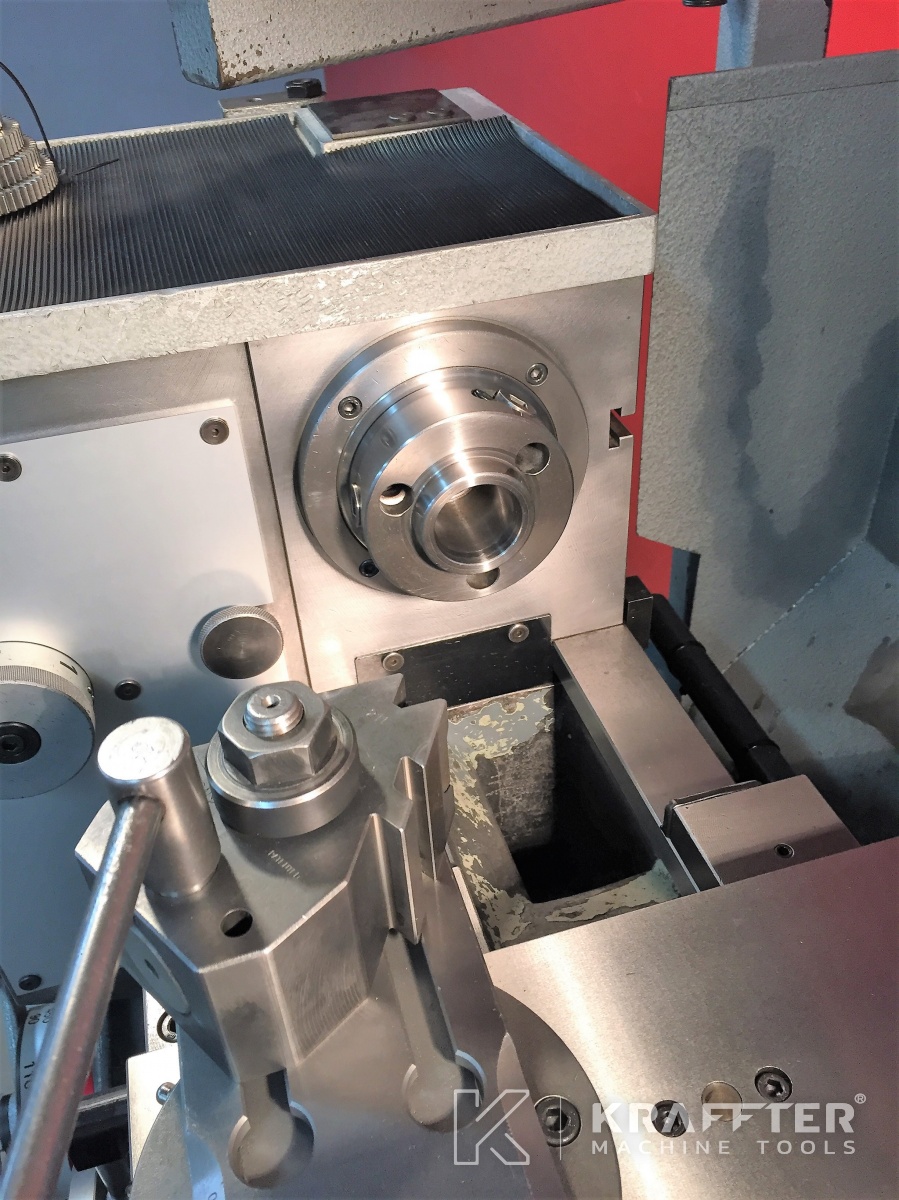

Spindle nose
CAMLOCK D 1-3’’
Spindle for collets
B32
Max. throughbore with collet
24 [mm]
Spindle throughbore
28 [mm]

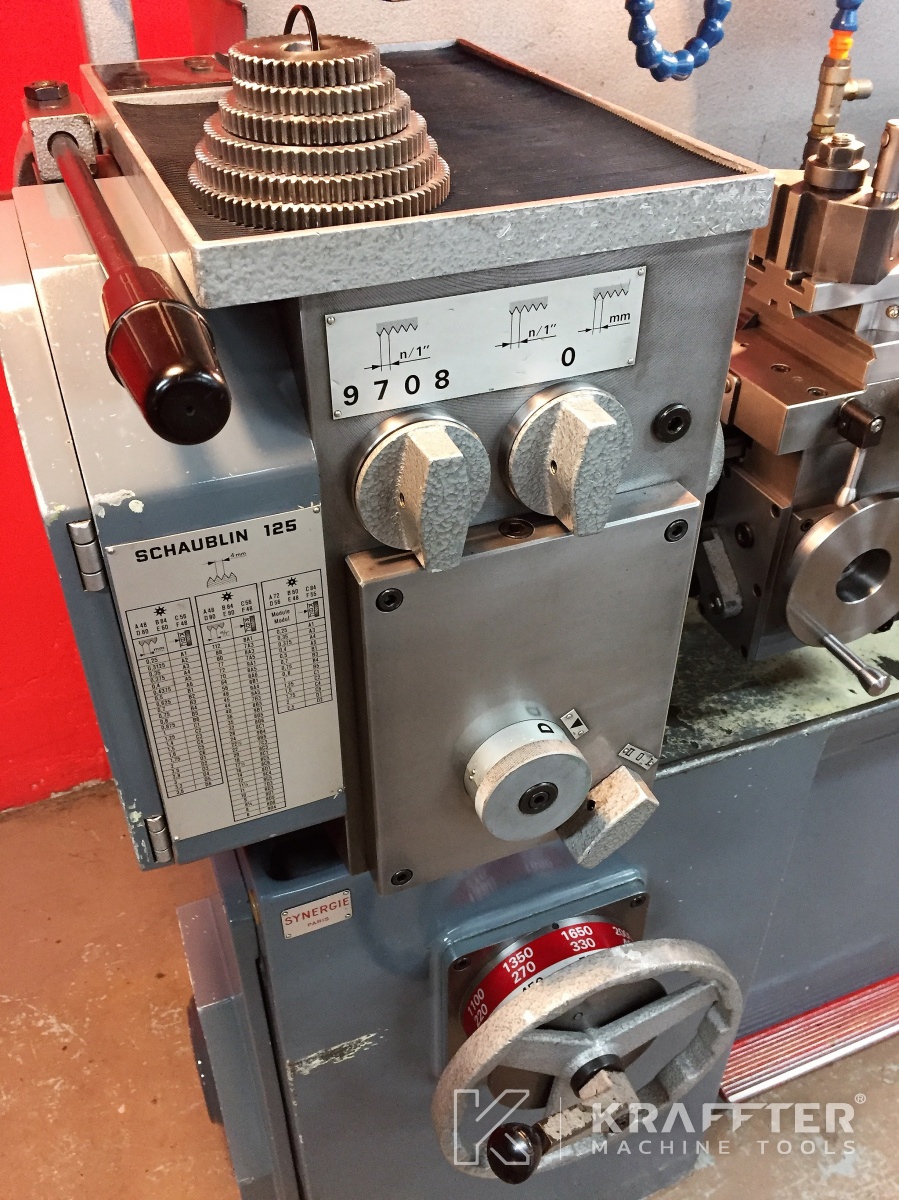

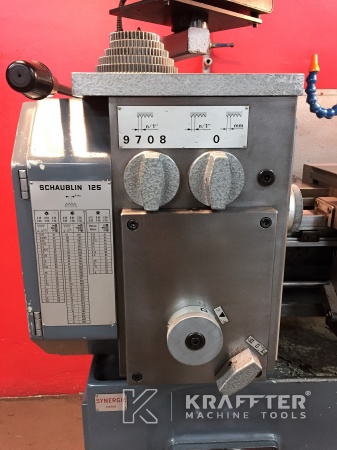

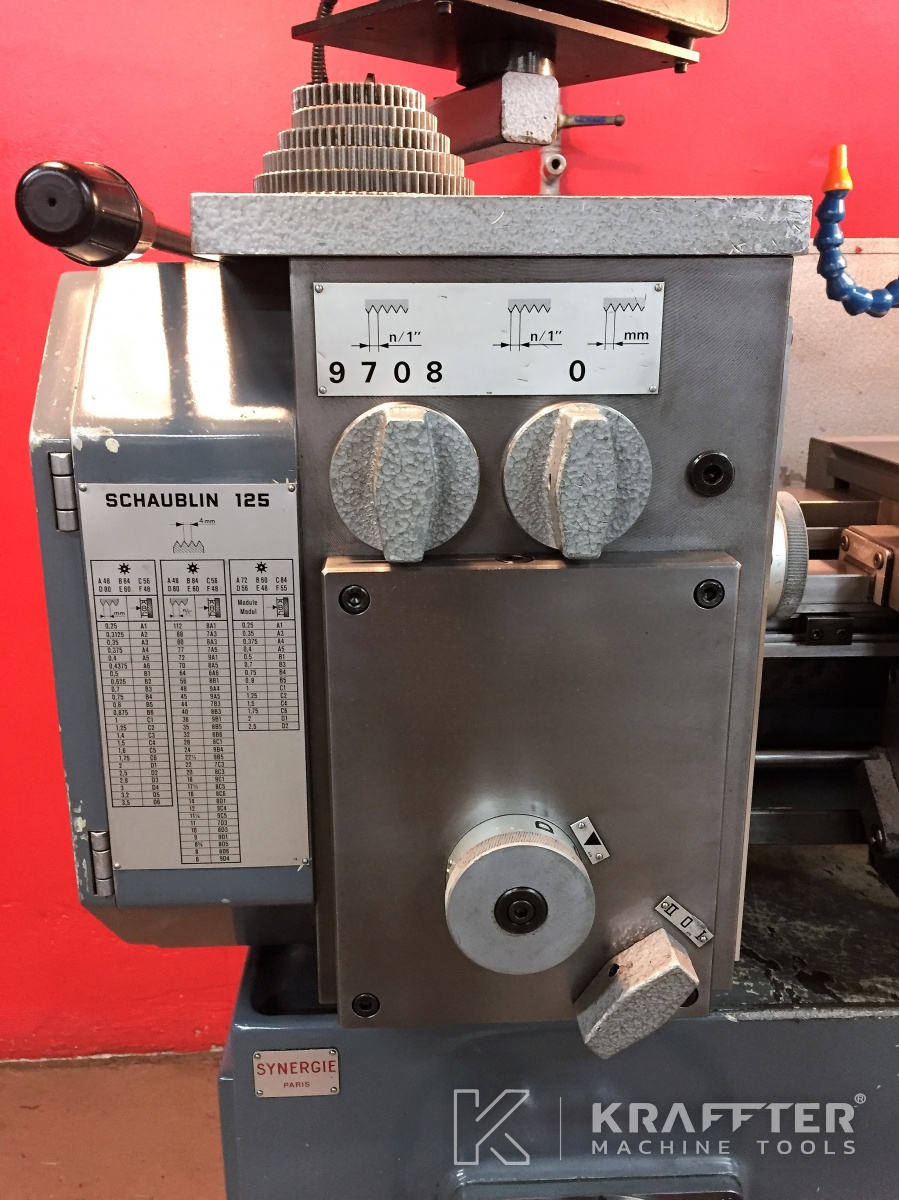

Universal threading gear box
Yes
Digital read out
HEIDENHAIN VRZ 713 B
Number of axes Digital Read Out
2
Manual lever-operated quick-closing attachment
Yes
Electrospindle brake
Yes

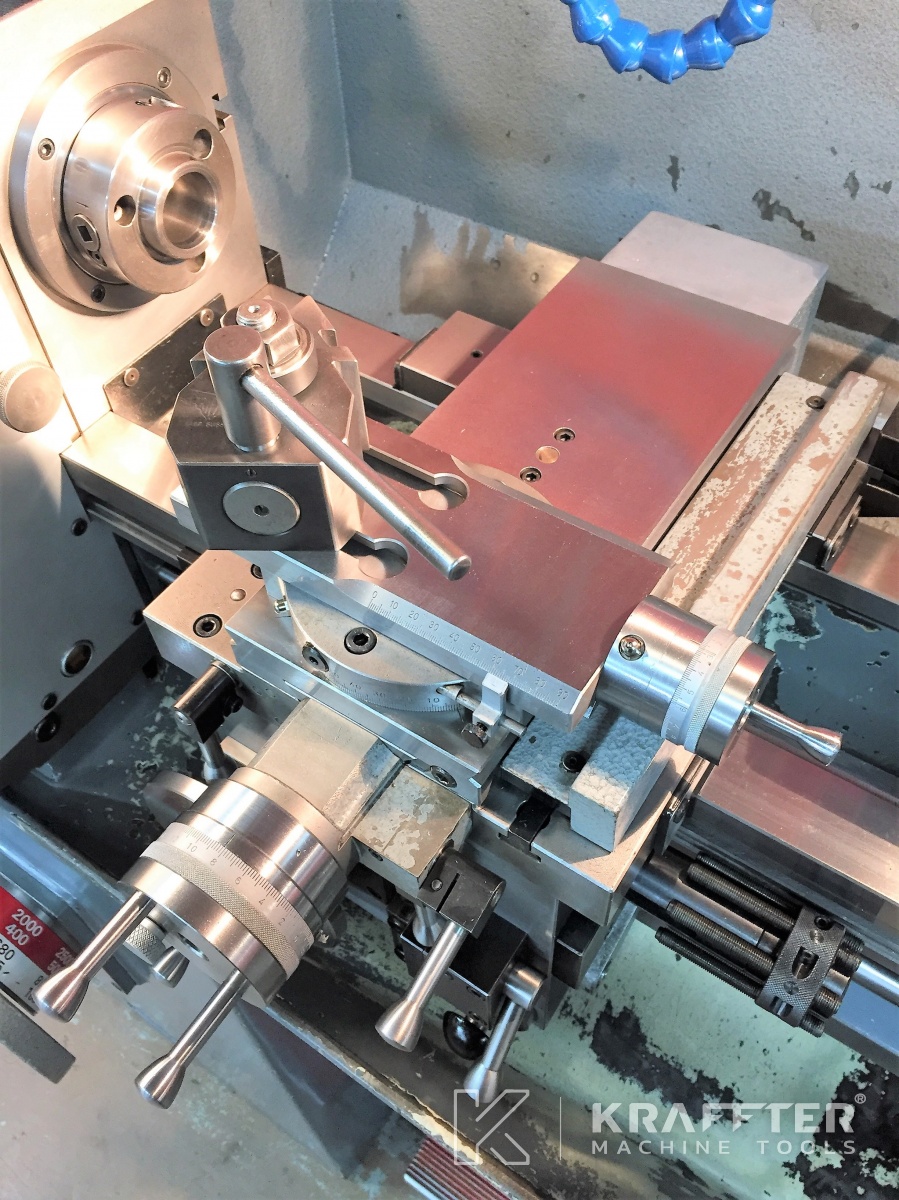

Turret
1
Type of tool holders
Tripan Suisse
Centralized lubrication
Manuel
Lubrication tank with pump
Yes
Supply voltage
400 [V]
Dimensions
1473 x 630 x 1280
Weight
1190 [Kg]

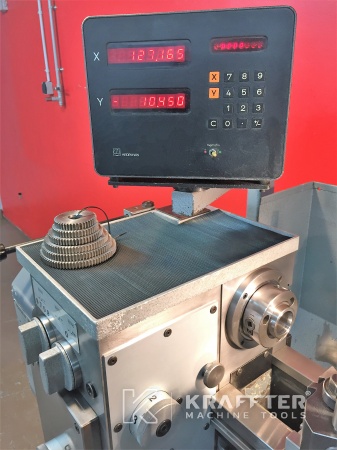

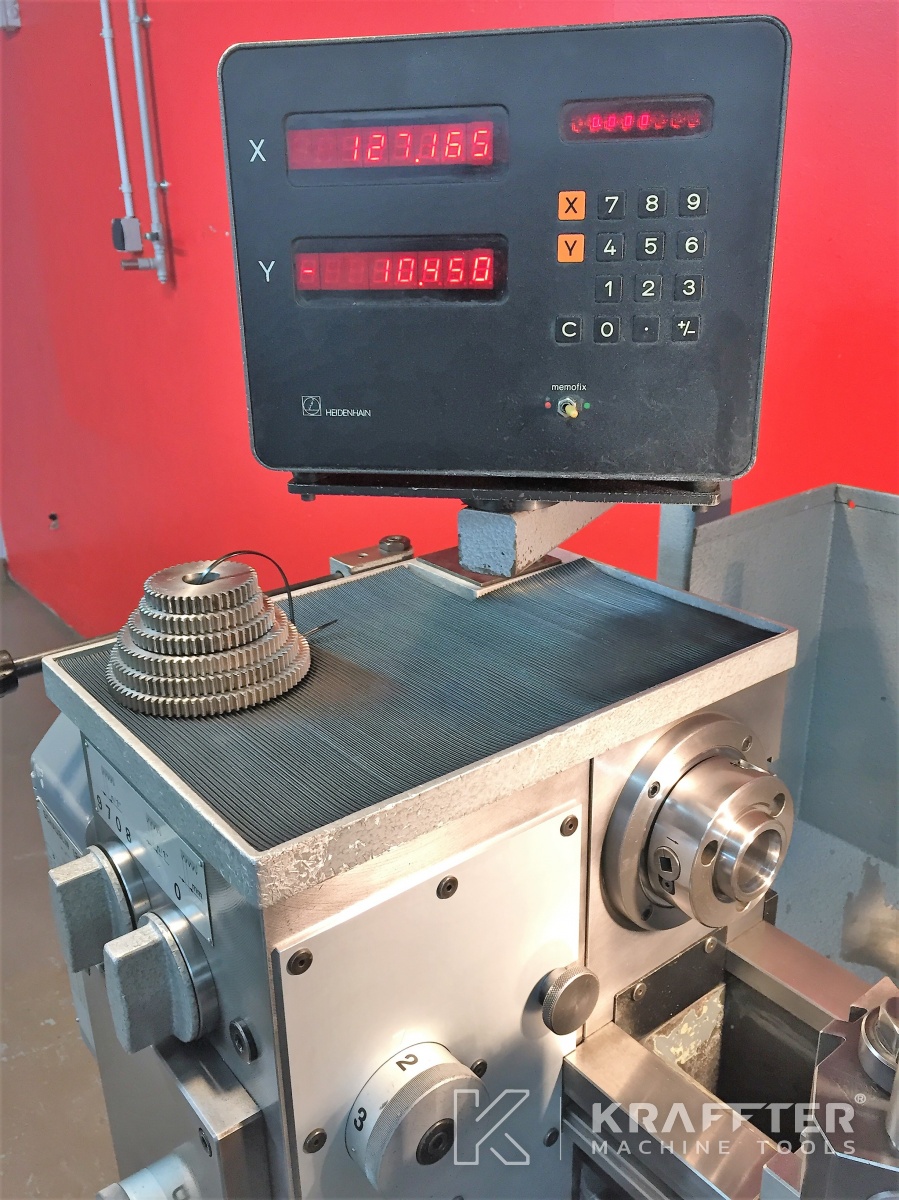

- 1 Digital Read Out HEIDENHAIN type VRZ 713 B, resolution 0.005 [mm]

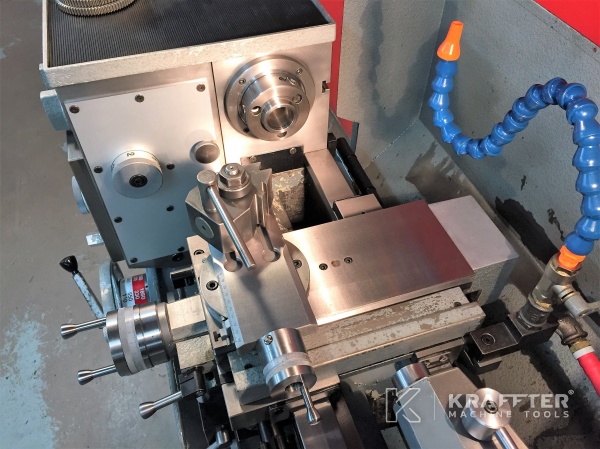

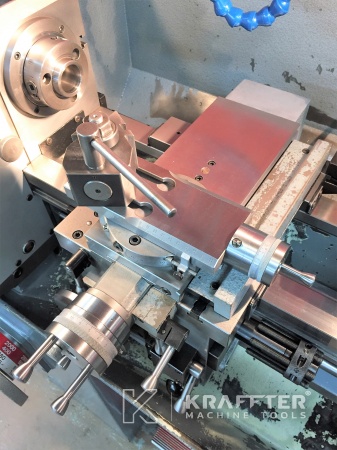

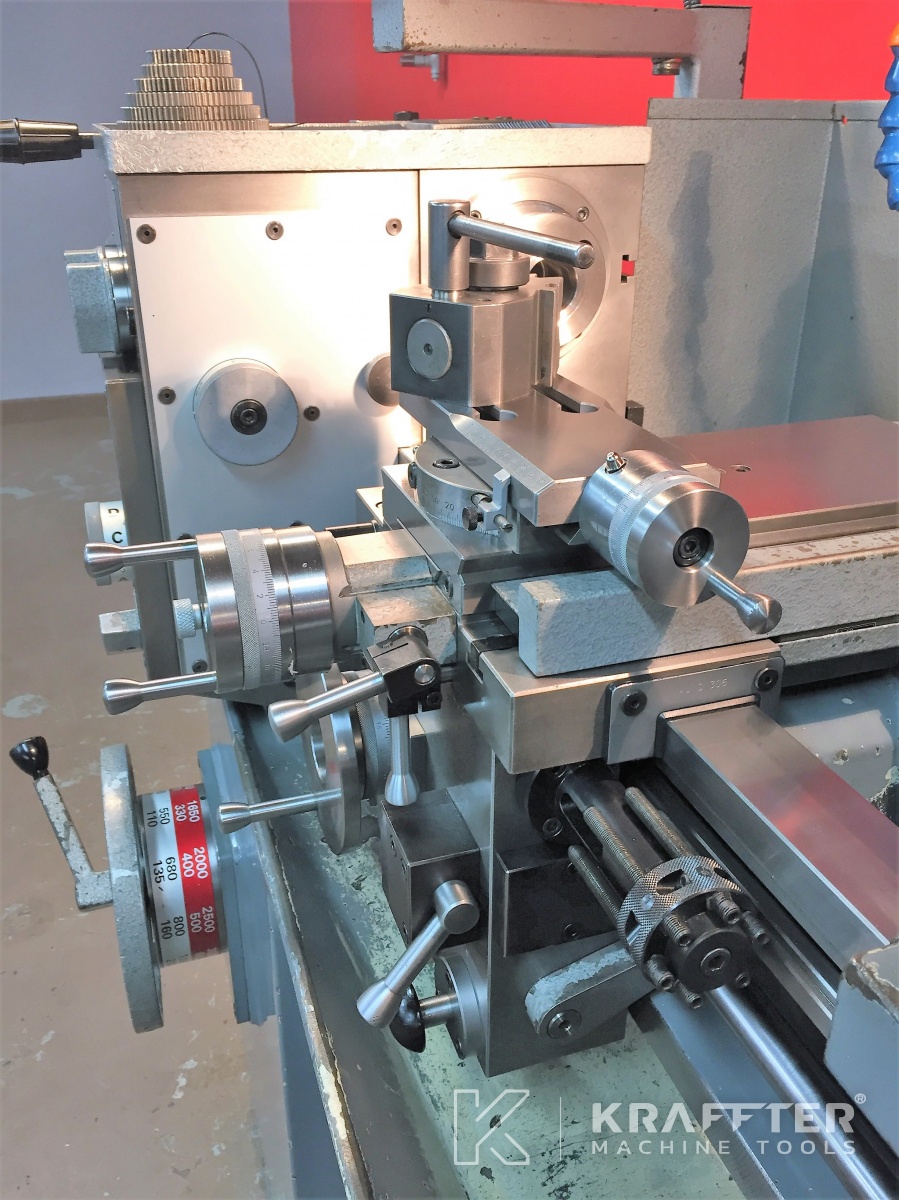

- 1 « TRIPAN SUISSE » tool post

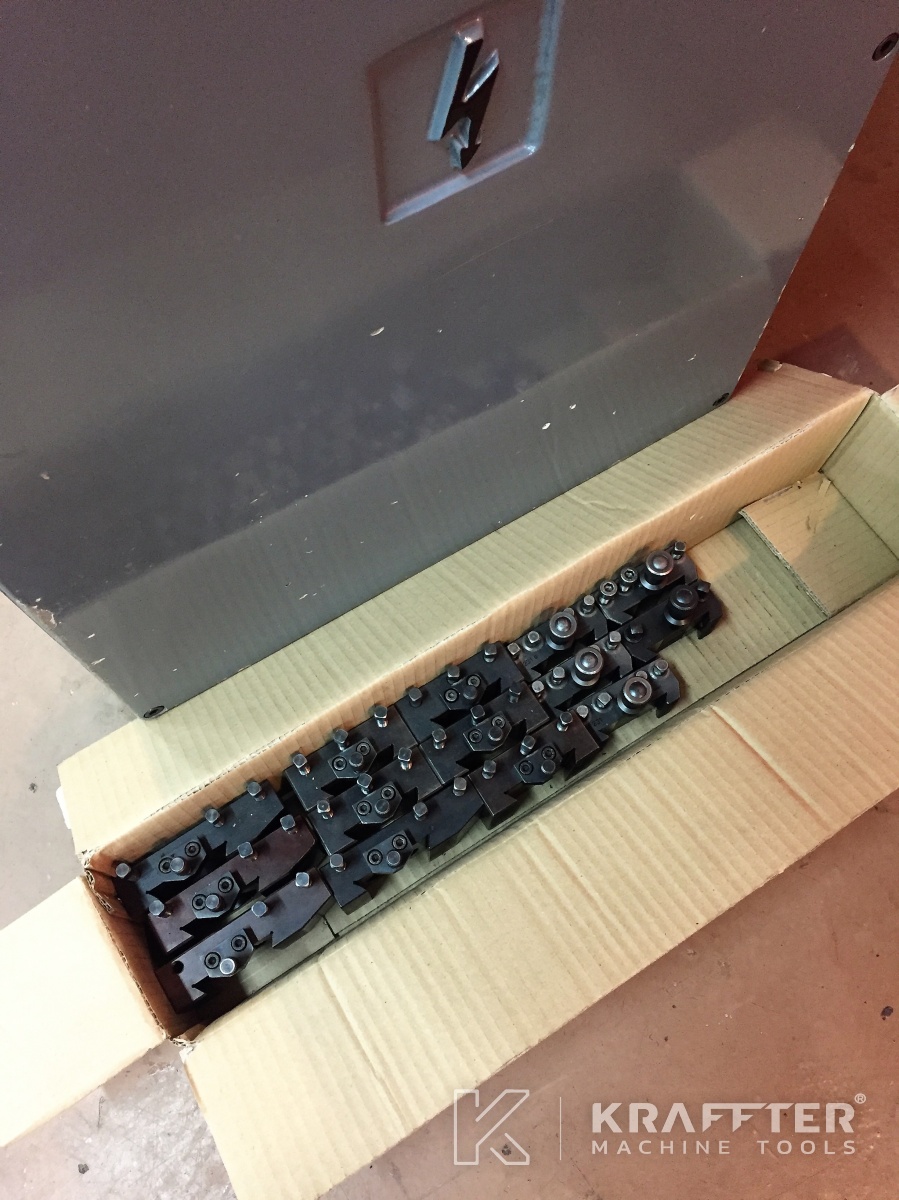

- 14 « TRIPAN SUISSE » tool holders
- Rapid collet holder system
- Complete coolant system
- 1 halogene lamp

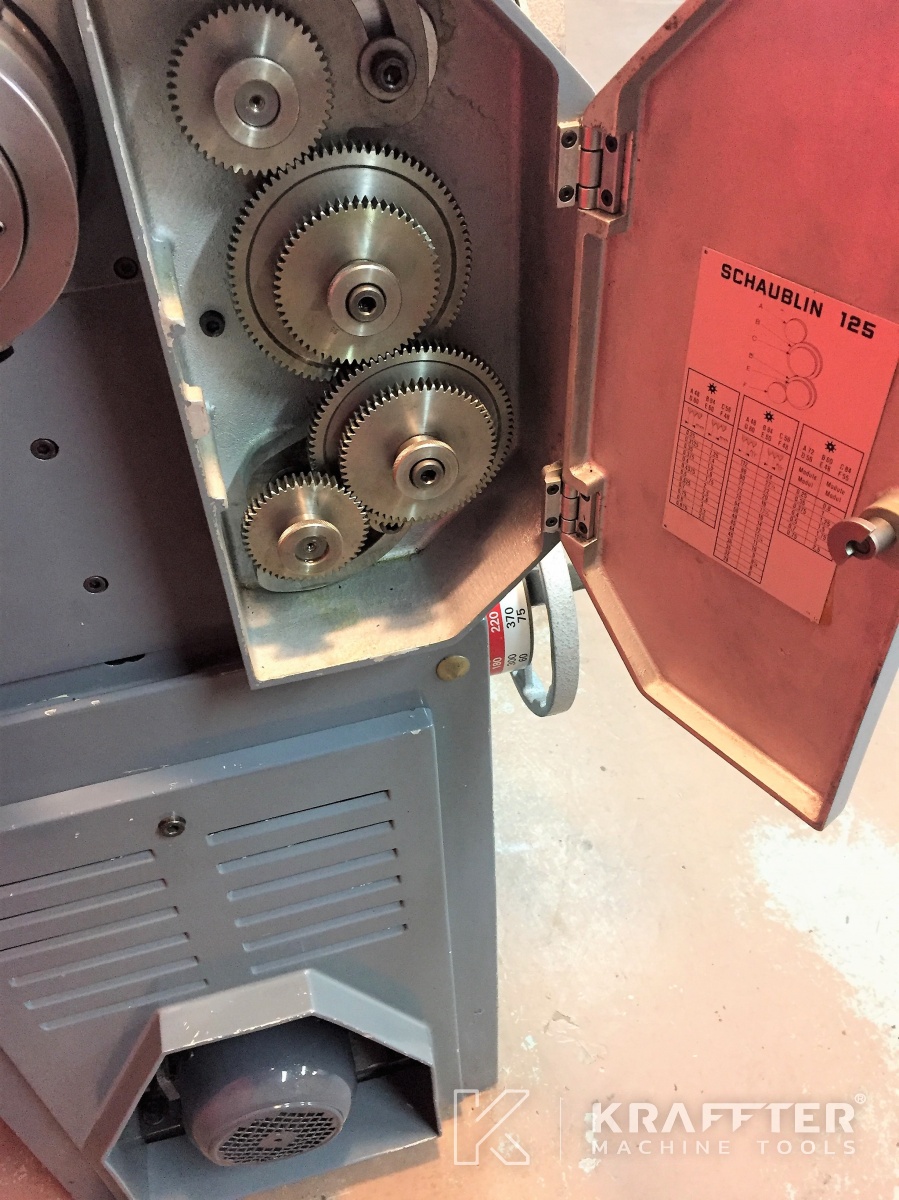

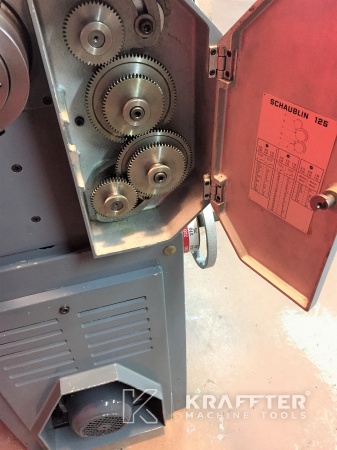

- 1 set of 6 screwcutting gear wheels
- Technical and users manual
