Sold

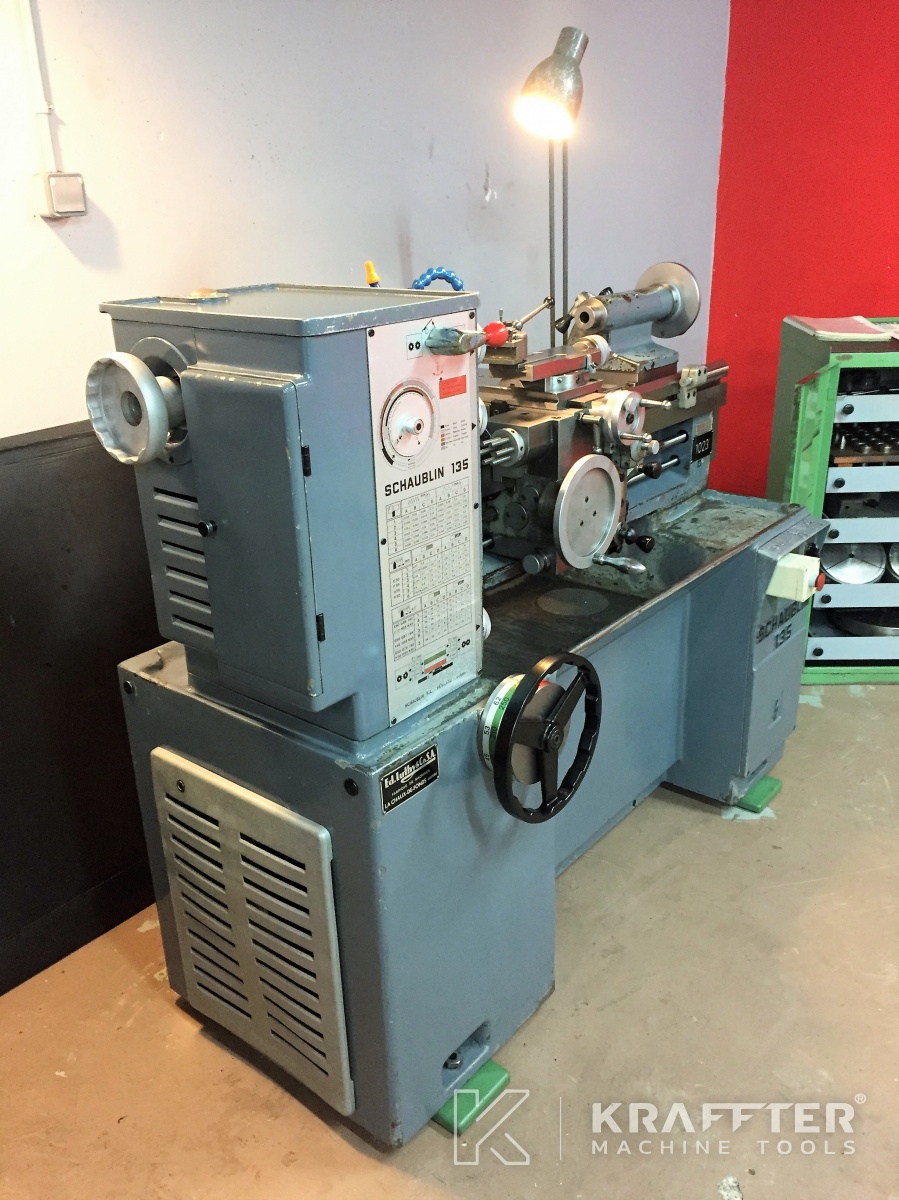

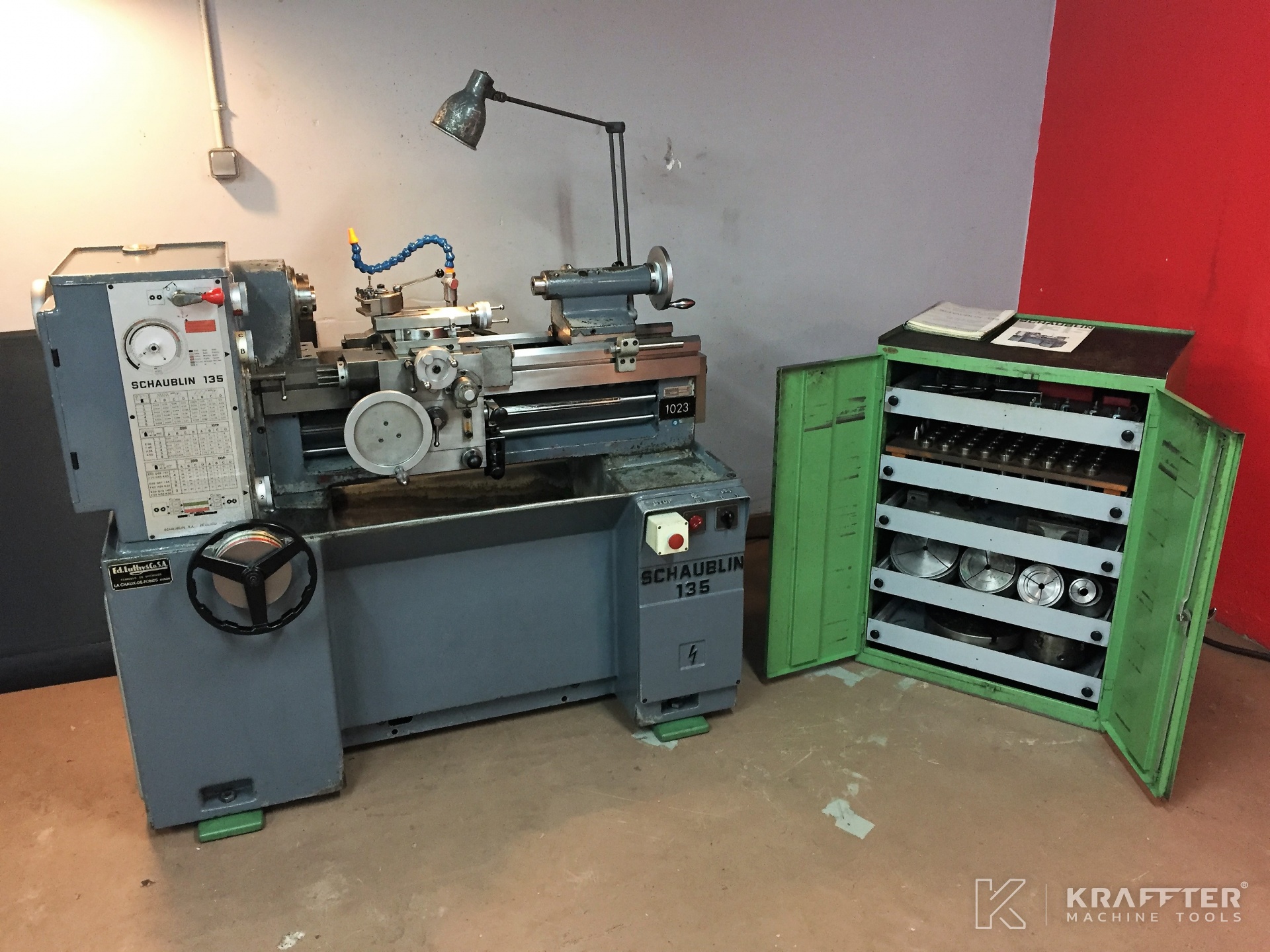

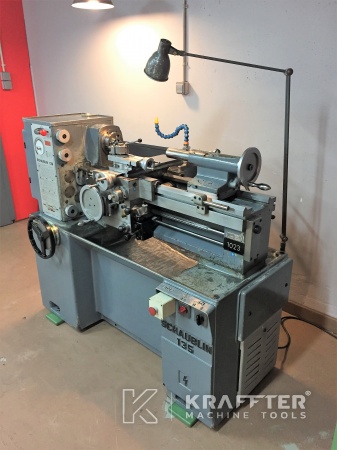

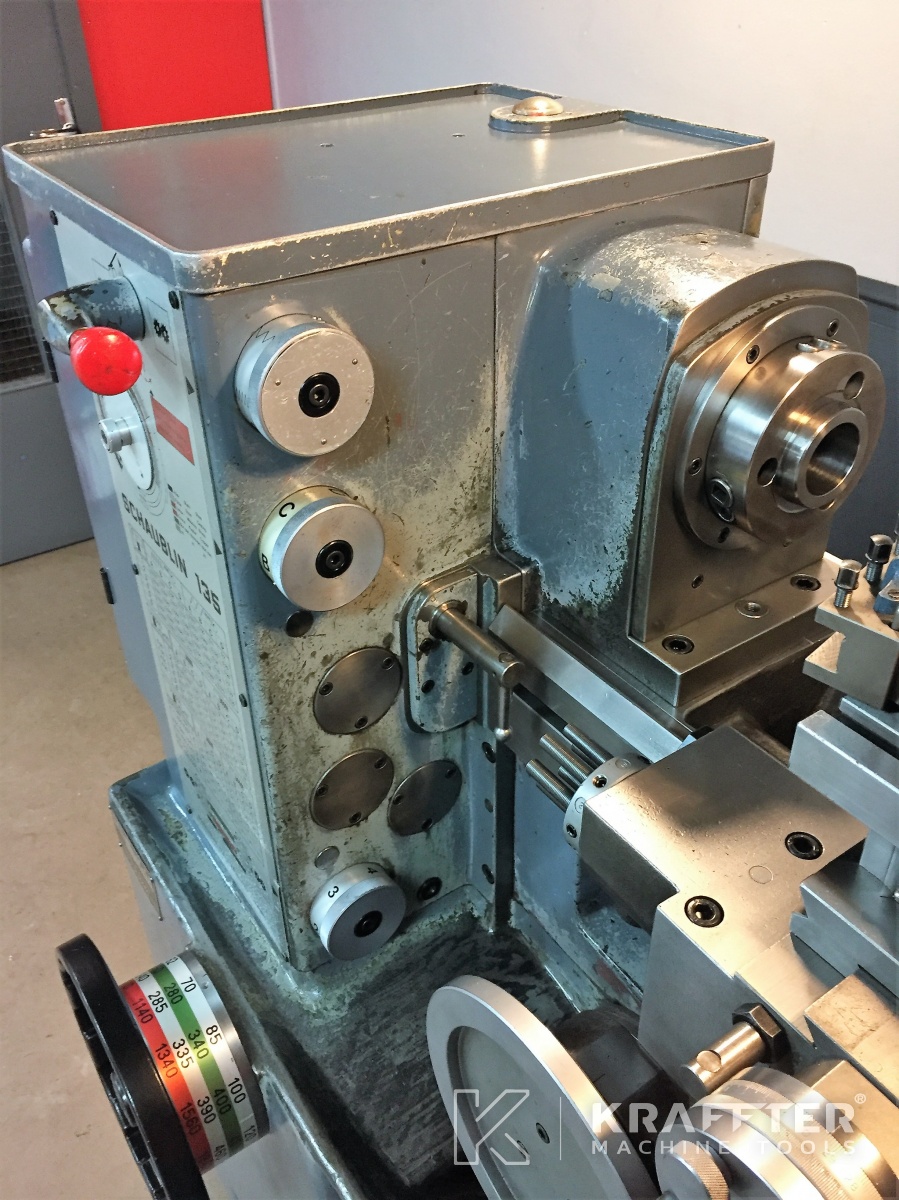

Type of machine : Manual lathe
Brand : SCHAUBLIN
N° de stock: 20689-894
Model : 135
Location : 73520 Saint-Béron, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics
Number of axes
2
Distance between centers
630 [mm]
Height of centers
135
Max. swing over bed
315 [mm]

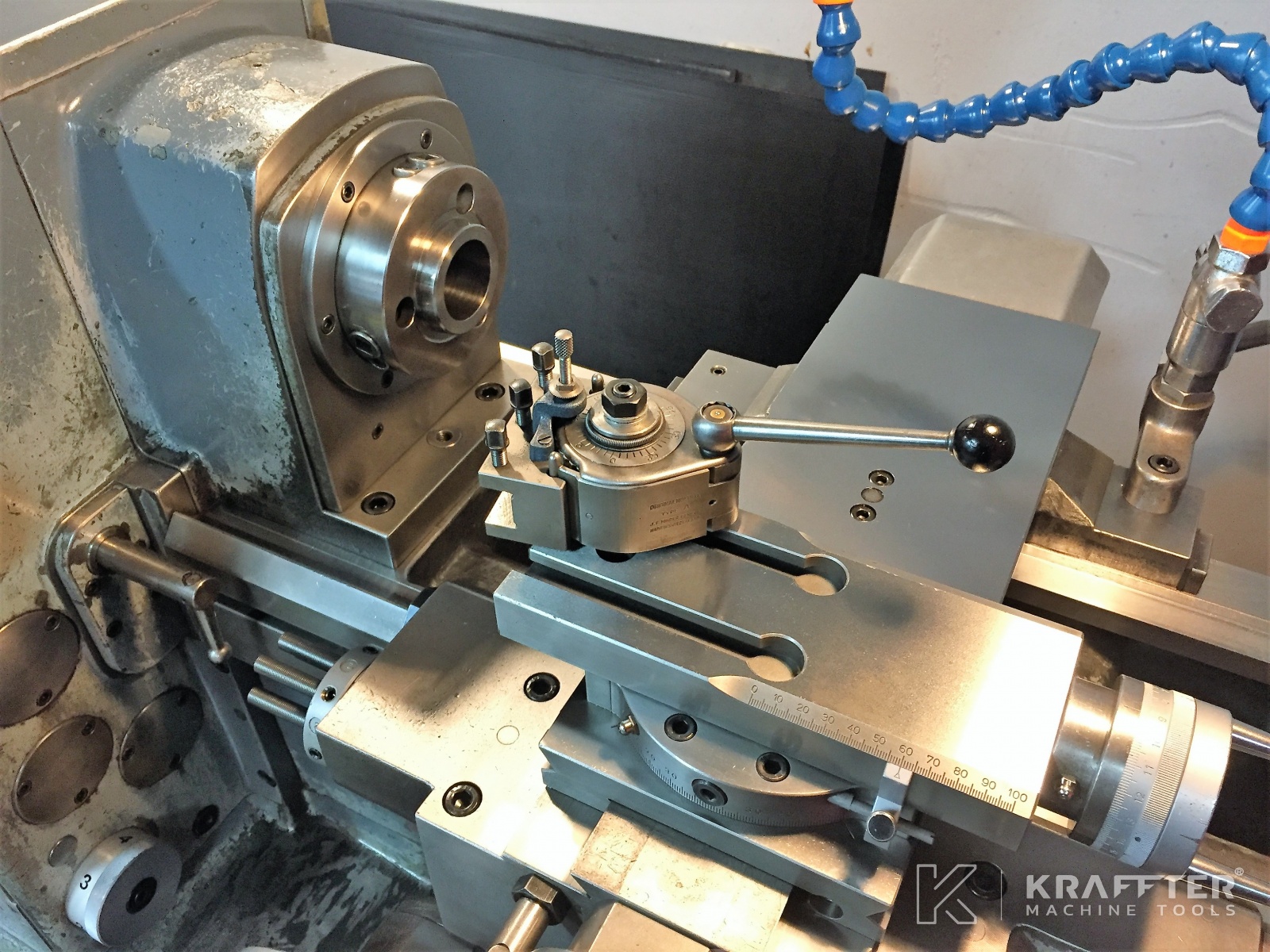

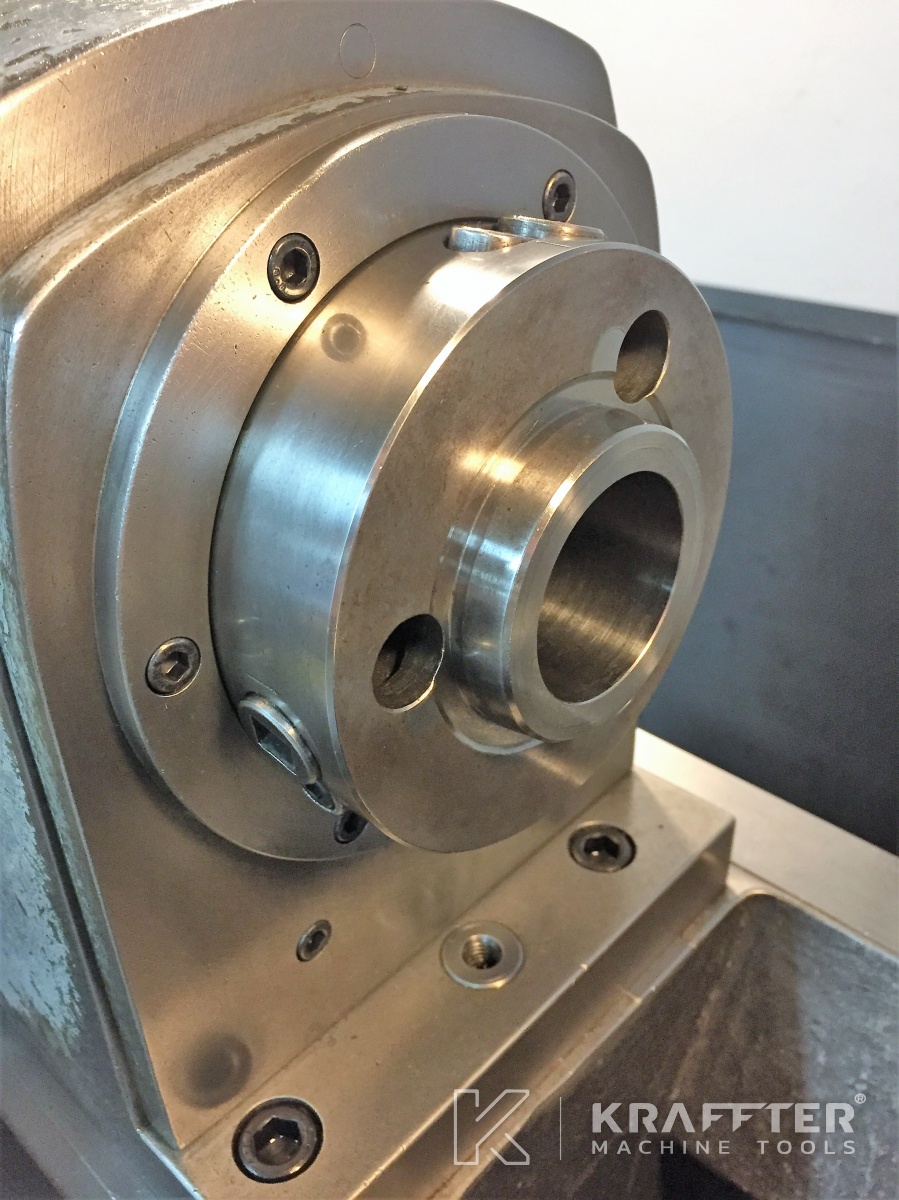

Spindle nose
CAMLOCK D 1-4’’
Internal spindle nose
CM5
Spindle throughbore
40 [mm]
Type of attachment tailstock
CM3

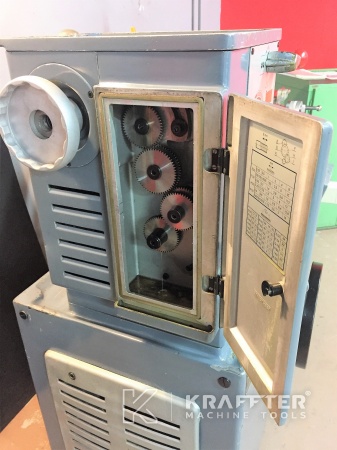

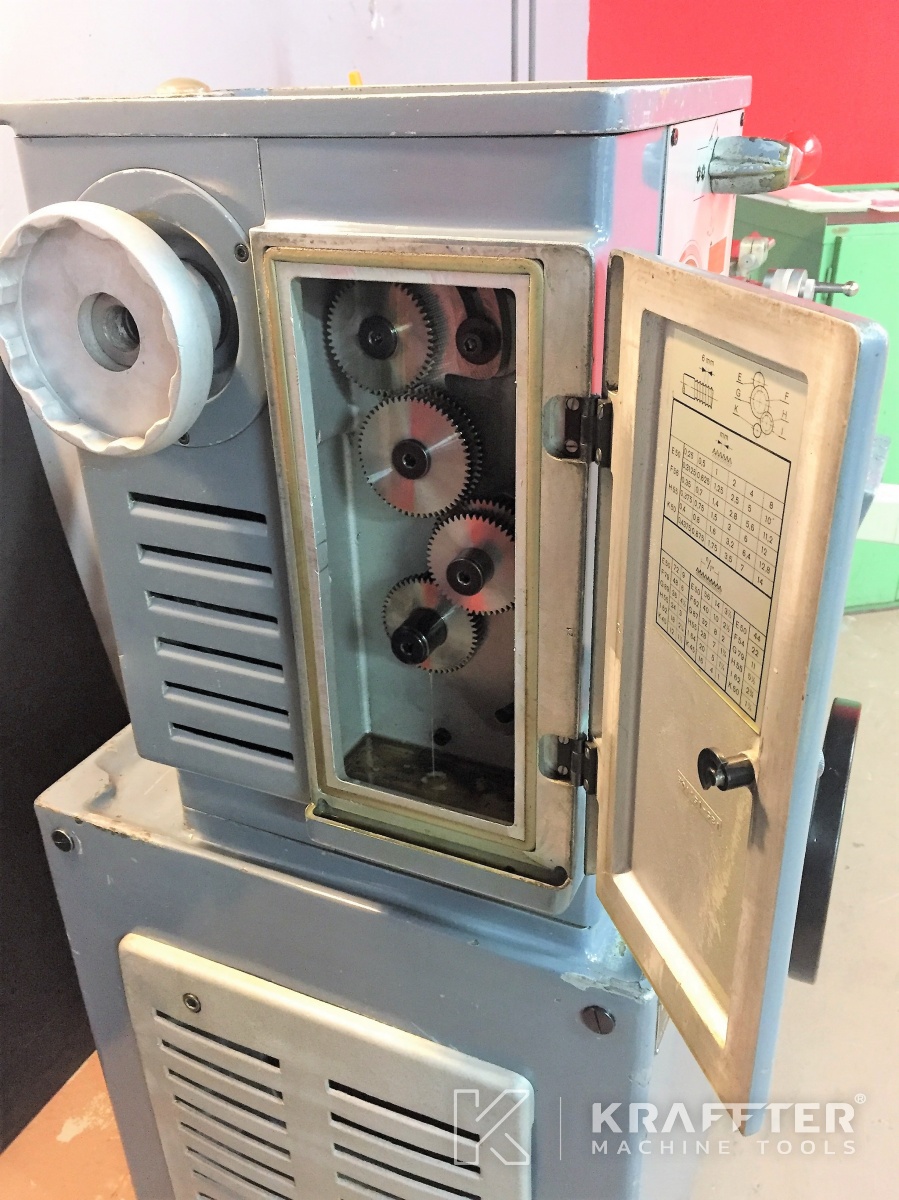

Universal threading gear box
Yes
Electrospindle brake
Yes

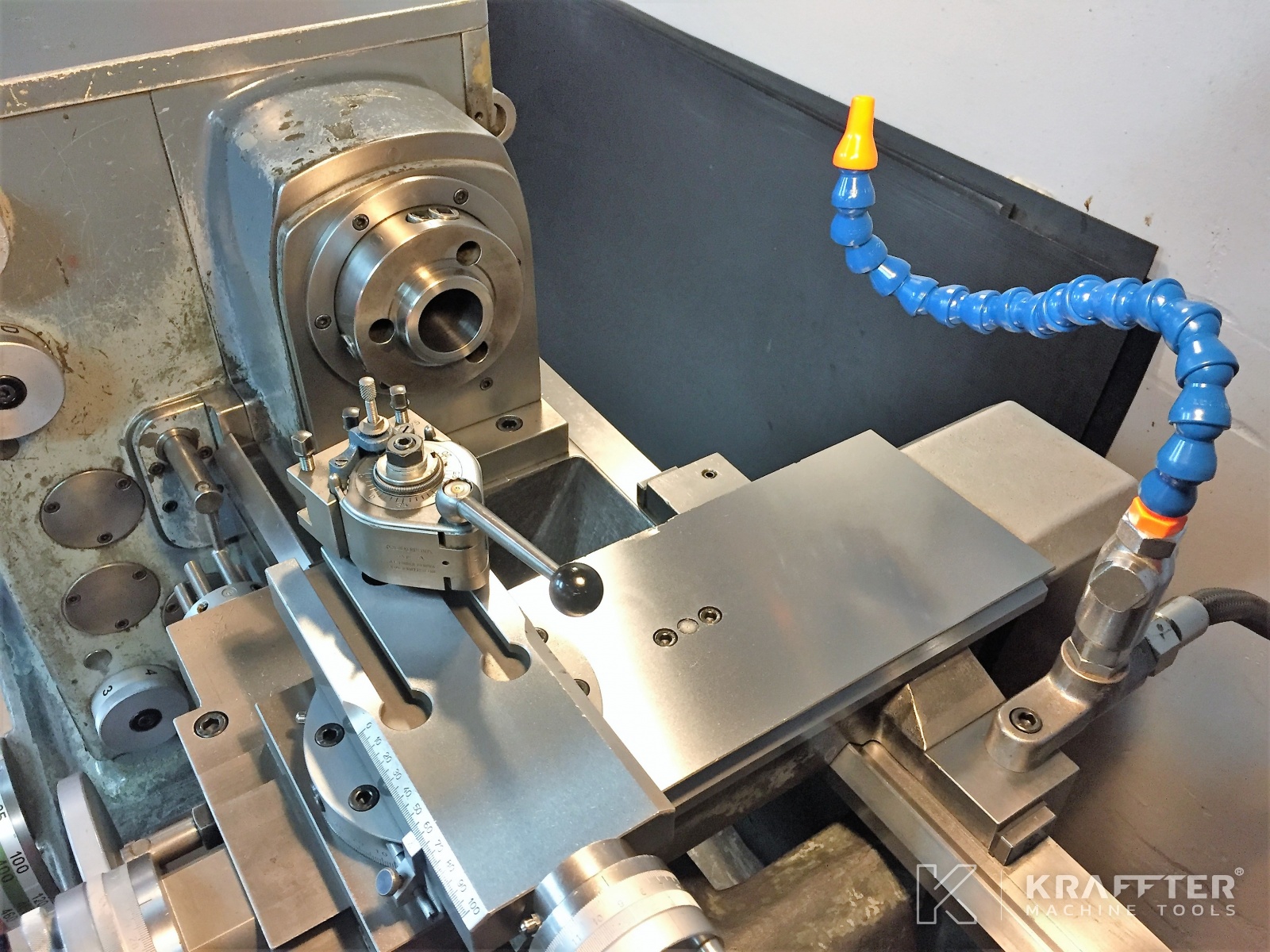

Turret
Multifix type A
Type of tool holders
Multifix type A
Centralized lubrication
Manuel
Lubrication tank with pump
Yes
Supply voltage
400 [V]
Dimensions
1715 x 700 x 1280
Weight
1200 [Kg]
Additional information

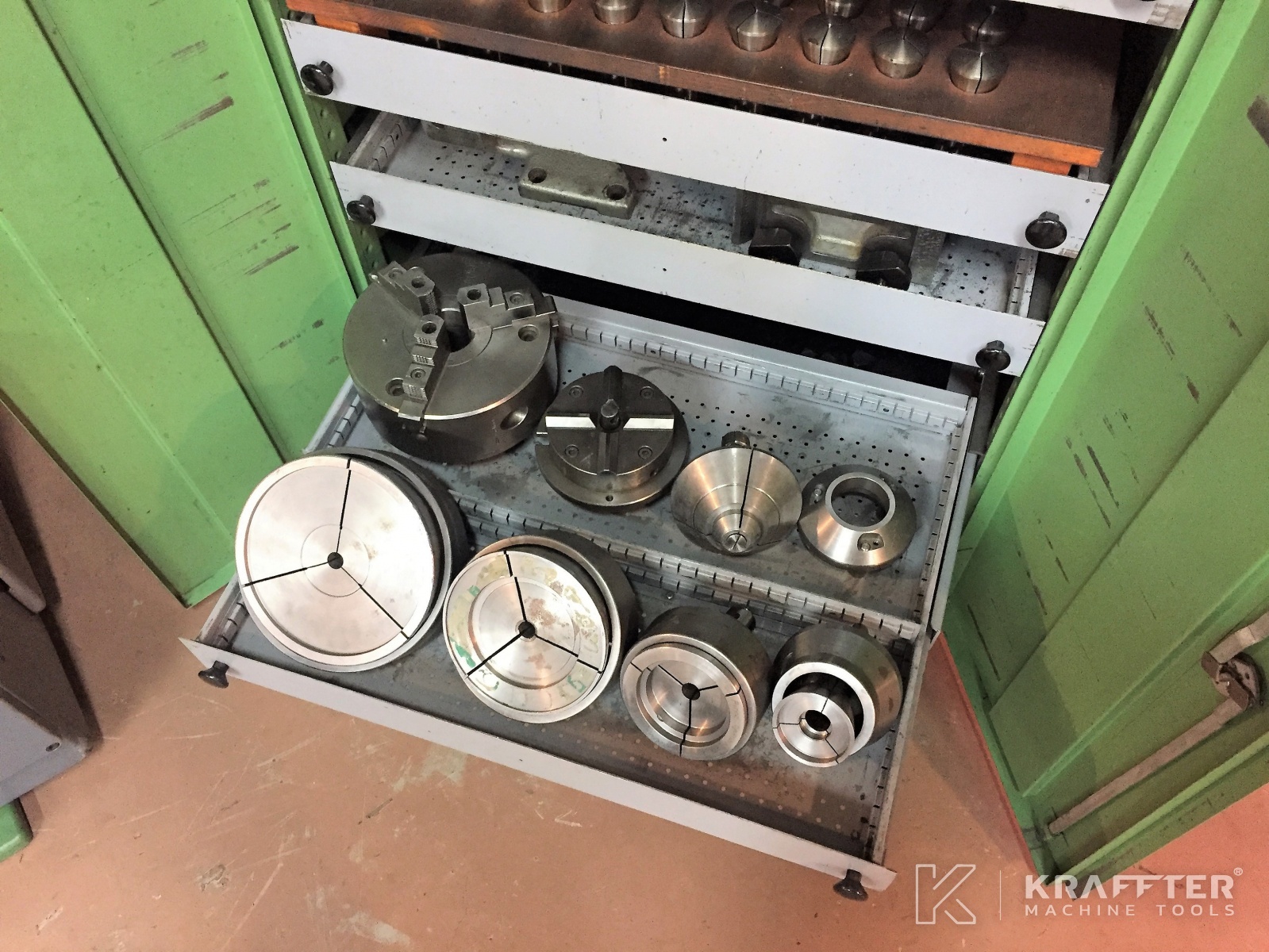

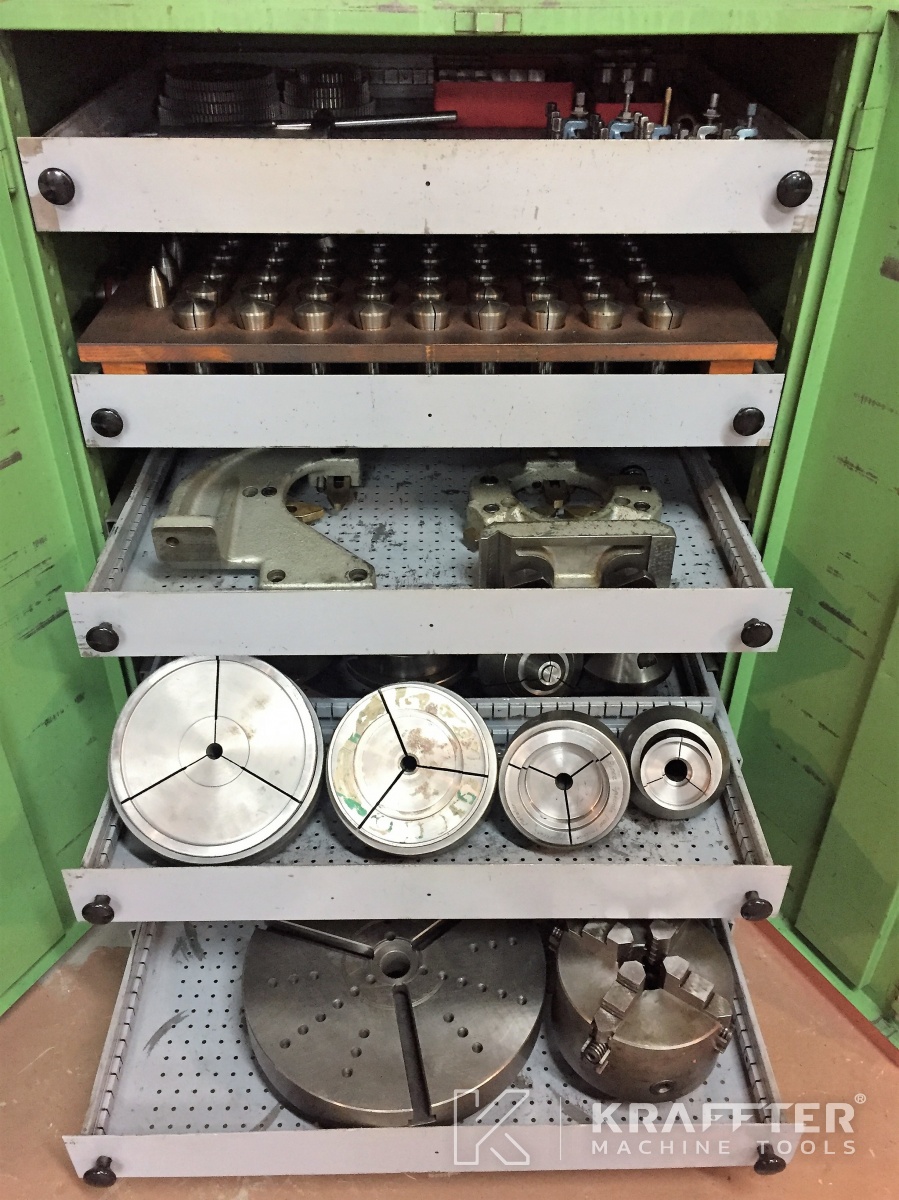

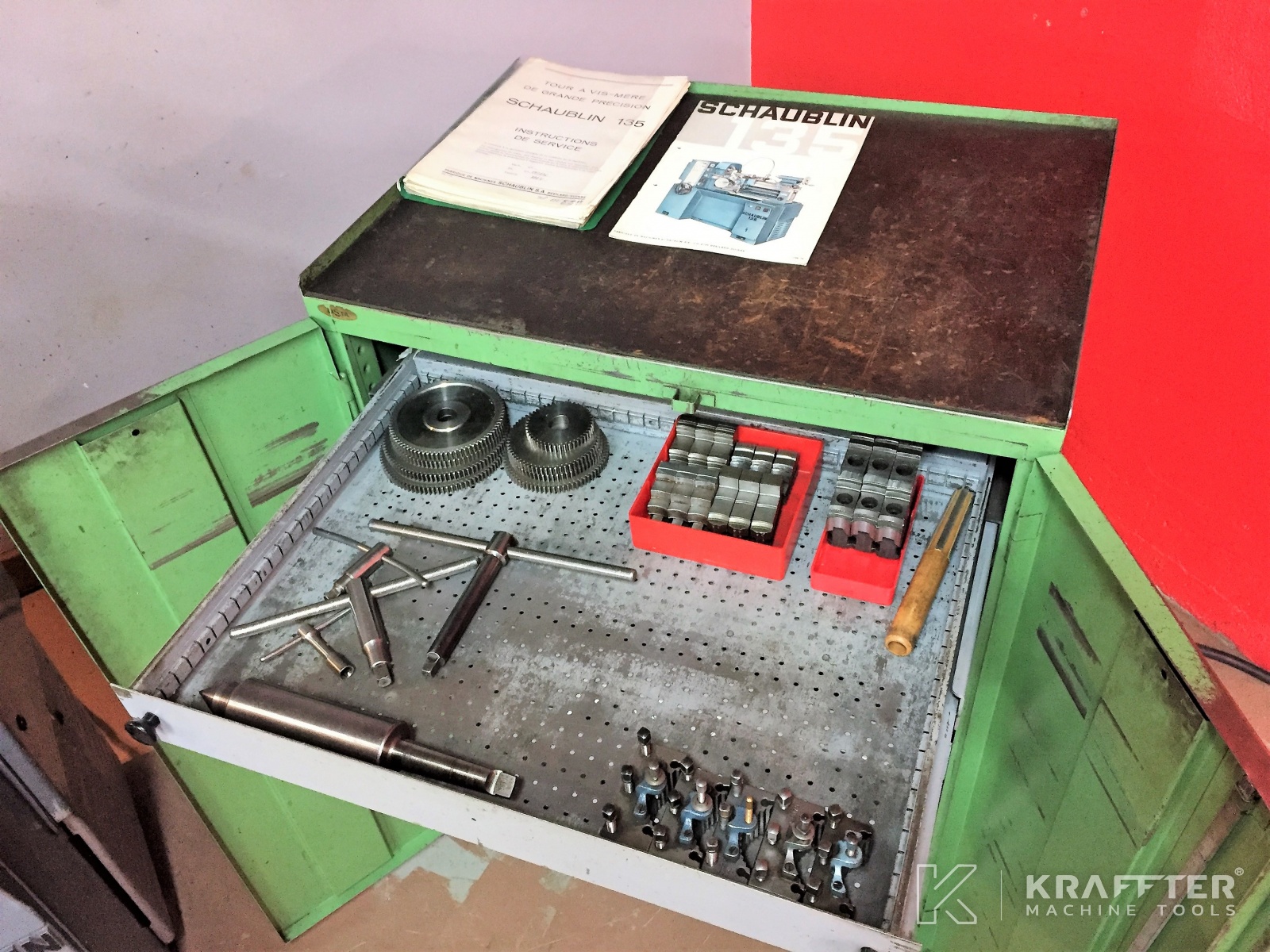

- 1 metallic cabinet for tooling storage

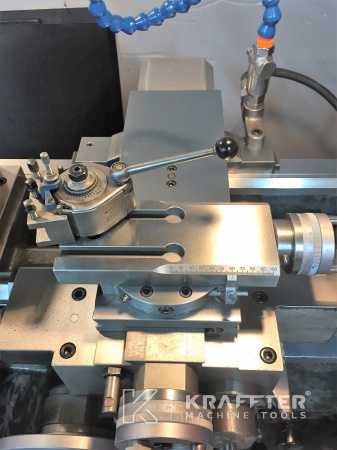

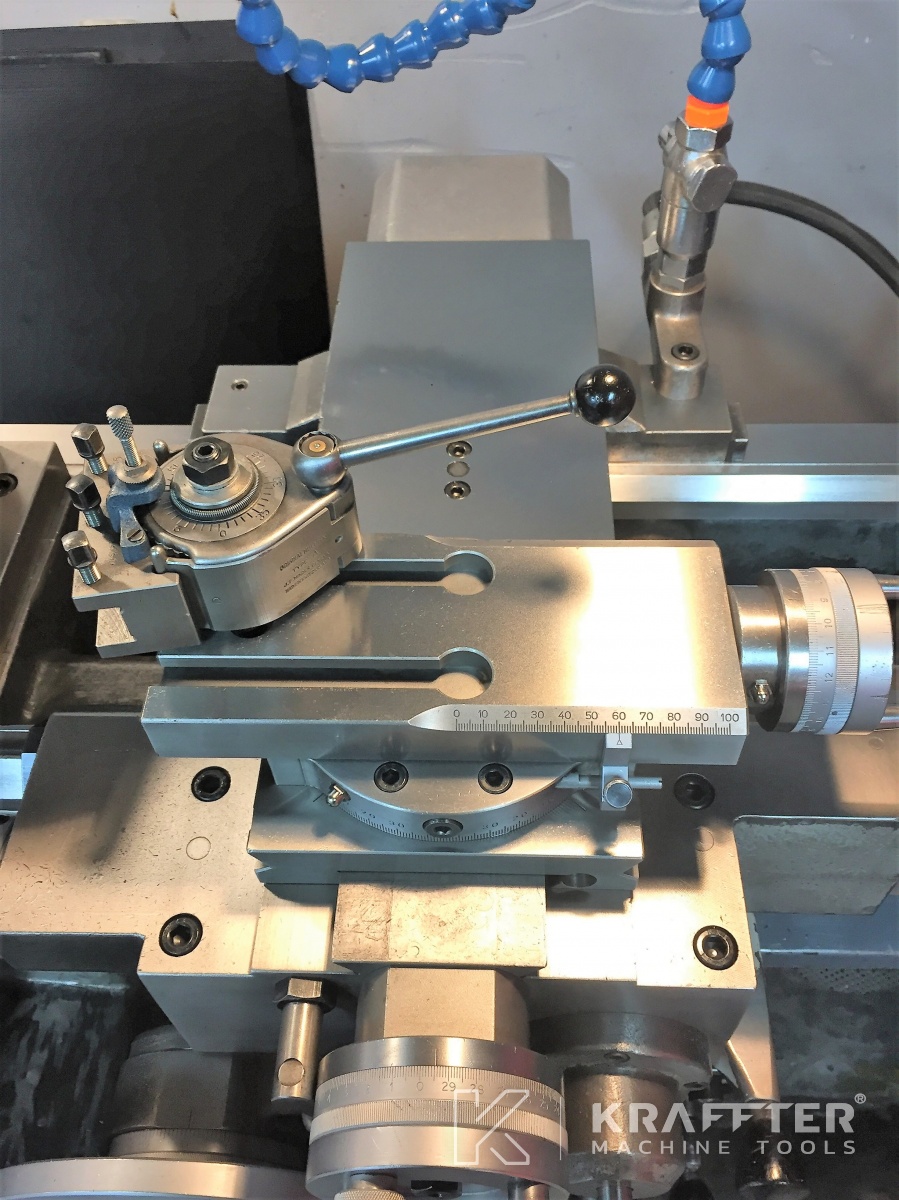

- 1 MULTIFIX original type A tool post
- 5 MULTIFIX type A tool holders
- 1 set of 8 screwcutting gear wheels
- 1 set of 27 collets type B32

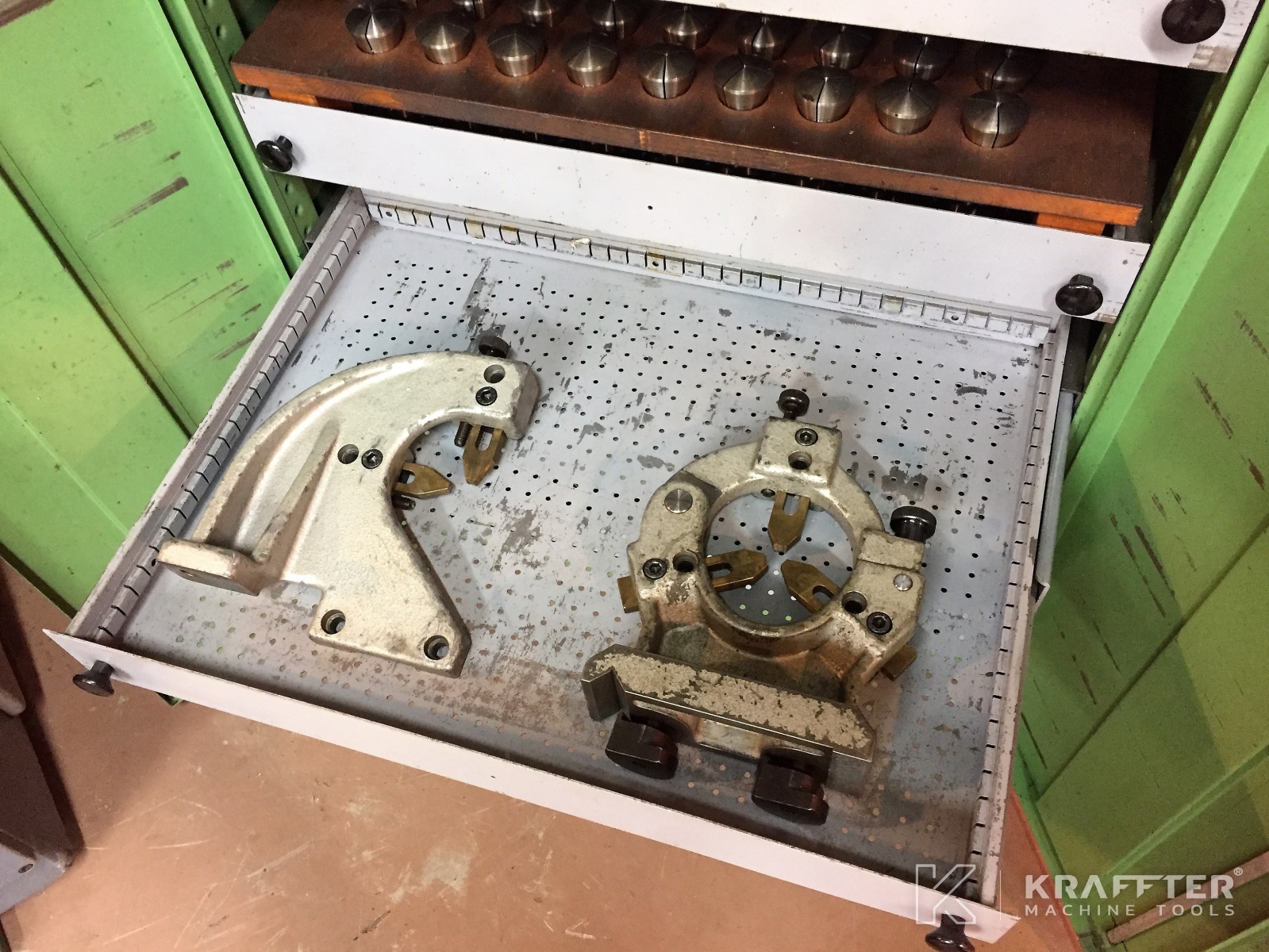

- 1 steady rest
- 1 follower rest

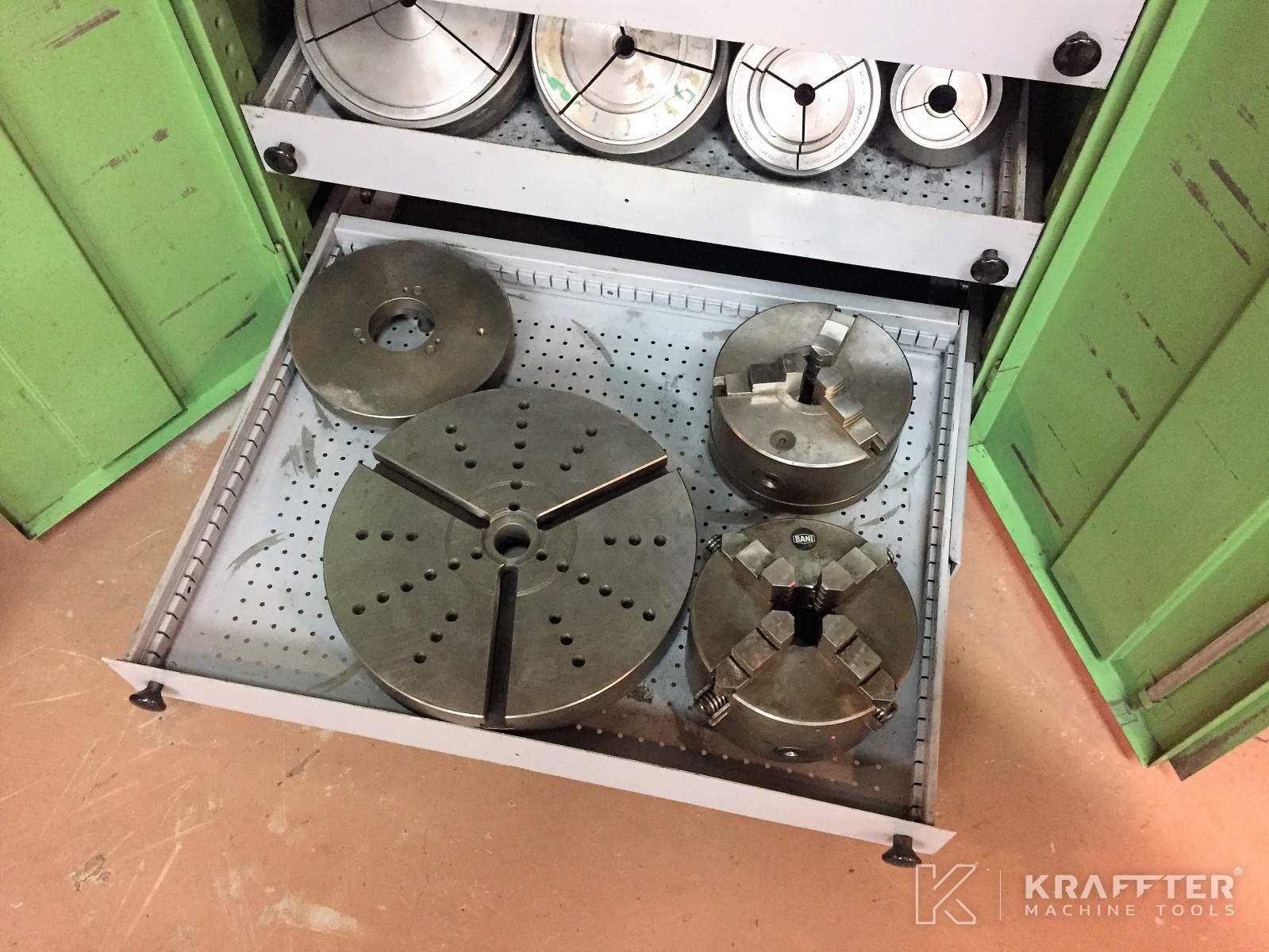

- 1 3 jaw concentric chuck Ø 165 [mm]
- 1 3 jaw concentric chuck Ø 200 [mm]
- 1 4 jaw independant and concentric chuck Ø 165 [mm]
- 5 sets of soft jaws
- 1 adaptator Morse N°5 / B32
- 1 adaptator Morse N°5 / W20
- 1 soft machinable collet + adaptator Camlock Ø 200 [mm]
- 1 soft machinable collet + adaptator Camlock Ø 165 [mm]
- 1 soft machinable collet + adaptator Camlock Ø 125 [mm]
- 1 soft machinable collet + adaptator Camlock Ø 90 [mm]
- 1 face plate Ø 300 [mm] – 3 slots and 36 threaded holes
- Complete coolant system
- 1 lamp - LED 65 Watts
- 4 leveling mounts
- Technical and users manual
