Type of machine : Manual lathe
Brand : SCHAUBLIN
Stock N° : 20689-900
Model : 70
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Number of axes
2
Distance between centers
275 [mm]
Height of centers
70 [mm]
Height of centers over cariage
85 [mm]
Spindle for collets
W12
Spindle throughbore
12 [mm]
Type of attachment tailstock
2°
Universal threading gear box
No
Manual lever-operated quick-closing attachment
Yes
Number of spindle speeds
6
Type of tool holders
Multifix type Aa
Supply voltage
400 [V]
Dimensions
1970 x 760 x 1530
Weight
200 [Kg]
- 1 head stock (NEW bearings)

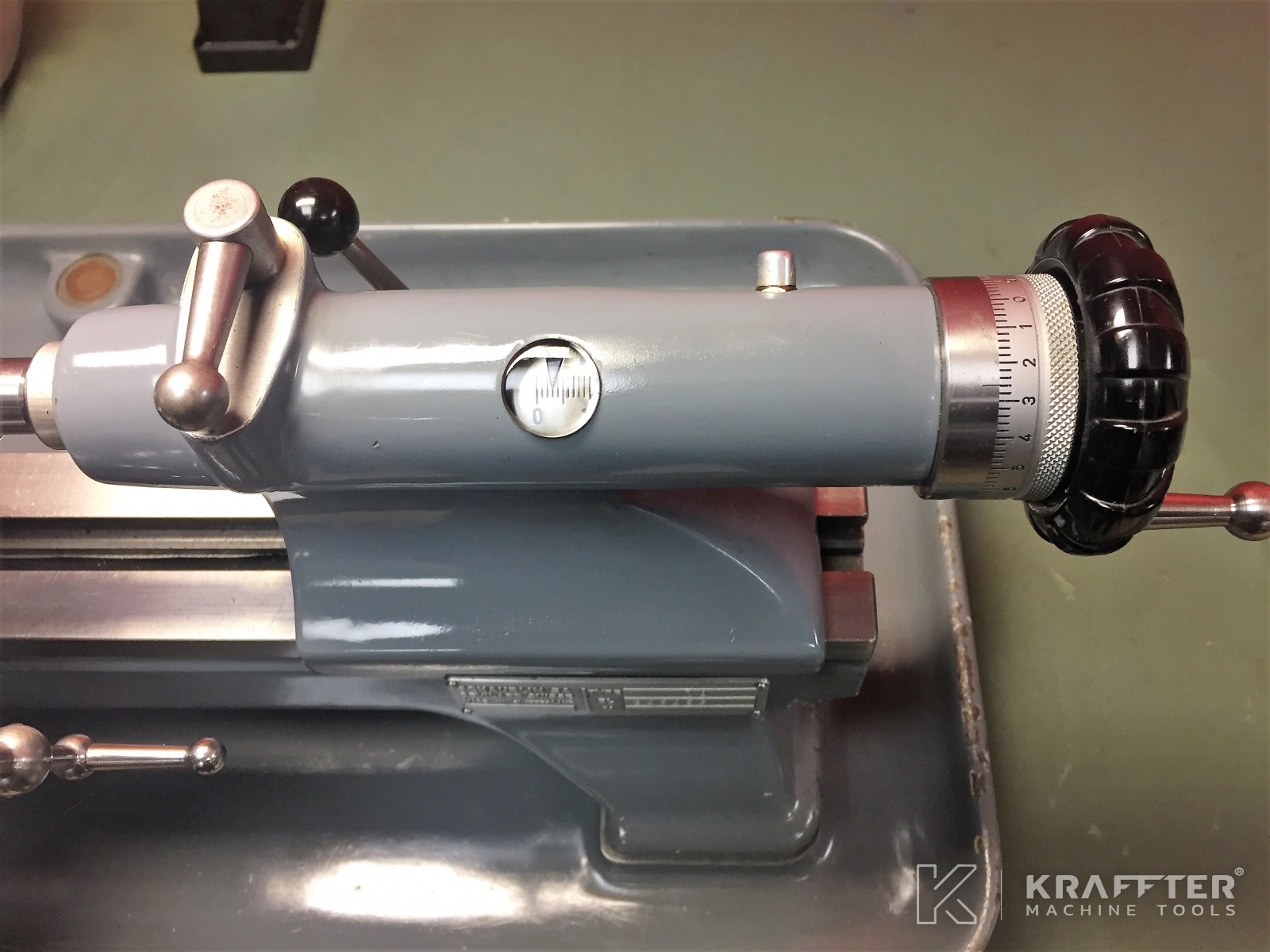

- 1 screw operated tail stock
- 1 chip tray
- 1 bed
- 1 screw operated cross slide
- 1 tool post MULTIFIX ORIGINAL SUISSE type « Aa »
- 4 tool holders MULTIFIX ORIGINAL SUISSE type « Aa »
- 1 original motor SCHAUBLIN (N° 8184/26), 2 front speeds, 2 rear speeds
- 1 pedal operated lever (front – rear spindle rotation)
- 1 overhead drive set

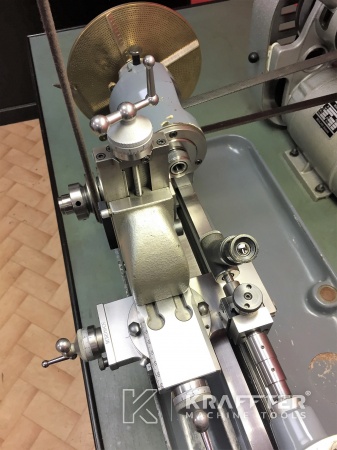

- 1 milling attachement - height support

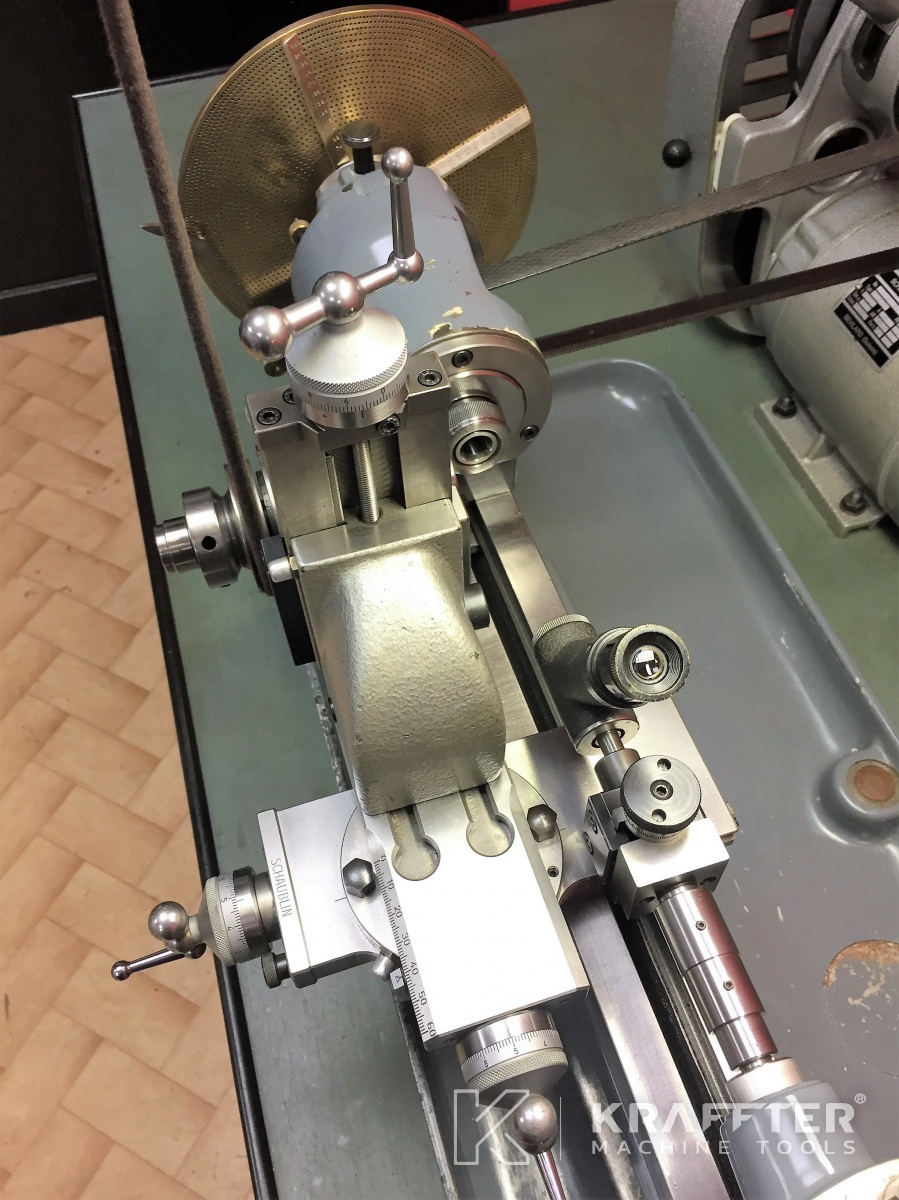

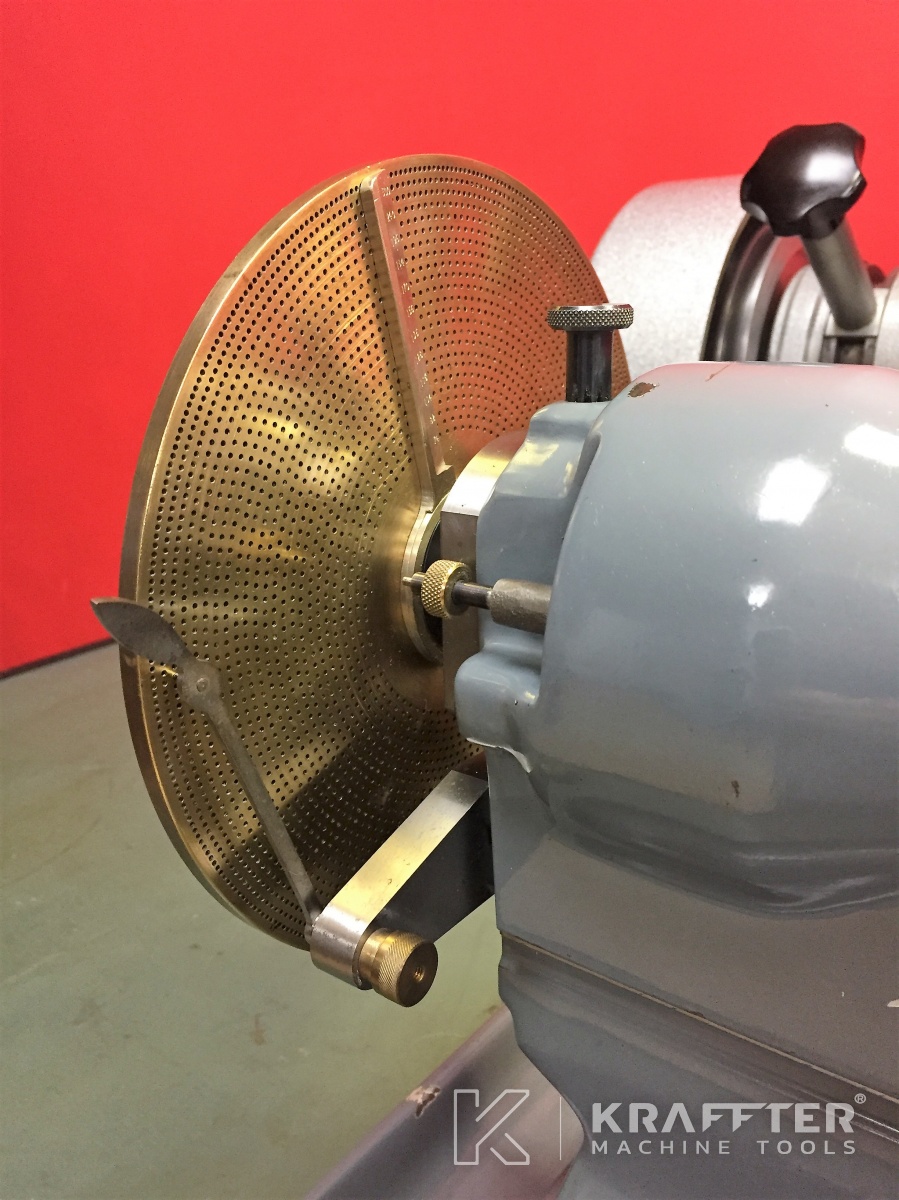

- 1 dividing attachement (N° holes : 74-76-82-88-104-108-116-124-128-132-136-144-156-168-170-172-184-188-196-220-240-280-300-360)
- 1 faceplate Ø 138 [mm] 3 slots (attachements included)
- 1 manual collet holder W12
- 1 quick collet closer W12
- 1 manual spincle wheel
- 1 external 6 jaw chuck 70-25.081
- 1 internal 6 jaw chuck 70-25.082

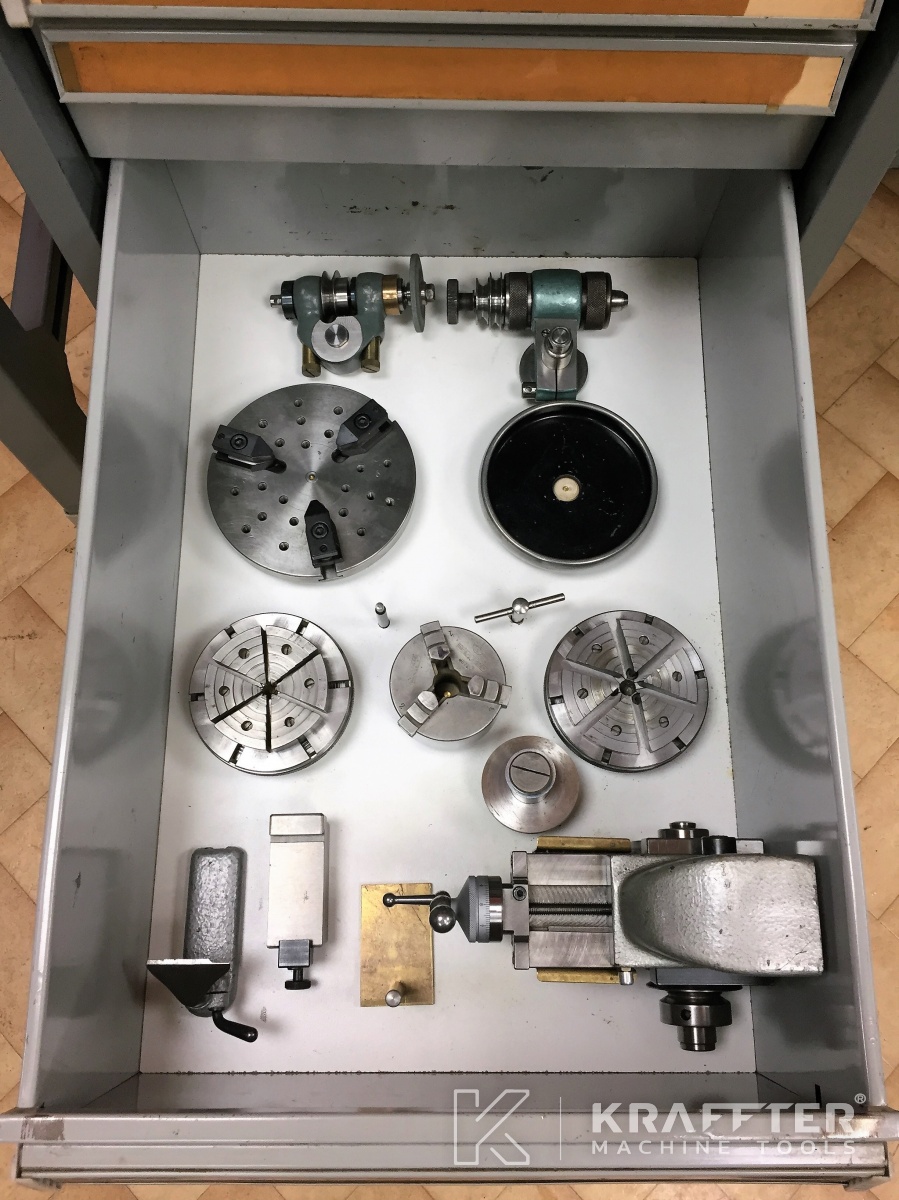

- 1 chuck 3 jaw Ø 70 [mm]
- 2 grinding attachements

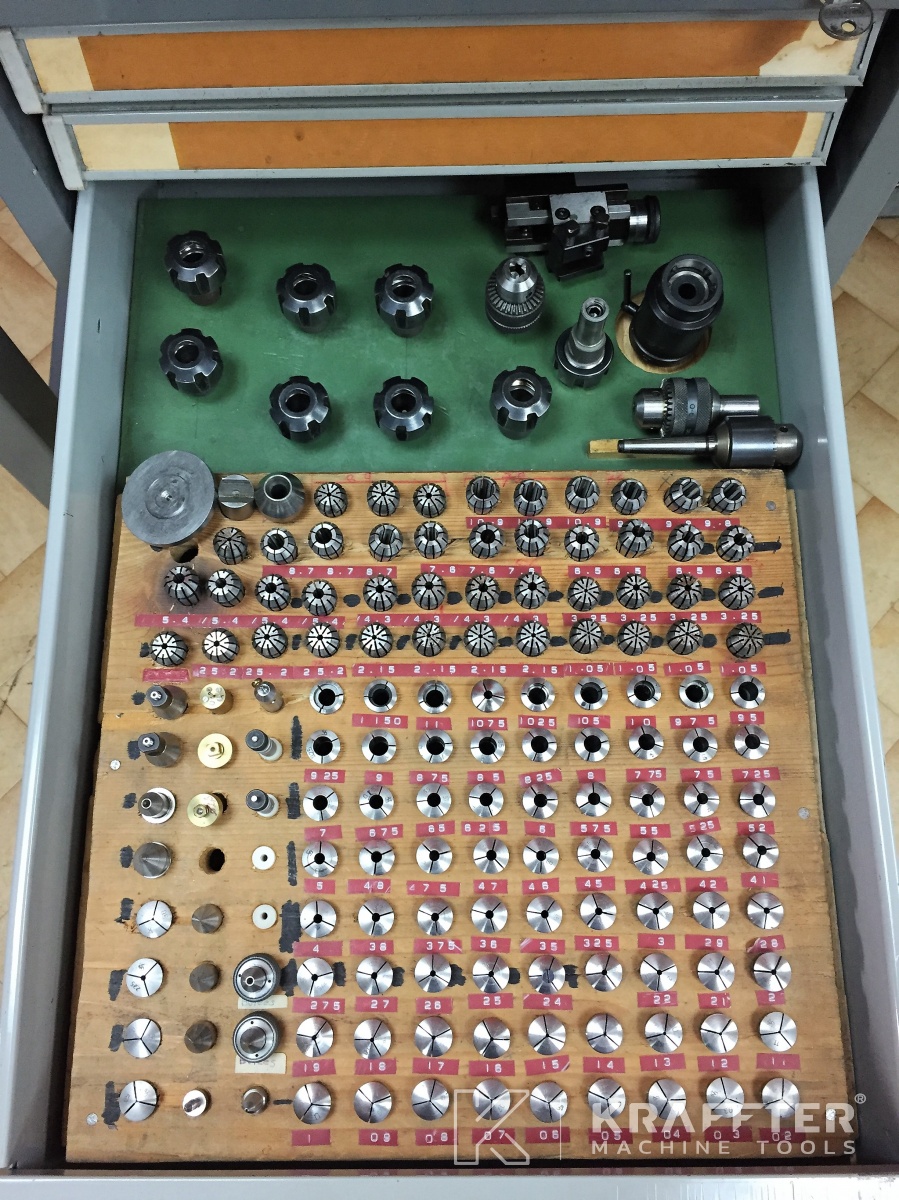

- 80 collets W12 from Ø 0,2 to 12 [mm]
- 44 collets ER16 from Ø 0.5 to 10 [mm] (for the milling attachement)
- 7 collet holders for the milling attachement (ER16)
- 2 drilling chucks
- 1 centring microscope
- 2 revolving centers

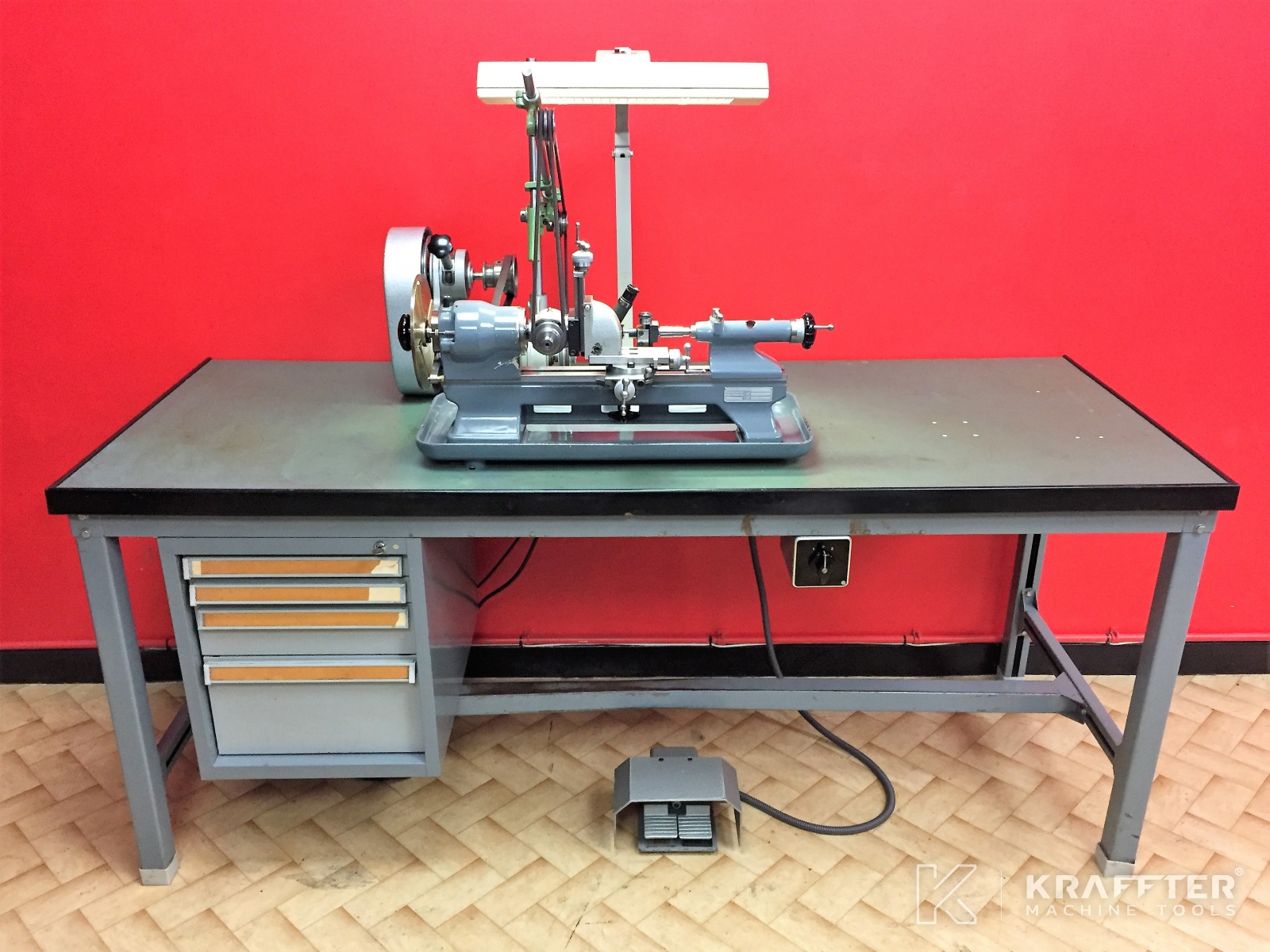

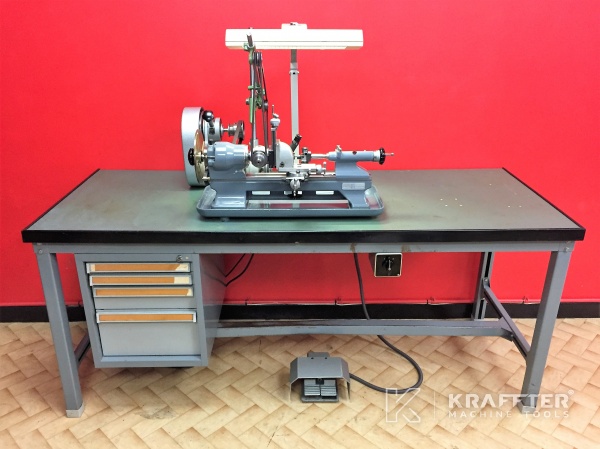

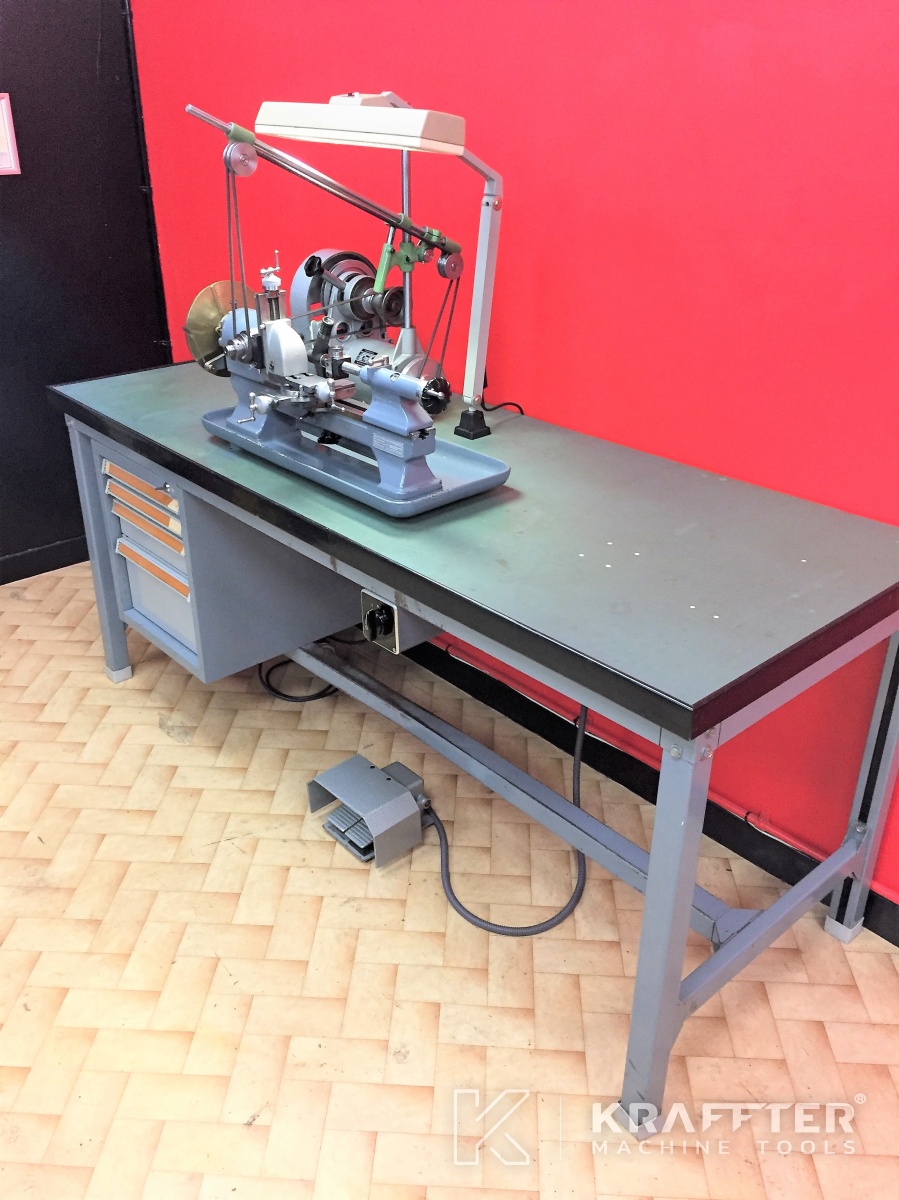

- 1 workbench « TIRO-CLAS » Original with 4 drawers (slideways mounted on ball bearings),
- 1 WALDMANN lamp,

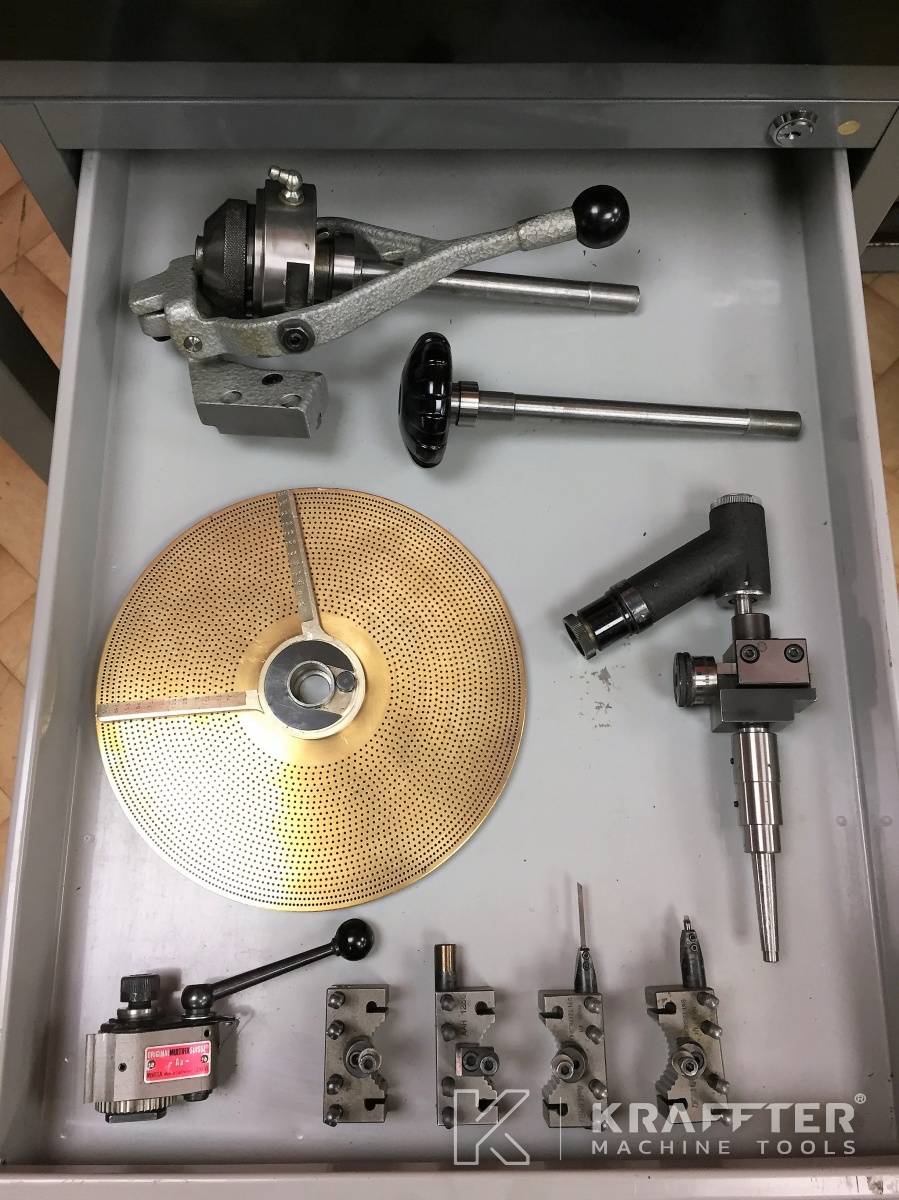

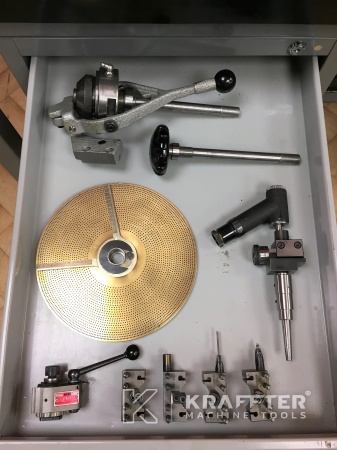

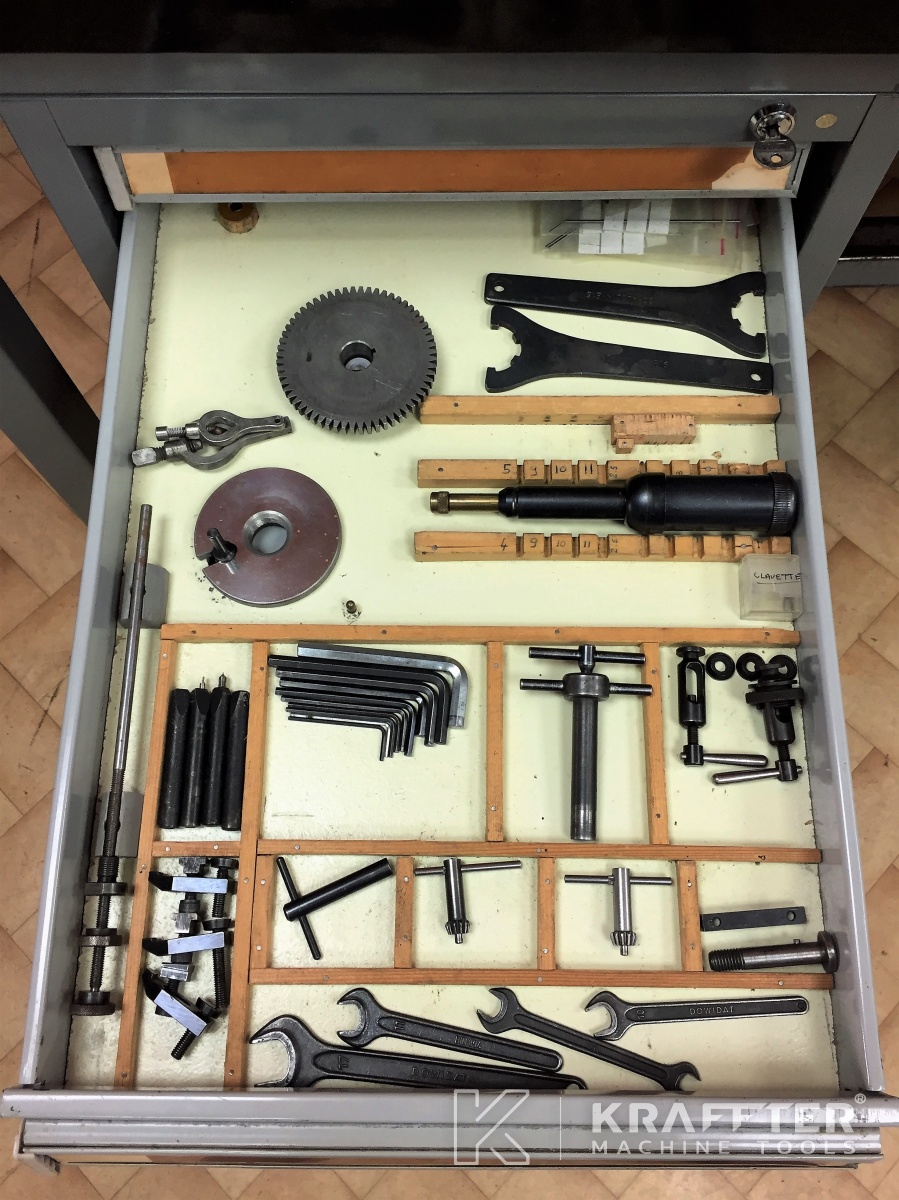

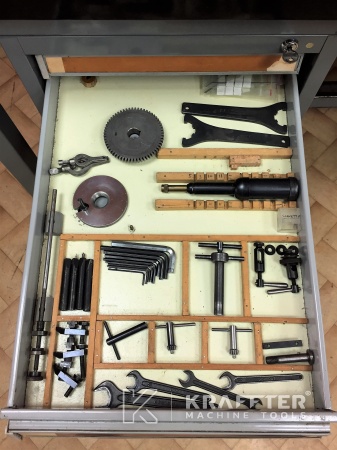

- Many service parts (see pictures attached)
