New in stock

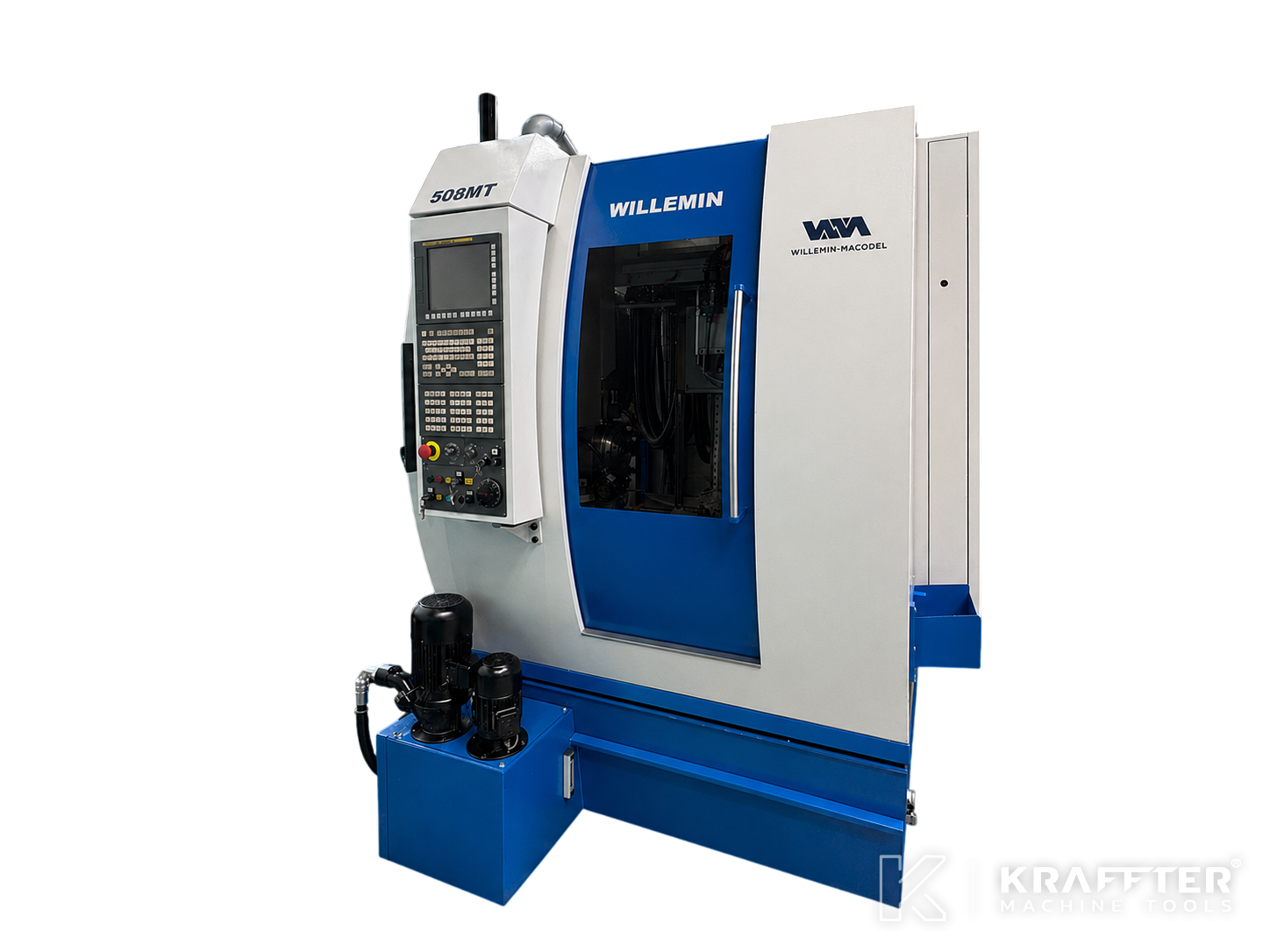

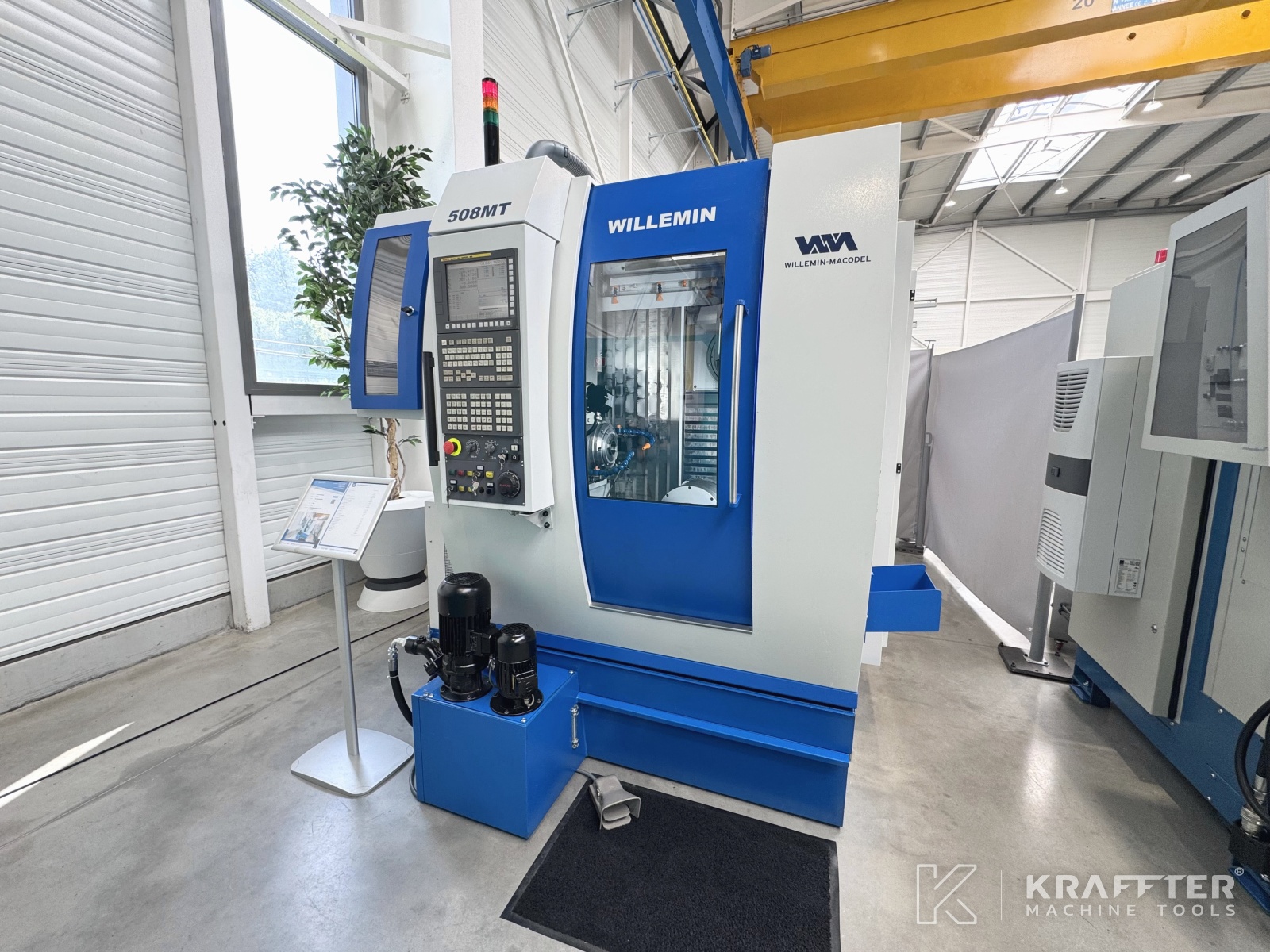

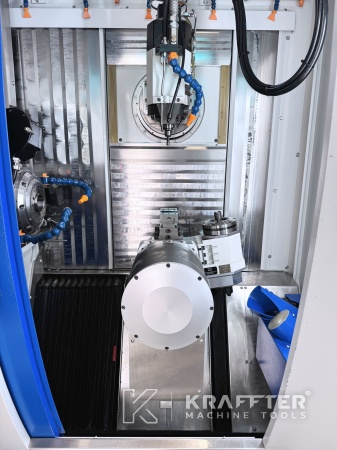

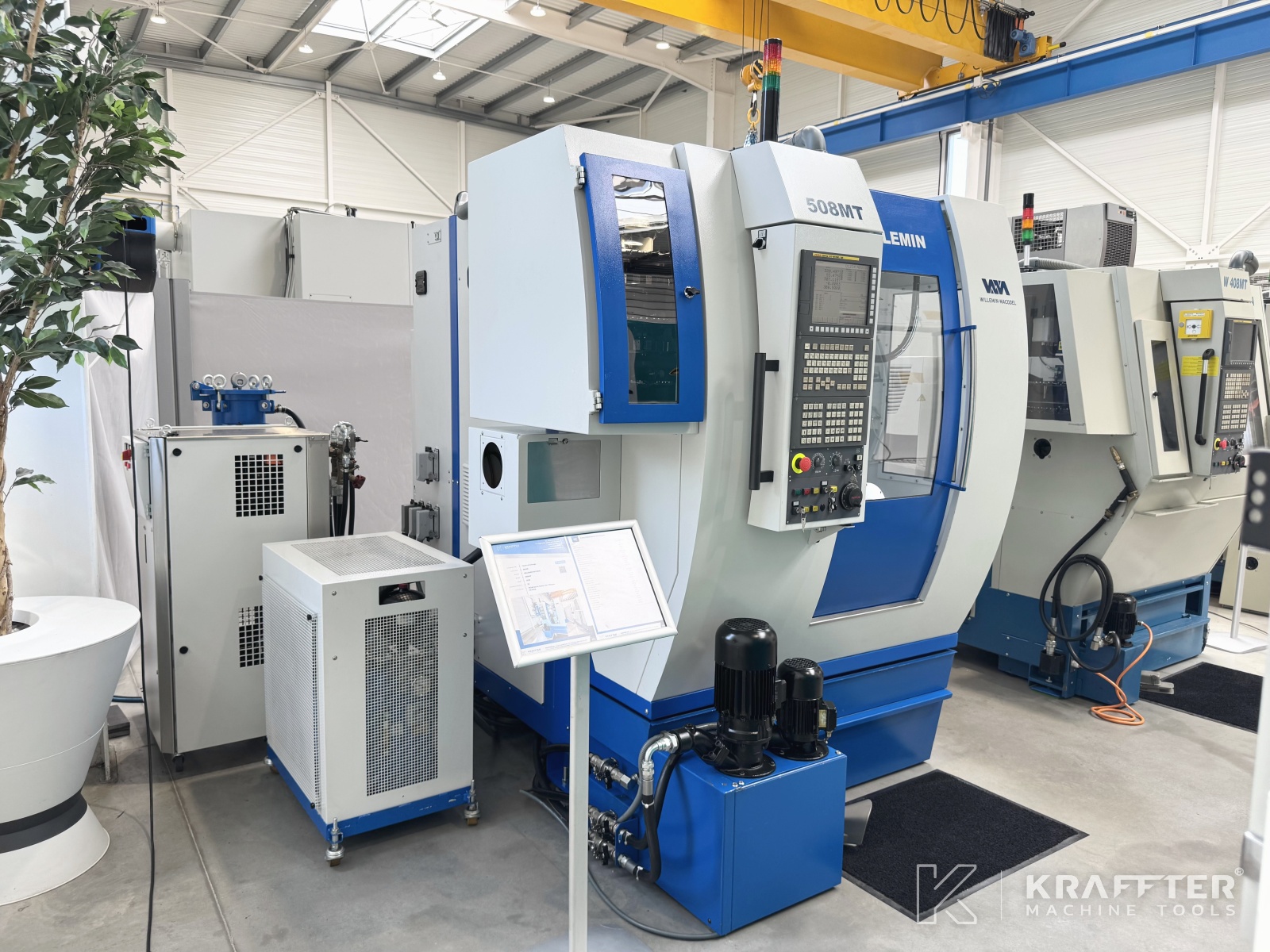

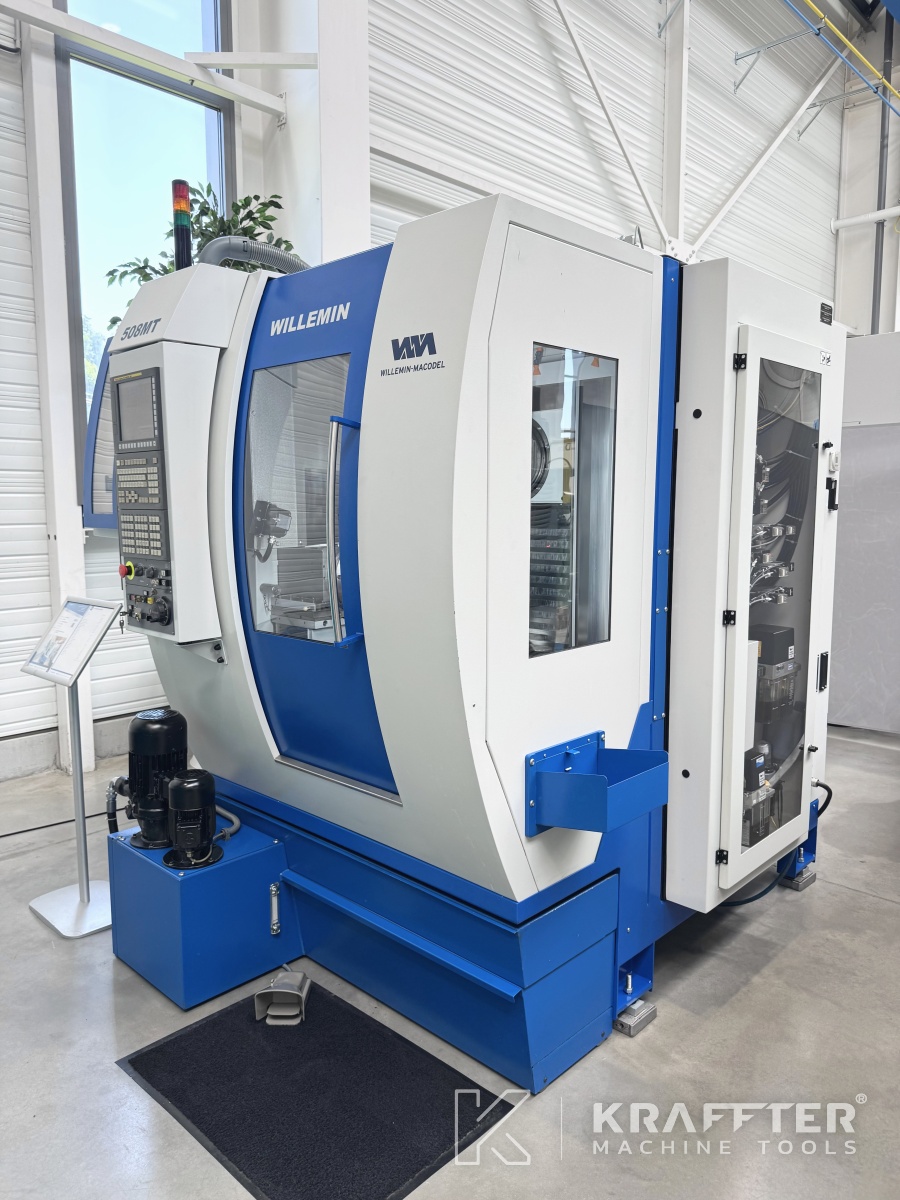

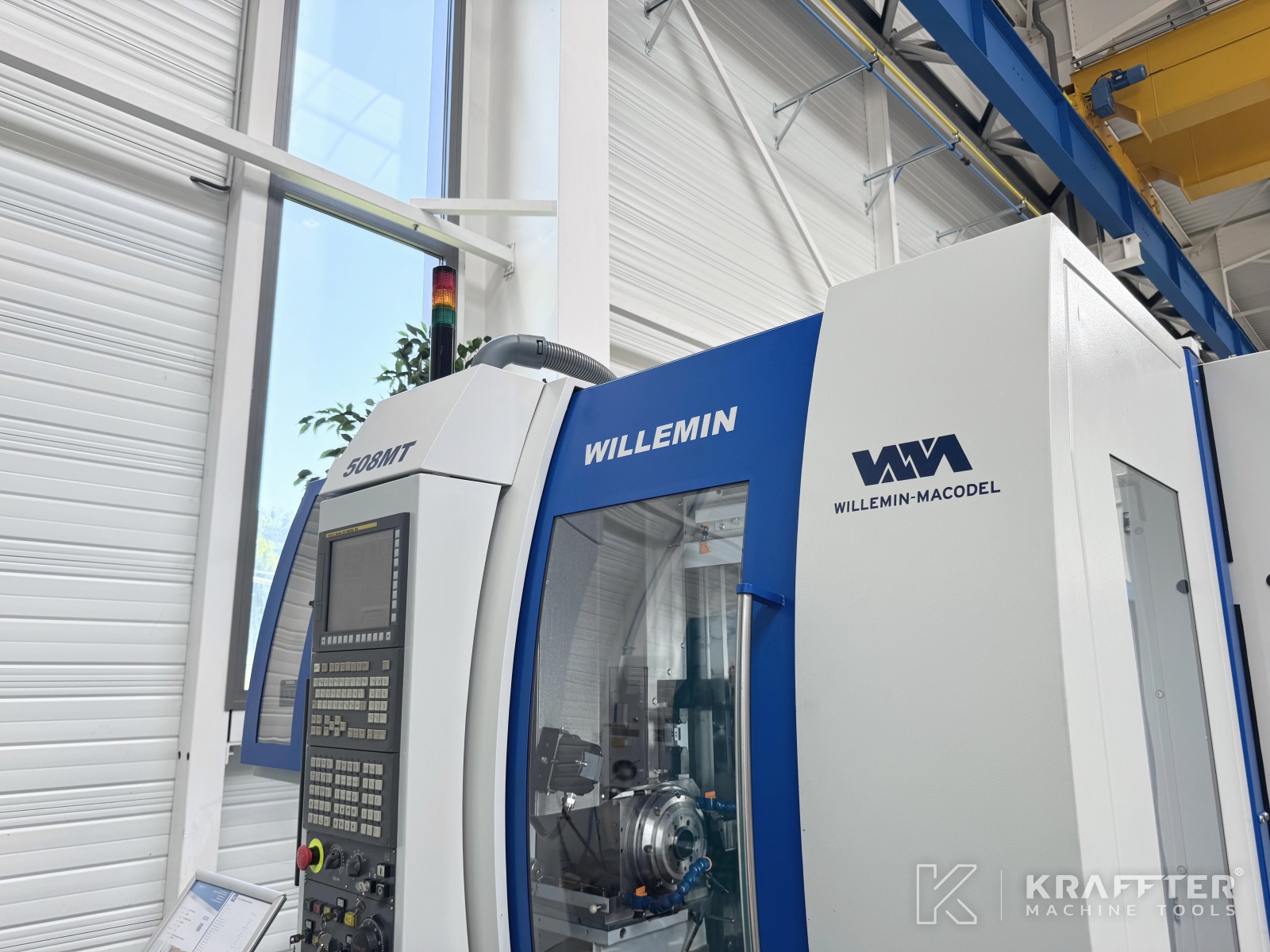

Type of machine : CNC machining centre
Brand : WILLEMIN MACODEL
N° de stock: 90188
Model : 508 MT
Year : 2016
Location : 73240 Saint-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Request a quotation
Technical characteristics

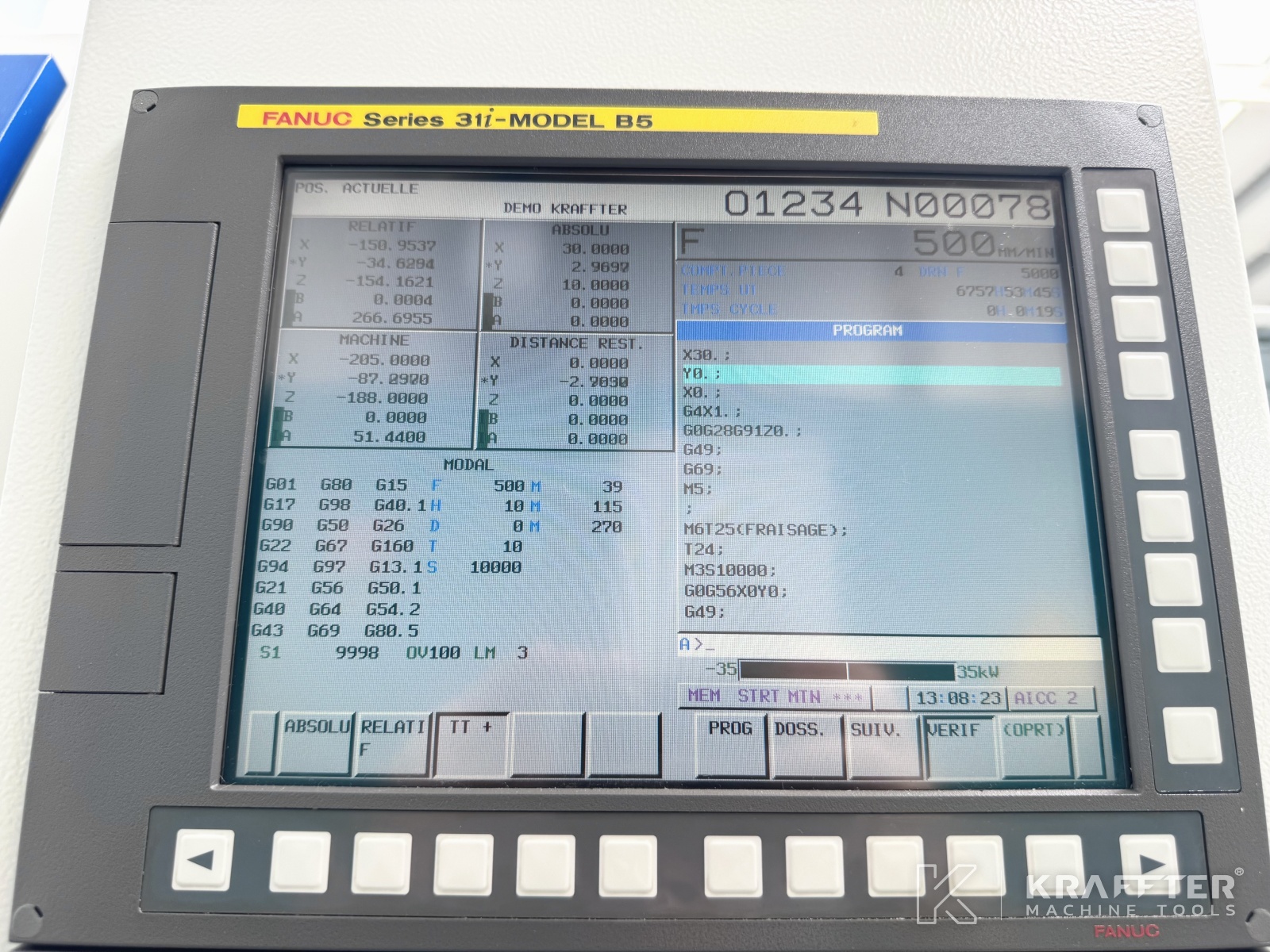

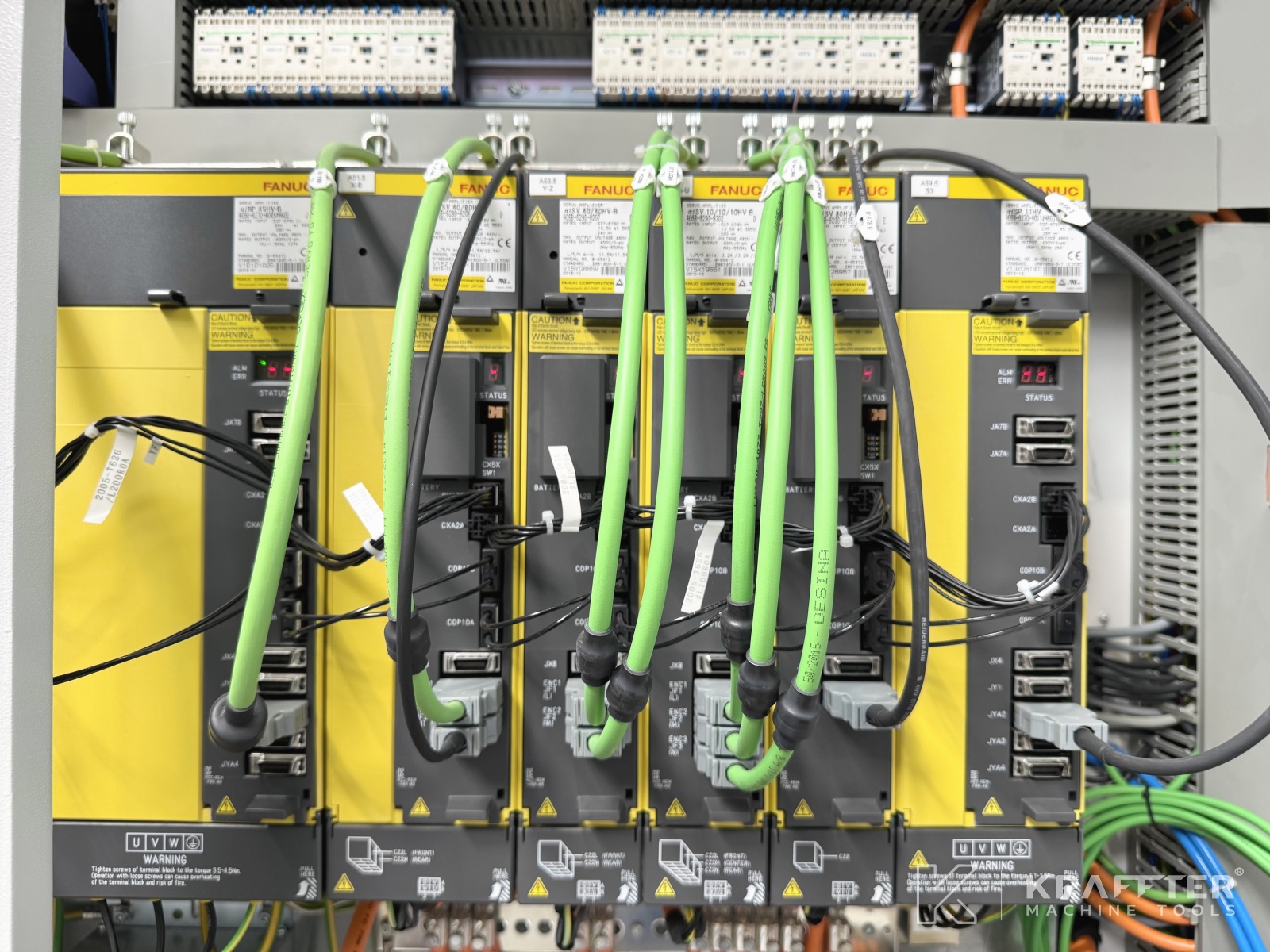

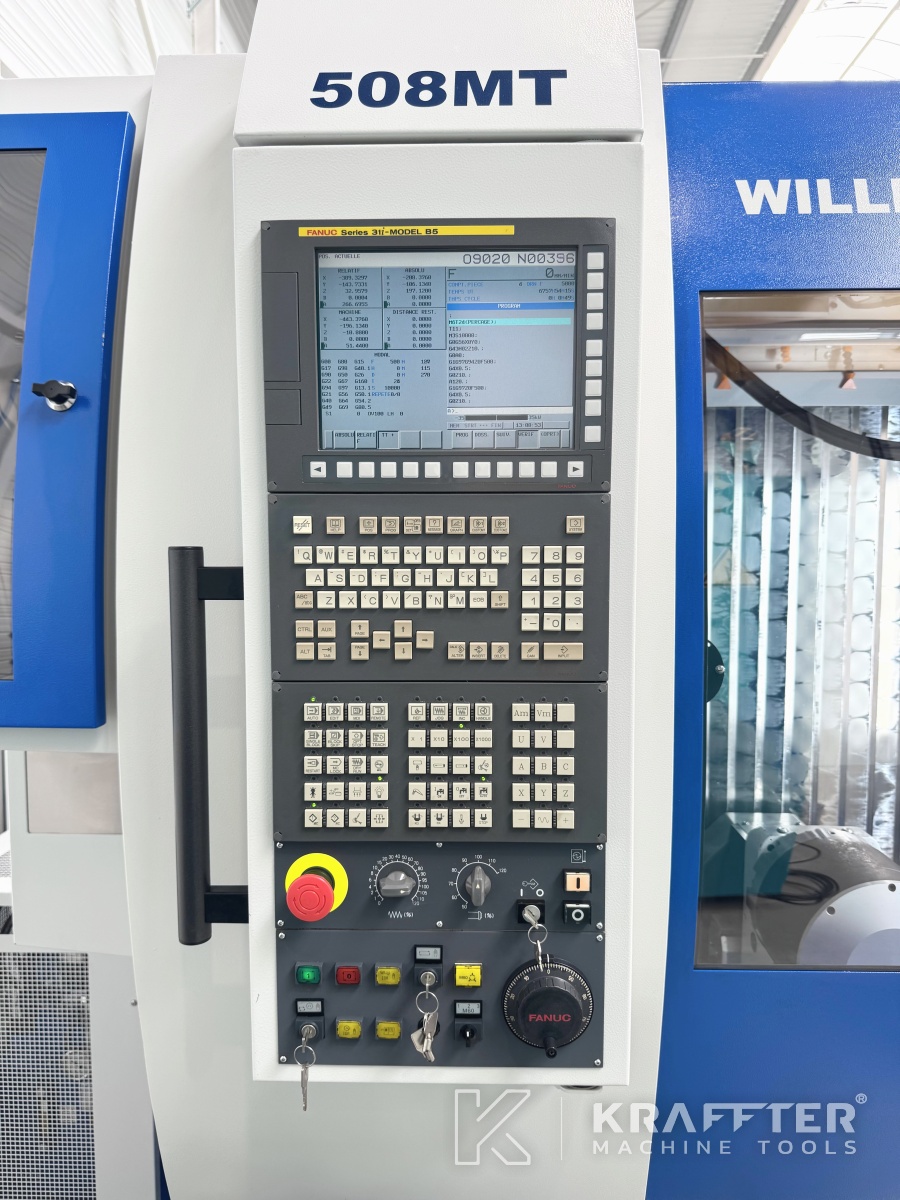

CNC control
FANUC series 31i-B5
Number of simultaneous axes
5
Stroke X axis
450 [mm]
Stroke Y axis
200 [mm]
Stroke Z axis
425 [mm]
Traversing feeds X, Y and Z axes
40000 [mm/min]
Axes acceleration
10 [m/s²]
Resolution X axis
0.0001 [mm]
Resolution Y axis
0.0001 [mm]
Resolution Z axis
0.0001 [mm]
Max. bar diameter in turning spindle
42 [mm]
Main spindle max. speed
6000 [rpm]
Main spindle max. power
7.5 [kW]
Max. counter spindle speed
6000 [rpm]

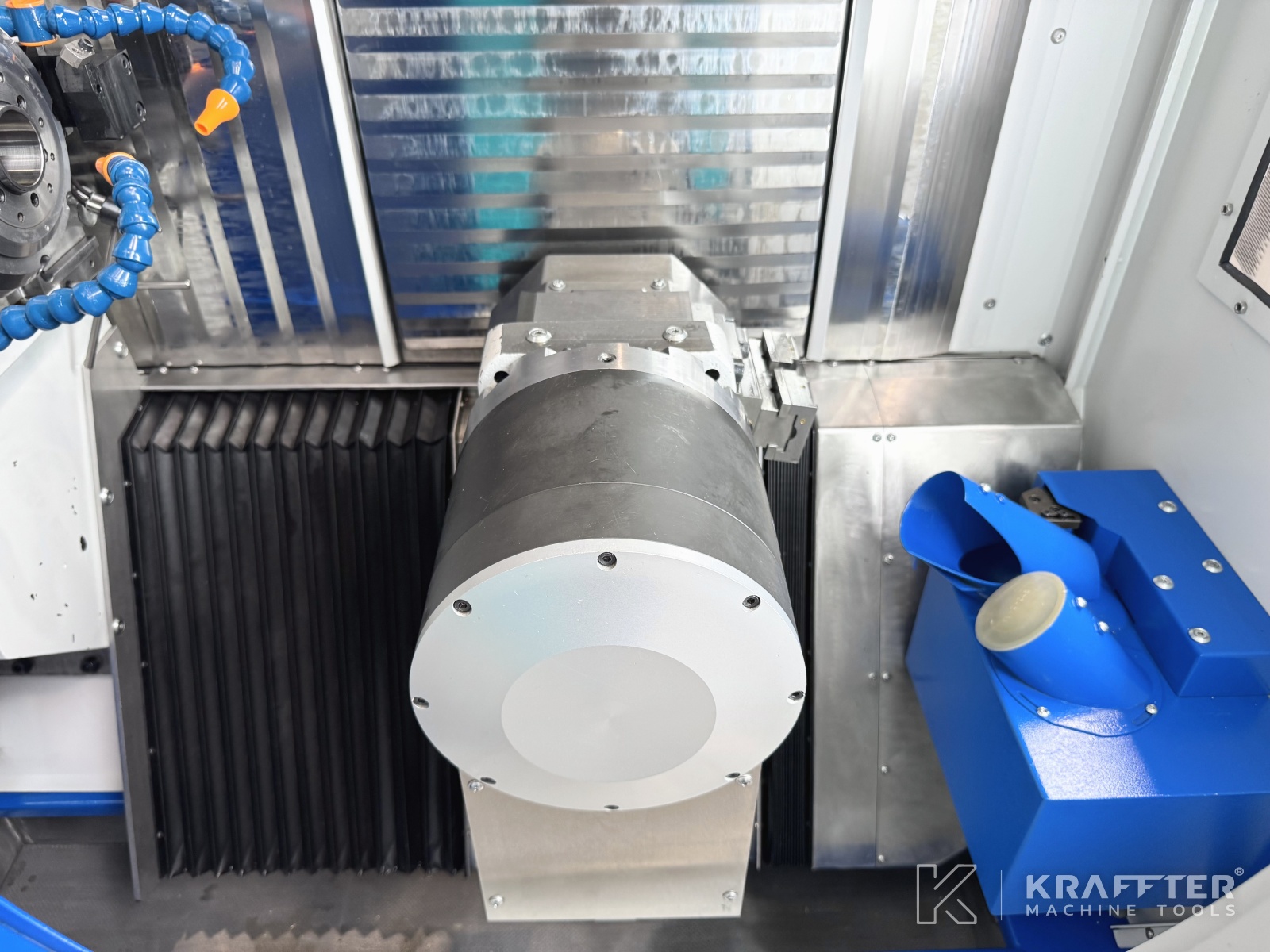

Angular A axis stroke
360 [°]
Resolution A axis
0.001 [°]
Drive A axis
Torque-motor
Spindle taper A axis
A2-4
B axis swivelling stroke
-15 [°] / +100 [°]
Resolution B axis
0.001 [°]
Drive B axis
Torque-motor
Spindle type
HSK-E40
Min. spindle speed
30 [rpm]
Max. spindle speed
42000 [rpm]

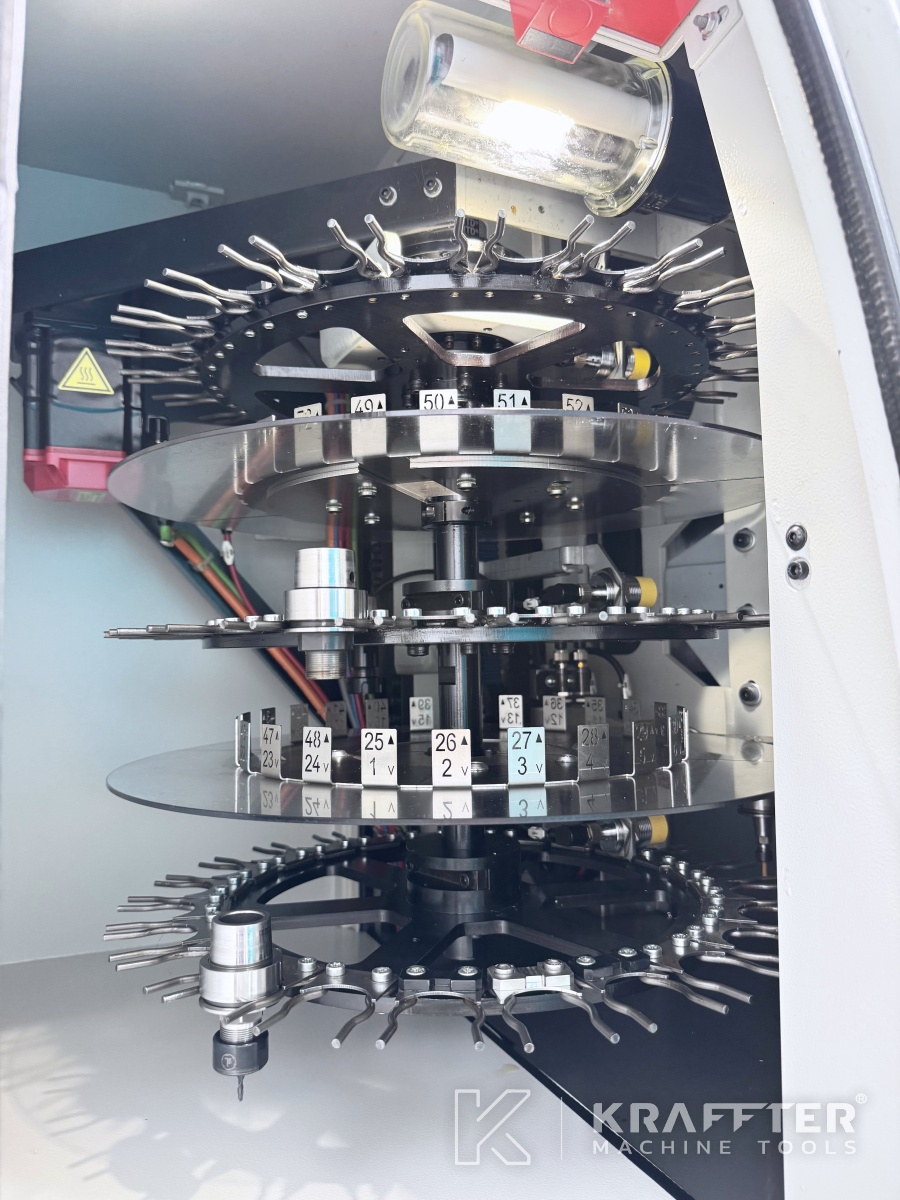

Tool changer magazin number of stations
72
Max. tool lenght
150 [mm]
Max. tool diameter
80 [mm]
Tool change time
1 [sec]
Chip to chip time
3 [sec]
Lubrication tank capacity
150 [l]

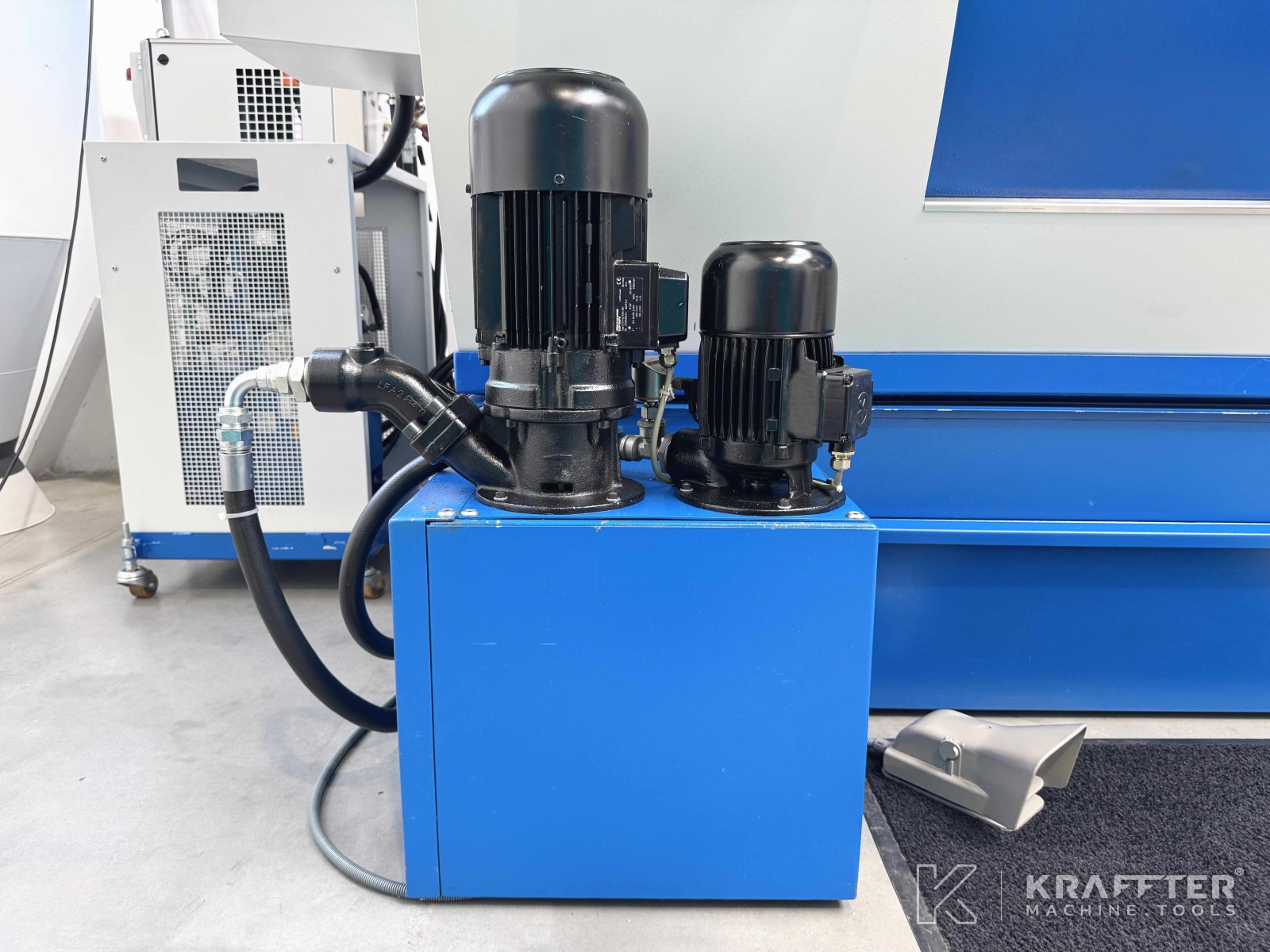

Collant pump flow rate
60 [l/min]
Rated current
50 [A]
Total power required
35 [kVA]
Supply voltage
400 [V]
Working hours
9701 [h]
Machine weight
3300 [Kg]
Technical specifications are provided for indicative purposes only. The description may have been automatically translated.
Additional information

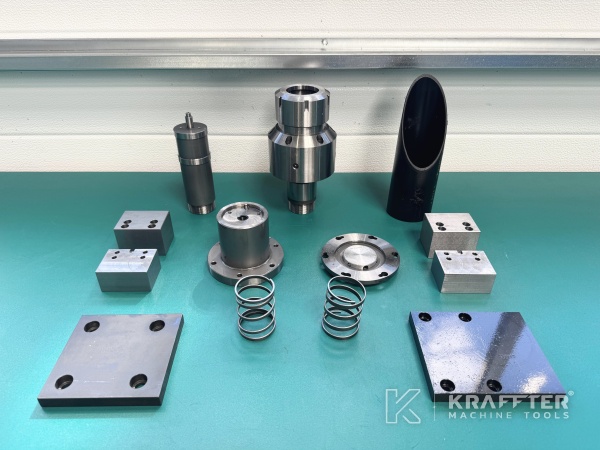

INCLUDED EQUIPMENT:

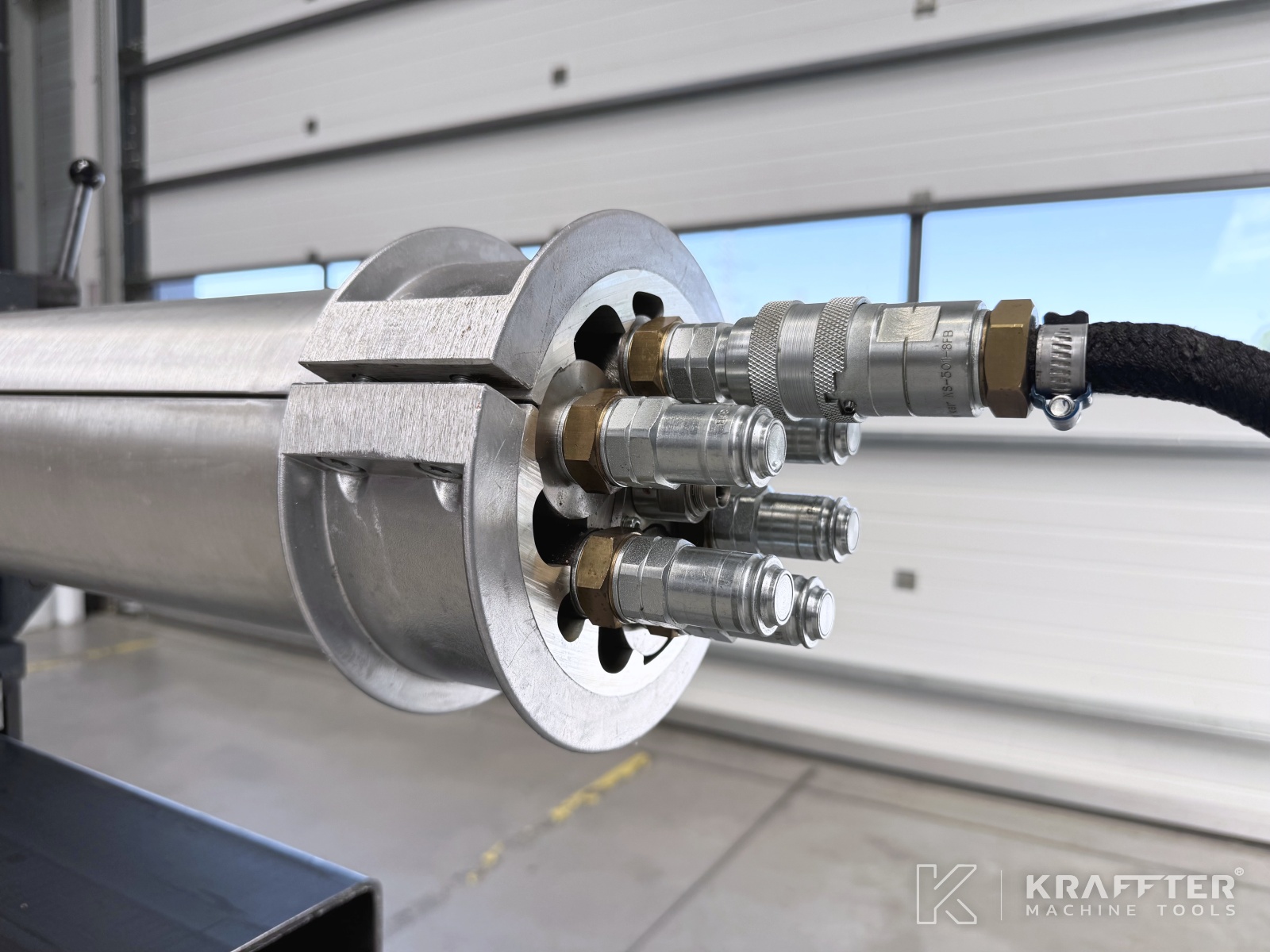

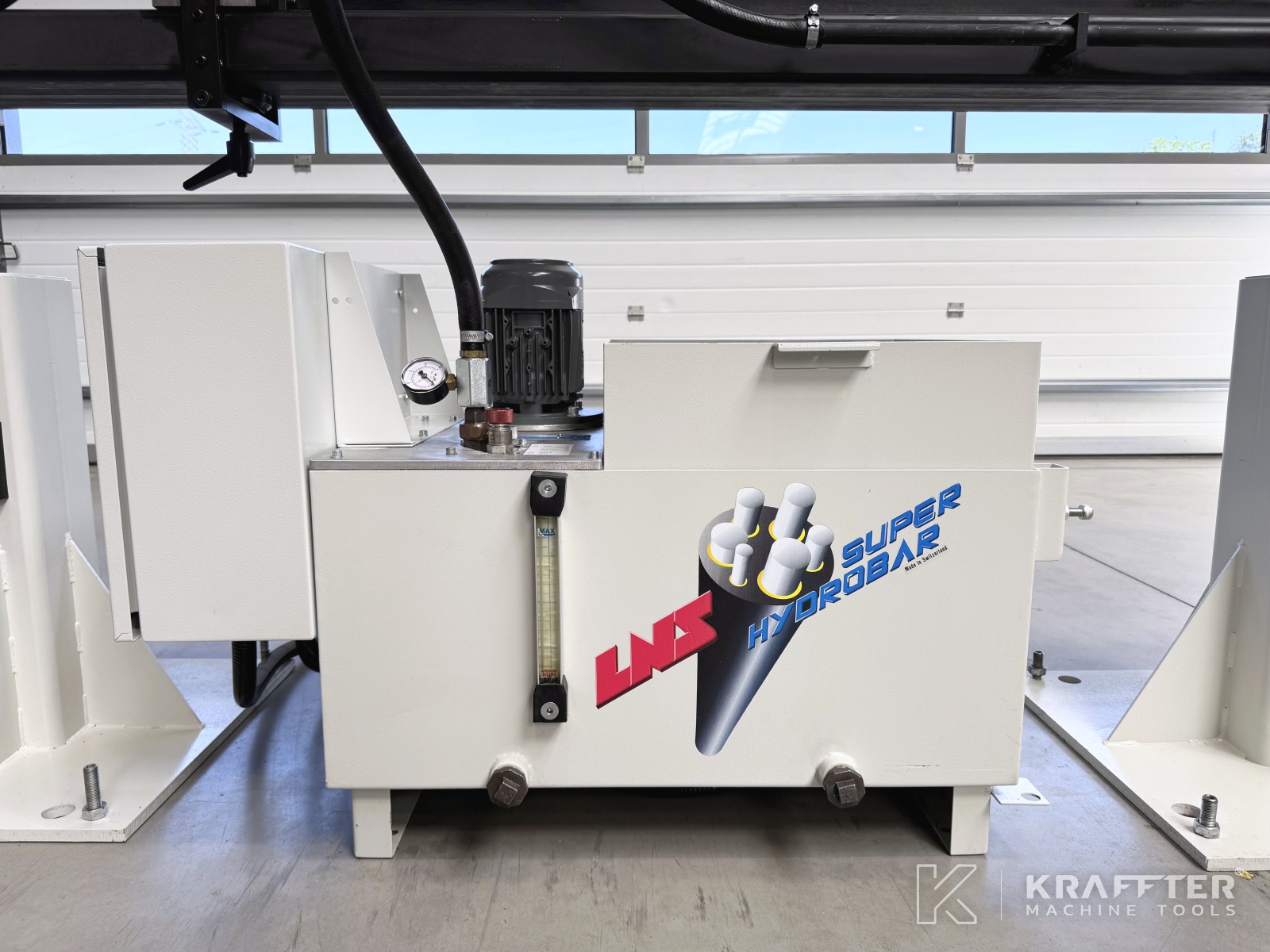

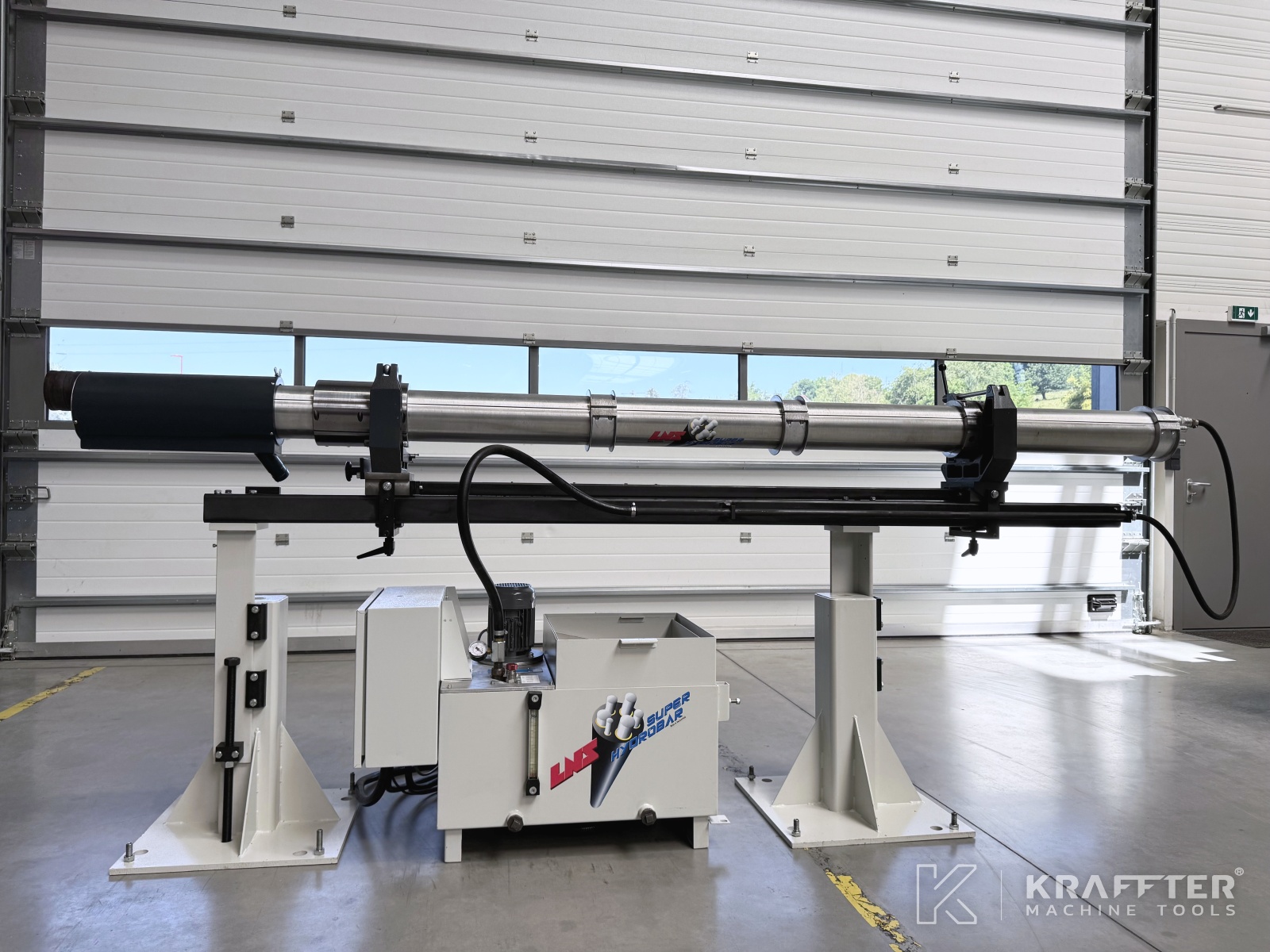

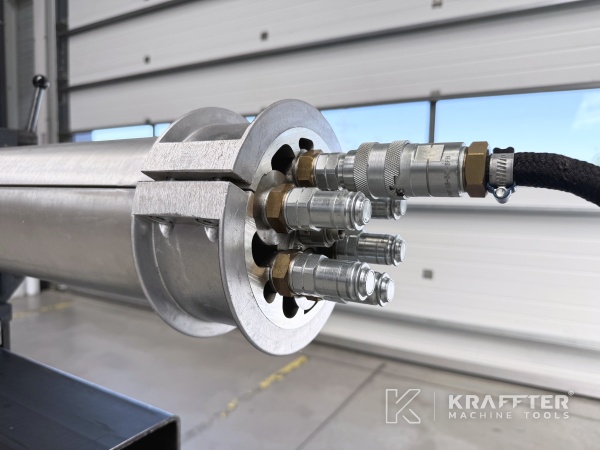

- x1 LNS Super Hydrobar bar feeder, type 6.42 HS 3.2

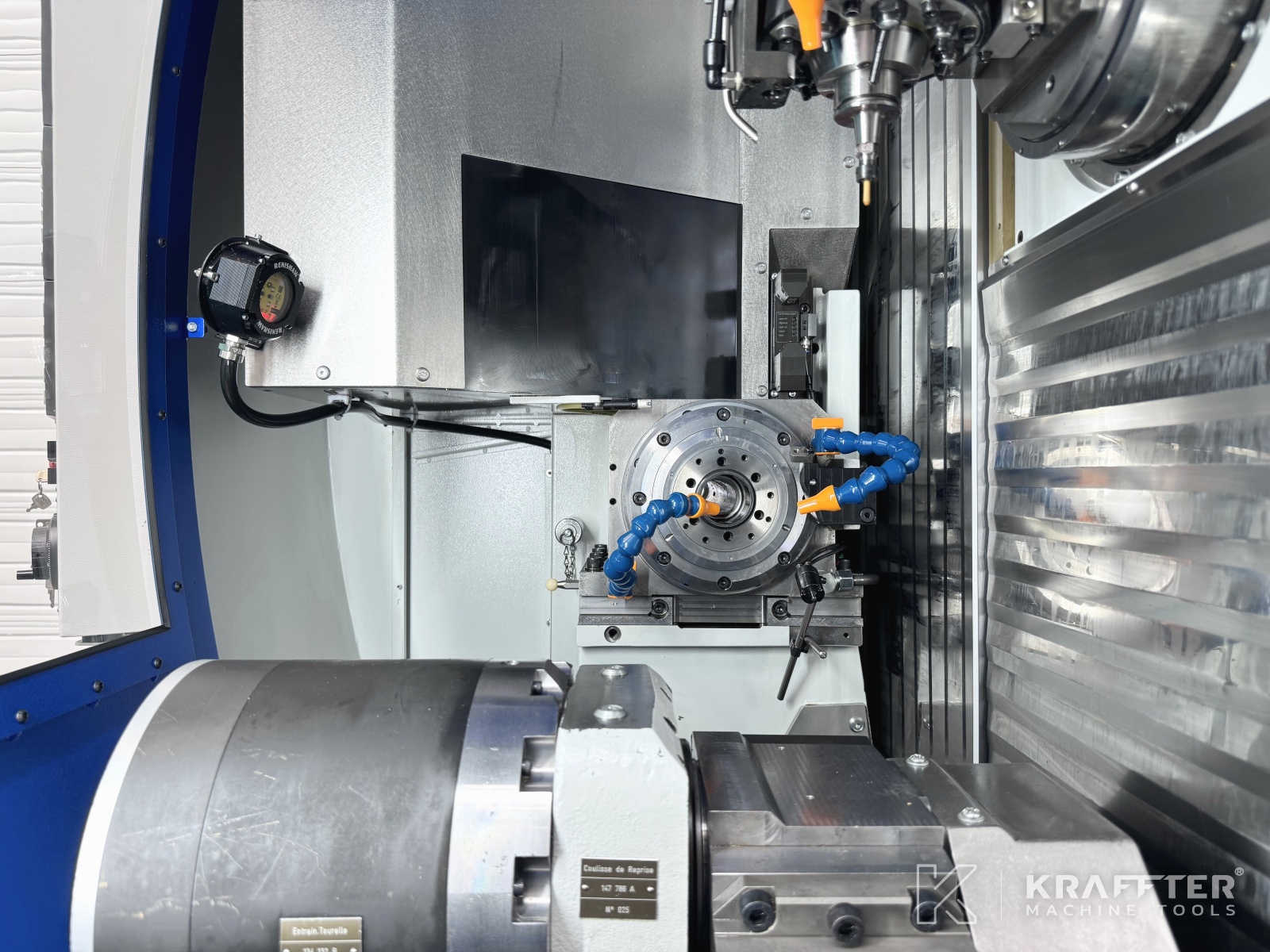

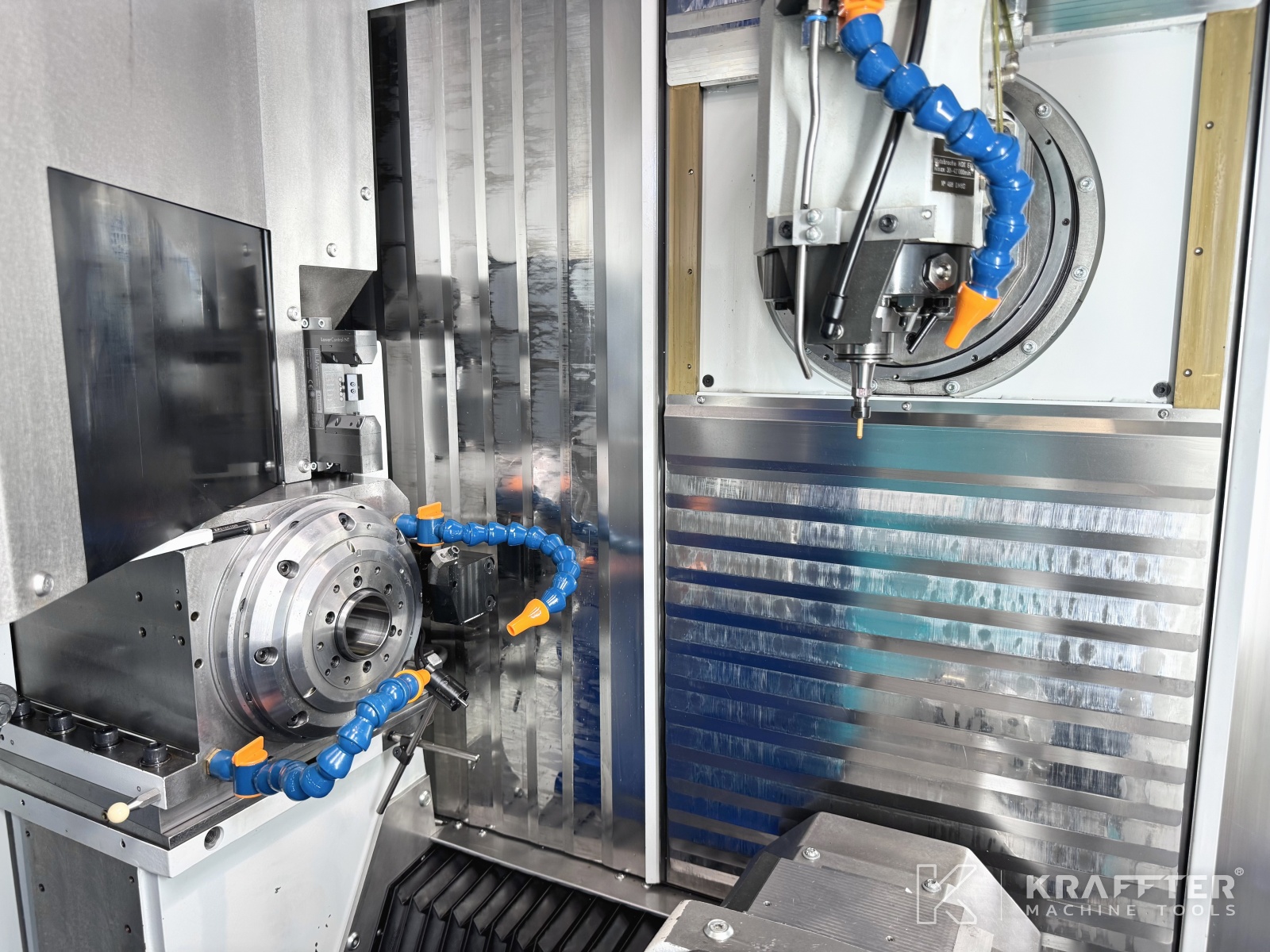

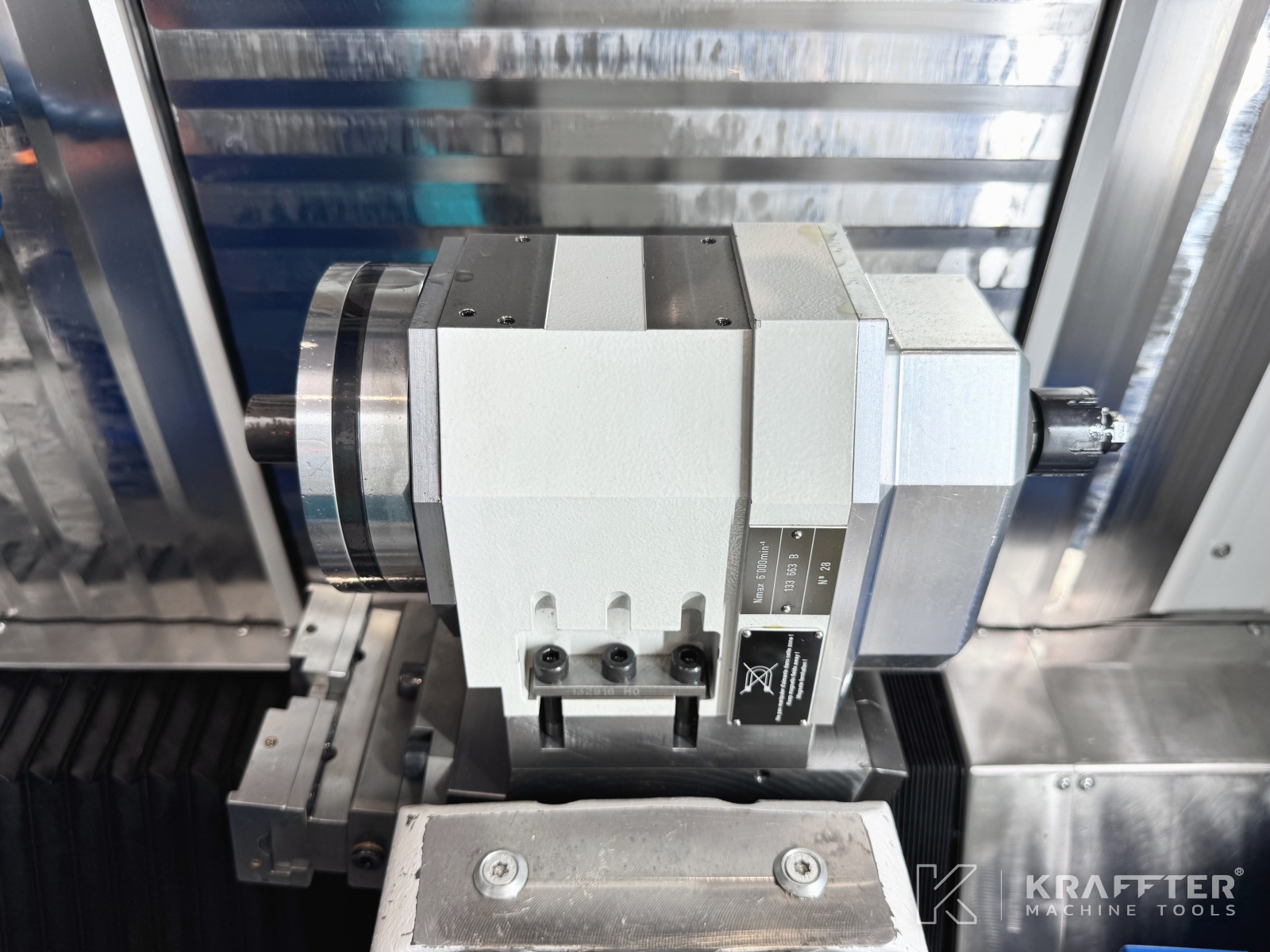

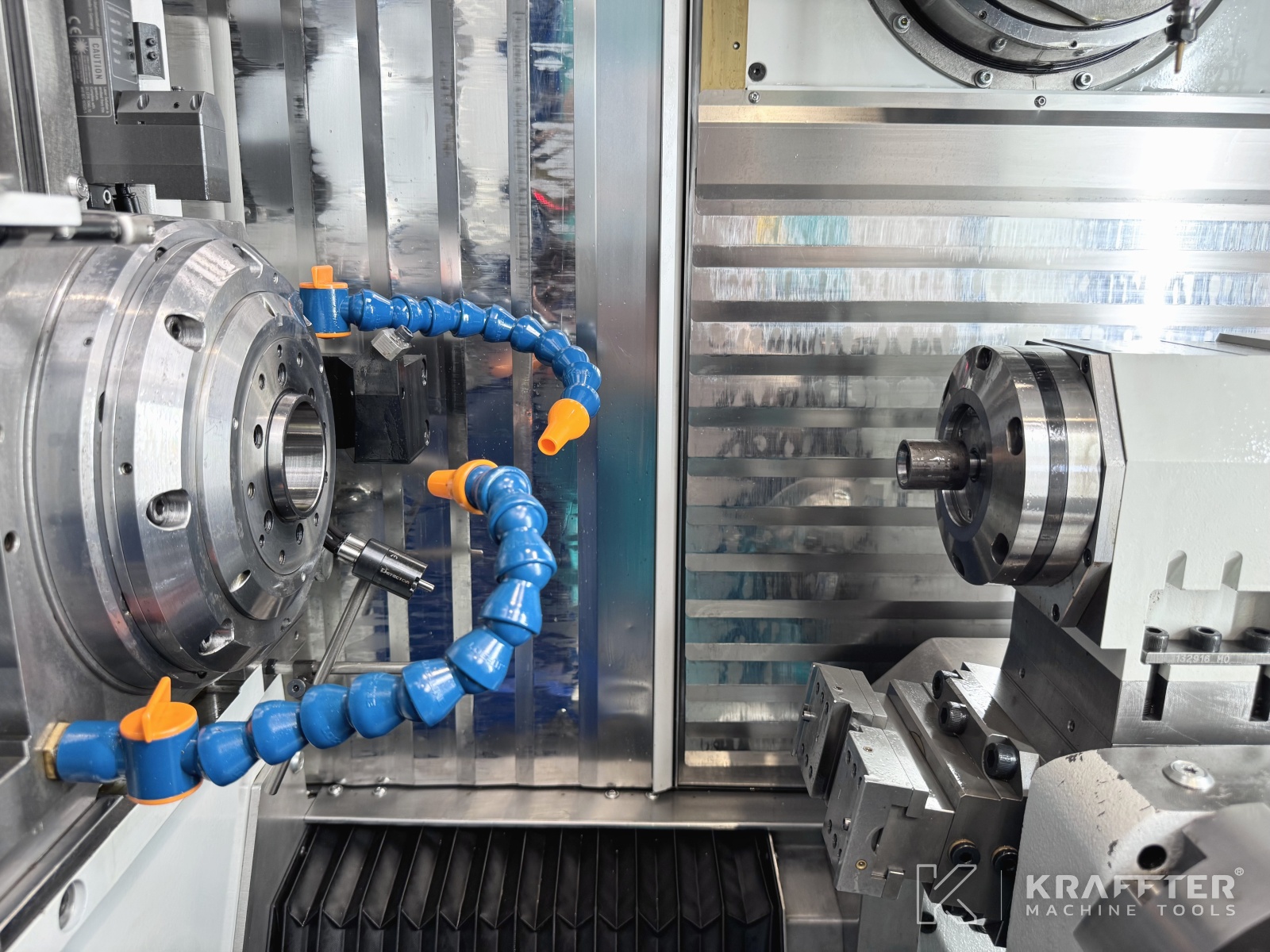

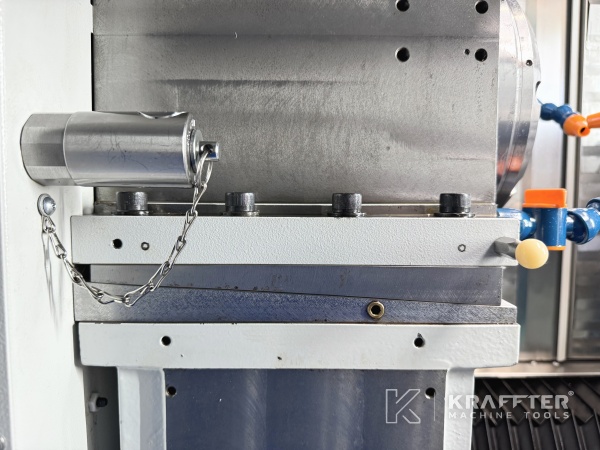

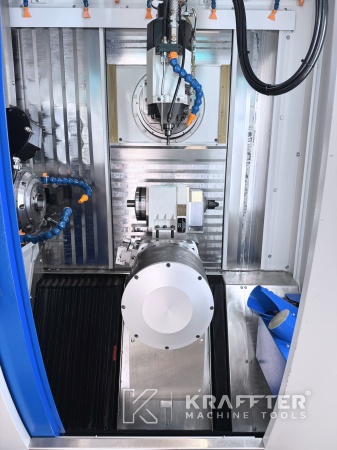

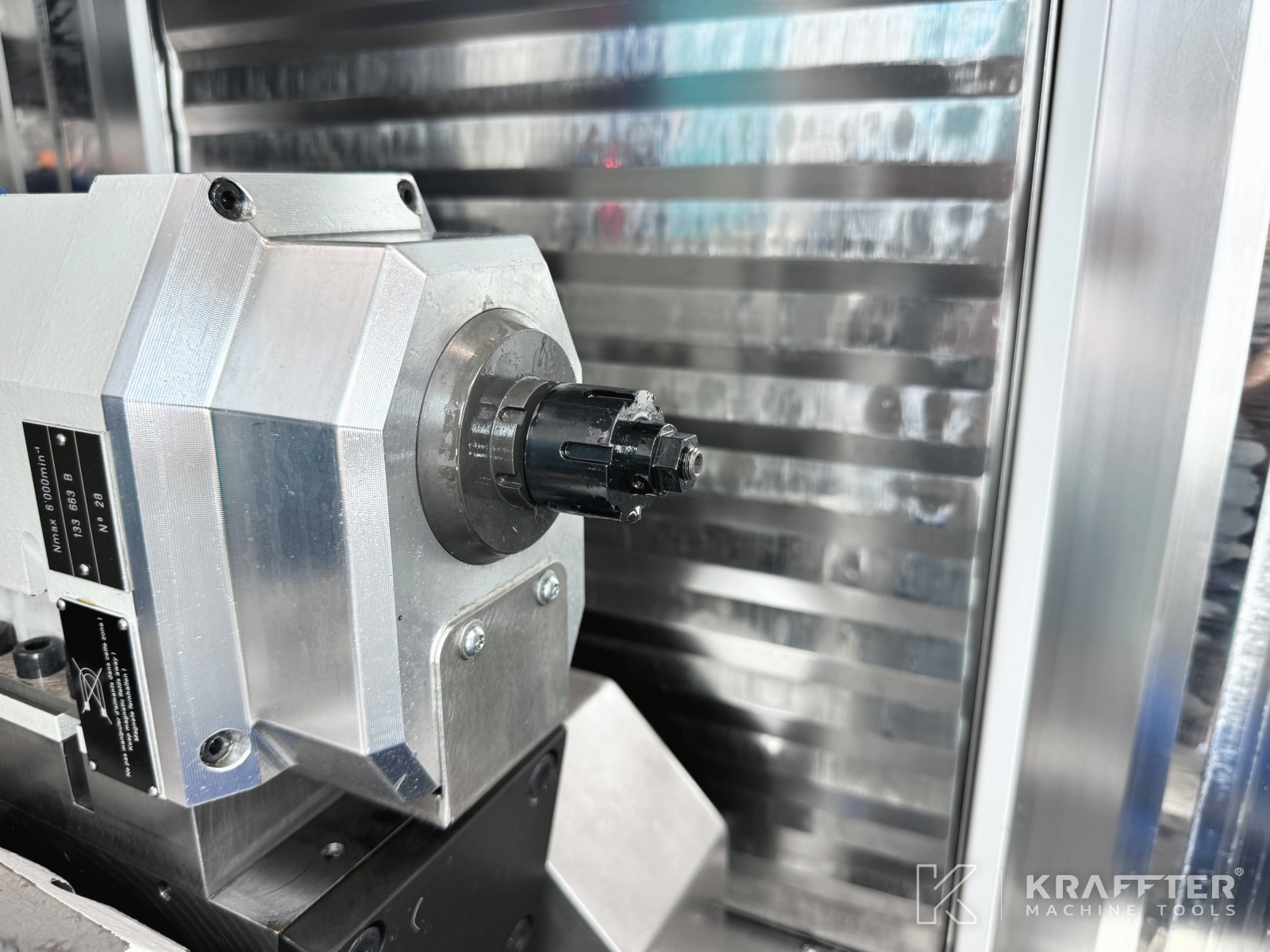

- x1 Back working unit with integrated 3-position turret on linear slide

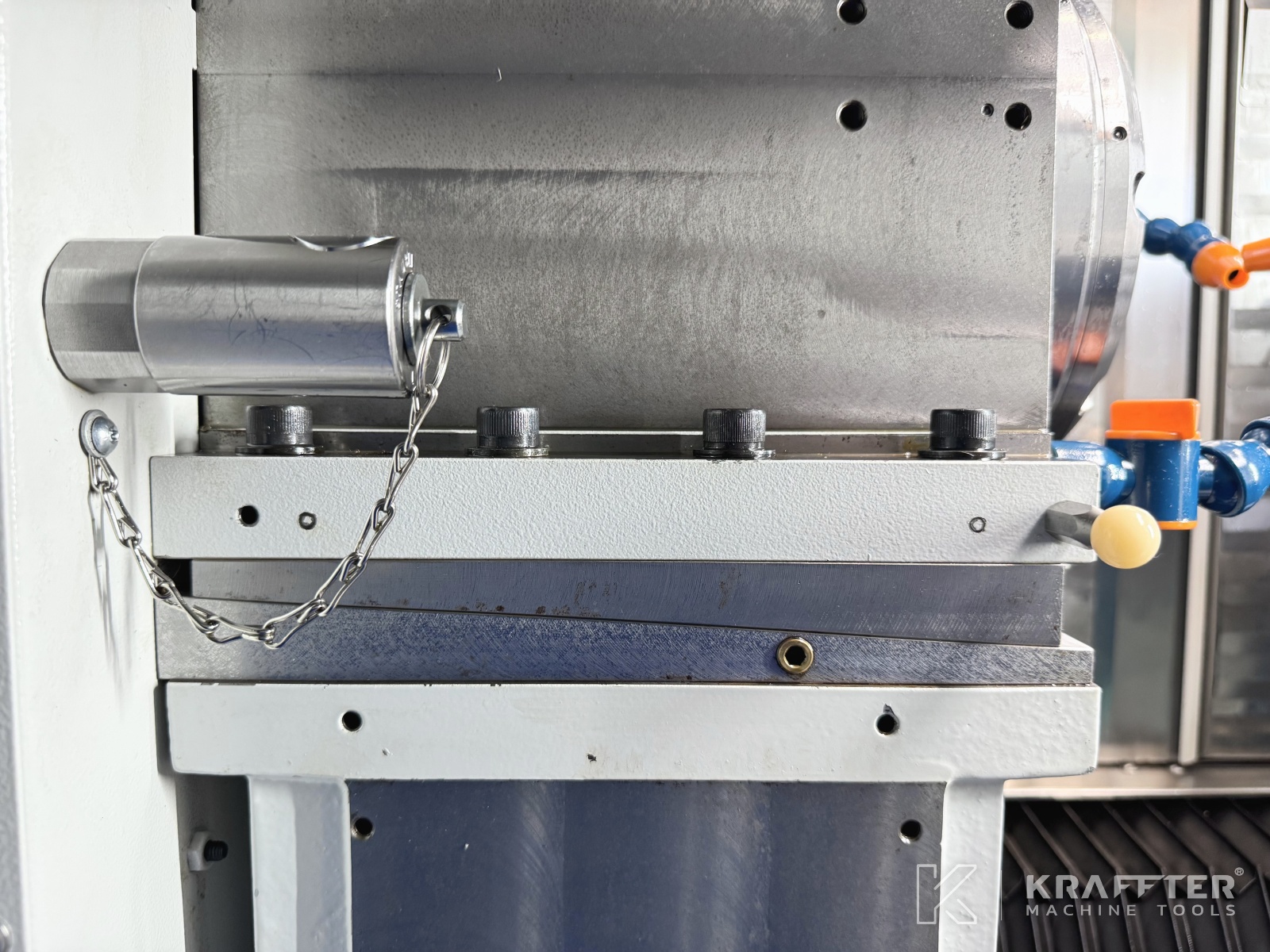

- x1 Vise on back working unit

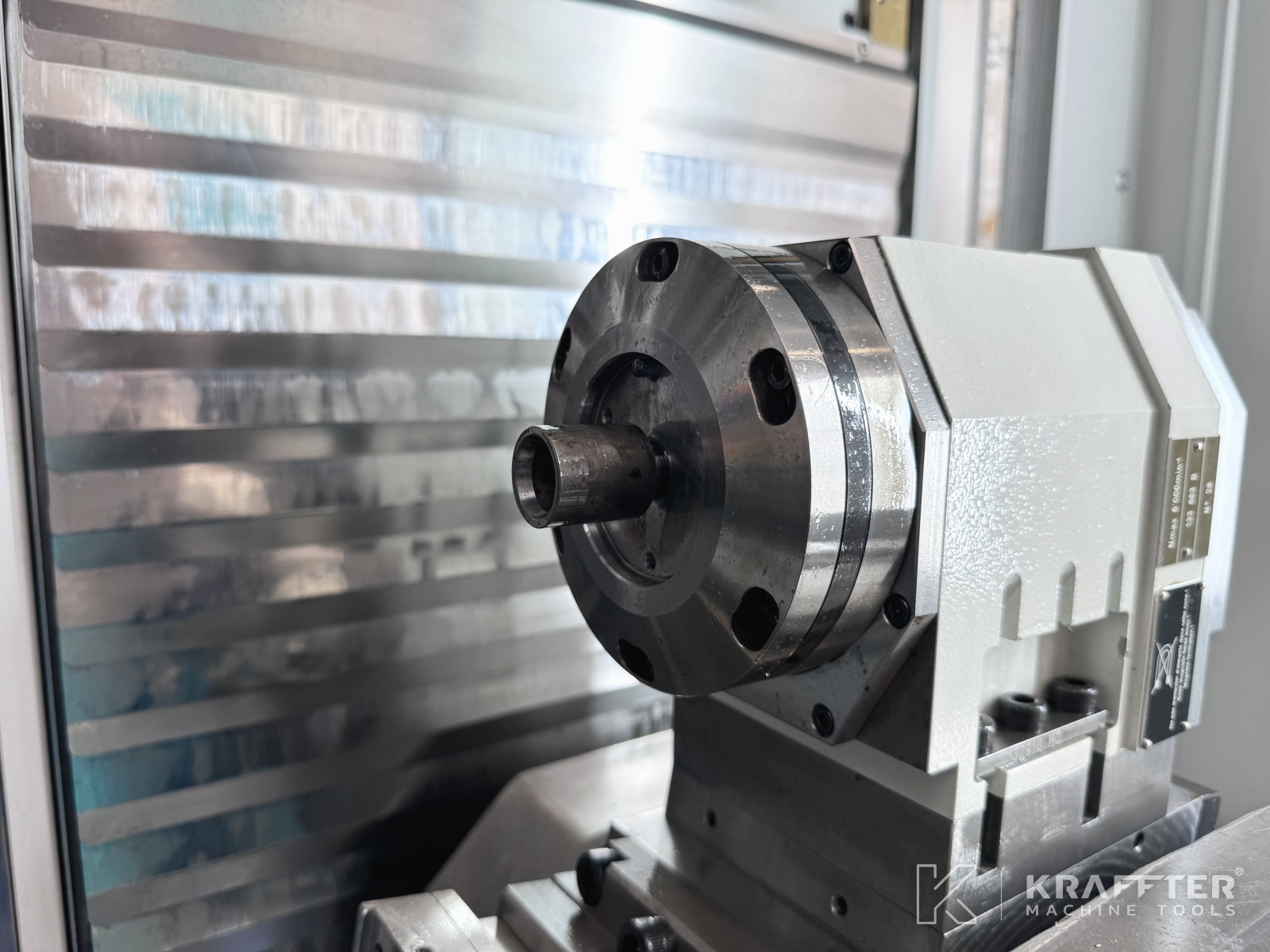

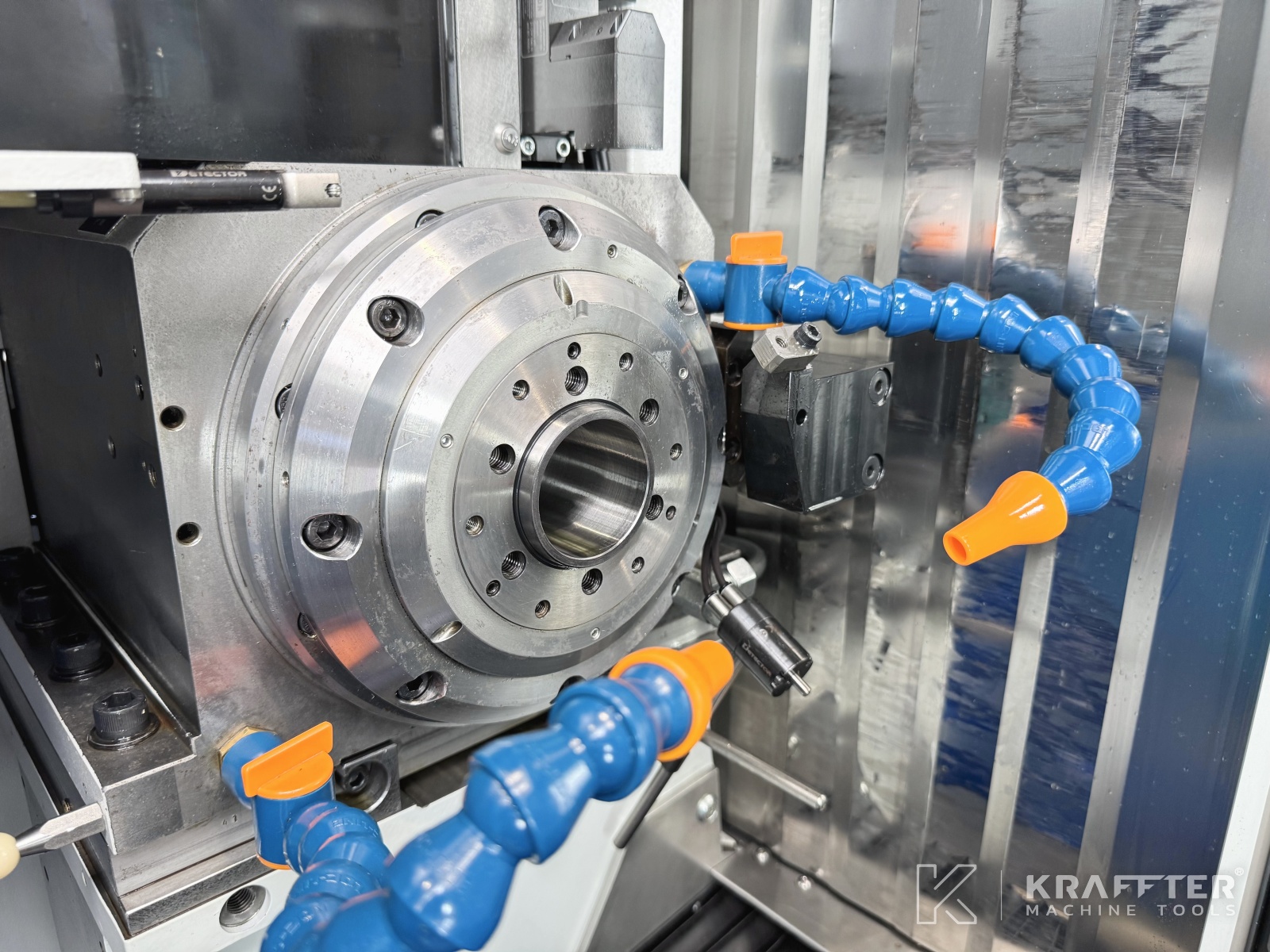

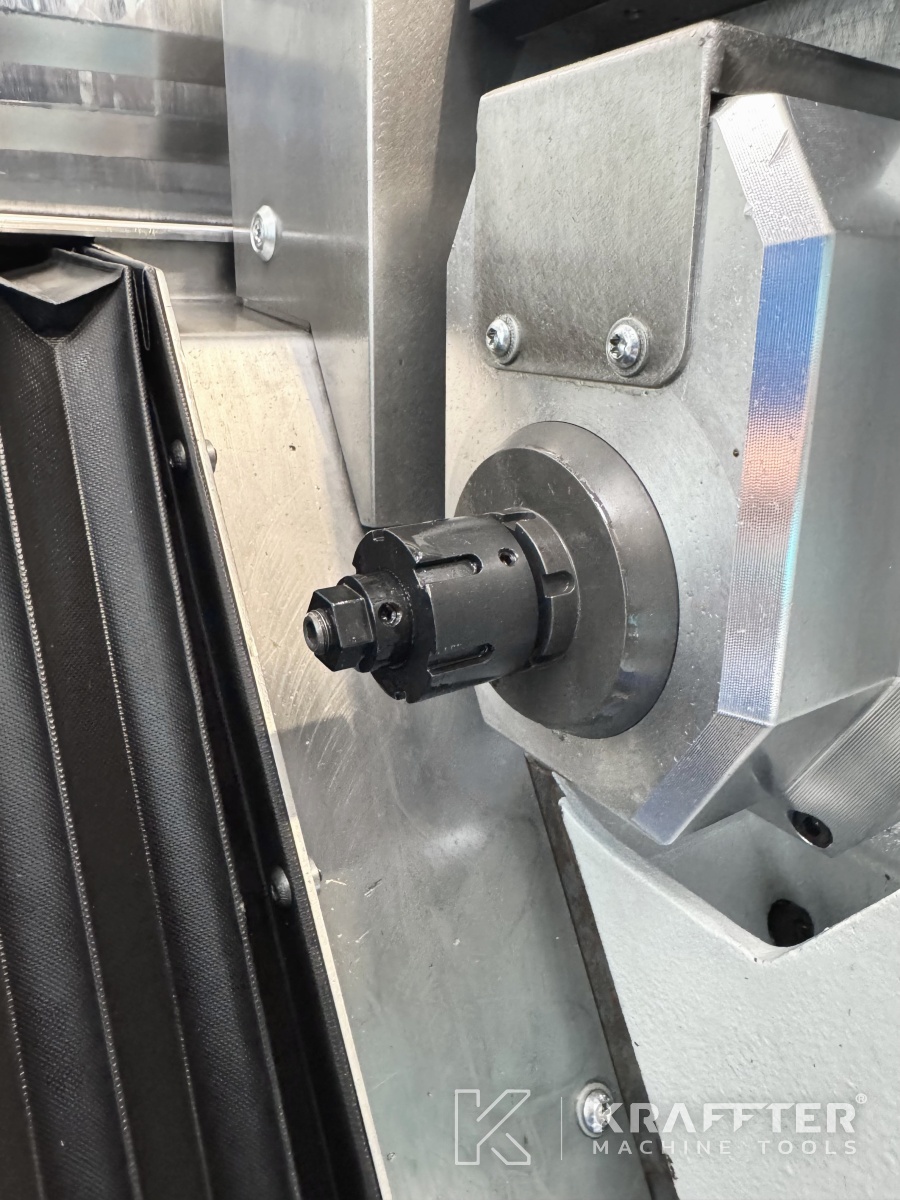

- x1 Counter-spindle on back working unit

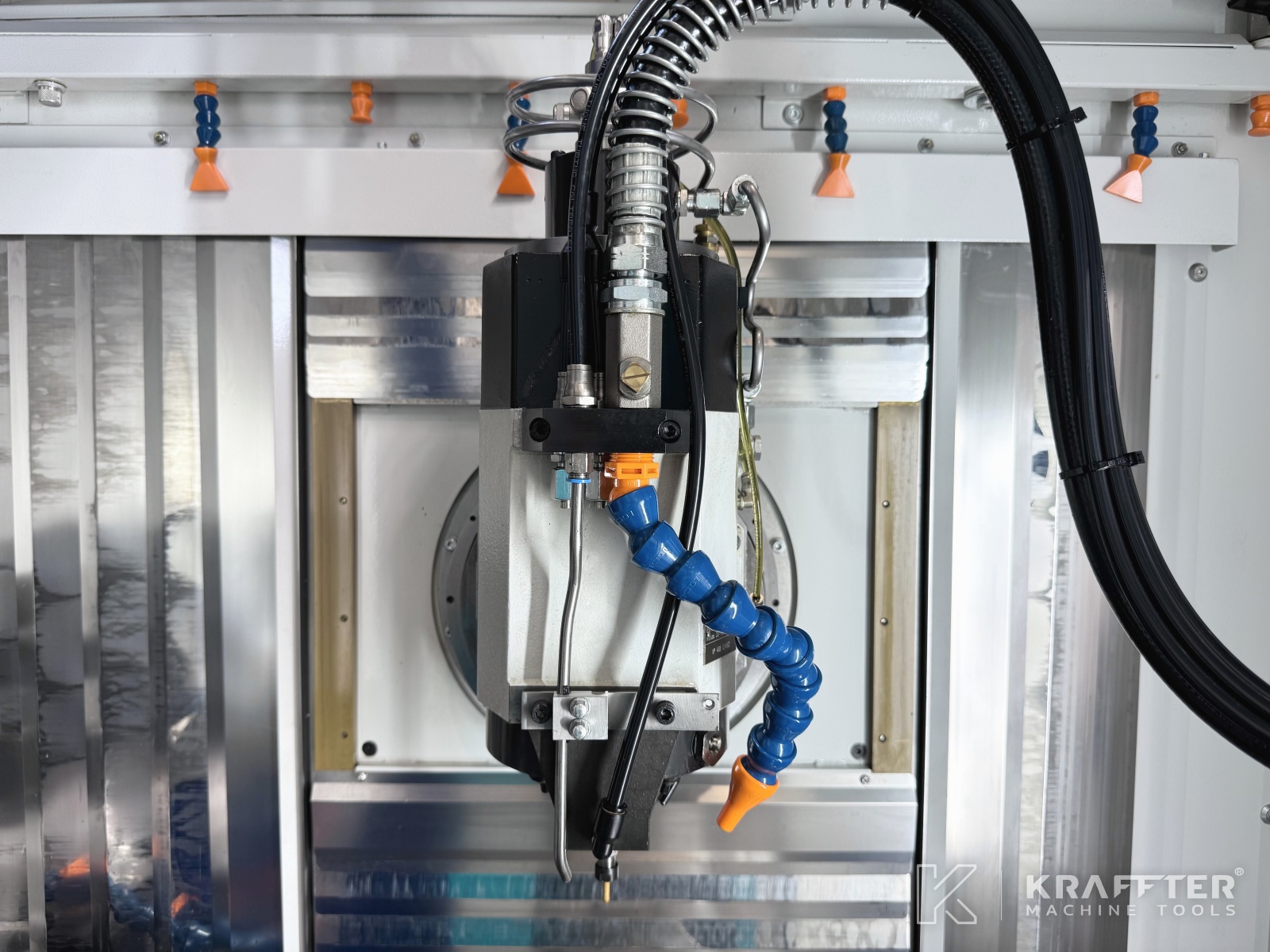

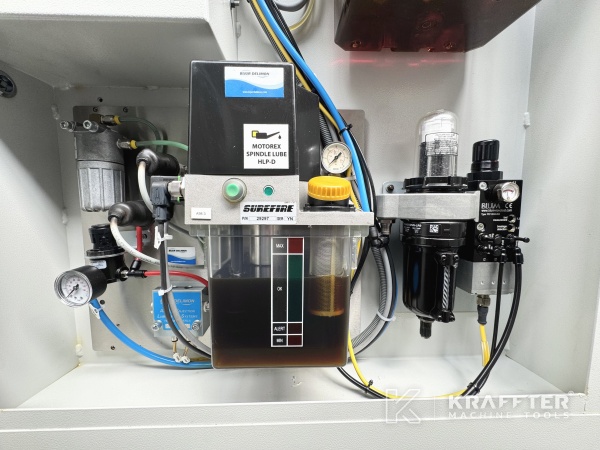

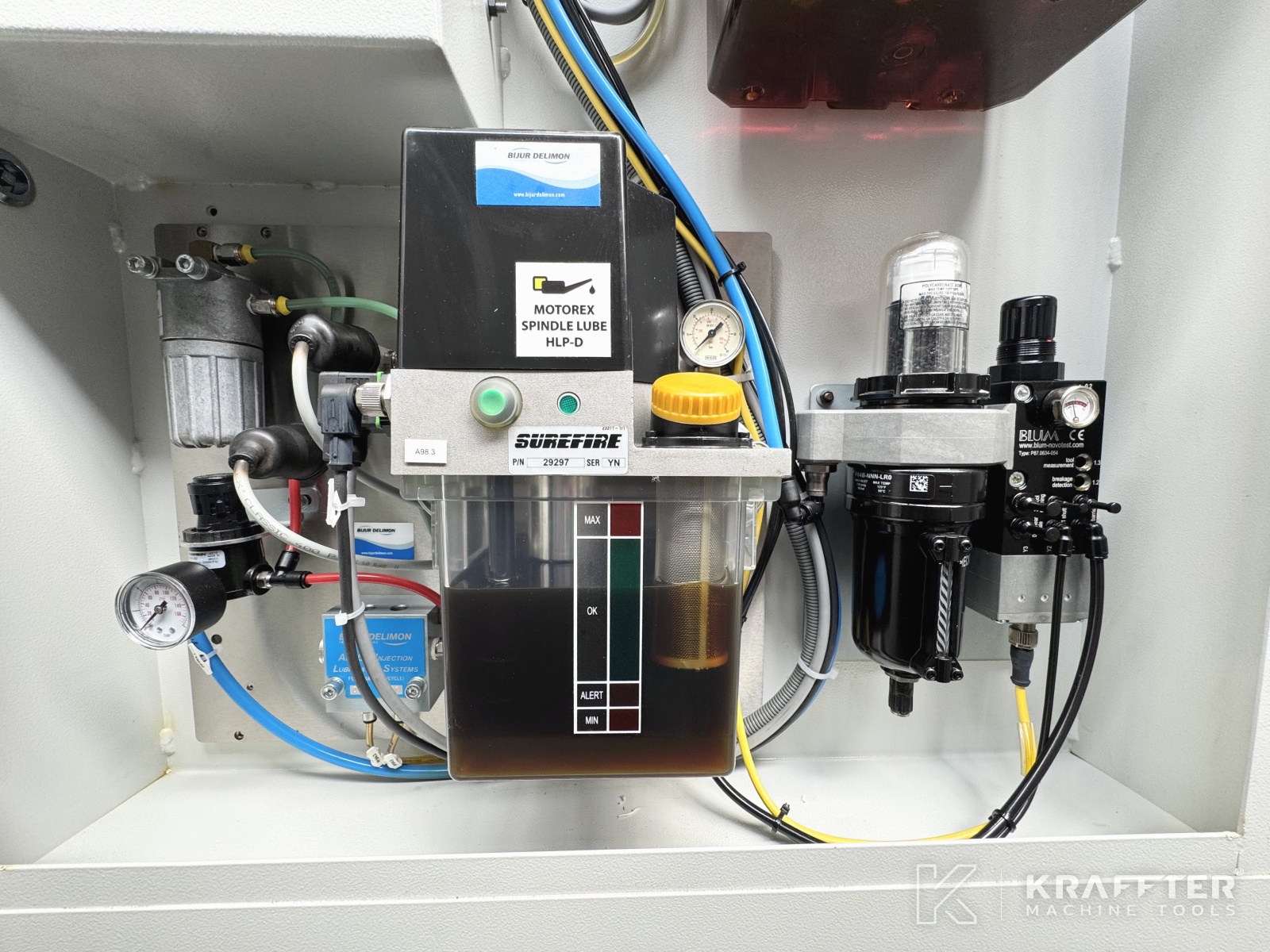

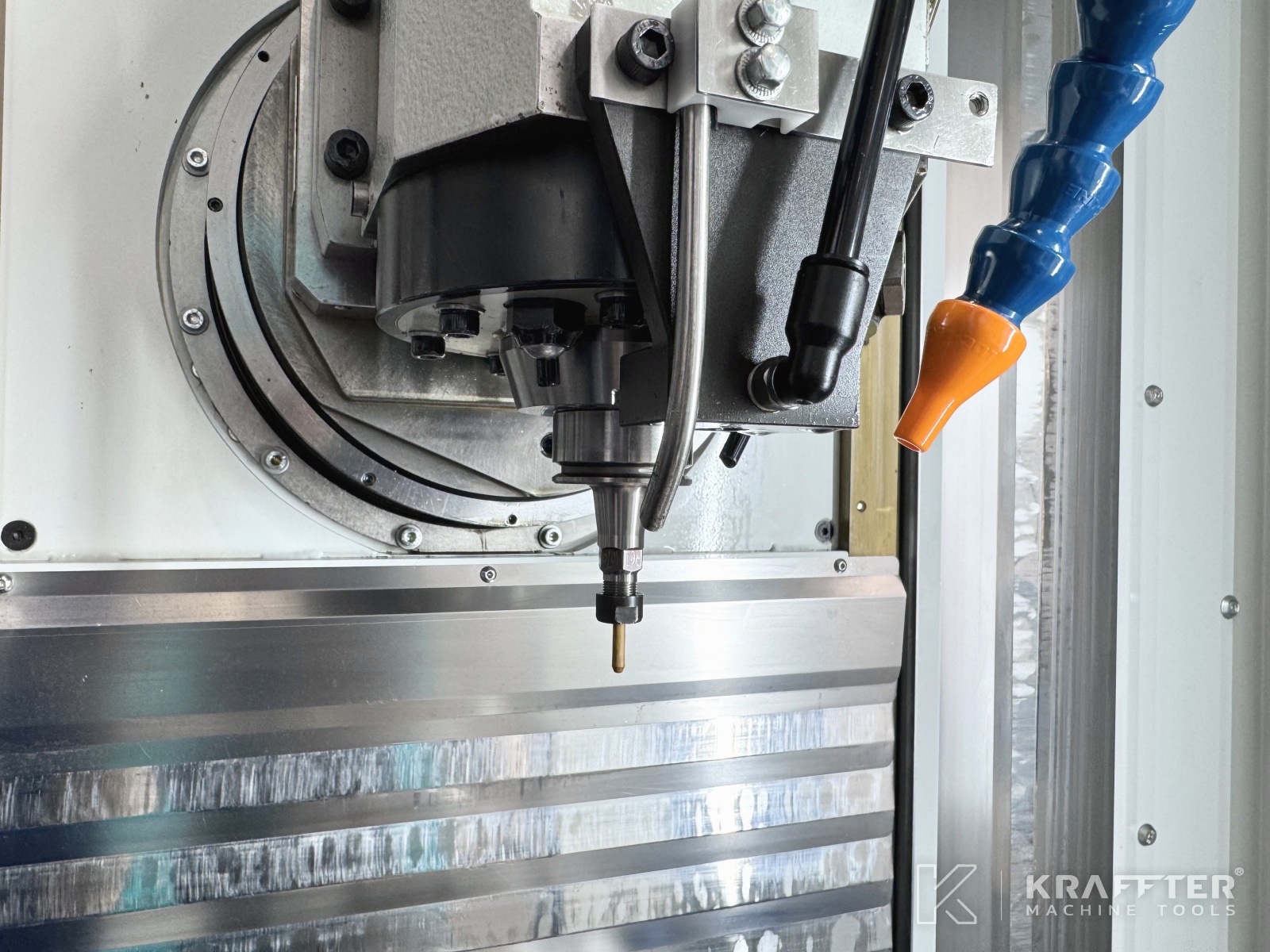

- x1 42,000 rpm spindle with air/oil lubrication

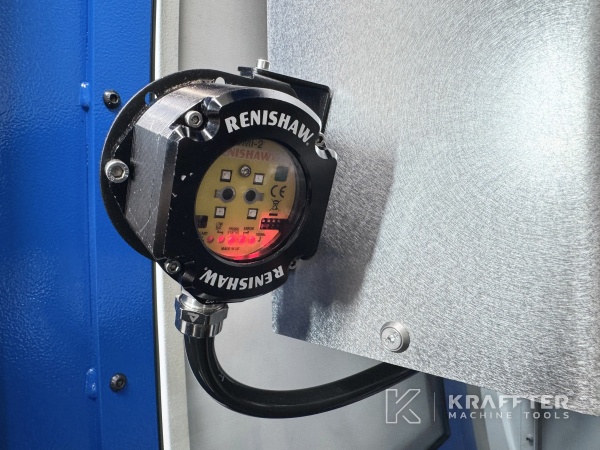

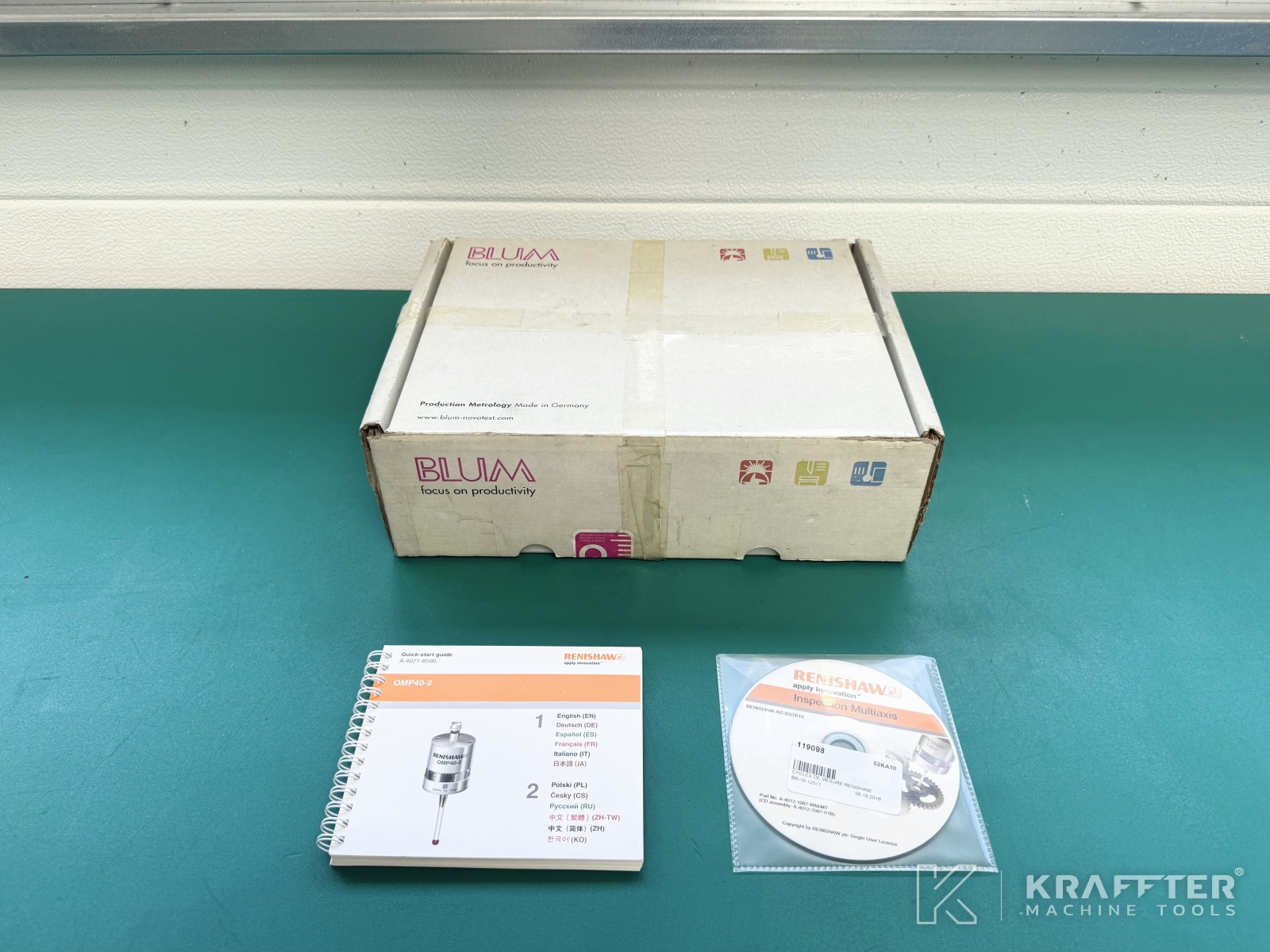

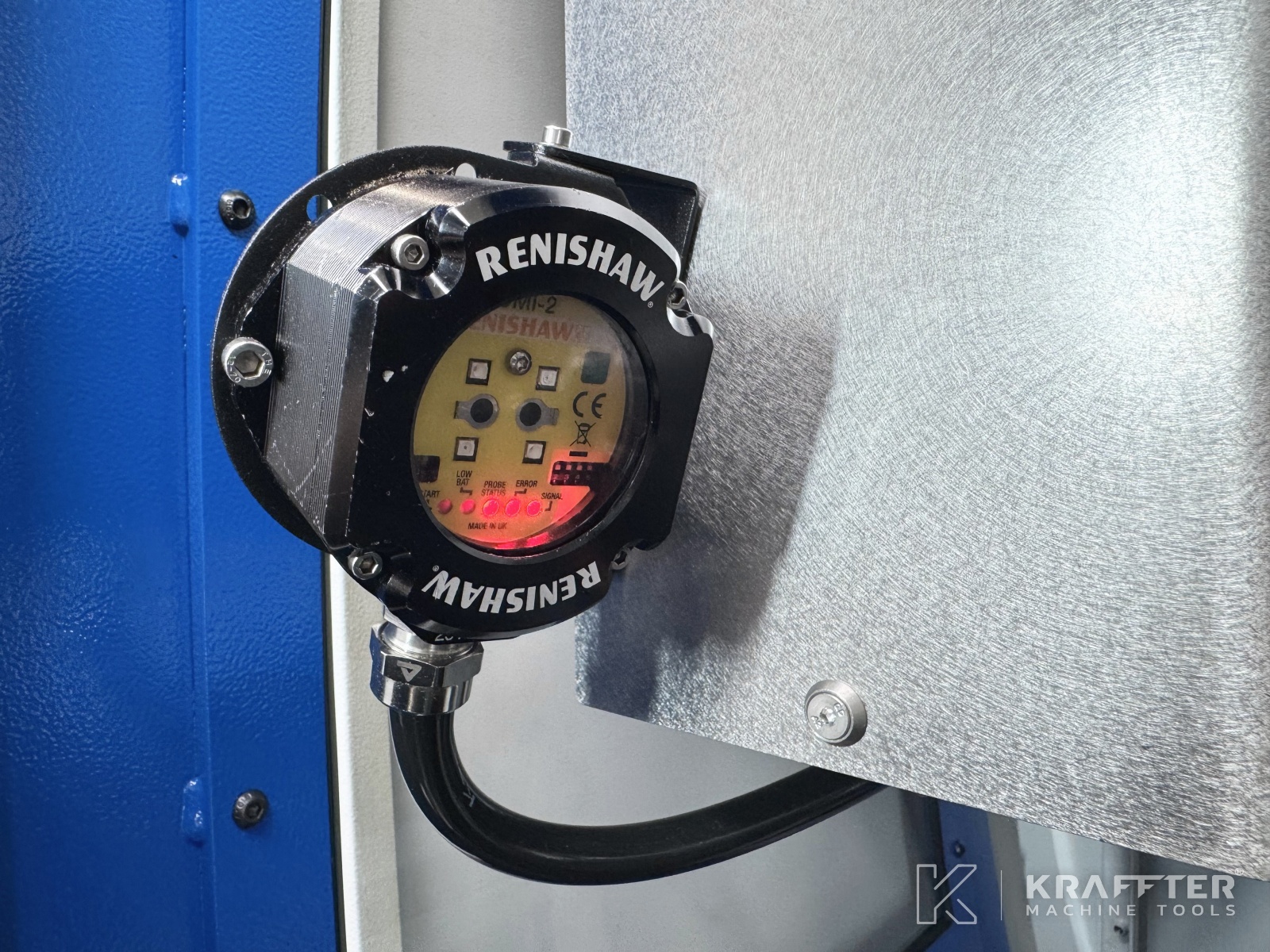

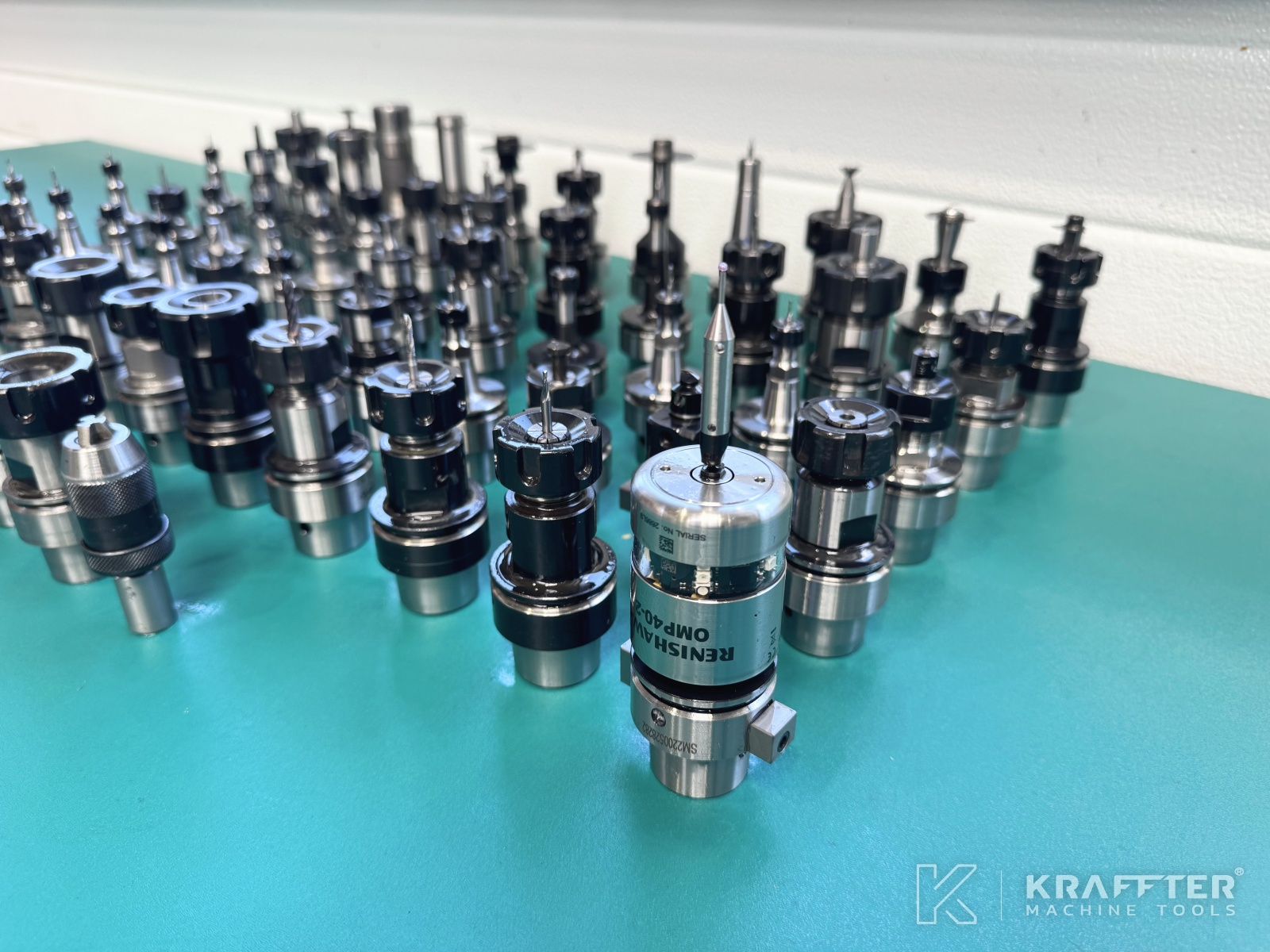

- x1 RENISHAW OMP40-2 part probe

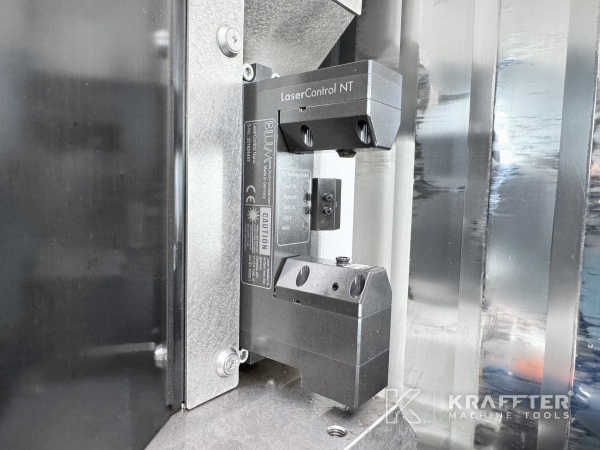

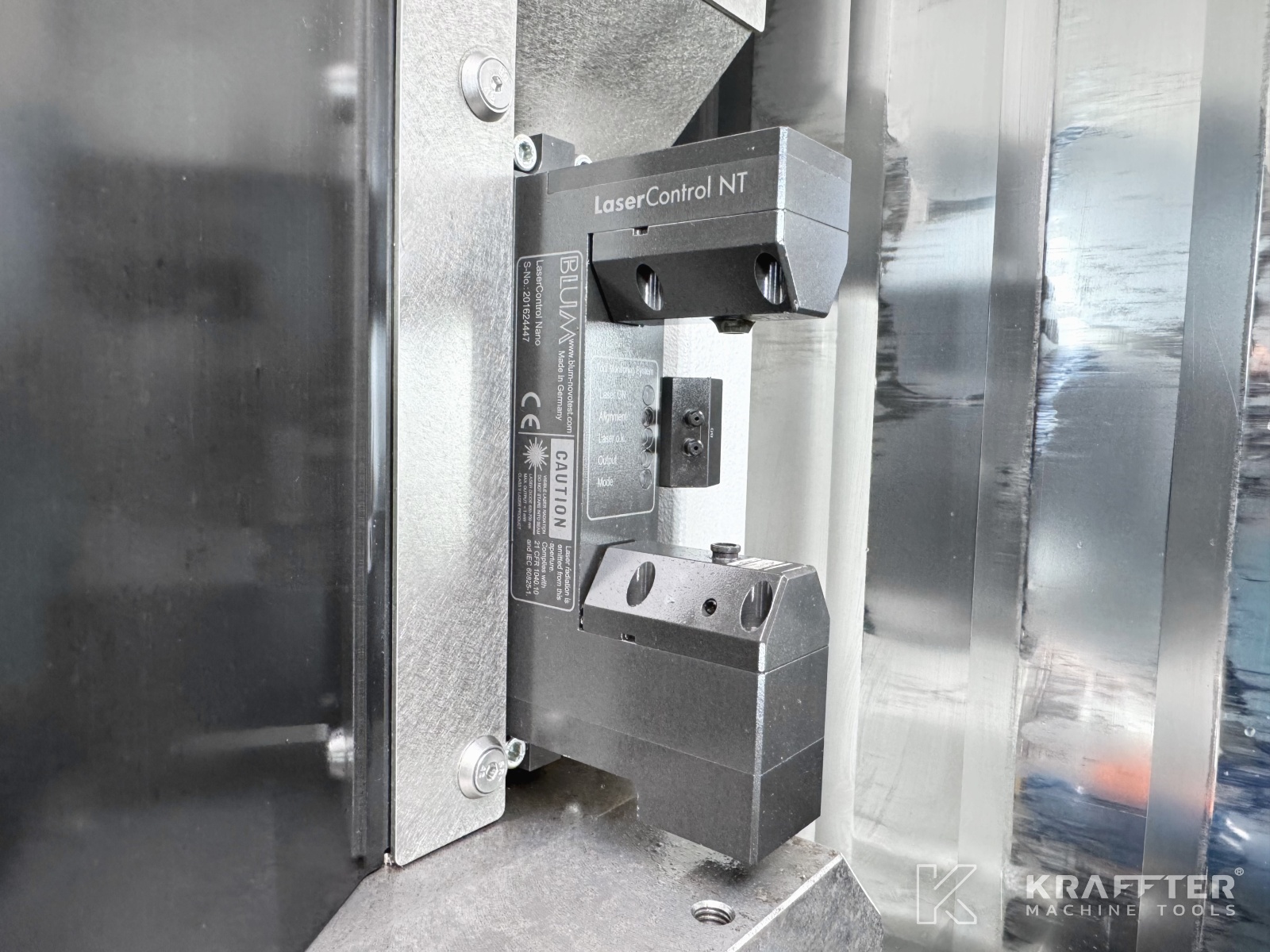

- x1 BLUM LaserControl NT laser measuring system for tool setting and tool monitoring

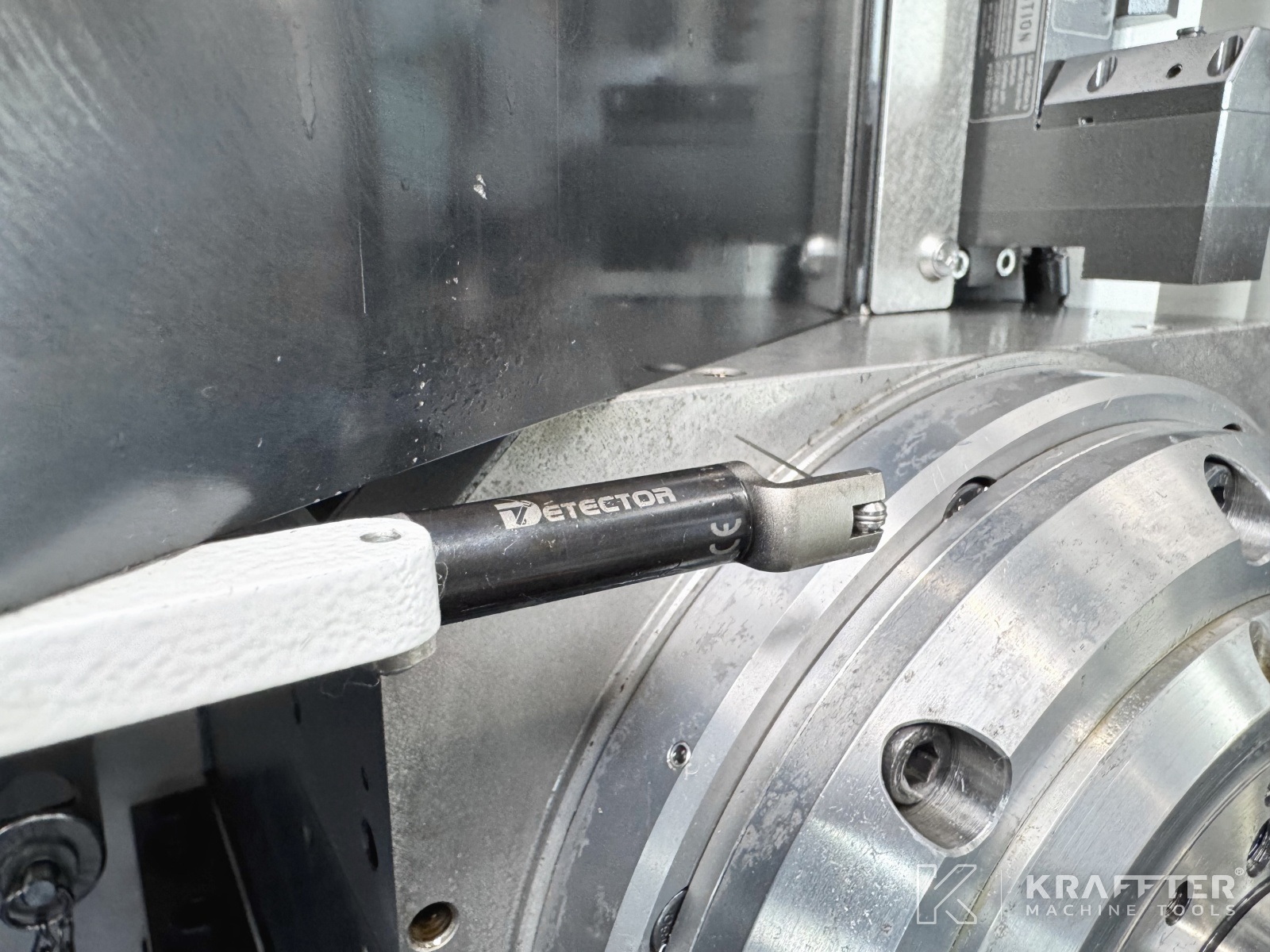

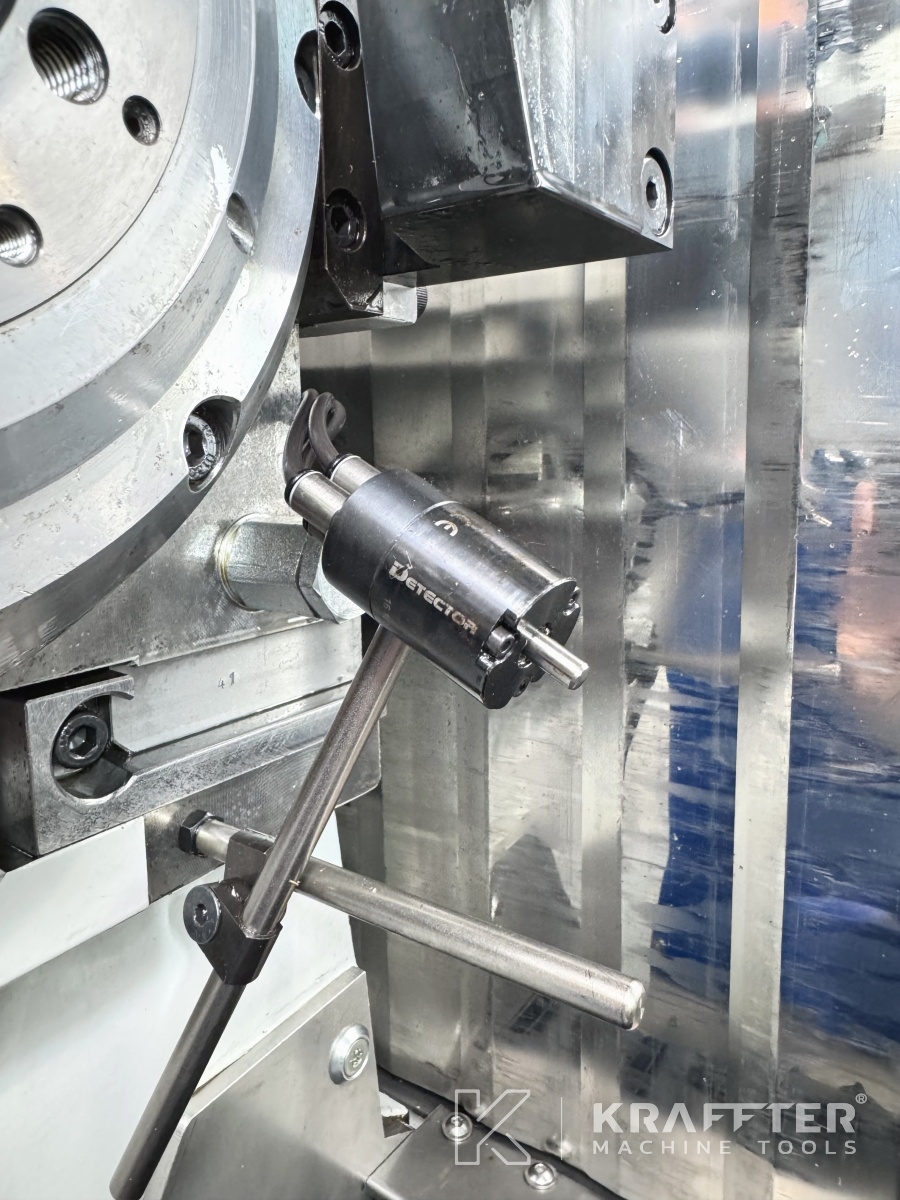

- x1 DETECTOR FRANCE type 202 tool breakage detection device

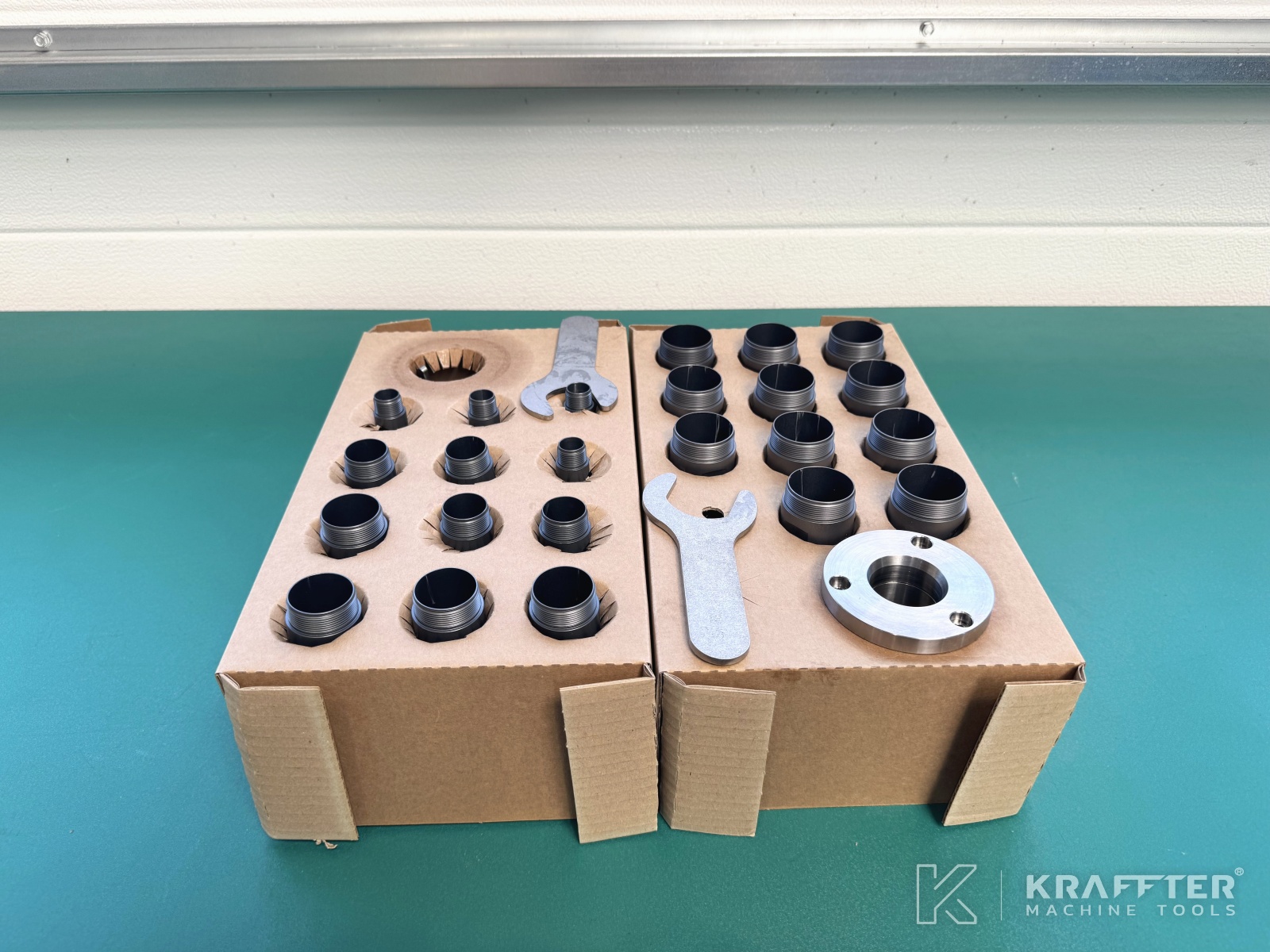

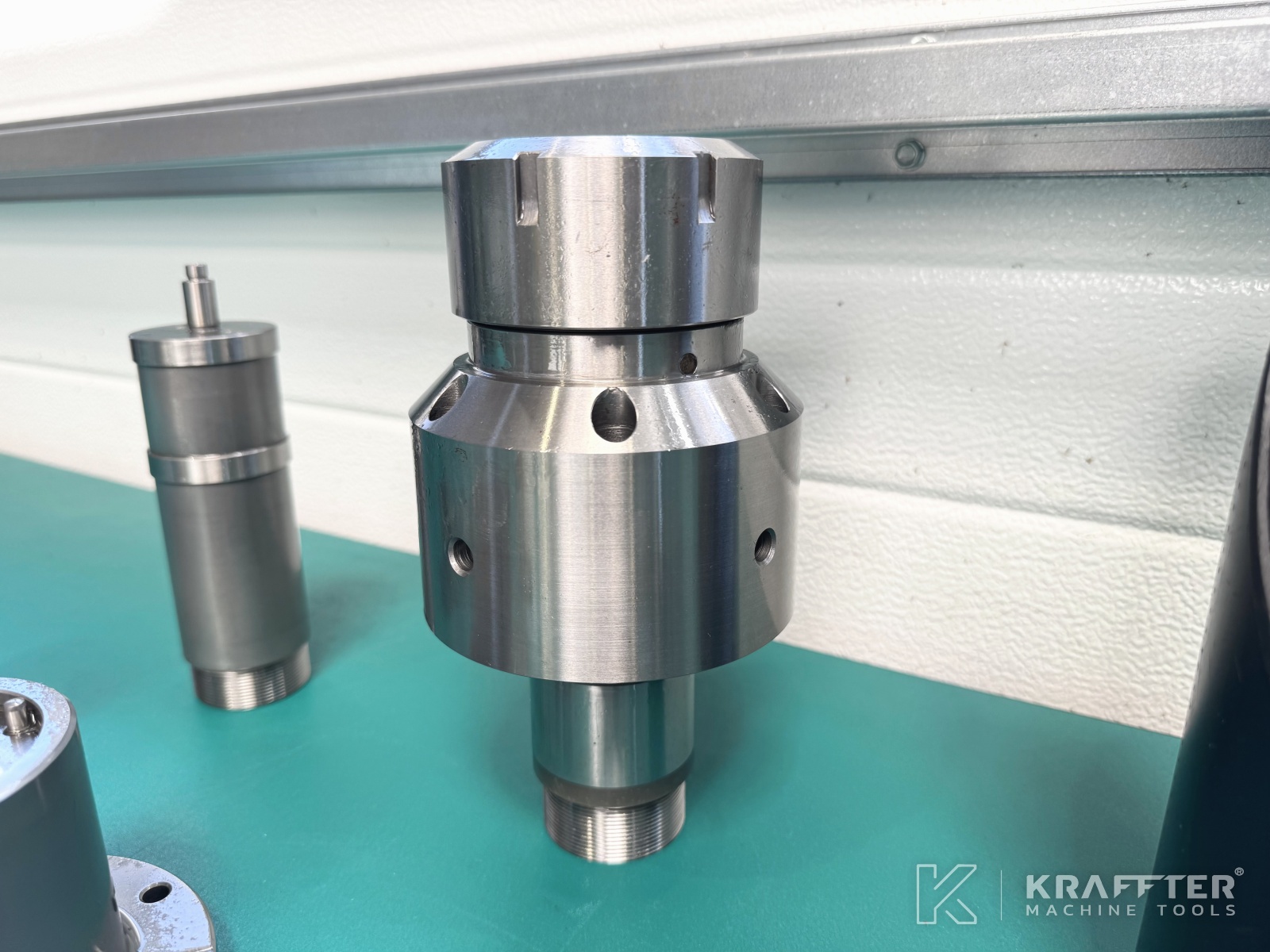

- x1 A2-4" collet chuck

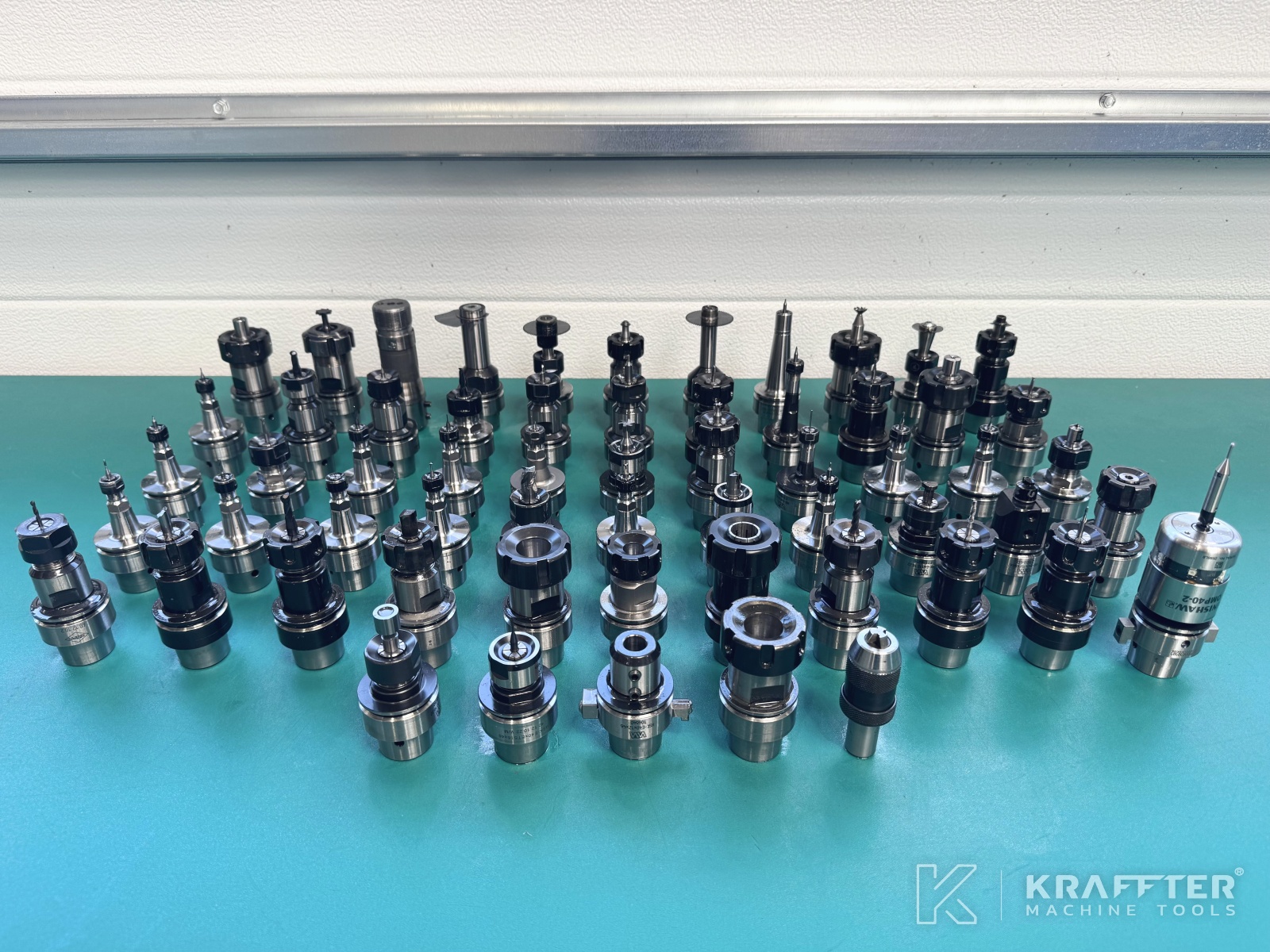

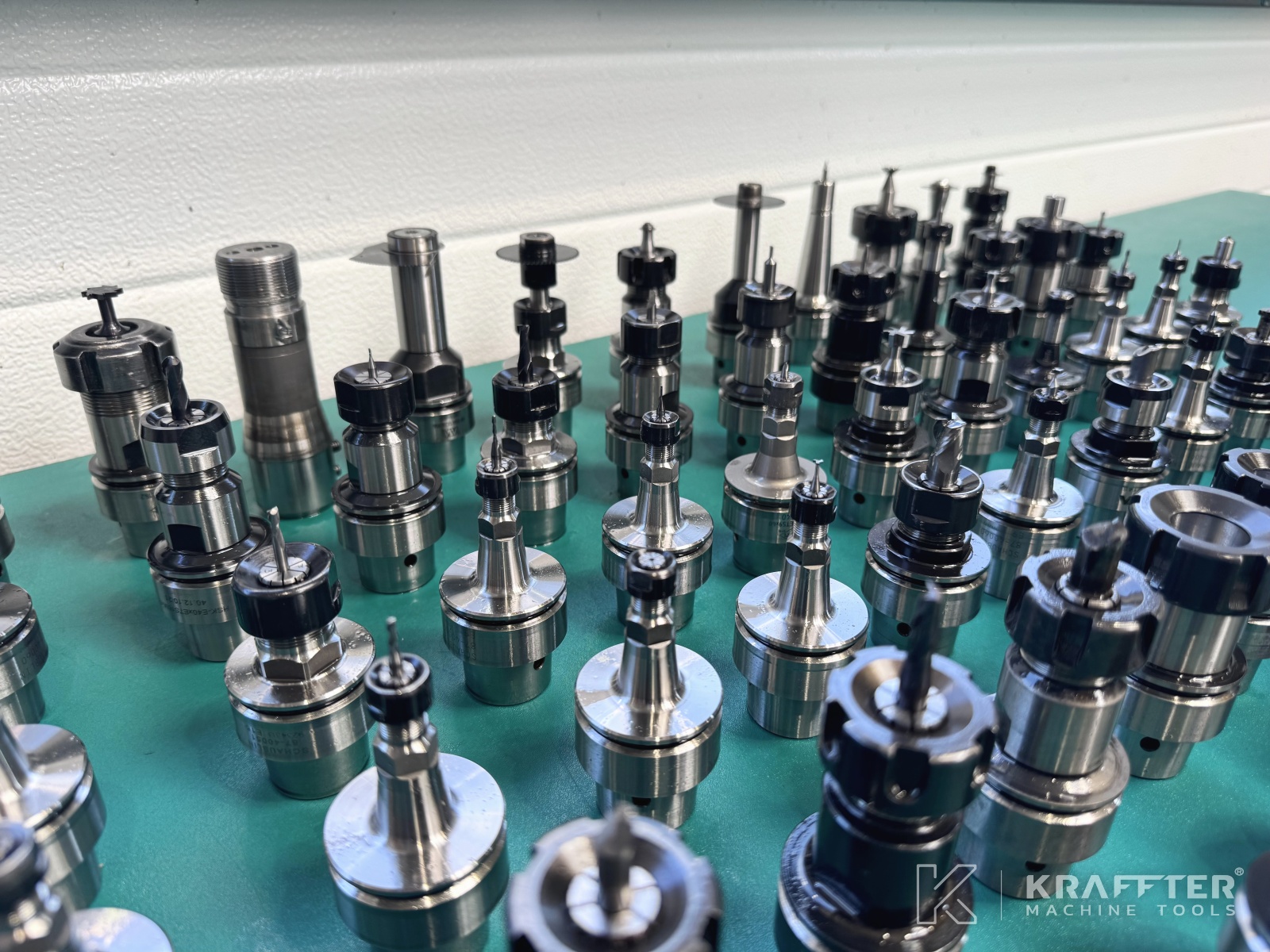

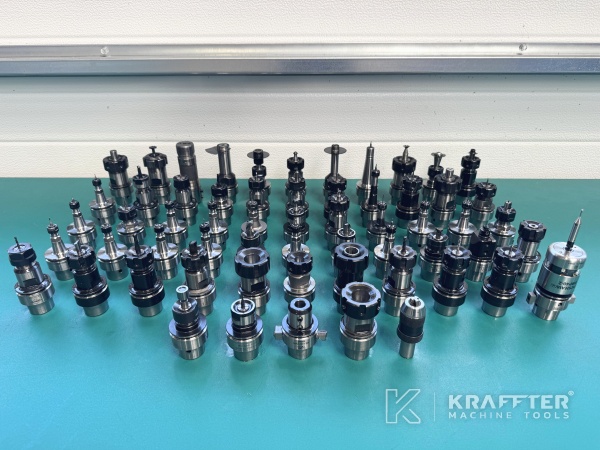

- x58 HSK-E40 tool holders
- x1 Self-tightening drill chuck

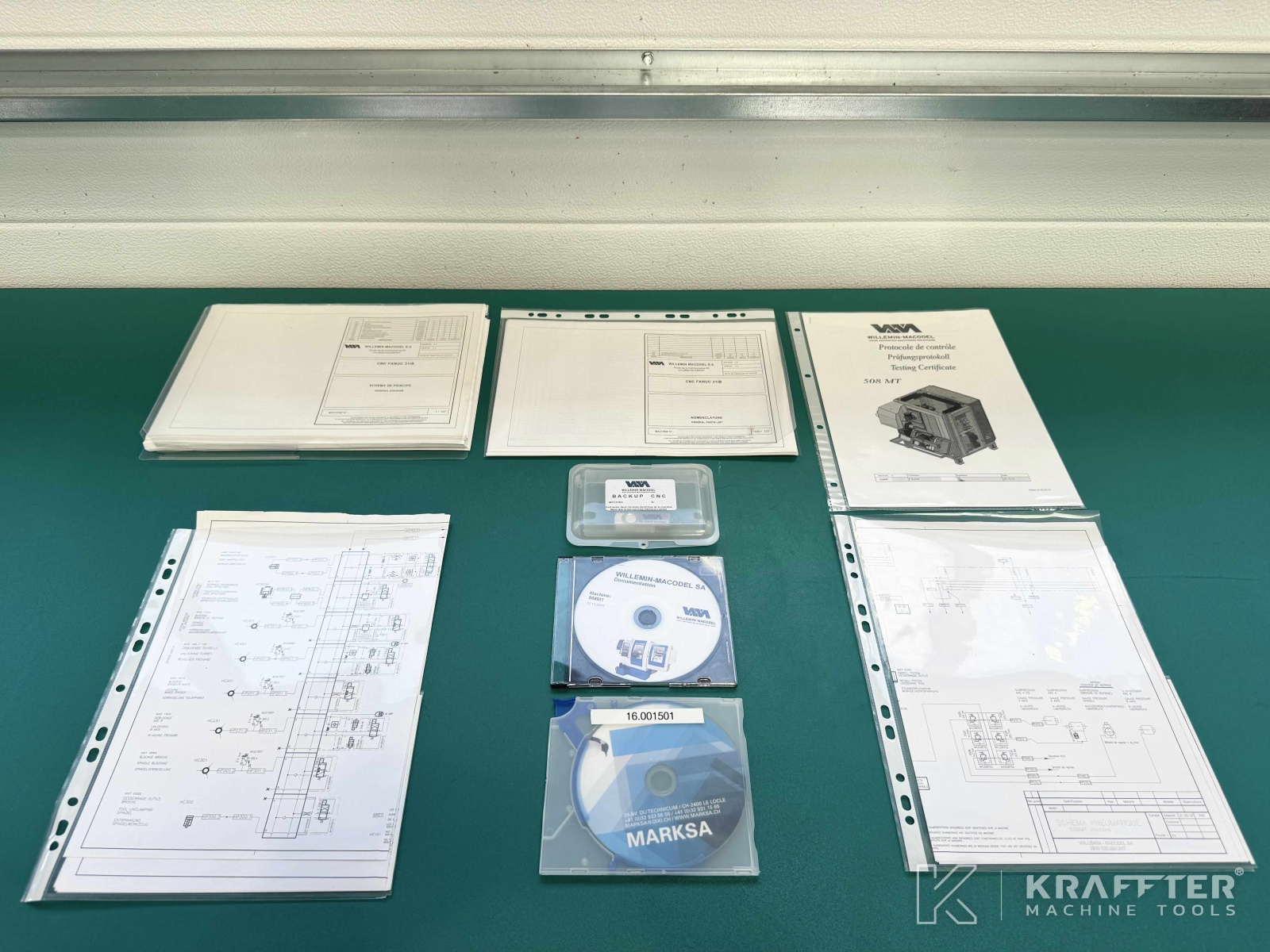

- x1 set of technical manuals
- x1 parameter backup system

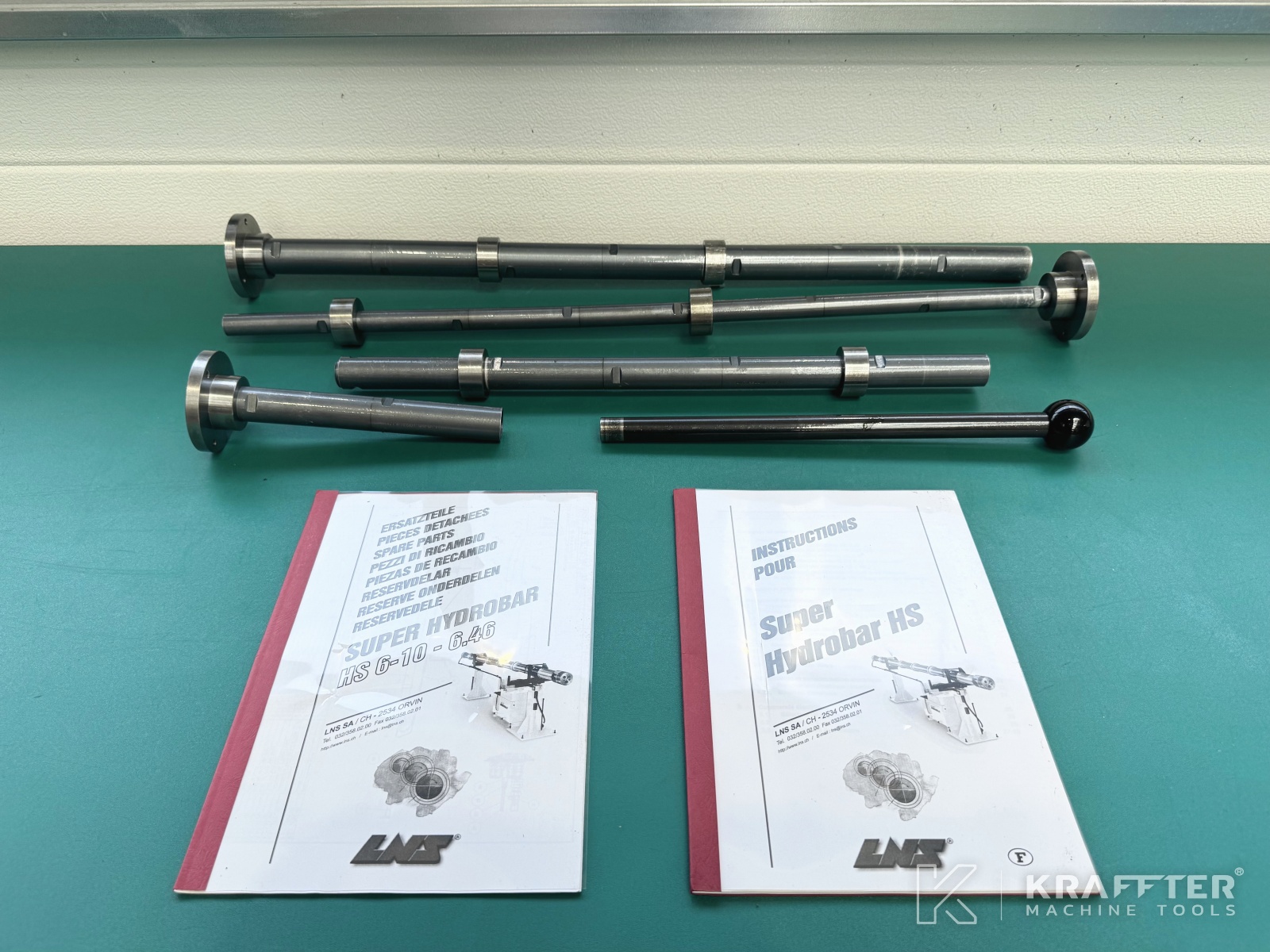

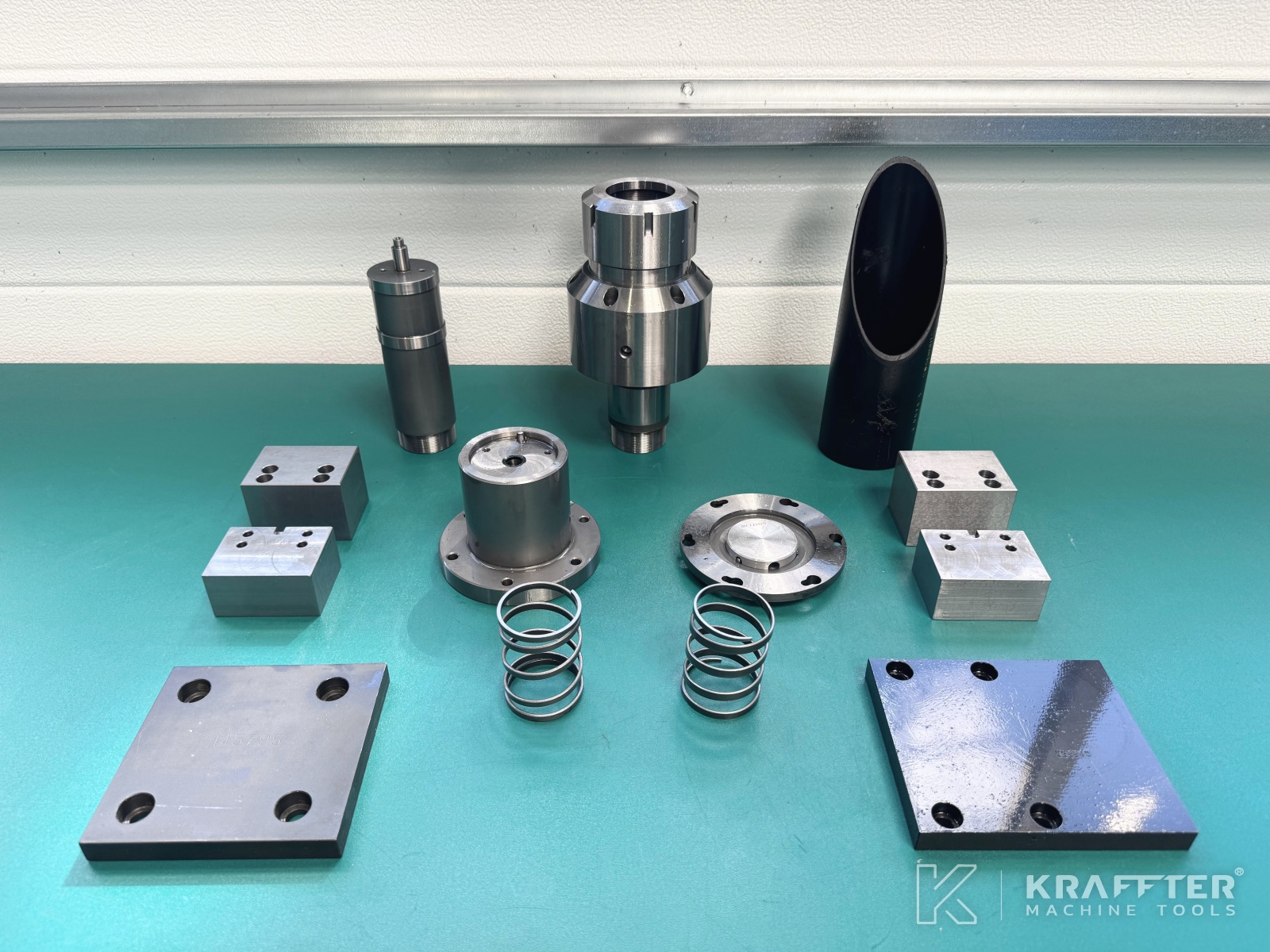

- Various equipment for LNS Super Hydrobar bar feeder
* Connection to an existing cooling water circuit is required.
