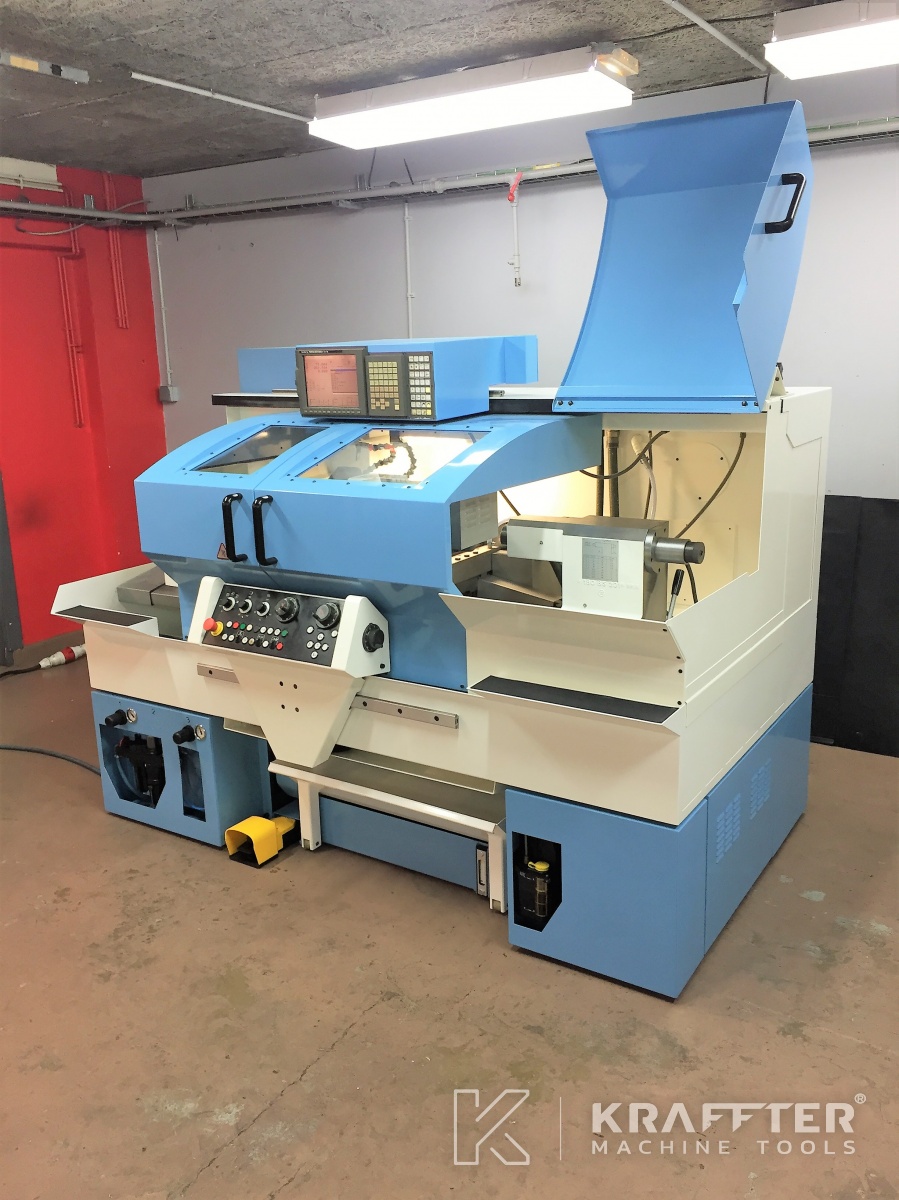

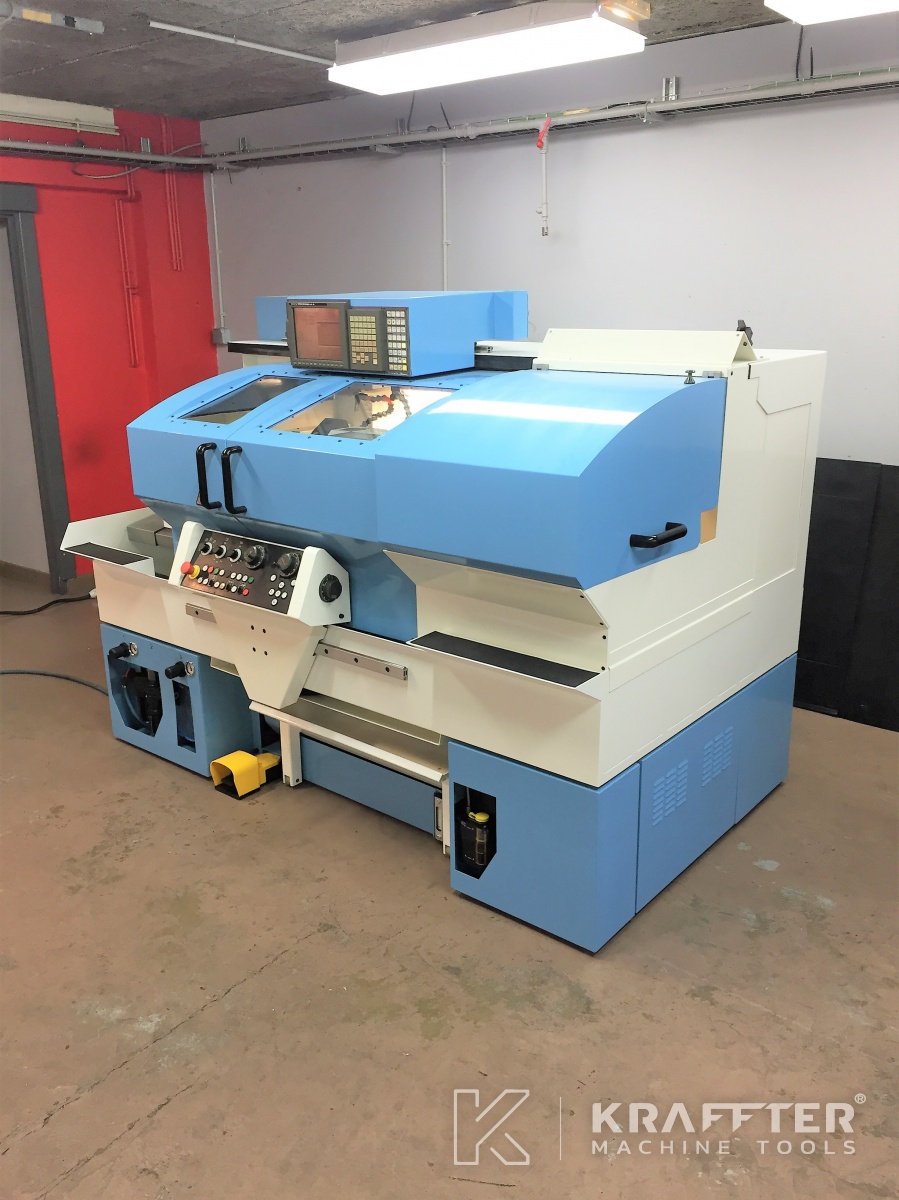

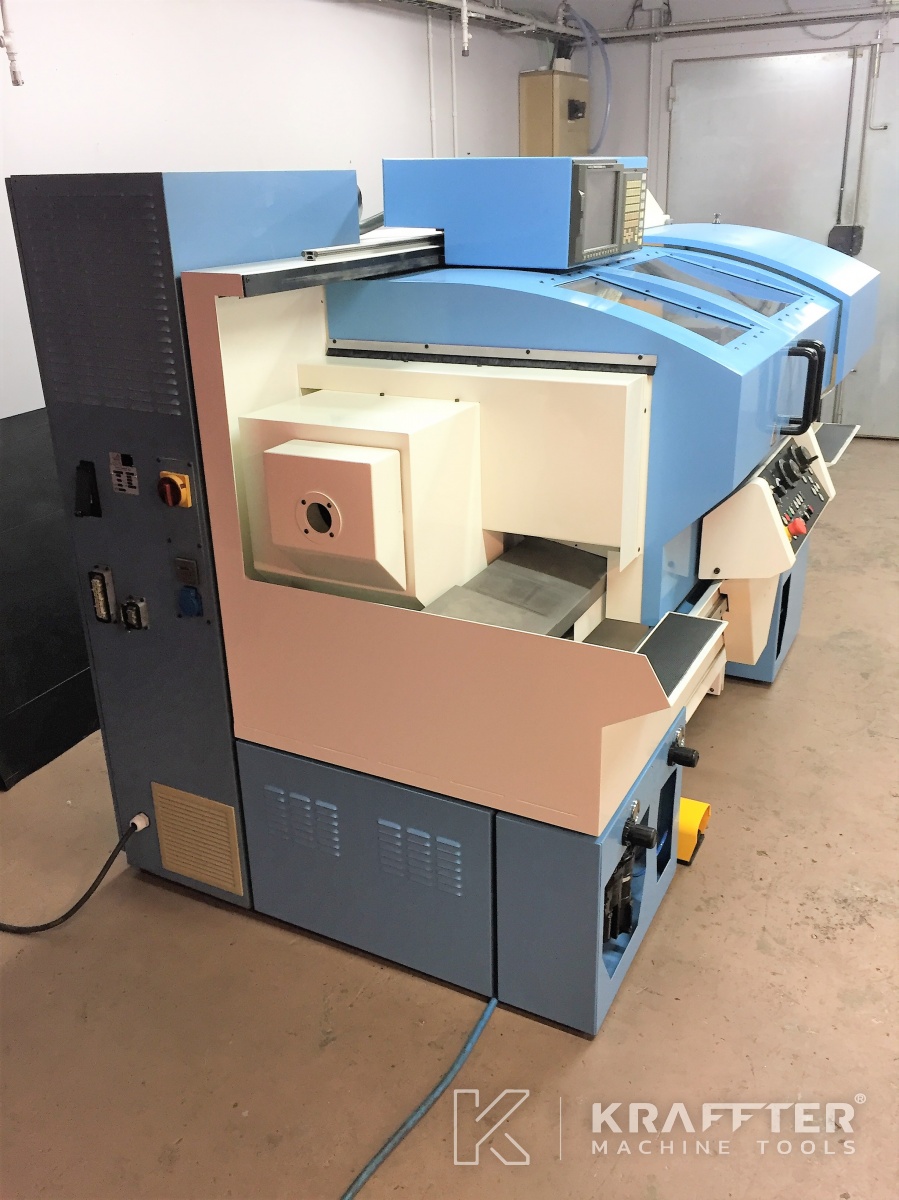

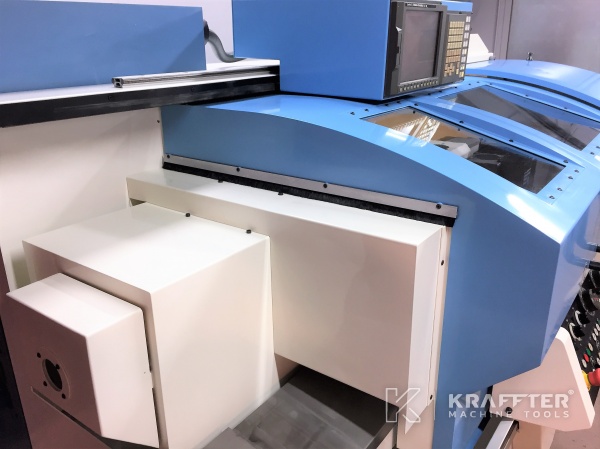

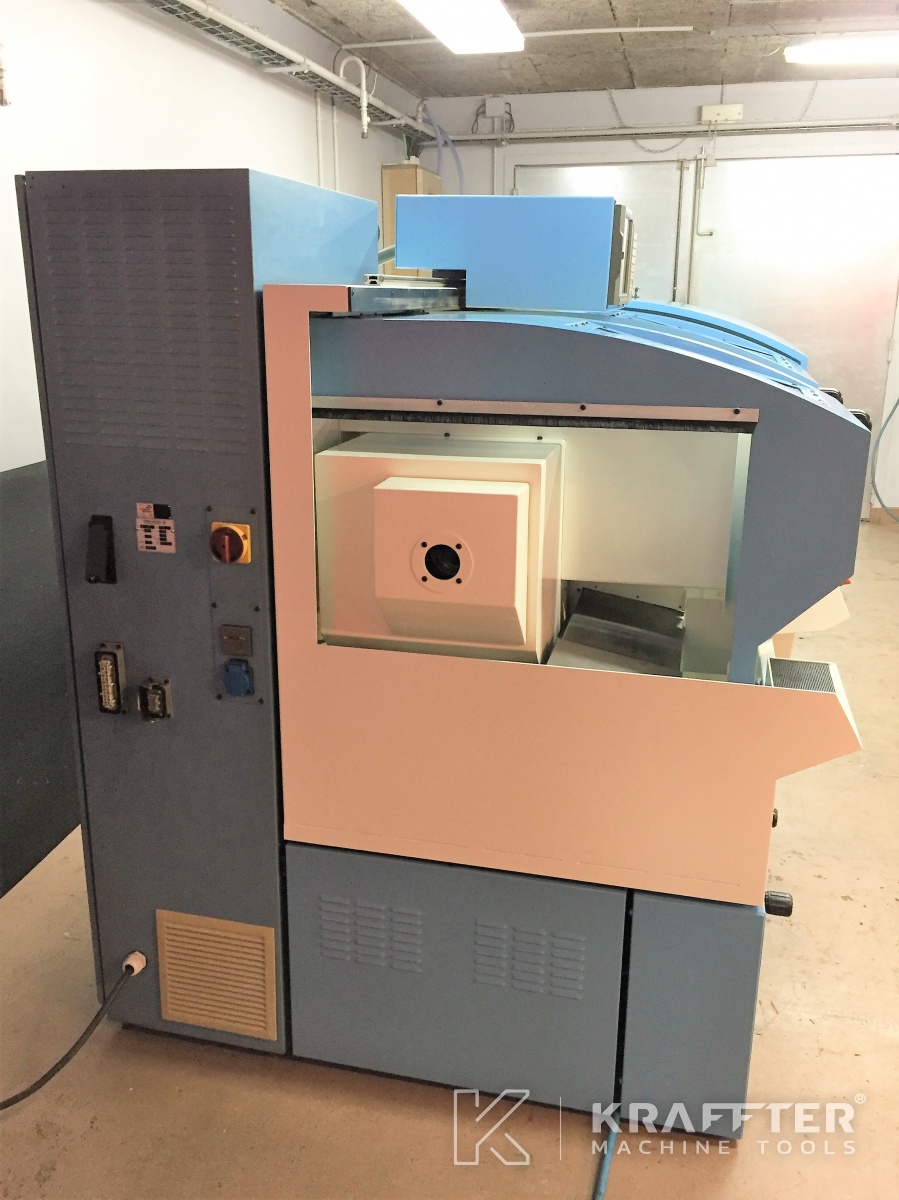

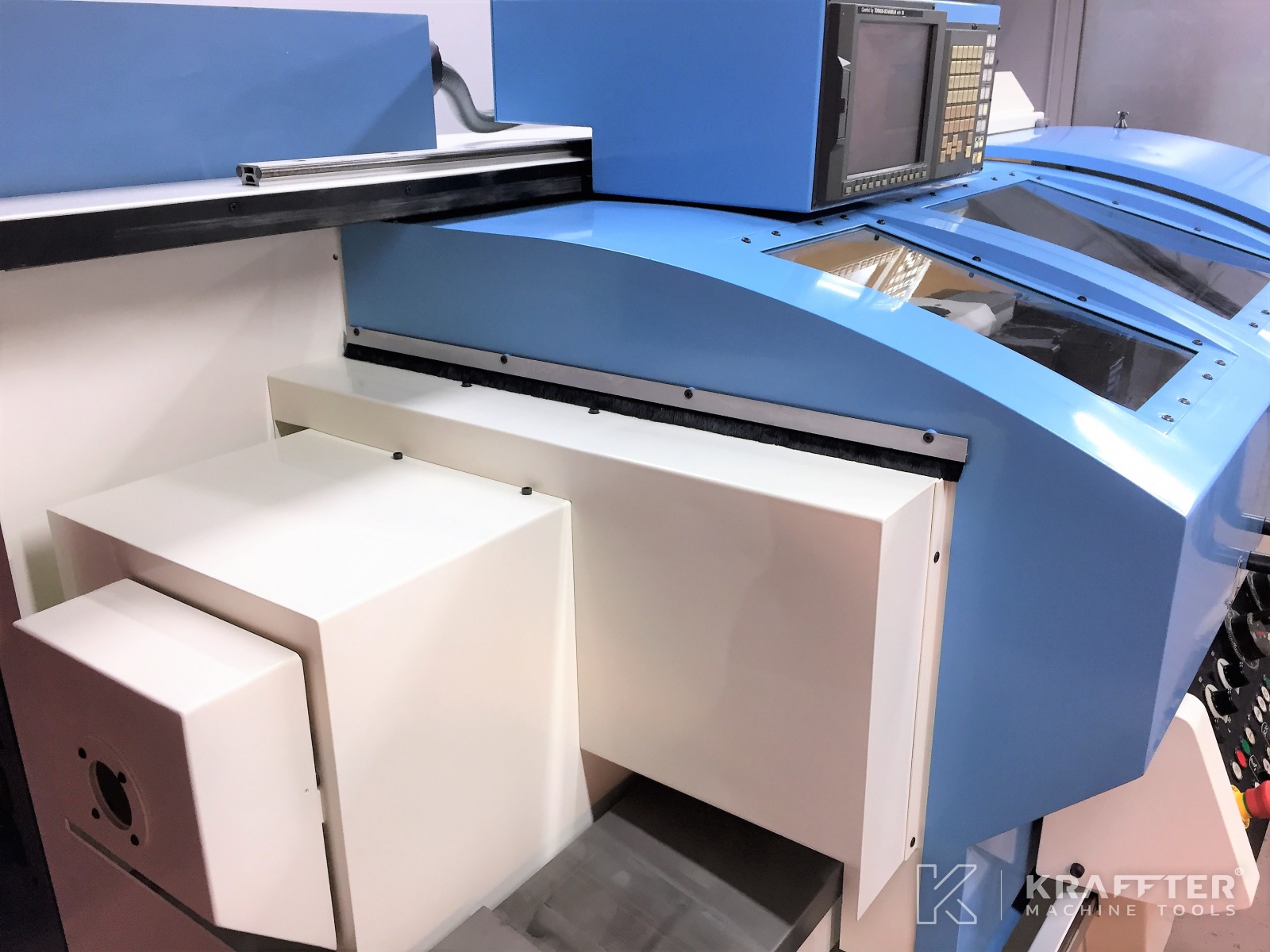

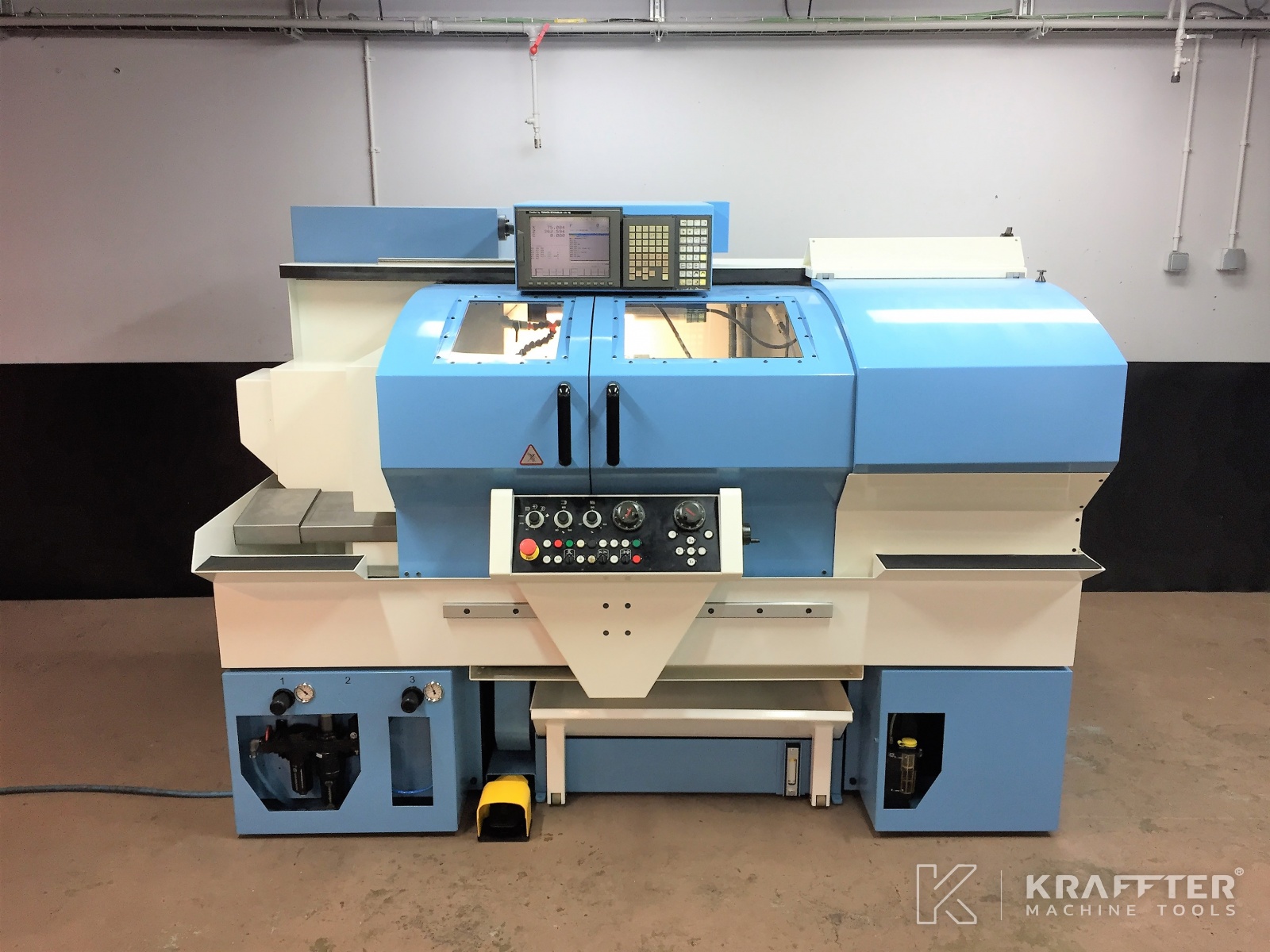

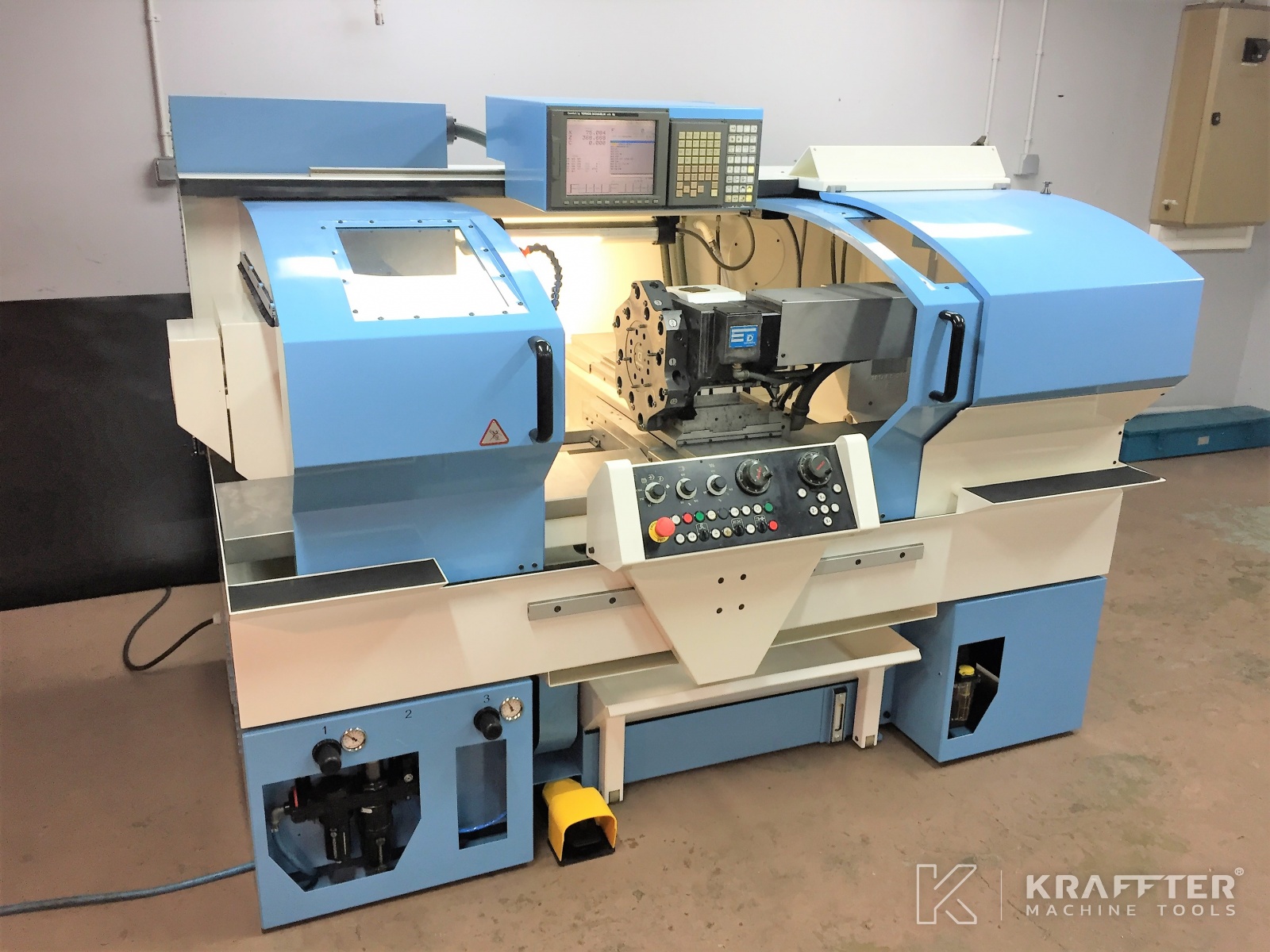

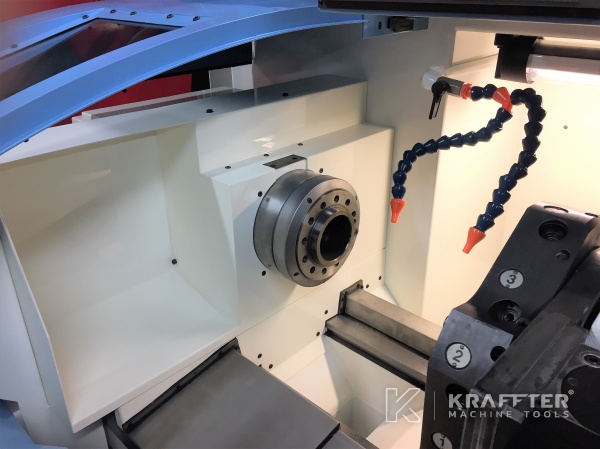

Type of machine : CNC lathe
Brand : SCHAUBLIN
Stock N° : 20689-916
Model : 180 CCN R-TM
Year : 2001
Location : 73520 Saint-Béron, FRANCE
Technical characteristics
Additional information
Request a quotation

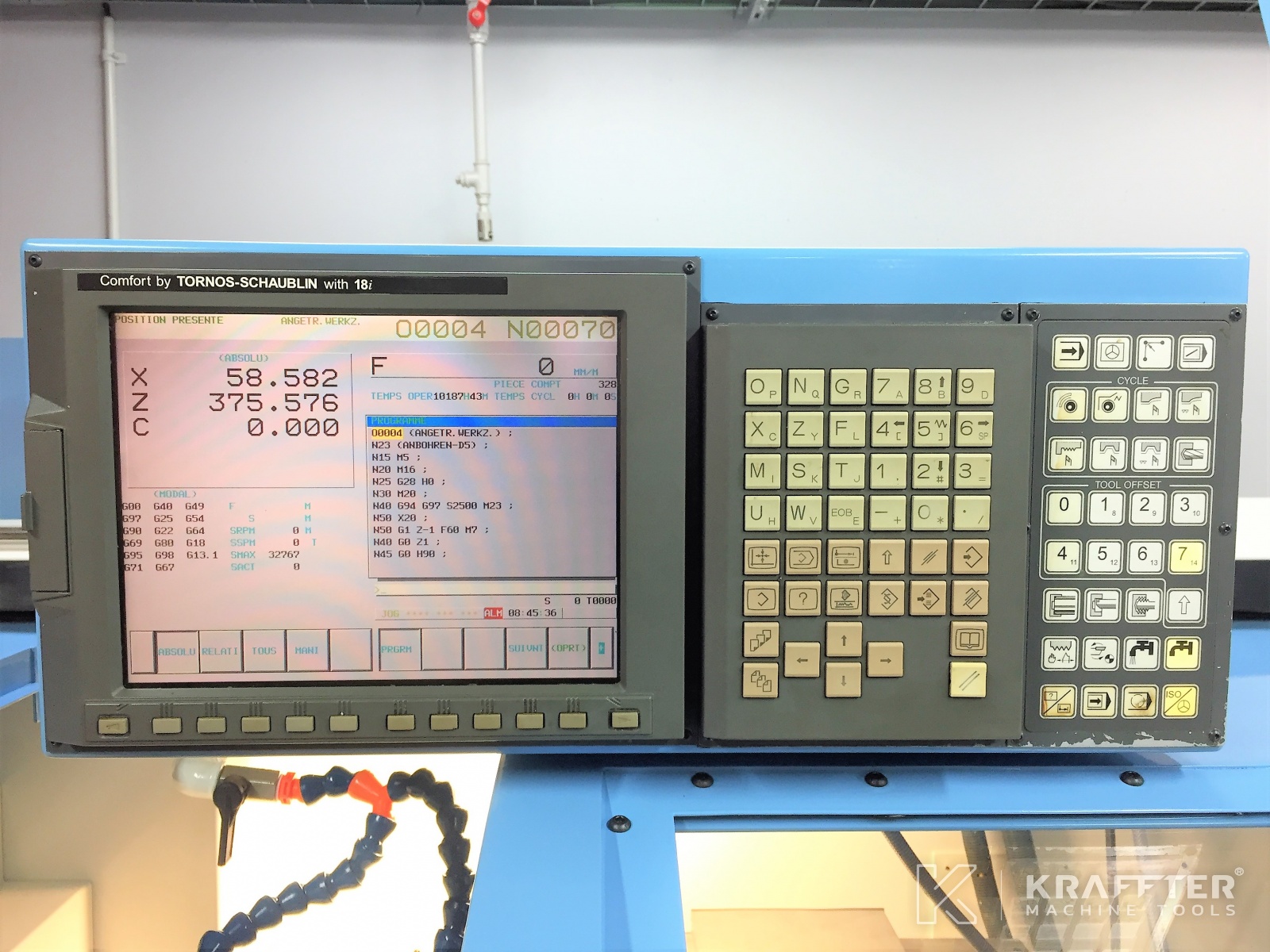

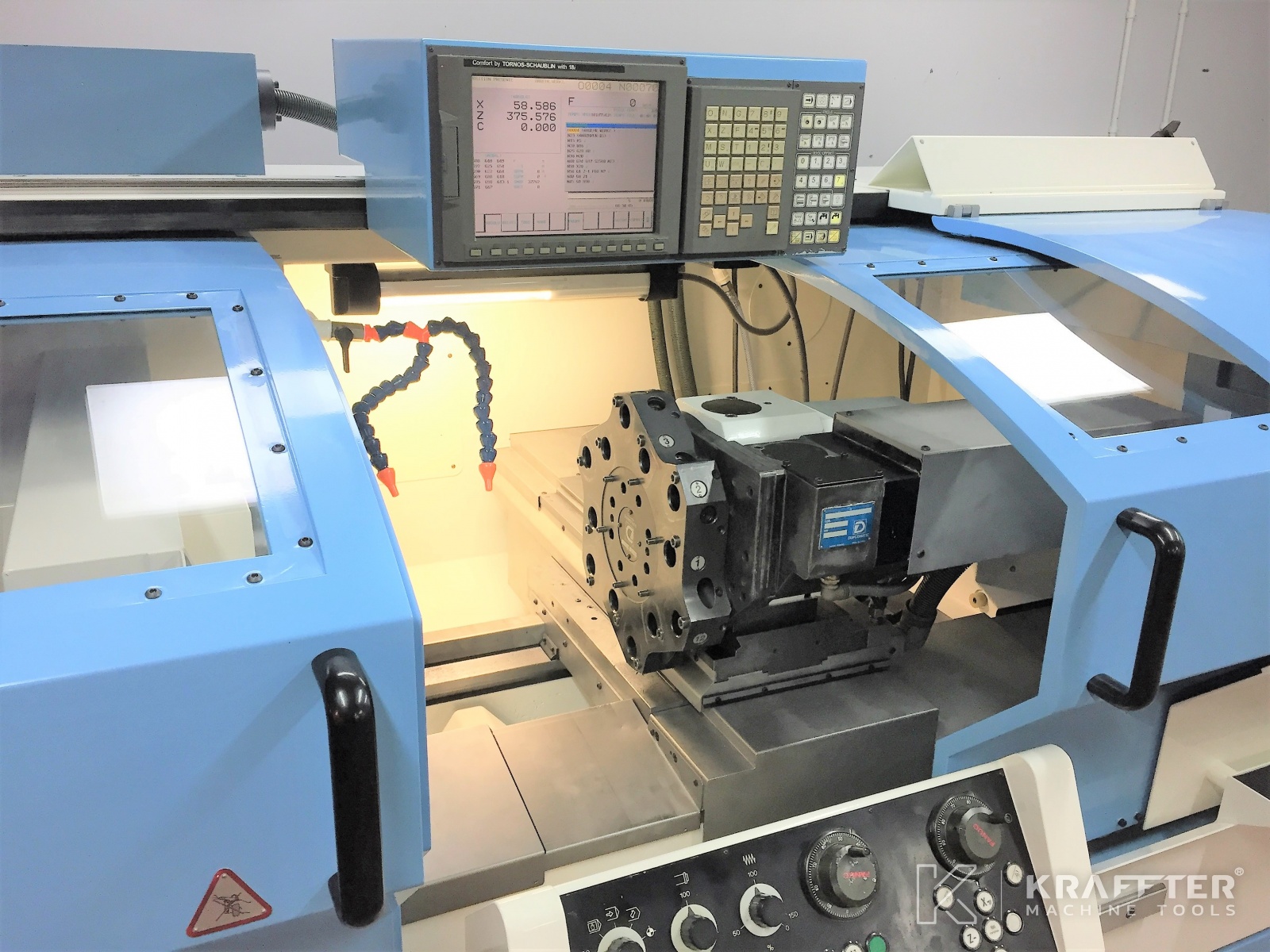

CNC control
FANUC 18i
Number of axes
3
Height of centers
280 [mm]
Max. turning diameter
270 [mm]
Height of centers over cariage
160 [mm]

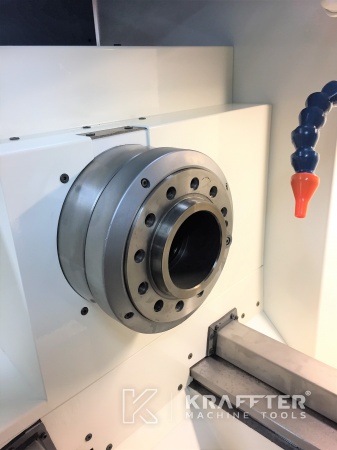

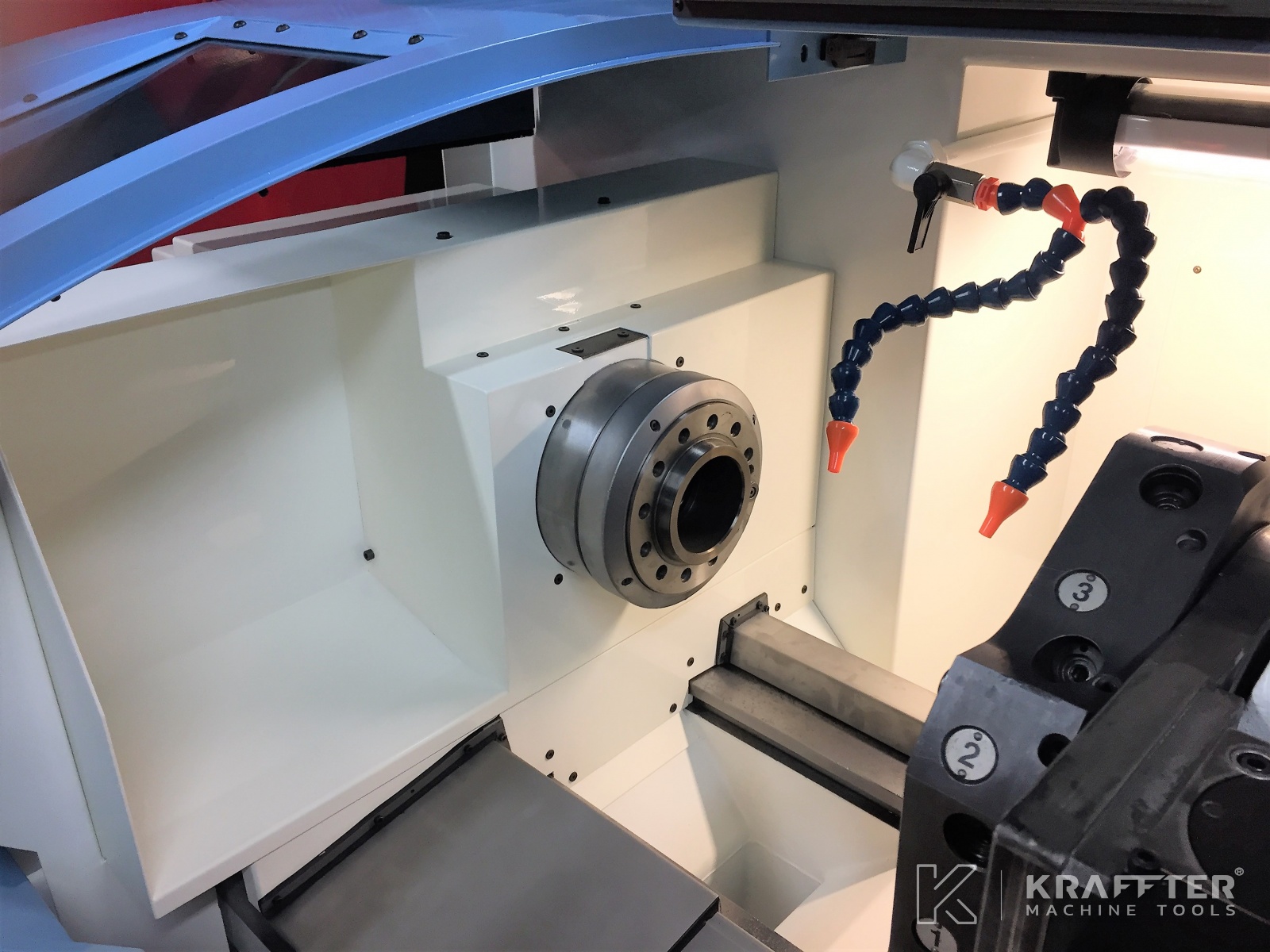

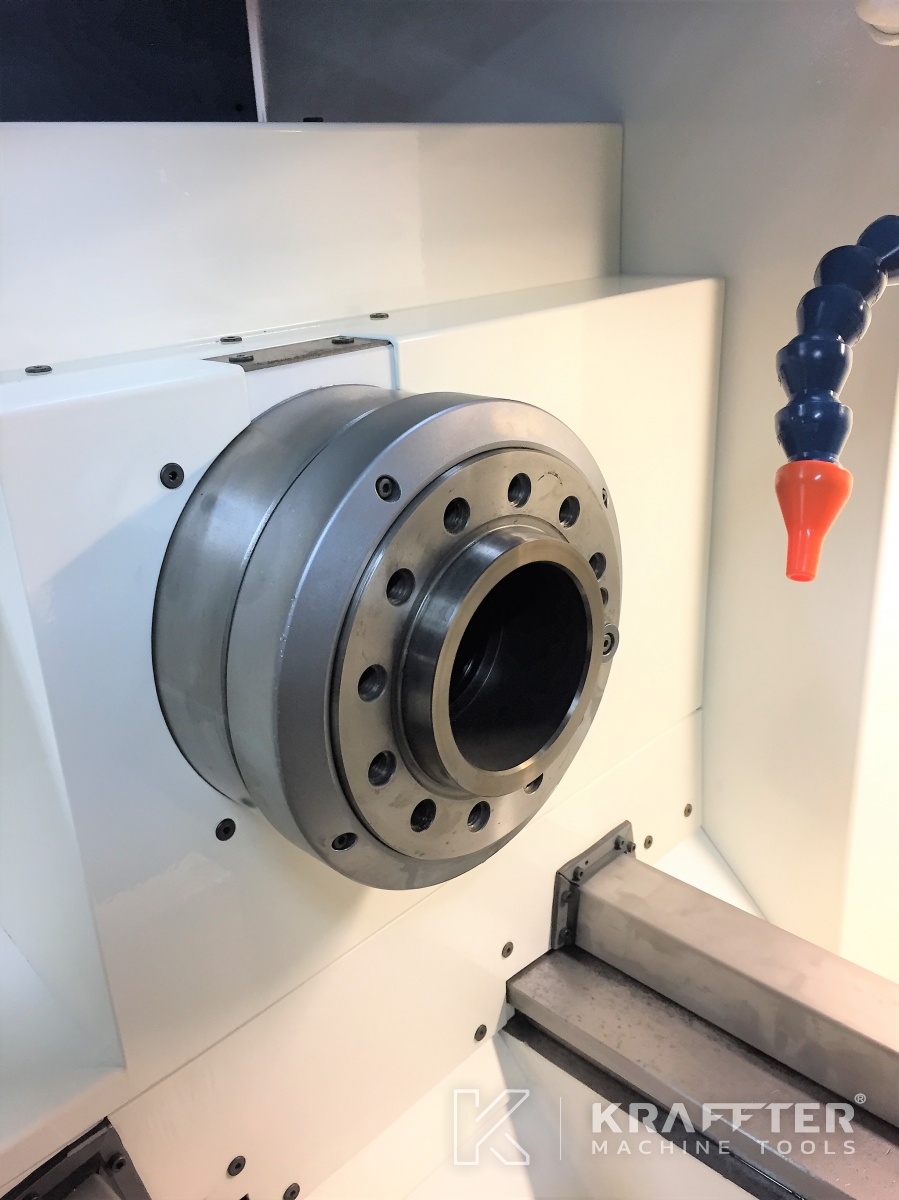

Spindle nose
A2-6’’
Spindle throughbore
68 [mm]
Increment C-axis
0.001 [°]
Tailstock type
pneumatique
Type of attachment tailstock
CM5

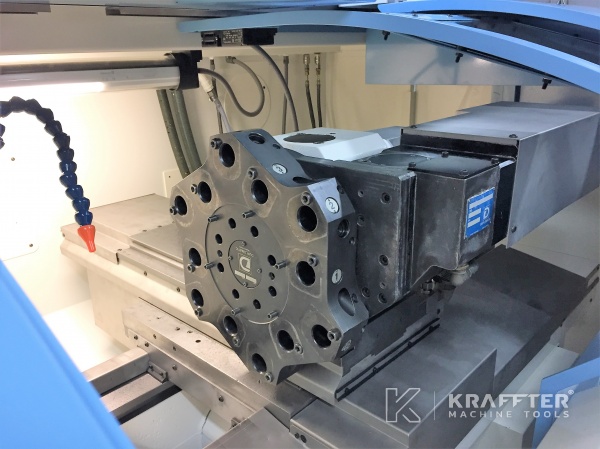

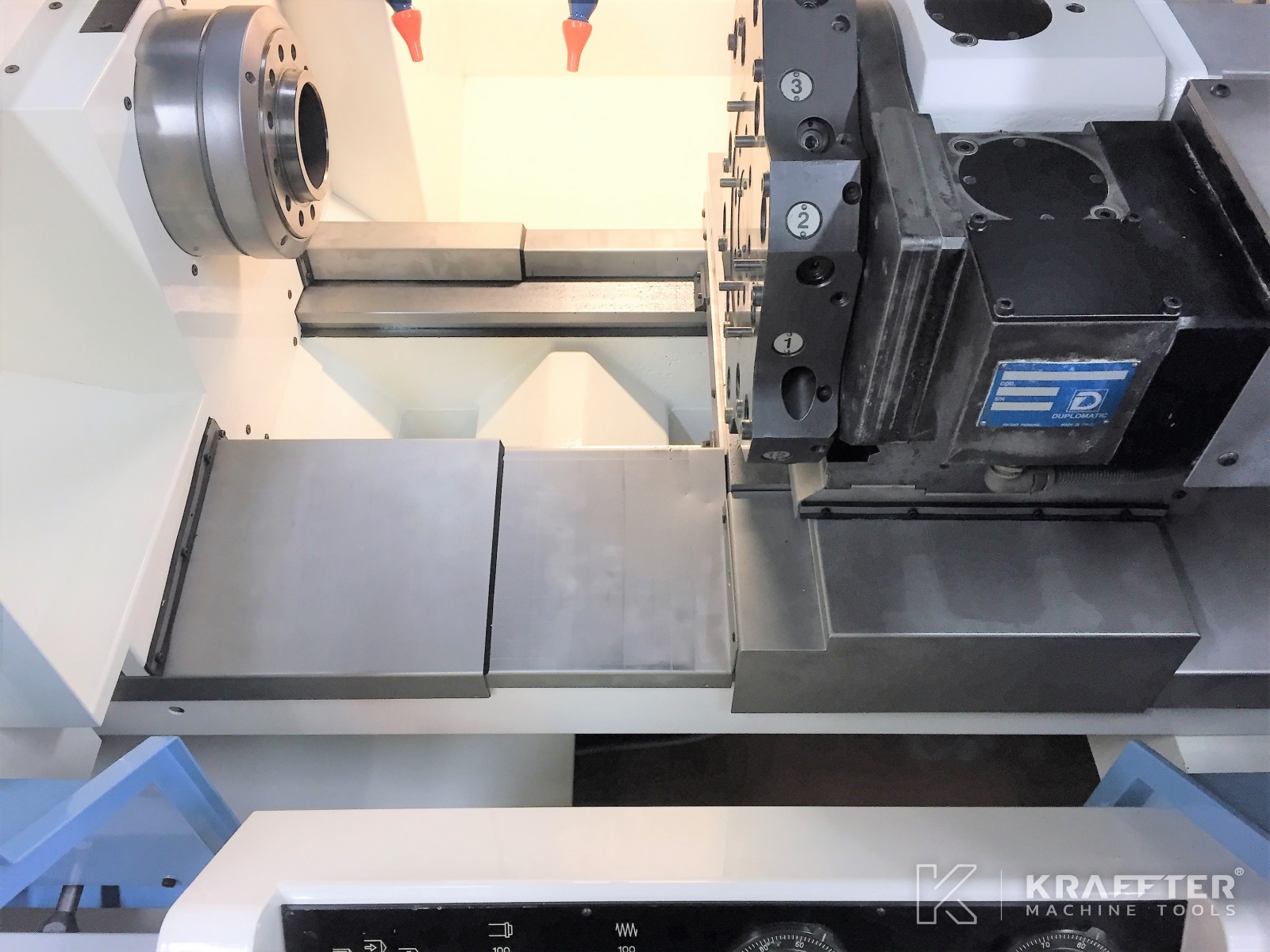

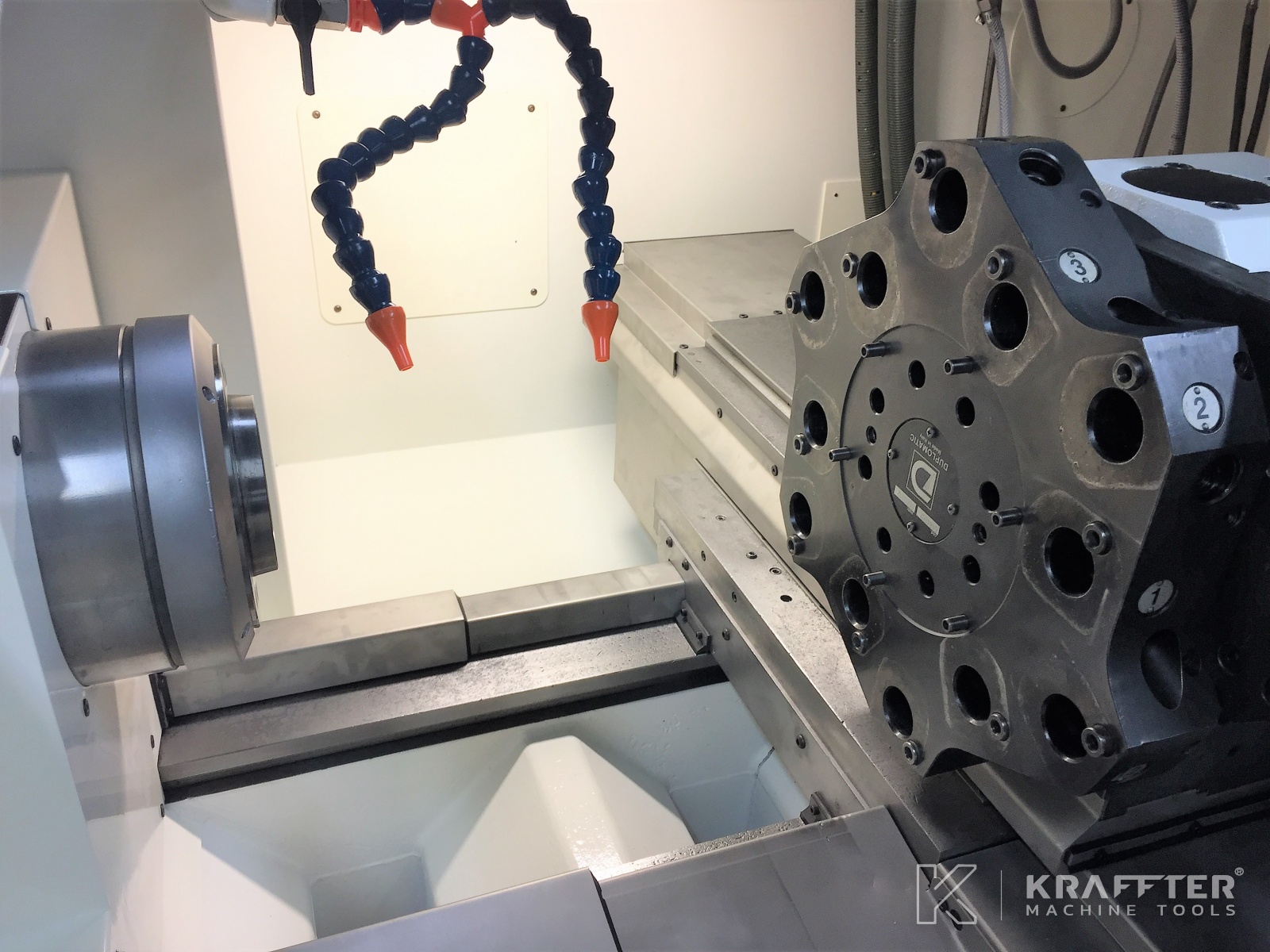

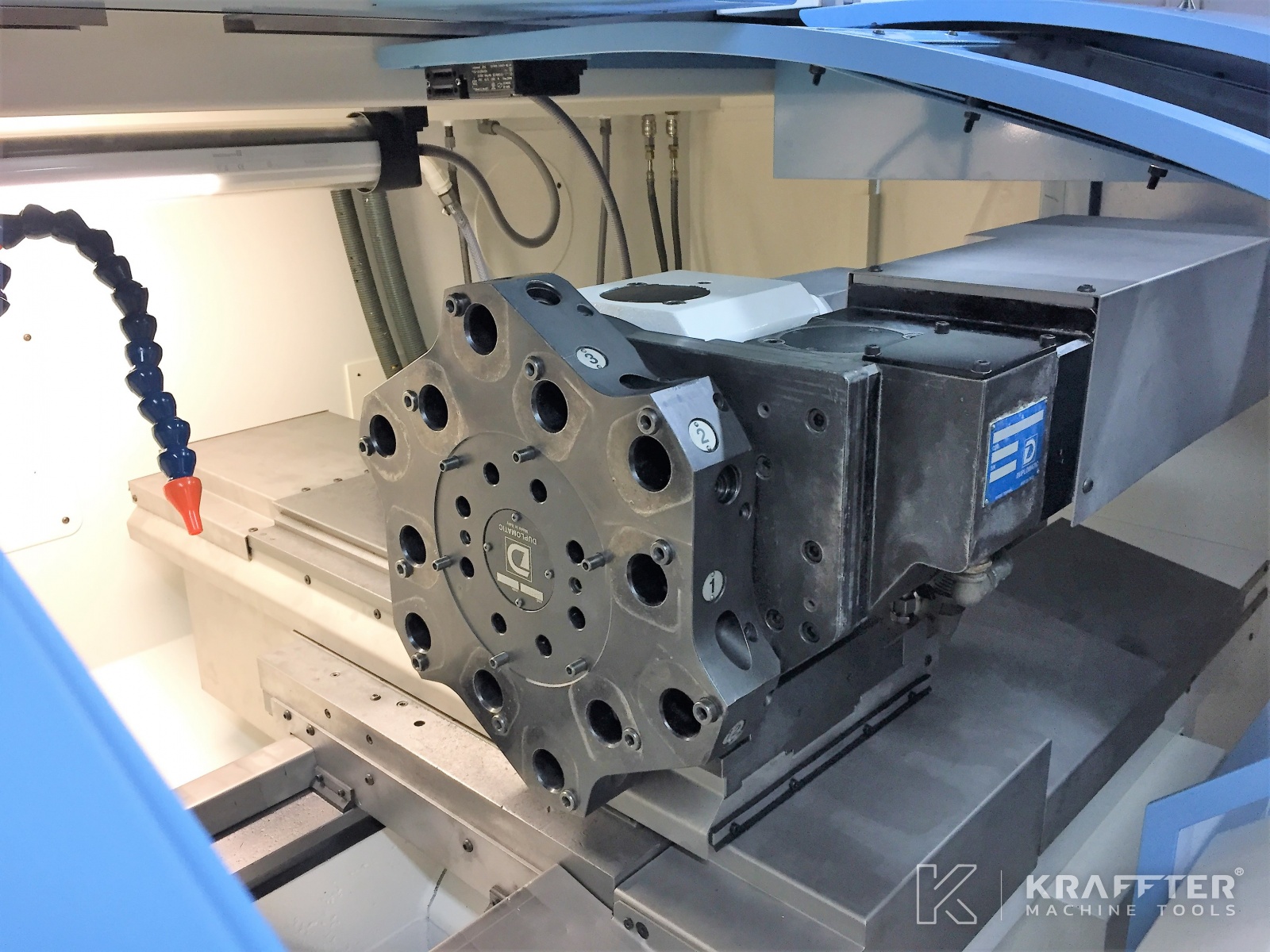

Turret
DUPLOMATIC BSV-N 160
Type of tool holders
VDI 30
Number of tool stations
12
Number of tool stations driven
6
Max. speed driven tools
5000 [rpm]
Centralized lubrication
Automatique
Lubrication tank with pump
Yes
Lubrication tank capacity
120 [l]
Total power required
30 [kVA]
Supply voltage
400 [V]
Dimensions
2300 x 1460 x 1700
Weight
2740 [Kg]

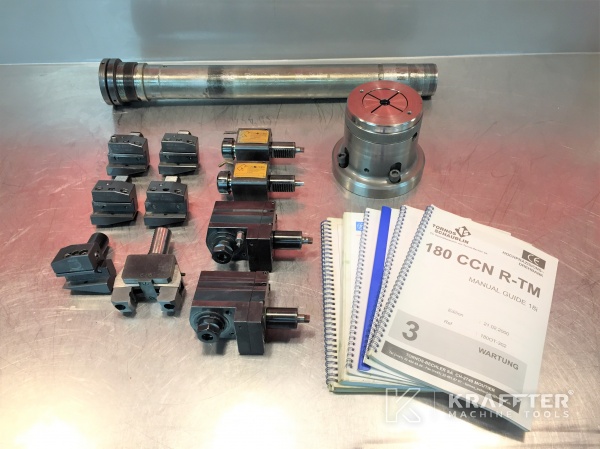

- 5 turning tool holders VDI 30
- 2 axial rotating turning tool holders VDI 30
- 2 angular/radial rotating turning tool holders VDI 30
- 1 collet chuck SMW AUTOBLOK KSZ for F60 collets
