Sold

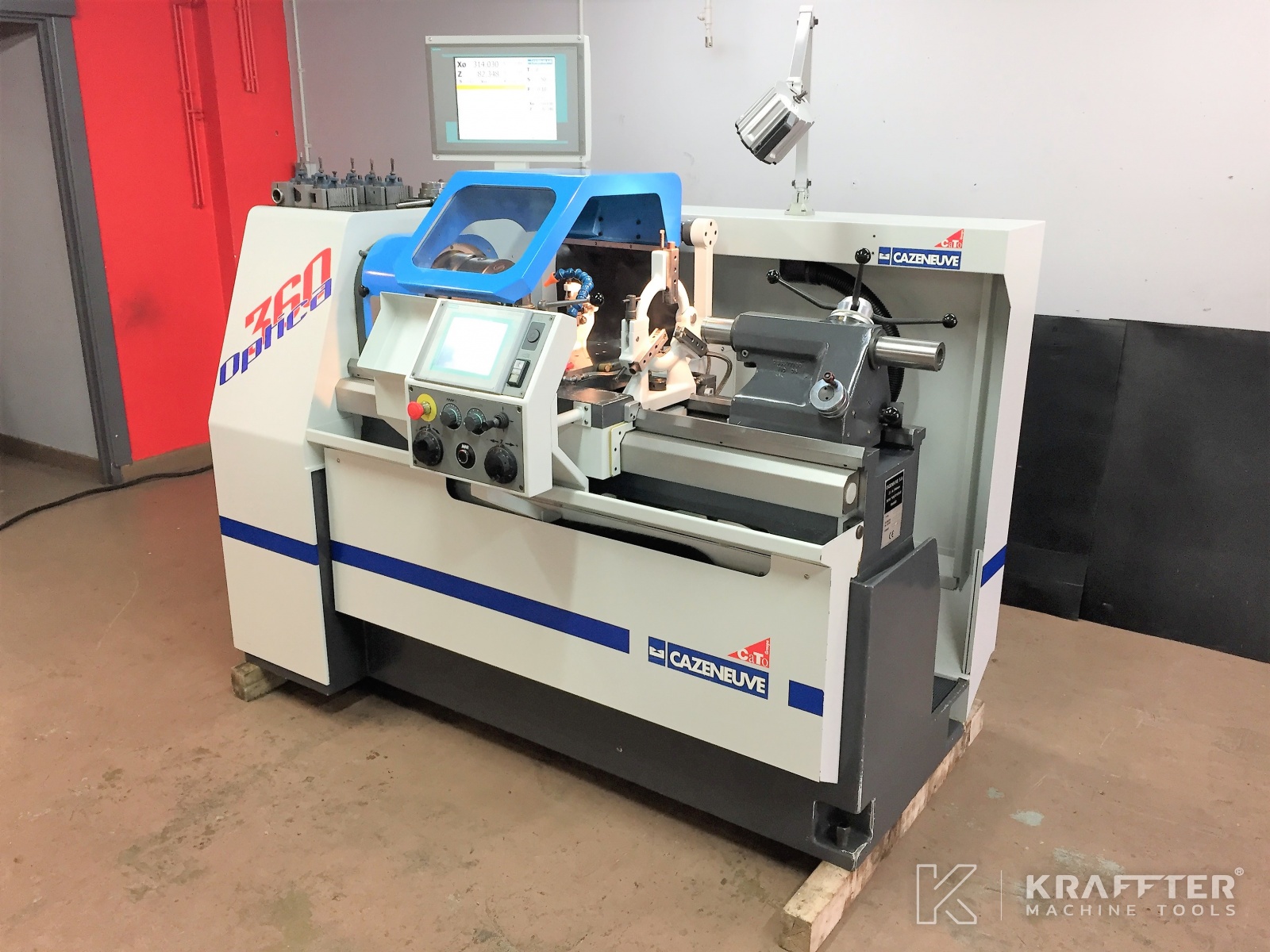

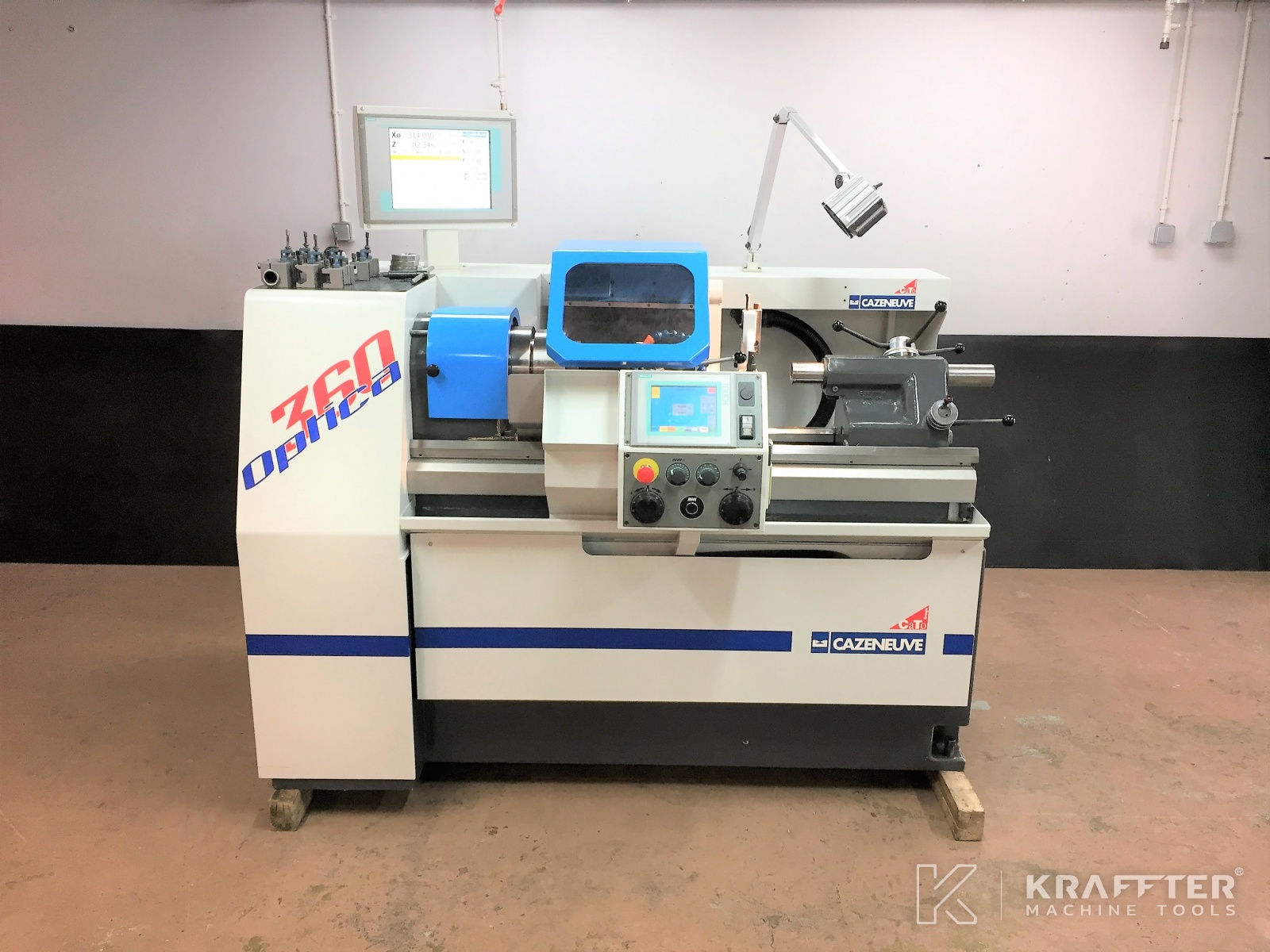

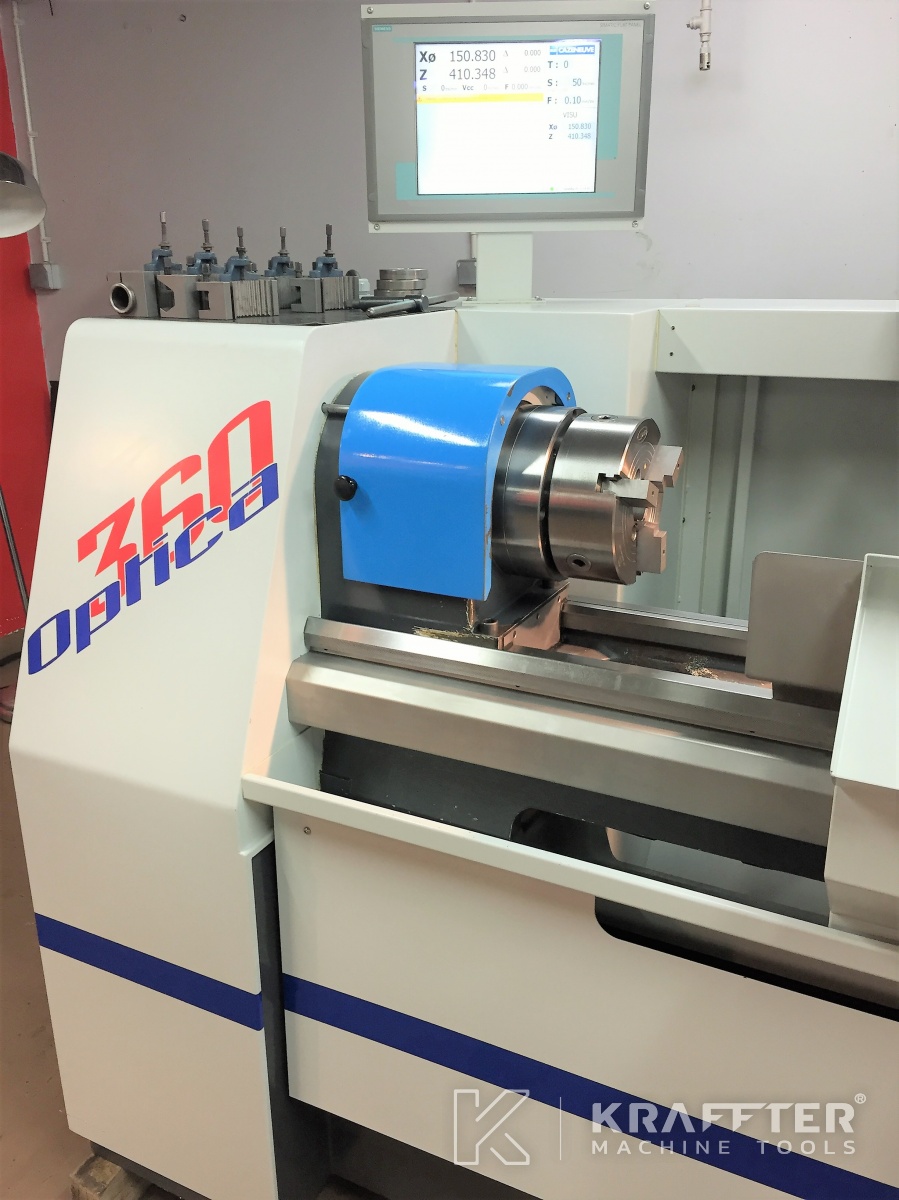

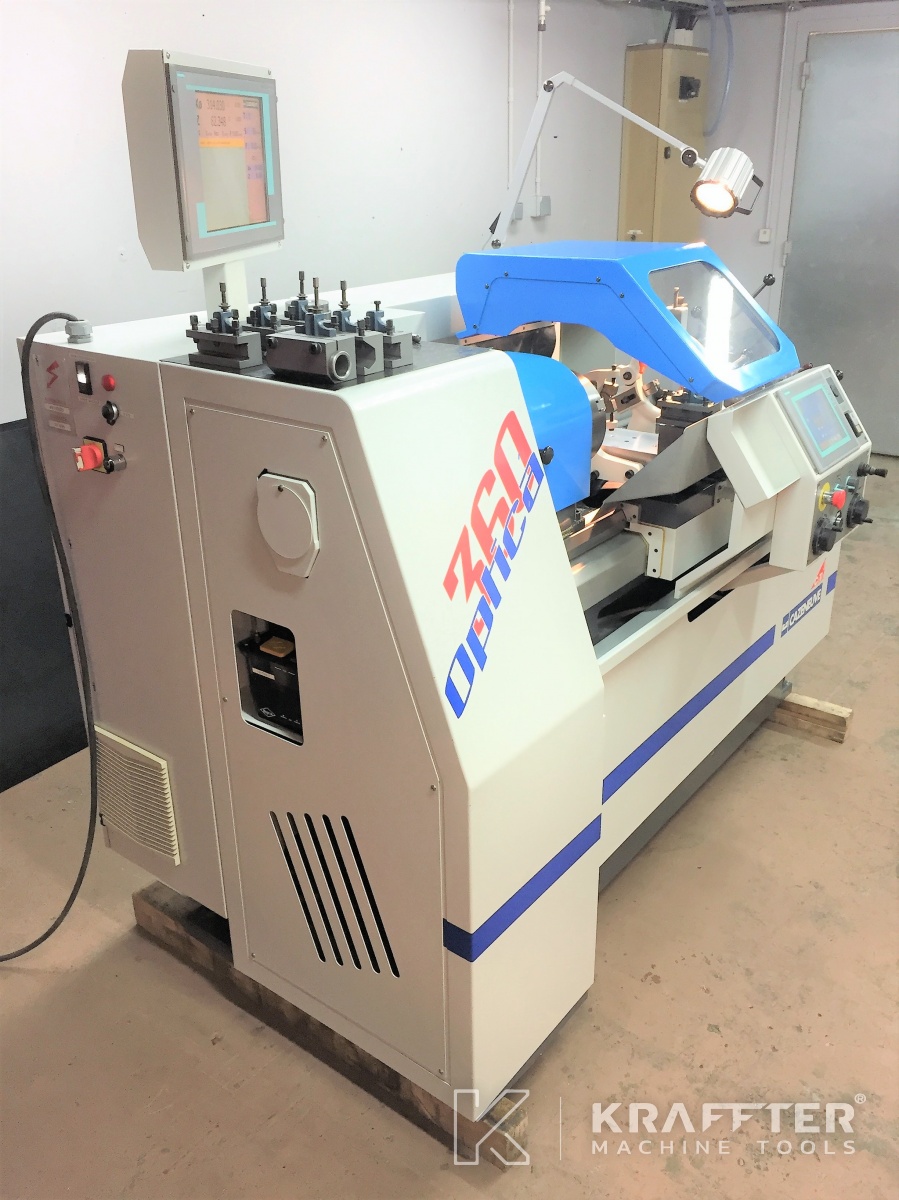

Type of machine : CNC teach-in lathe
Brand : CAZENEUVE
N° de stock: 20689-918
Model : Optica 360
Year : 2008
Location : 73520 Saint-Béron, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics
CNC control

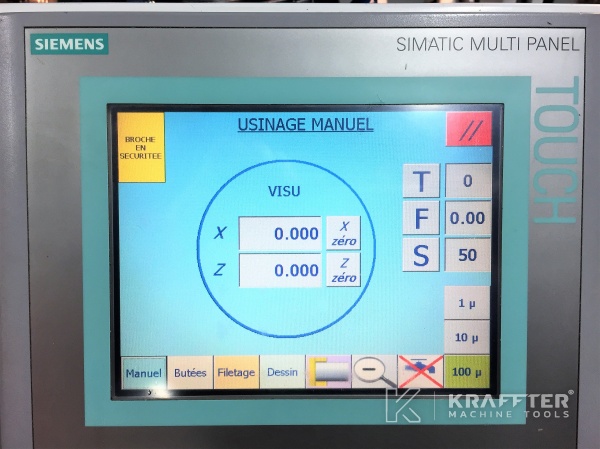

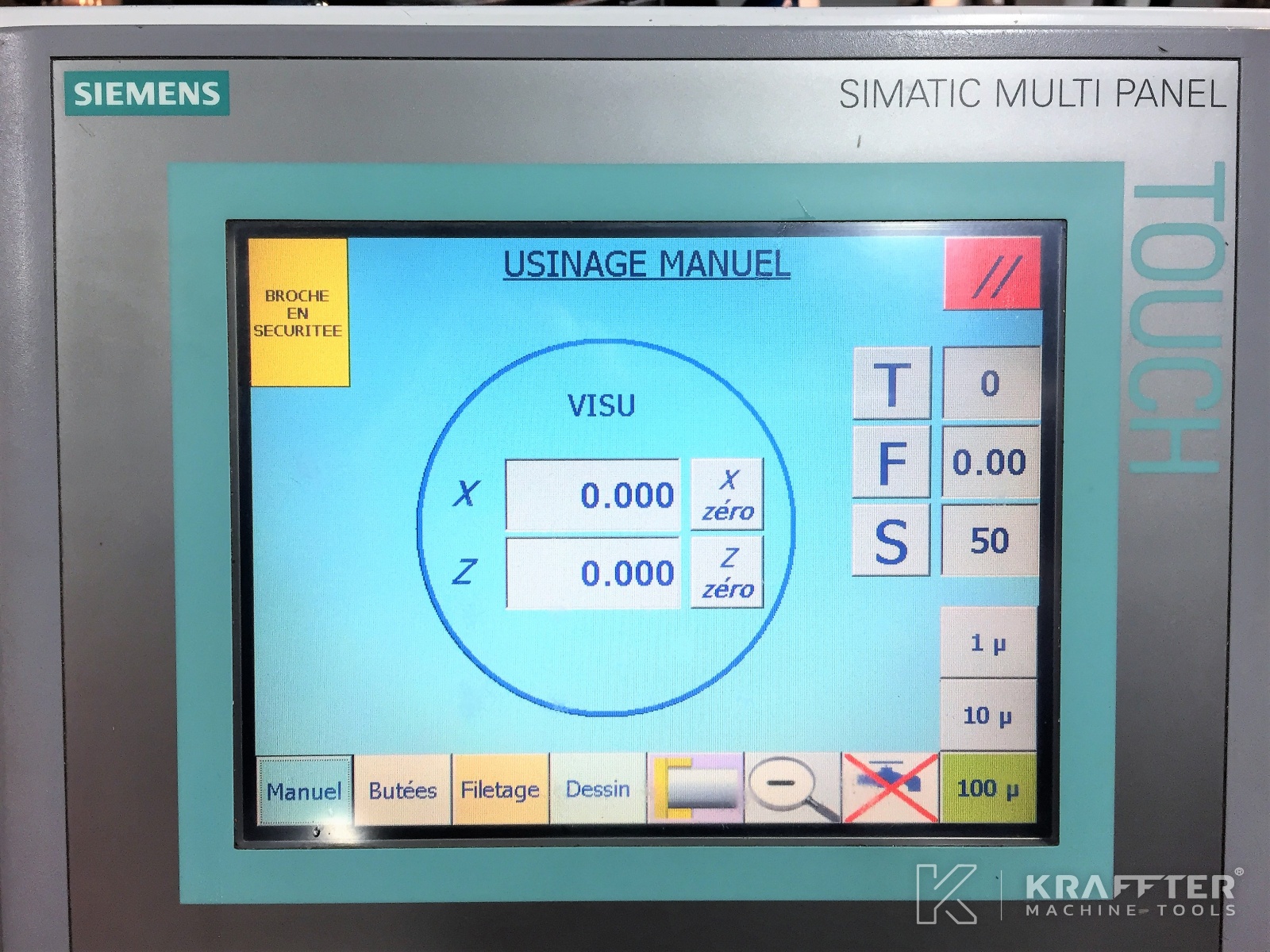

SIEMENS Teach-In
Number of axes
2
Distance between centers
750 [mm]
Max. swing over bed
280 [mm]
Stroke X axis
180 [mm]
Stroke Z axis
610 [mm]
Spindle nose
ISO A1-6’’
Spindle throughbore
54 [mm]
Tailstock type
Sensitive à cabestan
Type of attachment tailstock
CM5
Tailstock quill diameter
60 [mm]
Touchscreen
Yes
Turret
Multifix type B
Type of tool holders
Multifix type B
Centralized lubrication
Automatique
Lubrication tank with pump
Yes
Total power required
30 [kVA]
Supply voltage
400 [V]
Dimensions
1950 x 1320 x 1750
Weight
2000 [Kg]
Additional information

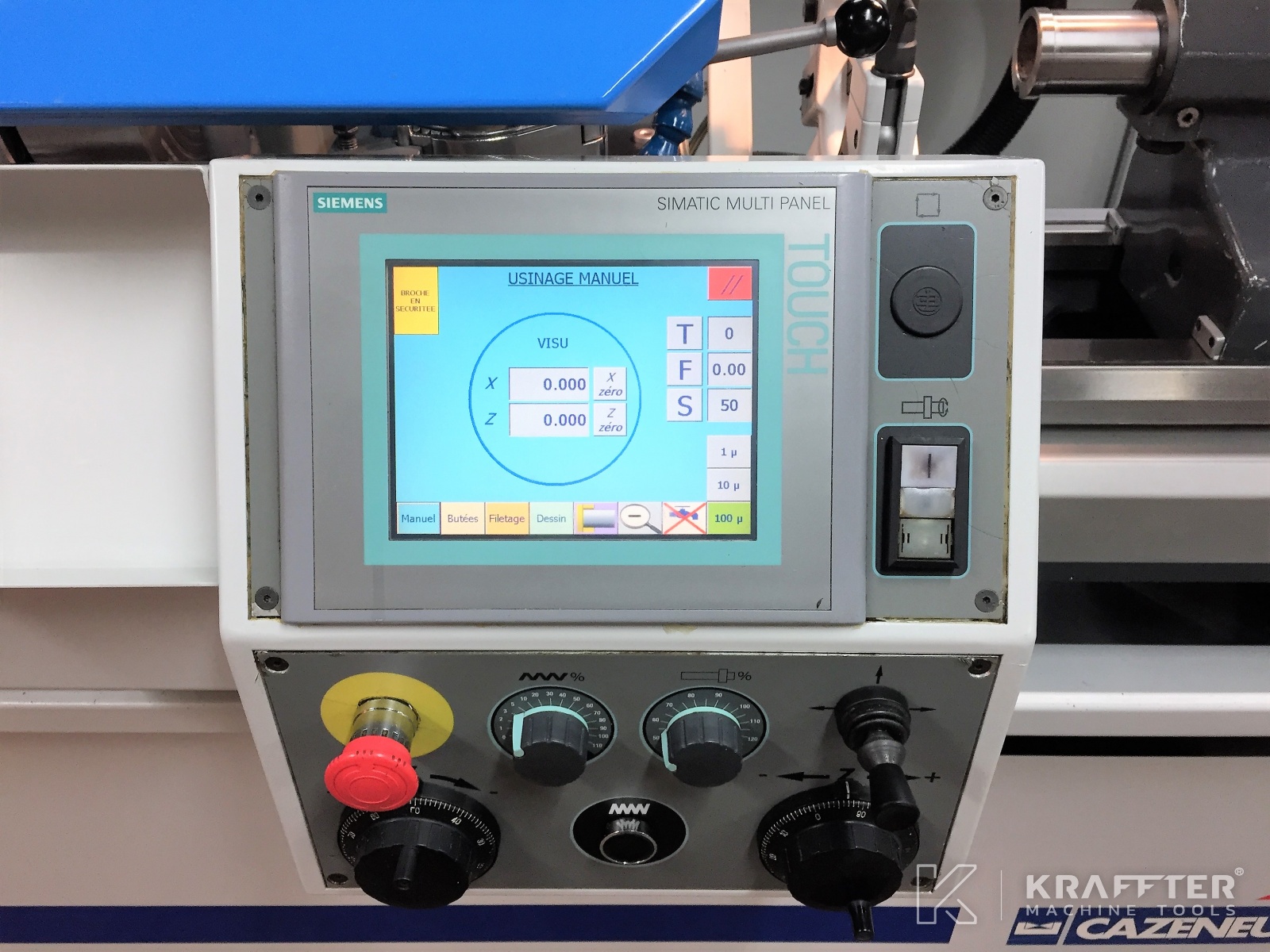

- Colour touchscrenn on slide

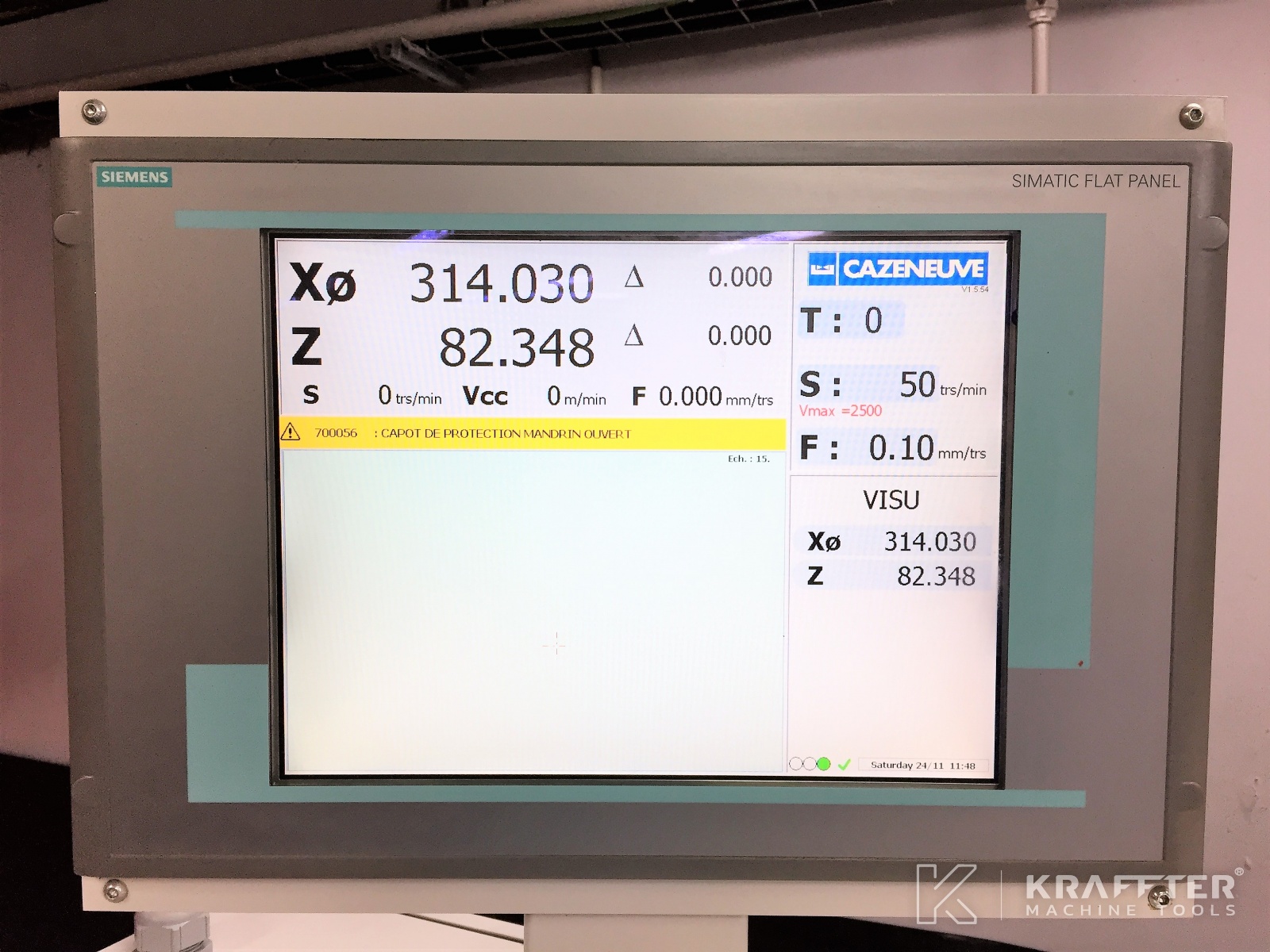

- LCD colour control screen

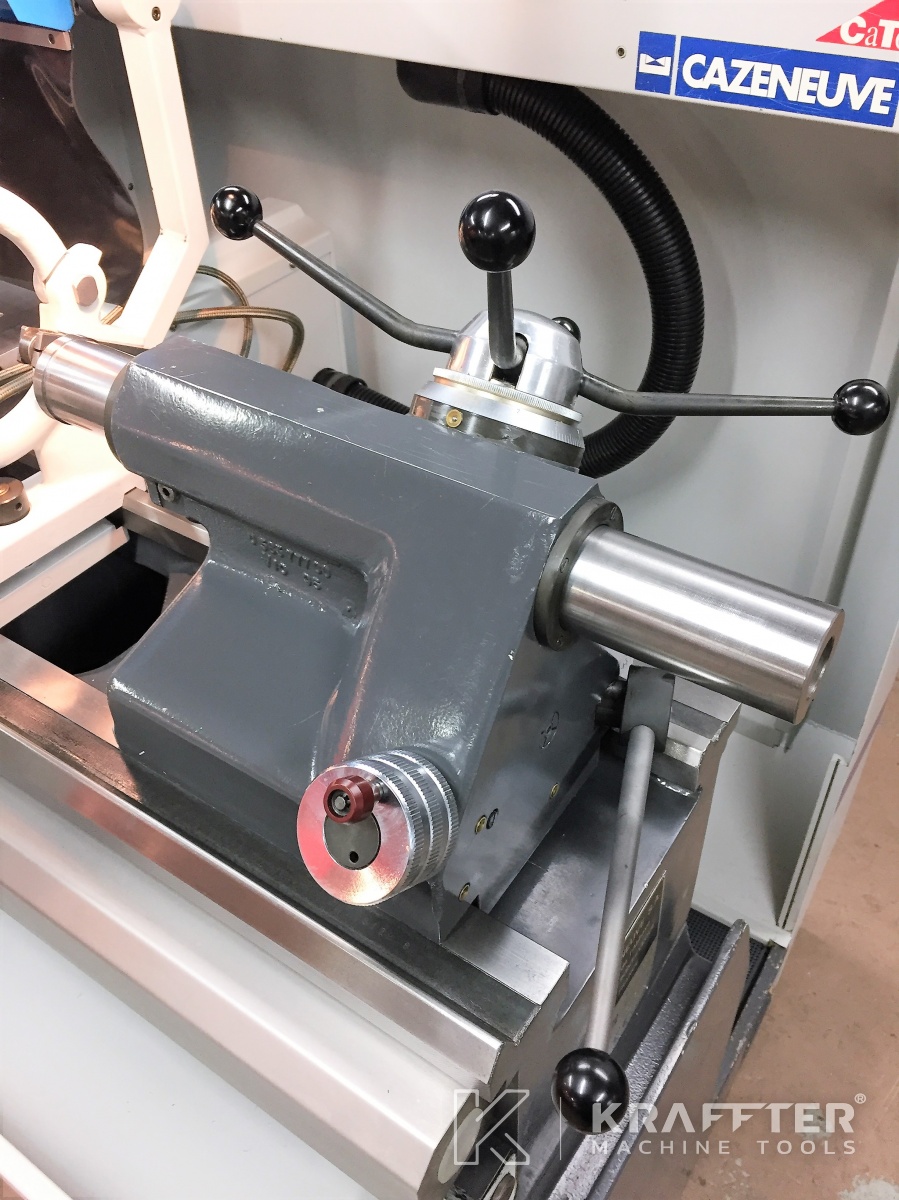

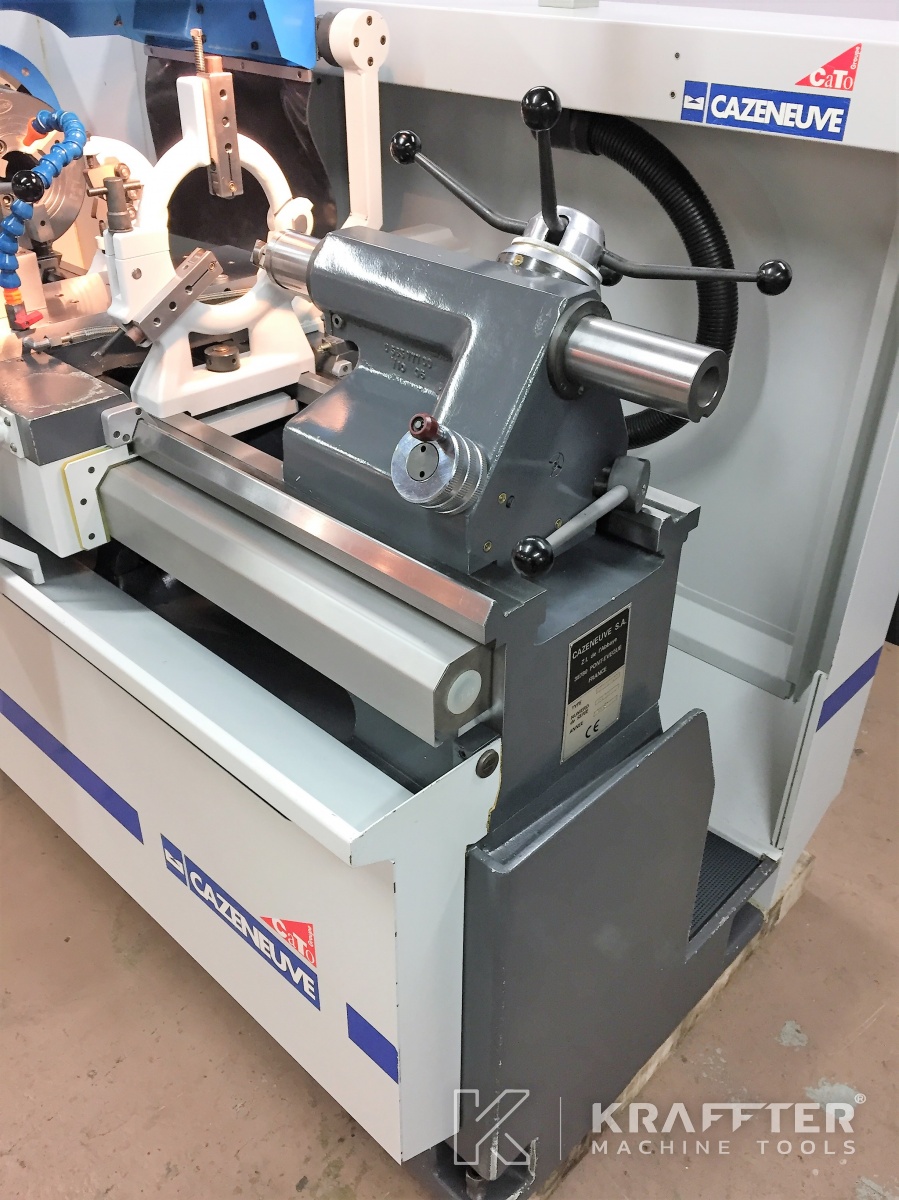

- 1 sensitive 2 speed tailstock (Ø quill : 60 [mm] ; quill stroke: 140 [mm] ; quill cone : MORSE N°5)

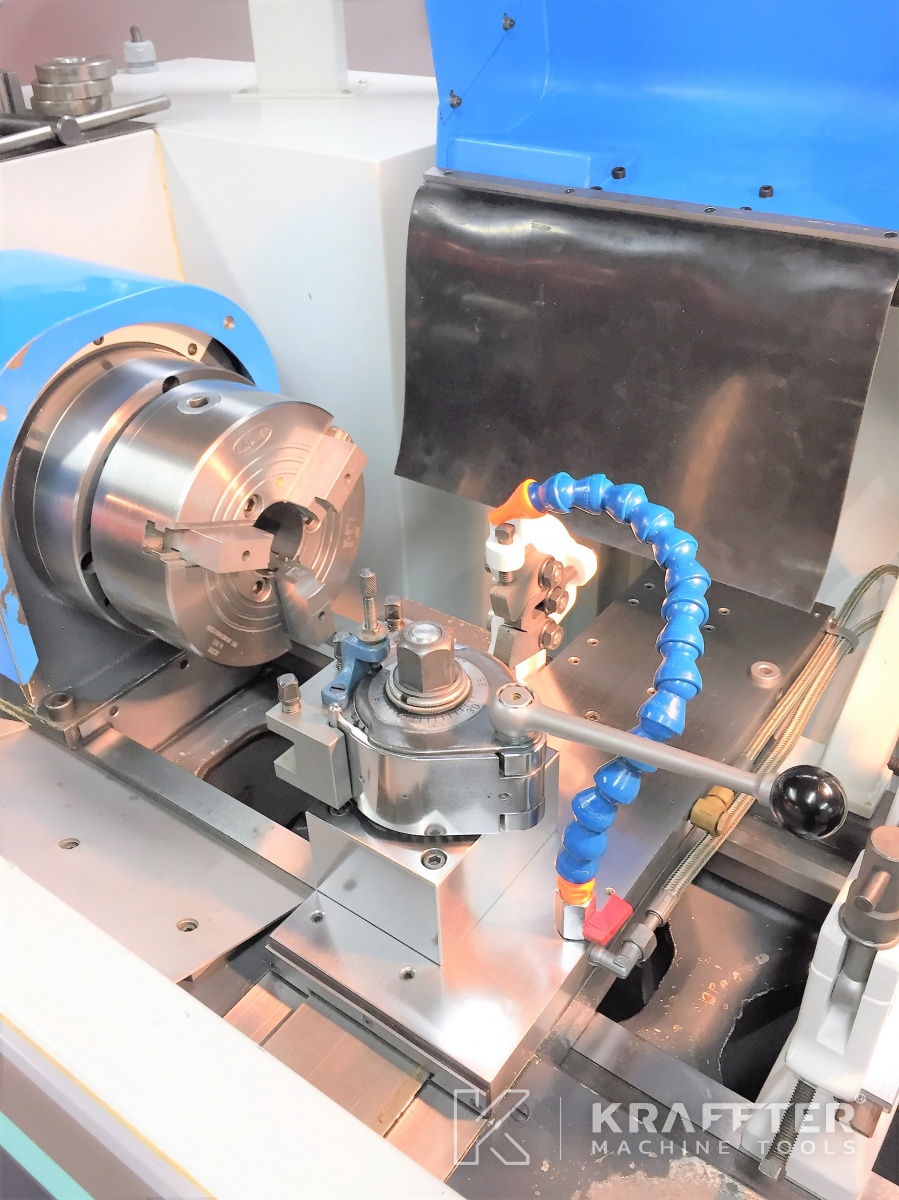

- 1 concentric steel chuck 3 jaw LADNER Ø 215 [mm]

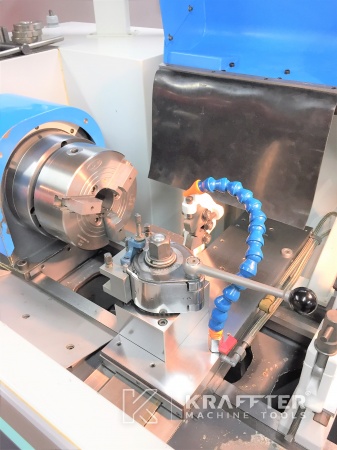

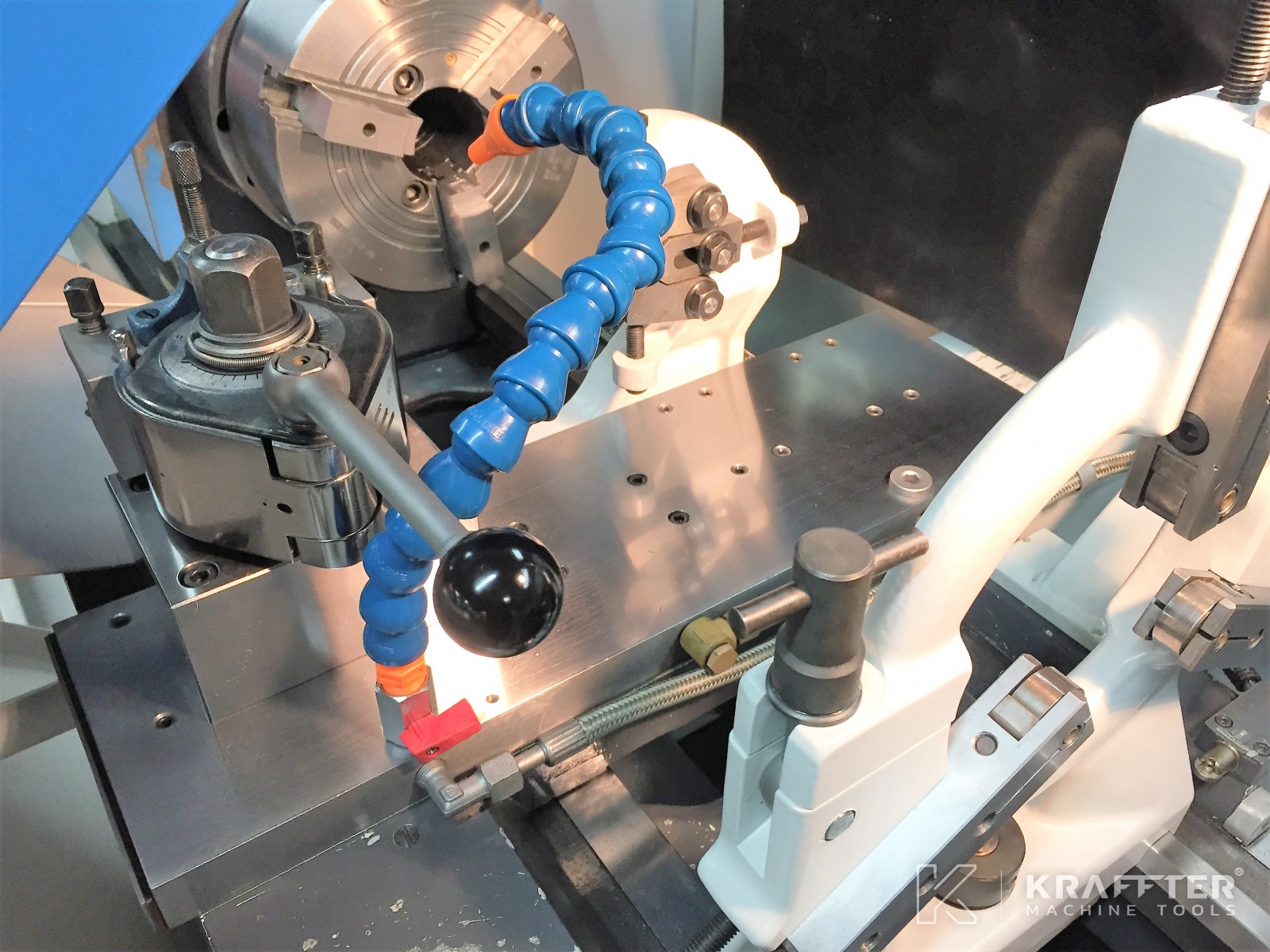

- 1 MULTIFIX turret type B

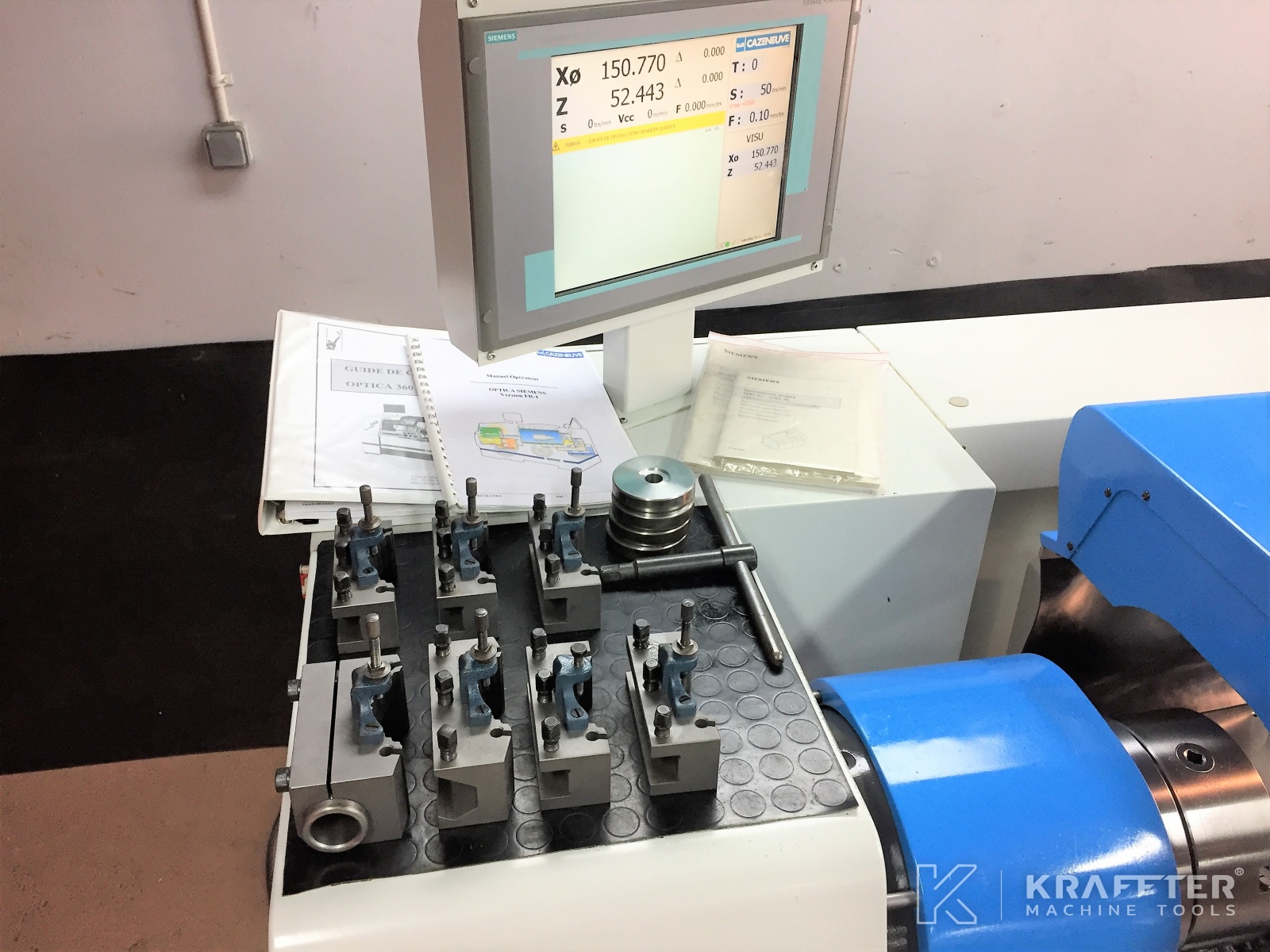

- 7 quick change tool holders MULTIFIX type B

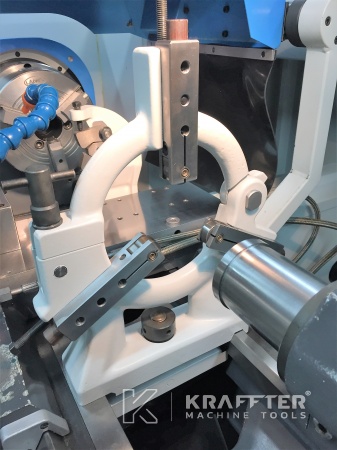

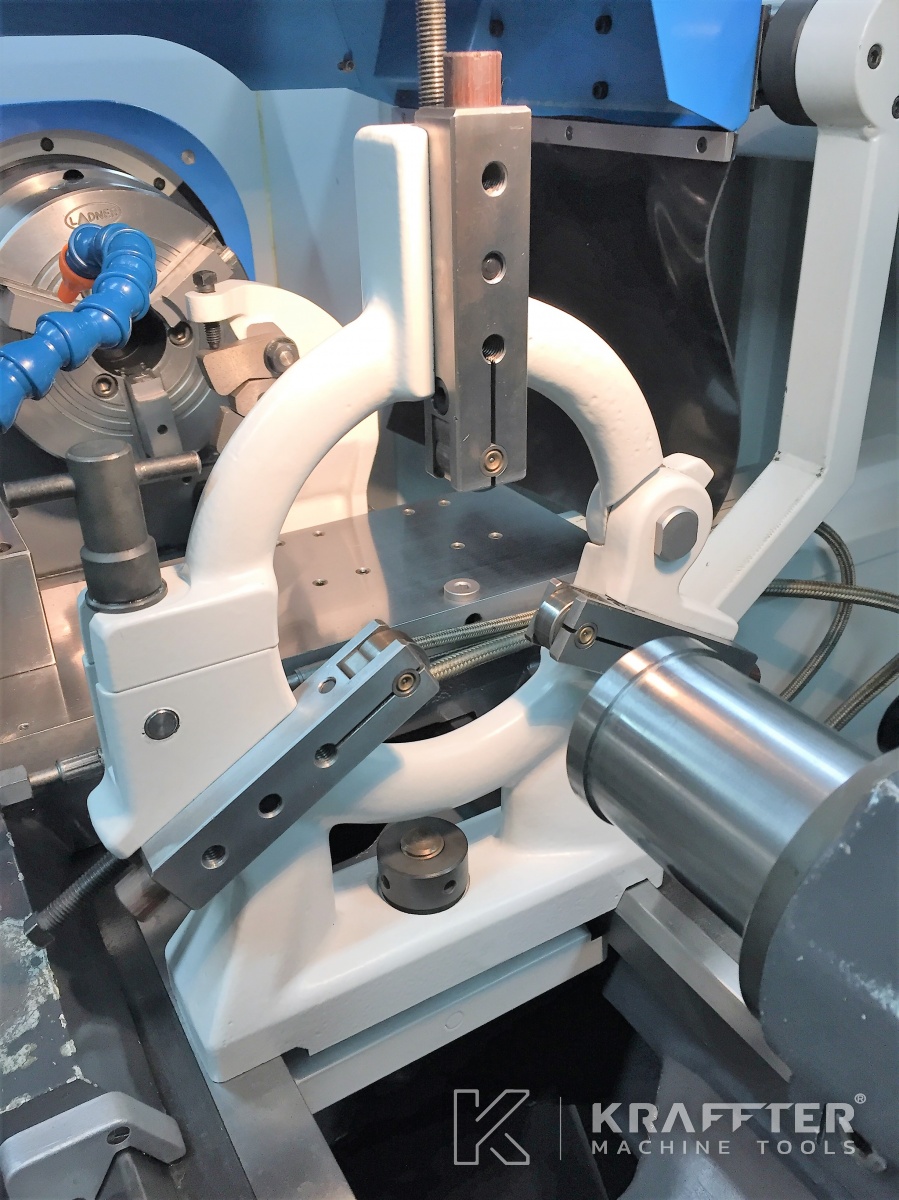

- 1 steady rest
- 1 follower rest
- Coolant tank with pump
- 1 halogen lamp
- 4 feet
