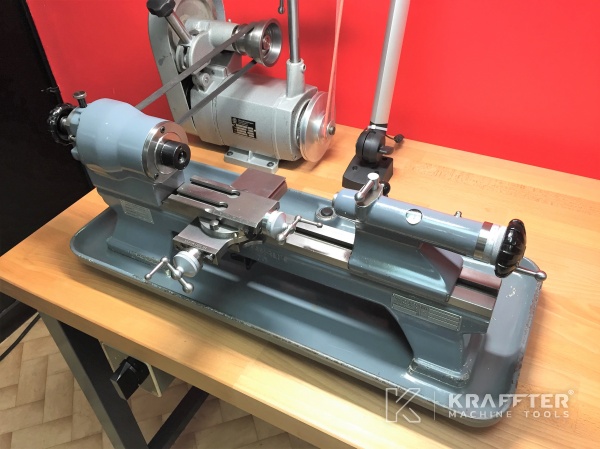

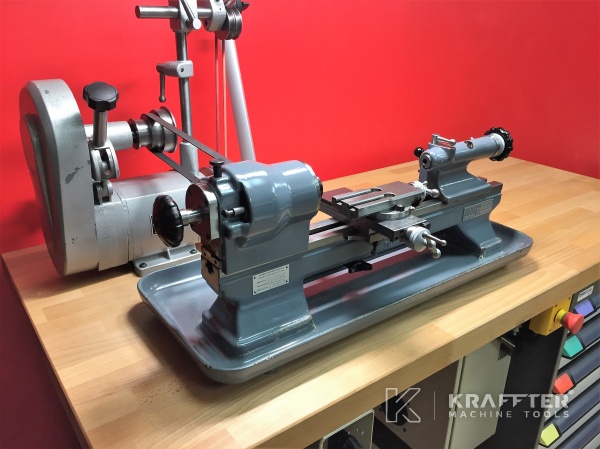

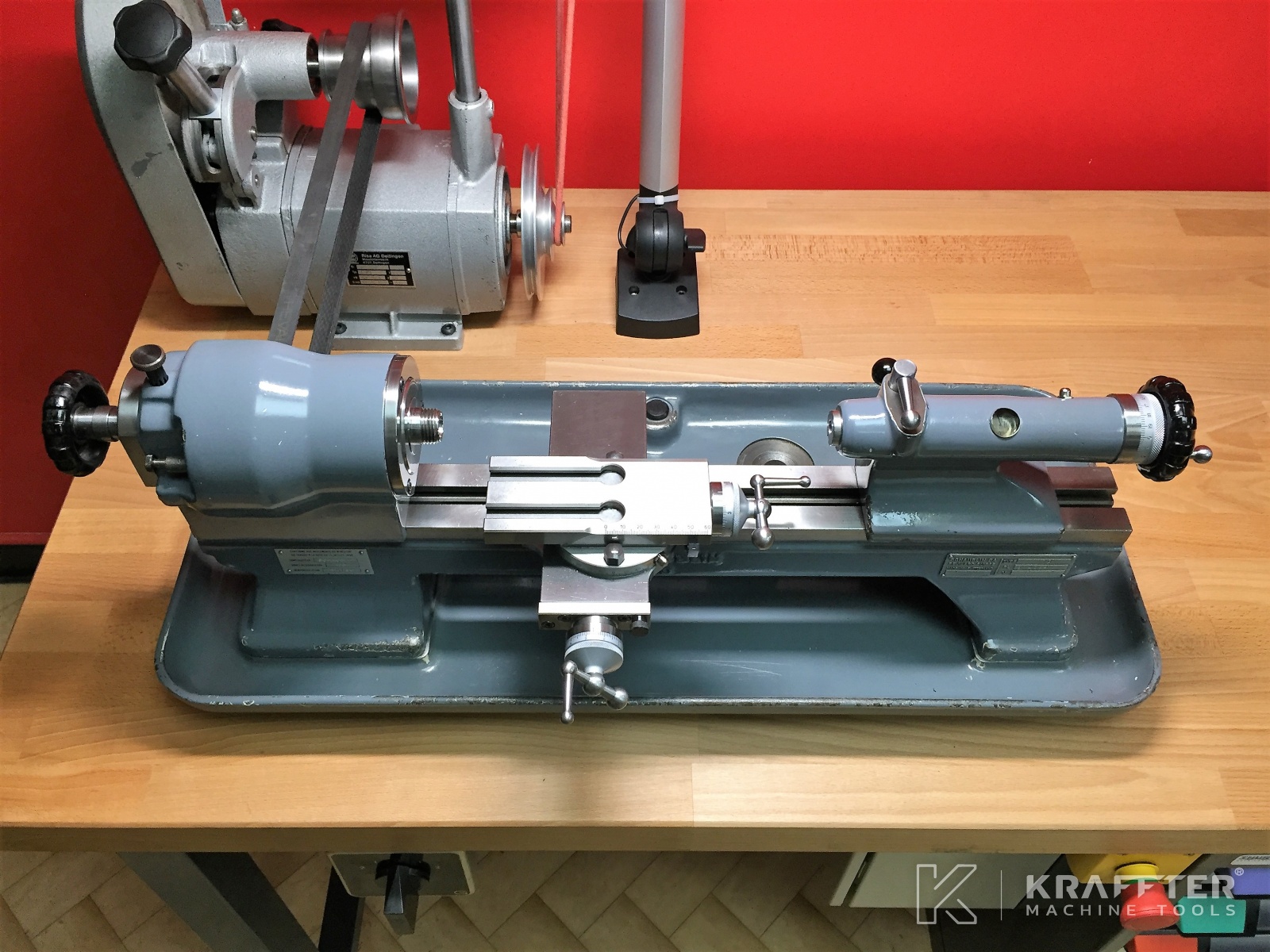

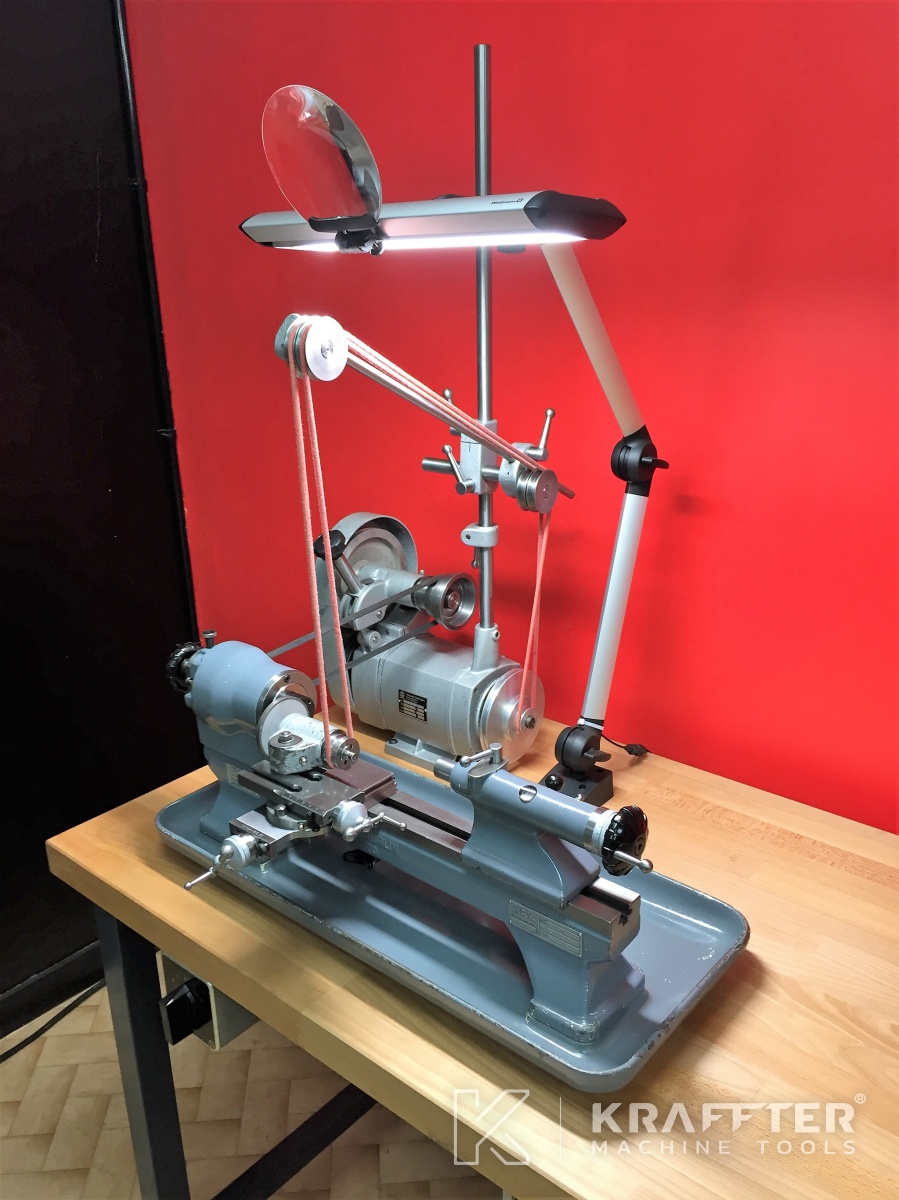

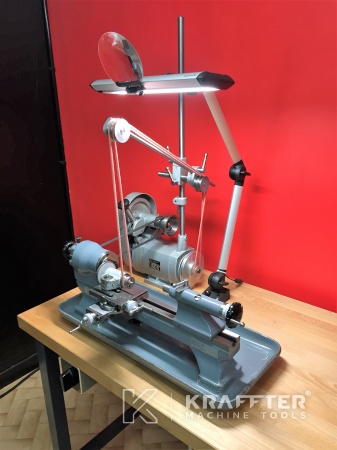

Type of machine : Manual lathe
Brand : SCHAUBLIN
Stock N° : 20689-919
Model : 70
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Number of axes
2
Distance between centers
275 [mm]
Height of centers
70 [mm]
Height of centers over cariage
85 [mm]
Spindle for collets
W12
Spindle throughbore
12 [mm]
Type of attachment tailstock
2°
Manual lever-operated quick-closing attachment
Yes
Number of spindle speeds
6
Turret
Multifix type Aa
Supply voltage
400 [V]

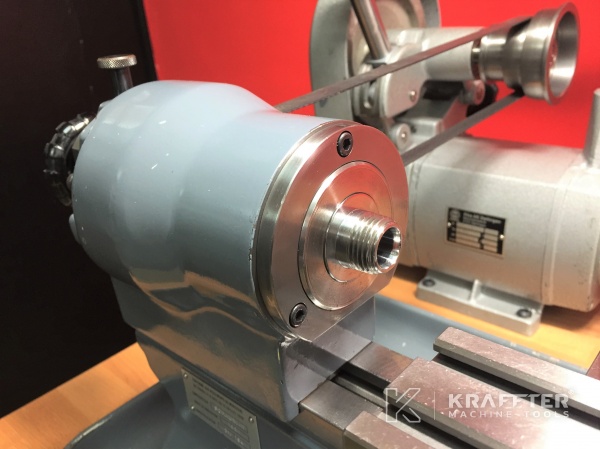

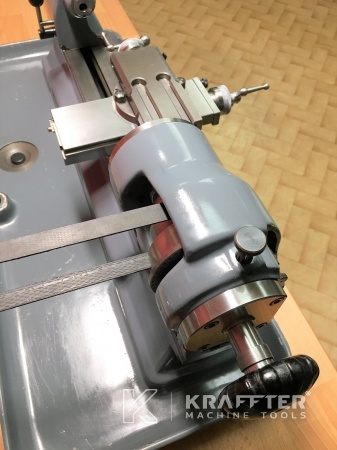

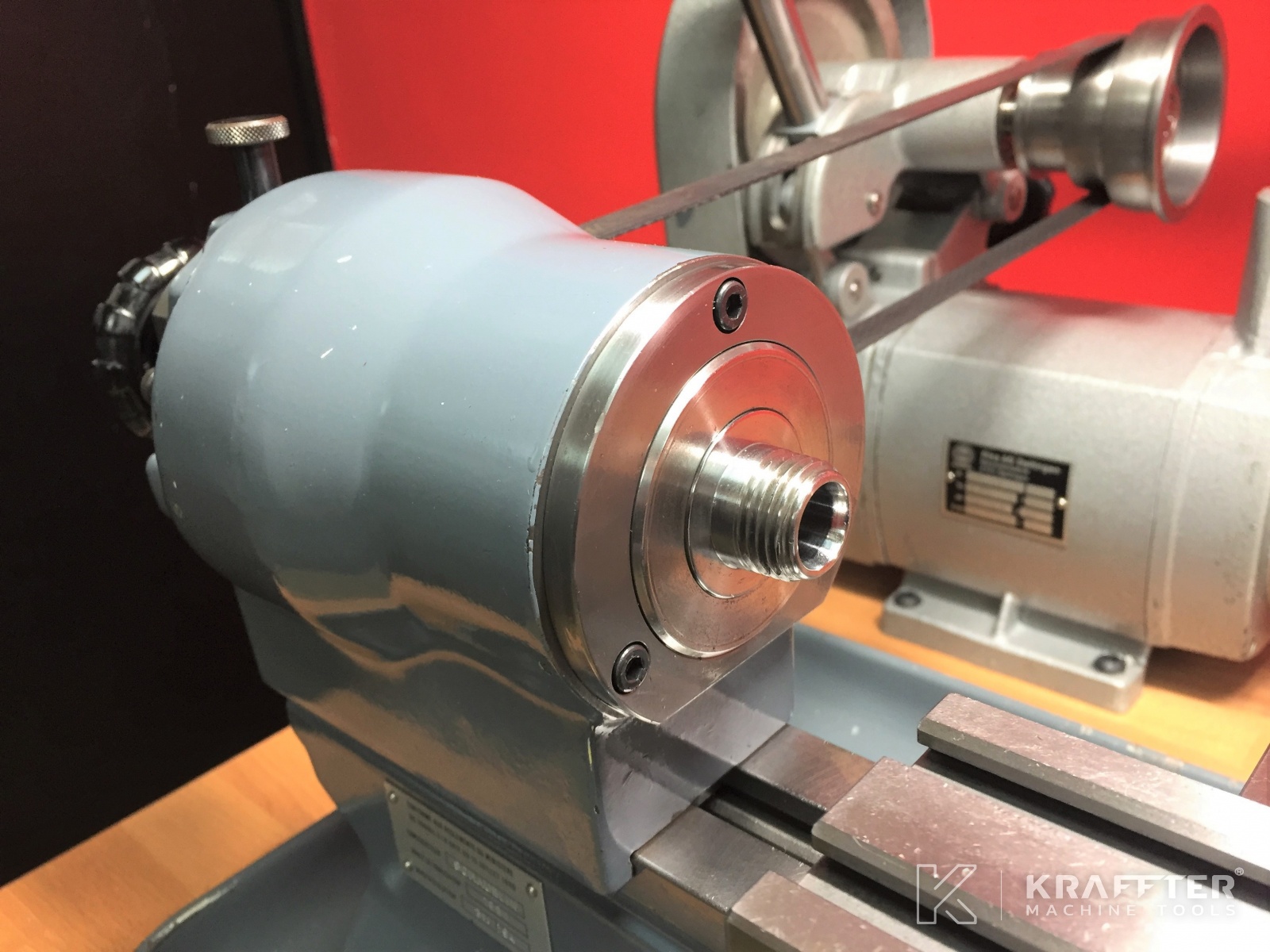

- 70-31 / 1 headstock W12 type spindle

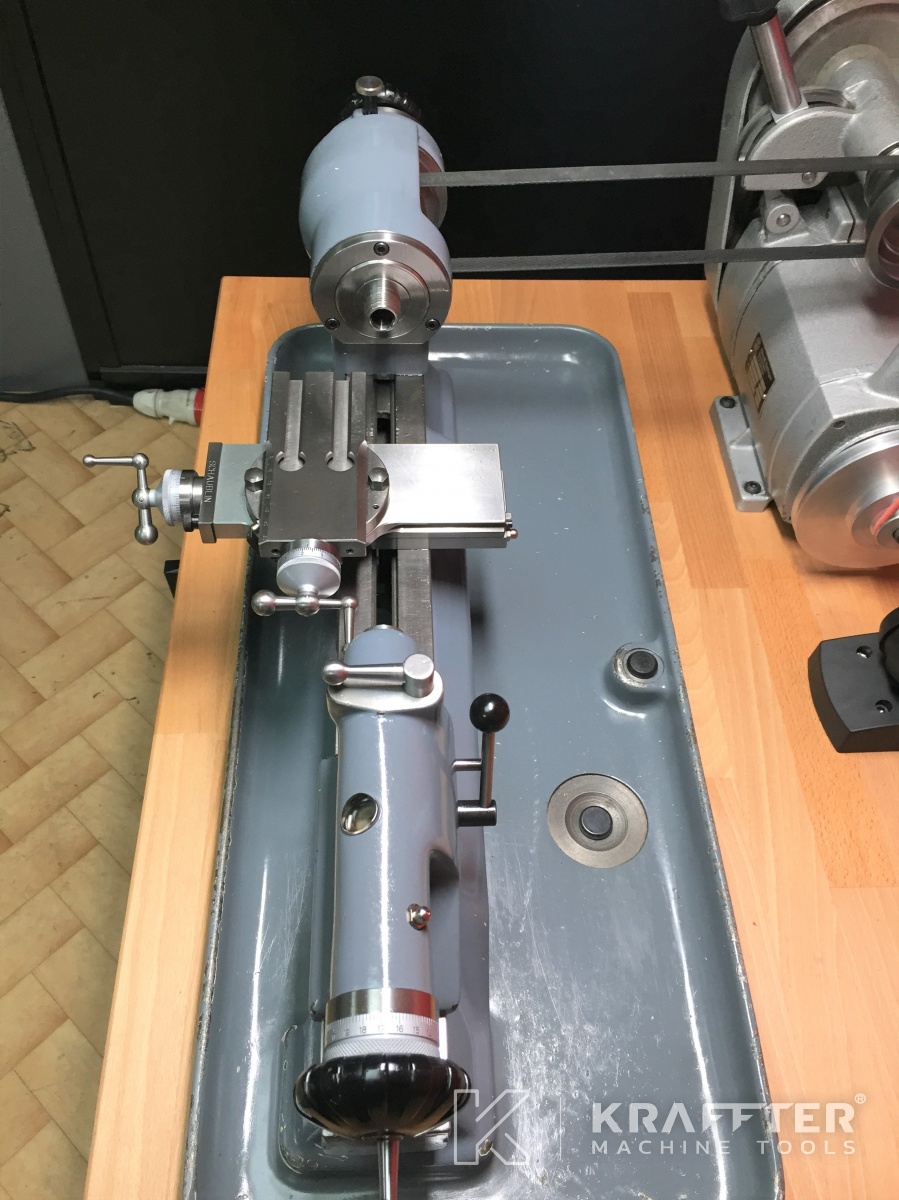

- 70-10 / 1 bed
- 70-10 / 1 chip tray for bed 70-10
- 70-65 / 1 screw-operated tailstock

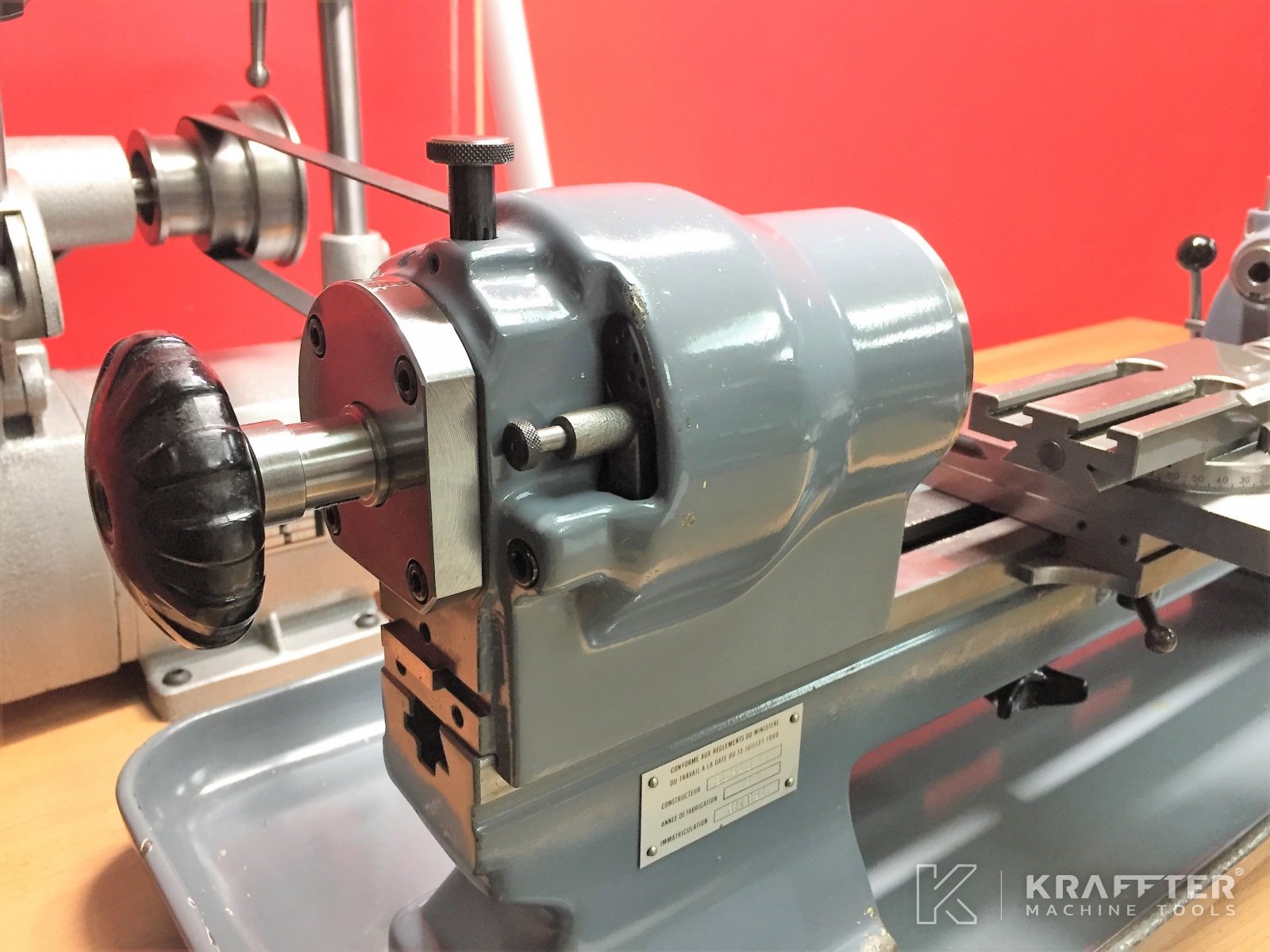

- 70-32.030 / 1 manual drawbar for W12 type collets
- 70-30.600 / 1 manual lever-operated quick-closing attachement

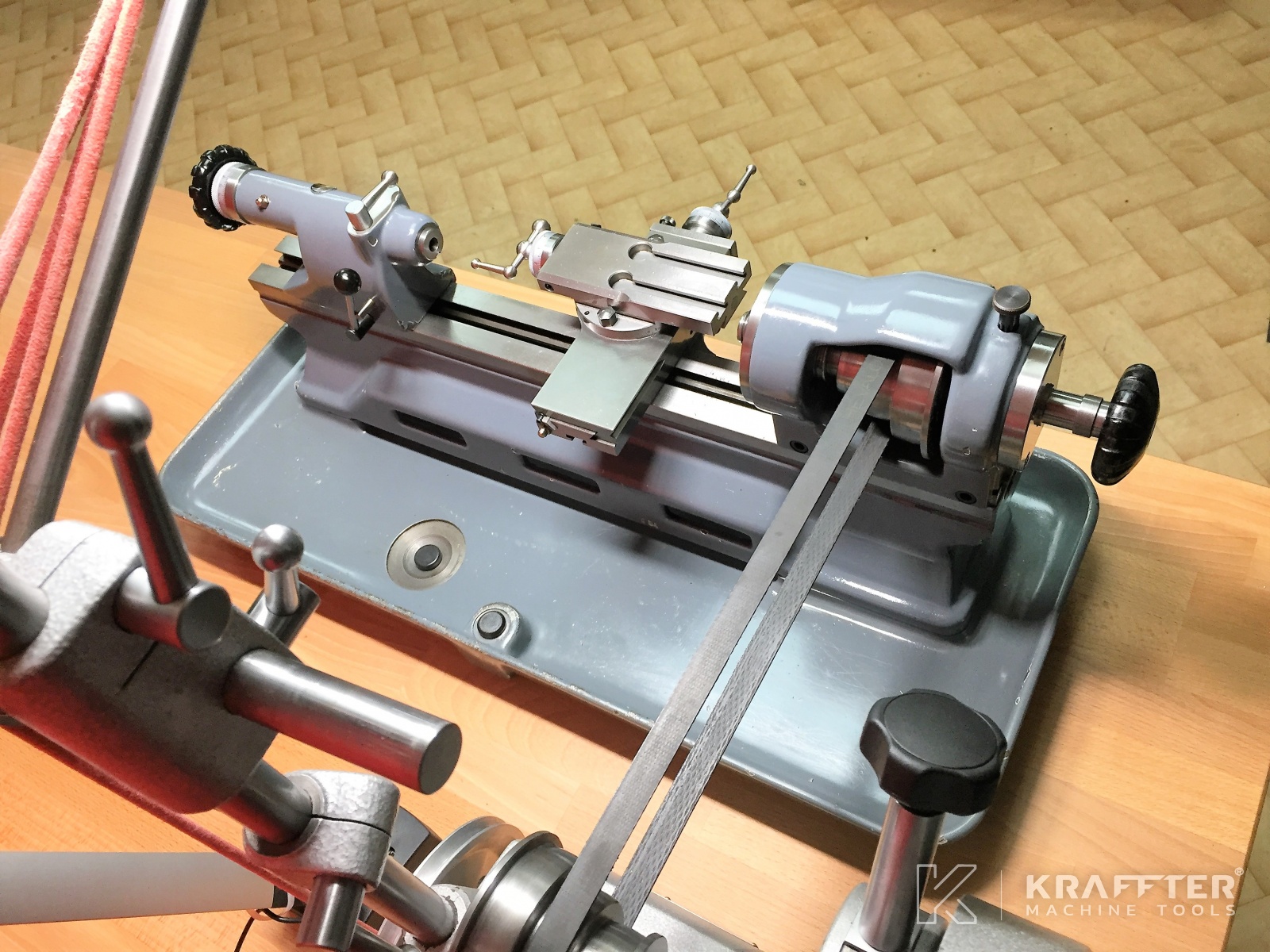

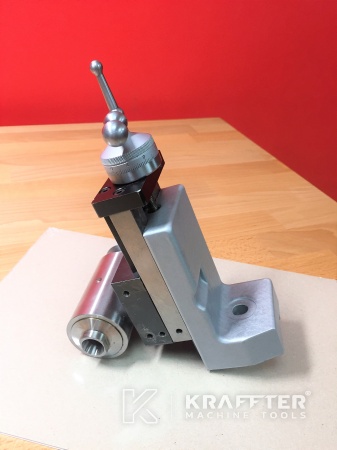

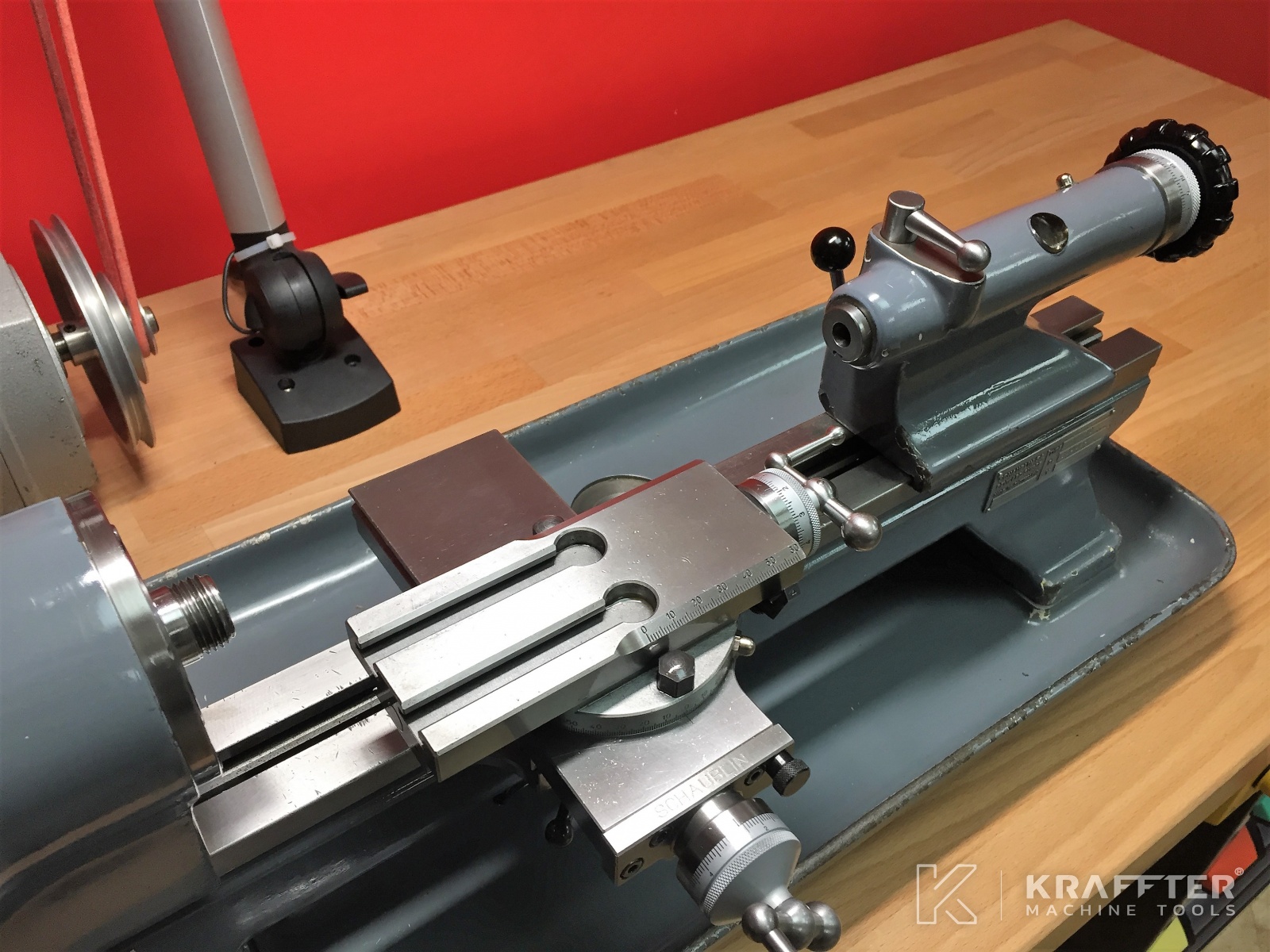

- 70-45 / 1 screw operated-carriage
- 70-10.100 / 1 rod for fixing of the carriage

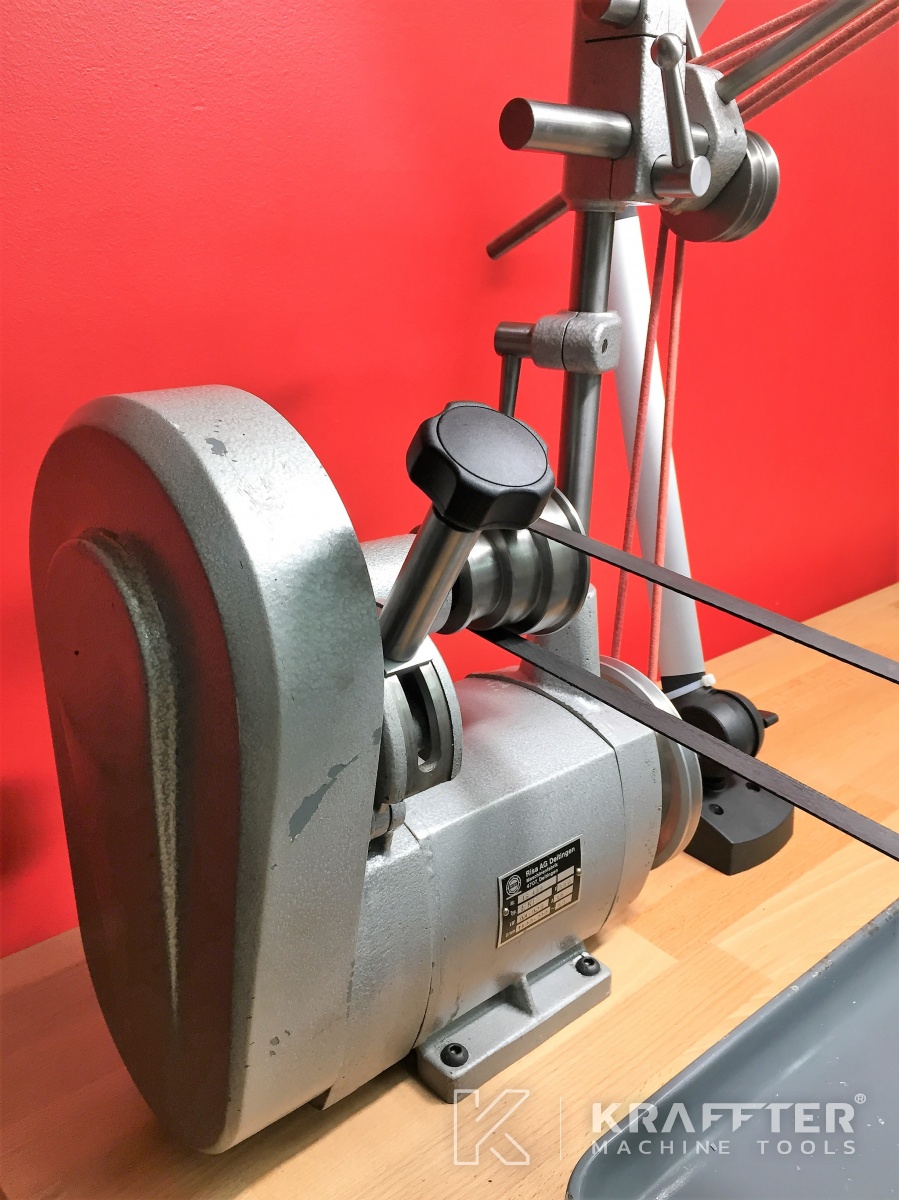

- 1 three-phase motor 750/1500 [rpm]
- 71006 + 71070 / 1 commutating and reversing switch

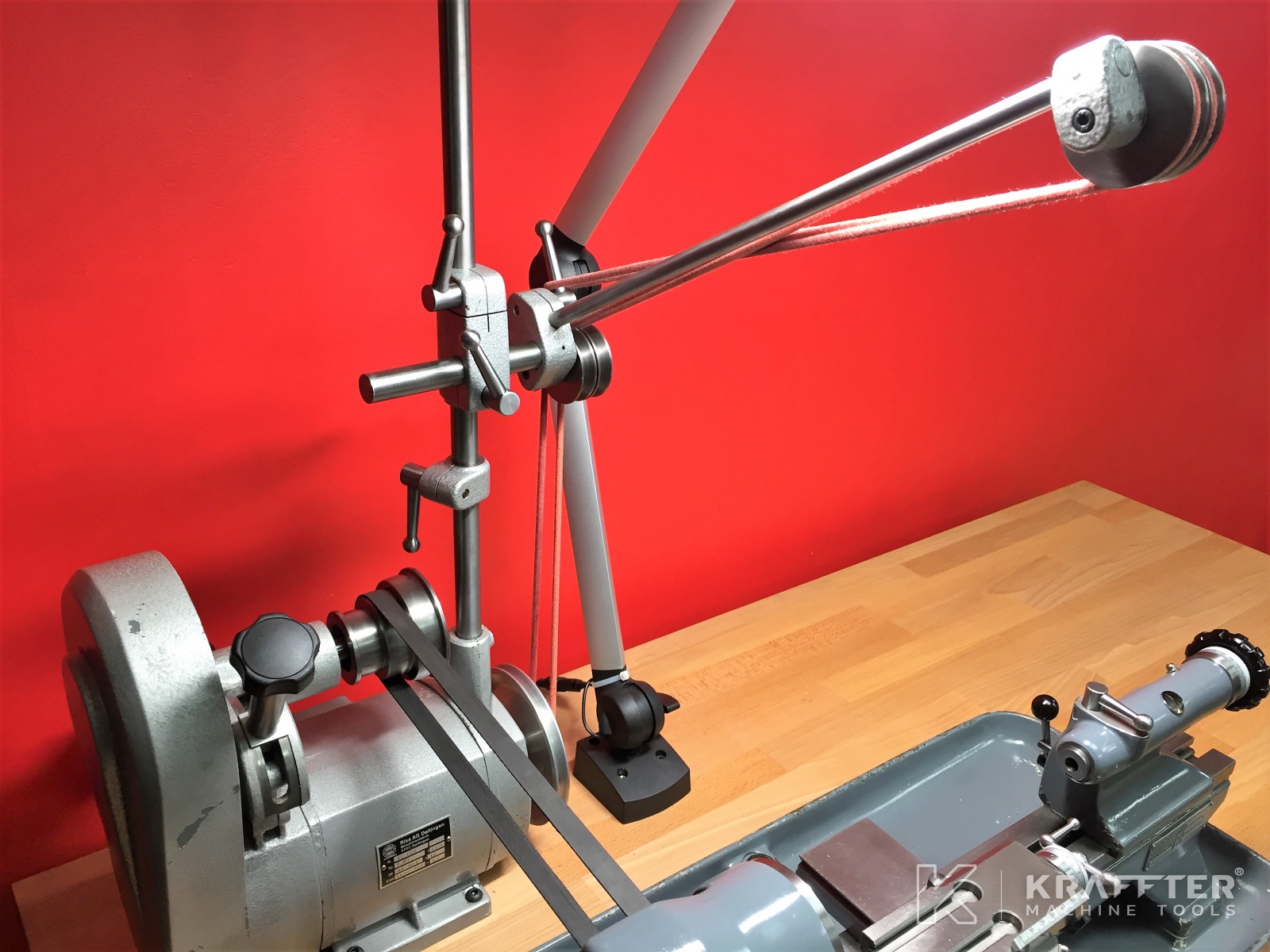

- 102-95.100 / 1 belt-tightening attachement with drive pulley 70-95.222 for milling and grinding attachement
- 70-95.120 / 1 endless belt Ø6 [mm] for milling and grinding attachements – NEW

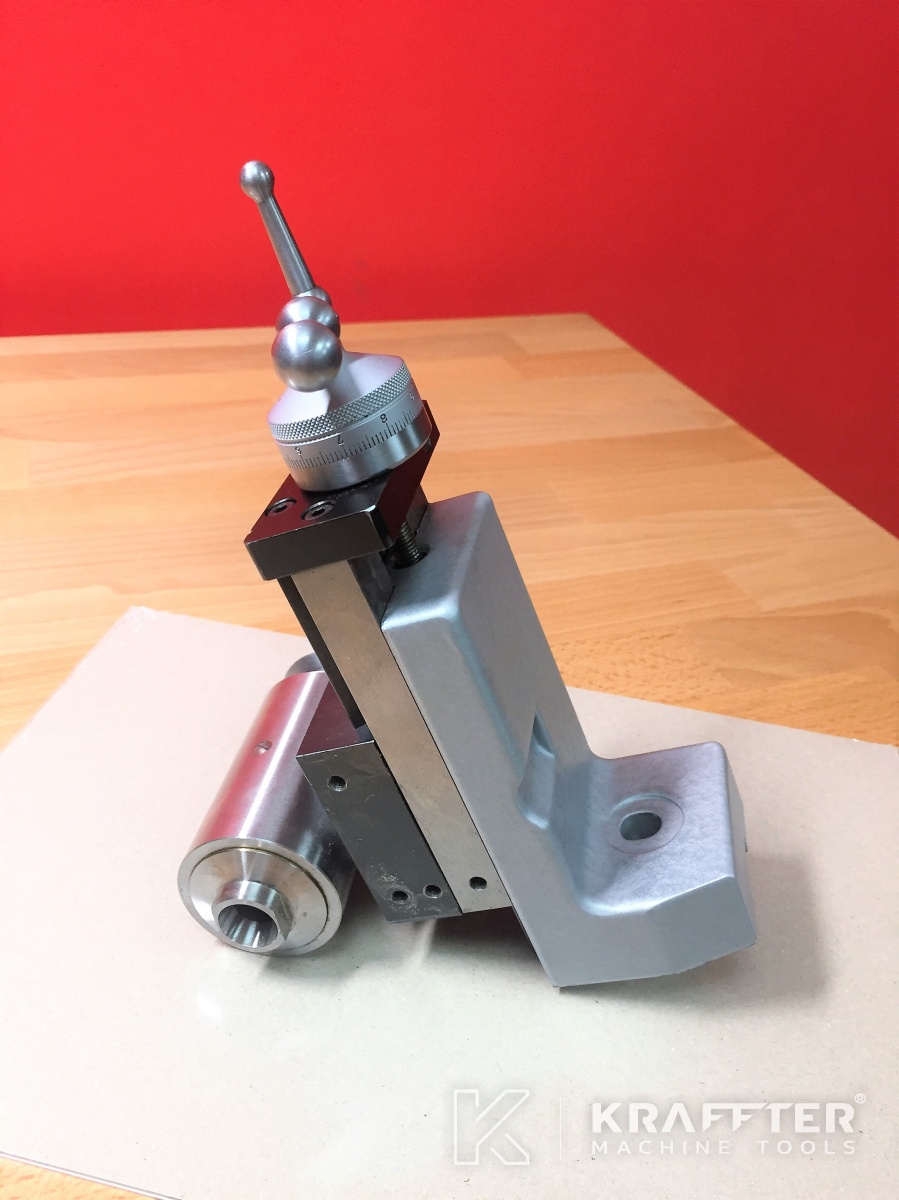

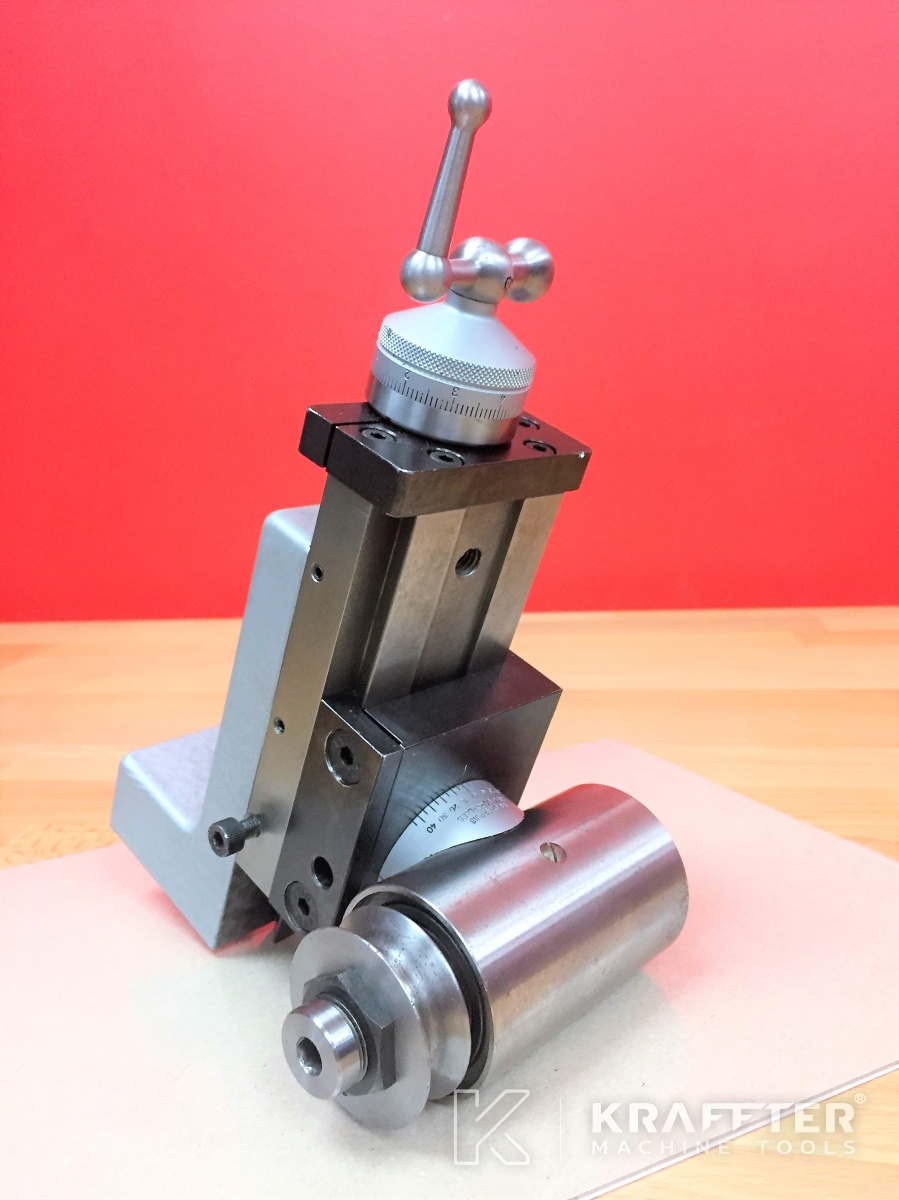

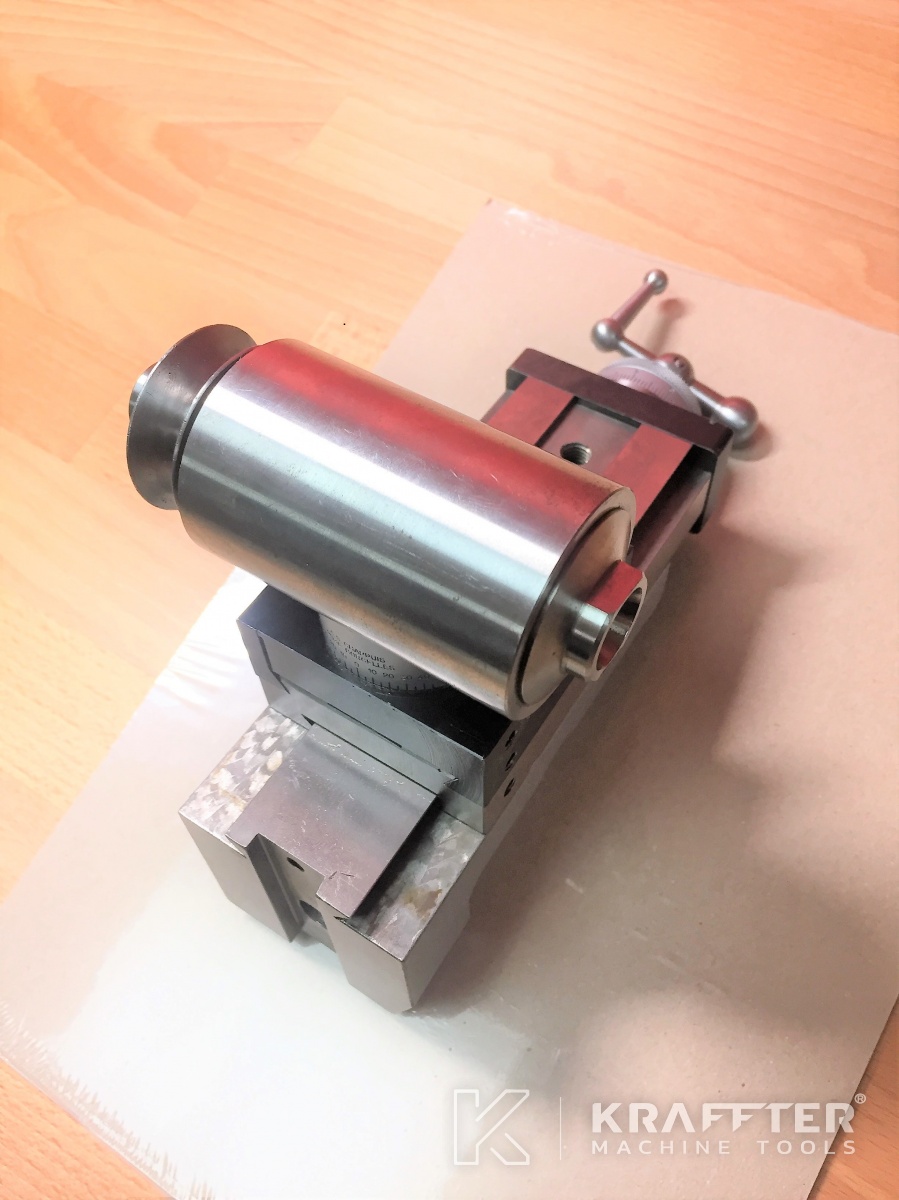

- 1 milling attachement A.S. CHAPPUIS (2035 CORCELLES, SWITZERLAND) spindle type W12

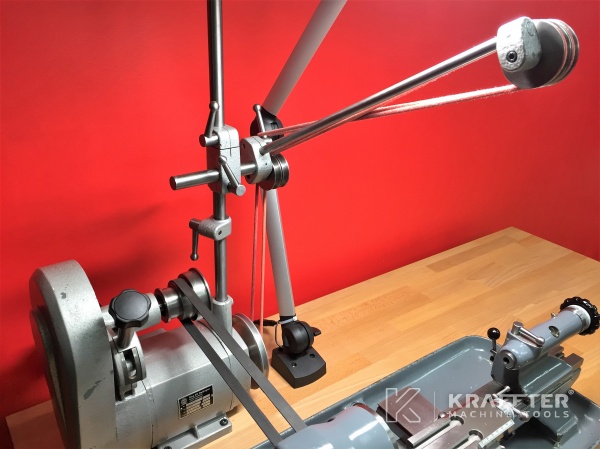

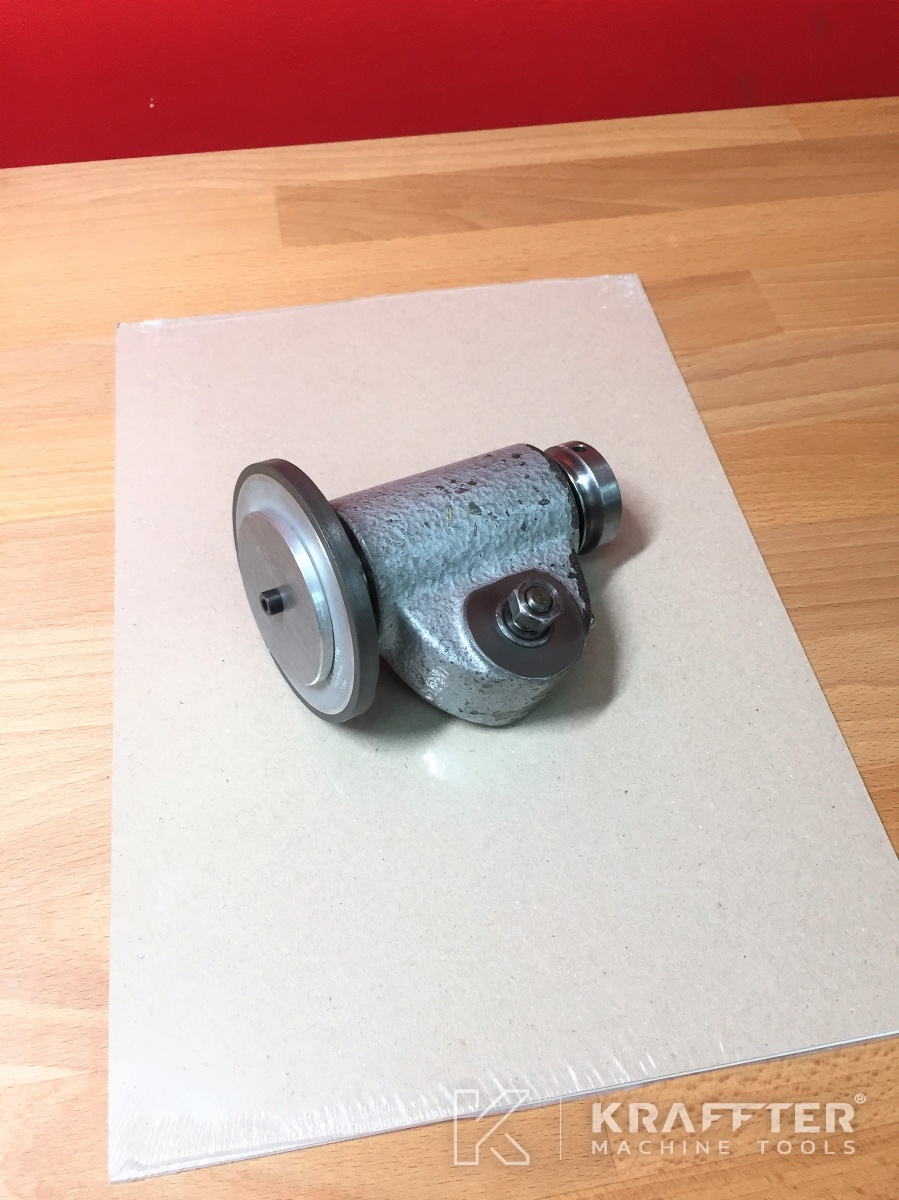

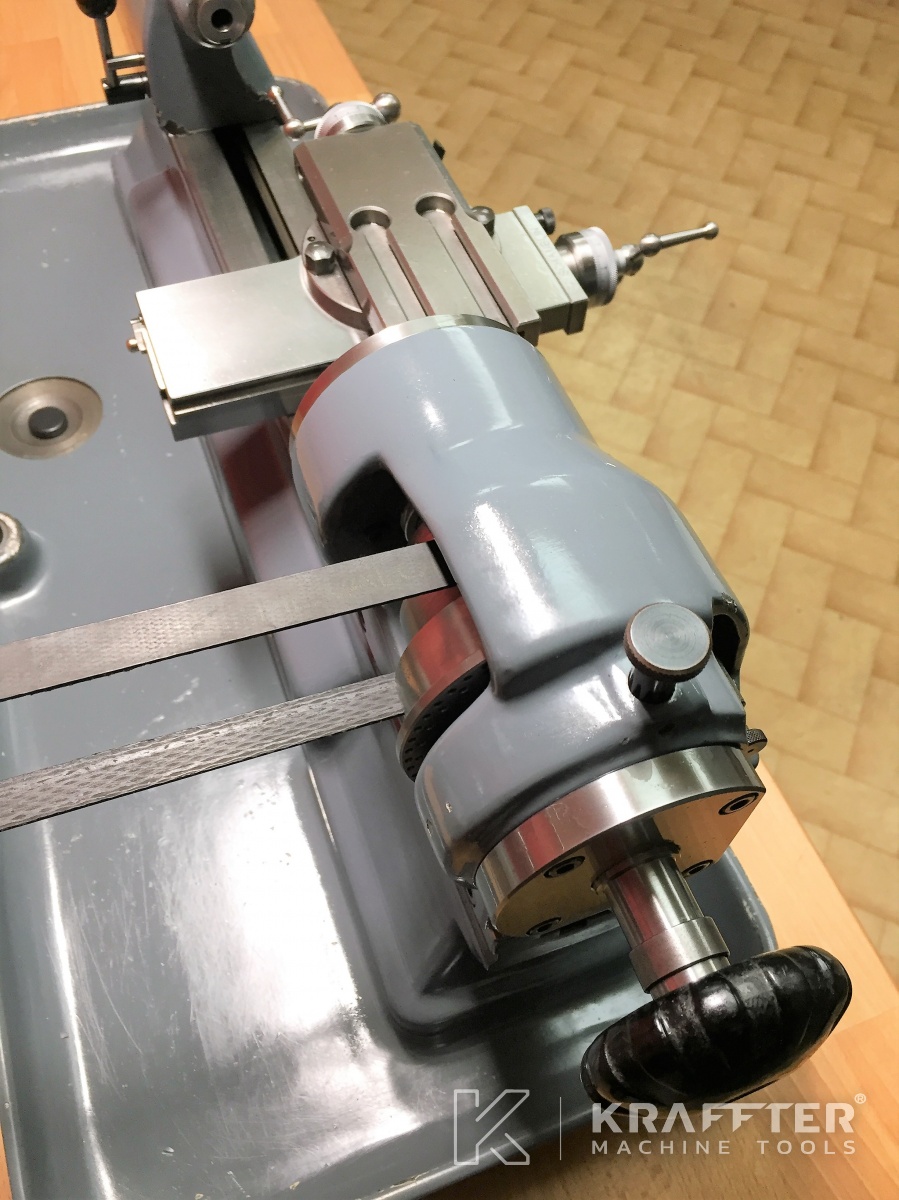

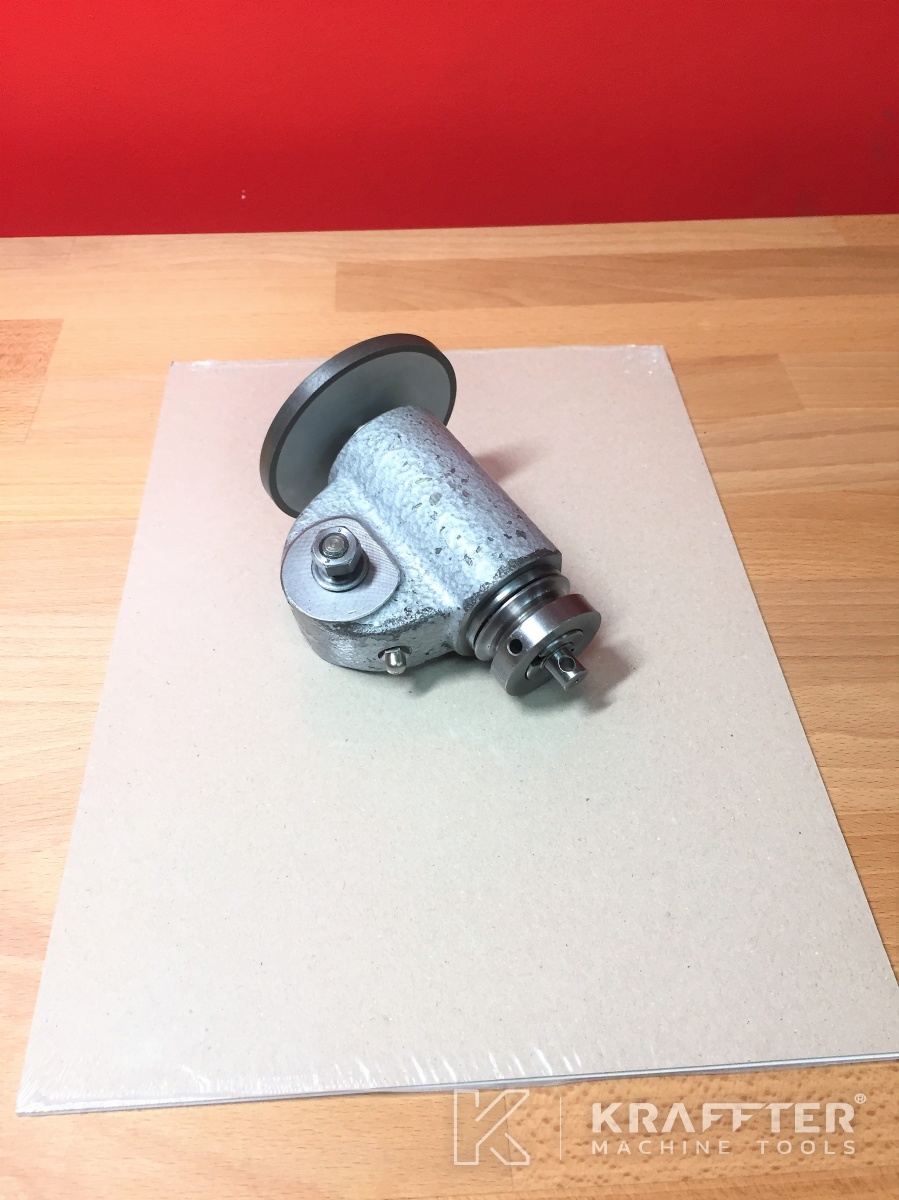

- 70-87.550 / 1 grinding attachement

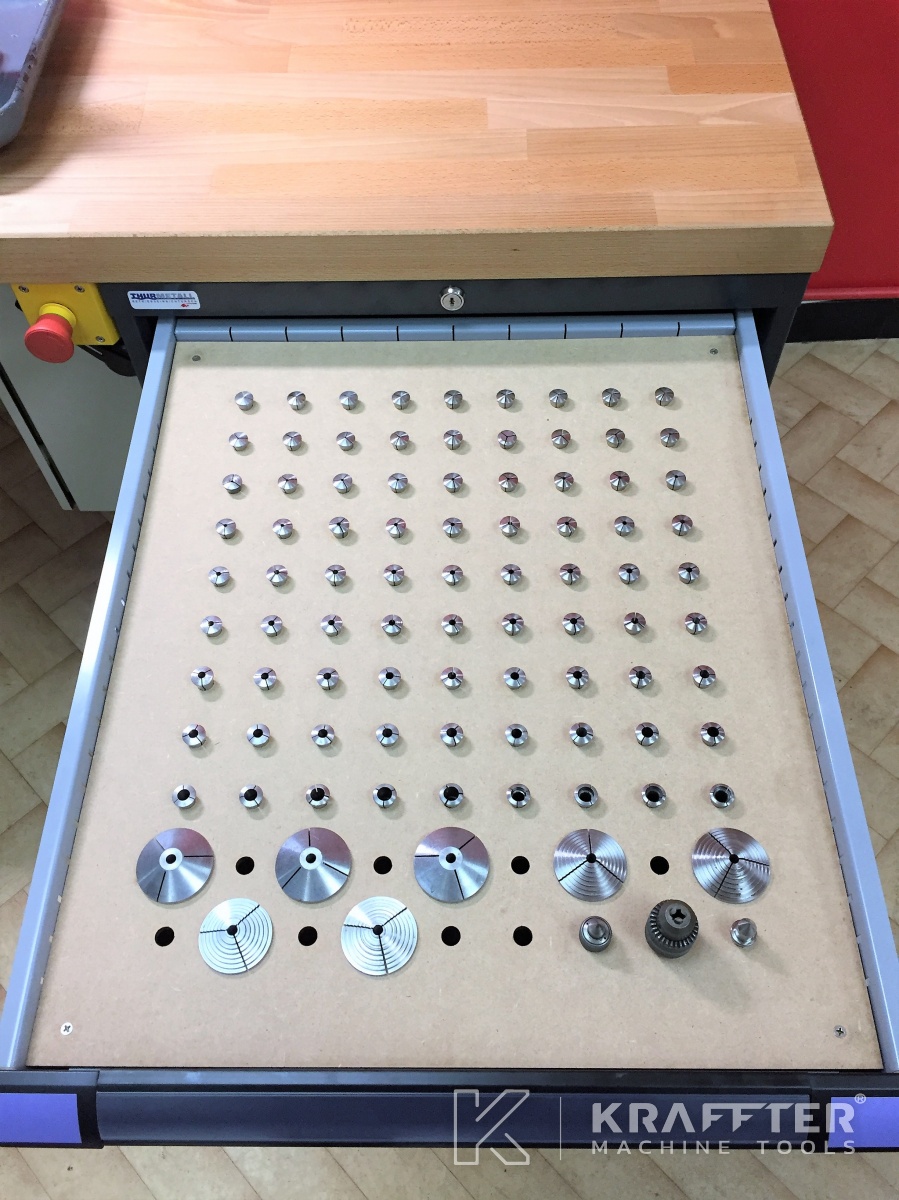

- 81 collets type W12 from Ø0.20 to 12.00 [mm]
- 84-54.000 / 4 internal-gripping collets, finished
- 84-54.010 / 3 internal-gripping collets, unmachined

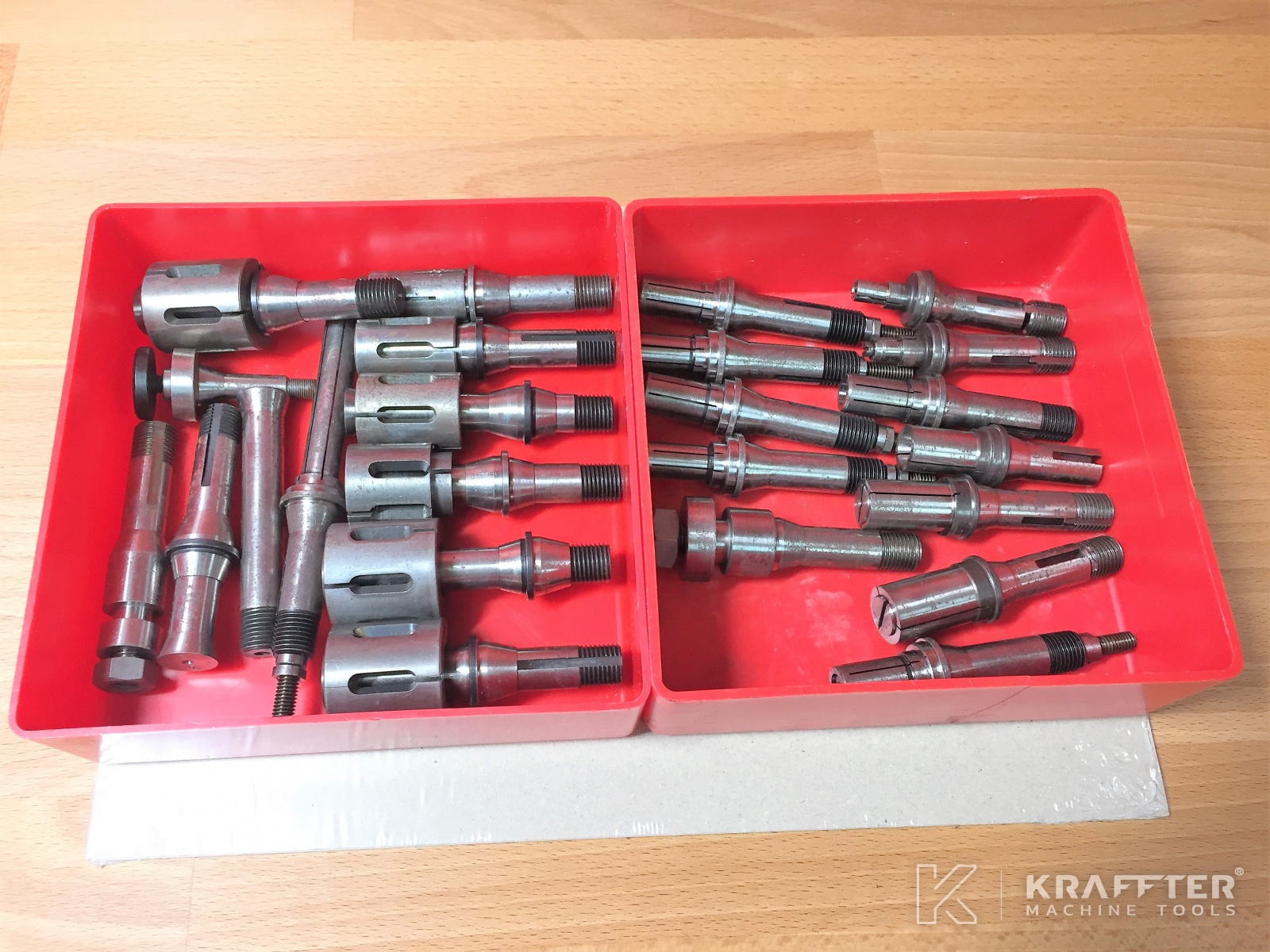

- 84-50.300 / 12 expanding arbors (Ø 7.2 – 8 – 11 – 12.4 – 12.6 – 13 – 14 – 15 – 17 mm)
- 84-50.000 / 7 arbors with interchangeable expanding cast-iron bushes (Ø 18 – 21 – 24 – 25 – 28 – 29.5 – 30 mm)

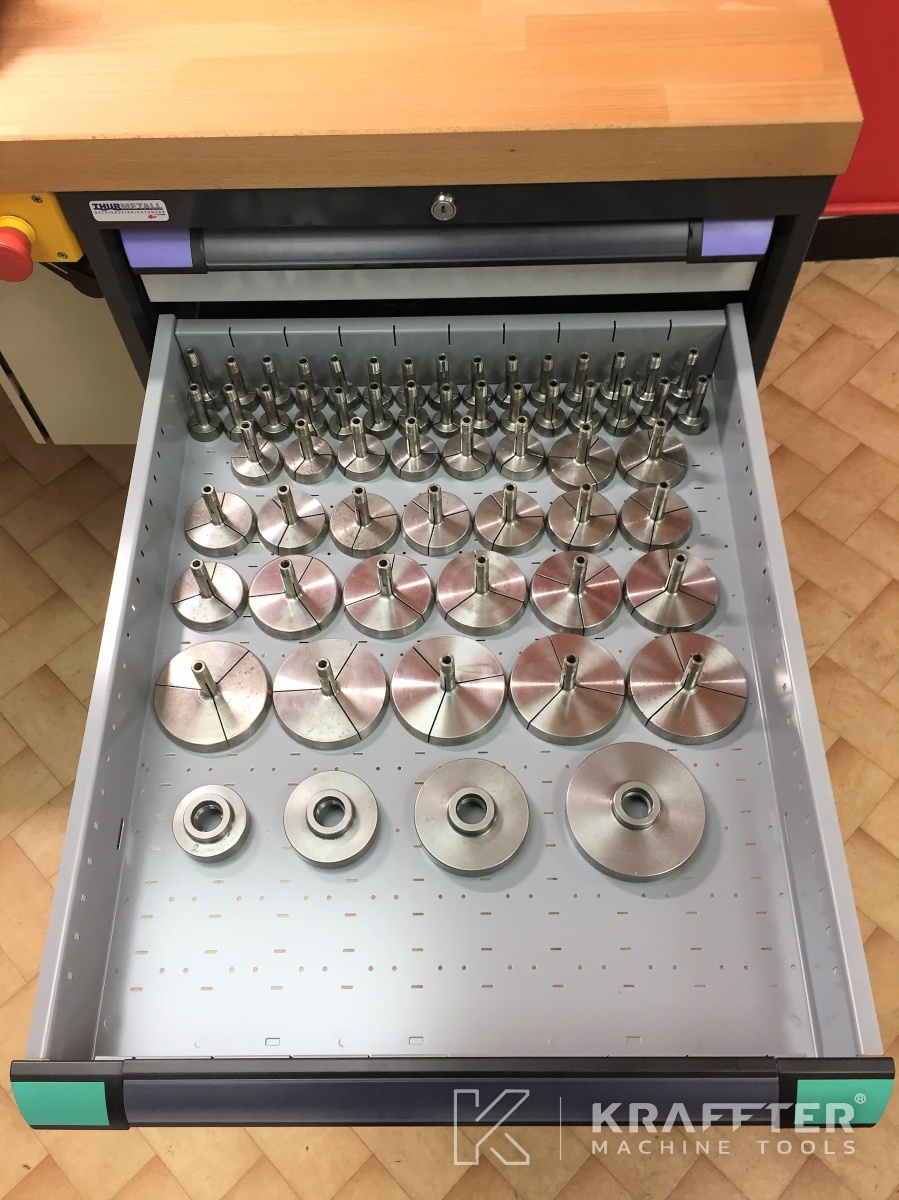

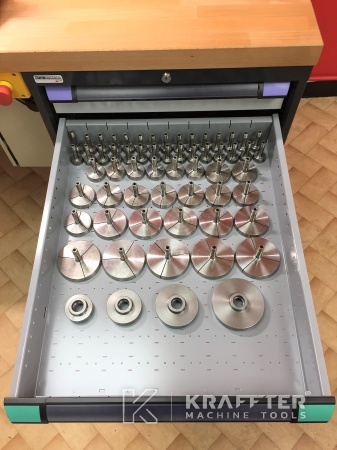

- 82-50.006 / 30 external-gripping collets type W12, finished Ø33 [mm]
- 82-50.007 / 6 external-gripping collets type W12, finished Ø49 [mm]
- 82-50.008 / 10 external-gripping collets type W12, finished Ø65 [mm]
- 82-50.009 / 5 external-gripping collets type W12, finished Ø81 [mm]
- 82-50.010 / 5 external-gripping collets type W12, finished Ø97 [mm]
- 70-25.221 / 4 closers for type W12 external-gripping collets sizes 2, 3, 4, 5,
- 70-25.180 / 1 protective nut for spindle nose

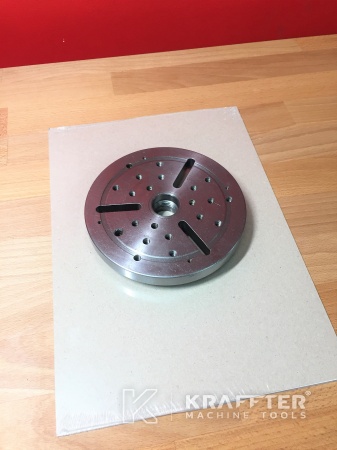

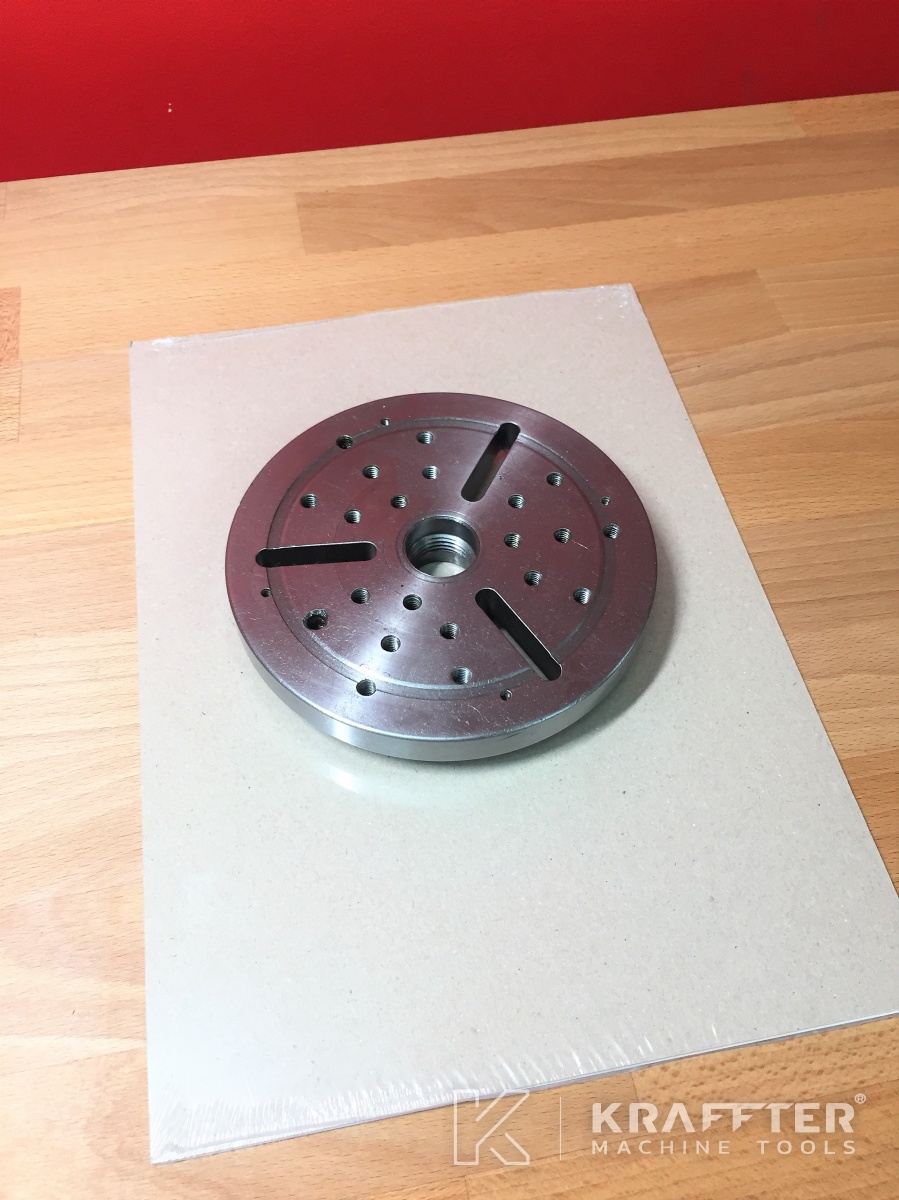

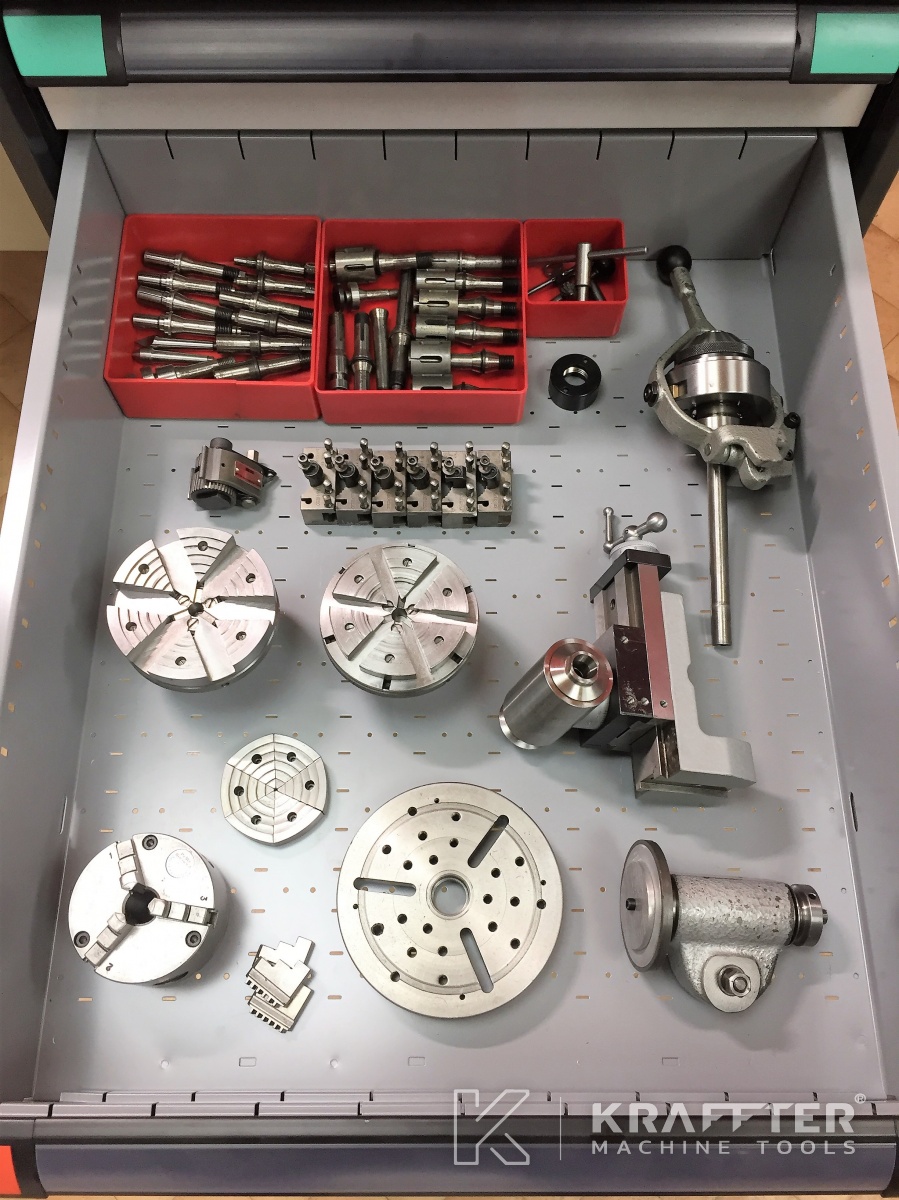

- 1 faceplate Ø138 [mm] with 3 radial T slots of 7 [mm] and 21 M6 tapped holes

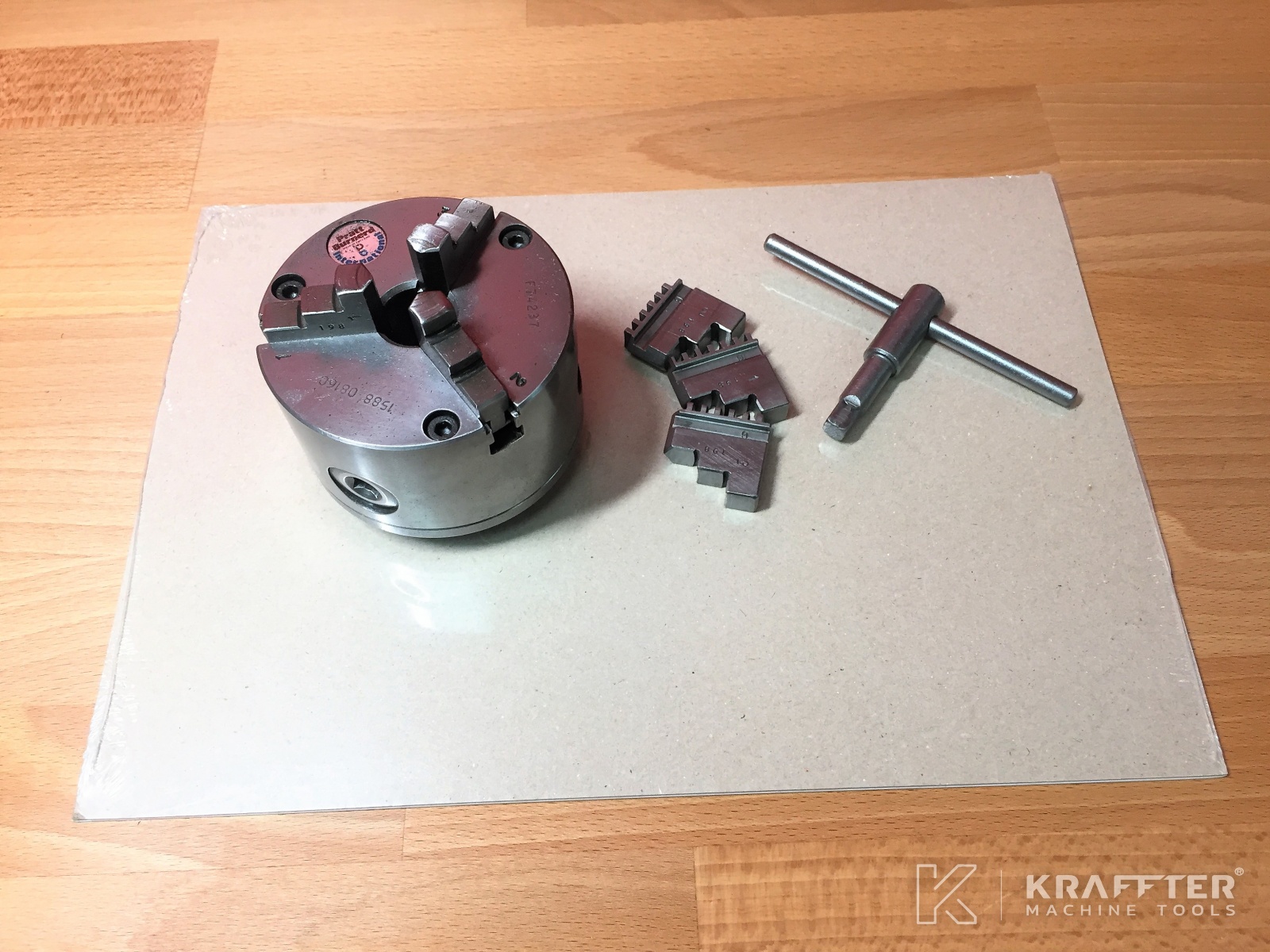

- 1 concentric 3 jaw chuck Ø80 [mm] PRATT BURNERD for internal and external gripping, mounted on adapter for spindle nose, with 1 safety ring and 1 key
- 1 set of 3 internal hardened jaws for Ø80 [mm] PRATT BURNERD chuck
- 1 set of 3 external hardened jaws for Ø80 [mm] PRATT BURNERD chuck

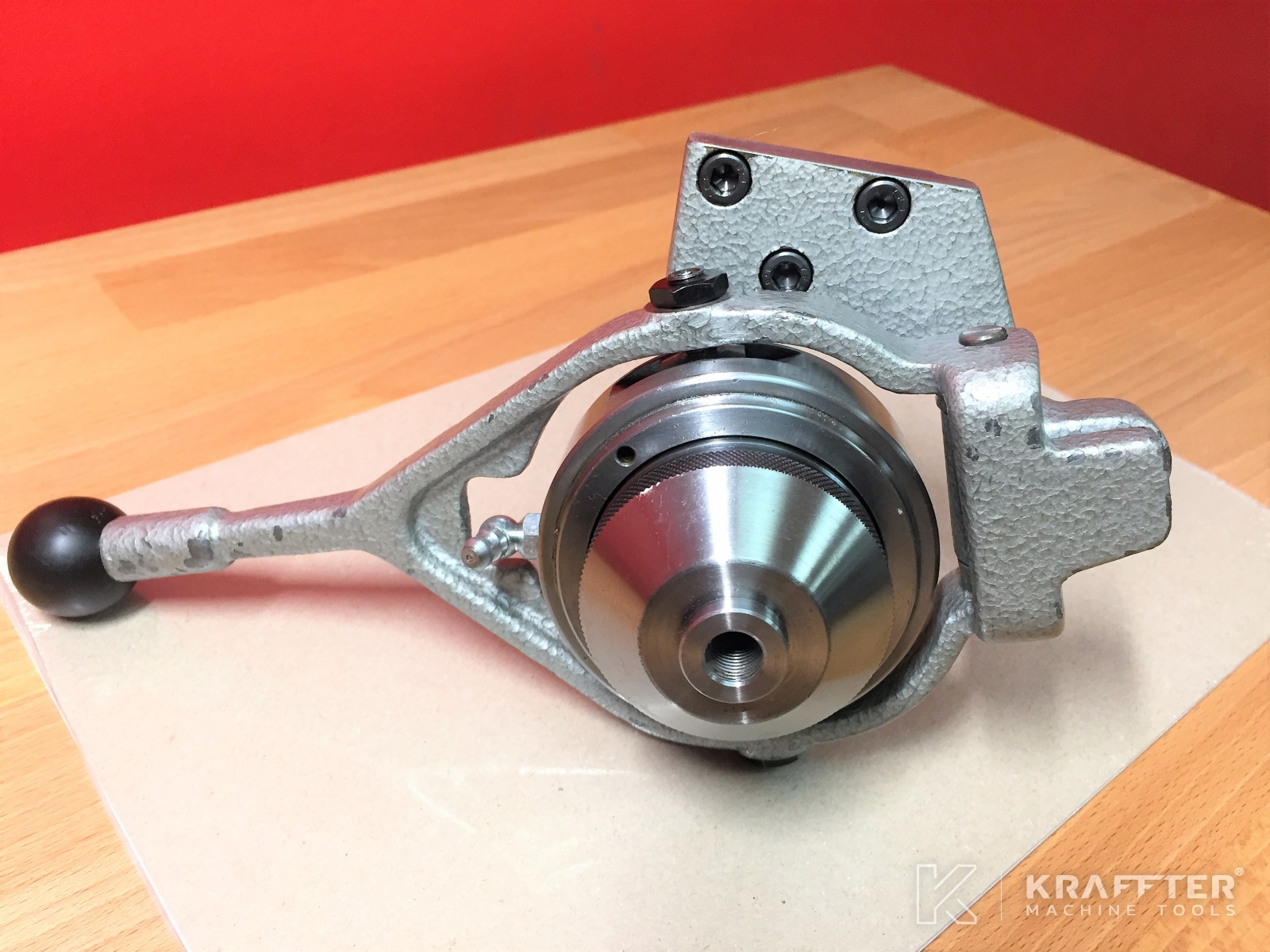

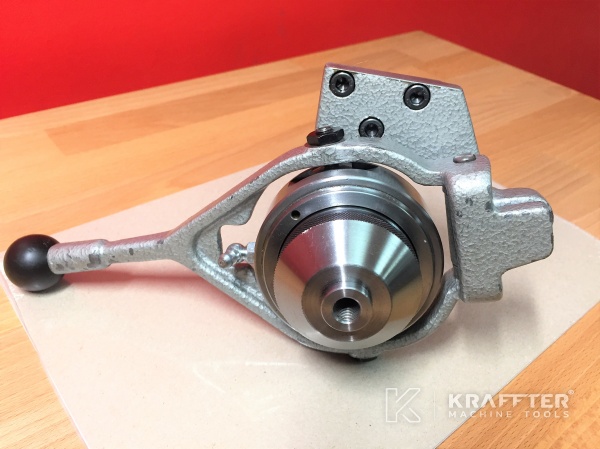

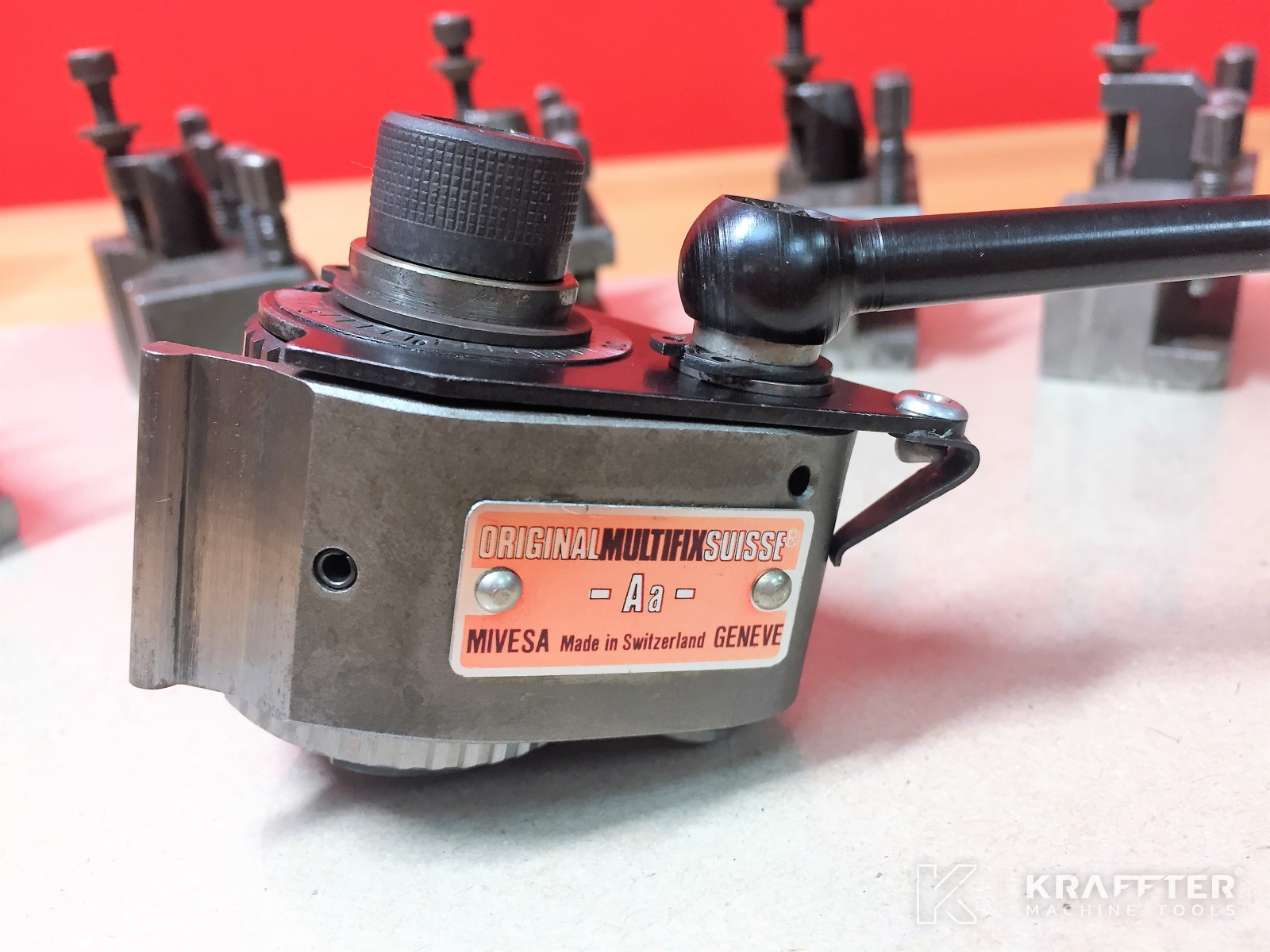

- 70-46.200 / 1 quick-clamping turret MULTIFIX ORIGINAL SUISSE type Aa and its 2 locking levers

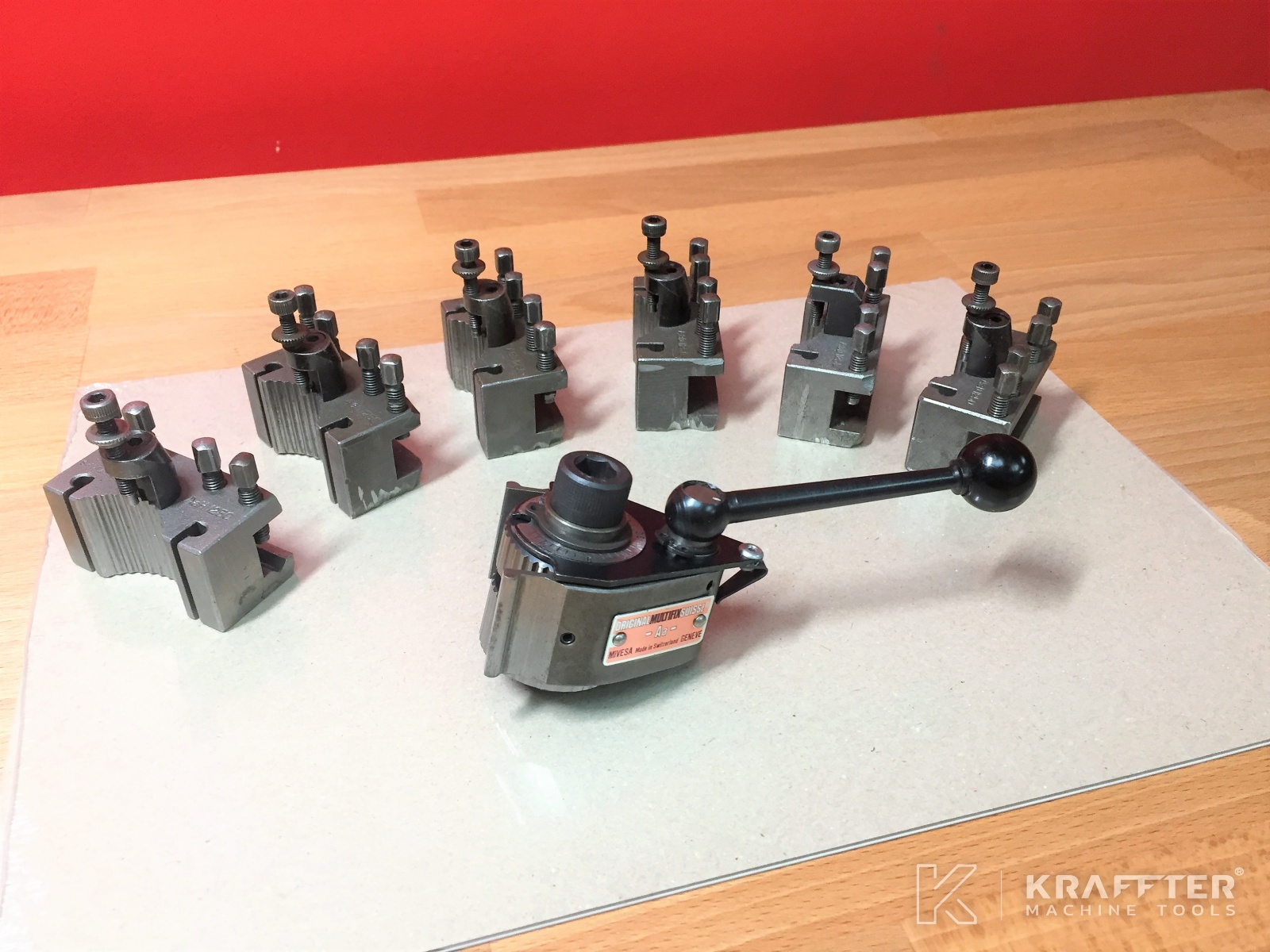

- 6 tools-holders MULTIFIX ORIGINAL SUISSE type Aa

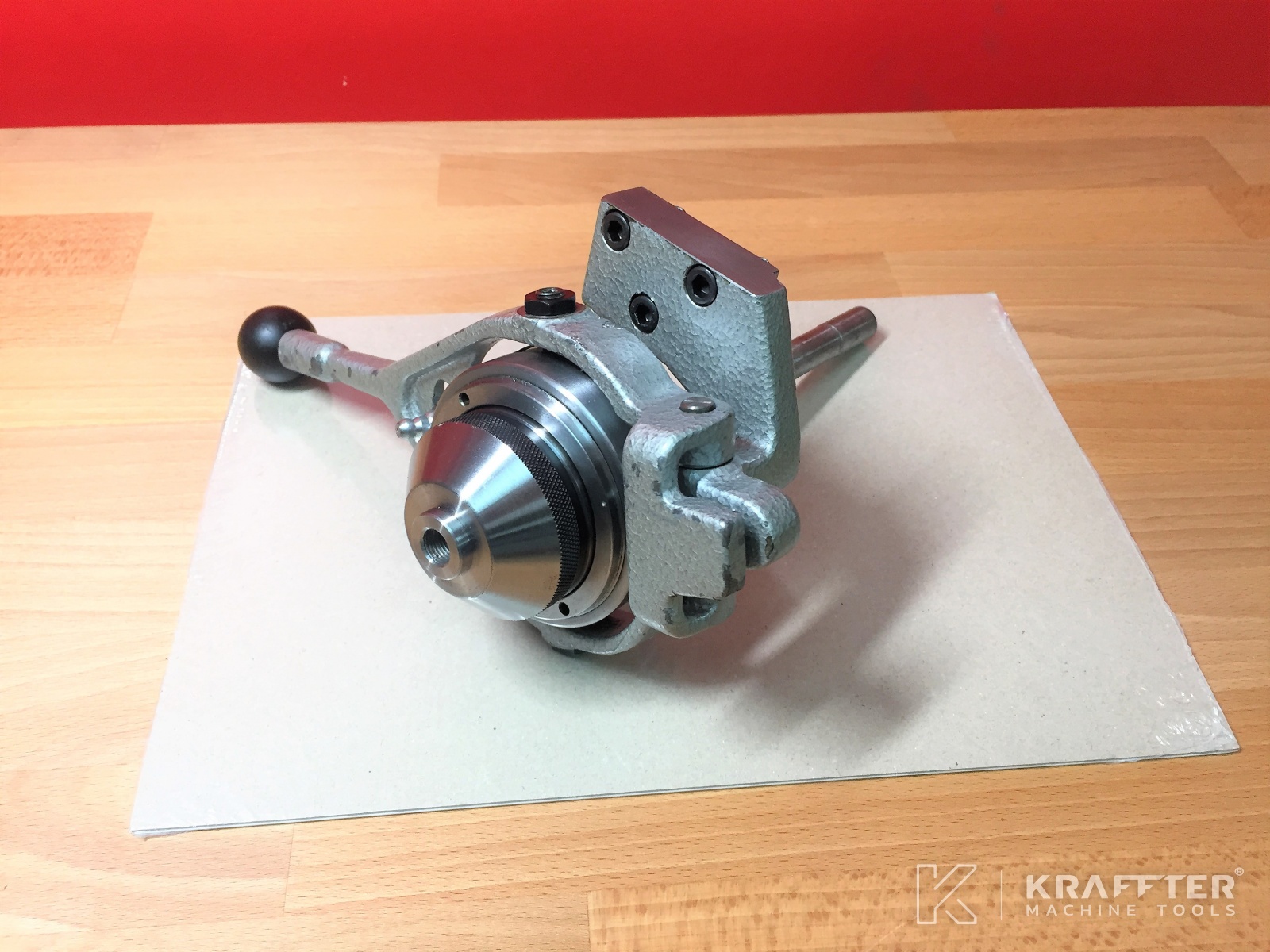

- 70-74.100 / 1 drill chuck on arbor, shank taper 2°, chuck capacity from 0.3 to 6.4 [mm] with 1 locking lever

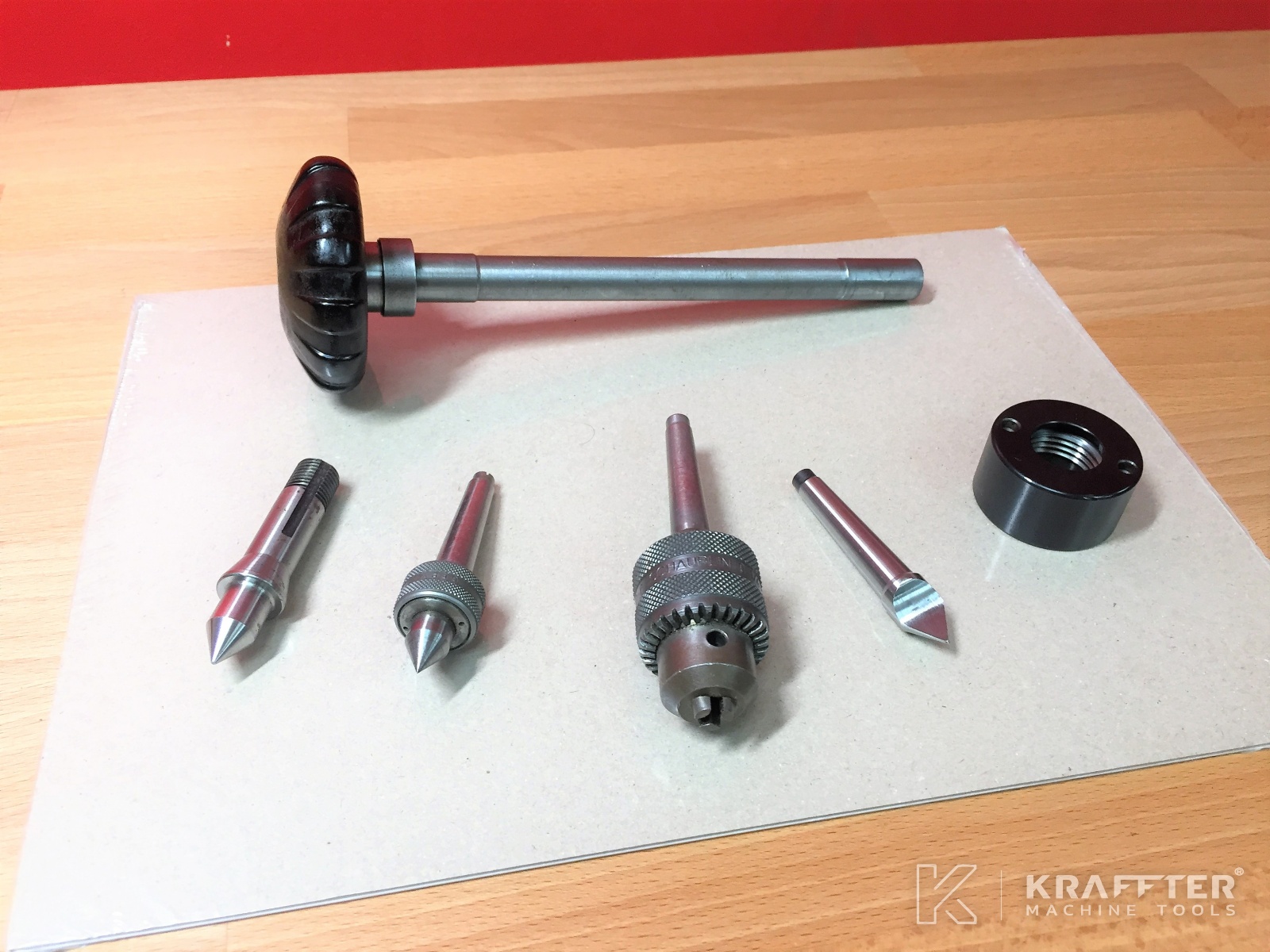

- 70-74.041 / 1 revolving male center, 60° (with taper roller bearing), shank taper 2°
- 70-74.021 / 1 femalle center, 60°, shank taper 2°
- 70-74.011 / 1 half male center, 60°, shank taper 2°
- 70-25.001 / 1 male center, 60° type W12

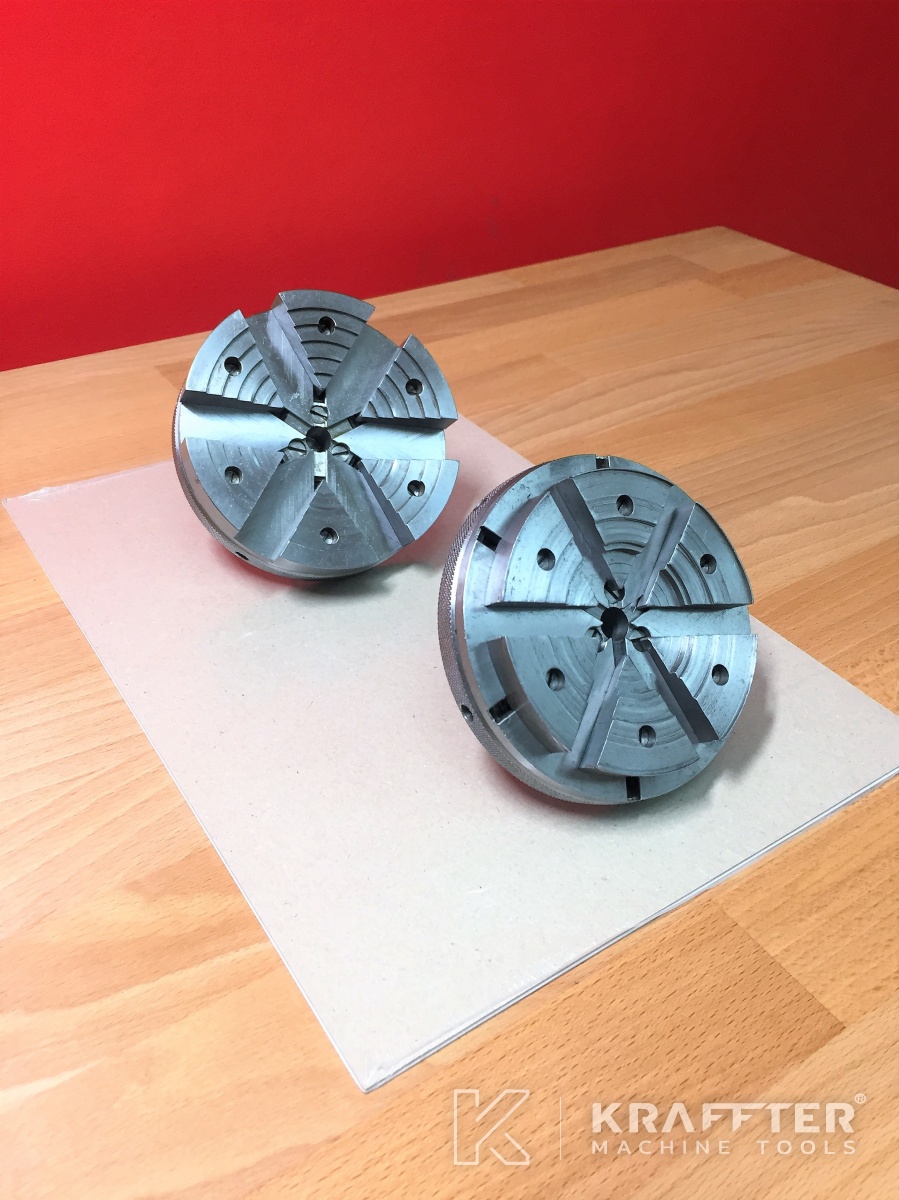

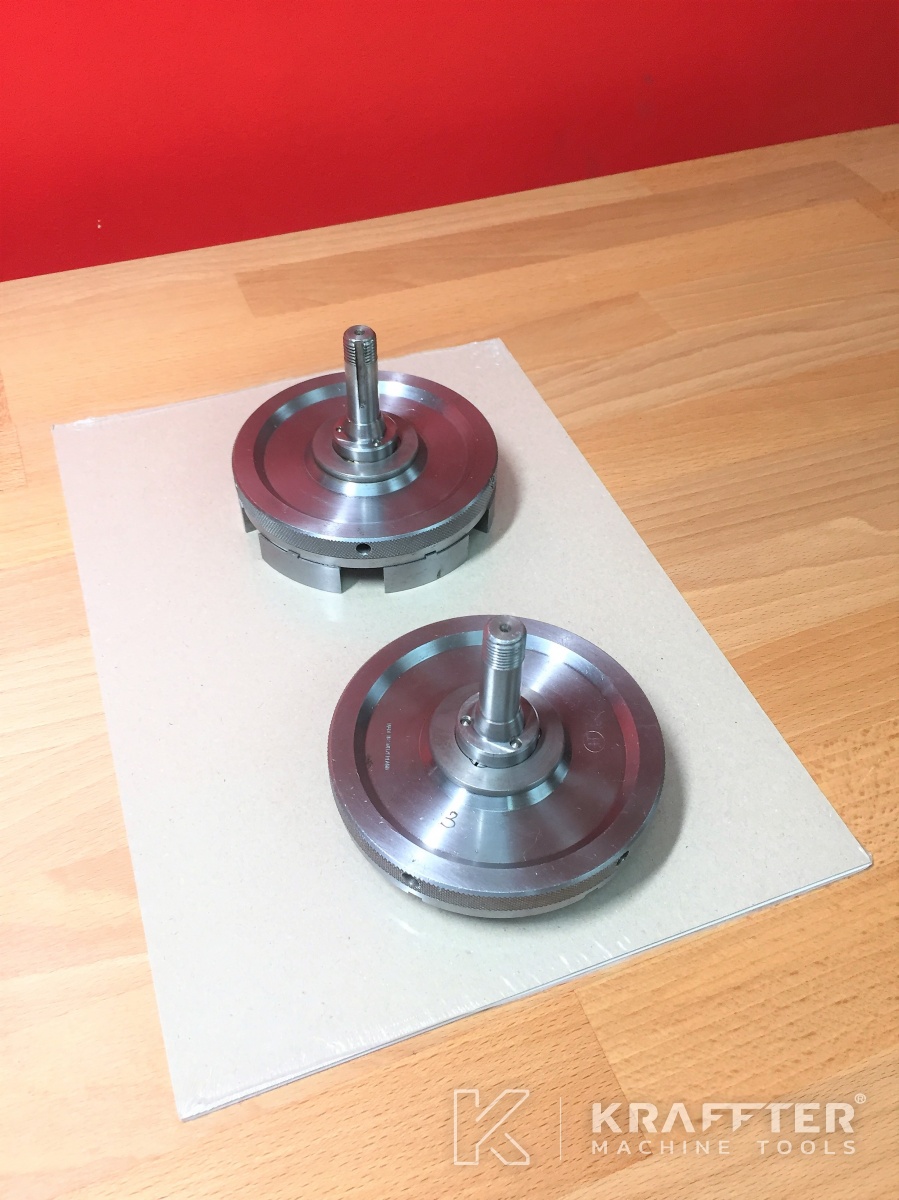

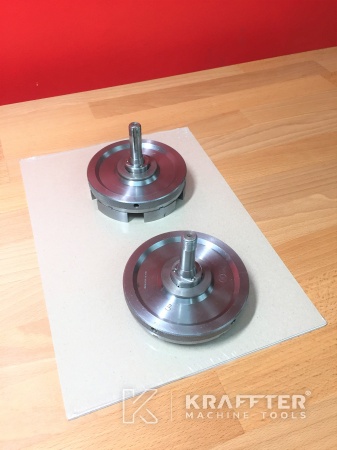

- 2 chucks 6 jaws Ø100 [mm] type B for external gripping type W12

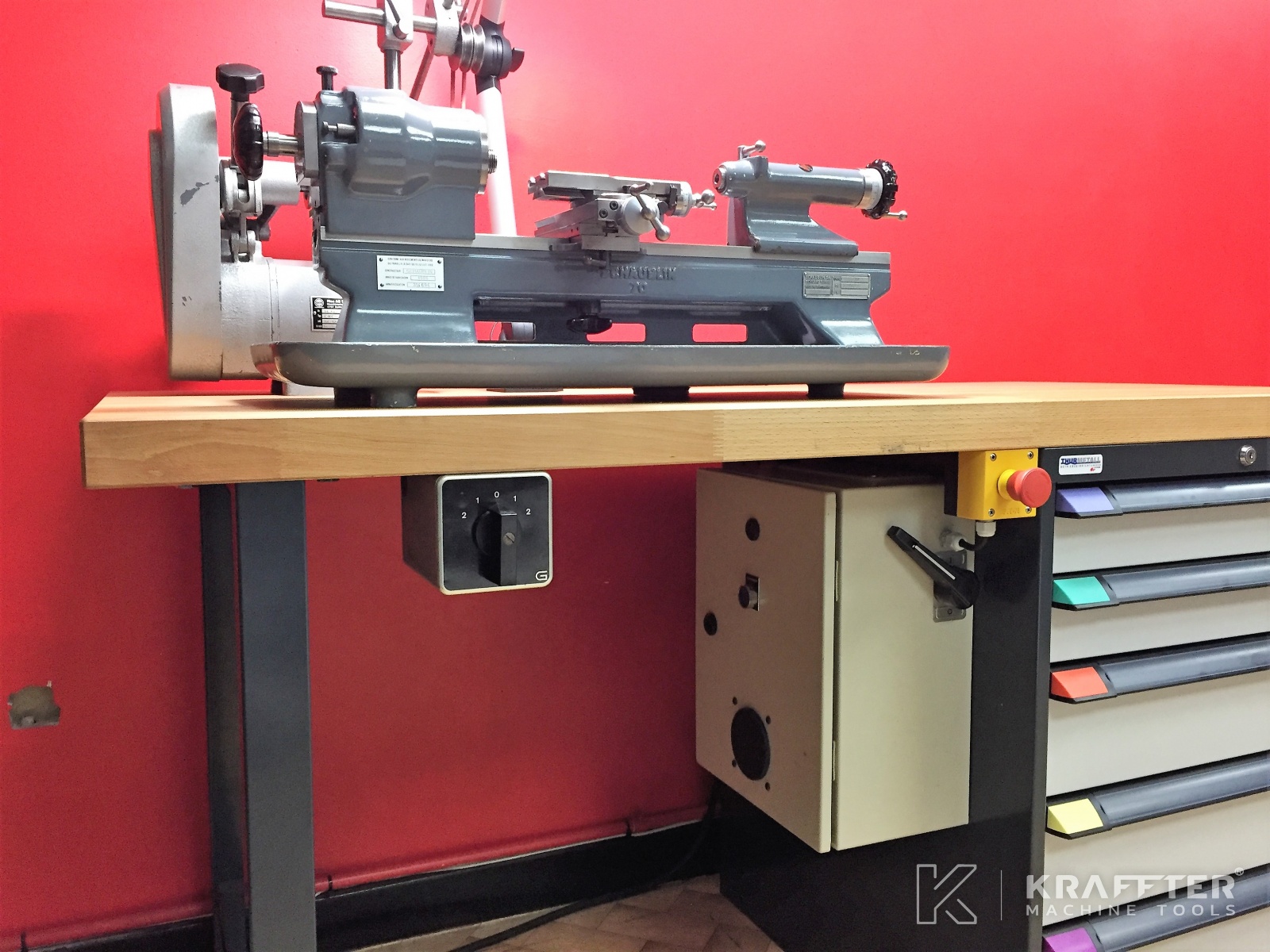

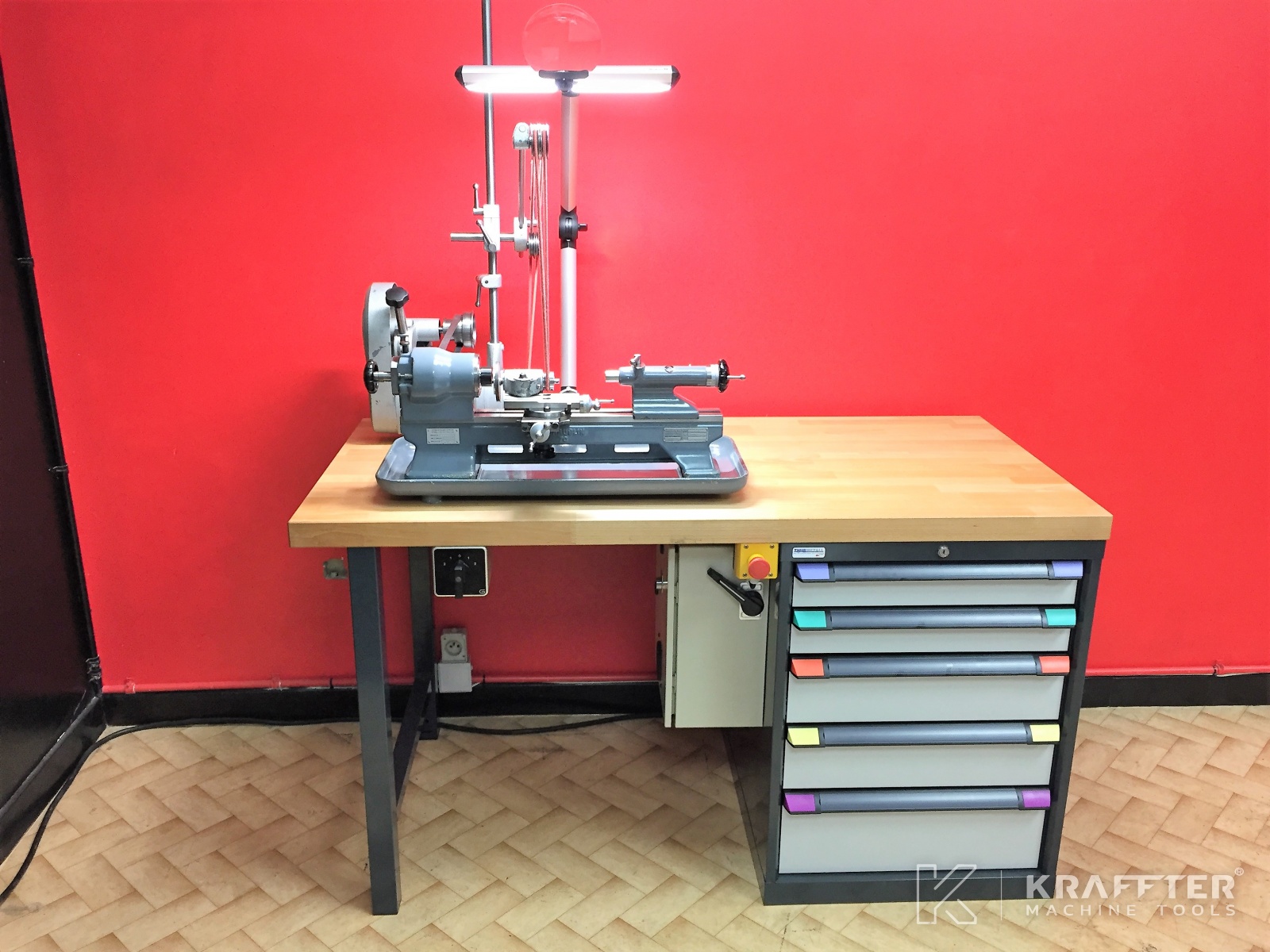

- 1 workbench THURMETALL (SWITZERLAND) 1500 x 700 [mm], 50 [mm]beechwood bench – NEW
- 1 cabinet THURMETALL (SWITZERLAND), 5 drawers – NEW

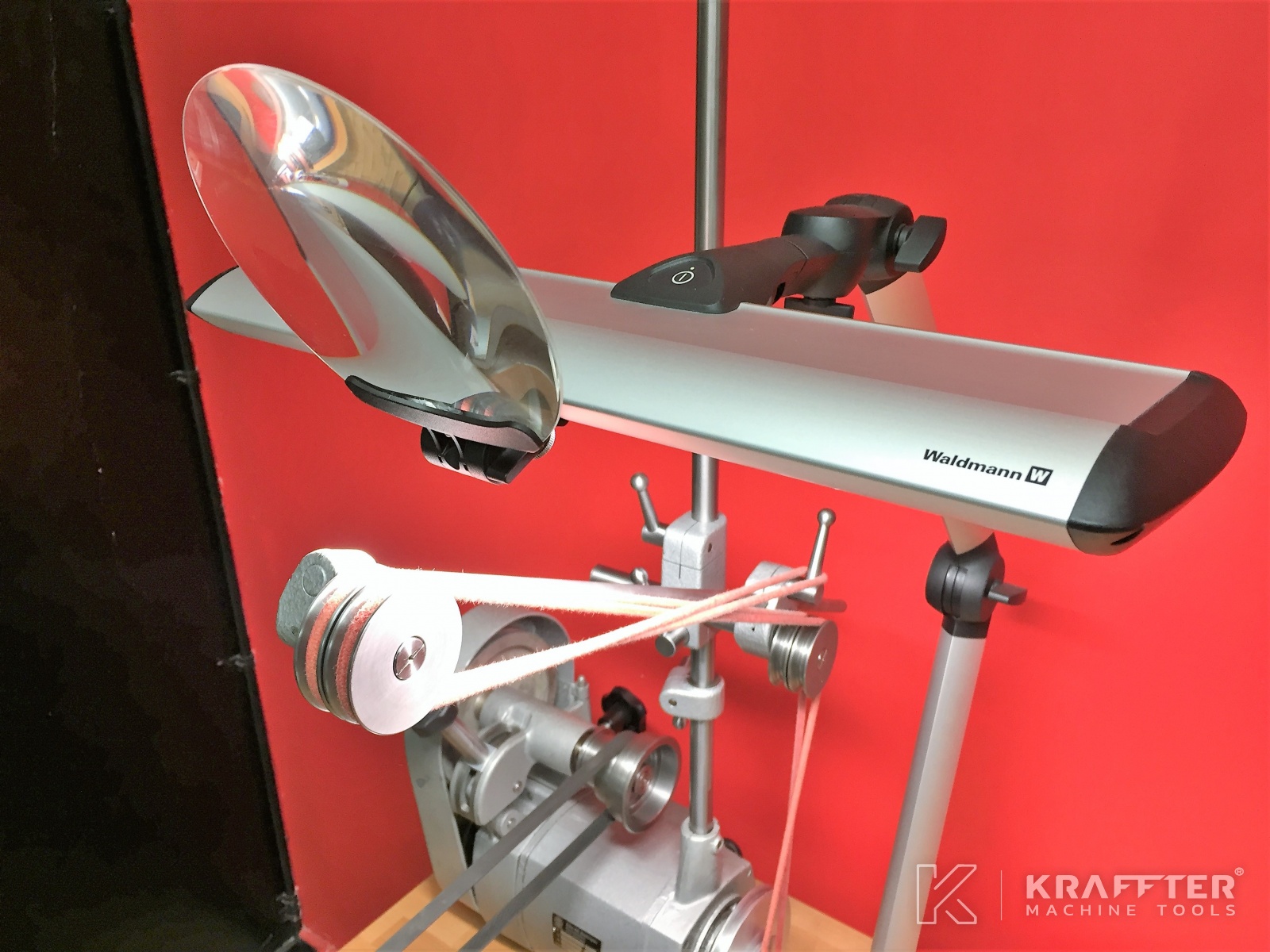

- 1 aluminium WALDMANN « Taneo » lamp, high quality LED lightning – NEW
- 1 magnifying glass WALDMANN – NEW
- 1 electrical cabinet, low voltage command 24 [v] – power supply 400[v]
