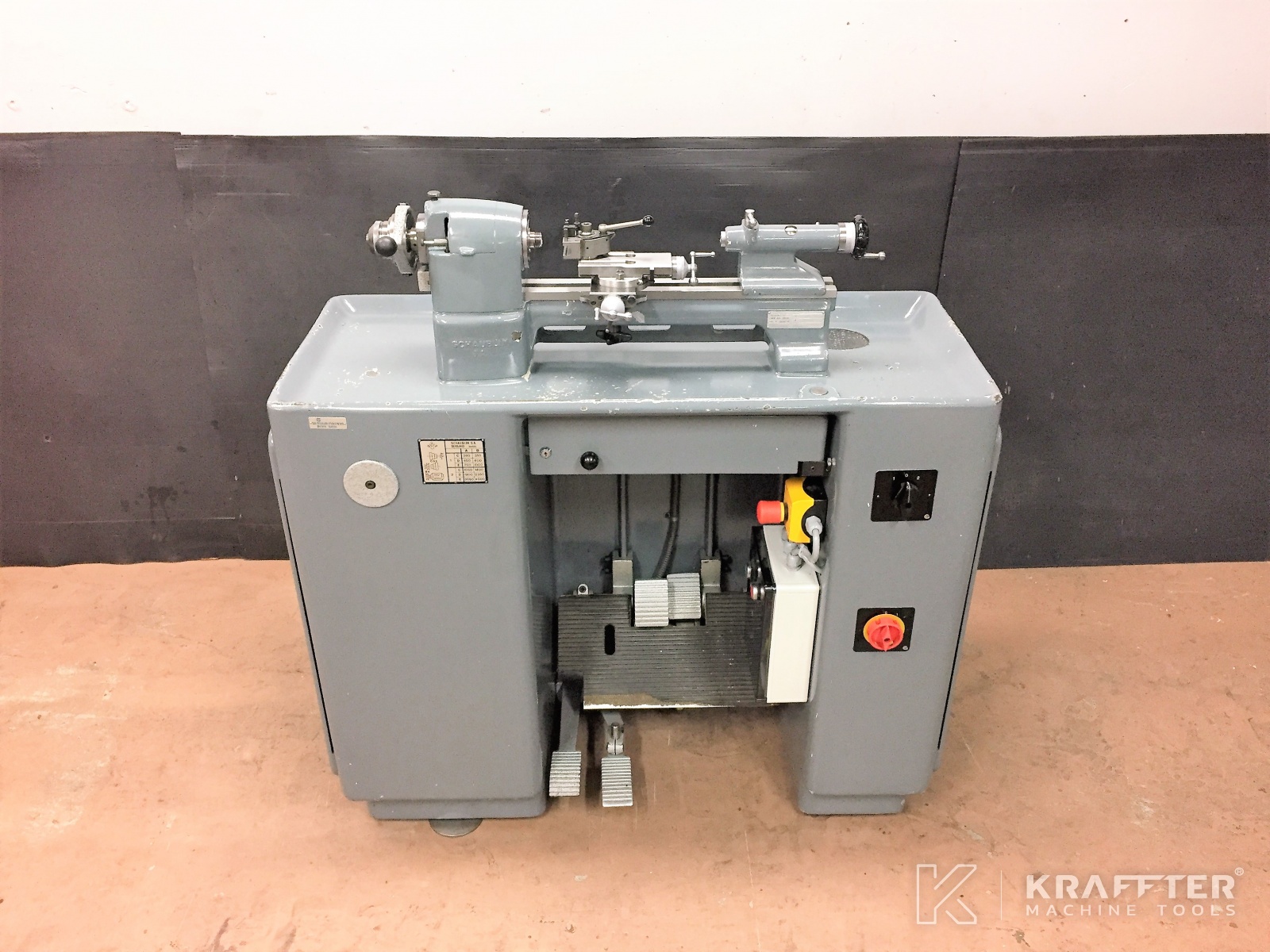

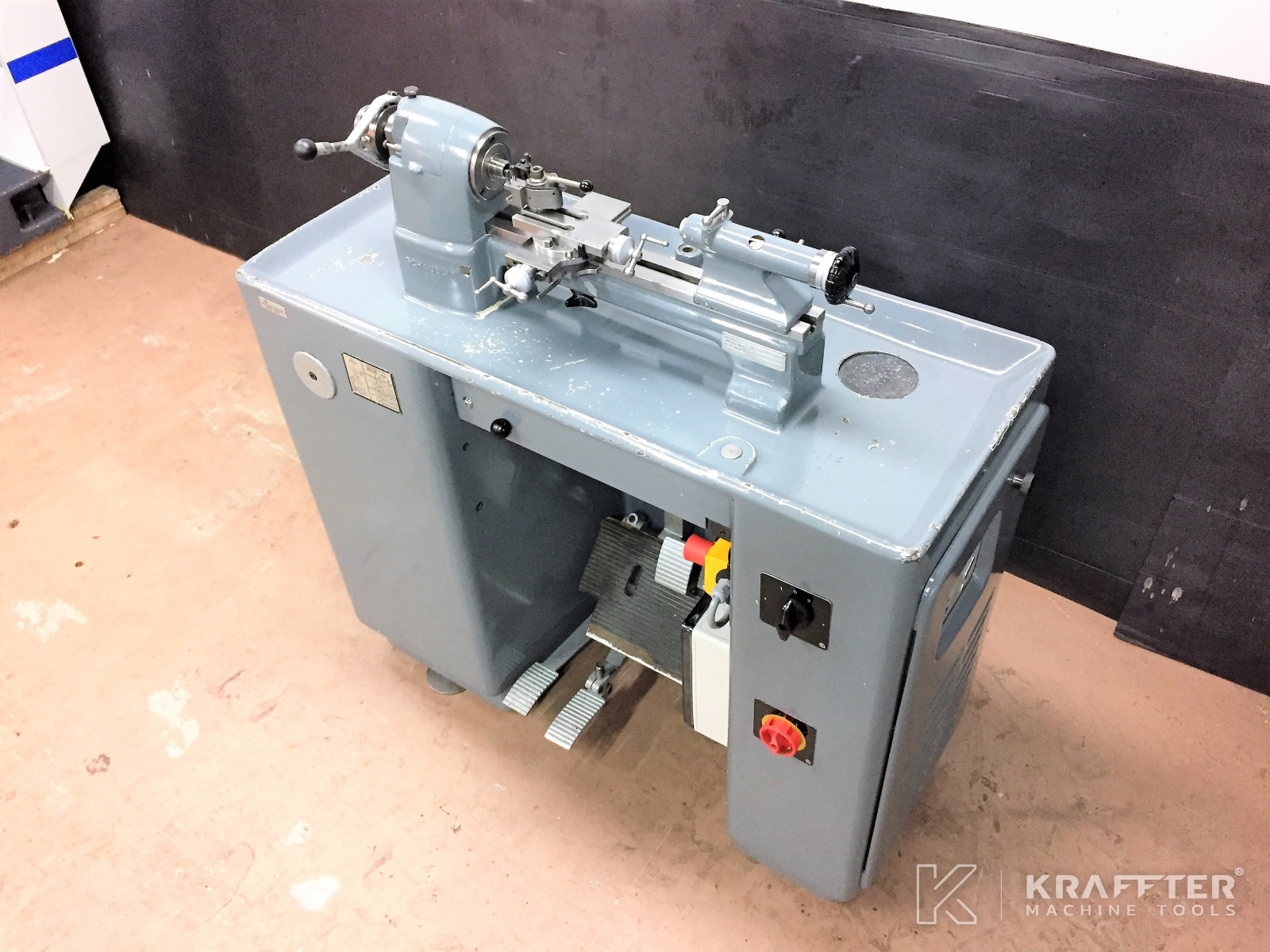

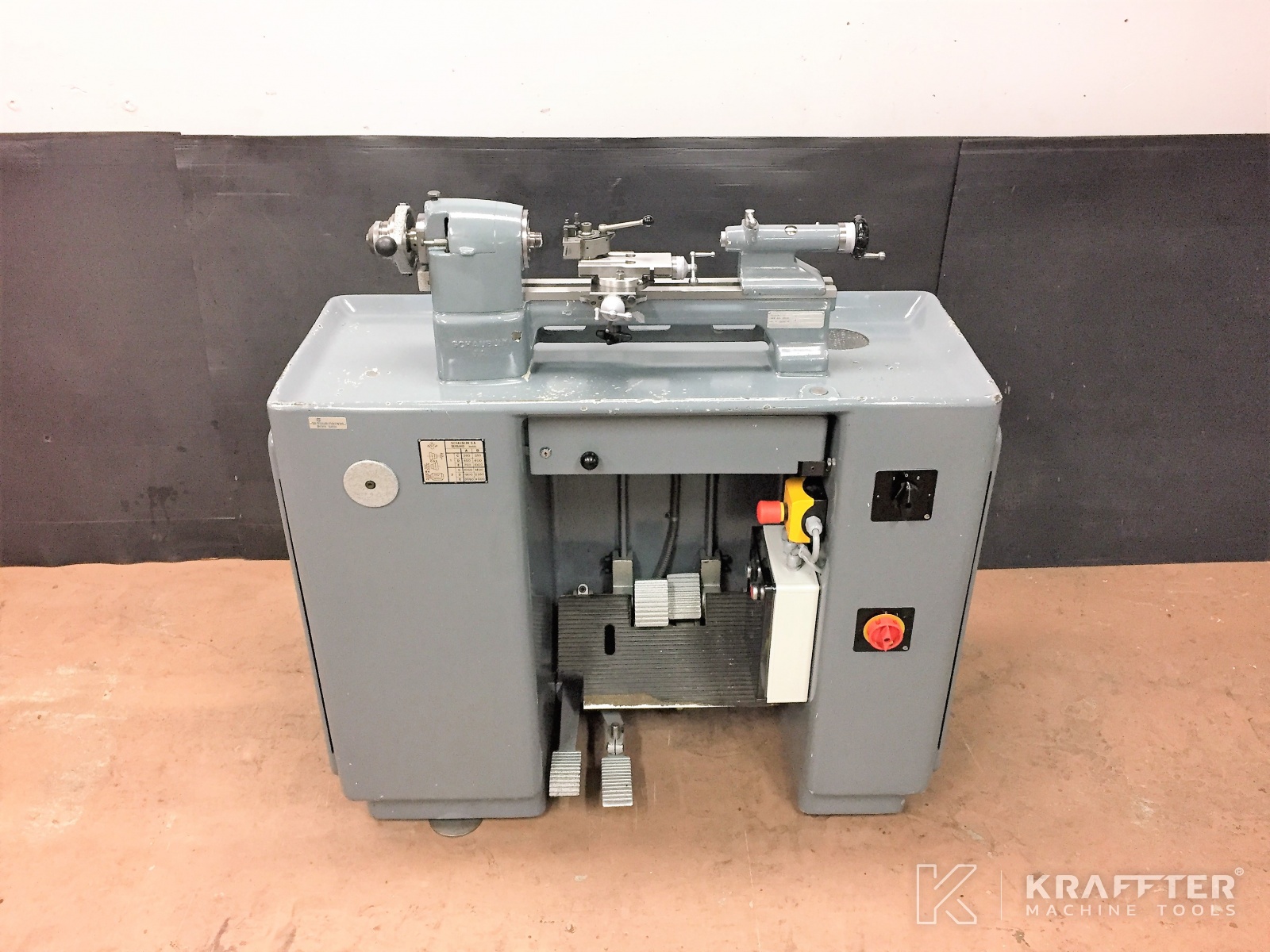

Type of machine : Manual lathe
Brand : SCHAUBLIN
Stock N° : 20689-923
Model : 70
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Number of axes
2
Distance between centers
275 [mm]
Height of centers
70 [mm]
Height of centers over cariage
85 [mm]

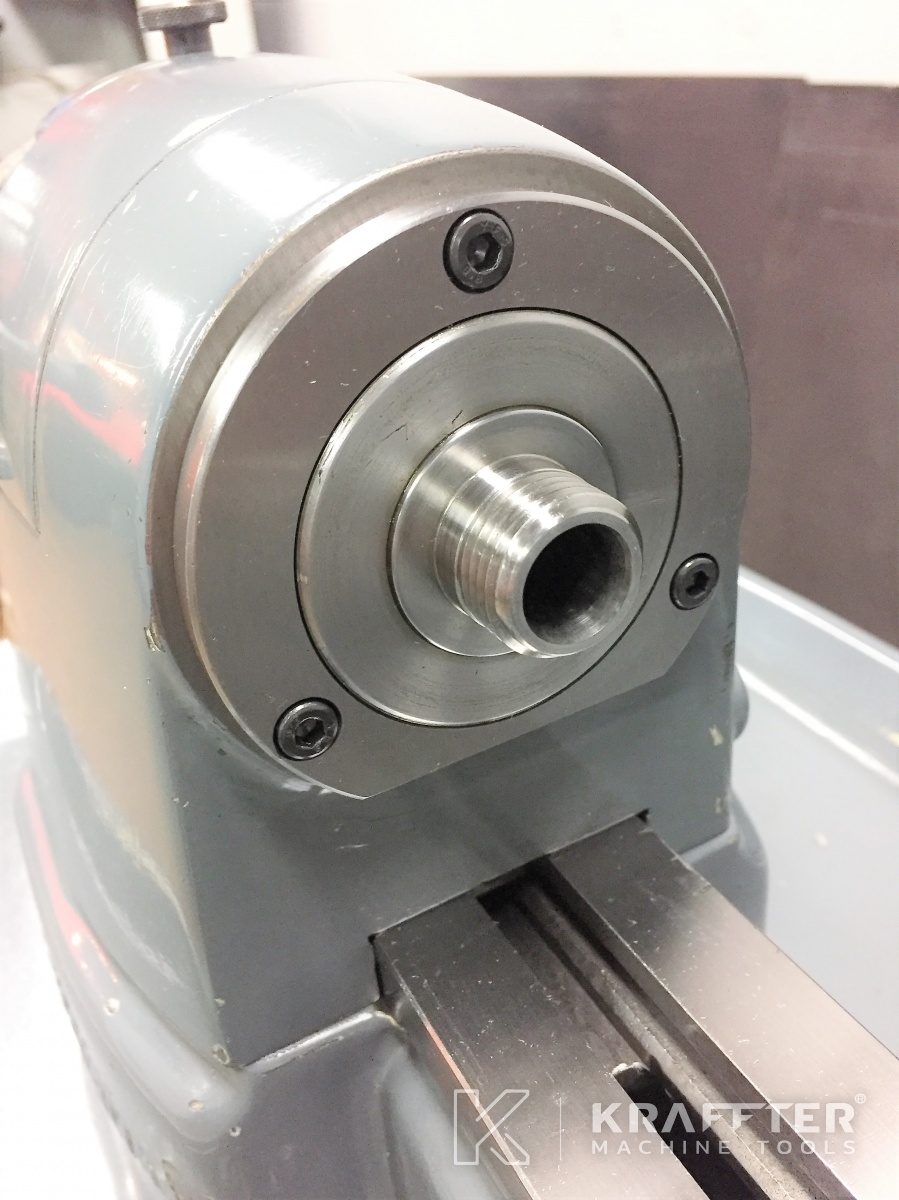

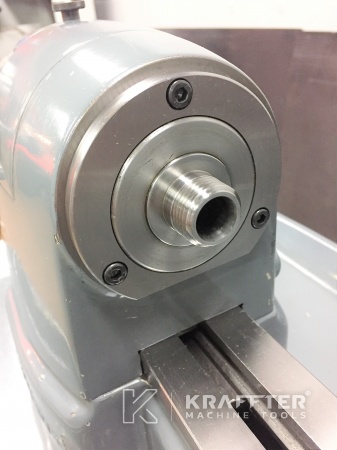

Spindle for collets
W12
Spindle throughbore
12 [mm]
Type of attachment tailstock
2°
Manual lever-operated quick-closing attachment
Yes
Number of spindle speeds
6
Turret
Multifix type Aa
Type of tool holders
Multifix type Aa
Supply voltage
400 [V]
Dimensions
1130 x 780 x 1670
Weight
350 [Kg]
- 70-31 / 1 headstock W12 type spindle

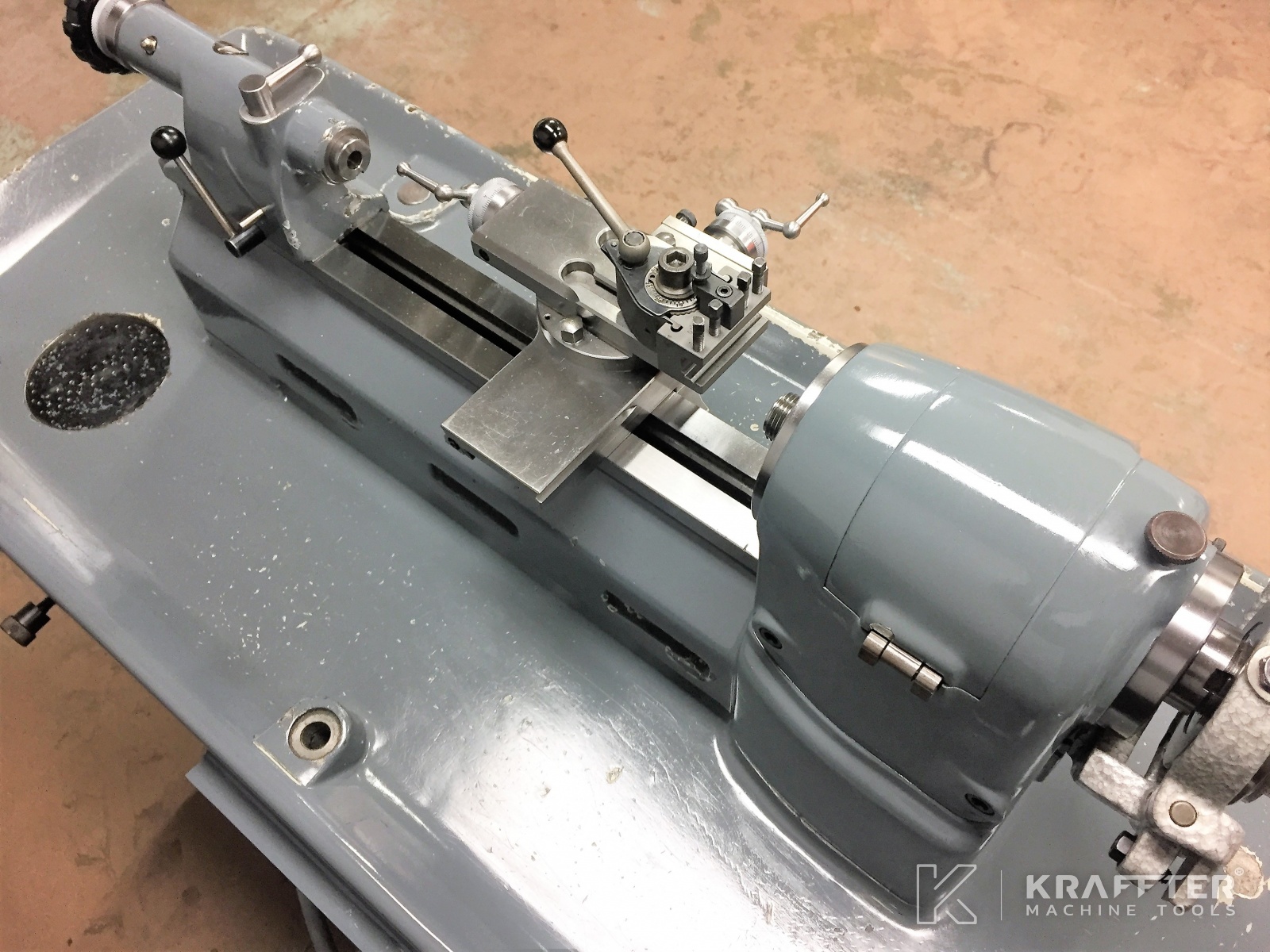

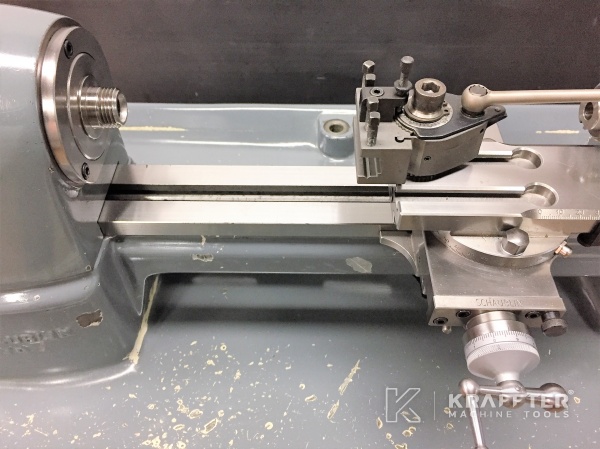

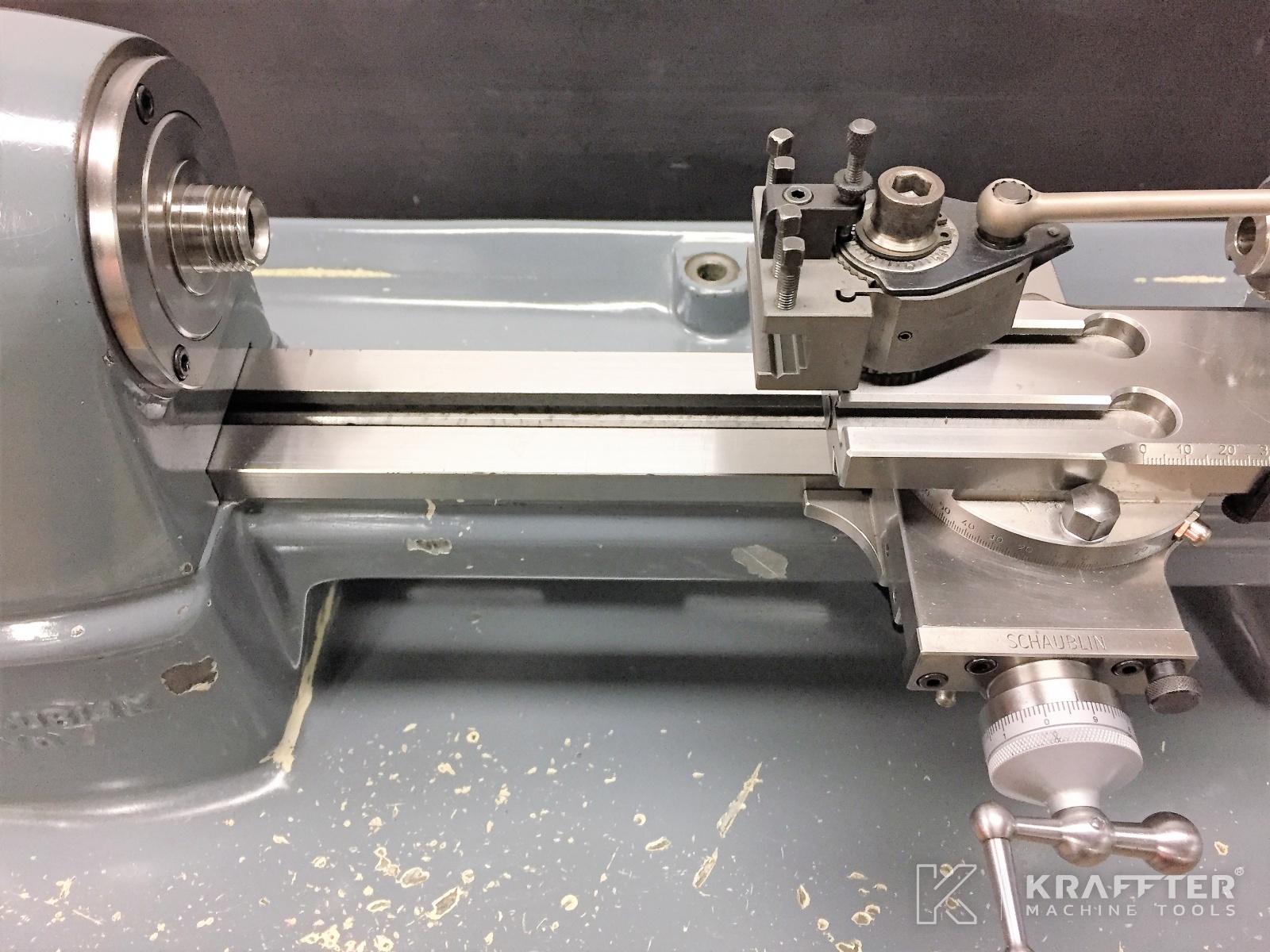

- 70-12 / 1 bed

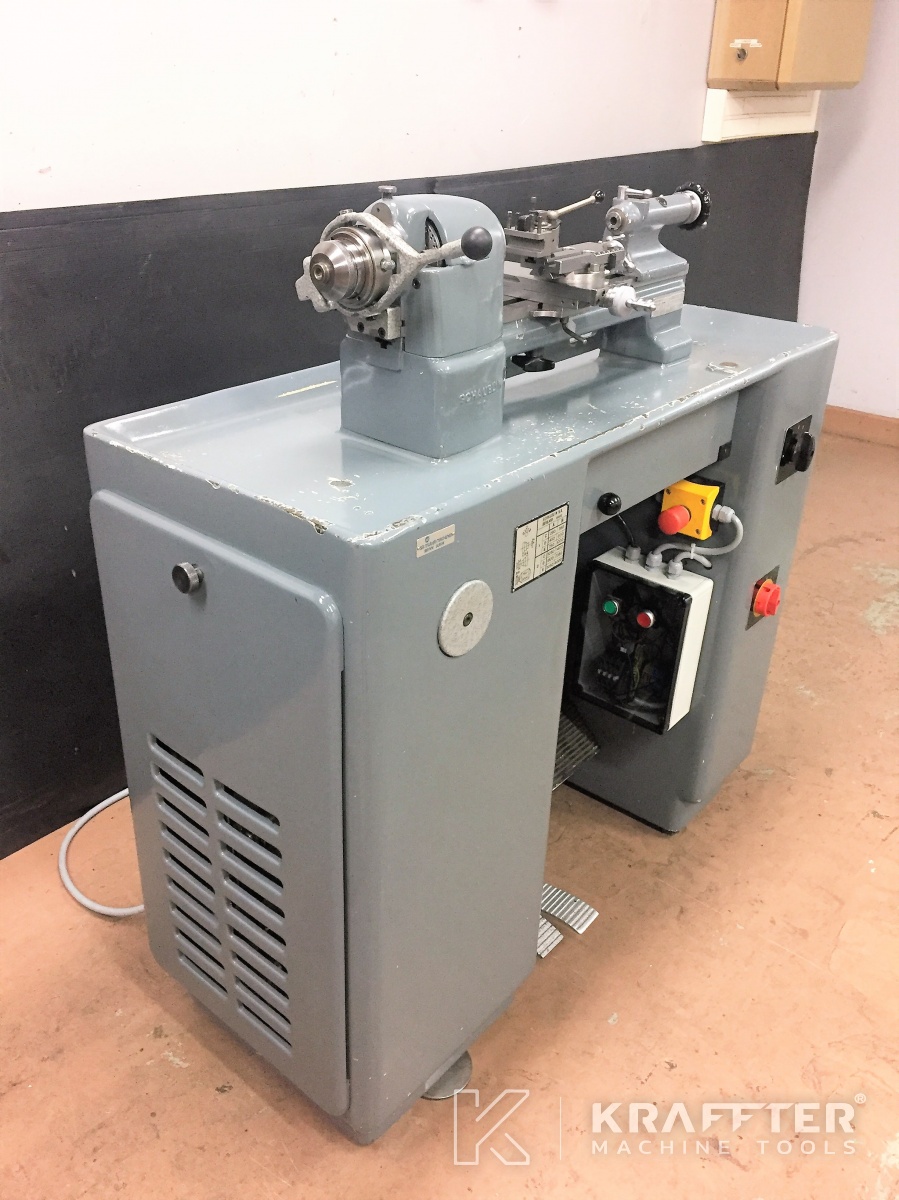

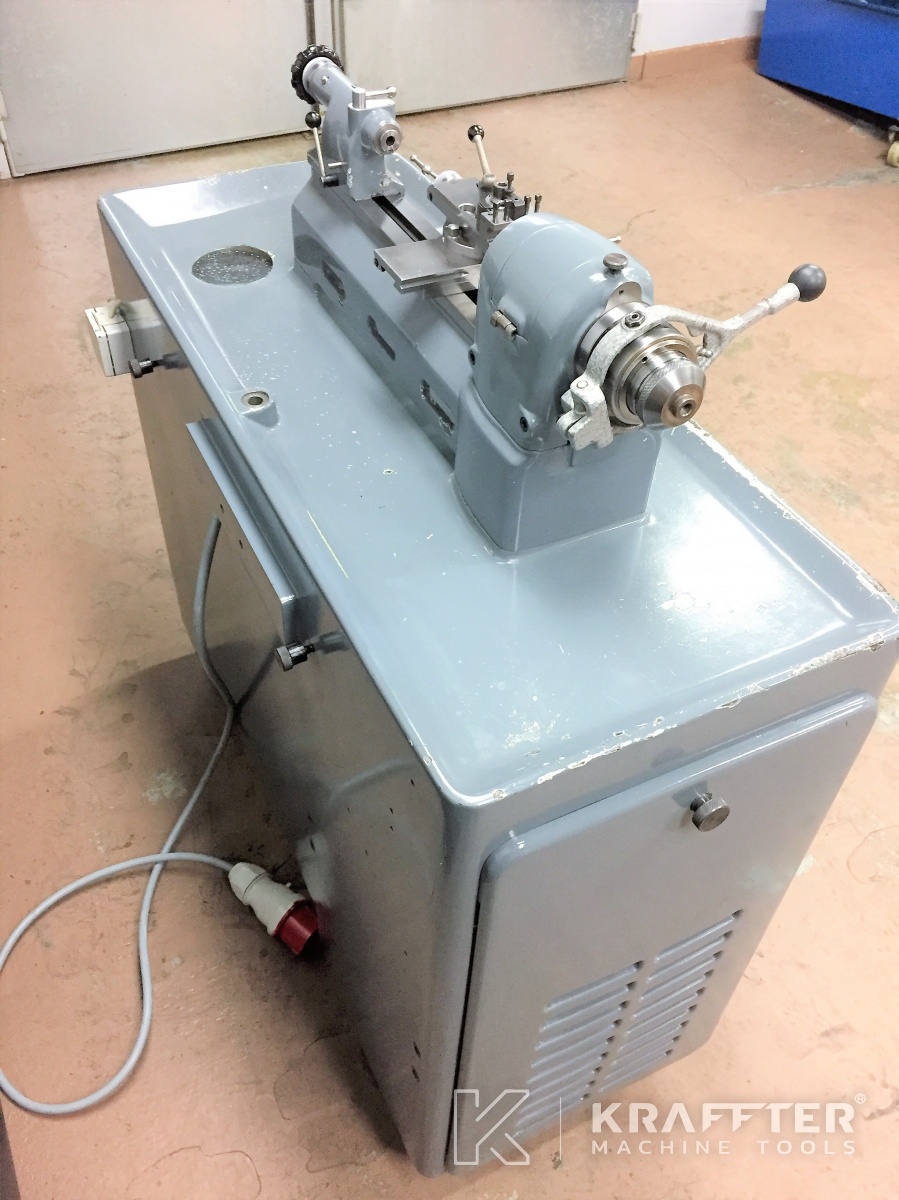

- 70-80 / 1 cast-iron base
- 71017 / 1 commutating switch
- 70-81.030 / 1 coutershaft with clutch and brake
- 70-80.400 / 1 swivel drawer for accessories

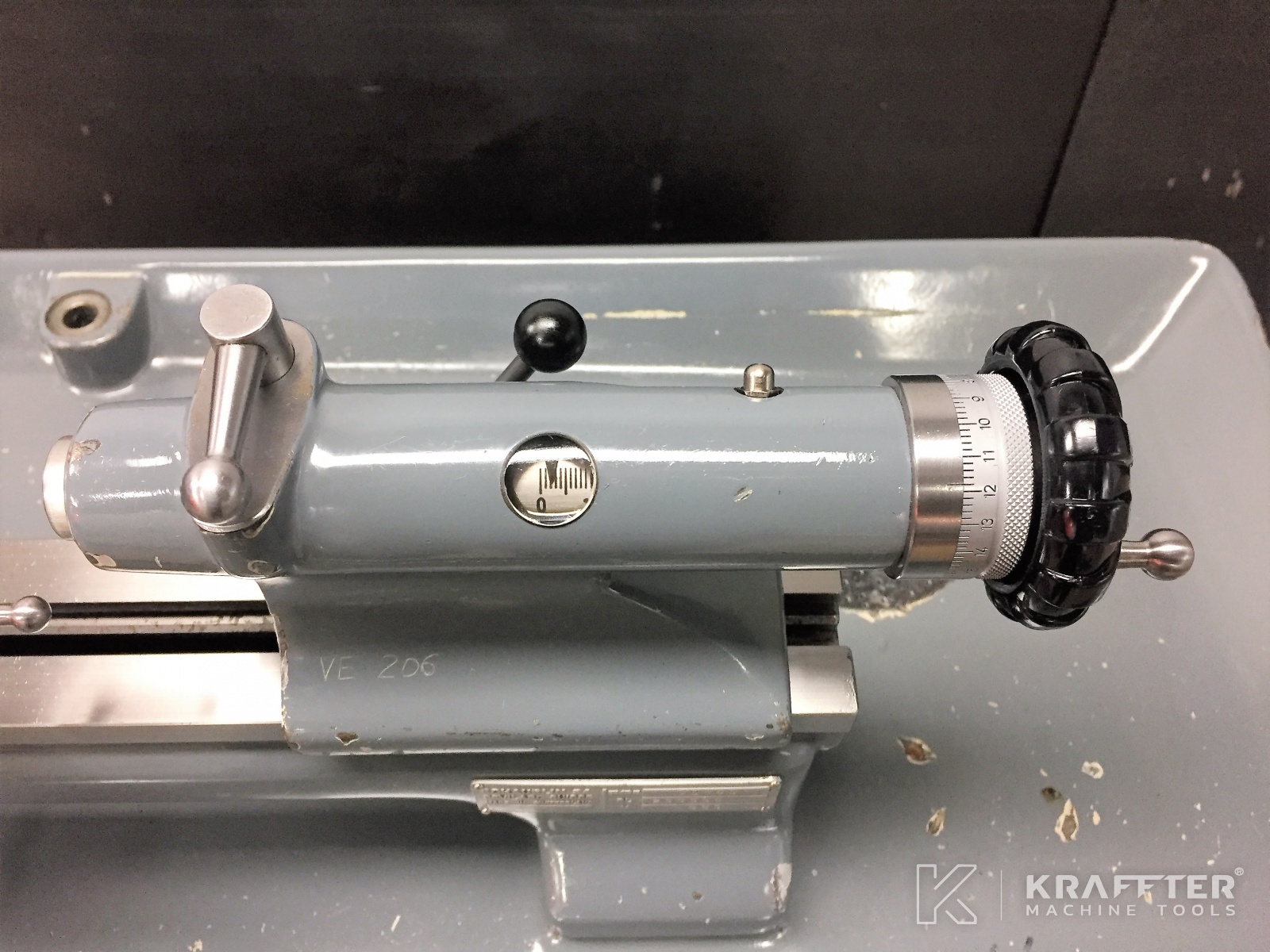

- 70-65 / 1 screw-operated tailstock

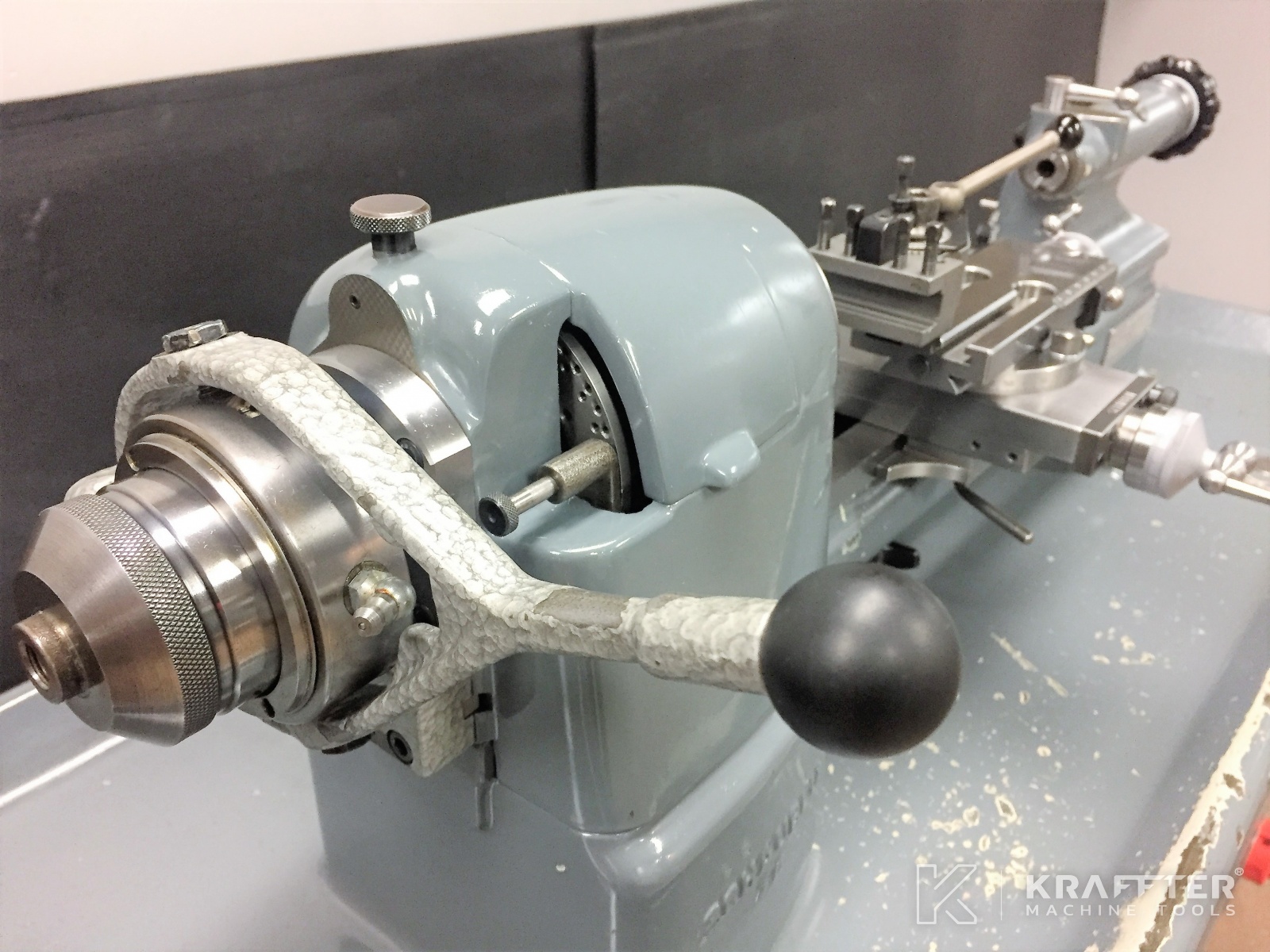

- 70-30.600 / 1 manual lever-operated quick-closing attachement (for W12 collets)

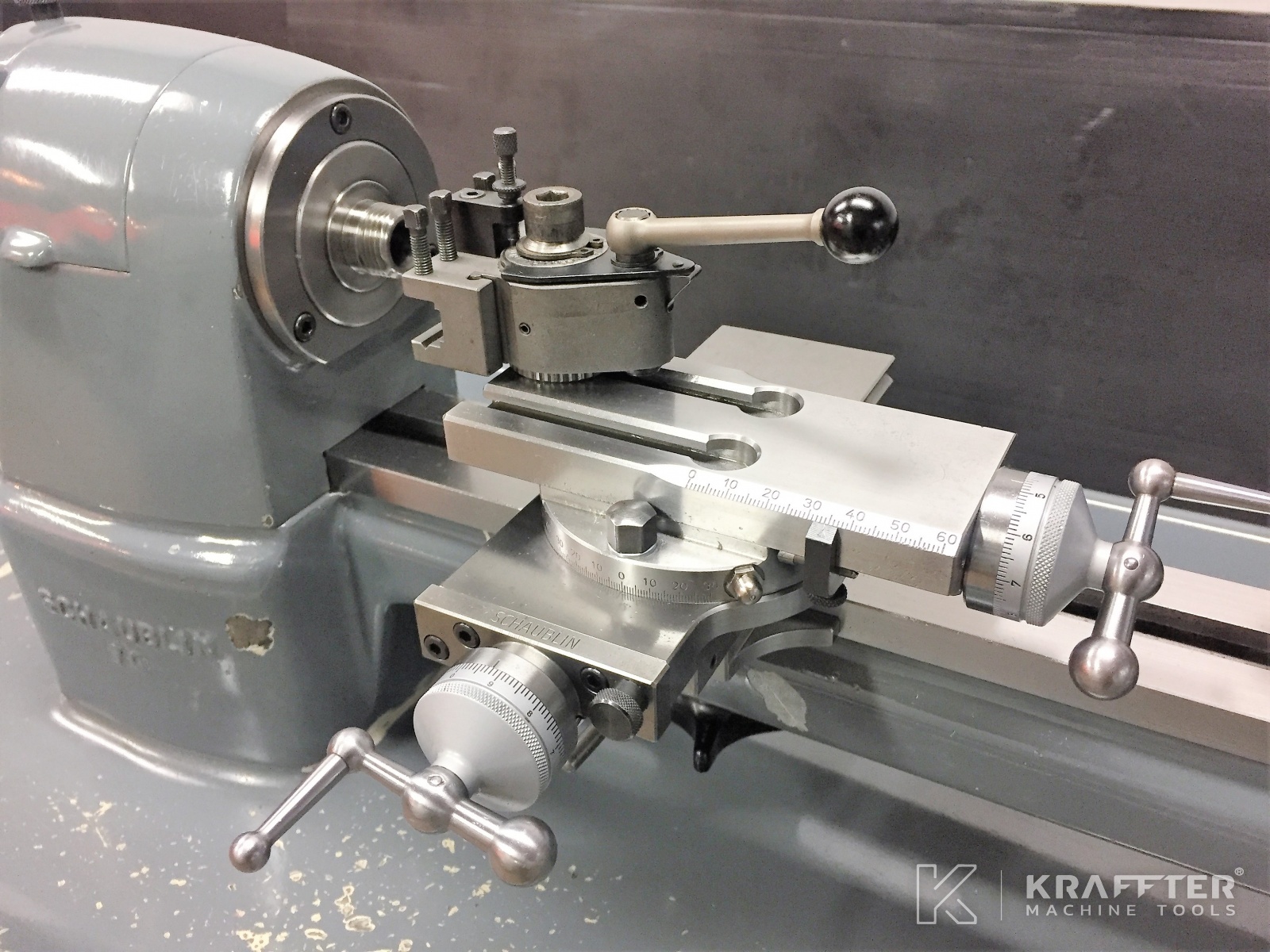

- 70-45 / 1 screw operated-carriage
- 70-10.100 / 1 rod for fixing of the carriage
- 1 three-phase motor 750/3000 [rpm]

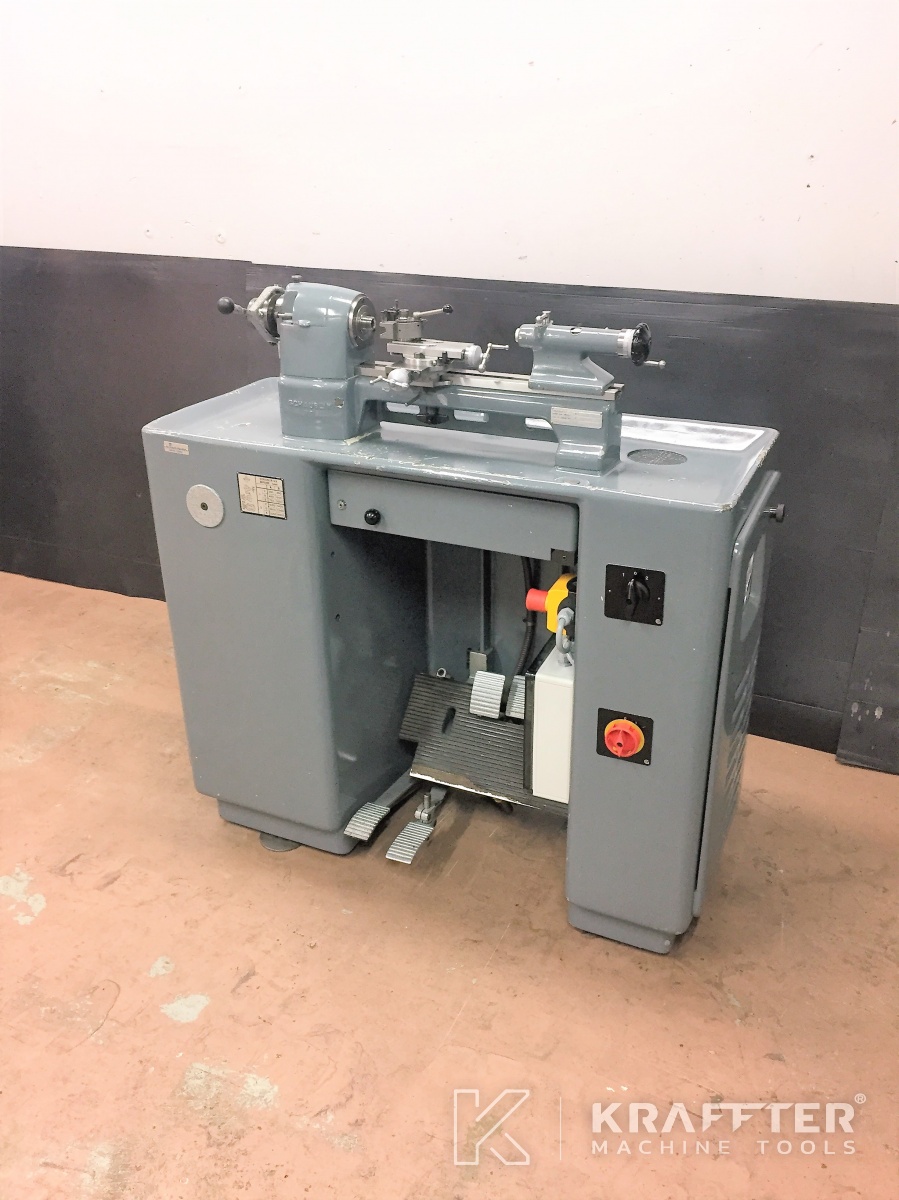

- 102-80.500 / 1 footrest with pedal-operated reversing switch 71025

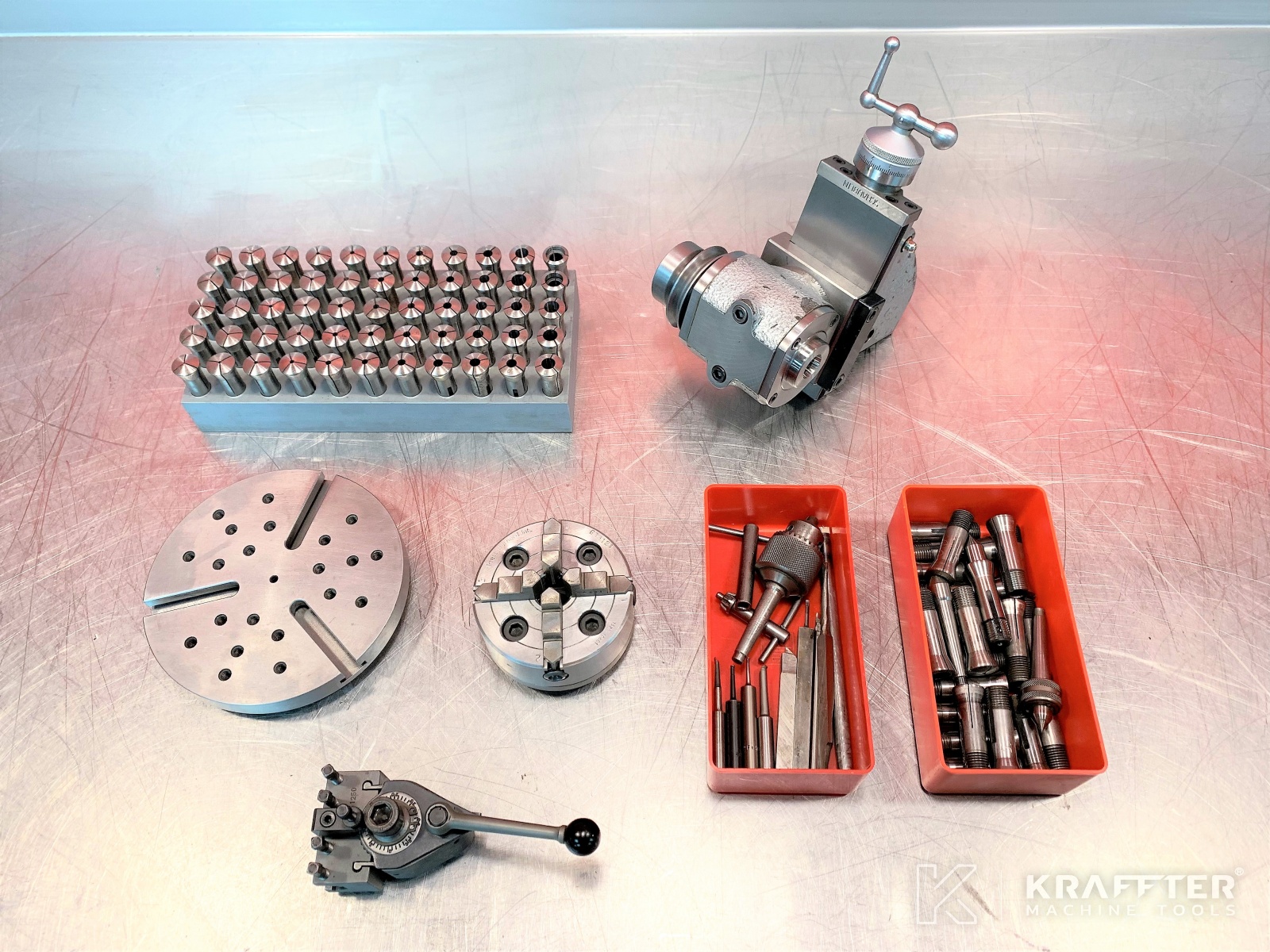

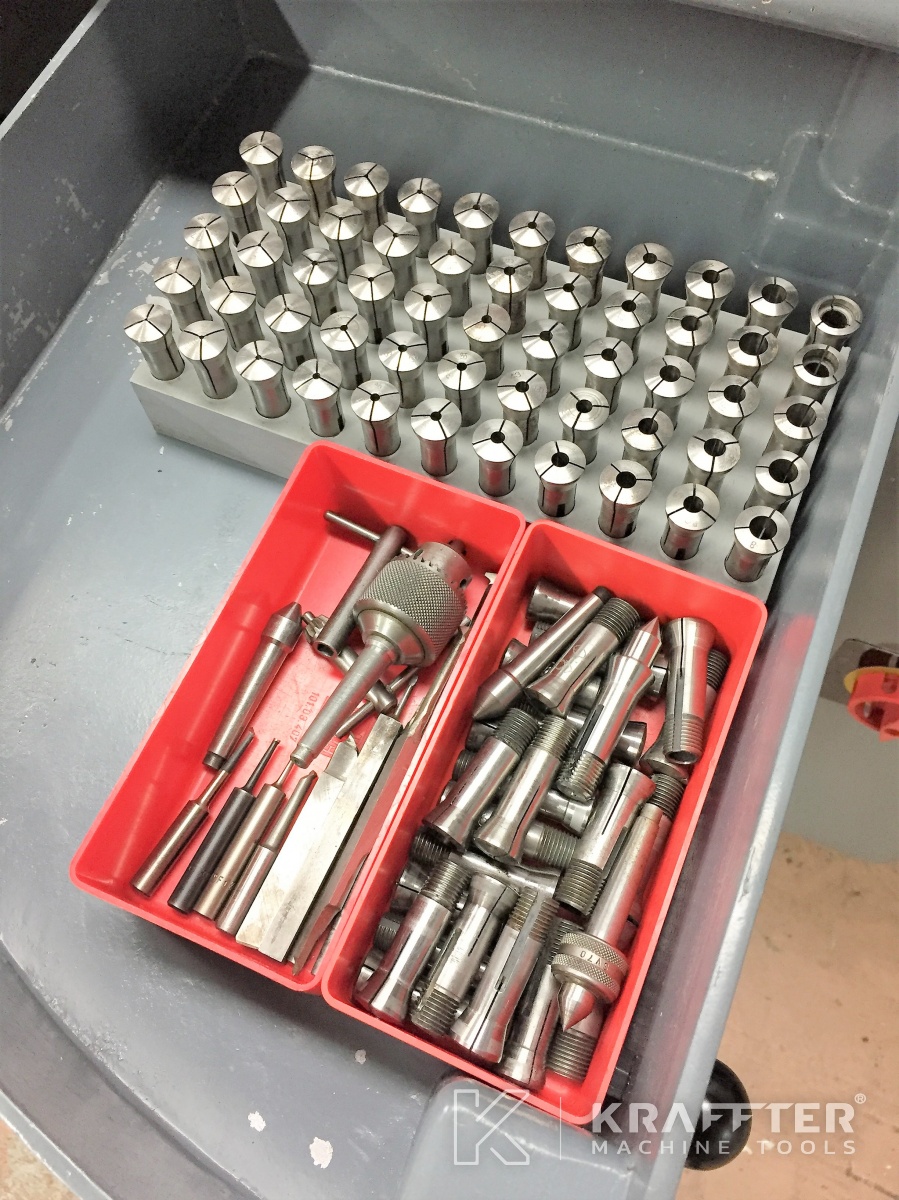

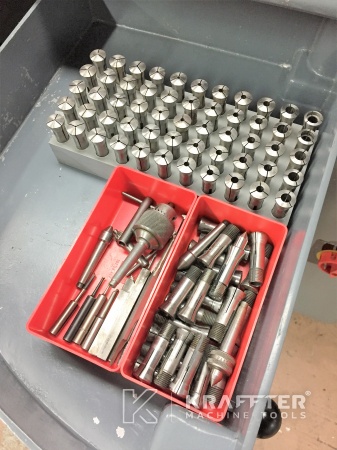

- 77 collets type W12 from Ø0.50 to Ø12.00 [mm]

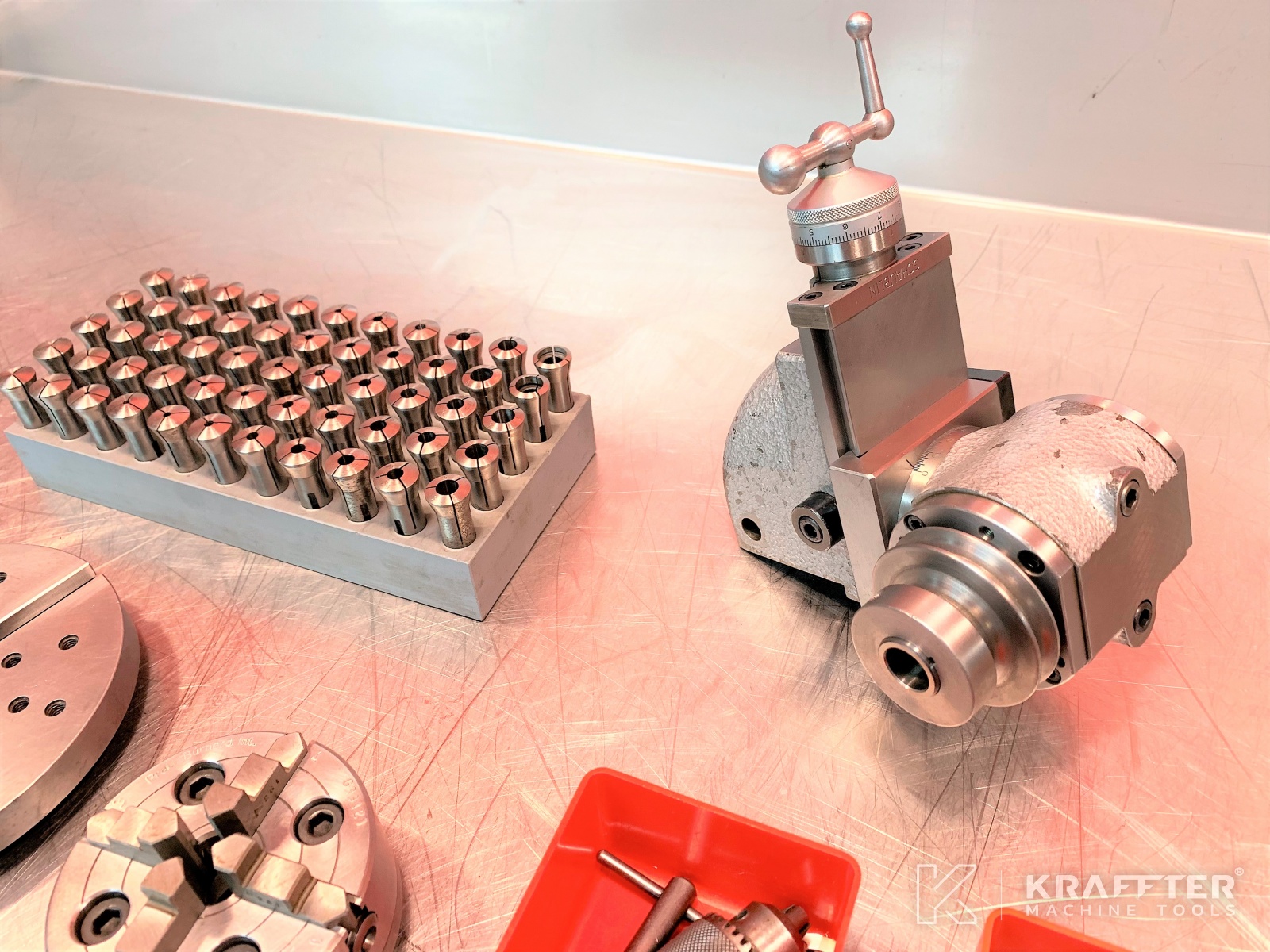

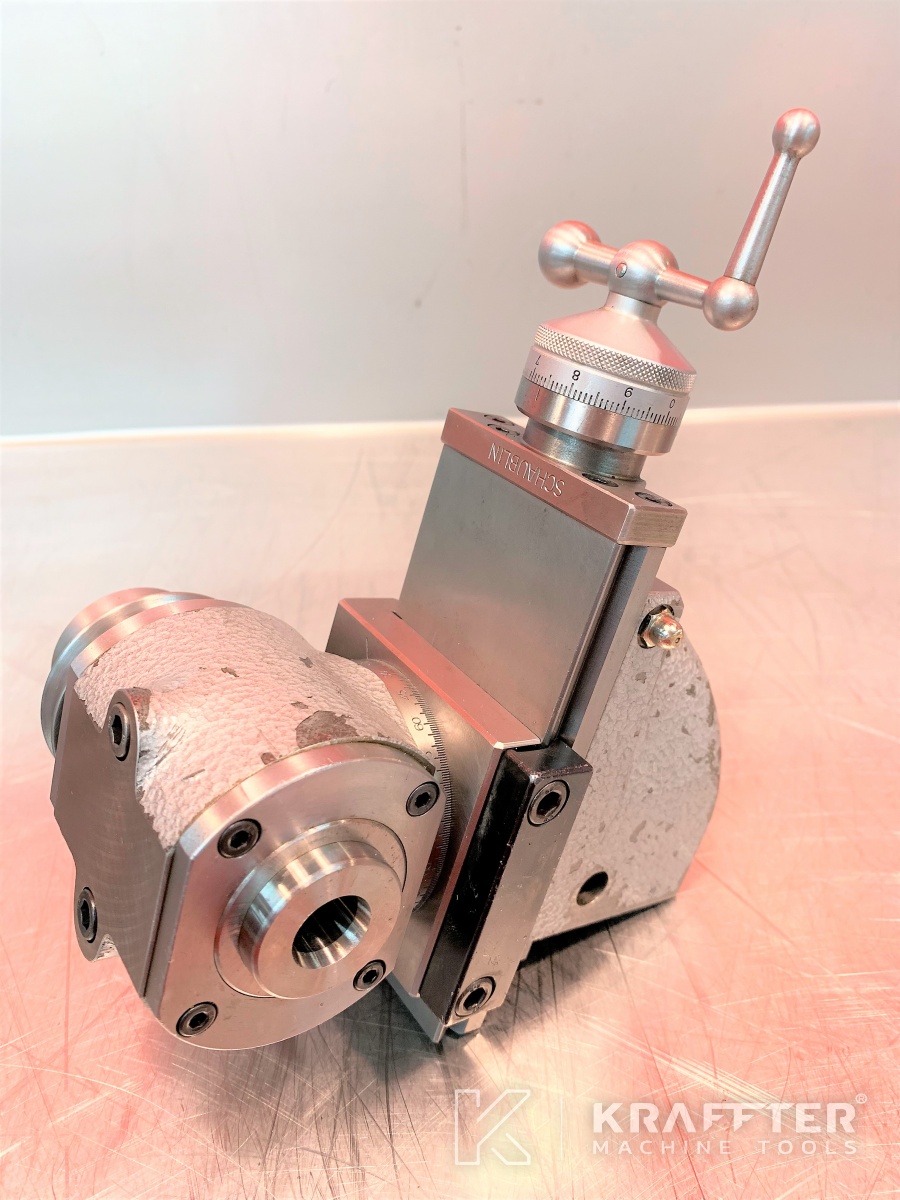

- 70-87.300/450 / 1 milling attachement (high support) W12 spindle – without drawbar
- 70-25.110 / 1 faceplate Ø138 [mm] diameter
- 1 chuck Ø80 [mm] 4 independant jaws PRATT BURNERD

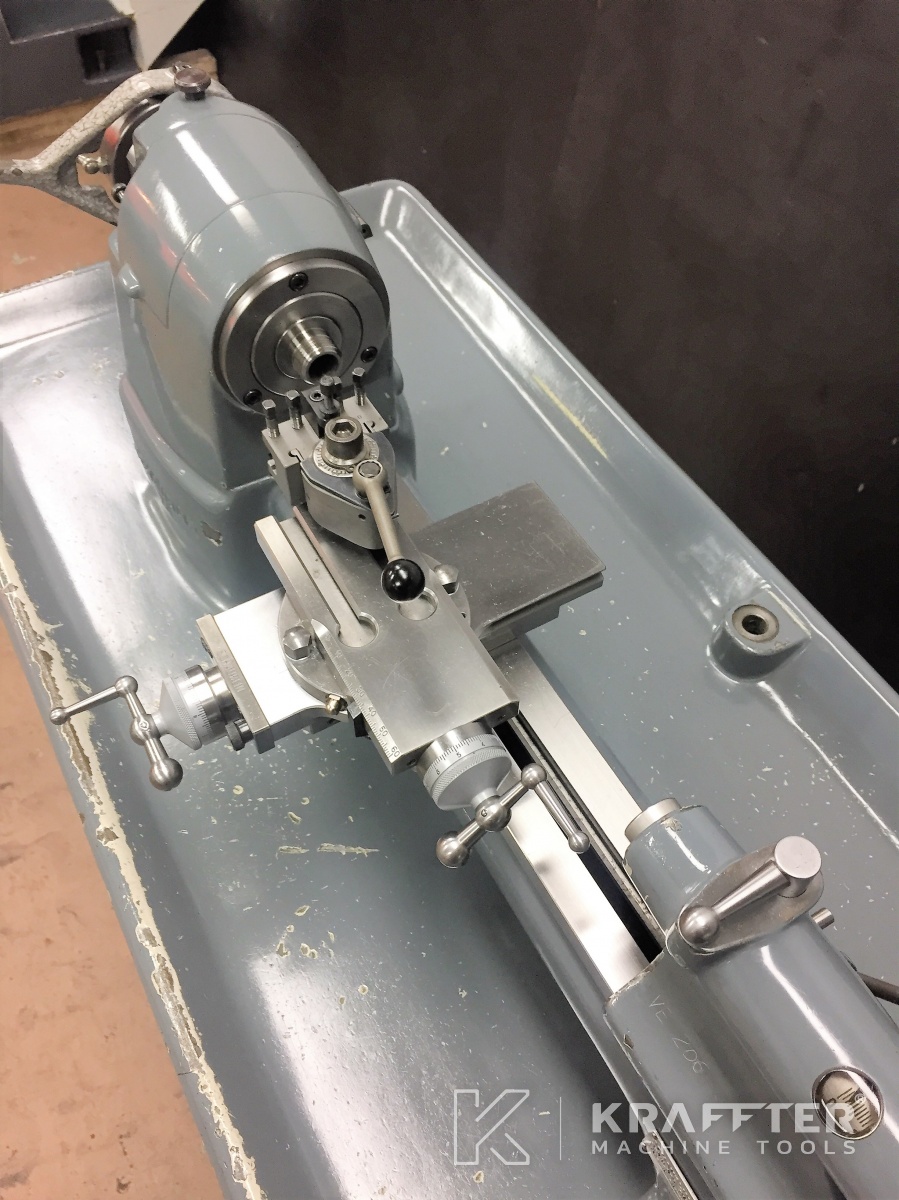

- 70-46.200 / 1 quick-clamping turret MULTIFIX ORIGINAL SUISSE type Aa and its 2 locking levers
- 1 tool-holder MULTIFIX ORIGINAL SUISSE type Aa
- 70-74.100 / 1 drill chuck on arbor, shank taper 2° - with 1 locking lever
- 70-74.041 / 1 revolving male center, 60° (with taper roller bearing), shank taper 2°
- 70-74.021 / 1 femalle center, 60°, shank taper 2°
- 70-25.001 / 1 male center, 60° type W12
- Few cutting tools
