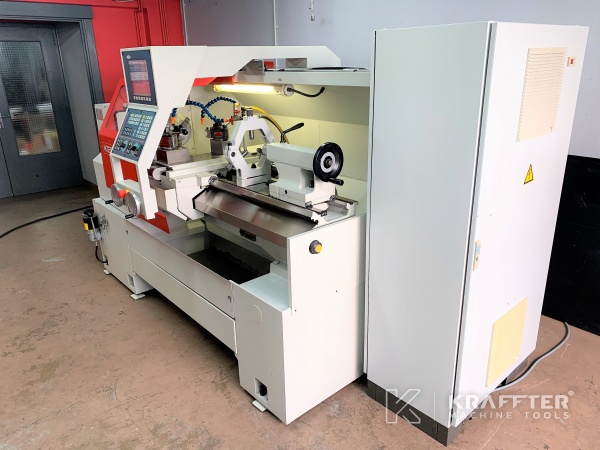

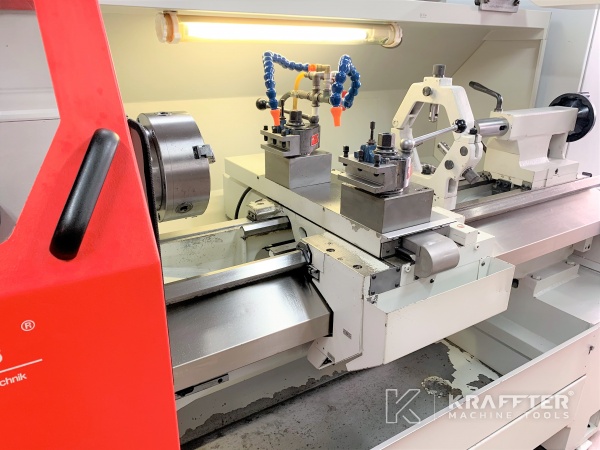

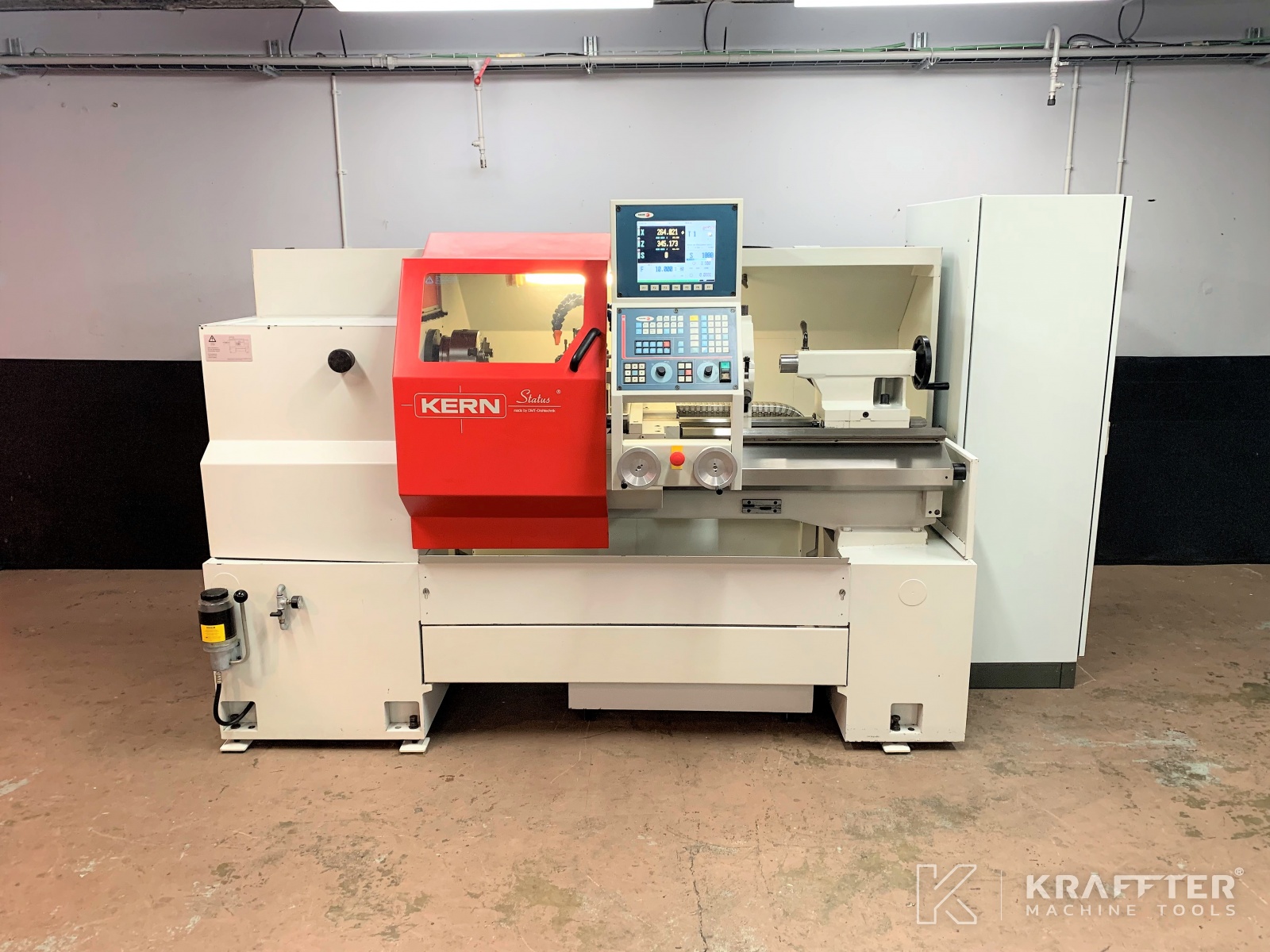

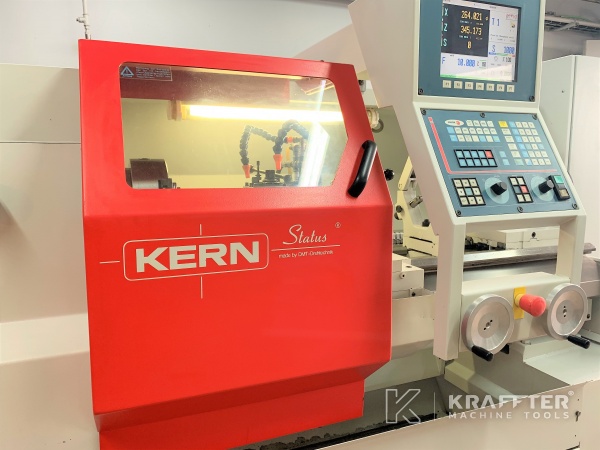

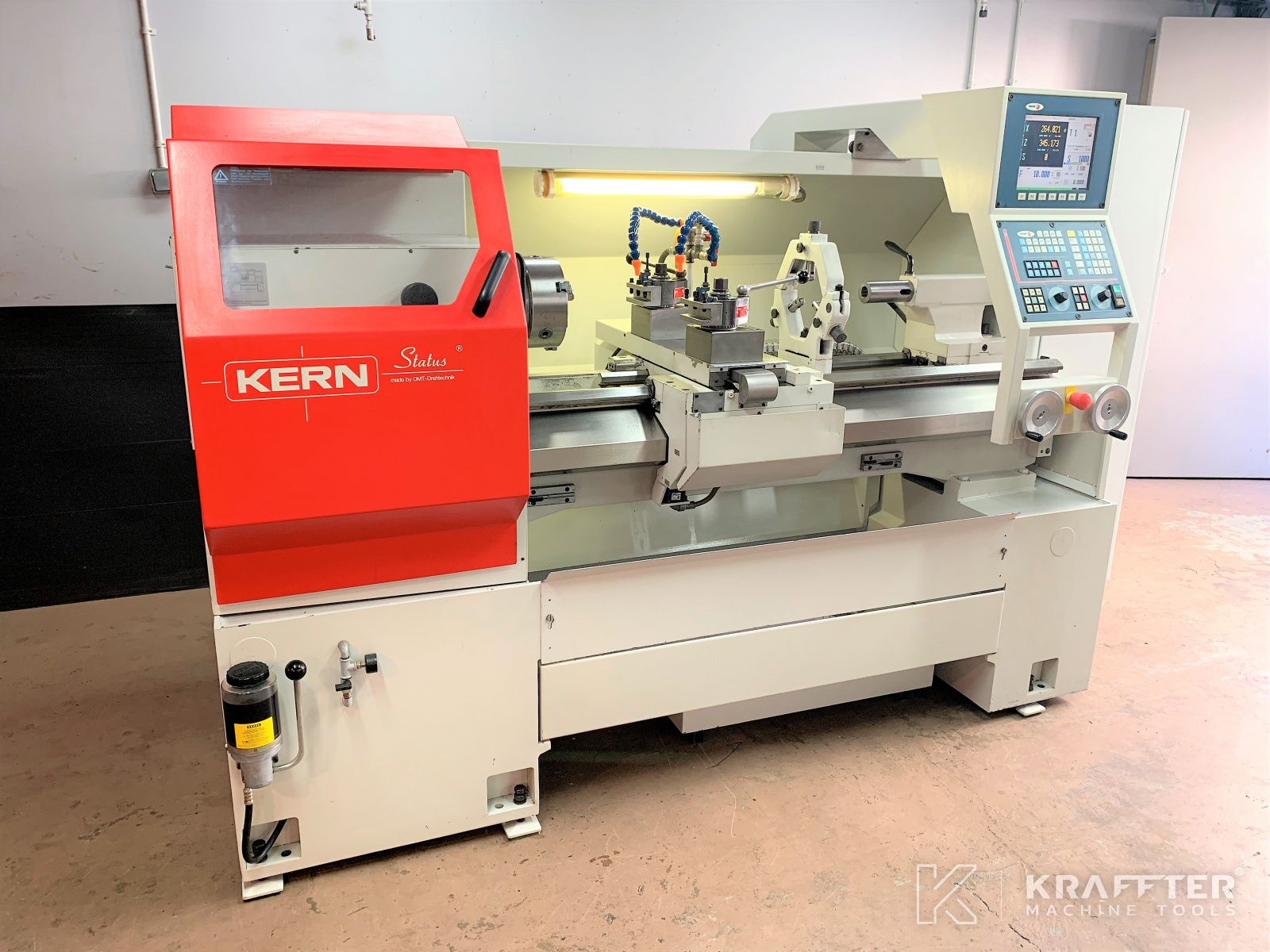

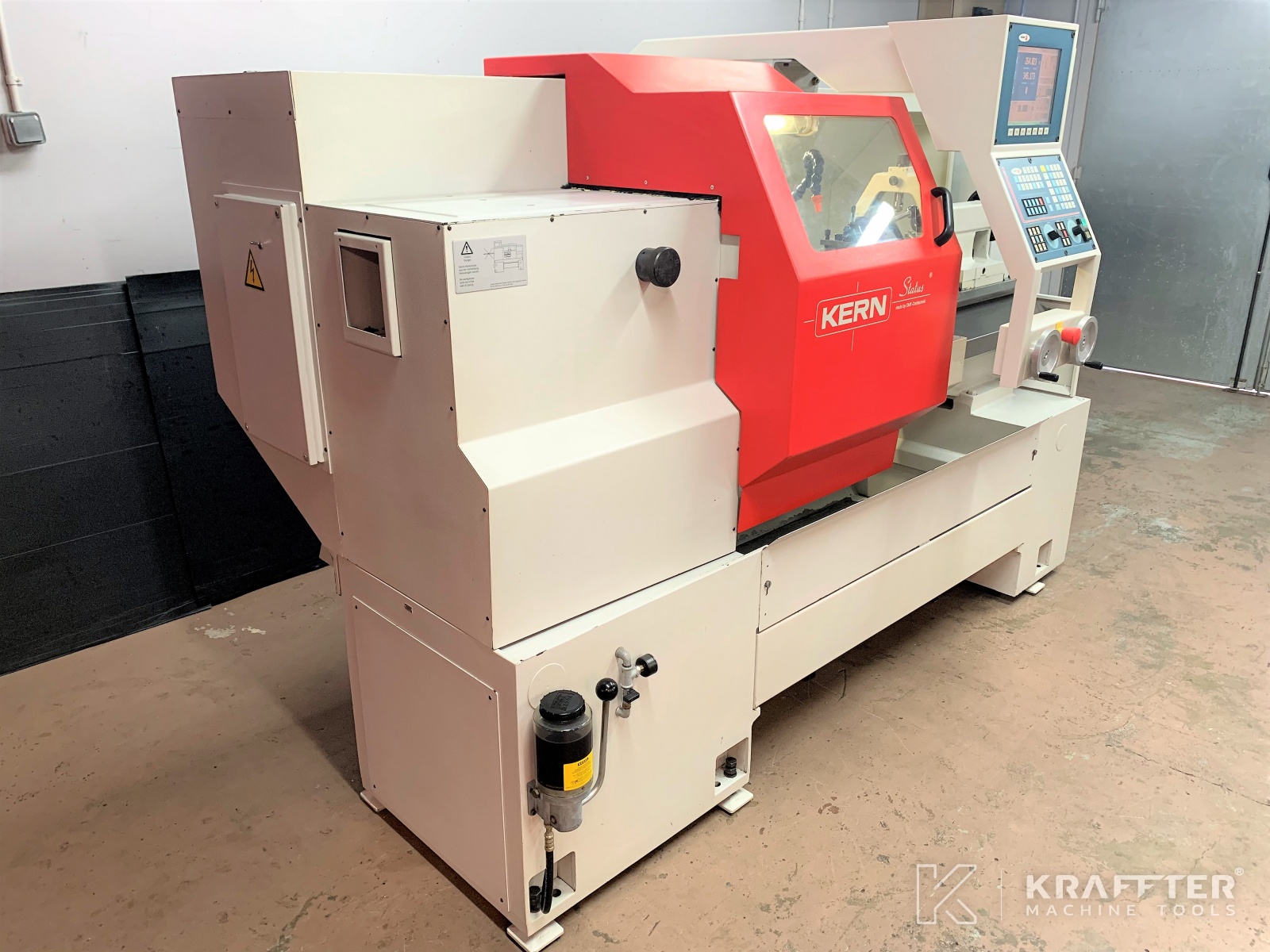

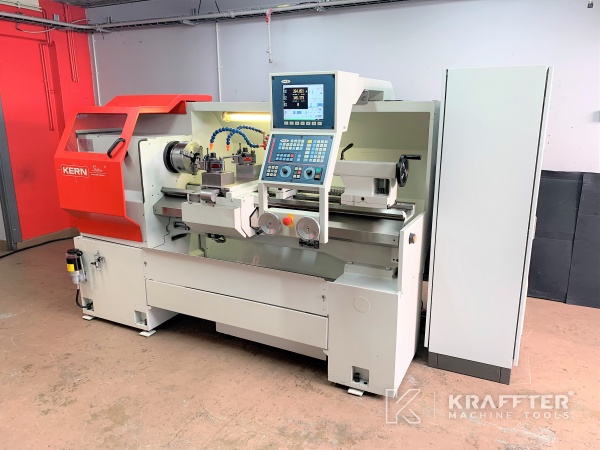

Type of machine : CNC teach-in lathe
Brand : DMT KERN
Stock N° : 20689-933
Model : Status
Year : 2001
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

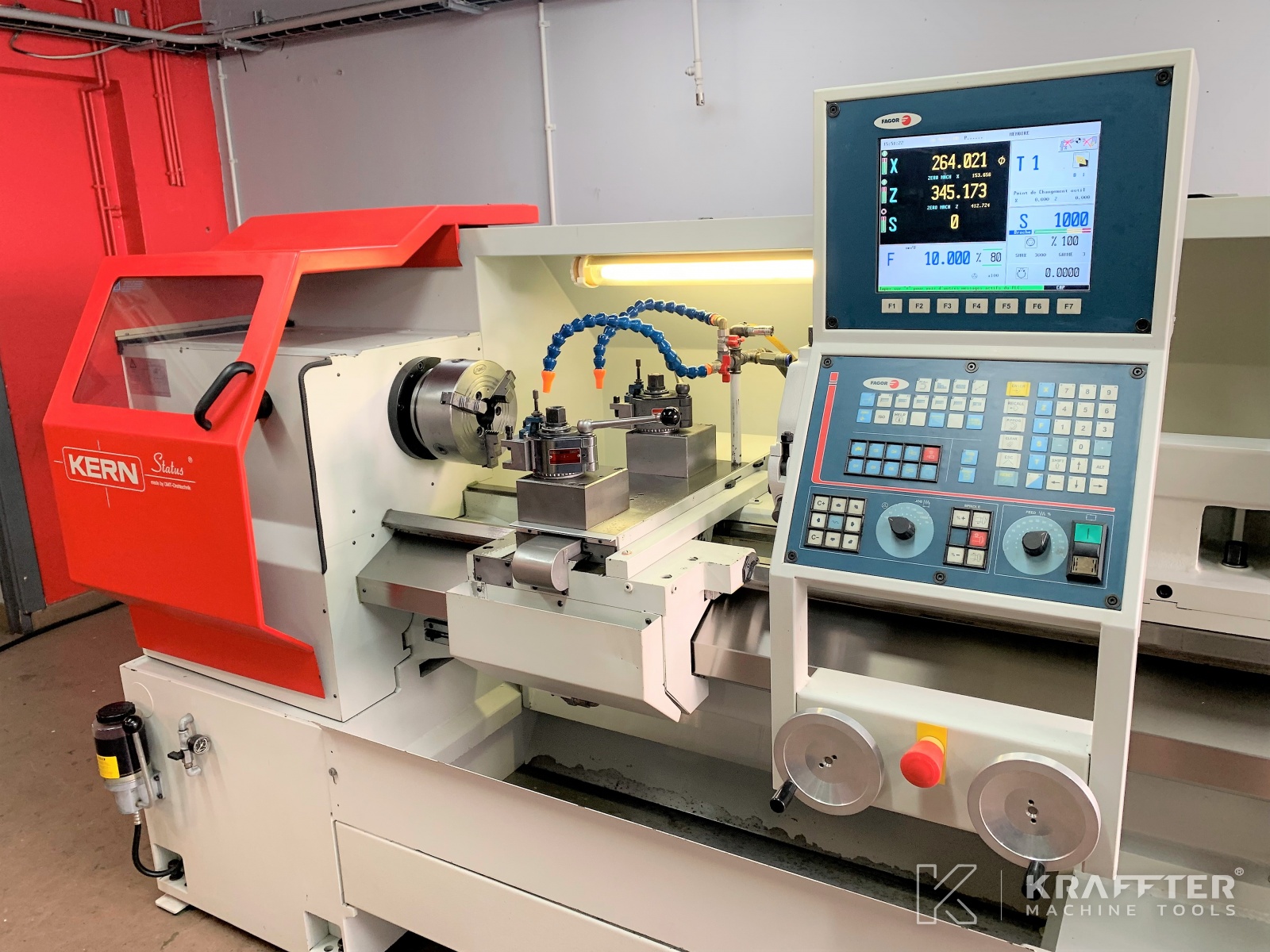

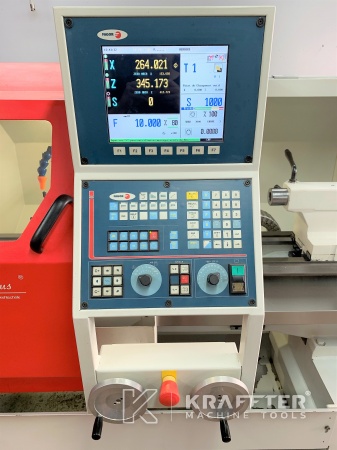

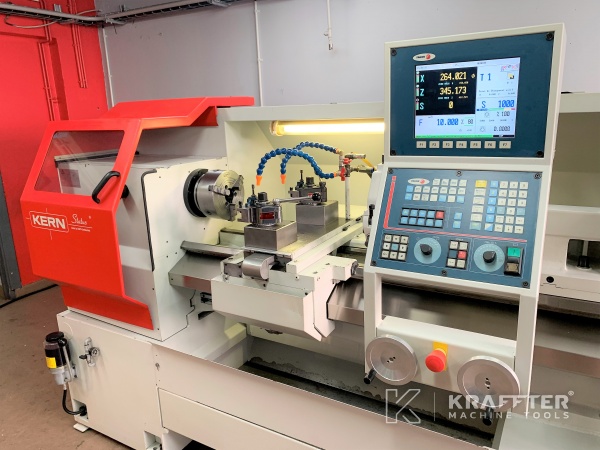

CNC control
FAGOR 8055TC
Number of axes
2
Distance between centers
1000 [mm]
Height of centers over cariage
190 [mm]
Max. swing over bed
400 [mm]
Stroke X axis
220 [mm]
Spindle nose
DIN 55027 taille 6
Internal spindle nose
CM6
Spindle throughbore
50 [mm]
Tailstock type
manuelle
Type of attachment tailstock
CM4

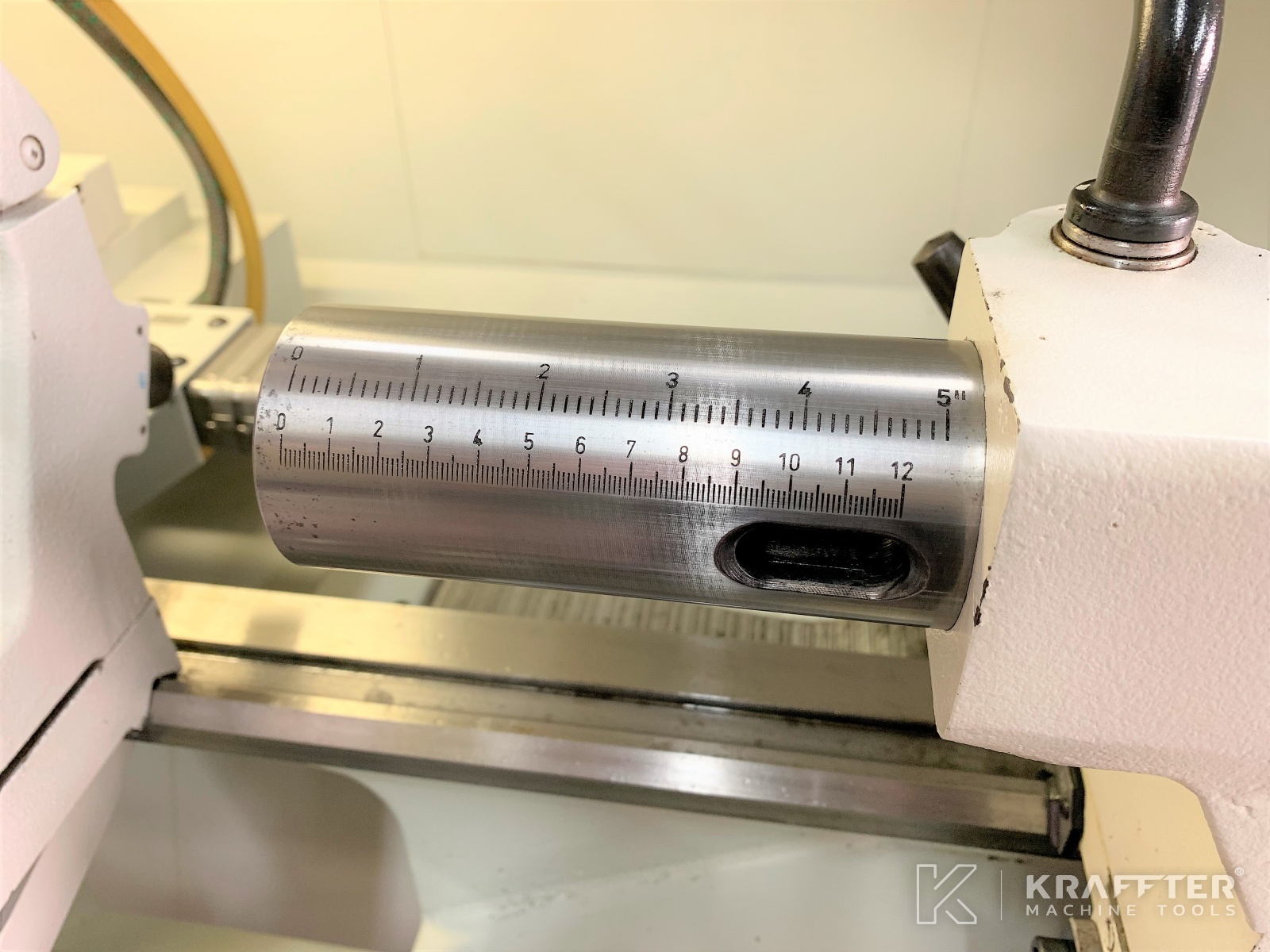

Tailstock quill diameter
60 [mm]
Manual lever-operated quick-closing attachment
No
Turret
Multifix type B
Type of tool holders
Multifix type B
Centralized lubrication
Automatique
Lubrication tank with pump
Yes
Supply voltage
400 [V]
Dimensions
2350 x 1400 x 1630
Weight
2000 [Kg]

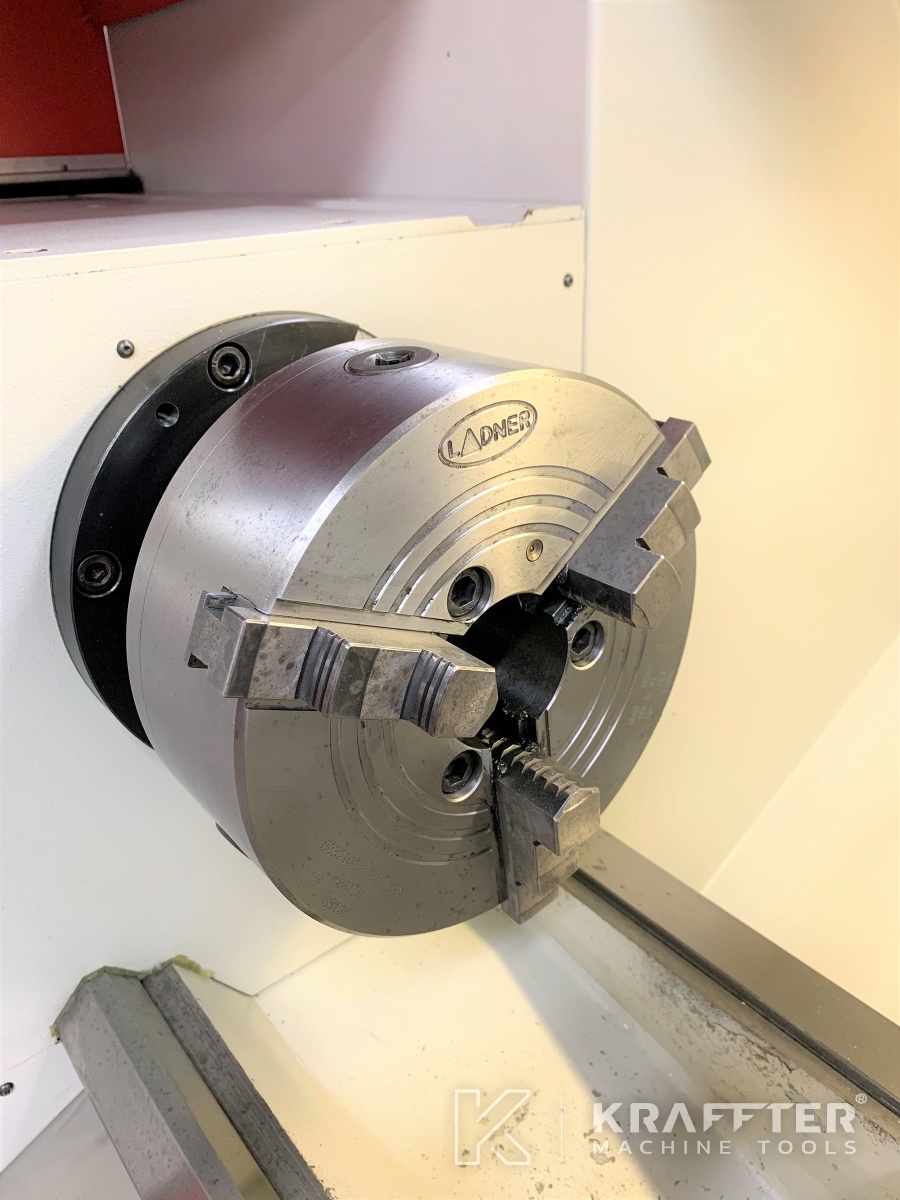

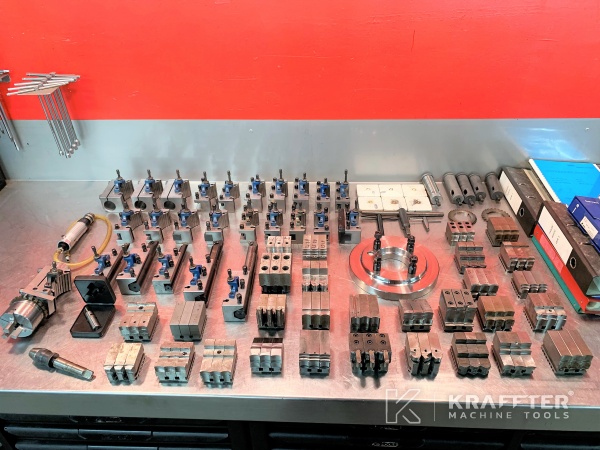

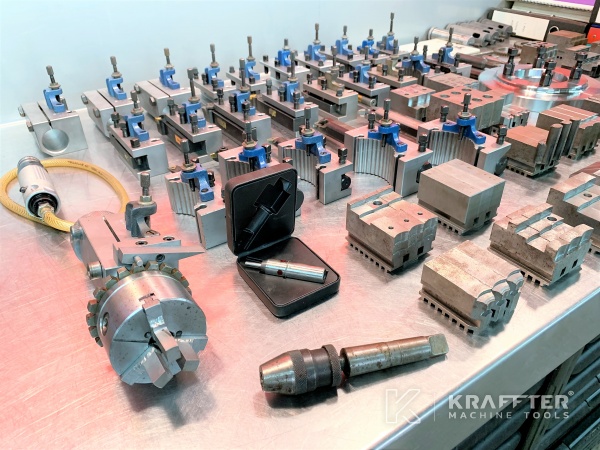

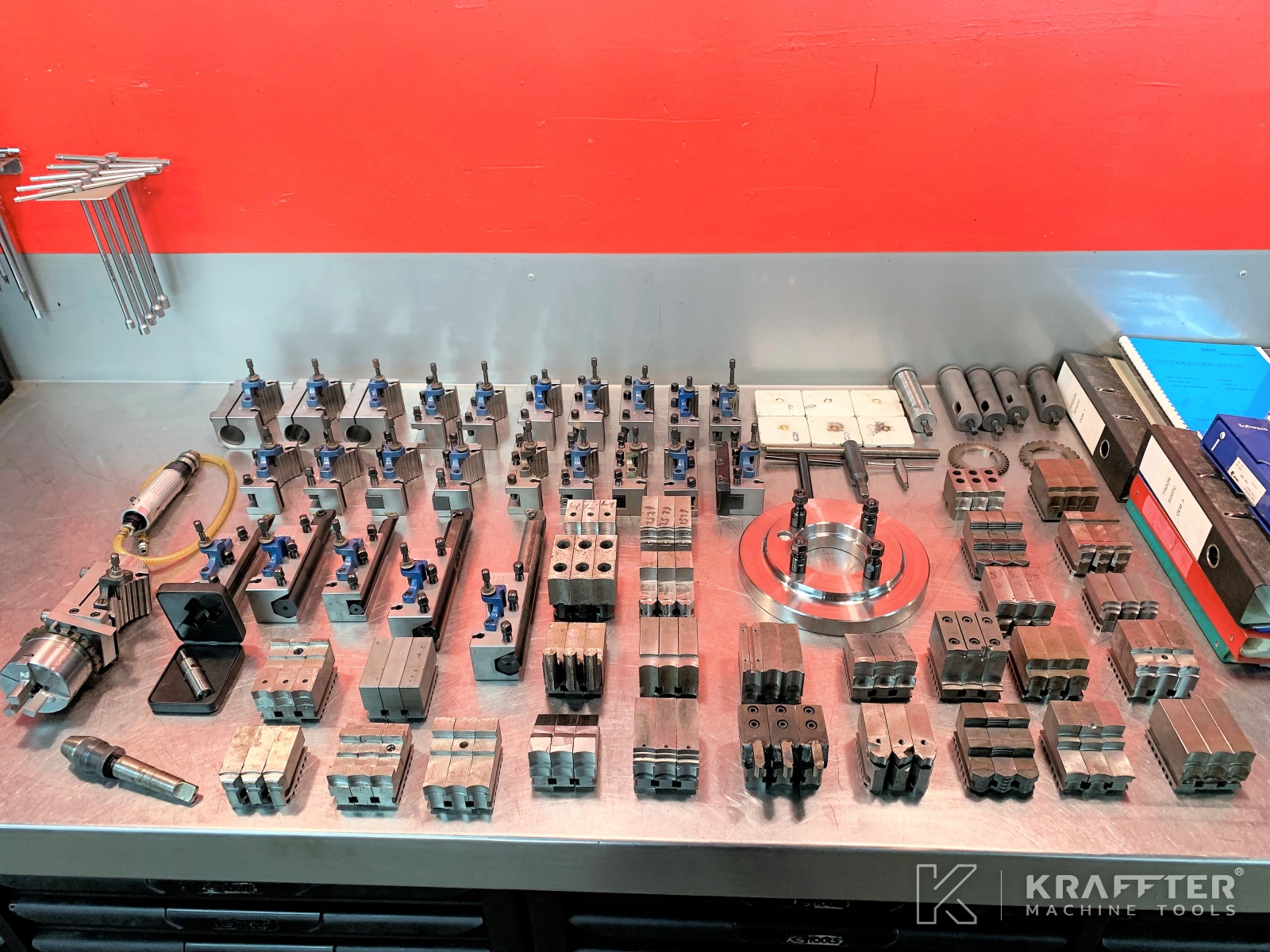

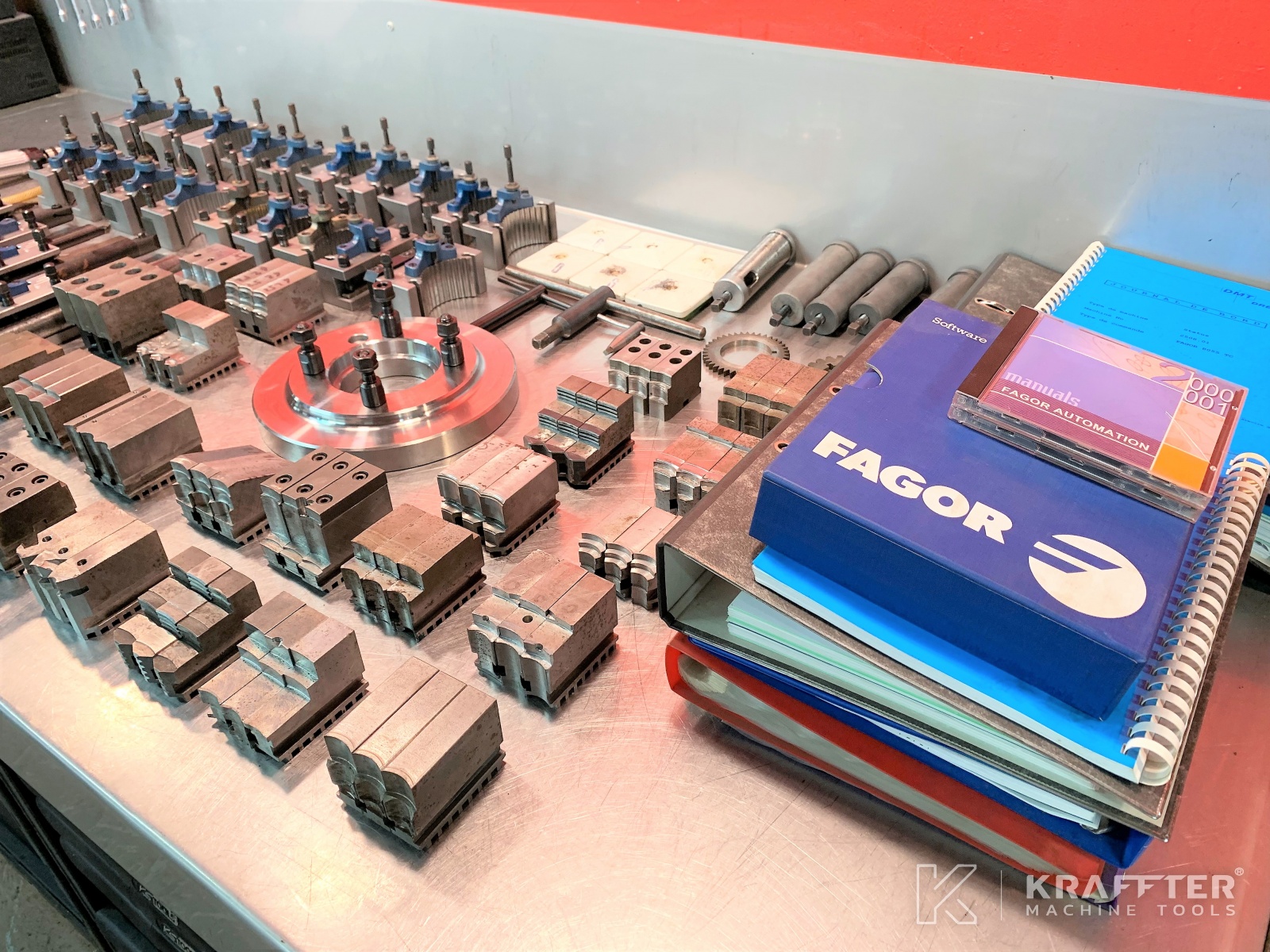

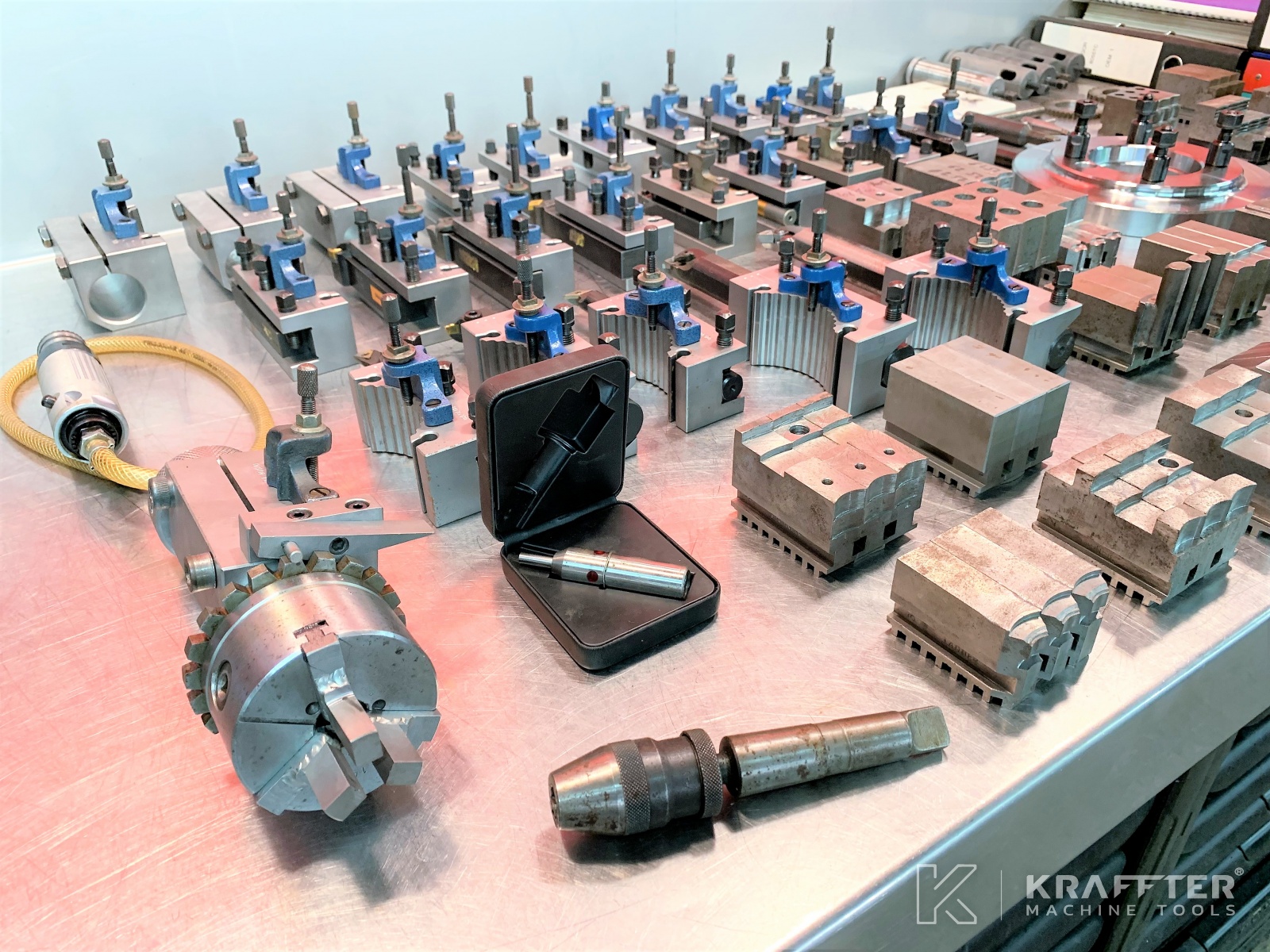

- 1 steel chuck LADNER Ø215 [mm] 3 concentric jaws

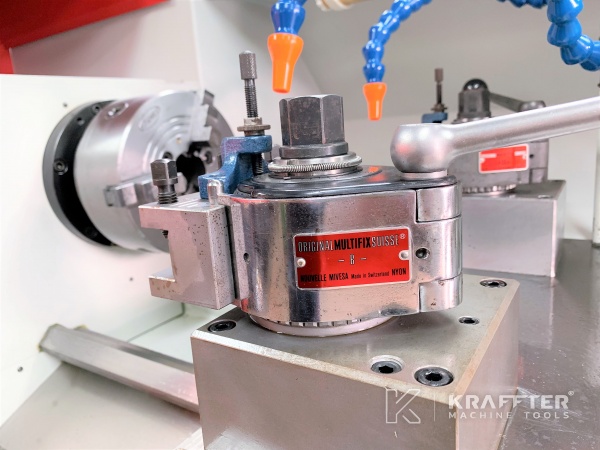

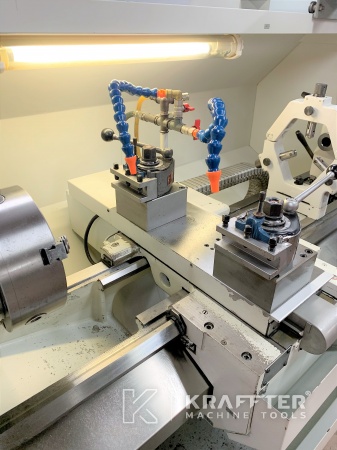

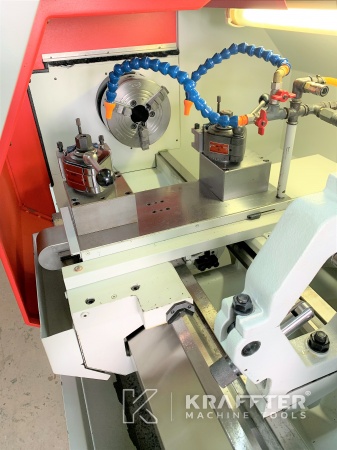

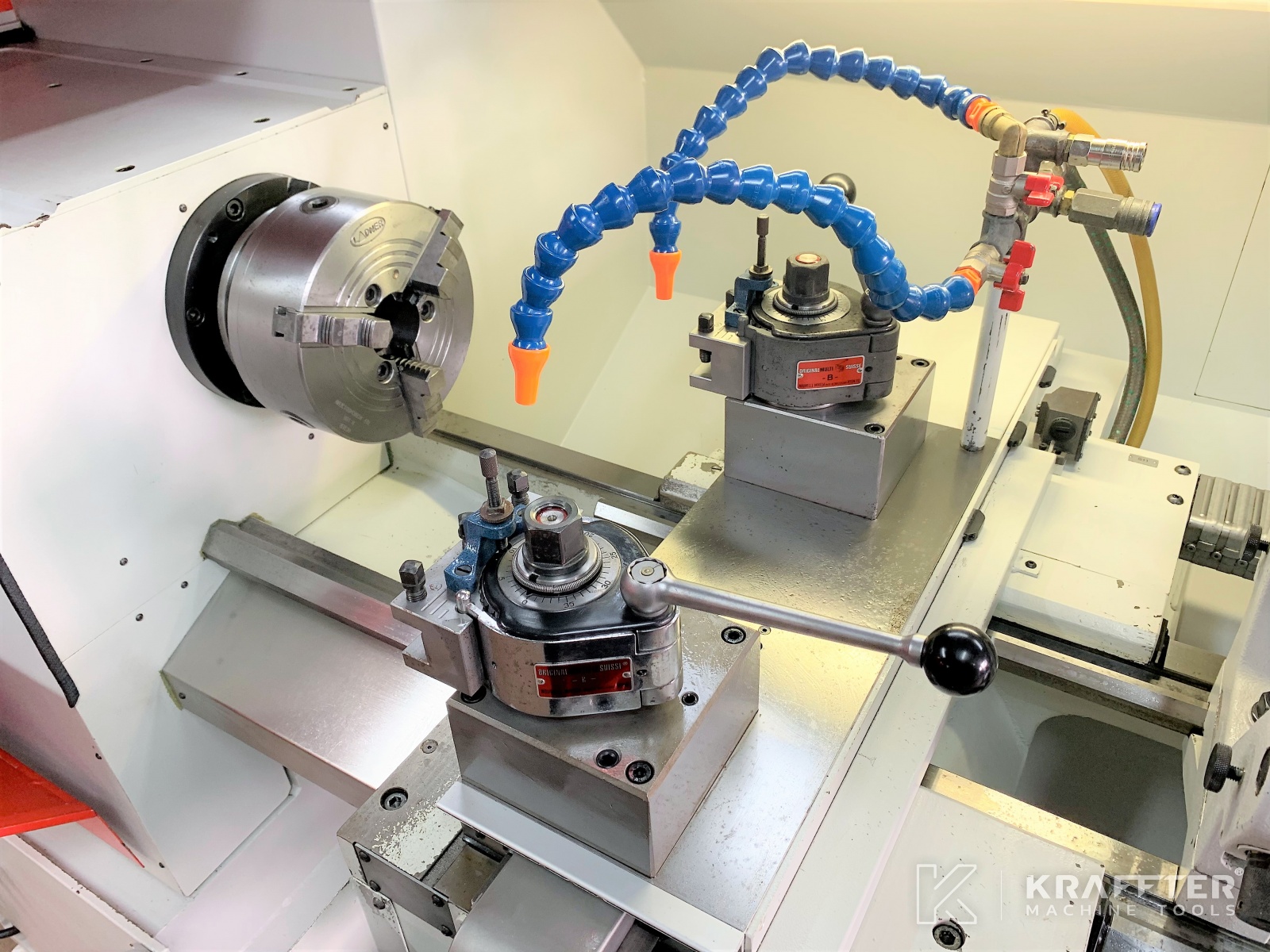

- 2 MULTIFIX type B tool posts (front + rear)

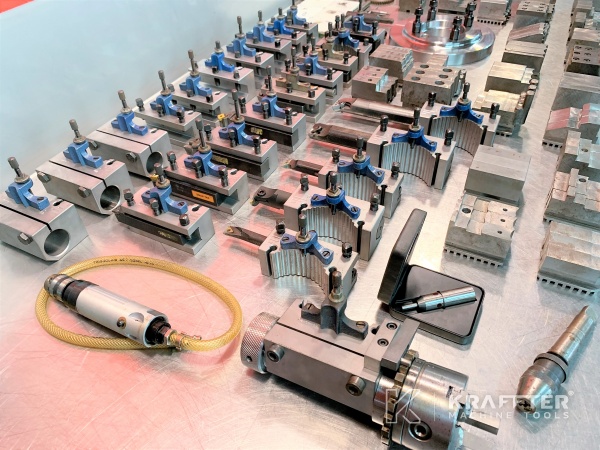

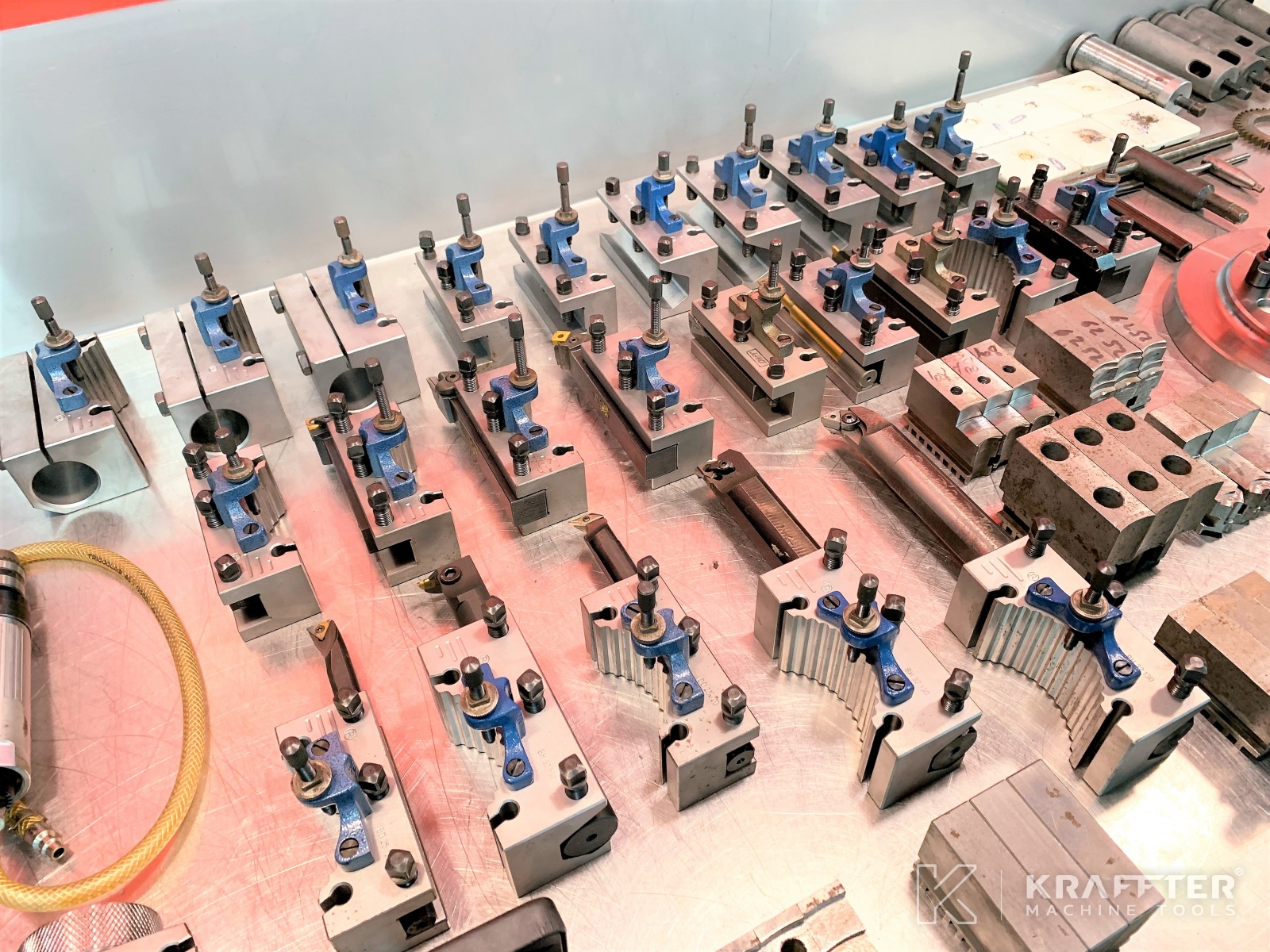

- 24 MULTIFIX type B tool holders

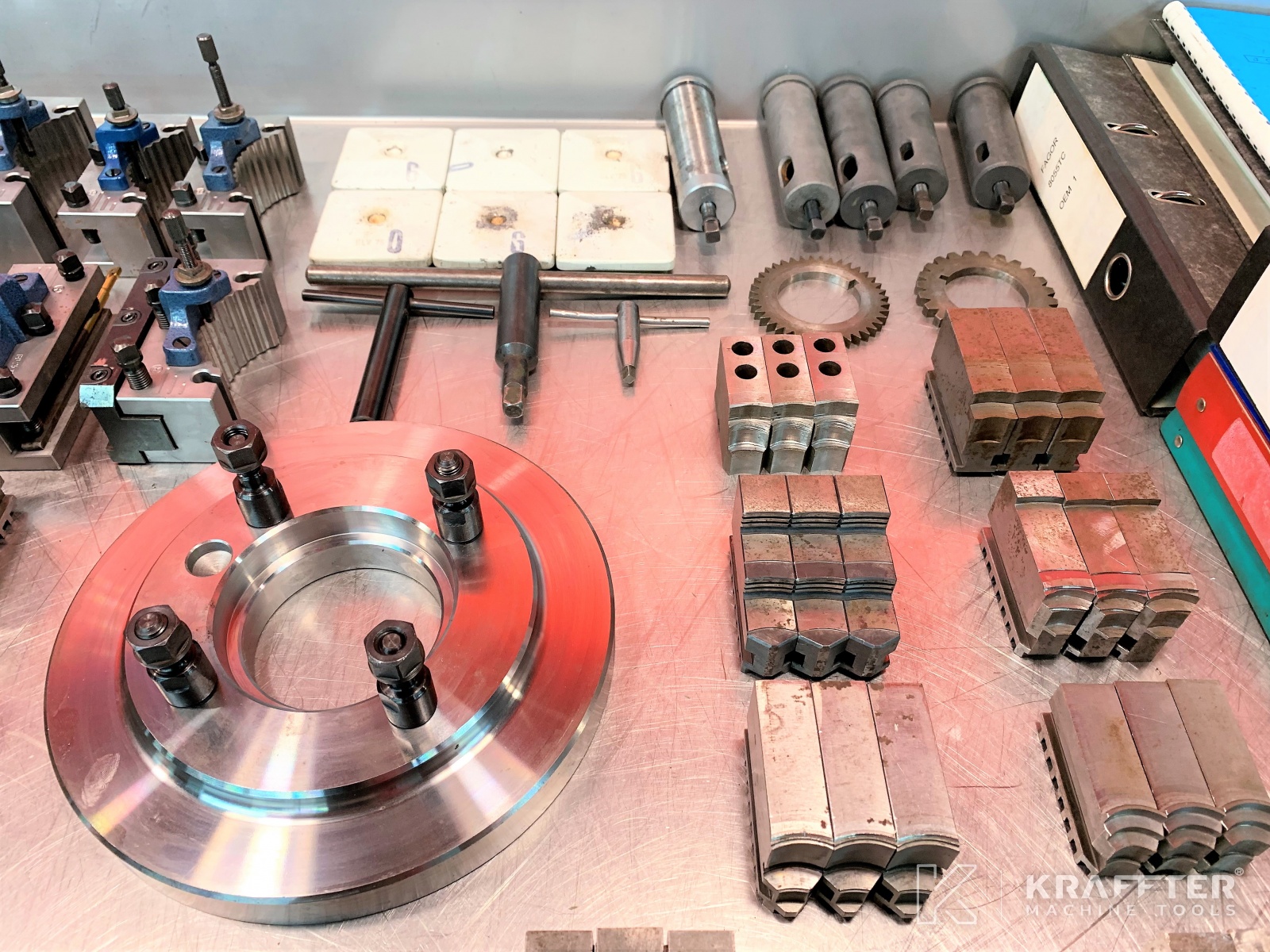

- 27 sets of soft jaws
- 3 sets of hard jaws
- 13 cutting tools

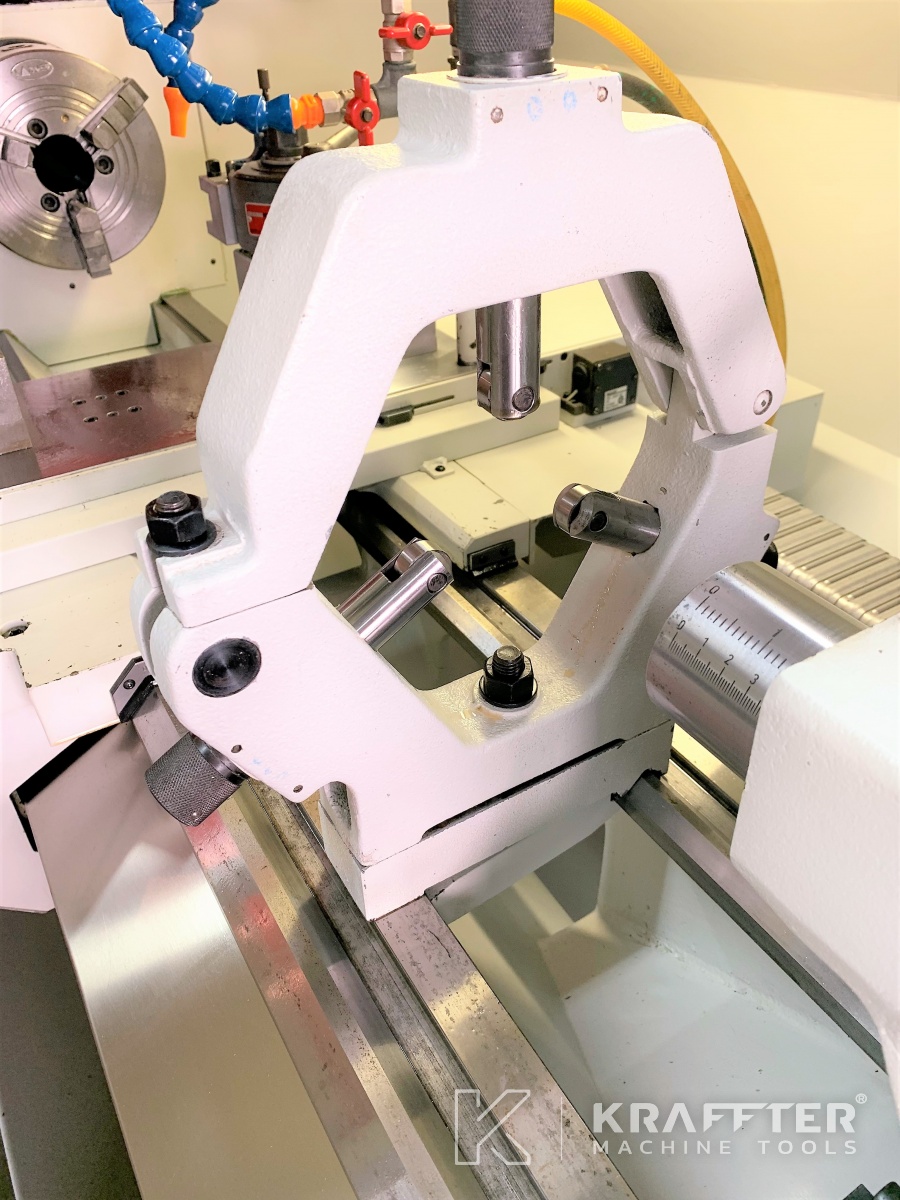

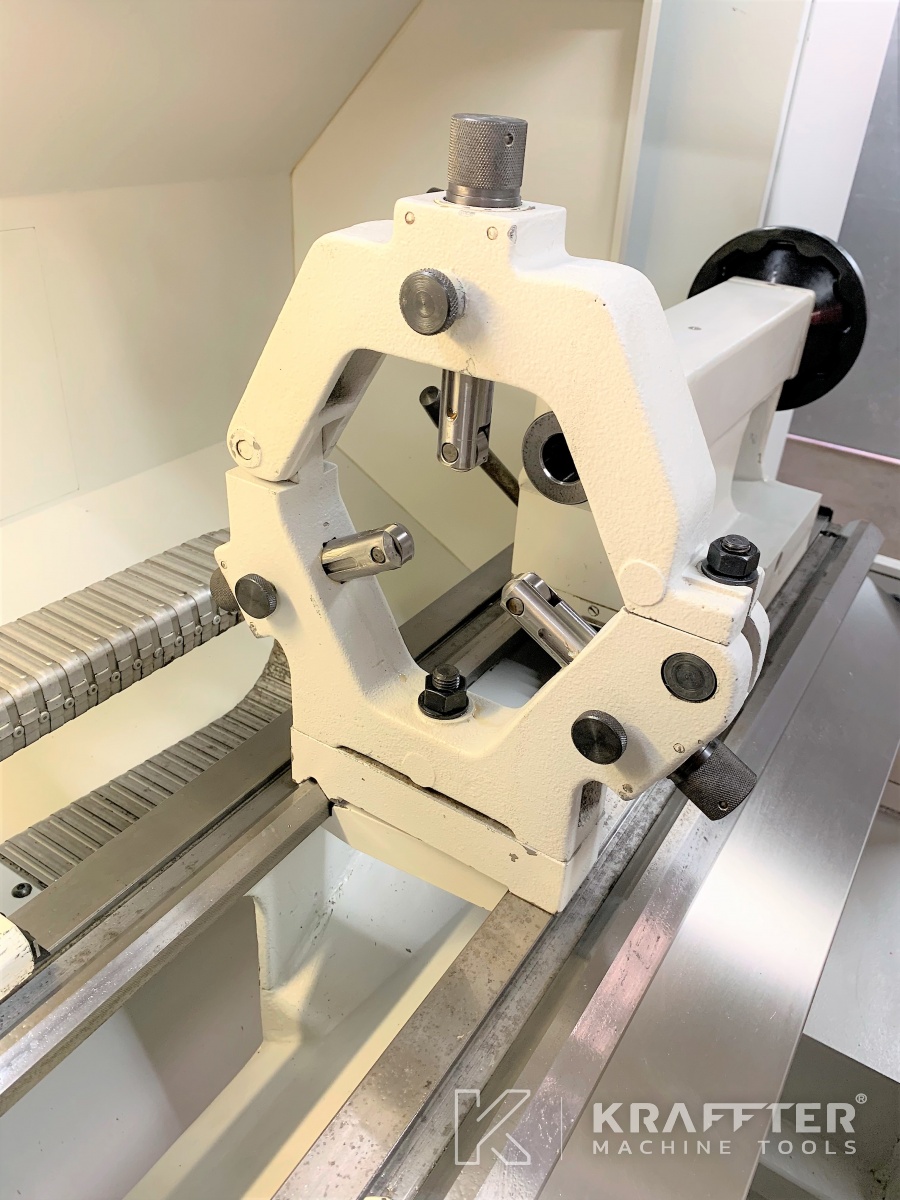

- 1 steady rest
- 1 dividing head + 3 dividing discs + MULTIFIX support

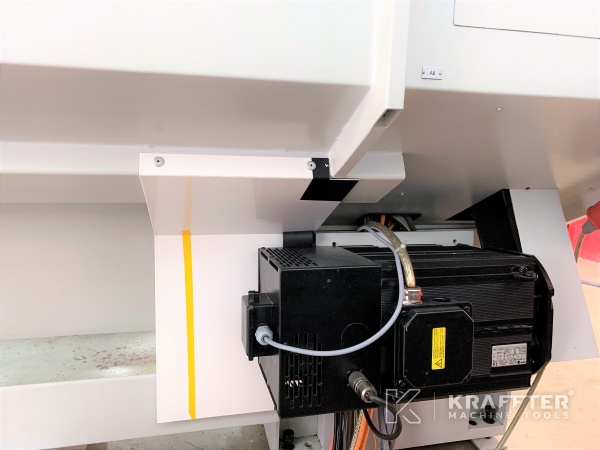

- 1 pneumatical turning tool holder (to be used in conbination of the C axis)
- 1 electronic edge finder
- 5 MT sockets
- 1 backplate NEW

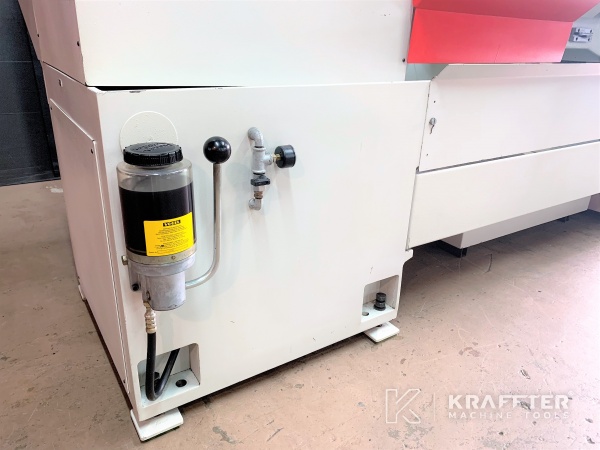

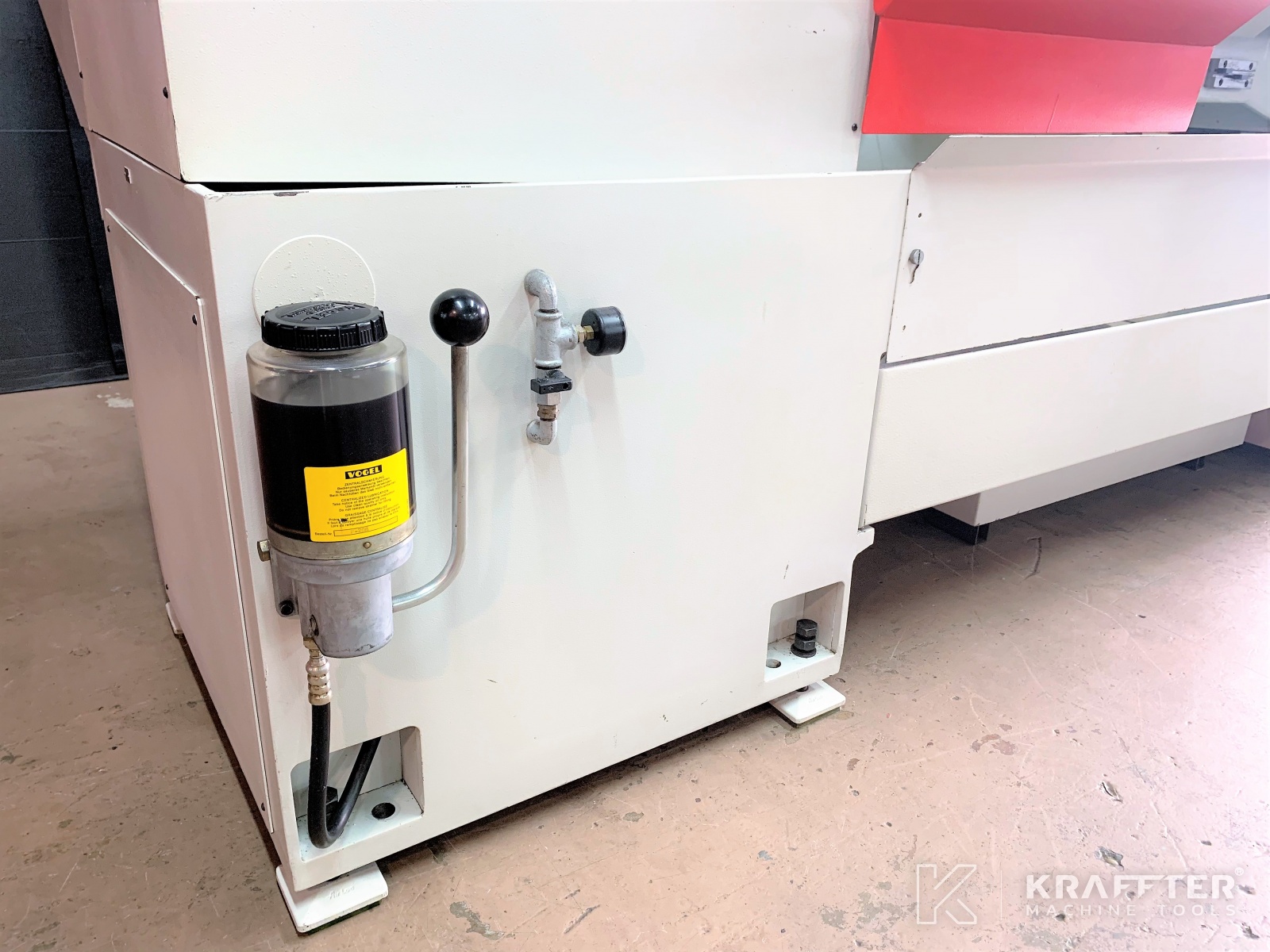

- 1 centralised manual lubrication system
- 1 complete lubrication system (pump + coolant tank + LOC-LINE hoses)
- 6 machine feet
- Complete documentation of the machine in French : electrical schemes, users manual, maintenance manual, CN FAGOR 8055TC users manual, computer card with machine parameters…
