Sold

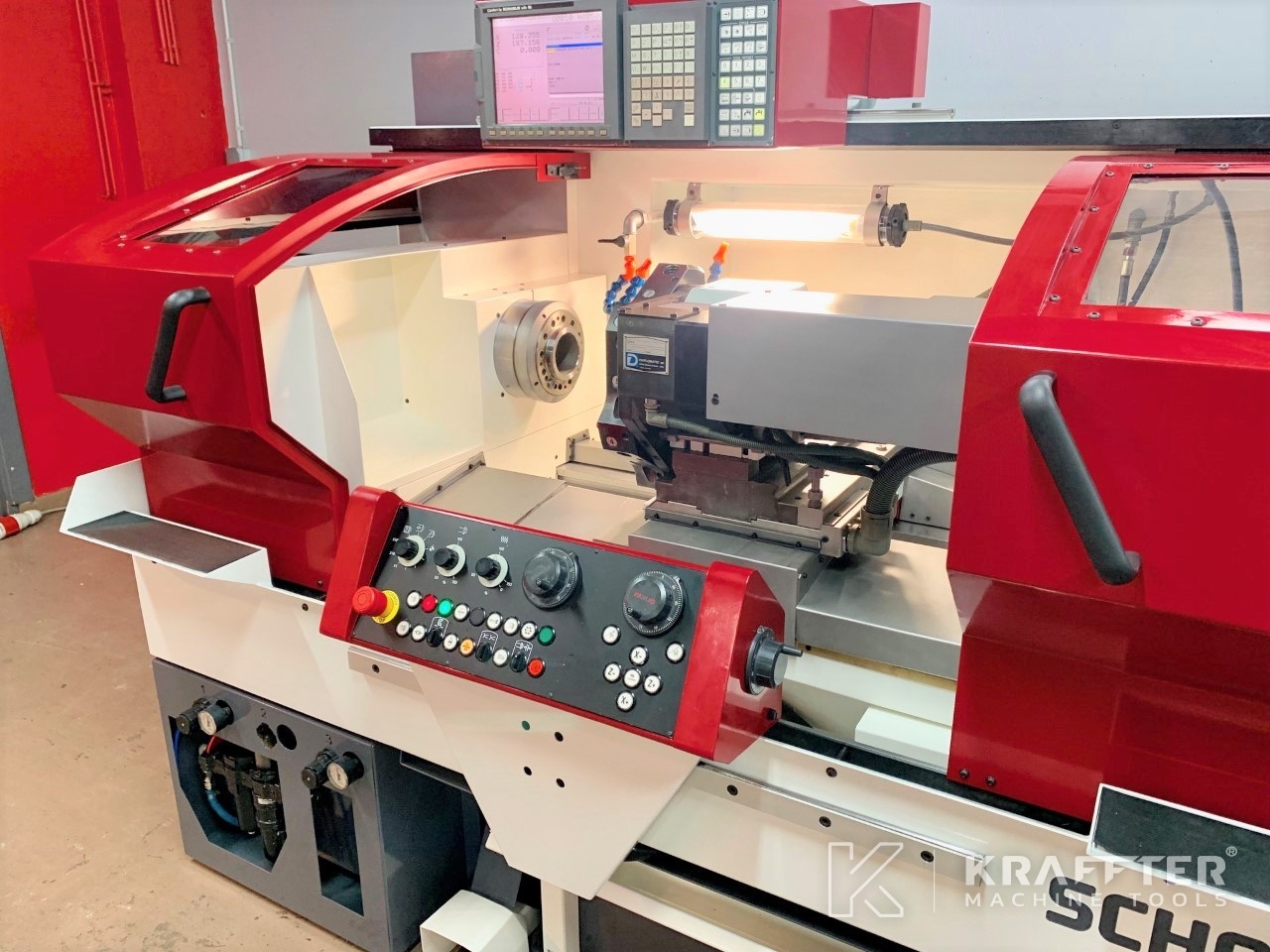

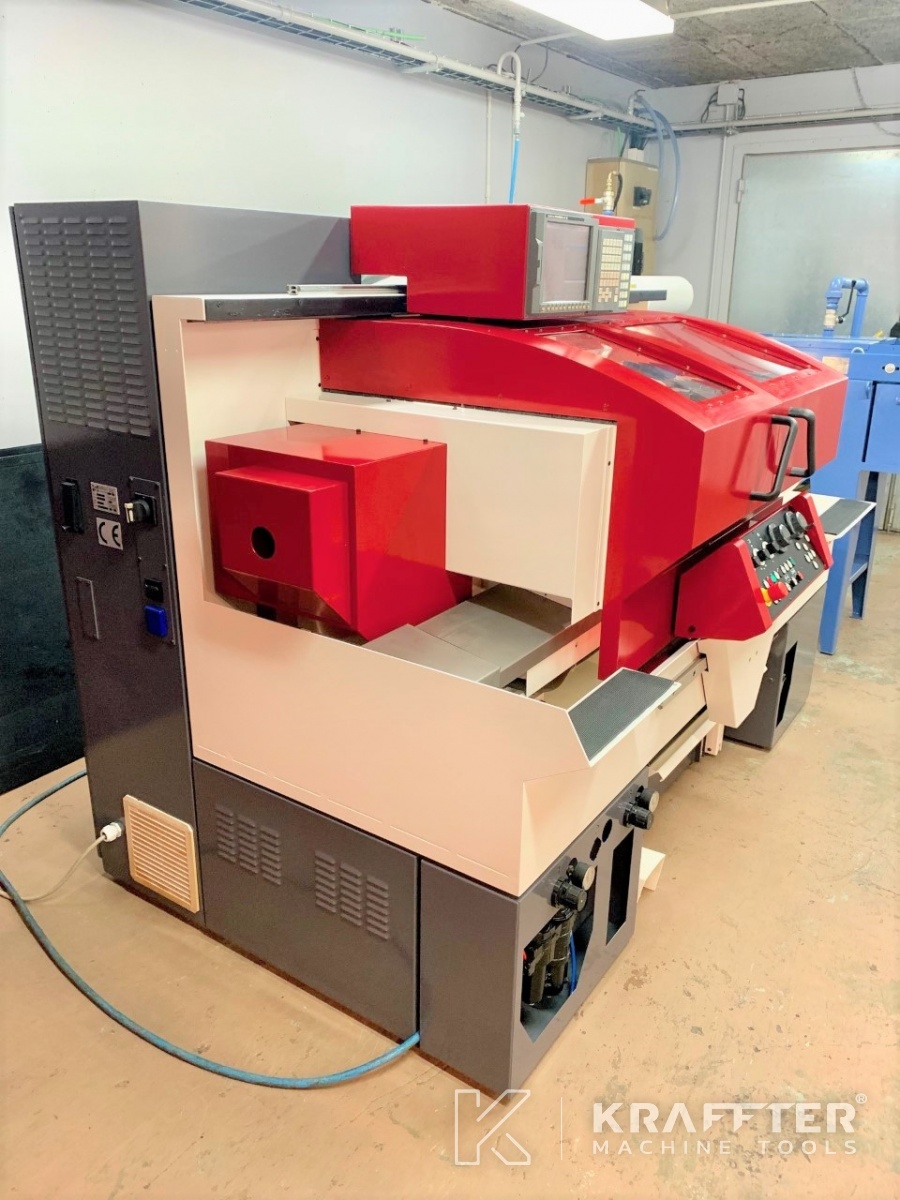

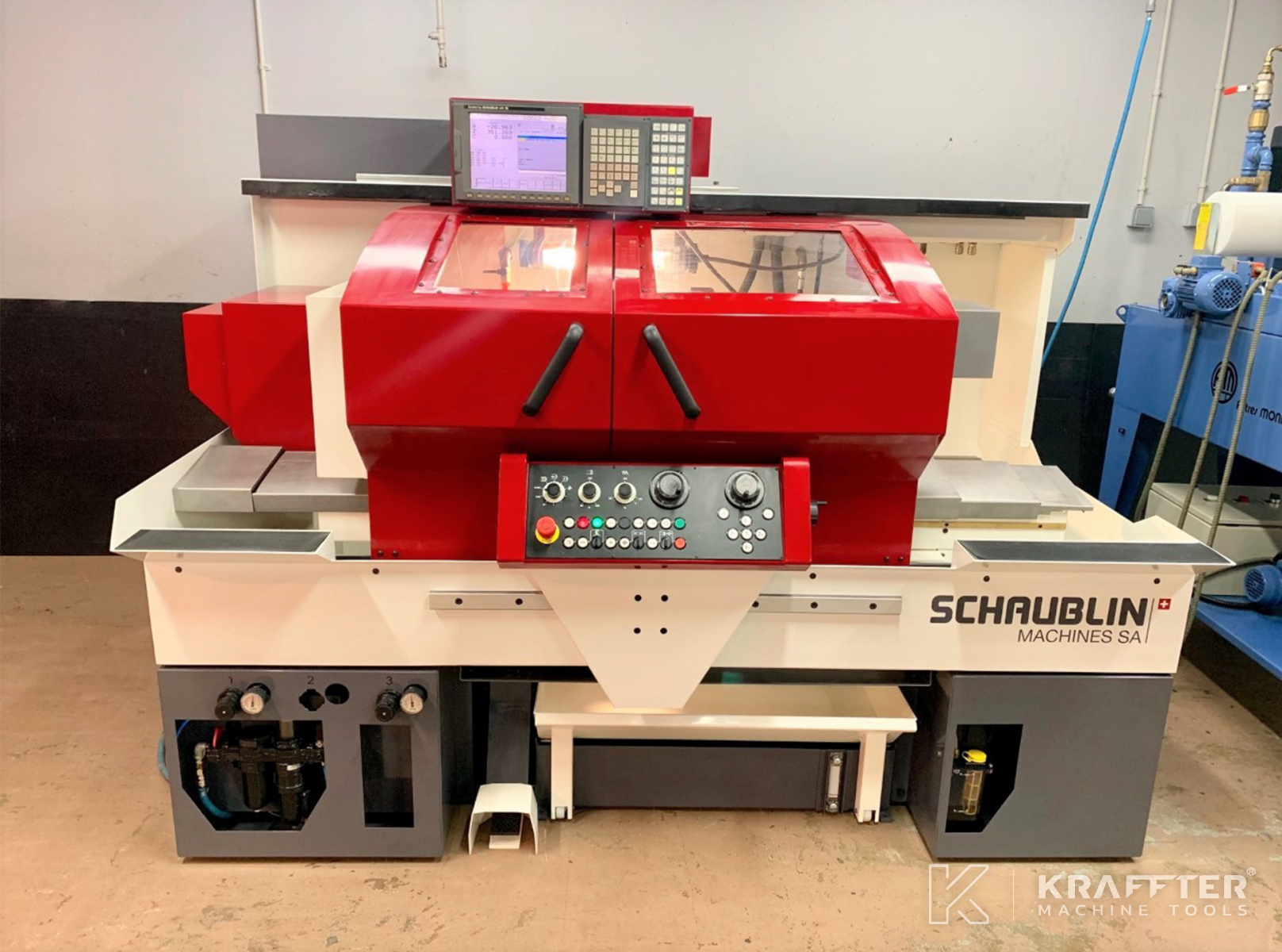

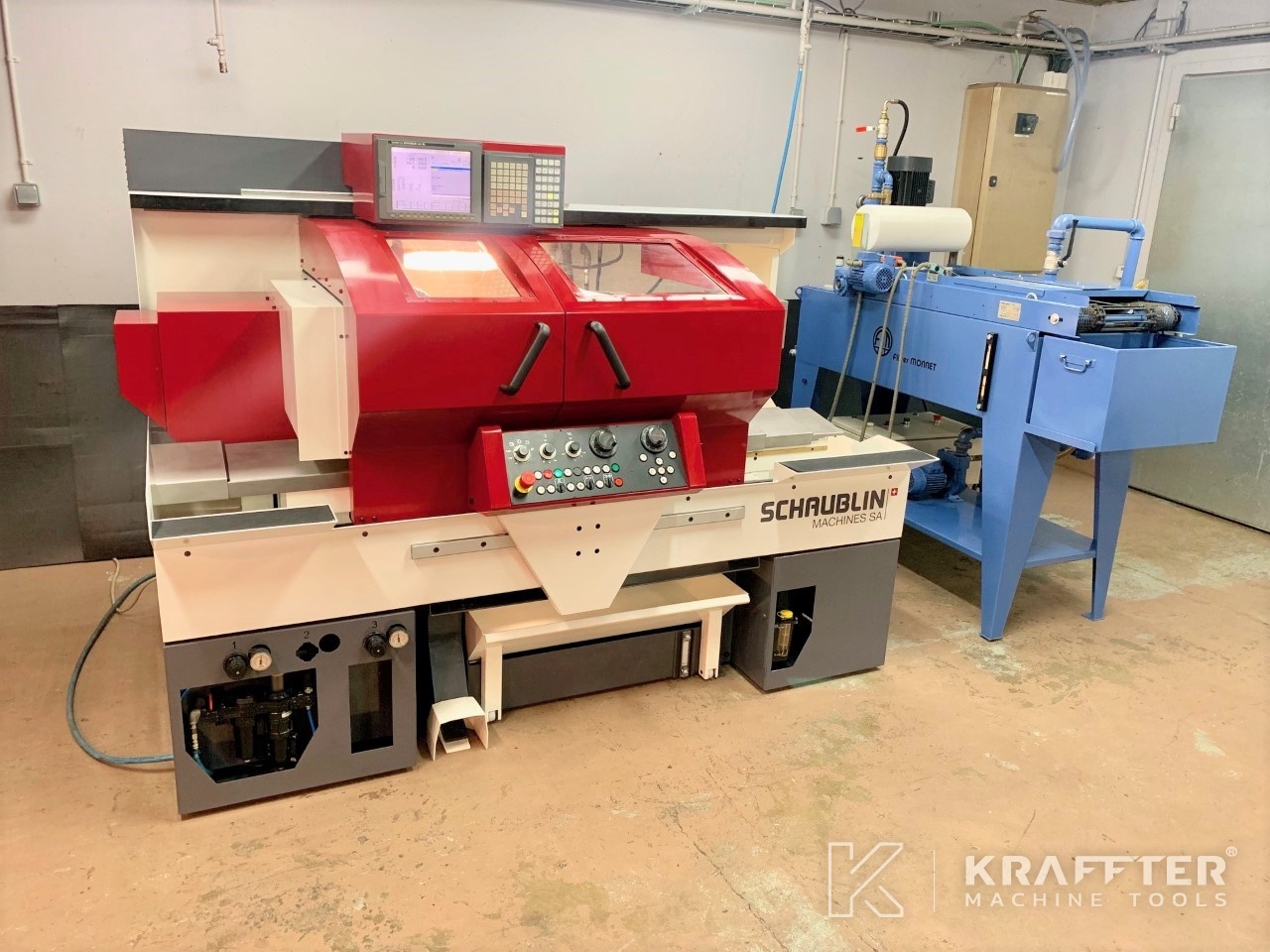

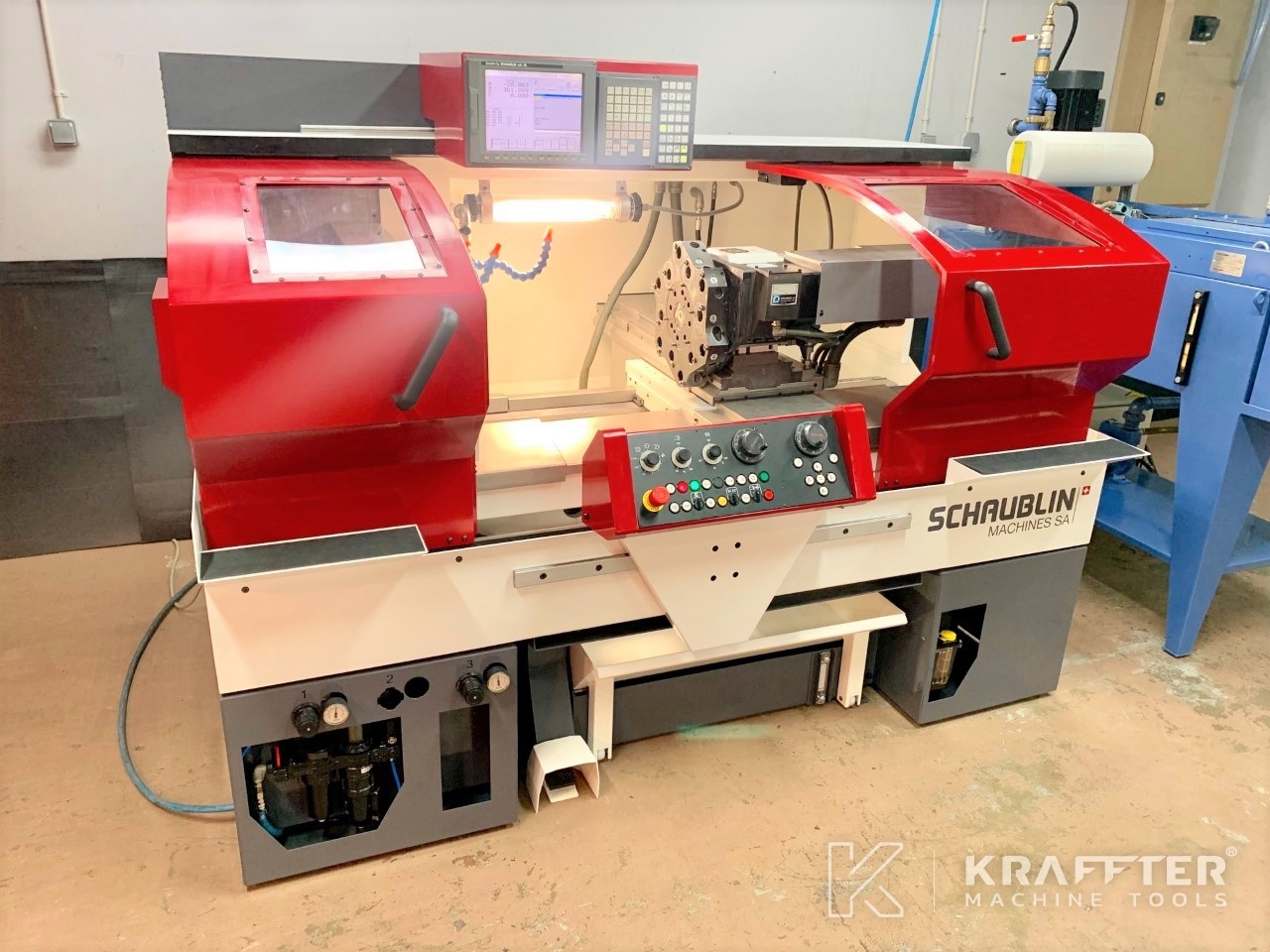

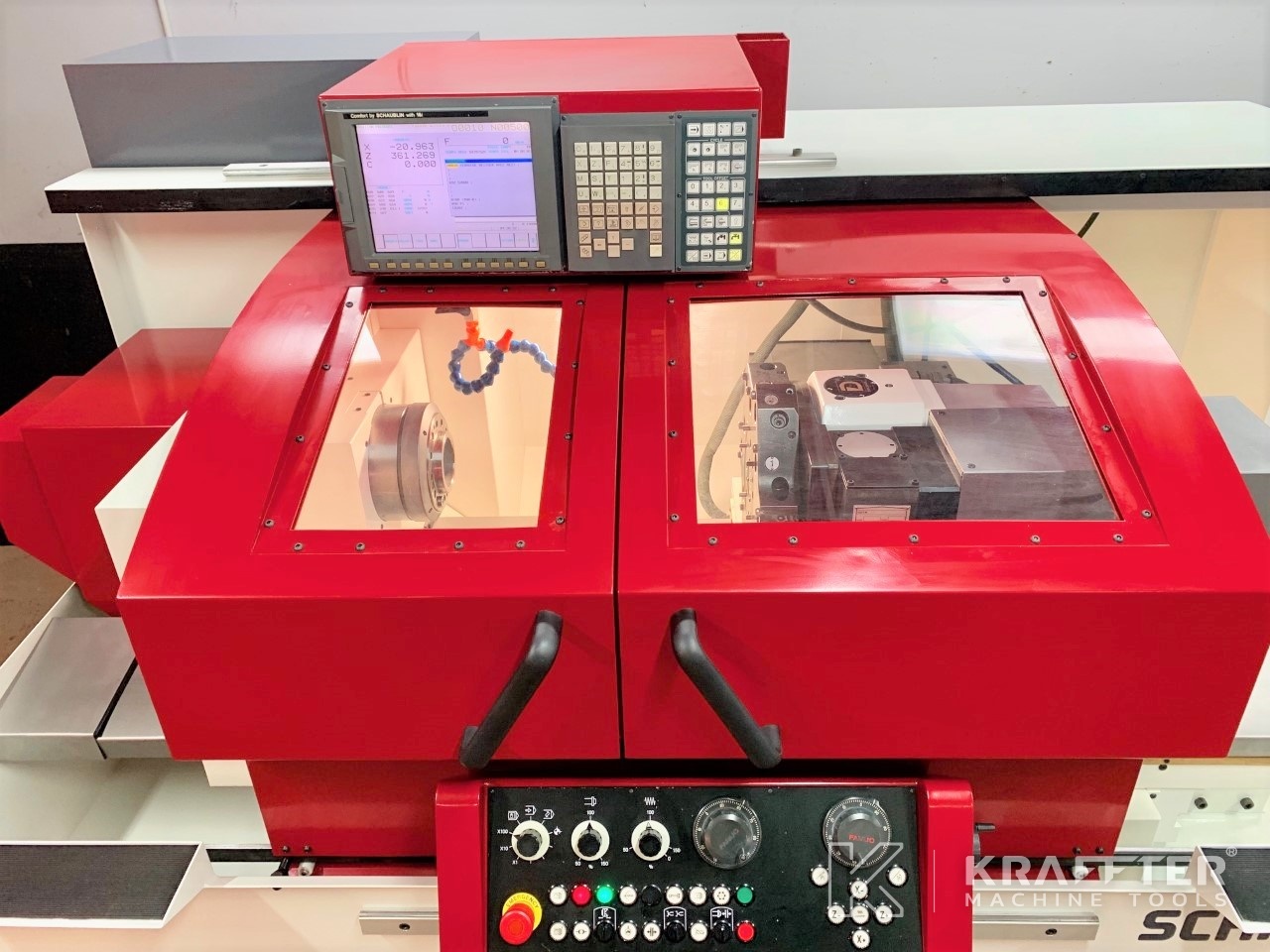

Type of machine : CNC lathe
Brand : SCHAUBLIN
Stock N° : 20689-946
Model : 180 R-TM A2-6
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

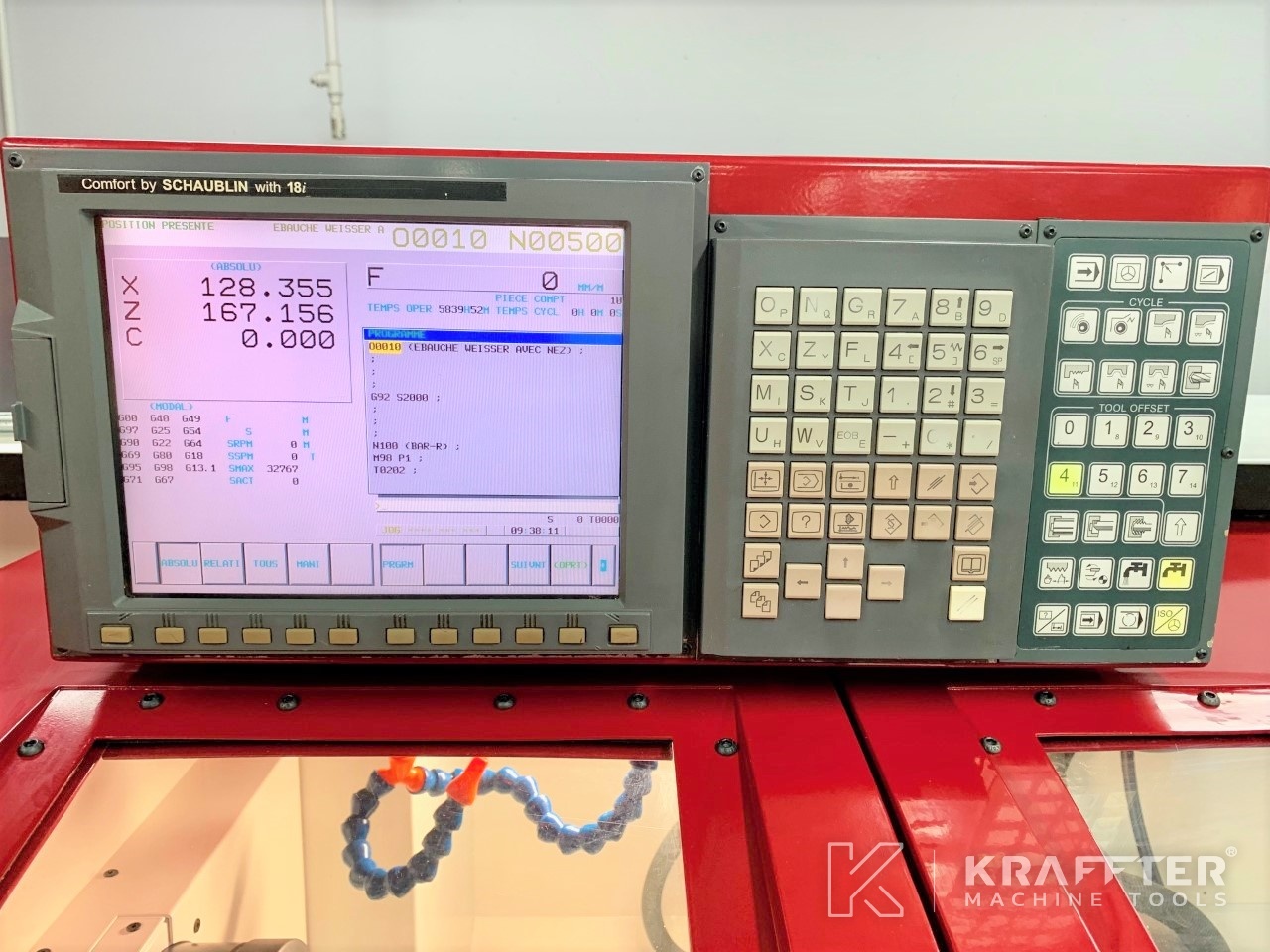

CNC control
FANUC 18i
Number of axes
3
Height of centers
280 [mm]
Max. turning diameter
270 [mm]
Height of centers over cariage
160 [mm]

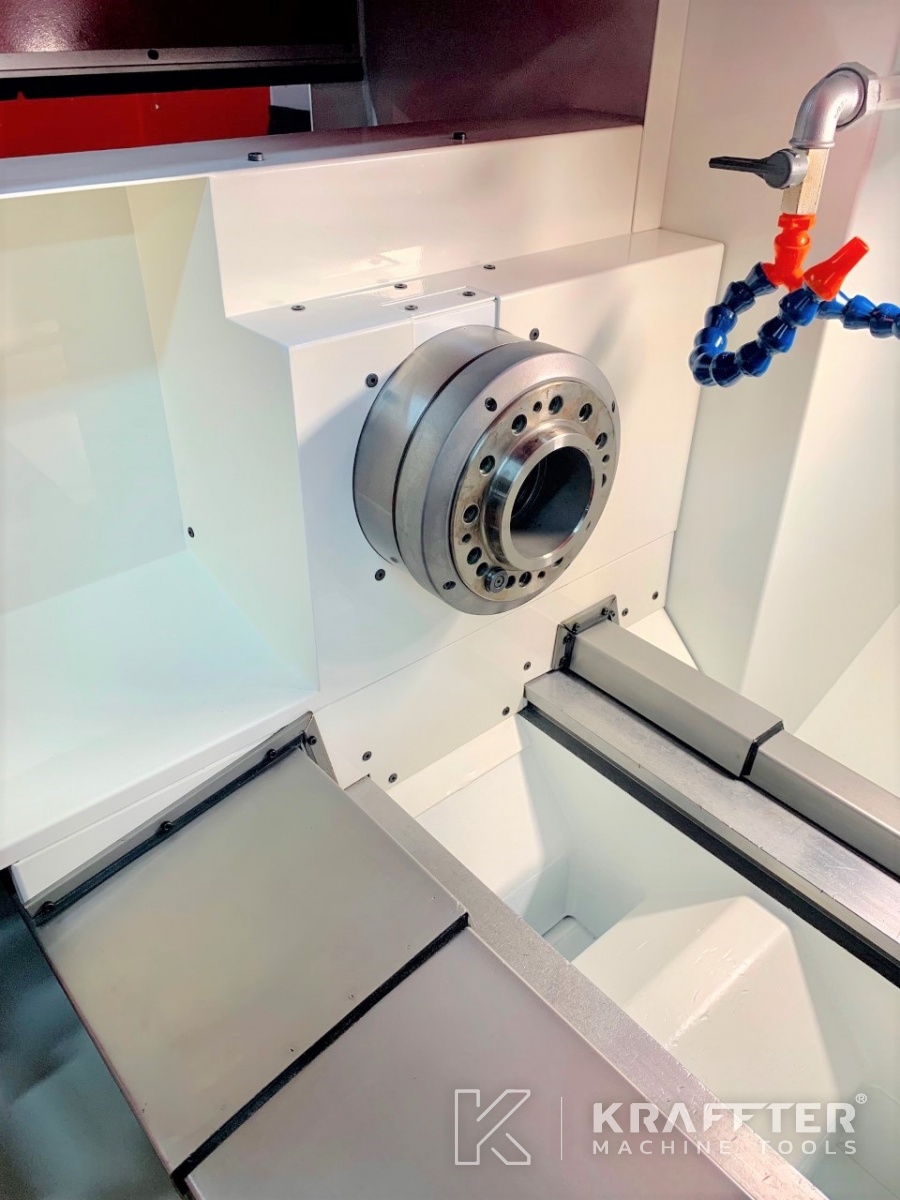

Spindle nose
A2-6’’
Spindle throughbore
68 [mm]
Increment C-axis
0.001 [°]
Tailstock type
pneumatique
Type of attachment tailstock
CM5
High pressure collant device
20 [bars]

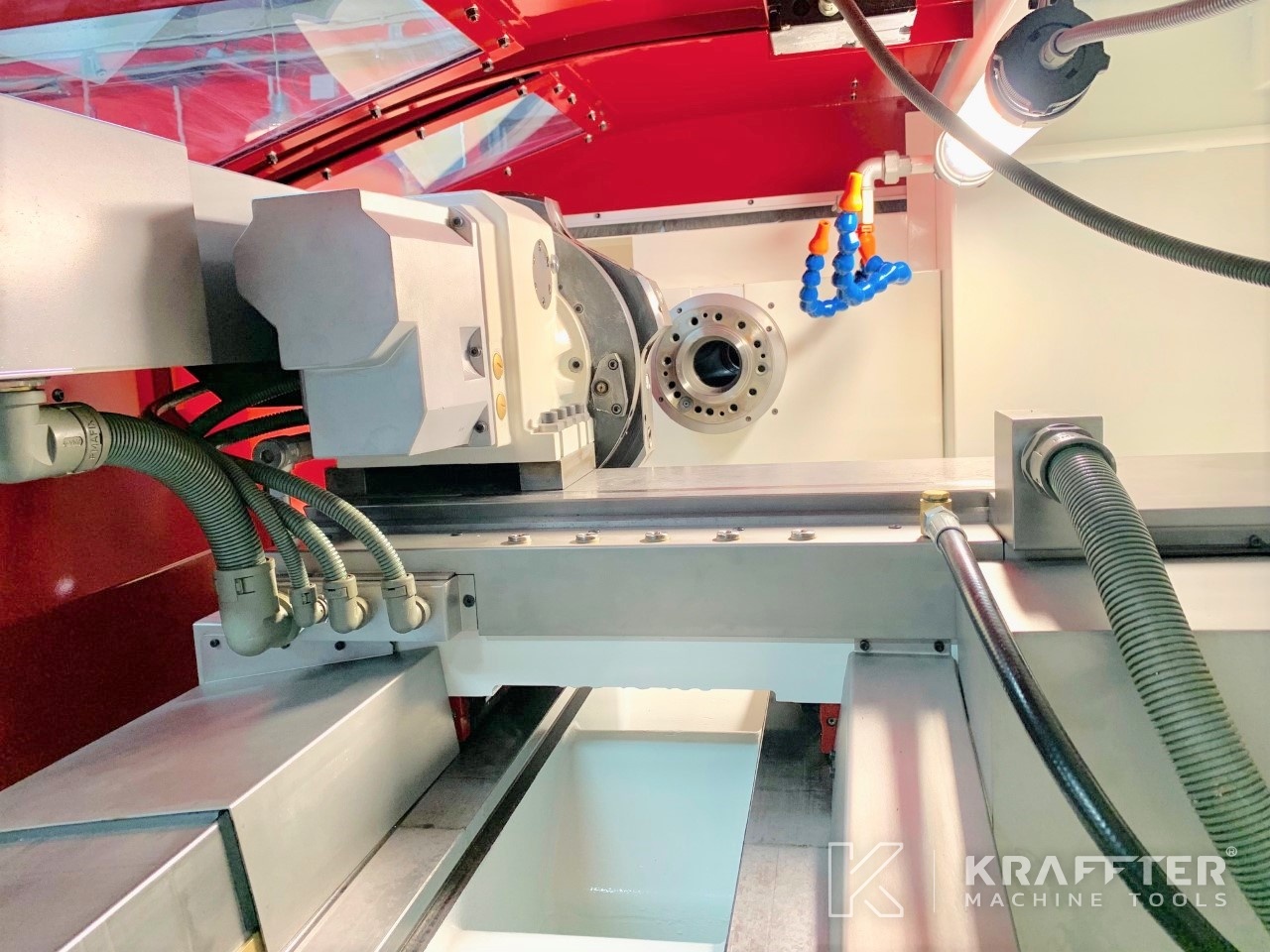

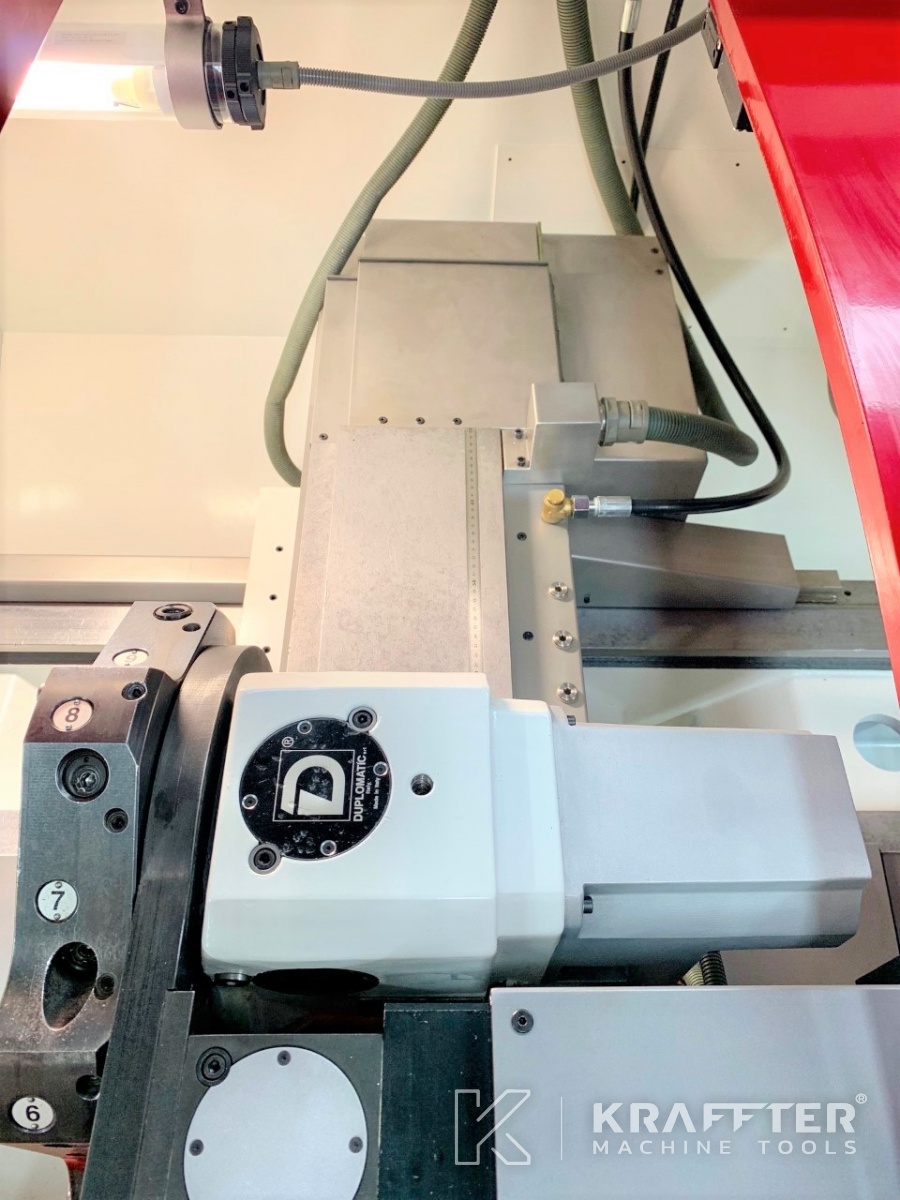

Turret
DUPLOMATIC BSV-N 160
Type of tool holders
VDI 30
Number of tool stations
12
Number of tool stations driven
6
Max. speed driven tools
5000 [rpm]
Lubrication tank with pump
Yes
Lubrication tank capacity
120 [l]
Total power required
30 [kVA]
Supply voltage
400 [V]
Dimensions
2300 x 1460 x 1700
Weight
2740 [Kg]

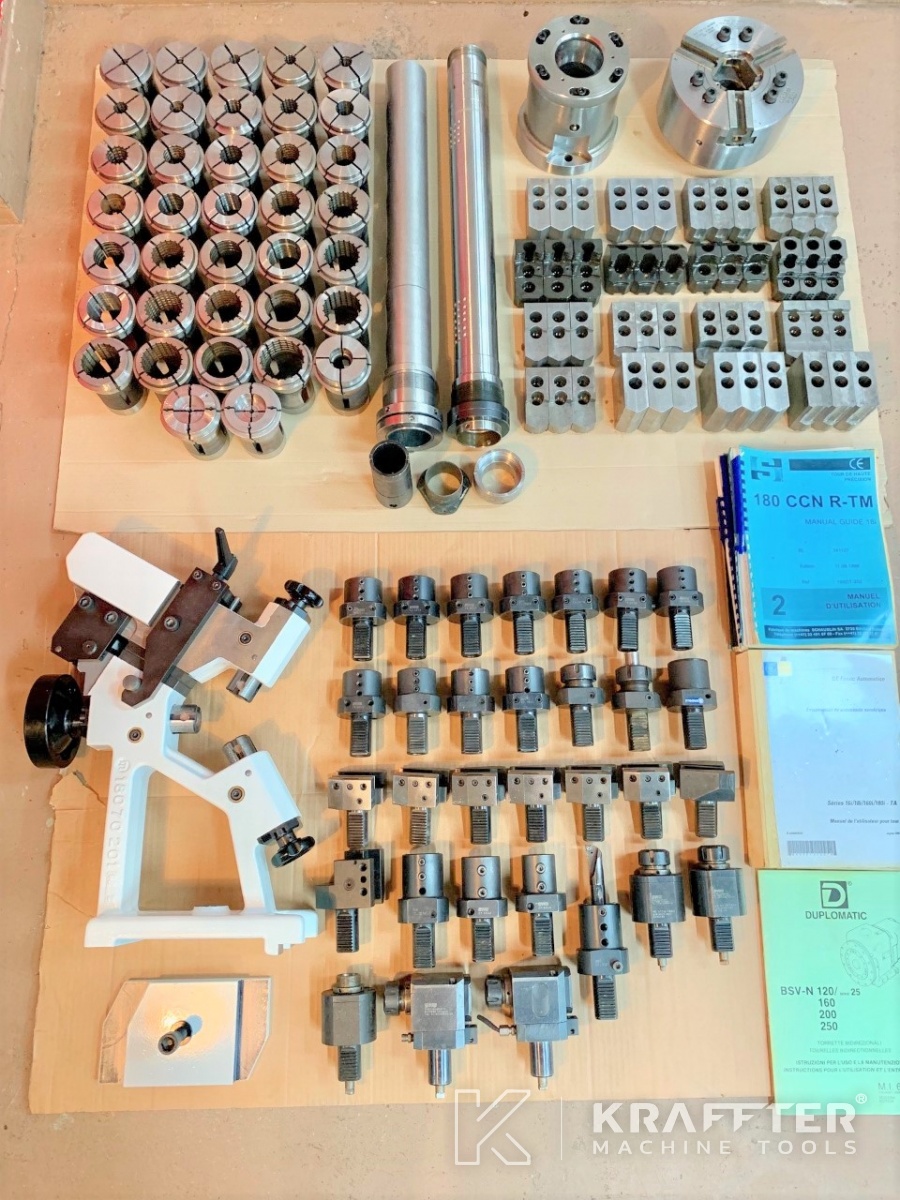

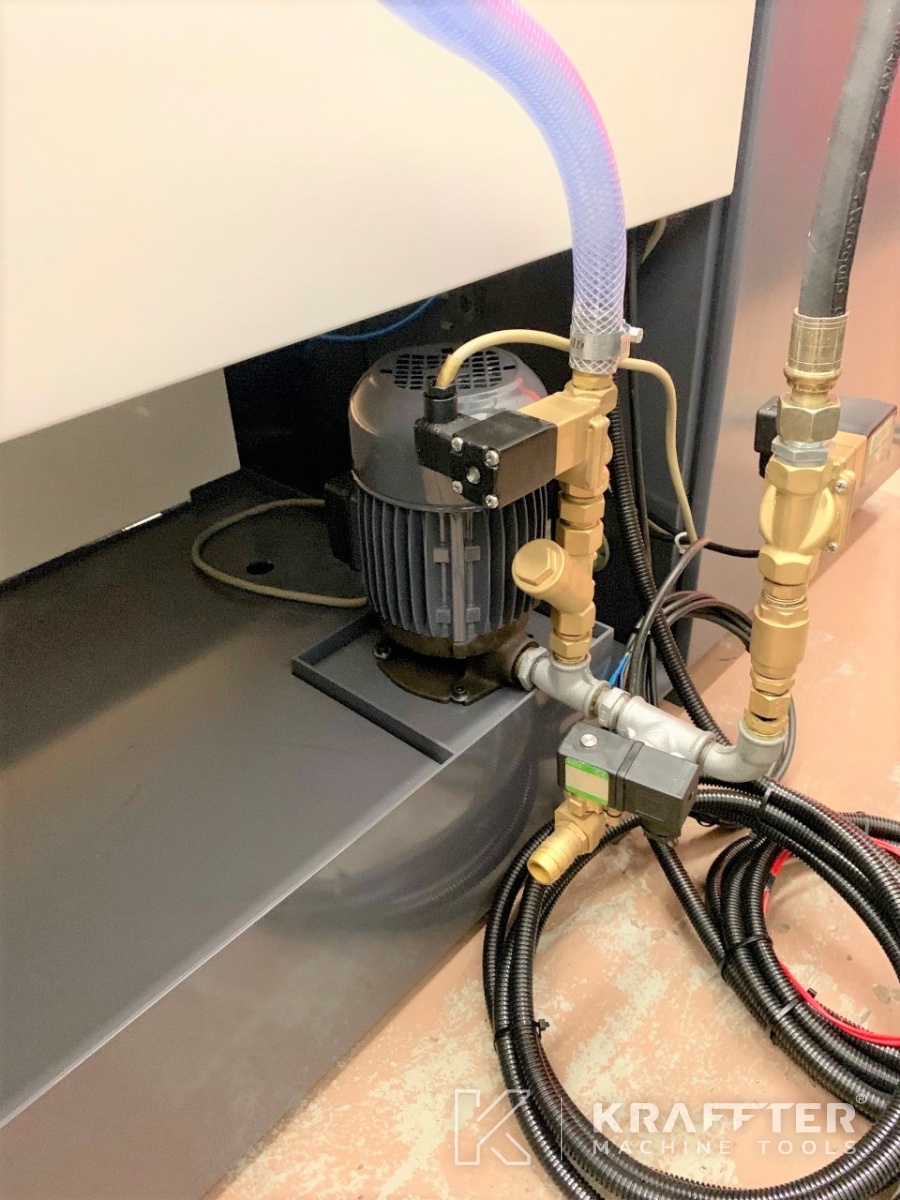

- x 1 high pressure lubrication unit FILTRES MONNET

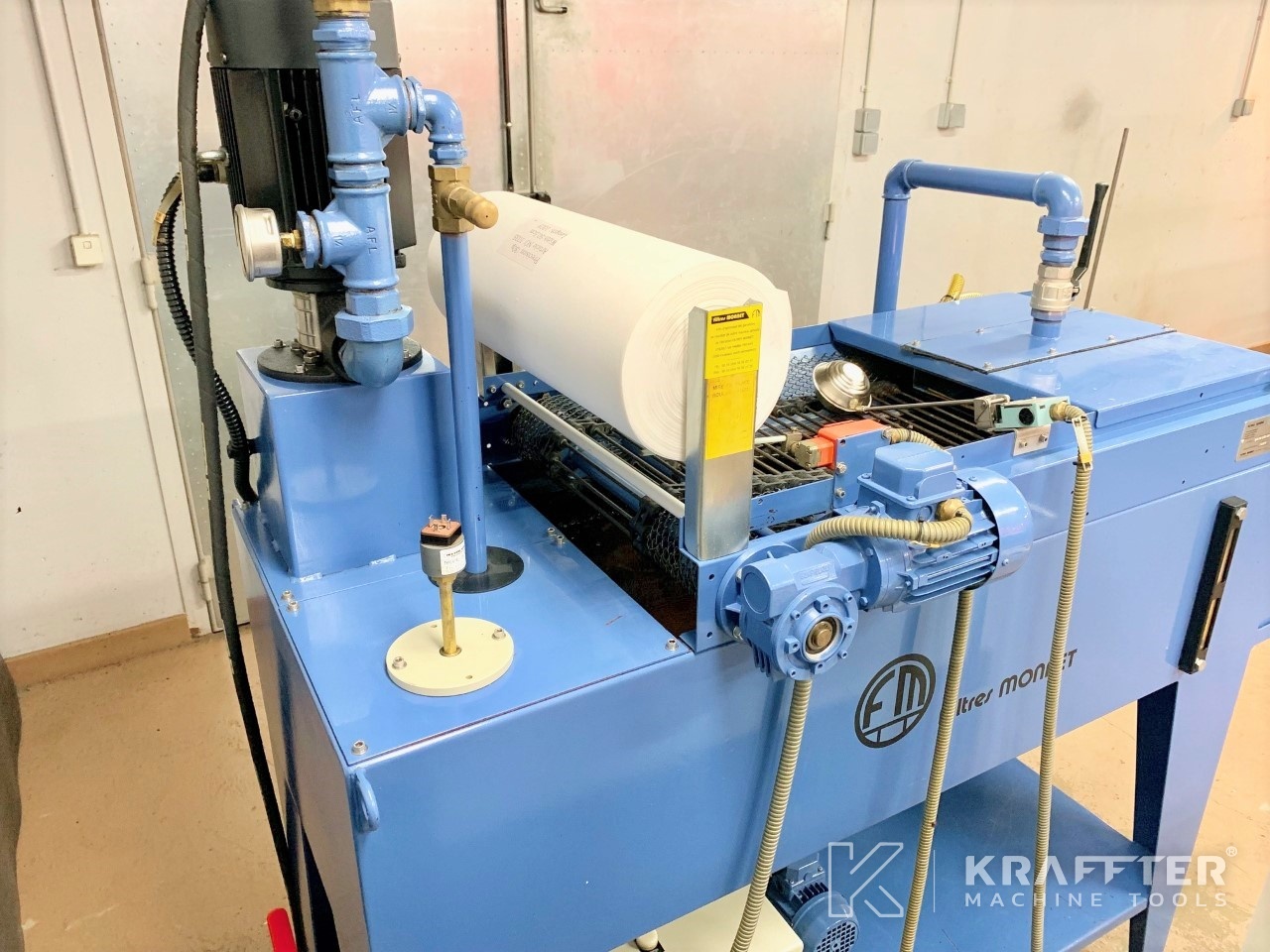

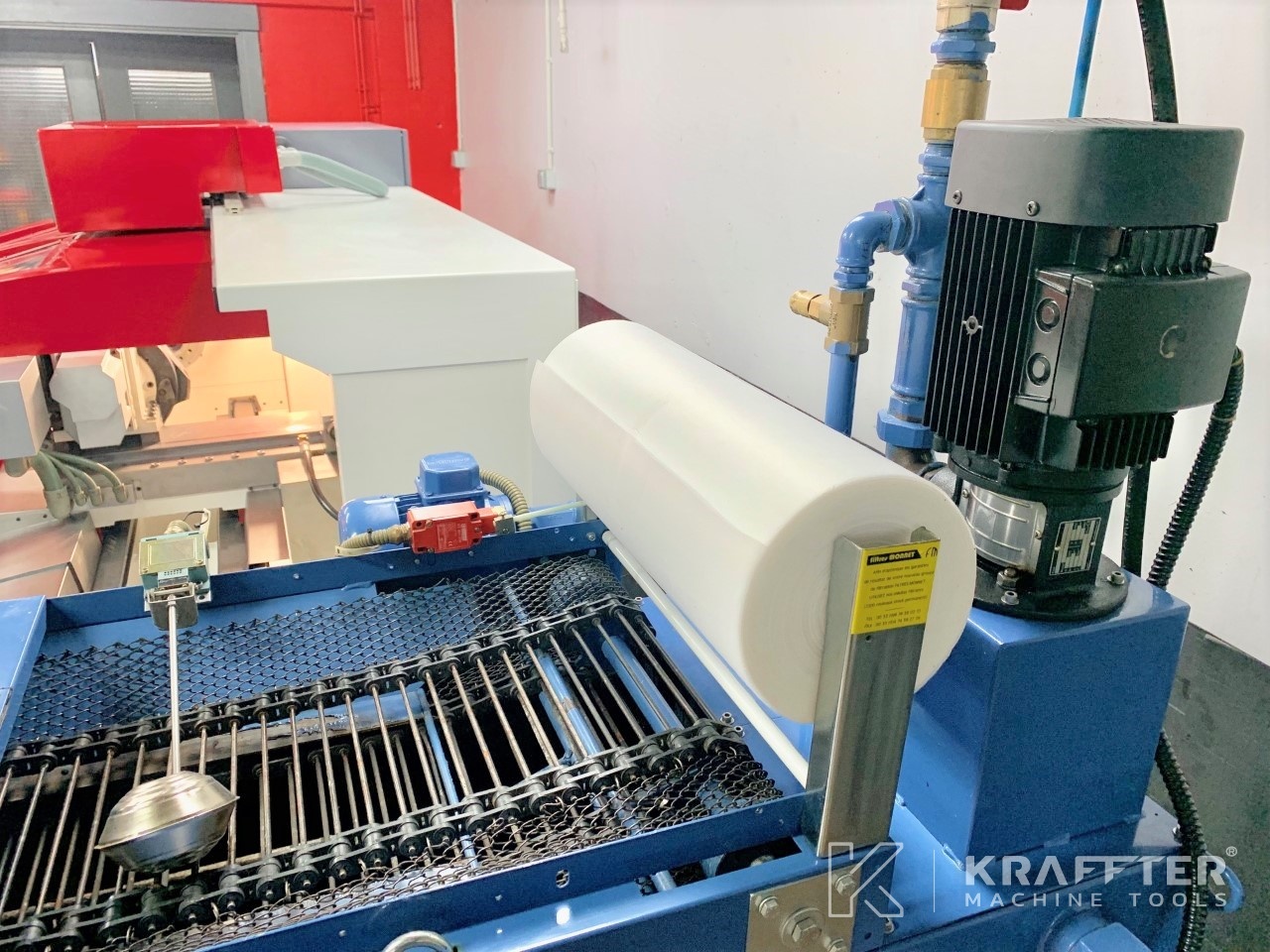

- x 1 paper filtration unit FILTRES MONNET

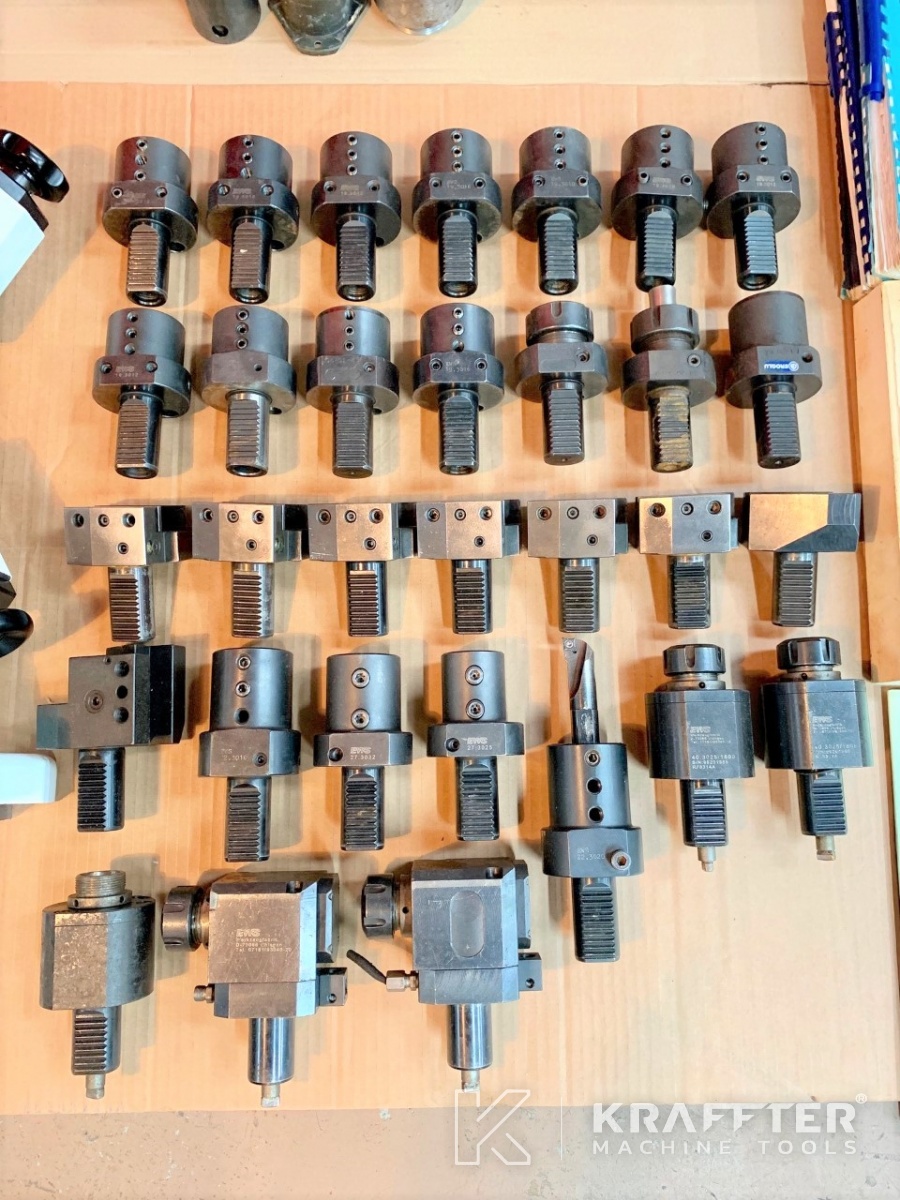

- x 18 axial tool holders VDI 30
- x 8 radial tool holders VDI 30
- x 3 axial rotating turning tool holders VDI 30
- x 2 angular/radial rotating turning tool holders VDI 30
- x 1 collet chuck for F65 collets

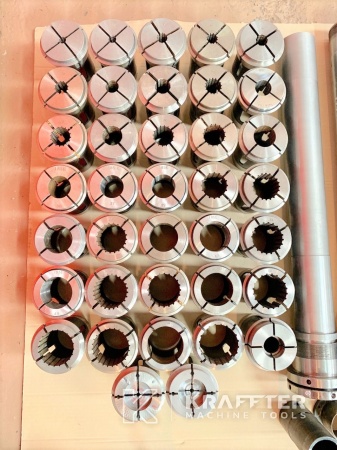

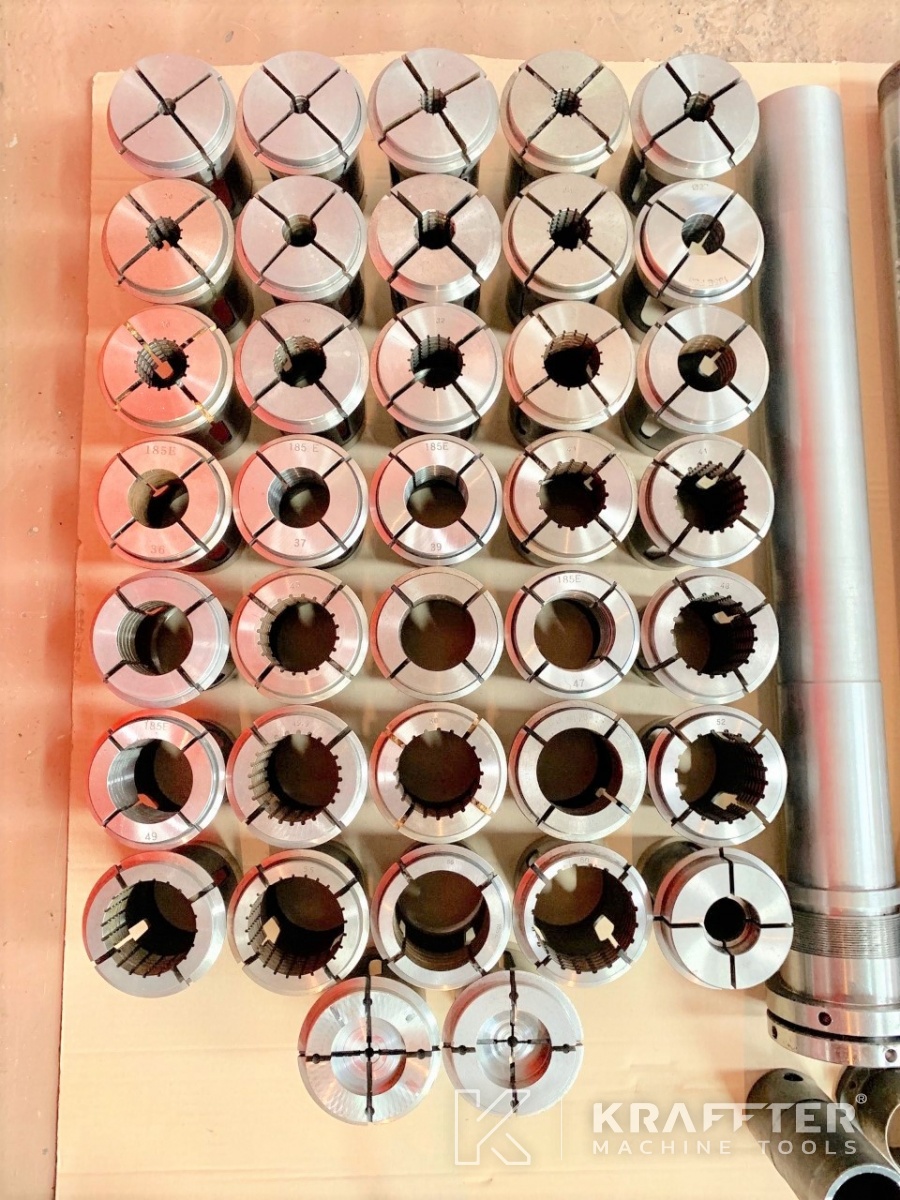

- x 34 collets F65 type (Ø 11 – 12 – 15 – 16 – 18 – 20 – 21 – 22 – 25 – 27 – 30 – 31 – 32 – 35 – 36 – 36 – 37 – 39 – 40 – 41 – 44 – 45 – 46 – 47 – 48 – 49 – 49.90 – 50 – 51 – 52 – 53 – 55 – 56 – 60 mm)
- x 3 soft collets F65 type
- x 2 drawbars

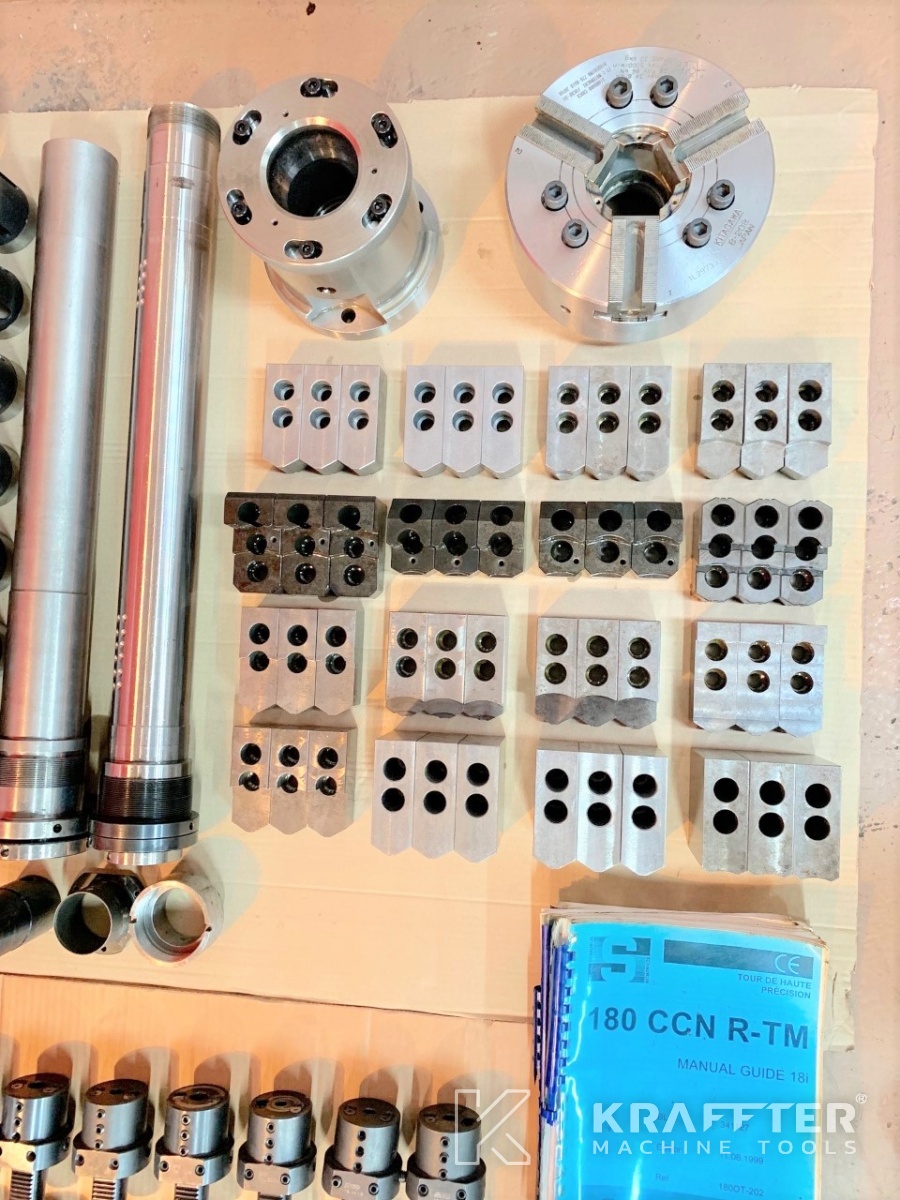

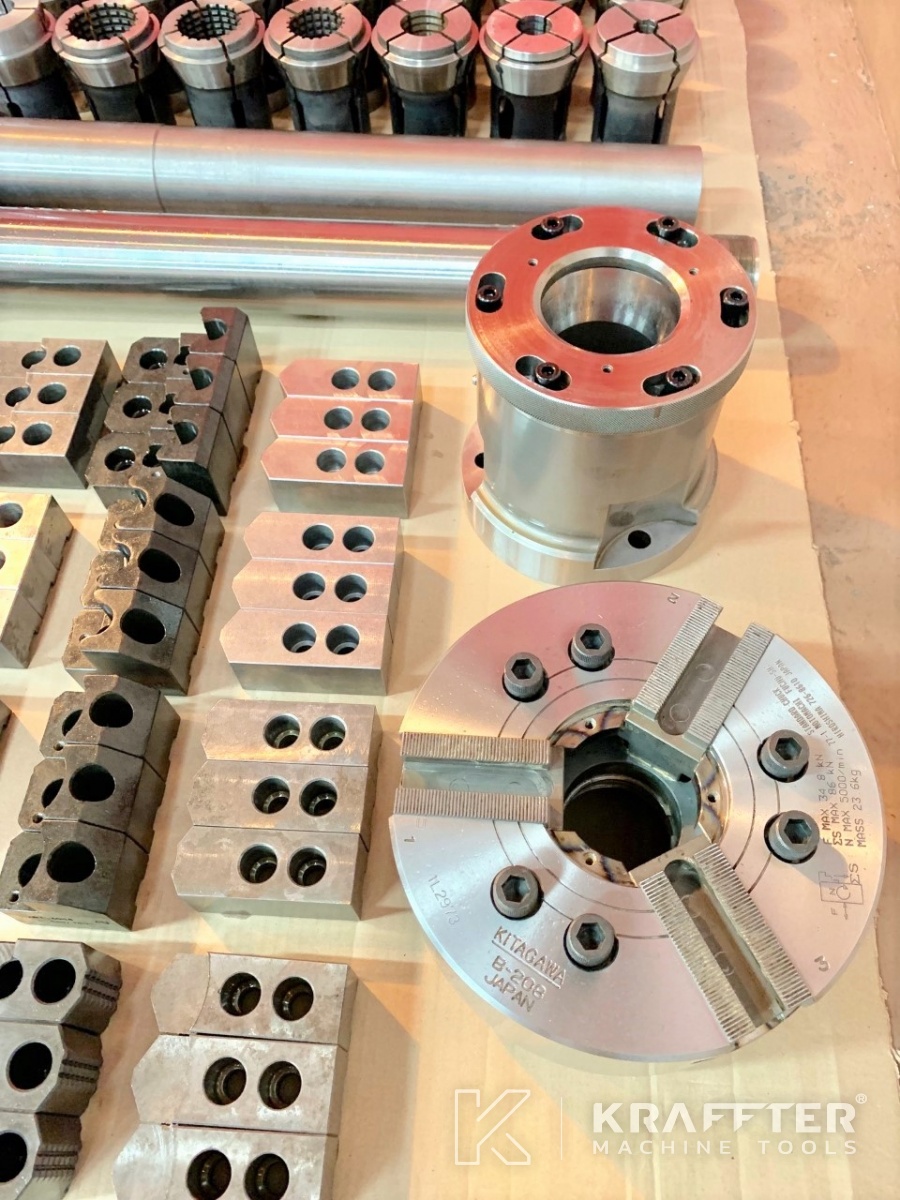

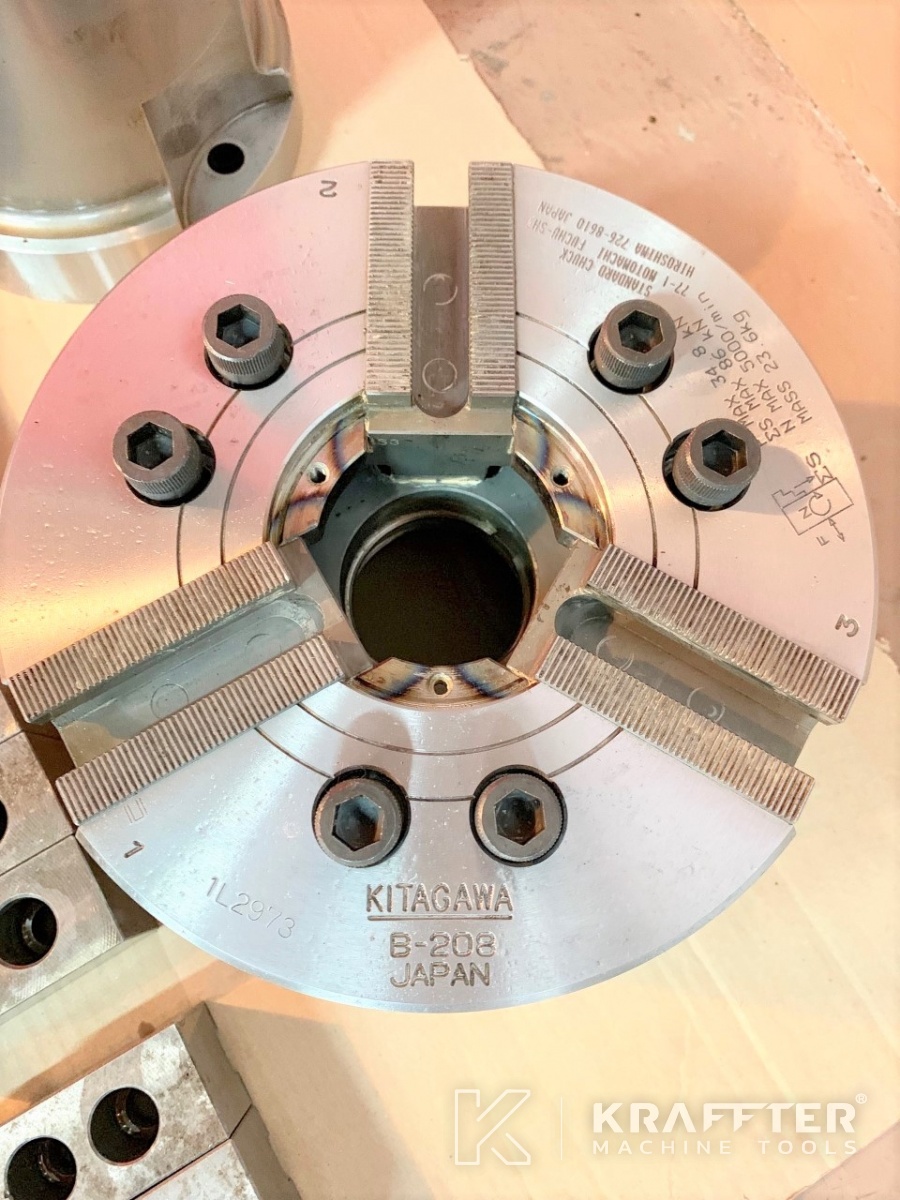

- x 1 automatic pneumatical 3 jaw chuck KITAGAWA JAPAN type B-208
- x 4 sets of hardned jaws
- x 12 sets of soft jaws

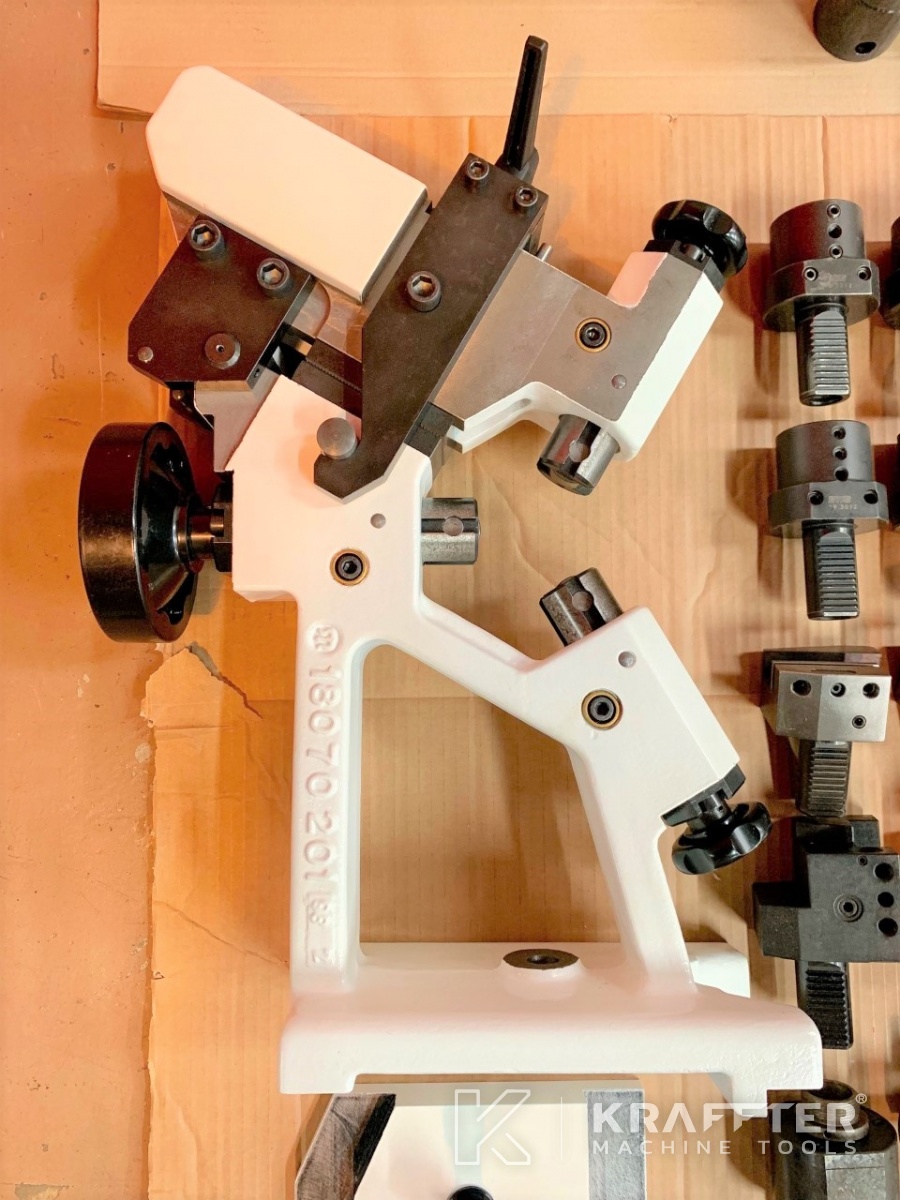

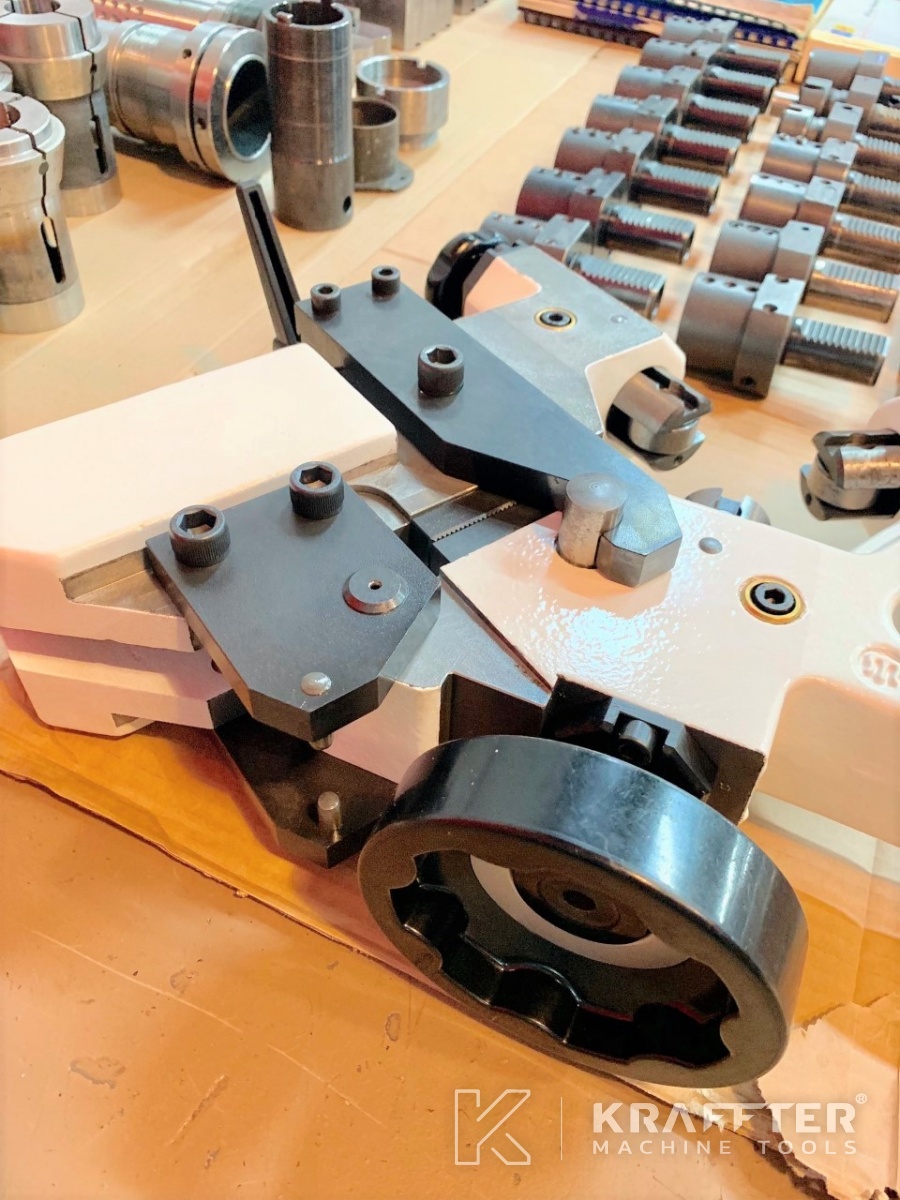

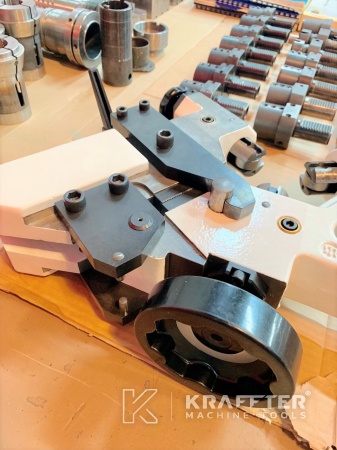

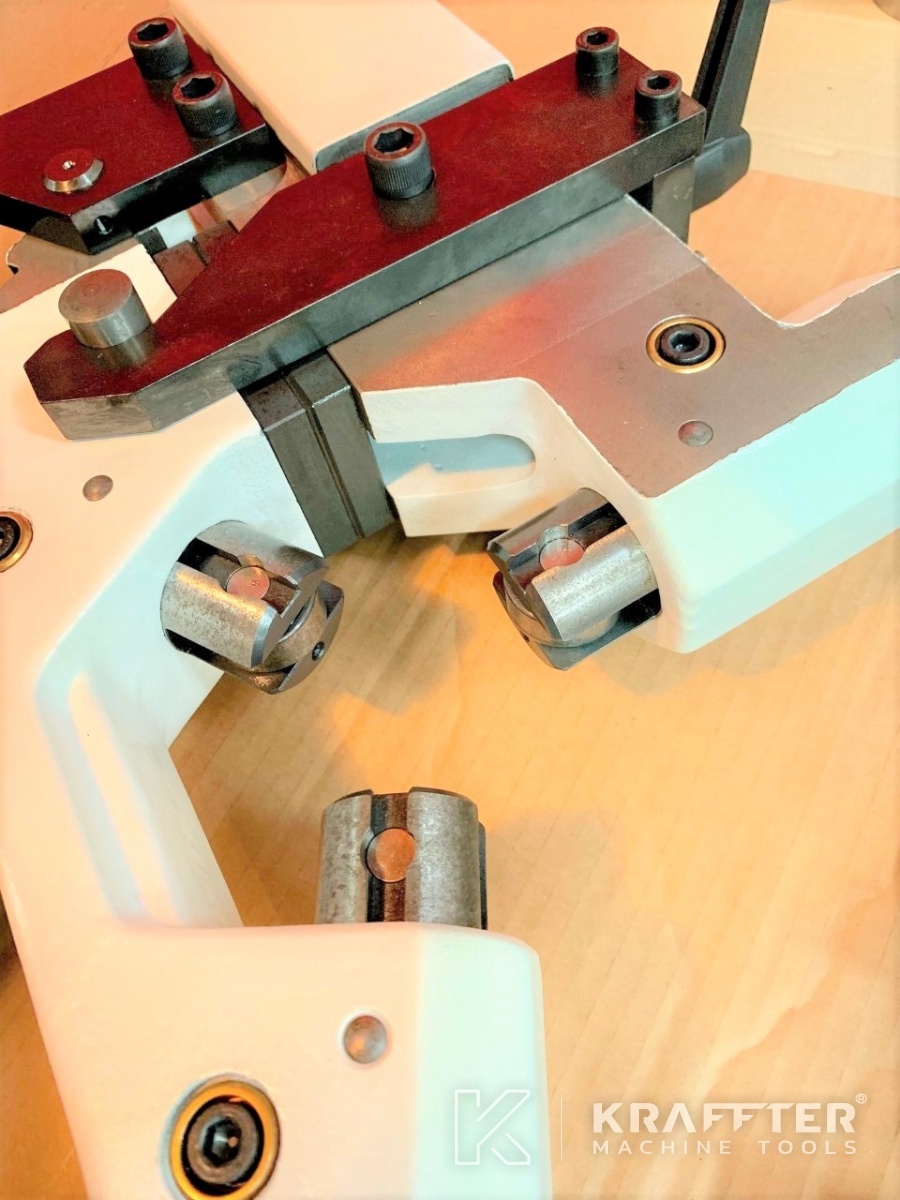

- x 1 steady rest SCHAUBLIN part N° 180 70 201
- x 4 technical books (users manuals, GE FANUC 18i control guide, DUPLOMATIC guide…)
