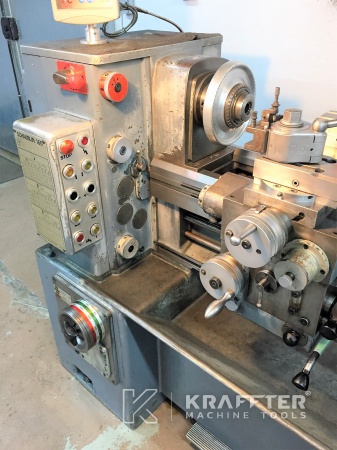

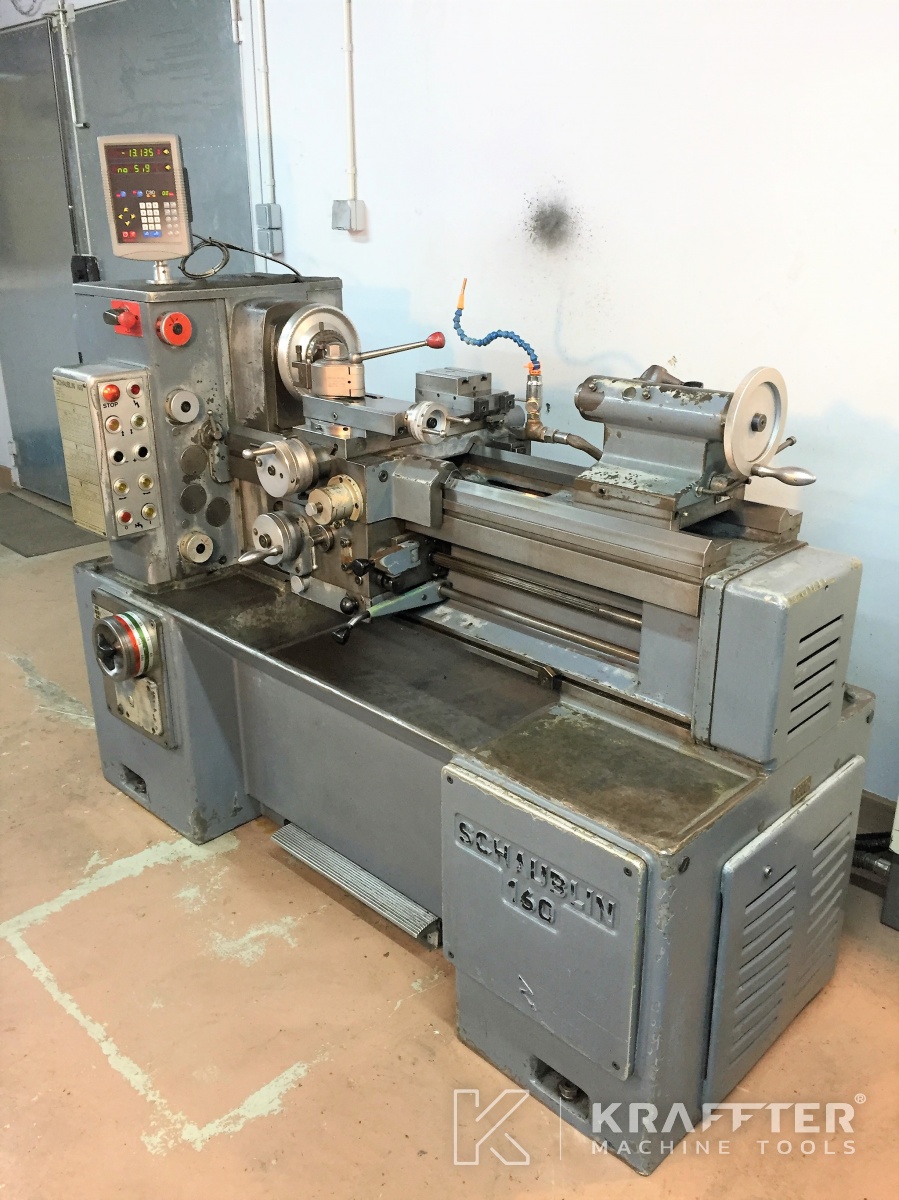

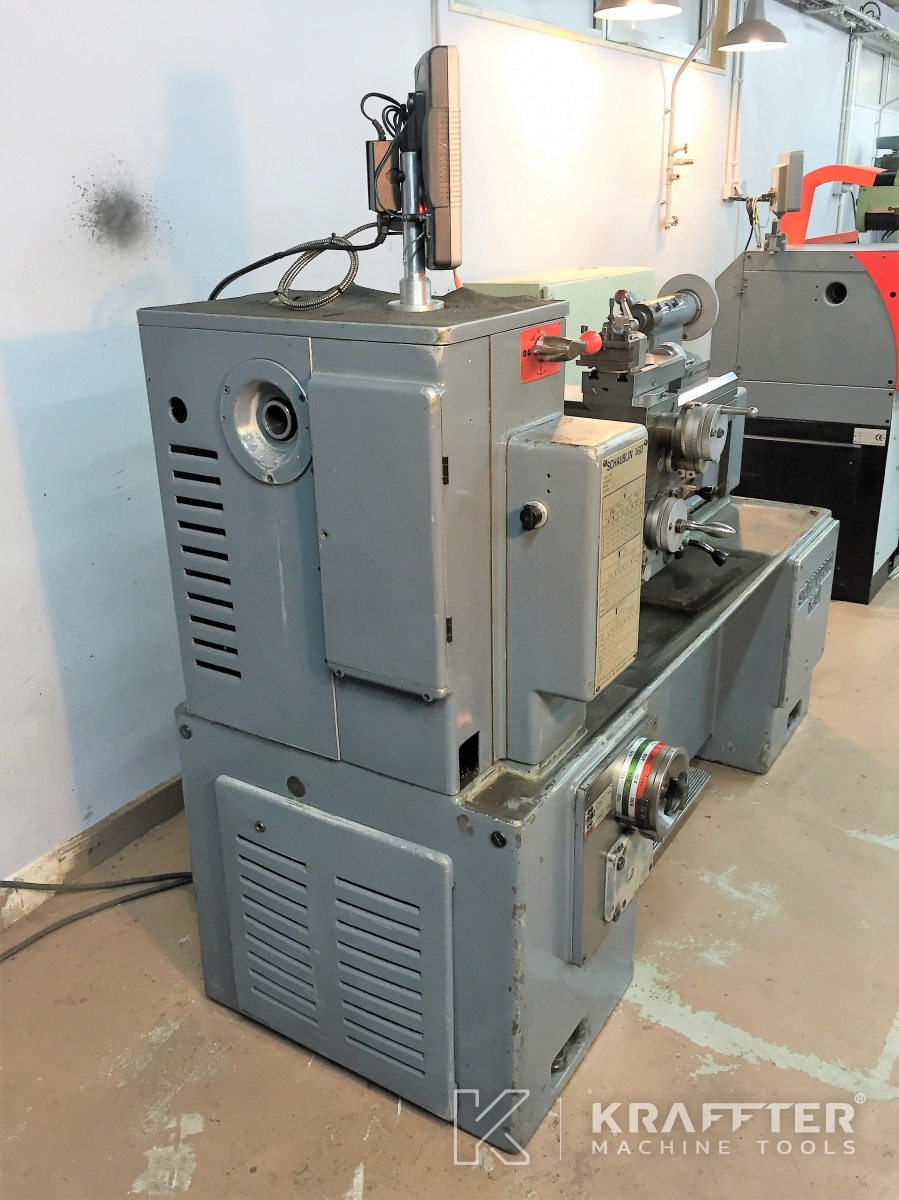

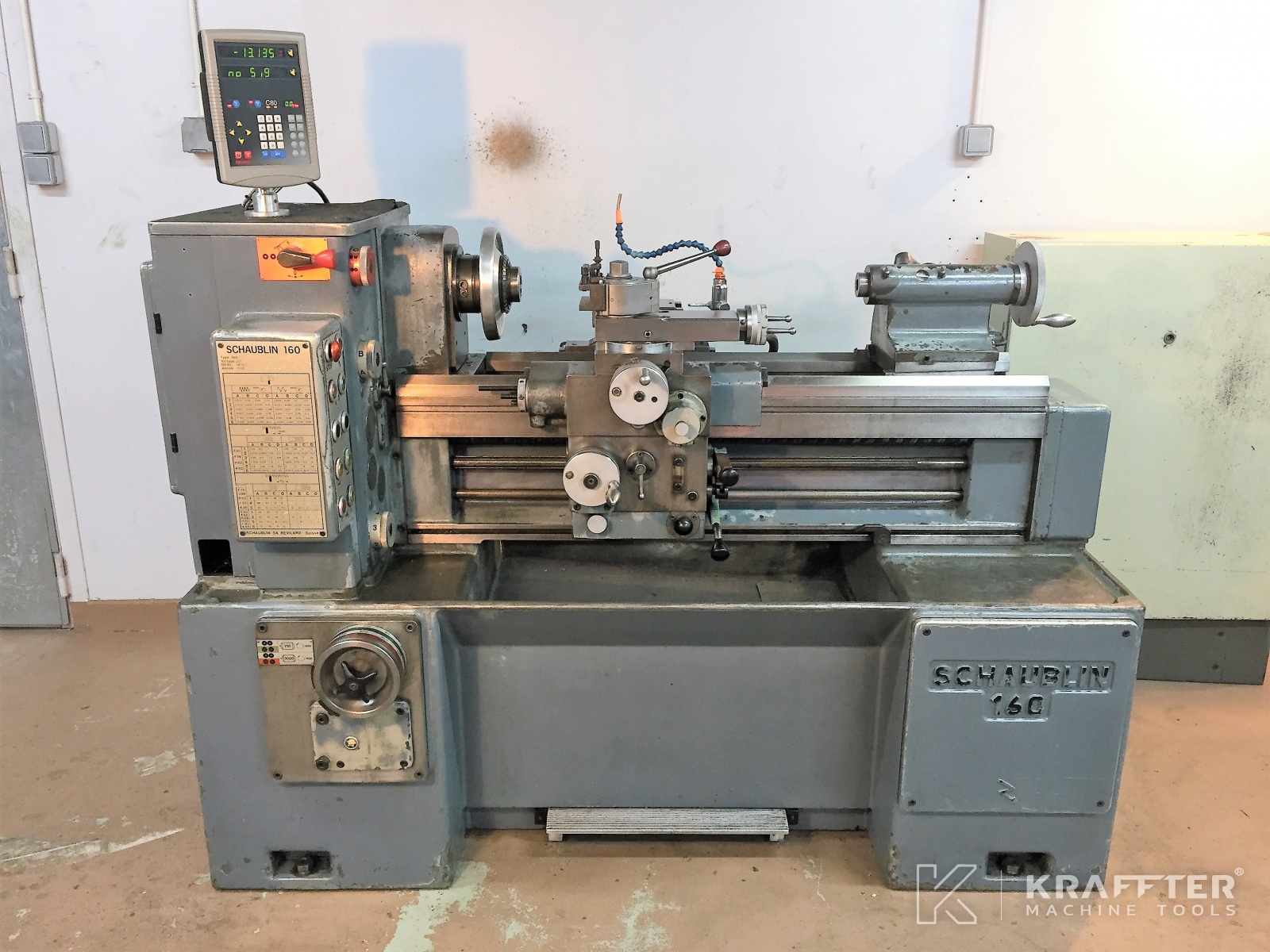

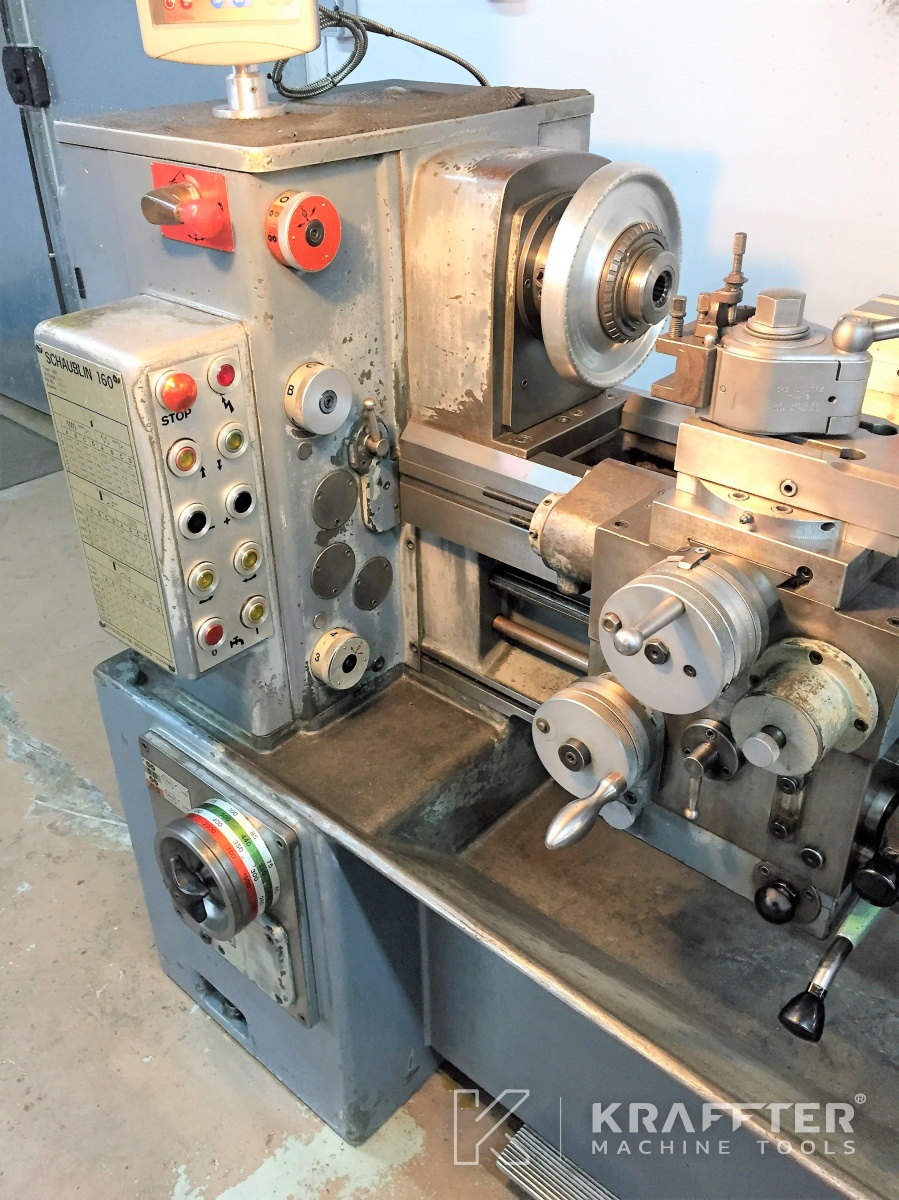

Type of machine : Manual lathe
Brand : SCHAUBLIN
Stock N° : 20689-874
Model : 160
Year : 1968
Location : 73520 Saint-Béron, FRANCE
Technical characteristics
Additional information
Request a quotation
Number of axes
2
Distance between centers
750 [mm]
Height of centers
160 [mm]
Max. swing over bed
375 [mm]
Spindle nose
Camlock D1-4’’
Internal spindle nose
CM5
Spindle throughbore
40 [mm]

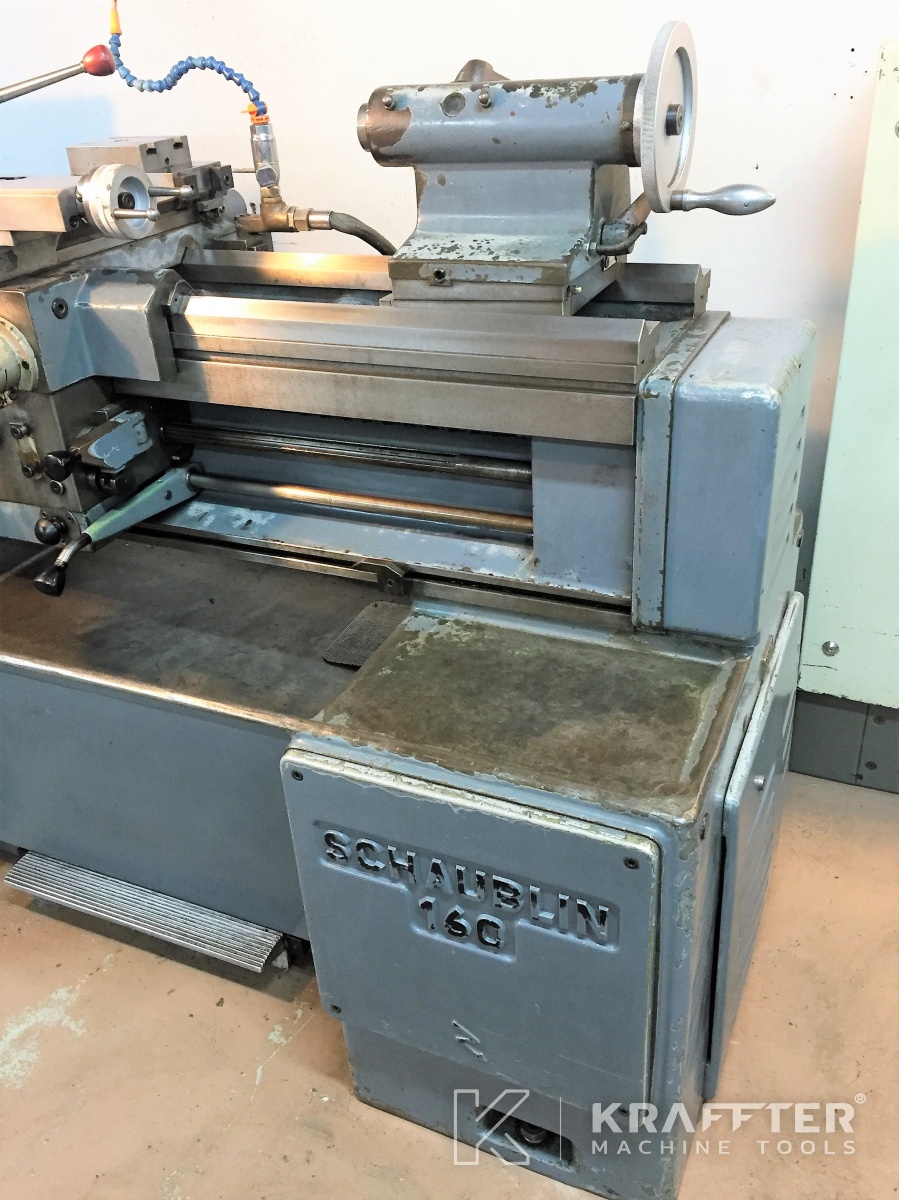

Tailstock type
manuelle
Type of attachment tailstock
CM3
Universal threading gear box
Yes
Number of axes Digital Read Out
2
Manual lever-operated quick-closing attachment
No
Electrospindle brake
Yes
Turret
Multifix type B
Type of tool holders
Multifix type B
Centralized lubrication
Manuel
Lubrication tank with pump
Yes
Supply voltage
400 [V]
Dimensions
1800 x 800 x 1300
Weight
1950 [Kg]
- 1 Digital Read Out sytem (X scale missing)
- MULTIFIX quickly changeable tool holder system + 1 tool holder

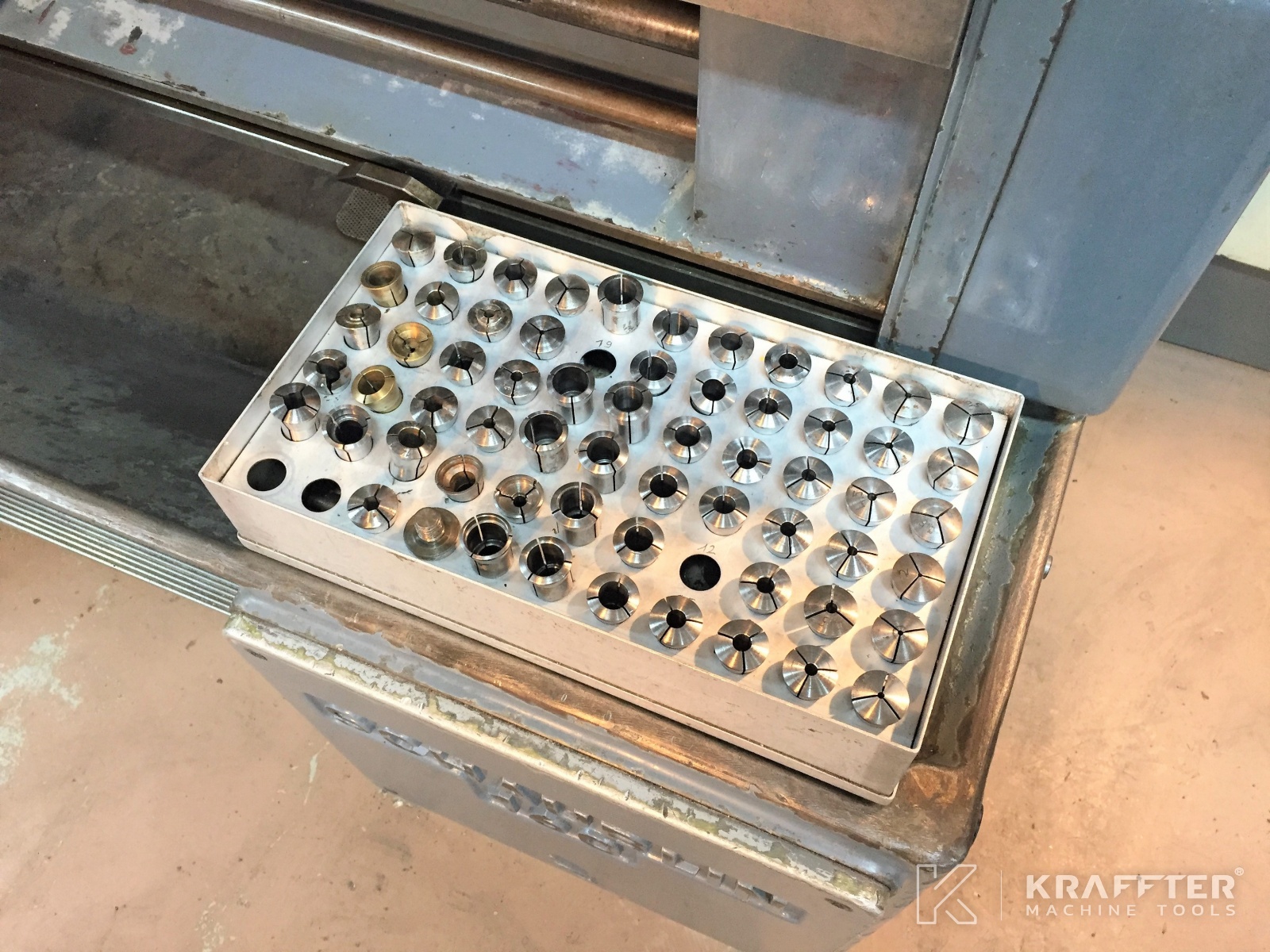

- 63 collets W20
