Sold

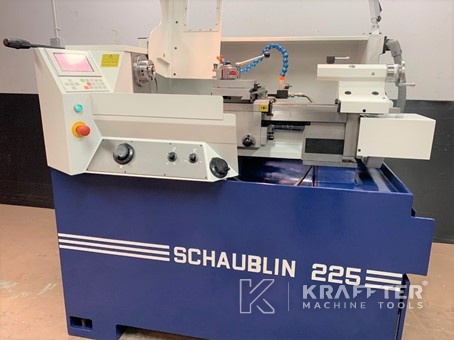

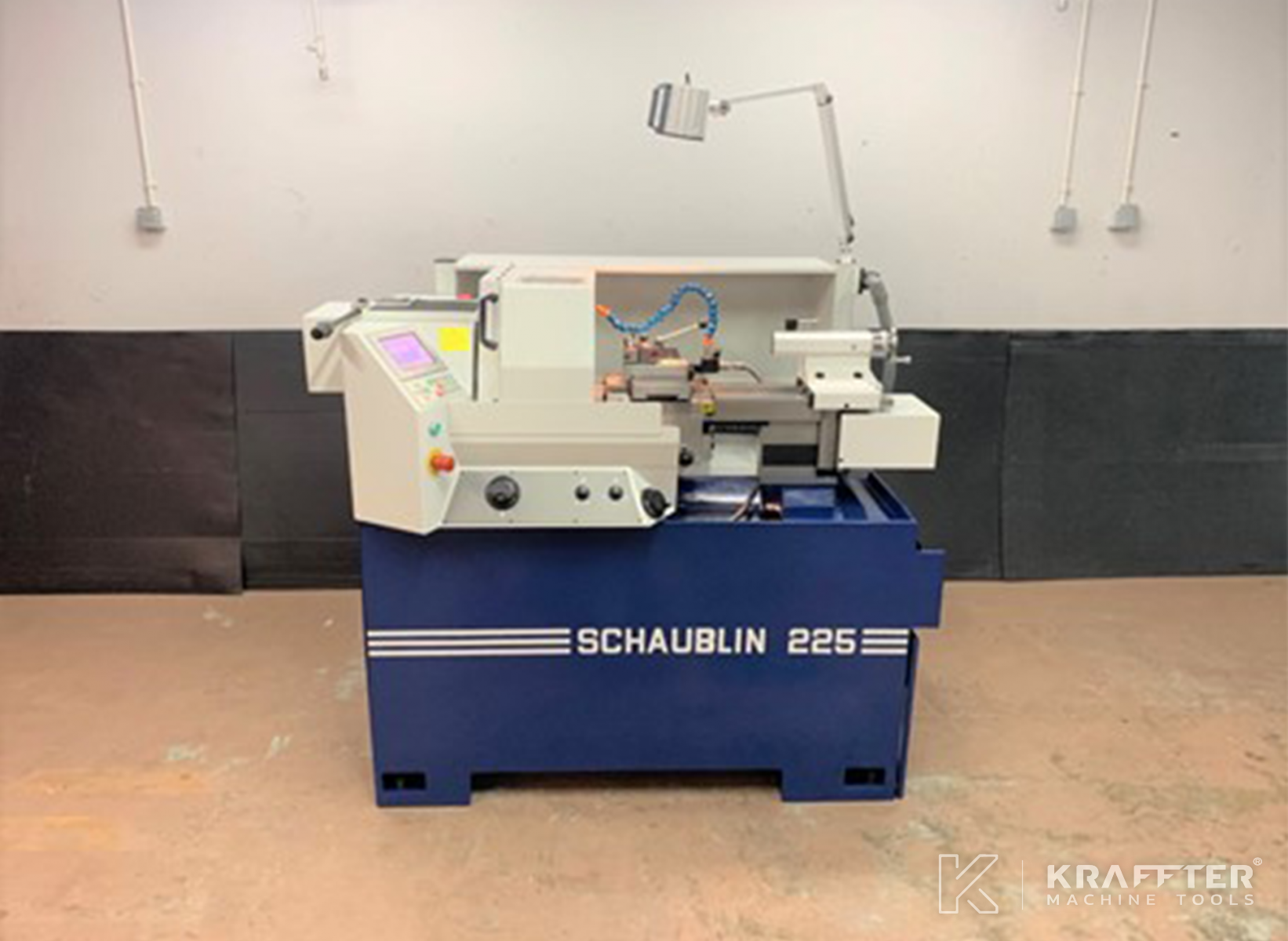

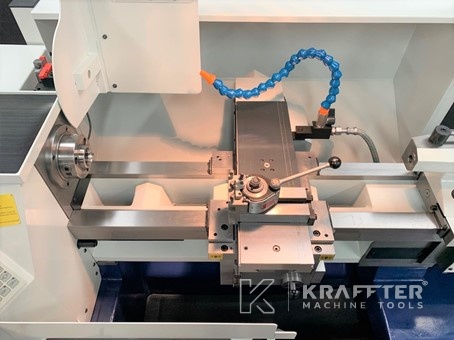

Type of machine : CNC lathe
Brand : SCHAUBLIN
Stock N° : 20689-952
Model : 225
Year : 2004
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

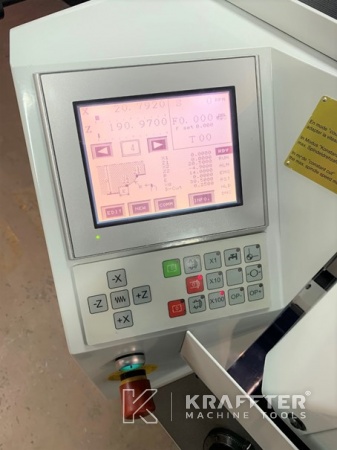

CNC control
FANUC Power Mate 0 – Quick Turn
Number of axes
2
Height of centers
125 [mm]
Max. turning diameter
200 [mm]
Stroke X axis
140 [mm]
Stroke Z axis
400 [mm]

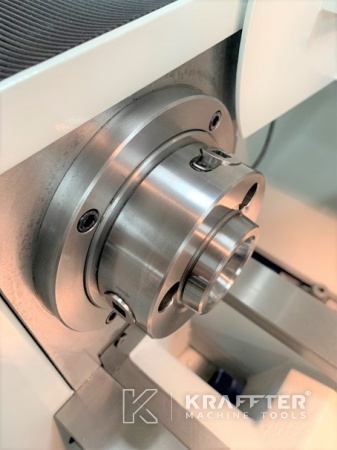

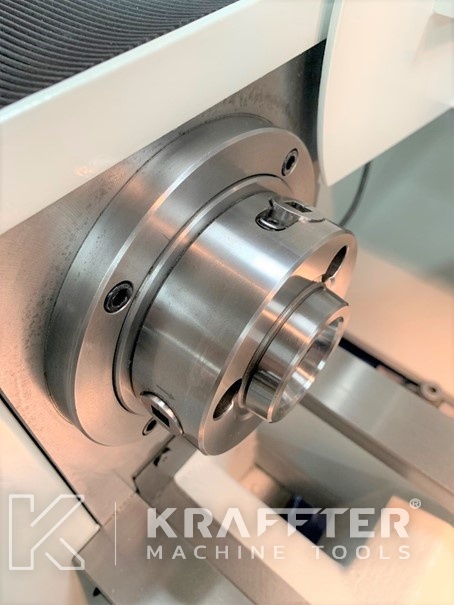

Spindle nose
CAMLOCK D 1-3’’
Spindle for collets
B32
Max. throughbore with collet
24 [mm]
Spindle throughbore
27 [mm]

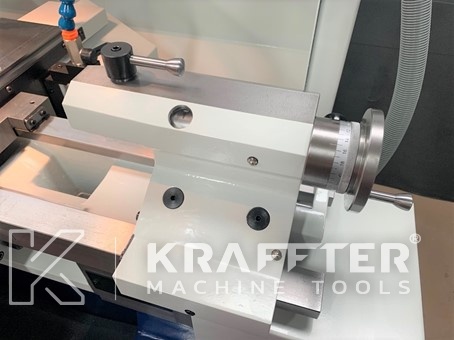

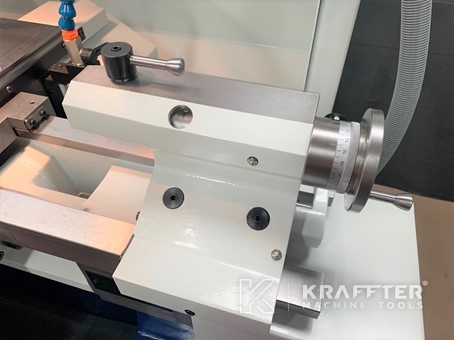

Tailstock type
manuelle
Type of attachment tailstock
CM2
Tailstock quill stroke
100 [mm]
Tailstock quill diameter
35 [mm]

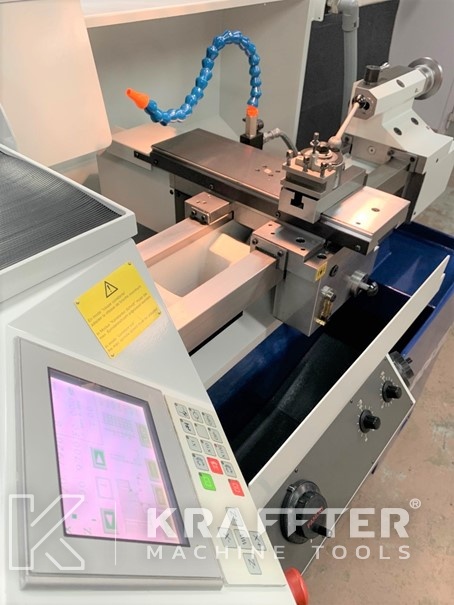

Touchscreen
Yes
Manual lever-operated quick-closing attachment
Yes

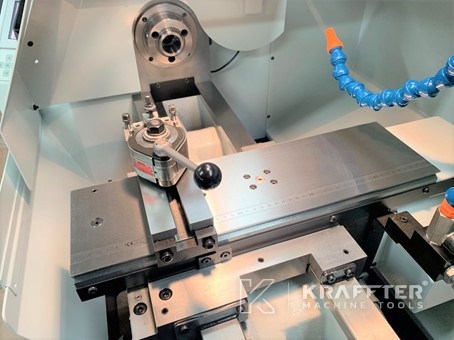

Turret
Multifix type A
Type of tool holders
Multifix type A
Centralized lubrication
Manuel
Supply voltage
400 [V]
Dimensions
1480 x 1200 x 1490
Weight
1120 [Kg]

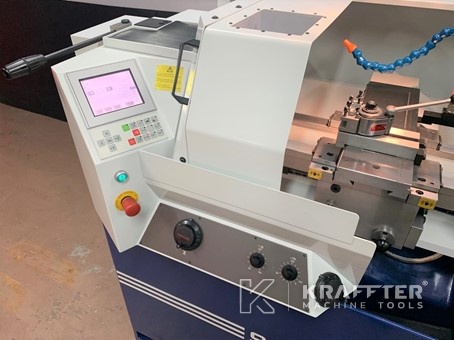

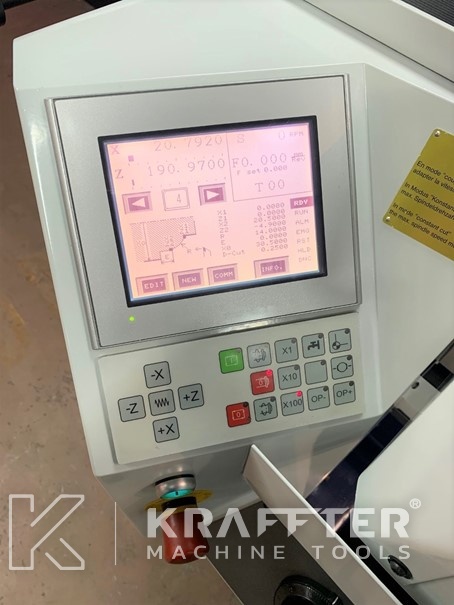

- Conversational control GE Fanuc Quick Panel touch screen including the following functions :
- Turning
- Thread cutting (up to 2000 rpm)
- Grooving with radius or chamfers
- Tapping
- Conical turning
- Spherical turning
- Drilling / deburring
- Block to block (max. 4 blocks)
- Radius turning
- Thread correction
- Metric / Inch

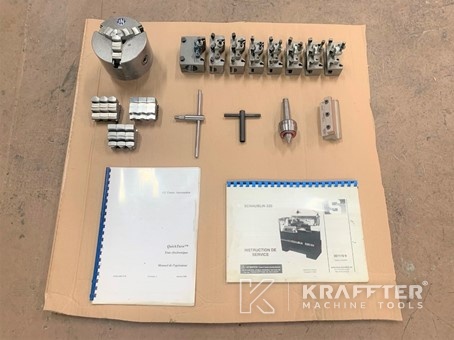

- Options – accessories included :
- 1 steel 3 jaw concentric chuck Ø125 [mm]
- 3 sets of hardened jaws
- 1 set of soft jaws
- 1 revolving center RÖHM 102H - MK2
- 8 MULTIFIX type A cutter-holders
- 1 lighting device
- 1 cooling device
- 1 manual centralised lubrication device
- 1 drawbar B32
- 1 sole plate for MULTIFIX tool-post
- 1 MULTIFIX ORIGINAL type A tool-post
- 1 collet clamping device
