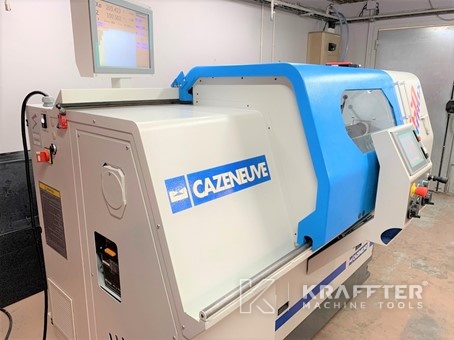

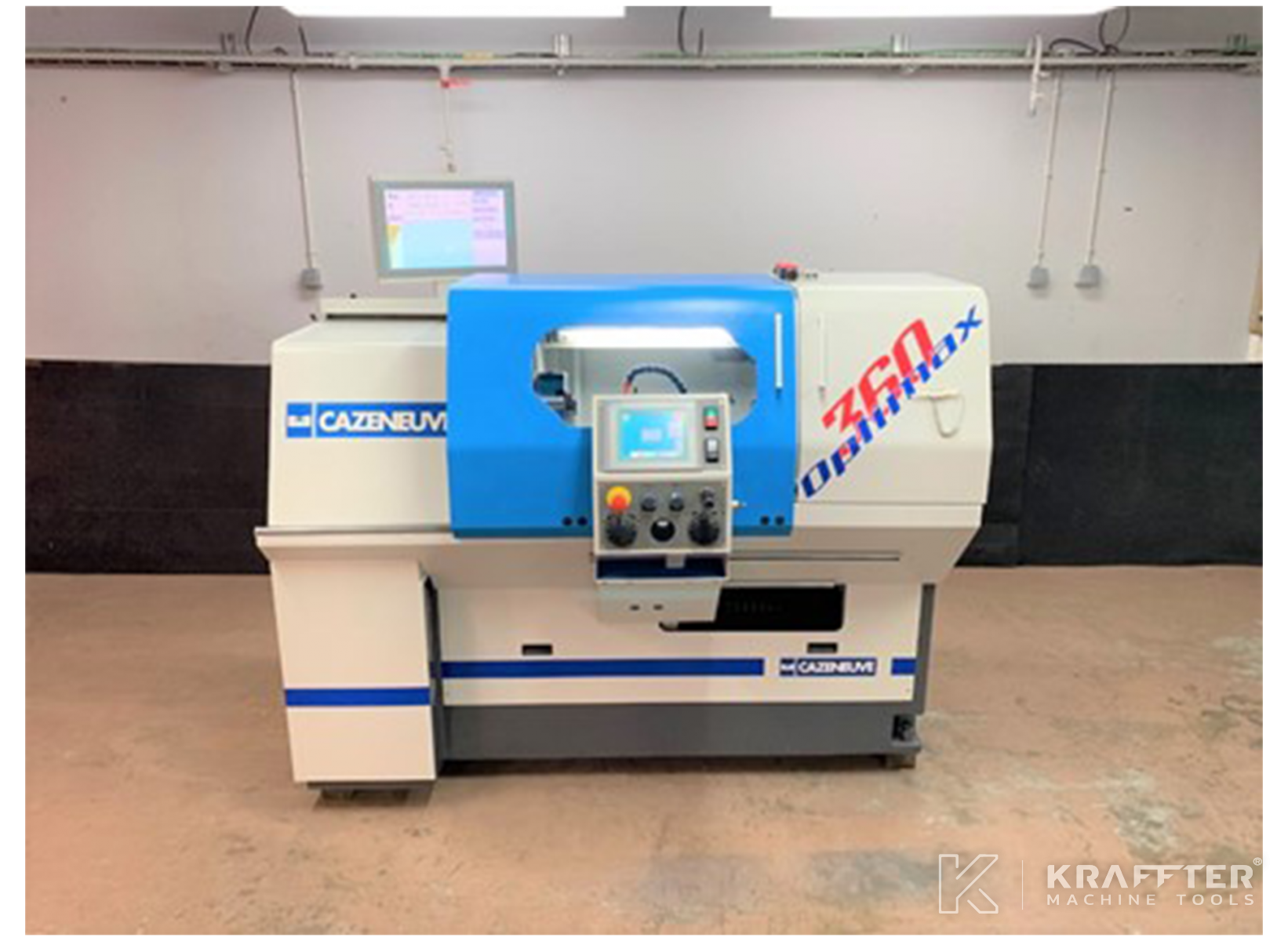

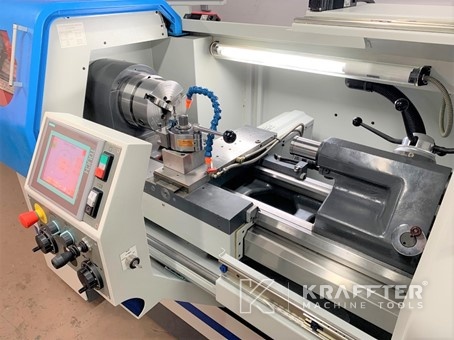

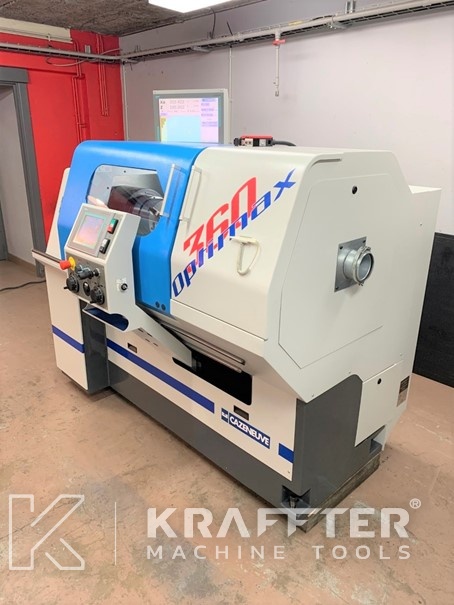

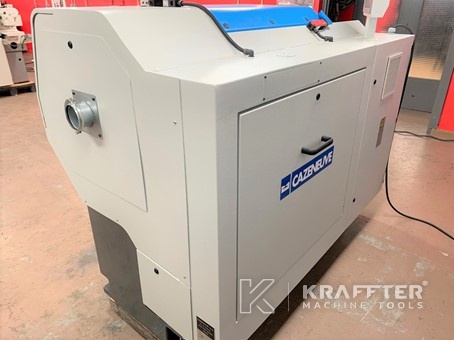

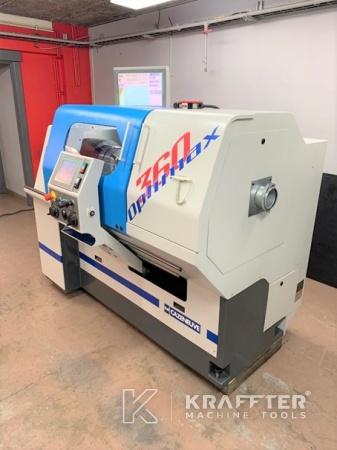

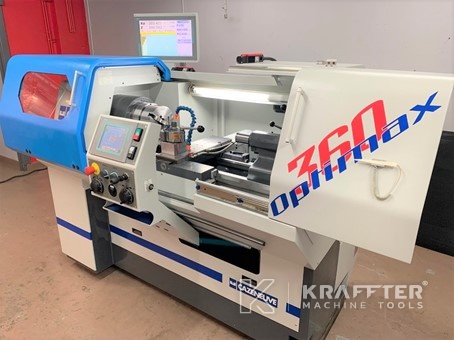

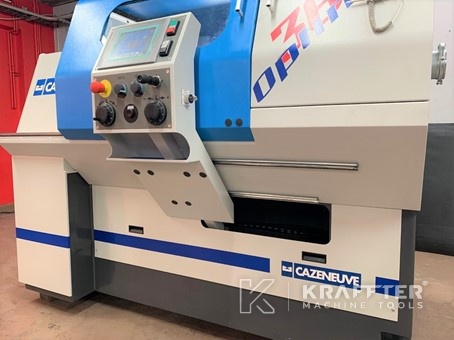

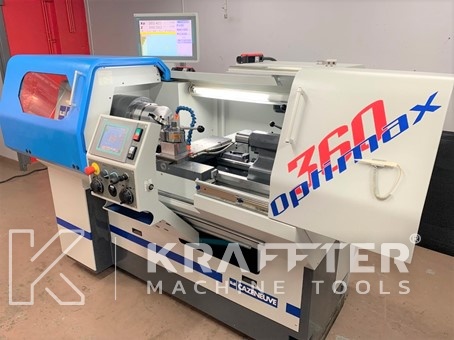

Type of machine : CNC teach-in lathe
Brand : CAZENEUVE
Stock N° : 20689-953
Model : Optimax 360
Year : 2012
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

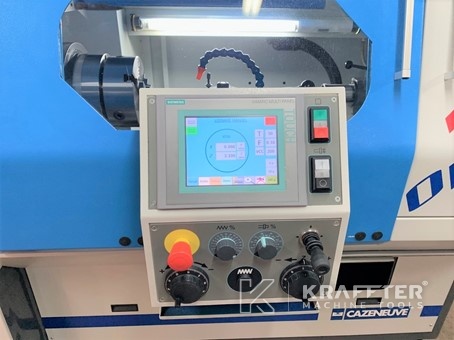

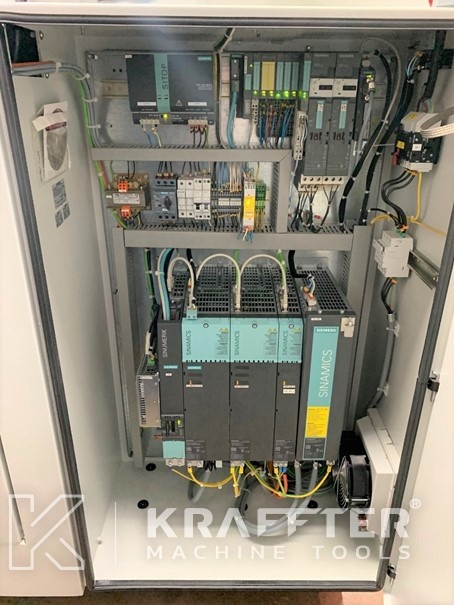

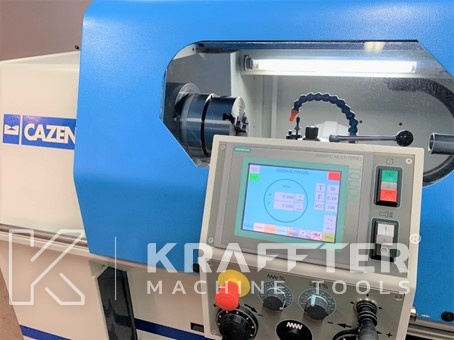

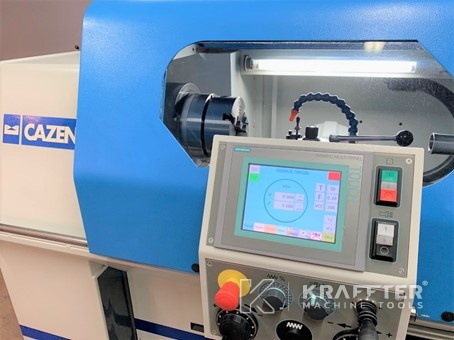

CNC control
SIEMENS Teach-In
Number of axes
2
Distance between centers
750 [mm]
Max. swing over bed
280 [mm]
Stroke X axis
180 [mm]
Stroke Z axis
610 [mm]
Spindle nose
ISO A1-6’’
Spindle throughbore
54 [mm]
Tailstock type
Sensitive à cabestan
Type of attachment tailstock
CM5
Tailstock quill diameter
60 [mm]
Touchscreen
Yes
Turret
Multifix type B
Type of tool holders
Multifix type B
Centralized lubrication
Automatique

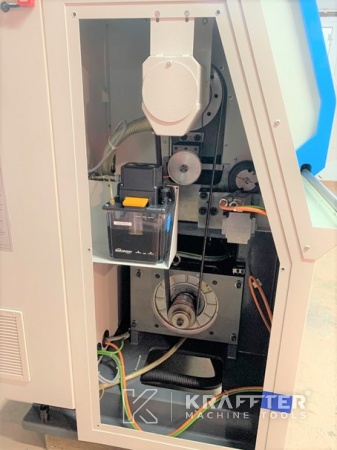

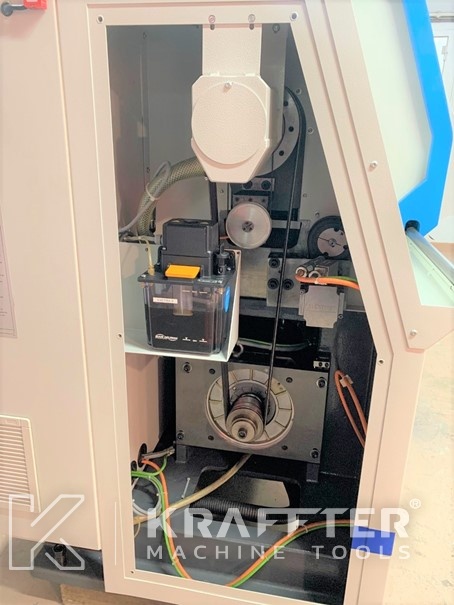

Lubrication tank with pump
Yes
Total power required
30 [kVA]
Supply voltage
400 [V]
Dimensions
1960 x 1315 x 1815
Weight
2000 [Kg]

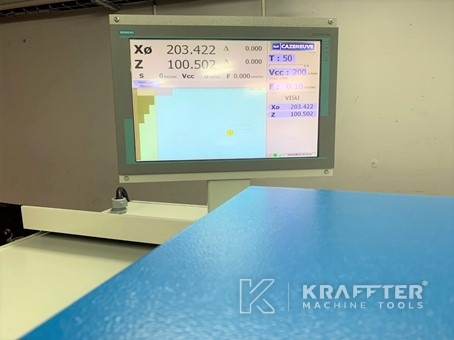

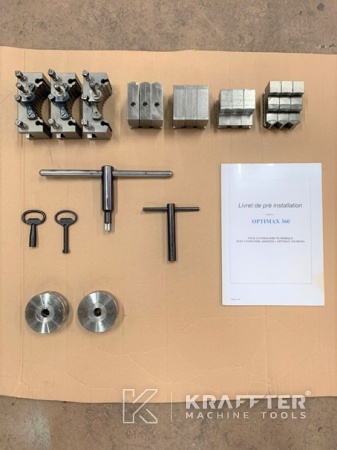

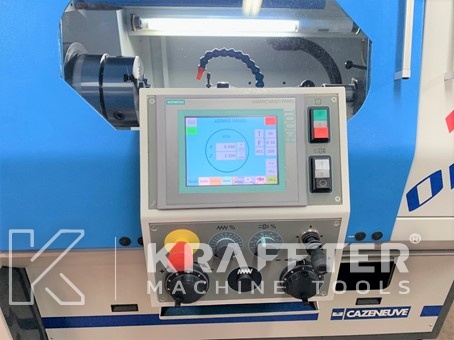

- Colour touchscrenn on slide

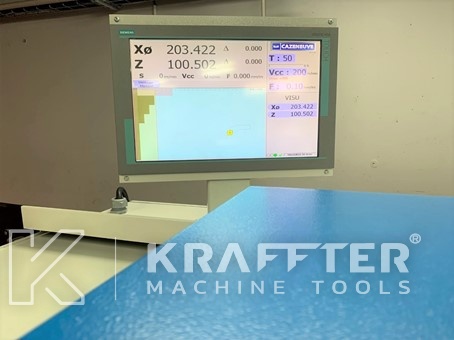

- LCD colour control screen

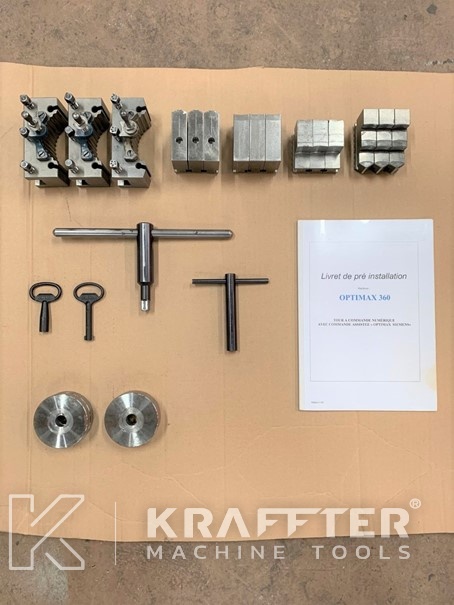

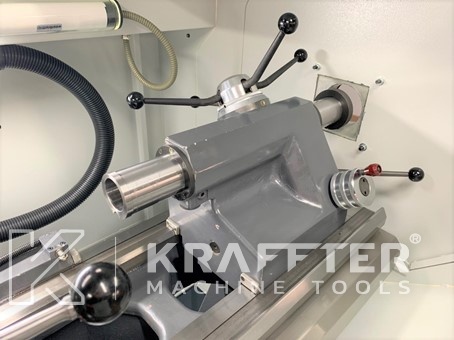

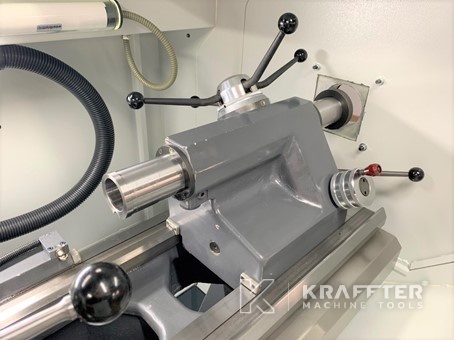

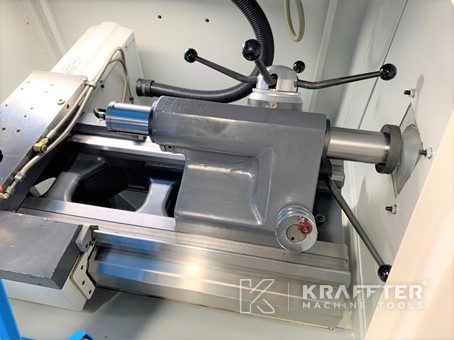

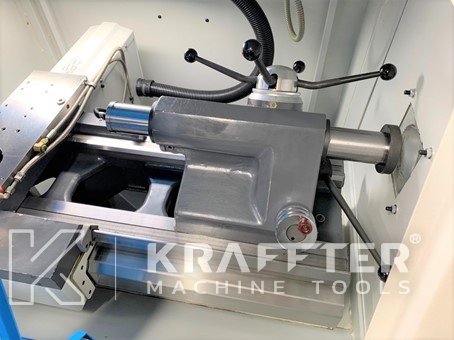

- 1 sensitive 2 speed tailstock (Ø quill : 60 [mm] ; quill stroke: 140 [mm] ; quill cone : MORSE N°5)

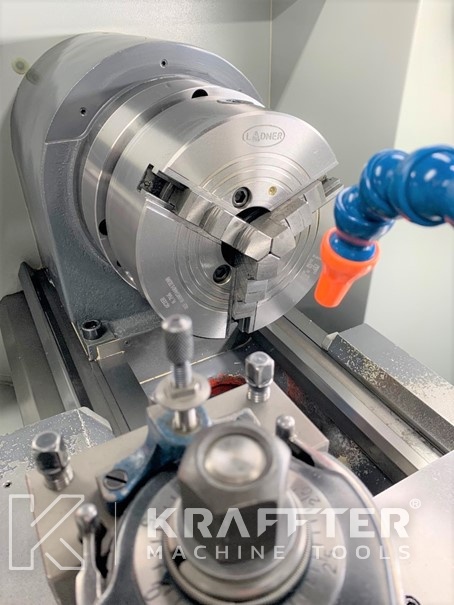

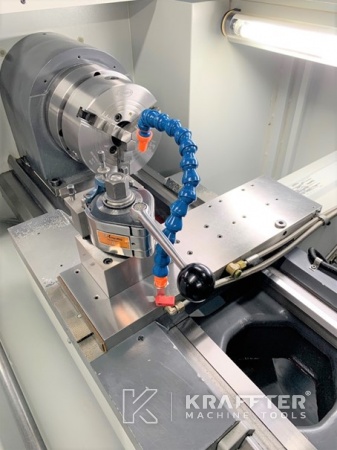

- 1 concentric steel chuck 3 jaws LADNER Ø 215 [mm]
- 2 sets of hardened jaws
- 3 sets of soft jaws

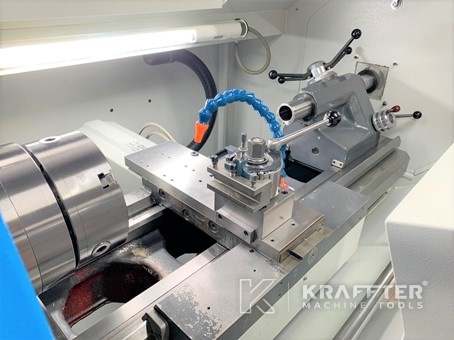

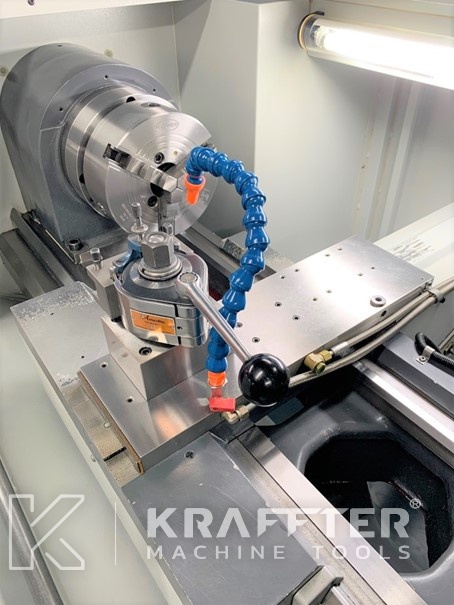

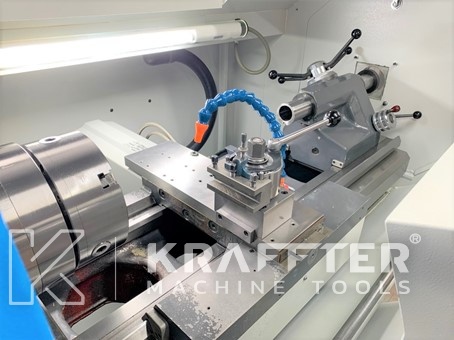

- 1 MULTIFIX tool-post type B
- 3 quick change tool holders MULTIFIX type B
- Coolant tank with pump
- 1 halogen lamp
- 4 feet
- Service manual (in French)
