Sold

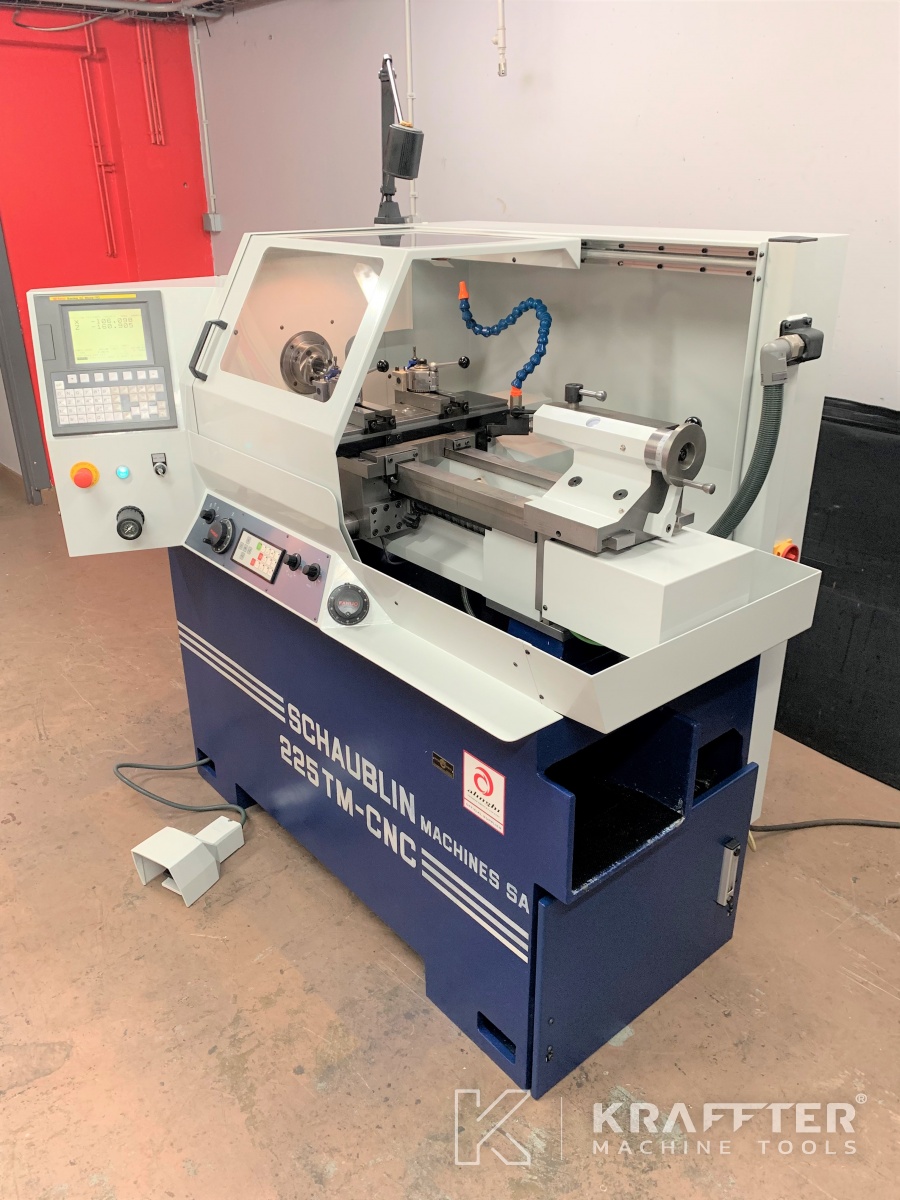

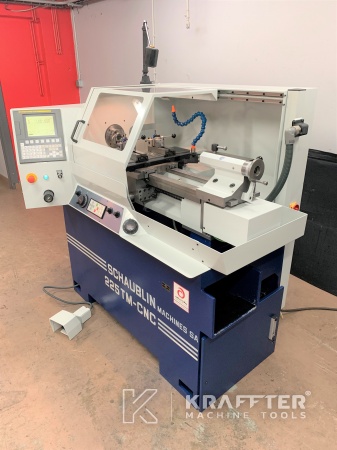

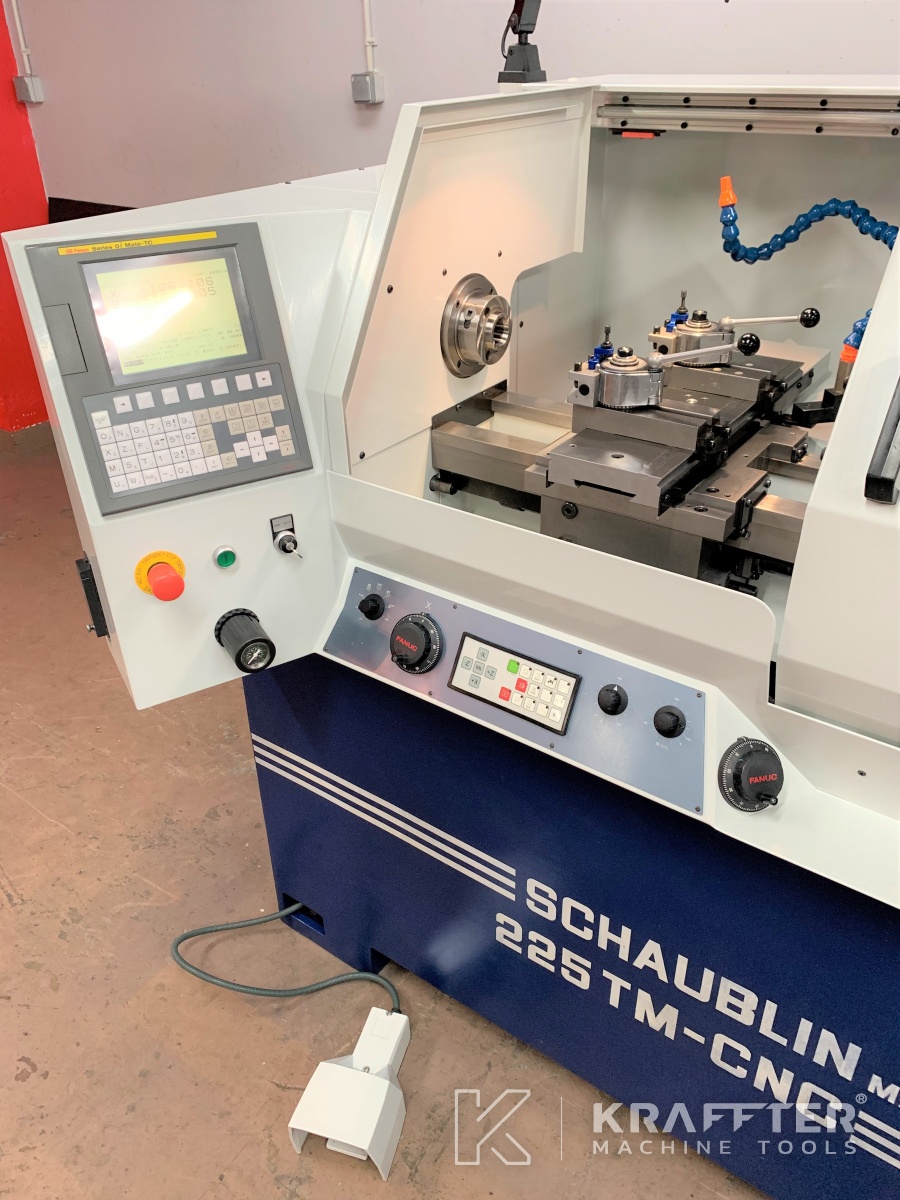

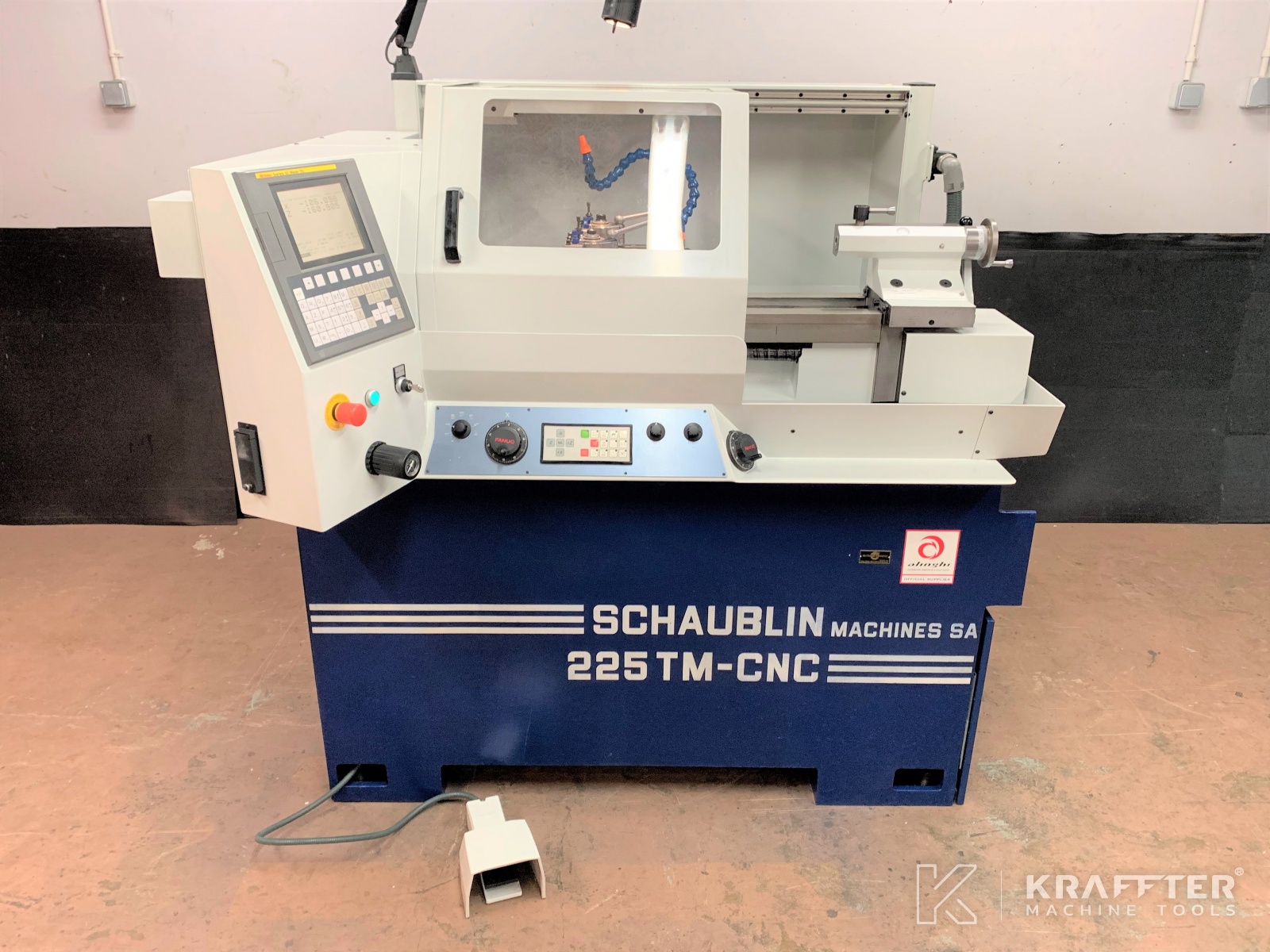

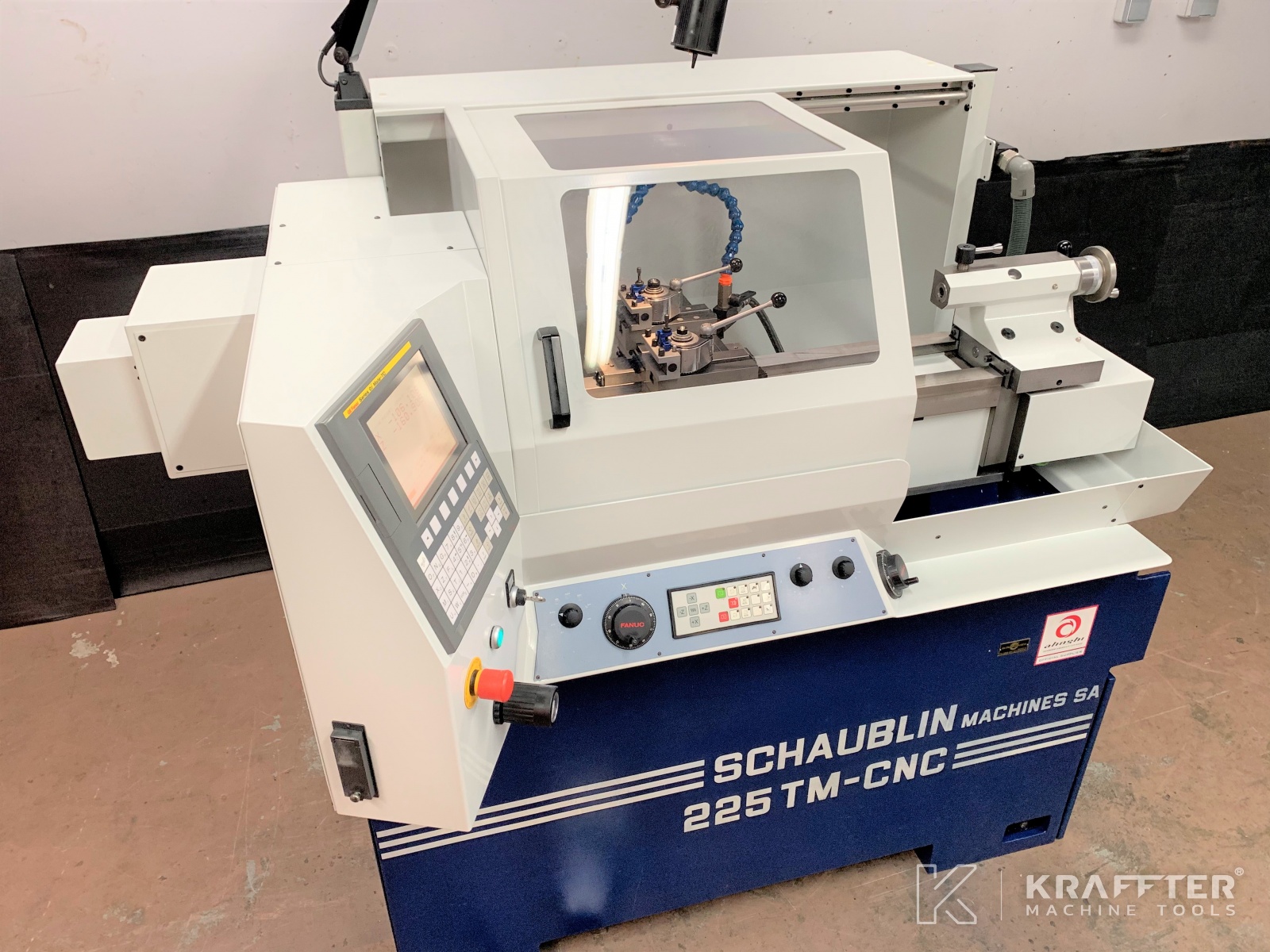

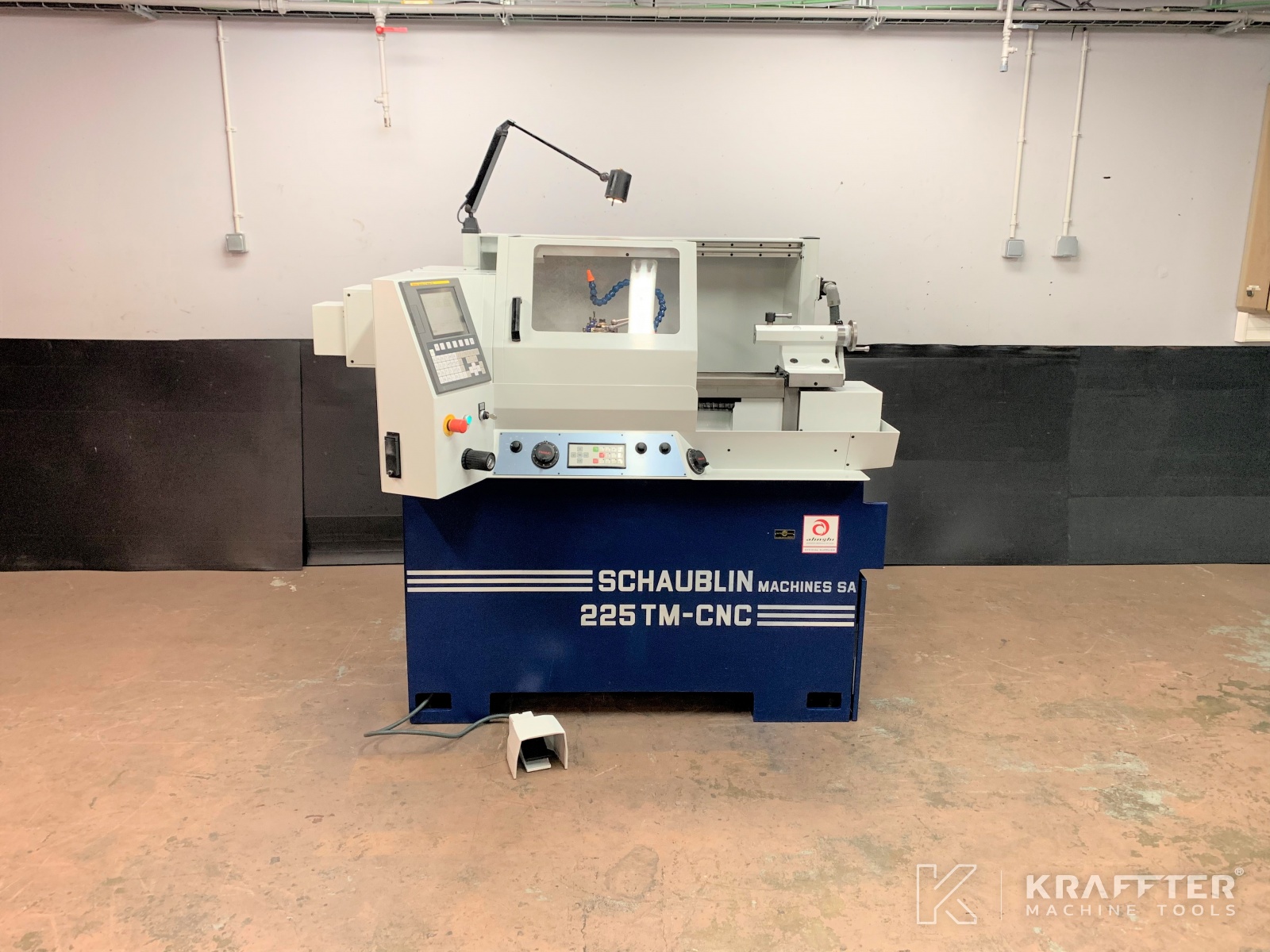

Type of machine : CNC lathe
Brand : SCHAUBLIN
N° de stock: 20689-943
Model : 225 TM-CNC
Year : 2007
Location : 73520 Saint-Béron, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

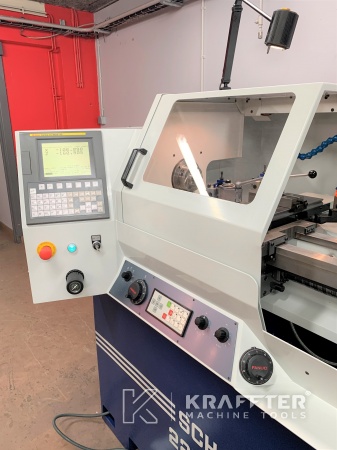

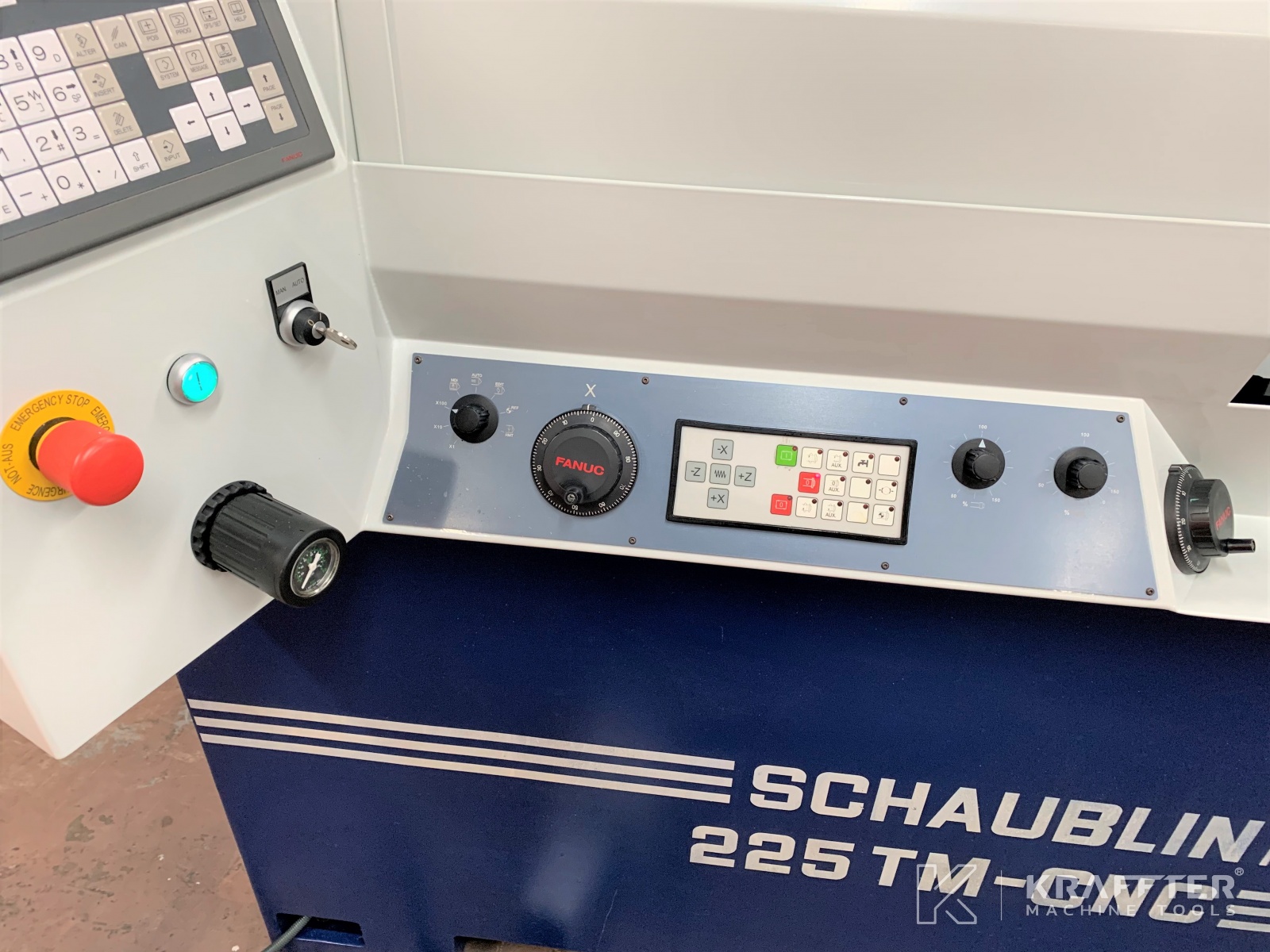

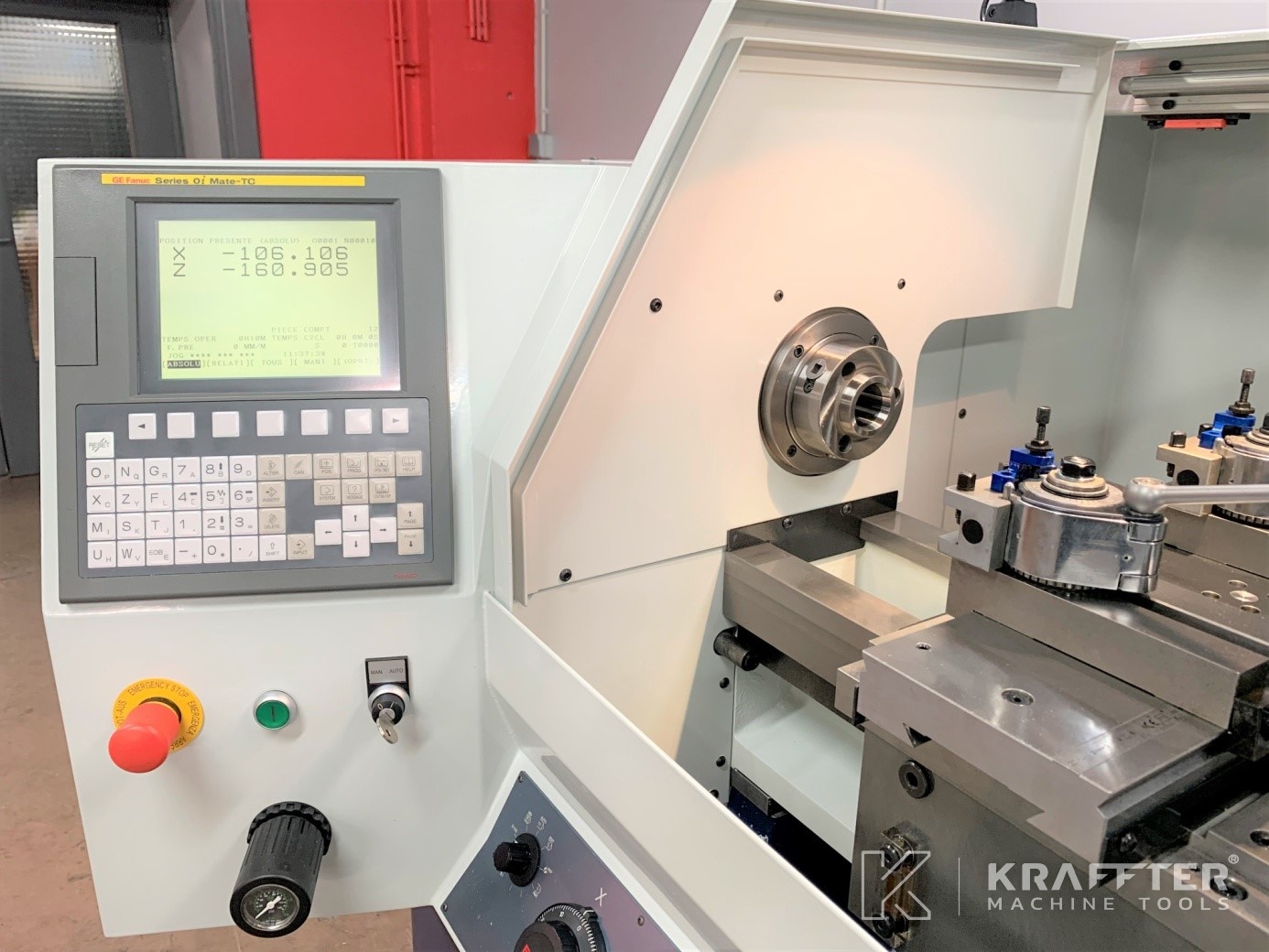

CNC control
FANUC Oi Mate-TC
Number of axes
2
Height of centers
125
Max. turning diameter
200 [mm]
Stroke X axis
136 [mm]
Stroke Z axis
410 [mm]

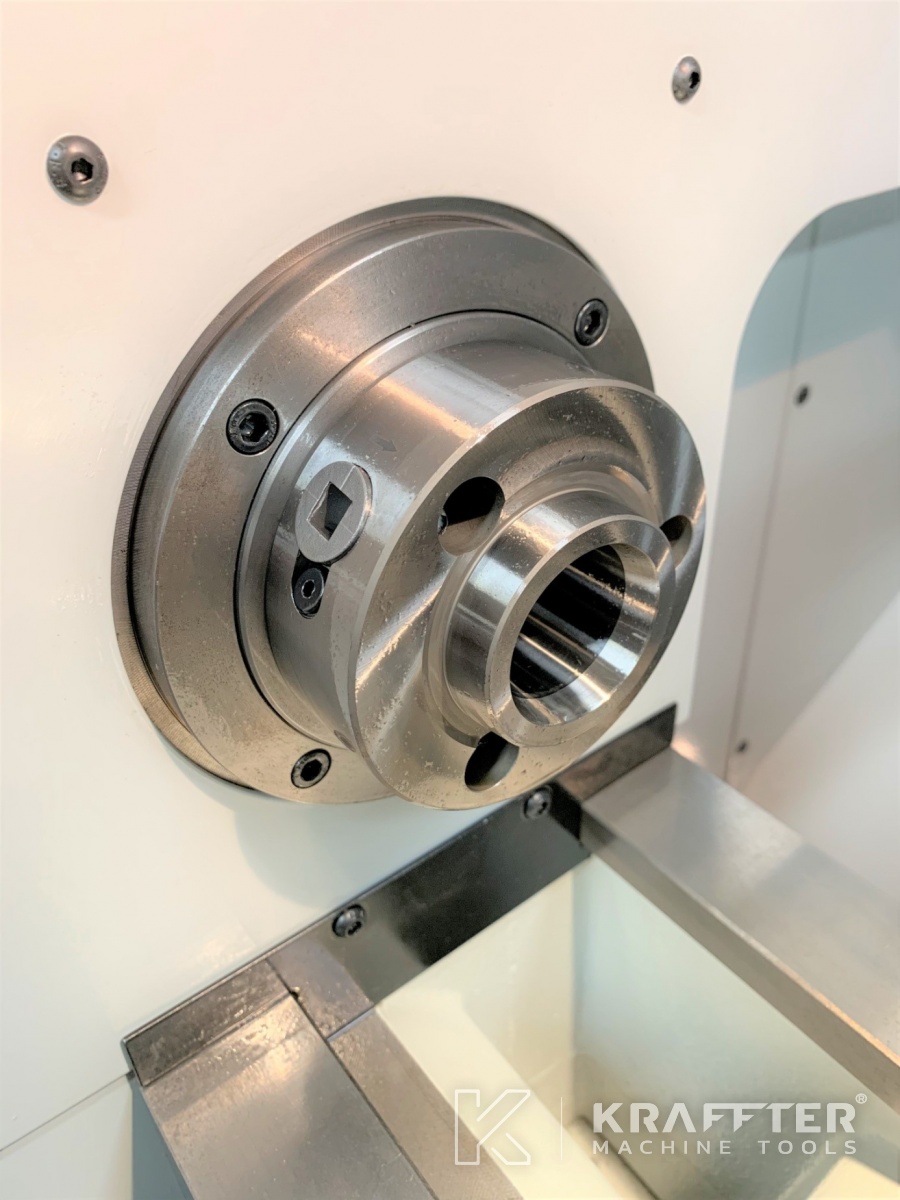

Spindle nose
CAMLOCK D 1-3’’
Spindle for collets
B32
Max. throughbore with collet
24 [mm]
Spindle throughbore
27 [mm]

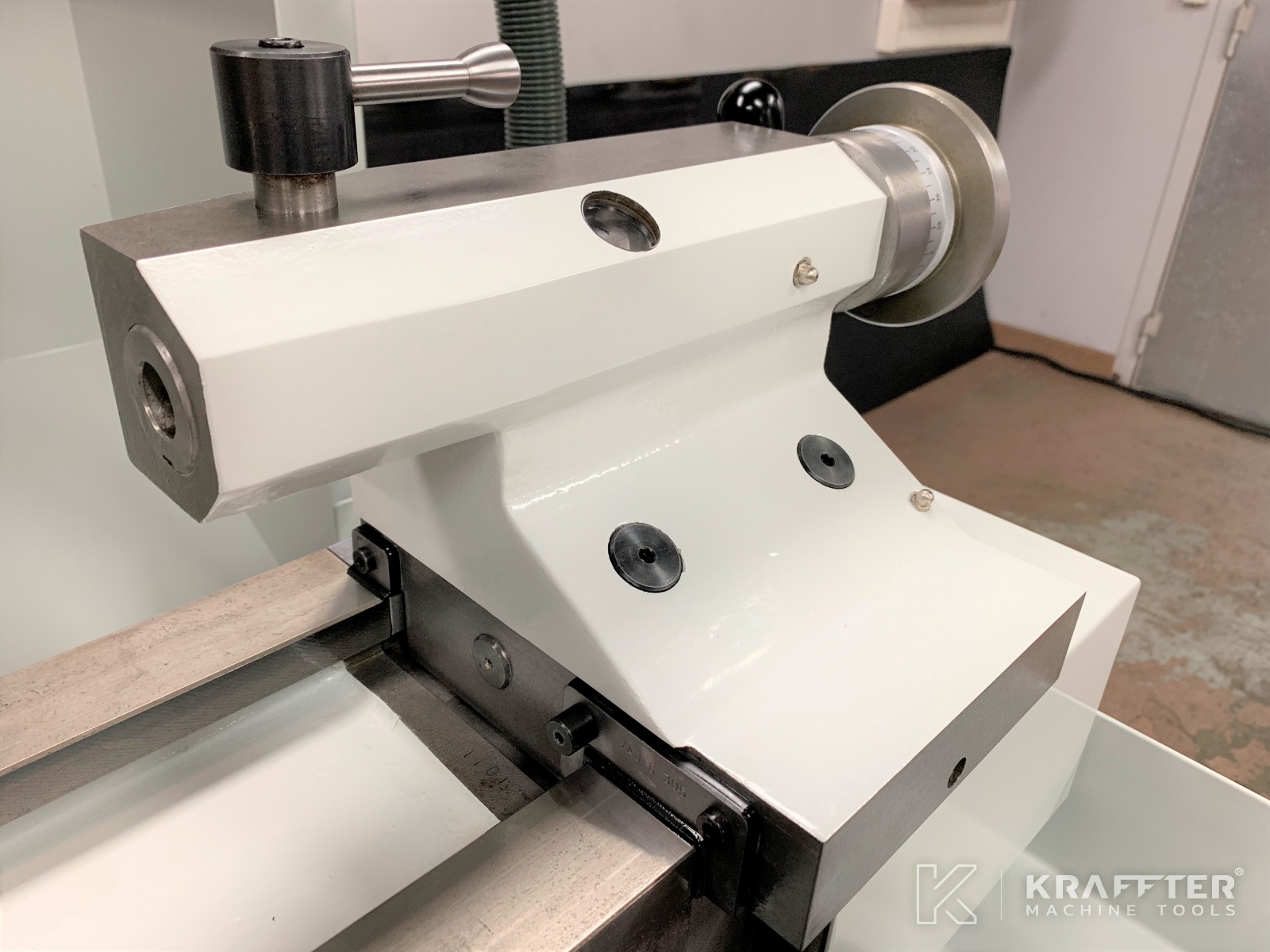

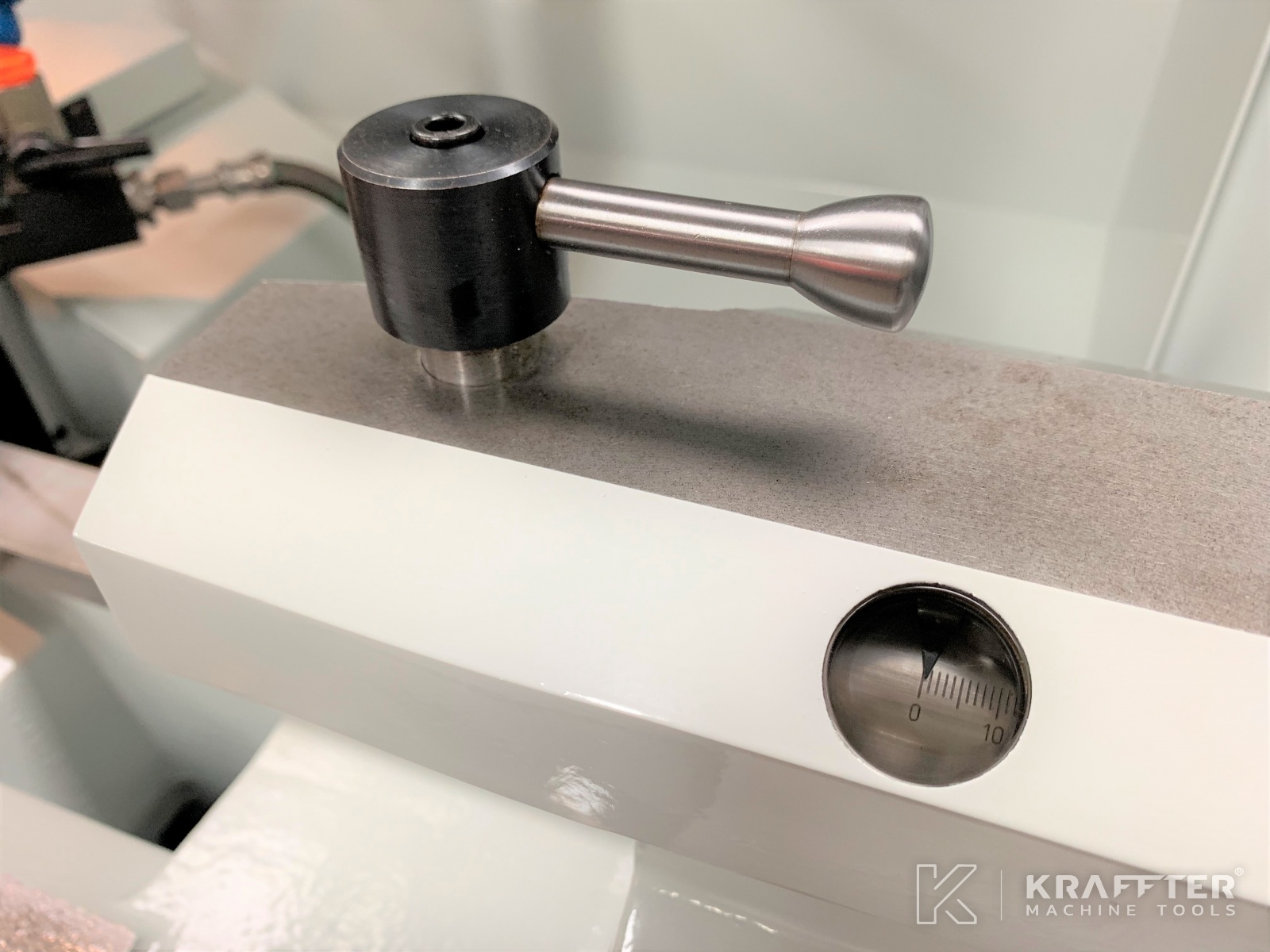

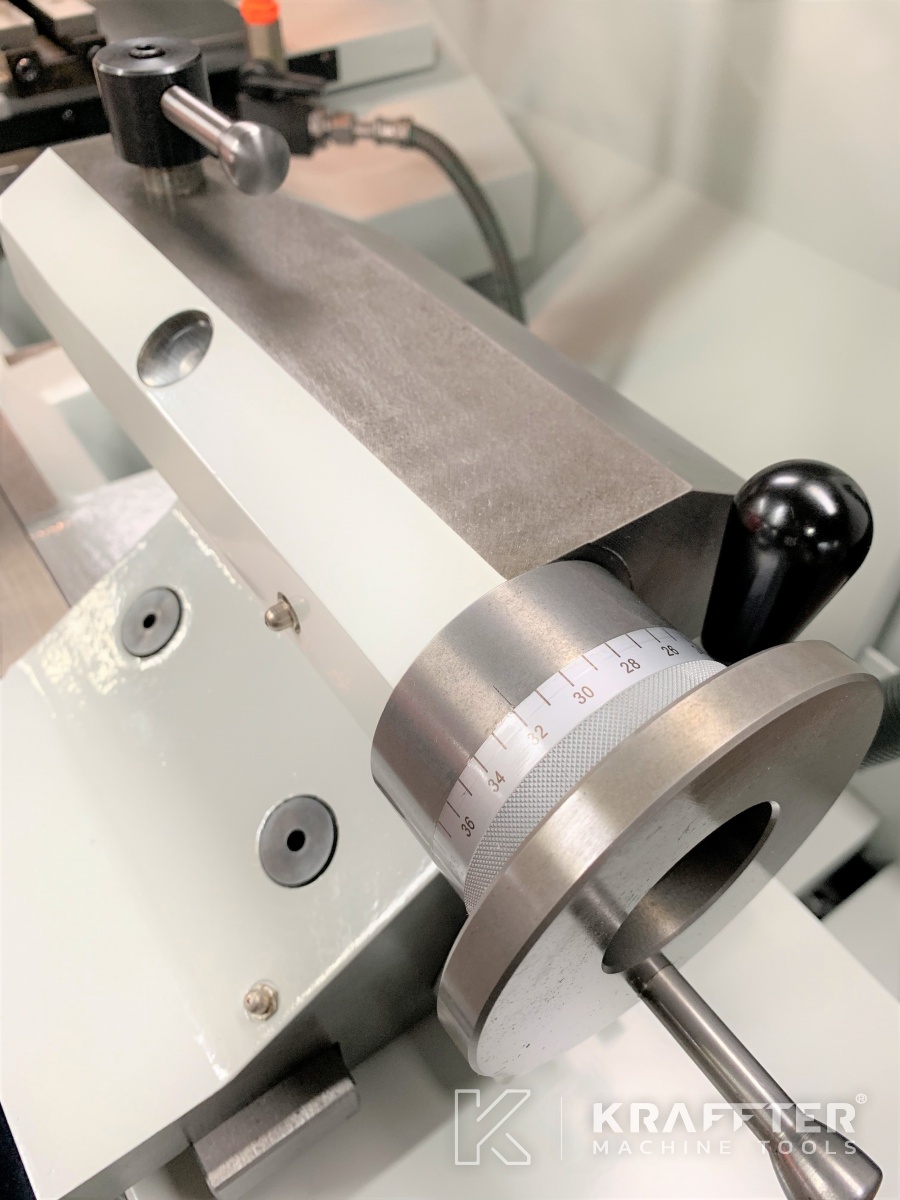

Tailstock type
manuelle
Type of attachment tailstock
CM2

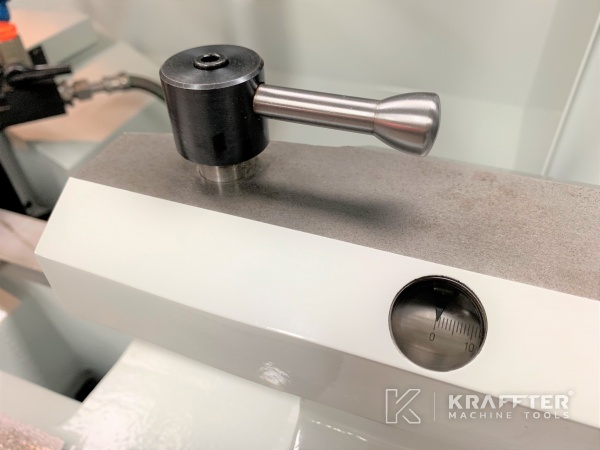

Tailstock quill stroke
100 [mm]
Tailstock quill diameter
35 [mm]
Touchscreen
Yes
Turret
Multifix type A
Type of tool holders
Multifix type A
Centralized lubrication
Automatique
Lubrication tank with pump
Yes
Supply voltage
400 [V]
Dimensions
1480 x 1200 x 1490
Weight
1120 [Kg]
Additional information
-

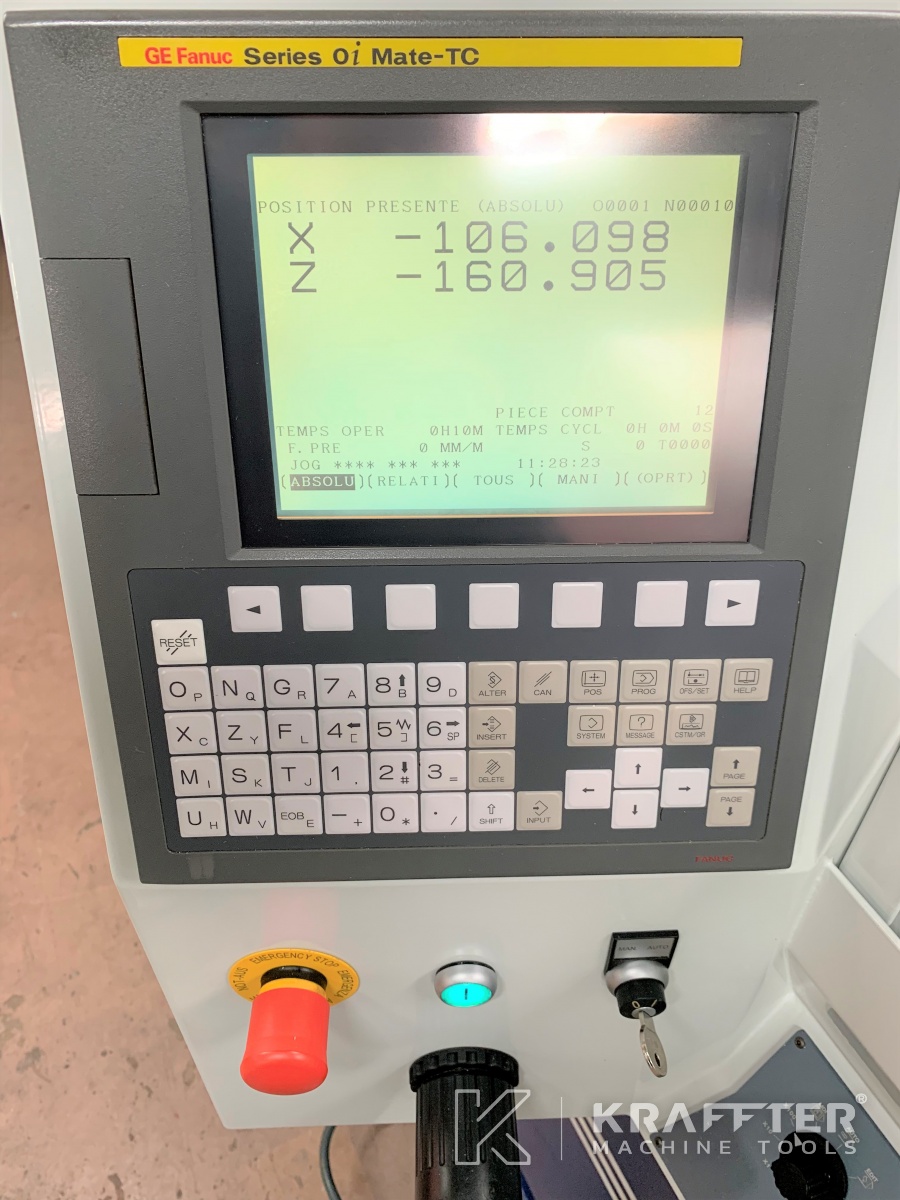

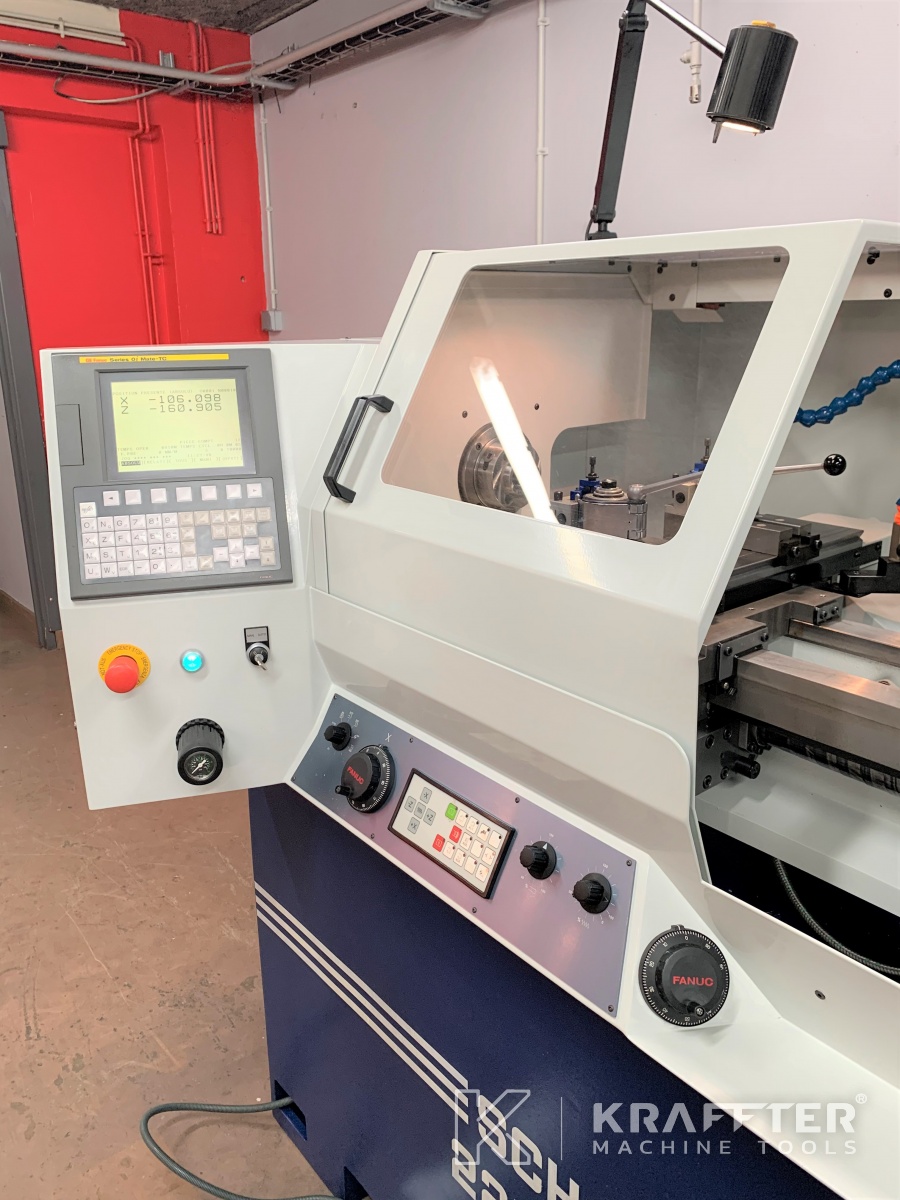

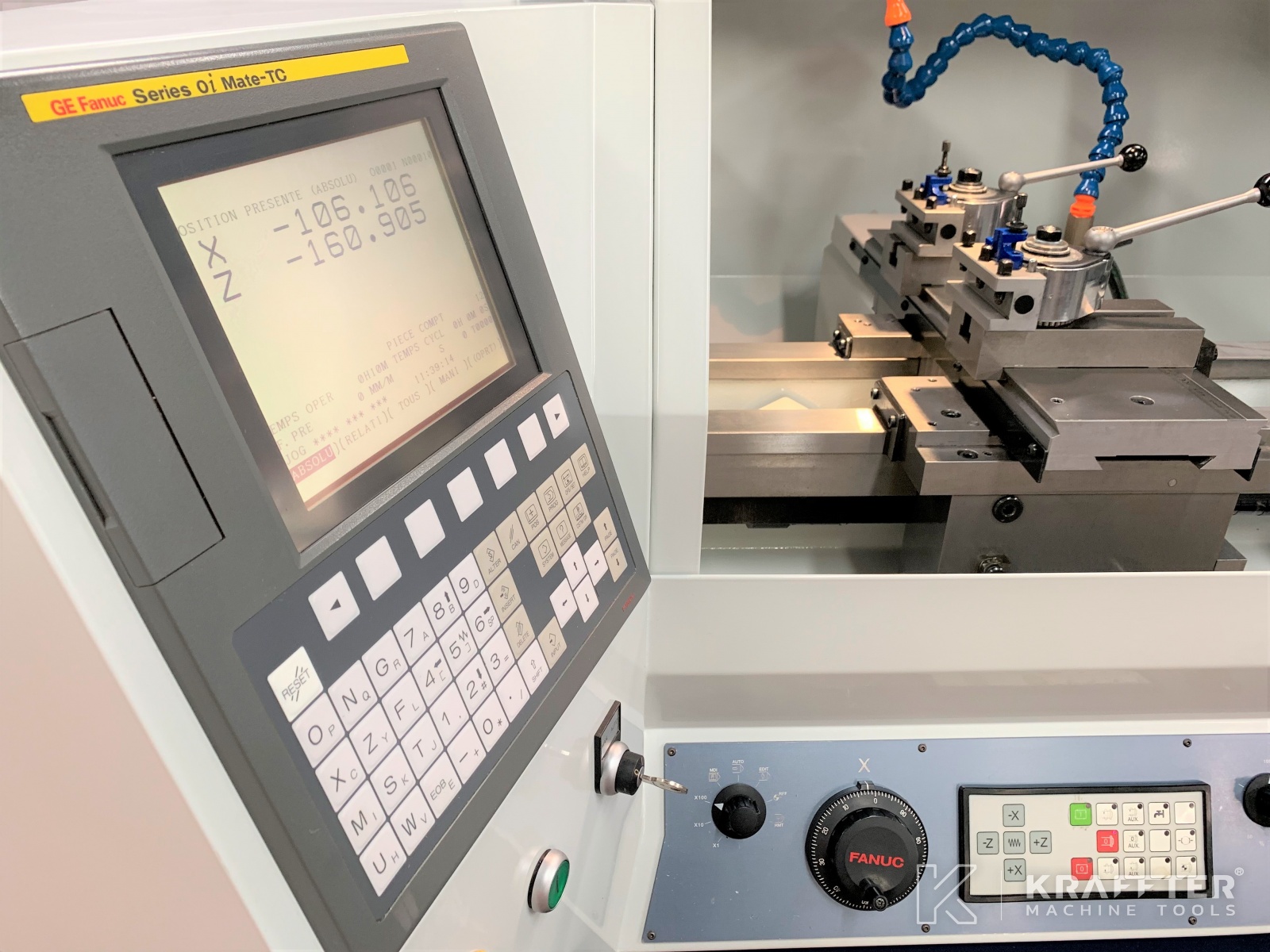

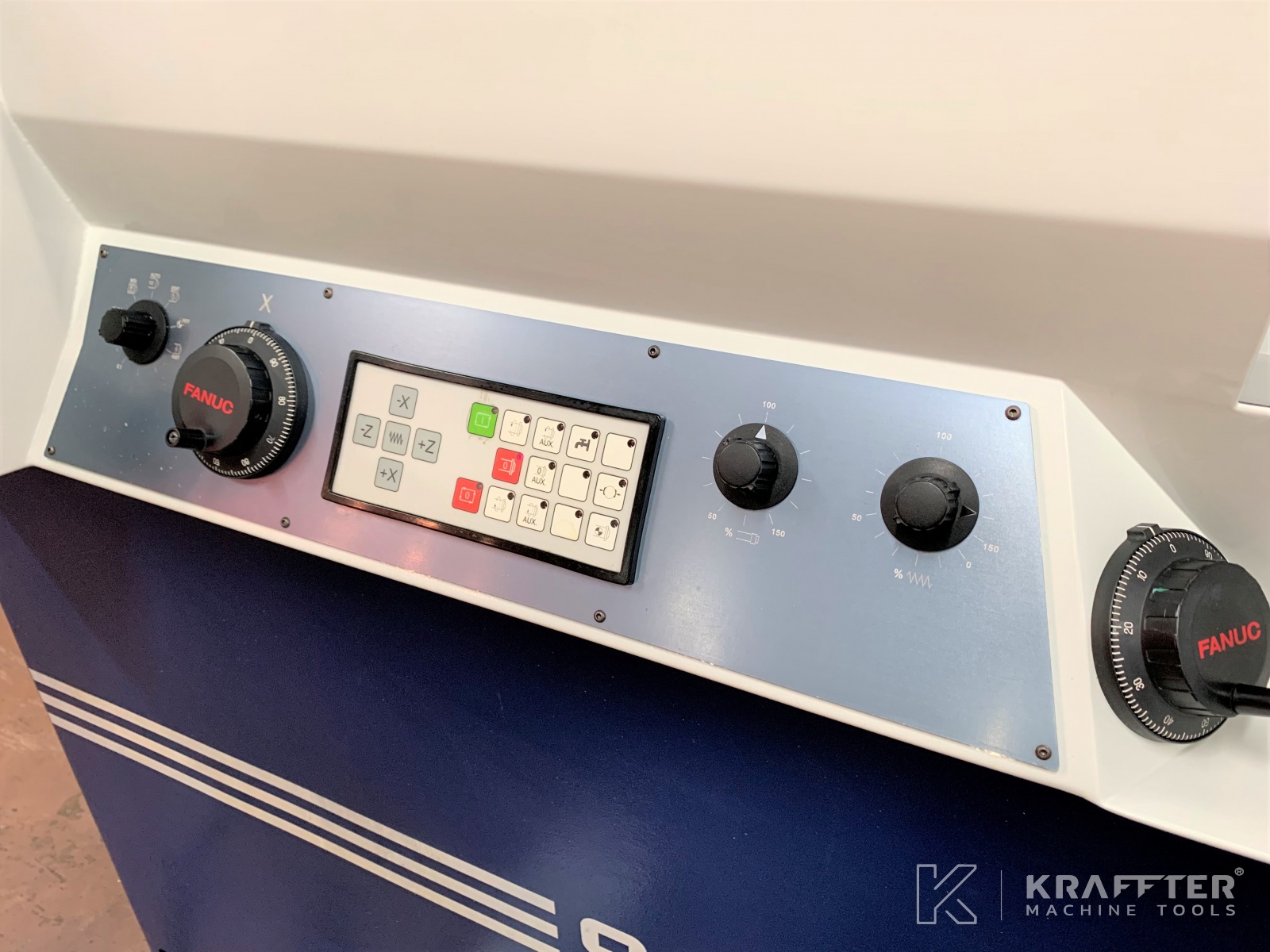

Conversational control FANUC Oi Mate-TC including the following functions :
- Turning
- Thread cutting (up to 2000 rpm)
- Grooving with radius or chamfers
- Rigid tapping (left and right)
- Floating tapping (left and right)
- Conical turning
- Drilling / deburring
- Free figure (max. 30 blocks)
- Radius turning
- Thread correction
- Metric / Inch
- ISO programming is possible
-
Options – accessories included :
- 1 lighting device

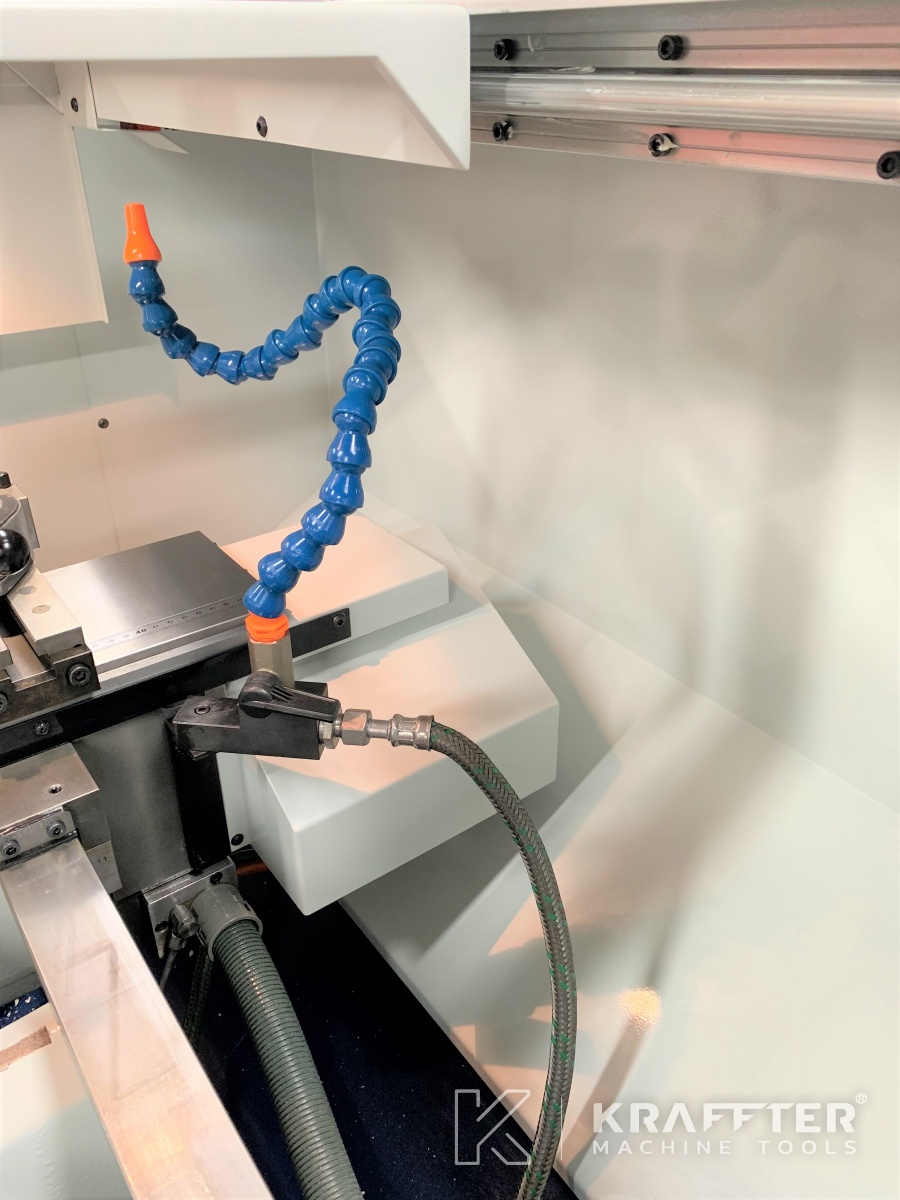

- 1 cooling device
- 1 automatic centralised lubrication device (pneumatic)

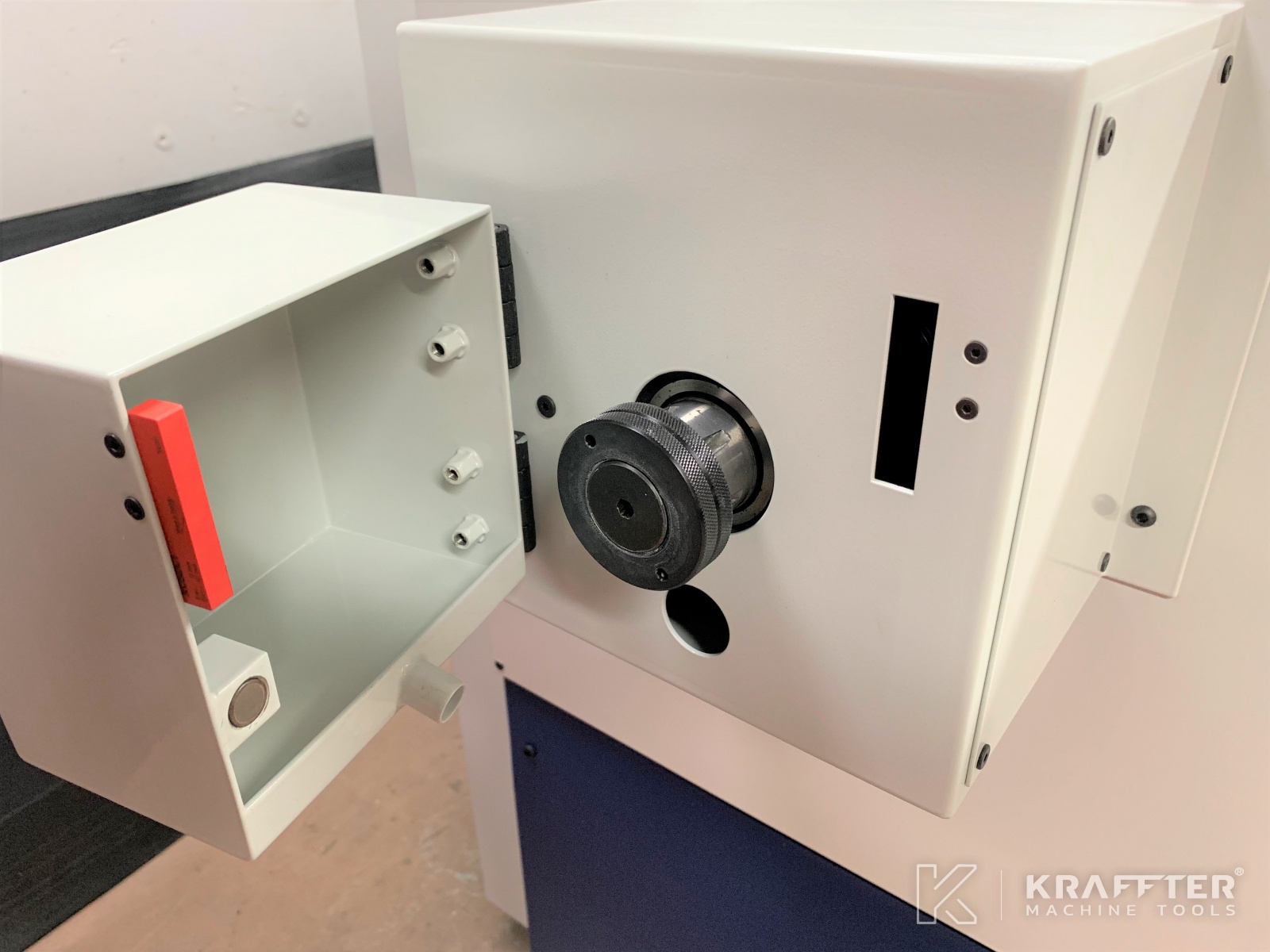

- 1 drawbar B32

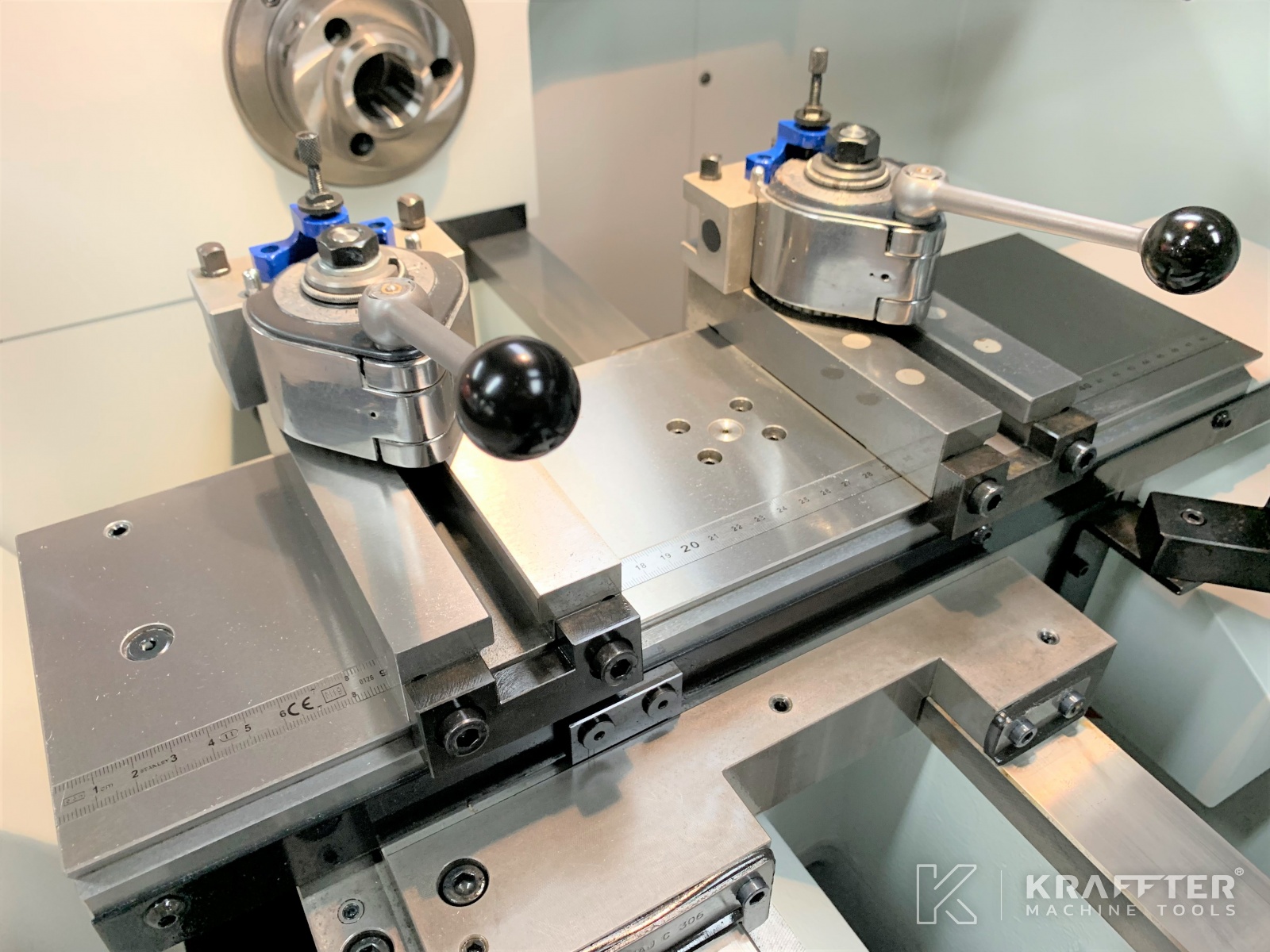

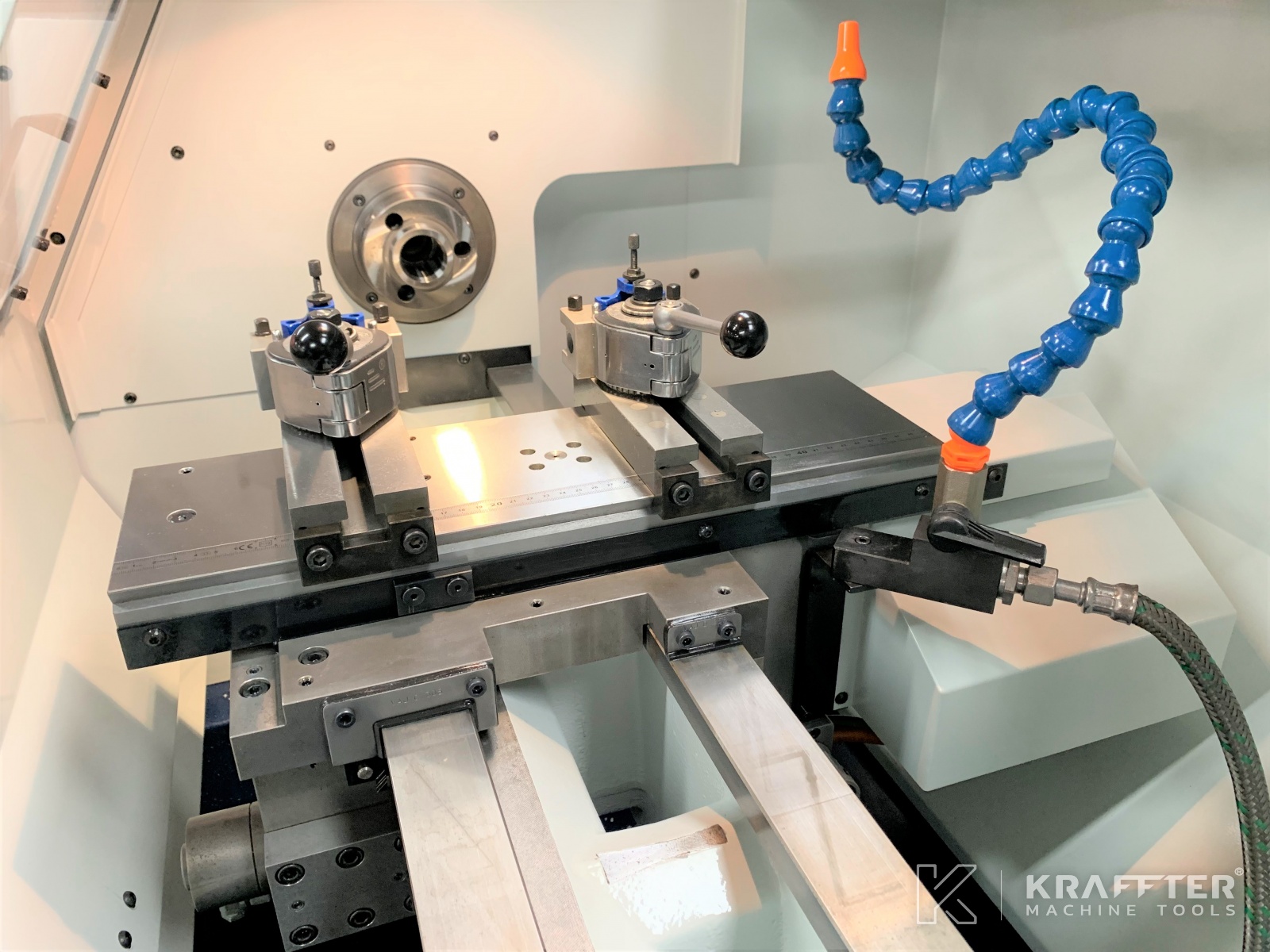

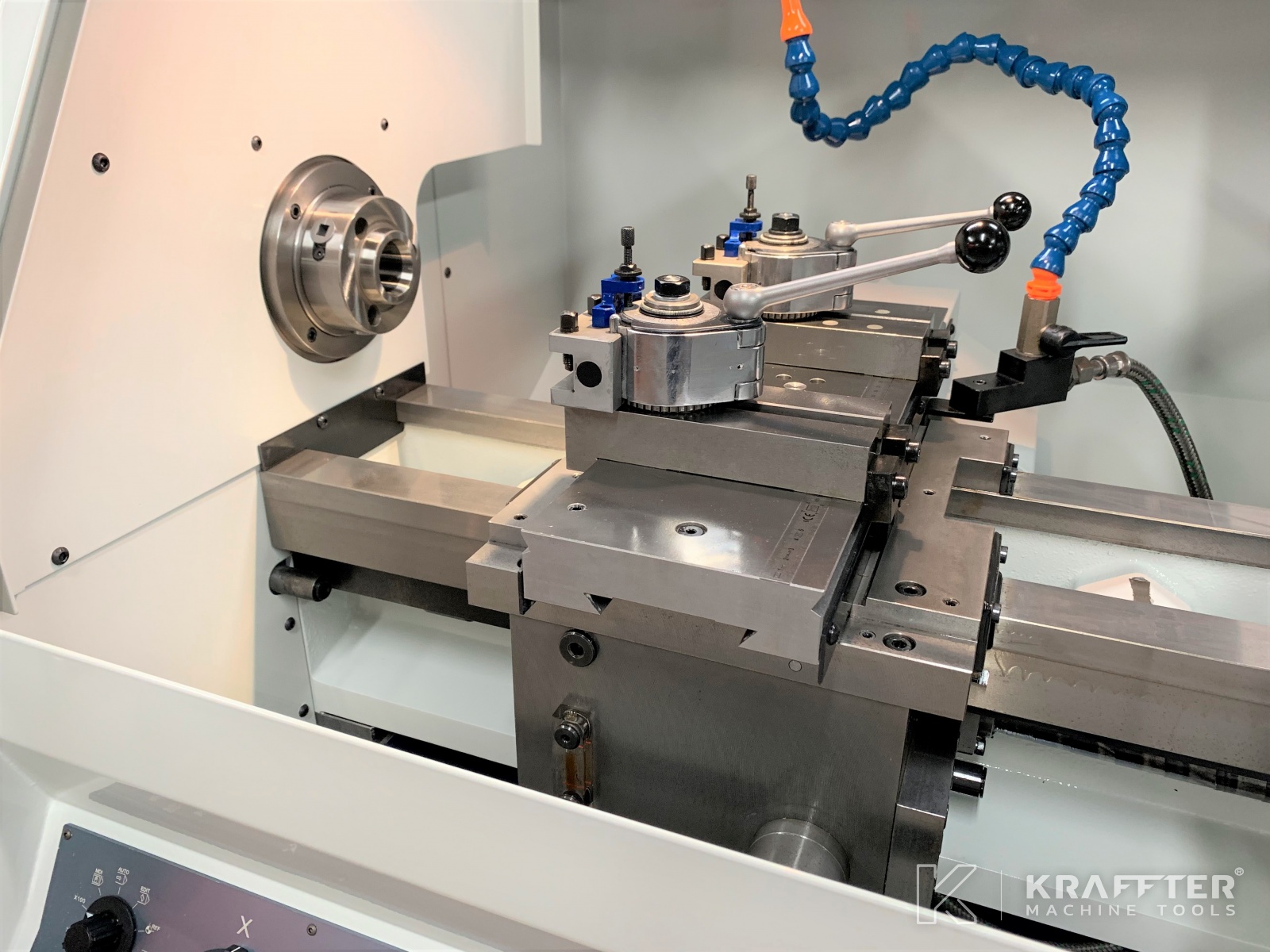

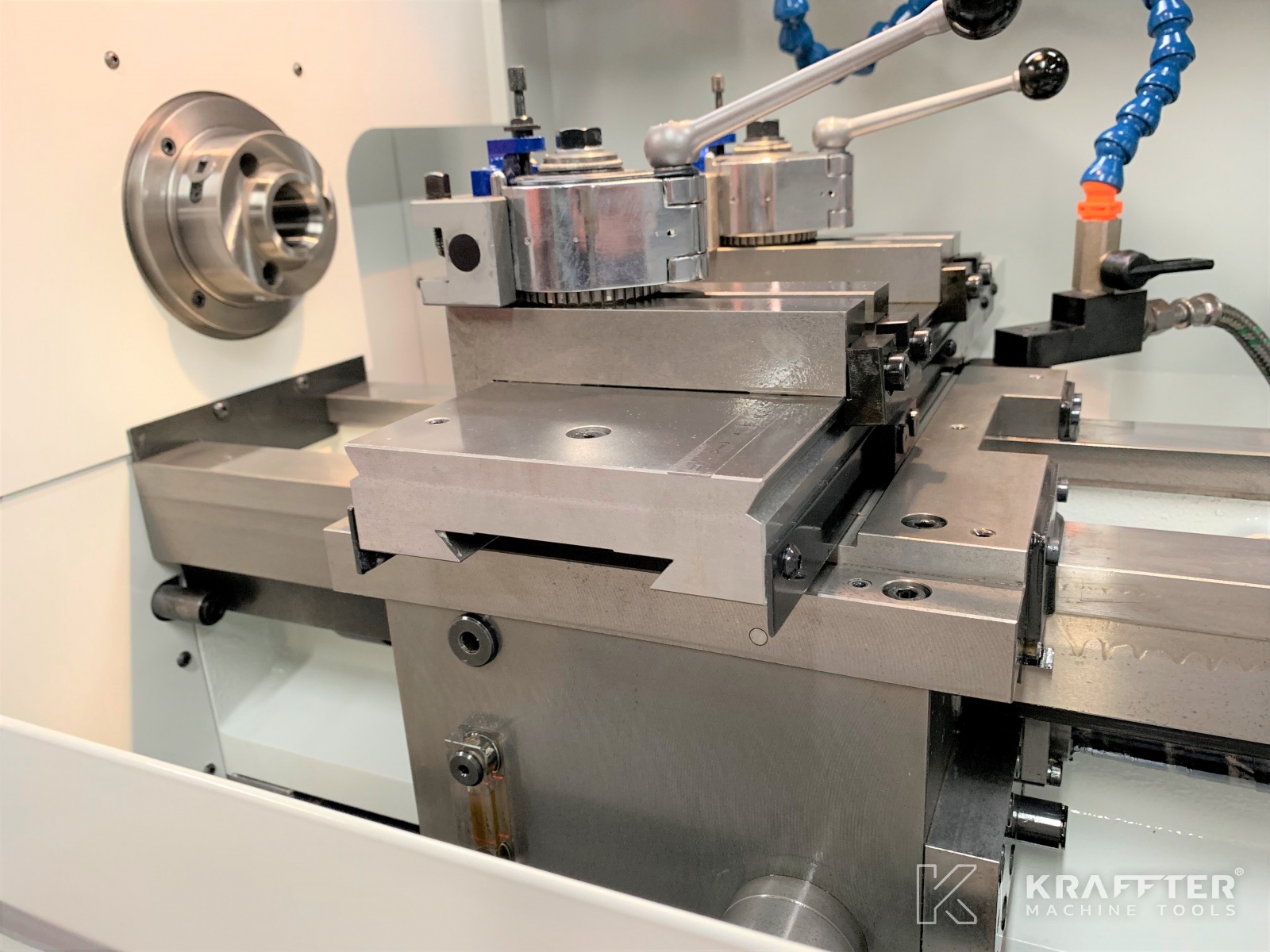

- 2 sole plates for MULTIFIX tool-post

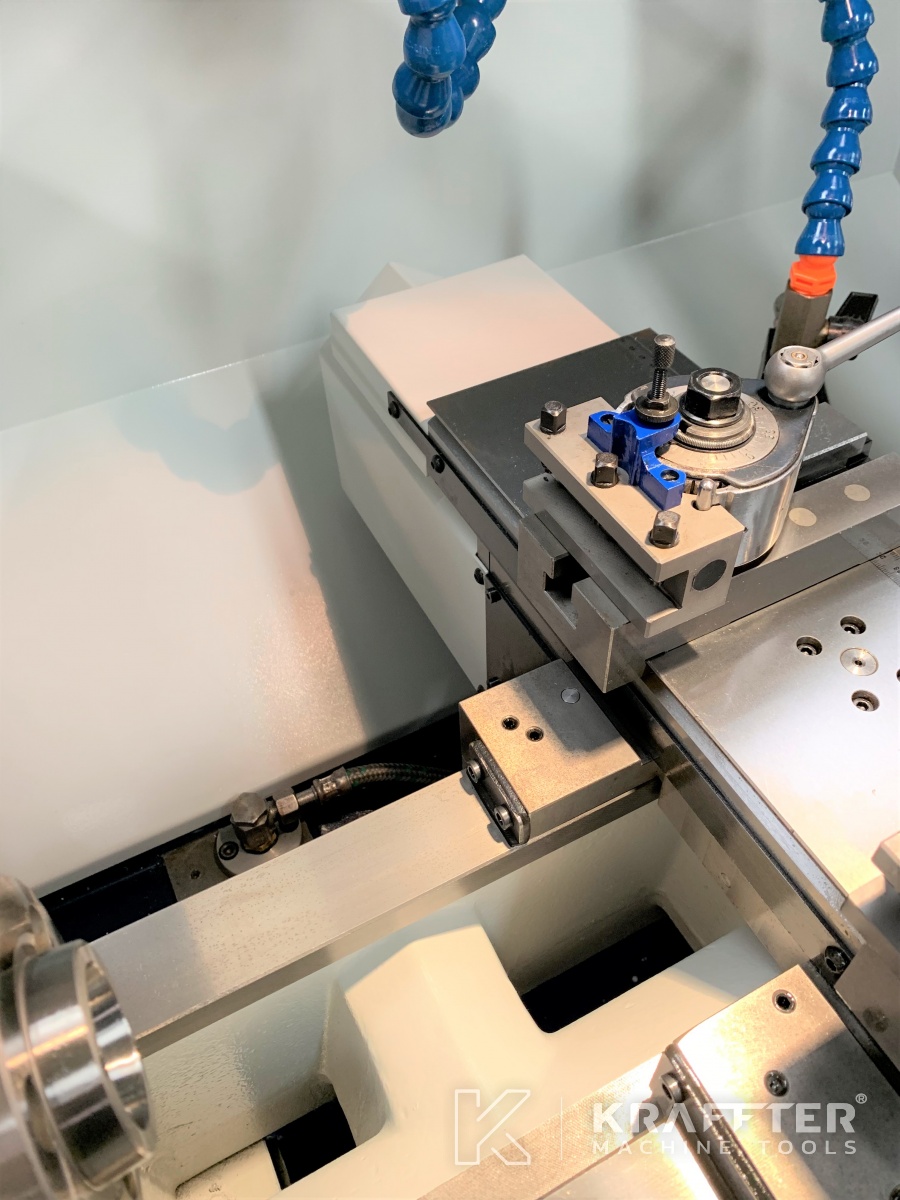

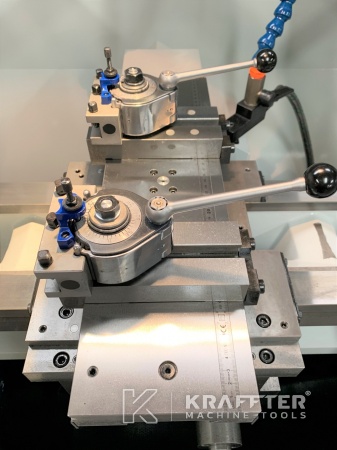

- 1 MULTIFIX type A tool-post
- 1 MULTIFIX type A cutter-holder
- 1 pneumatic clamping device – comand by pedal – adjustable clamping force at 5 bars
- 1 tailstock support (bed extension at the back of the bed)

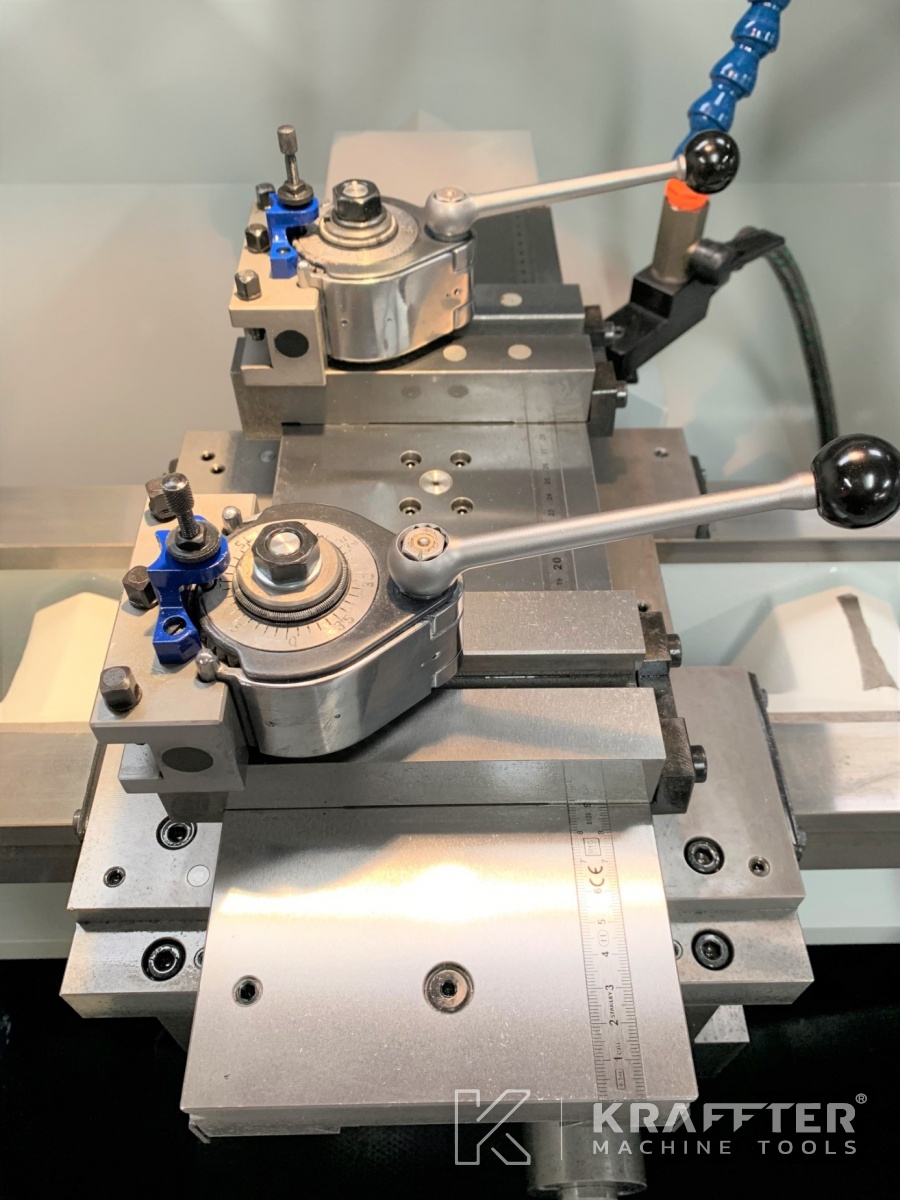

*the second Multifix tool-post and its tool holder wich are visible on the pictures aren’t included with the machine
-
Possibility to include in option :
- Steady rest.
