Sold

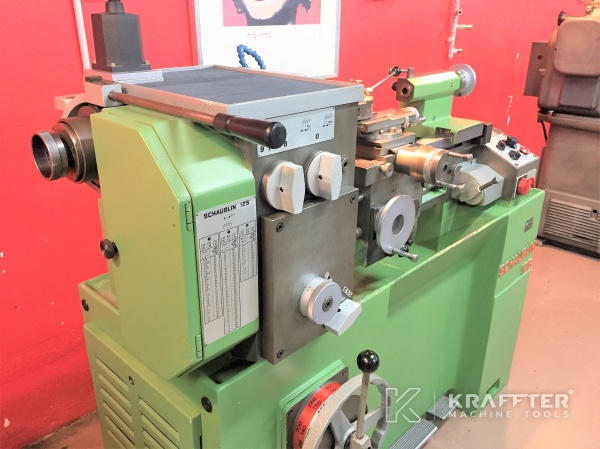

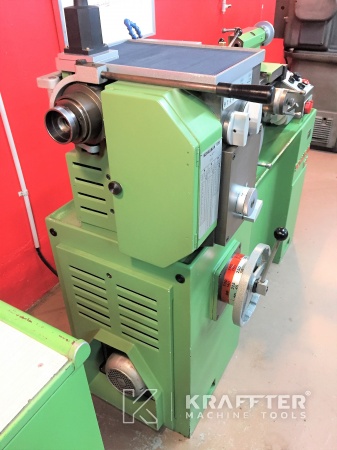

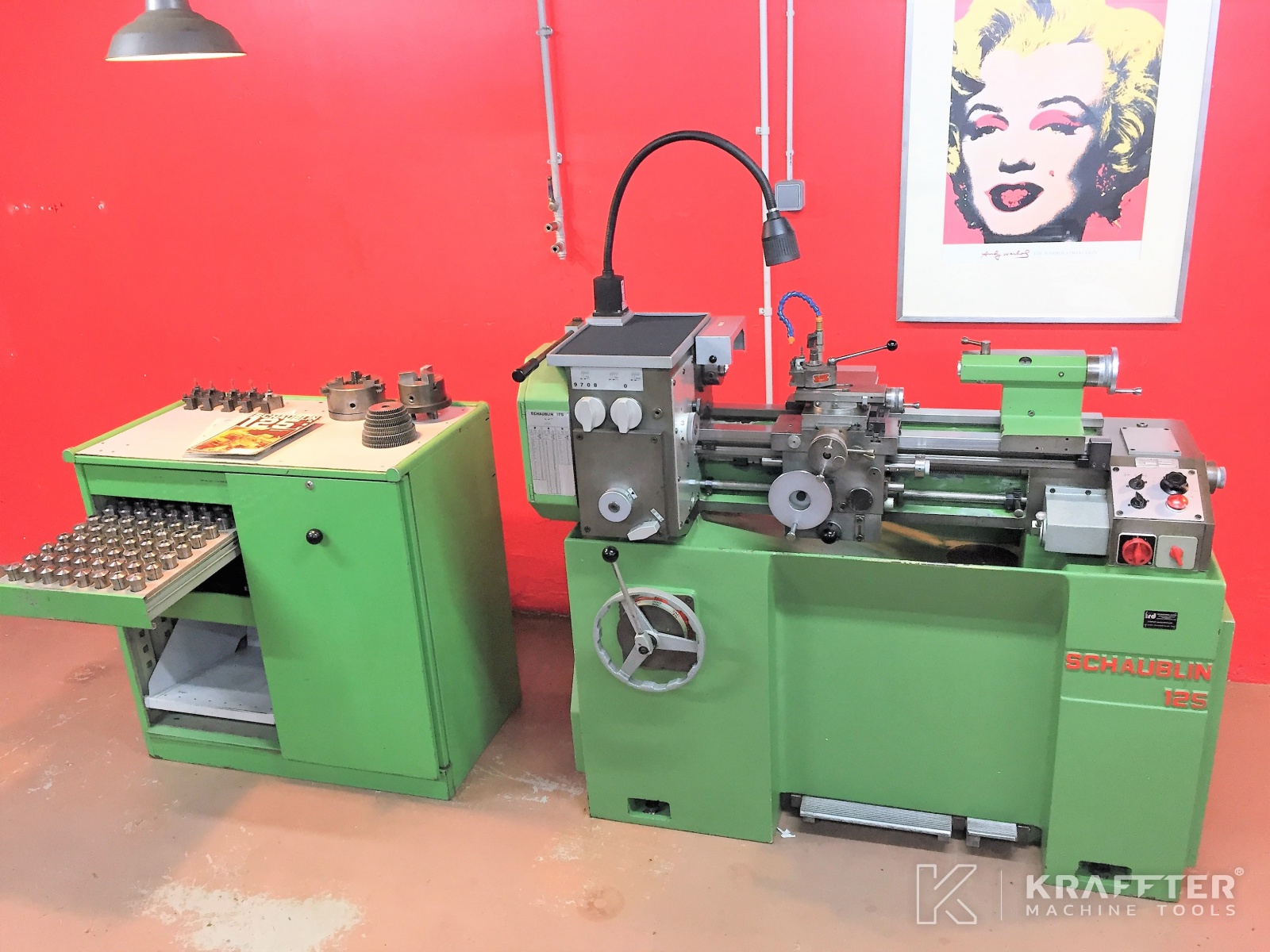

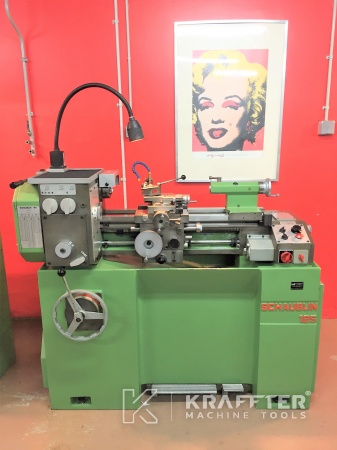

Type of machine : Manual lathe
Brand : SCHAUBLIN
Stock N° : 20689-875
Model : 125 C
Serial N° : 232241
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Number of axes
2
Distance between centers
500 [mm]
Height of centers
125 [mm]
Height of centers over cariage
130 [mm]
Max. swing over bed
270 [mm]
Spindle nose
CAMLOCK D 1-3’’
Spindle for collets
B32
Max. throughbore with collet
24 [mm]
Spindle throughbore
28 [mm]
Type of attachment tailstock
CM2
Universal threading gear box
Yes
Manual lever-operated quick-closing attachment
Yes
Electrospindle brake
Yes
Turret
Multifix
Type of tool holders
Multifix type A
Lubrication tank with pump
Yes
Total power required
2.05 [kVA]
Supply voltage
380 [V]
Dimensions
1473 x 630 x 1280
Weight
990 [Kg]
- MULTIFIX type A rapid tool changer
- 6 tool holders MULTIFIX type A
- 1 chuck 3 jaw (concentric) diam.160 [mm]
- 1 chuck 3 jaw (concentric) diam.125 [mm]

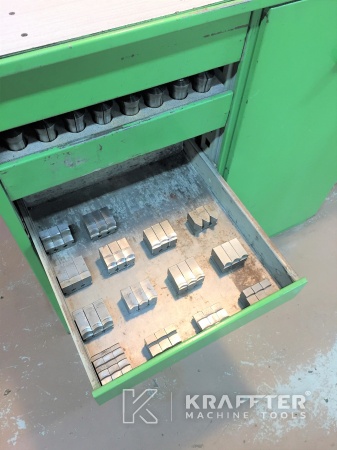

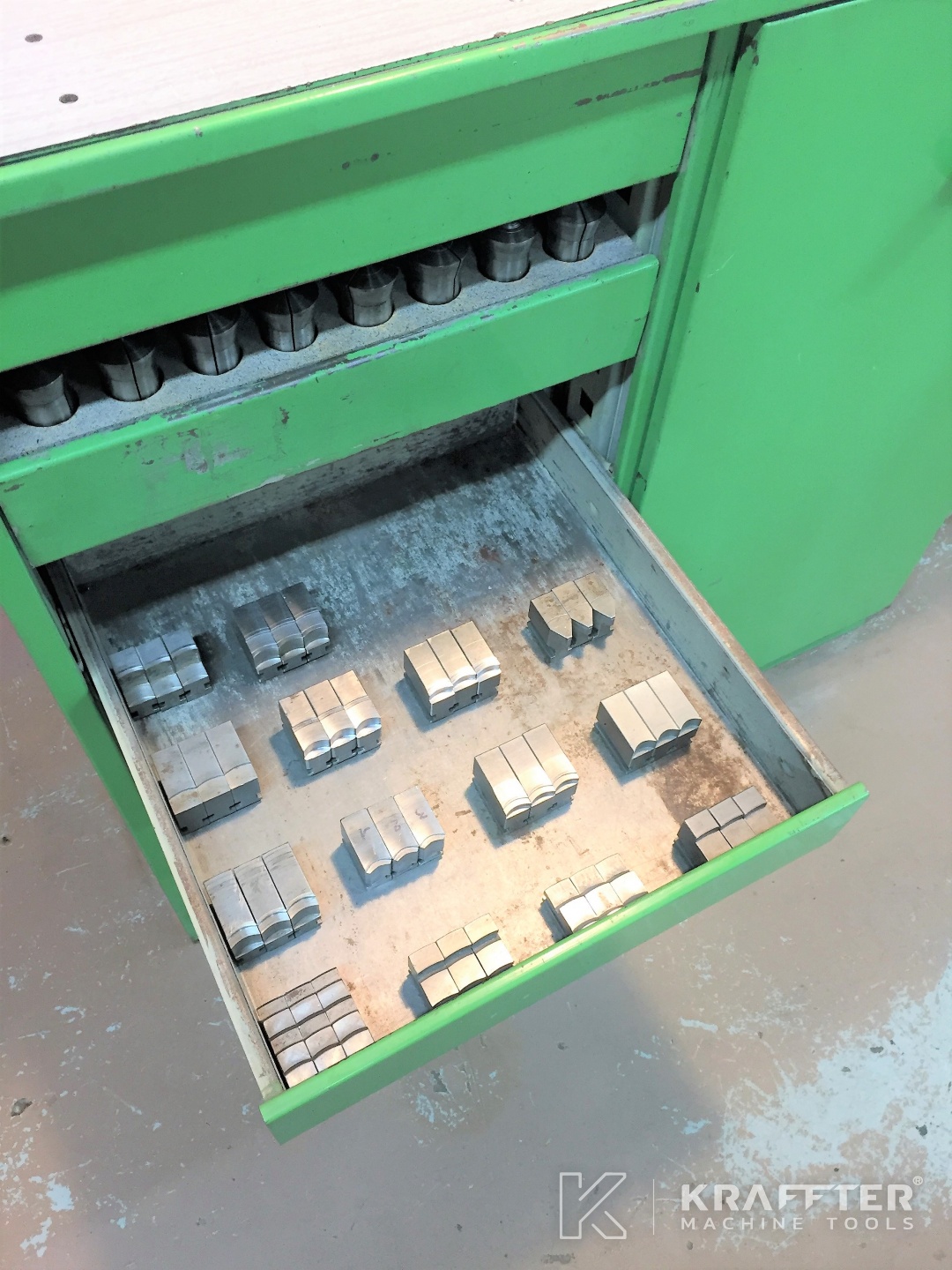

- 14 sets of jaws

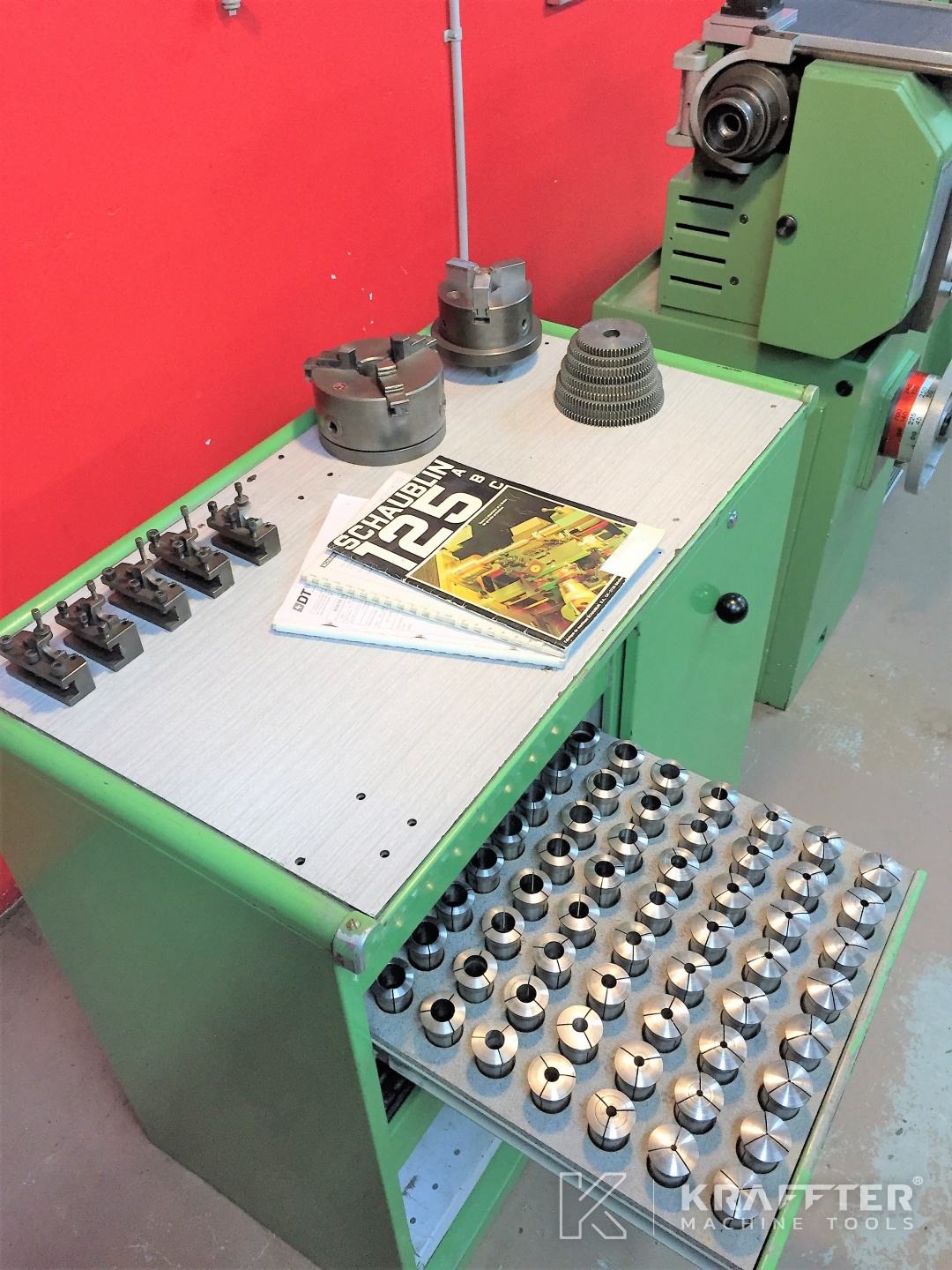

- Complete set of 64 SCHAUBLIN collets B32
- Complete set of 9 wheels SCHAUBLIN for special threading
- Original SCHAUBLIN coolant system
- Halogene lamp
- SCHAUBLIN users manual, electrical drawings and technical manual
- 1 industrial metal cabinet
The variator belt has been remplaced and hasn’t been much used since (with invoice).
