Sold

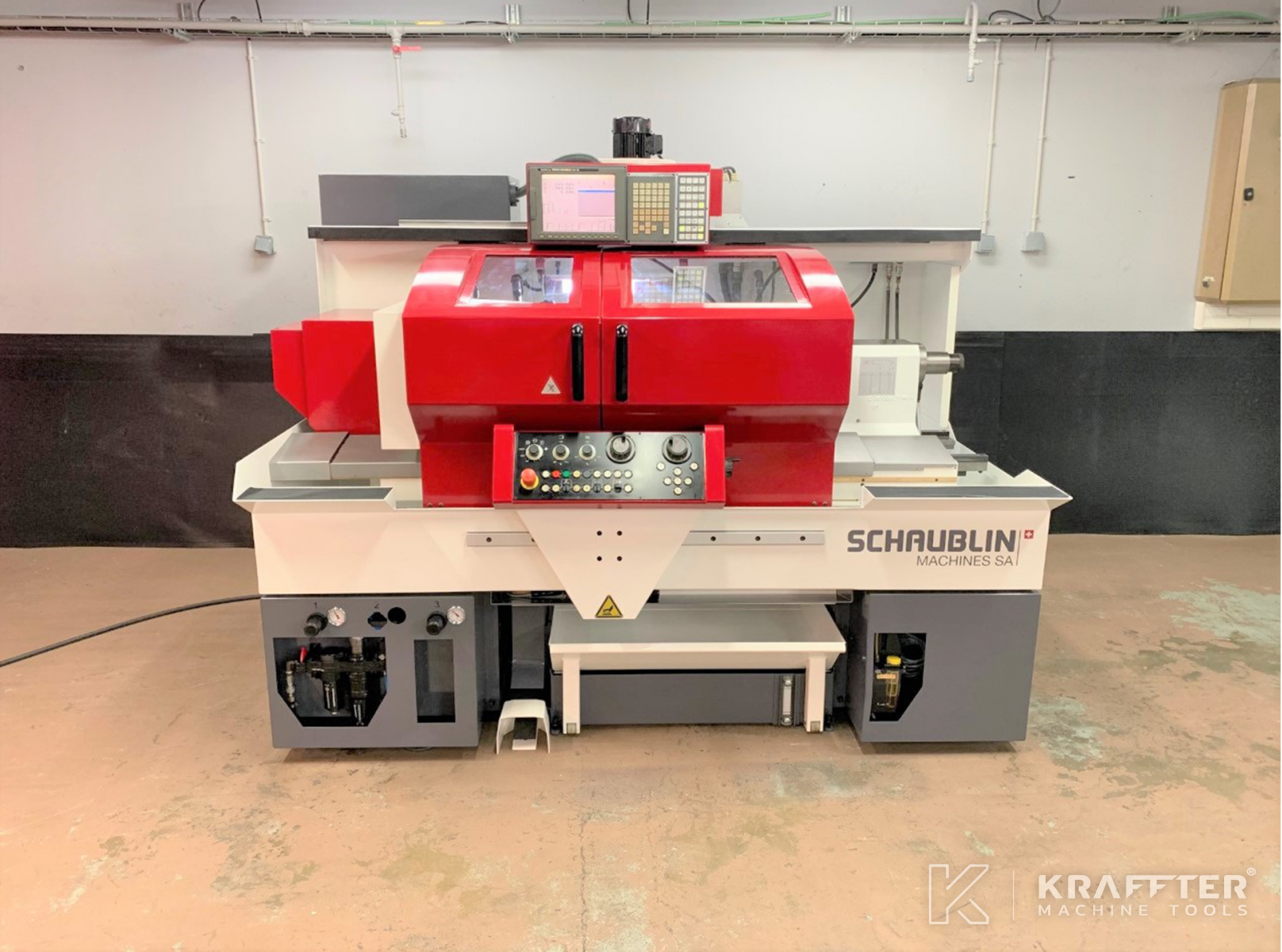

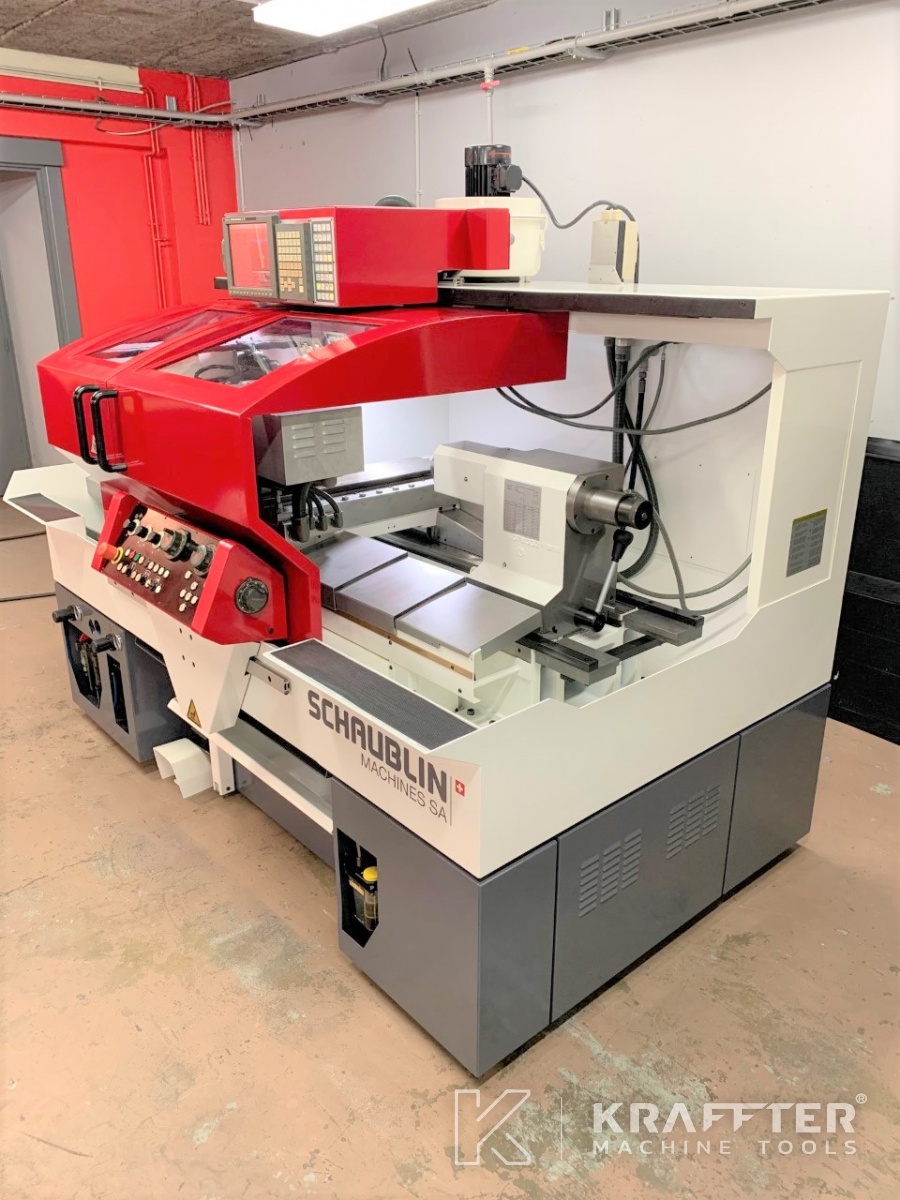

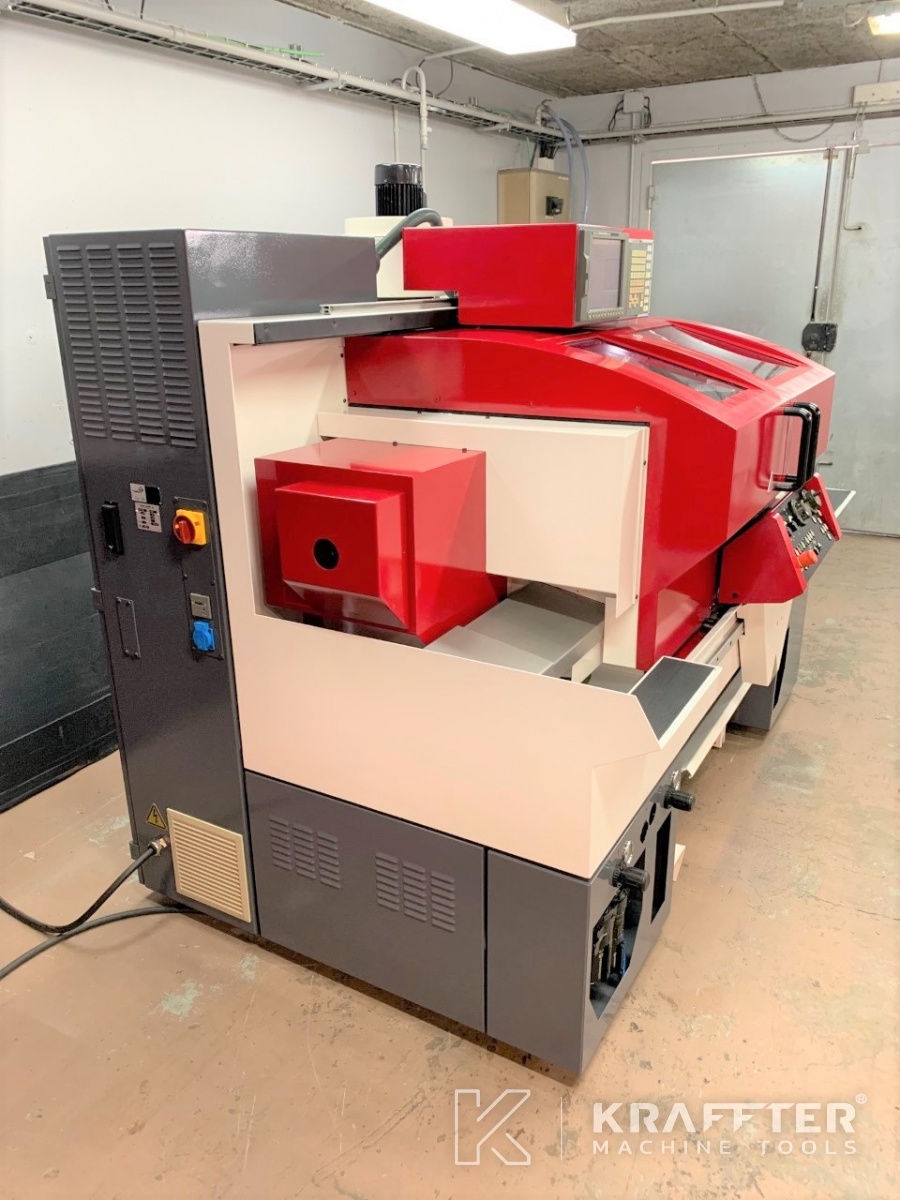

Type of machine : CNC lathe
Brand : SCHAUBLIN
Stock N° : 20689-958
Model : 180 CNC R-TM A2-5
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

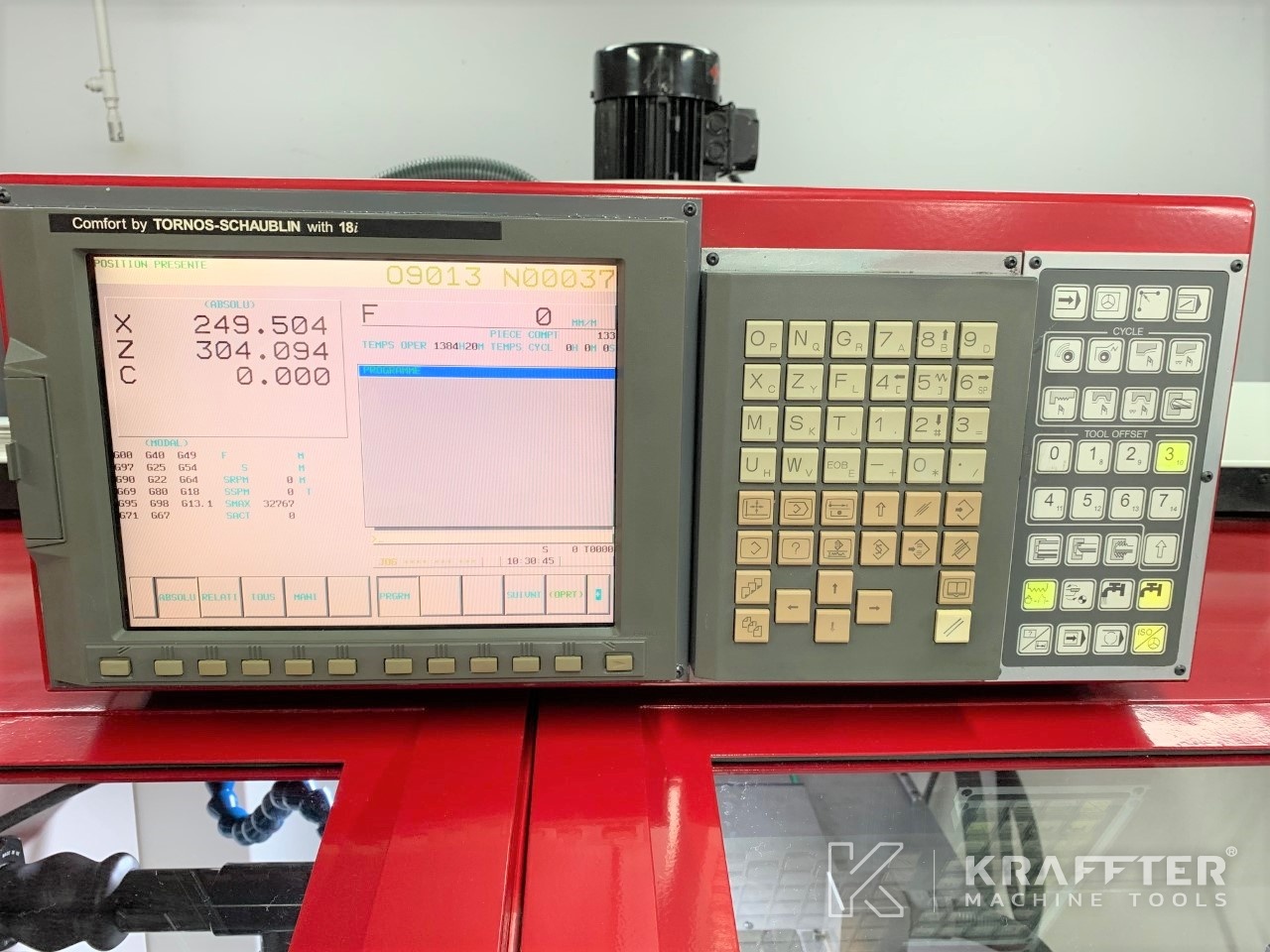

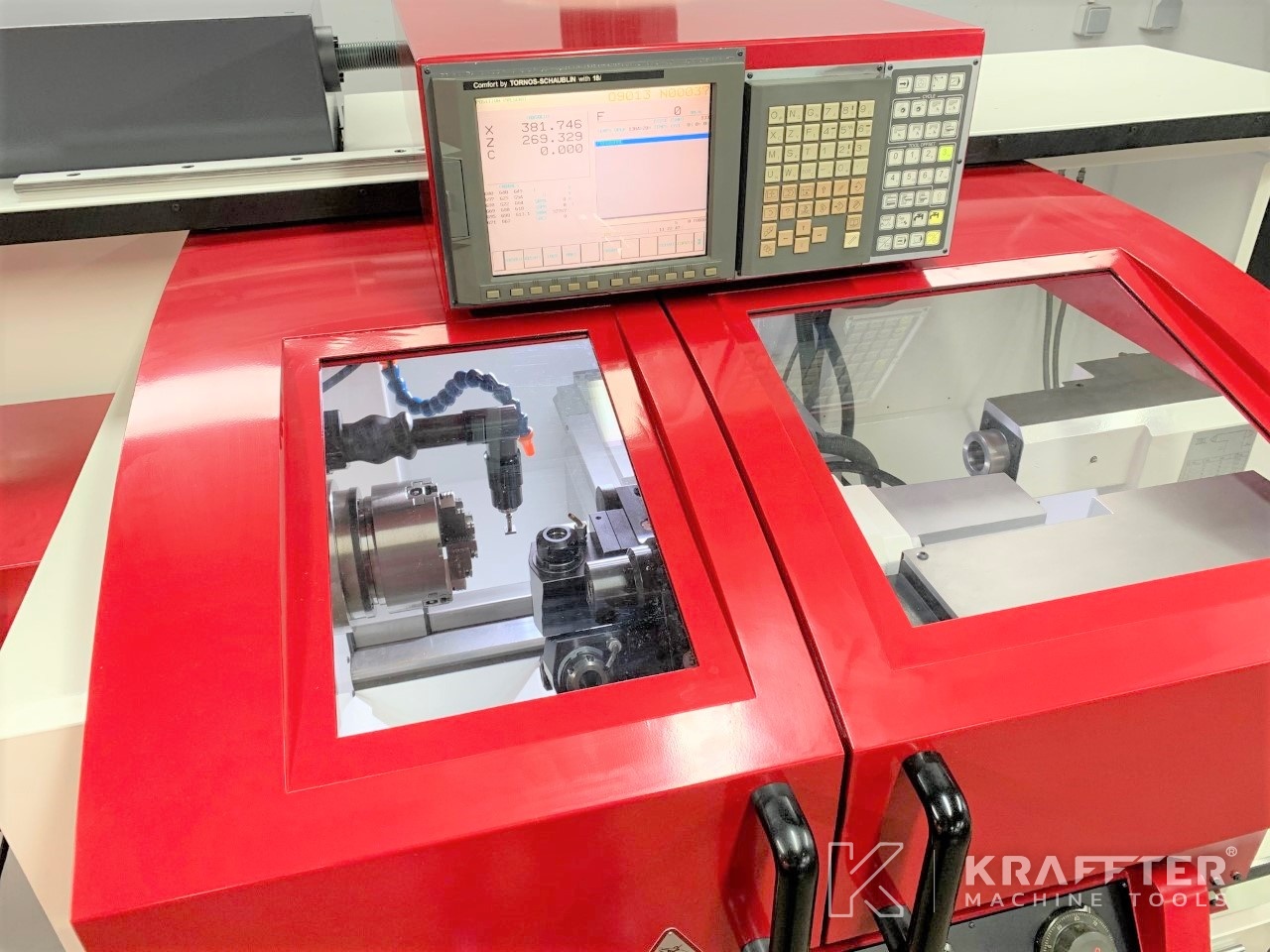

CNC control
FANUC 18i
Number of axes
3
Height of centers
280 [mm]
Max. turning diameter
270 [mm]
Height of centers over cariage
160 [mm]

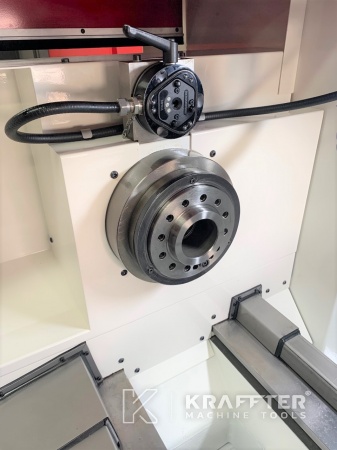

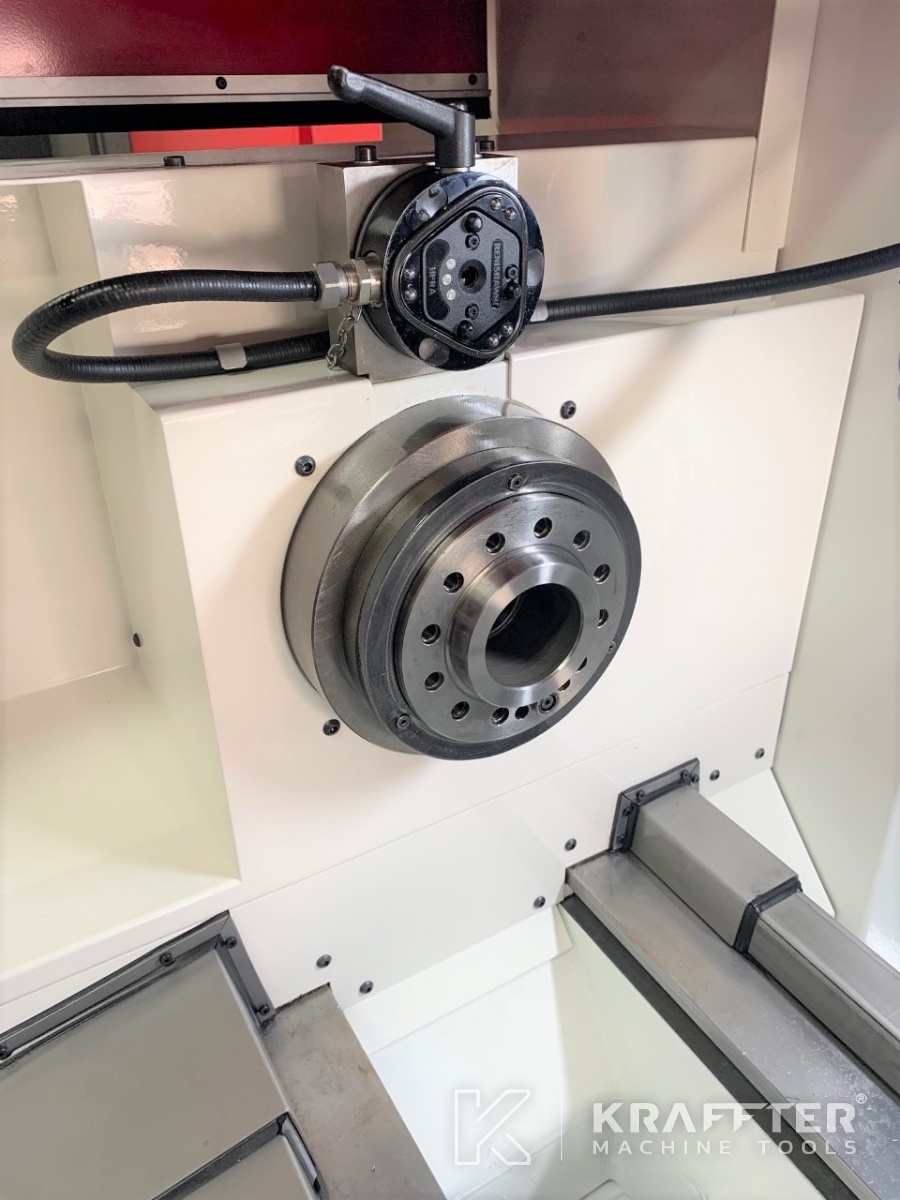

Spindle nose
A2-5’’
Spindle throughbore
51 [mm]
Increment C-axis
0.001 [°]

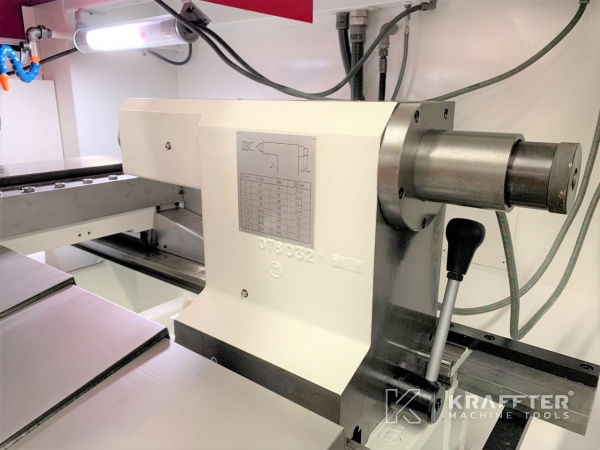

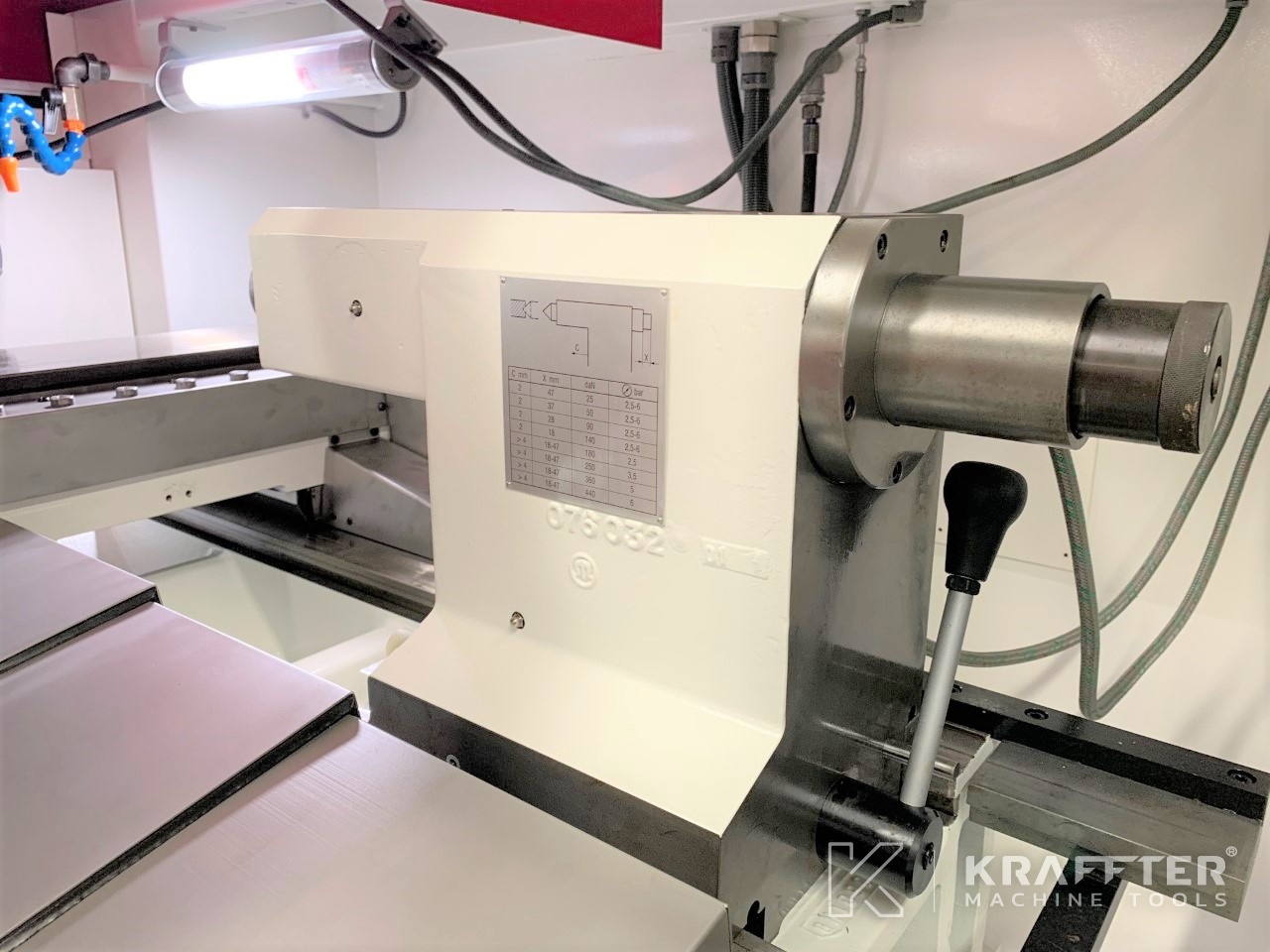

Tailstock type
pneumatique
Type of attachment tailstock
CM5

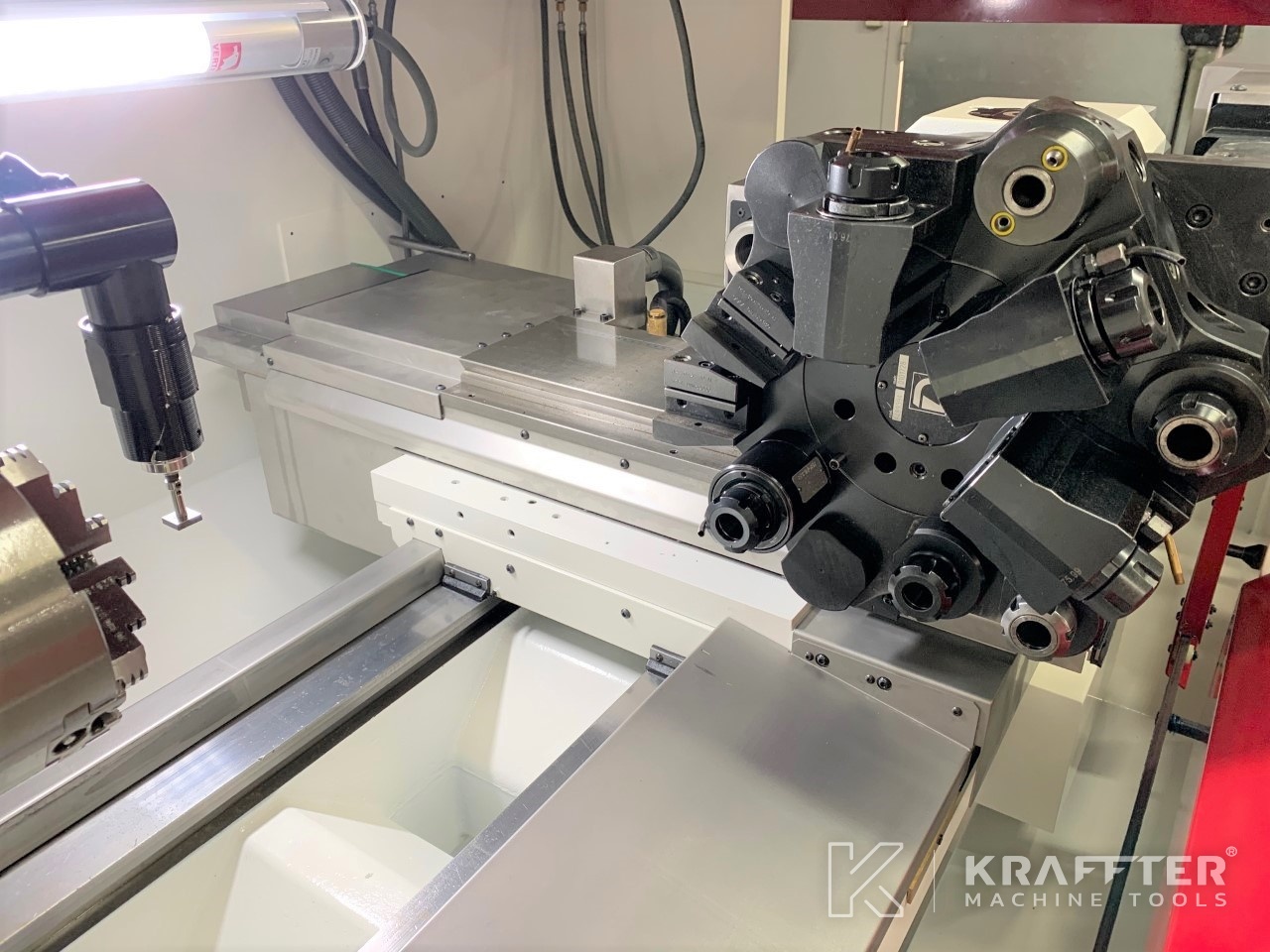

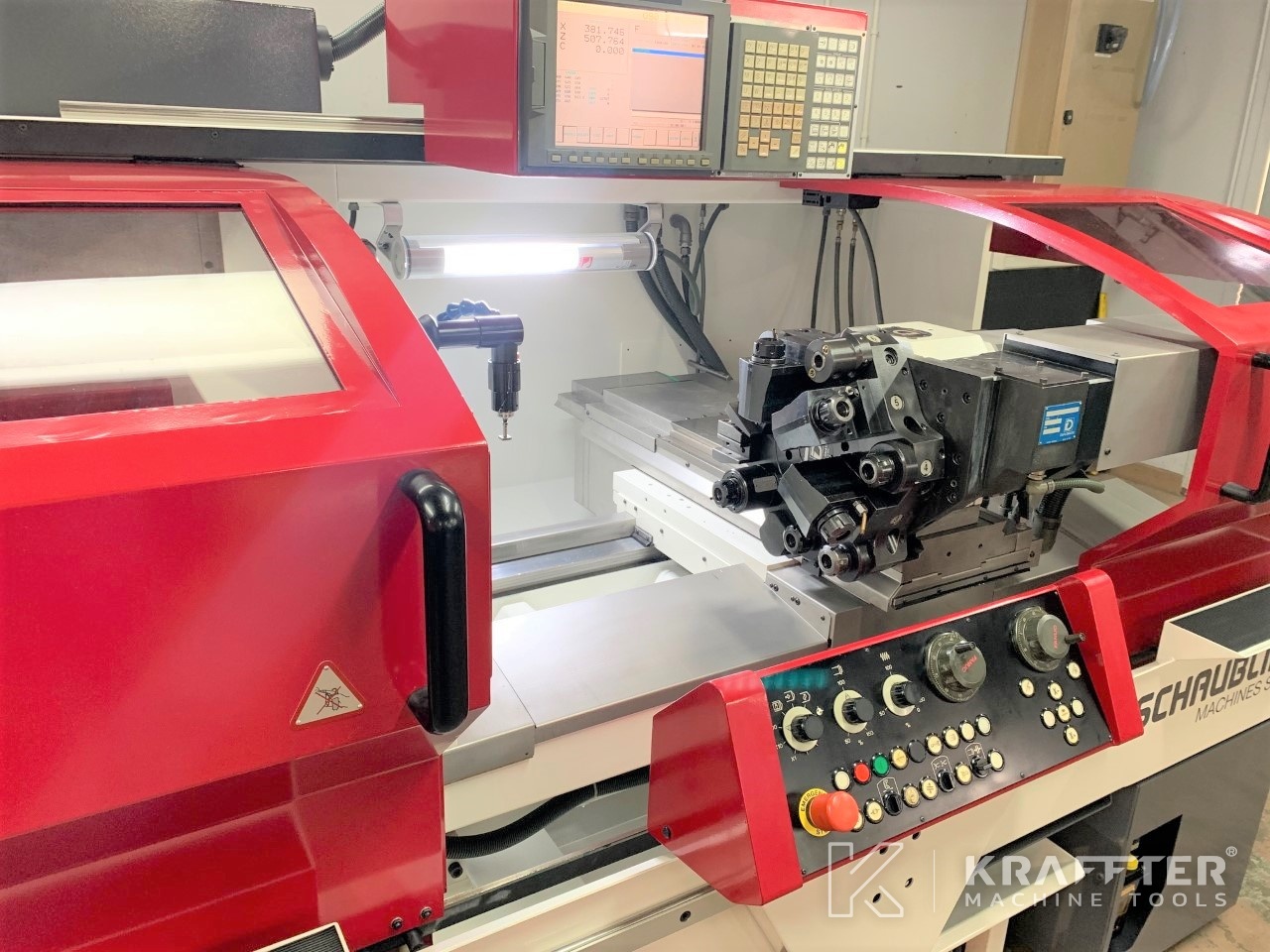

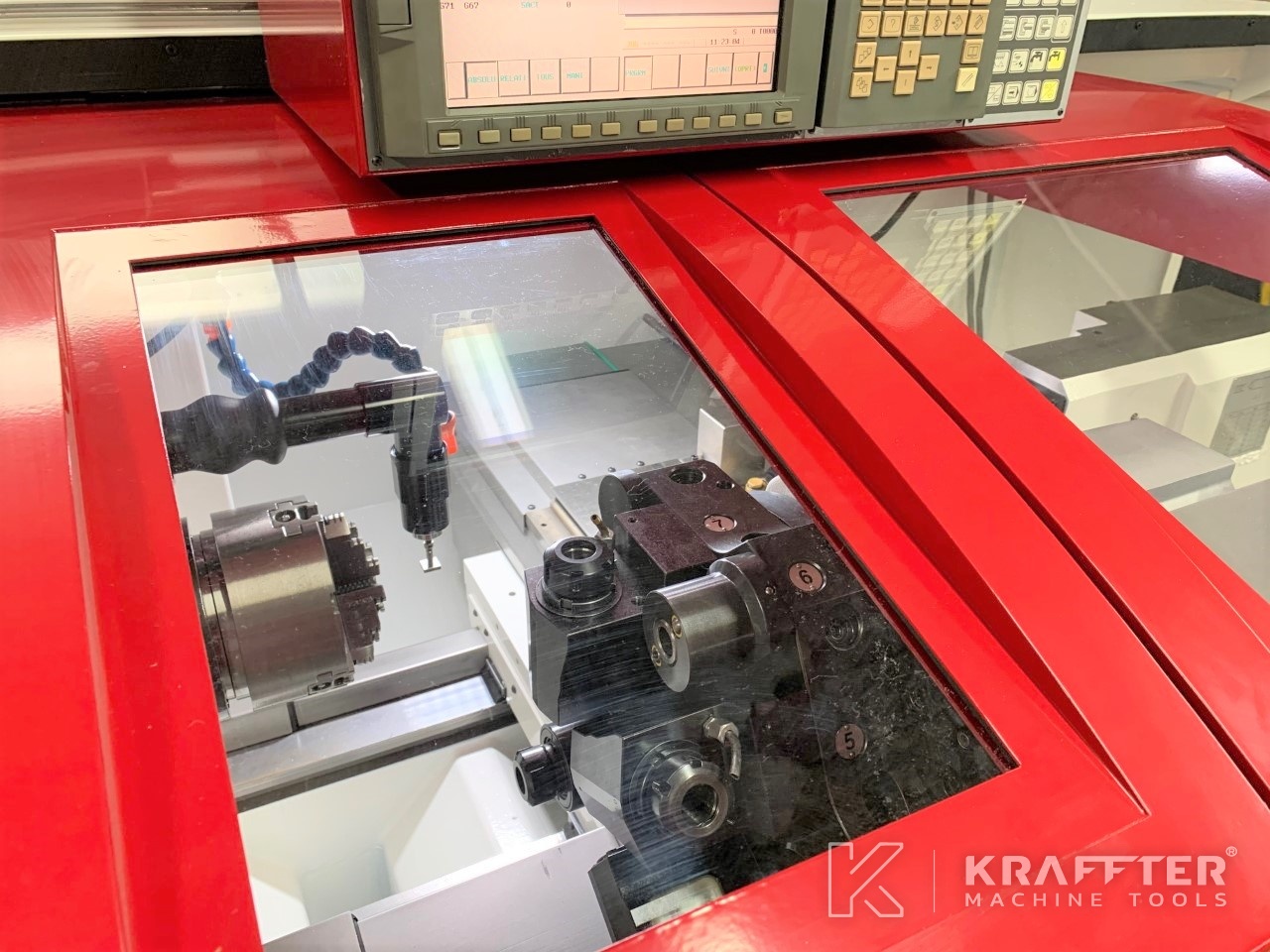

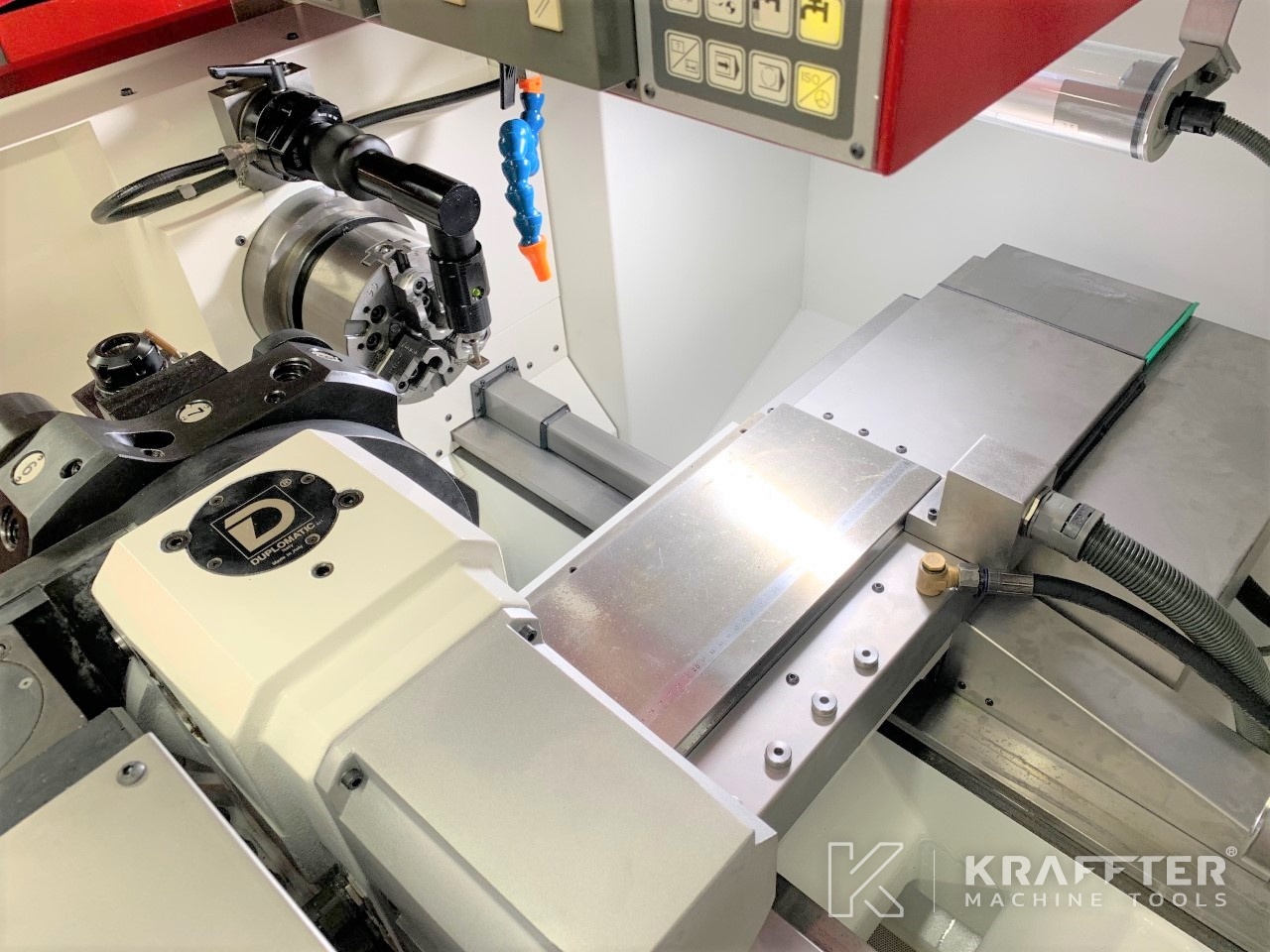

Turret
DUPLOMATIC BSV-N 160
Type of tool holders
VDI 30
Number of tool stations
12
Number of tool stations driven
6
Max. speed driven tools
5000 [rpm]
Centralized lubrication
Automatique

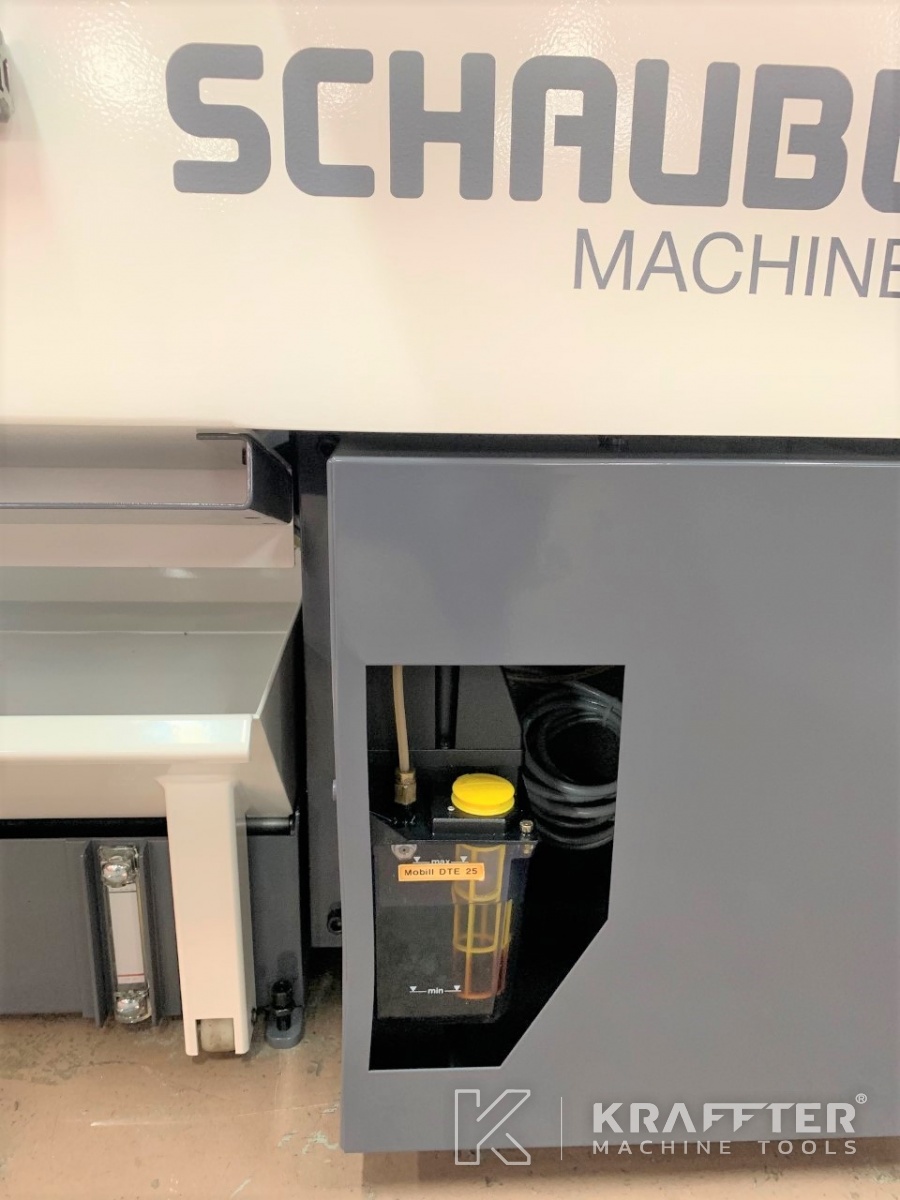

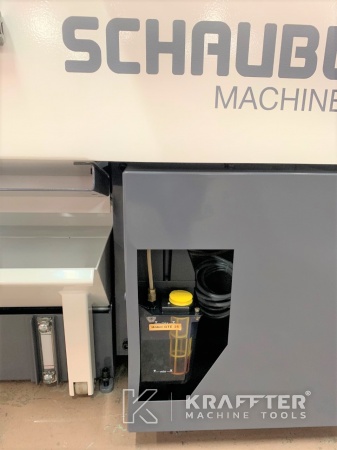

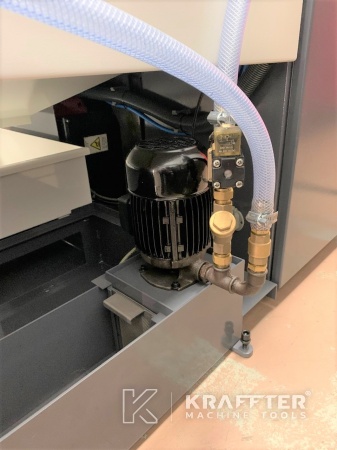

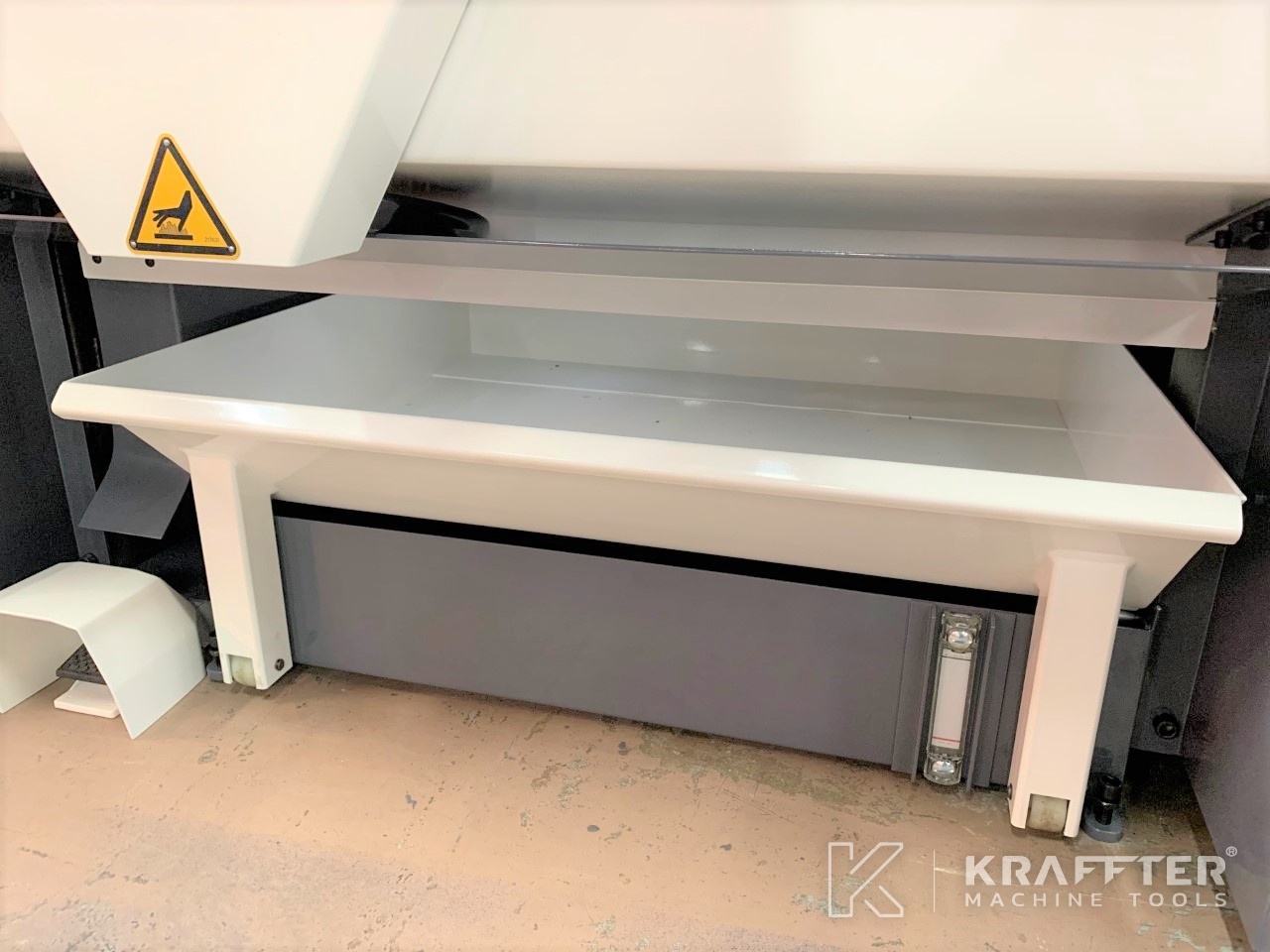

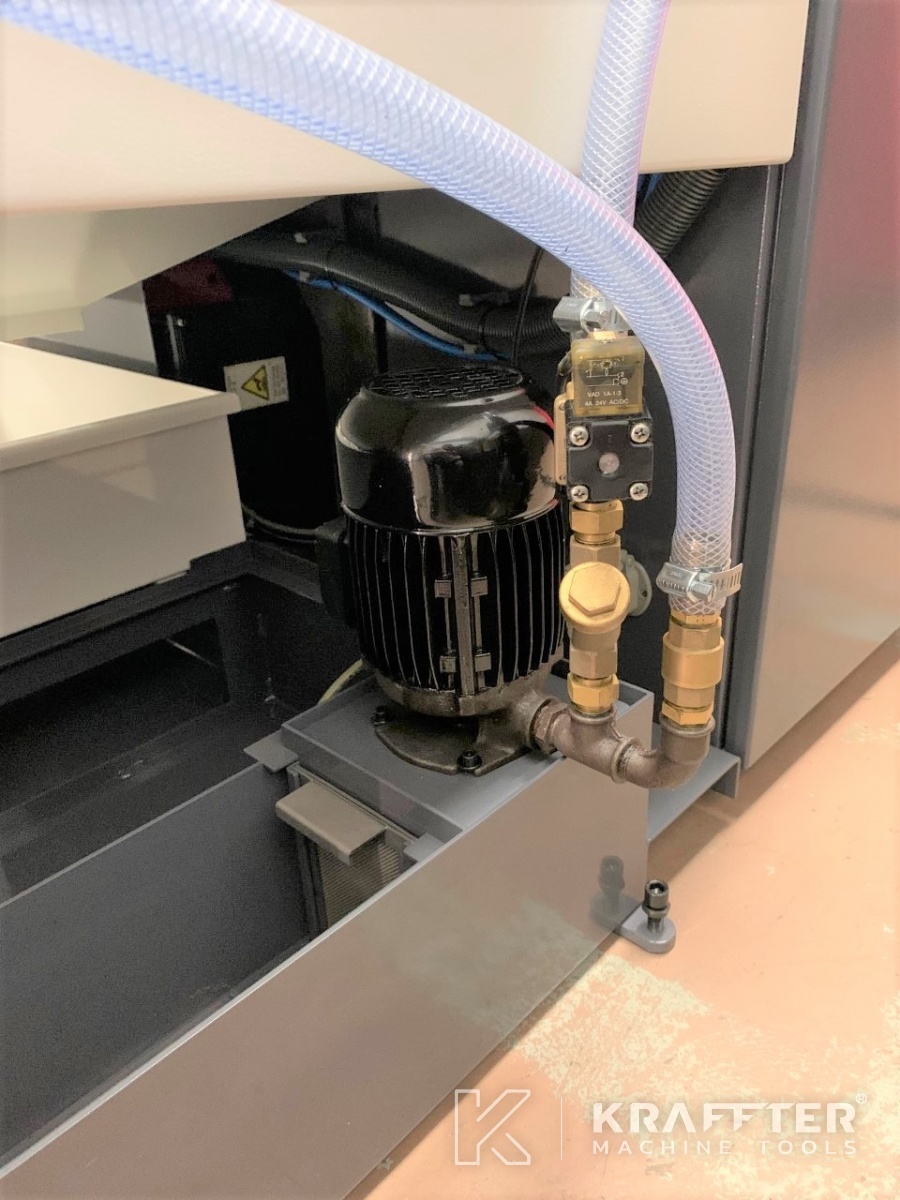

Lubrication tank with pump
Yes
Lubrication tank capacity
120 [l]
Total power required
30 [kVA]
Supply voltage
400 [V]
Dimensions
2300 x 1460 x 1700
Weight
2740 [Kg]

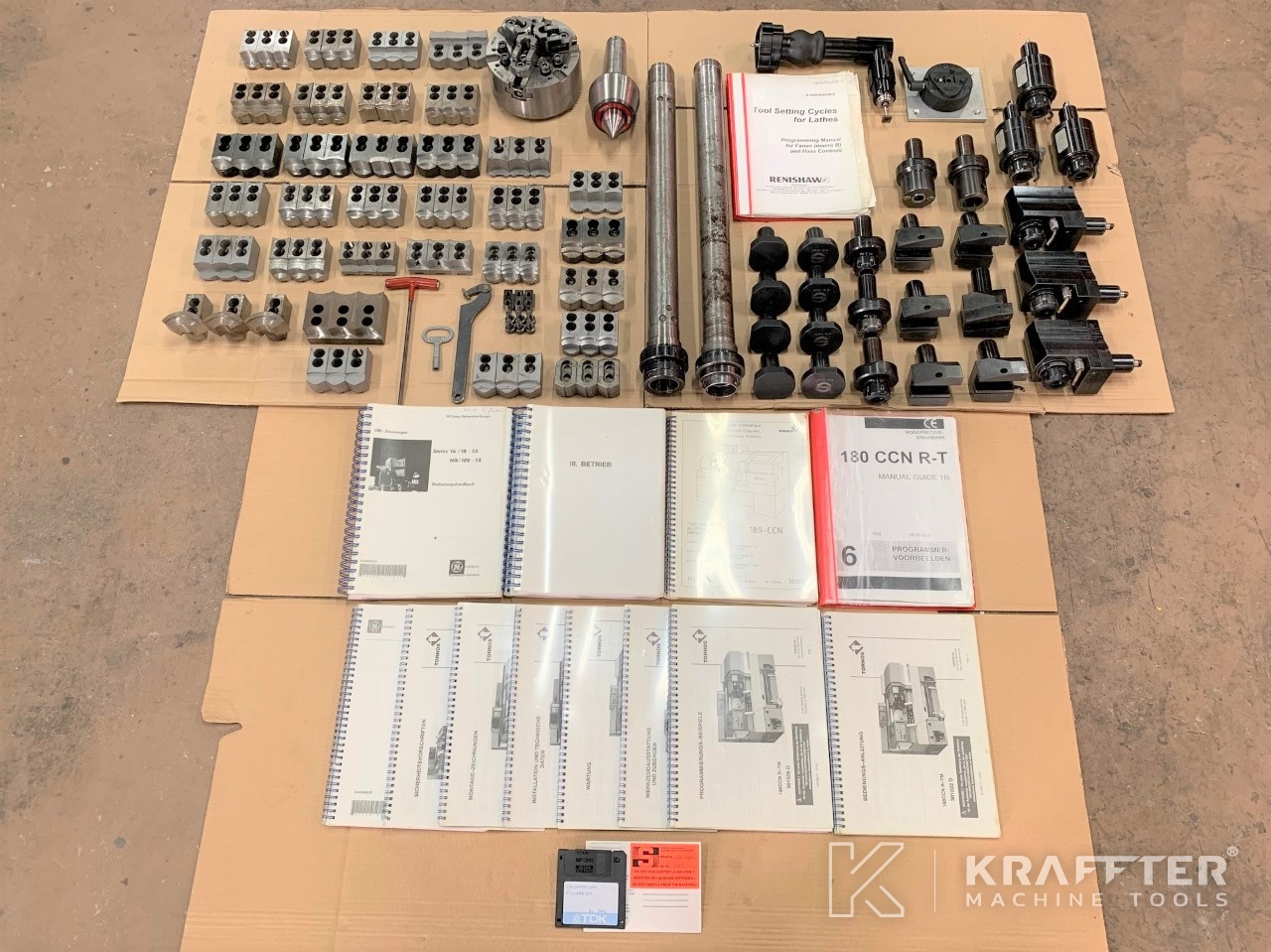

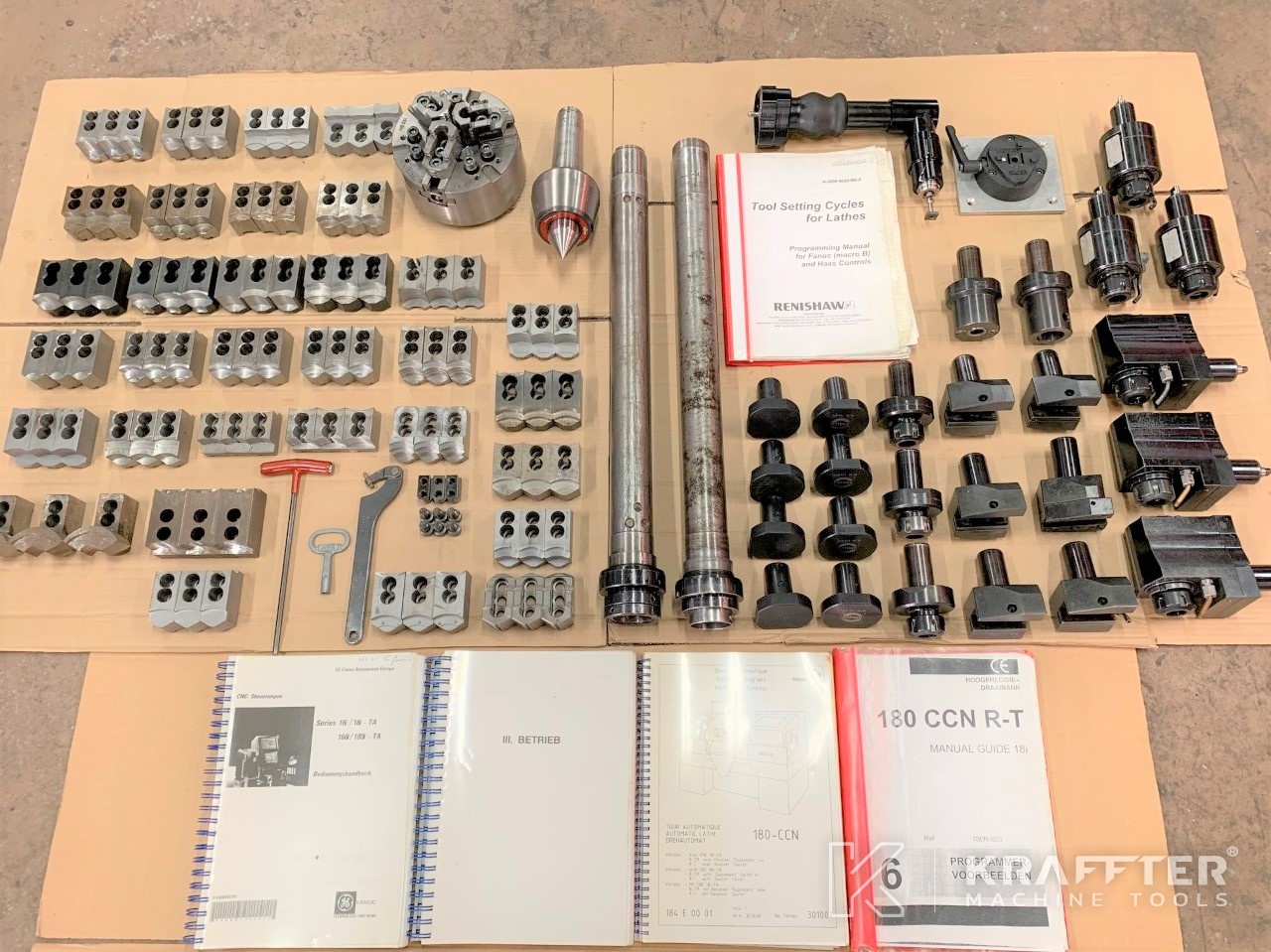

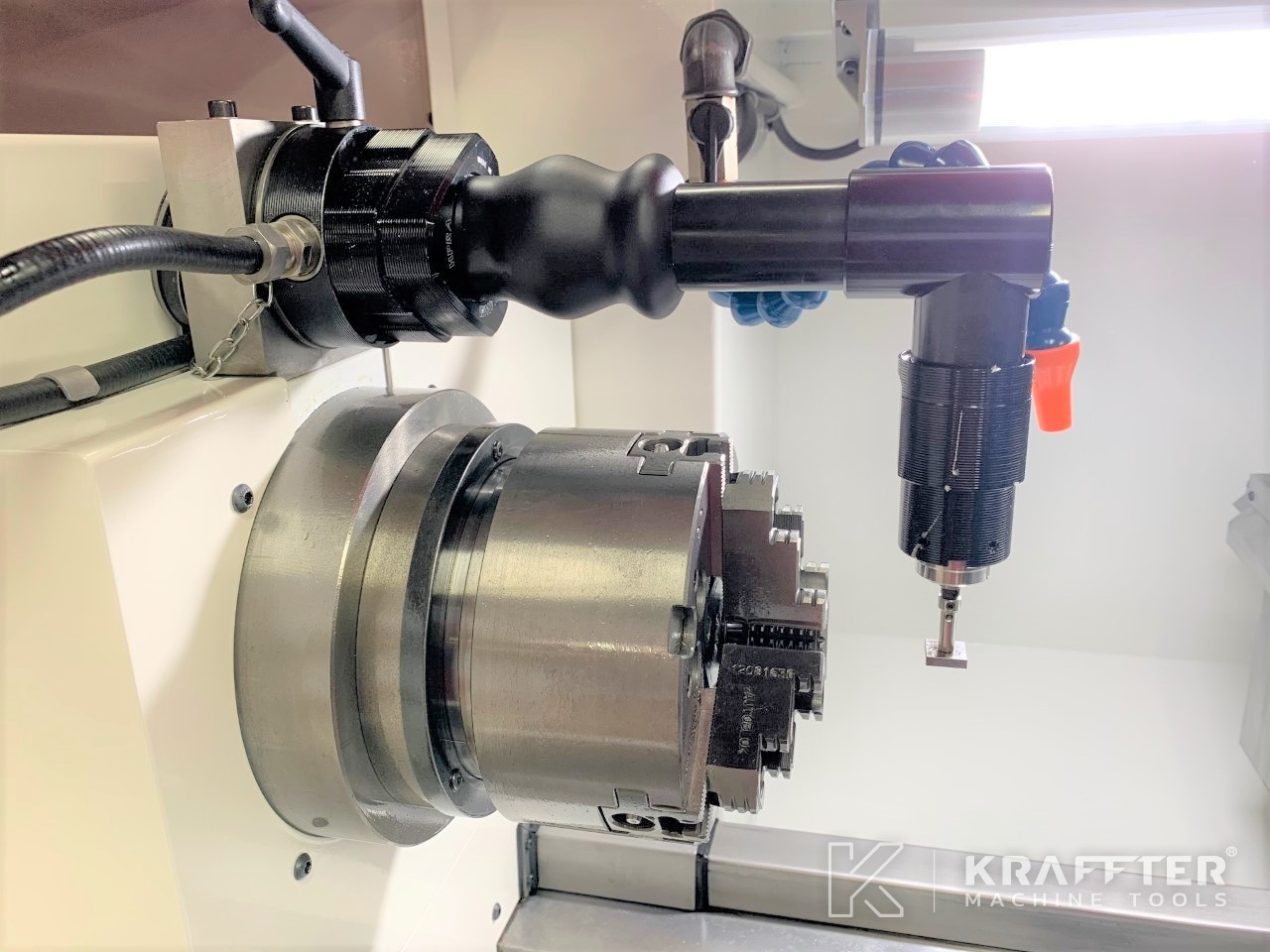

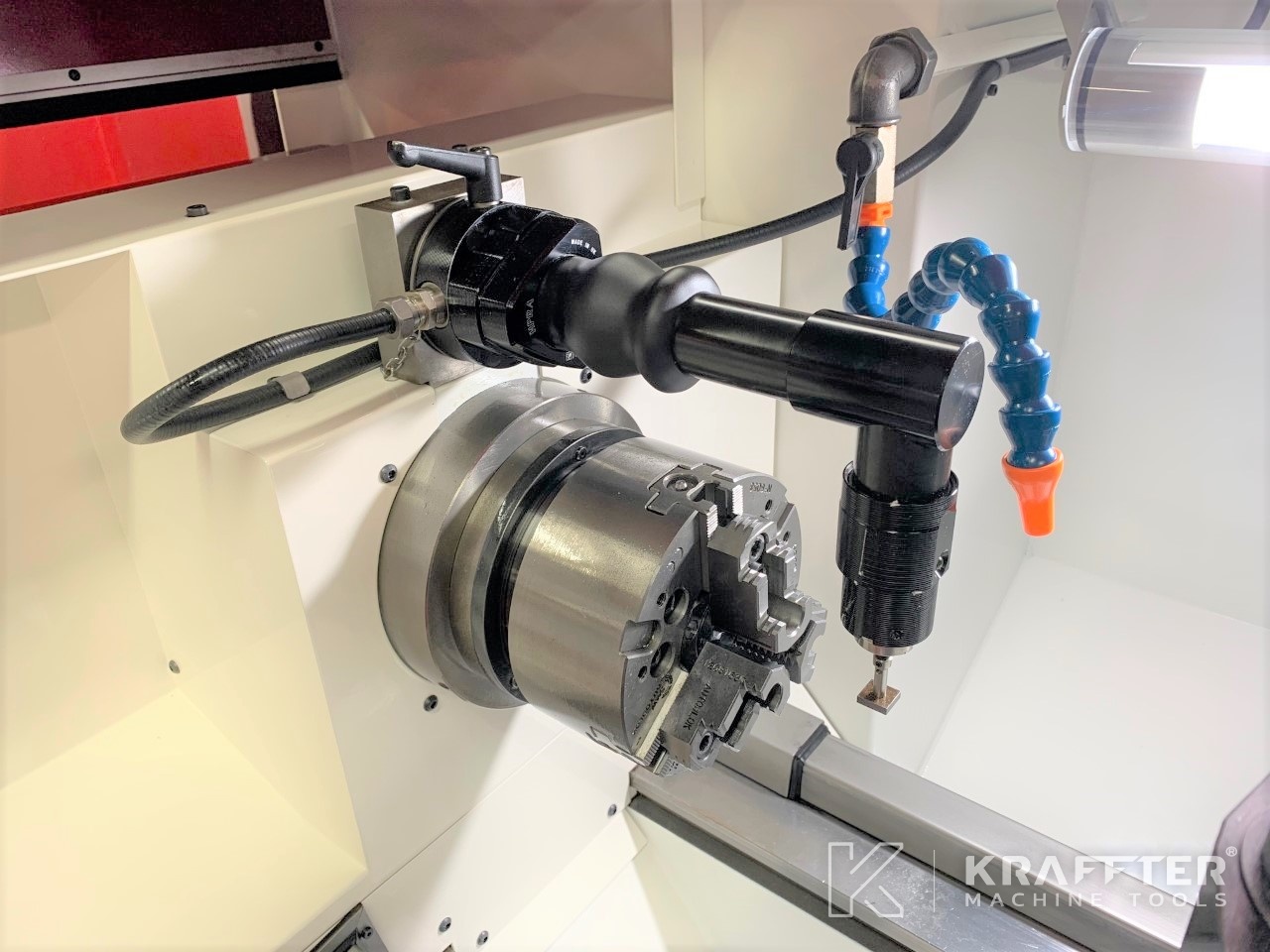

- x 1 high precision tool setting probe RENISHAW type « HPRA »
- x 4 axial tool holders VDI 30
- x 6 radial tool holders VDI 30
- x 3 drilling and milling heads, axial ESX25 – VDI30
- x 3 drilling and milling heads, radial ESX25 – VDI30
- x 2 drawbars
- x 1 automatic 3-jaw chuck SMW-AUTOBLOK Ø165 [mm] A2-5
- x 4 sets of hardned jaws
- x 12 sets of soft jaws
- x 1 ROHM « 110H MK5 » live center

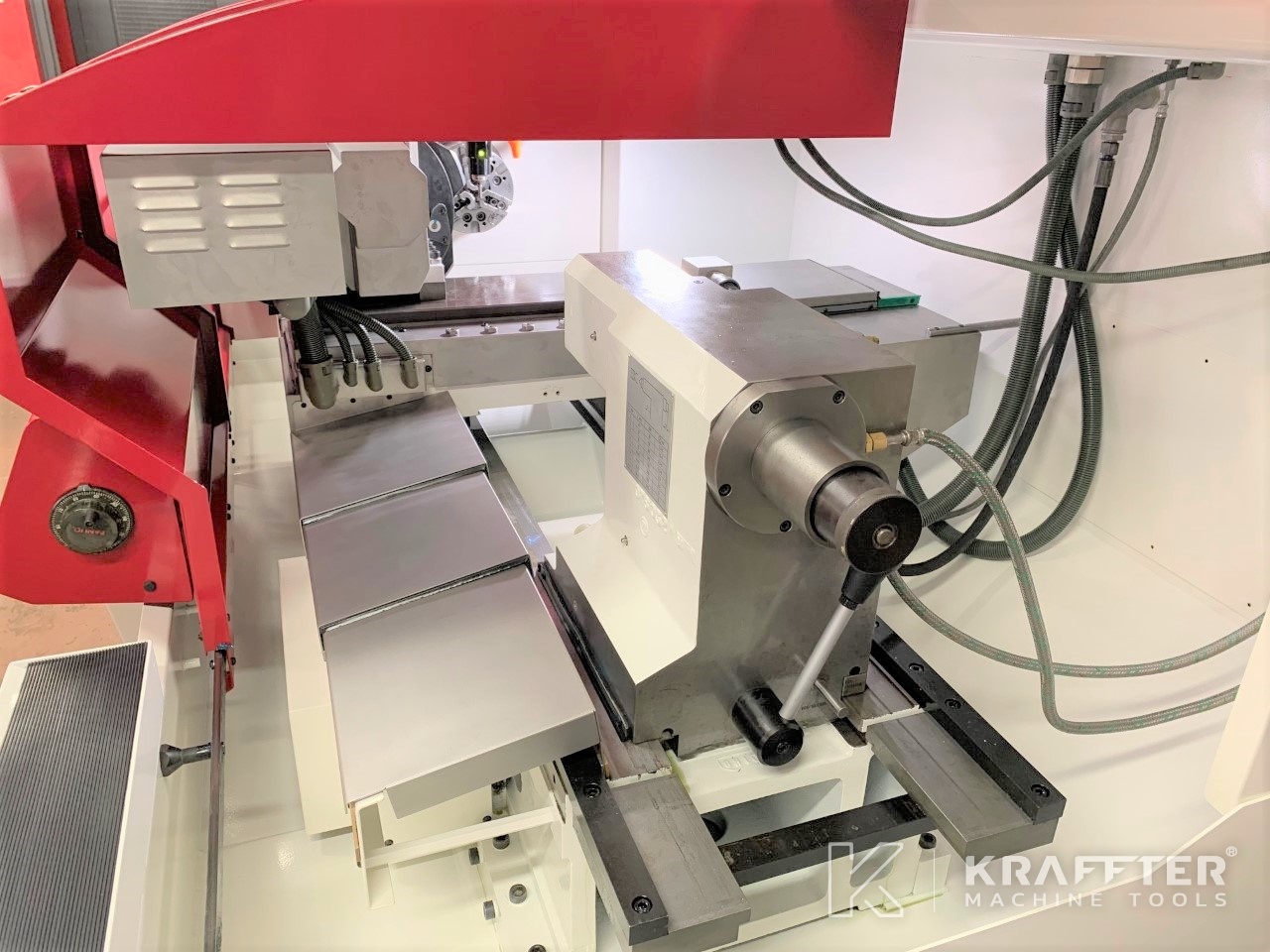

- x 1 pneumatic tailstock Mo.5 – 0180-65200-001
- x 1 preparation for fitting tailstock - 0180-65200-001
- x 1 operated pedal for clamping device (chuck) – 0180-92000-000

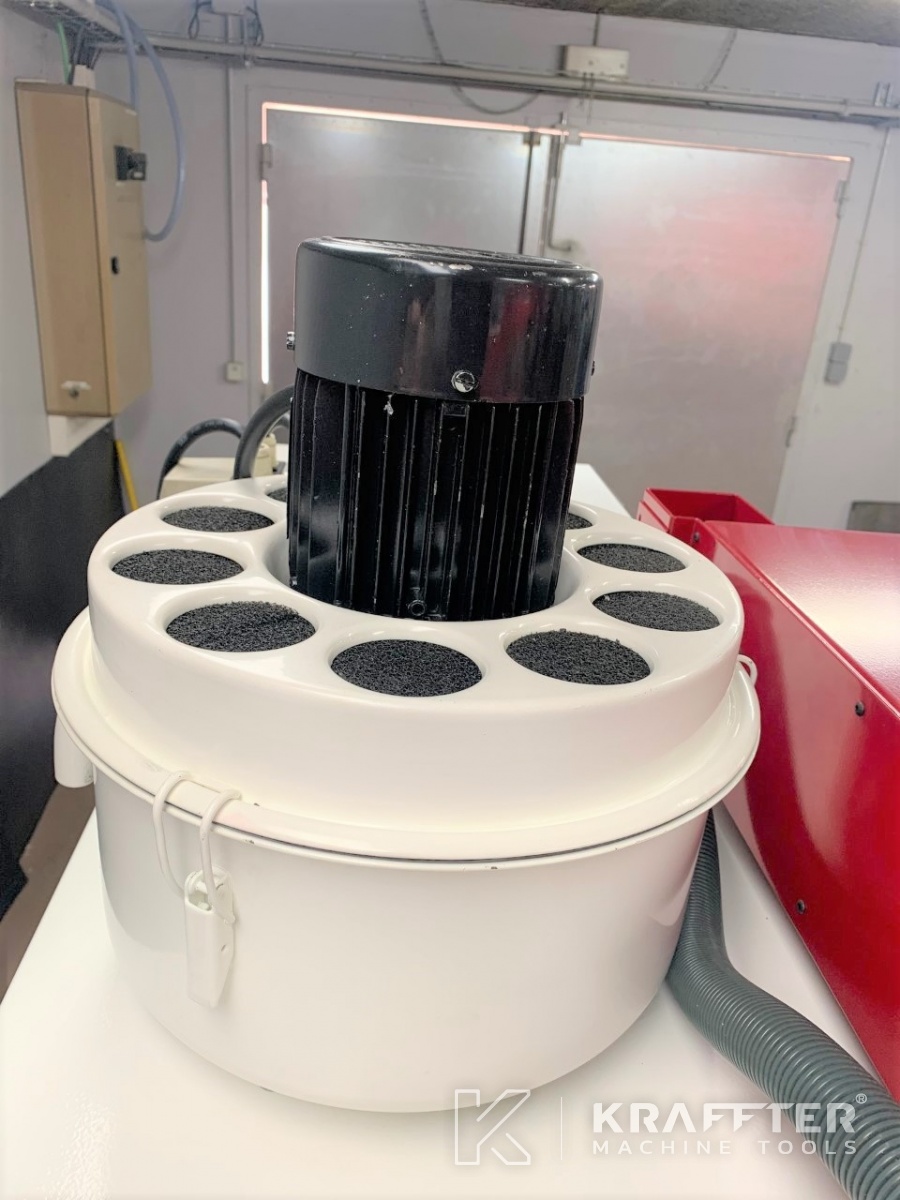

- x 1 air extraction unit
- x 1 set of technical books (users manuals, GE FANUC 18i control guide, DUPLOMATIC guide, RENISHAW guide)
*** Possibility to include a chip conveyor requiring additionnal cost***
