Sold

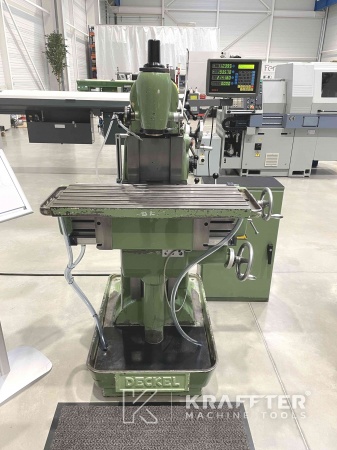

Type of machine : Manual milling machine
Brand : DECKEL
Stock N° : 20690-046
Model : FP2
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Number of axes
3
Stroke X axis
400 [mm]
Stroke Y axis
200 [mm]
Stroke Z axis
400 [mm]
Traversing feeds X, Y
1200 [mm/min]
Rapid feed Z
1200 [mm/min]
Drilling head stroke
60 [mm]

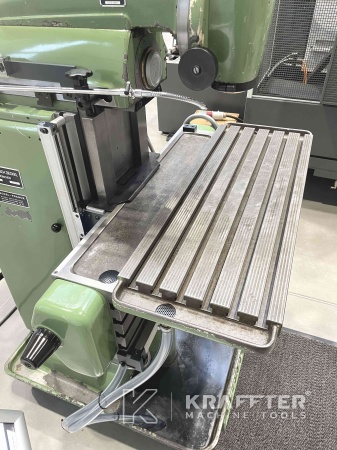

Table dimensions
705 x 285 [mm]
Vertical spindle type
ISO 40

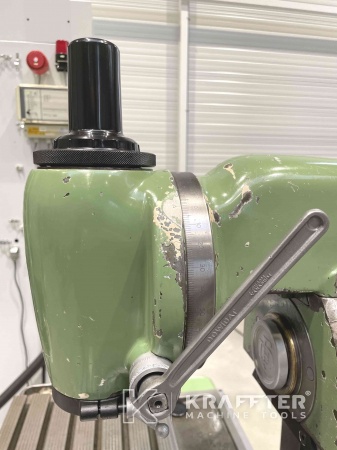

Vertical milling head orientable
360°
Horizontal spindle type
ISO 40
Min. spindle speed
40 [rpm]
Max. spindle speed
2000 [rpm]
Spindle power
2.2 [kW]
Number of spindle speeds
18
Number of cutting speeds
18

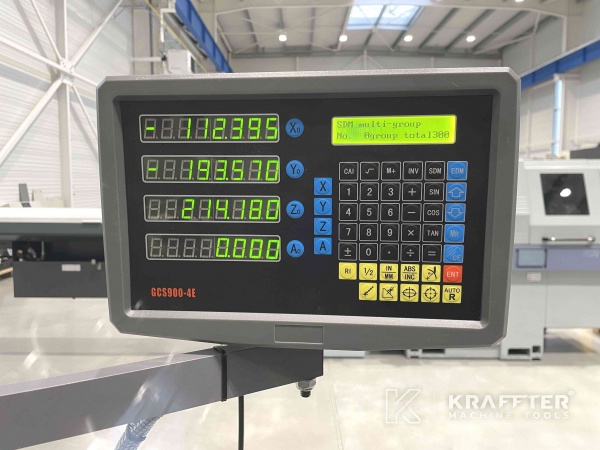

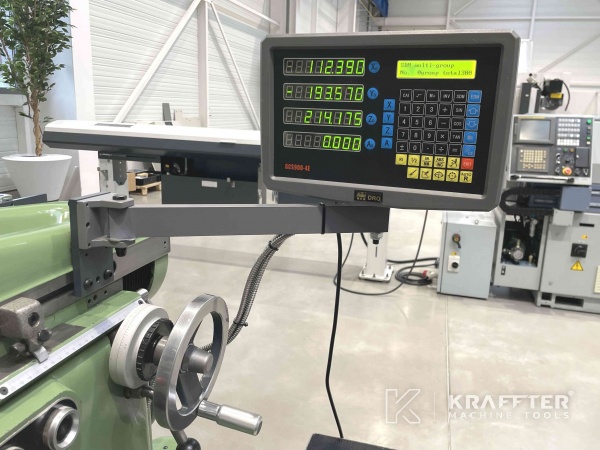

Digital read out
3 axes
Lubrication tank with pump
Yes
Supply voltage
380 [V]
Weight
1150 [Kg]
Machine dimensions
1150 x 1250 x 1600 [mm]
Equipment included:

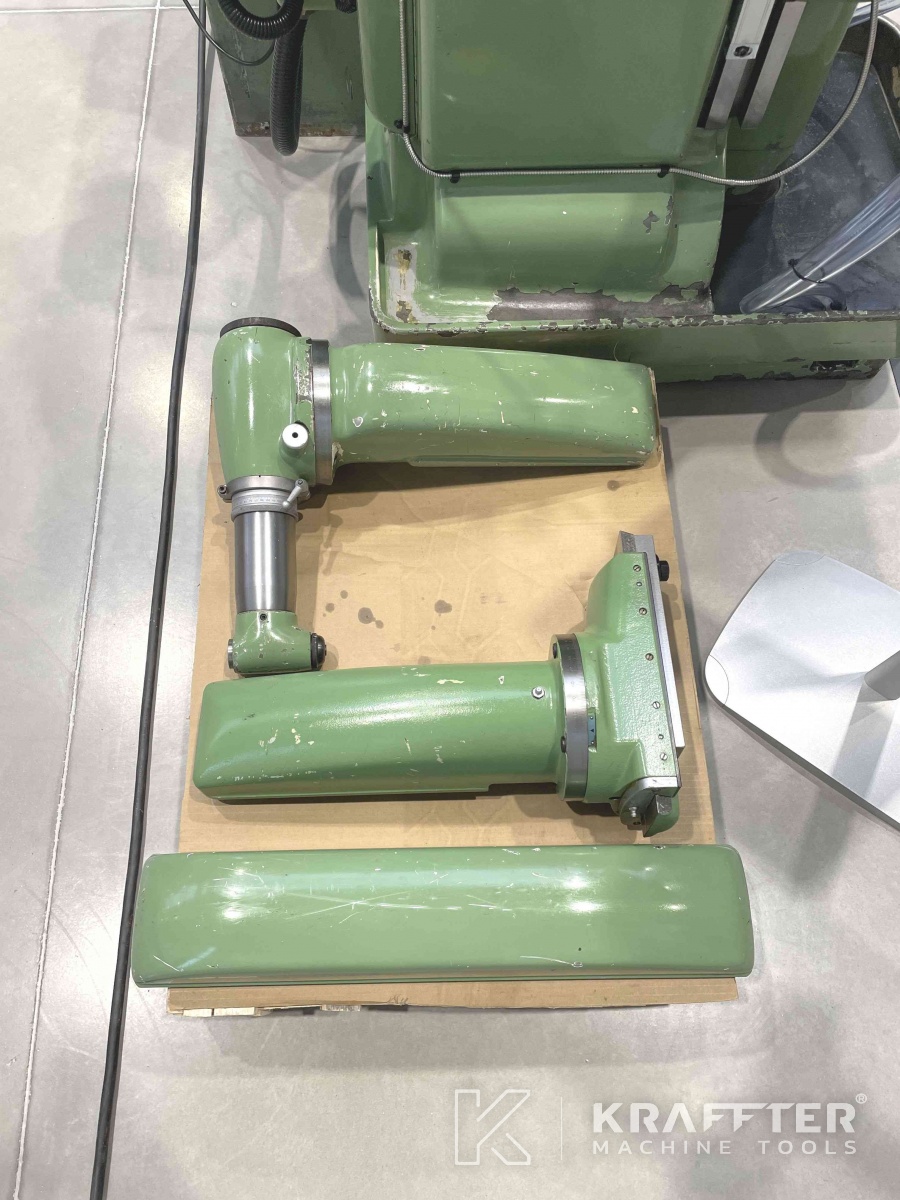

x1 slotting head (stroke 80 [mm] - tilting +/- 90°)
x1 vertical milling head
x1 angle milling/drilling head (swivelling head)
x10 collets type 355E
x2 reduction sleeves ISO40 to 355E
Various attachment ISO40 - see photos
x1 service manual (in French)
