Sold

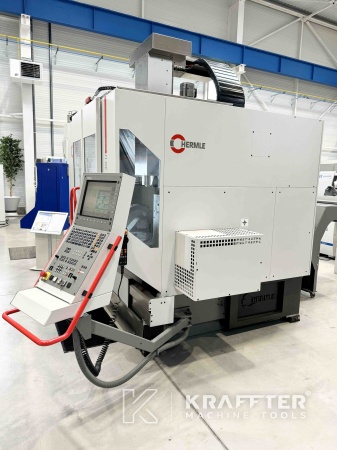

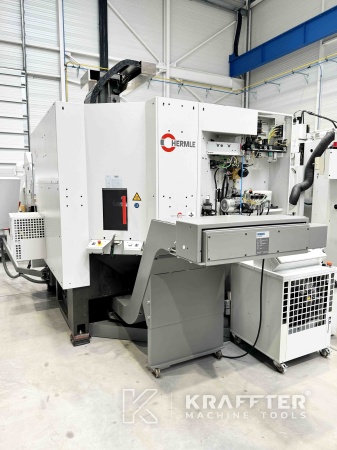

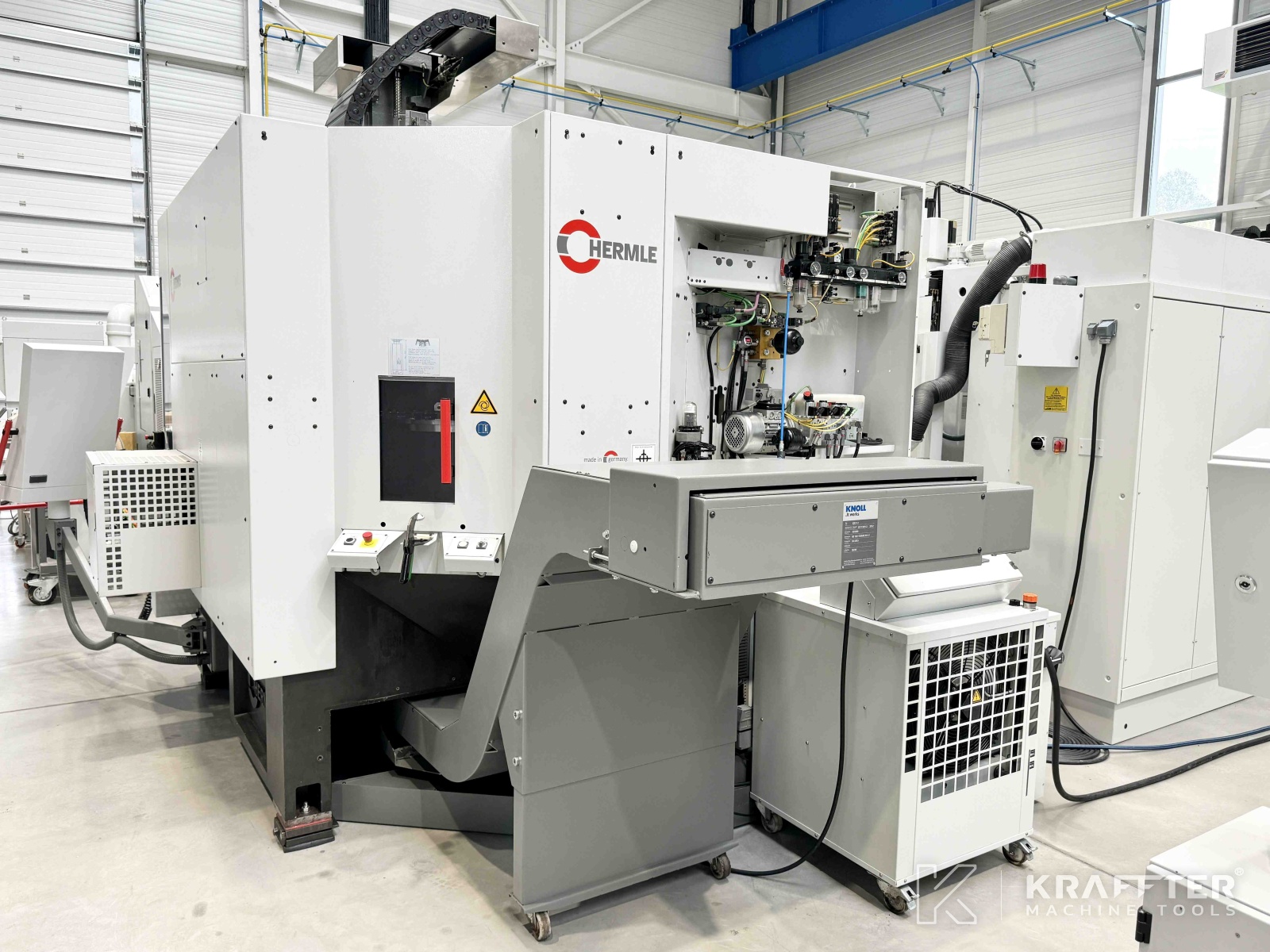

Type of machine : Vertical machining center
Brand : HERMLE
Stock N° : 90093

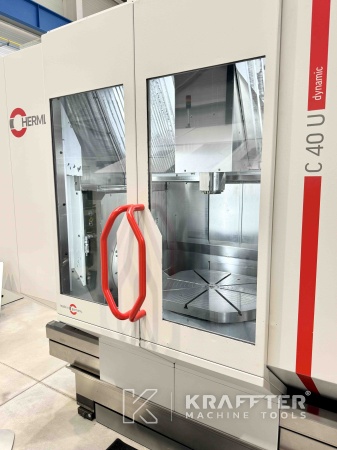

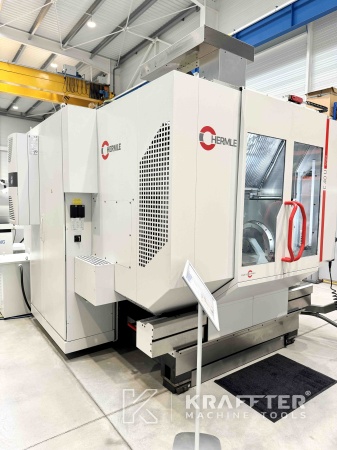

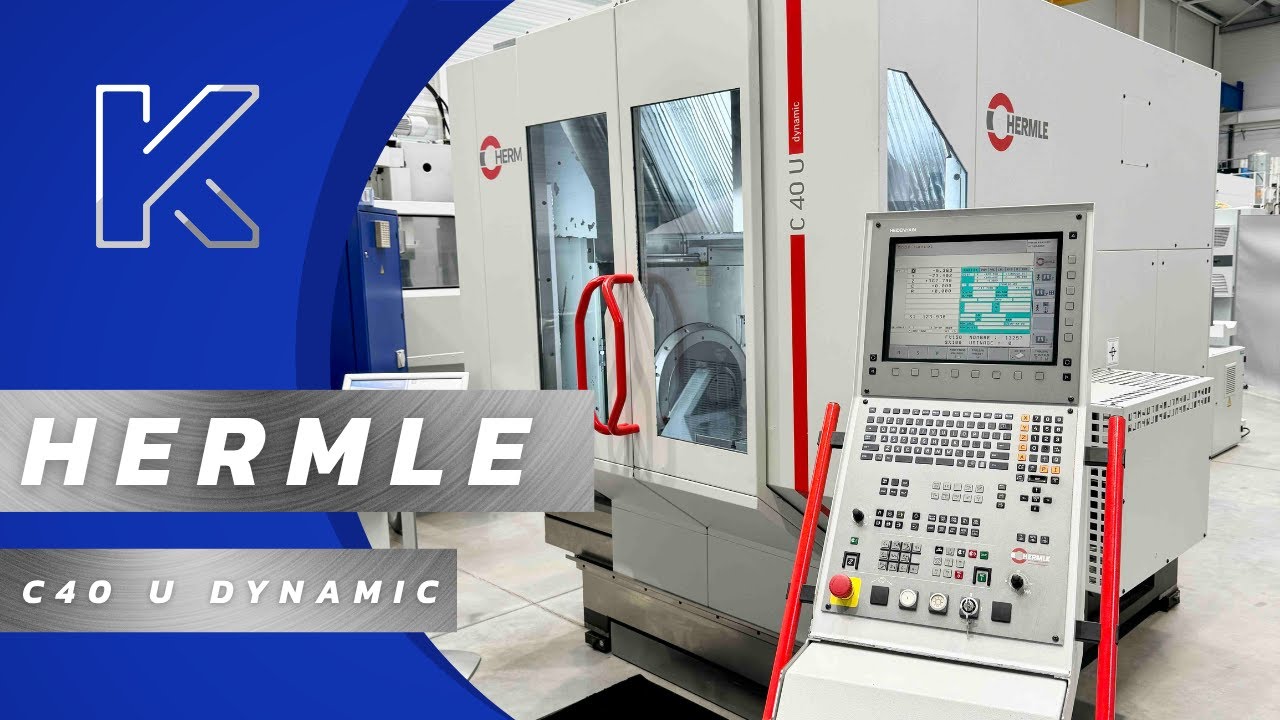

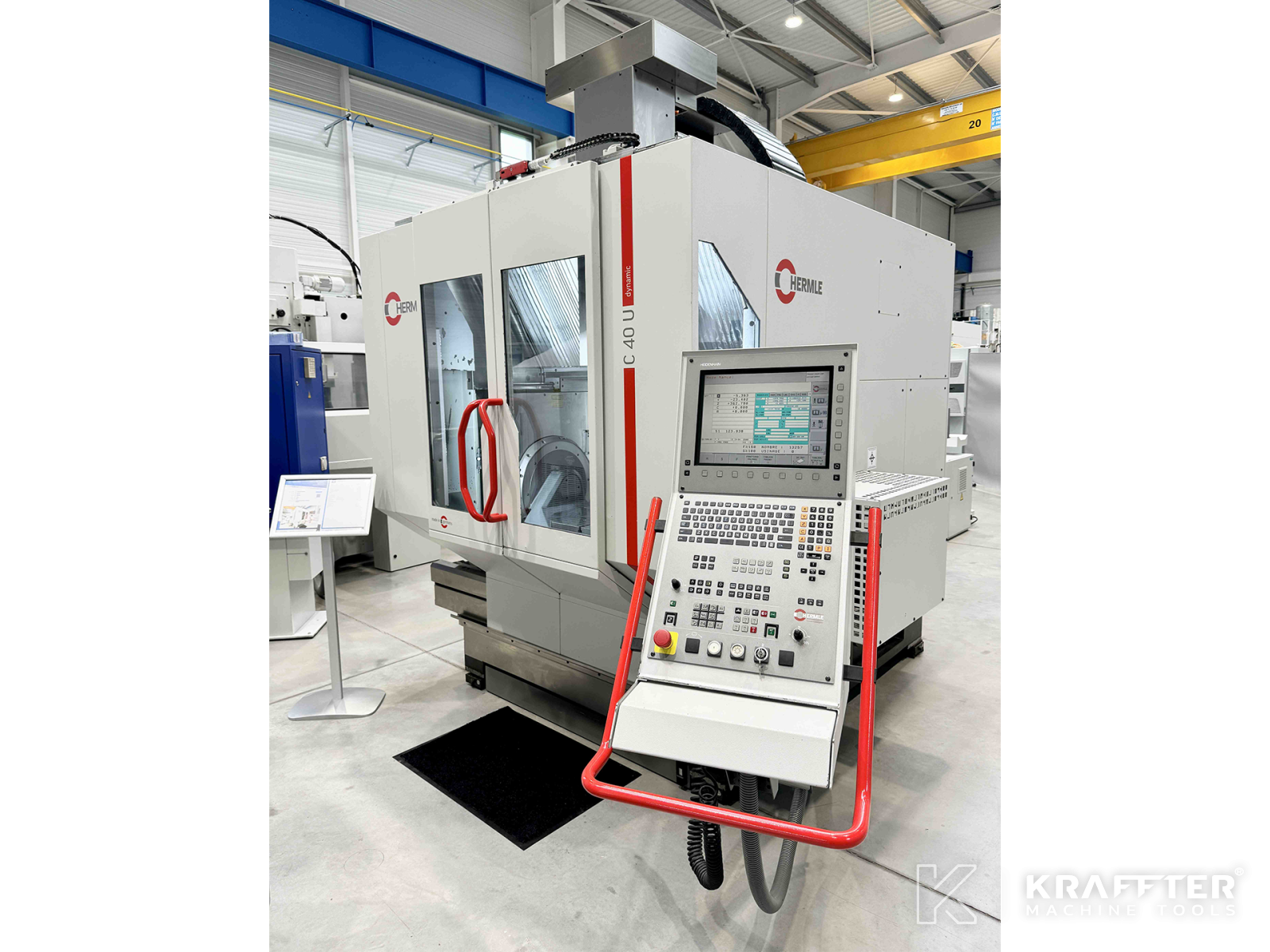

Model : C40 U dynamic
Year : 2012
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation
CNC control

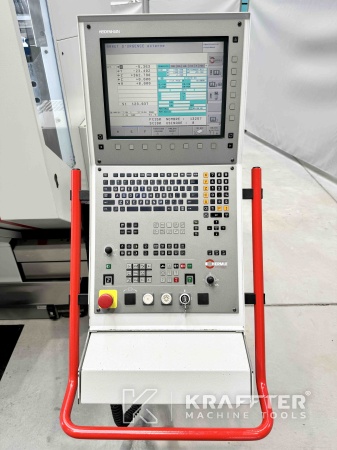

HEIDENHAIN iTNC 530
Number of simultaneous axes
5
Stroke X axis
850 [mm]
Stroke Y axis
700 [mm]
Stroke Z axis
500 [mm]
Traversing feeds X, Y and Z axes
60000 [mm/min]
Axes acceleration
10 m/s²
Resolution X axis
0.0001 [mm]
Resolution Y axis
0.0001 [mm]
Resolution Z axis
0.0001 [mm]

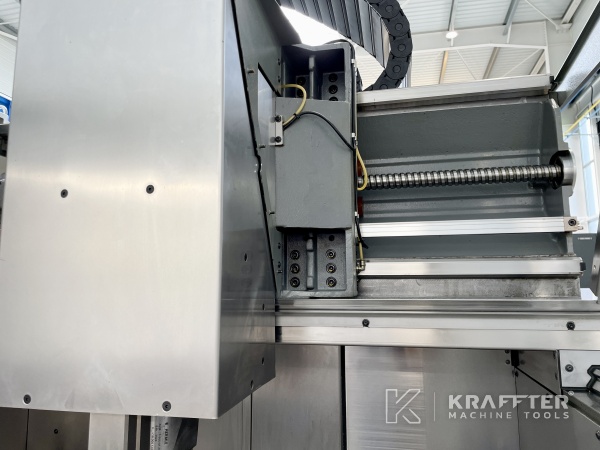

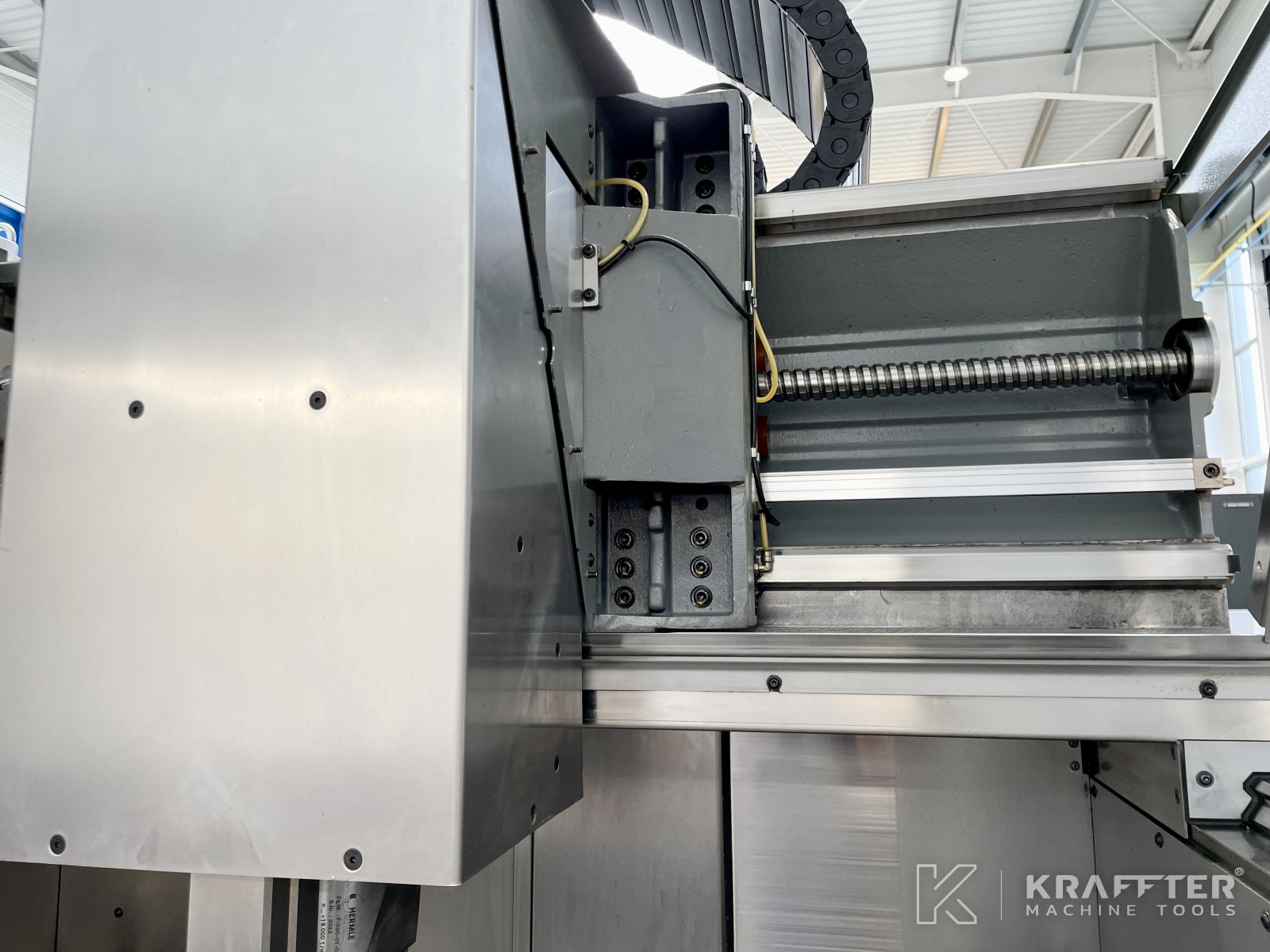

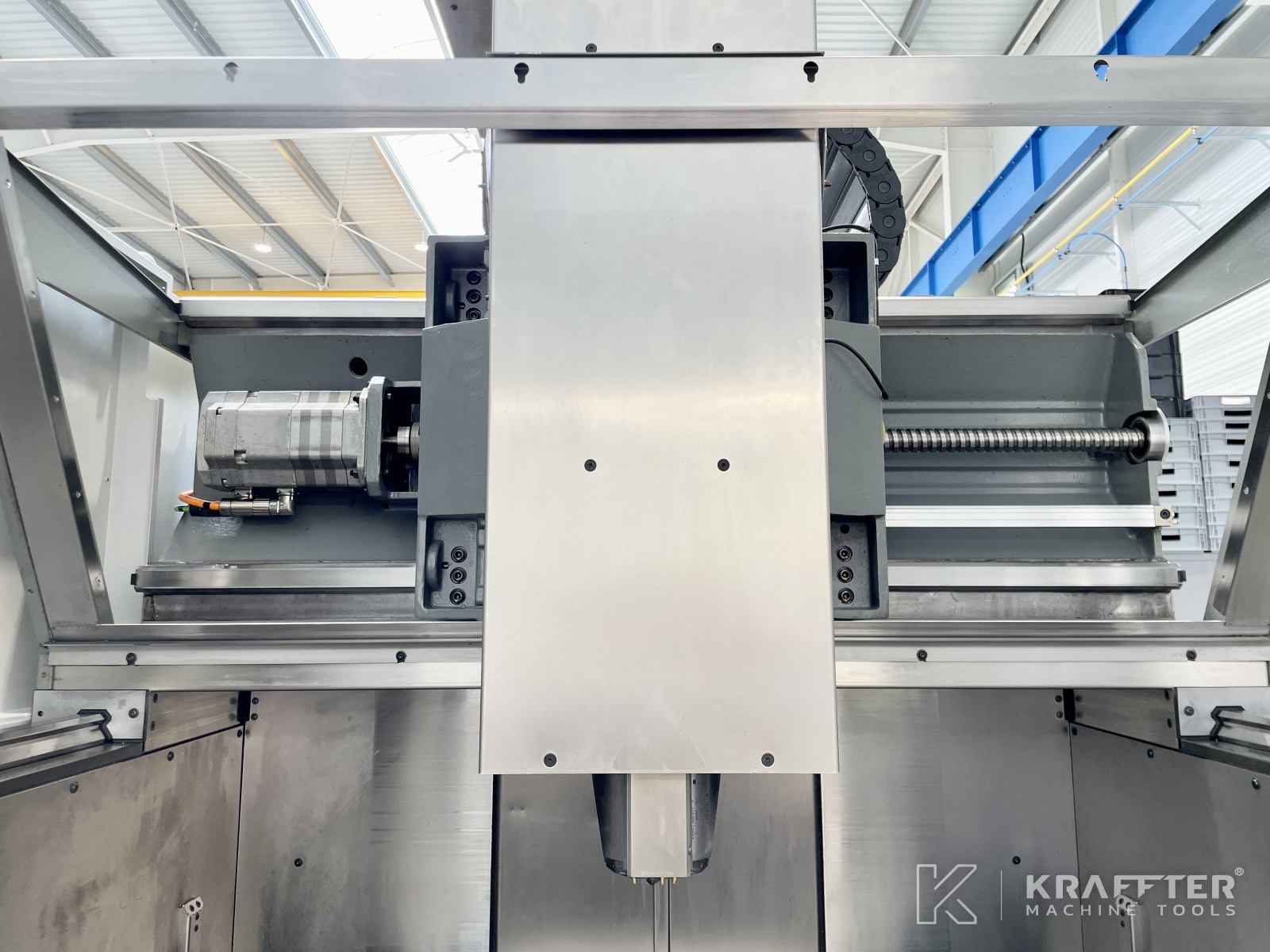

X axis ball screw, Ø x pitch
40 x 20 [mm]
Y axis ball screw, Ø x pitch
50 x 40 [mm]
Z axis ball screw, Ø x pitch
40 x 30 [mm]
Table surface Ø
800 [mm]

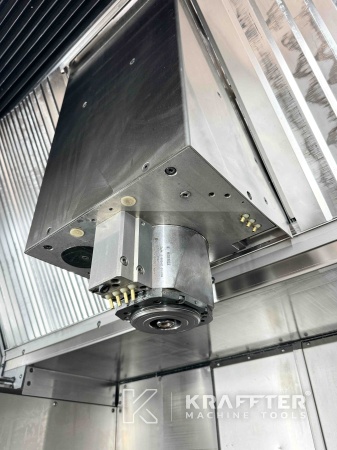

Spindle type
HSK-A 63
Max. spindle speed
18000 [rpm]

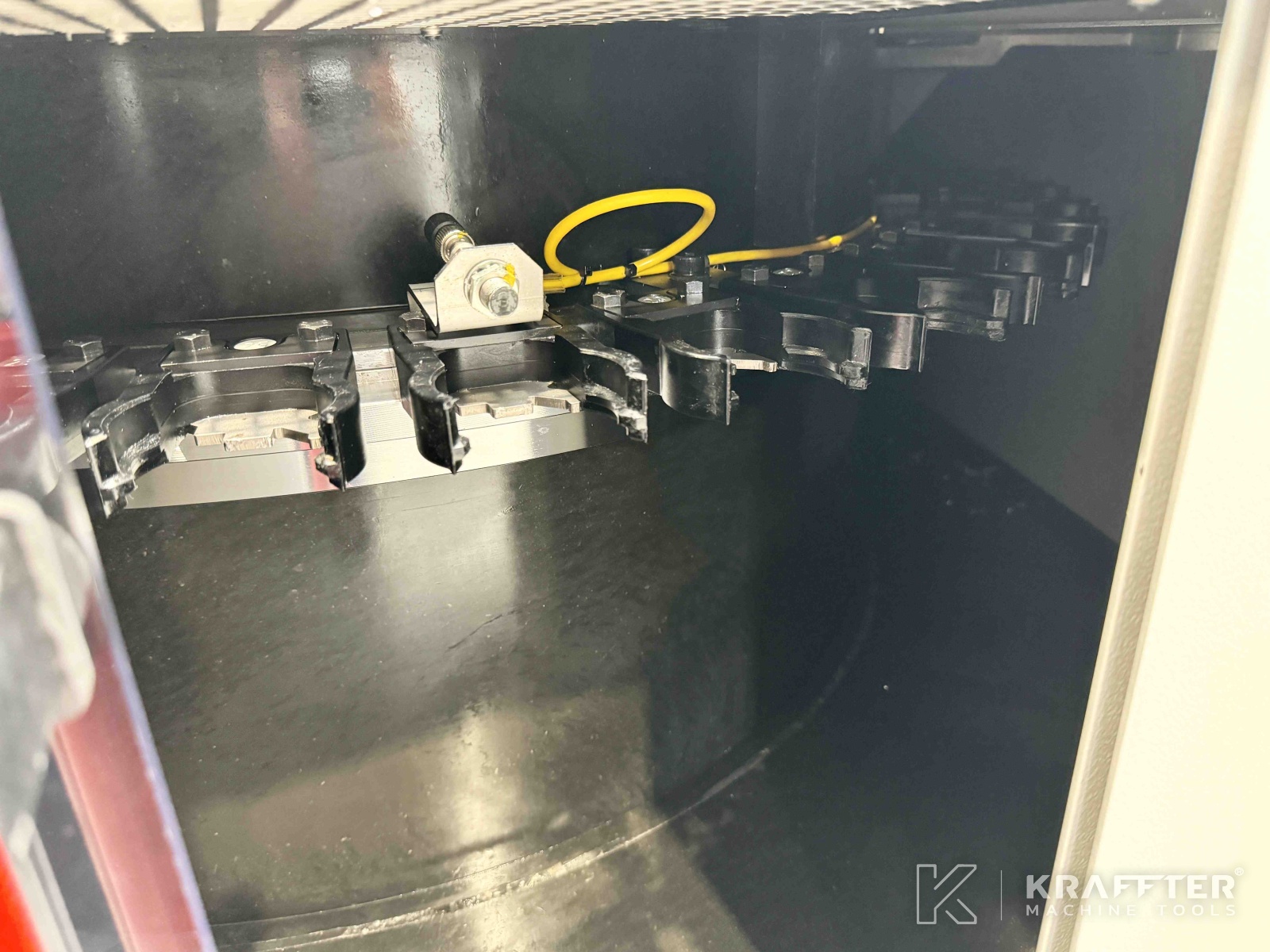

Tool changer magazin number of stations
38
RS232 Interface
Yes
Lubrication tank capacity
350 [l]
Rated current
63 [A]
Supply voltage
400 [V]
Number of running hours
11698 [h]
Weight
10700 [Kg]
Equipment included:

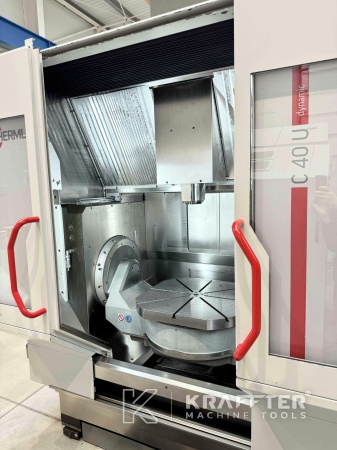

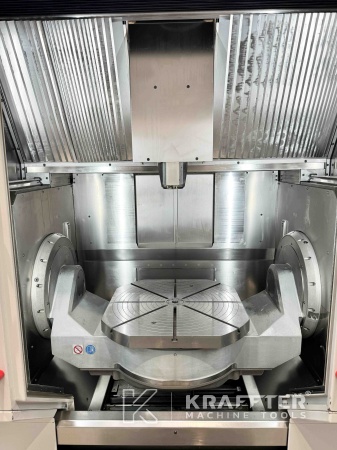

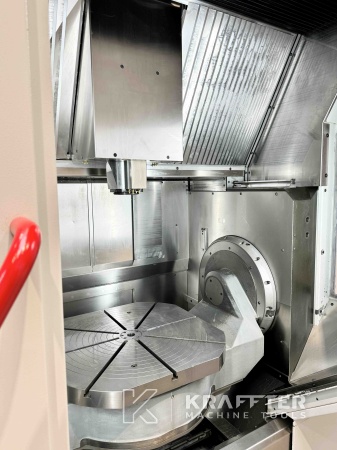

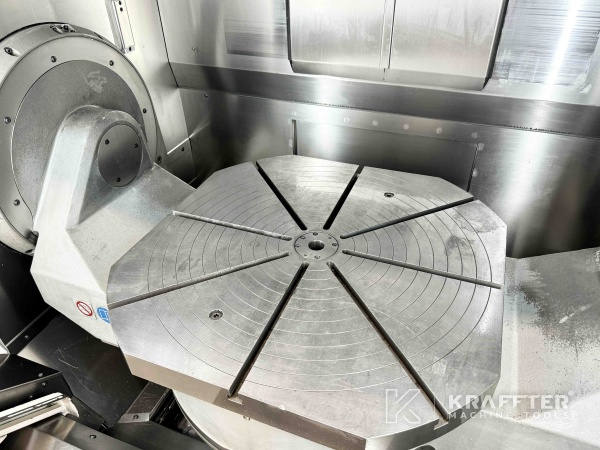

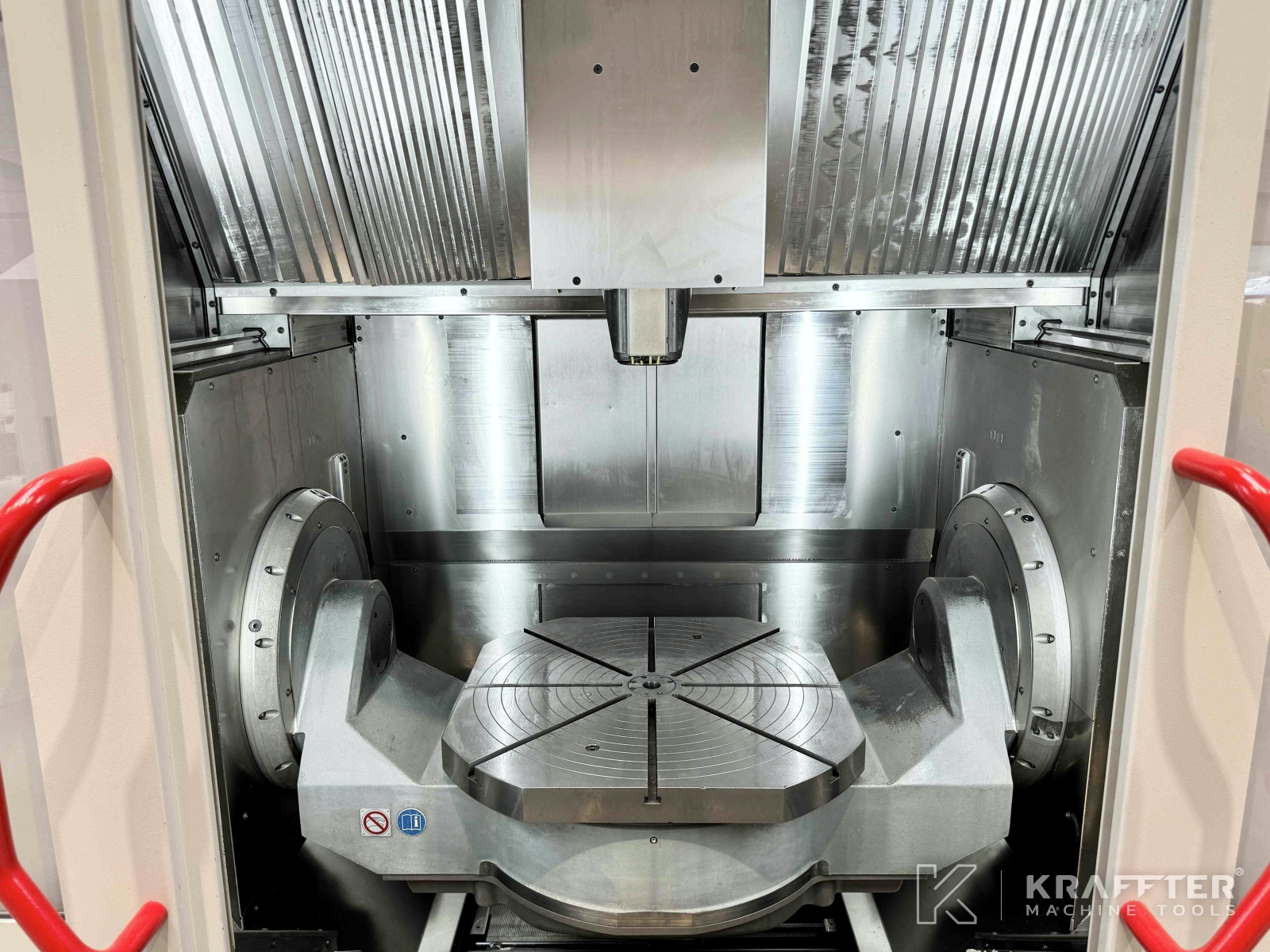

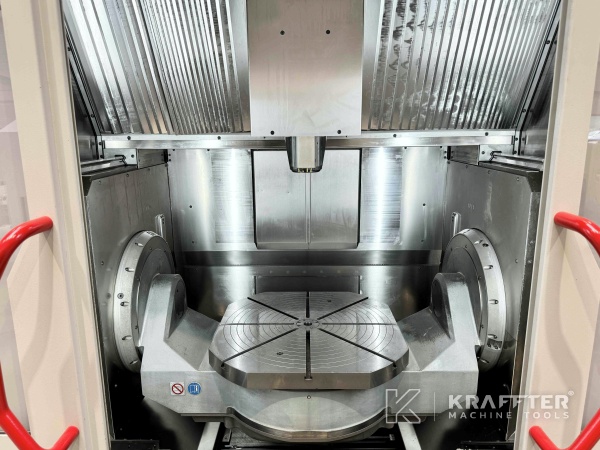

x1 swiveling table Ø800 [mm]

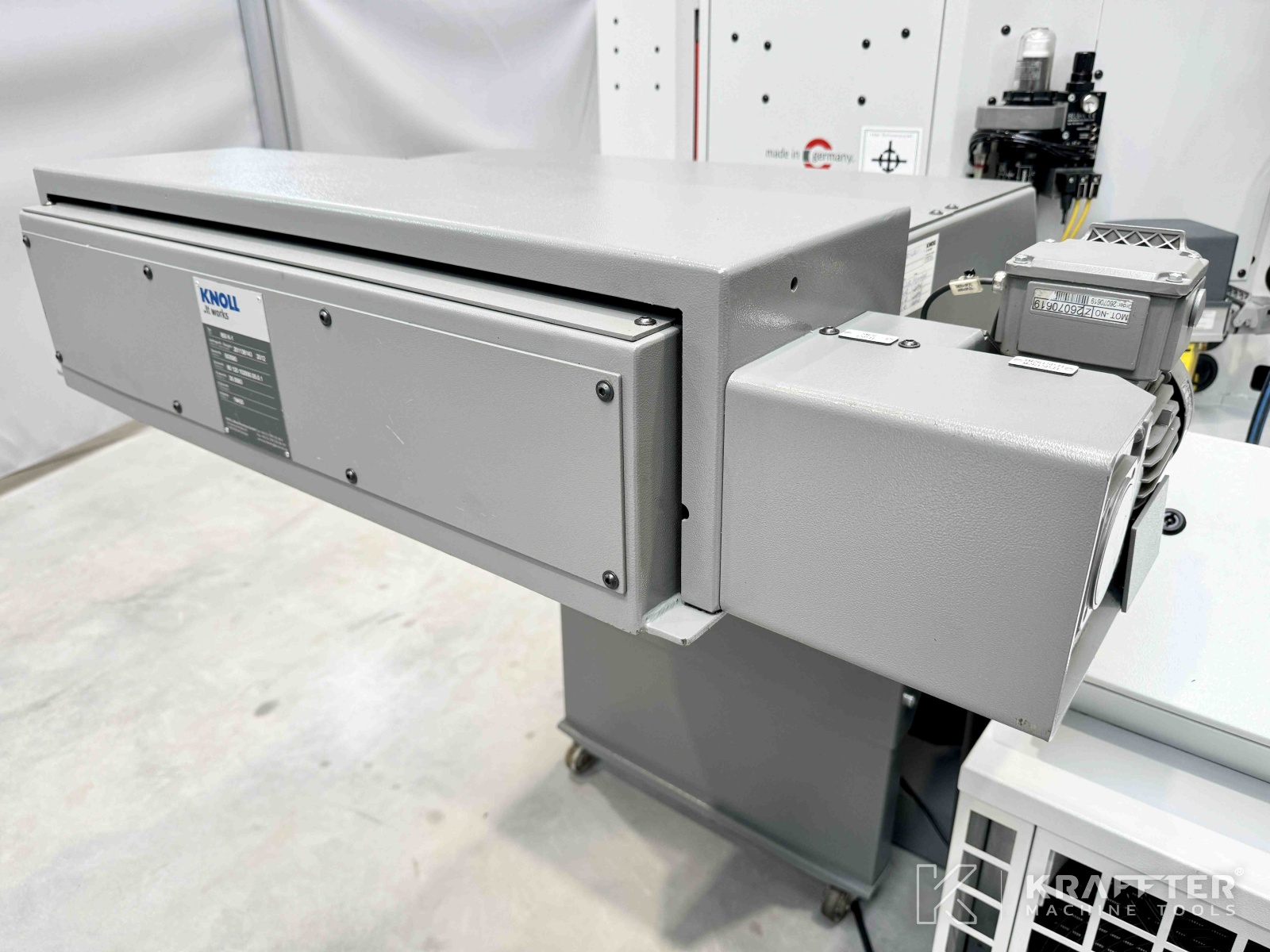

x1 chip conveyor

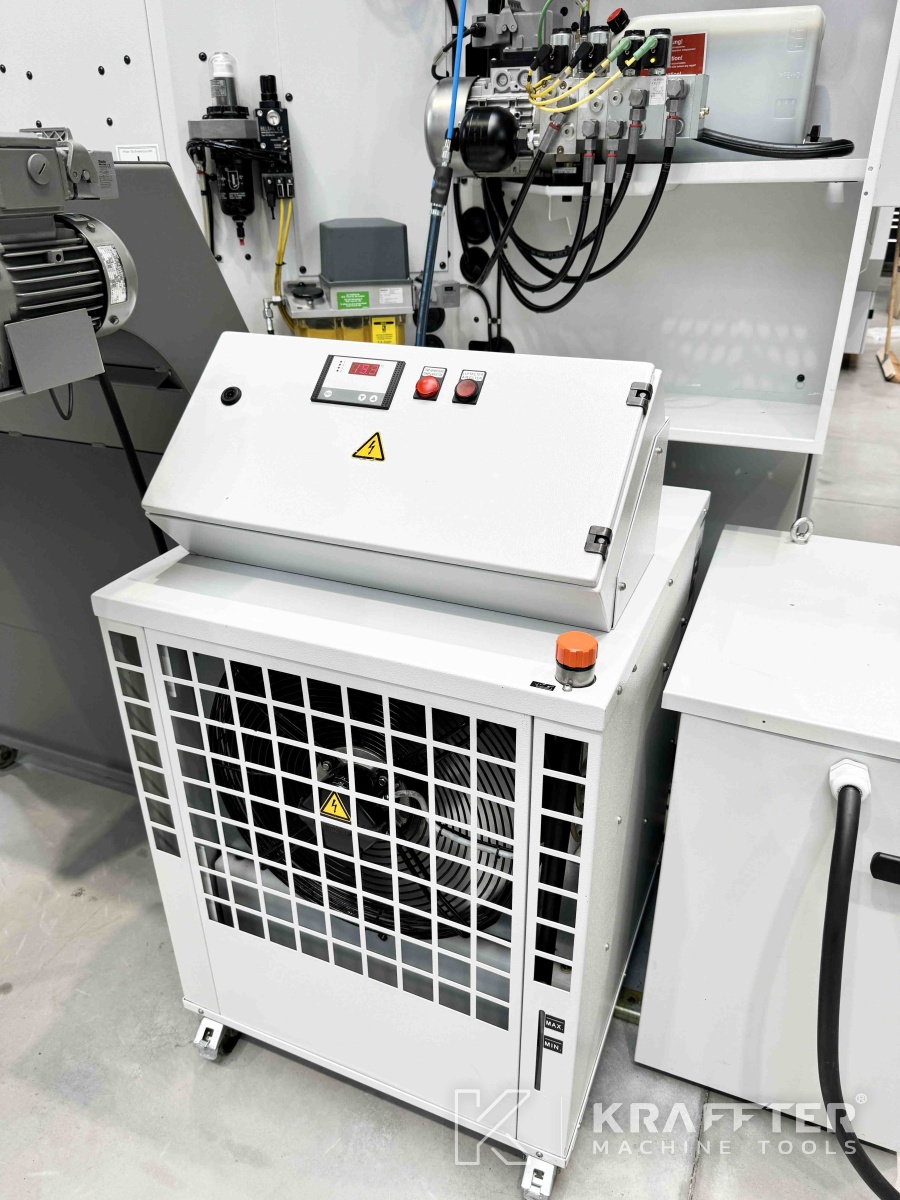

x1 spindle cooler unit
x1 cone attachment blowing device

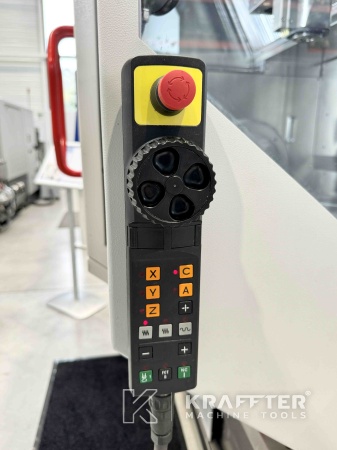

x1 HEIDENHAIN iTNC remote electronic handwheel

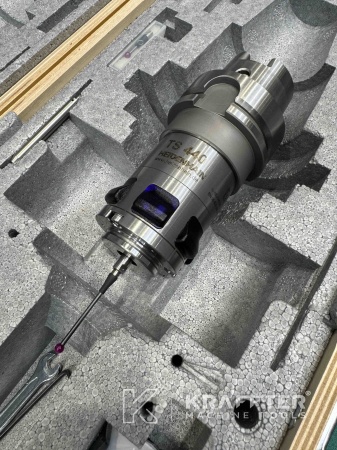

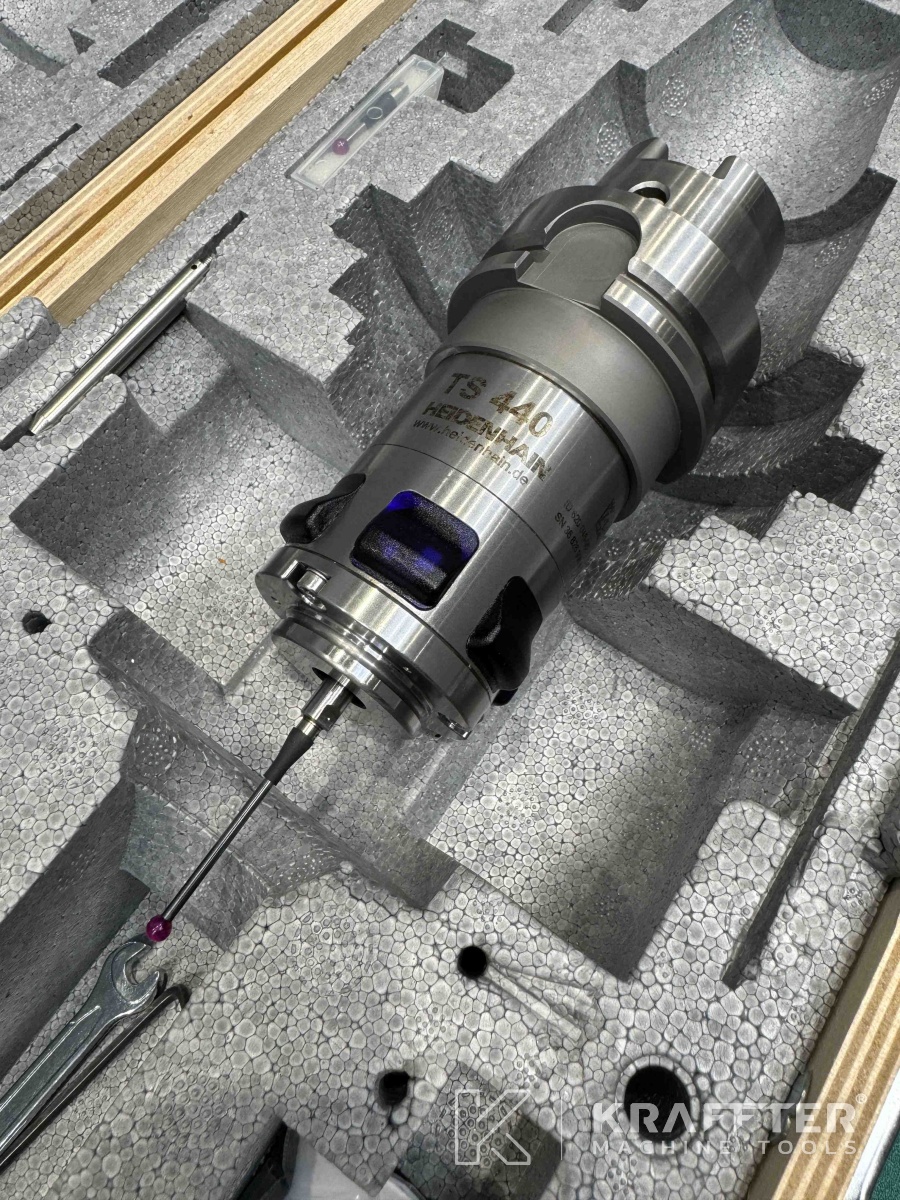

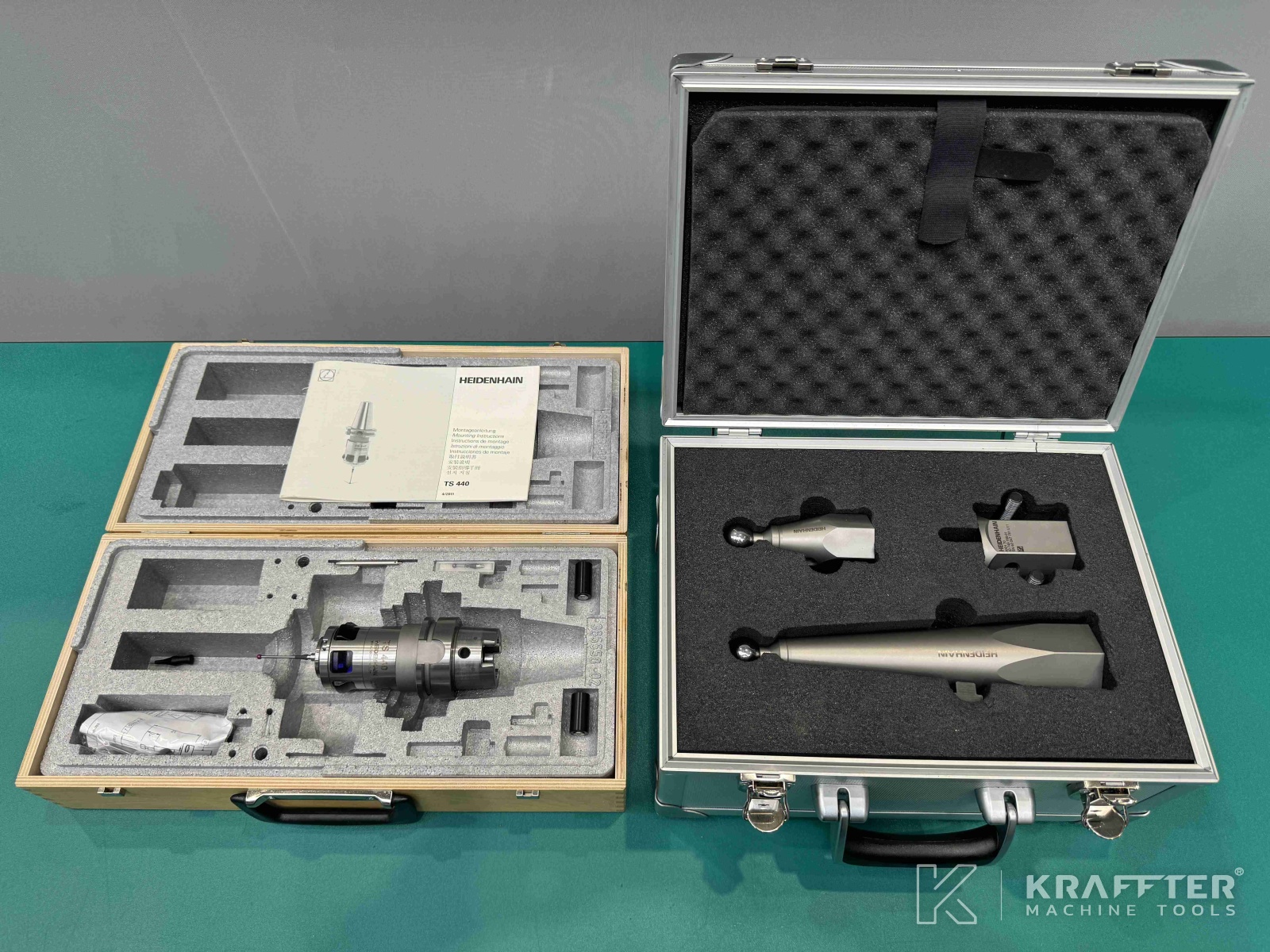

x1 HEIDENHAIN TS 440 part probe

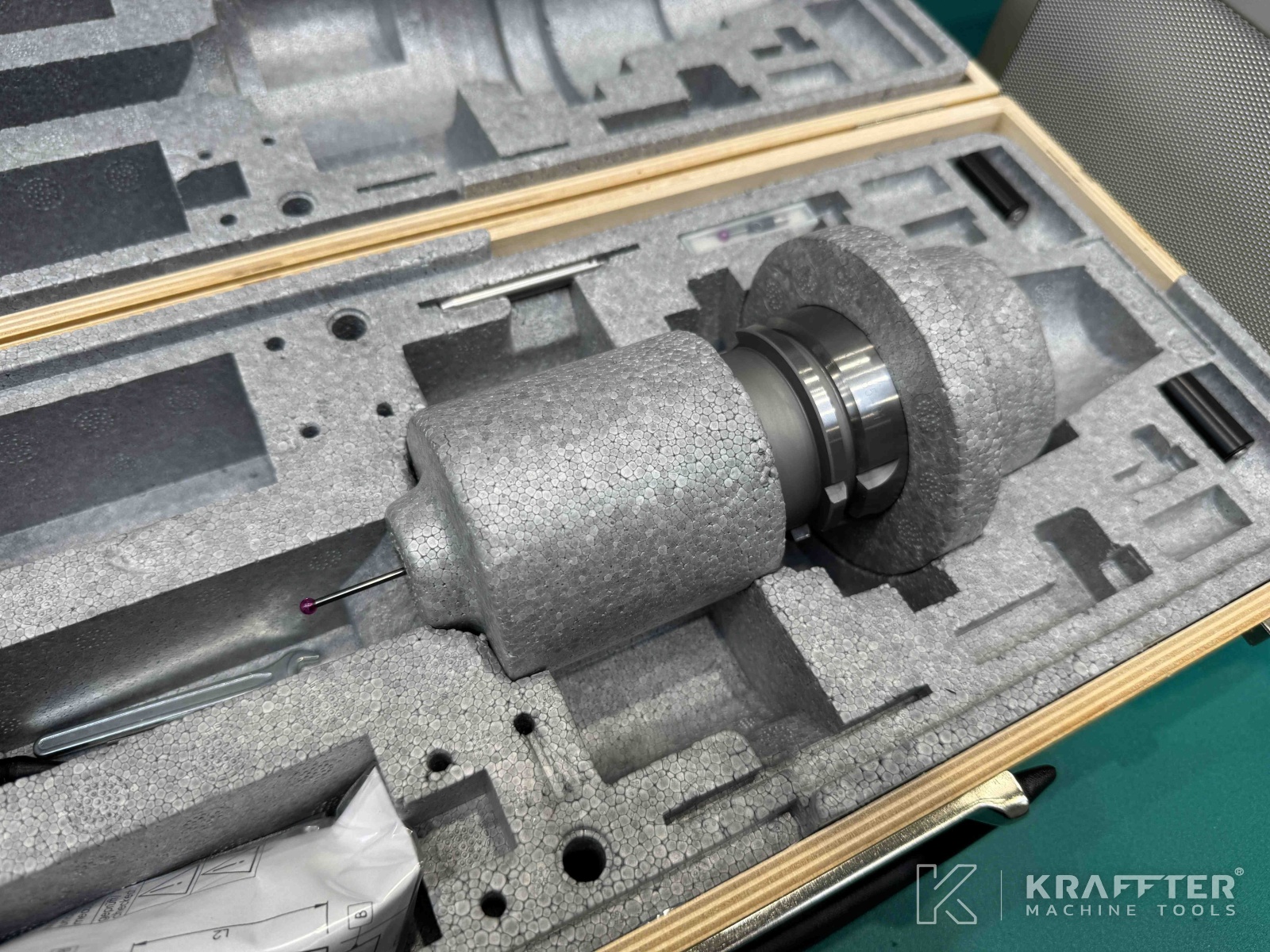

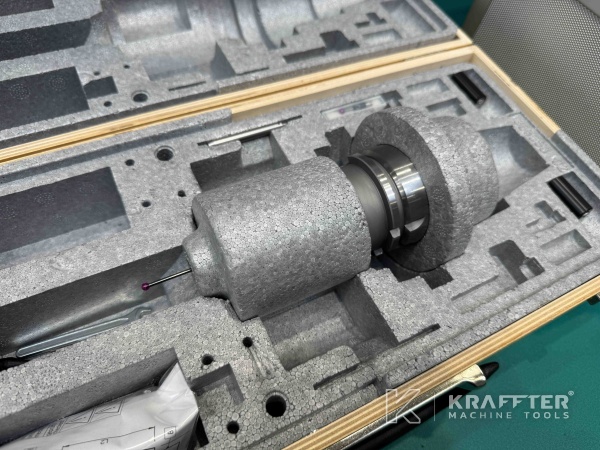

x1 calibration ball kit HEIDENHAIN 671861-02 KKH 70/100/250
x1 air pressurisation for HEIDENHAIN glass scales in X, Y and Z axes
